H-DVD5029 - DVD player HYUNDAI - Free user manual and instructions

Product Type	DVD Player
Dimensions (W x D x H)	430 mm x 250 mm x 40 mm
Weight	2.5 kg
Power Supply	AC 110-240V, 50/60Hz
Power Consumption	15W (typical)
Playable Discs	DVD, DVD±R/RW, CD, CD-R/RW, MP3, JPEG
Video Outputs	HDMI, Composite (RCA), Component (YPbPr)
Audio Outputs	Analog Stereo (RCA), Coaxial Digital
USB Port	Yes, for media playback
Remote Control	Included (batteries not included)
Laser Class	Class 1 (safe under normal use)
Region Code	Region 2 (EU) or multi-region (varies)
Included Accessories	Remote control, user manual, RCA cable
Cleaning Instructions	Use a soft, dry cloth; avoid liquids
Safety Features	Auto-off after idle, child lock (via menu)
Repairability	User-replaceable: remote batteries, fuses (internal fuse by technician)
Warranty	1 year (check local terms)

Frequently Asked Questions - H-DVD5029 HYUNDAI

How do I connect the DVD player to my TV?

You can connect using HDMI for best quality, or use the provided composite (RCA) cables. Insert the cables into matching color ports on both devices and select the correct input on your TV.

Why is there no power when I press the power button?

Check that the power cord is securely plugged into the player and a working wall outlet. If using a power strip, ensure it is turned on. Also check the fuse (if accessible) or test the outlet with another device.

The remote control is not working. What should I do?

First, ensure batteries are installed correctly and are fresh. Point the remote directly at the player's sensor (usually a small window on the front). Remove any obstacles. If still not working, try resetting by removing batteries for 30 seconds.

My disc is not recognized or won't play.

Ensure the disc is inserted with the label facing up. Check that the disc is clean and free of scratches. This player supports DVD, CD, and MP3/JPEG discs. For burned discs, use high-quality media and finalize the disc after burning.

There is no sound or only one channel works.

Verify audio cables are connected properly. If using HDMI, ensure the TV is set to external audio. Check the player's audio settings: set to PCM or Bitstream depending on your setup. Test with another disc or source.

How can I play movies from a USB drive?

Insert a USB drive with compatible files (e.g., MP4, AVI, MP3, JPEG) into the USB port. Use the Source or Input button on the remote to select USB mode. Navigate using the arrow keys and press Enter to play.

What is the region code and can it be changed?

This player is set to Region 2 (Europe). Most commercial DVDs are region-coded. Changing the region is usually limited to a few attempts (e.g., 5) via the menu, but may void warranty. Consider multi-region models for global discs.

How do I clean the DVD player?

Unplug the player before cleaning. Use a soft, dry microfiber cloth to wipe the exterior. Never use liquids or sprays. For the disc tray, use a cotton swab lightly dampened with water, only on the tray edges. Use a lens cleaning disc for the laser lens occasionally.

The picture is distorted or has poor quality.

Check cable connections and ensure they are not loose. Try a different input on your TV. For composite cables, avoid interference from other devices. If using HDMI, try a different HDMI port. Adjust the TV's picture settings (sharpness, brightness).

Where can I find replacement parts or repair service?

Contact Hyundai support or an authorized service center for genuine parts. Common user-replaceable parts include the remote control (batteries) and power cord. Internal repairs should be done by a qualified technician to avoid voiding warranty.

USER MANUAL H-DVD5029 HYUNDAI

Exterior view of a Hyundai DVD player console with power control panel (no readable text or symbols beyond branding)

Two glossy spheres with reflections, no text or symbols present

DVD-ПРОИГРЫВАТЕЛЬDVD PLAY

Table of contents

Dear customer!

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents 2

Before you start 3

Utilization of the product 3

Important safeguards 3

Supported formats 4

Video/audio system connection 4

Operation 5

Front panel.... 5

Rear panel 5

Remote controller 6

Changing the battery 6

Button functions 7

Open/Close 7

Power 7

Title 7

Subtitle 7

Angle 7

L/R 7

Menu 7

Play/Pause 7

Cursor buttons 7

Enter 7

Stop 7

Forward 7

Rewind 7

Previous/Next 7

Slow 7

VOL+/- 7

Setup 8

N/P 8

Prog 8

Repeat 8

A - B 8

Language 8

Zoom 8

Mute 8

OSD 8

Time 8

Copy 8

DVD/USB 8

Remain.... 8

Retain 8

Video 8

PBC 9

System setup 9

General setup 9

Audio setup 9

Dolby setup 10

Video setup 10

Preference setup 10

Playback operations 11

USB operation 11

Karaoke 11

Ripping 11

MP3/JPEG/Compressed video 12

Copying data 12

Deleting data from USB 13

General information 14

Handling compact discs 14

Cleaning discs 14

Accessories 14

Troubleshooting 15

Specification 16

Utilization of the product

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Please contact your local authorities for the correct method of disposal. By doing so, you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Important safeguards

Alerts the user to the presence of dangerous voltage within the product's enclosure.

Alerts the user to the presence of important operating instructions.

Waring Big RISK OF ELECTRIC SHOCK DO NOT OPEN. Refer servicing to qualified service personnel.

This mark indicates this unit belongs to class 1 laser product.

• To prevent the risk of fire or electric shock, don't allow water to come into contact with the device and don't use the device in high humidity conditions.
• The device is equipped with high voltage components and a laser system, hence you shall not open the device and repair it by yourself. The laser beam is dangerous to eyes when the housing is removed. Don't look at it.
• When the device is moved from cold premises to the warm room or vice versa, condensate may form on the laser head and the device may not operate properly. In this case please turn the device on for 1-2 hours without disc before playback to heat it to a proper operation temperature.

• Don't try to manually open or close the disc tray to load discs.

• Disconnect the receiver only when there is no disc therein.

• If you are not going to use the device for a long time disconnect it from the wall outlet.
• Before turning the device on, please make sure that you have connected it properly, adjust the volume of speakers and amplifiers of your radio system to the minimum. Adjust the volume as necessary only after normal playback has started to avoid damage of your audio system.
• Use supply sources of rated voltage, otherwise the unit may not function or may be damaged.
• Place the unit on a horizontal surface. Keep the unit ventilated. Don't block the heat hole. Overheat may cause malfunction.
• Do not place any objects on the player's cover, this may make it function improperly (incorrect playback).
• Please place the device in a dry and well-aired area. Do not place it near heating units or expose it to direct sunlight, mechanical vibration, humidity or excessive dust.
• If using power plug and appliance coupler as a cutting-connecting device, it should be operated easily.
• Never use liquid detergents, abrasives or organic compounds (alcohol, gasoline, etc) to clean the unit body.
• All repairs and technical service should be made by qualified specialist from service centers.

All images provided herein are schematic drawings and may differ from real objects.

Supported formats

Disc types	Symbol Contents
DVD		Compressed digital audio - video
MPEG4 (DivX)		Compressed digital audio - video
Video-CD (VCD)		Compressed digital audio - video
Super-VCD (SVCD)		Compressed digital audio - video
CDDA		Digital audio
MP3		Compressed digital audio
Kodak Picture CD		Compressed digital static image
JPEG		Compressed digital static image

Video/audio connection

Before you start connection of external devices, ensure that power of the unit is switched off.

Following outputs are available in this unit.

Composite video

Use the cable with yellow plug of an AV cable to connect the composite video output of this unit to the video input of a TV/monitor.

Stereo audio

Use a pair of AV cables (red for right/white for left) to connect the stereo audio outputs of this unit to the TV or a stereo input of power amplifier.

Coaxial digital audio

Use a special coaxial cable to connect the coaxial output of this unit to the coaxial input of a power amplifier.

MIC jack

MIC jack is used to connect a microphone (not included) to this unit.

- The connection you should make depends on the TV/monitor input terminals. Don't make all the connections at the same time; otherwise the produced picture will be affected.

- The physical connection should accord to the audio output setup of this unit.

Control elements

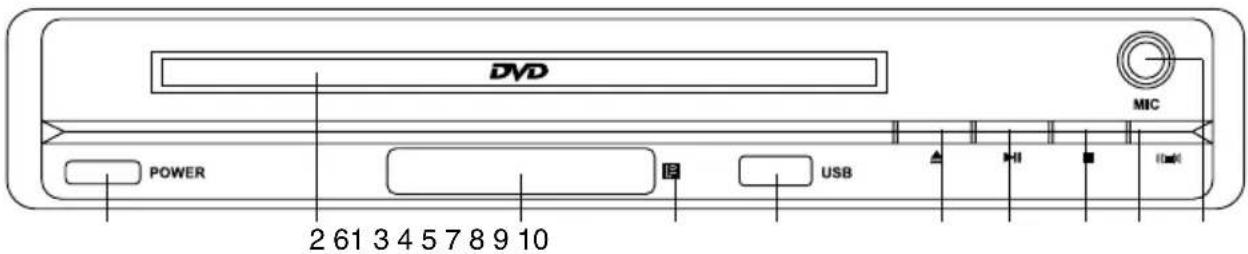

Front panel

1. POWER button
2. Disc tray
3. Display
4. IR sensor
5. USB port
6. ▲(OPEN/CLOSE) button
7. ▶(PLAY/PAUSE) button
8. ■(STOP) button
9. (L/R) button
10. MIC input

Rear panel

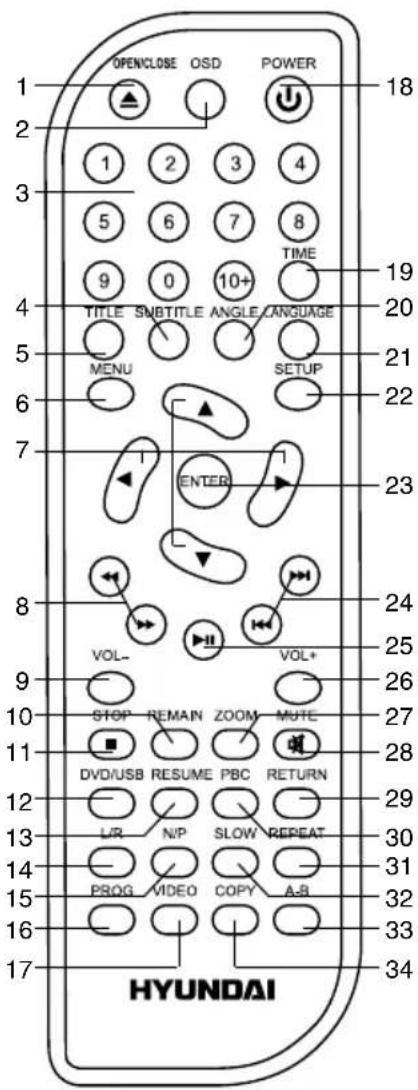

Remote controller (RC)

1. ▲(OPEN/CLOSE) button
2. OSD button
3. Number buttons
4. SUBTITLE button
5. TITLE button
6. MENU button
7. Cursor (▲/▼) buttons
8. ◀◀/▶(REWIND/FORWARD) buttons
9. VOL- button
10. REMAIN button

11. ■ (STOP) button

12. DVD/USB button

13. RESUME button
14. L/R button
15. N/P button
16. PROG button
17. VIDEO button
18. POWER button
19. TIME button
20. ANGLE button
21. LANGUAGE button
22. SETUP button
23. ENTER button
24. ◀◀/▶(PREVIOUS/NEXT) buttons
25. ▶(PLAY/PAUSE) button
26. VOL- button
27. ZOOM button
28. (MUTE) button
29. RETURN button 32. SLOW button
30. PBC button 33. A-B button
31. REPEAT button 34. COPY button

Changing the battery

1. Remove the battery compartment cover on the back of the RC.
2. Insert two AAA/1.5V batteries into the battery compartment making sure that the correct polarity is observed.
3. Install the cover back.

Diagram of a battery internal structure with an upward arrow indicating direction (no text or symbols)

123

Diagram of a battery internal structure with no visible text or symbols

Diagram of a mechanical device with a downward arrow and internal components (no text or symbols)

• The RC should be pointed at remote sensor within 8 meters and within 30 degrees at the left or the right side.
  • Take the battery out of the RC if it is not used for a long time.
• Do not mix new and used batteries or different types of batteries. Weak batteries can leak and severely damage the RC.

Button functions

▲ (OPEN/CLOSE)

Press ▲(OPEN/CLOSE) button when power is on, the disc tray is pushed out. Put the disc on the tray with the title faced up. Press ▲(OPEN/CLOSE) button again to close the disc tray and the unit starts playing automatically.

POWER

When playing, press POWER button to turn off the unit, and standby mode will be activated; Press the button again, to turn on the unit and it will start playing.

TITLE

When playing a DVD disc, press TITLE button to return to the main title menu of the disc.

SUBTITLE

When playing a DVD with multi-language subtitle, press SUBTITLE button continually, the subtitle languages are changed in a circle, and you can select the needed one.

ANGLE

When playing the disc with multi-angle, press ANGLE button to select the view angle.

L/R (☐)

When playing Super-VCD, VCD, CD disc with multi-channel, press L/R button to select left channel/right channel/stereo/mix audio output.

MENU

When playing DVD disc, press MENU button once to return to the main menu of the disc.

▶II(PLAY/PAUSE)

When playing the disc, press ▶PLAY/PAUSE) button once to pause; press ▶PLAY/PAUSE) button again to return to normal playback.

Cursor buttons

Press cursor buttons to navigate in various menus.

ENTER

Press ENTER button for confirmation of chosen options.

■ (STOP)

When playing DVD, SVCD, VCD, CD disc, press STOP once, the unit will memorize the previous ending point. Press ▶ (PLAY/PAUSE) button to go on the playing. Press ■ (STOP) for the second time to stop the playing and end memory.

(FORWARD)

Press this button for quick forward search. Search speed will increase with each pressing: 2X => 4X => 8X => 16X => 32X => normal.

(REWIND)

Press this button for quick rewind search. Search speed will increase with each pressing: 2X => 4X => 8X => 16X => 32X => normal.

REVIOUS/NEXT)

• When playing DVD disc, press (PREVIOUS) button to go to the previous chapter.
• When playing SVCD, VCD, CD disc, press ◀◀ (PREVIOUS) button to go to the previous track.
• When playing DVD disc, press ▶(NEXT) button to go to the next chapter.
• When playing SVCD, VCD, CD disc, press ▶▶▶ (NEXT) button to go to the next track.

SLOW

Press SLOW button repeatedly to change slow playback speed as follows: X2 => X4 => X8 => X16 => normal.

VOL+/-

Press VOL+ button to adjust volume up. Press VOL- button to adjust volume down.

SETUP

Press SETUP button to enter or exit the

system setup menu.

N/P

Press N/P button to select between PAL/Multi/NTSC video modes.

PROG

• If the disc contains 2 or more tracks, chapters or titles, set up the playing order to your preference. Press PROG button to enter program menu.
• Press number buttons to input the number of the track, title or chapter. If programmed tracks are over ten, select ▶ item and press ENTER button to go on programming. Maximum 20 programmable items are possible. Use cursor buttons to move the cursor to START item. Press ENTER button to start program playback. Press PROG button to cancel programming.

For MP3 disc, this function is not available.

REPEAT

Press REPEAT button to repeat a title, chapter, track or the whole disc.

• When playing DVD disc, press REPEAT button continually to repeat chapter =>title => all => repeat off.
• When playing SVCD, VCD, CD disc, press REPEAT button continually to repeat track => all => repeat off.
• When playing MP3 disc, press REPEAT button continually to play folder => single => repeat track => repeat folder.

A - B

• Press A-B button at the start point (A) and the ending point (B) to select the repeat fragment.
• Press A-B button the third time to cancel fragment repeat and return to normal play.

LANGUAGE

When playing DVD with more than one audio stream, press LANGUAGE button to select the needed language.

ZOOM

When playing DVD, SVCD, VCD disc, press ZOOM button to zoom in or zoom out the picture.

In zoom in mode, press cursor buttons to move the picture for viewing. The picture cannot be moved in zoom out mode.

(MUTE)

Press ☒ (MUTE) button, the sound will be turned off. Press ☒ (MUTE) button again, the sound will resume.

OSD

Press OSD button to display elapsed time of title/chapter/track.

TIME

Press TIME button to input chapter/title number or disc time. Playback will start in accordance with the input data.

COPY

• When playing MP3 disc and a USB is connected, press this button to access copy menu.
• When playing a CD disc and a USB is connected, press this button to enter Ripping menu.

DVD/USB

Press this button to access media menu in which you can select Disc or USB playback with cursor buttons.

REMAIN

Press OSD button to display various info on the current playback: title/chapter time elapsed, etc.

RETURN

Press this button to return to disc menu while playback. Press again to resume playback.

VIDEO

Press VIDEO button to select the video output mode.

PBC

Press this button to turn on or off Playback Control (PBC) function (for VCD discs supporting PBC function).

System setup

1. Press SETUP button to enter the setup menu. In setup mode, press SETUP button again to quit the setup page.
2. Use cursor buttons to choose a setup page: General setup page, Audio setup page, Dolby Digital setup, Video setup page, Preference page.
3. Press ▼ cursor button to enter the setup page selected.
4. Use ▲/▼cursor buttons to select the option you want to adjust.
5. Press cursor button to enter the adjustment list. Use ▲/▼cursor buttons to select the adjustment and press ENTER button to confirm and return to options list.
6. To return to setup page list press ◀ cursor button in the options list.
   The items in gray can't be set up. The setup is memorized and kept after power is off.

General setup

General	Audio Dolby Video Preference
General setup page
TV displayAngle markOSD languageCaptionsScreen saverLast memory

- TV DISPLAY

Normal/PS: When the unit connects to a normal TV set, the wide-screen image shows on the full screen, but some part is cut off.

Normal/LB: When the unit connects to a

normal TV set, the wide-screen image shows and black bars appear on the top and bottom of screen.

Wide: Use this item when the unit is connected with a wide-screen TV set.

- ANGLE MARK

It will show the angle mark when playing DVD disc with multi-angle view if selecting On.

- OSD LANGUAGE

Select on-screen display language.

- CAPTIONS

This function doesn't work when the disc is without caption. If the caption is OFF, press SUBTITLE button on the RC to make caption on. The default setup is ON.

- SCREEN SAVER

If Screen saver is set ON and the unit is switched on without a disc playing for several minutes, a moving picture appears on the screen, and the unit will go to standby mode after 20 minutes. Press POWER button on the RC to wake it up.

- LAST MEMORY

When this function is on, the unit can memorize the time elapsed from the last time you played the disc. Then at the next playing, it will resume playing from the memorized point.

Audio setup

General	Audio Dolby Video Preference
Audio setup page
Speaker setupSpdif setupMICEqualizerReverb mode

- SPEAKER SETUP: Downmix

LT/RT: The audio out is Left and Right channels format even if the original sound is 5.1CH format.

Stereo: The audio out format is stereo even if the original sound is 5.1CH format.

- SPDIF SETUP: Spdif output

Spdif off: no digital signal out (optical or coaxial output off), only analog audio output.

SPDIF/RAW: no decoding on the amplifier digital signal input.

SPDIF/PCM: the amplifier must be supported by PCM decoding or Dolby digital decoding function.

- MICROPHONE

You can switch the microphone on or off, adjust the microphone volume and echo.

- EQUALIZER

Several EQ modes are available. You can select one according your preference and the disc content.

- REVERB MODE

You can select the Reverb mode: off, Concert, Living room, Hall, Bathroom, Cave, Arena, Church.

Dolby setup

General	Audio Dolby Video Preference
Dolby Digital Setup
Dual monoDynamic

- DUAL MONO

Stereo: stereo output signal,

L-Mono: left output signal,

R-Mono: right output signal,

Mix-Mono: left and right output average signal.

• DYNAMIC

If watching large dynamic scope movie program at night, by selecting this mode you can reduce the volume to a very low level and at the same time keep the fine details sounds. In this case, this doesn't disturb the family and keep the quality sound.

Video setup

General	Audio Do	by Video Preference
Video setup page
ComponentSharpnessBrightnessContrast

• COMPONENT: Cvbs
  • SHARPNESS, BRIGHTNESS,

CONTRAST: You can set sharpness, brightness and contrast according to your preference.

Preference setup (available when playback is fully stopped)

General	Audio Dollby Video Preference
Preference page
TV TypeAudioSubtitleDisc menuParentalPasswordDefault

• TV TYPE

This unit is suitable for all kinds of TV systems. You can select one of the PAL, NTSC or Auto.

Auto: the TV system is auto switched according to the disc system.

NTSC: this system is used in USA, Taiwan, Japan etc.

PAL: this system is used in China, Europe, Hong Kong etc.

• AUDIO, SUBTITLE, DISC MENU LANGUAGE SETUP

These are the initial settings by your

preference. If a setting is supported by disc content, it will work. Otherwise the disc default value works.

- PARENTAL

The control level is for parents to control playing content and protect children from violence and erotic. The disc, the level of which is higher than the setting level cannot be played.

- PASSWORD

Change the password. The initial factory password is 0000. You can set your own password. If you forget your own password, you can use 0000 as general password.

- DEFAULT

Reset to the initial factory setups.

Pictures of OSD menu are for reference only; they may differ from the real screens.

Playback operation

USB operation

Insert a USB-drive into the USB slot of this unit. The unit will start to read files contained in it at once. The screen will show the file menu, you can select and play files using cursor buttons and ENTER button.

USB file systems supported: FAT, FAT32. 2.0 USB version is supported; maximum capacity 32 Gb. For correct and satisfactory operation, licensed USB devices of famous brands should be used with this unit. Avoid using USB devices of unknown brands. Playback of some file formates cannot be supported.

Karaoke

- Karaoke disc is a DVD or VCD disc with music and subtitles, showing the user when he/she should start singing this or that song part. You need to use a microphone (not included) for singing.

- Connect a microphone to MIC jack on the front panel.

- Enter system setup menu on the Karaoke

page and perform adjustment according to you preference.

- Put Karaoke disc into DVD-player and playback will start automatically.

Ripping

This unit has Ripping function making it handy and quick to copy audio files (e.g. music) from CDs. RIPPING is converting from CDDA format to the compressed MP3 format onto a USB drive. In the course of copying, ID3 tags are generated automatically in Russian and English, depending on the source. If the disc does not contain such information in CD-text format, ID3 tags will be written as “Unknown artist” and “Unknown album”.

CD RIP
Options		Tracks
Speed Normal		track01
Bitrate 128 kbps		track02
Create ID3 Yes		track03
Device USB1		track04
Summary		track05
Selected track 0		track06
Selected time 00:00
Start	Exit	Select all	Select none

RIPPING function has a simple and intuitive menu. To display the Ripping menu, press COPY button on the RC while a CD playback. A USB-drive should be connected to the unit. For navigation in the menu use cursor buttons and press ENTER button to confirm your option. In "Options" column you may set speed and bit rate for ripping. In "Track" column you may select tracks for ripping (press ENTER button to select a highlighted track). Besides, you can select all tracks ("Select all") or cancel your choice ("Select none"). To start converting process, select "Start" and press ENTER button.

CD RIP
Ripping	Selected Track
Track Progress	track01 1%
Total Progress
Cancel
Now ripping
Track 01/01

After ripping is started, a menu will appear showing the progress of the procedure. File ripping is performed in real time, so you can listen to files currently under ripping.

- While converting the files no buttons are functional except OPEN/CLOSE button and VOL+/VOL- buttons.

• A folder named RIPPING is created on the USB-drive for the ripped files. If such a folder already exists on the USB, ripping operation is unavailable.
• To avoid data loss, do not disconnect the USB-drive until ripping is completed.

MP3/JPEG/compressed video background

MP3 - generally adopted standard of audio compression, compressing audio data to 1/12 of their size. One CD disc may store more than 600 minutes of music (170 songs). And the quality of MP3 disc approximates to an audio CD quality.

JPEG (Joint Photographic Expert Group) - image compression algorithm, used all over the world and providing high level of compression of the source data. Any graphics editor may edit images of this format and their size in 15-20 times less than the original images.

Manufacturer guarantees regular playback of licensed discs only. Some DivX discs cannot be played due to their parameters and recording conditions. Video files more than 2 Gb having AVI extension can be played partially.

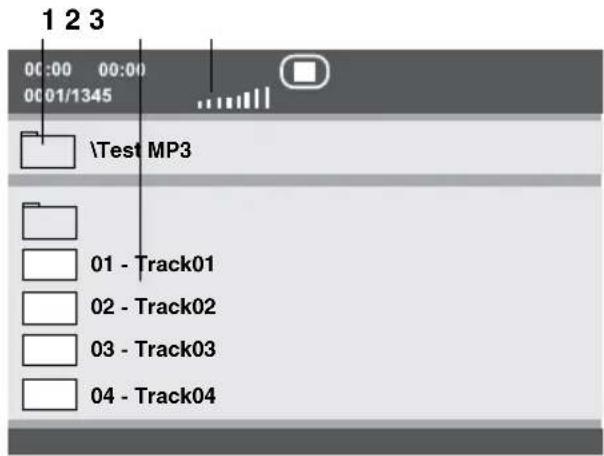

When a disc or a USB containing files of these formats is inserted, following menu interface will be displayed:

1. Playback info window - shows current playback time, track number, volume level, playback status (stop/play/pause) etc.
2. Address window - shows directory address at which the currently played file is found.
3. Directory window - shows the currently selected directory.

Use cursor buttons to select the directory you want and press ENTER button to enter it. Select a file and press ENTER button to start its playback.

While playing JPEG files press STOP button to go back to the menu.

Press cursor buttons to rotate the picture in different directions.

Regardless of the picture size and format, a picture may possibly not be shown on the full screen area, leaving black stripes.

Copying data

Play data disc containing MP3/JPG/DivX files and insert a USB.

Press COPY button on RC, the COPY menu will appear with option of ALL SELECT/ALL UNSEL/COPY/EXIT.

Move the cursor to the target file or folder, press ENTER button to tick it, or select ALL SELECT item to select all the data.

Move the cursor to COPY item, then press ENTER button. Press ENTER button again to display the option BACK/NEXT.

Choose NEXT item to start copying data the selected device.

Deleting data from USB

Play USB device or memory card containing the desired data. Press COPY button to get the menu of ALL SELECT/ALL UNSEL/COPY/DEL/EXIT. Move the cursor to the target file or folder, press ENTER button to tick it, then move to DEL item and press ENTER button to delete the data from the device.

Handling compact discs

• Do not insert anything other than a CD into the disc tray.
• Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause damage to the player.

• Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface.

• Store discs in their cases when not in use.

• Do not expose discs to direct sunlight, high humidity, high temperature or dust.
• Prolonged exposure to extreme temperature can wrap a disc.
• Do not attach labels, write on or apply chemicals to the surface of the discs.
• Do not touch the recorded surface of the discs.
• Use 12-cm CDs. Use only conventional, fully circular discs. Do not use irregularly shaped discs.

Illustration of a hand holding a CD or DVD disc (no text or symbols visible)

Cleaning discs

Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth should remove must panicles. Wipe in a straight motion from the center to the edge.

Never use thinner benzine, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.

Illustration of hands cleaning a bowl with a cloth (no text or symbols)

Illustration of a hand holding a small object with two arrows indicating direction, crossed by a diagonal line (no text or symbols)

Accessories

DVD player 1 pc

Remote controller 1 pc

Audio-video cable 1 pc

Battery AAA 1.5V 2 pcs

Consumer information 1 pc

Warranty card 1 pc

Instruction manual 1 pc

Troubleshooting

Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer.

Symptom Cause Solution
No sound Poor audio cable connection Make proper connection
No image Poor video cable connection Make proper connection
Disc cannot be read	Incorrect setting of your TV set Correct the settings of your TV set
	Disc not inserted Insert the disc
	Disc inserted incorrectly Install the disc with the label side facing up
	Condensate on the unit laser head	Switch the unit on without disc for an hour
Remote control does not operate	Remote control is incorrectly directed at the unit	Use the remote controller according to the manual
	Distance and angle to the unit are too large	Decrease the distance and angle
	Run out batteries Replace both batteries
Some functions do not work	Disc is recorded incorrectly Wait	5-10 seconds and the unit will automatically return to normal style
	Incorrect key sequence Repeat the operation one more time
	Static voltage on the unit housing	Switch the unit off for 1-2 minutes and then switch it on again
Unstable image In correct TV settings Correct the TV settings

Specifications

Appearance

Dimensions (L x W x H) 260 mm x 215 mm x 38 mm

Net/Gross weight 1.1 kg/1.5 kg

Compatibility

Supports DVD-video/DVD-audio /SVCD/VCD/HDCD/CDDA/MP3/

Kodak Picture/JPEG/MPEG4 (DivX/XviD)

Support of subtitle for MPEG4 +

Audio

Dolby Digital decoder +

DTS Digital out +

Connectors

Composite out +

Coaxial out +

Stereo out +

Functions

Russian and English OSD +

Audio CD ripping in MP3 format

to USB flash drive +

Copying from discs

to USB flash drive +

Karaoke +

USB version/capacity supported 2.0/32 Gbs

Additional

Power consumption in "STANDBY" less than 1 W

Power supply \~110-240 V, 50/60 Hz

Specifications are subject to change without notice. Dimensions are approximate.

Diagram of a device with an upward arrow indicating motion or force, no text or symbols present

123

Diagram of a device internal structure showing two cylindrical components with labeled terminals (no text or symbols present)

Diagram of a mechanical device with a downward arrow and two labeled ports (no text or symbols present)

Illustration of a hand holding a CD or DVD disc (no text or symbols visible)

Illustration of a hand pressing a circular button (no text or symbols)

Чистка дисков

Illustration of two hands performing a circular motion exercise with directional arrows (no text or symbols)

Комплект поставки
