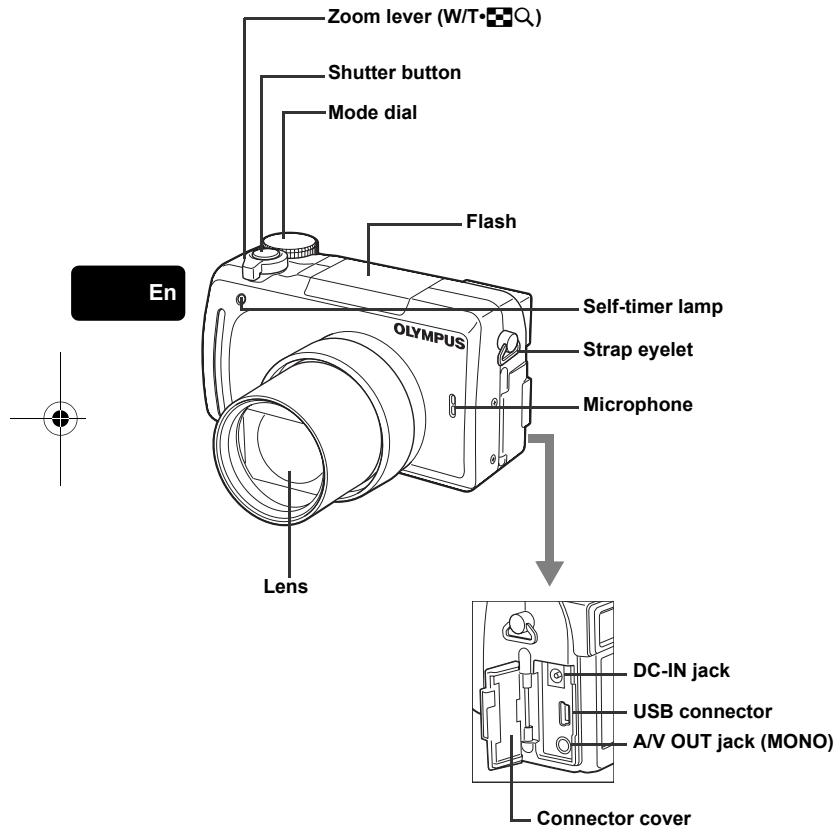

J NAMES OF PARTS

Zoom lever (W/T•GU) Shutter button Mode dial Flash

Self-timer lamp Strap eyelet Microphone Lens DC-IN jack USB connector A/V OUT jack (MONO) Connector cover 4 En basic_e_d4226_7.fm Page 5 Thursday, February 5, 2004 11:47 AM Viewfinder Diopter adjustment dial AEL/Custom button (x) Rotation button (y) Self-timer button (Y) Erase button (S) Flash mode button (#) Protect button (0) Flash button Card access lamp

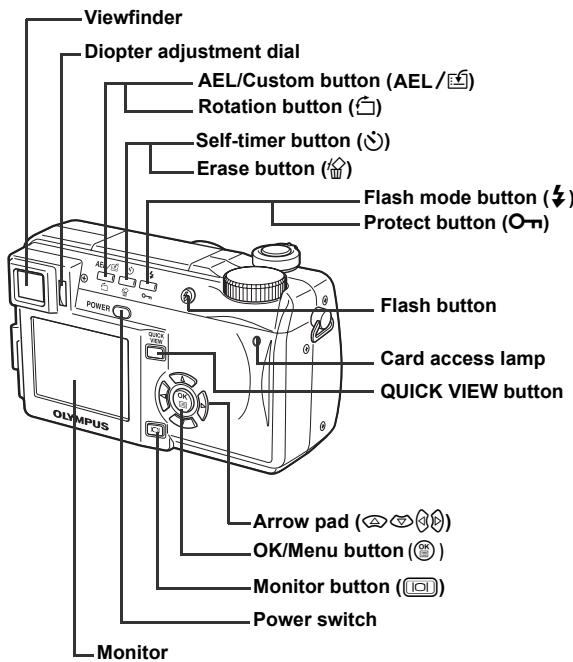

Arrow pad (acbd) OK/Menu button (e ) Monitor button (f) Power switch Monitor Battery compartment/card cover Tripod socket En 5 basic_e_d4226_7.fm Page 6 Thursday, February 5, 2004 11:47 AM

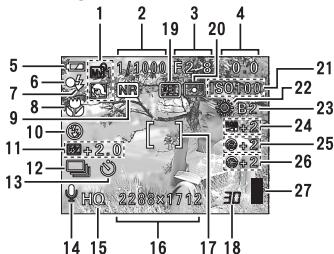

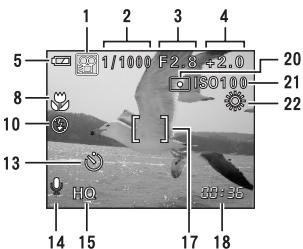

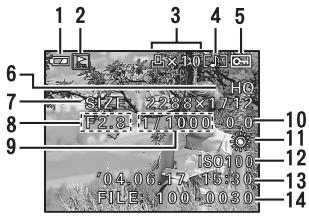

J VIEWFINDER AND MONITOR INDICATIONS

ISO100 00:36 HQ 2288 1712 Still picture

Movie Item 1 Shooting modes Indications P, A, S, M, N, m, L, J, I, s, P 2 Shutter speed 15" - 1/1000 3 Aperture value F2.8 - F8.0 4 Exposure compensation Exposure differential –2.0 - +2.0 –3.0 - +3.0 5 Battery check e, f 6 Green lamp 7 Flash stand-by # (Lights) Camera movement warning # (Blinks) /Flash charge 8 Macro mode Super macro mode Manual focus 9 Noise reduction

10 Flash mode !, #, $, #SLOW1, HSLOW1, #SLOW2 11 Flash intensity control w –2.0 - +2.0 12 Drive o, j, i, k, 7 13 Self-timer

6 En basic_e_d4226_7.fm Page 7 Thursday, February 5, 2004 11:47 AM Item Indications 15 Record mode

TIFF, SHQ, HQ, SQ1, SQ2

16 Resolution 2288 × 1712, 1280 × 960, 640 × 480 etc. 17 AF target mark

18 Number of storable still pictures Time remaining

19 AE lock AE memory

00:36 20 Spot metering

21 ISO 23 White balance compensation B1 - B7, R1 - R7 24 Saturation 6 –5 - +5 25 Sharpness N –5 - +5 26 Contrast J –5 - +5 27 Memory gauge a, b, c, d

En 7 basic_e_d4226_7.fm Page 8 Thursday, February 5, 2004 11:47 AM Playback mode

Print reservation, Number of prints Movie < × 10

TIFF, SHQ, HQ, SQ1, SQ2

Resolution 14 File number, Frame number FILE : 100 - 0030, 30 Playing time/ Total recording time 00:00/00:20 8 En basic_e_d4226_7.fm Page 9 Thursday, February 5, 2004 11:47 AM Memory gauge The memory gauge lights up when you take a still picture. While the gauge is lit, the camera is storing the picture on the card. The memory gauge indication changes as shown below depending on the shooting status. The indication is not displayed during movie recording. Battery check HQ 2288 1712 Memory gauge

Shoot Before shooting (Gauge is off)

Shoot One picture taken (Lit) Two or more taken (Lit) Shoot Wait

No more pictures can be taken (Fully lit) Wait until the gauge returns to the status on the left to take the next shot.

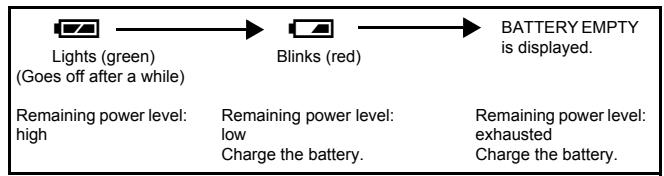

Battery check If the remaining battery power is low, the battery check indication changes as follows when the camera is turned on or while the camera is in use.

Lights (green) (Goes off after a while) Remaining power level: high

Blinks (red) Remaining power level: low Charge the battery. BATTERY EMPTY is displayed. Remaining power level: exhausted Charge the battery. En 9 basic_e_d4226_7.fm Page 10 Thursday, February 5, 2004 11:47 AM J ATTACHING THE STRAP AND LENS CAP

J CHARGING THE BATTERY

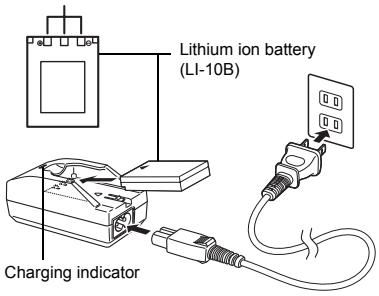

This camera uses an Olympus lithium ion battery (LI-10B). The battery is dedicated to this camera and other batteries do not work. The battery is not fully charged when the camera is purchased. Fully charge the battery on the specified charger (LI-10C) before first use. For details, read the charger’s instructions (provided).

Make sure that the + and - terminals of the battery shown in the illustration on the right are correctly oriented when loading the battery into the charger. Connection terminals Lithium ion battery (LI-10B)

• The charge indicator will light red during charging.
• When charging is Charging indicator complete, the charger indicator will change from red to green.
• Charging normally takes approximately 2 hours. 10 En basic_e_d4226_7.fm Page 11 Thursday, February 5, 2004 12:58 PM

J INSERTING AND REMOVING THE

BATTERY AND CARD

1 Make sure the camera is turned off.

• The viewfinder is off.
• The lens is not extended.

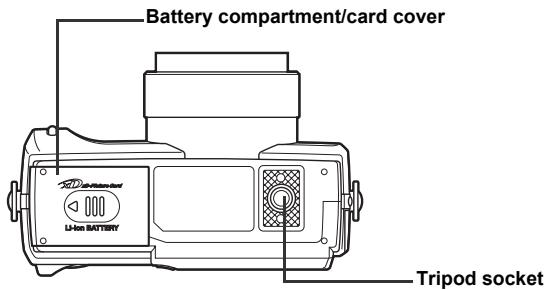

Slide the battery compartment/card cover in the direction of A, then lift in the direction of B.

• Use the ball of your finger to slide the cover. Do not use your fingernail as this could result in injury.

Loading the battery Align the battery as shown and insert it into the battery compartment until the battery is locked in position with the battery lock knob.

Battery lock knob Removing the battery Slide the knob in the direction of the arrow. When the battery is ejected, pull it out of the battery compartment. Battery lock knob Low battery warning The amount of power consumed varies considerably depending on the operations performed on the digital camera. If you use an exhausted battery, the camera may turn off without displaying the battery level warning. En 11 basic_e_d4226_7.fm Page 12 Thursday, February 5, 2004 11:47 AM Inserting a card Insert the card in the appropriate direction. Notch Contact area

• Insert the card while keeping it straight.
• Inserting the card the wrong way or at an angle could damage the contact area or cause the card to jam.
• If the card is not inserted all the way, data may not be written to the card. Removing the card Push the card all the way in to unlock it, then let it return slowly.
• The card is ejected a short way and then stops. Hold the card straight and pull it out.

Close the battery compartment/card cover in direction C and then slide it in the direction shown D.

Notes for removing the card Releasing your finger quickly after pushing the card all the way in may cause it to eject forcefully out of the slot. 12 En basic_e_d4226_7.fm Page 13 Thursday, February 5, 2004 11:47 AM

J POWER ON/OFF

Press the tabs on the lens cap as indicated by the arrows and remove the lens cap.

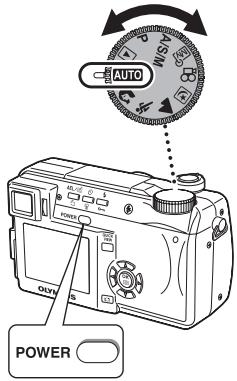

Press the power switch. Mode dial

• The power turns on and the lens extends when the mode dial is set to any mode other than q. The monitor turns on.
• When the mode dial is set to q, the camera turns on in the playback mode and the monitor turns on.

To turn the camera off, press the power switch again. Note

• To save battery power, the camera automatically enters the sleep mode and stops the operation after about 3 minutes of nonoperation. The camera activates again as soon as you operate the shutter button or zoom lever. En 13 basic_e_d4226_7.fm Page 14 Thursday, February 5, 2004 11:47 AM Set the mode dial to P and press the power switch to turn the camera on.

• The top menu is displayed.

Press d on the arrow pad to select MODE MENU. Press ac to select the SETUP tab, then press d. Press ac to select W, then press d.

• The green frame moves to the selected item.

14 En Press ac to select a language, then press e. Press e again to exit the menu. To turn the camera off, press the power switch. basic_e_d4226_7.fm Page 15 Thursday, February 5, 2004 11:47 AM J SETTING THE DATE AND TIME X

Set the mode dial to P and press the power switch to turn the camera on.

• The top menu is displayed.

Press d on the arrow pad to select MODE MENU. Press ac to select the SETUP tab, then press d. Press ac to select X, then press d.

• The green frame moves to the selected item.

Press ac to select one of the following date formats: Y-M-D (Year/Month/Day), M-D-Y (Month/Day/Year), D-M-Y (Day/Month/Year). Then press d.

• Move to the year setting.
• The following steps show the procedure used when the date and time settings are set to Y-M-D.

Press ac to set the year, then press d to move to the month setting.

• To move back to the previous setting, press b.
• The first two digits of the year are fixed.

Repeat this procedure until the date and time are completely set.

• The time is displayed in the 24-hour format. Consequently, 2 p.m. is displayed as 14:00.

• For a more accurate setting, press e when the time signal hits 00 seconds. The clock starts when you press the button. 10 To turn the camera off, press the power switch. Note

• The date and time settings will be returned to the factory default settings if the camera is left without the battery for approximately one day. En 15 basic_e_d4226_7.fm Page 16 Thursday, February 5, 2004 11:47 AM MENU FUNCTIONS

J USING THE MENUS AND TABS

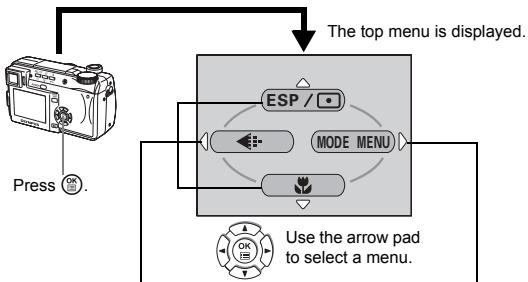

When you turn on the camera and press e, the top menu is displayed on the monitor. The functions of this camera are set from the menus. The top menu is displayed. ESP MODE MENU Press e.

• Take you directly to the setting screens.
• Display operational buttons at the bottom of the screen.
• The functions registered in the shortcut menus can also be accessed from the MODE MENU.
• The shortcut menus can be replaced in modes other than hnq.

• Lets you access the menu selections to set the ISO, sharpness, etc.

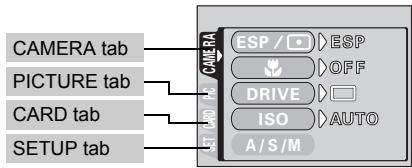

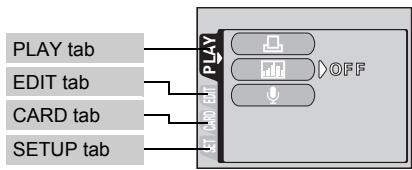

• Categorizes the settings into 4 tabs.
• Press ac to select a tab and display the associated menu items.
• There is no mode menu in h mode. How to use the mode menus

16 En Press e to display the top menu. Press d. Press ac to select a tab, then press d. Press ac to select an item, then press d. Press ac to select a setting. Press e to complete setting. Press e again to exit the menu and return to shooting status. basic_e_d4226_7.fm Page 17 Thursday, February 5, 2004 11:47 AM Shortcut menus Shooting modes DRIVE Selects a shooting mode from o (single-frame shooting), j (sequential shooting), i (high speed sequential shooting), k (AF sequential shooting) and 7 (auto bracketing). ESP/5 Selects the metering method (ESP, 5 or MULTI). DIGITAL ZOOM Extends the maximum optical zoom, making possible up to approx. 40× zoom.

Sets the image quality and resolution. Still picture : TIFF*, SHQ, HQ, SQ1, SQ2 Movie

: SHQ, HQ, SQ

*TIFF cannot be selected when the mode dial is set to h. Used to take pictures of a close subject. Selects OFF, & or %. Sets the appropriate white balance according to the light source. Sets the date and time. CARD SETUP Formats a card. Playback mode Runs through all saved pictures one after another. En 17 basic_e_d4226_7.fm Page 18 Thursday, February 5, 2004 11:47 AM Plays back movies. INDEX Creates an index picture of a movie in 9 frames. EDIT Edits a movie. INFO Displays all the shooting information on the monitor. SWITCH FRAME Selects ALL to display all images or 0 to display only protected images. Mode menus The MODE MENU has 4 tabs. Press ac to select a tab and display the En associated menu items. These instructions are only for quick reference. For more details on the functions described here, refer to the “Reference Manual” on CD-ROM. Shooting modes ESP ESP OFF DRIVE ISO AUtO A/S/M Selects the metering method (ESP, 5, MULTI). Used to take pictures of a close subject. Selects OFF, &, %. Selects a shooting mode from o (single-frame shooting), j (sequential shooting), i (high speed sequential shooting), k (AF sequential shooting) and 7 (auto bracketing). Selects the ISO sensitivity from AUTO, 64, 100, 200 and 400. basic_e_d4226_7.fm Page 19 Thursday, February 5, 2004 11:47 AM A/S/M r1/2/3/4 #SLOW NOISE REDUCTION DIGITAL ZOOM FULLTIME AF AF MODE PANORAMA 2 IN 1 FUNCTION AF AREA INFO R (still pictures) R (movies) SUPER ZOOM Selects the shooting mode from A (Aperture priority shooting), S (Shutter priority shooting) and M (Manual shooting). Selects a mode to be activated when taking pictures in r mode. Adjusts the amount of light emitted by the flash. Selects from #SLOW1 (1st curtain), HSLOW1 (1st curtain with red-eye reduction) and #SLOW2 (2nd curtain) when the flash mode is set to #SLOW (slow synchronization). Reduces the noise that affects pictures during long exposures. Extends the maximum optical zoom up to approximately 40× magnification. Keeps the image in focus at all times without having to press the shutter button halfway. Selects the auto focus method (iESP or SPOT). Enables you to take a picture of yourself while holding the camera. Allows panorama pictures to be taken with Olympus CAMEDIA-brand cards. Combines two still pictures taken in succession and stores them as a single picture. Adds special effects to pictures (BLACK & WHITE, SEPIA, WHITE BOARD, BLACK BOARD). Changes the position of the AF target mark using the arrow pad. Selects whether to display all the information such as shutter speed and white balance, or only the minimum information. Displays a histogram showing the luminance distribution of still pictures. Sound can be recorded when taking still pictures. Selects whether to record sound when shooting a movie. You can play back sound only when you play back through a PC, TV, etc. Extends the optical zoom, making possible up to 14× zoom in 1600 × 1200 record mode.

En 19 basic_e_d4226_7.fm Page 20 Thursday, February 5, 2004 11:47 AM Sets the image quality and resolution. Still picture: TIFF, SHQ, HQ, SQ1, SQ2 Sets the appropriate white balance according to the light source. Makes fine changes to the white balance. Adjusts the sharpness of the image. Adjusts the contrast of the image. Adjusts the level of color depth without changing the tint. Formats a card. SETUP tab

PW ON/OFF SETUP

MY MODE SETUP

FILE NAME PIXEL MAPPING

m/ft VIDEO OUT SHORT CUT CUSTOM BUTTON

20 En Selects whether to keep the current camera settings when you turn off the power. Selects a language for on-screen display. Sets the picture that is displayed when the power is turned on and off. Selects whether to display pictures on the monitor while saving them to a card. Sets the sleep timer. Customizes settings which are activated in the r mode. Changes how file names are assigned. Checks the CCD and image processing functions for errors. Adjusts the brightness of the viewfinder or monitor. Sets the date and time. Sets the measurement unit (m/ft) used during manual focus. Selects NTSC or PAL according to your TV’s video signal type. TV video signal types differ depending on the region. Assigns frequently used functions as shortcut menus. Assigns a frequently used function to the camera’s custom button. Turns off the beep sound for button operations and warnings. basic_e_d4226_7.fm Page 21 Thursday, February 5, 2004 11:47 AM SEt CARD EDIt PLAY Playback mode OFF PLAY tab*1 Stores the necessary information on the card to allow you to print the pictures taken. Displays a histogram showing the luminance distribution. Adds sound to a still picture already taken. The PLAY tab is not displayed during movie playback.

EDIT tab*2 Makes the file size smaller and saves it as a new file. Crops part of a picture and saves it as a new file. The EDIT tab is not displayed during movie playback. CARD tab CARD SETUP Erases all image data stored on the card or format the card. SETUP tab ALL RESET

PW ON/OFF SETUP

Selects whether to keep the current camera settings when you turn off the power. Selects a language for on-screen display. Sets the picture that is displayed when the power is turned on and off. Registers a stored picture for use as the picture displayed when the power is turned on and off. Adjusts the brightness of the viewfinder or monitor. Sets the date and time. Selects NTSC or PAL according to your TV’s video signal type. TV video signal types differ depending on the region. Selects the number of frames in the index display. Turns off the beep sound for button operations and warnings. En 21 basic_e_d4226_7.fm Page 22 Thursday, February 5, 2004 11:47 AM SHOOTING BASICS Mode dial The shooting modes include modes where the optimal settings for the situation are automatically selected, and modes where you can select the settings best suited to the shooting conditions and the effect you wish to achieve. You can change the shooting mode before and after turning the camera on. Mode dial

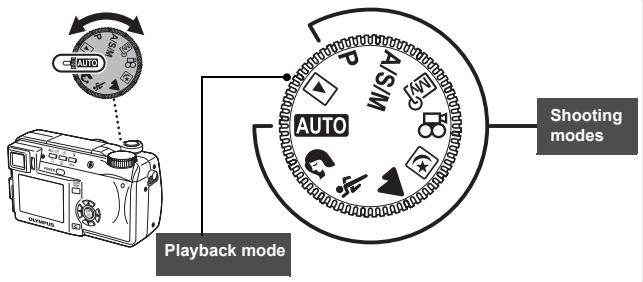

Shooting modes Playback mode h Full-auto shooting Allows you to take still pictures using no special functions or manual adjustments. The camera sets the optimal focusing and exposure. This is the simplest of all shooting modes. i Portrait shooting Suitable for taking a portrait-style shot of a person. This mode features an infocus subject against a blurred background. The camera automatically sets the optimal shooting conditions. j Sports shooting Suitable for capturing fast-moving action (such as sports) without blur. The camera automatically sets the optimal shooting conditions. 22 En basic_e_d4226_7.fm Page 23 Thursday, February 5, 2004 11:47 AM l Landscape shooting Suitable for taking pictures of landscapes and other outdoor scenes. Both the foreground and the background are in focus. Since blues and greens are vividly reproduced in this mode, it is excellent for shooting natural scenery. The camera automatically sets the optimal shooting conditions. m Night Scene shooting Suitable for shooting pictures in the evening or at night. The camera sets a slower shutter speed than is used in normal shooting. For example, if you take a picture of a street at night in h mode, the lack of brightness will result in a dark picture with the background underexposed and without details. In the Night Scene shooting mode, the true appearance of the street is captured. The camera automatically selects the optimal settings for this type of shooting condition. Since the shutter speed is slow, make sure you stabilize the camera by using a tripod.

P Program shooting Allows you to take still pictures. The camera sets the aperture and shutter speed. Other functions, such as flash modes and drive modes, can be adjusted manually. p Aperture priority/Shutter priority/Manual shooting When the mode dial is set to p, the following items can be set with the menus. A Aperture priority shooting Allows you to set the aperture manually. The camera sets the shutter speed automatically. Press a to increase the aperture value (f number). Press c to decrease the aperture value (f number). S Shutter priority shooting Allows you to set the shutter speed manually. The camera sets the aperture automatically. Press a to set a faster shutter speed. Press c to set a slower shutter speed. En 23 basic_e_d4226_7.fm Page 24 Thursday, February 5, 2004 11:47 AM M Manual shooting Allows you to set the aperture and shutter speed manually. Press b to increase the aperture value (f number). Press d to decrease the aperture value (f number). Press a to set a faster shutter speed. Press c to set a slower shutter speed. r My Mode Allows you to save your favorite settings as your own personal mode and use these customized settings when taking pictures. Current settings can also be saved for retrieving by this mode. n Movie record Allows you to record movies. The camera sets the aperture and shutter speed En automatically. Even if the subject moves during recording or the distance to the subject changes, correcct focusing and exposure are maintained continuously. If R is set to ON, sound is recorded at the same time.

J TAKING STILL PICTURES

You can take still pictures using either the monitor or the viewfinder. Both methods are easy as all you have to do is to press the shutter button.

Set the mode dial to h i j l m r p P and press the power switch.

• The monitor turns on. To shoot using the viewfinder, press f to turn the viewfinder on.

24 En Decide the composition of the picture. Press the shutter button gently (halfway) to adjust the focus. basic_e_d4226_7.fm Page 25 Thursday, February 5, 2004 11:47 AM

• When the focus and exposure are locked, F2.8 the green lamp lights (focus lock).
• The AF target mark moves to the focused position.
• The shutter speed and aperture value automatically set by the camera are displayed (except in M mode). HQ 2288 1712
• # blinks to warn of camera movement. #mark AF target Press the flash button to open the flash. mark Green lamp
• When # lights after the flash has popped up, the flash is ready to fire. The flash fires automatically when the shutter button is pressed all the way.

Press the shutter button all the way (fully).

• The camera takes the picture.
• The card access lamp blinks while the picture is stored on the card.

J IF CORRECT FOCUS CANNOT BE

OBTAINED (FOCUS LOCK)

When the subject cannot be focused on, you can focus the camera on another point at roughly the same distance (focus lock) and take the picture as explained below.

Position the AF target mark on the subject you want to focus on.

• When shooting a hard-to-focus subject or a fast-moving subject, point the camera at an object about the same distance away as the subject.

Press the shutter button halfway until the green lamp lights. HQ 2288 1712 AF target mark

• When the focus and exposure are locked, the green lamp lights.
• The AF target mark moves to the focused position.
• When the green lamp blinks, the focus and exposure are not locked. Release your finger from the shutter button, re-position your subject and press the shutter button halfway again. En 25 basic_e_d4226_7.fm Page 26 Thursday, February 5, 2004 11:47 AM

Keeping the shutter button pressed halfway, recompose your shot.

Press the shutter button fully. HQ 2288 1712

J RECORDING MOVIES

1 Set the mode dial to n and press the power switch.

• The monitor turns on.
• The available recording time on the card that you are using is displayed.

Decide the composition of the picture.

• You can use the zoom lever to enlarge your subject.

Press the shutter button fully to start recording.

• You can adjust the zoom during movie recording. Sound is recorded at the same time.
• The card access lamp blinks while the movie is stored on the card.
• During movie recording, N lights red.

Press the shutter button again to stop recording.

• When the remaining recording time has been used up, recording stops automatically.
• When there is space in the card memory, the remaining recording time is displayed, and the camera is ready to shoot. Note

• During movie recording, the flash and manual focus (MF) are disabled.
• It takes longer to store movies than still pictures.
• The remaining recording time varies depending on the record mode and the amount of space available on the card.
• This camera cannot play back sound. J ZOOMING IN ON A SUBJECT (OPTICAL ZOOM) In addition to the optical zoom, this camera is equipped with a super zoom and digital zoom for taking telephoto and wide-angle shots. You can increase the zoom magnification by combining the super zoom or digital zoom with the optical zoom. The super zoom and digital zoom cannot be used at the same time. Camera movement is likely to occur at higher magnifications. Stabilize the camera with a tripod, etc. to avoid camera movement. 26 En basic_e_d4226_7.fm Page 27 Thursday, February 5, 2004 11:47 AM

Push or pull the zoom lever.

• Wide-angle: Push the zoom lever toward W to zoom out.
• Telephoto: Pull the zoom lever toward T to zoom in.

Zoom lever Take the picture. Press the flash button.

Set the flash mode by repeatedly pressing #.

• The flash mode changes in the sequence shown below (when all modes are available). Auto (Auto-flash) ! (Red-eye reduction flash) #SLOW (Slow synchronization) #(Fill-in flash)

• To prevent the flash from firing, press down on the top of the flash to retract it.

Press the shutter button halfway.

• In conditions where the flash will fire, # lights.

Press the shutter button fully to take the picture. TIPS Flash working range W (max.): Approx. 0.3 m - 4.5 m (1.0 ft. - 14.8 ft.) T (max.) : Approx. 1.2 m - 3.5 m (3.9 ft. - 11.5 ft.) En 27 basic_e_d4226_7.fm Page 28 Thursday, February 5, 2004 11:47 AM Auto-flash (No indication) The flash fires automatically in low light or backlight conditions. Red-eye reduction flash (!) The red-eye reduction flash mode significantly reduces the red-eye phenomenon by emitting pre-flashes before firing the regular flash. Fill-in flash (#) The flash always fires every time the shutter button is pressed. Flash off ($) The flash does not fire even in low light conditions. Slow synchronization (#SLOW1 #SLOW2 !#SLOW1) 1st curtain (front curtain) #SLOW1 (factory default setting): Adjusts the flash for slow shutter speeds. The 2nd curtain fires the flash just before the shutter closes. 1st curtain with red-eye reduction !#SLOW1: Adjusts the flash for slow shutter speeds, and minimizes red-eye.

J USING THE SELF-TIMER

This function lets you take pictures using the self-timer. Fix the camera securely on a tripod for self-timer shooting. This function is useful for taking pictures where you want to be included in the photograph.

Select Y by repeatedly pressing Y. Press the shutter button fully to take the picture.

• Pressing the shutter button halfway locks the focus and exposure.
• The self-timer lamp lights for approximately 10 seconds, then starts blinking. After blinking for approximately 2 seconds, the picture is taken. 28 En Self-timer lamp basic_e_d4226_7.fm Page 29 Thursday, February 5, 2004 11:47 AM ADVANCED SHOOTING

J SEQUENTIAL SHOOTING

There are 4 sequential shooting modes: sequential shooting, high speed sequential shooting, AF sequential shooting and auto bracketing. Sequential shooting modes can be selected from the DRIVE mode menu. Sequential shooting cannot be performed when the record mode is set to TIFF. Drive mode Shoots 1 frame at a time when the shutter button is pressed. (Normal shooting mode, single-frame shooting) Focus, exposure and white balance are locked at the first frame. Approx. 7 frames at 1.6 frames/sec. (in HQ mode) Pictures can be taken at a faster speed than normal sequential shooting. The sequential shooting speed varies depending on the record mode setting. 2 frames at 2.1 frames/sec. Focus is individually locked for each frame. The AF sequential shooting speed is slower than for normal sequential shooting. BKT When auto bracketing is set, the exposure is changed automatically for each frame when you start shooting. The exposure differential and number of frames can be selected in the menus. The focus and white balance are locked at the first frame.

J METERING There are three ways of measuring the brightness of a subject. ESP metering Spot metering Multi-metering : Meters the center of the subject and the surrounding area separately. : Exposure is determined by metering within the AF target area. In this mode, a subject can be shot with optimal exposure regardless of the background light. : Meters the brightness of the subject at up to 8 different points to set the optimal exposure based on the average brightness. This method is useful with a high contrast subject. En 29 basic_e_d4226_7.fm Page 30 Thursday, February 5, 2004 11:47 AM

J AE LOCK

This function is suitable for situations when optimal exposure is difficult to achieve, such as when there is excessive contrast between the subject and the surroundings.

J MACRO MODE SHOOTING

Focusing is usually slow when you get close to a subject (W: 7 cm/2.8" to 60 cm/2.0 ft., T: 1.2 m/3.9 ft. to 2 m/6.6 ft.). However, in the & mode focusing is performed quickly. When the optical zoom lever is at the maximum wide position and you are as close as 7 cm/2.8" to your subject, you can fill the entire frame with your subject. This mode lets you shoot from as close as 3 cm/1.2" to your subject. In the % mode, normal shooting is also possible, but the position of the zoom is fixed automatically and cannot be changed.

J MANUAL FOCUS

If auto focus is unable to focus on a subject, use manual focus. 30 En basic_e_d4226_7.fm Page 31 Thursday, February 5, 2004 11:47 AM Set the mode dial to q and press the power switch.

• The monitor turns on and displays the last picture taken. (Single-frame playback)

Use the arrow pad to play back other pictures. Jumps to the picture 10 frames back. Displays the previous picture. Displays the next picture.

Jumps to the picture 10 frames ahead. QUICK VIEW This function lets you play back pictures while the camera is in the shooting mode. This is useful when you want to check shooting results and resume shooting quickly.

Press the QUICK VIEW button in the shooting mode. Press the QUICK VIEW button again to return to the shooting mode. Close-up playback Pictures displayed on the monitor can be enlarged 1.5, 2, 2.5, 3, 3.5 or 4 times. This function is useful when you want to check the details of a picture.

Select the still picture you want to enlarge.

• You cannot enlarge pictures with n. En 31 basic_e_d4226_7.fm Page 32 Thursday, February 5, 2004 11:47 AM

Pull the zoom lever toward T.

• Each time you pull the zoom lever, the picture is enlarged gradually.
• To return the picture to the original size (1×), push the zoom lever toward W. Index display This function lets you show several pictures at the same time on the monitor. It is useful for quickly finding the picture you want to view. The number of pictures shown can be 4, 9 or 16.

In the single-frame playback mode, push the zoom lever toward W.

• Use the arrow pad to select the picture.
• To return to the single-frame playback, pull the zoom lever toward T.

Use the arrow pad to display the picture with n you want to play back.

• The top menu is displayed.

Press a to select MOVIE PLAY. Press ac to select MOVIE PLAYBACK, then press e.

• The movie is played back. When playback ends, the display automatically returns to the beginning of the movie.
• Fast forward/fast rewind functions are available during playback. d: Fast forward. Each press switches the speed between ×1, ×2 and ×20. b: Fast rewind. Each press switches the speed between ×1, ×2 and ×20.
• Press e again after playback ends to display the menu. PLAYBACK : Plays back the entire movie again. FRAME BY FRAME : Plays back the movie manually one frame at a time. EXIT : Leaves the movie playback mode. Press ac to select the desired operation, then press e. 32 En basic_e_d4226_7.fm Page 33 Thursday, February 5, 2004 11:47 AM When FRAME BY FRAME is selected a : Displays the first frame of the movie. c : Displays the last frame of the movie. d : Displays the next frame. The movie can be played continuously by holding the button down. b : Displays the previous frame. The movie can be played continuously in reverse by holding the button down. e : Displays the MOVIE PLAYBACK menu.

J PROTECTING PICTURES

You are recommended to protect important pictures to avoid accidentally erasing them.

Use the arrow pad to display the picture you want to protect.

• To cancel protection, press 0 again. Note

• Protected pictures cannot be erased by the single-frame/all-frame erase function, but they are all erased by formatting.

J ERASING PICTURES

This function erases recorded pictures. Pictures can be erased either one frame at a time or all the pictures in the card. Note

• Once erased, pictures cannot be restored. Check each picture before erasing to avoid accidentally erasing pictures you want to keep. Use the arrow pad to display the picture you want to erase.

• The S ERASE screen is displayed.

Press ac to select YES, then press e.

• The picture is erased and the menu is closed. En 33 basic_e_d4226_7.fm Page 34 Thursday, February 5, 2004 11:47 AM Press a to select YES, then press e.
• All the pictures are erased. J FORMATTING (CARD SETUP) This function lets you format a card. Formatting prepares cards to receive data. Before using non-Olympus cards or cards which have been formatted on a PC, you must format them with this camera.

• All existing data, including protected pictures, are erased when the card is formatted. Make sure that you save or transfer important data to a PC before formatting a card.

• The I FORMAT screen is displayed. When h is selected: In the top menu, press d to select CARD SETUP. When q is selected: In the top menu, select MODE MENU CARD CARD SETUP, and press d. Press ac to select I FORMAT, then press e.

Press a to select YES, then press e.

• The BUSY bar is displayed and the card is formatted. 34 En basic_e_d4226_7.fm Page 35 Thursday, February 5, 2004 11:47 AM

J PLAYBACK ON A TV

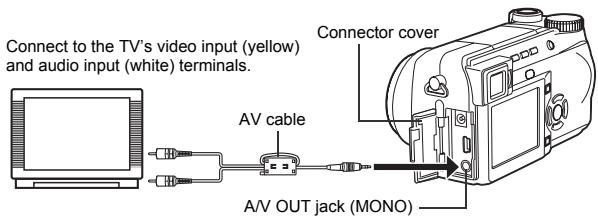

Use the AV cable provided with the camera to play back recorded images on your TV.

Make sure that the TV and camera are turned off. Connect the A/V OUT jack on the camera to the video input terminal on the TV using the AV cable. Connect to the TV’s video input (yellow) and audio input (white) terminals. Connector cover AV cable Turn the TV on and set it to the video input mode.

• For details of switching to video input, refer to your TV’s instruction manual.

Set the mode dial to q and turn the camera on.

• The last picture taken is displayed on the TV. Use the arrow pad to select the picture you want to display.
• The close-up playback, index display and slideshow functions can also be used on a TV screen. Note

• You are recommended to use the optional AC adapter when using the camera with a TV.
• Make sure that the camera’s video output signal type is the same as the TV’s video signal type. En 35 basic_e_d4226_7.fm Page 36 Thursday, February 5, 2004 11:47 AM

PRINT RESERVATION/DIRECT PRINT

J PRINT RESERVATION (DPOF) DPOF is short for Digital Print Order Format. DPOF is the format used to record automatic print information from digital cameras. If a card containing print reservation data is taken to a print shop that supports the DPOF format, the pictures can be printed according to the DPOF reservations. Or pictures can be printed out at home on a personal DPOFcompatible printer. All-frame reservation Use this feature to print all the pictures stored on the card. Select the desired number of prints and whether you want the date and time included. Single-frame reservation En Use this feature to print only selected pictures. It is also used to change the reserved number of prints and the date/time settings. Display the frame to be printed and select the desired number of prints. Resetting the print reservation data This function allows you to reset all the print reservation data for pictures stored on the card. J DIRECT PRINT (PictBridge) By connecting the camera to a PictBridge-compatible printer with the USB cable, you can print out recorded pictures directly without the use of a computer. PictBridge is the standard for connecting digital cameras and printers of different makers and printing out pictures directly. PRINT Prints the selected picture. ALL PRINT Prints all the pictures stored on the card. MULTI PRINT * Prints one picture in multiple layout format. ALL INDEX * Prints an index of all the pictures stored on the card. PRINT ORDER * Prints the pictures according to the print reservation data on the card. If no print reservations have been made, this option is not available.

• This option may not be available depending on the type of printer. For more details, refer to the “Reference Manual” on CD-ROM. 36 En basic_e_d4226_7.fm Page 37 Thursday, February 5, 2004 12:22 PM

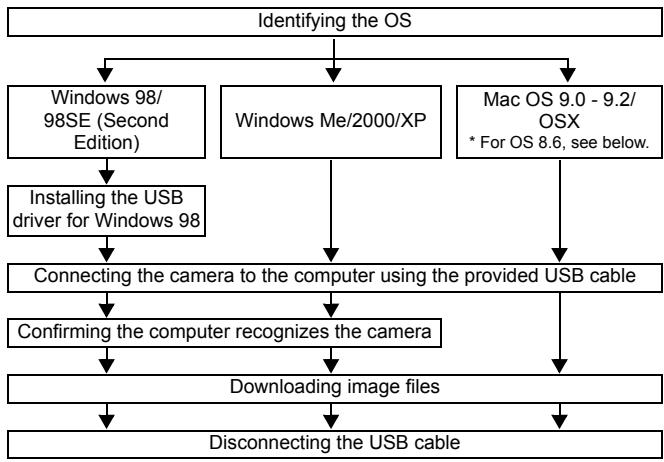

DOWNLOADING PICTURES TO A COMPUTER

By connecting the camera to a computer with the provided USB cable, images on a card can be transferred to the computer. Some OS’s (operating systems) may need a special setup before connecting to the camera for the first time. Follow the chart below. For details of the procedures in the chart, refer to the “Reference Manual” on the software CD. Also refer to the “Software Installation Guide” included in the CD-ROM package. Identifying the OS Windows 98/ 98SE (Second Edition) Installing the USB driver for Windows 98 Connecting the camera to the computer using the provided USB cable Confirming the computer recognizes the camera Downloading image files Disconnecting the USB cable

• Even if your computer has a USB connector, data transfer may not function correctly if you are using one of the operating systems listed below or if you have an add-on USB connector (extension card, etc.).
• Windows 98/98SE upgrade from Windows 95
• Mac OS 8.6 or lower (except Mac OS 8.6 equipped with USB MASS Storage Support 1.3.5 installed at the factory)
• Data transfer is not guaranteed on a home-built PC system or PCs with no factory installed OS. Note

• You can view images using: graphics applications that support the JPEG file format (Paint Shop Pro, Photoshop, etc.); Internet browsers (Netscape Communicator, Microsoft Internet Explorer, etc.); CAMEDIA Master software; or other software. For details on using commercial graphics applications, refer to their instruction manuals. En 37 basic_e_d4226_7.fm Page 38 Thursday, February 5, 2004 11:47 AM

• QuickTime is needed for playing back movies. QuickTime is included on the provided software CD.
• If you want to process images, make sure to download them to your computer first. Depending on the software, image files may be destroyed if the images are processed (rotated, etc.) while they are on the card.

J FOR OTHER OS USERS

Users running other OS cannot use the provided USB cable to connect the camera directly to a computer. Windows 95 Windows NT Mac OS before OS 9 You can download images directly to your computer using a PC card adapter. Does your computer have a USB interface? The USB port is indicated by a mark. Check that the port has the

Is your OS one of the following?

• Mac OS 9/X mark. Connect the camera directly to your computer using the provided USB cable. Use the optional USB reader/ writer. *Certain card readers may not be compatible with Mac OS X. Check the Olympus website for the most up-to-date compatibility information. Does your computer have a built-in PC card slot?

Yes Use the optional PC card adapter. *Not supported by Windows NT4.0 or lower. Consult your nearest Olympus representative. For more details, refer to the “Reference Manual” on CD-ROM. For connection to the PC, refer to the “Software Installation Guide” included in the CD-ROM package. 38 En basic_e_d4226_7.fm Page 39 Thursday, February 5, 2004 1:00 PM ERROR CODES Monitor indication NO CARD CARD ERROR WRITEPROTECT CARD FULL NO PICTURE PICTURE ERROR Possible cause Corrective action The card is not inserted, or it cannot be recognized. Insert a card or insert a different card. If the problem persists, format the card. If the card cannot be formatted, it cannot be used. There is a problem with the card. Use a different card. Insert a new card. Writing to the card is prohibited. The recorded image has been protected (read-only) on a PC. Download the image to a PC and cancel the read-only setting. The card is full. No more pictures, movies or information such as print reservations can be recorded. Replace the card or erase unwanted pictures. Before erasing, download important images to a PC. There are no pictures on the card. The card contains no pictures. Record pictures. There is a problem with the selected picture and it cannot be played back on this camera. Use image processing software to view the picture on a PC. If that cannot be done, the image file is damaged. The card cover is open. Close the card cover. The card is not formatted. Format the card. All data on the card is deleted.

basic_e_d4226_7.fm Page 40 Thursday, February 5, 2004 12:23 PM : Digital camera (for shooting and displaying) Recording system Still picture : Digital recording, TIFF (non-compression), JPEG (in accordance with Design rule for Camera File system (DCF)) Applicable standards : Exif 2.2, Digital Print Order Format (DPOF), PRINT Image Matching II, PictBridge Sound with still pictures : Wave format Movie : 3200 × 2400 pixels 2288 × 1712 pixels 2288 × 1520 pixels 2048 × 1536 pixels 1600 × 1200 pixels 1280 × 960 pixels 1024 × 768 pixels 640 × 480 pixels

(ENLARGE SIZE: SHQ, HQ) (TIFF, SHQ, HQ) (3:2 TIFF, SHQ, HQ) (TIFF, SQ1) (TIFF, SQ1) (TIFF, SQ1) (TIFF, SQ2) (TIFF, SQ2) No. of storable pictures when using a 16 MB card : Approx. 1 frame (Without sound) Approx. 5 frames Approx. 16 frames Approx. 49 frames Approx. 165 frames (TIFF (SHQ (HQ (SQ1 (SQ2 No. of effective pixels : 4,000,000 pixels Image pickup device : 1/2.5" CCD solid-state image pickup, 4,110,000 pixels (gross) Lens : Olympus lens 6.3 mm to 63 mm, f2.8 to f3.7, 11 elements in 7 groups (equivalent to 38 mm to 380 mm lens on 35 mm camera) Photometric system : ESP metering, spot metering system Aperture : f2.8 to f8.0 Shutter speed : 15 to 1/1000 sec. Shooting range basic_e_d4226_7.fm Page 41 Thursday, February 5, 2004 11:47 AM Monitor : TTL system autofocus Contrast detection system Outer connector : DC-IN jack, USB connector (mini-B), A/V OUT jack Automatic calendar system : 2000 up to 2099 Operating environment Temperature : 0°C to 40°C (32°F to 104°F) (operation) –20°C to 60°C (–4°F to 140°F) (storage) Humidity : 30% to 90% (operation)/10% to 90% (storage) Power supply : Only an Olympus LI-10B lithium-ion battery AC adapter specified by Olympus (optional) Dimensions : 104.5 mm (W) × 60 mm (H) × 68.5 mm (D) (4.1" × 2.4" × 2.7") (excluding protrusions) Weight : 280 g (0.62 lb.) (without battery or card) SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE OR OBLIGATION ON THE PART OF THE MANUFACTURER.

En 41 basic_f_d4226_7.fm Page 42 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 43 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 44 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 45 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 46 Thursday, February 5, 2004 10:12 AM !, #, $, #SLOW1, HSLOW1, #SLOW2 basic_f_d4226_7.fm Page 47 Thursday, February 5, 2004 10:12 AM Éléments Indications 13 Retardateur

basic_f_d4226_7.fm Page 48 Thursday, February 5, 2004 10:12 AM Mode affichage

2288*1712 '04.06.17 15:30

TIFF, SHQ, HQ, SQ1, SQ2

7 Résolution basic_f_d4226_7.fm Page 49 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 50 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 51 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 52 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 53 Thursday, February 5, 2004 10:12 AM

J MISE EN MARCHE/ARRÊT

basic_f_d4226_7.fm Page 54 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 55 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 56 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 57 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 58 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 59 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 60 Thursday, February 5, 2004 10:12 AM Onglet SETUP [CONFIG] ALL RESET [TOUT REINIT]

PW ON/OFF SETUP

[CONFIG ON/OFF]

REC VIEW [VISUAL IMAGE] SLEEP [VEILLE]

MY MODE SETUP

[MY MODE] FILE NAME [NOM FICHIER] basic_f_d4226_7.fm Page 61 Thursday, February 5, 2004 10:12 AM Onglet PLAY [LECTURE] Onglet EDIT Onglet CARD [CARTE] Onglet SETUP [CONFIG] SEt CARD EDIt PLAY Mode affichage OFF Onglet SETUP [CONFIG] ALL RESET [TOUT REINIT]

PW ON/OFF SETUP

[CONFIG ON/OFF]

SCREEN SETUP [DEF ECRAN]

VIDEO OUT [SORTIE VIDEO]

basic_f_d4226_7.fm Page 62 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 63 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 64 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 65 Thursday, February 5, 2004 10:12 AM J SI UNE MISE AU POINT SATISFAISANTE

EST IMPOSSIBLE (MÉMORISATION DE LA

basic_f_d4226_7.fm Page 66 Thursday, February 5, 2004 10:12 AM

basic_f_d4226_7.fm Page 67 Thursday, February 5, 2004 10:12 AM

basic_f_d4226_7.fm Page 68 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 69 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 70 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 71 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 72 Thursday, February 5, 2004 10:12 AM

basic_f_d4226_7.fm Page 73 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 74 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 75 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 76 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 77 Thursday, February 5, 2004 10:12 AM Windows 98/ 98SE (Second Edition) basic_f_d4226_7.fm Page 78 Thursday, February 5, 2004 10:12 AM basic_f_d4226_7.fm Page 79 Thursday, February 5, 2004 10:54 AM basic_f_d4226_7.fm Page 80 Thursday, February 5, 2004 10:57 AM : Exif 2.2, Digital Print Order Format (DPOF), PRINT Image Matching II, PictBridge : 3.200 × 2.400 pixels (ENLARGE SIZE : SHQ, HQ)

2.288 × 1.712 pixels (TIFF, SHQ, HQ)

2.288 × 1.520 pixels (3:2 TIFF, SHQ, HQ)

2.048 × 1.536 pixels (TIFF, SQ1)

1.600 × 1.200 pixels (TIFF, SQ1)

1.280 × 960 pixels (TIFF, SQ1)

1.024 × 768 pixels (TIFF, SQ2)

640 × 480 pixels (TIFF, SQ2)

(TIFF (SHQ (HQ (SQ1 (SQ2 basic_f_d4226_7.fm Page 81 Thursday, February 5, 2004 10:12 AM Écran ACL : 104,5 mm (L) × 60 mm (H) × 68,5 mm (P) (hors saillies) Poids basic_d_d4226_7.fm Page 82 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 83 Thursday, February 5, 2004 1:14 PM C-765 Ultra Zoom OLYMPUS Olympus America Inc. 2 Corporate Center Drive, Melville, New York11747-3157, USA 1-631-844-5000 basic_d_d4226_7.fm Page 84 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 85 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 86 Thursday, February 5, 2004 1:14 PM !, #, $, #SLOW1, HSLOW1, #SLOW2 11 Blitzstärkensteuerung w -2.0 – +2.0 12 Auslösermodus basic_d_d4226_7.fm Page 87 Thursday, February 5, 2004 1:14 PM Funktion 15 Speichermodus basic_d_d4226_7.fm Page 88 Thursday, February 5, 2004 1:14 PM Wiedergabemodus

basic_d_d4226_7.fm Page 89 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 90 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 91 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 92 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 93 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 94 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 95 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 96 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 97 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 98 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 99 Thursday, February 5, 2004 1:14 PM NOISE REDUCTION [RAUSCHMIND.] DIGITAL ZOOM [DIGITALZOOM] FULLTIME AF [AF PERMANENT]

AF MODE [AF-MODUS]

PANORAMA 2 IN 1 [2-IN-1] FUNCTION [AUFNAHMEFKT] AF AREA [AF FELD] INFO R (Einzelbilder) R (Movies) SUPER ZOOM basic_d_d4226_7.fm Page 100 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 101 Thursday, February 5, 2004 1:14 PM SEt CARD EDIt PLAY Wiedergabemodus OFF basic_d_d4226_7.fm Page 102 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 103 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 104 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 105 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 106 Thursday, February 5, 2004 1:14 PM

basic_d_d4226_7.fm Page 107 Thursday, February 5, 2004 1:14 PM

basic_d_d4226_7.fm Page 108 Thursday, February 5, 2004 2:55 PM basic_d_d4226_7.fm Page 109 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 110 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 111 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 112 Thursday, February 5, 2004 1:14 PM

basic_d_d4226_7.fm Page 113 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 114 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 115 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 116 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 117 Thursday, February 5, 2004 1:14 PM Windows 98/ 98SE (Second Edition) basic_d_d4226_7.fm Page 118 Thursday, February 5, 2004 1:14 PM basic_d_d4226_7.fm Page 119 Thursday, February 5, 2004 1:14 PM CARD-COVER OPEN CARD%SEtUP POWER%OFF

De 119 basic_d_d4226_7.fm Page 120 Thursday, February 5, 2004 1:14 PM : Exif 2.2, Digital Print Order Format (DPOF), PRINT Image Matching II, PictBridge : 3.200 × 2.400 Pixel (ENLARGE SIZE: SHQ, HQ)

2.288 × 1.712 Pixel (TIFF, SHQ, HQ)

2.288 × 1.520 Pixel (3:2 TIFF, SHQ, HQ)

2.048 × 1.536 Pixel (TIFF, SQ1)

1.600 × 1.200 Pixel (TIFF, SQ1)

1.280 × 960 Pixel (TIFF, SQ1)

1.024 × 768 Pixel (TIFF, SQ2)

640 × 480 Pixel (TIFF, SQ2) basic_d_d4226_7.fm Page 121 Thursday, February 5, 2004 1:14 PM Sucher basic_sp_d4226_7.fm Page 122 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 123 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 124 Monday, February 9, 2004 12:29 PM Jack DC-IN Conector USB Jack A/V OUT (MONO) basic_sp_d4226_7.fm Page 125 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 126 Monday, February 9, 2004 12:29 PM !, #, $, #SLOW1, HSLOW1, #SLOW2 basic_sp_d4226_7.fm Page 127 Monday, February 9, 2004 12:29 PM Opción Indicaciones

TIFF, SHQ, HQ, SQ1, SQ2

16 Resolución 2288 × 1712, 1280 × 960, 640 × 480 etc. basic_sp_d4226_7.fm Page 128 Monday, February 9, 2004 12:29 PM

TIFF, SHQ, HQ, SQ1, SQ2

7 Resolución basic_sp_d4226_7.fm Page 129 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 130 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 131 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 132 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 133 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 134 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 135 Monday, February 9, 2004 12:29 PM J AJUSTE DE LA FECHA Y LA HORA X

basic_sp_d4226_7.fm Page 136 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 137 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 138 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 139 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 140 Monday, February 9, 2004 12:29 PM Pestaña SETUP [CONFIG.] ALL RESET [RE. SET.]

PW ON/OFF SETUP

[CONF. ON/OFF]

REC VIEW [VISUAL IMAG] SLEEP

MY MODE SETUP

[AJ. MI MODO]

FILE NAME [NOM FICHERO] PIXEL MAPPING

m/ft VIDEO OUT SHORT CUT [ATAJO] CUSTOM BUTTON [AJUSTE BOT.]

basic_sp_d4226_7.fm Page 141 Monday, February 9, 2004 12:29 PM SEt CARD EDIt PLAY Pestaña CARD [TARJETA] CARD SETUP [CONFIG. TARJ] Pestaña SETUP [CONFIG.] ALL RESET [RE. SET.]

PW ON/OFF SETUP

[CONF. ON/OFF]

SCREEN SETUP [CONF. PANT.]

basic_sp_d4226_7.fm Page 142 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 143 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 144 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 145 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 146 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 147 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 148 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 149 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 150 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 151 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 152 Monday, February 9, 2004 12:29 PM

basic_sp_d4226_7.fm Page 153 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 154 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 155 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 156 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 157 Monday, February 9, 2004 12:29 PM Windows 98/ 98SE (Second Edition) basic_sp_d4226_7.fm Page 158 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 159 Monday, February 9, 2004 12:29 PM basic_sp_d4226_7.fm Page 160 Monday, February 9, 2004 12:29 PM : 3.200 × 2.400 pixels (ENLARGE SIZE: SHQ, HQ)

2.288 × 1.712 pixels (TIFF, SHQ, HQ)

2.288 × 1.520 pixels (3:2 TIFF, SHQ, HQ)

2.048 × 1.536 pixels (TIFF, SQ1)

1.600 × 1.200 pixels (TIFF, SQ1)

1.280 × 960 pixels (TIFF, SQ1)

1.024 × 768 pixels (TIFF, SQ2)

640 × 480 pixels (TIFF, SQ2) basic_sp_d4226_7.fm Page 161 Monday, February 9, 2004 12:29 PM Enfoque automático : Jack DC-IN, conector USB (mini-B), jack A/V OUT basic_sp_d4226_7.fm Page 162 Monday, February 9, 2004 12:29 PM MEMO

162 Es basic_sp_d4226_7.fm Page 163 Monday, February 9, 2004 12:29 PM MEMO

Es 163 basic_e_d4226_hyo4_7.fm Page 1 Thursday, February 12, 2004 12:41 PM http://www.olympus.com/ OLYMPUS CORPORATION Shinjuku Monolith, 3-1 Nishi-Shinjuku 2-chome, Shinjuku-ku, Tokyo, Japan OLYMPUS AMERICA INC. Two Corporate Center Drive, Melville, NY 11747-3157, U.S.A. Tel. 631-844-5000 Technical Support (USA) 24/7 online automated help: http://www.olympusamerica.com/support Phone customer support: Tel. 1-888-553-4448 (Toll-free) Our phone customer support is available from 8 am to 10 pm (Monday to Friday) ET E-Mail: distec@olympus.com Olympus software updates can be obtained at: http://www.olympus.com/digital Olympus Europa GmbH Premises/Goods delivery: Wendenstrasse 14-18, 20097 Hamburg, Germany Tel: +49 40-23 77 3-0 / Fax: +49 40-23 07 61 Letters: Postfach 10 49 08, 20034 Hamburg, Germany European Technical Customer Support: Please visit our homepage http://www.olympus-europa.com or call our TOLL FREE NUMBER* : 00800 - 67 10 83 00 for Austria, Belgium, Denmark, Finland, France, Germany, Italy, Luxemburg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom

• Please note some (mobile) phone services/provider do not permit access or request an additional prefix to +800 numbers. For all not listed European Countries and in case that you can’t get connected to the above mentioned number please make use of the following CHARGED NUMBERS: +49 180 5 - 67 10 83 or +49 40 - 237 73 899 Our Technical Customer Support is available from 9 am to 6 pm MET (Monday to Friday) 2004 OLYMPUS CORPORATION Printed in Japan 1AG6P1P2054-- VT825101
