Product type	Compact digital camera
Brand	OLYMPUS
Model	C-460 ZOOM (D-580ZOOM / X-400)
Effective resolution	4.0 megapixels (1/2.5" CCD, 4.23 million gross)
Lens	Olympus 5.8-17.4 mm (35-105 mm equiv.), f/3.1-5.2, 3x optical zoom
Digital zoom	Up to 4x (combined optical + digital ~12x)
LCD screen	1.8" color TFT, 85,000 pixels
Viewfinder	Real image optical
Storage media	xD-Picture Card (16 to 512 MB)
Recording formats	Images: JPEG (DCF, Exif 2.2, DPOF, PictBridge); Video: QuickTime Motion JPEG
Shooting modes	Program Auto, Portrait, Landscape+Portrait, Landscape, Night Scene, Self-portrait, Video
Metering system	Digital ESP, Spot
Shutter speed	1 - 1/1000 sec (2 sec in Night Scene mode)

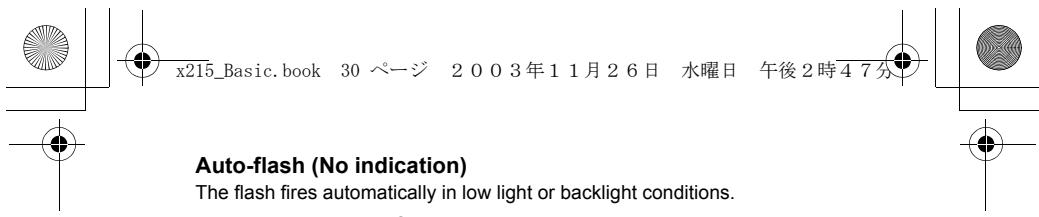

Flash	Auto, Red-eye reduction, Fill-in, Off; range up to approx. 3.5 m
Main features	Self-timer 10 sec, burst (~1.3 fps in HQ), macro 20 cm, white balance, exposure compensation ±2 EV
Connectivity	Mini-B USB, A/V OUT (mono) jack, DC IN jack

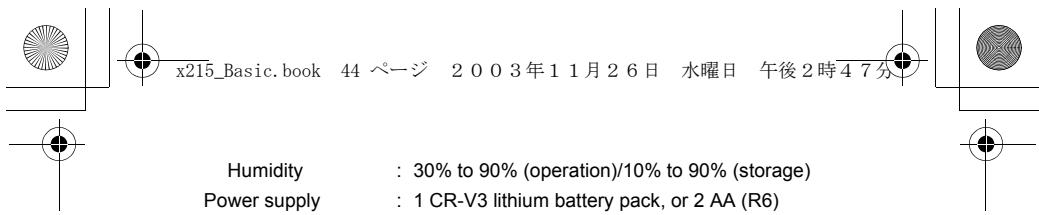

Power supply	1 lithium CR-V3 battery or 2 AA (R6) alkaline/Ni-MH batteries; optional AC adapter
Dimensions (W x H x D)	108 x 57.5 x 36.5 mm (excluding protrusions)
Weight	165 g (without batteries or card)
Maintenance and cleaning	Clean the lens with a soft cloth; avoid moisture and shocks; store in a dry place
Safety	Do not expose to water; use only specified batteries; do not disassemble
Spare parts / Repairability	Batteries, USB and AV cables, AC adapter (optional); repair by authorized Olympus service center
General information	Downloadable manual; PictBridge compatible; NTSC/PAL video output

Frequently Asked Questions - C-460 ZOOM OLYMPUS

How to insert batteries into the camera?

Slide open the battery compartment cover. Insert 2 AA (R6) alkaline or Ni-MH batteries observing the indicated polarity, or one CR-V3 lithium battery. Close the cover firmly.

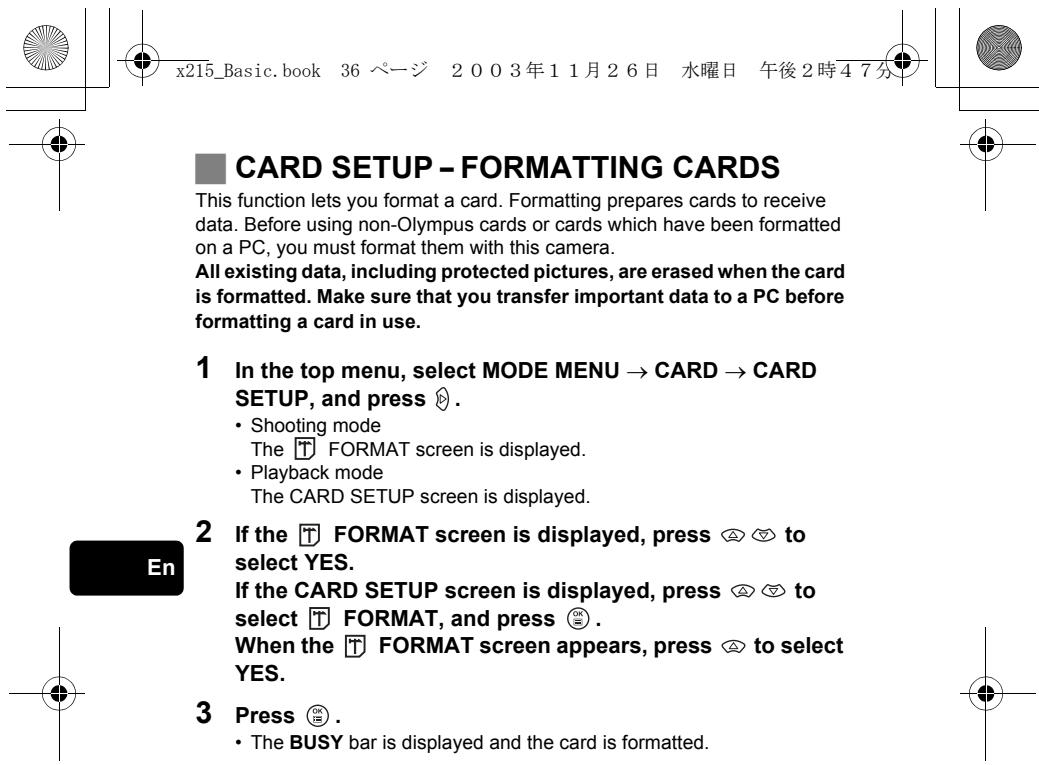

How to format an xD-Picture Card?

In shooting or playback mode, press OK to display the main menu. Select MODE MENU > CARD > CARD SETUP > FORMAT, then confirm. Caution: formatting erases all data.

How to set the date and time?

Open the lens barrier, press OK, then select MODE MENU > SETUP > DATE. Choose the date format, then set the year, month, day, and time using the arrow keys. Press OK to confirm.

How to delete a photo or all photos?

In playback mode, select the photo with the arrow keys, press OK, choose ERASE, then confirm YES. To delete all photos, go to MODE MENU > CARD > CARD SETUP > ALL ERASE.

How to use the flash?

Press the flash button (⚡) to display the current setting. Press repeatedly to cycle through modes: Auto flash, Red-eye reduction, Fill-in flash, Flash off. The flash fires according to the selected mode.

How to record a video?

Open the lens barrier, press the mode button (○) to display the virtual dial. Select the video icon with the arrow keys and confirm. Compose the shot, then press the shutter button fully to start recording. Press again to stop.

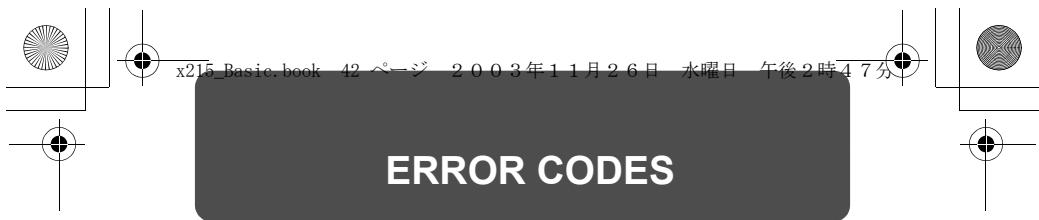

What to do if the camera displays 'CARD ERROR'?

Remove the card and reinsert it correctly. If the error persists, format the card in the camera. If formatting fails, the card is likely defective and should be replaced.

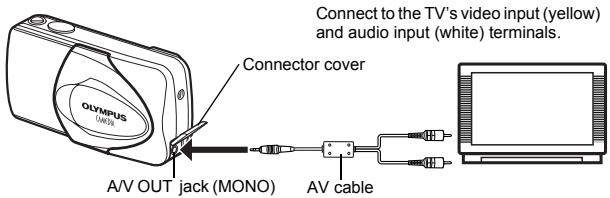

How to connect the camera to a TV?

Turn off both the camera and TV. Connect the supplied AV cable (yellow for video, white for audio) to the camera's A/V OUT jack and to the corresponding inputs on the TV. Turn on the TV to the video input mode, then turn on the camera in playback mode.

Which memory card is compatible?

The camera uses exclusively xD-Picture Cards, from 16 MB to 512 MB. Other formats (SD, CF) are not compatible.

How to protect photos from deletion?

In playback mode, select the photo to protect. Press OK, go to MODE MENU > PLAY > PROTECT, set to ON and confirm. The photo cannot be deleted until protection is disabled.

USER MANUAL C-460 ZOOM OLYMPUS

Pure abstract pattern with vertical lines and no text or symbols

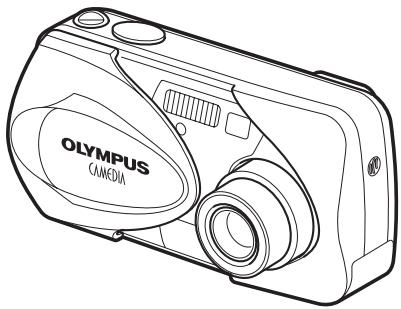

Line drawing of a Olympus CAMEDIA digital camera with lens and control buttons (no text or symbols on body)

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

These instructions are only for quick reference. For more details on the functions described here, refer to the "Reference Manual" on CD-ROM.

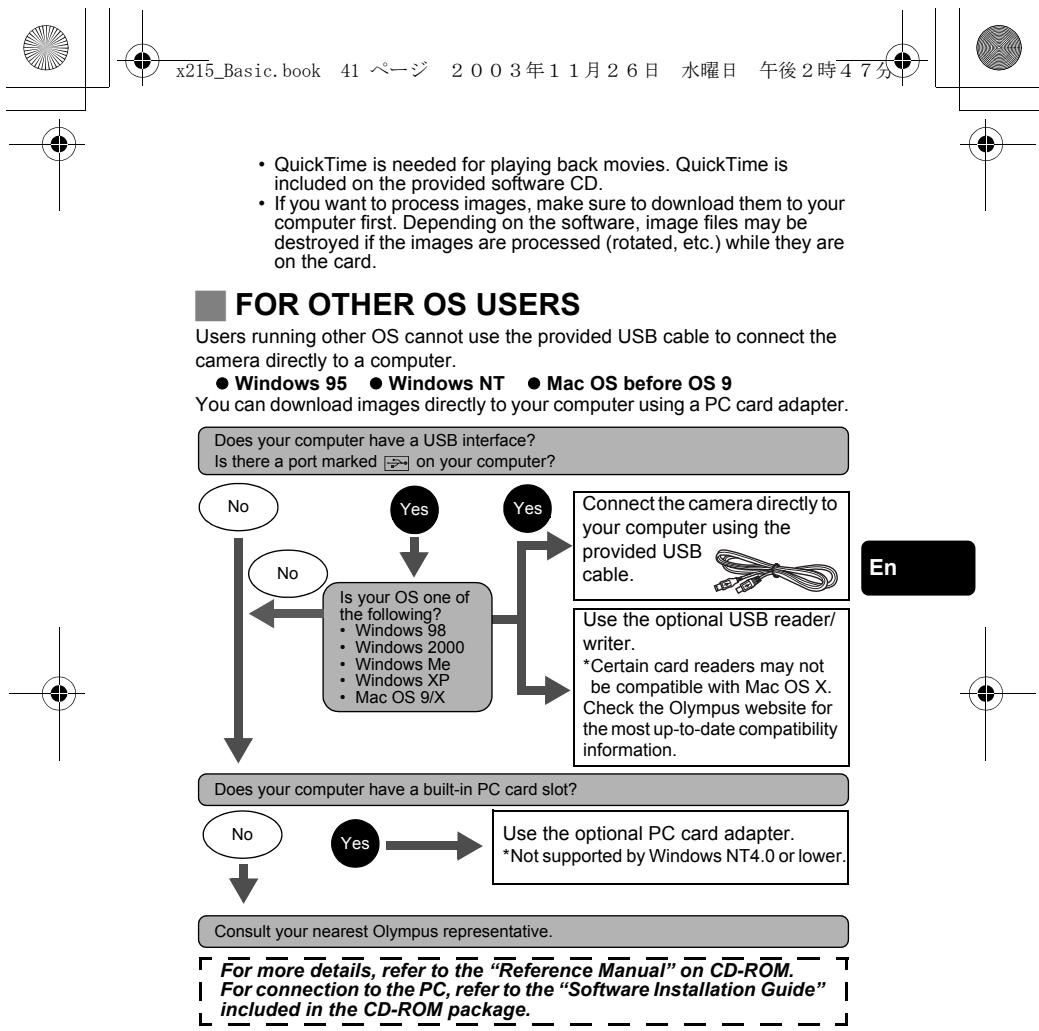

For connection to the PC or installation of provided software, refer to the Software Installation Guide included in the CD-ROM package.

2 En

■ Before using your camera, read this manual carefully to ensure correct use.
We recommend that you take test shots to get accustomed to your camera before taking important photographs.
These instructions are only a basic manual. For more details on the functions described here, refer to the Reference Manual on the CD-ROM.

For customers in North and South America

For customers in USA

Declaration of Conformity

Model Number : D-580ZOOM/C-460ZOOM/X-400

Trade Name : OLYMPUS

Responsible Party : Olympus America Inc.

Address : 2 Corporate Center Drive, Melville, New York 11747-3157 U.S.A.

Telephone Number : 1-631-844-5000

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that may cause undesired operation.

For customers in Canada

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

En

For customers in Europe

“CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. “CE” mark cameras are intended for sales in Europe.

Trademarks

• IBM is a registered trademark of International Business Machines Corporation.
- Microsoft and Windows are registered trademarks of Microsoft Corporation.
• Macintosh is a trademark of Apple Computer Inc.
- All other company and product names are registered trademarks and/or trademarks of their respective owners.
- The standards for camera file systems referred to in this manual are the “Design Rule for Camera File System/DCF” standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA).

En

3

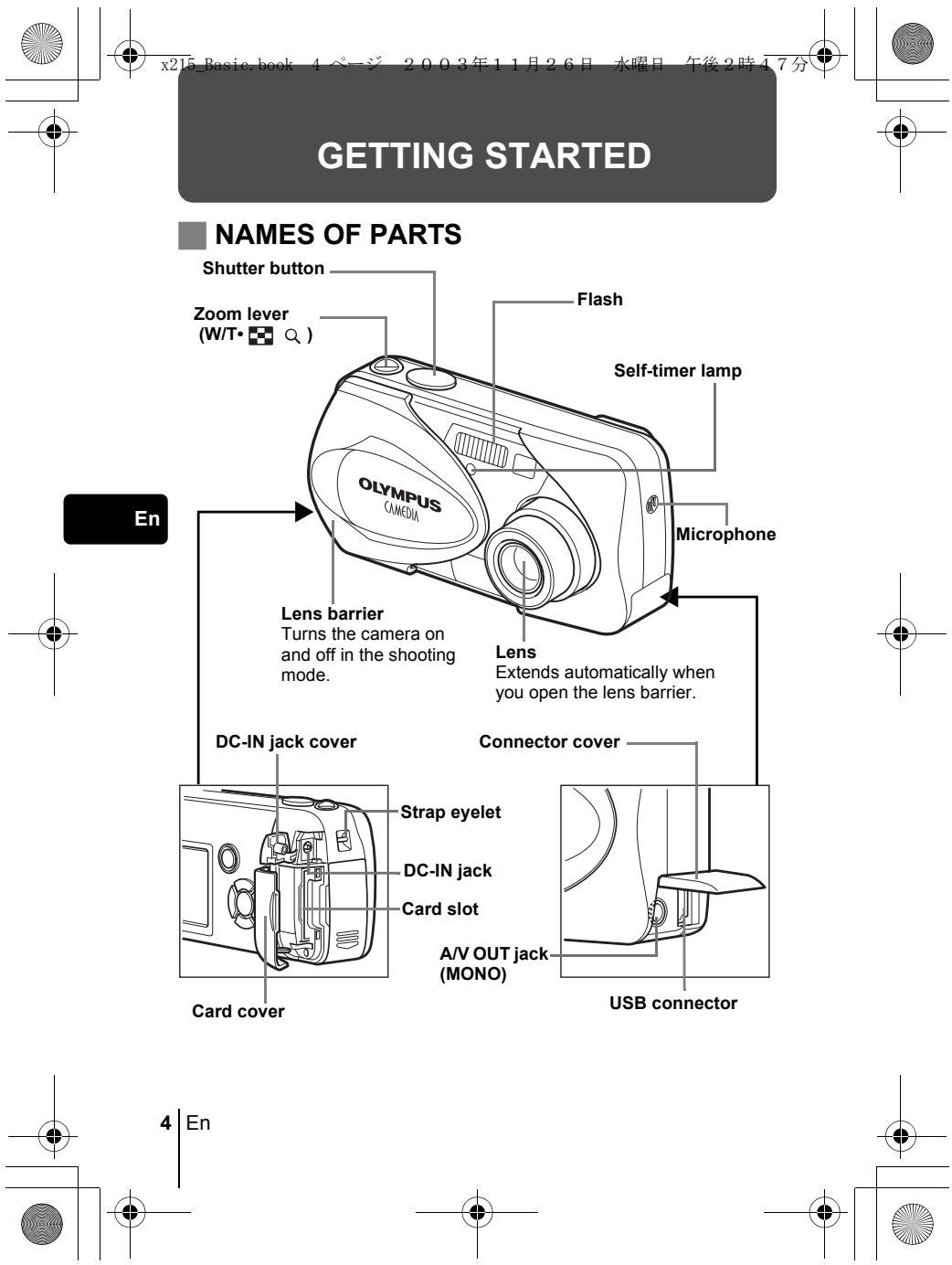

Buttons on the arrow pad have their respective functions. They are also used as direction buttons. ☑, ☑, ☑ and ☑ indicate which button to be pressed.

	Items	Indications
1	Shooting mode	P, 📋, 📋, 📋, 📋, 📋
2	Battery check	[IMAGE]
3	Green lamp	○
4	Flash standbyCamera movement warning/Flash charge	↓ (Lit)↓ (Blinks)
5	Macro mode	[IMAGE], [IMAGE]
6	Flash mode	[IMAGE], [IMAGE]
7	Sequential shooting	[IMAGE], [IMAGE]
8	Self-timer	[IMAGE]
9	Record mode	SHQ, HQ, SQ1, SQ2
10	Sound record	↓
11	Resolution	2288×1712, 1600×1200, 640×480, etc.
12	Metering	[IMAGE]
13	Exposure compensation	-2.0, -1.5, -1.0, -0.5, +0.5, +1.0, +1.5, +2.0
14	White balance	[IMAGE], [IMAGE], [IMAGE], [IMAGE]
15	AF target mark	[ ]
16	Memory gauge	[IMAGE], [IMAGE], [IMAGE]
17	Number of storable still picturesRemaining recording time	1500:36

En

6

En

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

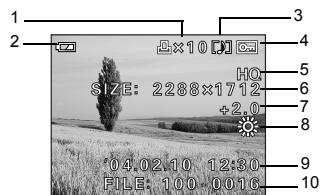

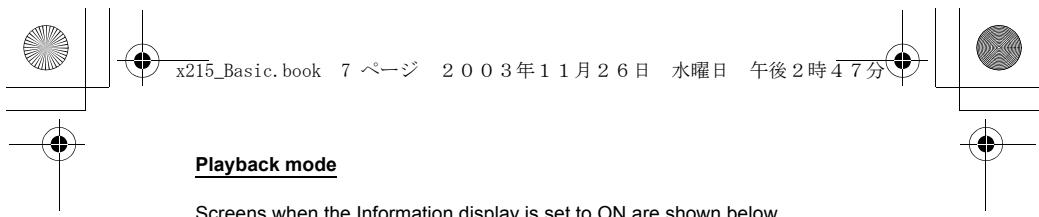

Screens when the Information display is set to ON are shown below.

1 2 3 4 5 6 7 8 9 10 Size: 2288x1712 +2.0 10 04 02 10 12 30 FILE: 100 0016

Still picture

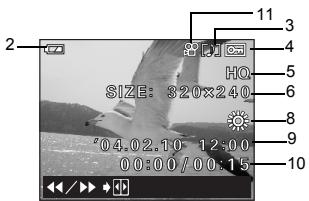

2 11 .3 4 HQ 5 6 8 9 04.02.10 12:00 00:00 / 00:15 10

Movie

	Items	Indications
1	Print reservation, Number of prints	× 10
2	Battery check	,
3	Sound record
4	Protect
5	Record mode	SHQ, HQ, SQ1, SQ2
6	Resolution	2288 × 1712, 1600 × 1200, 640 × 480, etc
7	Exposure compensation	-2.0, -1.5, -1.0, -0.5, +0.5, +1.0, +1.5, +2.0
8	White balance	WB AUTO, ★ , — , — , —
9	Date and time	'04.02.10 12:30
10	File number (still picture), Number of frames Elapsed time/Total recording time (movie)	100-0016, 16 00:00/00:15
11	Movie

En

En

7

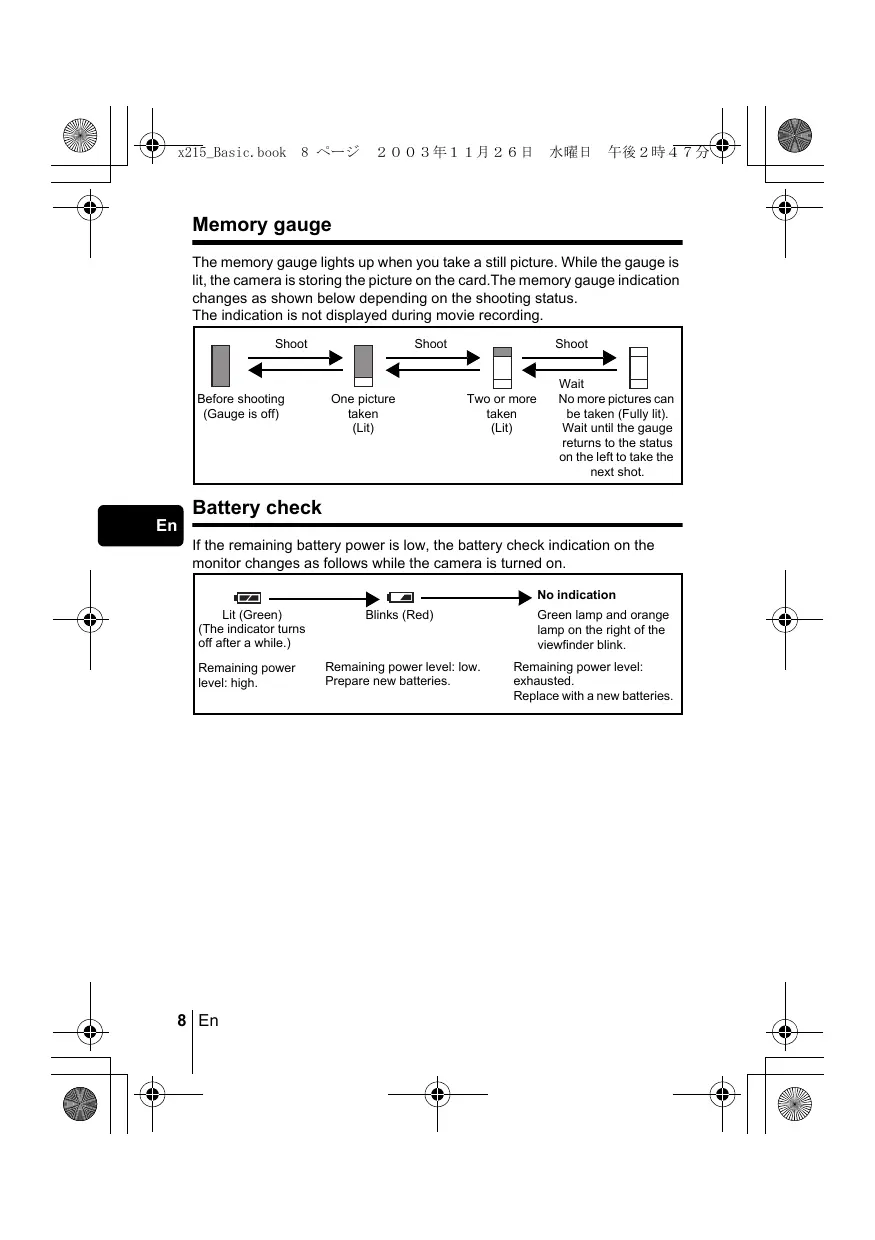

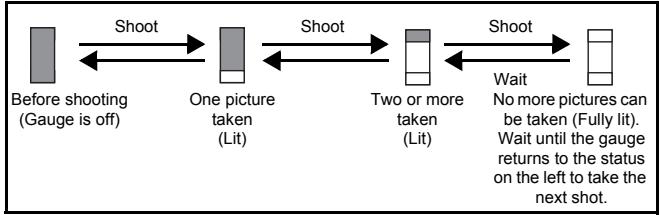

The memory gauge lights up when you take a still picture. While the gauge is lit, the camera is storing the picture on the card. The memory gauge indication changes as shown below depending on the shooting status.

The indication is not displayed during movie recording.

En

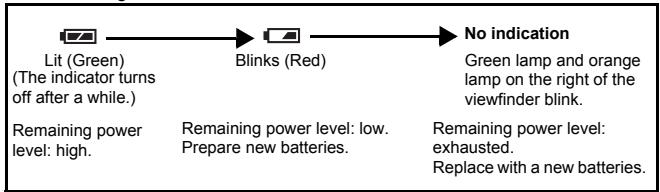

Battery check

If the remaining battery power is low, the battery check indication on the monitor changes as follows while the camera is turned on.

8 En

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

ATTACHING THE STRAP

1 Thread the short end of the strap through the strap eyelet.
2 Thread the long end of the strap through the loop that has already gone through the eyelet.
3 Pull the strap tight, making sure that it is securely fastened and does not come loose.

Strap eyelet

LOADING THE BATTERIES

En

1 Make sure that:

• The lens barrier is closed.
• The monitor is off.
• The lamp on the right of the viewfinder is off.

2 Slide the battery compartment cover in the direction of Ⓐ.

• The battery compartment cover is unlocked and opened in the direction of Ⓑ.
• Use the ball of your finger to slide the cover. Do not use your fingernail as this could result in injury.

Battery compartment cover

En

9

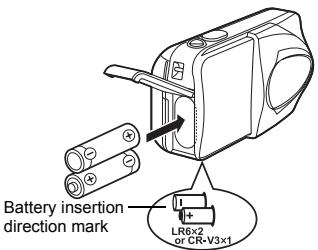

3 Insert the batteries, making sure that they are correctly oriented as shown in the illustration.

The battery insertion direction mark is provided inside of the battery compartment.

When using AA (R6) batteries

When using CR-V3 lithium battery pack

Battery insertion direction mark LR6x2 or CR-V3x1

There is a mark showing the correct way to insert the AA batteries on the bottom of the camera.

When using a lithium battery pack, insert it in the direction as shown in the illustration.

4 Close the battery compartment cover, then press it down Ⓒ and slide it in the direction shown Ⓓ.

- If the battery compartment cover seems hard to close, do not force it. With the battery compartment cover shut, press the ≡ mark firmly and push it in the direction indicated by Ⓓ.

Diagram of a camera with labeled parts (C, D) and directional arrows indicating movement or force.

Important

• CR-V3 lithium battery cannot be recharged.
- Do not peel off the label from a CR-V3 lithium battery pack.
- Manganese (zinc-carbon) batteries cannot be used.

10

En

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

INSERTING A CARD

"Card" in this manual refers to the xD-Picture Card. The camera uses the card to record pictures.

1 Make sure that:

• The monitor is off.
• The lens barrier is closed.
• The lamp on the right of the viewfinder is off.

2 Open the card cover.

3 Face the card the correct way and insert it into the card slot as shown in the illustration.

• Insert the card while keeping it straight.
• The card stops with a click when it is inserted all the way.
• Inserting the card the wrong way or at an angle could damage the contact area or cause the card to jam.
• If the card is not inserted all the way, data may not be written to the card.

Index area side of the card Notch

En

Line drawing of a camera module with no visible text or symbols

The position of the card inserted correctly

4 Close the card cover securely.

Removing the card

Make sure that:

• The lens barrier is closed.
• The monitor is off.
- The lamp on the right of the viewfinder is off.

- Push the card all the way in to unlock it, then let it return slowly. The card is ejected a short way and then stops. Hold the card straight and pull it out.

Note

Releasing your finger quickly after pushing the card all the way in may cause it to eject forcefully out of the slot.

En

11

When shooting pictures (Shooting mode)

Power on: Open the lens barrier fully.

The camera turns on in the shooting mode. The lens extends and the subject is displayed on the monitor.

If the lens does not extend when the lens barrier is opened, there is a possibility that the barrier is not fully open. Open the lens barrier fully until you feel it click.

Diagram of a digital camera with an arrow indicating left and right motion (no text or symbols)

En

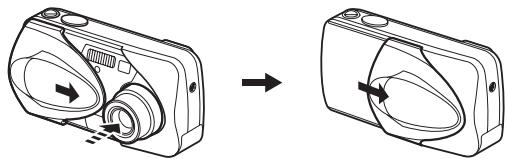

Power off: Close the lens barrier slightly until it almost touches the lens barrel.

The lens barrier stops just before it touches the lens and the lens retracts. Wait until the lens is fully retracted before closing the lens barrier completely.

The camera turns off. (The monitor also turns off.)

Diagram showing two views of a digital camera module before and after assembly (no text or symbols)

Note

- Do not push the lens barrier forcefully against the lens as this may damage the lens or cause it to malfunction.

Pure geometric diagram with concentric circles and intersecting lines, no text or symbols present

12

En

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

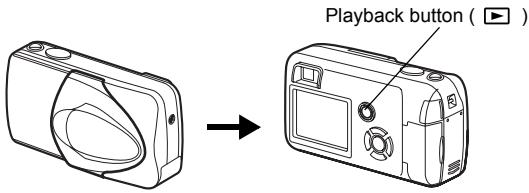

When playing back pictures (Playback mode)

Power on: Press ▶ (Playback) with the lens barrier closed.

The camera turns on in the playback mode. The monitor turns on and the last picture taken is displayed.

If no pictures have been taken yet, or the xD-Picture card is empty, the message "NO PICTURE" is displayed on the monitor.

Playback button ( ▶ )

Power off: Press ▶.

The monitor and the camera turn off.

Playback button ( ▶ )

Line drawing of a digital camera with adjustment knobs and buttons (no text or symbols)

En

En | 13

1 Open the lens barrier fully.

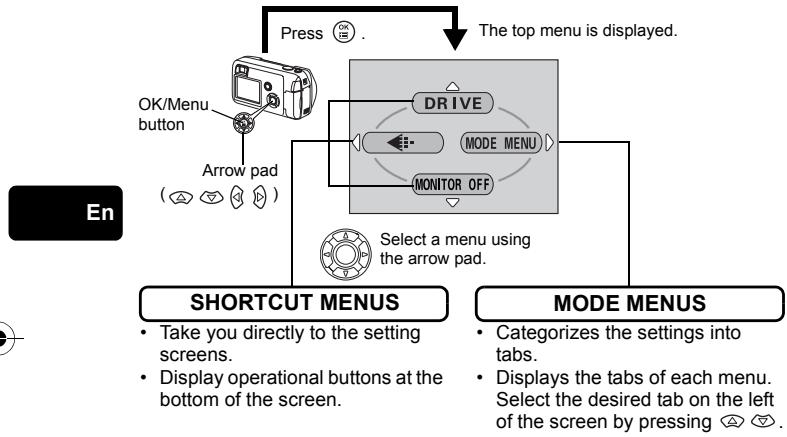

2 Press OK.

- The top menu is displayed.

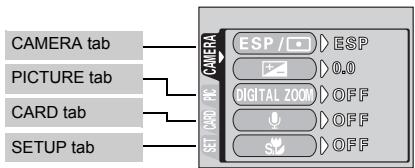

3 Press 📋 on the arrow pad to select MODE MENU.
4 Press 🔒 to select the SETUP tab, and press 🔒.
5 Press 🔒 to select 🔒, and press 🔒.

- The green frame moves to the selected item.

6 Press 🔒 to select a language, and press OK.
7 Press OK again to exit the menu.
8 Close the lens barrier to turn the camera off.

SETTING THE DATE AND TIME

1 Open the lens barrier fully.
2 Press OK.

- The top menu is displayed.

3 Press 🏠 on the arrow pad to select MODE MENU.
4 Press 🔒 to select the SETUP tab, and press 🔒.
5 Press 🔒 to select ⏻, and press 🔒.

- The green frame moves to the selected item.

6 Press 🔒 to select one of the following date formats: Y-M-D (Year/Month/Day), M-D-Y (Month/Day/Year), D-M-Y (Day/Month/Year). Then press 🔒.

• Move to the year setting.
• The following steps show the procedure used when the date and time settings are set to Y-M-D.

14

En

Pure geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

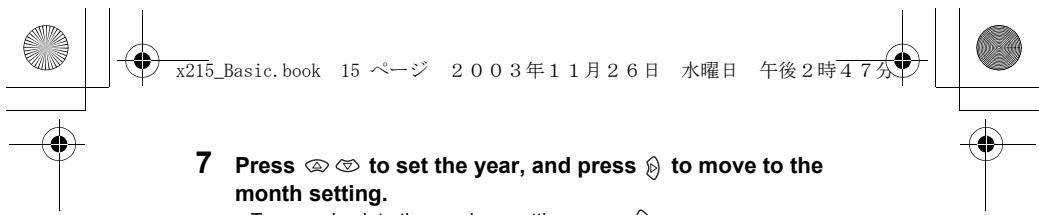

7 Press 🔒 to set the year, and press 🔒 to move to the month setting.

• To move back to the previous setting, press 🔒.
• The first two digits of the year are fixed.

8 Repeat this procedure until the date and time are completely set.

- The camera only displays the time in 24-hour time system ("2 p.m." would be "14:00").

9 Press OK.

- For a more accurate setting, press OK when the time signal hits 00 seconds. The clock starts when you press the button.

10 Close the lens barrier to turn the camera off.

Note

- The date and time settings will be returned to the factory default settings if the camera is left without the battery for approximately 3 days.

En

Pure geometric lines and crosshair symbols without any text, numbers, or labels

En 15

When you turn on the camera and press Ⓞ, the top menu is displayed on the monitor. The functions of this camera are set from the menus. This chapter explains how the menus work, using the shooting mode screens.

How to use the menus

1 Press OK to display the top menu. Press 🏠.
2 Press ⏻ to select a tab, and press ⏻.
3 Press 🔒 to select an item, and press 🔒.
4 Press 🔒 to select a setting. Press OK to complete setting.
Press OK again to exit the menu and return to shooting status.

16 En

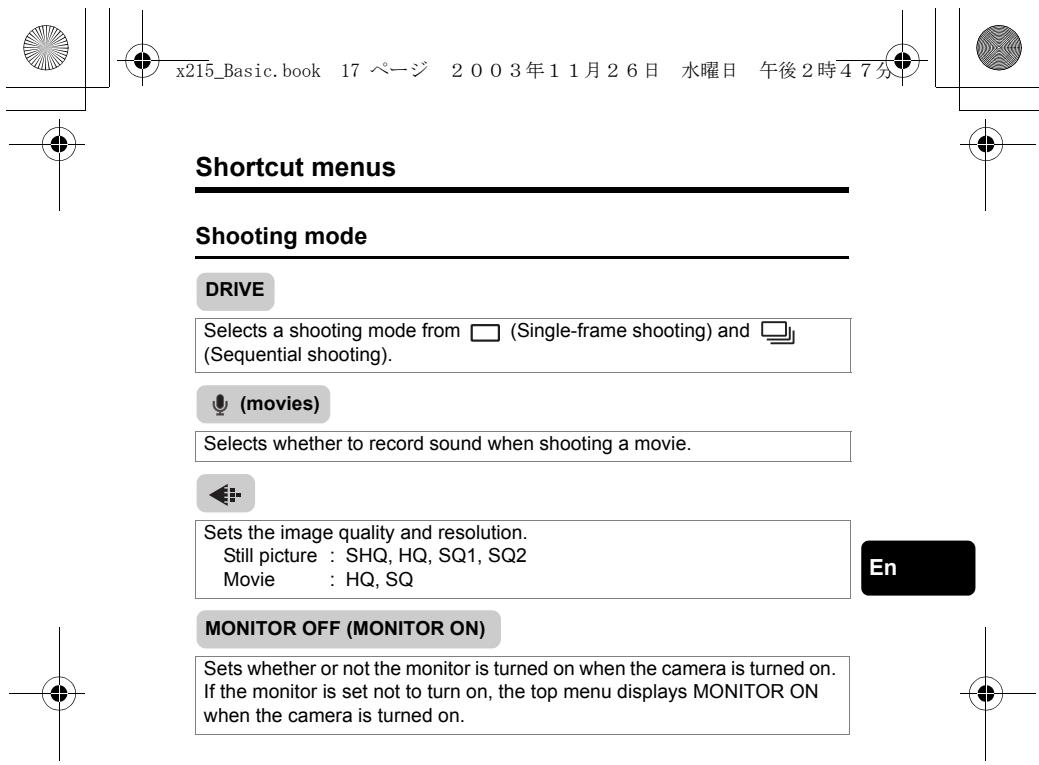

x215_Basic.book 17 ページ 2003年11月26日 水曜日 午後2時47分 Shortcut menus Shooting mode DRIVE Selects a shooting mode from (Single-frame shooting) and (Sequential shooting). (movies) Selects whether to record sound when shooting a movie. Sets the image quality and resolution. Still picture : SHQ, HQ, SQ1, SQ2 Movie : HQ, SQ MONITOR OFF (MONITOR ON) Sets whether or not the monitor is turned on when the camera is turned on. If the monitor is set not to turn on, the top menu displays MONITOR ON when the camera is turned on.

En 17

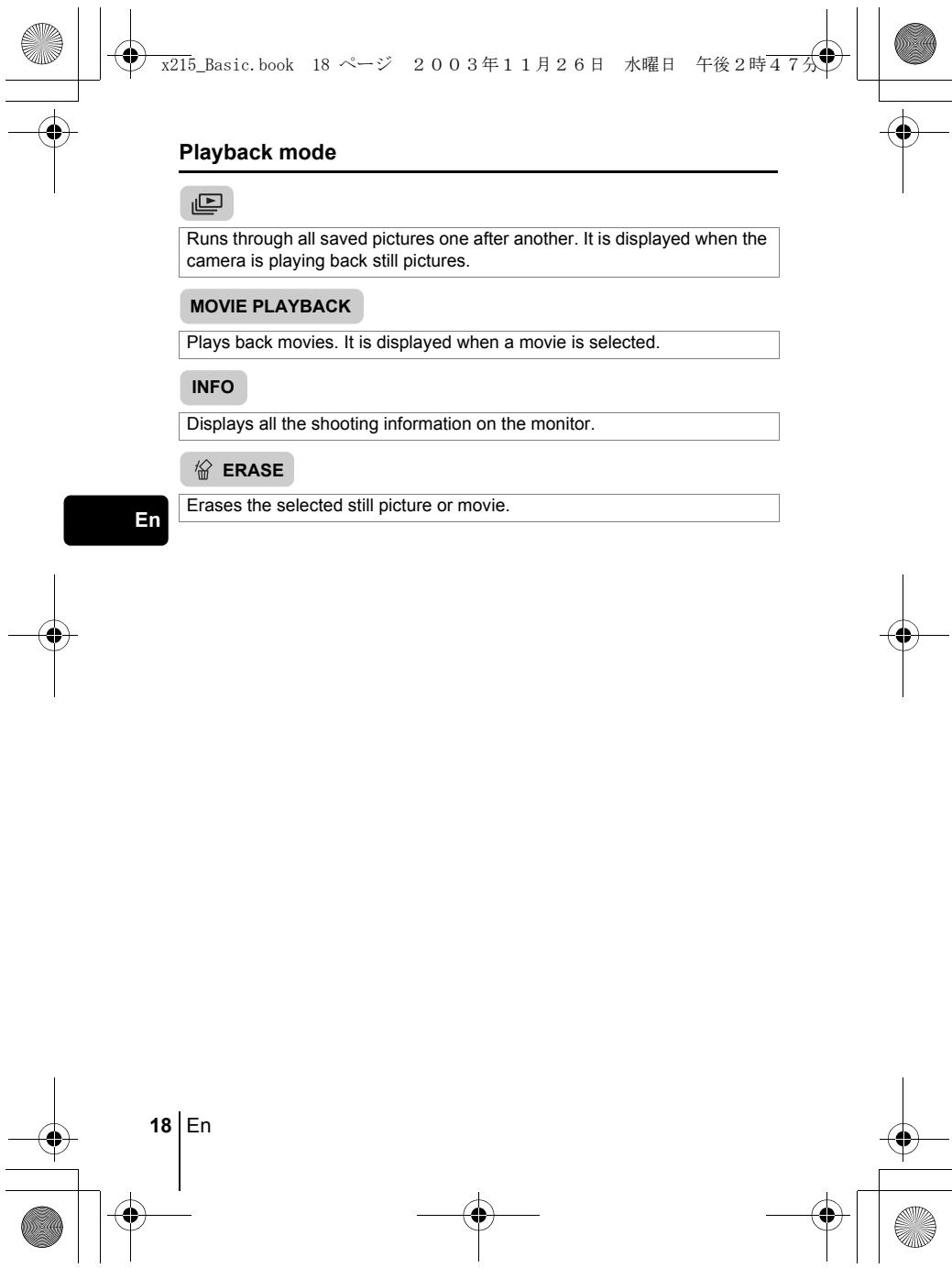

x215_Basic.book 18 ページ 2003年11月26日 水曜日 午後2時47分 Playback mode Runs through all saved pictures one after another. It is displayed when the camera is playing back still pictures. MOVIE PLAYBACK Plays back movies. It is displayed when a movie is selected. INFO Displays all the shooting information on the monitor. ERASE Erases the selected still picture or movie. En 18 En

The MODE MENU has 4 tabs. Press 🔒 to select a tab and display the associated menu items.

These instructions are only for quick reference. For more details on the functions described here, refer to the "Reference Manual" on CD-ROM.

Shooting mode

En

CAMERA tab
ESP/ [IMAGE]	Selects the metering method from ESP and [IMAGE].
[IMAGE]	Adjusts the brightness of the image (Exposure compensation).
DIGITAL ZOOM	Enables the zoom shooting at larger magnification than the maximum optical zoom.
[IMAGE] (still pictures)	Sound can be recorded when taking still pictures.
[IMAGE]	Allows pictures to be taken as close as 7 cm/2.8" from the subject.
PANORAMA	Allows panorama pictures to be taken with Olympus CAMEDIA-brand cards.
2 IN 1	Combines two still pictures taken in succession and stores them as a single picture.

PICTURE tab
WB	Sets the appropriate white balance according to the light source.

CARD tab
CARD SETUP	Formats a card.

En

19

SETUP tab
ALL RESET	Selects whether to keep the current camera settings when you turn off the power.
	Selects a language for on-screen display.
PW ON/OFF SETUP	Sets the picture that is displayed on the monitor when the power is turned on and off.
	Selects whether the beep sound (used for warnings, etc.) should be turned on or off.
REC VIEW	Selects whether to display pictures on the monitor while saving them to a card.
FILE NAME	Changes how file names are assigned.
PIXEL MAPPING	Checks the CCD and image processing functions for errors.
	Adjusts the brightness of the monitor.
	Sets the date and time.
VIDEO OUT	Selects NTSC or PAL according to your TV’s video signal type. TV video signal types differ depending on the region.

En

20 En

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

PLAY tab
○n	Protects pictures from accidental erasure.
☐	Rotates pictures 90 degrees clockwise or counterclockwise.
☐	Stores print reservation information on the card.
☐	Adds sound to a still picture already taken.
EDIT tab
BLACK&WHITE	Creates a black and white picture and saves it as a new picture.
SEPIA	Creates a sepia-toned picture and saves it as a new picture.
☐	Makes the file size smaller and saves it as a new file.
INDEX	Creates an index picture of a movie in 9 frames.
EDIT	Edits a movie.
CARD tab
CARD SETUP	Erases all image data stored on the card. (ALL ERASE, FORMAT)

En 21

SETUP tab
ALL RESET	Selects whether to keep the current camera settings when you turn off the power.
	Selects a language for on-screen display.
PW ON/OFF SETUP	Sets the picture that is displayed on the monitor when the power is turned on and off.
SCREEN SETUP	Registers a picture you took to be displayed on the startup/shutdown screen.
	Selects whether the beep sound (used for warnings, etc.) should be turned on or off.
	Adjusts the brightness of the monitor.
	Sets the date and time.
VIDEO OUT	Selects NTSC or PAL according to your TV's video signal type. TV video signal types differ depending on the region.
	Selects the number of frames in the index display.

En

22

En

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

SHOOTING BASICS

Shooting mode

This camera allows you to take still pictures and record movies. This camera has 7 shooting modes to choose from depending on the shooting conditions and the effect you want to achieve.

The factory default setting of the shooting mode is PROGRAM AUTO. For normal shooting which does not require any special setting or effect, you do not need to follow this procedure.

1 Open the lens barrier fully.

- The lens extends and the monitor turns on.

2 Press (○).

- The screen for selecting the shooting mode (virtual dial) is displayed.

MODE PROGRAM AUTO SELECT+ OK GO+ OK

Virtual dial screen

En

3 Select the mode best suited to your purpose from the following.

- Press ◀ to select the mode.

4 Press OK.

- The shooting mode is set, and the virtual dial screen disappears. Even if the ON button is not pressed, the mode will be set and the screen will disappear.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

En

23

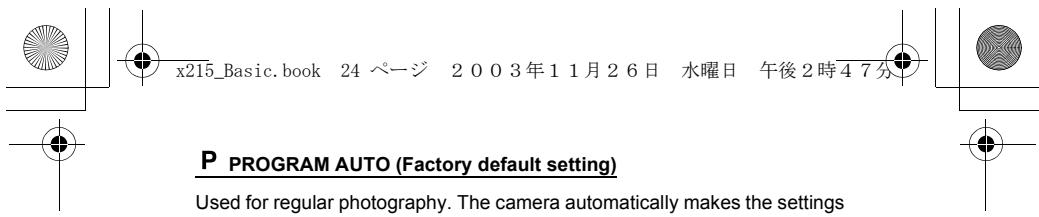

Used for regular photography. The camera automatically makes the settings for natural color balance. Other functions, such as the flash mode and metering, can be adjusted manually.

(Portrait)

Suitable for taking a portrait-style shot of a person. The camera automatically sets the optimal shooting conditions.

(Landscape + Portrait)

Suitable for taking photos of both your subject and the landscape. The camera automatically sets the optimal shooting conditions.

(Landscape)

Suitable for taking photos of landscapes and other outdoor scenes. The camera automatically sets the optimal shooting conditions.

(Night scene)

Suitable for shooting pictures in the evening or at night. The camera sets a slower shutter speed than is used in normal shooting. If you take a picture of a street at night in any other mode, the lack of brightness will result in a dark picture with only dots of light showing. In this mode, the true appearance of the street is captured. The camera automatically sets the optimal shooting conditions. If you use the flash, you can take pictures of both the subject and the background.

(Self portrait)

Enables you to take a picture of yourself while holding the camera. Point the lens towards yourself and the focus will be locked on you. The camera automatically sets the optimal shooting conditions. The zoom is fixed in the Wide position and cannot be changed.

(Movie)

Lets you record movies. Sound is recorded at the same time. The focus and zoom are locked. If the distance to the subject changes, focus may be compromised.

24 En

En

TAKING STILL PICTURES

You can take still pictures using either the monitor or the viewfinder. Both methods are easy as all you have to do is to press the shutter button.

Taking still pictures using the monitor

1 Open the lens barrier fully.

• Slide the lens barrier fully open until it clicks.
• The lens extends and the monitor turns on.

2 Decide the composition while looking at the image on the monitor.

3 Press the shutter button gently (halfway) to adjust the focus.

• Focus and exposure are locked, when the green lamp lights steadily. (Focus Lock)
• When the flash is ready to fire, the ↓ mark lights.

4 Press the shutter button all the way (fully).

• The camera takes the picture, and a beep sounds.
• When the green lamp stops blinking, you can take the next picture.
• The orange lamp on the right of the viewfinder blinks while the picture is stored on the card.

Taking still pictures using the viewfinder

1 Open the lens barrier fully.

• Slide the lens barrier open until it clicks.
• The lens extends and the monitor turns on.

2 Decide the composition while looking at the image in the viewfinder.

3 Take the picture by following the same procedure as for shooting using the monitor.

En

Pure geometric diagram with intersecting lines and circles, no text or symbols present

En

25

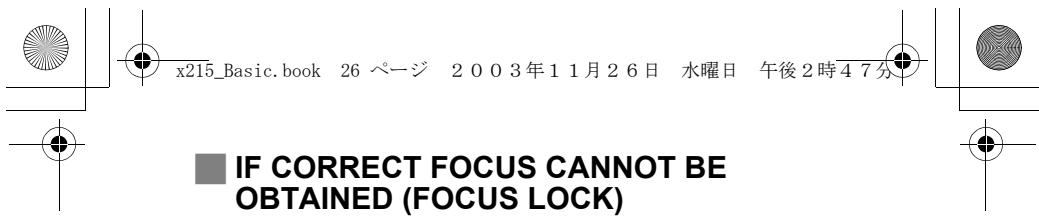

IF CORRECT FOCUS CANNOT BE OBTAINED (FOCUS LOCK)

When correct focus cannot be obtained on the subject you want to shoot, you can focus the camera on another point at roughly the same distance (focus lock) and take the picture as explained below.

1 Open the lens barrier fully.

• The camera turns on in the shooting mode.
• The lens extends and the monitor turns on.

2 Position the AF target mark on the subject you want to focus on.

- When shooting a hard-to-focus subject, point the camera at an object about the same distance away as the subject.

P HQ 2288x171230

AF target mark

En

3 Press the shutter button halfway until the green lamp lights.

• When the green lamp lights steadily, the focus and the exposure are locked.
• When the green lamp blinks, the focus and exposure are not locked. Release your finger from the shutter button, re-position your subject and press the shutter button halfway again.

4 Keeping the shutter button pressed halfway, recompose your shot.

P [ ] HQ 2288×171230

Green lamp

5 Press the shutter button fully.

26 En

RECORDING MOVIES

You can record movies with this camera. Sound is recorded at the same time. The focus and zoom are locked. If the distance to the subject changes, focus may be compromised.

1 Open the lens barrier fully.

• The lens extends and the monitor turns on.
  2 Press ⏻ (○) to display the virtual dial screen.
  3 Press ◇ to select 📋, then press OK.

- Movie recording is set and the camera returns to the shooting mode.

- On the monitor, the 📋 mark and the remaining recording time of the current memory card are displayed.

4 Decide the composition while looking at the image on the monitor.
5 Press the shutter button halfway.
6 Press the shutter button fully to start recording.

• The orange lamp on the right of the viewfinder lights.
• While recording a movie, the camera fixes its focus and zoom.
• During movie recording, lights red.

7 Press the shutter button again to stop recording.

• The orange lamp blinks while the movie is stored on the card.
• When the remaining recording time has been used up, recording stops automatically.

En

Pure geometric diagram with intersecting lines and circles, no text or symbols present

En

27

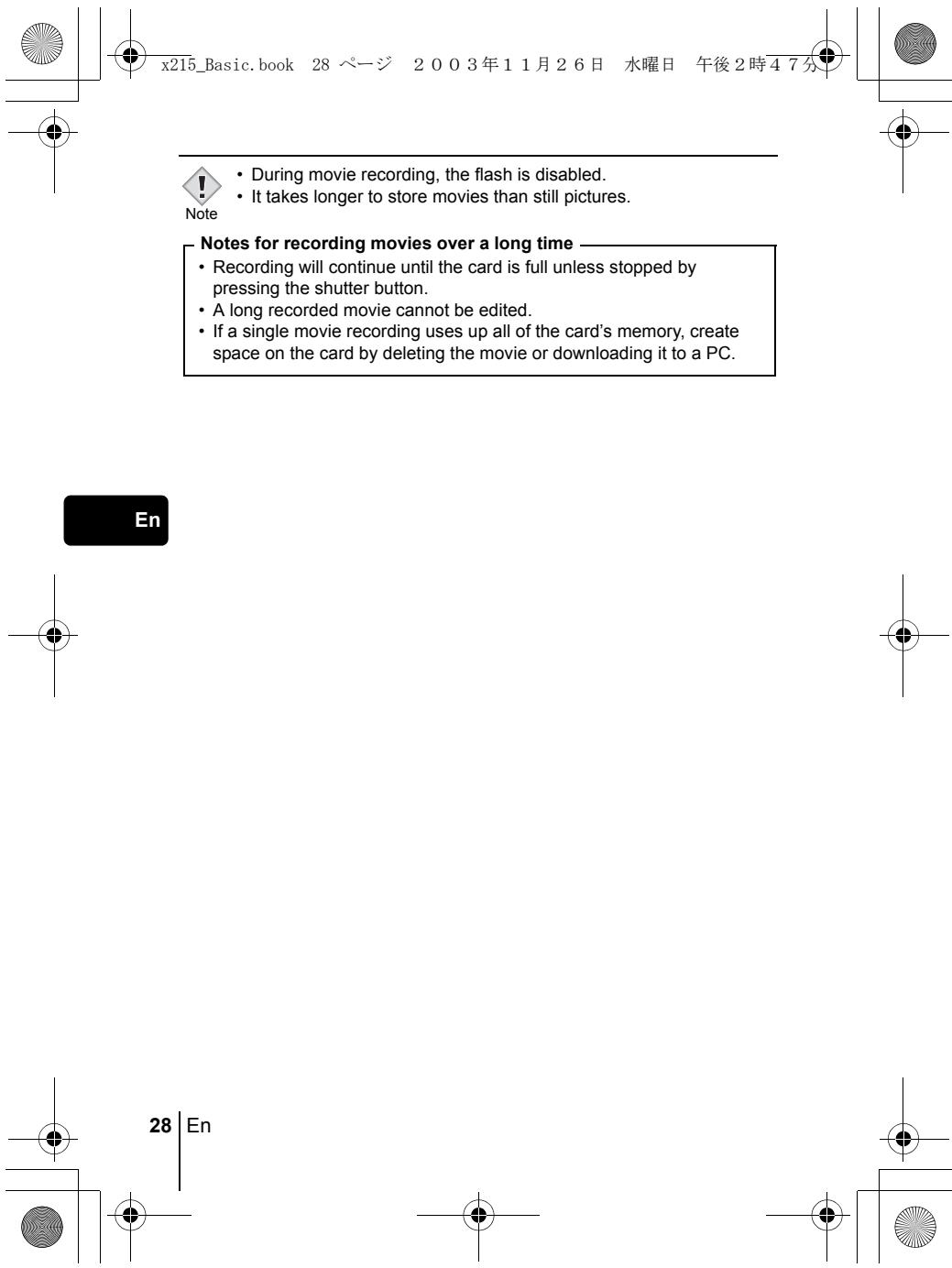

• During movie recording, the flash is disabled.
• It takes longer to store movies than still pictures.

Notes for recording movies over a long time

• Recording will continue until the card is full unless stopped by pressing the shutter button.
• A long recorded movie cannot be edited.
• If a single movie recording uses up all of the card's memory, create space on the card by deleting the movie or downloading it to a PC.

En

ZOOMING IN ON A SUBJECT (OPTICAL ZOOM)

Telephoto and wide-angle shooting are possible at 3× magnification (the optical zoom limit, equivalent to 35 mm - 105 mm on a 35 mm camera). By combining the optical zoom with the digital zoom, zoom magnification can be increased to a maximum of approximately 12×.

1 Open the lens barrier fully.
- The lens extends and the monitor turns on.
2 Push/pull the zoom lever while observing the subject in the monitor.
3 Take the picture.

Note

- Pictures taken with the digital zoom may appear grainy.

En

USING THE FLASH

1 Open the lens barrier fully.
- The lens extends and the monitor turns on.
2 Press ⬇ (⚡).
- The current flash setting is displayed.
3 Press ⏻ (⚡) to change the flash mode to your desired setting.
- Each time you press ⏻, the flash mode changes in the following sequence: AUTO - Ⓞ - ♣ - ⌘.
4 Press the shutter button halfway.
- When the flash is set to fire, the orange lamp remains lit.
5 Press the shutter button fully to take the picture.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

En

29

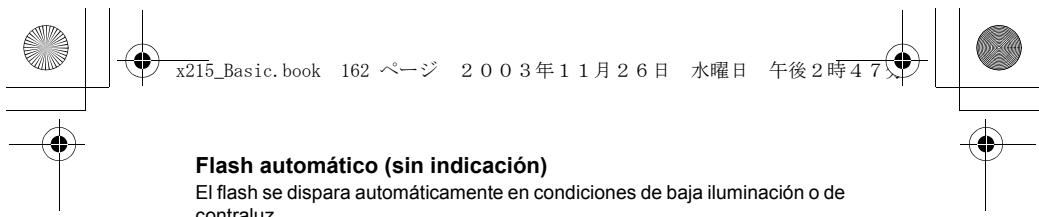

Auto-flash (No indication)

The flash fires automatically in low light or backlight conditions.

Red-eye reduction flash (◎)

The red-eye reduction flash mode significantly reduces this phenomenon by emitting pre-flashes before firing the regular flash.

Fill-in flash (⚡)

The flash fires regardless of the available light.

Flash off (⚡)

The flash does not fire even in low light conditions.

USING THE SELF-TIMER

This function is useful for taking pictures where you want to be included in the photograph. Fix the camera securely on a tripod on set it on a level surface for self-timer shooting.

En

1 Open the lens barrier fully.

- The lens extends and the monitor turns on.

2 Press ⏻ ( ∙ ).

- The current self-timer setting is displayed.

3 Press ⏻ ( √ ) to switch the self-timer mode on or off.

- The setting changes between ⚙️ ON and ⚙️ OFF each time ⚙️ is pressed. When the self-timer mode is selected, ⚙️ is displayed on the monitor.

4 Take the picture.

• The self-timer lamp lights up for approximately 10 seconds, and starts blinking. After blinking for approximately 2 seconds with a beep sound, the picture is taken.
• The self-timer mode is automatically canceled after one shot.

30 En

ADVANCED SHOOTING

SEQUENTIAL SHOOTING

This function allows you to take a rapid succession of still pictures by pressing and holding the shutter button (approximately 8 pictures at 1.3 frames per second by Sequential shooting in HQ mode). As you can choose the best picture from a series of sequential shots, you are recommended to use this mode when taking pictures of a moving subject. Focus, exposure and white balance are locked at the first frame. You can also erase the unwanted shots afterwards.

MENU FUNCTIONS - Mode menus

SELECTING THE METERING AREA

In a backlight situation, your subject may appear dark if the picture is taken with the normal metering value (Digital ESP metering). In this case, by changing the metering area to the center of the viewfinder screen (Spot metering), a subject can be shot with optimal exposure regardless of the background light.

ESP (Digital ESP) : Meters the center of the viewfinder and the area around it separately to obtain the optimum exposure.

(Spot metering): Meters only the center of the viewfinder to obtain the appropriate exposure for the subject.

MENU FUNCTIONS - Mode menus

MACRO MODE SHOOTING

The macro mode allows you to shoot at a distance of 20 cm to 50 cm (0.7 ft. to 1.6 ft.) from your subject.

1 Open the lens barrier fully.
2 Press ( ).
3 Press ⚠️ ( 🍒 ) to switch the macro mode on or off.
4 Take a picture.

En

Abstract geometric diagram with intersecting lines and shaded circles (no text or symbols)

En

31

VIEWING STILL PICTURES

1 Press ▶ with the lens barrier closed.

- The monitor turns on and displays the last picture taken. (Single-frame playback)

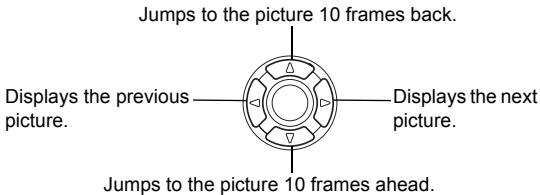

2 Use the arrow pad to play back other pictures.

Jumps to the picture 10 frames back. Displays the previous picture. Displays the next picture. Jumps to the picture 10 frames ahead.

En

3 Press ▶ to cancel playback.

- The monitor and camera turn off.

QUICK VIEW

This function lets you play back pictures while the camera is in the shooting mode. This is useful when you want to check shooting results and resume shooting quickly.

1 Press ▶ (QUICK VIEW) while in the shooting mode.

2 Press the shutter button halfway or ▶ to return to the shooting mode.

Close-up playback

Pictures displayed on the monitor can be enlarged in steps up to 4 times the original size.

1 Press ▶ with the lens barrier closed.

- The monitor turns on and displays the last picture taken.

32 En

2 Use the arrow pad to display the still picture you want to enlarge.

- You cannot enlarge pictures with 📁.

3 Pull the zoom lever toward T^Q .

- The magnification increases each time the zoom lever is pulled.

- To return the picture to the original size (1x), push the zoom lever toward w.

Index display

This function lets you show several pictures at the same time on the monitor. The number of pictures shown can be 4, 9 or 16.

1 Press ▶ with the lens barrier closed.

- The monitor turns on and displays the last picture taken. (Single-frame playback)

2 Push the zoom lever toward to enter the index display mode.

• Use the arrow pad to select the picture.
• To return to single-frame playback, pull the zoom lever toward T^Q .

MOVIE PLAYBACK - VIEWING MOVIES

1 Press ▶ with the lens barrier closed.
• The monitor turns on.
2 Use the arrow pad to display the picture with 🔊.
3 Press OK.
- The top menu is displayed.
4 Press 🔒 to select MOVIE PLAYBACK.
5 Press 🔒 to select PLAYBACK, and press OK.

• The movie is played back. When playback ends, the display automatically returns to the beginning of the movie.

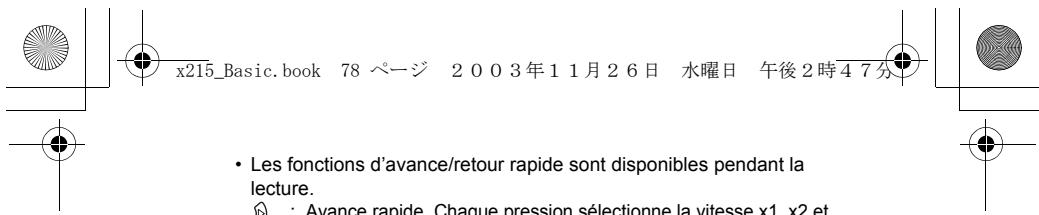

• Fast forward/fast rewind functions are available during playback.

: Fast forward. Each press switches the speed between ×1, ×2 and ×20.
: Fast rewind. Each press switches the speed between ×1, ×2 and ×20.

En

33

En

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

- The MOVIE PLAYBACK menu is displayed again after playback ends.

PLAYBACK : Plays back the entire movie again.

FRAME BY FRAME :

Plays back the movie manually one frame at a time.

EXIT : Leaves the movie playback mode.

Press 🔒 to select from PLAYBACK, FRAME BY FRAME or EXIT, and press OK.

When FRAME BY FRAME is selected

: Displays the first frame of the movie.
: Displays the last frame of the movie.
: Displays the next frame. The movie can be played continuously by holding the button down.
: Displays the previous frame. The movie can be played continuously in reverse by holding the button down.
OK : Displays the MOVIE PLAYBACK menu.

En

PROTECTING PICTURES

You are recommended to protect important pictures to avoid accidentally erasing them.

1 Press ▶ with the lens barrier closed.
• The monitor turns on.
2 Use the arrow pad to display the picture you want to protect.
3 Press OK.
- The top menu is displayed.
4 In the top menu, select MODE MENU → PLAY → O _π , and press ⏻.
5 Press 🔒 to select ON, and press OK.
- To cancel protection, select OFF.
- Press OK again to exit the menu.

Note

- Protected pictures cannot be erased by the single-frame/all-frame erase function, but they are all erased when you execute format.

Pure geometric diagram with concentric circles and diagonal lines, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

ERASING PICTURES

This function enables you to erase recorded pictures. You can choose the single-frame erase or the all-frame erase.

Note

• You cannot erase pictures that are protected. Cancel the protection before erasing such pictures.
• Once erased, pictures cannot be restored. Be careful not to accidentally erase pictures you want to keep.

Single-frame erase

This function erases only the picture displayed on the monitor. The all-frame erase function can be used to erase all the pictures on the card at once.

1 Press ▶ with the lens barrier closed.
• The monitor turns on.
2 Use the arrow pad to display the picture you want to erase.
3 Press OK.
- The top menu is displayed.
4 Press 📋 to select 🌐 ERASE.
5 Press 🔒 to select YES, and press OK.
- The picture is erased and the menu is closed.

All-frame erase

1 In the playback mode top menu, select MODE MENU → CARD → CARD SETUP, and press 🔒.
2 Press 🔒 to select 🔒 ALL ERASE, and press OK.
3 Press 🔒 to select YES, and press OK.

- All the pictures are erased.

En

En

35

x215_Basic.book 36 ページ 2003年11月26日 水曜日 午後2時47分 CARD SETUP - FORMATTING CARDS This function lets you format a card. Formatting prepares cards to receive data. Before using non-Olympus cards or cards which have been formatted on a PC, you must format them with this camera. All existing data, including protected pictures, are erased when the card is formatted. Make sure that you transfer important data to a PC before formatting a card in use. 1 In the top menu, select MODE MENU → CARD → CARD SETUP, and press 🔒. • Shooting mode The ☑ FORMAT screen is displayed. • Playback mode The CARD SETUP screen is displayed. 2 If the ☑ FORMAT screen is displayed, press 🔒 to select YES. If the CARD SETUP screen is displayed, press 🔒 to select ☑ FORMAT, and press 🔒. When the ☑ FORMAT screen appears, press 🔒 to select YES. 3 Press 🔒. • The BUSY bar is displayed and the card is formatted.

36 En

Use the AV cable provided with the camera to play back recorded images on your TV. Both a still picture and a movie can be played back. For a movie, the recorded sound is also played back along with the movie.

1 Make sure that the TV and camera are turned off. Connect the A/V OUT jack on the camera to the video input terminal on the TV using the AV cable.

Connect to the TV's video input (yellow) and audio input (white) terminals. Connector cover A/V OUT jack (MONO) AV cable

En

2 Turn the TV on and set it to the video input mode.

- For details of switching to video input, refer to your TV's instruction manual.

3 Press ▶.

• The last picture taken is displayed on the TV. Use the arrow pad to select the picture you want to display.
• The close-up playback, index display and slideshow functions can also be used on a TV screen.

Note

• You are recommended to use the optional AC adapter when using the camera with a TV.
• Make sure that the camera's video output signal type is the same as the TV's video signal type.

En
37

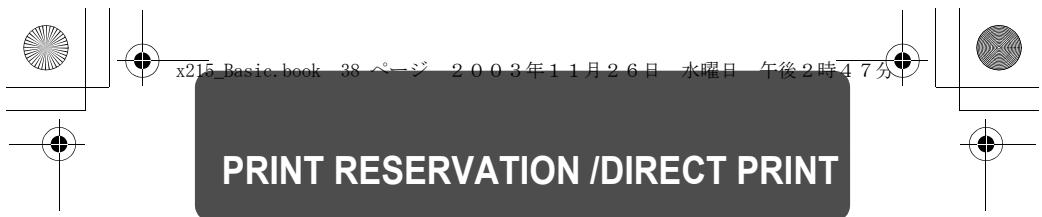

WITH PRINT RESERVATION (DPOF)

DPOF is short for Digital Print Order Format. DPOF is the format used to record automatic print information from digital cameras. If a card containing print reservation data is taken to a print shop that supports the DPOF format, the pictures can be printed according to the DPOF reservations. Or pictures can be printed out at home on a personal DPOF-compatible printer.

All-frame reservation

Use this feature to print all the pictures stored on the card. Select the desired number of prints and whether you want the date and time included.

Single-frame reservation

Use this feature to print only selected pictures. It is also used to change the reserved number of prints and the date/time settings. Display the frame to be printed and select the desired number of prints.

Resetting the print reservation data

This function allows you to reset all the print reservation data for pictures stored on the card.

En

38 En

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

By connecting the camera to a PictBridge-compatible printer with the USB cable, you can print out recorded pictures directly without the use of a computer.

PictBridge is the standard for connecting digital cameras and printers of different makers and printing out pictures directly.

PRINT Prints the selected picture.

ALL PRINT Prints all the pictures stored on the card.

MULTI PRINT Prints one picture in multiple layout format.

ALL INDEX Prints an index of all the pictures stored on the card.

PRINT ORDER Prints the pictures according to the print reservation data on the card. If no print reservations have been made, this option is not available.

Options for the print mode and other settings

- Available options for some settings such as the print mode and paper size may differ depending on the type of printer. For details, refer to the instruction manual of your printer.

En

For more details, refer to the "Reference Manual" on CD-ROM.

En

39

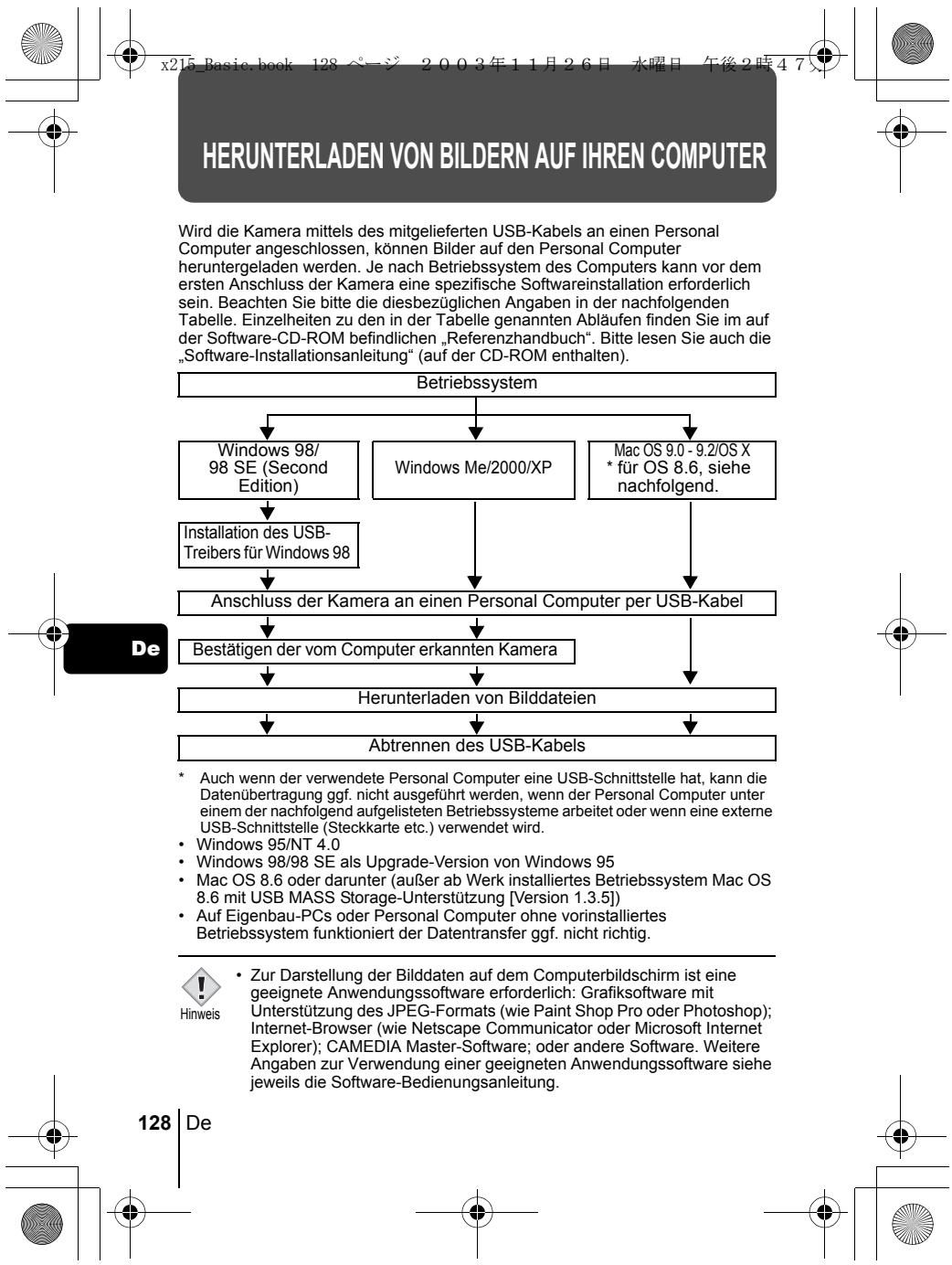

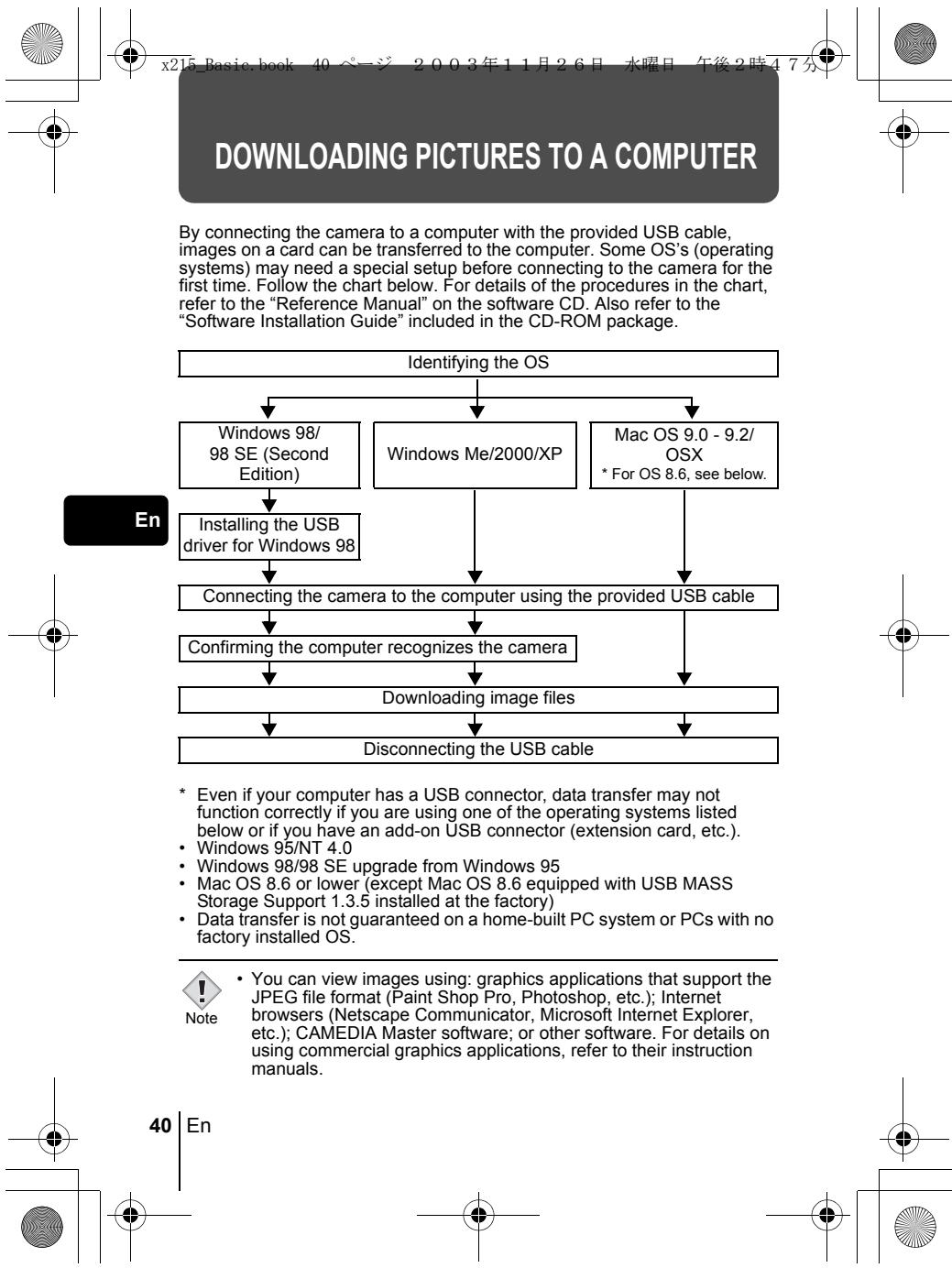


243 QuickTime is needed for playing back movies. QuickTime is included on the provided software CD. 243 You want to process images, make sure to download them to your computer first. Depending on the software, image files may be destroyed if the images are processed (rotated, etc.) while they are on the card. 221 03 05 07 09 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47 49 51 53 55 57 59 61 63 65 67 69 71 73 75 77 79 81 83 85 87 89 91 93 95 97 99 221 03 05 07 09 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45 47 49 51 53 55 57 59 61 63 65 221 You running other OS cannot use the provided USB cable to connect the camera directly to a computer. 201 Windows 95 Windows NT Mac OS before OS You can download images directly to your computer using a PC card adapter. 201 Windows have a USB interface? Is there a port marked on your computer 201 Connect the camera directly to your computer using the provided USB cable 201 Is your OS one of the following? • Windows 95 • Windows NT • Mac OS • Mac OS • Mac OS • Mac OS • Mac OS • Mac OS • Mac OS • Mac OS • Mac OS • Mac OS • Mac OS • Mac OS • Mac OS • Mac OS • Mac OS • Mac OS • Mac OS • Mac OS • Mac OS • Mac OS • Mac OS • Mac OS • Mac OS • Mac OS • Mac OS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOPLS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacSOMS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS • MacOS

En 41

Monitor indication	Possible cause	Corrective action
NO CARD	The card is not inserted, or it cannot be recognized.	Insert a card or insert a different card.If the problem persists, format the card. If the card cannot be formatted, it cannot be used.
CARD ERROR	There is a problem with the card.	This card cannot be used. Insert a new card.
WRITE-PROTECT	Writing to the card is prohibited.	Read-only setting is applied to the card by a PC. Cancel the setting using the PC.
CARD FULL	The card is full. No more pictures can be taken or no more information such as print reservation can be recorded.	Replace the card or erase unwanted pictures. Before erasing, download important images to a PC.
NO PICTURE	There are no pictures on the card.	The card contains no pictures. Record pictures.
PICTUREERROR	The selected picture has a problem, therefore it cannot be played back on this camera.	Use image processing software to view the picture on a PC. If that cannot be done, the image file is damaged.
CARD-COVER OPEN	The card cover is open.	Close the card cover.
	The card is not formatted.	Format the card.All data on the card is deleted.

En

42 En

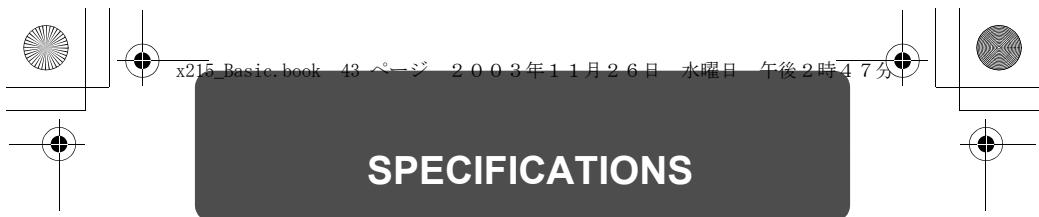

Product type : Digital camera (for shooting and displaying)

Recording system

Still picture

: Digital recording, JPEG (in accordance with Design rule for Camera File system (DCF))

Applicable standards

: Exif 2.2, Digital Print Order Format (DPOF), PRINT Image Matching II, PictBridge

Movie

: QuickTime Motion JPEG support

Memory

: xD-Picture Card (16 - 512MB)

No. of storable pictures

When a 16MB card used

: Approx. 5 frames (SHQ: 2288 × 1712)

Approx. 16 frames (HQ: 2288 × 1712)

Approx. 32 frames (SQ1: 1600 × 1200)

Approx. 165 frames (SQ2: 640 × 480)

No. of effective pixels

: 4,000,000 pixels

Image pickup device

: 1/2.5" CCD solid-state image pickup, 4,230,000 pixels (gross)

Lens

: Olympus lens 5.8 mm to 17.4 mm, f3.1 to 5.2, 5 elements in 3 groups (equivalent to 35 mm to 105 mm lens on 35 mm camera)

Photometric system

: Digital ESP metering, spot metering

Shutter speed

: 1 to 1/1000 sec. (Night Scene mode: 2sec)

Shooting range

: 50 cm (1.6 ft.) to ∞ (normal) 20 cm to 50 cm (0.7 ft. to 1.6 ft.) (macro mode)

Viewfinder

: Optical real image viewfinder

Monitor

: 1.8" TFT color LCD display, 85,000 pixels

Outer connector

: DC-IN jack, USB connector (mini-B), A/V OUT jack (MONO)

Automatic calendar system

: 2000 up to 2099

Operating environment

Temperature

: 0°C to 40°C (32°F to 104°F) (operation) -20°C to 60°C (-4°F to 140°F) (storage)

Humidity : 30% to 90% (operation)/10% to 90% (storage)

Power supply : 1 CR-V3 lithium battery pack, or 2 AA (R6) alkaline batteries or NiMH batteries. AC adapter (optional) Manganese (zinc-carbon) batteries cannot be used.

Dimensions : 108 mm (W) × 57.5 mm (H) × 36.5 mm (D) (4.2" × 2.2" × 1.4") (excluding protrusions)

Weight : 165 g (0.4 lb.) (without batteries or card)

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE OR OBLIGATION ON THE PART OF THE MANUFACTURER.

En

Pure geometric lines and crosshair symbols without any text, numbers, or labels

44 En

x215_Basic.book

45 ページ

2003年11月26日

水曜日

午後2時47分

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric diagram with concentric circles and intersecting lines, no text or symbols present

52

Fr

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Technical diagram of a device with labeled parts (C, D) and directional arrows indicating movement or assembly.

. Important

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

INSERTION D'UNE CARTE

Line drawing of a camera module with lens, aperture, and control panel (no text or symbols)

MISE EN MARCHE/ARRÊT

Line drawing of a camera with directional arrows indicating movement (no text or symbols)

Fr

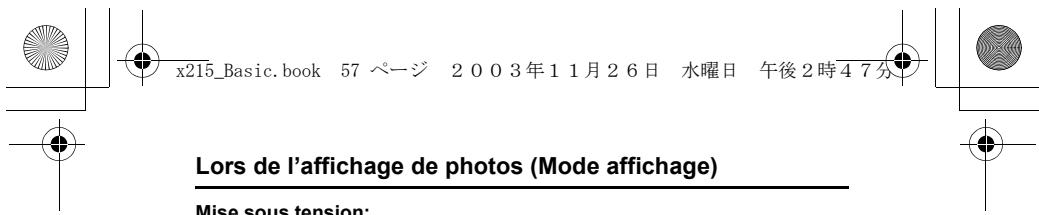

Mise hors-tension:

Diagram showing a device being processed from an external component, with no visible text or symbols.

Remarque

Pure geometric diagram with concentric circles and intersecting lines, no text or symbols present

56

Fr

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Line drawing of a digital camera with control panel and buttons (no text or symbols)

Fr

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Fr

57

SÉLECTION DE LA LANGUE

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Onglet PLAY [LECTURE] Onglet EDIT Onglet CARD [CARTE] Onglet SETUP [CONFIG]

Onglet PLAY [RECTURE]

Onglet EDIT

BLACK&WHITE[NOIR&BLANC]

SEPIA

INDEX

EDIT[RETOUCHER]

Onglet CARD [CARTE]

CARD SETUP[CONFIG CARTE]

Fr

Fr

65

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

PRISE DE VUES – INSTRUCTIONS DE BASE

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Fr | 67

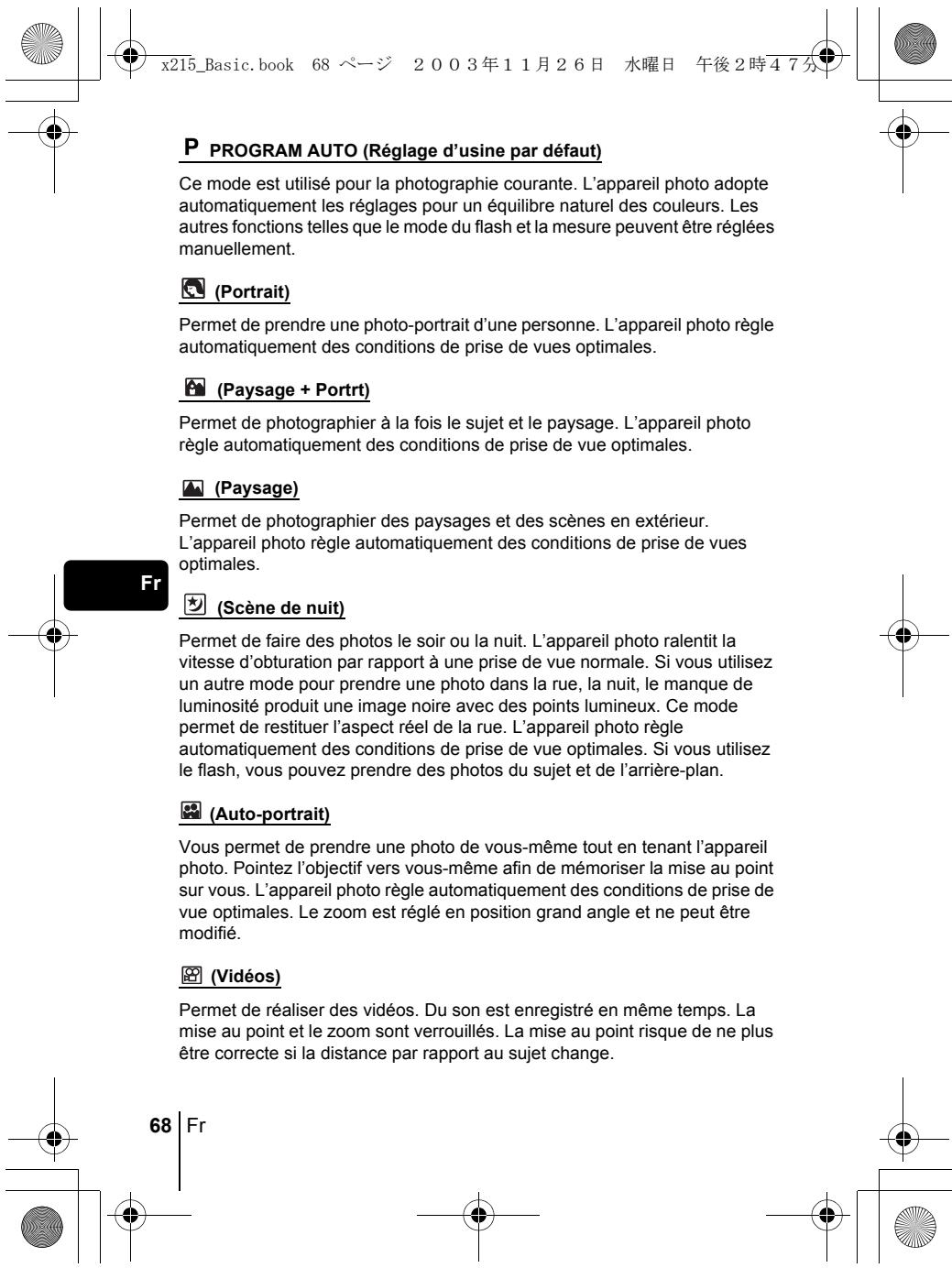

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Fr

69

SI UNE MISE AU POINT SATISFAISANTE EST IMPOSSIBLE (MÉMORISATION DE LA MISE AU POINT)

P [ ] HQ 2288x171230

Voyant vert

Pure geometric diagram with intersecting lines and circles, no text or symbols present

PRISE DE VUE ÉLABORÉE

PRISE DE VUES EN SÉRIE

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Fr

75

Fr 75

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Fr

77

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

x215_Basic.book

89 ページ

2003年11月26日

水曜日

午後2時47分

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Diagram of a camera with labeled parts (C, D) and directional arrows indicating motion or movement.

Wichtig

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Line drawing of a camera module with no visible text or symbols

Line drawing of a digital camera with an arrow indicating left motion (no text or symbols)

Diagram showing two views of a camera module before and after assembly, with arrows indicating direction (no text or symbols present)

Hinweis

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

x215_Basic.book

2003年11月26日

水曜日 午後2時47

Wiedergabe- Taste ( ▶ )

Line drawing of a digital camera with front panel and buttons (no text or symbols)

Wiedergabe- Taste ( ▶ )

De

De

101

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

De

103

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

De

113

P [ ] HQ 2288x171230

Grüne Sucher-LED

De

De

P HQ 2288×171230

114 De

114

De

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

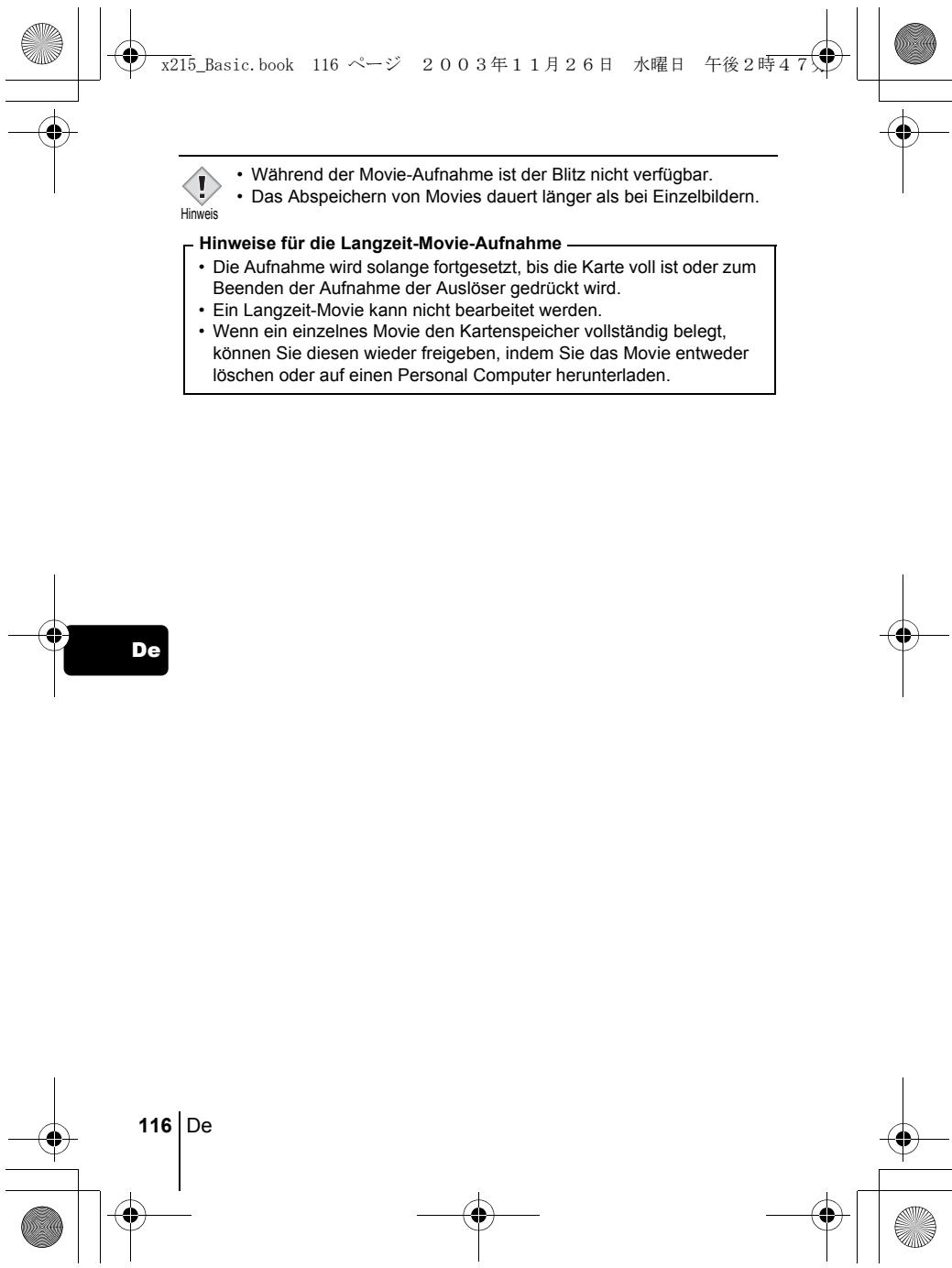

MOVIE-AUFNAHME

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

De

119

WIEDERGABE

Pure mechanical component diagram with no text, numbers, or symbols

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Hinweis

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

De

127

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

x215_Basic.book

2003年11月26日

水曜日 午後2時47

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Line drawing of a pair of scissors with a handle, showing a curved arrow indicating direction (no text or symbols)

Enganche de la correa

Technical diagram of a device with labeled parts (C, D) and directional arrows indicating movement or assembly.

Importante

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Line drawing of a camera module with no visible text or symbols

Diagram of a digital camera with an arrow indicating left-side motion (no text or symbols present)

Apagado:

Diagram showing two views of a camera module before and after assembly, with arrows indicating motion direction (no text or symbols)

Nota

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

x215_Basic.book

145 ページ

2003年11月26日

水曜日 午後2時47

Line drawing of a digital camera module before and after assembly (no text or symbols)

Apagado:

Presione ▶.

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Es

157

SI NO SE PUEDE OBTENER UN ENFOQUE CORRECTO (BLOQUEO DE ENFOQUE)

P [ ] HQ 2288×171230

Lámpara verde

Es

158 Es

Pure geometric diagram with intersecting lines and circles, no text or symbols present

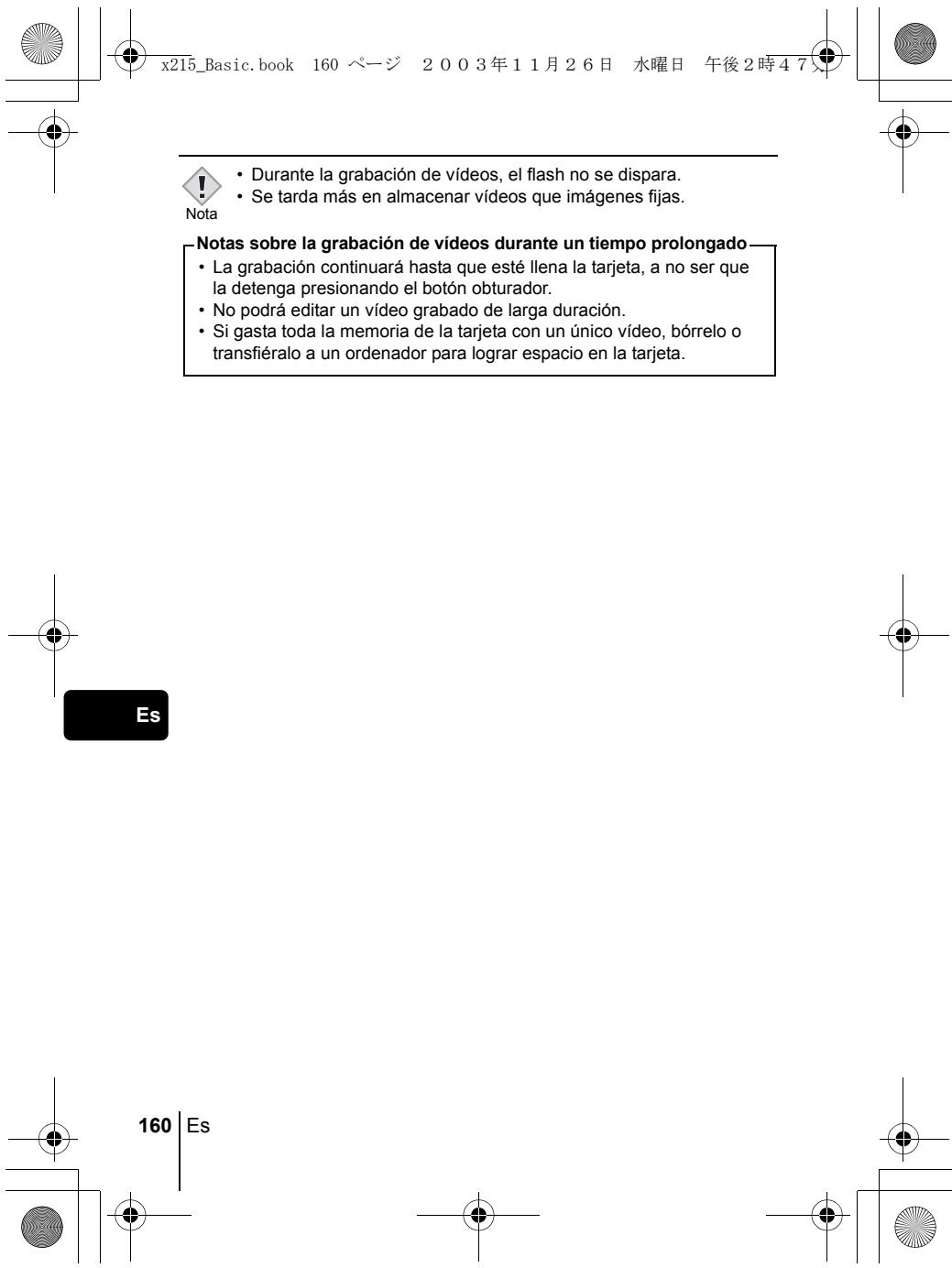

GRABACIÓN DE VÍDEOS

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

x215_Basic.book 162 ページ 2003年11月26日 水曜日 午後2時47天 Flash automático (sin indicación) El flash se dispara automáticamente en condiciones de baja iluminación o de contraluz.

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

FOTOGRAFÍA AVANZADA

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Es

163

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Es

165

Pure geometric diagram with concentric circles and intersecting lines, no text or symbols present

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Es

167

Pure geometric diagram with concentric circles and lines, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

: Jack DC-IN, conector USB (mini-B), jack A/V OUT (MONO)

Pure geometric diagram with intersecting lines and shaded circles, no text or symbols present

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

Shinjuku Monolith, 3-1 Nishi-Shinjuku 2-chome, Shinjuku-ku, Tokyo, Japan

OLYMPUS AMERICA INC.

Two Corporate Center Drive, Melville, NY 11747-3157, U.S.A. Tel. [phone]

Technical Support (USA)

24/7 online automated help: http://www.olympusamerica.com/support

Phone customer support: Tel. [phone] (Toll-free)

Our phone customer support is available from 8 am to 10 pm

(Monday to Friday) ET

E-Mail: [e-mail]

Olympus software updates can be obtained at: http://www.olympus.com/digital

Olympus Europa GmbH

Premises/Goods delivery: Wendenstrasse 14-18, 20097 Hamburg, Germany

European Technical Customer Support:

Please visit our homepage http://www.olympus-europa.com

or call our TOLL FREE NUMBER*: 00800 - 67 10 83 00

for Austria, Belgium, Denmark, Finland, France, Germany, Italy, Luxemburg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom

* Please note some (mobile) phone services/provider do not permit access or request an additional prefix to +800 numbers.

For all not listed European Countries and in case that you can't get connected to the above mentioned number please make use of the following

CHARGED NUMBERS: +49 180 5 - 67 10 83 or +49 40 - 237 73 899

Our Technical Customer Support is available from 9 am to 6 pm MET (Monday to Friday)

© 2004 OLYMPUS CORPORATION

Printed in Japan

1AG6P1P1996--

VT737301

Pure geometric diagram with intersecting lines and circles, no text or symbols present
