Product Type	Child stroller (pram/pushchair)
Brand	Emmaljunga
Model	Classic Sport
Age Range (Seat Unit)	6 months to 3 years
Age Range (Carrycot)	0 to 6 months (cannot sit unaided, roll over, or push up)
Maximum Child Weight (Seat Unit)	15 kg
Maximum Child Weight (Carrycot)	9 kg
Carrycot Outer Dimensions (City Carrycot)	795 mm x 430 mm
Harness Type	5-point harness with shoulder pads
Suspension	Adjustable (E.A.S.T.): 3 positions (Soft, Medium, Hard)
Handle Adjustment	Height-adjustable (press buttons on inside of handle)
Seat Unit Orientation	Reversible (forward or rear-facing)
Backrest Positions	4 positions (including fully reclined)
Footrest Positions	2 positions (horizontal and down)
Brake Type	Parking brake (foot-operated, locks rear wheels)
Wheels	4 removable wheels (pneumatic tyres, air pressure marked on tyre)
Accessories Included	Seat unit, hood, raincover, frontbar fabric, footrest fabric, shoulder pads; optional City Carrycot
Maximum Shopping Tray Load	5 kg
Fabric Care	Hand wash seat fabric and hood in lukewarm water; do not machine wash; drip dry; leatherette: wipe with mild soap
Chassis Lubrication	Every 3 months: clean and lubricate axles and suspension with petroleum jelly or automobile oil
Standards	DIN EN 1888:2003 + A1:2005 + A2:2005 + A3:2005, EN 1466:2008
Recommended Age for Seat Unit	Not suitable under 6 months; child must sit unaided
Warnings	Not for running or skating; always use harness; never leave child unattended; check locking devices

Frequently Asked Questions - Classic Sport Emmaljunga

How do I attach the wheels to the chassis?

Remove plastic protectors from axles. Ensure the parking brake is not engaged. Press the release button on the wheel hub, slide the wheel fully onto the axle, release the button, and pull the wheel toward you until it clicks. Repeat for all four wheels. Always pull the wheel hub to verify secure attachment.

What is the maximum weight for the seat unit and carrycot?

The seat unit is suitable for children up to 15 kg (approximately 3 years). The carrycot (City Carrycot accessory) can hold a child up to 9 kg and is intended for infants who cannot sit up unaided, roll over, or push up on hands and knees.

How do I adjust the suspension?

The E.A.S.T. adjustable suspension has three positions: Soft, Medium, and Hard. Pull the grey tab outward, twist the knob until the grey button locks into the desired position (1, 2, or 3), and repeat on the other side. Adjust only when the chassis is folded to avoid wear. Both sides must be set to the same position.

Can the seat unit face both directions?

Yes, the seat unit is reversible. It can be attached facing forward or rearward. To attach, press the Easy Fix attachments into the receivers until they click. To release, squeeze the Easy Fix grips under the armrests and lift the seat unit straight up.

How do I clean the fabric parts?

Hand wash seat fabric and hood in lukewarm water with mild liquid soap. Drip dry fully extended. Do not machine wash. For leatherette fabrics, clean with a drop of mild washing-up liquid and wipe with a damp cloth. The mattress can be machine washed at 40°C, but reshape the fibre filling. Remove the fabric before washing.

Is the stroller suitable for running or skating?

No, the manual explicitly warns: This product is not suitable for running or skating. It is designed for normal walking use only.

How do I fold the chassis?

Engage the parking brake, adjust backrest upright, fold hood forward. Pull both main locking devices on each side toward you along the frame, lift the safety catch, and fold the handle forward. For a more compact fold, remove wheels by pressing the wheel hub release buttons. Wipe axles before reattaching.

What is the maximum load for the shopping tray?

The shopping tray can hold a maximum of 5 kg. Place heavier objects in the centre to maintain stability. Items should not protrude over the sides to avoid catching in wheel spokes.

Can I use the carrycot on a stand?

No, the manual states: Never use this carrycot on a stand. It should only be used on the Emmaljunga chassis or as specified.

How often should I lubricate the chassis?

It is recommended to lubricate the wheel axles and suspension system every three months. Clean axles with a cloth before applying petroleum jelly or automobile oil.

USER MANUAL Classic Sport Emmaljunga

- Instruction manual

Classic Sport & City Carrycot

Sportvagn, Sportstroller, Sportwagen, Sport-rattaat & Klapvogn

SSA INSTRUKTIONER NOGGRANT FÖRE ANVÄNDNING OCH SPARA DE FÖR FRAMTIDA BRUK. ARNS SÄKERHET KAN PÅVERKAS OM DU INTE FÖLJER DESSA INSTRUKTIONER.

Denna produkt motsvarar standard DIN EN 1888:2003 + A 1:2005 + A 2:2005 + A 3:2005, EN 1466:2008

THESE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THEM FOR FUTURE REFERENCE.

YOUR CHILD'S SAFETY MAY BE AFFECTED IF YOU DO NOT FOLLOW THESE INSTRUCTIONS.

This product complies with DIN EN 1888:2003 + A 1:2005 + A 2:2005 + A 3:2005, EN 1466:2008

This product is suitable for one (1) child from 6 months - 3 years with a maximum weight of 15 kg.

WARNING! The seat-unit is not suitable for children under 6 months. Don't use the seat-unit until your child can sit unaided.

WARNING! The product is not suitable for running or skating.

WARNING! This carrycot is suitable only for a child who cannot sit up unaided, roll over and cannot push itself up on its hands and knees. Maximum weight of the child: 9 kg.

WARNING! Never use this carycot on a stand. The outer length and width of the City Carycot is 795 mm/430 mm. The outer length and width of the Quadrolift is 800 mm / 400 mm. The outer length and width of the Babylift is 800 mm / 330 mm.

WARNING! Please visit www.emmaljunga.co.uk for the latest version of this manual before using the product.

ÄMÄ KÄYTTÖOHJEET HUOLELLISESTI ENNEN KÄYTTÖÄ, JA SÄILYTÄ OHJEET TULEVAA TARVETTA

VARTEN. LAPSESI TURVALLISUUS VOI VAARANTUA MIKÄLI NÄITÄ OHJEITA EI NOUDATETA.

Line drawing of a hand holding a small object with an arrow pointing to a vertical line (no text or symbols)

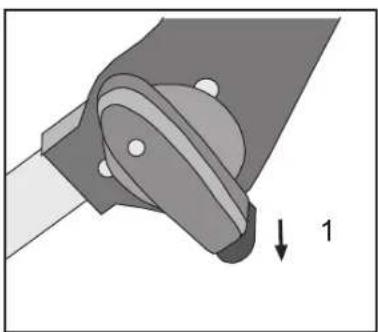

Montera hjulen

2

Mechanical assembly diagram showing a clamping mechanism with a downward arrow labeled '1' (no text or symbols beyond the number)

Illustration of a person adjusting a bicycle wheel (no text or symbols)

Manual Classic Sport v 1.0

Illustration of a bicycle wheel with hand and arrow indicating rotation (no text or symbols)

Illustration of a hand gripping a mechanical device with directional arrows indicating motion (no text or symbols)

WARNING

Illustration of hands using a tool to adjust or install a mechanical component, with an arrow indicating rotation (no text or symbols present)

Illustration of a hand holding a bicycle wheel with attached cable (no text or symbols)

Diagram of a mechanical component with an arrow indicating downward motion, no text or symbols present

Illustration of hands adjusting a garment with a small inset showing a circular detail (no text or symbols)

Illustration of hands operating a mechanical device with a downward arrow indicating motion (no text or symbols present)

Montera suffletten

Illustration of a folding chair with a seatbelt and armrest (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

4

Illustration of a car seat with open lid and side-mounted seat, showing rotational arrow (no text or symbols)

5

Illustration of a hand holding a tool near a person's leg, with the number 8 labeled on the finger (no text or symbols beyond the number)

14

Illustration of a hand using a knife to cut a piece, with an arrow labeled '12' indicating direction (no text or symbols on the diagram itself)

Illustration of a person pushing a vintage-style cart with wheels and a hand on top (no text or symbols)

Line drawing of a hand holding a mechanical clamp or bracket, with arrows indicating force direction (no text or symbols)

4

Diagram of a mechanical component with arrows indicating rotation or movement (no text or symbols)

Justera suffletten

Mechanical assembly diagram showing a hand adjusting a component with a numbered arrow indicating '9' (no text or symbols present)

Close-up of a hand pressing down on a car seatbelt, with a numbered arrow indicating '10' (no text or symbols present)

Line drawing of a hand holding a small object with an arrow pointing to it, next to a vertical line (no text or symbols)

2

3

4

Montere hjulene

2

Mechanical assembly diagram showing a clamping mechanism with a downward arrow and label '1' (no text or symbols beyond basic labels)

Sådan anvender du den justerbare affjedring

Illustration of a person using a bicycle wheel to adjust the wheel rim (no text or symbols present)

Manual Classic Sport v 1.0

Illustration of a hand using a bicycle to lift a wheel, showing rotational motion (no text or symbols)

Anvend parkeringsbremse

Illustration of a hand gripping a black mechanical device with directional arrows indicating motion (no text or symbols)

ADVARSEL

Illustration of hands using a tool to adjust or install a mechanical component, showing rotational motion (no text or symbols)

Illustration of a hand holding a bicycle wheel, no text or symbols present

Diagram of a mechanical component with an arrow indicating downward motion, no text or symbols present

Illustration of hands adjusting a garment with a small inset showing a circular detail (no text or symbols)

Illustration of a person using a tool to lift a component, showing mechanical parts and motion (no text or symbols)

Illustration of a folding chair with a hand pointing to the seat (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

4

Side view of a car seat with open lid and side-mounted seat, showing directional arrow (no text or symbols)

5

Illustration of a medical procedure with a hand holding a tool and a numbered label '8' (no text or symbols on the diagram itself)

Illustration of a hand using a knife to cut a piece, with an arrow labeled '12' indicating direction (no text or symbols beyond the number)

Illustration of a person pushing a vintage-style vehicle with wheels and a hand on top, showing motion direction (no text or symbols)

Line drawing of a baby crib with perforated backrest and side arm (no text or symbols)

Montering af barnevogns overdel

Line drawing of a hand holding a mechanical clamp or bracket, with arrows indicating force direction (no text or symbols)

ADVARSEL

Diagram of a mechanical component with arrows indicating rotation or movement (no text or symbols)

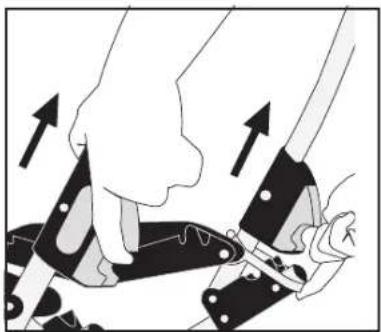

Justere kalechen

Mechanical assembly diagram showing a hand adjusting a seatbelt with a 9mm dimension label (no text or symbols present)

Mechanical assembly diagram showing a hand pressing down a car seatbelt with a 10-unit arrow indicator (no text or symbols present)

Line drawing of a hand holding a small object with an arrow pointing to a vertical line (no text or symbols)

2

Mechanical assembly diagram showing a clamping mechanism with a downward arrow and label '1' (no text or symbols beyond basic labels)

Illustration of a person adjusting a bicycle wheel (no text or symbols)

Manual Classic Sport v 1.0

Illustration of a hand using a bicycle to lift a wheel, showing rotational motion (no text or symbols)

6

Illustration of a hand gripping a black mechanical component with directional arrows indicating movement (no text or symbols)

7

Illustration of hands using a tool to adjust or install a mechanical component, showing rotational motion (no text or symbols)

8

Illustration of a hand holding a bicycle steering wheel (no text or symbols)

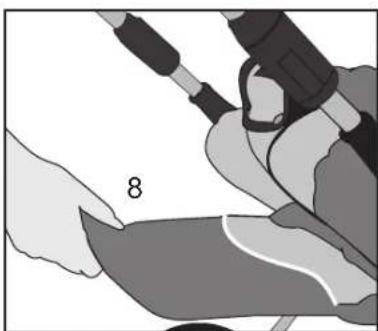

Bruk av parkeringsbremsen

Diagram of a mechanical component with an arrow indicating downward motion, no text or symbols present

Illustration of hands adjusting a garment with a small inset showing a circular detail (no text or symbols)

- Trykk fast begge stoffarmlener over sportsvogndelens sider.

7

Illustration of hands operating a mechanical device with a downward arrow indicating motion (no text or symbols present)

Illustration of a person sitting in a folding chair with a hand pointing to the seat (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

4

Side view of a car seat with open lid and side-mounted seat, showing motion arrows (no text or symbols)

5

Illustration of a person using a handheld device to interact with another person (no text or symbols visible)

Illustration of a hand using a knife to cut a piece, with an arrow labeled '12' indicating direction (no text or symbols beyond the number)

Illustration of a person pushing a vintage-style car with wheels and a hand on top, showing motion direction (no text or symbols)

Line drawing of a small boat hull with marked parts (no text or symbols)

Montering av Bag.

Line drawing of a hand holding a mechanical clamp or bracket, with arrows indicating force direction (no text or symbols)

4

Diagram of a mechanical component with directional arrows indicating rotation or movement (no text or symbols)

Mechanical assembly diagram showing a hand adjusting a seatbelt with a 9mm dimension label (no text or symbols present)

Close-up of a hand pressing down on a car seatbelt, with a numbered arrow indicating up to 10 (no text or symbols present)

Line drawing of a hand holding a small object with an arrow pointing to a vertical line (no text or symbols)

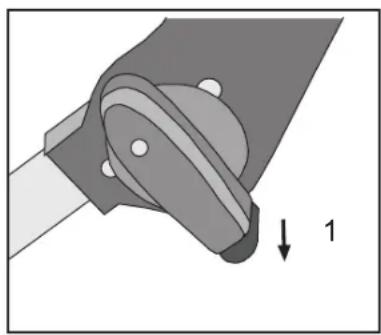

Montage der Räder

WARNUNG

2

Mechanical assembly diagram showing a clamping mechanism with a downward arrow and label '1' (no text or symbols beyond basic labels)

Illustration of a person adjusting a bicycle wheel (no text or symbols)

Manual Classic Sport v 1.0

Illustration of a hand using a bicycle to lift a wheel, showing rotational motion (no text or symbols)

Illustration of a hand gripping a black mechanical device with directional arrows indicating motion (no text or symbols)

WARNUNG

Illustration of hands using a tool to adjust or install a mechanical component, with an arrow indicating rotation (no text or symbols present)

Illustration of a hand holding a bicycle wheel, no text or symbols present

Diagram of a mechanical component with an arrow indicating downward motion, no text or symbols present

Illustration of hands adjusting a garment with a small inset showing a circular detail (no text or symbols)

Illustration of a person performing a medical or therapeutic procedure on a patient's arm, with no visible text or symbols.

Illustration of hands using a tool to cut a component into a device (no text or symbols visible)

Illustration of a folding chair with a seatbelt and armrest (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

4

Side view of a car seat with open lid and side-mounted seat, showing directional arrow (no text or symbols)

5

Illustration of a person using a handheld device to interact with another person (no text or symbols visible)

Illustration of a hand using a knife to cut a piece, with an arrow labeled '12' indicating direction (no text or symbols on the diagram itself)

Illustration of a person pushing a vintage-style wheeled cart with wheels and a hand on top, showing motion direction (no text or symbols)

ANMERKUNG:

Line drawing of a baby crib with perforated backrest and side arm (no text or symbols)

Line drawing of a hand holding a mechanical clamp or bracket, with arrows indicating force direction (no text or symbols)

Diagram of a mechanical component with arrows indicating rotation or movement (no text or symbols)

Close-up of a hand pressing down on a car seatbelt, with a numbered arrow indicating '10' (no text or symbols present)

WARNUNG!

Assembly of chassis 96

How to use the chassis 97-98

Assembly of seat unit 99-101

Stroller usage 102

How to use the vehicle 103

Assembly and usage of the City Carrycot 104-105

Care and maintenance 106-107

Service Documentation 108

Delivery Check 109

Service Protocol 110

Important!

In the manual the terminology City Carrycot is used for the City Carrycot/ Bassinet

Please Note:

Throughout this manual the term "vehicle" will be used as a short form for "wheeled child conveyance".

Box contents

Classic Sport stroller

1pc seat-unit with 5-point harness
1 set of shoulder pads for harness
1 pc folded chassis with tray
1 pc instruction manual
1 pc hood
1 pc seat-unit fabric
1 pc footrest fabric
1 pc frontbar fabric
4 pcs wheels
1 pc raincover

City Carrycot (Accessory)

1 pc City Carrycot
1 pc Hood
1 pc Mattress
1 pc Instruction manual
1 pc Apron

Original Emmaljunga accessories

Use Emmaljunga original accessories for maximum safety and comfort. Information on accessories that will fit your pram can be found in our catalogue or at our authorised retailers.

Important safety information

Read these instructions carefully before use and keep them for future reference. Your child's safety may be affected if you don't follow these instructions.

Important keep these instructions for future reference.

WARNING Never leave your child unattended.

WARNING Ensure that all the locking devices are engaged before use.

WARNING To avoid injury ensure that your child is kept away when unfolding and folding this product.

WARNING Do not let your child play with this product.

WARNING Use a harness as soon as your child can sit unaided.

WARNING This seat unit is not suitable for children under 6 months.

WARNING Always use the restraint system.

WARNING Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.

WARNING This product is not suitable for running or skating.

WARNING Accessories or spare parts that the manufacturer has not approved must not be used.

Warning sentences according to prEN1888:2010

WARNING It may be dangerous to leave your child unattended.

WARNING Do not add a mattress thicker than 45mm.

WARNING Any load attached to the handle affects the stability of the pram/pushchair.

WARNING Always use the crutch strap in combination with the waist belt.

Warning sentences according to EN1888:2003+A1:2005+A2:2005+A3:2005

WARNING A child's safety is your responsibility. Children should be harnessed in at all times and should never be left unattended. The child should be clear of moving parts while making adjustments. This vehicle requires regular maintenance by the user. Overloading, incorrect folding and the use of non-approved accessories may damage or break this vehicle. Read the instructions.

Warning sentences according to BS 7409:1996

Important safety information

WARNING Follow the manufacturer's instructions.

WARNING Put on all the brakes whenever you park the stroller.

WARNING Do not leave children unattended.

WARNING Do not carry extra children or bags on this stroller.

WARNING Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

WARNING Not recommended for a child under 6 months old.

Mandatory warning sentences Australia

To avoid injury or death:

WARNING Always apply the brakes whenever the pram/stroller is stationary.

WARNING Do not leave children unattended.

WARNING Secure the child in the harness at all times.

WARNING Do not carry extra children or bags on this pram/stroller.

WARNING Make sure children are clear of any moving parts if you adjust the pram/stroller.

WARNING When not in use disconnect shoulder straps from the waist strap and/or buckle.

WARNING Do not use this bassinet once the child can sit up unaided.

WARNING Do not use or park the vehicle close to open fires or other sources of heat such as radiators for example.

WARNING Avoid steps, stairs and escalators whenever possible. Always stand below the stroller if used on an escalator.

Warning sentences according to AS/NZS 2088:2009

WARNING Do not let other children play unattended near the carrycot.

WARNING Do not use the carrycot if any part is broken, torn or missing.

WARNING Use only replacement parts supplied or approved by the manufacturer.

WARNING Be aware of the risk of open fire and other source of strong heat, such as electric bar fires, gas fires, etc., in close proximity to the carrycot.

Important safety information

continued from previous page:

WARNING The handles and the bottom of the carrycot should be inspected regularly for signs of damage and wear.

WARNING Never use the carrycot on a stand.

WARNING Do not leave your child unattended.

WARNING Only use the carry cot on a firm, horizontal level and dry surface.

Warning sentences according to EN 1466:2004+A1:2007

• Your child's safety is your responsibility.
• This product is intended for one (1) child from the age of 6 months up to a maximum weight of 15kg . Only use the pram for the number of children it is intended for.
• The carrycot can only be used for the transportation of one child from 0 to 6 months up to a maximum weight of 9kg . The product is not suitable for a child that can sit unaided, roll around or support themselves on hands and knees.
• With a lift (original accessory) the pram can be used from birth
• The Classic Sport should only be used together with an City carrycot or a Type A seat unit.
• Follow the care and maintenance instructions.
• The safety instructions and directions in this manual cannot cover all possible conditions and unforeseeable situations which may occur. It must be understood that common sense, caution and care are factors that cannot be built into a product. These factors are the responsibility of the person(s) caring for and operating the pram.
• It is important that these instructions are understood and followed by everyone that uses the pram and accessories. Always inform and instruct each person using the pram and accessories how they should be used, even if the person(s) in question will only use them for a short time.
• The maximum weight for one child using the Toddler Roller accessory on the pram is 20 kg.
• Use a maximum of one accessory on the pram at any one time e.g. Toddler Roller, Toddler Seat or car seat adaptor.
• Do not place objects on the hood. Never use the pram without the hood.
• If any part of this manual is unclear or requires further explanation, please contact an authorised Emmaljunga retailer who will be able to assist you.
• The pram is intended for transportation only. Never use the pram as a bed for your child.
• Never leave the pram with a child in it without engaging the brake.
  • The brake should always be engaged when you lift your child in and out of the pram.
• Never park the pram on a hill or an uneven surface.
• Do not stand or sit on the footrest. The footrest must only be used as a support for one (1) child's legs and feet. Any other usage may lead to serious personal injury. The maximum load for the footrest is 3 kg.

Important safety information

continued from previous page:

• Never use the product if a part is faulty or damaged.
• Check that all zips and poppers are securely fastened before use.
  • Always remove the child before you fold the pram.
• Do not place any additional mattresses in the carrycot and only use the mattress that is included with the pram or another mattress recommended by Emmaljunga.
  • Overloading, incorrect folding and the use of non-approved accessories may cause injury to your child/children and/or damage the pram.
• When using a lift accessory, attach the product to the d-rings on the pram. Check that the carrycot's/lift's carrying straps are fastened securely. The Babylift's carrying straps should be placed inside the product's mini hood.
• Any load that is placed on the pram (e.g. on the handle, backrest or on the sides of the pram) will affect the stability of the pram. Do not use non-approved accessories.
• The shopping tray has a maximum weight limit of 5 kg. Always place heavier objects in the centre of the tray. The pram may become unstable if the weight in the tray is unevenly distributed.
• Only use original replacement parts supplied by Emmaljunga.
• Never use the carrycot on a stand.
• Items in the shopping tray should not protrude over the sides as items could get caught in the wheel spokes.
• The seat unit or carrycot must not be used as a car seat.
• Never leave the carrycot carrying straps loose on the outside of the carrycot sides when the pram is in use.
• The outer length and width of the City Carry Cot is 795 mm/430 mm.
• The outer length and width of the Quadrolift is 800 mm / 400 mm.
• The outer length and width of the Babylift is 800 mm / 330 mm.

Assembly of Chassis

1

Line drawing of a hand holding a small object with an arrow pointing to a vertical line (no text or symbols)

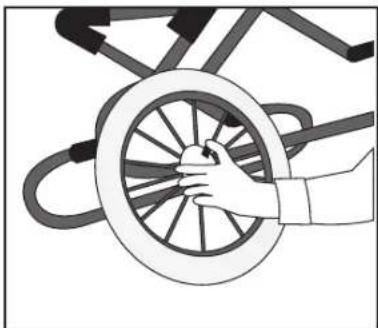

Attaching Wheels

- Remove plastic protectors from chassis axles. Save for future use.

IMPORTANT

- Axles may be covered with axle grease, and can leave stains on fabric.

WARNING

- Choking Hazard - Keep plastic protectors away from children.

2

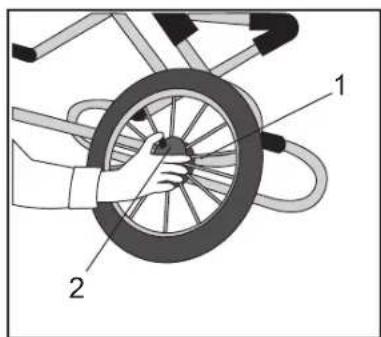

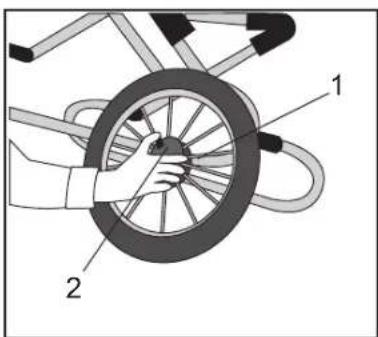

- Make sure the parking device is not engaged. Depress release button (2) on wheel hub (1), slide the wheel all the way onto axle. Release the button and pull wheel toward you until you hear a click.

WARNING

- Pull wheel hub towards you to be sure the wheel is securely attached.

Repeat the procedure on each of the four wheels.

3

WARNING

Make sure that children are kept away from moving parts when assembling the pram, otherwise they might be at risk of injury.

Assembly of Chassis

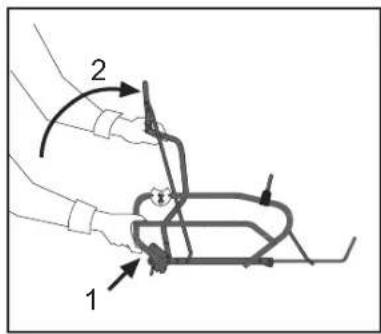

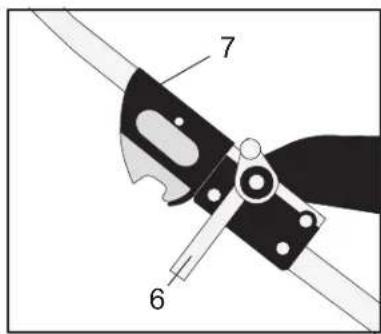

- Engage the parking device (3). Unfold and extend chassis by pulling up on the handlebar (5) while holding down on the chassis side-bar (4)

WARNING

The chassis-locks (7) must click into locked position.

4

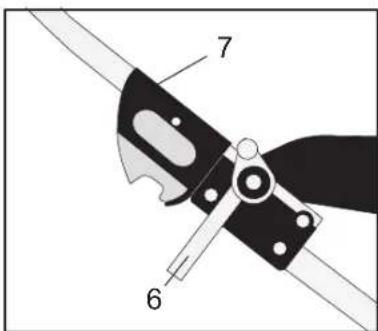

- The Safety catch (6) will become engaged only if the main locking devices (7) are not correctly in position. This is to prevent accidental folding.

WARNING

- Always check that the main locking devices (7) are engaged correctly before using your pram, it is dangerous to use your vehicle without these being in their correct position.

How to use the chassis

1

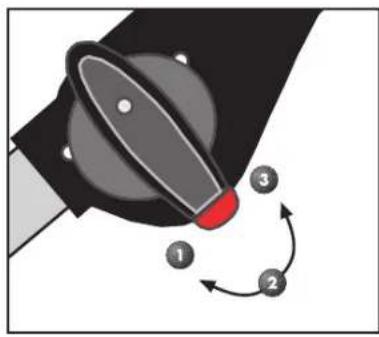

How to use the adjustable suspension E.A.S.T.

The adjustable suspension system enables you to select the strength of the suspension as the child's weight increases. This feature is also useful for different types of terrain.

- The suspension may be adjusted into three different positions.

1. Soft
2. Medium
3. Hard

WARNING

- Remove your child from the pram before adjusting the suspension.

2

Mechanical assembly diagram showing a clamping mechanism with a downward arrow and label '1' (no text or symbols beyond basic labels)

- Adjust the suspension by pulling the grey tab (1) outwards and twist the knob until the grey button locks into the desired position: 1, 2 or 3. Repeat on the other side of the chassis – make sure the knobs are in the same positions on both sides of the chassis.

IMPORTANT

- Adjust the suspension when the chassis is folded to avoid unnecessary wearing of the mechanism.

WARNING

• The suspension must be in the same position on both sides of the chassis to avoid uneven strain and possible damage to the chassis.
• Make sure the grey button has locked into position in order for the suspension to work properly.

3

How to adjust the handle

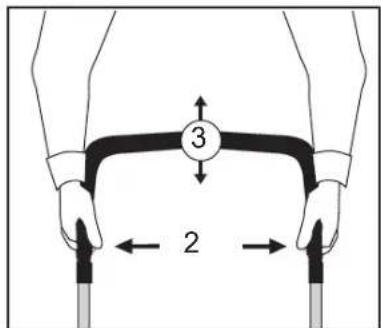

- Adjust the handle by pressing the grey buttons on the inside of the handle (2) simultaneously.

Without releasing the buttons adjust the handle upwards or downwards to the desired position (3).

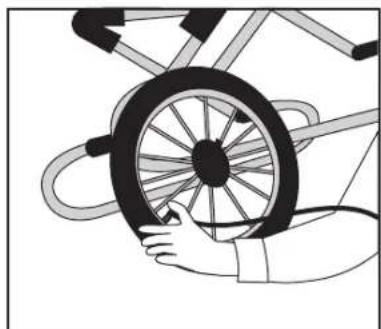

• If you need to inflate the tyres, use an air pump with an adapter for cars.
  • For correct air pressure, see marking on tyre.
• The tyres are assembled by hand. If the pram rolls unevenly, this can easily be adjusted (deflate the tyres a little and adjust the tyre into correct position).
• Through depletion of the Ozone layer and an increase in the UV radiation, the tyres could get small dry cracks appearing. This does not affect the driving of Emmaljunga products, and Emmaljunga will not be responsible for complaints resulting from this matter.

4

Illustration of a person using a bicycle wheel to lift a wheel (no text or symbols)

WARNING

- To avoid a puncture, don't drive over sharp edges or broken glass. - To achieve optimal driving conditions and to avoid a flat tyre, the air pressure should be correct. Please check the air pressure on a frequent basis.

How to use the chassis

5

Illustration of a hand using a bicycle to lift a wheel, showing rotational motion (no text or symbols)

6

Illustration of a hand gripping a black mechanical device with directional arrows indicating motion (no text or symbols)

7

Illustration of hands using a tool to adjust or install a mechanical component, showing motion with an arrow (no text or symbols)

8

Illustration of a hand holding a bicycle steering wheel (no text or symbols)

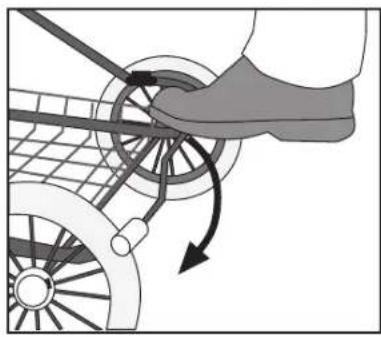

Engaging the Parking brake

• Engage the parking brake by pushing down with your foot.
  • Disengage the parking device by pulling up.

WARNING

• Never leave the vehicle without first engaging the parking brake.
• The pram's brake should always be engaged when you lift your child in and out of the pram.
• Avoid uphill or downhill parking.
• Models with cog brakes: Ensure that the wheel cogs are securely attached to all four wheels.
• Models with cog brakes: Ensure that the brake pin is firmly secured in the wheels' cog brakes when the vehicle's brake is engaged.

WARNING

- Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

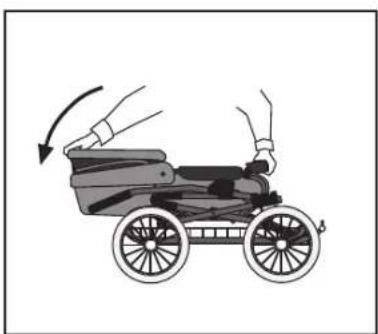

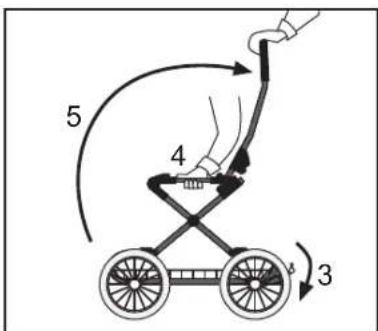

Folding the Chassis

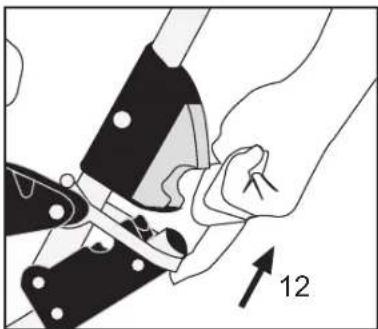

• Fold the chassis by pulling the two main locking devices, one on each side, towards you, along the line of the chassis frame.
• Lift the secondary locking device and fold the handle forward.

- To make chassis even more compact, remove wheels by pressing the wheel hub release buttons and pulling the wheels off the axle.

IMPORTANT

- Wipe off the axle stub before reattaching wheels.

Assembly of seat unit

1

Assembly of Seat unit and 5-point Harness

- Lift the seat adjustment lever (1). Push the backrest into its upright position (2).

2

- Before assembly, release shoulder straps and waist straps from harness buckle. Slide back pocket of seat fabric (3) over seat frame backrest.

3

- Place the shoulder straps (4) through the holes in the backrest. - Place the waist straps (5) through the holes in the seat. - Place the crutch strap (6) through the hole in the base and seat.

4

- Place the shoulder pads over the two shoulder straps (7) (not Smart). Attach the waist harness with the lock (8).

- Make sure that the waist harness straps are securely attached to the two D rings one on each side.

Assembly of seat unit

5

Diagram of a mechanical component with an arrow indicating downward motion, no text or symbols present

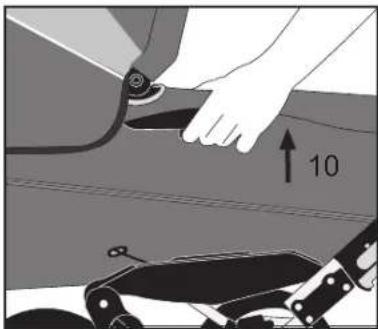

- Make sure that the seat fabric is pulled down as far as it will go over the backrest frame.

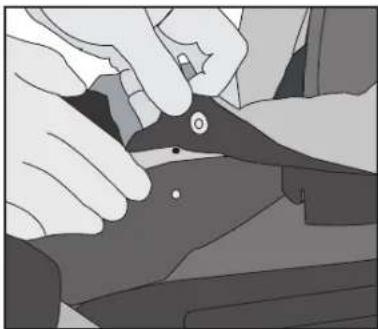

WARNING

• Always check that the fabric is securely fastened in position before use. This step is very IMPORTANT.

6

Illustration of hands adjusting a garment with a small inset showing a circular detail (no text or symbols)

- Secure the fabric over the armrest on both sides of seat frame.

7

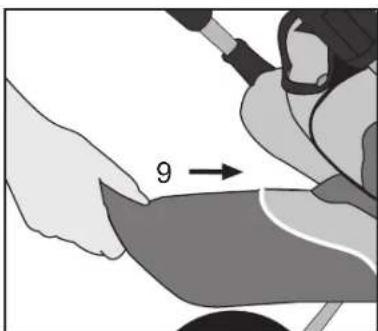

- Slide the footrest cover (9) over the footrest and fasten the poppers through the holes of the seat base. - The footrest cover is reversible

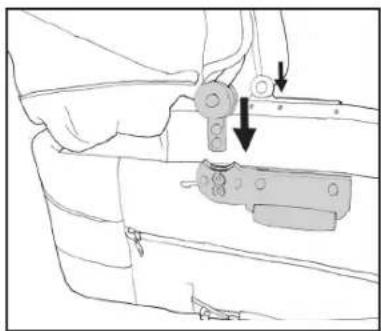

WARNING

- Never let your child/children stand on the footrest

8

Assembly of Frontbar

- Place frontbar fabric (10) around the metal frontbar and zip. - Fasten the crutch strap (11) around the frontbar of the stroller with the popper.

Assembly of seat unit

9

Illustration of hands using a tool to cut a component into a device (no text or symbols visible)

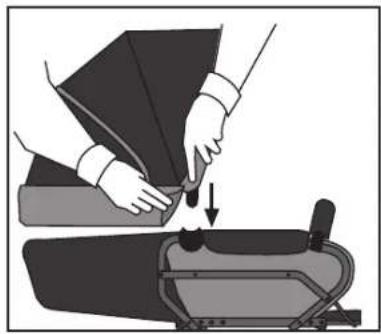

Assembly of Hood

• Press the two plastic legs, one on each side of the hood, into the two plastic receivers on the seat frame, one on each side. Make sure they click securely into place.
• Attach the hood to the seat unit by fastening the poppers on both sides.

10

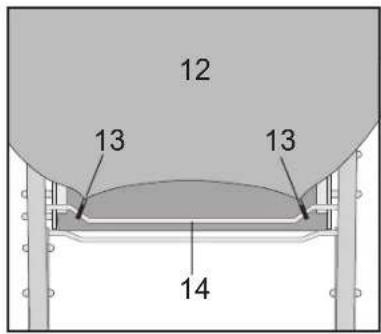

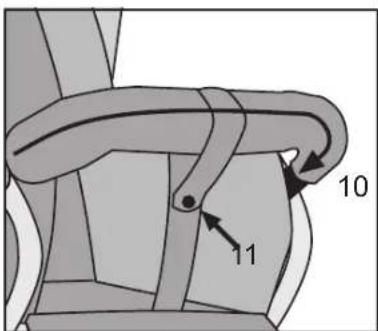

• Fasten the two plastic hooks (13) on the hood skirt (12), to the metal bar (14) of the seat recline mechanism.
• Models with poppers on the hood skirt: Use the two poppers on the bottom edge of the hood to secure the hood to the rear of the backrest.

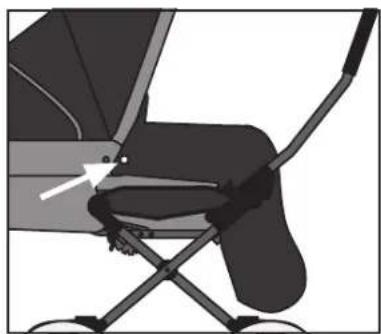

IMPORTANT

- The hood should always be fitted when the vehicle is in use and the poppers/hooks should always be secured.

11

Illustration of a folding chair with a seatbelt and armrest (no text or symbols)

Assembly of Apron (Accessory)

- Slip the apron over the footrest and bring it toward the front of the hood. Attach the apron with the four poppers, two on each side of the hood.

IMPORTANT

• The hood cannot be pushed back with the apron attached.

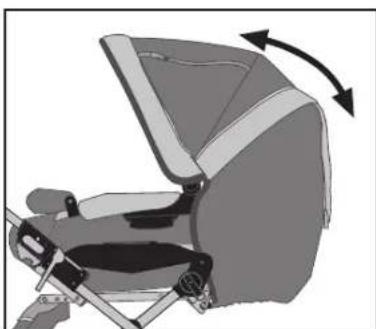

Stroller usage

1

2

3

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

4

Illustration of a folding chair seat with directional arrows indicating rotation (no text or symbols)

5

Illustration of a person using a handheld device to interact with another person (no text or symbols visible)

Assembling and releasing the seat unit

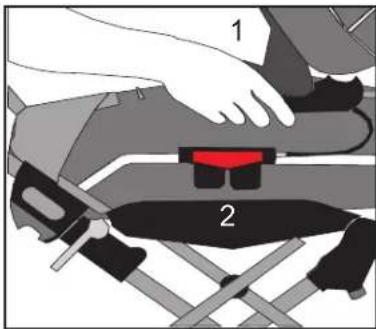

• Assembling: Engage the parking device. Hold onto both of the handles of the seat unit (1) and press the Easy Fix attachments down into the Easy Fix receivers on both sides (2) until you hear it click into place.
• Releasing: Engage the parking device. Squeeze the Easy Fix grips under the armrest on each side of the seat unit to release the seat unit and lift it straight up from the chassis.
• The seat unit is reversible; it can be attached in both driving directions.

WARNING

• Don't let any child be placed in the vehicle when it's being folded/unfolded
• Hold the handles steadily until the seat-unit is in place

IMPORTANT

• Check before use that the seat unit is securely in place.
  • Make sure that the seat-unit is in place before you start to use the vehicle.
• Never lift the top part when it is assembled onto the chassis.

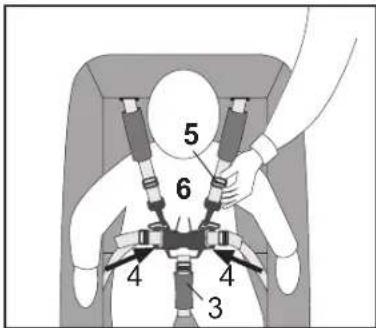

Adjusting the 5-point Harness

• Bring crutch strap (3) forward between child's legs and up toward front of waist. Insert the waist straps (4) into the harness buckle until they "click" in place. Make sure waist straps are fastened.
• Adjust all straps, using the sliders (5), to fit your child properly.
• To release shoulder and waist straps, press the buttons (6) in the centre of the harness buckle. Attachment points are provided at the ends of each waist strap for a separate harness complying with BS 6684.

WARNING

- Always use the harness when the child is placed in the vehicle. Make sure that all the buckles are securely fastened and that the harness is attached to the vehicle.

Adjusting the Backrest

• Raising the backrest: Raise the backrest into desired position by pushing it forward.

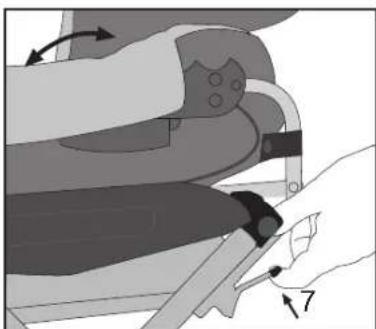

• Lower the backrest: Push the backrest lever (7) toward the seat frame and push the backrest into desired position.

WARNING

- Once desired position is set, push on backrest to ensure that it is locked into one of it's 4 positions.

Adjusting the Hood

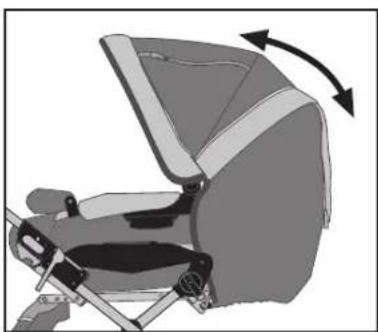

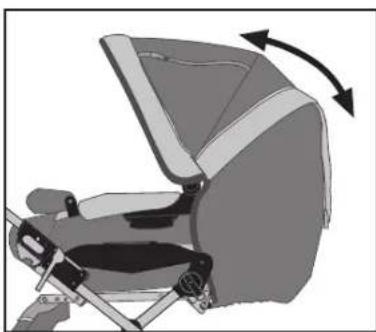

• Adjust hood by gently pulling the front of the hood back or forth to desired position.
• Certain models have an integrated mosquito net in the hood. It can be pulled over the footrest and attached with the plastic hooks to the hood.

IMPORTANT

• Never carry the seat unit by the hood.
- Never lift the carry-cot/seat-unit when it is assembled onto the chassis.

WARNING

- Make sure children are clear of any moving parts if you adjust the stroller, otherwise they may be injured.

Adjusting the Footrest

• The footrest can be adjusted to two positions. Adjust the footrest to the down position by releasing the lock on the side of the footrest and pulling the footrest horizontally and downwards.
• The footrest is adjusted into its horizontal position by lifting the footrest and pushing it horizontally towards the pram.
  • Make sure that the footrest is locked into desired position before usage.
  • The footrest cover is reversible.

WARNING

• Never let your child/children stand on the footrest.

How to use the vehicle

6

Folding the stroller.

- Engage the parking device. Adjust the backrest into it's upright position (9). Fold the hood completely towards the front bar of the seat unit (10). Adjust footrest to "an above horizontal position".

WARNING

- No child is to be placed in the vehicle when folding or unfolding the vehicle

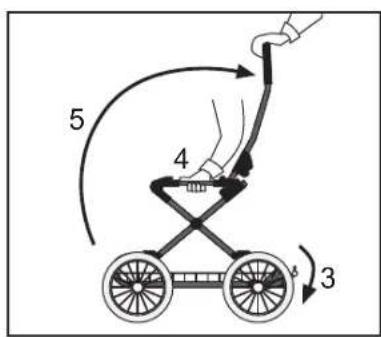

7

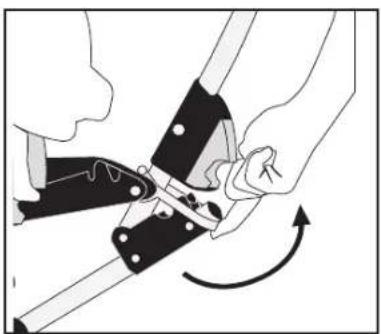

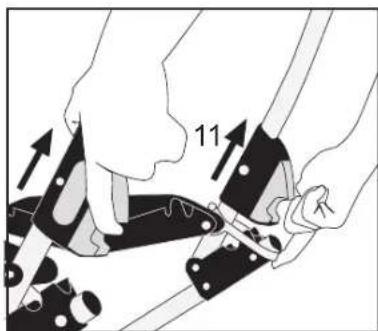

- Fold the chassis by pulling the two main locking devices (11), one on each side, towards you, along the line of the handle bars.

NOTE:

Seat unit is removed from the illustration to clarify the instruction.

8

Illustration of a hand using a knife to cut a piece, with an arrow labeled '12' indicating direction (no text or symbols beyond the number)

- Lift the safety catch (12) and fold the handle forward.

IMPORTANT

- Make sure no fabric parts get caught in between handle and seat unit.

NOTE:

Seat unit is removed from the illustration to clarify the instruction.

9

Illustration of a person pushing a vintage-style car with wheels and a hand on top, showing motion direction (no text or symbols)

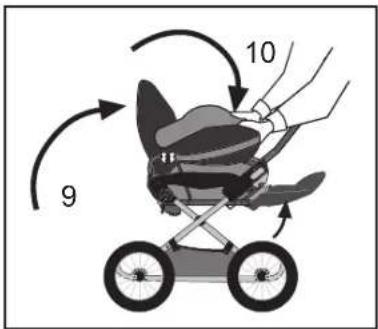

• Recline the backrest from its upright position into the fully reclined position, then push the hood towards the backrest.
• To make stroller even more compact, remove wheels by pressing the wheel hub release buttons and pulling the wheels off the axles.

IMPORTANT

- Wipe off any dirt or sand from axle stubs before reattaching wheels.

Use of the raincover

• The raincover is attached by placing the raincover over the carry-cot and seat-unit. Please note there is an opening in the raincover near the hood opening. Use the raincover that is supplied with the pram.
• Always use the raincover when it's raining or snowing. If the pram is damp before the raincover is attached, wipe off the fabrics first if possible.
• Make sure the raincover is completely dry before it is placed back into it's bag.

Assembly and usage of the

City Carrycot (Accessory to Classic Sport stroller)

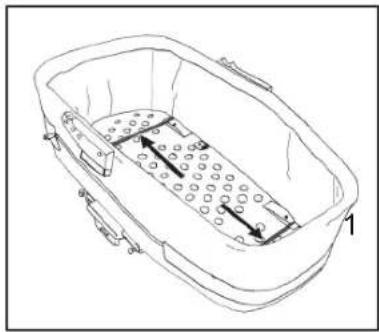

1

Line drawing of a rectangular basin with circular patterns and directional arrows, no text or symbols present

Assembly of pram body

• Remove plastic covers from mattress, fabrics and discard. Slide the two metal support brackets (1) into the grooves on the base of the pram body.
  • The base is made of wood.

WARNING

• Risk of suffocation. Do not let your children play with the plastic packaging.
• Make sure that the metal support bars are attached so that the pram stability and safety will not be jeopardised.

2

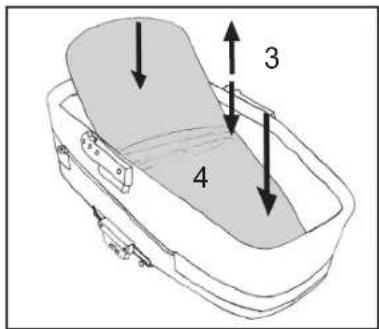

• Insert the mattress (4).
• The exclusive mattress consists of a combination of fibre filling and polyeter filling. Make sure that you place the mattress with the firmer polyeter filling facing downwards in the carrycot.

WARNING

• The depth from the top of the mattress together with other bed accessories to the carrycot upper part (3) must be at least 150mm.
• Do not add a mattress thicker than 45 mm.

3

Line drawing of a hand holding a mechanical clamp or bracket, with arrows indicating force direction (no text or symbols)

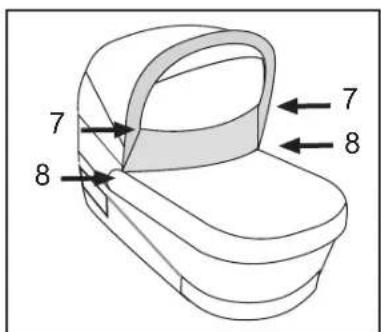

- Attach the hood to the pram body by pushing the plastic legs of the hood into the plastic receivers on the pram body. Make sure they click into place.

4

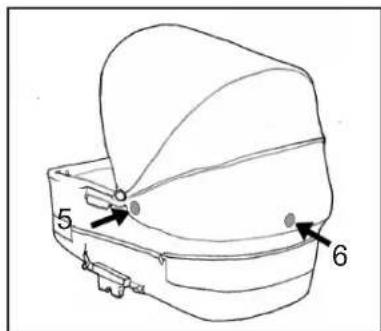

- Attach the poppers on the hood fabric onto the plastic receivers (5), on each side. Press the velcro (6) onto the pram body.

5

- Attach the poppers on the apron onto the hood (7) and onto the plastic receivers (8) on each side.

IMPORTANT

- The hood cannot be pushed back when the apron is attached to the hood without first releasing the poppers (8)

Assembly and usage of the

City Carrycot (Accessory to Classic Sport stroller)

6

Technical line drawing of a mechanical component with directional arrows indicating rotation (no text or symbols)

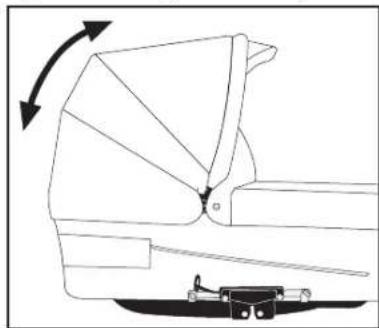

Adjusting the hood

• Adjust the hood by gently pulling the hood forward/backwards into desired position.
• Do not adjust the hood while the apron is attached.

IMPORTANT

• Never carry the carrycot by the hood.
• Never lift the carrycot when it is assembled onto the chassis.

7

Attachment of the carrycot

- Engage the parking device. Lift the carrycot by handles and press the Easy Fix attachment pieces into the receivers (9) on both sides of the chassis until it locks into its position.

WARNING

• Make sure that the top part is securely attached on both sides.

8

To release the carrycot

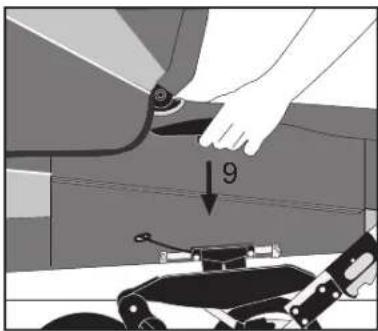

- Start by engaging the parking device. Press the Easy Fix grip and then lift the carrycot straight up (10). When the Easy-Fix can not be pressed any further, the top part can then be removed.

Use of the rain cover

• The rain cover is attached by placing the rain cover over the carrycot and seat-unit. Please note that there is an opening in the rain cover near the hood opening. Use the rain cover that is supplied with the pram.
• Always use the rain cover when it's raining or snowing. If the pram is damp before the rain cover is attached, wipe off the fabrics first if possible.
• Make sure the rain cover is completely dry before it is placed back into its bag.
• Make sure the rain cover is removed from the pram/stroller after use in order to avoid condensation forming in between the rain cover and the pram/stroller.

Care and maintenance

General care and maintenance instructions

• Never expose your vehicle to excessive sunlight for long periods of time.
  • Always use a raincover when it is snowing or raining.
• Never store your vehicle in cold and/or damp places.
• Should the chassis become wet, dry it off promptly. Make sure vehicle is completely dry before storing.
• If the vehicle is used near the ocean or salted roads, spray the chassis with a hose, and dry.
• Be careful during transportation and storage as the surface of the chassis is fragile. Scratches that arise after the sale are not a justifiable complaint.

Routine Inspection

• Regularly clean the chassis and metal parts of the vehicle, dry off and lubricate all joints of the chassis. Spokes, and rims on all wheels, should frequently be wiped off with a dry cloth. When the pram is used during the winter time, cleaning of the pram should be done at least once a week. Lack of maintenance could cause corrosion on the spokes and rims. Should corrosion on the surface occur,
  which is a possibility, you are required to remove this with a corrosion cleaning agent.

Important! Powder coated chassis and powder coated rims should never be treated with a corrosion cleaning agent as the colour will change.

- It is recommended to lubricate the wheel axles and suspension system every three months (clean axles with a cloth prior to lubrication). Axles may be lubricated with petroleum jelly or automobile oil.

Check that:

• all chassis locking devices are functioning properly.
• all rivets, nuts and bolts are firmly tightened and not broken.
• all plastic parts are not cracked or broken.
  • the wheel bushings are in a good condition.
  • all velcros are securely fastened.
• the press-stud is securely fastened on the footrest flap.
• all elastic straps are in a good condition.
• the secondary locking mechanism is intact and can move freely.
• the parking brake works and the brake rubber is intact.
• the tyre air pressure is correct (see marking on tyre: 28 P.S.I. = 1,8 bar; 35 PSI = 2,5 bar)
• The handles and the bottom of the carrycot should be inspected regularly for signs of damage and wear.

PLEASE OBSERVE

- When in need of servicing with original parts and other technical issues that require a professional decision, always get in touch with your retailer where your Emmaljunga product was purchased. All Emmaljunga products come with a 6-month manufacturing guarantee. This guarantee does not apply when issues arise through normal wear and tear.

• This information is relevant for Great Britain only.

WARNING

- Tyres can when in contact with PVC-flooring or other plastic materials cause discoloration. Always use wheel protection if the pram/stroller is stored on delicate surfaces.

Care and maintenance

Washing instructions

- Hood:

Take off and extend the hood. Shower the hood from the inside (interior fabric) with luke warm water. Use mild liquid soap as detergent. Cleanse it thoroughly. Drip dry the hood fully extended.

- Seat fabric and 5-point harness:

Remove the seat fabric from the chassis. Handwash seat fabric in lukewarm water. Use mild liquid soap as detergent. Cleanse thoroughly. Drip dry the seat fabric. When the seat fabric is removed the 5-point harness is accessible. Only wipe the nylon straps and plastic parts clean with a damp cloth. Do not hand wash. Make sure the harness is dry before reassembly.

- Front bar cover:

Remove the front bar cover. Hand wash in luke warm water. Use mild liquid soap as detergent on the surface of the exterior fabric. Handle non-woven interior material with care. Drip-dry.

- Mattress:

The exclusive mattress consists of a combination of fibre filling and polyeter filling. We recommend that you hand wash this product. The mattress can be machine washed at 40 degrees, but the fibre filling must be flattened back into shape after washing. Please note that the polyeter mattress does not contain bleach and will therefore naturally become yellow.

- Carrycot:

Remove hood and mattress. Wipe the exterior fabric and the interior nonwoven material, clean with a damp cloth. Do not hand wash. Dry the pram body in its fully extended position. Make sure the wooden base is protected from any water.

General Information

• Ironing: If any fabric part needs to be ironed, always use a 100 % cotton cloth in-between the iron and the fabric to protect the fabric surface. Iron the exterior fabrics (100 % polyester) and the interior fabrics (65 % cotton/35 % polyester) on gentle heat (110°C on the iron).
• Make sure all parts are completely dry before reassembly. Check the trimmings and the seam on the seat-fabric underneath the backrest-pocket.
• You may apply a material protector (like Scotchgard™) on the exterior fabric after washing. Always apply before reassembly.

WARNING

- Do not place child/children in stroller for at least 24 hours after applying a material protector.

Reassembly

WARNING

- Make sure all parts are assembled correctly according to the instructions in this manual.

IMPORTANT

Cleaning instructions for Leatherette fabrics:

Leatherette Fabrics must not be cleaned according to the above instructions. Leatherette fabrics should only be cleaned with a drop of mild washing up liquid and then wiped off with a damp cloth.

Emmaljunga

Service Documentation

Your pushchair requires regular care and maintenance. We recommend that you have your product serviced regularly, following the suggested service intervals in order for you to take full advantage of and maintain the quality of the product and to minimize the effects of wear and tear.

Always take your product to an authorised Emmaljunga retailer to carry out the service. After every service you will receive a report covering what has been inspected and checked together with a note stating the date on which the service has been carried out.

Before the pram is sent from the factory it has undergone regular checks and testing. Another check is completed before the product is given to you to ensure that it fulfills all safety and quality requirements. In addition to the regular service by your authorised retailer it is very important that you also check and maintain the product. You can find out more about this under the care and maintenance section in the product manual.

Chassis number

Delivery control

0

Date, stamp, customer name, signature

6 month service

6

Date, stamp, customer name, signature

12 month service

12

Date, stamp, customer name, signature

24 month service

24

Date, stamp, customer name, signature

36 month service

36

Date, stamp, customer name, signature

Emmaljunga

Delivery Check

1. Check that the following items are present in the correct numbers:

☐ 1pc seat-unit with 5-point harness
□ 1 set of shoulder pads for harness
□ 1 pc folded chassis with tray
□ 1 pc instruction manual
□ 1 pc hood
□ 1 pc seat-unit fabric
□ 1 pc footrest fabric
□ 1 pc front bar cover
□ 4 pcs wheels
□ 1 pc raincover

2. Check the functions of the chassis.

Unfold the chassis.

□ Check that the chassis locks function on both sides.
☐ Check that the safety catch/safety buttons function correctly by folding the pram and checking that the safety catch/safety buttons are activated to prevent accidental folding.

☐ Check that the seat unit/carrycot clicks securely on to the chassis and that it locks on both sides.

□ Check the harness function on the seat unit by locking and unlocking the harness.

☐ Check the handle height adjustment function by adjusting the handle up and down. The handle should lock securely into each position.

☐ Check that the EAST adjustable suspension function can be secured in the three positions on both sides of the chassis.

☐ Check that the backrest can be adjusted and locks securely into each of its four positions.

☐ Check that the footrest can be adjusted and locks securely into each of its two positions.

3. Wheel and brakes

□ Lubricate the ends of the axles.
□ Attach the wheels and make sure that the wheels lock into position.
☐ Check that the parking device locks both rear wheels when engaged.

4. Overall inspection of the product

☐ Check that all rivets, screws and nuts are securely fastened.
☐ Check that all poppers and zips on the seat fabrics and the tray are correctly and securely attached.
□ Make sure that there are no other visible deviations on the chassis, seat fabrics, tray and wheels.

Emmaljunga

Service Protocol

Service

Chassis/seat unit/carry cot function

Check the chassis locks function on both sides.

Check the safety catch/safety buttons function by folding the pram and checking that the safety catch/safety buttons are activated to prevent accidental folding.

Check that the seat unit/carrycot clicks securely on to the chassis and that it locks on both sides.

Check the harness function on the seat unit by locking and unlocking the harness.

Check the handle height adjustment function by adjusting the handle up and down. The handle should lock securely into each position.

Check that the EAST adjustable suspension function can be secured into the three positions on both sides of the chassis

Check that the backrest can be adjusted and locks securely into each of its four positions.

Check that the footrest can be adjusted and locks securely into each of its two positions.

Wheels and brakes

Check that the wheels are removable and that they lock onto the axles

Check that the brakes lock both rear wheels

Visual overview

Check that all rivets and screws are tightened correctly

Check that all buttons and zippers are intact and correctly fastened

Check for any other visible deviations on the chassis, fabrics, tray and wheels

Lubrication

Clean and lubricate the wheels, axles, chassis locks, footrest and the safety catch

Other notes (further adjustments or changed details)

Sisällysluettelo

Line drawing of a hand holding a small object with an arrow pointing to a vertical line (no text or symbols)

Pyörien asennus

2

Mechanical assembly diagram showing a clamping mechanism with a downward arrow and label '1' (no text or symbols beyond basic labels)

Illustration of a person adjusting a bicycle wheel (no text or symbols)

Manual Classic Sport v 1.0

Illustration of a hand using a bicycle to lift a wheel, showing rotational motion (no text or symbols)

6

Illustration of a hand gripping a black mechanical component with directional arrows indicating movement (no text or symbols)

7

Illustration of hands using a tool to adjust or install a mechanical component, showing rotational motion (no text or symbols)

8

Illustration of a hand holding a bicycle steering wheel (no text or symbols)

Diagram of a mechanical component with an arrow indicating downward motion, no text or symbols present

Illustration of hands adjusting a garment with a small inset showing a circular detail (no text or symbols)

Illustration of a person using a tool to lift a vehicle (no text or symbols visible)

Kuomun asentaminen

Illustration of a folding chair with a seatbelt and armrest (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

4

Side view of a car seat with open lid and side-mounted seat, showing motion arrows (no text or symbols)

5

Illustration of a person using a handheld device to interact with another person (no text or symbols visible)

Illustration of a hand holding a knife with a knife inserted, showing a numbered arrow (12) indicating direction or step (no text or symbols present)

Illustration of a person pushing a vintage car with wheels and a hand on top, showing motion direction (no text or symbols)

Line drawing of a rectangular basin with circular patterns and directional arrows, no text or symbols present

Kopan kokoaminen

Line drawing of a hand holding a mechanical clamp or bracket, with arrows indicating force direction (no text or symbols)

Diagram of a mechanical component with arrows indicating rotation or movement (no text or symbols)

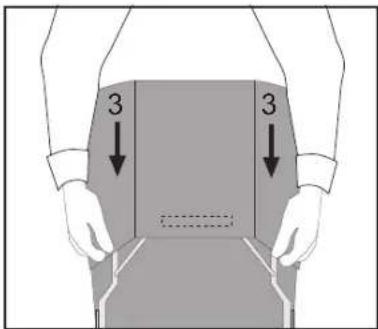

Kuomun säätäminen

Close-up of a hand pressing down on a car seatbelt, with a numbered arrow indicating '10' (no text or symbols present)

Instruction manual for Classic Sportstroller

© 2011 Emmaljunga Barnvagnsfabrik AB

All rights reserved

Emmaljunga Barnvagnsfabrik AB
