Product Type	Countertop Microwave Oven
Brand	Zelmer
Model	ZKM 2021EB
Capacity	25 L
Microwave Power	900 W
Grill Power	1000 W
Number of Power Levels	10
Control Type	Electronic Touch + Dial
Display Type	LED Digital
Defrost Function	Yes, by weight or time
Auto Cook Menus	12 pre-programmed recipes
Turntable	Yes, glass turntable
Interior Light	Yes
Child Lock	Yes
Dimensions (W x D x H)	490 x 380 x 290 mm
Internal Dimensions (W x D x H)	330 x 330 x 210 mm
Weight	14.5 kg
Power Supply	230 V, 50 Hz, 2200 W (total)
Magnetron Type	MG (magnetron)
Cleaning Instructions	Wipe interior with damp cloth; do not use abrasive cleaners
Spare Parts Availability	Contact authorized service center
Repairability Index	7.0 / 10 (based on user rating)

Frequently Asked Questions - ZKM 2021EB Zelmer

How do I set the cooking time on the Zelmer ZKM 2021EB?

Press the Time button, rotate the dial to set minutes, then press Start. For seconds, press Time again and adjust.

Can I use metal containers in this microwave?

No, metal can cause sparks. Use microwave-safe glass, ceramic, or plastic containers.

How do I activate the child lock?

Press and hold the Stop button for 3 seconds until a beep sounds. Repeat to unlock.

What is the maximum weight for auto defrost?

The auto defrost function supports up to 2.0 kg of food. Enter the weight using the dial.

How do I clean the interior?

Wipe with a damp cloth and mild detergent. Do not use scouring pads. For odors, place a bowl of water with lemon juice and heat for 2 minutes.

Why is my microwave not heating?

Check if the door is fully closed or the child lock is activated. If not, the magnetron may be faulty; contact service.

Can I grill food without the turntable?

The turntable should remain in place for even heating. Remove only for cleaning.

How do I adjust the power level?

Press Power repeatedly to cycle through levels (100% to 10%). The display shows the percentage.

What does the 'Keep Warm' function do?

It maintains food at serving temperature (approx. 70°C) for up to 30 minutes after cooking.

Where can I find spare parts like the turntable or door latch?

Contact Zelmer authorized service centers or visit the official website for spare parts.

USER MANUAL ZKM 2021EB Zelmer

INSTALACJA KUCHENKI

PANEL STEROWANIA

A	595mm
B	382mm
C	339.5mm
D	560mm
E	362mm
F	340mm (min.)
G	20mm
H	20mm
I	20mm
J	45mm

MONTÁŽ

OVLÁDACÍ PANEL

A	595mm
B	382mm
C	339.5mm
D	560mm
E	362mm
F	340mm (min.)
G	20mm
H	20mm
I	20mm
J	45mm

MONTÁŽ MIKROVLNNEJ RÚRY

Line drawing of a simple oven with internal stove and door (no text or symbols)

Skrutka C Montážny otvor

INÍTRUKCIE TÝKAJÚCE SA UZEMNENIA

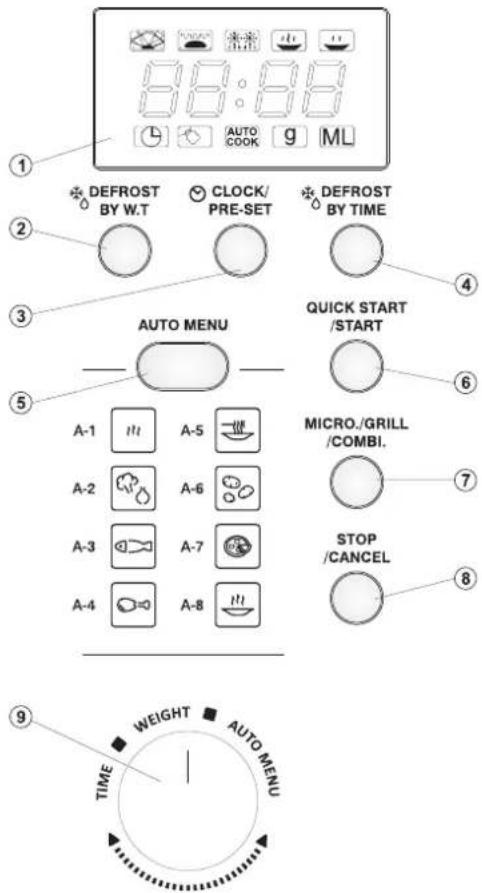

RIADIACI PANEL

1. Obrazovka: hodiny + ukazovatele
2. DEFROST BY W.T. (Rozmrazovanie podl'a váhy)
3. CLOCK/PRE-SET (Nastavovanie hodín)
4. DEFROST BY TIME (Časové rozmrazovanie)
5. AUTO MENU (Automatické menu)

A	595mm
B	382mm
C	339.5mm
D	560mm
E	362mm
F	340mm (min.)
G	20mm
H	20mm
I	20mm
J	45mm

VEZÉRLŐTÁBLA

A	595mm
B	382mm
C	339.5mm
D	560mm
E	362mm
F	340mm (min.)
G	20mm
H	20mm
I	20mm
J	45mm

INSTALAREA CUPTORULUI CU MICROUNDE

PANOU DE COMANDĂ

A	595mm
B	382mm
C	339.5mm
D	560mm
E	362mm
F	340mm (min.)
G	20mm
H	20mm
I	20mm
J	45mm

ПАНЕЛЬ УПРАВЛЕНИЯ

A	595mm
B	382mm
C	339.5mm
D	560mm
E	362mm
F	340mm (min.)
G	20mm
H	20mm
I	20mm
J	45mm

ИНСТАЛИРАНЕ НА ПЕЧКАТА

УПРАВИТЕЛЕН ПАНЕЛ

A	595mm
B	382mm
C	339.5mm
D	560mm
E	362mm
F	340mm (min.)
G	20mm
H	20mm
I	20mm
J	45mm

УСТАНОВЛЕННЯ ПЕЧИ

Line drawing of a simple oven with a mounted dish inside, showing internal components and a waveform display (no text or symbols)

ПАНЕЛЬ УПРАВЛІННЯ

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

Please read these instructions carefully. Pay special attention to important safety instructions.

Keep this User's Guide for future reference.

Write the SERIAL NUMBER indicated on the oven in the box below and keep for future reference.

SERIAL

NUMBER:

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any objects between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and there is no damage.
4. "deformities"
5. this also concerns the hinges and latches (broken or loosened)
   • door seals and sealing surfaces.
6. The oven can be adjusted or repaired only by properly qualified service personnel.

Table of contents

Precautions to avoid possible exposure to excessive microwave energy .... 50

Important safety instructions 50

Installation 51

The wall unit build up 51

Microwave oven installation....51

Grounding instructions 51

Radio interference 51

Cleaning and maintenance 52

Technical parameters 52

Microwave cooking - 52

Protective functions 52

Extended fan operation 52

Inside light automatic switch off 52

Child lock 52

Kitchen utensils - tips 52

Before you contact the service center 52

Turntable installation 52

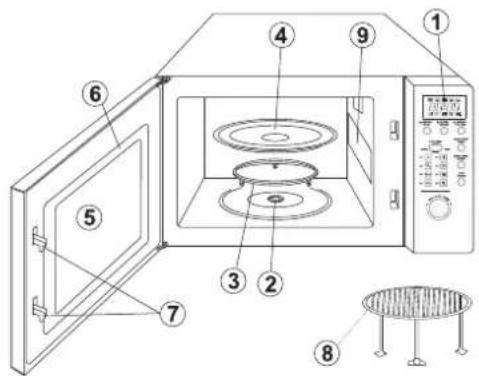

Microwave oven features 53

Control panel

Setting the clock (CLOCK/PRE/SET) 53

Microwave cooking 53

Grill 54

Combination mode (Microwaves + Grill) 54

Quick start (QUICK START/START) 54

Setting the program at a given time 54

Defrosting by weight (DEFROST BY W.T.) 54

Defrosting by time (DEFROST BY TIME) 54

Checking the mode 54

Automatic menu (AUTO MENU) 54

Automatic menu table 54

Multi stage cooking 55

Norm requirements 55

Ecology – environmental protection .... 55

IMPORTANT SAFETY INSTRUCTIONS

While using electrical appliances basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy follow the precautions:

1. The microwave oven is intended for household use only.
2. Plug the oven only to a grounded 230 V electrical outlet.
3. Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat, cook and dry food. It is not designed for industrial or laboratory use.
4. WARNING: Do not operate an empty oven.
5. Do not operate the microwave oven if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped.

If the non-detachable part of the cord is damaged, it should be replaced by the producer or at a proper service point or by a qualified person in order to avoid any hazards.

The appliance should be repaired by trained staff only. Improper repair can result in serious hazard for a user. In case of defects we recommend you to contact qualified service desk.

1. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.

2. To reduce the risk of fire inside the oven:

3. While heating food in plastic or paper containers, carefully attend the oven due to the possibility of ignition.

4. Remove wire twist-ties from paper or plastic bags before placing them in the oven.
5. If smoke is observed, switch off and unplug the appliance. Do not open the door in order to stifle any flames.

6. Do not use the oven cavity for storage purposes. Do not leave paper products, dishes and kitchen utensils or food inside the oven when it is not used.

7. WARNING: Liquids and other foods must not be heated in tightly sealed containers since they are liable to explode.

8. Microwave heating of beverages can result in delayed eruptive boiling; therefore take care when handling the container. Do not use the oven to fry food. Hot oil may damage the oven parts or accessories and even cause skin burns.

9. Eggs in shell and whole hard-boiled eggs should not be heated in the microwave oven since they may explode even after microwave heating has ended.

10. Prick food covered with thick skin such as potatoes, whole marrows, apples and chestnuts before cooking.

11. Do not overcook food.

12. WARNING: Do not touch the accessible surfaces when the oven is operating. Their temperature may be high – risk of burns.

1. Stir and shake the contents of feeding bottles and baby food jars. Check the temperature before consumption in order to avoid burns.

2. Kitchen utensils may become hot due to the heat from the food. Use appropriate handles while handling them.

3. Before using check if the utensils are suitable for use in microwave ovens.

Utensil test:

a. Fill a microwave safe container with one cup (250 ml) of cold water along with the utensil in question.
b. Cook at maximum power for 1 minute.
c. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
d. Do not exceed 1 minute cooking time.

17.3 WARNING: Microwave oven maintenance and repair which involves removing the cover which gives protection against exposure to microwave energy is dangerous, therefore it can only be performed by a qualified person.
18. Do not use the microwave oven to store any objects such as bread, cookies, etc.
19. The external surfaces of the oven may be hot during operation. Keep the supply cable away from heated surfaces. The supply cable cannot cover any oven elements.
20. The oven becomes hot during operation. Pay attention not to touch any heating elements inside the oven.
21. Do not use water vapor cleaners.
22. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
23. The appliance is not intended to be operated by means of an external timer or separate remote-control system.
24. It is strictly forbidden to remove the foil located at the inner side of the door. It can result in damage of the appliance.
25. WARNING: Do not remove the mica plate inside the microwave oven cavity! The plate protects against radiation.

INSTALLATION

1. Make sure all wrappings have been removed from the inside of the oven.
2. Remove any protective film from the housing of the microwave oven. WARNING: Do not remove the light brown Mica cover which protects the magnetron.

WARNING: Check for damage such as a door that is not lined up correctly, damage to door seals and sealing surfaces, broken or loosened hinges or latches, dents inside the oven or on the door.

1. In case of any damage do not operate the appliance and contact the qualified service personnel.

2. Place the microwave oven on an even and stable surface that is strong enough to hold the oven and the heaviest foods you put in it.

3. Do not expose the microwave oven to high temperatures and humidity. Do not place the oven near flammable materials as well as appliances generating heat.

4. Do not cover or block the ventilation openings. Do not remove the legs.

5. Do not operate without the glass tray and the turntable ring assembly properly installed.

6. Make sure the cord is not damaged, is not placed under the oven or above any hot or sharp surface and does not hang over the table or counter.

7. Ensure an easy access to the outlet so that it is possible to easily unplug the appliance in case of emergency.

8. Do not use and store the oven outdoors.

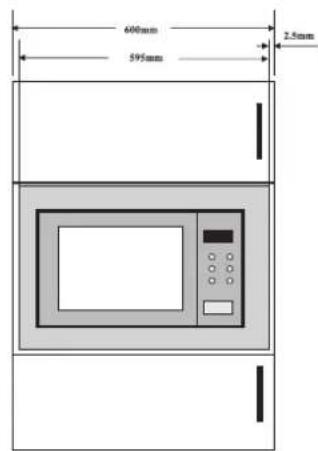

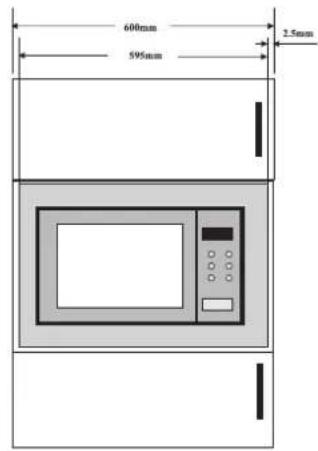

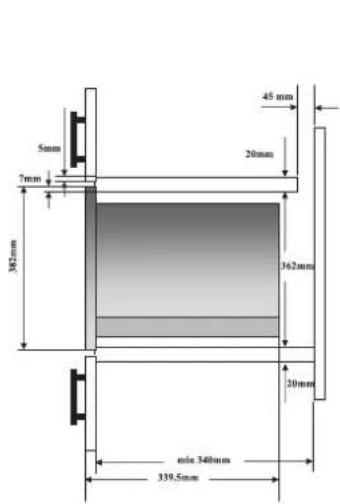

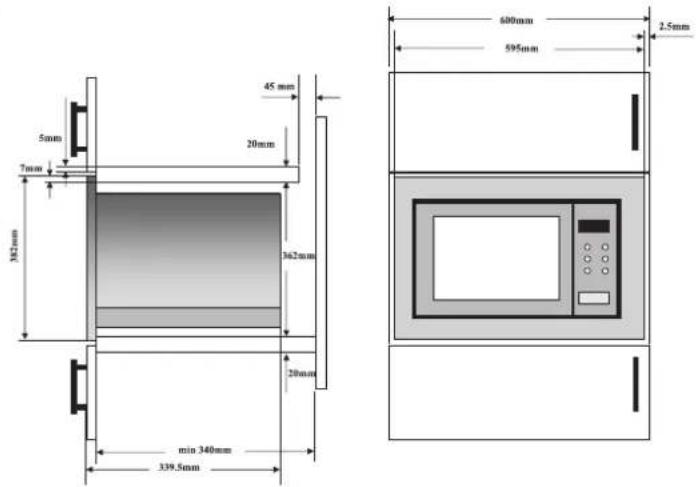

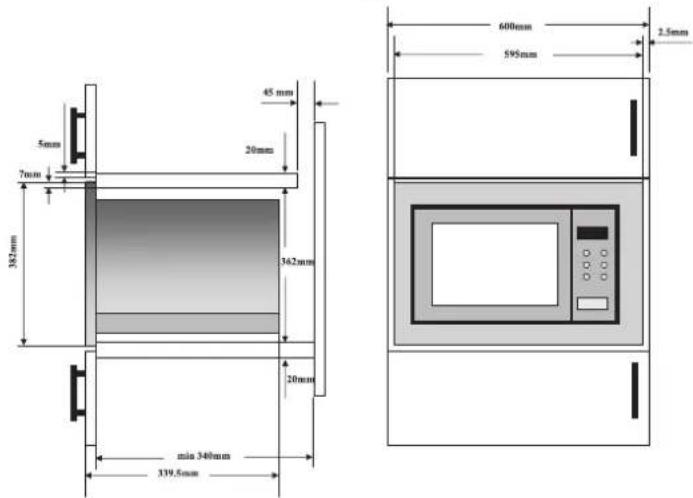

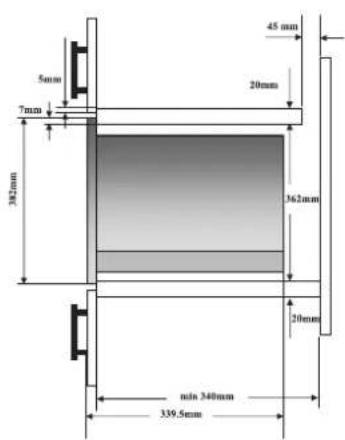

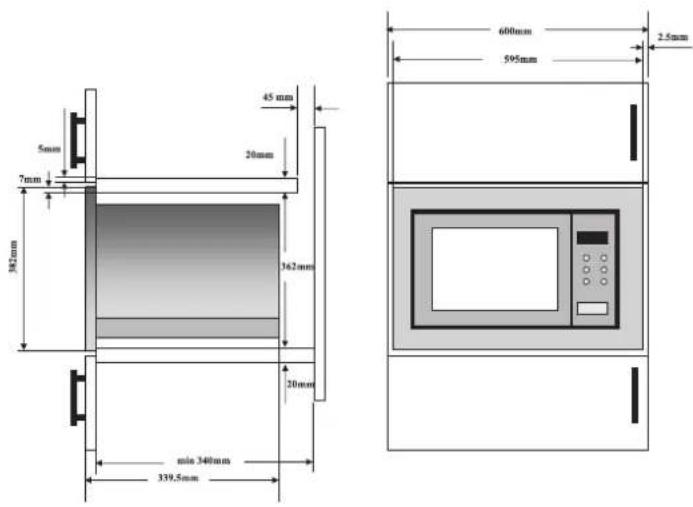

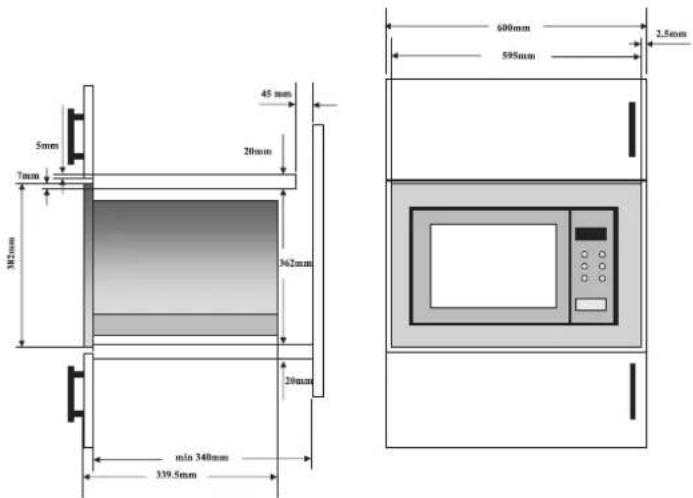

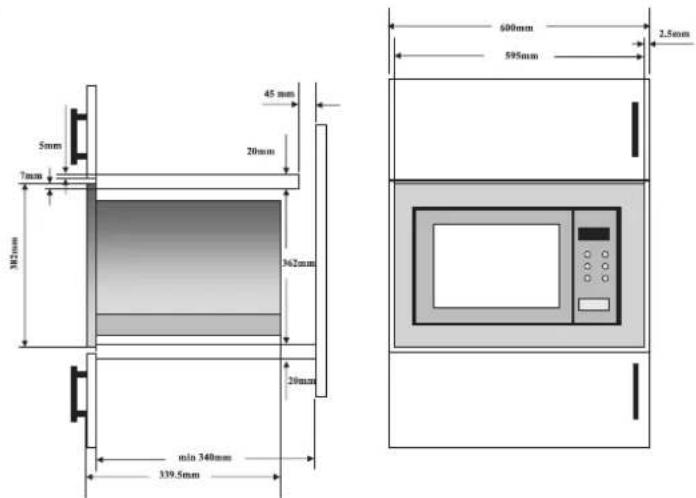

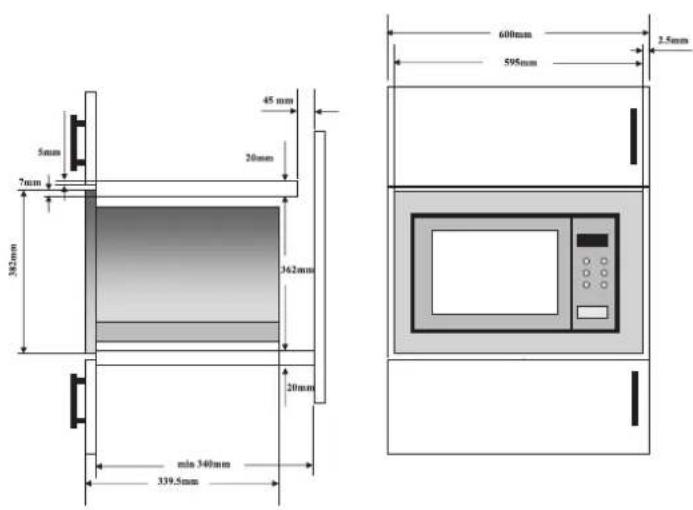

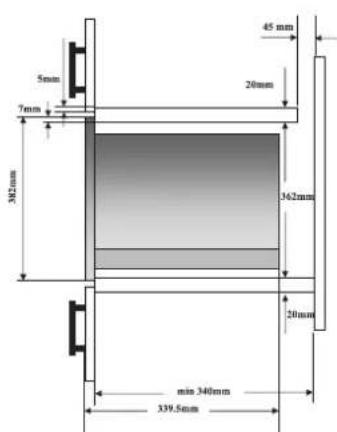

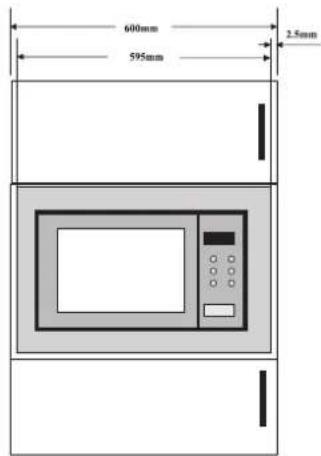

THE WALL UNIT BUILD UP

1. The cupboard for building in cannot have a back wall behind the appliance.
2. The minimum installation height is 85 cm.
3. Do not cover the ventilation openings and air outlets.

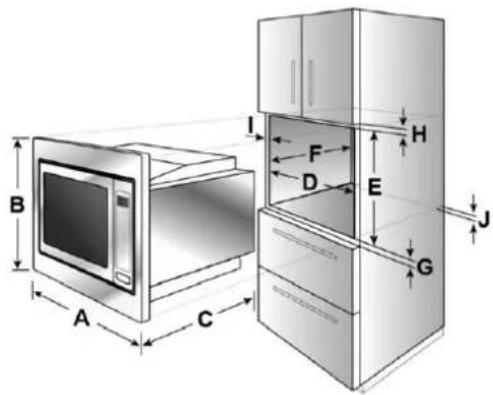

A	595mm
B	382mm
C	339.5mm
D	560mm
E	362mm
F	340mm (min.)
G	20mm
H	20mm
I	20mm
J	45mm

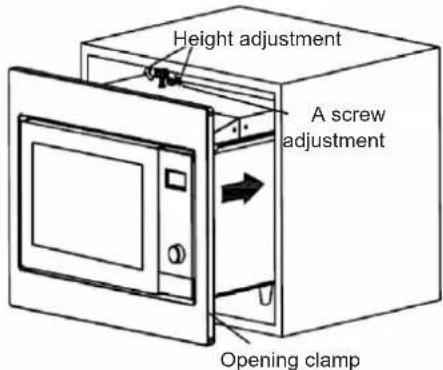

1. Install the oven in the cupboard:

2. Adjust the height of the A adjustment screw to receive a 1 mm slot between the A adjustment screw and the upper cupboard surface.

3. Never clench or entangle the cable.

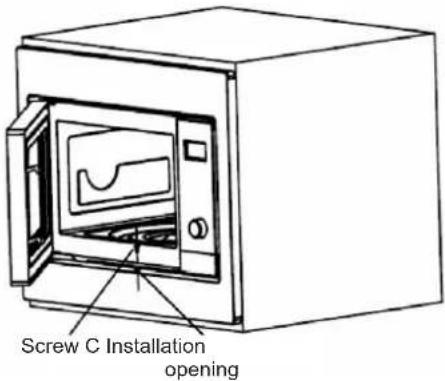

1. Open the door, and fix the oven to the cupboard next to the installation opening in the opening clamp using the C screw.

GROUNDING INSTRUCTIONS

The appliance must be grounded. The oven is equipped with a cord having a grounding wire with a grounding plug.

The plug must be plugged into an outlet that is properly installed and grounded.

In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

The oven should be used in a separate electric circuit.

If an extension cord is used:

1. The extension cord must be a grounding-type 3-wire cord.
2. Arrange the extension cord so that it is placed away from hot and sharp surfaces and cannot be accidentally pulled or tripped over.

WARNING: Improper plugging can result in the risk of an electric shock.

Notice: In case of any doubts concerning the grounding or plugging instructions contact a qualified electrician or serviceman.

WARNING: Both the manufacturer and the seller do not accept any liability for any oven damages or injuries resulting from not following the plugging instructions.

RADIO INTERFERENCE

Operating the microwave oven may cause interference to the radio, TV or similar equipment.

Interference can be reduced or removed in the following way:

1. Clean the door and sealing surfaces of the oven.
2. Adjust the receiving antenna of the radio and television.
3. Move the microwave oven so that it changes its position towards the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that the microwave oven and the receiver are on different branch circuits.

CLEANING AND MAINTAINENECE

1. Switch off and unplug the oven before cleaning.
2. Keep the inside of the oven clean. If necessary remove the food deposits or spilled liquid from the oven walls with a damp cloth. Use a mild detergent to remove heavier soil. Do not use spray cleaners and other strong cleaning agents as they may stain, tarnish or leave streaks on the surface of the oven and door.
3. Clean the outside surface with a damp cloth. To avoid damaging the subassemblies inside the oven make sure that water does not leak to the inside of the oven ventilation openings.
4. Regularly wipe both sides of the door and window, the door seals and neighboring parts with a damp cloth to remove food deposits or spilled liquid.

Do not use abrasive cleaners.

1. Do not use abrasive detergents such as emulsions, cream cleaners, polishes, etc. to clean the housing. They may remove the graphic information symbols such as scales, marks, warning signs etc.

2. Do not allow the control panel to moisten. To clean use only a soft, damp cloth. In order to avoid accidental starting of the oven open the door before cleaning the control panel.

3. If condensed water vapor begins to appear on the inside or outside of the door, wipe it with a soft cloth. Condensation may occur when the microwave oven is operating under high humidity conditions. In such a case it is a normal situation.

4. Take out and clean the glass tray every once in a while. Wash it in warm water with dishwashing liquid or in the dishwasher.

5. Regularly clean the turntable ring and the bottom of the oven to avoid noise. Clean the bottom surface with a mild detergent. Wash the turntable ring in water with dishwashing liquid or in the dishwasher. While installing the turntable ring make sure to place it properly.

6. To get rid of odors inside the oven boil about 200 ml of water with lemon juice and lemon peel in a microwave safe bowl for 5 minutes. Thoroughly dry the inside of the oven with a dry, soft cloth.

7. If it is necessary to replace the inside light bulb, turn to a service center.

8. Regularly clean the oven and remove food deposits. Failure to follow these instructions may lead to a degradation of the surface which may affect the lifespan of the appliance and lead to a dangerous situation.

TECHNICAL PARAMETERS

Energy consumption	230-240 V~ 50 Hz1250 W (Microwaves), 1000W (Grill)
Rated input power (microwaves)	800 W
Frequency 2450 MHz
External dimensions (mm) 595 (D) x 340 (S) x 382 (W)
Internal dimensions (mm) 295 (D) x 316 (S) x 218 (W)
Oven capacity 20 liters
Turntable Diameter = 245 mm
Net weight About 13.6 kg

* The above parameters are subject to change therefore the user should verify them with the information on the rating label. Any customer complaints regarding errors in these parameters shall not be considered.

1. Carefully arrange the food. Place the thickest pieces next to the edges of the dish.
2. Check the cooking time. Cook for the shortest indicated time and if necessary prolong cooking. Heavily burned products may generate smoke or ignite.
3. Cover food while cooking. The cover shall prevent the food from "splashing out" and ensure even cooking.
4. During cooking turn products in order to speed up the cooking process of food such as chicken or hamburgers. Turn large products such as roast meat at least once.
5. Change the arrangement of food products such as meatballs in the middle of the cooking period. Products placed on the top should be moved to the bottom and those in the middle should be moved towards the edges of the dish.

PROTECTIVE FUNCTIONS

1. Extended fan operation

In case of cooking for 5 or more minutes, the microwave oven will automatically switch off after the end of the cooking time, however, the fan will keep on operating for another 15 seconds.

2. Inside light automatic switch off

The inside light switches on after opening the door. If the door is open longer than 10 minutes without performing any actions, the light will be automatically switched off.

3. CHILD LOCK – security against child access

Child lock: In the standby mode press and hold the STOP/CANCEL button for 3 seconds. You will hear a long beep indicating that the child lock has been set. The symbol will appear on the display.

To unblock the oven: Press and hold the STOP/CANCEL button for 3 seconds. You will hear a long beep indicating that the microwave oven has been unblocked.

KITCHEN UTENSILS - TIPS

Use only microwave safe dishes and kitchen utensils. The ideal material to use in the microwave oven is a transparent one, as it allows energy to infiltrate through the container and heat the food.

1. Do not use metal utensils or dishes with metal trims – microwaves do not infi ltrate through metal.
2. Before cooking remove wrappings made of recycled paper, as it may contain metal particles which may cause arcing and/or fire.
3. We advise you to use oval/round dishes instead of square/rectangular ones as food in the corners of the dish burns more often.
4. Protect exposed areas by covering them with narrow stripes of aluminum foil. Remember, however, not to use too much foil and to keep the foil at least 3 cm away from the oven walls.

The list below shall make the choice of the right dishes and kitchen utensils easier

Kitchen utensils	Microwaves	Grill	Combination mode
Heat-resistant glass	Yes	Yes	Yes
Non-heat-resistant glass	No	No	No
Heat-resistant ceramic utensils	Yes	Yes	Yes
Microwave safe plastic dishes	Yes	No	No
Parchment paper	Yes	No	No
Metal tray	No	Yes	No
Metal gridiron	No	Yes	No
Aluminum foil and foil containers	No	Yes	No

BEFORE YOU CONTACT THE SERVICE CENTER

Normal situation:

1. The operation of the microwave oven may cause radio and TV interference. This interference is similar to interference caused by small electrical appliances such as: a food processor, a fan, a vacuum cleaner etc.
2. While cooking at low microwave power the inside light of the microwave oven may be dull.
3. Water vapor wafts during cooking. Most of the water vapor escapes through the ventilation openings. However, condensed water vapor may appear on the cool parts of the oven (e.g. on the door).

If the oven does not work:

1. Make sure the oven is properly plugged in. If not, unplug the appliance, wait 10 seconds and plug it in again.
2. Check if the fuse is not blown or the circuit breaker tripped. If the above function properly check the electrical outlet by plugging a different electrical appliance.
3. Check if the control panel is properly programmed and the time set.
4. Check if the door is properly closed and latched. The microwave energy shall not be otherwise supplied to the oven.
5. If the glass tray is noisy during operation check if the bottom of the oven and the turntable ring assembly are clean. Clean according to the information in chapter "CLEANING AND MAINTANENCE".

If after performing the above actions the oven still does not work contact the service center. A microwave oven should never be adjusted or repaired by a 'do-it-yourself' repair person.

TURNTABLE INSTALLATION

1. Never place the glass tray upside down. The glass tray should never be restricted.
2. Both glass tray and turntable ring assembly must always be used during cooking.
3. All food and food containers should always be placed on the glass tray.
4. If glass tray cracks or breaks contact your nearest service center.

1. Control panel
2. Turntable shaft
3. Turntable ring assembly
4. Glass tray
5. Window
6. Door
7. Safety block – cuts off power if door is opened during operation
8. Metal gridiron
9. Mica plate

CONTROL PANEL

1. Display: clock + indicators
2. DEFROST BY W.T. (Defrost by weight)
3. CLOCK/PRE-SET
4. DEFROST BY TIME
5. AUTO MENU

A-1: Auto Reheat
A-2: Vegetable
A-3: Fish
A-4: Meat
A-5: Pasta
A-6: Potato
A-7: Pizza
A-8: Soup

1. QUICK START/START
2. MICRO./GRILL/COMBI.
3. STOP/CANCEL
4. Knob:

value increase towards the sym- bol clockwise value decrease towards the - symbol clockwise

Display: indicators – signalling

Microwaves

gh and high power

Defrosting

Weight in grams

Grill Very low and low power

Clock

Automatic cooking

pacity in ml

SETTING THE CLOCK

After plugging the microwave oven you will see "0:00" on the display and you will hear a single beep.

1. Press the CLOCK/PRE-SET button, the hour digits will start to flash and the clock control lamp will light on the display.
2. Turn the knob to set the hour. You can set the digits from 0 to 23 by turning the knob towards or from 23 to 0 by turning the knob towards. The display will show digits from 0 to 23 or from 23 to 0.
3. Press the CLOCK/PRE-SET button, the minute digits will begin to flash.
4. Turn the knob towards or, to set the minutes. You can set the digits from 0-59 and from 59-0. The display will show digits from 0 to 59 or from 59 to 0.
5. Press the CLOCK/PRE-SET button to finish setting the time. The clock control lamp will light out. The ":" symbol will light and the time will appear on the display.

MICROWAVE COOKING

1. Press the MICRO./GRILL/COMBI. Button to select the required microwave power. "P100" will appear on the display. The ☑ and ⚙ control lamps will light.
2. To select other required microwave power e.g. P80 keep turning the knob towards or until the display will show P80 and the symbol.
3. Press the MICRO./GRILL/COMBI. button and turn the knob towards or, to set the cooking time. The cooking time can be set from 0:05 and increased by turning the knob towards or decreased by turning it towards Start to decrease the cooking time from the value 95:00. The maximum cooking time is 95 minutes.
4. Press the QUICK START/START button to start cooking.

EXAMPLE: In order to set the cooking time for 20 minutes at 80% microwave power do the following:

1. Press the MICRO./GRILL/COMBI. button. The display will show P100 and the symbols 📋 and 🌐
2. In order to set the required microwave power P80 keep turning the knob towards 📋 or 📋 until the display shows P80 and the symbols 🌐 and 🏠.
3. Press the MICRO./GRILL/COMBI. button and turn the knob towards or to set the time for 20 min. The set time will appear on the display.
4. Press the QUICK START/START button to start cooking.

Microwave power table

Power	100% Very high	80% High	50% Medium	30% Low	10% Very low
Display	P100	P80	P50	P30	P10

Notice:

The number of seconds/ minutes by which the time setting can be changed with the given time value is indicated in the table on the right.

0 – 1 minute	every 5 seconds
1 – 5 minutes	every 10 seconds
5 – 10 minutes	every 30 seconds
10 – 30 minutes	every minute
30 – 95 minutes	every 5 minutes

WARNING: Do not use the gridiron for microwave cooking! Always take out the gridiron from the inside of the oven before microwave cooking.

GRILL

1. Press the MICRO./GRILL/COMBI. button. The display will show P100.

2. In order to select the required grill mode G, keep turning the knob towards or until the display will show G and the symbol

1. Press the MICRO./GRILL/COMBI. button and turn the knob towards or to set the grilling time. The grilling time can be set from 0:05. It can be increased towards, or decreased towards. The grilling time can be decreased from the value 95:00. The maximum grilling time is 95 minutes.

2. Press the QUICK START/START to start grilling. You will hear a beep and the grilling program will start to operate. The display will show the symbol 📄 and the remaining grilling time.

COMBINATION MODE (MICROWAVES + GRILL)

1. Press the MICRO./GRILL/COMBI. button. The display will show P100.

2. To select the required mode turn the knob towards or The display will show the following: P80, P50, P30, P10, G, C-1, C-2 and the symbols and .

C-1 = 55% of the time – microwave cooking 45% of the time – grilling

C-2 = 36% of the time – microwave cooking 64% of the time – grilling

1. After selecting the appropriate mode press the MICRO./GRILL/COMBI. button and turn the knob

towards on, to set the cooking time. The cooking time can be set from 0:05 and increased by turning the knob towards decreased by turning it towards Start to decrease the cooking time from the value 95:00. The maximum cooking time is 95 minutes.

1. Press the QUICK START/START button to start cooking. You will hear a beep and the cooking program will start to operate. The symbols 📊 and 📌 will flash on the display.

WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the high temperatures generated.

START - (Quick start)

If the oven is in the stand-by mode, press QUICK START/START, to start cooking for 1 minute at full power. Each time you press the button the cooking time will be prolonged for one minute. The maximum cooking time is 95 minutes.

SETTING THE PROGRAM AT A GIVEN TIME

1. Set the clock (see Setting the clock.)

2. Enter a cooking program (see: Microwave cooking). You can set up to 3 stages. The defrosting program should always be set as the first one.

3. Press the CLOCK/PRE-SET button, the digits of the hour will start to fl ash and the display will show the clock control lamp ☐

4. Turn the knob towards or to set the time. You can select digits from 0-23 - direction on 23-0 - direction.

5. Press the CLOCK/PRE-SET button, the digits of the minutes will start to flash.

6. Turn the knob or to set the minutes. You can select digits from 0 to 59 - direction or from 59 to 0 - direction

1. Press the QUICK START/START button to finish setting the time. The clock control lamp 📁 will start to fl ash. If the door is closed, after the set time is reached, you will hear two beeps, the cooking will start automatically, the clock control lamp 📁 will light out and the cooking control lamps will light: 🎨 and e.g. 🌐

DEFROSTING BY WEIGHT

1. Press the DEFROST BY W.T. button. The display will show dEF1 and the control lamps and will light.

1. Turn the knob towards or to set the weight of the food to be defrosted. The display will show the letter g. The display will show 100-200...1900-2000 (or in reverse order) - direction

1. Press the QUICK START/START to start defrosting. You will hear a beep and the defrosting program will start to operate. The symbols 🎨 and 🌘 and the remaining defrosting time will flash on the display.

DEFROSTING BY TIME

1. Press the DEFROST BY TIME button. The display will show dEF2 and the control lamps and will light.

1. Turn the knob towards or to set the defrosting time. The defrosting time can be set from 0:05. It can be increased by turning the knob towards and decreased by turning the knob towards. Start to decrease the time from the value 95:00. The maximum defrosting time is 95 minutes.

2. Press the QUICK START/START button to start defrosting. The control lamps 📋 and 📌 will light.

CHECKING THE MODE

While cooking using the MICRO./GRILL/COMBI. mode, press the MICRO./GRILL /COMBI. button, the current microwave power will appear on the display for 4 seconds. Press the CLOCK/PRE-SET button to display the current time. After 4 seconds the indicators will return to the previous state.

AUTOMATIC MENU

1. Press AUTO MENU several times to select the cooking menu. The control lamps and will appear on the display. The menu can be selected according to the table below in the following way:

Turn the knob to select: Automatic reheat – Vegetables – Fish – Meat – Pasta – Potato – Pizza – Soup/Coffee, the display will show A-1, ..., A-8.

1. After selecting the menu confirm by pressing the AUTO MENU button.

2. Turn the knob towards or to select the weight of the food to be cooked. The display will show Mr. The weight or value can be increased by turning the knob towards on decreased by turning it towards

1. Press the QUICK START/START button to start cooking. You will hear a beep and the cooking program will start to operate. ML and 9 will light and the display will show the symbols and the remaining cooking time.

Automatic menu table

Menu	Weight	Display
A-1Automaticreheat	200g
	400g
	600g
A-2Vegetables	200g
	300g
	400g
A-3Fish	250g
	350g
	450g
A-4Meat	250g
	350g
	450g
A-5Pasta	50g
	100g
A-6Potato	200g
	400g
	600g
A-7Pizza	200g
	400g
A-8Soup	200ml
	400ml

MULTI STAGE COOKING

You can set up to 3 cooking stages. In case of multi stage cooking, if defrosting is one of the cooking stages, the defrosting program will be automatically switched on as the first one. After a stage is finished, you will hear a beep and the next stage will start.

Notice: Automatic cooking cannot be one of the programs of multi stage cooking.

EXAMPLE: To set the cooking for 10 minutes at 100% microwave power and for 15 minutes at 80% microwave power do the following:

1. Press the MICRO./GRILL /COMBI. twice to select 100% microwave power – P100.
2. Turn the knob towards or to set the cooking time for 10 minutes and confirm by pressing the MICRO./GRILL /COMBI. button. The display will show "P100" and the symbols and .
3. Turn the knob towards or to set 80% microwave power - P80 and confirm by pressing the MICRO./GRILL /COMBI. button.
4. Turn the knob towards ↗ or ↗ to set the cooking time for 15 minutes.
5. Press the QUICK START/START button to start cooking.

Each time a mode ends you will hear a beep which indicates the end of operation.

NORM REQUIREMENTS

ZELMER microwave oven fulfills the requirements of the following norms.

The appliance is in conformity with the requirements of the directives:

Low voltage appliance (LVD) - 2006/95/EC.

Electromagnetic compatibility (EMC) - 2004/108/EC.

The appliance was marked by the CE sign on the rating label.

ECOLOGY - ENVIRONMENTAL PROTECTION

Each user can contribute to protect the environment. It is neither difficult nor expensive.

In order to do so:

Return cardboard packages to recycling points. Throw polyethylene (PE) bags to appropriate containers. Return a worn out appliance to an appropriate collecting point as the components of the appliance may pose a threat to the environment.

Do not dispose of with household waste!!!

The manufacturer/importer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer/importer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.
