WT-2060P - Heating Ravanson - Free user manual and instructions

Product Type	Standing Electric Fan
Brand	Ravanson
Model	WT-2060P
Maximum Fan Flow Rate	55.96 m³/min
Fan Power Input	51.72 W
Service Value	1.14 (m³/min)/W
Standby Power Consumption	0.44 W
Fan Sound Power Level	60.9 dB(A)
Maximum Air Velocity	2.782 m/s
Timer Range	0.5 to 7 hours
Oscillation	Yes, automatic rotation around vertical axis
Head Tilt	Yes, manually adjustable on horizontal axis
Number of Speed Settings	3 (Low, Mid, High)
Modes	Normal, Sleep
Power Supply	220-240 V ~ 50 Hz
Safety Features	Overheat protection implied; child safety lock not specified
Cleaning	Wipe with moist cloth and neutral detergent; do not use solvents
Storage	Store in original package, protect from humidity and mechanical damage
Measurement Standard	IEC 60879
Manufacturer	RAVANSON Ltd., Sp. z o.o., ul. Mazowiecka 6, 09-100 Płońsk, Poland

Frequently Asked Questions - WT-2060P Ravanson

How do I assemble the fan?

Refer to Figure 2 in the manual. Attach the blade cover to the front grid, then assemble the column and install the fan on top. Ensure the blade nut is tightened anticlockwise (left-hand thread).

What do the controls do?

The On/Speed button turns the fan on and cycles through speeds (Low, Mid, High). Mode selects Normal or Sleep (softer airflow). Timer sets operating time from 0.5 to 7 hours, increasing by 0.5 h per press. Off turns the fan off.

How does the oscillation function work?

Press the button on the drive unit housing (Figure 5A) to enable automatic rotation. Pull the button out to disable oscillation.

Can I tilt the fan head?

Yes, gently push or pull the drive unit to tilt the head on the horizontal axis (Figure 5B). Do not force it.

How do I clean the fan?

Always unplug the fan first. Use a slightly moist cloth with a neutral detergent. Never use petrol or solvents. Avoid water entering the motor.

What should I do if the fan does not start?

Check the power supply and ensure the plug is fully inserted. If it still doesn't work, contact authorized service personnel. Do not attempt repairs yourself.

Is the fan safe to use around children?

Children under 8 years should not use the fan without supervision. Keep the cord out of reach. Always supervise children to prevent accidents.

Can I use the fan outdoors?

No, the fan is intended for indoor use only. Do not expose it to rain, humidity, or wet hands.

What is the standby power consumption?

The standby power consumption is 0.44 W. Unplug the fan when not in use for extended periods to save energy.

What are the technical specifications?

Maximum airflow: 55.96 m³/min, power input: 51.72 W, service value: 1.14 (m³/min)/W, sound level: 60.9 dB(A), max air velocity: 2.782 m/s. Standards: IEC 60879.

USER MANUAL WT-2060P Ravanson

ENG User's manual Fan

Black and white photo of a standing electric fan with five blades, mounted on a stand (no text or symbols visible)

Producent:

Ravanson®

Rys. 2

Diagram of a vertical stand with a fan-like structure and directional arrows indicating motion (no text or symbols)

Rys 4

OBSŁUGA

UWAGA!

Diagram of a mechanical device with a vertical arrow and a grid-patterned side panel (no text or symbols)

Rys. 5a

Rys. 5b

Diagram of a mechanical device with a grid-patterned component and directional arrows indicating rotation (no text or symbols)

f

gZ/łZgZE6IEfIf-w6Ie,Ag:Af

This appliance is not intended for use by children under the age of 8 or other persons, without assistance or supervision, if their physical, sensory or mental capabilities prevent them from using it safely or by persons without experience and knowledge on the use thereof. People using this product must understand the risks related to the use of the appliance. Do not allow children to use the appliance as a toy. Cleaning and maintenance by children without supervision is not allowed.

Children are not aware of dangers that may arise during the use of electric devices. Keep the appliance and corresponding cord out of the reach of children under the age of 8.

Children should be supervised to ensure that they do not play with the appliance.

Do not operate the appliance with a damaged cord. Damaged power cord must be replaced by manufacturer, authorized service centre or other qualified persons in order to avoid risk.

The plug must fit the socket.

The plug must not be modified in any way.

Do not allow the power cord to touch sharp edges or hot surfaces.

Damaged cord poses a risk of electric shock.

Do not place the appliance on hot surfaces.

Do not use outside. Do not expose to rain. Protect against humidity.

Do not operate with wet hands.

During operation keep clothing, long hair away from the moving parts of the appliance.

Do not plug the device in unless it is fully assembled.

Do not use the device with a broken or damaged blades.

Do not remove any parts of the housing.

Do not use the device in the immediate vicinity of a bathtub, shower or swimming pool.

Prevent the cord and plug from any contact with water or moisture.

Do not spray any liquid on the device.

Unplug the device holding the plug; do not pull the cord.

Unplug the device if it is to be moved or is not going to be used for a longer time.

Do not use the device with the protection grid removed.

Transport in an original package protecting from mechanical damages.

The appliance must be repaired by a qualified person using only original spare parts.

Despite operating the unit in accordance with its intended use and in accordance with all safety guidelines, it is impossible to eliminate all residual risk factors.

The appliance is intended for home use only.

The appliance should only be used for private use, as intended for the appliance. This appliance is not intended for commercial use.

Before assembly and disassembly of the sieve, always make sure that the juicer is disconnected from its power source.

Do not (over the f-n prote(tion gri).

Do not put -nything into the prote(tion gri) when the f-n is on.

NOTE! The device is not designed to work with external timers or a separate remote control system.

It is recommended to connect the device to the power supply network equipped with a residual current device (RCD) with a switch-off current of 30mA or less.

i-xHw

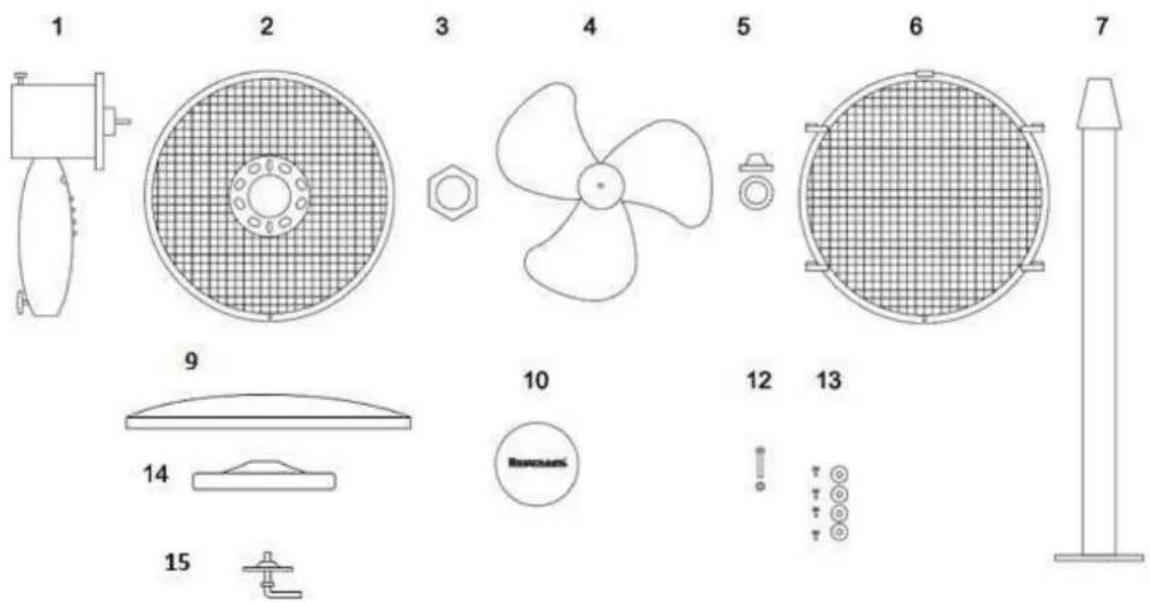

Please check the fan is complete after you open the packaging. Check if the components are not damaged.

АщщефЫЙЕ

1. Screw the blade cover 10 to the front grid 6 (see Figure 1)

Fig 1

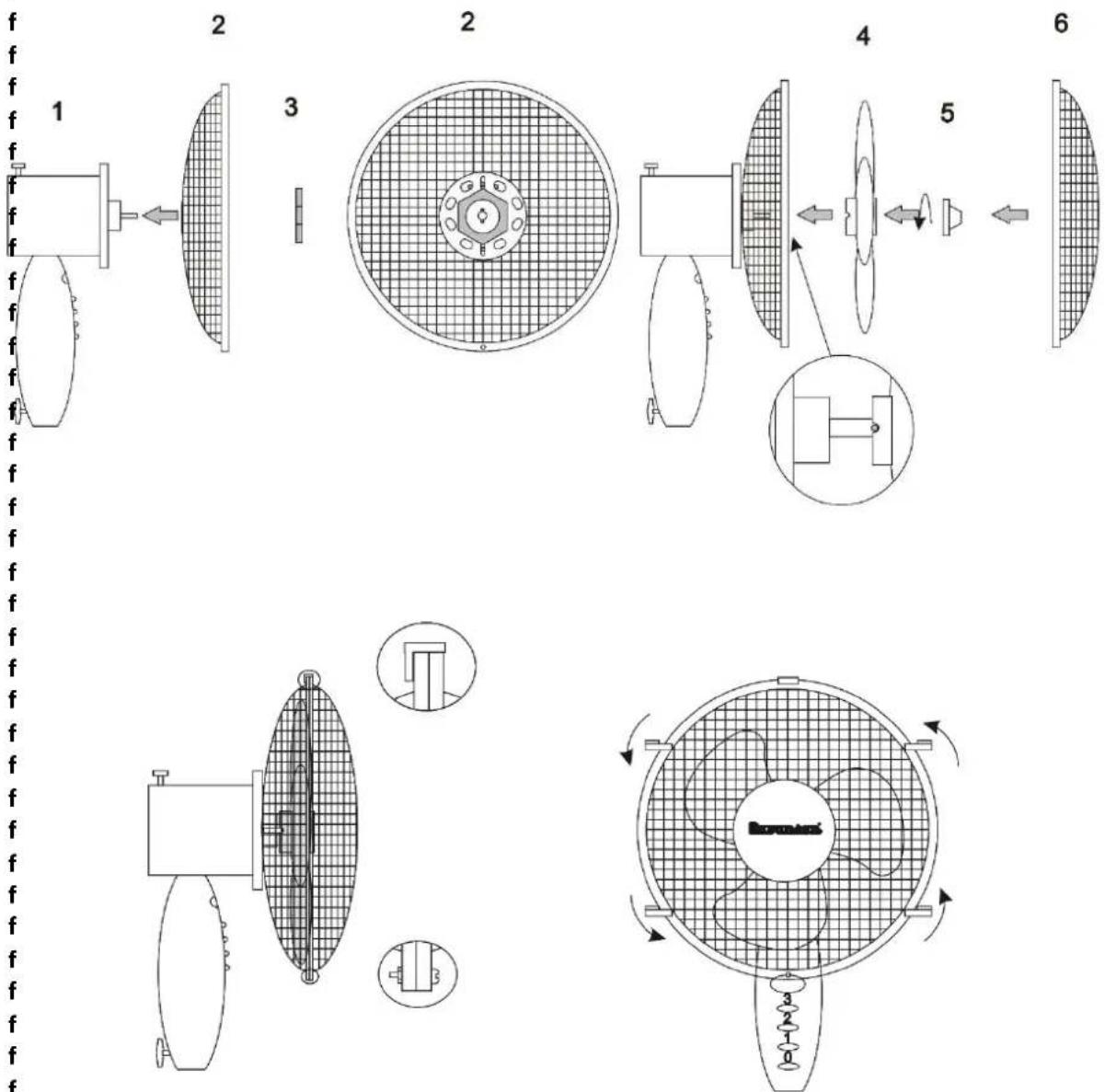

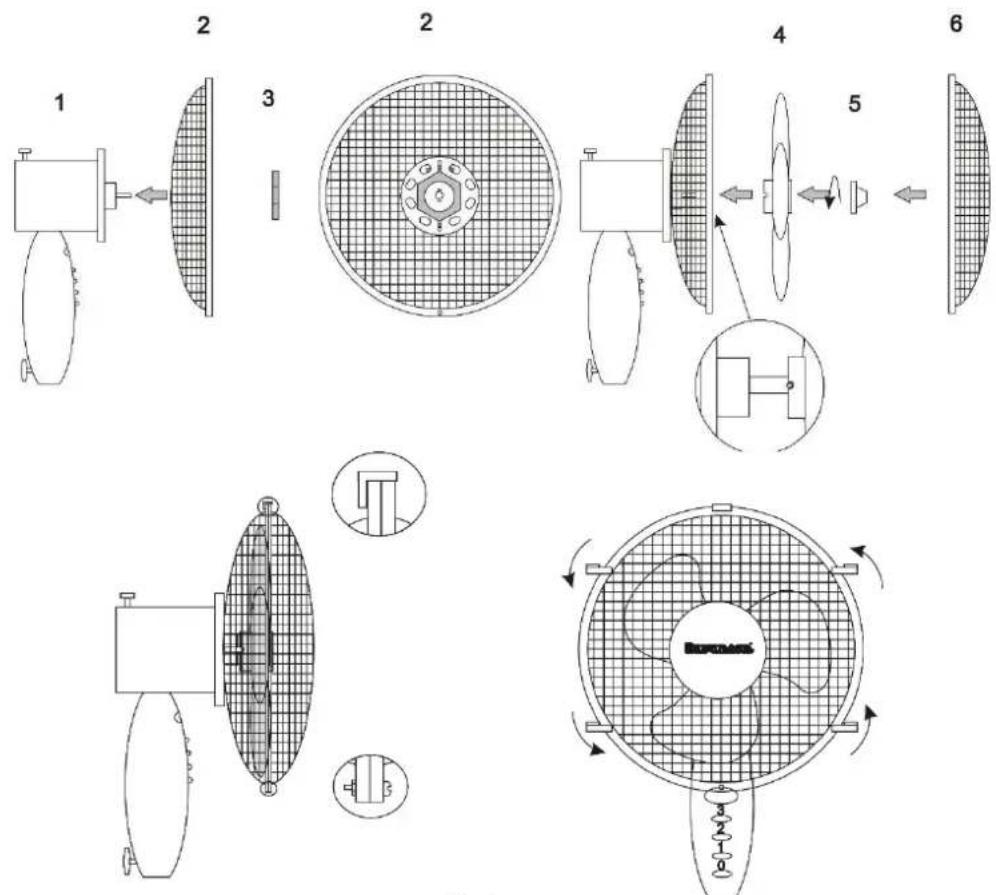

1. Assembly the fan as shown in Figure 2

Fig 2

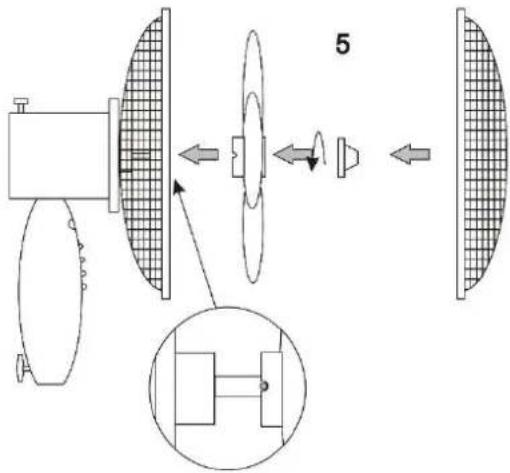

Attention! Screw blade nut onto the screw, turning anticlockwise (left-hand thread).

1. Assembly the fan column as shown in Figure 3

Fig 3

1. Install the fan on the column (Figure 4)

Diagram of a wind turbine with rotating blades and fan blade (no text or labels)

Fig 4

Attention! 0-ke sure th-t the power sour(e to whi(h the -ppli-n(e is to be (onne(te) is -(or)-nt with the p-r-meters spe(ifie) on the r-ting pl-te.

Attention! Before every use, inspe(t the)evi(e for -ny signs of me(h-ni(-l)-m-ge. Inspe(t the power (or).

If the power (or) is )-m-ge), )o not plug the )evi(e in.


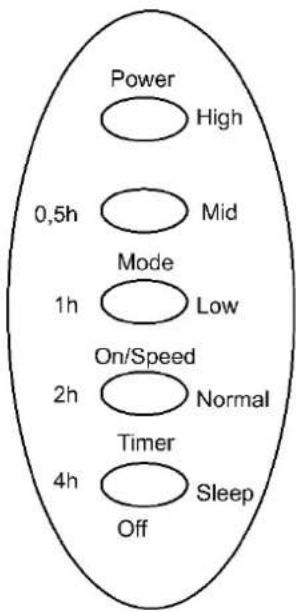

On/Spee) - switching on - operating with the lowest speed.

On/Spee) - setting fan speed (High - highest, 0i) - medium; 2ow - lowest)

0ODE - a button used for selecting air circulation:

6ormal

Sleep (soothing air at nighttime).

TIOER - Setting the unit operating time.

It is possible to set the unit operating time from 0.5 h to 7 h. Press the button once to increase the operating time by 0.5 h. The set operating time is signaled by a specific combination of control lights above the button. To resign from the operating time setting, press TIMER button until no control light is lit above the button. The unit will go to the continuous operation mode.

OFF - switching off

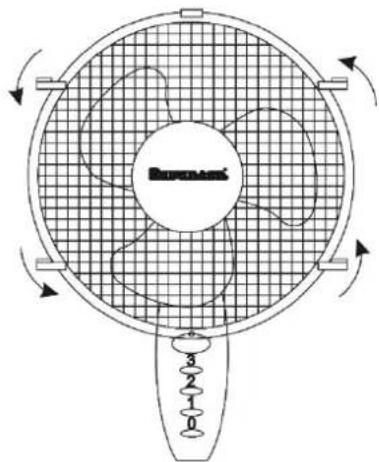

The fan is equipped with a rotational mechanism. Automatic rotation of the fan round its vertical axis is switched on by the button on the drive unit housing (1). See Fig. 5A.

This function is switched on by pressing the button. To disable device rotation, pull the button out.

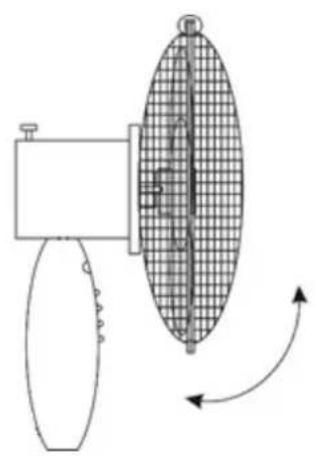

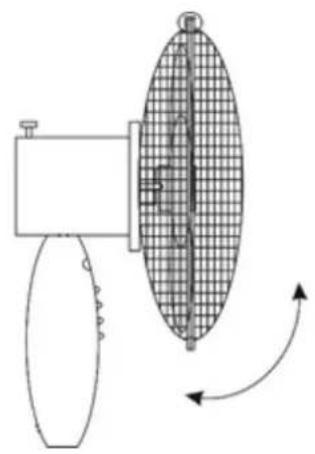

The fan head can be tilted in a horizontal axis by aslight inflection/deflection of the drive unit. See Fig. 5B.

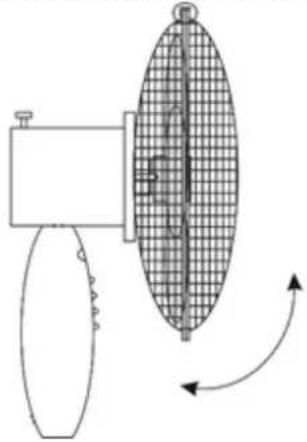

Pure mechanical diagram showing a lever and a grid-patterned component without any text or symbols

Fig 5a
Fig 5b

Diagram of a mechanical device with internal grid structure and directional arrows (no text or symbols)

Cleaning an) (are

Before starting the maintenance, ensure the fan is unplugged.

Clean the fan with moist (never wet) cloth with a neutral detergent. Do not use petrol or other solvents.

Transportation an) storage

Before putting the device away, wait until it cools down. Keep and store in a package protecting from humidity and mechanical damages.

Troubleshooting

If the fan does not start, check the power supply in the mains. Repairs must be carried out solely by the authorised personnel.

The manufacturer reserves the right to introduce technical modifications!

The symbol presented below indicates that the used equipment cannot be placed together with other household waste. The user is obliged to bring this item to the waste electrical and electronic equipment collection point where a suitable system is created to allow safe disposal of these items.

Dangerous components present in electrical and electronic equipment have negative

consequences for the environment and human health therefore correct handling of the equipment is very important. Certain substances which may adversely affect the environment over the life of the product and after use have been limited in this device.

Description	Symbol	Value	Unit
Maximum fan flow rate	[F]	55,96	m^3/min
Fan Power input	[P]	51,72	W
Sernice value	[SV]	1,14	(m^3/min)/W
Standy power consumption	[P_SB]	0,44	W
Fan sound Power level	[L_WA]	60,9	dB(A)
Maximum air velocity	[c]	2,782	m/s
Measurement standard for service value	IEC 60879
Contact details obtaining more information	RAVANSON Ltd., Sp. z o.o.ul. Mazowiecka 6, 09-100 Płońsk, Poland

DE

Diagram showing a mechanical component interacting with a textured surface (no text or symbols)

2

3
[Figure]
2

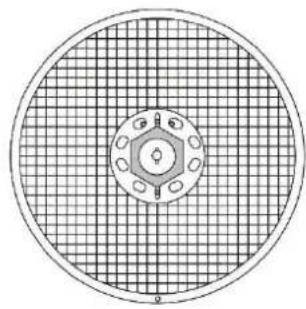

Circular diagram with grid pattern and central circular elements, no text or symbols present

4

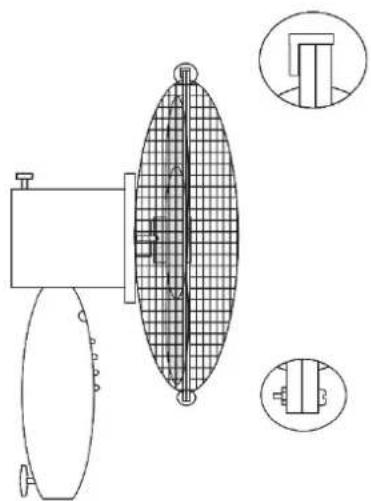

Technical line drawing of a mechanical component with cross-sectional views (no text or symbols)

Diagram of a fan with internal blades and a handle, showing rotational motion arrows (no text or symbols)

Abb.23

Diagram of a wind turbine with rotating blades and a central fan blade (no text or symbols)

Abb. 4

Diagram of a mechanical device with an oval housing and a grid-patterned side panel, no text or symbols present.

Abb. 5a Abb. 5b

Diagram of a mechanical device with a grid-patterned chamber and rotating arrow (no text or symbols)

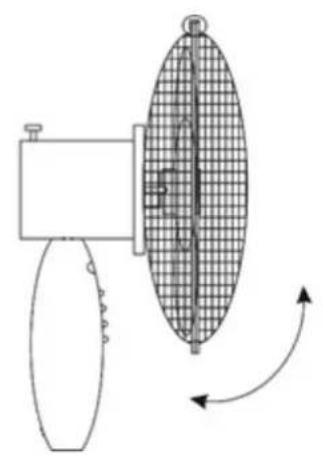

ІПЩН-П)Ы-ЙНСПМ

Diagram of a wind turbine with rotating blades and fan blade (no text or labels)

Рис. 4

Pure mechanical diagram showing a lever and a cross-section view of a gear or cam mechanism (no text or symbols)

Рис 5А
Рис 5Б

Diagram of a mechanical device with a grid-patterned component and directional arrows indicating rotation (no text or symbols)

Diagram of a vertical pole-mounted wind turbine with directional arrows indicating rotation (no text or labels)

Obr. 4

Diagram of a mechanical device with an oval component and a grid-patterned side panel, no visible text or symbols.

Obr. 5A Obr. 5B

Diagram of a mechanical device with a grid-patterned component and directional arrows indicating rotation (no text or symbols)

Ú)ržba:

Diagram of a wind turbine with directional arrows indicating airflow or force (no text or labels)

Obr. 4

Diagram of a mechanical device with a vertical component and a grid-patterned oval component (no text or symbols)

Obr. 5A
Obr. 5B

Diagram of a mechanical device with a grid-patterned internal structure and directional arrows indicating rotation (no text or symbols)

Ú)ržb—:

Diagram of a vertical pole-mounted air fan with directional arrows indicating airflow or movement (no text or symbols)

Sl.4

Pozor! Preverite, ali vir napajanja, na katerega želite priključiti napravo, ustreza parametrom, navedenim na podatkovni ploščici.

Diagram of a mechanical device with an oval housing and a grid-patterned side panel, no visible text or symbols.

SI.5A

SI.5B

Diagram of a mechanical device with a grid-patterned component and directional arrows indicating rotation (no text or symbols)

Vz)rževanje

Diagram of a vertical wind turbine with directional arrows indicating airflow or force (no text or labels)

pav.4

Diagram of a mechanical device with an oval housing and a grid-patterned side panel, no text or symbols present.

pav.5A pav.5b

Diagram of a mechanical device with a grid-patterned chamber and directional arrows indicating motion (no text or symbols)

Priežiūra:

OHUTU -ASUTAOISE Ü2DJUHISED

Diagram of a vertical pole-mounted air fan with directional arrows indicating motion (no text or symbols)

joonis 4

Diagram of a mechanical device with an oval component and a grid-patterned side panel, no visible text or symbols.

joonis 5A joonis 5A

Diagram of a mechanical device with a grid-patterned central component and directional arrows indicating rotation (no text or symbols)

Hool)us:

Hoiust-mine j-tr-nsport

0w6śAŻAf

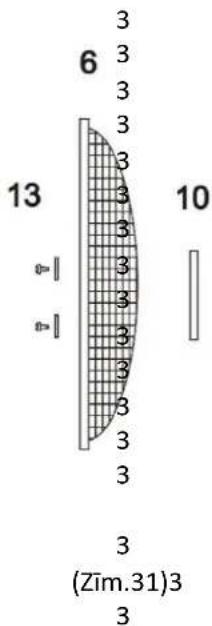

1.3 Montēt3saskaṇā3ar3Zīm.313
