Product Type	Portable Video Recorder (Dash Cam)
Brand	Navitel
Model	R2 Duo (RS2 Duo)
Main Camera Sensor	Sony STARVIS
Main Camera Resolution	1920x1080 (Full HD)
Main Camera Angle	136°
Rear Camera Sensor	Sony STARVIS
Rear Camera Resolution	1920x1080 (Full HD)
Rear Camera Angle	143°
Processor	NTK96675
Display	2" IPS, 320x240
Recording Format	MP4
Photo Format	JPG
MicroSD Card Support	Up to 256 GB, Class U3 or above
Battery Capacity	240 mAh Li-Pol
Power Supply	5V, 2A via car charger
USB Ports	mini-USB, micro-USB
Infrared Illumination	Yes (for interior camera)
G-Sensor	Yes (automatic file lock on impact)
Loop Recording	Yes (overwrites oldest unprotected files)
Parking Monitor	Yes (vibration-activated recording)
Audio Recording	On/Off toggle
Date Stamp	Yes
Cleaning Instructions	Keep lens clean; use dry cloth; no chemicals; turn off before cleaning
Safety Precautions	Do not disassemble; keep away from fire; avoid physical impacts; follow local laws

Frequently Asked Questions - R2 Duo Navitel

How do I install the Navitel R2 Duo dash cam?

Secure the device on the windshield with the provided holder. Connect the car charger to the cigarette lighter socket and then to the DVR's micro-USB port. Adjust the camera position. When powered on, the blue indicator will glow if correctly installed.

What type of memory card is required?

Use a high-speed microSD card of Class U3 or above, with capacity from 8 GB to 256 GB. It is recommended to format the card in the DVR before first use.

How do I format the SD card?

Go to the menu by pressing button 1, select 'Format SD-card' and confirm. Formatting erases all data and is necessary for optimal performance.

Does the dash cam record audio?

Yes, it records audio by default. You can turn the microphone on or off by pressing the Down button (button 2 in Record mode) to toggle.

What is loop recording and how does it work?

Loop recording splits video into files of a set duration (e.g., 1/3/5 minutes). When the memory card is full, the oldest unprotected files are automatically overwritten, ensuring continuous recording.

How do I lock a video file to prevent it from being overwritten?

During recording (REC mode), press button 1. A key icon will appear, indicating the file is protected. Protected files cannot be deleted or overwritten. To unlock, use the menu options 'Unlock Current' or 'Unlock All'.

What is the G-sensor function?

The G-sensor detects sudden impact or vibration. When triggered, it automatically locks the current video file to preserve evidence of the event.

How does the Parking Monitor work?

When the device is in shutdown state and detects vibration (e.g., from a bump), it automatically turns on and starts recording. The recorded file is locked and protected.

What should I do if the device becomes unresponsive?

Press the Reset button with a pointed object (e.g., a paperclip). This will restart the device. Avoid performing a reset while recording.

Can I use the dash cam without connecting to power?

The built-in battery (240 mAh) is only for emergency recording (e.g., parking monitor) and safe shutdown. For full continuous operation, the device must be connected to an external power source via the car charger.

USER MANUAL R2 Duo Navitel

Exterior view of a black Navitel 138° digital camera module (no text or symbols on body)

NAVITEL RS2 DUO

Portable Video Recorder

Úvod

Vážený zákazníku!

1. Paigaldusport
2. Ekraan
3. LED-indikaator
4. Micro-USB ava
5. Alla
6. Objektiiv
7. Reset
8. Juhtnupud
9. Lüliti
10. Mikrofon
11. microSD-kaardi ava
12. Mini-USB ava
13. Sisekamber
14. Infrared light

Spetsifikatsioonid

Thank you for purchasing this NAVITEL® product.

NAVITEL RS2 DUO is a multifunctional high-definition DVR with many functions and features that are described in this User Manual. Please read the manual carefully before using the device and keep it for future reference.

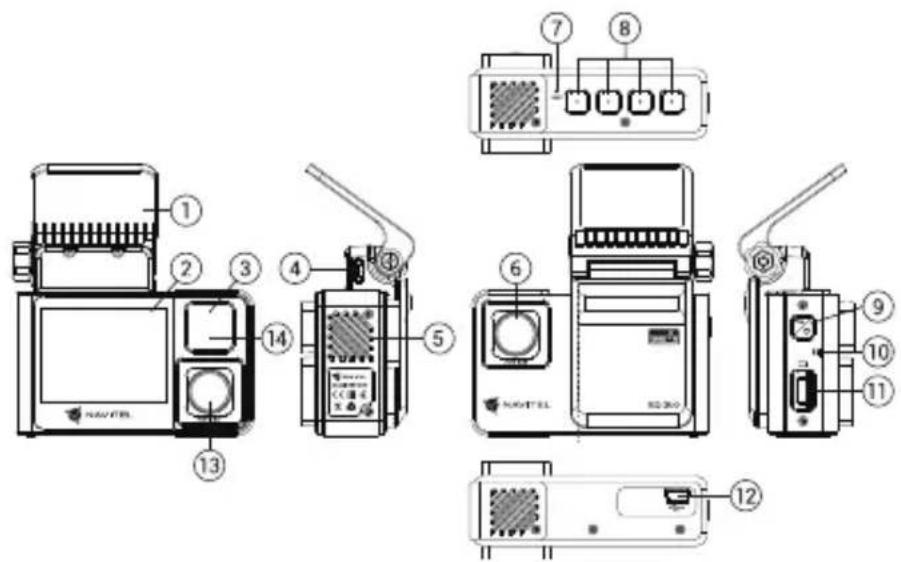

Device layout

1. Mount
2. Display
3. LED indicator
4. Micro-USB port
5. Speaker
6. Lens
7. Reset
8. Control buttons
9. Power
10. Microphone
11. microSD slot
12. Mini-USB port
13. In-cabin camera
14. Infrared light

Specifications

Main camera	Camera sensor SONY	B07 (STARVIS)
	Video resolution 1920×1080
	Image resolution 2 MP
	View angle 136°
Rear camera	Camera sensor SONY	B07 (STARVIS)
	Video resolution	1920×1080
	Image resolution 2 MP
	View angle 143°
Processor NTK96675
Display 2", 320×240, IPS
Recording format MP4
Image format JPG
MicroSD card capacity Max. 256 GB

USB mini-USB
Battery Li-Pol, 240 mAh
Power 5 V, 2 A
Microphone / speaker Yes
Language	Czech, English, French, German, Hungarian, Italian, Polish, Romanian, Russian, Slovak, Spanish, Ukrainian, Vietnamese

Note: complete set, appearance, technical characteristics, which do not change the general functionality of the device, can be changed by the manufacturer without prior notice.

Installation

1. Put the microSD card into the DVR. Use a high-speed SD card (Class U3 or above); capacity should be within 8-256 GB.

• To avoid malfunctions of the DVR and / or SD-card, don't insert and remove SD-card during DVR operation.

• Before using a microSD card, please format it inside the DVR to avoid data errors. For formatting the SD-card in Menu mode select Format SD-card and confirm it.

• Secure the device on the windshield with the holder.

• Connect the car charger to the cigarette lighter socket.
• Connect the car charger to the DVR (micro-USB).
• Adjust the camera position.
• Turn the power on; check whether the device is installed correctly. If the device is installed correctly, the indicator will glow blue.

Precautions

• Use only the original charger adapter. Using another adapter may negatively affect the device's battery. Use accessories only approved by manufacturer.
• Permissible ambient temperature in operating mode: 0 to +35 °C. Storage temperature: +5 to +45 °C. Relative humidity: 5% to 90% without condensation (25 °C).
• Put the device away from fire sources to avoid explosion or fire.
• Do not expose the device to physical impacts.
• Avoid contacting the device with sources of electromagnetic radiation.
• Keep the lens clean. Do not use chemicals or detergents to clean the product; always turn off the device before cleaning.
• Strictly follow the laws and regulatory acts of the region where the device is used. This device can not be used for illegal purposes.
• Do not disassemble or repair device by yourself. In case of device failure, contact the service center.

Buttons

EN

Button Functions
1	Press to enter Menu mode.In Record mode (REC), press to lock a file (protected file cannot be deleted or overwritten).In Playback mode, press to select a file, or pause / resume video.
2	In Record mode, press to switch between Record, Capture and Playback modes.In Playback mode, press to select a file, or pause / resume video.In Record mode, press Down to turn the microphone on / off.
3	In Capture mode, press to take a picture.In Menu, press to select the previous menu item.In Playback mode, press to rewind.
4	In Record mode , press to start recording; press again to stop recording.In Menu, press to select the next menu item.In playback mode, press to fast forward.
Power	Press to turn on the display.Press to switch the camera view modes: front only; only back; back over front (picture-in-picture).
Reset If the device is not responding, press to reset.

Note: The built-in battery is designed only for recording an emergency event in parking mode and turning off the device correctly when the power is turned off; for the full operation of the device in any mode, a constant power connection is required.

Device functions

Format SD-card	Formatting a microSD card in the DVR is necessary for the correct operation of the device. Before using a microSD card or in case of data error, please format the microSD card. For formatting the SD-card in Menu mode select Format SD-card and confirm it.
Record	Connect the device to an external power supply and it will start recording automatically (indicated by the flashing blue light). Press the 4 button to stop recording. Press 4 again to record another video. Each video will be saved automatically.
Capture In Record	mode (STBY), press the 2 button to take a photo (it will be saved automatically).
Playback	In Record mode (STBY), press the 2 button twice to enter Playback mode; press the 3 and 4 buttons to select a file; press the 2 button to play a file. During playback, press OK to pause/unpause; press the 3 and 4 buttons to fast forward / rewind.
Loop recording	This feature allows you to save a video as a set of files given in the duration menu. If the memory card runs out of space, the unprotected files will be overwritten in the order in which they were created.
Record audio Record	video with or without sound.
Lock file	In Record mode (REC), press 1 to protect the current recording. A key symbol will appear at the bottom of the screen. Protected files cannot be deleted or overwritten. Select Unlock Current / Unlock All to remove protection.
Stamp This function	adds date stamp to the record.
G-sensor If the vehicle is hit by something, the DVR will automatically lock the current video.
Parking monitor	In shutdown state, if vibration is detected, the device will turn on automatically and start recording. The file will be protected (locked).
Battery Blue indicator lights up when the device is plugged into an external power supply.
LCD OFF	The device can automatically shut off the screen to reduce power consumption; time interval can be set in the LCD OFF menu.
USB-connection	When connecting the device to a PC using a USB cable, three connection options will appear:1) Mass Storage: play, copy and delete files.2) Record: standard mode.3) PC camera mode.

Note: Interior camera of device is specially optimized for continuous recording at difficult low-light conditions inside vehicle. We recommend that you keep preset mode "automatic black and white record". Recording will be performed with automatic on/off infrared illuminator in black and white mode. If you turn on mode "automatic switching of color recording to black and white", then when you turn ON/OFF infrared illuminator in transient modes of operation, slight distortion of some colors is possible, which doesn't significantly affect overall perception of recorded image. IR illumination is required for correct function of interior camera and sharp visible recording in cabin in low light conditions.

Bevezetés

Tisztelt Ügyfelünk!

1. Montare
2. Ecran
3. Indicator LED
4. Port micro-USB
5. Difuzor
6. Lentila
7. Resetare
8. Butoane de control
9. Buton Pornire
10. Microfon
11. Slot card microSD
12. Port mini-USB
13. Camera internă
14. Reflector cu infraroşu

Specificații

1. Uchytenie držiaka
2. Displej
3. LED svetlo
4. Port micro-USB
5. Reproduktor
6. Objektív
7. Reset
8. Ovládacie tlačidlá
9. Vypínač
10. Mikrofón
11. Slot microSD kartu
12. Port mini-USB
13. Kamera v kabíne
14. Infračervené svetlo

Špecifikácia

Hlavná kamera	Kamera senzor SONY 307 (STARVIS)
	Rozlíšenie videoa 1920×1080
	Rozlíšenie obrazu 2 MP
	Uhol záberu 136°
Zadná kamera	Kamera senzor SONY 307 (STARVIS)
	Rozlíšenie videoa 1920×1080
	Rozlíšenie obrazu 2 MP
	Uhol záberu 143°
Procesor NTK96675
Displej 2", 320×240, IPS
Formát videa MP4
Formát obrazu JPG
MicroSD kapacita Max. 256 GB
