Product Type	Wet and Dry Vacuum Cleaner
Model	VQ1420SWDC
Brand	Cotech
Power (Motor)	1400 W
Voltage	230 V AC, 50 Hz
Protection Class	IPX4
Max Power Tool Socket	1600 W
Max Total Power	3000 W
Vacuum Pressure	160 mbar
Suction Capacity	2200 l/min
Container Volume	20 litres
Hose Diameter	35 mm
Hose Length	2.5 m
Mains Lead Length	5 m
Dry Vacuuming	Yes (use cartridge filter, optional dust bag)
Wet Vacuuming	Yes (use foam filter, float switch safety)
Blow Function	Yes (attach hose to exhaust port with silencer removed)
Filter Types	Cartridge filter (dry), Foam filter (wet), Dust bag (optional)
Power Tool Socket	Automatic start/stop with connected tool (max 1600 W)
Safety Cut-out	Float switch prevents overflow in wet mode
Over-centre Catch	Secures top section to container
Accessories Included	Hose, 3 tubes, universal nozzle, crevice nozzle, brush nozzle, foam filter, cartridge filter, dust bag, filter cover, adaptor, silencer, wheels, castors, handle, screws
Cleaning and Maintenance	Clean filters regularly; wash foam filter with mild detergent; replace cartridge filter when damaged; empty container after wet use
Disposal	Follow local ordinances for electronic waste

Frequently Asked Questions - VQ1420SWDC Cotech

How do I switch between dry and wet vacuuming?

For dry vacuuming, ensure the cartridge filter is installed and optionally a dust bag. For wet vacuuming, remove the cartridge filter and attach the foam filter. Never use the cartridge filter or dust bag for wet vacuuming.

Can I vacuum water with this vacuum?

Yes, but only with the foam filter attached. The float switch will automatically stop suction when the container is full to prevent motor damage.

What filters should I use for dry and wet vacuuming?

For dry vacuuming, use the cartridge filter (flat side facing motor). For wet vacuuming, replace it with the foam filter. A dust bag can be added for fine dust during dry vacuuming.

How do I clean the filters?

Unplug the vacuum. Remove the motor/top. For the cartridge filter, brush or shake debris outdoors, wash with mild detergent, rinse, and air-dry for 24 hours. For the foam filter, hand wash with mild detergent, rinse, and air-dry.

The motor doesn't start. What should I check?

Check if the power socket is live. If it is, the problem may be the switch, lead, or motor. Contact a qualified technician for repair. Also ensure the over-centre catch is properly closed.

How do I use the blow function?

Unscrew the silencer from the exhaust port. Attach the hose to the exhaust port. Connect the desired accessory. Turn the switch to position I to start blowing. Always wear a face mask and safety glasses.

What is the maximum power for the power tool socket?

The power tool socket can handle a maximum load of 1600 W. Do not exceed this to avoid damage.

How do I empty the container after wet vacuuming?

Unplug the vacuum. Open the drain cap at the bottom of the container to empty liquid. Clean and dry the container before storage. Always reattach the cap securely.

Can I vacuum ashes or flammable substances?

No. Never vacuum flammable substances, hot coals, ashes, or anything that could cause fire. This vacuum is not designed for such materials.

How should I store the vacuum?

Store the vacuum indoors in a dry area. Clean and dry the container, hose, and filters before storage. Coil the mains lead and hang accessories on the holder.

USER MANUAL VQ1420SWDC Cotech

Wet and Dry Vacuum Cleaner

Torr- och våtsugare

Tørr og våtsuger

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Wet and Dry Vacuum Cleaner 1400 W

ART.NO 18-3157 MODEL VQ1420SWDC-UK 40-7938 VQ1420SWDC

Please read the entire instruction manual before use and save it for future reference. We reserve the right for any errors in text or images and for making any necessary technical changes to this document. If you should have any questions concerning technical problems please contact our Customer Services.

1. Safety instructions

• Make sure that the power supply is 230 V AC.
- Do not use the wet and dry vacuum for vacuuming flammable substances, hot coals, ashes or anything that could cause the vacuum to catch fire.
- Do not use the vacuum for vacuuming large objects or metal objects as these could damage the vacuum.
- Do not run the wheels over the mains lead or use the vacuum if the mains lead is damaged.
- Do not let children play with the vacuum. It is not a toy.
- Keep hair, fingers and loose clothing away from the air vents and moving parts of the vacuum.
• Never use the machine without a filter.
- Do not use the wet and dry vacuum if the nozzle is blocked or if any part is deformed.
- Do not use the wet and dry vacuum close to cookers, ovens or other sources of heat.
- Carry the vacuum by its handle. Do not drag it around by its mains lead.
• Unplug the wet and dry vacuum when it is not in use.
- Do not expose the electrical components of the vacuum to rain or moisture.
- Store the product indoors in a dry area when it is not in use.
- If the mains lead is damaged and needs changing it should be sent to the manufacturer, an authorised service facility or qualified person to be properly repaired.
- The product may be used by children of 8 years and above and by persons with reduced physical, sensory or mental capability or lack of experience and knowledge provided they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
• Never let children play with the product.
• Cleaning and maintenance may be carried out by children but only under adult supervision.

Warning! Electrical appliances used close to water should be connected to the power supply via a residual current device (tripping current 30 mA in not more than 30 ms).

2. Package contents

Line drawing of a vacuum cleaner with labeled component A (no text or symbols beyond label)

Line drawing of a coiled hose with a bulb and handle, labeled B (no text or symbols on the diagram itself)

Three parallel cylindrical objects with horizontal lines, one labeled 'C' (no text or symbols on objects)

DEFGHI

Simple line drawing of a mechanical clip or bracket (no text or symbols)

JKLMNOPQ

A. Wet & Dry Vacuum Cleaner (1×)

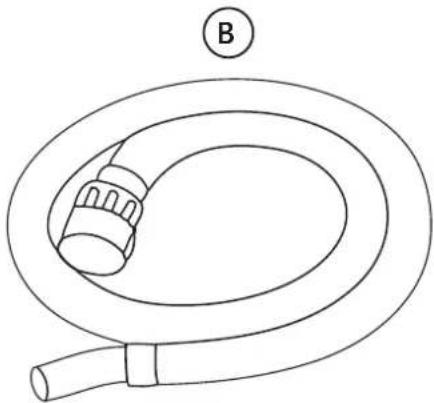

B. Hose (1×)

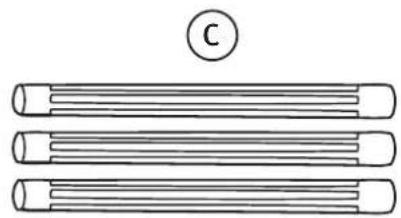

C. Tubes (3×)
D. Universal nozzle for floors and carpets (1×)
E. Crevice nozzle for corners and confined spaces (1×)
F. Foam filter for wet use (1×)
G. Dust bag (1×)
H. Adaptor (1×)
I. Filter cover (1×)

J. Cartridge filter (1×)
K. Wheel with mount (2×)
L. Castor with mount (2×)
M. Screws in plastic bag (1×)
N. Handle (1×)
O. Instruction manual (1×)
P. Brush nozzle (1×)
Q. Silencer (1×)

Description

Wet & dry vacuum suitable for vacuuming up the fine dust from grinding and sanding as well as coarser sawdust, wood chips, leaves, waste water from blocked drains, etc.

1. Castor
2. Castor mount
3. Wheel
4. Accessory holder
5. Over-centre catch
6. Blowing port/exhaust

7. Handle

8. Top section including motor

9. Power switch
10. Power tool socket
11. Vacuum port
12. Container
13. Accessory holder
14. Drain cap

3. Assembly

1. Warning! Always make sure the plug is disconnected before servicing or adjusting.
2. Open the over-centre catch (5).
3. Lift up the motor unit/top (8) and remove the accessories from the container (12).
4. Check that all the parts are intact and that nothing is missing.
5. Turn the container upside down and press in the castors (L) securely on the bottom. Press them in securely and fasten them with the screws from the plastic bag (M).
6. Press the wheels (K) securely into the bottom. The wheels are marked 1 and 2 and the bottom has corresponding markings. Press the wheel marked "1" securely into the bottom where it is marked 1 and do the same for wheel "2". Secure the wheels with screws from the plastic bag.
7. Attach the handle (N) and fasten it with the fastening screws (M), making sure not to over-tighten.

• Dry vacuuming (fig. 8 – 10):

1. The wet & dry vacuum is usually delivered ready for dry vacuuming with the cartridge filter (J) already inserted. If it is not: Carefully press the filter cartridge securely onto the filter basket.
2. Fasten the filter cover (I) by turning the locking knob on the filter cover to the locked position.
3. Use the dust bag (G) when necessary to achieve the best possible filtering results. Press it securely onto the vacuum port on the container.

• Wet vacuuming (fig. 11):

1. Attach the foam filter (F) before wet vacuuming. Slide the foam filter onto the filter basket making sure to cover the entire filter basket.

2. Replace the motor unit/top (8) over the container (12).

3. Secure the top section onto the container with the over-centre catch.
4. Attach the hose (B) to the vacuum port (11). Press in and turn it clockwise until it is securely fastened.
5. Attach the accessory of your choice to the hose.

4. Power switch

The power switch (9) has three settings:

• | On
  • 0 Off
• II Power tool socket – The wet & dry vacuum starts and stops automatically when the machine connected to the machine socket is turned on and off.

5. Power tool socket

The product has a power tool socket (10) which is intended for starting the wet and dry vacuum cleaner automatically.

• Connect the plug of a circular saw or similar machine to the power tool socket and then connect the suction hose of the vacuum to the dust extractor port of the circular saw (or whatever power tool is connected). Set the power switch to II.
• The ON and OFF control of the wet and dry vacuum will now be controlled by the connected power tool. The wet and dry vacuum will switch on as soon as the connected power tool has started and switch off about 5 seconds after the connected power tool has been switched off.

N.B. The power tool socket must not be loaded with more than 1600 W.

6. Use

Warning! Read the warning label before use.

Warning! Always make sure the plug is disconnected before servicing or adjusting.

N.B. The cartridge filter is for vacuuming dust. The foam filter must only be used for vacuuming water. When vacuuming very fine-particled substances, both the dust filter and the dust bag must be used. The guarantee will be void if the wrong type of dust bag has been used.

6.1 Dry vacuuming

1. Warning! Always make sure the plug is disconnected before servicing or adjusting.
2. Remove the motor/top (8) and check that the cartridge filter (J) is attached, if not: Remove the dust filter from the filter basket* being careful not to damage the filter.
3. Fasten the filter cover (l) by turning the locking knob on the filter cover to the locked position.
4. Use the dust bag (G) when necessary to achieve the best possible filtering results. Press it securely onto the vacuum port inside the container.
5. Replace the motor/top (8) onto the container (12) and fasten it with the over-centre catch (5).
6. Attach the suction hose (B) to the vacuum port (11). Press and turn it clockwise until the hose is securely fastened.
7. Attach any desired accessory to the hose.
8. Connect the plug to a wall socket.
9. Start the motor by setting the power switch (9) to the 1=ON position (or position II when using the power tool socket).
10. Turn off the motor by flipping the power switch to the 0=OFF position when you are done. Pull the plug out.
    *N.B. The cartridge filter has two different sides. The flat side should be facing the motor/top.

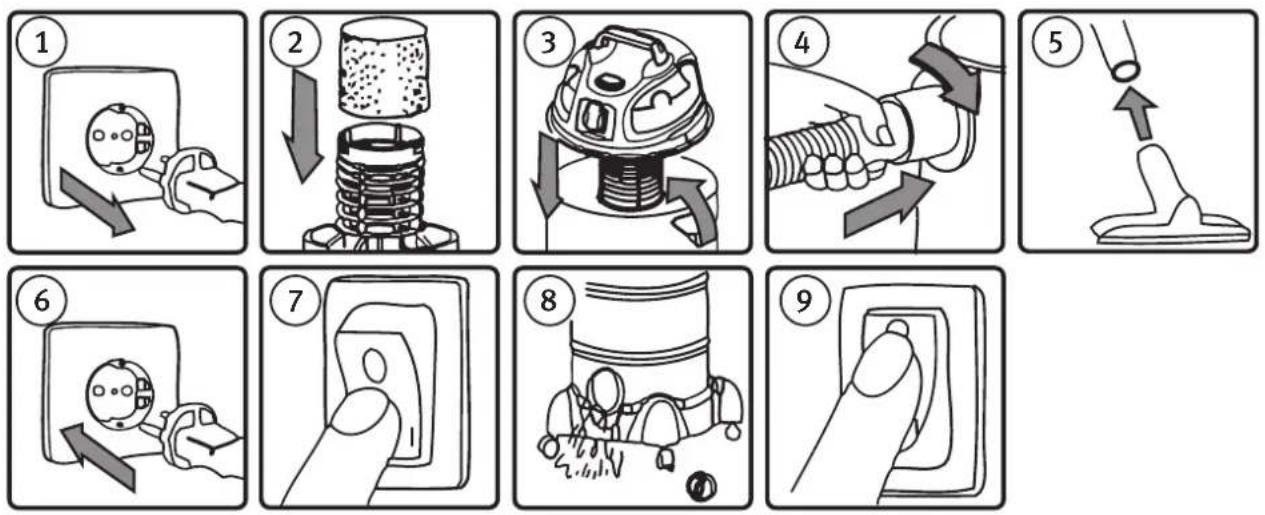

6.2 Wet Vacuuming

Warning: Do not use the wet & dry vacuum to vacuum toxic, hazardous or flammable substances/liquids. N.B. Do NOT use the cartridge filter or dust bag when wet vacuuming.

1. Warning! Always make sure the plug is disconnected before servicing or adjusting.
2. Remove the motor/top and check that the foam filter is fitted, if not: Fit the foam filter (F) onto the filter basket being careful not to damage the filter.
3. Replace the motor/top (8) onto the container (12) and fasten it with the over-centre catch (5).
4. Attach the hose (B) to the vacuum port (11). Press in and turn it clockwise until the hose is securely fastened.
5. Attach any desired accessory to the hose.
6. Connect the plug to a wall socket.
7. Start the motor by setting the power switch (9) to the 1=ON position (or position II when using the power tool socket).
8. Open the drain cap (14) and empty the container's contents when it becomes full. Remember to screw the cap back on!
9. Turn off the motor by flipping the power switch to the 0=OFF position when you have finished. Pull the plug out.

Precautionary measures for wet vacuuming

• Only use the foam filter when wet vacuuming.
- Make sure that the foam filter is clean and dry and secure it onto the filter basket before starting to vacuum any liquid.
- The safety cut-out float switch stops the vacuum from sucking when the water level in the container reaches a certain level, thus preventing water from entering the motor. The motor will race when the suction function has been stopped by the float. Switch the motor off and empty the container.
• Empty the container before it becomes totally full and clean it after use.
- Clean the foam filter when it looks clogged. Remove the filter and wash it by hand in water with a mild detergent, let it air-dry.
- Do not submerge the entire nozzle under the surface. Leave some space so that air can also pass through when vacuuming a large amount of liquid.
- Remember to reattach the filter before using the vacuum again. NEVER use the wet and dry vacuum without a filter.

6.3 Blow function

Warning! Use a face mask and safety glasses and keep onlookers and pets at a safe distance.

1. Warning! Always make sure the plug is disconnected before servicing or adjusting.
2. Screw the silencer (Q) loose from the motor exhaust/blowing port (6) and attach the suction hose (B), by pressing it in and turning it clockwise until the suction hose sits securely.
3. Attach the accessory of your choice to the hose.
4. Set the power switch (9) to the 0=OFF position.
5. Connect the plug to a wall socket.
6. Hold the hose and point the nozzle in the desired direction. Start the motor by switching the power switch (9) to the 1=ON position.
7. Turn off the motor by switching the power switch to the 0=OFF position when you are done. Pull the plug out.

7. Repair and maintenance

1. Warning! Always make sure the plug is disconnected before servicing or adjusting.
2. Remove the suction hose.
3. Open the over-centre catch and remove the motor/top from the container.
4. Clean the container and hose and make sure that they are dry before putting the vacuum away for storage.
   Replace or clean the filters whenever needed. Make sure that the hose, filter, couplings and mains lead are undamaged. If the mains lead is damaged, have it replaced by a professional.

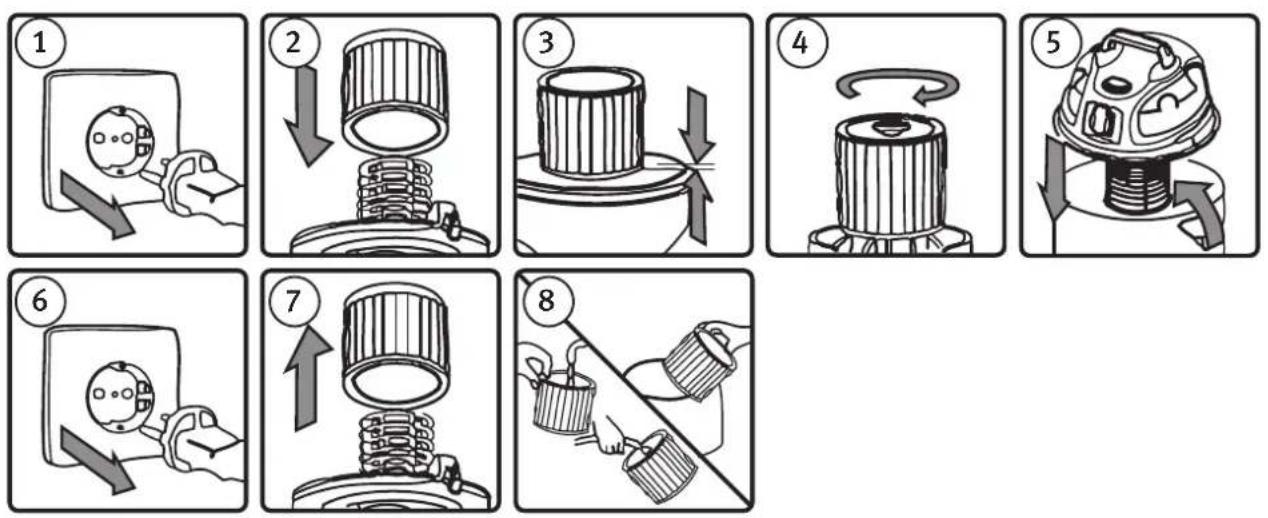

7.1 Attaching & cleaning the dust (cartridge) filter

Attaching the dust (cartridge) filter

1. Warning! Always make sure the plug is disconnected before servicing or adjusting.
2. Remove the motor/top and place it upside down. Remove the dust filter from the filter basket* being careful not to damage the filter.
3. Make sure that the filter covers the entire basket.
4. Fasten the filter cover (I) by turning the locking knob on the filter cover to the locked position.
5. Replace the motor/top (8) onto the container (12) and fasten it with the over-centre catch (5).

*N.B. The cartridge filter has two different sides. The flat side should be facing the motor/top.

Cleaning the dust (cartridge) filter

1. Warning! Always make sure the plug is disconnected before servicing or adjusting.
2. Remove the motor/top (8) and place it upside down. Carefully remove the cartridge filter (J).
3. Brush or shake the filter free from debris (remember to do this outdoors). Wash the filter by hand using a mild detergent and rinse after with water. Let it air-dry for about 24 hours. Replace the filter only when it is completely dry.

7.2 Attaching & cleaning the foam filter

Attaching the foam filter

1. Make sure that the plug is disconnected.
2. Remove the motor/top and place it upside down. Remove the cartridge filter from the filter basket being careful not to damage the filter.
3. Slide the foam filter onto the filter basket.
4. Make sure to cover the entire filter basket.
5. Replace the motor/top (8) onto the container (12) and fasten it with the over-centre catch.

Cleaning the foam filter

1. Carefully remove the foam filter.
2. Wash the filter by hand using water and a mild detergent and finish off by rinsing in water. Let it air-dry and replace the filter.

8. Troubleshooting

Motor does not start.	1. No power supply to the wall socket.2. Fault in the power switch, lead or motor.	1. Check.2. Let a qualified tradesman check and replace the defective part.
Dust comes out of the motor.	1. The dust bag/filter is missing or broken.	1. Change/insert a dust bag/filter.
Poor suction and high motor speed or vibrations.	1. The dust bag/filter is full/clogged.2. Nozzle, hose or coupling clogged.3. Container is full.	1. Change dust bag/filter.2. Check if anything is stopping the airflow.3. Empty the container.

9. Disposal

Follow local ordinances when disposing of this product. If you are unsure of how to dispose of this product, please contact your municipality.

10. Specifications

Rated voltage: 230 V, 50 Hz

Protection class: IPX4

Power, motor: 1400 W

Power tool socket, max: 1600 W

Max. power total: 3000 W

Vacuum: 160 mbar

Suction capacity: 2200 l/min

Container volume: 20 litres

Hose: ∅ 35 mm, length: 2.5 m

Mains lead, length: 5 m

Technical line drawing of a vacuum cleaner with labeled component A (no text or symbols beyond label)

Line drawing of a coiled hose with a bulb and handle, labeled with circled number B (no text or symbols on the diagram itself)

Three parallel cylindrical objects with horizontal lines, labeled 'C' in the top circle (no text or symbols on objects)

DEFGHI

O

O

O

O

O

JKLMNOPQ

O

O

O

O

O

O

Technical line drawing of a vacuum cleaner with labeled component A (no text or symbols beyond label)

Line drawing of a coiled hose with a bulb and handle, labeled B (no text or symbols on the diagram itself)

Three parallel cylindrical objects with horizontal lines, one labeled 'C' in the top circle (no text or symbols on objects)

DEFGHI

O

O

O

O

O

JKLMNOPQ

O

O

O

O

O

O

Illustration of a hand holding a coiled pipe with a directional arrow indicating movement (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Simple line drawing of a bowl with bubbles and swirls, no text or symbols present

Line drawing of a vacuum cleaner with labeled component A (no text or symbols beyond label)

Line drawing of a coiled hose with a bulb and handle, labeled B (no text or symbols on the diagram itself)

Three parallel cylindrical objects with horizontal lines, one labeled 'C' (no text or symbols on objects)

DEFGHI

Simple line drawing of a mechanical component with no text or symbols

O

O

O

O

O

JKLMNOPQ

O

O

O

O

O

O

Technical line drawing of a vacuum cleaner with labeled component A (no text or symbols beyond label)

Line drawing of a coiled hose with a bulb and handle, labeled B (no text or symbols on the diagram itself)

Three parallel cylindrical objects with horizontal lines, one labeled 'C' in the top circle (no text or symbols on objects)

DEFGHI

O

O

O

O

O

JKLMNOPQ

O

O

O

O

O

O

Declaration of Conformity

Klas Balkow President

Insjön, Sweden, 2013-05-13

SVERIGE

KUNDTJÄNST

Tel:

0247/445 00

Fax:

0247/445 09

E-post: [e-mail]

INTERNET

www.clasohlson.se

BREV Clas Ohlson AB, 793 85 INSJÖN

NORGE

KUNDESENTER

Tlf.:

23 21 40 00

Faks:

23 21 40 80

E-post: [e-mail]

INTERNETT

www.clasohlson.no

POST

Clas Ohlson AS, Postboks 485 Sentrum, 0105 OSLO

SUOMI

ASIAKASPALVELU

Puh.: 020 111 2222

10 – 13 Market Place

Kingston Upon Thames

Surrey

KT1 1|Z

DEUTSCHLAND

KUNDENSERVICE
