RDC100J - Vacuum Cleaner Cotech - Free user manual and instructions

Product Type	Dust Extractor / Vacuum Cleaner
Brand	Cotech
Model	RDC100J
Rated Voltage	230 V, 50 Hz
Power Consumption	1100 W
Airflow	3050 l/min
Hose Connection Diameter	100 mm
Suction Hose Length	2000 mm
Filtration Rating	5 microns
Noise Level (LwA)	94 dB(A)
Sound Pressure (LpA)	80 dB(A)
Dimensions (Height × Diameter)	680 × 380 mm
Weight	10 kg
Filter Type	Cartridge filter with pre-filter
Collection Tank	Included (capacity not specified)
Construction	Motor unit with carrying handle, over-centre latch clamp
On/Off Switch	I/0 toggle switch
Included Accessories	Suction hose (100 mm × 2000 mm), reducer coupling set (68/63, 45/40, 40/35, 34/28 mm), 2 hose clips, hose adaptor
Suitable for	Indoor use, dry materials, commercial use (hotels, schools, hospitals, factories, offices, rental)
Not Suitable for	Hazardous materials, wet extraction, metal shavings, glass, hot coals, ashes
Safety Requirements	Use with residual current device (30 mA); wear safety goggles, dust mask, ear protectors
Maintenance	Regularly empty tank, clean filters with brush/cloth, unplug before cleaning
Storage	Unplug and store in dry, dust-free location out of reach of children

Frequently Asked Questions - RDC100J Cotech

How do I assemble the dust extractor?

Attach the suction hose to the collection tank using a hose clip, then attach the hose adaptor to the other end. Place the cartridge filter inside the pre-filter, tuck the pre-filter end into the cartridge, and push the assembly onto the motor unit. Fit the motor unit onto the tank with the switch above the inlet, and secure with the over-centre latch.

What is the filtration rating of the RDC100J?

The filtration rating is 5 microns, suitable for fine dust from woodworking.

Can I use this vacuum for wet materials or liquids?

No, the RDC100J is designed for dry materials only. Do not use for wet extraction or hazardous materials.

The dust extractor fails to start. What should I check?

Check that the on/off switch is set to 'I', the mains lead is undamaged and securely connected, and the wall socket is live. If still not working, contact customer service.

Poor suction – what could be the cause?

Ensure the suction hose is undamaged and securely connected at both ends. Check for clogs in the hose, inlet port, or woodworking machine. Also, empty the collection tank if full.

How often should I clean or replace the filters?

Clean the pre-filter and cartridge filter regularly with a fine brush or cloth. Replace them if damaged or if suction remains poor after cleaning. The manual recommends frequent checks.

What accessories are included with the RDC100J?

The package includes a suction hose (100 mm x 2000 mm), a set of reducer couplings (68/63, 45/40, 40/35, 34/28 mm), two hose clips, a hose adaptor, pre-filter, and cartridge filter.

Is the RDC100J suitable for commercial use?

Yes, it is suitable for commercial use in hotels, schools, hospitals, factories, offices, and rental applications.

How do I store the dust extractor when not in use?

Unplug the unit and store it in a dry, dust-free location out of reach of children. Keep it away from high temperatures, vibrations, and moisture.

Where can I find replacement parts or the user manual?

The user manual is available for free on notice-facile.com in PDF format. For replacement parts, contact Cotech customer service or authorized dealers.

USER MANUAL RDC100J Cotech

Illustration of a cylindrical container with a curved handle and lid, no text or symbols present

ART.NO

40-9467

MODEL

RDC100J

Important!

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

• This product must not be used by anyone (including children) suffering from physical or mental impairment. This product should not be used by anyone that has not read the instruction manual unless they have been instructed in its use by someone who will take responsibility for their safety.
• Never attempt to repair or modify the product in any way.
• The product must never be used if it is in any way damaged or malfunctioning.
• The mains lead should be checked regularly. Never use the product if the mains lead or plug is damaged. If the mains lead is damaged in any way it must be replaced by a qualified electrician.
• Never expose the product to high temperatures, heavy vibrations, blows, dampness or moisture.
• The product must only be used with a residual current device which trips at 30 mA.
• Make sure that the voltage marked on the rating plate corresponds with your mains supply voltage.
• Never immerse the product or any of the accessories in water.
  • Note: This appliance is for indoor use only.
• Warning: Make sure that anyone using the product has read and understood the instruction manual and is aware of all the potential hazards.
• Warning: This product is not designed for the extraction of environmentally hazardous waste.
• Warning: The product is only designed for the extraction of dry materials.

Product safety symbols

Read the entire instruction manual before use.

CE approved safety goggles, a dust mask and ear protectors must be used at all times.

Additional safety instructions for dust extractors

• The dust extractor must only be used for vacuuming dry particles produced when working with wood. Never use the dust extractor for hazardous materials such as metal shavings, glass, hot coals, or ashes.
• The dust extractor must not be used or stored outdoors in a wet environment.
• Only use the accessories which are included or described in the instruction manual.
• The product is suitable for commercial use, such as in hotels, schools, hospitals, factories, offices, and for rental.

Product description

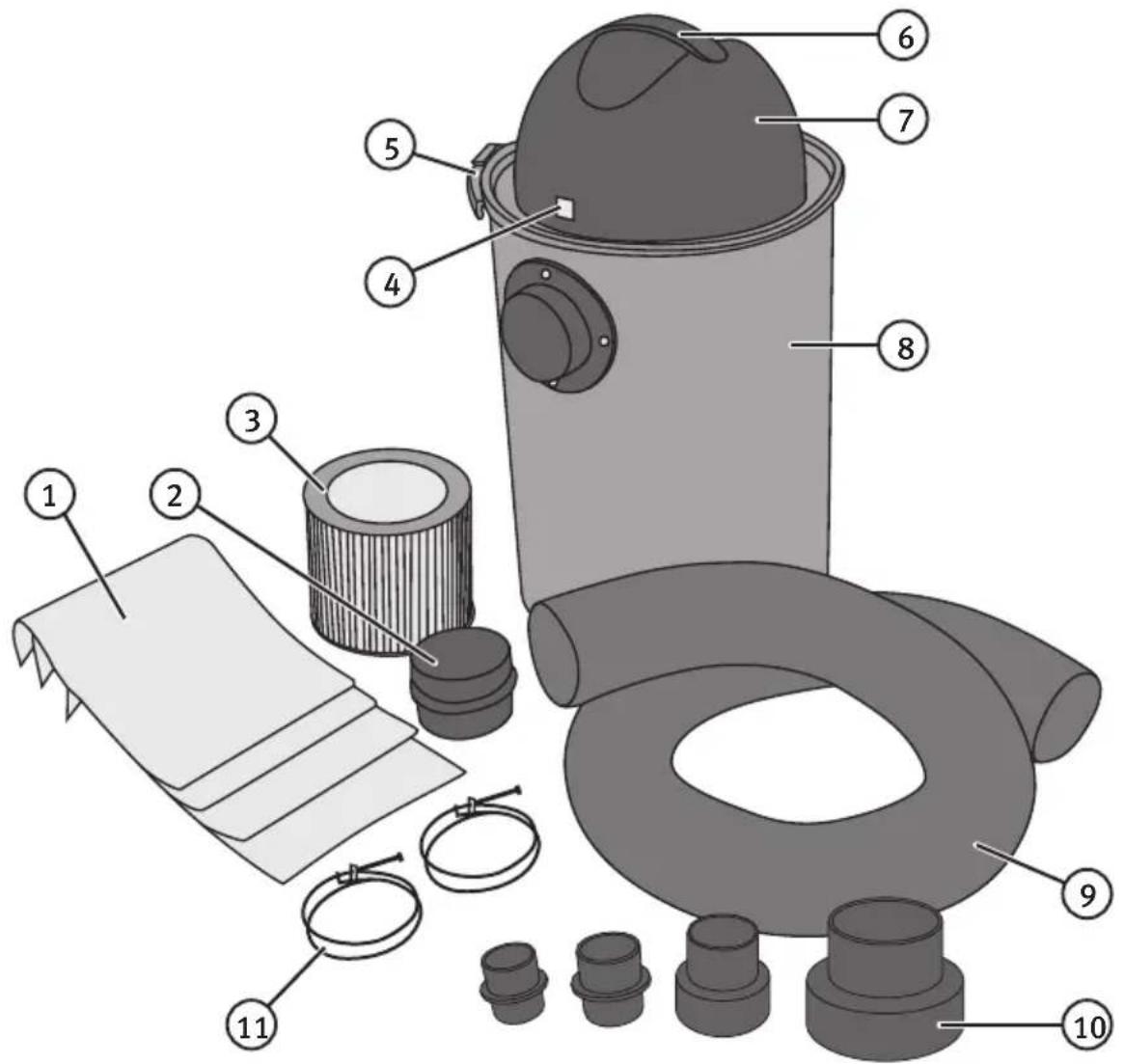

1. Pre-filter
2. Hose adaptor
3. Cartridge filter
4. [I/0] On/off switch
5. Over-centre latch clamp

6. Carrying handle

7. Motor housing

8. Collection tank
9. Suction tube
10. Reducer couplings
11. Hose Clips

Assembly

Illustration of a pipe fitting with flanged ends (no text or symbols)

1. Attach the suction hose to the hose inlet on the collection tank using one of the hose clips.

Illustration of a hand inserting a pipe into a container (no text or symbols)

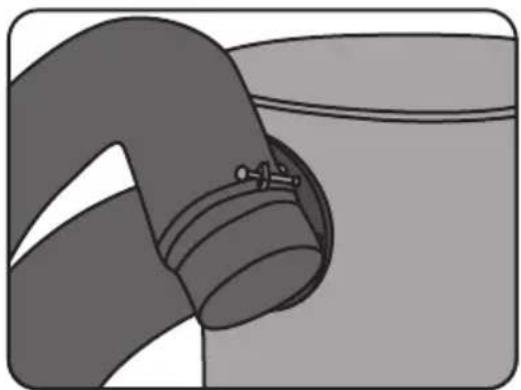

1. Attach the hose adaptor (2) to the other end of the suction hose using the other hose clip.

Diagram showing a cylindrical object being inserted into a cylindrical housing with an arrow indicating direction (no text or symbols)

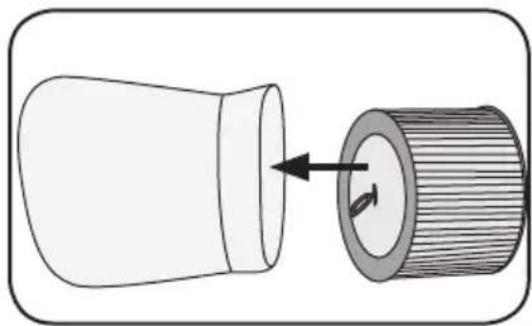

1. Place the cartridge filter inside the pre-filter.

Simple line drawing of a cross-section of a biological or mechanical structure with internal arrows indicating flow or movement (no text or symbols)

1. Tuck the end of the pre-filter into the cartridge filter.

Illustration of a mechanical component with a circular head and flange (no text or symbols)

1. Push the cartridge filter with the attached pre-filter onto the motor unit.

Illustration of a helmet with attached straps and a small emblem (no text or symbols)

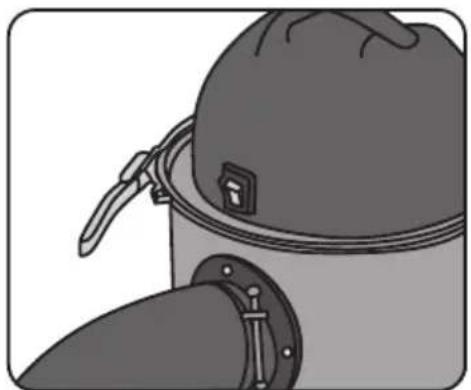

1. Fit the motor unit onto the collection tank making sure that the [I/0] on/off switch is positioned straight above the hose inlet port. Attach the motor unit to the collection tank using the over-centre latch clamp.

2. Connect the suction hose to the woodworking machine using the appropriate reducer coupling (10).

Operating instructions

1. Place the dust extractor on a dry and level surface.
2. Make sure that the suction hose is properly attached to the collection tank and the woodworking machine.
3. Plug in the mains lead into a power point and set the on/off switch [1/0] to the I position.
4. Start the woodworking machine.
5. Turn off first the woodworking machine/power tool and then the dust extractor once you have finished.

Troubleshooting guide

The dust extractor fails to start.	Is the dust extractor switched on?Make sure the mains lead is undamaged and securely connected to the wall socket.Check that the wall socket is live.
Poor suction. Make sure that the suction hose is undamaged and is securely connected to both the dust extractor and the woodworking machine.Check that neither the suction hose of the hose inlet port or the woodworking machine is clogged.Does the collection tank need emptying?

Care and maintenance

Note: Always unplug the mains lead from the wall socket before cleaning or maintenance of any sort.

• If the product is not to be used for an extended period, it should be unplugged and stored in a dry and dust-free location out of reach of children.
• Check the content level and empty the collection tank regularly.
• The product should be cleaned of all dust regularly. Use a fine brush or a cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.

Disposal

This product should be disposed of in accordance with local regulations. If you are unsure how to proceed, contact your local council.

Specifications

Rated voltage 230 V, 50 Hz

Power 1100 W

Air flow 3050 l/min

Hose connection 100 mm

Suction hose 100 × 2000 mm

Reducer coupling set (OD/ID) 68/63, 45/40, 40/35, 34/28 mm

Filtration rating 5 microns

Noise level LwA 94 dB(A) KwA 3 dB(A)

Sound pressure LpA 80 dB(A) KpA 3 dB(A)

Size 680 × 380 mm

Weight 10 kg

Spånsug

ART.NR 40-9467 MODELL RDC100J

Illustration of a pipe fitting with a flanged connector (no text or symbols)

Illustration of a hand holding a pipe with a valve, partially submerged in liquid (no text or symbols)

Diagram showing a cylindrical object being inserted into a cylindrical housing with an arrow indicating direction (no text or symbols present)

Simple line drawing of a biological or mechanical structure with internal flow arrows (no text or symbols)

Illustration of a mechanical component with a circular head and flange (no text or symbols)

Illustration of a helmet with attached straps and a clip (no text or symbols)

1. Filter
2. Stuss
3. Lamellfilter
4. [I/0] På/av
5. Lås

6. Bærehåndtak

7. Motor

8. Sponbeholder
9. Sugeslange
10. Adaptere
11. Slangeklemmer

Montering

Illustration of a pipe fitting with a flanged connector (no text or symbols)

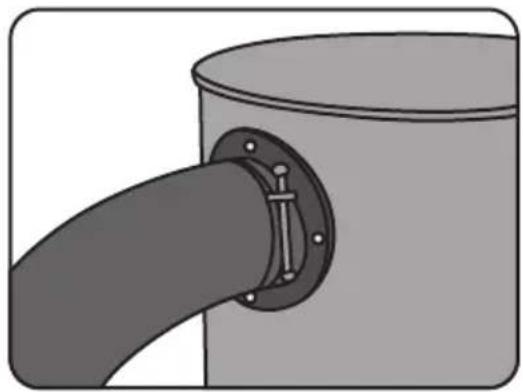

1. Fest sugeslangen til sponbeholderen med en slangeklemme.
