DF-AF1833C - Fan Cotech - Free user manual and instructions

Product Type	Air Cooler / Evaporative Cooler
Model	DF-AF1833C
Rated Voltage	220-240 V AC, 50 Hz
Rated Power	110 W
Fan Power Input	91.91 W
Dimensions (W x H x D)	83 x 36 x 28 cm
Weight	7.5 kg
Max Airflow	6.86 m³/min
Max Air Velocity	1.81 m/s
Service Value	0.07 (m³/min)/W
Standby Power Consumption	0.19 W
Sound Power Level	66.21 dB(A)
Remote Control Battery	1 x CR2032 (included)
Timer Settings	1, 2, 4, or 8 hours
Fan Modes	Normal, Nature, Sleep
Oscillation	Vertical louvre oscillation (Left/Right)
Horizontal Louvre Adjustment	Up/Down adjustment
Cooling and Humidification	On/Off with water reservoir
Water Reservoir	Removable drawer with max water level mark
Low Water Warning	Audible signal for 10 seconds
Automatic Shut-off	When water reservoir removed; after 15 hours operation (disablable)
Filters	Dust filter (vacuum) and Water filter (soak wash)
Power Cut Recovery	Returns to standby mode
Safety Features	Auto shut-off if tipped; child safety warnings
Intended Use	Indoor, dry, clean environment
Disposal	Recycle at collection facility; not household waste

Frequently Asked Questions - DF-AF1833C Cotech

How do I fill the water reservoir?

Unlock the water reservoir, pull out the drawer, and fill with cold water and ice or freezer blocks up to the maximum water level mark. Do not overfill. Slide the drawer back in and lock it.

How do I clean the filters?

Press the spring catches on the dust filter (A) to remove it, then remove the water filter (B). Vacuum the dust filter. Soak the water filter in warm soapy water, rinse, and refit in reverse order.

How do I set the timer?

Press the TIMER button on the control panel or remote repeatedly to select 1, 2, 4, or 8 hours. The air cooler will automatically turn off after the set time.

What is Nature mode?

In Nature mode, the fan speed varies according to a fixed pattern based on the selected speed, alternating between off, low, medium, and high to simulate natural breezes.

What is Sleep mode?

Sleep mode follows the same pattern as Nature mode but reduces the speed at 30-minute intervals. For example, starting at high, it drops to medium after 30 min, then to low after another 30 min.

How do I use the remote control?

Insert a CR2032 battery with the positive (+) side facing up. Point the remote at the IR receiver on the unit. Buttons correspond to those on the control panel.

Why does the unit beep continuously?

A continuous beep for 10 seconds indicates low water level. Refill the water reservoir. If the button sound is annoying, you can disable it by holding the horizontal and vertical louvre buttons simultaneously for 3 seconds.

How do I disable the button sound?

Hold the horizontal louvre (UP/DOWN) and vertical louvre oscillation (LEFT/RIGHT) buttons simultaneously for 3 seconds. Repeat to re-enable.

What happens after a power cut?

The air cooler automatically goes to standby mode when power returns. Press the ON button to resume operation.

Can I use the cooler outdoors?

No, the air cooler is designed for indoor use only in a dry, clean environment. Using it outdoors could damage the unit and create safety hazards.

USER MANUAL DF-AF1833C Cotech

Line drawing of a black air conditioner unit with wheels and ventilation slots (no text or symbols)

ART.NO

18-1288

36-6190

MODEL

DF-AF1833C

DF-AF1833C

Important!

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

• Never use the product if the mains lead, plug or any other part is damaged or does not work properly.
• The product must only be connected to a standard domestic 220–240 V, 50 Hz electrical supply.
• Make sure that the wall socket that is used is easily accessible, since this is the only way to completely disconnect it from the electrical system.
• Never attempt to repair or modify the product in any way.
• Never use the product if it does not work properly or if the housing, mains lead or plug is damaged in any way.
• The product is only intended for indoor use in a dry, clean environment. Never position the product in such a way that it might fall into water or other liquid.
• Never position the product in such a way that it comes into contact with hot surfaces.
  • Always unplug the product from the power point when it is not in use.
• Never lay the mains lead over hot surfaces, sharp edges or corners.
• The product is only intended for personal domestic use and only in the manner described in this instruction manual.
• Never poke your fingers or foreign objects through the grille while the fan is operating.
• Never leave children unsupervised in the vicinity of the product.
• Never turn the product off by pulling the plug out of the wall socket. Turn off the product using the power button and then unplug it from the wall socket.
• Never use the product in areas where explosive gases or substances are stored.
• If the mains lead is damaged in any way it must be replaced by a qualified electrician.
• The product may be used by children of 8 years and above and by persons with reduced physical, sensory or mental capability or lack of experience and knowledge provided they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
• Never let children play with the product.
• Cleaning and user maintenance shall not be made by children without supervision.

Buttons and functions

1. Display
2. Control panel
3. IR remote control receiver
4. Air outlet
5. Water level indicator
6. Carrying handle
7. Remote control storage bay
8. Air inlet
9. Mains lead holder
10. Mains lead
11. Water reservoir
12. Water reservoir lock

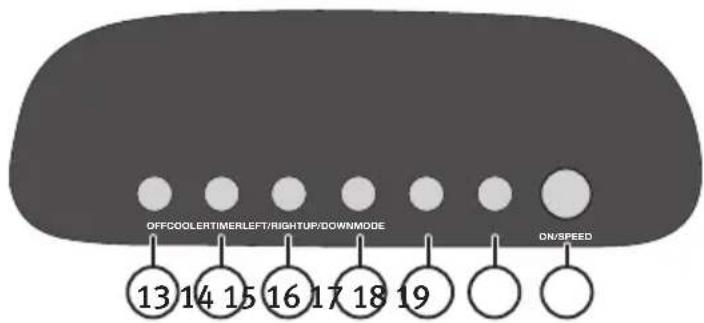

Control panel

1. [OFF] Switches the air cooler to standby mode which means that the air cooler is off but not disconnected from the electricity network. The air cooler can be completely disconnected from the electricity network by unplugging it from the wall socket.
2. [COOLER] Switches the cooling and humidifying function on/off.
3. [TIMER] Selects how long the air cooler is to be switched on: 1, 2, 4 or 8 hours. The air cooler will turn off automatically once the set time has passed.
4. [LEFT/RIGHT] Oscillation of the vertical louvre on/off.
5. [UP/DOWN] Adjusts the horizontal louvre.
6. [MODE] Selects fan mode: normal, nature or sleep.

- Normal: constant fan speed

- Nature: In nature mode the fan speed will vary according to a fixed pattern and depending on the fan speed selected. The fan alternates between: off, low, medium and high.

If the high fan speed setting has been selected, the fan will follow the pattern shown in the diagram below:

If the medium fan speed setting has been selected, the fan will follow the pattern shown in the diagram below:

If the low fan speed setting has been selected, the fan will follow the pattern shown in the diagram below:

- Sleep: the fan will follow the same pattern as in the nature mode but with the difference that it will reduce speed successively at 30-minute intervals.

• If you select the sleep mode and the high fan speed, the fan will follow the pattern for high fan speed as shown above for 30 min, then change to the medium speed pattern for 30 min, then low speed pattern for 30 min.
• If you select the sleep mode and the medium fan speed, the fan will follow the pattern for the medium fan speed as shown above for 30 min, then change to the low speed pattern for 30 min.

• If you select the sleep mode and the low fan speed, the fan will follow the pattern for the low fan speed as shown above until it is switched off.

• [ON/SPEED] On/fan speed setting

Remote control

The buttons on the remote control correspond with the buttons on the control panel as described above.

On/fan speed selector

Mode, fan mode

Horizontal louvre adjustment

Off

Cooling and humidification function

Timer

Vertical louvre oscillation on/off

Remote control battery

1. To change the battery, open the battery drawer by pressing in the spring catch and pulling the drawer out. Follow the markings on the back of the remote.

2. Insert a new battery (CR2032). Make sure that the positive (+) terminal is facing upwards, towards you. Note the polarity markings on the back of the remote control and in the battery drawer to ensure correct insertion.

3. Slide the battery drawer back into the remote control.

Technical line drawing of a rectangular electronic component with internal cavity and base housing, showing an arrow indicating assembly (no text or symbols present)

Operating instructions

Note: If the air cooler should fall over when it has water in the reservoir, there is a risk of it causing an electric shock and it must not be used.

Switch the air cooler on by pressing either [ ON/SPEED ] on the control panel or (*) on the remote control. The air cooler has the following default settings when it is switched on:

• Fan mode - normal
• Vertical louvre oscillation – off
• Louvre opening - 127°
• Cooling and humidification – off
• Fan speed medium for 3 seconds, then low
• Timer - off

These settings can be adjusted using the control panel or remote control as described above.

Filling the water reservoir

In order for the air cooler to be able to cool and humidify the air the water reservoir must be filled with cold water in addition to ice or freezer blocks. If the water reservoir is withdrawn when the air cooler is switched on, the air cooler will automatically switch off. When the water reservoir is replaced, the air cooler must be switched on again. The air cooler cannot be switched on if the water reservoir is not fitted correctly.

1. Switch the air cooler off and unplug it from the wall socket.

2. Unlock the water reservoir.

3. Pull out the water reservoir drawer and fill it with water and ice or freezer blocks.

Note: Do not fill the reservoir above the maximum water level mark.

1. Slide the water reservoir back in and lock it in place.

Note:

The air cooler will emit an audible signal for 10 seconds if the water level drops too low.

Technical line drawings of industrial air purifiers and storage units, showing front, side, top, and bottom views (no text or labels)

Button sound and warning signal on/off

Hold in the buttons for setting the horizontal louvre and vertical louvre oscillation simultaneously for 3 seconds to switch the sound off. Hold the button in again to switch the sound back on again.

Continuous operation

The air cooler will operate for 15 hours and then switch off automatically. The continuous operation function can be disabled so that the air cooler operates until it is switched off manually by holding in the vertical louvre oscillation on/off button and the timer setting button simultaneously for 3 seconds. Pressing the buttons again will enable the function again.

In the event of a power cut

The air cooler is automatically set to standby mode when the power comes back on after a power cut.

Care and maintenance

- Always unplug the mains lead from the wall socket before cleaning the cooler or filling the water reservoir.

• Clean the exterior of the air cooler using a lightly moistened cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
• Always unplug the air cooler and make sure that the water reservoir is clean and dry before storing the cooler in a dry, dust-free environment out of children's reach whenever it is not to be used for an extended period.

Cleaning the filters

1. Press down the spring catches on the dust filter (A) and remove it.
2. Remove the water filter (B).
3. Vacuum clean the dust filter.
4. Soak the water filter in warm soapy water for a short while. Rinse the filter in clean water. Refit the filters in reversed order.
5. The filter in the water reservoir can be rinsed with warm water if necessary.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no visible text or labels

Specifications

Rated voltage 220–240 V AC, 50 Hz

Remote control battery 1 × CR2032 (included)

Power 110 W

Size 83 × 36 × 28 cm

Weight 7.5 kg

Description Symbol Value Unit
Maximum fan flow rate F 6.86 m3/min
Fan power input	P	91.91 W
Service value	SV	0.07	(m3/min)/W
Standby power consumption P	SB	0.19	W
Fan sound power level	LWA	66.21 dB(A)
Maximum air velocity	c 1.81 m/sec
Measurement standard for service value	ISO 5801-2007EN 50564:2011EN 60704-2-7:1998BS EN 60704-1:2010+A11:2012

Luftkylare

ART.NR 18-1288 MODELL DF-AF1833C

36-6190

DF-AF1833C

Manöverpanel

Technical line drawing of a rectangular electronic component with a small inset showing internal components (no text or symbols)

Användning

Technical line drawings of a portable air purifier with internal compartments and mounting base (no text or symbols)

Avfallshantering

Symbol of a trash bin crossed with no visible text or labels

Specifikationer

Manøvreringspanel

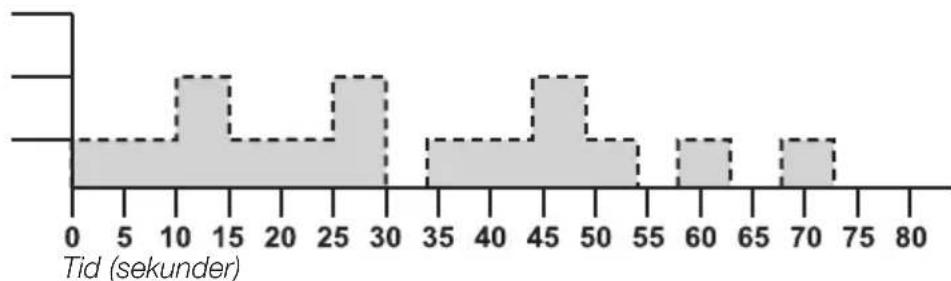

Hvis viftehastigheten middels er valgt, varieres viftehastigheten som vist i diagrammet nedenfor:

Hvis viftehastigheten lav er valgt, varieres viftehastigheten som vist i diagrammet nedenfor:

Mode, vifteinnstilling

22.

Technical line drawing of a rectangular electronic component with a small inset showing internal components (no text or symbols)

Bruk

Technical line drawings of a portable air purifier with internal compartments and mounting base (no text or symbols)

Avfallshåndtering

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Spesifikasjoner

Nettspenning 220–240 V AC, 50 Hz

Batteri fjernkontroll 1 × CR2032 (medfølger)

Effekt 110 W

Mål 83 × 36 × 28 cm

Vekt 7,5 kg

Beskrivelse Symbol Verdi Enhet
Maks luftstrøm F 6,86 m3/min
Viftens effekt inn	P	91,91	W
Driftsverdi	SV	0,07	(m3/min)/W
Effektforbruk (i standby-modus) P	SB	0,19	W
Viftens lydeffektnivå	LWA	66,21	dB(A)
Maks lufthastighet	c 1,81	m/sek
Standard som er benyttet for måling av driftsverdi	ISO 5801-2007EN 50564:2011EN 60704-2-7:1998BS EN 60704-1:2010+A11:2012

Ilmanjäähdytin

TUOTENRO 18-1288

36-6190

MALLI

DF-AF1833C

DF-AF1833C

Ohjauspaneeli

Technical line drawing of a rectangular electronic component with a small inset showing internal components (no text or symbols)

Käyttö

Technical line drawings of various household appliances and fixtures (no text or symbols)

Kierrättäminen

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

Tekniset tiedot

Bedienfeld

Technical line drawing of a rectangular electronic component with a small inset showing internal components (no text or symbols)

Bedienung

Technical line drawings of industrial equipment including a portable heater, a grid-patterned chamber, and a small container with a piping bag (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Technische Daten
