USER MANUAL FZ09-54C2 Cotech

Diagram of a vertical cylindrical device with internal grid pattern and ventilation ducts (no text or symbols)

ART.NO

18-2860

36-5526

MODEL

FZ09-54C2-UK

FZ09-54C2

Important!

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact our Customer Services (see address details on the back).

Safety

• The tower fan should not be used if it or the mains lead is in any way damaged or malfunctioning.
• The tower fan is intended for private use only and should not be used for industrial purposes.
• The tower fan is only to be used indoors and in a dry and clean environment. Never place the tower fan close to a bathtub, shower or swimming pool.
  • Always unplug the tower fan from the power point when it is not in use.
• Never leave children unsupervised in the vicinity of the tower fan when it is in operation.
  • Never expose the tower fan to water or other liquids.
  • The tower fan must not be used when it is lying down.
  • Make sure that no foreign objects get inside the tower fan.
• Never turn the tower fan off by pulling the plug out of the wall socket. Turn it off using the [0] button on the control panel and then unplug it.
• Make sure that the tower fan is completely assembled as described in this manual before using it for the first time.
• Never use the tower fan in places where explosive gases or substances are stored.
• Do not use the tower fan if it or its mains lead is damaged in any way.
• Never attempt to modify or alter the tower fan in any way.
• The mains lead cannot be replaced. If the mains lead is damaged the tower fan must be disposed of in accordance with local regulations.
• The tower fan may be used by children aged 8 or over provided they have been instructed in the safe use of the product and understand the hazards involved with its use. Cleaning and maintenance may be carried out by children aged 8 or over, but only under adult supervision. Keep the tower fan and its mains lead out of reach of children under the age of 8.
• The product may be used by persons with reduced physical, sensory or mental capabilities or persons with a lack of experience or knowledge which could jeopardize their safety, provided they have been instructed in the safe operation of the product and understand the hazards involved. Never let children play with the product.

Assembly

1. Remove the 3 screws in the base of the tower fan.

Technical line drawing of a mechanical assembly with a wheel and shaft (no text or symbols)

1. Place the mains lead in the hole in the middle of the base and push the 2 halves of the base together.

Diagram of a hand holding a fan blade with arrows indicating force or adjustment (no text or symbols present)

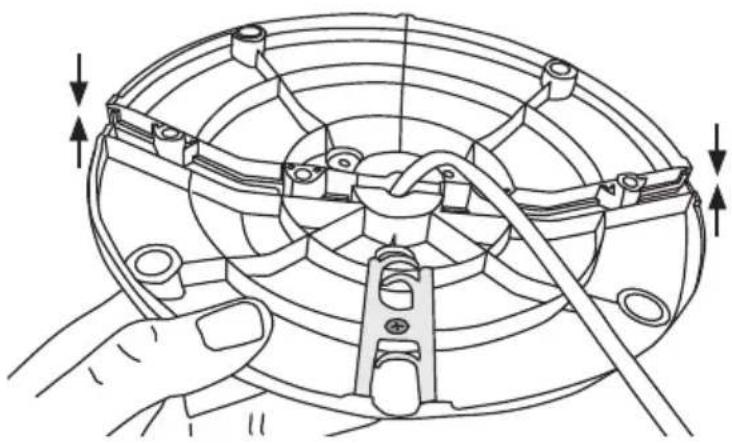

1. Fasten the mains lead in the cable holder in the base and pass it through the opening in the side of the base.

Technical line drawing of a mechanical fan or fan assembly with no visible text or symbols

1. Fasten the base back onto the tower fan using the 3 screws. Note: The screw holes are asymmetrically placed so the base only fits on one way.
2. Place the fan on a firm, flat surface and make sure that the mains lead comes out of the opening in the side of the base.

Operating instructions

1. Plug the fan into a wall socket and switch the fan on by selecting one of the speed settings, 1, 2, 3 using the buttons on the top of the fan.
2. The oscillating motion is activated by pressing the [←] button.
3. Switch the fan off by pressing in the [0] button on the top of the fan.

Care and maintenance

• Always unplug the mains lead from the electrical socket before cleaning.
- Clean the exterior of the tower fan using a lightly moistened cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
• Vacuum the grille on the rear of the fan (air intake) at regular intervals.
- If the fan is not to be used for an extended period, unplug the mains lead from the wall socket and store the fan in a dry and dust-free location.

Disposal

This product should be disposed of in accordance with local regulations. If you are unsure how to proceed, contact your local council.

Specifications

Power supply 230 V AC, 50 Hz

Power 40 W

Height 80 cm

Weight 2.8 kg

Description Symbol Value Unit
Maximum fan flow rate F 28.61 m3/min
Fan power input P 34.9	W
Service value	SV	0.808 (m3/min)/W
Standby power consumption	PSB	0	W
Fan sound power level	LwA	58.1	dB (A)
Maximum air velocity	c 2.808 metres/sec
Measurement standard for service value	IEC 60879:1986 (corr.1992)

Pelarfläkt 80 cm

ART.NR 18-2860 MODELL FZ09-54C2-UK

36-5526

FZ09-54C2

Technical line drawing of a mechanical component with a central hub and shaft (no text or symbols)

Diagram of a hand holding a fan blade with arrows indicating force or adjustment (no text or symbols present)

Technical line drawing of a mechanical fan or fan assembly with no visible text or symbols

ART. NR. 18-2860 MODELL FZ09-54C2-UK

36-5526

FZ09-54C2

Les brukerveiledningen grundig før produktet tas i bruk og ta vare på den for framtidig bruk. Vi reserverer oss mot ev. feil i tekst og bilde, samt forandringer av tekniske data.

Technical line drawing of a mechanical component with a central hub and shaft (no text or symbols)

Technical line drawing of a fan assembly with hands holding a tool (no text or symbols)

Technical line drawing of a mechanical fan or fan assembly with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand holding a tool interacting with a fan blade (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly (no text or symbols)

Art.NR. 18-2860 MODELL FZ09-54C2-UK

36-5526

FZ09-54C2

Technical line drawing of a mechanical component with a central hub and shaft (no text or symbols)

Diagram of a hand holding a fan blade with arrows indicating force or adjustment (no text or symbols present)

Technical line drawing of a mechanical fan or fan assembly with no visible text or symbols
