Name: 36-6540
Brand: Cotech
Rating: 7.5 (173 reviews)

Find the device manual for free 36-6540 Cotech in PDF.

📄 28 pages

EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs

View the manual :

Pick your language and provide your email: we'll send you a specifically translated version.

This manual is not available in your language

Desired language Your email address

Type	Ventilateur sur socle
Dimensions (L x l x H)	35 x 35 x 120 cm
Poids net	3,5 kg
Alimentation	220-240 V ~ 50 Hz
Consommation électrique	50 W
Diamètre des pales	40 cm
Nombre de vitesses	3
Fonction oscillation	Oui
Minuterie	Non
Télécommande	Non
Grille de protection	Oui, amovible
Matériau des pales	Plastique ABS
Couleur	Blanc et noir
Niveau sonore maximal	55 dB
Angle d'oscillation	90°
Hauteur réglable	Non
Inclinaison réglable	Oui, manuellement
Entretien	Nettoyer les pales et la grille avec un chiffon humide
Sécurité	Arrêt automatique en cas de basculement (non)
Pieces détachées	Pales de rechange disponibles
Garantie	2 ans

Frequently Asked Questions - 36-6540 Cotech

How do I clean the fan blades?

Unplug the fan, remove the front grille by unscrewing the retaining ring, then wipe the blades with a damp cloth. Do not use abrasive cleaners.

Does the fan have a remote control?

No, this model does not include a remote control. All functions are controlled via buttons on the base.

Can I use the fan outdoors?

No, this fan is designed for indoor use only. Exposure to moisture or dust may damage the motor.

How do I adjust the fan speed?

Press the speed button on the base to cycle through low, medium, and high speeds.

The fan is wobbling. What should I do?

Ensure the base is on a flat, stable surface. Tighten all screws and check that the blades are not bent or unbalanced.

Can I replace the blades if they are damaged?

Yes, replacement blades are available. Unscrew the blade cap, remove the damaged blade, and attach the new one securely.

Does the fan have a timer?

No, this model does not feature a timer. It must be turned off manually.

Why is the fan making a rattling noise?

Check for loose screws, debris inside the grille, or misaligned blades. Clean and tighten all parts.

Is the fan safe to leave on overnight?

Yes, but ensure it is placed on a stable surface away from curtains. The motor is thermally protected, but do not cover the fan.

How do I activate the oscillation feature?

Press the oscillation button on the base. The fan will start to oscillate left and right. Press again to stop.

User questions about 36-6540 Cotech

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Fan in PDF format for free! Find your manual 36-6540 - Cotech and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 36-6540 by Cotech.

USER MANUAL 36-6540 Cotech

Important!

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

Never use the tower fan if the mains lead, plug or any other part is damaged or does not work properly.
Never attempt to repair or modify the product in any way.
The tower fan is designed exclusively for domestic use.
The tower fan is only to be used indoors and in a dry and clean environment. Do not place the tower fan in such a way that it might fall into water or other type of liquid.
• Always unplug the tower fan from the power point when it is not in use.
Never leave children unsupervised in the vicinity of the tower fan when it is in operation.
Never expose the tower fan to water or other liquids.
Do not turn on the power before the tower fan is completely assembled. The fan must be vertically upright or in one of its set tilt settings during use and must never be used in a flat, horizontal position.
Make sure that no foreign objects get inside the tower fan.
Never turn the tower fan off by pulling the plug out of the wall socket. Turn off the product using the power button and then unplug it from the wall socket.
Make sure that the tower fan is completely assembled before using it for the first time.
Never use the tower fan in places where explosive gases or substances are stored.
This product can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the product and its mains lead out of reach of children under the age of 8.
The product may be used by persons with reduced physical, sensory or mental capabilities or persons with a lack of experience or knowledge which could jeopardize their safety, provided they have been instructed in the safe operation of the product and understand the hazards involved. Never let children play with the product.

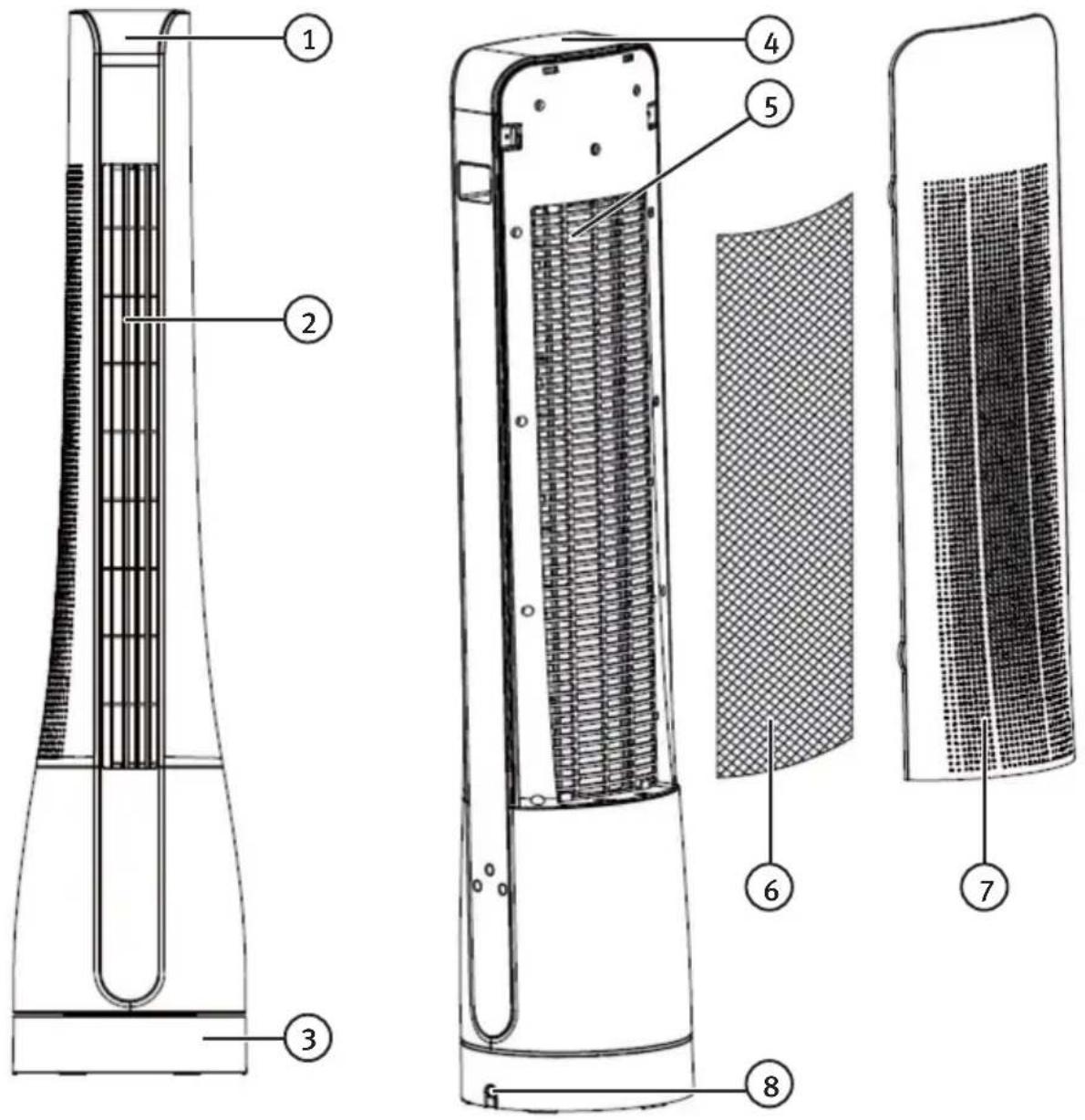

Product description

Cotech 36-6540 - Product description - 1

LED display
Air outlet
Base
Control panel
Air inlet
Air filter
Housing
Mains lead

Remote control

Cotech 36-6540 - Remote control - 1

[POWER] On/off

Cotech 36-6540 - Remote control - 2

[MODE] Normal (NM), Nature (NT), Sleep (SL)

Cotech 36-6540 - Remote control - 3

[ SPEED ] Speed: High (HI), Medium (MED), Low (LOW)

Cotech 36-6540 - Remote control - 4

[ TIMER ] 8-hour timer (30 mins per button press), hold in button for 3 secs to increase in hours.

Cotech 36-6540 - Remote control - 5

[OSC] Oscillation

POWER MODE SPEED TIMER OSC

Operating instructions

Plug the mains lead into a wall socket.
Use the control panel to make the fan settings.

Control panel

• [POWER] On/Off.
• [SPEED] Fan speed: High, medium, low. The default fan speed setting is low.
• [MODE] Fan mode: Normal (NM), Nature (NT), Sleep (SL).
- [TIMER] 8-hour timer (30 mins per button press), hold in button for 3 secs to increase in hours.
• [OSC] Press [OSC] to activate and deactivate the oscillation function.

The temperature is displayed on the LED screen. Press and hold in [MODE] to dim the brightness of the display.

Explanation of the fan modes

Normal mode: The fan runs in the mode which you have set manually.

Nature mode:

In nature mode the fan will run in 2.5, 5, 7.5, 10, or 15-second intervals according to a fixed pattern depending on which fan speed is selected. The fan will alternate between off, low, medium and high.

Cotech 36-6540 - Nature mode: - 1

line

| Time | H (%) | m (%) | L (%) | |---|---|---|---| | T=0 | 5 | 5 | 5 | | N/A | 4 | 4 | 4 | | N/A | 10 | 10 | 10 | | N/A | 10 | 10 | 10 | | N/A | 5 | 5 | 5 | | N/A | 9 | 9 | 9 | | N/A | 10 | 10 | 10 | | N/A | 5 | 5 | 5 | | N/A | 6 | 6 | 6 | | N/A | 9 | 9 | 9 | | T=1055 | 5 | 5 | 5 |

Cotech 36-6540 - Nature mode: - 2

line

| Time | Value | |---|---| | T=0 | 105 | | T=1 | 55 | | T=2 | 105 | | T=3 | 55 | | T=4 | 55 | | T=5 | 75 | | T=6 | 75 | | T=7 | 75 | | T=8 | 105 | | T=9 | 55 | | T=10 | 105 | | T=11 | 75 | | T=12 | 75 |

Sleep mode:

In sleep mode the speed varies according to the same principle as in the nature mode.

Cotech 36-6540 - Sleep mode: - 1

line

| Time | Value | |------|-------| | T=0 | 15 | | | 145 | | | 15 | | | 7.55 | | | 15 | | | 2.15 | | | 55 | | | 55 | | | 105 | | | 165 | | | 55 | | | 15 | | T=1055| 15 |

Cotech 36-6540 - Sleep mode: - 2

line

| Sleep mode (H) | H (%) | M (%) | L (%) | |---|---|---|---| | T=0% | 55 | 15 | 0 | | T=105% | 55 | 15 | 0 | | T=205% | 105 | 55 | 0 | | T=305% | 105 | 55 | 0 | | T=405% | 55 | 15 | 0 | | T=505% | 105 | 15 | 0 | | T=605% | 55 | 55 | 0 | | T=705% | 55 | 15 | 0 | | T=805% | 105 | 55 | 0 | | T=905% | 105 | 15 | 0 | | T=1005% | 55 | 55 | 0 |

Cotech 36-6540 - Sleep mode: - 3

line

| Time | Value | |---|---| | T=0 | 95 | | T=1 | 95 | | T=2 | 65 | | T=3 | 95 | | T=4 | 105 | | T=5 | 17.5 | | T=6 | 55 | | T=7 | 2.5 | | Sleep mode (M) | 90 | | Sleep mode (M) | 95 | | Sleep mode (M) | 55 | | Sleep mode (M) | 55 | | Sleep mode (M) | 90 | | Sleep mode (M) | 105 | | Sleep mode (M) | 105 | OFF T=1055

Cotech 36-6540 - Sleep mode: - 4

- If both sleep mode and speed H (high) are chosen, the fan will first run on speed L (low) for 5 seconds, then run on speed M (medium) for 15 seconds and finally on speed H (high) for 5 seconds. This is shown in the graph named Sleep mode H.

- If both sleep mode and speed M (medium) are chosen, the fan will first run on speed H (high) for 5 seconds, then run on speed M (medium) for 5 seconds and finally on speed L (low) for 5 seconds. This is shown in the graph named Sleep mode M.

- If both sleep mode and speed L (low) are chosen, the fan will first run on speed M (medium) for 5 seconds, then run on speed L (low) for 5 seconds and finally on speed M (medium) for 5 seconds. This is shown in the graph named Sleep mode L.

Care and maintenance

• Always unplug the mains lead from the electrical socket before cleaning.
- Clean the exterior of the tower fan using a lightly moistened cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
- Turn off the fan, unplug it from the wall socket and vacuum the intake grill on the back of the fan regularly.
- If the fan is not to be used for an extended period, unplug it from the wall socket and store the fan in a dry and dust-free location.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner.

When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Cotech 36-6540 - Responsible disposal - 1

Specifications

Rated voltage 220–240 V AC, 50/60 Hz

Power 50 W

Height 90 cm

Remote control batteries 1 × CR2032

Description Symbol Value Unit
Maximum fan flow rate F	18.75 m^3/min
Fan power input P 46.3 W
Service value SV	0.41 ( m^3/min )/W
Standby power consumption	PsB	0.43 W
Fan sound power level	LwA	59.61 dB(B)
Maximum air velocity	C	1.99 m/s
Annual electricity consumption	Q	15.3 kWh/a
Measurement standard for service value:	IEC 60879:1986 (corr. 1992)

Pelarfläkt 90 cm

Art.nr 18-1372, 18-1373 Modell FTA

36-6540, 36-6540-1 FTA

[MODE] Normal (NM), Natur (NT), Natt (SL)

Cotech 36-6540 - Pelarfläkt 90 cm - 1

[SPEED] Hastighet: Hög (HI), Medium (MED), Låg (LOW)

Cotech 36-6540 - Pelarfläkt 90 cm - 2

line

| Time | H (%) | m (%) | L (%) | |---|---|---|---| | T=0 | 5 | 5 | 5 | | N/A | 4 | 4 | 4 | | N/A | 10 | 10 | 10 | | N/A | 10 | 10 | 10 | | N/A | 5 | 5 | 5 | | N/A | 9 | 9 | 9 | | N/A | 15 | 15 | 15 | | N/A | 9 | 9 | 9 | | N/A | 10 | 10 | 10 | | N/A | 6 | 6 | 6 | | N/A | 4 | 4 | 4 | | N/A | 9 | 9 | 9 | | T=1055 | 5 | 5 | 5 |

Cotech 36-6540 - Pelarfläkt 90 cm - 3

line

Nattläge:

line

| Time | Value | |------|-------| | T=0 | 15% | | | 16% | | | 17.5% | | | 18% | | | 21% | | | 22.5% | | | 23% | | T=1055 | 16% |

Cotech 36-6540 - Nattläge: - 1

line

| Sleep mode (H) | H (%) | M (%) | L (%) | |---|---|---|---| | T:15 | 55 | 15 | 0 | | T:25 | 105 | 55 | 0 | | T:35 | 105 | 55 | 0 | | T:45 | 55 | 105 | 0 | | T:55 | 55 | 15 | 0 | | T:65 | 55 | 105 | 0 | | T:75 | 55 | 55 | 0 | | T:85 | 105 | 55 | 0 | | T:95 | 105 | 55 | 0 | | T:105 | 55 | 105 | 0 | OFF Sleep mode (H) T:105S

Cotech 36-6540 - Nattläge: - 2

line

| Time | Value | |---|---| | T=0 | 55 | | T=1 | 55 | | T=2 | 55 | | T=3 | 165 | | T=4 | 17.5 | | T=5 | 55 | | T=6 | 2.55 | | T=7 | 30 | | T=8 | 55 | | T=9 | 55 | | T=10 | 90 | | T=11 | 105 | | T=12 | 105 | OFF Sleep mode (M) T=1055

Cotech 36-6540 - Nattläge: - 3

Specifikationer

Nätanslutning 220–240 V AC, 50/60 Hz

Effekt 50 W

Höjd 90 cm

Batterier fjärrkontroll 1 × CR2032

[MODE] Normal (NM), Natur (NT), Natt (SL)

Cotech 36-6540 - Specifikationer - 1

[SPEED] Hastighet: Høy (HI), Middels (MED), Lav (LOW)

Cotech 36-6540 - Specifikationer - 2

line

Cotech 36-6540 - Specifikationer - 3

line

| Time | Value | |---|---| | T=0 | 5% | | T=1 | 10% | | T=2 | 5% | | T=3 | 7.5% | | T=4 | 7.5% | | T=5 | 7.5% | | T=6 | 10% | | T=7 | 5% | | T=8 | 10% | | T=9 | 7.5% | | T=10 | 7.5% | T=11 | 7.5% | T=12 | 7.5% | T=13 | 7.5% | T=14 | 7.5% | T=15 | 7.5% | T=16 | 7.5% | T=17 | 7.5% | T=18 | 7.5% | T=19 | 7.5% | T=20 | 7.5% | T=21 | 7.5% | T=22 | 7.5% | T=23 | 7.5% | T=24 | 7.5% | T=25 | 7.5% | T=26 | 7.5% | T=27 | 7.5% | T=28 | 7.5% | T=29 | 7.5% | T=30 | 7.5% | T=31 | 7.5% | T=32 | 7.5% | T=33 | 7.5% | T=34 | 7.5% | | T=35 | 7.5% | | T=36 | 7.5% | | T=37 | 7.5% | | T=38 | 7.5% | | T=39 | 7.5% | | T=40 | 7.5% | | T=41 | 7.5% | | T=42 | 7.5% | | T=43 | 7.5% | | T=44 | 7.5% | | T=45 | 7.5% | | T=46 | 7.5% | | T=47 | 7.5% | | T=48 | 7.5% | | T=49 | 7.5% | | T=50 | 7.5% | | T=51 | 7.5% | | T=52 | 7.5% | | T=53 | 7.5% | | T=54 | 7.5% | | T=55 | 7.5% | | T=56 | 7.5% | | T=57 | 7.5% | | T=58 | 7.5% | | T=59 | 7.5% | | T=60 | 7.5% | | T=61 | 7.5% | | T=62 | 7.5% | | T=63 | 7.5% | | T=64 | 7.5% | | T=65 | 7.5% | | T=66 | 7.5% | | T=67 | 7.5% | | T=68 | 7.5% | | T=69 | 7.5% | | T=70 | 7.5% | | T=71 | 7.5% | | T=72 | 7.5% | | T=73 | 7.5% | | T=74 | 7.5% | | T=75 | 7.5% | | T=76 | 7.5% | | T=77 | 7.5% | | T=78 | 7.5% | | T=79 | 7.5% | | T=80 | 7.5% | | T=81 | 7.5% | | T=82 | 7.5% | | T=83 | 7.5% | | T=84 | 7.5% | | T=85 | 7.5% | | T=86 | 7.5% | | T=87 | 7.5% | | T=88 | 7.5% | | T=89 | 7.5% | | T=90 | 7.5% | | T=91 | 7.5% | | T=92 | 7.5% | | T=93 | 7.5% | | T=94 | 7.5% | | T=95 | 7.5% | T=T0 OFF Natural mode (e) H M L OFF T=T0 OFF Natural mode (e) H M L OFF T=T0 OFF Natural mode (e) H M L OFF T=T0 OFF Natural mode (e) H M L OFF T=T0 OFF Natural mode (e) H M L OFF T=T0 OFF Natural mode (e) H M L OFF T=T0 Off

Nattmodus:

Spesifikasjoner

Nettspenning 220–240 V AC, 50/60 Hz

Effekt 50 W

Høyde 90 cm

Batterier fjernkontroll 1 × CR2032

line

Cotech 36-6540 - Spesifikasjoner - 1

line

| Time | Value | |---|---| | T=0 | 96 | | T=1 | 95 | | T=2 | 95 | | T=3 | 55 | | T=4 | 95 | | T=5 | 74 | | T=6 | 75 | | T=7 | 75 | | T=8 | 95 | | T=9 | 95 | | T=10 | 105 | | T=11 | 75 | | T=12 | OFF |

Yötila:

line

| Time | Sleep mode (H) | |---|---| | T:15% | 15% | | T:16% | 105% | | T:17% | 105% | | T:18% | 15% | | T:19% | 18% | | T:20% | 105% | | T:21% | 55% | | T:22% | 55% | | T:23% | 105% | | T:24% | 105% | | T:25% | 55% | | T:26% | 105% | | T:27% | 105% | | T:28% | 55% | | T:29% | 105% | | T:30% | 105% | | T:31% | 55% |

Cotech 36-6540 - Yötila: - 1

line

| Time | Value | |---|---| | T=0 | 55 | | T=1 | 55 | | T=2 | 55 | | T=3 | 165 | | T=4 | 17.5 | | T=5 | 55 | | T=6 | 2.35 | | T=7 | 80 | | T=8 | 55 | | T=9 | 55 | | T=10 | 90 | | T=11 | 185 | T=12 Off: Sleep mode (M)

Cotech 36-6540 - Yötila: - 2

line

| Sleep mode (L) | H (%) | M (%) | |---|---|---| | T=0 | 35 | 55 | | T=1 | 55 | 105 | | T=2 | 405 | 75 | | T=3 | 55 | 215 | | T=4 | 405 | 95 | | T=5 | 65 | 18 | | T=6 | 18 | 215 | | T=7 | 105 | 55 | | T=8 | 55 | OFF (OFF) | T=955

Tekniset tiedot

line

Cotech 36-6540 - Tekniset tiedot - 1

line

| Time | Value | |---|---| | T=0 | 96 | | T=1053 | 95 | | T=2053 | 95 | | T=3053 | 55 | | T=4053 | 96 | | T=5053 | 74 | | T=6053 | 75 | | T=7053 | 75 | | T=8053 | 96 | | T=9053 | 96 | | T=10053 | 18 | | T=11053 | 75 |

Nachtbetrieb:

line

| Sleep mode (H) | Value | | -------------- | ----- | | T=16% | 16% | | | 10% | | | 10% | | | 18% | | | 5% | | | 5% | | | 5% | | | 5% | | | 18% | | | 5% | | | 5% | | | 5% | | | 18% | | | 5% | | | 5% | | | 5% |

Cotech 36-6540 - Nachtbetrieb: - 1

line

| Time | Value | |---|---| | T=0 | 95 | | T=1 | 95 | | T=2 | 95 | | T=3 | 95 | | T=4 | 105 | | T=5 | 17.5 | | T=6 | 95 | | T=7 | 95 | | Sleep mode (M) | 2.35 | | T=8 | 90 | | T=9 | 95 | | T=10 | 95 | | T=11 | 95 | | T=12 | 90 | | T=13 | 105 | | T=14 | 105 | OFF |

Cotech 36-6540 - Nachtbetrieb: - 2

line

| Sleep mode (L) | H (%) | M (%) | L (%) | |---|---|---|---| | T=0 | 35 | 55 | 105 | | T=1055 | 55 | 55 | 2.5 | | T=2055 | 105 | 105 | 18 | | T=3055 | 105 | 18 | 2.5 | | T=4055 | 55 | 55 | 55 | The chart displays a step function with two distinct phases: one at T=0 to T=105 and another at T=105 to T=205. The values for each phase are labeled on the bars.

Technische Daten
