FT-30ME - Fan Cotech - Free user manual and instructions

Product Type	Fan
Brand	Cotech
Model	FT-30ME
Rated Voltage	220–240 V AC, 50/60 Hz
Power Consumption	35 W
Fan Head Diameter	35 cm
Height	55 cm
Weight	3.7 kg
Mains Lead Length	177 cm
Max Fan Flow Rate	35.3 m³/min
Fan Sound Power Level	55.8 dB(A)
Maximum Air Velocity	1.73 m/s
Speed Settings	3 speeds (I, II, III)
Oscillation	Yes, with on/off control
Tilting	Adjustable angle with locking knob
Base Material	Wood (untreated)
Stand Material	Metal
Safety Features	Overheat protection? Not specified; user manual warnings
Cleaning Instructions	Unplug, use lightly moistened cloth, mild detergent
Storage	Unplug and store in dry place out of reach of children
Disposal	Recycle at local collection facility per WEEE
Accessories Included	Washer, wing screw, mounting bolt, lock nut, knob, locking screw

Frequently Asked Questions - FT-30ME Cotech

How do I assemble the Cotech FT-30ME fan?

Attach the base plate to the support using the washer and wing screw. Then push the support into the bracket on the fan head, ensuring proper orientation. Insert the mounting bolt and tighten the lock nut. Finally, screw in the knob for locking the fan head angle.

How to clean the fan?

Always unplug the fan before cleaning. Use a lightly moistened cloth with mild cleaning agents. Avoid solvents or corrosive chemicals. Vacuum the grille if necessary. Never let the wooden base get wet.

Can I use the fan in the bathroom?

No. The fan is intended for domestic indoor use only and should not be exposed to water. Never use it where there is risk of falling into water or other liquids. It is not splash-proof.

The fan does not oscillate. What should I check?

Ensure the oscillation control (control 1) is moved to the 'on' position. If it still does not oscillate, unplug the fan and check for obstructions. Do not attempt to disassemble; contact customer service if the problem persists.

How to tilt the fan head?

Loosen the knob (9) located on the back of the fan head, tilt the head to the desired angle, then tighten the knob. Note that the tilt is limited by the locking screw (3).

What is the power consumption of the fan?

The rated power is 35 W. The measured fan power input is 32.36 W, with a standby consumption of 0 W. Service value is 1.09 (m³/min)/W.

Is the fan safe for use around children?

The manual states that this product is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities. Never let children play with the fan. Keep packaging materials away from children.

How should I store the fan when not in use?

Unplug the fan and store it in a dry place out of reach of children. Protect it from dust and humidity. Ensure the wooden base remains dry to avoid damage.

The fan is making unusual noise. What could be the cause?

Check if the fan is placed on a flat, firm surface. Ensure the grille and blades are clean and free from obstructions. If the noise persists, it may indicate a mechanical issue; contact customer service. Do not attempt to repair yourself.

How to dispose of the fan responsibly?

Do not dispose of it with household waste. Take it to a local collection facility for recycling per the WEEE directive. Contact your municipality or place of purchase for proper disposal options.

USER MANUAL FT-30ME Cotech

Line drawing of a circular fan with radial blades and a stand (no text or symbols)

Important:

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before use and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

• This product is not intended for use by persons (including children) with reduced physical sensory or mental capabilities or lack of experience and knowledge.
• Never let children play with the product.
• Keep all product packaging materials out of the reach of children.
• Never try to modify, disassemble or repair the product. It contains no user-serviceable parts.
• Never expose the product to water or other liquids.
• Never use the product if your hands are moist or wet.
• Do not place the product where there is a risk of it falling into water or other types of liquid.
• The product contains a wooden component. Untreated wood should always be kept dry. Never let the wooden component get wet as this can affect its durability and appearance.
• This product should only be connected to a 230 V AC, 50 Hz electrical outlet.
• Position the mains lead so that it cannot be damaged and does not risk tripping anyone.
• This product is only intended for domestic use and only in the manner described in this instruction manual.
• Do not use the product if it has been dropped. Do not use the fan if it or the mains lead is damaged in any way.
• Only use accessories that are recommended by the manufacturer or retailer. Attempts to use other types of accessories can lead to personal injury or damage to the product.
• Only place the product on flat, firm surfaces where there is no risk of it being exposed to heat from a radiator or cooker. It should not be exposed to continuous sunlight, very dusty conditions or strong vibrations.
• Never use the product in places where flammable or explosive substances are used or stored. Maintain a distance of at least 30 cm from nearby surfaces.
• Unplug the mains lead from the electrical outlet if there is a thunderstorm.
• Never block the fan motor ventilation slits.
• Repairs must only be carried out by authorised service personnel and only using original spare parts.
  • Always keep this instruction manual with the product if someone else is going to use it.
• Handle the mains lead with care. Never carry the product by its mains lead. Always grip the plug when unplugging the fan, never pull the mains lead.
• Never stick foreign objects through the fan grille as this can lead to personal injury or damage to the product.
• If an extension lead is used to connect the fan to the power supply, ensure that the extension lead is suitable for the purpose.

Product description

1. Control for turning the oscillation function on/off
2. Control for selecting fan speed I, II, III or off
3. Locking screw for fan head angle
4. Lock nut for mounting bolt
5. Mount for fan head
6. Washer
7. Wing screw
8. Fan head
9. Knob for locking fan head angle
10. Fan head mounting bolt
11. Support
12. Base plate

Assembly

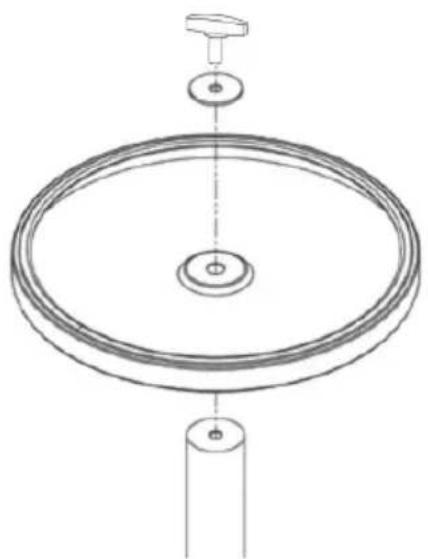

1. Attach the base plate to the support using the washer (6) and the wing screw (7).

Technical line drawing of a circular mechanical component with a central hub and mounting base (no text or symbols)

1. Lay the fan head on a flat surface.

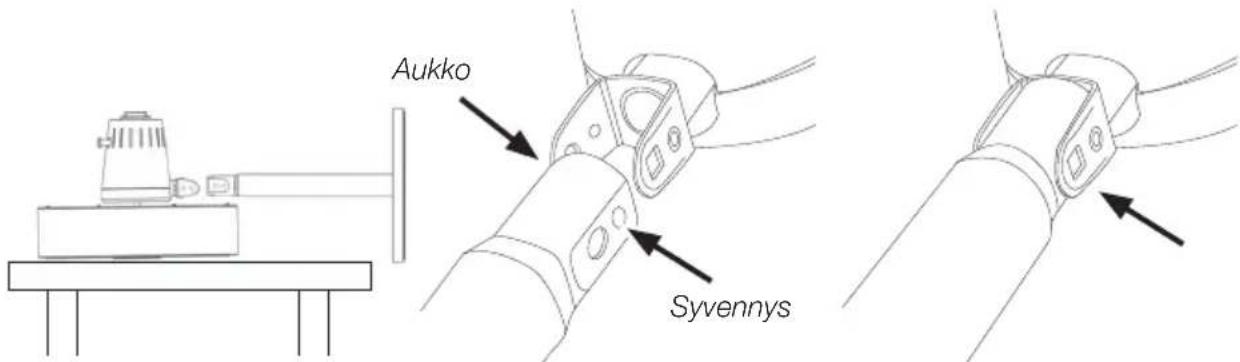

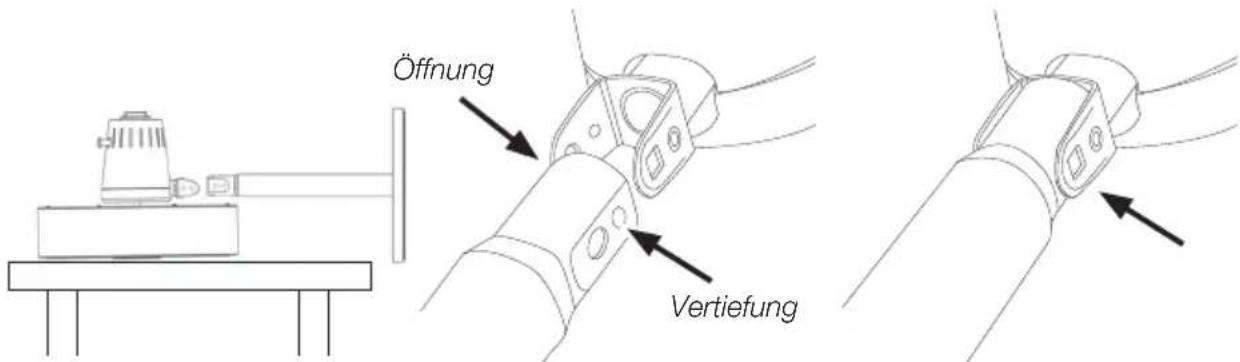

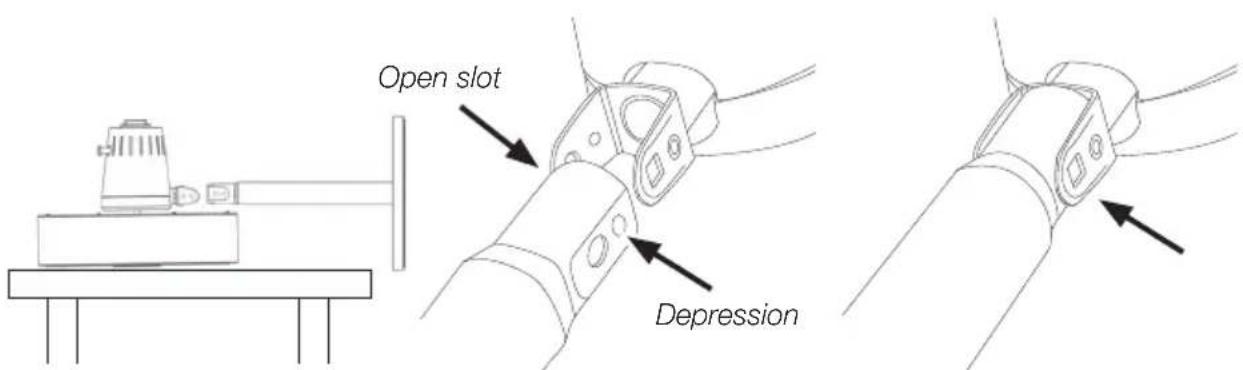

2. Push the end of the support into the bracket on the fan head. Make sure that is support is facing the right way. The side with the depression should be on the side of the bracket with the square hole.

Technical line drawing of a mechanical component with curved ends and a directional arrow (no text or symbols)

1. Push the mounting bolt (10) through the bracket and support.

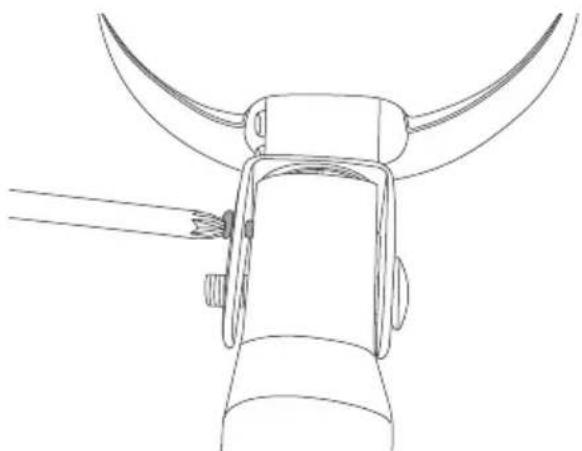

Line drawing of a mechanical clamp or bracket assembly (no text or symbols)

1. Hold the support in line with the bracket and screw the fan head angle locking screw (3) all the way in. The screw should protrude into the opening in the support and limit the tilt angle.

Line drawing of a hand holding a smartwatch with a gear mechanism (no text or symbols)

1. Screw the lock nut (4) onto the mounting bolt and tighten. Tighten the nut just enough that the fan head can still be tilted.

Line drawing of a hand holding a small mechanical component with curved leads (no text or symbols)

1. Screw in the knob (9) for locking the fan head angle. Set the desired tilt angle and then tighten.

Instructions for use

1. Place the fan on a flat, firm surface.
2. Route the mains lead so that there is no risk of anyone tripping over it and connect the plug to an electrical outlet.
3. Use the control (2) to select the fan speed.
4. Turn the oscillation function on/off by moving the control (1) up/down.

Tilting the fan head backwards

Loosen the knob (9), tilt the fan head to the desired angle and then tighten the knob.

Remember that the fan head can only be tilted as far as the locking screw (3) permits.

Simple line drawing of a vertical stand with a mounted device and an arrow indicating rotation (no text or symbols)

Care and maintenance

• Unplug the mains lead from the electrical outlet before cleaning.
• Clean the product using a lightly moistened cloth. Use only mild cleaning agents, never solvents or corrosive chemicals. Vacuum them if necessary.
• If the fan is not to be used for an extended period, it should be unplugged and stored in a dry place out of the reach of children.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling the product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Specifications

Rated voltage 220–240 V AC, 50/60 Hz

Power 35 W

Height 55 cm

Fan head diameter 35 cm

Mains lead 177 cm

Weight 3.7 kg

Description Symbol Value	Unit
Max fan flow rate	F	35.3	m^3/min
Fan power input	P	32.36	W
Service value	SV	1.09	(m^3/min)/W
Standby power consumption	P_SB	0	W
Fan sound power level	LwA	55.8	dB(A)
Maximum air velocity	c	1.73	metres/sec
Measurement standard for service value:	IEC 60879:1986 (corr.1992)

Fläkt

Art.nr 36-7814 Modell FT-30ME

Montering

Technical line drawing of a circular mechanical component with a central hub and a vertical shaft (no text or symbols)

Technical line drawing of a mechanical component with curved ends and a directional arrow (no text or symbols)

Line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a hand holding a smartwatch with a curved lens (no text or symbols)

Line drawing of a hand holding a small mechanical component, no text or symbols present

Simple line drawing of a vertical panel mounted on a stand with an arrow indicating rotation (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Specifikationer

Nätanslutning 220–240 V AC, 50/60 Hz

Effekt 35 W

Höjd 55 cm

Fläkthuvud ∅ 35 cm

Nätkabel 177 cm

Vikt 3,7 kg

Montering

Technical line drawing of a circular mechanical component with a central hub and a vertical shaft (no text or symbols)

Technical line drawing of two mechanical components with a directional arrow indicating assembly (no text or symbols)

Line drawing of a hand adjusting a smartwatch with a clip (no text or symbols)

Line drawing of a hand holding a small mechanical component with curved leads (no text or symbols)

Simple line drawing of a vertical stand with an arrow indicating rotation or movement (no text or symbols)

Vedlikehold

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Spesifikasjoner

Nettspenning 220–240 V AC, 50/60 Hz

Effekt 35 W

Høyde 55 cm

Viftehode ∅ 35 cm

Strømkabel 177 cm

Vekt 3,7 kg

Asennus

Technical line drawing of a circular mechanical component with a central hub and mounting base (no text or symbols)

Technical line drawing of a mechanical component with curved ends and a directional arrow (no text or symbols)

Line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a hand holding a smartwatch with a gear mechanism (no text or symbols)

Line drawing of a hand holding a small mechanical component, no text or symbols present

Simple line drawing of a vertical-mounted device mounted on a stand, with an arrow indicating rotation (no text or symbols)

Montage

Technical line drawing of a circular mechanical component with a central hub and base (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly with an arrow indicating direction (no text or symbols present)

Line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a hand holding a mechanical component, no text or symbols present

Line drawing of a hand holding a small mechanical component with curved leads (no text or symbols)

Simple line drawing of a vertical-mounted device mounted on a stand with an arrow indicating rotation (no text or symbols)

Pflege und Wartung

Symbol of a trash bin crossed with no visible text or labels

Technische Daten
