Product Type	Tower Fan
Brand	Cotech
Model	FTG 35-DC
Power Supply	220–240 V, 50/60 Hz
Power Consumption	25 W
Standby Power Consumption	0.64 W
Max Airflow	23.78 m³/min
Max Air Velocity	2.99 m/s
Sound Power Level	61.56 dB(A)
Service Value	0.96 (m³/min)/W
Height	88 cm
Modes	Normal, Interval (Nat), Sleep
Fan Speeds	4 levels
Oscillation	Yes, 60° side-to-side
Timer	Up to 8 hours (30-minute intervals)
Remote Control Battery	1 × CR2032 (included)
Filter Type	Removable air-inlet filter (cleanable/replaceable)
Display	LED with temperature display
Assembly Required	Yes (base attachment with wing nuts)
Use Location	Indoor, dry, clean environment
Safety Features	Auto shut-off on timer, overheat? (not specified)

Frequently Asked Questions - FTG 35-DC Cotech

How do I clean the filter on the Cotech FTG 35-DC fan?

Unplug the fan. Press the release tabs on the back grille, remove the grille, then vacuum the filter. Replace if necessary.

How do I set the timer on this fan?

Press the Timer button to set the timer in 30-minute intervals, up to 8 hours. The fan will turn off automatically after the set time.

How do I use the oscillation feature?

Press the Osc button to start oscillation (60° side-to-side). Press again to stop.

What do the different modes (Normal, Interval, Sleep) do?

Normal: constant fan speed. Interval (Nat): factory program using all speeds. Sleep: low-speed program for quiet operation.

How do I replace the remote control battery?

Flip the remote over, pull out the battery tray, replace with a CR2032 battery (positive side up), then slide the tray back in.

What should I do if the fan doesn't start?

Check that it is plugged into a working outlet and the power button is pressed. Ensure the mains lead is not damaged. If still not working, contact customer service.

Can I use this fan outdoors?

No, the fan is designed for indoor use only in a dry, clean environment. Do not expose to water or humidity.

How do I assemble the base?

Thread the mains lead through the base hole, attach the base to the fan body, and tighten with the included wing nuts. Route the lead through the cable guides.

Why does the display show a temperature?

The fan automatically displays the current room temperature when connected to power. It reverts to temperature after speed/timer selection.

How do I clean the exterior of the fan?

Wipe with a clean, damp cloth using mild detergent. Never use solvents or corrosive chemicals. Keep ventilation slits dust-free.

USER MANUAL FTG 35-DC Cotech

Illustration of a vertical cylindrical device with internal grid pattern and a top-mounted lid (no text or symbols visible)

ART.NO

18-1286

36-6188

MODEL

FTG 35-DC

FTG 35-DC

Important!

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

• Never use the product if the mains lead, plug or any other part is damaged or does not work properly.
• The product must only be connected to a standard domestic 220–240 V, 50/60 Hz electrical supply.
• Never attempt to repair or modify the product in any way.
• Never use the product if it does not work properly or if the housing, mains lead or plug is damaged in any way.
• If the mains lead is damaged in any way it must be replaced by a qualified electrician.
• The product is only intended for indoor use in a dry, clean environment. Never position the product in such a way that it might fall into water or other liquid.
• Never position the product in such a way that it comes into contact with hot surfaces.
  • Always unplug the product from the power point when it is not in use.
• Never lay the mains lead over hot surfaces, sharp edges or corners.
• The product is only intended for personal domestic use and only in the manner described in this instruction manual.
• Never poke your fingers or foreign objects through the grille while the fan is operating.
• Never leave children unsupervised in the vicinity of the product.
• Never expose the product to water or other liquids.
• Do not turn on the power before the product is completely assembled. The product must only be used in the upright position, never horizontally or when it is lying on its side.
• Never turn the product off by pulling the plug out of the wall socket. Turn off the product using the power button and then unplug it from the wall socket.
• Make sure that the product is completely assembled before using it for the first time.
• Never use the product in areas where explosive gases or substances are stored.
• Do not use the product in excessively humid or dusty environments or in environments in which the temperature exceeds 40 °C.
• Persons (including children) whose physical, sensory or mental capability or lack of experience and knowledge which renders them incapable of using the product in a safe way, must not be allowed to use the product without proper supervision or instruction.
• Never let children play with the product.

Buttons and functions

1. LED function indicators Display screen

2. Current temperature display - shows automatically when connected to the mains. Fan speed - shows current speed when selecting. Timer - shows when setting. Returns to temperature display after making selections or inputting settings.

3. ⏱ Osc, sweeping motion on/off

4. Mode, function selector. Normal, interval or sleep function.

5. Ⓞ Timer

6. Speed, fan speed

7. Ⓧ Power, on/off

8. Remote control storage bay and handle

9. Removable air-inlet filter
10. Fan motor ventilation slits

Remote control

The remote control buttons are identical to the functions described above.

1. Remove the plastic tab to activate the battery.

1. To change the remote control battery, flip the remote upside down and pull out the battery tray on the bottom of the remote and replace it with a new (1 × CR2032) battery. Make sure that the positive (+) terminal faces upwards, towards you (refer to illustration).

Assembly

Technical line drawing of a mechanical component with concentric circular and radial sections (no text or symbols)

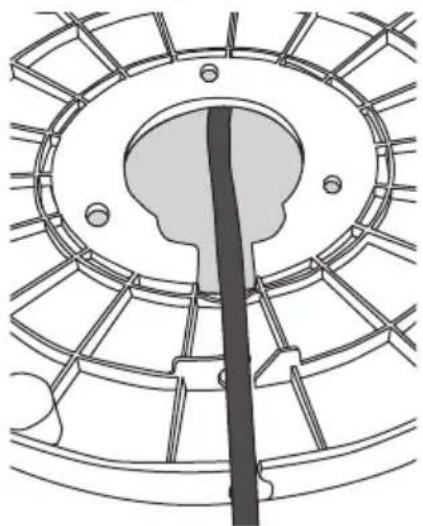

1. Thread the mains lead through the hole in base of the fan.

Technical line drawing of a mechanical component with no visible text or symbols

1. Attach the base to the fan. Use the included the wing nuts to tighten the base to the fan and guide the mains lead through the cable guides according to the illustration.

Operating instructions

Switching on/off

1. Place the fan on a firm, level surface and plug it into a power point.
2. Press ⏻ to turn the fan on.
3. Press ⏻ again to turn it off.

Oscillation

1. Press to turn on oscillation. The fan oscillates to 60^ from side to side.
2. Press 🤒 again to turn off oscillation.

Normal, interval (Nat), or sleep function (Sleep)

Normal

1. Turn the fan on.

2. Press ⏻ until all LED indicators turn off. Select fan speed by pressing 📋

Interval (Nat)

1. Turn the fan on.
2. Press ⏻ until the "Nat" LED indicator comes on. The fan will then run the factory installed interval programme (cannot be altered). All fan speeds (1–4) are used in this programme.

Sleep function (Sleep)

1. Turn the fan on.
2. Press ⚙ until the “Sleep” LED indicator comes on. The fan will then run the factory installed sleep function programme (cannot be altered). Only low fan speeds are used in this programme.

Timer

Press to set the timer in 30-minute intervals up to 8 hours. The fan will turn off automatically once the set time has passed. The timer can be used with any of the functions described above.

Care and maintenance

• Always unplug the product from the wall socket before cleaning.
- To change or clean the filter, remove the air-inlet grille from the back of fan by pressing in its 3 release tabs. Remove the grille. Then remove the filter. Vacuum and change if necessary.
- Wipe the outside of the housing with a clean, damp cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
- Check that the fan motor ventilation slits (10) are free from dust. Vacuum them if necessary.
- Always unplug the fan and store it in a dry, dust-free environment out of children's reach whenever it is not to be used for an extended period.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no visible text or labels

Specifications

Power supply 220–240 V, 50/60 Hz

Power 25 W

Remote control battery 1 × CR2032 (included)

Height 88 cm

Description Symbol Value Unit
Max fan flow rate F 23.78 m^3/min
Fan power input P 24.90 W
Service value SV 0.96 ( m^3/min )/W
Standby power consumption P SB	0.64 W
Fan sound power level L WA	61.56 dB(A)
Maximum air velocity	c 2.99 m/sec
Measurement standard for service value:	IEC 60879:1986 (corr.1992)

Pelarfläkt

ART.NR 18-1286 MODELL FTG 35-DC

36-6188 FTG 35-DC

Technical line drawing of a mechanical component with radial grooves and central bore (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Specifikationer

Nätanslutning 220–240 V, 50/60 Hz

Effekt 25 W

Technical line drawing of a mechanical component with a central blade and circular housing (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Symbol of a trash bin crossed with no visible text or labels

Spesifikasjoner

Spenning 220–240 V, 50/60 Hz

Effekt 25 W

Technical line drawing of a mechanical component with a central blade and circular housing (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Fernbedienung

Technical line drawing of a mechanical component with radial grooves and central bore (no text or symbols)

Technical line drawing of a mechanical component with circular base and internal features (no text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

Technische Daten
