Product Type	Fan Heater
Brand	Clas Ohlson
Model	FH101N (FH101N-UK)
Art. No	18-5092 / 36-7281
Power Consumption	900 W
Rated Voltage	220–240 V AC, 50 Hz
Dimensions (W × D × H)	20 × 12 × 9 cm
Power Cord Length	1.4 m
Heat Output	0.9 kW (nominal)
Temperature Control	Adjustable thermostat with auto on/off
On/Off Switch	Yes (rear switch)
Indicator Light	Yes (power on)
Overheating Protection	Yes (auto shut-off, resettable)
Tip-Over Switch	Yes (auto shut-off if tilted or fallen)
Placement	Must be upright on a level, firm surface
Safety Distance	At least 50 cm to sides/back/top, 120 cm in front
Application	Indoor temporary heating in well-insulated rooms
Cleaning	Wipe with damp cloth; vacuum air vents regularly
Storage	Store indoors when not in use

Frequently Asked Questions - FH101N Clas Ohlson

How do I turn on the fan heater?

Place the heater upright on a level surface and plug it into a wall socket. Turn the thermostat knob to the maximum setting, then set the rear switch [1/0] to I. The indicator light will come on.

Why does the fan heater turn off after a short time?

The thermostat may be set lower than the room temperature. Turn the thermostat knob clockwise to increase the temperature. If it still stops, check if the tip-over switch has been triggered or if the overheating protection has tripped.

What should I do if the fan heater overheats?

Set the switch to 0, unplug the heater, and let it cool for 5–10 minutes. Then plug it back in and switch on. The heater should resume normal operation. Ensure vents are not blocked.

How do I clean the fan heater?

Turn off and unplug the heater, let it cool completely. Wipe the exterior with a soft cloth dampened with water (no detergents). Vacuum the air inlet and outlet regularly.

Can I use the fan heater in a bathroom?

No. The manual warns never to use it in the immediate vicinity of bathtubs, showers, or swimming pools. It is intended for indoor use in dry areas only.

What does the tip-over switch do?

The tip-over switch automatically shuts off the heater if it is knocked over or not placed vertically. Once returned to an upright position on a level surface, it will start working again.

Can I leave the fan heater unattended?

No. The manual explicitly warns never to leave the heater unattended while in use. Always unplug it when not in use.

How do I set the desired temperature?

Turn the thermostat knob to the maximum and let the room warm up. When the desired temperature is reached, slowly turn the knob back until you hear a click and the heater switches off. Leave the knob at that position to maintain the set temperature.

What safety precautions should I take?

Keep flammable materials at least 50 cm from sides/back/top and 120 cm in front. Never cover the heater. Do not use near water or with an extension cord. Ensure children and pets are supervised. Always unplug when not in use.

Where should I place the fan heater?

Place it on a firm, level surface, never directly under a wall socket. Ensure it is upright and the power cord is routed behind to avoid contact with hot air. Keep away from curtains, furniture, and wet areas.

USER MANUAL FH101N Clas Ohlson

Line drawing of a portable electric heater with a circular grille and control knob (no text or symbols)

Art.no

18-5092

36-7281

Model

FH101N-UK

FH101N

Ver. 20180419

900 W Fan Heater

Art.no 18-5092

Model FH101N-UK

36-7281

FH101N

Please read the entire instruction manual before use and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

General requirements for household electrical appliances

• The appliance may be used by children of 8 years and above and by persons with reduced physical, sensory or mental capability or lack of experience and knowledge provided they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Never let children play with the appliance.
• Cleaning and user maintenance must not be performed by children without adult supervision.

Particular requirements for room heaters

Warning: Never cover the appliance. If covered, there is a risk of overheating or even fire.

Warning

• The appliance can become very hot during use and cause burns. Burn hazard. Special care must be taken if the appliance is used in the same room as young children, aged or infirm persons.
• The appliance must never be placed directly beneath a wall socket.
• Never use the appliance in the immediate vicinity of bathtubs, showers or swimming pools.
• The appliance must be kept out of reach of children under 3 years of age unless they are under constant supervision.
• Children between the ages of 3 and 8 years must only switch the appliance on/off provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children between the ages of 3 and 8 years must not plug in, regulate and clean the appliance or perform user maintenance.

Safety instructions

Warning: Dangerous voltage.

• The fan heater should not be used if it is in any way damaged or malfunctioning. Do not use the fan heater if the mains lead or plug is damaged in any way.
• The mains lead must be changed if damaged. This is to prevent the risk of electric shock or fire and should only be carried out by the manufacturer, qualified service facility or qualified technician.
• The fan heater should not be taken apart or modified. The casing houses non-insulated components. Contact with these can lead to fire or electric shock.
• Never lower the fan heater into water or other liquids.
• Never touch the control panel or plug with wet hands.
• Never use the fan heater in the rain or in wet conditions.

Warning

• Never leave the fan heater unattended while in use.
• Do not touch any hot surfaces on the fan heater. Burn hazard. Never move the fan heater while it is in use or before it has cooled down.
• Fire hazard. Flammable materials such as furniture, paper, clothing and curtains must be at least 50 cm from the fan heater above, behind and to the sides plus at least 120 cm in front.
• Do not place towels or similar objects on the fan heater.
• Ensure that the fan heater is kept clean. Make sure that no foreign objects can enter the ventilation openings as this can present a risk of electric shock or fire.
• The fan heater must never be used near flammable gases or liquids.
• The fan heater is only intended for normal domestic use and only in the manner described in this instruction manual. Using the fan heater for other than its intended use may lead to fire, electric shock, other types of personal injuries or material damage.
• Children in the area where the fan heater is used must be kept under supervision.
• The fan heater is intended for indoor use only.
• Make sure to route the mains lead behind the fan heater so that it is not heated by the hot air from the fan heater.
• The fan heater must only be plugged into to an earthed 230 V, 50 Hz power outlet. Never connect the fan heater to the electricity mains using an extension lead.

Important

• Always unplug the fan heater from the wall socket when it is not in use.
- Disconnect the fan heater from the power supply by unplugging it from the wall socket. Make sure that the wall socket and plug are easily accessible.
- The fan heater must not be connected to the mains during installation or service.
- The fan heater must only be used in the upright position.

Product description

Fan heater designed for temporary use in well-insulated rooms.

• Fan heater.
• 900 W.
• Adjustable thermostat.
  • Overheating protection.
• Tip-over switch.

Buttons and functions

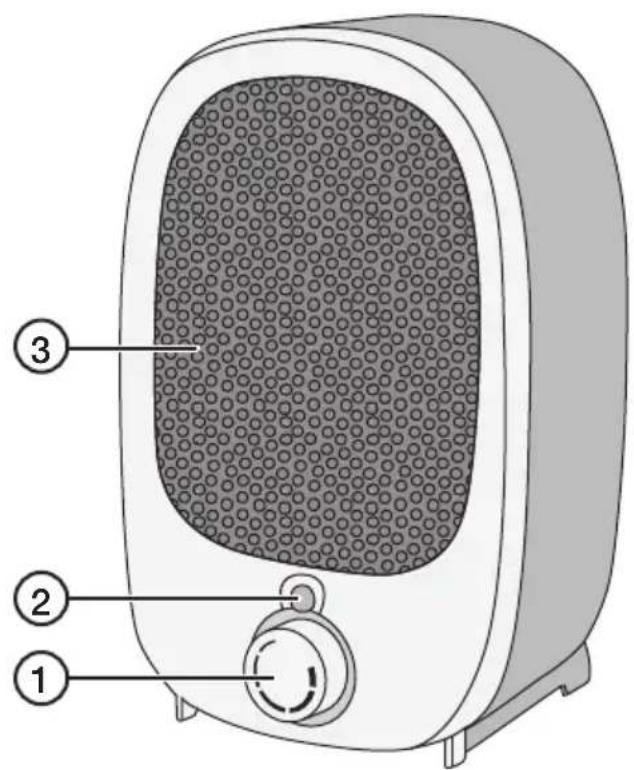

1. Thermostat knob
2. Indicator light
3. Air outlet

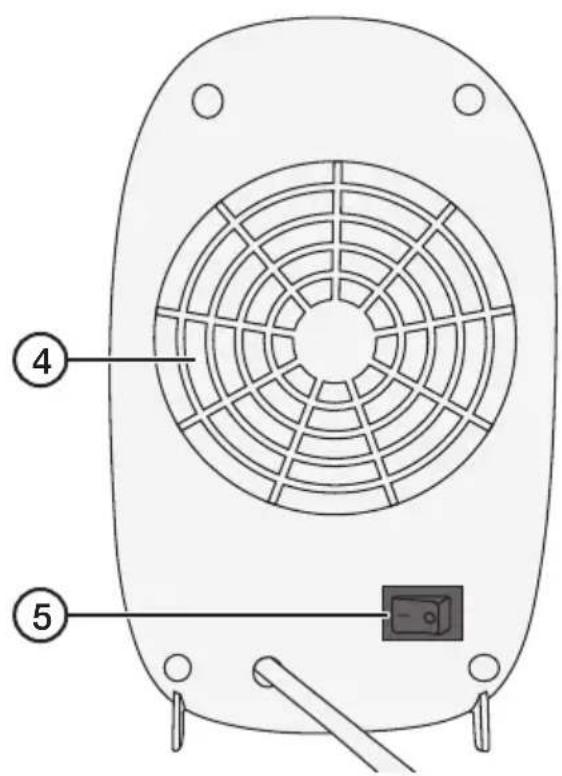

4. Air inlet
5. [1/0] On/off

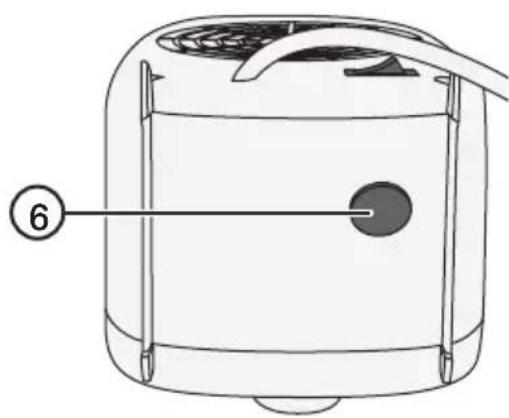

6. Tip-over switch

Instructions for use

Note

• Bear in mind that factors such as the size of the room, the outside temperature and how well the building is insulated, all affect the ability of the heater to warm the room up. If the room is too large the ability of the heater to warm it up to the desired temperature may be insufficient.

• The fan heater must be standing upright on a level surface to ensure that the tip-over switch doesn't trip.

• Place the fan heater on a firm, level surface capable of supporting its weight.

• Plug the heater into a wall socket.
• Turn the thermostat knob (1) to the maximum setting.
• Set the switch [1/0] (5) on the rear of the fan heater to I to switch the fan heater on, the indicator light (2) will come on.
• When the desired ambient temperature has been reached, slowly turn the thermostat knob back until it clicks and the fan heater switches off. Leave the thermostat knob in that position.
• The fan heater will maintain the set temperature by automatically switching on and off.
• The temperature can be adjusted by turning the thermostat knob:

- clockwise to raise the temperature

- anticlockwise to lower the temperature.

1. Set the [1/0] switch to 0 to switch the fan heater off, the indicator light will go out.

Overheating protection

The fan heater is fitted with an overheating safety cut-off protection device which switches the fan heater off if it overheats.

To reset the overheating protection device:

1. Set the [1/0] switch to 0.
2. Unplug the fan heater from the wall socket and let it cool for 5–10 minutes.
3. Then plug the heater back into a wall socket. The heater should now work normally.

Tip-over switch

• The fan heater is fitted with a tip-over switch (6) safety cut-off protection device which switches the fan heater off if it falls over or is not vertical.
• The fan heater will start working again once it has been returned to the upright position on a level surface.

Care and maintenance

• Turn off the fan heater, unplug it and let in cool completely before cleaning.
• Wipe it clean with a soft cloth. Dampen the cloth with a little water if required, do not use detergent, solvent or corrosive chemicals.
• Get into the habit of vacuum cleaning the air inlet and outlet (3 and 4) of the fan heater regularly.
• The fan heater should be stored indoors when it is not in use.

Troubleshooting guide

The fan heater does not start.

Make sure that the fan heater is standing upright and that it is placed on a level surface, otherwise the tip-over switch might have been triggered.Is the power switch set to I?Has the thermostat turned off the fan heater?Turn the thermostat knob clockwiseIs the mains lead intact and properly plugged into the wall socket?Is the wall socket live?The overheating protection has tripped. Reset as instructed in the Overheating protection section.

The fan heater starts but stops after a short time.

The thermostat is set to a lower temperature than the current room temperature. Check the thermostat setting.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling the product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no visible text or labels

Specifications

Rated voltage 220–240 V AC, 50 Hz

Power 900 W

Mains lead 1.4 m

Size 20 × 12 × 9 cm

Information requirement for the electric local space heaters

Model identifier(s): FH101N-H
Art.no: 18-5092/36-7281
Item Symbol Value Unit	Item
Heat output Type of heat input, for electric storage				local space heaters only (select one)
Nominal heat output P	nom	0.9 kW		manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P_min	0.9 kW		manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P_max,c	0.9 kW		electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption	--- --- ---	fan assisted heat output No
At nominal heat output	eI_max	N/A kW		Type of heat output/room temperature control (select one)
At minimum heat output	eI_min	N/A kW		single stage heat output and no room temperature control	No
In standby mode eI	SB	0	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	CLAS OHLSON AB, SE-793 85 INSJÖN, SWEDEN

Test Data

Commission Regulation (EC) No 1275/2008 Requirement

Mode Ecodesign	requirements, from 7 January 2013 Result - Remark Verdict
Off mode Power	consumption in ‘off mode’:Power consumption of equipment in any off-mode condition shall not exceed 0.50 W	0.00 W P
Standby mode P	power consumption in ‘standby mode(s)’:The power consumption of equipment in any condition providing only a reactivation function, or providing only a reactivation function and a mere indication of enabled reactivation function, shall not exceed 0.50 W.		N/A
	The power consumption of equipment in any condition providing only information or status display, or providing only a combination of reactivation function and information or status display shall not exceed 1.00 W.		N/A

Seasonal space heating energy efficiency

Description Value
Seasonal space heating energy efficiency in active mode- _S,on	40 %
For electric local space heaters- _th
The electric to primary energy “conversion coefficient”-CC
F(1) is a correction factor accounting for a positive contribution to the seasonal space heating energy efficiency of electric storage local space heaters due to adjusted contributions for options for heat storage and output; and a negative contribution to seasonal space heating efficiency for commercial local space heaters due to adjusted contributions for options for the heat output, expressed in %;	0.0 %
F(2) is a correction factor accounting for a positive contribution to the seasonal space heating energy efficiency due to adjusted contributions of controls of indoor heating comfort, the values of which are mutually exclusive, cannot be added to each other, expressed in %;	6.0 %
F(3) is a correction factor accounting for a positive contribution to the seasonal space heating energy efficiency due to adjusted contributions of controls for indoor heating comfort the values of which can be added to each other, expressed in %;	0.0 %
F(4) is a correction factor accounting for a negative contribution to the seasonal space heating energy efficiency by auxiliary electricity consumption, expressed in %;	0.0 %
F(5) is a correction factor accounting for a negative contribution to the seasonal space heating energy efficiency by energy consumption of a permanent pilot flame, expressed in %.	0.0 %
Seasonal space heating energy efficiency- _S	36.00 %
Verdict P
