PTC924-L - Fan Clas Ohlson - Free user manual and instructions

Type	Oscillating Fan Heater
Brand	Clas Ohlson
Model	PTC924-L (Art. no 18-5091 / 36-7279)
Power Ratings	750 W (low) and 1500 W (high)
Fan Only Mode	Yes
Heating Element	PTC (Positive Temperature Coefficient)
Voltage	220–240 V AC, 50 Hz
Power Cord Length	1.4 m
Dimensions (W x H x D)	29 x 21 x 14 cm
Oscillation	Yes, with on/off switch on rear
Thermostat	Adjustable, mechanical
Overheating Protection	Yes, automatic shut-off with manual reset
Tip-Over Switch	Yes, automatic shut-off when tilted
Controls	Rotary knobs (mode selector, thermostat)
Indicator Light	Yes, power on indicator
Carrying Handle	Yes
Cleaning	Wipe with damp cloth; clean vents with soft brush or vacuum
Storage	Dry location when not in use
Safety Clearance	50 cm from sides/top/back, 120 cm front from flammable materials
Indoor Use Only	Yes
Weight	Approx. 1.5 kg (estimated)

Frequently Asked Questions - PTC924-L Clas Ohlson

What are the power settings on the PTC924-L fan heater?

The fan heater has two heat settings: 750 W (low) and 1500 W (high), plus a fan-only mode without heat.

How do I activate the oscillation function?

Set the [1/0] switch on the rear of the fan heater to I to turn oscillation on, and to 0 to turn it off.

How should I clean the fan heater?

First, unplug the heater and let it cool. Clean the exterior with a damp cloth. Use a soft brush or vacuum cleaner to clean the air inlet and outlet.

Why doesn't the fan heater start?

Ensure the heater is upright on a level surface (tip-over switch), the power switch is on, the thermostat is set high enough, the mains lead is intact and plugged in, and the overheating protection hasn't tripped. If tripped, reset by unplugging and letting it cool.

Why does the fan heater stop after a short time?

The thermostat might be set to a lower temperature than the current room temperature. Turn the thermostat knob clockwise to increase the set temperature.

Can I leave the fan heater unattended?

No, never leave the fan heater unattended while in use. It can become very hot and pose a fire or burn hazard.

Where should I place the fan heater?

Place it on a flat, stable surface upright. Keep 50 cm clearance from flammable materials on sides, top, and back, and 120 cm clearance in front. Never place directly beneath a wall socket.

Can I use an extension cord?

No, the fan heater must be plugged directly into an earthed 230 V, 50 Hz power outlet. Using an extension cord is not recommended.

How do I reset the overheating protection?

Turn the mode selector to 0, unplug the heater, let it cool for 5–10 minutes, then plug it back in. The heater should resume normal operation.

What is the tip-over switch?

It is a safety device that automatically switches off the heater if it falls over or is not vertical. It will resume operation once returned to an upright position on a level surface.

USER MANUAL PTC924-L Clas Ohlson

Oscillating Fan Heater

Svepande värmefläkt

Sveipende varmevifte

Line drawing of a portable electric heater with two rotary gauges (no text or symbols)

Art.no

18-5091

36-7279

Model

PTC924-L-UK

PTC924-L

Ver. 20180419

Oscillating Fan Heater

Art.no 18-5091 Model PTC924-L-UK

36-7279

PTC924-L

Please read the entire instruction manual before use and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

General requirements for household electrical appliances

• The product may be used by children of 8 years and above and by persons with reduced physical, sensory or mental capability or lack of experience and knowledge provided they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
• Never let children play with the product.
• Cleaning and user maintenance must not be performed by children without adult supervision.

Particular requirements for room heaters

Warning: Never cover the product. If covered, there is a risk of overheating or even fire.

Warning

• The product can become very hot during use and cause burns. Burn hazard. Special care must be taken if the product is used in the same room as young children, aged or infirm persons.
• The product must never be placed directly beneath a wall socket.
• Never use the product in the immediate vicinity of bathtubs, showers or swimming pools.
• The product must be kept out of reach of children under 3 years of age unless they are under constant supervision.
• Children between the ages of 3 and 8 years must only switch the product on/off provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
• Children between the ages of 3 and 8 years must not plug in, regulate and clean the product or perform user maintenance.

Safety instructions

Warning: Dangerous voltage.

• The fan heater should not be used if it is in any way damaged or malfunctioning. Do not use the fan heater if the mains lead or plug is damaged in any way.
• The mains lead must be changed if damaged. This is to prevent the risk of electric shock or fire and should only be carried out by the manufacturer, qualified service facility or qualified technician.
• The fan heater should not be taken apart or modified. The casing houses non-insulated components. Contact with these can lead to fire or electric shock.
• Never lower the fan heater into water or other liquids.
• Never touch the control panel or plug with wet hands.
• Never use the fan heater in the rain or in wet conditions.

Warning

• Never leave the fan heater unattended while in use.
• Do not touch any hot surfaces on the fan heater. Burn hazard. Never move the fan heater while it is in use or before it has cooled down.
• Fire hazard. Flammable materials such as furniture, paper, clothing and curtains must be at least 50 cm from the fan heater above, behind and to the sides and at least 120 cm away from the front.
• Do not place towels or similar objects on the fan heater.
• Ensure that the fan heater is kept clean. Make sure that no foreign objects can enter the ventilation openings as this can present a risk of electric shock or fire.
• The fan heater must never be used near flammable gases or liquids.
• The fan heater is only intended for normal domestic use and only in the manner described in this instruction manual. Using the fan heater for other than its intended use may lead to fire, electric shock, other types of personal injuries or material damage.
• Children in the area where the fan heater is used must be kept under supervision.
• The fan heater is intended for indoor use only.
• Make sure to route the mains lead behind the fan heater so that it is not heated by the hot air from the fan heater.
• The fan heater must only be plugged into to an earthed 230 V, 50 Hz power outlet. Never connect the fan heater to the electricity mains using an extension lead.

Important

• Always unplug the fan heater from the wall socket when it is not in use.
- Disconnect the fan heater from the power supply by unplugging it from the wall socket. Make sure that the wall socket and plug are easily accessible.
- The fan heater must not be connected to the mains during installation or service.
- The fan heater must only be used in the upright position.

Product description

Fan heater designed for temporary use in well-insulated rooms.

• Fan heater with an oscillation function.
- Two heat settings, 750 and 1500 W.
• One fan only mode, without heat.
- Energy-saving, PTC heating element which adjusts heat output according to the surrounding temperature.
- Adjustable thermostat.
• Overheating protection.
- Tip-over switch.

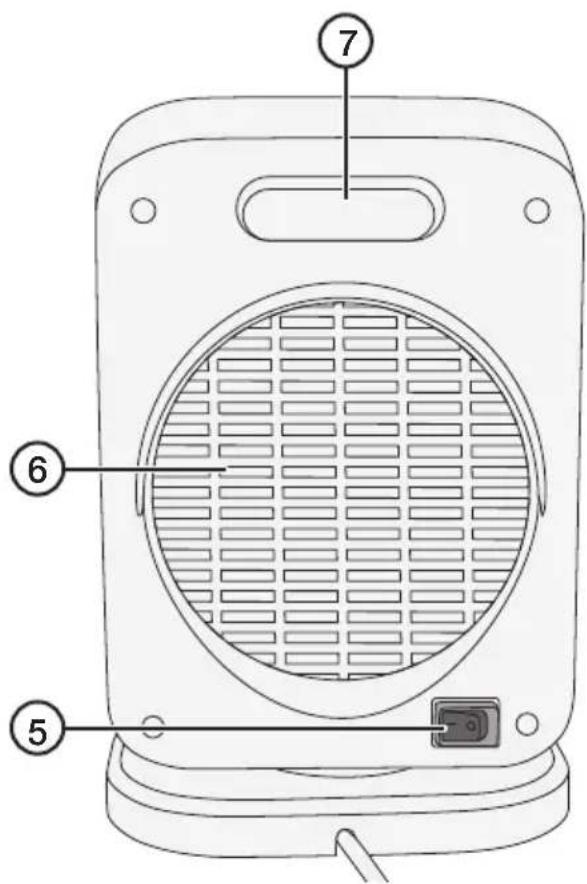

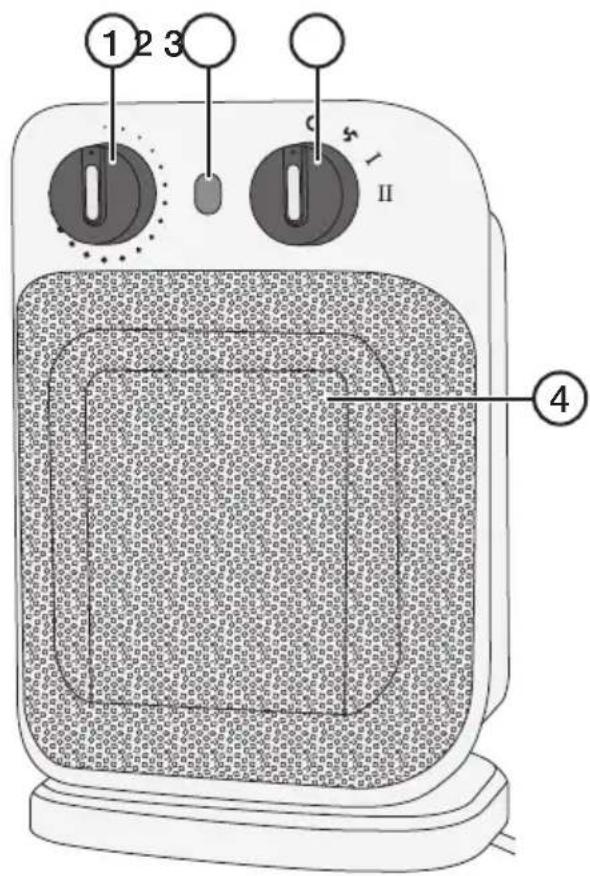

Buttons and functions

1. Thermostat knob
2. Indicator light
3. Mode selector
4. Air outlet
5. [1/0] Oscillation on/off
6. Air inlet
7. Carrying handle

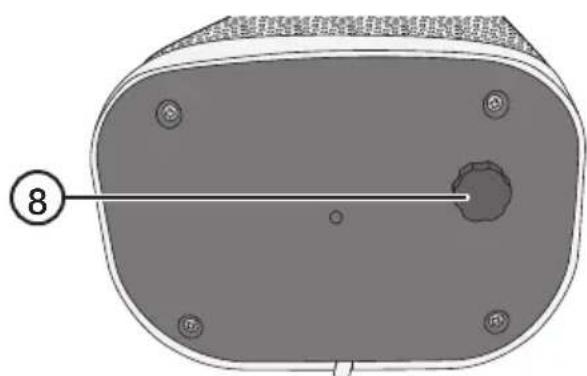

8. Tip-over switch

Diagram of a mechanical component with a labeled section (8), showing internal features and mounting holes (no text or symbols beyond the number)

Instructions for use

Note

• Bear in mind that factors such as the size of the room, the outside temperature and how well the building is insulated, all affect the ability of the heater to warm the room up. If the room is too large the ability of the heater to warm it up to the desired temperature may be insufficient.

• The fan heater must be standing upright on a level surface to ensure that the tip-over switch doesn't trip.

• Place the fan heater on a flat and stable surface.

• Plug the fan heater into a wall socket.

Fan only mode

1. Turn the thermostat knob (1) to the maximum setting.
2. Turn the mode selector (3) to switch the fan on, the indicator light (2) will come on.
3. Turn the mode selector to 0 to switch the fan off, the indicator light will go out.

Fan with heating

1. Turn the thermostat knob clockwise to the maximum setting.
2. Turn the mode selector to I (750 W) or II (1500 W) to switch the fan heater on, the indicator light will come on.
3. When the desired ambient temperature has been reached, slowly turn the thermostat knob back until it clicks and the fan heater switches off. Leave the thermostat knob in that position.
4. The fan heater will maintain the set temperature by automatically switching on and off.
5. The temperature can be adjusted by turning the thermostat knob:
6. clockwise to raise the temperature

7. anticlockwise to lower the temperature.

8. Turn the mode selector to 0 to switch the fan heater off, the indicator light will go out.

Oscillation function

1. Set the switch [1/0] (5) on the rear of the fan heater to I to switch the oscillation function on.
2. Set the [1/0] switch to 0 to disengage the oscillation function.

Overheating protection

The fan heater is fitted with an overheating safety cut-off protection device which switches the fan heater off if it overheats.

To reset the overheating protection device:

1. Turn the mode selector to 0.
2. Unplug the fan heater from the wall socket and let it cool for 5–10 minutes.
3. Then plug the heater back into a wall socket. The heater should now work normally.

Tip-over switch

- The fan heater is fitted with a tip-over switch (8) safety cut-off protection device which switches the fan heater off if it falls over or is not vertical.

- The fan heater will start working again once it has been returned to the upright position on a level surface.

Care and maintenance

• Switch the heater off, unplug it from the power outlet socket and let it cool.
• Clean the fan heater using a damp cloth. Clean the air inlet (6) and the air outlet (4) with a soft brush or vacuum cleaner.
• Store the fan heater in a dry location when not in use.

Troubleshooting guide

The fan heater does not start.

Make sure that the fan heater is standing upright and that it is placed on a level surface, otherwise the tip-over switch might have been triggered.Is the power switch set to I?Has the thermostat turned off the fan heater?Turn the thermostat knob clockwiseIs the mains lead intact and properly plugged into the wall socket?Is the wall socket live?The overheating protection has tripped. Reset as instructed in the Overheating protection section.

The fan heater starts but stops after a short time.

The thermostat is set to a lower temperature than the current room temperature. Check the thermostat setting.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner.

When recycling the product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Specifications

Rated voltage 220–240 V AC, 50 Hz

Power 750 and 1500 W

Mains lead 1.4 m

Size 29 × 21 × 14 cm

Information requirement for the electric local space heaters

Model identifier(s): PTC924-L
Art.no: 18-5091/36-7279
Item Symbol Value Unit	Item
Heat output Type of heat input, for electric storage				local space heaters only (select one)
Nominal heat output P	nom	1.5 kW		manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P_min	0.75 kW		manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P_max,c	1.5 kW		electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption	--- --- ---	fan assisted heat output No
At nominal heat output	eI_max	N/A kW		Type of heat output/room temperature control (select one)
At minimum heat output	eI_min	N/A kW		single stage heat output and no room temperature control	No
In standby mode eI	SB	0	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details	CLAS OHLSON AB, SE-793 85 INSJÖN, SWEDEN

Test Data

Commission Regulation (EC) No 1275/2008 Requirement

Mode Ecodesign	requirements, from 7 January 2013 Result - Remark Verdict
Off mode Power	consumption in ‘off mode’:Power consumption of equipment in any off-mode condition shall not exceed 0.50 W	0.00 W P
Standby mode P	Power consumption in ‘standby mode(s)’:The power consumption of equipment in any condition providing only a reactivation function, or providing only a reactivation function and a mere indication of enabled reactivation function, shall not exceed 0.50 W.		N/A
	The power consumption of equipment in any condition providing only information or status display, or providing only a combination of reactivation function and information or status display shall not exceed 1.00 W.		N/A

Seasonal space heating energy efficiency

Description Value
Seasonal space heating energy efficiency in active mode- _S,on	40 %
For electric local space heaters- _th
The electric to primary energy “conversion coefficient”-CC
F(1) is a correction factor accounting for a positive contribution to the seasonal space heating energy efficiency of electric storage local space heaters due to adjusted contributions for options for heat storage and output; and a negative contribution to seasonal space heating efficiency for commercial local space heaters due to adjusted contributions for options for the heat output, expressed in %;	0.0 %
F(2) is a correction factor accounting for a positive contribution to the seasonal space heating energy efficiency due to adjusted contributions of controls of indoor heating comfort, the values of which are mutually exclusive, cannot be added to each other, expressed in %;	6.0 %
F(3) is a correction factor accounting for a positive contribution to the seasonal space heating energy efficiency due to adjusted contributions of controls for indoor heating comfort the values of which can be added to each other, expressed in %;	0.0 %
F(4) is a correction factor accounting for a negative contribution to the seasonal space heating energy efficiency by auxiliary electricity consumption, expressed in %;	0.0 %
F(5) is a correction factor accounting for a negative contribution to the seasonal space heating energy efficiency by energy consumption of a permanent pilot flame, expressed in %.	0.0 %
Seasonal space heating energy efficiency- _S	36.00 %
Verdict P

Svepande värmefläkt

Art.nr 18-5091 Modell PTC924-L-UK

36-7279

PTC924-L

Diagram of a mechanical component with a central hole and circular features, labeled with number 8 (no text or symbols beyond the number)

Användning

Obs!

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Specifikationer

Nätanslutning 220–240 V AC, 50 Hz

Diagram of a mechanical component with a central hole and circular features, labeled with number 8 (no text or symbols beyond the number)

Bruk

Obs!

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Spesifikasjoner

Strømtilkobling 220–240 V AC, 50 Hz

Diagram of a mechanical component with a central hole and circular features, labeled with number 8 (no text or symbols beyond the number)

Käyttö

△ Huom.!

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Tekniset tiedot

Diagram of a mechanical component with a central hole and mounting holes, labeled with number 8 (no text or symbols beyond the number)

Bedienung

Hinweis

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Technische Daten
