FT23-16J - Fan Clas Ohlson - Free user manual and instructions

Brand	Clas Ohlson
Model	FT23-16J
Product Type	Tower Fan
Dimensions (H x W x D)	100 cm x 30 cm x 30 cm
Weight	3.5 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	40 W
Number of Speed Settings	3 speed levels
Oscillation	Yes, 60°
Timer	Up to 7.5 hours
Remote Control	Included
Safety Features	Tip-over protection, overheat protection
Cleaning Instructions	Wipe with a damp cloth, do not immerse in water
Spare Parts	Replacement remote control available
Reparability	Motor and control board replaceable by qualified technician
Noise Level	Approx. 40 dB (low speed)

Frequently Asked Questions - FT23-16J Clas Ohlson

How do I assemble the FT23-16J tower fan?

The fan comes pre-assembled. Simply remove it from the box, place it on a flat surface, and plug it in. Attach any included accessories like the remote control or base if separate.

How do I clean the fan?

Turn off and unplug the fan. Use a soft, damp cloth to wipe the exterior. Do not use any abrasive cleaners or immerse the fan in water. Clean the air inlet and outlet grilles regularly.

Why is my remote control not working?

Check the batteries in the remote control. Ensure there are no obstructions between the remote and the fan. Try pointing the remote directly at the fan. If it still doesn’t work, replace the batteries or contact customer support.

Can I use the fan without the oscillation function?

Yes, the oscillation can be turned on or off. Press the oscillation button on the remote or control panel to stop the fan from oscillating and keep it blowing in one direction.

How do I set the timer?

Press the timer button on the remote or control panel. The timer can be set in increments up to 7.5 hours. The fan will automatically shut off after the set time.

What are the different speed settings?

The fan has 3 speed levels: low, medium, and high. Press the speed button to cycle through each setting. The fan will increase airflow as you select higher speeds.

Is the fan noisy?

The FT23-16J is designed to operate quietly. On low speed, noise is approximately 40 dB, which is comparable to a soft whisper. Higher speeds produce slightly more noise but remain comfortable for most environments.

Does the fan have safety features?

Yes, the fan includes tip-over protection which automatically turns off the fan if it is accidentally knocked over. It also has overheat protection to prevent overheating.

Can I store the fan during winter?

Yes, store the fan in a dry, cool place. Clean it first, then cover it to protect from dust. Store in its original box if possible.

What is the warranty on this fan?

The fan comes with a 1-year warranty from Clas Ohlson. Keep your receipt for proof of purchase. For warranty claims, contact Clas Ohlson customer service.

USER MANUAL FT23-16J Clas Ohlson

Line drawing of a standard electric fan with mesh grille and base mount (no text or symbols)

Art.no

18- 1367

36-6575

Model

FT23-16J-UK

FT23-16J

Ver. 20191014

Table Fan

Art.no 18-1367 Model FT23-16J-UK

36-6575 FT23-16J

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

• Never use the product if the mains lead, plug or any other part is damaged or is not working properly.
• Never try to alter, repair or modify the product in any way.
• The product is only intended for indoor use in a dry, clean environment. Never place the product where there is a risk of it falling into water or other liquid.
• Always unplug the product from the power point when it is not in use.
• Never leave unsupervised children together with the product.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Never connect the product to the mains before it is completely assembled.
• Never poke any foreign objects through the safety grille.
• Never turn the product off by pulling the plug out of the wall socket. Always turn the product off using the power switch.
• The mains lead should be checked regularly. Never use the product if the mains lead or plug is damaged.
• If the mains lead is damaged it should only be replaced by a qualified electrician.

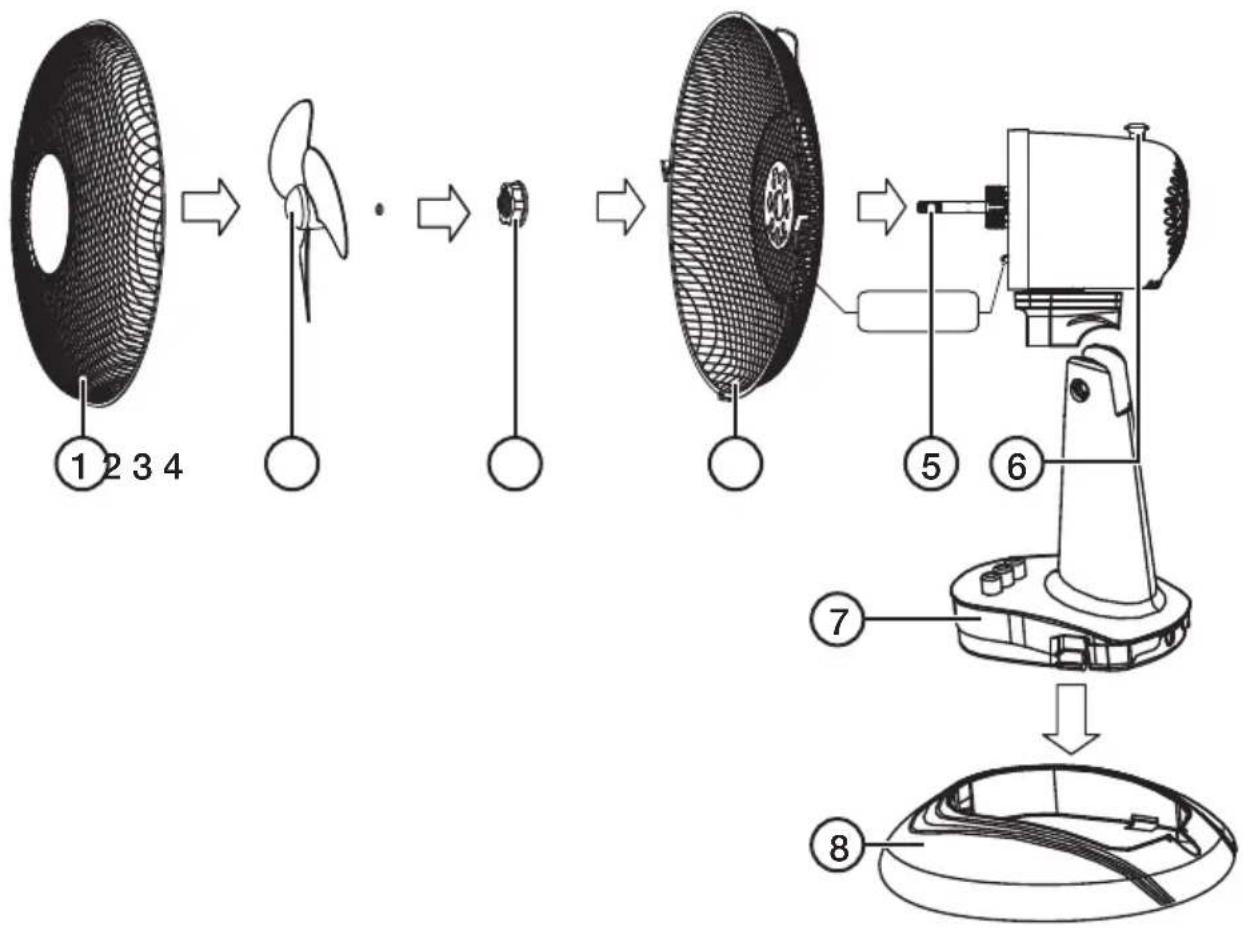

Product description

1. Front safety grille
2. Fan blade assembly
3. Rear safety grille lock nut
4. Rear safety grille
5. Drive shaft
6. Oscillation knob
7. On/two fan speed buttons and off button
8. Fan base

Assembly

Line drawing of a mechanical device with a circular base and attached plug (no text or symbols)

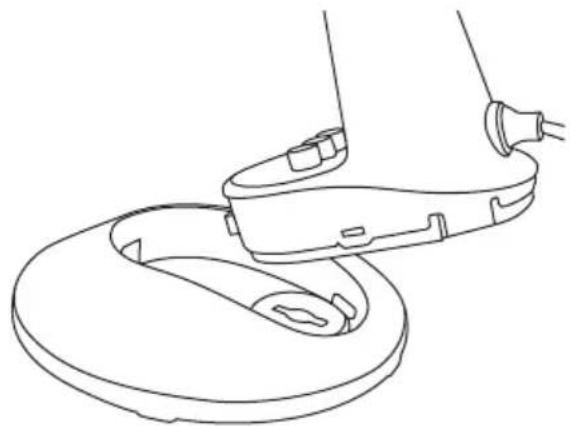

1. Align the fan body's foot over the base and push down until it clicks into place.

Top-down schematic of a mechanical component with a central rotating knob and surrounding curved arms (no text or symbols)

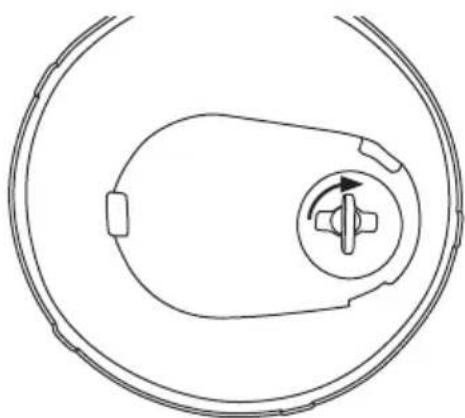

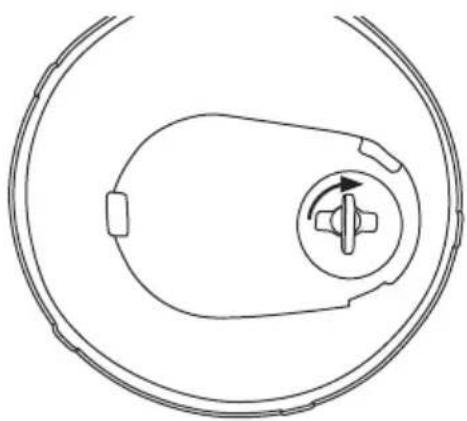

1. Turn the lock knob on the bottom of the fan body's foot to lock it to the base.

2. Mount the rear grille (4) onto the fan head and lock it into place with the lock nut (3).

3. Fit the fan blade assembly (2) onto the drive shaft (5). Make sure that the metal lock ring on the inside of the fan blade surrounds the plastic rim and locks the fan blade assembly securely onto the drive shaft.

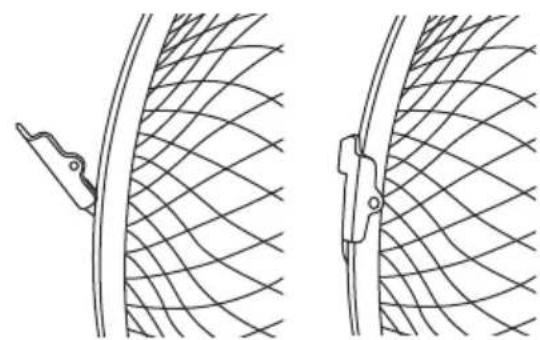

4. Align and hold the front grille (1) against the rear grille so that the screw holes on both halves are in alignment with each other. Then fasten the two halves together by clipping the two clips on the rear grille over the edge of the front grille.

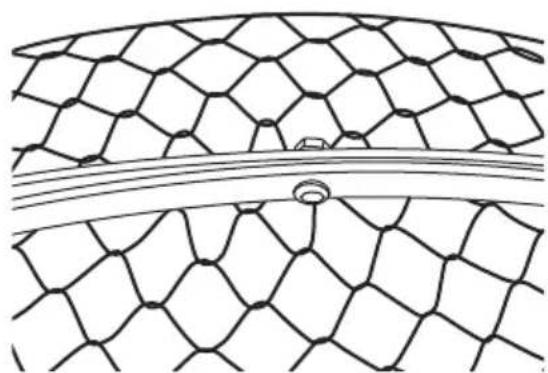

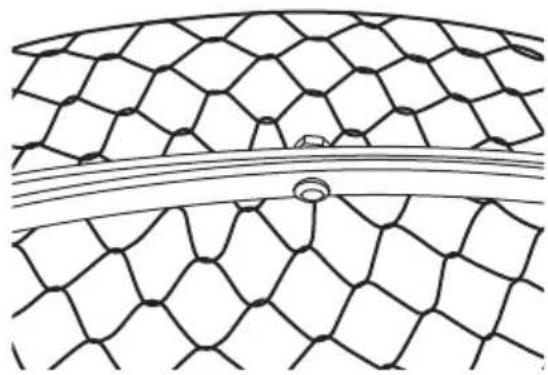

5. Fasten the two halves of the grille together by inserting screw through the hole on the top edge of both grille halves and fasten them together with the nut.

Technical line drawing showing two views of a mesh fence with a clip attached (no text or symbols)

Diagram of a hexagonal mesh structure with a central circular hole and horizontal lines, no text or symbols present.

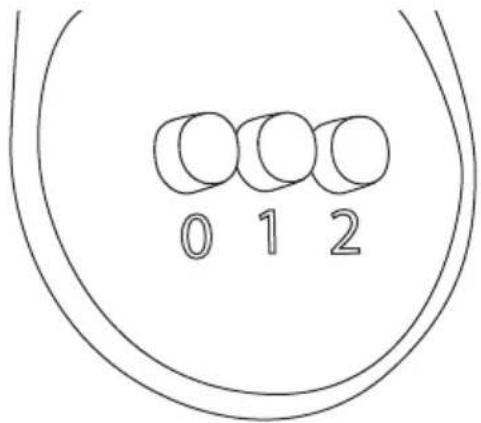

Off and on/speed control buttons

Plug the mains lead into a wall socket.

• [0] Off
• [1], [2] On/ fan speed selector buttons

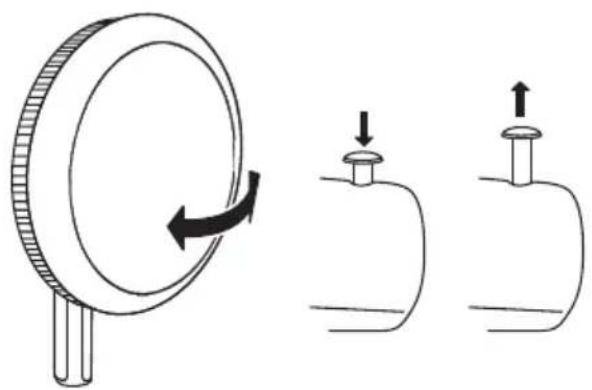

Oscillation on/off knob

Press down the oscillation knob (6) to start oscillation, pull up on the knob to turn off oscillation.

Diagram showing a magnifying glass with an arrow indicating rotation, and two separate views of a bottle with arrows indicating movement (no text or symbols)

Care and maintenance

• Clean the product using a lightly moistened cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
• Always unplug the fan from the power point before cleaning it or when it is not to be used for a long time.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Specifications

Rated voltage 220–240 V AC, 50 Hz

Power 25 W

Diameter 23 cm

Width 215 mm

Depth 275 mm

Height 280 mm

Cable length 1.8 m

Weight 1.5 kg

Description Symbol Value Unit
Max fan flow rate F 13.37			m^3/min
Fan power input P 19.60 W
Service value	SV	0.68	(m^3/min)/W
Standby power consumption	P_SB	0	W
Fan sound power level	LwA	50.69 dB(A)
Maximum air velocity	c 2.93 metres/sec
Measurement standard for service value	IEC 60879:1986 (corr.1992)

Bordsfläkt

Art.nr 18-1367 Modell FT23-16J-UK 36-6575 FT23-16J

Line drawing of a mechanical device with a circular base and attached plug (no text or symbols)

Pure technical line drawing of a circular mechanical component with internal components and a central shaft (no text or symbols)

Two diagrams showing a mesh fence with a clip attached to the left and a separate view of a cable being inserted into the right (no text or symbols)

Diagram of a hexagonal mesh structure with a central circular hole and curved lines, no text or symbols present.

Diagram showing a magnifying glass rotating around a circular object with directional arrows, and two separate views of a cylindrical object with arrows indicating motion (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Specifikationer

Nätanslutning 220–240 V AC, 50 Hz

Effekt 25 W

Diameter 23 cm

Bredd 215 mm

Djup 275 mm

Höjd 280 mm

Kabellängd 1,8 m

Vikt 1,5 kg

Line drawing of a mechanical device with a circular base and attached plug (no text or symbols)

1. Tilpass så knasten på fremkant av hoveddelen passer mot uttaket i bunnplaten og press basen ned til den festes til bunnplaten med et klikk.

Pure technical line drawing of a circular mechanical component with internal components and a central shaft (no text or symbols)

1. Drei låserattet en kvart omdreining medurs.

2. Fest det bakre beskyttelsesgitteret (4) på viftehodet og lås den med låsemutteren (3).

3. Fest viftebladet (2) på motorakselen (5). Kontroller at metallringen (låsingen) på viftebladets innside sitter festet slik at den låser bladet på motorakselen.

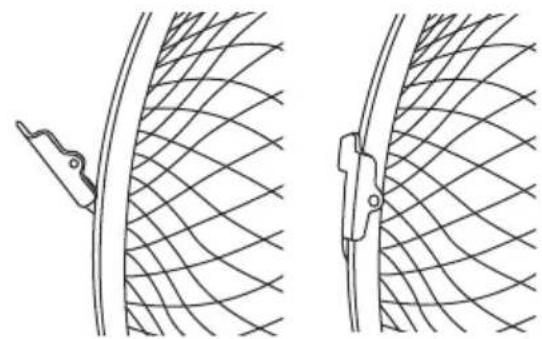

4. Tilpass sånn at det fremre gitteret (1) treffer riktig på det bakre og fest det ved å slå inn de fire låseflikene på det bakre gitterets over sidekantene på det fremre gitteret.

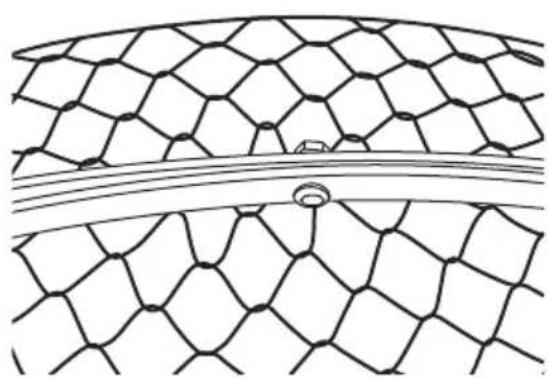

5. Sikre ekstra ved å skru i den medfølgende skruen og mutteren i hullet på overkant av gitteret.

Technical line drawing showing two views of a mesh fence with a clip attached (no text or symbols)

Diagram of a hexagonal mesh structure with a central circular hole and curved lines, no text or symbols present.

Diagram showing a magnifying glass with an arrow indicating rotation, and two separate views of a cylindrical object with arrows pointing upward (no text or symbols)

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Spesifikasjoner

Nettspenning 220–240 V AC, 50 Hz

Effekt 25 W

Diameter 23 cm

Bredde 215 mm

Dybde 275 mm

Høyde 280 mm

Line drawing of a mechanical device with a circular base and attached plug (no text or symbols)

Pure technical line drawing of a circular component with internal mechanism (no text or symbols)

Two diagrams showing a mesh fence with a clip attached, and a separate view of a cable being inserted (no text or symbols present)

Diagram of a hexagonal mesh structure with a central circular hole and horizontal lines, no text or symbols present.

Diagram showing a magnifying glass with an arrow indicating rotation, and two separate views of a bottle with arrows pointing upward (no text or symbols)

Huolto ja ylläpito

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Tekniset tiedot

Line drawing of a mechanical device with a circular base and attached plug (no text or symbols)

Pure technical line drawing of a circular mechanical component with internal rotation arrow (no text or symbols)

Diagram showing two views of a cable or wire mesh structure with a clip attached (no text or symbols)

Diagram of a hexagonal mesh structure with a central circular hole and horizontal lines, no text or symbols present.

Diagram showing a magnifying glass with an arrow indicating rotation, and two separate views of a bottle with arrows indicating movement (no text or symbols)

Pflege und Wartung

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Technische Daten
