PRO JT18-P - Saw Cocraft - Free user manual and instructions

Product Type	Cordless Jigsaw
Brand	Cocraft
Model	PRO JT18-P (also CSJ18H.2, Art.no 41-1242)
Power Source	Battery (sold separately, 18V Li-ion)
No-Load Speed	0-2150 strokes/min
Blade Holder	T-shank
Cutting Capacity (Wood)	65 mm
Cutting Capacity (Aluminium)	20 mm
Cutting Capacity (Steel)	10 mm
Footplate Tilt	0-45° (left and right)
Pendulum Action	4-stage adjustable
Work Light	LED (activates with trigger)
Weight (with 2.0 Ah battery)	2.4 kg
Noise Level (LpA)	82.4 dB(A), K=3 dB(A)
Vibration (Wood cutting)	7.68 m/s², K=1.5 m/s²
Vibration (Metal cutting)	5.89 m/s², K=1.5 m/s²
Safety Features	Trigger lock, overload protection, overheating protection, deep discharge protection
Battery Indicator	3-level LED indicator (100%, 90%, 25%)
Charging Time (2.0 Ah battery)	Approx. 40 minutes
Charging Time (4.0 Ah battery)	Approx. 90 minutes
Included Accessories	Allen key, splinter guard, dust extractor adaptor
Maintenance	Clean with damp cloth and mild detergent; keep ventilation openings clear
Storage	Store in dry place, out of reach of children; remove battery when not in use

Frequently Asked Questions - PRO JT18-P Cocraft

How do I change the saw blade on the Cocraft PRO JT18-P jigsaw?

First, remove the battery. Turn the blade clamp to the open position, insert the new T-shank blade fully into the clamp, then release the clamp to lock it. Ensure the blade runs along the guide roller and is securely fastened.

How do I adjust the footplate angle?

Loosen the socket head cap screw with the included hex key, slide the footplate forward, tilt to desired angle (0-45° left or right), then tighten the screw. For fixed settings (0° and 45°), slide the footplate back to the detent.

What does the pendulum action selector do?

The pendulum action (positions 0 to III) controls the blade's orbital motion. Position 0 is for metal and hard plastics (no pendulum), I for non-ferrous metals and hardwood, II for wood, and III for fastest cuts in wood.

Which batteries are compatible with this jigsaw?

The jigsaw uses 18V Li-ion batteries from Cocraft's PRO series. Both 2.0 Ah and 4.0 Ah batteries are available (sold separately). The charger is also sold separately.

How long does it take to charge the battery?

Charging time is approximately 40 minutes for a 2.0 Ah battery and 90 minutes for a 4.0 Ah battery, using the specified charger. Charge only between 5-40°C.

What should I do if the jigsaw won't start?

Check if the battery is discharged (recharge if needed). If the overload or overheating protection triggered, release the trigger and let the tool cool for a few seconds. If the problem persists, contact customer service.

How do I clean and maintain the jigsaw?

Wipe the jigsaw with a damp cloth using only mild cleaning agents. Keep the motor ventilation openings free from contaminants. Do not use solvents or corrosive chemicals. Store in a dry place.

Can I use the splinter guard when the footplate is tilted?

No, the splinter guard should only be used when the footplate angle is set to 0°. It helps prevent surface splintering on wood.

What safety precautions should I take when using the jigsaw?

Always wear eye and hearing protection. Keep hands away from the blade, secure the workpiece, and ensure the battery is removed before adjustments. Do not force the tool.

How should I dispose of the jigsaw or battery?

Do not dispose of with household waste. Take to a local recycling facility or contact the place of purchase for environmentally safe disposal. Batteries must be disposed of separately.

USER MANUAL PRO JT18-P Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Exterior view of a Cocraft PROJEDITION manual tool (no text or symbols visible on the device itself)

Art.no Model

41-1242

CSJ18H.2

Ver. 20170310

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

General Power Tool Safety Warnings – Personal Safety

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to a power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

4) Power tool use and care

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additional seek medical help. Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Specific safety instructions for jigsaws

Warning: Always remove the battery from the jigsaw before performing any adjustment, service or maintenance.

1. Hold the jigsaw by its isolated gripping surfaces whenever there is a risk of the saw blade coming into contact with hidden live wires or its own power flex. If the saw blade comes into contact with live wires it may electrify the metal parts of the jigsaw which can give the user an electric shock.
2. Keep your hands away from the blade and other moving parts.

3. Do not reach under the workpiece being sawn. Be extra careful if the blade or your hand is out of sight. Make sure that the underside of the workpiece is free of obstacles.

4. Do not use blunt or damaged saw blades. Bent saw blades can easily break or cause kickback.

5. Start the saw and let it run up to full speed before starting to cut.
6. Keep the footplate against the workpiece at all times. Extra care should be taken when using the saw with the footplate tilted so as not to exert undue lateral force onto the saw blade.
7. Secure the workpiece with a clamp, vice, etc.
8. Make sure that the settings are correct and that the blade is securely fastened in the blade holder before beginning to saw.
9. Make sure that the saw blade has come to a complete stop before removing the saw from the cut. The saw blade should not be stopped by applying lateral force to the side of the blade.

Safety Warnings for battery pack

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

c) Do not expose the battery pack to heat or fire. Avoid storage in direct sunlight.

d) Do not subject the battery pack to mechanical shock.

e) In the event of battery leakage, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.

f) Seek medical advice immediately if a cell or battery pack has been swallowed.

g) Keep the battery pack clean and dry.

h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.

i) The battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.

j) Do not maintain the battery pack on charge when not in use.

k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.

I) The battery pack gives its best performance when it is operated at normal room temperature (20 ± 5 °C).

m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.

n) Recharge only with the specified charger. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
o) Do not use any battery pack which is not designed for use with the equipment.
p) Keep battery pack out of the reach of children.
q) Retain the original product literature for future reference.
r) Remove the battery from the equipment when not in use.
s) Dispose of properly.

General safety instructions for batteries and chargers

• Never attempt to dismantle a battery.
• Never store a battery in direct sunlight or at temperatures above 40 °C.
• Only charge the battery when the ambient temperature is between +5 and 40 °C.
• Never expose the battery or charger to water.

Vibration

• The measurement of the vibration emission level declared in this instruction manual has been carried out in accordance with a standardised test method described in EN 60745 and can be used for comparing one power tool with another.
• The measurement method may also be used for a preliminary assessment of vibration exposure.
• The declared vibration emission level applies when the power tool is used in accordance with this instruction manual. If however, the power tool is used for other purposes and with other accessories or has not been properly maintained, the vibration emission level could increase significantly over the total working period.
• For an exact assessment of the vibration exposure, the times when the tool is switched off or running idle should also be taken into account. This significantly reduces the vibration exposure over the total working period. Decide upon safety measures to protect the operator from the effects of vibration during all types of use.

Product safety symbols

Read the entire instruction manual.

Always use ear protection.

Always use safety glasses.

Always use respiratory protection.

Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

For indoor use only.

Do not expose the product to water, rain or wet conditions.

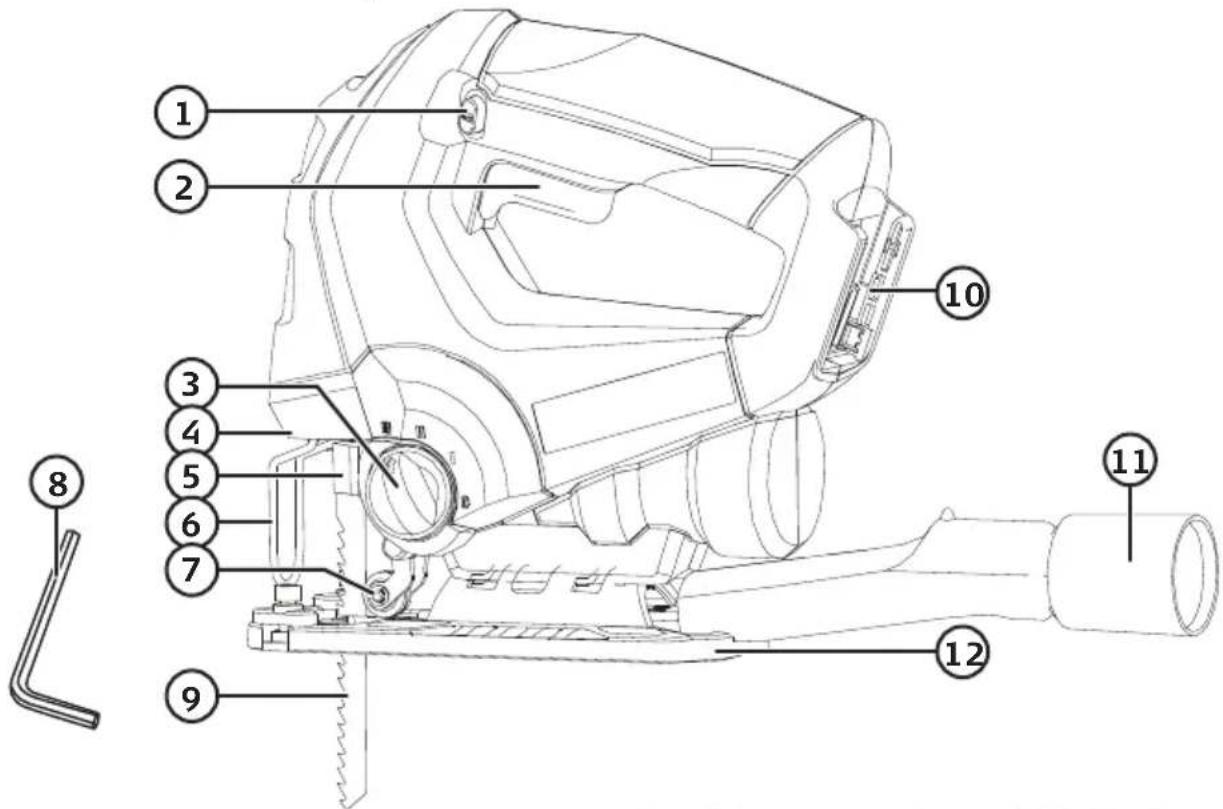

Product description

1. Power trigger lock
2. Power trigger
3. Pendulum action selector
4. Light (comes on when the power trigger is squeezed and goes off when the power trigger is released)
5. Blade clamp (for T-shank blades)
6. Saw blade guard
7. Blade guide roller
8. Allen key
9. Saw blade (sold separately)
10. Battery connection
11. Dust extractor adaptor
12. Footplate

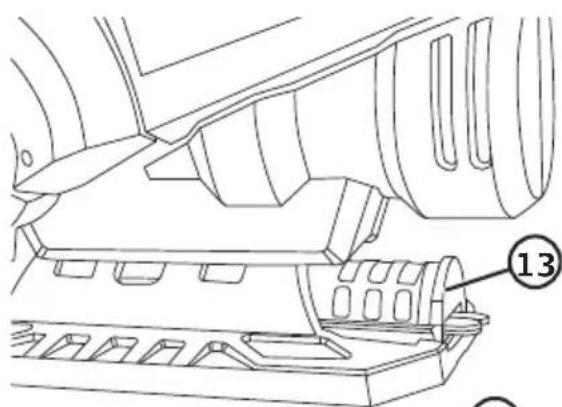

13. Saw blade holder
14. Splinter guard

Technical line drawing of a mechanical assembly with labeled component (13), no readable text or symbols present

Assembly and setup

Note: Always remove the battery from the jigsaw before performing any adjustment, service or maintenance.

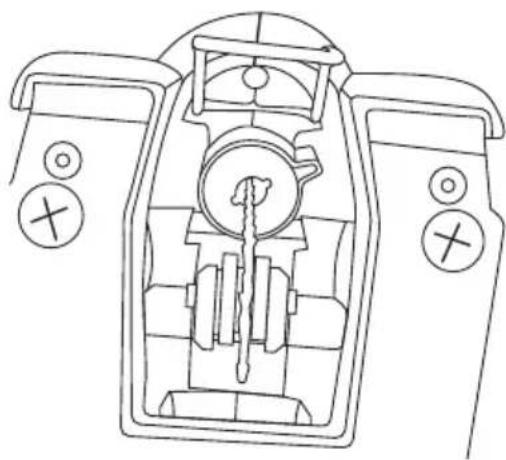

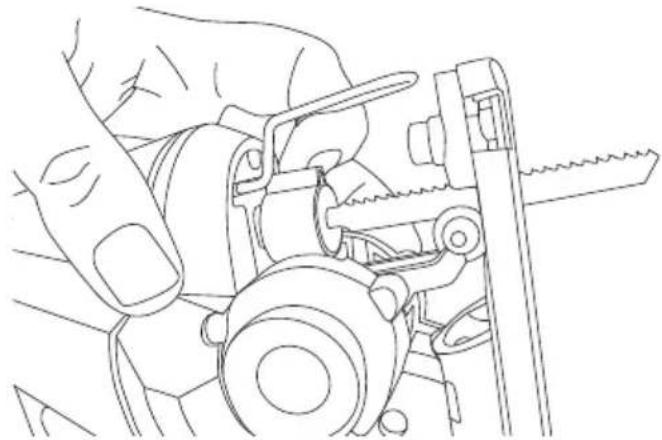

Fitting and replacing the blade

Line drawing of a hand operating a mechanical tool with a saw and gear assembly (no text or symbols)

1. Turn the blade clamp to the position shown in the figure and push the blade all the way into the clamp.

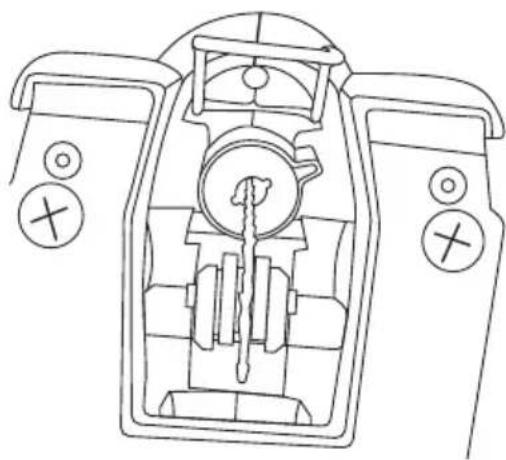

Technical line drawing of a mechanical device interior with no visible text or symbols

1. Release the blade clamp and check that it has sprung back to the locked position shown in the figure.

2. Make sure that the blade runs along the blade guide roller and is securely fastened in the blade clamp.

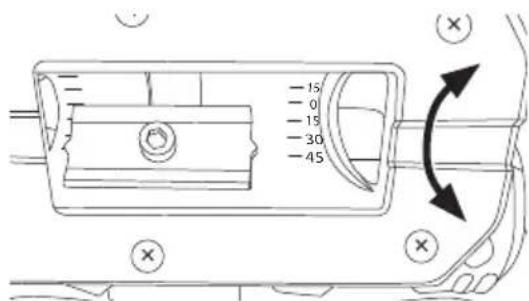

Adjusting the footplate

1. The footplate (12) can be tilted up to 45^ to the right or left. There are fixed settings for 0^ and 45^ .

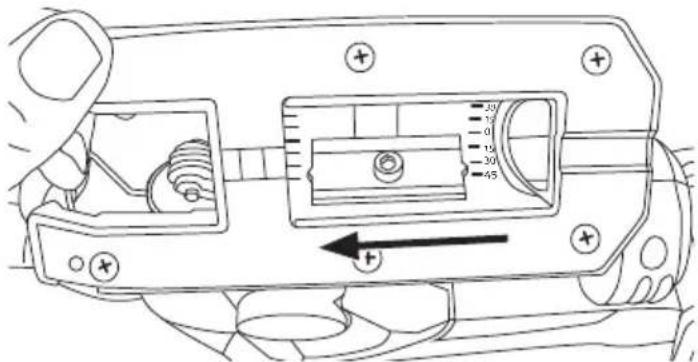

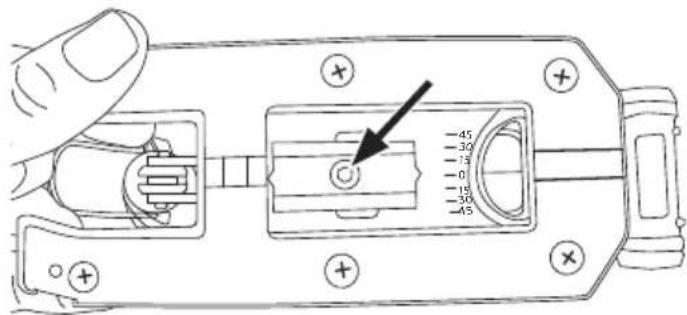

2. Undo the socket head cap screw holding the footplate using the included hex key.

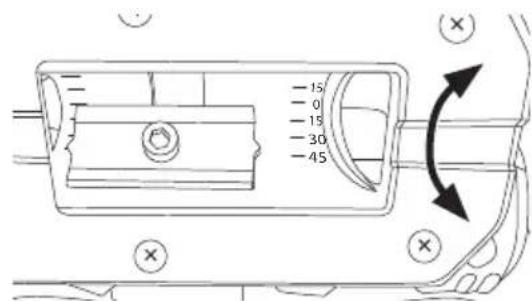

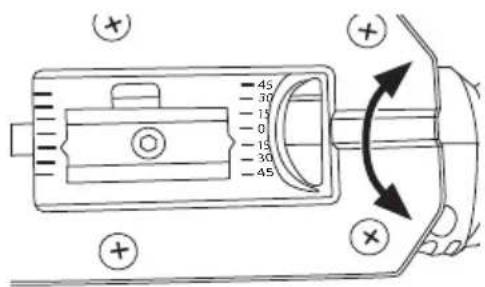

3. Slide the footplate forwards and tilt it to the required angle:

1. 45^ : Slide the footplate back to its normal position at the fixed setting and tighten the screw.

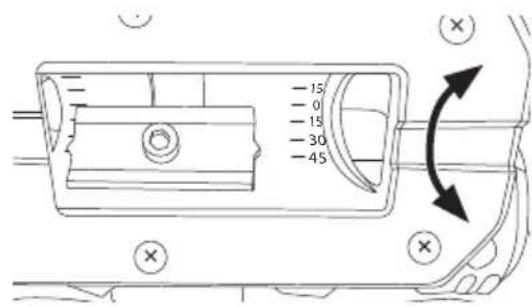

1. Other angles: Tighten the footplate at the desired angle while still in the forward position.

Setting the pendulum action

The adjustable pendulum motion can be adapted to the workpiece material being sawed. Turn the selector (3) to the desired setting.

Position 0: Sheet metal, steel, hard plastic and rubber (no pendulum)

Position I: Non-ferrous metals, hardwood, hard plastic

Position II: Wood

Position III: Wood (widest pendulum motion for greatest stock removal)

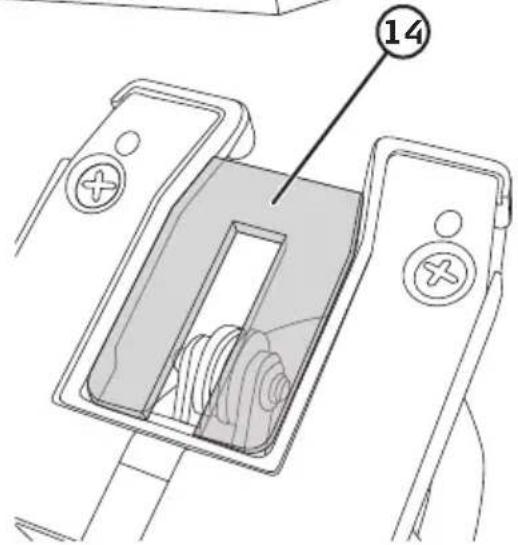

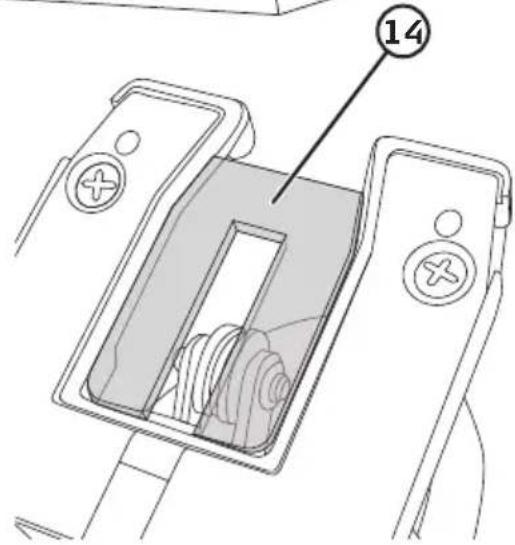

Splinter guard

The splinter guard (14) helps prevent the surface of the material (especially wood) splintering when it is being sawed. The splinter guard must only be used when the footplate angle is set to 0^ . The splinter guard is fitted by pressing it into the footplate from below.

Battery and charger

Note: Both the battery and charger are sold separately.

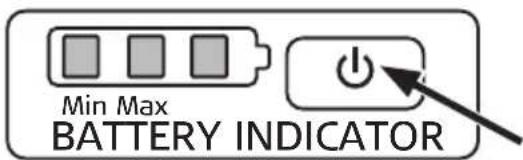

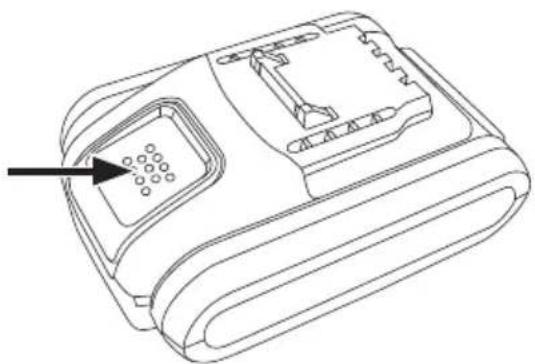

The charge indicator on the battery

Note: The indicator only gives a general picture of the battery charge status.

The percentages shown below should therefore only be considered as approximate.

- Press the button to the right of the battery indicator to display the current battery status.

- At full, 100 % charge, all three LEDs shine. At 90 % charge, one LED goes out and two LEDs shine. At 25 % charge, another LED goes out and only one LED shines. If none of the LEDs shines, the battery is completely discharged and needs charging.

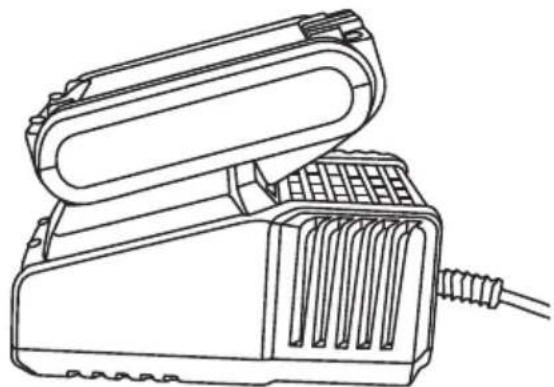

Charging

Charging temperature: 5–40 °C.

1. Connect the charger to a wall socket. The green LED will come on.

2. Slide the battery into the charger. The green LED will go out and the red LED will come on whilst the battery is being charged.

3. When the battery has been fully charged, the green LED will come on.

4. Remove the battery from the charger and disconnect the charger from the mains once the battery is fully charged.

Line drawing of a handheld electronic device with ventilation slots and a cable (no text or symbols)

• The charging time is approx 40 min for the 2.0 Ah battery and approx 90 min for the 4.0 Ah battery.
  • The battery may become hot whilst it is being charged. This is completely normal.
• The battery and charger function best at normal room temperature. Do not charge the battery in direct sunlight or in temperatures below 5 °C. The temperature range for charging is 5–40 °C.
• When the battery becomes discharged, the electronics of the battery will turn the jigsaw off automatically.
• For long-term storage (months) the battery should first be fully charged.

Charging error indications

• The red LED flashes: Defective battery, change the battery.
• The green LED flashes: Battery too hot or too cold to charge. Let the battery reach normal room temperature before charging.

Attaching/detaching the battery

1. Slide the power trigger lock (1) to the left to lock the power trigger. This is to prevent the jigsaw from starting accidentally when the battery is being installed.
2. Slide the battery onto the battery connection of the tool until it clicks into place.
3. To remove the battery, press down the battery release button and slide the battery off the tool.

Line drawing of a battery pack with internal components and a black arrow pointing to a specific part (no text or symbols present)

Switching on and off

Switching on: Slide the trigger lock (1) to the right to unlock the power trigger (2). The blade speed is controlled by the amount of pressure on the power trigger.

Switching off: Release the trigger to switch the saw off.

Operating tips

Preparations

• Measure and mark out the sawing line carefully before starting to cut.
- Small workpieces should be securely clamped. Make sure that the power supply cable does not impede working operations or come into contact with the blade during use.
- Check that the soleplate is locked at the required angle before you begin sawing.
- If you are unsure about the choice of blade speed or type of blade, test-cut a piece of scrap of the same material as the workpiece.

Sawing

• Hold the jigsaw in a firm grip. Make sure that the saw blade is not in contact with the workpiece and then pull the trigger to start the saw. Let the motor come up to speed before starting to cut.
• Never apply excessive forward pressure to the tool – always let the blade do the work.
• Keep hands in sight, do not hold hands under the workpiece where the blade cannot be seen.

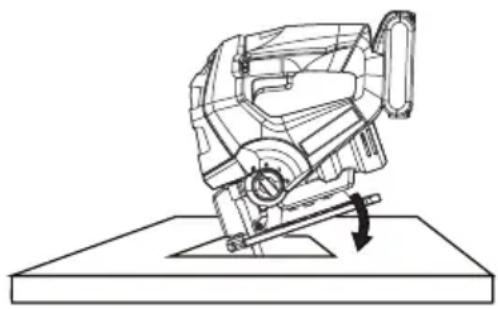

Internal cuts

This operation should be undertaken with great care and should only be performed by experienced operators. Internal cutting is only possible in soft materials such as wood.

1. Rest the front of the soleplate on the workpiece and tilt the saw forwards. Make sure that the saw blade is not in contact with the workpiece.

2. Run the blade up to full speed and slowly pivot the saw so the blade starts to cut into the material, then slowly lower the entire soleplate onto the workpiece.

Technical line drawing of a mechanical device with a rotating lever and base plate (no text or symbols)

(Alternatively, a hole can be drilled in the material to provide a starting point for the blade.)

Sawing metal

• Be careful, the saw blade can easily bend.
• Use a finer toothed blade if the jigsaw vibrates a lot during operation.
• Lower the speed if the saw blade becomes very hot.
• The use of some kind of lubrication/coolant is recommended, e.g. alcohol for aluminium and cutting oil for steel.
• When cutting thin sheet metal, it is advisable to clamp the sheet to a sheet of thin plywood or similar on either side of the metal. Then saw through all the layers.

Overload protection and other safety features

The jigsaw/battery has a number of safety features that prevent damage to the saw and battery during use.

• During short high-load situations the overload protection may switch the jigsaw/battery off. This protection resets automatically. Release the trigger, wait a few seconds, ensure that there is no load and restart the jigsaw. The reciprocating saw should now function normally again.
• During high-load for extended periods the overheating protection may switch the jigsaw/battery off. The protection resets itself but the jigsaw cannot be restarted until it has returned to normal operating temperature. Let the jigsaw cool before resuming work. Do not expose the jigsaw to direct sunlight for prolonged periods. Doing so could cause the overheating protection to trigger.
• The battery has a deep discharge undervoltage protection which operates when the battery becomes discharged. The deep discharge protection turns the jigsaw off automatically. The battery then needs to be recharged.

Care and maintenance

• Keep the motor ventilation openings free from contaminants.
• Clean the jigsaw by wiping it with a damp cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
• If the jigsaw is not to be used for a long time, the battery should be fully charged before the tool is stored away.
• Store the jigsaw in a dry place out of children's reach whenever it is not to be used for a long time.

Troubleshooting guide

The jigsaw won’t start.	· The battery is discharged. Recharge the battery.· The overload or overheating protection has been triggered. Let the jig saw rest and cool for a few seconds before resuming work.· Faulty power trigger. Contact our customer services.
The jigsaw stops or is sluggish.	· The battery is discharged. Recharge the battery.· The overload or overheating protection has been triggered. Let the jig saw rest and cool for a few seconds before resuming work.· If the problem persists, make sure that the jigsaw is not overloaded. Reduce the load.· Is the task suitable for the jigsaw?
The battery does not charge.	· Is the charger properly connected to the wall socket?· Is the wall socket live?· Is the battery correctly connected to the charger?· Is the battery defective or too hot/cold? Refer to the Charging-Charging error indications section above.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no visible text or labels

Specifications

No-load speed 0-2150 strokes/min

-1

Blade holder T-shank

Sawing capacity Wood 65 mm, aluminium 20 mm and steel 10 mm

Footplate tilt 0–45°

Pendulum action 4-stage

Work light LED

Noise emission data LpA = 82.4 dB(A), uncertainty KpA = 3 dB(A)

LwA = 93.4 dB(A), uncertainty KwA = 3 dB(A)

Hearing protection must be worn

when the sound level exceeds 80 dB(A)

Vibration value wood

a_h=7.68 m/s^2, K=1.5 m/s^2

Vibration value metal

a_h=5.89 m/s^2, K=1.5 m/s^2

Weight

2.4 kg (with 2.0 Ah battery)

Sticksåg

Art.nr 41-1242 Modell CSJ18H.2

Technical line drawing of a mechanical assembly with labeled component (13), no readable text or symbols present

Line drawing of a hand operating a mechanical tool with a saw and gear assembly (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a handheld electric shaver with a cable inserted (no text or symbols)

Line drawing of a device casing with internal components and a black arrow pointing to a specific area (no text or symbols)

Start och stopp

Technical line drawing of a mechanical device with a rotating lever and base plate (no text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Specifikationer

Slagtal obelastad 0–2150 /min ^-1

Bladfäste Typ T

Sågkapacitet Trä 65 mm, aluminium 20 mm, stål 10 mm

Vinklingsbar fotplatta 0–45°

Technical line drawing of a mechanical assembly with labeled component (13), no readable text or symbols present

Line drawing of a mechanical assembly with hands operating a tool (no text or symbols)

Technical line drawing of a mechanical device interior with no visible text or symbols

Line drawing of a handheld electric shaver with a cable inserted (no text or symbols)

- Ladetiden er ca. 40 minutter for 2,0 Ah-batteri og ca. 90 minutter for 4,0 Ah-batteri.

- Batteriet kan bli varmt ved lading. Dette er helt normalt.

Line drawing of a battery pack with internal components and a black arrow pointing to one component (no text or symbols)

Start og stopp

Technical line drawing of a mechanical device with an arrow indicating motion or force direction (no text or symbols present)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Spesifikasjoner

Slagtall ubelastet 0–2150 /min ^-1

Bladfeste Type T

Sagekapasitet Tre 65 mm, aluminium 20 mm, stål 10 mm

Vinklingsbar fotplate 0–45°

Justerbar pendelbevegelse 4 trinn

Belysning LED

Technical line drawing of a mechanical assembly with labeled component (13), no readable text or symbols present

Line drawing of a hand operating a mechanical tool with a saw and handle (no text or symbols)

Technical line drawing of a mechanical device interior with no visible text or symbols

Line drawing of a handheld electric shaver with a cable inserted (no text or symbols)

Line drawing of a battery pack with internal components and a black arrow pointing to one component (no text or symbols)

Technical line drawing of a mechanical device with a rotating lever (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Tekniset tiedot

Technical line drawing of a mechanical assembly with labeled component (13), no readable text or symbols present

Line drawing of a mechanical assembly with hands operating a tool (no text or symbols)

Technical line drawing of a mechanical device interior with no visible text or symbols

Line drawing of a handheld electric shaver with a cable inserted (no text or symbols)

Line drawing of a battery casing with internal components and a black arrow pointing to a component (no text or symbols)

Start und Stopp

Technical line drawing of a mechanical device with a rotating lever and base plate (no text or symbols)

Sägen in Metall

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

Technische Daten

Declaration of Conformity

Machinery Directive 2006/42/EC

EN 60745-1:2009

+A11: 2010

EN 60745-2-11:2010

EMC Directive 2014/30/EU

EN 55014-1: 2006/

A1: 2009/A2: 2011

EN 55014-2: 1997/

A1: 2001/A2: 2008

Henrik Alfredsson

Manager Technique & Quality

Insjön, Sweden, 2017-01-12

CLAS OHLSON AB, SE-793 85 INSJÖN, SWEDEN

Sverige

Postal 10 - 13 Market Place

Kingston Upon Thames

Surrey

KT1 1JZ

Deutschland

Kundenservice Hotline: [phone]

E-Mail: [e-mail]

Homepage

www.clasohlson.de
