USER MANUAL DDX8054BT KENWOOD

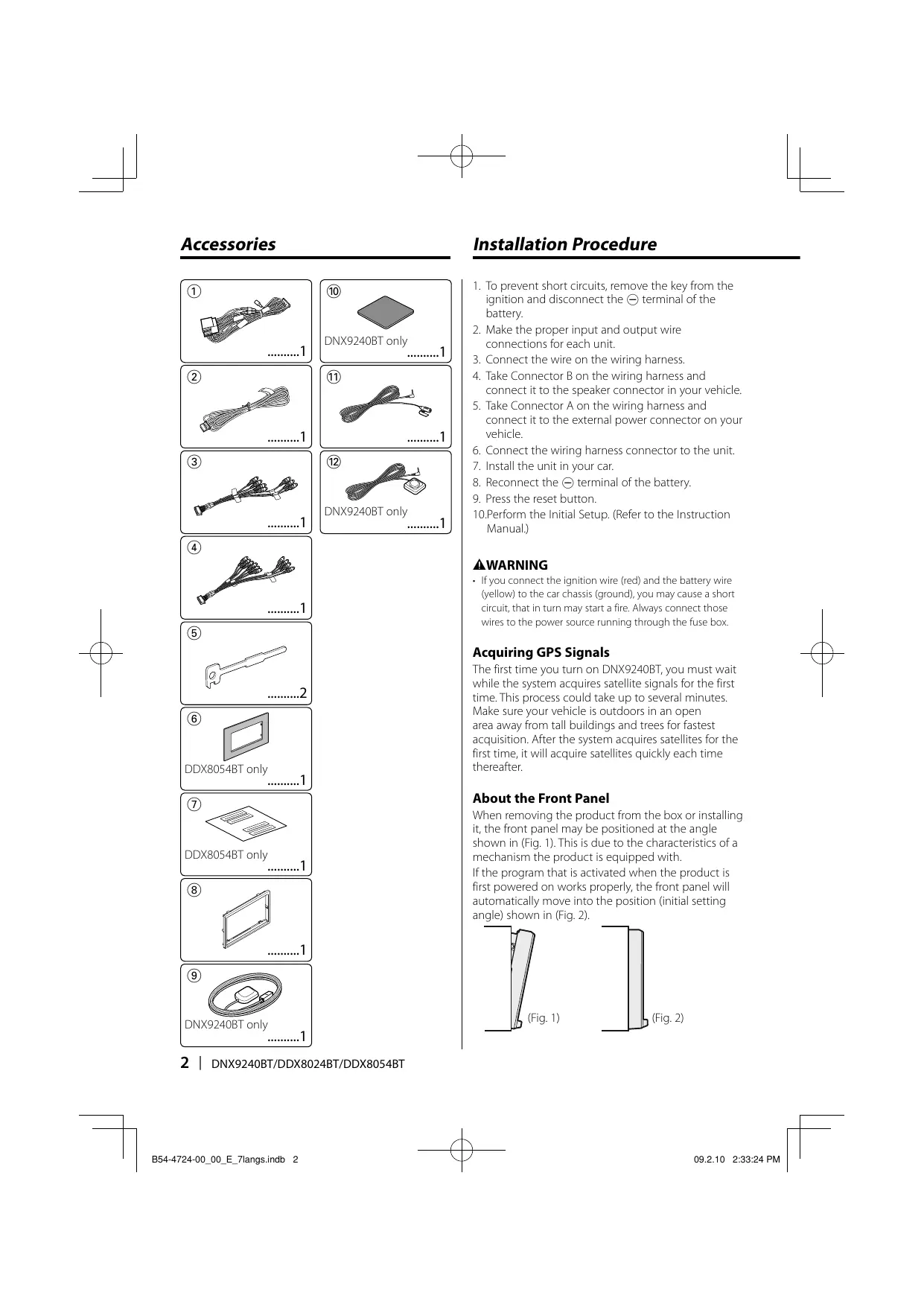

MANUAL DE INSTALAÇÃO

1. To prevent short circuits, remove the key from the

ignition and disconnect the - terminal of the battery.

2. Make the proper input and output wire

connections for each unit.

3. Connect the wire on the wiring harness.

4. Take Connector B on the wiring harness and

connect it to the speaker connector in your vehicle.

5. Take Connector A on the wiring harness and

connect it to the external power connector on your vehicle.

6. Connect the wiring harness connector to the unit.

7. Install the unit in your car.

8. Reconnect the - terminal of the battery.

9. Press the reset button.

10.Perform the Initial Setup. (Refer to the Instruction Manual.)

If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box. Acquiring GPS Signals

DDX8054BT only The first time you turn on DNX9240BT, you must wait while the system acquires satellite signals for the first time. This process could take up to several minutes. Make sure your vehicle is outdoors in an open area away from tall buildings and trees for fastest acquisition. After the system acquires satellites for the first time, it will acquire satellites quickly each time thereafter.

About the Front Panel

When removing the product from the box or installing it, the front panel may be positioned at the angle shown in (Fig. 1). This is due to the characteristics of a mechanism the product is equipped with. If the program that is activated when the product is first powered on works properly, the front panel will automatically move into the position (initial setting angle) shown in (Fig. 2).

DNX9240BT only (Fig. 1) (Fig. 2)

DNX9240BT/DDX8024BT/DDX8054BT

After the Installation After the installation, perform the Initial Setup by referring to the instruction manual.

Reception may drop if there are metal objects near the Bluetooth antenna.

Mounting and wiring this product requires skills and experience. For safety’s sake, leave the mounting and wiring work to professionals.
Make sure to ground the unit to a negative 12V DC power supply.
Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.
Do not use your own screws. Use only the screws provided. If you use the wrong screws, you could damage the unit.
If the power is not turned ON (“PROTECT” is displayed), the speaker wire may have a short-circuit or touched the chassis of the vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked.
Make sure that all wire connections are securely made by inserting jacks until they lock completely.
If your vehicle’s ignition does not have an ACC position, or if the ignition wire is connected to a power source with constant voltage such as a battery wire, the power will not be linked with the ignition (i.e., it will not turn on and off along with the ignition). If you want to link the unit’s power with the ignition, connect the ignition wire to a power source that can be turned on and off with the ignition key.
Use a commercially available conversion connector if the connector does not fit in the vehicle connector.
Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.
If the console has a lid, make sure to install the unit so that the faceplate will not hit the lid when closing and opening.
If the fuse blows, first make sure the wires aren’t touching to cause a short circuit, then replace the old fuse with one with the same rating.
Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the - wires or ground them to any metal part in the car.
After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
Mount the unit so that the mounting angle is 30° or less.
This unit has the cooling fan (page 5) to decrease the internal temperature. Do not mount the unit in a place where the cooling fan of the unit are blocked. Blocking these openings will inhibit the cooling of the internal temperature and result in malfunction.
Do not press hard on the panel surface when installing the unit to the vehicle. Otherwise scars, damage, or failure may result. ¤ CAUTION Install this unit in the console of your vehicle. Do not touch the metal part of this unit during and shortly after the use of the unit. Metal part such as the heat sink and enclosure become hot. English | Ground wire (Black)

Battery wire (Yellow) Ignition wire (Red) Antenna Cord Dimmer control wire (Orange/White) ILLUMI

Connect to the vehicle's parking brake detection switch harness. Parking sensor wire (Light Green) PRK SW For the sake of safety, be sure to connect the parking sensor. Connect to vehicle's reverse lamp harness when using the optional rear view camera. Reveres sensor wire (Purple/White) Steering remote control input (Light Blue/Yellow) To steering remote

To use the steering wheel remote control feature, you need to an exclusive remote adapter (not supplied) matches your car is required. When this terminal is not in use, leave its cap on. Connect to the terminal that is grounded when either the telephone rings or during conversation. Mute wire (Brown) connect the Kenwood navigation system, ⁄ To consult your navigation manual. Connect either to the power control terminal when using the optional power amplifier, or to the antenna control terminal in the vehicle.

4 | Power control/ Motor antenna control wire (Blue/White) If no connections are made, do not let the cable come out from the tab.

DNX9240BT/DDX8024BT/DDX8054BT

Bluetooth Microphone (Accessory !) (see page 10) Voice Control Switch (Accessory @) (DNX9240BT only) (see page 10) Cooling fan GPS Antenna (Accessory 9) (DNX9240BT only) (see page 10) FUSE ( 15A ) Accessory 1 REVERSE REMO.CONT MUTE ANT. CONT P CONT English | Connecting Wires to Terminals Connector Function Guide Pin Numbers for ISO Connectors External Power Connector A-4 A-5 A-6 A-7 A-8 Cable Colour Functions Yellow Blue/White Orange/White Red Black Battery Power Control Dimmer Ignition (ACC) Earth (Ground) Connection Purple Purple/Black Gray Gray/Black White White/Black Green Green/Black Rear Right (+) Rear Right (–) Front Right (+) Front Right (–) Front Left (+) Front Left (–) Rear Left (+) Rear Left (–) 2WARNING Connecting the ISO Connector The pin arrangement for the ISO connectors depends on the type of vehicle you drive. Make sure to make the proper connections to prevent damage to the unit. The default connection for the wiring harness is described in 1 below. If the ISO connector pins are set as described in 2, make the connection as illustrated. Please be sure to reconnect the cable as shown 2 below to install this unit to the Volkswagen vehicles etc. 1 (Default setting) The A-7 pin (red) of the vehicle’s ISO connector is linked with the ignition, and the A-4 pin (yellow) is connected to the constant power supply. Ignition cable (Red) A-7 Pin (Red) Unit Battery cable (Yellow) Vehicle A-4 Pin (Yellow) 2 The A-7 pin (red) of the vehicle’s ISO connector is connected to the constant power supply, and the A-4 pin (yellow) is linked to the ignition. Ignition cable (Red) Unit Battery cable (Yellow) 6 | A-7 Pin (Red) Vehicle A-4 Pin (Yellow)

DNX9240BT/DDX8024BT/DDX8054BT

System Connection iPod (commercially available) USB terminal iPod USB device (commercially available) Audio/Visual output

Visual output (Yellow)
Audio left output (White)
Audio right output (Red) AV IN1 Accessory 4 Rear View Camera input
Visual input (Yellow) Front Preout
Audio left output (White)
Audio right output (Red) Rear Preout
Audio left output (White)
Audio right output (Red) Subwoofer Preout
Audio left output (White)
Audio right output (Red) Center Preout English | Optional Accessory Connection iPod (commercially available) KCA-iP301V (Optional Accessory) Visual Output (Yellow) iPod Audio Output (Black) USB terminal USB device (commercially available) Navigation System (Optional Accessory)

(DDX8024BT/ DDX8054BT

only) TV Tuner (Optional Accessory)

TV ANTENNA INPUT

TO MONITOR UNIT

Connection cable (Included in the TV tuner) 8 | Connection cable (Included in the Navigation System)

DNX9240BT/DDX8024BT/DDX8054BT

Installation the Escutcheon For Volkswagen For Toyota/Scion (DDX8054BT only)

1. Attach accessory 8 to the unit.

1. Cut out accessory 6 as illustrated.

Cutting line Accessory 6 Accessory 8 For General Motors (DDX8054BT only)

1. Cut out accessory 6 to meet the shape of the

opening of the center console.

2. Attach accessory 6 to the unit.

Cut out to meet the shape of the opening in the vehicle.

2. Fold double-sided adhesive (accessory 7) along

the slit and attach it to accessory 6 cut-out against the center rib as illustrated. Use 2 pieces of accessory 7 for 1 accessory 6 cut-out.

3. Attach accessory 6 cut-out to the unit.

Accessory 7 Accessory 6 English | Installing the GPS Antenna (DNX9240BT only) Installing the Talk Switch (DNX9240BT only) and the Microphone Unit GPS antenna is installed inside of the car. It should be installed as horizontally as possible to allow easy reception of the GPS satellite signals. To mount the GPS antenna inside your vehicle:

1. Clean your dashboard or other surface.

2. Peel the backing off of the adhesive on the bottom

of the metal plate (accessory 0).

3. Press the metal plate (accessory 0) down firmly on

your dashboard or other mounting surface. You can bend the metal plate (accessory 0) to conform to a curved surface, if necessary.

4. Place the GPS antenna (accessory 9) on top of the

metal plate (accessory 0).

1. Check the installation position of the microphone

(accessory !) and the Talk switch (accessory @).

2. Remove oil and other dirt from the installation

3. Install the microphone and the Talk switch.

4. Wire the cable up to the unit with it secured at

several positions using tape or the like. Accessory ! Accessory @ Accessory 9 Accessory 0 Fix a cable with a commercial item of tape.

Depending on the type of car, reception of the GPS satellite signals might not be possible with an inside installation.
The GPS antenna should be installed at a position that is spaced at least 30 cm (12 inch) from cellular phone or other transmitting antennas. Signals from the GPS satellite may be interfered with by these types of communication.
Painting the GPS antenna with (metallic) paint may cause a drop in performance. Peel the release coated paper of double-face adhesive tape to fix on the place shown above. Adjust the direction of the microphone to the driver.

Install the microphone as far as possible from the cellphone. 10 |

DNX9240BT/DDX8024BT/DDX8054BT

Installing and Removing Monitor/Player Unit Installing the Monitor/Player Unit Removing the Unit

1. Remove the hard rubber frame by referring to the

removal procedure in the section <Removing the Hard Rubber Frame>.

2. Insert the two removal tools 5 deeply into the

slots on each side, as shown. Accessory 5 Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place.

3. Lower the removal tool toward the bottom, and

pull out the unit halfway while pressing towards the inside.

Be careful to avoid injury from the catch pins on the removal tool. Removing the Hard Rubber Frame (escutcheon)

1. Engage the catch pins on the removal tool 5 and

remove the two locks on the lower level. Lower the frame and pull it forward as shown in the figure. Accessory 5

Be careful to avoid injury from the catch pins on the removal tool.

4. Pull the unit all the way out with your hands, being

careful not to drop it.

The frame can be removed from the top side in the same manner.

2. When the lower level is removed, remove the

upper two locations. English |

DNX9240BT/DDX8024BT/DDX8054BT

Accessoire ! Accessoire @ Accessoire 9 Accessoire 0

DNX9240BT/DDX8024BT/DDX8054BT

Auto A–4 pen (geel) Auto A–4 pen (geel)

DNX9240BT/DDX8024BT/DDX8054BT

Per Toyota/Scion (solo DDX8054BT)
