USER MANUAL DNX6960 KENWOOD

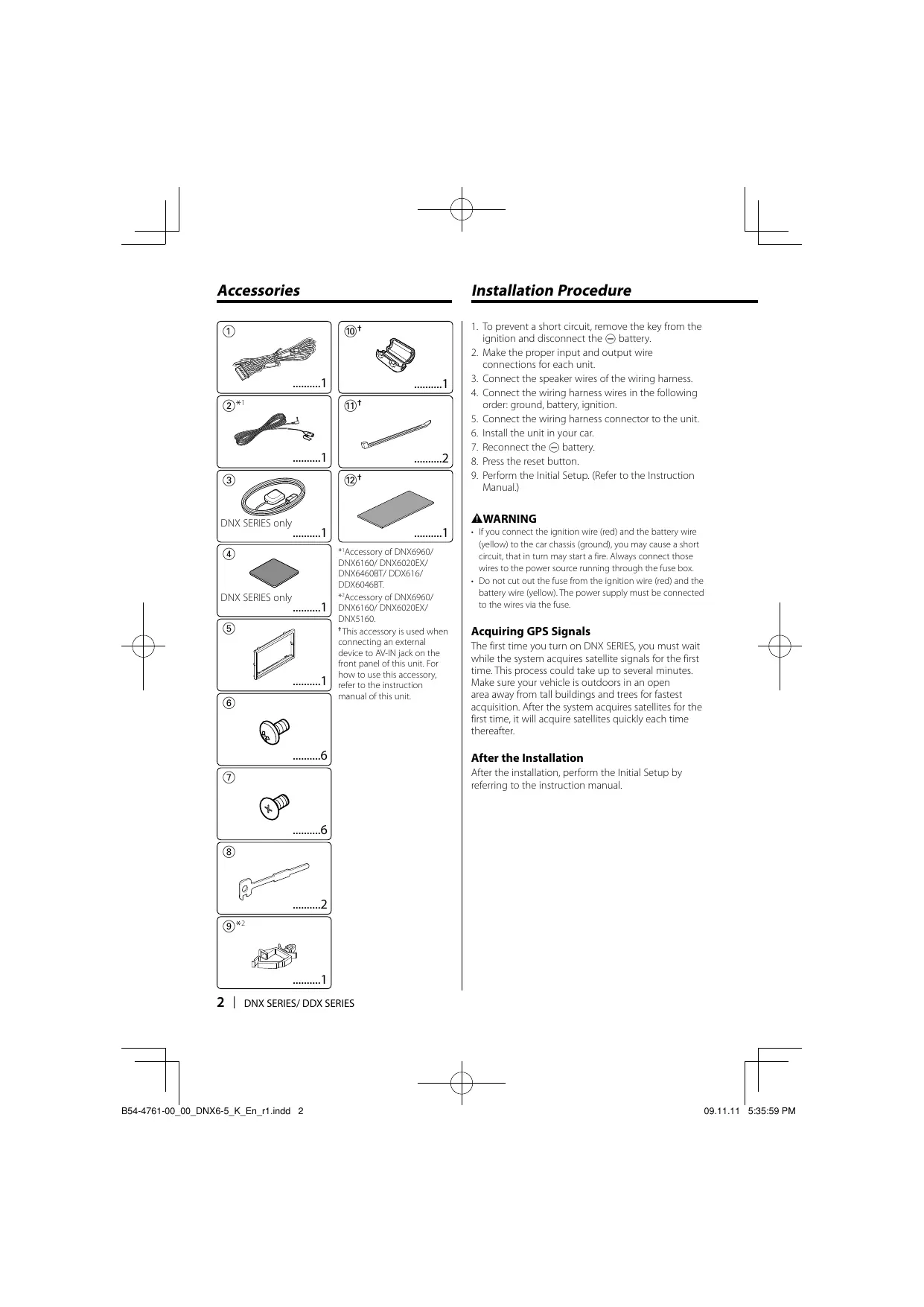

DNX SERIES DNX6960 DNX6460BT DNX6160 DNX5160 DNX6020EX Installation Procedure

*1Accessory of DNX6960/

DNX6160/ DNX6020EX/

DNX6460BT/ DDX616/

DDX6046BT. *2Accessory of DNX6960/

DNX6160/ DNX6020EX/

DNX5160. This accessory is used when connecting an external device to AV-IN jack on the front panel of this unit. For how to use this accessory, refer to the instruction manual of this unit.

1. To prevent a short circuit, remove the key from the

ignition and disconnect the - battery.

2. Make the proper input and output wire

connections for each unit.

3. Connect the speaker wires of the wiring harness.

4. Connect the wiring harness wires in the following

order: ground, battery, ignition.

5. Connect the wiring harness connector to the unit.

6. Install the unit in your car.

7. Reconnect the - battery.

8. Press the reset button.

9. Perform the Initial Setup. (Refer to the Instruction

• If you connect the ignition wire (red) and the battery wire (yellow) to the car chassis (ground), you may cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box.
• Do not cut out the fuse from the ignition wire (red) and the battery wire (yellow). The power supply must be connected to the wires via the fuse. Acquiring GPS Signals The first time you turn on DNX SERIES, you must wait while the system acquires satellite signals for the first time. This process could take up to several minutes. Make sure your vehicle is outdoors in an open area away from tall buildings and trees for fastest acquisition. After the system acquires satellites for the first time, it will acquire satellites quickly each time thereafter. After the Installation After the installation, perform the Initial Setup by referring to the instruction manual.

DNX SERIES/ DDX SERIES

• Mounting and wiring this product requires skills and experience. For safety’s sake, leave the mounting and wiring work to professionals.
• Make sure to ground the unit to a negative 12V DC power supply.
• Do not install the unit in a spot exposed to direct sunlight or excessive heat or humidity. Also avoid places with too much dust or the possibility of water splashing.
• Do not use your own screws. Use only the screws provided. If you use the wrong screws, you could damage the unit.
• If the power is not turned ON (“PROTECT” is displayed), the speaker wire may have a short-circuit or touched the chassis of the vehicle and the protection function may have been activated. Therefore, the speaker wire should be checked.
• If your car’s ignition does not have an ACC position, connect the ignition wires to a power source that can be turned on and off with the ignition key. If you connect the ignition wire to a power source with a constant voltage supply, as with battery wires, the battery may die.
• If the console has a lid, make sure to install the unit so that the faceplate will not hit the lid when closing and opening.
• If the fuse blows, first make sure the wires aren’t touching to cause a short circuit, then replace the old fuse with one with the same rating.
• Insulate unconnected wires with vinyl tape or other similar material. To prevent a short circuit, do not remove the caps on the ends of the unconnected wires or the terminals.
• Connect the speaker wires correctly to the terminals to which they correspond. The unit may be damaged or fail to work if you share the - wires or ground them to any metal part in the car.
• When only two speakers are being connected to the system, connect the connectors either to both the front output terminals or to both the rear output terminals (do not mix front and rear). For example, if you connect the + connector of the left speaker to a front output terminal, do not connect the - connector to a rear output terminal.
• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.
• Mount the unit so that the mounting angle is 30° or less.
• Do not press hard on the panel surface when installing the unit to the vehicle. Otherwise scars, damage, or failure may result.

• This unit has the cooling fan to decrease the internal temperature. Do not mount the unit in a place where the cooling fan of the unit are blocked. Blocking these openings will inhibit the cooling of the internal temperature and result in malfunction. Cooling fan

• Reception may drop if there are metal objects near the Bluetooth antenna. (DNX6960/ DNX6160/ DNX6020EX/ DNX6460BT/ DDX616/ DDX6046BT only) Bluetooth antenna unit ¤ CAUTION Install this unit in the console of your vehicle. Do not touch the metal part of this unit during and shortly after the use of the unit. Metal part such as the heat sink and enclosure become hot. English | you connect the ignition wire (red) and the battery ¤ Ifwire (yellow) to the car chassis (ground), you may Ignition key switch cause a short circuit, that in turn may start a fire. Always connect those wires to the power source running through the fuse box. ACC

Car fuse box (Main fuse)

Ignition wire (Red) Battery wire (Yellow) Ground wire (Black) (To car chassis) Antenna Cord to the vehicle's parking brake ⁄ Connect detection switch harness. Parking sensor wire (Light Green) PRK SW For the sake of safety, be sure to connect the parking sensor. Connect to vehicle's reverse lamp harness when using the optional rear view camera. To steering remote

Reveres sensor wire (Purple/White) Steering remote control wire (Light Blue/Yellow) To use the steering wheel remote control feature, you need to an exclusive remote adapter (not supplied) matches your car is required. When this terminal is not in use, leave its cap on. To car light control switch Connect to the terminal that is grounded when either the telephone rings or during conversation. To connect the Kenwood navigation system, consult your navigation manual. Dimmer control wire (Orange/White) Mute control wire (Brown)

Depending on what antenna you are using, connect either to the control terminal of the motor antenna, or to the power terminal for the booster amplifier of the film-type antenna. When using the optional power amplifier, connect to its power control terminal.

4 | Motor antenna control wire (Blue) Power control wire (Blue/White) If no connections are made, do not let the cable come out from the tab.

DNX SERIES/ DDX SERIES

Bluetooth Microphone (Accessory 2) (see page 8) GPS Antenna (Accessory 3) (see page 8) FUSE ( 15A ) Accessory 1 REVERSE REMOTE CONT STEERING WHEEL REMOTE INPUT White/Black White

To front left speaker Gray/Black ILLUMI Gray MUTE

To front right speaker Green/Black Green

To rear left speaker To rear right speaker P CONT English | System Connection USB terminal USB device (commercially available) To TMC Tuner GTM10 (optional accessory)

(DNX6960/ DNX6160/ DNX6020EX/

DNX5160 only) Accessory 9 When connecting the TMC Tuner GTM10 (optional accessory), put the cable clamper (accessory 9; DNX6960/ DNX6160/ DNX6020EX/ DNX5160 only) to the back of this unit first, and then wire the cable through the clamper. Rear Preout

• Audio left output (White)
• Audio right output (Red) Front Preout
• Audio left output (White)
• Audio right output (Red) Subwoofer Preout
• Audio left output (White)
• Audio right output (Red) 6 |

DNX SERIES/ DDX SERIES

Optional Accessory Connection iPod (commercially available) KCA-iP301V (Optional Accessory) Audio Output (Black) Visual Output (Yellow) (DDX SERIES only) USB terminal Navigation System (Optional Accessory) To SIRIUS Satellite Radio tuner/ XM Satellite Radio tuner/ HD Radio tuner (Optional Accessory) Connection cable (Included in the Navigation System)

Conversion adapter (optional accessory) may be necessary for connection of optional accessory. Contact your Kenwood dealer for details. DDX516/ DNX5160 only To KCA-BT200 (Optional Accessory) units that can be connected to ⁄ Navigation this unit. (As of December, 2009): ・KNA-G610 ・KNA-G630 For latest information, access the www.kenwood.com/cs/ce/. English | Installing the GPS Antenna (DNX SERIES only) GPS antenna is installed inside of the car. It should be installed as horizontally as possible to allow easy reception of the GPS satellite signals. To mount the GPS antenna inside your vehicle:

1. Clean your dashboard or other surface.

2. Peel the backing off of the adhesive on the bottom

of the metal plate (accessory 4).

3. Press the metal plate (accessory 4) down firmly on

your dashboard or other mounting surface. You can bend the metal plate (accessory 4) to conform to a curved surface, if necessary.

4. Place the GPS antenna (accessory 3) on top of the

metal plate (accessory 4). Installing the Microphone Unit (DNX6960/ DNX6160/

DNX6020EX/ DNX6460BT/

DDX616/ DDX6046BT only)

1. Check the installation position of the microphone

2. Remove oil and other dirt from the installation

3. Install the microphone.

4. Wire the cable up to the unit with it secured at

several positions using tape or the like. Accessory 2 Accessory 3 Accessory 4 Fix a cable with a commercial item of tape.

• Depending on the type of car, reception of the GPS satellite signals might not be possible with an inside installation.
• The GPS antenna should be installed at a position that is spaced at least 12 inch (30 cm) from cellular phone or other transmitting antennas. Signals from the GPS satellite may be interfered with by these types of communication.
• Painting the GPS antenna with (metallic) paint may cause a drop in performance. Peel the release coated paper of double-face adhesive tape to fix on the place shown above. Adjust the direction of the microphone to the driver.

• Install the microphone as far as possible from the cellphone. 8 |

DNX SERIES/ DDX SERIES

Installing the Escutcheon Installing the Escutcheon

1. Attach accessory 5 to the unit.

Accessory 5 English | Installation for Monitor/Player Unit Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place.

Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (eg, the sound may skip). Installation on Toyota, Nissan or Mitsubishi Car using Brackets Accessory 6 (M5x6mm) or Accessory 7 (M5x7mm) Car Bracket Accessory 6 (M5x6mm) or Accessory 7 (M5x7mm) 10 |

DNX SERIES/ DDX SERIES

Removing Monitor/Player Unit Removing the Hard Rubber Frame (escutcheon)

1. Engage the catch pins on the removal tool 8 and

remove the two locks on the lower level. Lower the frame and pull it forward as shown in the figure. Removing the Unit

1. Remove the hard rubber frame by referring to the

removal procedure in the section <Removing the Hard Rubber Frame>.

2. Insert the two removal tools 8 deeply into the

slots on each side, as shown. Accessory 8 Accessory 8 Catch Lock

• The frame can be removed from the top side in the same manner.

3. Lower the removal tool toward the bottom, and

pull out the unit halfway while pressing towards the inside.

2. When the lower level is removed, remove the

upper two locations.

• Be careful to avoid injury from the catch pins on the removal tool.

4. Pull the unit all the way out with your hands, being

careful not to drop it. English |
