USER MANUAL DNX5710BT KENWOOD

KENWOOD DNX891HD DNX7710BT DNX771HD DNX691HD DNX571HD DNX571EX DNX5710BT

GPS NAVIGATION SYSTEM

INSTRUCTION MANUAL JVCKENWOOD Corporation Before reading this manual, click the button below to check the latest edition and the modified pages. eck the latest edition ‘Take the time to read through this instruction manual. Familiarity with installation and operation procedures will help you obtain the best performance from your new GPS Navigation System. For your records Reco the back of the unit, in the spaces designated on p Refer to the model and serial numbers whenever you call service on the product. the serial number, found Register your Kenwood product at www.Kenwoodusa.com © 2013 JVC KENWOOD Corporation IM382_Ref_K_En_00 (K/K2/R)

What Do You Want To Do? Thank you for purchasing the KENWOOD GPS NAVIGATION SYSTEM. In this manual, you will learn various convenient functions of the system. Click the icon of the media you want to play. With one-click, you can jump to the section of each media! SiriusXM

I Contents Before Use À WARNING How to Read this Manual Basic Operations Functions of the Buttons on the Front Panel Turning on the Unit How to Play Media Operating with the Top Menu Screen __ Common Operations Navigation Operation. OEM Features Operation DVD/Video CD (VCD) Operation DVD/VCD Basic Operation DVD Disc Menu Operation Zoom Control For DVD And VCD DVD Setup CD/Audio and Visual Files/ iPod/App Operation Music/Video/Picture Basic Operation __ Search Operation Movie Control Pandora* Operation iHeartRadio Operation Apps Operation USB/iPod/DivX Setup O Uu sp Radio and HD Radi Operation Radio/HD Radio Tuner Basic Operation __ Memory Operation Selecting Operation Traffic Information Receive Mode Bookmark SiriusXM° Operation SiriusXM° Basic Operation Memory Operation Selecting Operation Content alert SiriusXM Replay Smart Favorites, TuneStart”* TuneScan"* SiriusXM Setup Bluetooth Control Registering And Connecting Bluetooth Unit Playing Bluetooth Audio Device Using Hands-Free Unit Smartphone Link Hands-Free Setup " Tunzwer

Functions of the Remote control Buttons 119 Troubleshooting Problems and Solutions Error Messages Resetting the Unit Appendix Playable Media and Files Status Bar Indicator Items Region Codes in the World DVD Language Codes Specifications About this Unit

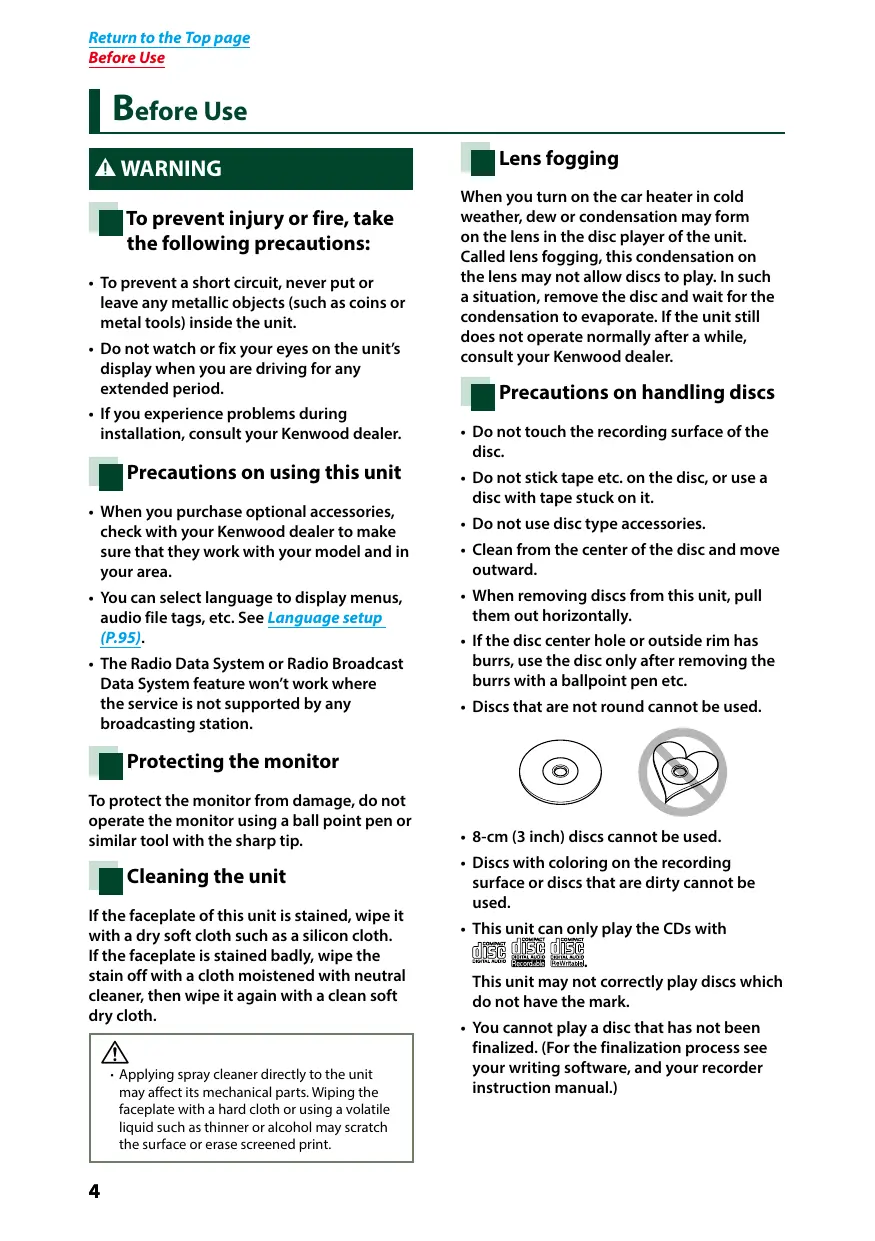

Return to the Top page Before Use I Before Use To prevent injury or fire, take the following precautions: + To prevent a short circuit, never put or leave any metallic objects (such as coins or metal tools) inside the unit. + Do not watch or fix your eyes on the units display when you are driving for any extended period. + If you experience problems during installation, consult your Kenwood dealer. E Precautions on using this uni: + When you purchase optional accessories, check with your Kenwood dealer to make sure that they work with your model and in your area. + You can select language to display menus, audio file tags, etc. See Language setup (P.95). + The Radio Data System or Radio Broadcast Data System feature won't work where the service is not supported by any broadcasting station. E Protecting the monitor To protect the monitor from damage, do not operate the monitor using a ball point pen or similar tool with the sharp tip. Bcteaning the unit Ifthe faceplate of this unit is stained, wipe it with a dry soft cloth such as a silicon cloth. Ifthe faceplate is stained badly, wipe the stain off with a cloth moistened with neutral cleaner, then wipe it again with a clean soft dry cloth.

- Applying spray cleaner directly to the unit may affect its mechanical parts. Wiping the faceplate with a hard cloth or using a volatile liquid such as thinner or alcohol may scratch the surface or erase screened print. E Lens fogging When you turn on the car heater in cold weather, dew or condensation may form on the lens in the disc player of the unit. Called lens fogging, this condensation on the lens may not allow discs to play. In such a situation, remove the disc and wait for the condensation to evaporate. lf the unit still does not operate normally after a while, consult your Kenwood dealer. E Precautions on handling discs + Do not touch the recording surface ofthe disc. + Do not stick tape etc. on the disc, or use a disc with tape stuck on it. + Do not use disc type accessories. + Clean from the center of the disc and move outward. + When removing discs from this unit, pull them out horizontally. + Ifthe disc center hole or outside rim has burrs, use the disc only after removing the burrs with a ballpoint pen etc. + Discs that are not round cannot be used. + 8-cm (3 inch) discs cannot be used. + Discs with coloring on the recording surface or dises that are dirty cannot be used. + This unit can only play the CDs with Be dE dE

This unit may not correctiy play discs which do not have the mark. : You cannot play a disc that has not been finalized. (For the finalization process see your writing software, and your recorder instruction manual.)

I How to Read this Manual Return to the Top page How To Read This Manual Return to the Top page CD, Disc, iPod, USB device Search Opera!

You can search the music, video, or picture file by some operations. NOTE 2 you use a remote controller you can jump directly to the desired rack/fle with entering the tackfoiderfle number, pay time, et For details, see “Direct search mode” (p.81) E List search You can search tracks, folders, and files according to hierarchy. For USB devices and iPod, you can list and search files in the device by using playlist. 1 Press the <MENU> button during playback. Simple Control screen appears. 2 Touch{Egl. List Control screen appears. 3 Touch desired track/file. Playback starts. E Other search When you want to narrow the list down, there are other search ways. 1 Press the <MENU> button during playback. Simple Control screen appears. 2 Touch{[U. ‘The search type screen appears.

Link header You can refer each section or top page with one-click. Operation title ntroduces the function. NOTE Introduces some tips, notes, etc. Reference mark Displayed in blue notes. With one-click, you can jump to the article related to the current section. Operation procedure Explains necessary procedures to achieve the operation. <_ >:Indicates the name of panel buttons L Jindicates the name oftouch keys. Screen shot Shows some screen shots displayed during operation for reference The area or keys to touch are surrounded with a red frame. NOTE + The screens and panels shown in this manual are examples used to provide clear explanations of the operations. For this reason, they may be different from the actual screens or panels used, or some display patterns may be different.

Return to the Top page Basic Operations I Basic Operations Functions of the Buttons on th

DNX891HD/ DNX7710BT/ DNX771HD

they may be different from the actual panels. + In this manual, each model name is abbreviated as follows.

DNX77108T, DNX771HD: ENE:#2

If above icon is showed, read pplicable to the unit you use. How to insert an SD Card

1) Press[7]<4> button for 1 second. Labelled

The panel fully opens side

2) Hold the SD card as the illustration in the right

and insert it into the slot until it clicks. © To eject the card: Push the card until it clicks and then remove your finger from the card. The card pops up so that you can pull it out with your fingers.

Return to the Top page Basic Operations Number | Name Motion En (Reset) - IFthe unit orthe connected unit fails to operate properly, the unit returns to factory settings when this button is pressed (P.125). + This indicator flashes when the vehicle ignition is off (P.96). P] YA (Vol) + Adjusts volume. El NAV + Displays the navigation screen. + Pressing for 1 second switches AV out sources EH AUD + Displays Graphic Equalizer screen (P.111)* + Pressing for 1 second switches camera view display on/off. El MENU + Displays the Top Menu screen (P.14) + Pressing for 1 second turns the power off. + When the power off, turns the power on G] TEL + Displays the Hands Free screen (P.85). - Pressing for 1 second displays the Voice Recognition screen. (P.88) Eject) cts the disc + When the panel is opened, pressing closes the panel and pressing for 1 second ejects the disc forcibiy. + When the panel is closed, pressing for 1 second fully opens the panel to the location ofthe SD card slot Disc insert + Aslot to insert a disc media. slot SD card slot | An SD card slot for upgrading the map. For how to upgrade the map, refer

to the instruction manual ofthe navigation system

• The display may not switch to the Graphic Equalizer screen in some conditions.

Return to the Top page Basic Operations DNX691HD/DNX571HD/DNX5710BT/DNX571EX

KENWOOD wn in this guide are examples used to provide clear explanations of the operations. For this re: rent from the actual panel + In this manual, each model na as follows.

DNX571HD, DNXS71EX, DNX57108T. CREER above icons are showed, r article applicable to the unit yo brevi How to insert a microSD Card

1) Open the [E]microSD card slot cover

as the illustration in the right.

2) Hold the microSD card with the label

facing up and the notched section right, and insert it into the slot until it clicks. © To eject the card: Push the card until it clicks and then remove your finger from the card. The card pops up 50 that you can pull it out with your fingers.

Return to the Top page Basic Operations Number Name Motion (E] Disc insert + Aslot to insert a disc media. slot A (Eject) * Ejects the disc - Pressing for 1 second ejects the disc forcibly. VResed |: IFthe unitorthe connected unit fais to operate properly, the unit returns to factory settings when this button is pressed (P.125). + This indicator flashes when the vehicle ignition is off (P.96). MENU - Displays the Top Menu screen (P.14) : Pressing for 1 second turns the power off. + When the power off, turns the power on. NA : Displays the navigation screen : Pressing for 1 second switches AV out sources. Volume Knob |: Turning adjusts volume up or down: CCI IR - Pressing switches attenuation of the volume on/off - Pressing for 1 second displays Graphic Equalizer screen (P.111)* TEL - Displays the Hands Free screen (P.85). : Pressing for 1 second displays the Voice Recognition screen. (P.88) microSD + A microSD card slot for upgrading the map. For how to upgrade the card slot map, refer to the instruction manual of the navigation system.

• The display may not switch to the Graphic Equalizer screen in some conditions.

Return to the Top page Basic Operations [| Turning on the Unit The method of turning on is different depending on the model. EX Press the <MENU> button. [DNX8 /DNX7/ ÊÉE EE pr re

The unit is turned on. © To turn offtheu Press the <MENU> button for 1 second. Ifit is your first time tuning the unit on after installation, it will be necessary to perform Initial setup (P.11).

Return to the Top page Basic Operations Perform this setup when you use this unit first time or when you reset the unit (P.125). EX seteachitem as follows. l setup an Engin Locale Select the country for the navigation system: The language, the distance unit, and the gasoline unit are set After setting, touch [Enter]. Touch [SET], @Select the desired country. ®Touch [Enter] Language Select the language used for the control screen and setting items. Default is’American English (en) Touch [SET], @Touch [4] or lb] to select the desired language ®Touch [Enter] For detailed operation, see Language setup (P.95) Angle FLE CHERS Adjust the position of the monitor. Default is*0 Touch [SET], @Touch desired angle number and (4) For detailed operation, see Monitor angle control (P.98) Color Set the screen and button illumination color. You can select whether to allow color scan operation or select a fixed color for operation @Touch [SET] @Touch [ONI or [OFF] of [Panel Color Scan] @Ifyou want to change color, touch [SET] of [Panel Color Coordinat] @ Touch your desired color and [#5] For detailed operation, see Panel color coordinate (P.99), Continued

Return to the Top page Basic Operations EXT SW (DNX891HD, DNX7710BT only) Control the external devices. @Touch [SET] @Set device name, output pattern, and pulse set for each device. Then, touch [#5] For detailed operation, see EXT SW setup (P.96) Camera Set the parameters for the camera: @Touch [SET] @Set each item and touch [ES] For detailed operation, see Camera Setup (P.102) OEM SETUP (North America Sales area only) This function requires à commercial adaptor. Consult your Kenwood dealer for details FA Touch [Finish]. NOTE + These settings can bx

[L'How to Play Media Music CD and disc media [DNX8 JDNX7/ EX Press the <A> button. KENVOOD The panel opens. EX insert the disc into the slot. The panel closes automatically. The unit loads the disc and playback starts. © To ejectthe disc: Press the <4> button. [DNX6DNX5 EX insert the disc into the slot. The unit loads the disc and playback starts. Return to the Top page Basic Operations © To ejectthe disc: Press the <4> button. USB device EX Connect the USB device with the USB cable. The unit reads the device and playback starts. © To disconnect the device: Touch [4] on the screen and disconnect the device from the cable. iPod EX cConnectthe iPod. The unit reads the iPod and playback starts. NOTE + For the de Video/Picture Basic Operation (P.32). © To disconnect the iPod/iPhone connected with the cable: Touch [K] on the screen and then touch [4]. Disconnect the iPod from the cable.

Return to the Top page Basic Operations | Operating with the Top Menu Screen Most functions can be performed from the Top Menu screen. EX Touch [Menu] on any screen. NOTE [Menu] is not displayed during video/picture playback, press the . <MENU> button D 10:00:08 0] Top Menu screen appears. NOTE - Top Menu screen can be changed by flicking left or right. © Customizing Top Menu screen You can arrange the position ofthe = source icons as you like.

1. Touch and holdthe icon which

you want to move to go into the customizing mode. Customizing mode screen

2. Drag it where you want to move.

From this screen, you can perform the following functions. Function Switch the audio source Icon DA / Pod Juoex une Return to the Top page Basic Operations Operation Touch the icon of the desired source. Switch the video source Touch the icon of the desired video source. Switch the application nstalled in the iPhone/ Pod or Android. Touch the icon ofthe desired application: Switch the Apps source Touch the icon ofthe desired App source. Enter setup mode Touch the icon ofthe desired setup function Display navigation screen Touch [NAV] or navigation information. Turn off all audio function Touch [STANDBY] Vehicle information display Touch [OEM Features]

Return to the Top page Basic Operations | Common Operations Introduces the common operations. General There are some functions which can be operated from most screens. IMenul (Screen control) Returns to the Top Menu screen. Touching for at least 1 second displays the le Language Screen Control screen. (Even when an image —" nu s displayed, touching for at least 1 second Go Language. displays the Screen Control screen.) [Pmamie Range Controï ES RETURN) « Normal Returns to previous screen. (common menu key) Touch to display the common menu. The contents ofthe menu are as follows. BA : Displays the EXT SW Control screen. {DNX891HD, DNX7710BT only) Displays the SETUP Menu screen Displays the Audio Control Menu screen. Bi Dispiays the control screen of current source. Icon feature differs depending on the source. EA Ciosss the menu. t screen There are some common function keys in the list screens of most sources. Ÿ Category List Eiscon Scrolls the displayed text etc. Touch keys with various functions are displayed here Displayed keys differ depending on the current audio source, status, etc. For examples of functions of each key, refer to the table below Key Function Lists all the music in the lower hierarchy, Moves to the upper hierarchy. Displays current category folder. La PAT Displays music/picture/movie file list.

Return to the Top page Basic Operations Flick scrolling You can scroll the list screen by flicking the screen up/down or right/left. A Favorite Menu

Return to the Top page Basic Operations [Navigation Operation For details on the navigation function, please refer to the Navigation Instruction Manual. Display the navigation screen EX Press the <NAV> button.

[DNX8 ADNX7/} The navigation screen appears. Devos L Control audio from the navigation screen You can control audio sources while the navigation screen is displayed. Also, you can view the navigation information while the source control screen is displayed. EX Touch the information bar. À The theme f Lots drive B+ CEE The navigation screen with audio information appears.

Return to the Top page Basic Operations Æ ouch([1or1 [lin the navigation screen. Locating Satellites Touching this area displays the audio screen. Displays the navigation and control Displays the navigation and current keys ofthe current source. video/picture playback display. Locating GPS Satellites AMFM pet

NOTE on in the bottom of the ull audio sc screen displays thi © Toreturn to the full navigation screen: Touch (El. NOTE + For details on control keys, o the instructions in each section.

Basic Operations | OEM Features Operation By connecting this unit to the bus system of the vehicle using an iDataLink (commercially available), this unit can access the satellite radio source provided for the vehicle and vehicle information can be displayed on this unit. EX Touch [Menu] on any screen. Top Menu screen appears. FA Touch [OEM Features] in the Top Menu screen. OEM Features screen appears. : Displays the control screen ofthe D : Displays the control screen ofthe satellite radio source provided for the media player source provided for the vehicle. vehicle. te Satelite Radio Mo Text Greatest es Displays the control screen of the Displays the control screen of the Bluetooth Hands Free function Bluetooth streaming source provided provided for the vehicle. for the vehicle. Bo streaming

Return to the Top page Basic Operations isplays information about the Displays information about the air instruments such as a speedometer. conditioner of the vehicle. G Camate Out 79 AUTO |" |'OUE “#"| 0000000 *#* isplays information about the Parking Distance Sensor ofthe vehicle. Parking Assist Displays information about the tire pressures of the vehicle. NOTE + Displayable screens, button nam the model of the vehicle link com/ ding on the ty ed iDataLink etails, access the following URL:

Return to the Top page DVD/WVideo CD Operation I Dvp/Video CD (VCD) Operation DVD/VCD Basic Operation Most functions can be controlled from the source control screen and playback screen. NOTE + Setthe remote control mode switch to DVD mode before starting operation, see Switching the operation mode (p.119) + The screen shot below is for DVD. it may be different from the one for VCD. Control screen Video screen 1 Information display Displays the following information - Title #, Chap #: DVD title and chapter number display - Track #/Scene #: VCD track or scene number display Scene # is displayed only when Playback control (PBC) is on. >,» pl, M etc: Current play mode display The meanings of each icon are as follows; æ (play), me (fast forward), 44 (fast backwarc), > (search up), éd (search down), m (stop), Bf(resume stop), I (pause), 1B> (slow playback), I (slow reverse playback) Touch this area to display the disc lable name. 2 Multi function key Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.24). 3 Multi function menu Various functions can be performed by using keys in this area. For details on the keys, see Multi function menu (P.24). 4 Control switching key Unavailable in DVD/VCD source.

Return to the Top page DVD Video CD Operation 5 Sub function menu ‘The following functions can be performed by using keys in this area: - Repeats the current content: Touch Each time you touch the key, repeat mode switches in the following sequence; + Hides all keys: Touch [ - Fast forward or fast backward: Touch [44] or bæ»]. Each time you touch the key, the speed changes: standard, 2 times, 3 times. + Confirms play time: See #:#4#:#4. DVD: You can switch the time display between title play time, chapter play time, and title remaining time. Each time you touch, the display switches between'T ###:##” (title play time display), °C ###:##" (chapter play time display), and'R #:##:##” (title remaining time display As well as the time display, the bar indicating current location appears. VCD (PBC off): You can also confirm disc remaining time by touching time display. Each time you touch, the display switches between "P ###" (play time display) and'R ####" (disc remaining time) + Confirms the current location: See the bar in center (DVD only). The bar does not appear when the time display is remaining time display. 6 Searching area Touch to search the next/previous content. Scrollng from center of display to left or right performs fast backward or fast forward. Each time you touch each area, the speed changes; standard, 2 times, 3 times. To stop fast backward/forward, touch center of the display. 7 Menu display area This area functions differently depending on the current status. + During DVD playback: Displays the DVD menu. During the menu display, displays the highlight control screen. + During VCD playback: Displays the Zoom Control screen (P.26). 8 Key display area Touch to display the last control screen. NOTE + fyou use a remote control, you can jump directly to the desired image with entering the chapter number scene number, play time, etc (P.119)

Return to the Top page DVD/Video CD Operation E Multi function menu DVD ven [RS Labs ai FT " The functions of each key are as follows. Le D» Searches the previous/next content. Du] Plays or pauses. [il or [ip] (DVD only) Plays in slow motion forward or backward [m] Stops playback. When touched twice, the disc is played from the beginning when you play it the next time. IPBC] (VCD only) Turn Playback control (PBC) on or off. EN seruP] Touch to display the SETUP Menu screen. See Setting Up (P.92). [Æjavoul Touch to display the Audio Control screen. See Controlling Audio (P.106) LEZ EXT sw] (DNX891HD, DNX77108T only) Touch to control the external device power supply. For details, see External Device Control (P.104) LREAR Touch to mute the rear speaker.

DVD c Menu Operation IDEO You can set up some items in the DVD- disc menu. 1 Touchillustrated area during playback. Menu Control screen appears. 2 Perform desired operation as follows.

• These keys may not function depending on the disc. Return to the Top page DVD Video CD Operation E Highlight control Highlight control lets you control the DVD menu by touching the menu key directly on the screen. T Touch [Highlight] in the Menu Control screen. 2 Touch desired item on the screen. NOTE + The highlight control is cleared automatically if you do not operate for a canstant time.

Return to the Top page DVD/Wideo CD Operation E DVD play mode setting You can select DVD play mode. T Touch [Next] in the Menu Control screen. Menu Control 2 screen appears. 2 Touch the key which corresponds to desired setting item. Switches the subtitle language Touch [Subtitle]. Each time you touch this key, language is switched Switches the audio language Touch [Audio]. Each time you touch this key, language is switched Controls zoom ratio Touch [Zoom] For details, see step2 in Zoom Control For DVD And VCD (P.26) Switches the picture angle Touch [Angle]. Each time you touch this key, picture angle is switched Exits menu control Touch [Exit] Displays the Menu Control 1 screen Touch [Previous]

Zoom Control For DVD AndV You can enlarge Playback screen for DVD and VCD. À For VCD, touchillustrated area during playback.

Zoom Control screen appears. NOTE : For DVD, please refer to DVD play mode setting (P.26) to display the Zoom Control screen. 2 Perform desired operation as follows. RRETEAT Switches zoom ratio Touch [Zoom] For DVD, changes the zoom ratio at 4 levels; Off, 2 times, 3 times, 4 times. For VCD, changes the zoom ratio at 2 levels; Off, 2 times. Scrolls the screen Touch [A], [w], [<, or D] to scroll the screen in the direction you touch. Exits menu control Touch [Exit]. Displays the previous menu* Touch [Return].

• This function may not be performed depending on the disc. NOTE + You cannot touch the menu keys directly on the screen when 200ming, Return to the Top page DVD/Video CD Operation

Return to the Top page DVD/Wideo CD Operation DVD Setup You can set up the DVD playback functions. NOTE + Each operation in this section can be started from Top Menu screen. For details, see Operating with the Top Menu Screen (P.14) + Some setup item mode in standby T Touch [RQ] in the control screen. Multi function menu appears. 2 Touch [SETUP]. SETUP Menu screen appears. 3 Touch [Source]. Source SETUP Menu screen appears. 4 Touch [DVD SETUP] in the list. DVD SETUP screen appears. 5 Set each item as follows.

ange Controï Normal. Dolby Digitai Menu/Subtitle/Audio Language* See Language setup (P.29) Dynamic Range Control* Sets the dynamic range. Wide: The dynamic range is wide. Normal: The dynamic range is normal. Dialog (Default): Makes the total sound volume larger than other modes. This is effective only when you are using Dolby Digital software: Angle Mark Sets an angle mark display. ON (Default): An angle mark appears. OFF: An angle mark does not appear. Screen Ratio* Sets the screen display mode. 16:9 (Default): Displays wide pictures. 4:3 LB: Displays wide pictures in the Letter Box format (having black stripes at the top and bottom of screen) 4:3 PS: Displays wide pictures in the Pan & Scan format (showing pictures cut at the right and left ends). Parental Level* See Parental level (P.30). DISC SETUP See Disc setup (P.30).

Stream Information Displays the present source information. The stream (Dolby Digital, Linear PCM, MPEG, WMA or AAC) appears. *These items are disabled when a DVD is inserted. Return to the Top page DVD/Video CD Operation E Language setup This setting is for the language used in the menu, subtitle, and voice. You cannot setup these items during DVD playback. T Touch [SET] of the desired item; [Menu Language], [Subtitle Language], IAudio Language]. Language Set screen appears. 2 Enter the desi touch [Enter]. d language code and Audio Language Set For language code, refer to DVD Language Codes (P.133). Sets the entered language and returns to the DVD SETUP screen. the setup and return to the previous screen, touch [Cancel

+ To set the DVDS original language for audio language, touch [Original] ar the entered code, touch [Clear]

Return to the Top page DVD/Wideo CD Operation E Parental level Sets a parental level. You cannot setup this item during DVD playback. T Touch [SET] of [Parental Level]. Parental Pass screen appears. 2 Enter the parental code and touch [Enter]. Parental Level screen appears. NOTE - The parental code is set to"0000" as default. - To cancel the setup and return to the previous screen, touch [Cancel + To clear the entered code, touch [Clear] + Current parental level appears as [Level#] 3 Touch [<] or [>]to select a parental level. Parental Le\ NOTE a disc has higher parental lock level, you need to enter the code number. + The parental lock level varies depending on à loaded disc. + Ifa disc has no parental lock, anybody can play it back even when you have set the parental lock

E Disc setup Performs setup when using disc media. T Touch [SET] of [DISC SETUP]. DISC SETUP screen appears. 2 Select an option as follows. CD Read Sets the motion of this unit when a music CD is played 1 (Default): Automatically recognizes and plays back an audio flle disc, a DVD or à music cp. 2:Forcibly plays back a disc as a music CD. Select [2] i you wish to play a music CD having a special format or if you cannot play a disc in [1] position. On Screen DVD Sets an on-screen display Auto: When updated, information appears for 5 seconds. OFF (Default): Information does not appear. NOTE + CD Read) is not available when a disc is in the unit. + You cannot play an audio file/VCD disc in the [2] position. Also, you may not play some music CDS in the [2] position

Return to the Top page CD/Audio and Visual Files/iPod/App Operation I CD/Audio and Visual Files/iPod/App Operation Music/Video/Picture Basic Operation Most functions can be controlled from the source control screen and playback screen. NOTE + Setthe remote controller mode switch to AUD mode before starting operation, see Switching the operation mode (P.119). + To connect the Android device with this unit, the cable (sold separateb) andthe profile which your Android device supports are necessary as follows: - To listen to music and watch video of APPS source -MHL device —KCA-MH100 Bluetooth profile: SPP - To listen to music of APPS source Bluetooth profile: A2DP Bluetooth profile: SPP + To listen to music of Bluetooth Audio source Bluetooth profile: A2DP Bluetooth profile: AVRCP + To connect the iPod/Phone with this unit, the cable, adapter (both sold separately), and the profile which your iPod/iPhone supports are necessary as follows: : To listen music and watch video with Lightning connector device Lightning Digital AV Adapter -KCAHDI100 Lightning to USB Cable (accessory ofthe iPod/iPhone) Bluetooth profile: SPP + To listen music with Lightning connector device Lightning to USB Cable (accessary ofthe iPod/iPhone) + To listen music and watch video with 30-pin connector device (1) Apple 30-pin Digital AV Adapter KCA-HD100 =KCAiP102 Bluetooth profile: SPP + To listen music and watch video with 30-pin connector device (2) KCA:iP202 + To listen music with 30-pin connector device =KCAiP102 + To listen to music via Bluetooth Bluetooth profile: ADP. Bluetooth profile: SPP When connecting with Lightning Digital AV Adapter or Apple 30-pin Digital AV Adapter some applications can be controlled from this unit. The operable functions depend on the application + Do not leave the cable or the adapter made by other makers inside the car. It might lead the malfunction caused by heat + Some settings are necessary to meet the connected iPod/iPhone or Android device. Refer to iPod/iPhone connection setup (P.54) and Application link setup (P.56) See the following sections for each source operation. + Music CD (P.33) sc media (P.33) + USB device (P.35)

Return to the Top page CD/Audio and Visual Files/iPod/App Operation + iPod (P.35) + Pandora (P.45) + iHeartRadio (P.48) + Apps (P.51) E Music CD and disc media NOTE + In this manual, Music CD'will be referred to as the general CDs which include music tracks in. “Disc media” will be referred to as CD/DVD disc which includes audio, picture ar videa files, + The screen shot below is for CD. It may be different from the one for disc media. Simple Control screen List Control screen 1 Information display Displays the following information. - Track #: Each time you touch this area, display switches between current track number, text, etc 22.» RE etc: Current play mode display The meanings of each icon are as follows: » (play), m> (fast forward), 44 (fast backward), mB1 (search up), 4 (search down), & (stop), (resume stop) (pause) 2 Movie display area/Control switching area Touch to switch between the Simple Control and List Control screen. 3 Multi function key Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.37). 4 Multi funi Various functions can be performed by using keys in this area. For details on the menu, see Multi function menu (P.37), 5 Sub function key Touch to display“Sub function menu’ (7 in this table) 6 Trackinformation Displays the information of the current track For music CD and disc media, you can switch the current track information and the current folder list by touching the list switching key (8 in this table) lowever only “No Information" is displayed for music CD.

Return to the Top page CD/Audio and Visual Files/iPod/App Operation 7 Sub function menu Various functions can be performed by using keys in this area. For details on the keys, see Sub function menu (P.38). 8 List switching key Touch to switch between the track list and the CD-TEXT display (CD)/1D3 tag information (disc media only) Video screen (disc media only) 9 Searching file area (disc media only) Touch to search the next/previous file. Scrollng from center of display to left or right performs fast backward or fast forward. Each time you touch each area, the speed changes; standard, 2 times, 3 times. To stop fast backward/forward, touch center ofthe display. 10 Menu display area (disc media only) Touch to display the disc menu. For details, see Movie Control (P.44) 11Key display area (disc media only) Touch to display the last control screen

Return to the Top page CD/Audio and Visual Files/iPod/App Operation E USB device and iPod NOTE + The screen shot below is for USB device. It may be different from the one for iPod. Simple Control screen List Control screen 1 Information display Displays the following information. + Current file name: Each time you touch this area, display switches between file number/folder number and file name >,» etc. Current play mode display The meanings of each icon are as follows; & (play, searching), H (pause), m> (forward manual search), 4 (reverse manual search). 2 Artwork/Control switching area The picture data is displayed if available from the current file. When the picture is not available, ‘No Photo'is displayed Touch to switch between the Simple Control and List Control screen. 3 Multi function key Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.37). 4 Multi funi Various functions can be performed by using keys in this area. For details on the keys, see Multi function menu (P.37), 5 Sub function key Touch to display“Sub function menu” (7 in this table). 6 Contents list Displays the list and contents. The contents of the list differ depending on the playback status and source. When you select the video source on the device connected with the Lightning connecter the source is switched to Apps (P.51) automatically. 7 Sub function menu Various functions can be performed by using keys in this area. For details on the keys, see Sub function menu (P.38). 8 List switching key Touch to switch between the file list and the current file information.

Return to the Top page CD/Audio and Visual Files/iPod/App Operation - Touch to search the next/previous file. + During slide show in USB mode, touching each area searches the next/previous music file. : Scrolling from center of display to left or right performs fast backward or fast forward. To stop fast backward/forward, touch center of the display. This function is not available when there is no music file in the current folder. Touch to display the last control screen.

Return to the Top page CD/Audio and Visual Files/iPod/App Operation E Multi function menu Music CD Disc media iPod USB device The following functions can be performed by using keys in this area. [EX (Disc media, iPod, USB device only) Searches track/ile. For details on search operation, see Search Operation (P.39) Le] D-21] Searches the previous/next track/le. D] [0] / De-11] Plays or pauses. Im] (music CD and dise media only) Stops playback. [A] (iPod and USB device only) Touch to disconnect the device. For details, see How to Play Media (P.13)

12) 1tdise media and USB device only)

Searches previous/next folder. 11 (picture files in USB device only) During picture playback switches to picture display. LM serur] Touch to display the SETUP Menu screen. See Setting Up (P.92). tÆjavoooi Touch to display the Audio Control screen. See Controlling Audio (P.106) LE EXT sw (DNX891HD, DNX77108T only) Touch to control the external device power supply. For details, see External Device Control (P.104), LREAR Touch to mute the rear speaker.

pai CD/Audio and Visual Files/iPod/App Operation E Sub function menu Music CD Disc media iPod USB device The following functions can be performed by using keys in this area. (Oil Repeats the current track/folder. Each time you touch the key, repeat mode switches in the following sequence; CD: "track repeat" [fs] ‘repeat off iPod: "song repeat ll songs repeat' Disc media, USB device: ‘file repeat SM : (55 device and iPod only) Searches track from the album artwork list. For details on search operation, see Search from album artwork (P.42). 11 During video file playback only) ides all keys [<i D>->-1 (Music CD and disc media only) Fast forward or fast backward [L< al 1 (USB device and iPod only) Plays the previous or next album in Favorite list (P.43) #:HH#2#t# or HA Confirms play time. During music CD playback, you can also confirm disc remaining time by touching time display Each time you touch, the display switches between “P ##:##" (track play time display) and 'R #:##" (disc remaining time) 1E1 Randomly plays all tracks in current folder/disc or in current playlist in the connected iPod Each time you touch the key, random mode switches in the following sequence; CD: “track random! andom off" Disc media, USB device: ‘file random* Ba ‘random off iPod: “track random’ 4 ‘album random" [M “random off” Status bar in center (USB device and iPod only) Confirms the current location During USB device and iPod playback, you can drag the circle left or right to change the playing position.

Search Operation You can search music, video or picture files by the following operations. NOTE fou use a remote control, you can jump directly the desired track/file n ering the track/ r/file number, play time, etc. For details, Direct search mode (P.119), E List search You can search tracks, folders, and files according to hierarchy. À Touchillustrated area. KENWOOD List Control screen appears. 2 Touch desired track/file. 2:00:00 Playback starts. NOTE + For disc media, you can switch the file list and folder ist by touching [[@U: + For disc media, random play jou cannot display the list stop. ring Return to the Top page CD/Audio and Visual Files/iPod/App Operation E Other search When you want to narrow the list down, there are other search ways. This function is not available when music CD is the current source. 1 Touch [ [EU] in the control screen. The search type screen appears. 2 Touch desired search way. USB device The list sorted in the way you selected appears. See the following sections for each operation. [Category List]: You can search a file by selecting category (P.40). [Link Search]: You can search a file of same artist/album/genre/composer as the current track (P.40). {Folder List]: You can search a file according to hierarchy (P.41). [Thumbnail Viewer]: You can search a picture file (P.41). NOTE + For dise media, you can display the folder list directy by touching 1 [X1

Return to the Top page CD/Audio and Visual Files/iPod/App Operation Category search (USB device andiPod only) 1 Touch the desired category from the left part of the screen.

2 Thelistis sorted by selected category. 3 Touch desired item. Playback starts. NOTE + To narrow the search you can select a letter from he alphabet list in the center ofthe dis; + For operations in the list screen, see Common Operations (P.16) Link search (USB device and iPod only) T Touch the desired item from the left part of the screen. You can select from artist, album, genre and composer. The list corresponding to your selection appears. NOTE + The lisis sorted by the way you selected. + artist: Displays the album list ofthe artist + album: Displays al tunes ofthe current album + genre: Displays the artists list in which artists belong to the same genre. album list ofthe e current file. + composer Display 2 Touch to select desire: list. Repeat this step until you find the desired file. NOTE + To narrow the search you can selec the alphabet list in th letter from € center ofthe display. + For operations in the list screen, see Common Operations (P.16),

Return to the Top page CD/Audio and Visual Files/iPod/App Operation Folder search (USB device and disc Picture search (USB device only) media only) T Touch the desired folder. 1 Touch the desired picture. À roiter List The selected picture appears in full screen. Folders in the selected source are displayed See number 9-10 in USB device and iPod in the center. {P.35) for operation of picture screen. When you touch a folder its contents are displayed. The hierarchy till the current folder is displayed on the left. 2 Touch desired item from the content list. Playback starts. NOTE + For operations in the list screen, see Common Operations (P.16)

Return to the Top page CD/Audio and Visual Files/iPod/App Operation Search from album artwork (USB device and iPod only) You can search music files by selecting the album artwork. 1 Touch [} Sub function menu appears. 2 touch (SIN:

KENWOOD Favorite screen appears. 3 Touch desired artwork in the lower line. NOTE : The key in the upper side of the screen functions differentiy depending on the status When [Load Albums] appears: You have not yet loaded any artworks, Touch the Key to start loading, When [Load More Albums] appears: Some artworks are not loaded, Touch the key to load all artworks. If you touch the key, the track being played may stop and another track may start playback When the key does not available: All aroworks are already loaded.

4 Touch[» ]on the selected artwork. The first song in the album is played. In addition, you can create your original playlist from this screen. For details, see Favorite list (P.43). NOTE + After all tracks in the album are played, the same album is played again from the first track : The albums with no photo are not displayed.

Favorite list You can create an original playlist of your favorite 10 albums by selecting album artworks. À Touch and dragthe desired album artwork in the lower line to the upper Selected album is registered to the favorite list. NOTE - The added album is placed on the extreme right. + You cannot register the same album already registered to the favorite ist. + Up to 10 albums can be registered to the list. 2 Touch the desired artwork in the favorite list. Selected album is played and the control screen appears. Return to the Top page CD/Audio and Visual Files/iPod/App Operation + The favorite list made is canceled in the fol NOTE + The favorite ist is played to the right starting with the selected album + To delete the album from the favorite list, touch and drag it to the lower line. + You can change the playing order ofthe favorite list by dragging the artwork in the list situations. + Playing another album from other list (folder list, category list ete) + Playing another album by touching the artwsork in the lower line in the artwork list screen. + The favorite list mode resumes after disconnecting/connecting the device or tuning on/off File being played, playing time code, favorite list contents, favarie list order, etc. resumes iffile configuration of the device is not changed

Return to the Top page CD/Audio and Visual Files/iPod/App Operation Movie Control You can adjust the movie playback from a disc media. T inthe playback screen, touch illustrated area. Movie Control screen appears. 2 Perform desired operation as follows. Changes subtitle language Touch [Subtitle] Changes audio language Touch [Audio]. Exits the menu Touch [Exit]

Return to the Top page CD/Audio and Visual Files/iPod/App Operation ndora® Operation You can listen to the Pandora® on this unit by controlling the application installed in the iPhone or Bluetooth device. To enter Pandora mode, touch [Pandora] icon in the Top Menu screen. NOTE + Install the latest version ofthe Pandora? application on your Phone, Android or BlackBerry. iPhone: Search for "Pandora" in the Apple App Store to find and install the most current version. Android: Visit the Google play and search for Pandora to install BlackBerry: Visit wmwpandora com from the buit in browser to download the Pandora application + When you first select Pandora as a source, the setting screen for the connection with the device installed the apps will appear. For the details, refer to Application link setup (P.56). Simple Control screen List Control screen 1 Information display Displays text information of current contents that is being played. 2 Artwork/Control switching area The picture data is displayed if available from current content. Touch to switch between the Simple Control and List Control screen. 3 Multi function key Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.46). 4 Multi function menu Various functions can be performed by using the keys in this area. For details on the keys, see Multi function menu (P.46). 5 Sub function key Touch to display“Sub function menu” (7 in this table). 6 Contentinformation Displays the information of the current content being played 7 Sub function menu Various functions can be performed by using keys in this area. For details on the keys, see Sub function menu (P.46). 8 List switching key Touch to switch between the content list and the current content information.

CD/Audio and Visual Files/iPod/App Operation E Multi function menu The following functions can be performed by using keys in this area.

Searches for a station. For details on searching, see Station list screen (P.47) LR (Mhumbs down) Thumbs down to the current song and skip to the next song. tu] Plays or pauses the content ofthe current station. L>»i] Skips the current song. {Note this function is disabled when the Pandora skip limitation is exceeded.) CE: (rhumbs up) Registers the current contents as favorite content. LEM1 (Bookmark Artist) Bookmark an artist in the current contents. 1f1 (Bookmark Song) Bookmark a song in the current contents. NOTE + ISETUP], [AUDIO], [EXT SW], and (REARI functions same as iPod E Sub function menu The following functions can be performed by using keys in this area. Status bar in center Displays the elapsed time since when you select the station and status bar which shows current location. (a+) Creates a new station based on an artist being played.

Creates a new station based on a song being played.

Displays the genre list screen. For details on searching, see Genre list screen (P.47).

Return to the Top page CD/Audio and Visual Files/iPod/App Operation E Station list screen E Genre list screen You can perform the following functions You can perform the following functions from this screen. from this screen. The selected genre is created as a new station. Selects the station Touch the station name in the list. Sortthelistin alphabetical order You can select the desired letter from the list which corresponds to the station name to help narrow the search. Sortthelist by registered date Touch [ByDatel. The list is sorted to begin with the last registered station: NOTE - You can operate Pandora by using the remote control. However, only playing, pausing, and skipping are available. : You cannot select iPod as rear source when you select Pandora as main source in dual zone function.

Return to the Top page CD/Audio and Visual Files/iPod/App Operation HeartRadio Operation You can listen to the iHeartRadio on this unit by controlling the application installed in the iPhone or Android. To enter iHeartRadio mode, touch [iHeartRadio] icon in the Top Menu screen. NOTE + Install the latest version ofthe iHeartRadio application “iHeartAuto” on your iPhone or Android. iPhone: Search for “iHeartAuto” in the Apple App Store to find and install the most current version. Android: Search for “iHeartAuto” in Google play to find and install the most current version. + When you first select ieartRadio as a source, the setting screen for the connection with the device installed the apps will appear For the details, refer to Application link setup (P.56) 1 Artwork switching area The picture data is displayed if available from current content. When the picture is not available, "No Photo”is displayed. 2 Multifun Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.49). n key 3 Multi function menu Various functions can be performed by using the keys in this area. For details on the keys, see Multi function menu (P.49). 4 Sub function menu The following functions can be performed by using keys in this area. - Thumbs up to the current song: Touch [ F4]. + Thumbs down to the current song. : Touch ( [1 5 Content information Displays the information of the current content being played

The following functions can be performed by using keys in this area.

Stops or pauses. (Live station only) [ui] Plays or pauses. (Custom station only)

Skips the current song. (Custom station only) ISCAN] Scans for another station ofthe same genre. {Live station only)

Creates a custom station based on the current song

Searches for a station. For details on searching, see Station search (P.49)

Saves currently playing station to My Stations Live station only)

Use the Discovery Tuner to set the variety level ofa station. For details, see Discovery tuner {P.50). (Custom station only) Return to the Top page CD/Audio and Visual Files/iPod/App Operation E Station search You can list and select station. 1 Touch [ [EU] in the control screen. The Station Search screen appears. Selects the category and station Touch the category and station name in the list

Returns to the first hierarchy of the category list

Returns to the previous category list.

Deletes a saved station from My Stations. For details, see My stations edit (P.50),

pai CD/Audio and Visual Files/iPod/App Operation My stations edit E Discovery tuner T Touch [EH] in the Station Search screen. Station Edit screen appears. You can set the variety level in a custom station. 1 Touch [PJ] in the control screen. 2 Select the sta The Discovery tuner select screen appears. stations. n to delete from My Familiar Mixed Less Familiar Selects the variety Touch the variety you want to set. Selects the station Touch to check the station name you want to delete. You can uncheck if you touch it again

Returns to the fist hierarchy of the category ist. te: Returns to the previous category list. 3 Touch1fl. Station Delete screen appears. 4 Touch [Yes]. My station selected is deleted.

Return to the Top page CD/Audio and Visual Files/iPod/App Operation Apps Operation You can listen to music or watch video from the Apps operating on iPod touch/iPhone or Android. To enter Apps mode, touch [APPS] icon in the Top Menu screen. NOTE Vhen you turn on the power and select apps as the source, the caution for the operation, watching video anc listening music appears. With your acceptance, you can control apps, listen to music and watch video from apps when you are driving, + When you first select APPS as a source, the setting screen for the cannes will appear. For the details, refer to Application link setup (P.56). tion with the device installed the apps 1 Multi function key (iPod touch/iPhone only) Touch to switch the multi function menu. 2 Multi function menu (iPod touch/iPhone only) The following functions can be performed by using keys in this area. + Plays or pauses: Touch 1], [1], or 1-11] (iPod only) + Searches the previous/next track/file: Touch [dt] or [>] + Fast forward or fast backward (iPod only): Touch [-4-] or [p-»- 3 Sub function menu (iPod touch/iPhone only) The following functions can be performed by using keys in this area. - Hides all keys (During video file playback only): Touch [ FE] NOTE - The operable functions depend on the application.

CD/Audio and Visual Files/iPod/App Operation USB/iPod/DivX Setup | EU You can perform setup when using USB/ 1 Set each item as follows. iPod/ DivX (DNX891HD/ DNX7710BT/ DNX5710BT). Picture Display Time Middle NOTE creen USB + Each operation in this section can be started from Auto the Top Menu screen. For details, see Operating th the Top Menu Screen (P.14). : Some setup item mode. only be set in standby T Touch [RQ ]in the control screen. TR Picture Display Time Multi function menu appears. , Selects length of time to display JPEG picture 2 Touch [SETUP]. file in the screen, Select from [Short], [Middle], SETUP Menu screen appears. and [Long] (default). 3 Touch [Source]. (RESERUES Sets how to display the information of the USB device Auto (Default): Information appears for seconds when updated! OFF: Does not display any information Source SETUP Menu screen appears. Æ Touch [USB SETUPI, [iPod SETUP], [APPS SETUP], or [DivX SETUP] in the list. Each setup screen appears. See the following section for each setting. + USB setup (P.52) + iPod setup (P.53) + AppsApplication link setup (P.56) + DivX(R) VOD (P.57)

E iPod setup T Set each item as follows. ‘AudioBook Speed Sets the audio book playback speed, Select from [Slowi, [Normal] (default), and [Fast] Wide Screen* Sets Wide Screen. Set [ON] (default) or [OFF]. On Screen iPod Sets how to display the information of the iPod. Auto (Default): Information appears for 5 seconds when updated. OFF: Does not display any information iPod connection setup Sets the way to connect the iPod/Phone with this unit For details on searching, see iPod/ iPhone connection setup (P.54). *This setting is not available when an iPod is connected. Return to the Top page CD/Audio and Visual Files/iPod/App Operation

Return to the Top page CD/Audio and Visual Files/iPod/App Operation iPod/iPhone connection setup 1 Touch liPod Connection Setup iPod Settings screen. iPod connection setup screen appears. 2 Touch [CHANGE]. _ÆMSE od/ 3 Select the way to connect th iPhone with this unit. IPod Settings USB + AV-IN Select when connecting with KCA-iP202. USB 1Wire Select when connecting with KCA-iP102/ Lightning to USB Cable HDMI +BT Select when connecting with KCA-HD100 and Lightning Digital AV Adapter or Apple 30-pin Digital AV Adapter. Bluetooth Select when connecting via Bluetooth only. 4 Touch [Next]. Confirmation screen appears. 5 Touch [Done].

NOTE + Forthe details ofthe necessary cable and adapter to connect with iPad/iPhane, refer to Music/ Video/Picture Basic Operation (P.32) + When you selectHDMI + BT"ar‘Bluetooth'in step 3, Bluetooth device selection screen will appear Select the iPod/Phone to be connec Ha connectable Bluetooth device is not uch [Search] and do the pairing of

Return to the Top page CD/Audio and Visual Files/iPod/App Operation

pai CD/Audio and Visual Files/iPod/App Operation E Application link setup Sets the device an application is installed in and the app is selected as the source. T Touch [CHANGE].

2 Select the device installed the apps. iPod / iPhone Select when using iPod/iPhone. Android / Other Select when using Android or BlackBerry device. 3 Touch [Next]. Connection setup screen appears.

4 Select the way to connect the device with this uni When selecting [iPod / iPhone] USB + AV-IN Select when connecting with KCA-iP202. USB 1Wire Select when connecting with KCA-iP102/ Lightning to USB Cable HDMI +BT Select when connecting with KCA-HD100 and Lightning Digital AV Adapter or Apple 30-pin Digital AV Adapter. Bluetooth Select when connecting via Bluetooth only. When selecting [Android / Other]

Select when connecting with KCA-MH100. Bluetooth Select when connecting via Bluetooth only. 5 Touch [Next]. Confirmation screen appears. 6 Touch [Done].

NOTE + This setup can be se* t when in STANDBY source. + Forthe details ofthe necessary cable and ad to connect with iPad/iPhone and Android, refer t MusicWideo/Picture Basic Operation (P.32) + When you select"HDMI + BT:"HDMI/MHL + BT'or ‘Bluetooth in step 4, Bluetooth device selection screen will appear Select the device to be connected the devices. + When you select"iPod/ iPhone” in Apps Set select"iPod"as the source, and select App on the iPod, the source of this unit is also changed to App automatically Return to the Top page CD/Audio and Visual Files/iPod/App Operation E DivX(R) VOD (DNX891HD/ DNX7710BT/ DNX5710BT) This feature is available only for Central and South America sales area. T Set each item as follows. X(R) Registration Code Checks the registration code. This code is needed when making a disc which has DRM {Digital Rights Management) X(R) Deact Deregisters the unit which is already registered After you touch the key, a confirmation message appears. Follow the message and complete the operation. NOTE + IDivX(R) VOD] is disabled when a disc is being played + When downloading a DivX VOD file controlled by DRM, register the code appeared on the screen, Otherwise the file may not be able to play with this unit. Remaining number of viewing is displayed when playing à DivX VOD file with the viewing restriction. When the used number of viewing reached maximum number a warning message appears and the file cannot be played.

Return to the Top page Radio and HD Radio Tuner Operation I Radio and HD Radio" Tuner Operation Radio/HD Radio Tuner Ba Most functions can be controlled from the source control screen. Opera

NOTE + Setthe remote control mode switch to AUD mode before starting operation, see Switching the operation mode (P.119). + HD Radio broadcasting can be received only by the DNX891HD, DNX771HD, DNX691HD, DNX571HD, and DNXS71EX. + HD Radio broadcasting is for North American sales area on. - The screen shot below is for tuner. It may be different from the one for HD Radio broadcasting. Simple Control screen List Control screen 1 PS/Station name display Displays the PS name or station name. 2 Information display/Control switching area Displays the following information. - Picture: The picture data or station Logo data is displayed if available from current content. + [FM] etc: Band display + MHz/kHz Frequency display + Preset #: Preset number + HD# (HD Radio tuner only): Channel display Touch to switch between the Simple Control and List Control screen. 3 Multi function key Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.59). 4 Preset key/Multi function menu Recalls the memorized station or channel. When touched for 2 seconds, stores the current receiving station or channel in memory. When switched, various functions can be performed by using keys in this area. For details on the menu, see Multi function menu (P.59) 5 Sub function key Touch to display "Sub function menu’ (7 in this table)

Return to the Top page Radio and HD Radio Tuner Operation 6 Presetlist Displays the list of reset stations or channels and the information: 7 Sub function menu ‘The following functions can be performed by using keys in this area + Switches the band: Touch [AMI] or [FM] + Tunes in a station: Touch [-@<4{] [æ»-]. The method of frequency switching can be changed. See Multi function menu (P.59), : Selects a channel (HD Radio tuner only): Touch [CH] or [CH + Stores the information about the song being received! Touch { f]]1. See Bookmark (P.65). + Tunes in by entering direct number (HD Radio tuner only) Touch [EI] and enter the desired number. For details, see Direct search (P.63). ‘The bar in center (tuner only) shows the current frequency location: 8 List switching key Touch to switch between the preset list and the information list. In tuner mode, radio text plus will be displayed! In HD Radio tuner mode, tuned program information will be displayed E Multi function menu Tuner HD Radio tuner The functions of each key are as follows. [P11-[P6] Selects the preset station. Touch for 2 seconds to store the current station into the preset memory. ral Selects the method of searching from preset stations selecting or channel searching. For details on search operation, see Selecting Operation (P.62). [Ti] (FM Tuner and HD Radio tuner only) Sets the traffic information mode on. For details, see Traffic Information (P.64). ISEEK] Switches the seek mode in the following sequence: [AUTO1], [AUTO2], [MANUAL] + AUTOI: Tunes in a station with good reception automatically. + AUTOZ: Tunes in stations in memory one after another. + MANUAL: Switches to the next frequency manually [AME] Selects the auto memory mode. For details, see Auto memory (P.61), {PTY] (FM Tuner and HD Radio tuner only) Searches a program by setting program type. For details, see Search by program type (P.62). [RCV] (HD Radio tuner only) Switches the receive mode in the following sequence; [AUTO], [DIGITAL], [ANALOGI. For details, see Receive Mode (P.64). Continued

Return to the Top page Radio and HD Radio Tuner Operation LM serur] Touch to display the SETUP Menu screen. See Setting Up (P.92). tÆjavoioi Touch to display the Audio Control screen. See Controlling Audio (P.106). LE EXT sw (DNx891HD, DNX77108T only) Touch to control the external device power supply. For details, see External Device Control (P.104) LREAR CES) Touch to mute the rear speaker. PSD) H) Ra di O° + Program Service Data provides song name, artist, station ID, and other relevant data streams HD2/HD3 ) ‘This HD Radio receiver enables: PSD) + Adjacent to traditional main stations are HD2/HD3 Channels, providing new original formats on the FM dial

+ Bookmark is a music & product discovery feature Bookmark ) that enables users to store information about content on the radio and delivers interactive information via QR codes Digital Sound ) Artist Experience ) + HD Radio broadcasts deliver crystal clear, CD-ike digital audio quality to consumers Digital Sound ) Artist Experience ) - Visual images, such as album art of over-the-air broadcasts from HD Radio stations

Memory Operati Haut memory You can store stations with good reception in memory automatically. NOTE - Auto memory terminate: Stared ar when all st hen 6 stations are ns are tuned in. : The operation ends automatically if you do not operate within 10 seconds. 1 rouch|EN Sub function menu appears. 2 Touch desired band key. The multi function menu appears. 4 Touch [AME] in the multi function menu. 5 Touch [-4<] or [>>] in the sub function menu. Auto memory starts. Return to the Top page Radio and HD Radio Tuner Operation E Manual memory You can store the current receiving station or channel in memory. 1 Select a station or channel you wish to store in memory. 2 Touch [P#] (#:1-6) in which you want to store the station or channel for 2 seconds until a beep sounds.

Return to the Top page Radio and HD Radio Tuner Operation Selecting Operation E Preset select You can list and select memorized station or channel. Selecting from the multi function menu T Touch the desired number from P1 to P6. The unit will tune to the selected station or channel. Selecting from the preset list À Touchillustrated area. ABCDEFG Presot1 88 . Our List Control screen appears. 2 Select a station or channel from the li: NOTE + For HD Radio tuner, toi Preset List] displays the pr can also select your desi

E Search by program type (FM tuner and HD Radio tuner only) You can tune to a station with a specific program type when listening to FM. T Touch [K] in the control screen. The multi function menu appears. 2 Touch [PTY] in the multi function menu, TUNER PTY Mode screen appears. 3 Select a program type from the list. Æ Touch [Search]. You can search a station of the selected program type.

Direct search (HD Radio tuner only) You can tune in by entering the desired frequency or channel number. À Touchillustrated area. HD RADIO List Control screen appears. 2 Touch FA]. 10Key Direct screen appears. 3 Enter the channel number and touch [Enter]. NOTE + To cancel the direct search, touch [Cancel + To clear the number you entered, touch [Clear + You can search by frequency. Each time you touch [Mode] in the left part ofthe screen, it changes the mode between frequency entering mode and channel entering mode Return to the Top page Radio and HD Radio Tuner Operation E Category/Channel search (HD Radio tuner only) You can specify the desired category and select a channel. T Touch [K] in the control screen. The multi function menu appears. 2 Touch [EU] in the mul List select screen appears. function menu. 3 Touch [Preset list] or [Category/ Channel The previously used category or channel list appears. 4 Select the desired content from the list. NOTE + Each time you touch [Info Change] in the channel list, switches the sequence ofthe list. Song title, artist name, album name

Return to the Top page Radio and HD Radio Tuner Operation Traffic Information (HD Radio tuner only) Receive Mode (HD Radio tuner only) You can listen and watch the traffic information automatically when a traffic bulletin starts. However, this feature requires a Radio Broadcast Data System that includes the TI information. T Touch [KN] in the control screen. The multi function menu appears. 2 Touch [TI] in the multi fun. Traffic information mode is set. Een the traffic bulletin starts The Traffic Information screen appears automatically. NOTE + Itis necessary to have Traffic Information function set to on in order to have the Traffic Information screen appear automatically. + The volume setting during reception of traffic: information is automatically stored. The next time the traffic information is received, this unit recalls the volume setting automatically. You can set the radio broadcasts receive mode. 1 Touch [KW ]in the control screen. The multi function menu appears. 2 Touch [RCV] in the multi function menu. HD Radio tuner Mode screen appears. 3 Select the receive mode from [Auto], I], and [Analog] using [<] and

D]. Receive Hode NOTE + Ifyou select [Auto automatically when nes to analog broadcast ere is no digital broadcast.

Return to the Top page Radio and HD Radio Tuner Operation Bookmark E Bookmark list (HD Radio tuner only) Displaying a list of registered bookmarks and detailed information and QR code of the Stores tag information (title, artist, album, song. URL, and description) about the song you are listening to now. Detailed information and QR codes can be displayed according to the stored tag 1 Touch [RW 1inthe control screen. The multi function menu appears. information. 2 touch [ [EU] in the muiti function menu. List select screen appears. E Registering a bookmark 3 Touch [Bookmark]. 1 Touch |} Sub function menu appears. 2 Touch [ff]. Registers a bookmark. NOTE + Up to 100 bookmarks can unit. registered to this The Bookmark List appears. 4 Select the desired bookmark from the list. Bookmarks Deletes the bookmarks being displayed

Return to the Top page Radio and HD Radio Tuner Operation E Bookmark delete Deleting a bookmark. in the control screen. The multi function menu appears. 2 Touch [ [EU] in the multi function menu. List select screen appears. 3 Touch [Bookmark]. The Bookmark List appears. 4 Touch [Delete List]. # Hungarian Rhapsody No. 2 The Bookmark Delete List appears. 5 Select the bookmark to delete from the list. Bookmarks Delete List 4 Hung [AI] Select all bookmarks. 6 Touch [fil Deletes all the selected bookmark(s)

Return to the Top page Radio and HD Radio Tuner Operation

Return to the Top page SiriusXM Operation I SiriusxM° Operation SiriusXM° Basic Operation Most functions can be controlled from the source control screen. Before use + SiriusXM® Satellite Radio operation requires the connection ofthe optional SiriusXM Connect Vehicle Tuner and service. To activate the SiriusXM Connect Vehicle Tuner, you will need the Radio ID. + Make a note of your Radio ID: For each SiriusXM Connect Vehicle Tuner, peculiar Radio ID is assigned. To confirm your Radio ID, tune to channel 0. The letters1, OS and F are not used in any Radio ID. The Radio ID is also located on the label of the SiriusXM Connect Vehicle Tuner. + How to activate your SiriusXM Service: Go to wwrsiriusxm.com/activatenow or call 1-866-635-2349 to activate your SiriusXM Vehicle Connect Tuner. To activate SiriusXM Canada service go to wwwxmradio.ca and click on'ACTIVATE RADIO”"in the top right comer, or call 1-877-438-9677 NOTE : Set the remote control mode switch to AUD mode before starting operation, see Switching the operation mode (p.119) + To use SiriusXM® Satellite Radio, the optional accessory is necessary. + SiiusXMP Satellite Radio are for North American sales area only Simple Control screen List Control screen 1 Signal Strength indicat Displays the received signal strength of the SiriusXM tuner. 2 Information display/Control switching area Displays the following information. + [SXMT], etc.: Band display + Preset #: Preset number + #CH: Channel display - Logo: Channel logo display Touch to switch between the Simple Control and List Control screen: 3 Multi function key Touch to switch the multi function menu. For details on the menu, see Multi function menu (P.69).

SiriusXM Operation 4 Preset key/Multi function menu Recalls the memorized channel. When touched for 2 seconds, store the current receiving channel in memory. When switched, various functions can be performed by using keys in this area. For details on the menu, see Multi function menu (P.69). 5 Sub function key Touch to display “Sub function menu" (7 in this table) 6 Music information Displays the information of the current channel: Channel Name, Artist Name, Song Title, Content Info, Category Name, Channel Description, Similar Channels 7 Sub function menu The following functions can be performed by using keys in this area + Tunes in a station: Touch [CHw] [CHA], + Searches the previous/next track: Touch [kdl 1]. fast forward/fast backward when keep on touching, see SiriusXM Replay" (P.74). + Tunes in by entering direct number: Touch [FH] and enter the desired number. For details, see Direct search (P.72), 8 List switching key Touch to switch between the preset list and the information list E Multi function menu The functions of each key are as follows. [P1]-[P6] Selects the preset channel. Touch for 2 secondé to store the current station into the preset memory. [ra Selects the method of searching from preset channel selecting or category/channel searching. For details on search operation, see Selecting Operation (P.71), ISEEK] Switches the seek mode in the following sequence: [SEEK1], [SEEK2]. + SEEK1: Tunes channels one after the other. + SEEK2: Selects channels in preset (memory) one after the other. IBAND] Switches the band Du] Plays or pauses. see SiriusXM Replay" (P.74).

Touch for 2 seconds to register content as Alert content. + A1 Reoisters the artist ofthe song you are listening to now as an alert content. - LM 1: Registers the song you are listening to now as an alert content For details, see Content alert (P.73). Continued

SiriusXM Operation Turns the Traffic & Weather Jump function on or of. For details, see City select for Traffic & Weather Jump (P.79). Listen to live. [TuneScan] Plays samples from the starts of multiple buffered songs from each of the Smart Favorite channels that predominantly play music selections. See TuneScan"" (P.75). AN seruri Touch to display the SETUP Menu screen. See Setting Up (P.92). AUDIO] Touch to display the Audio Control screen. See Controlling Audio (P.106) 1EexT sw (DNx891HD only) Touch to control the external device power supply. For details, see External Device Control (P.104) LREAR [O1 Touch to mute the rear speaker.

Memory Operation E Manual memory You can store the current receiving station or channel in memory. 1 Select a station or channel you wish to store in memory. 2 Touch [P#] (#:1-6) in which you want to store the station or channel for 2 seconds until a beep sounds. SiriusXM Operation Selecting Operation E Preset select You can list and select memorized station or channel. Selecting from the multi function menu T Touch the desired number from P1 to P6. The unit will tune to the selected station or channel. Selecting from the preset list T Touchillustrated area. SiriusXM 1 (mi) preview List Control screen appears. 2 Select a station or channel from the list. NOTE + For SiriusXM tuner, and'then {Preset List] displays channel list. You can also select your desired channel from the list.

Return to the Top page SiriusXM Operation E Direct search You can tune in by entering the desired frequency or channel number. À Touchillustrated area. SiriusXM 1 (mi) preview List Control screen appears. 2 Touch (HA.

sons (am) #7 #7 Previous 10Key Direct screen appears. 3 Enter the channel number and touch [Enter]. NOTE + To cancel the direct search, touch [Cancel + To clear the number you entered, touch [Clear

E Category/Channel search You can specify the desired category and select a channel. T Touch [K] in the control screen. The multi function menu appears. 2 Touch [ [6] in the mu List select screen appears. function menu. 3 Touch [Category/ Channel list]. Este The previously used category or channel list appears. 4 Select the desired content from the list. NOTE + Allthe channels in à e selected category appear : Touching [All Channels] displays all the channels. + Each time you touch [Info Change] in the channel list, switches the sequence of the list. Channel name, artist name, song title, category name, content info

Return to the Top page SiriusXM Operation Content aler When a broadcast program related to the registered artist, song or team starts, a message appears to allow you to switch the current channel to the relevant channel. T When the broadcast of the registered content starts, an Alert screen appears. Sirius sas (om) Previous Jump Touch to display the Alert Content List screen: Ignore Touch to cancel the Content alert. 2 Select a content from the NOTE : Each time you touched [Typel, switches the sequence of the Content alert list as follows Artist Alert, Song Alert, Game Alert" + For how to register artists and songs and turn on/ offthe Team alert function, see Multi function menu (P.69) + For howr to set up the Content à SiriusXM Setup (P.76) t function, see

age SiriusXM Operation sXM Replay" You can replay last 60 minutes of current channel. À Touch [SiriusXM] in the Top Menu. (mi) Previous Le D» Searches the previous/next track. Fast forward/ fast backward when keep on touching.

Plays or pauses. ICHY] [CHA] Tunes in a station. Replay time bar Display recorded capacity and playback position

Listen to live. [ra Displays a list of recorded data on a program basis [BAND] Switches the band 2 Touch [I] to display a program list.

Program list Touching this plays back the displayed program Iinfo Change] Touching this allows you to switch among the Artist name, Song title, Category name, and Content info cyclically.

rt Favorites, TuneStart”" Station memory number 1 though 6 of current band are Smart Favorite channels. SiriusXM Vehicle Tuner automatically buffered the broadcast audio content of the Smart Favorites channels in the background. You can rewind and replay up to 30 minutes of any ofthe missed news, talk, sports or music content when you tune to a Smart Favorite channel. (see SiriusXM Replay" {P74) When tuning Smart Favorites channels, songs will play from the beginning of each track (Tune Start). You can enable/disable Tune Start. (see TuneStart"" (P.80)) SiriusXM Operation TuneScan" is a feature that plays samples from the starts of multiple buffered songs from each of the Smart Favorite channels that predominantiy play music selections. You have easy access to a large sampling of music content and can enjoy hearing a full song when stopping the scan on a song of interest. T Touch [K] in the control screen. The multi function menu appears. 2 Touch [TuneScan] in the multi function menu. The introductions ofthe songs will be played in recorded order. 3 Touch [TuneScan] while your favorite songis being played. Scan finishes and continues playing the song. NOTE - To cancel Tune Scan, Touch [TuneScarn] for 2 seconds. After cancel, the channel before starting Tune Scan will be played

SiriusXM Operation NOTE : Each operation in this section can be started from Top Menu screen. For details, see Operating with the Top Menu Screen (P.14)

Touch [ in the control screen. Multi function menu appears. 2 Touch [SETUP] in the multi function menu. SETUP Menu screen appears.

Touch [Source]. Source SETUP Menu screen appears. 4 Touch [SiriusXM SETUP] in the list. SiriusXM SETUP screen appears. See the following section for each setting. + Set up the parental code (P.76) + Set up the parental control (P.77) + Set up the skip channel select (P.78) + Set up the Content alerts (P.78) + Set up the content for Content alerts {P.79) + Select the city for Content alerts (P.79) + Set up the TuneStart” (P.80) + Reset to the default settings (P.80)

E Parental code You can set a SiriusXM parental code. T Touch [Change] of [Parental Code] in the SiriusXM SETUP screen. Parental Pass Check screen appears. NOTE + The code number is set to"0000"as default. 2 Enter the current code number. Parental Pass 1st entering screen appears. 3 Enter the new code number and touch [Enter]. Parental Pass 2nd entering screen appears. 4 Enter the same code number as you input in step 3 and touch [Enter]. The code number is confirmed and SiriusXM parental code is now set.

E Parental control Parental control is a feature that provides the user with the ability to prevent unauthorized access to mature content and user selected channels. T Touch [ON] or [OFF] of [Parental Lock Mature] in the SiriusXM SETUP screen. 2 Enterthe same code number as you originally input in Parental code (P.76) and touch [Enter]. Turns the Mature on or off. Default is "OFF". If you want to separately set the parental lock for each channel, select OFF and proceed to step 3 onward. 3 Touch [SET] of [Parental Lock Channel sXM SETUP screen. Parental Pass Check screen appears. NOTE + You need to complete Parental code (P.76) beforehand - To delete the parental lock channel setting, touch and hold [Unlock AI for 2 seconds, enter the Parental code number, then touch [Enter 4 Enter the same code number as you originally input in Parental code (P.76) and touch [Enter]. Parental Lock Category Select screen appears. 5 Touch the desired category from the list. Displays all the channels in the selected category. 6 Touch each channel Return to the Top page SiriusXM Operation NOTE + Touch [All Channels] to display all the channels. t and set on or NOTE + Each time you touched [Info Change], switches the sequence ofthe channel list as follows; Channel name, Artist name, Song title, Category name, Content information: + Touch [ff] to return to Parental Lock Category Select screen. + Touch [BI] to return to SiriusXM SETUP screen.

SiriusXM Operation E Skip channel select You can setthe undesired channels to skip. À Touch [SET] of [Skip Channel Select]. Skip Category Select screen appears. 2 Touch the desired category from the list. Displays all the channels in the selected category. 3 Touch each channel list and set ON or OFF. NOTE + Operations in each list screen are same as Parental control (P.77) + To delete the skip channel setting, touch and hold [Unskip AI for 2 seconds, enter the Parental code number, then touch [Enter

E Content alerts setup You can turn on or off the Content alerts function. T Touch [ON] or [OFF] of [Content alerts] in the SiriusXM SETUP screen. Turns the Content alerts on or off. Default is "ON".

E Content alerts Content Set You can set a content for Content alerts. T Touch [SET] of [Content alerts Content Set] in the SiriusXM SETUP screen. Artist list screen appears. NOTE - Touching [Disable AI] of [Content alerts Content Set] turns all content of Content alerts"OFi Alert Contents Select 2 Touch [Typel to select the screen ofthe content you want to set up. Touching this allows you to switch among the Artist list, Song list, and Team list cyclically. 3 Touch each content list and set ON or OFF. NOTE - Touch"Delete”to delete the currently selected content from the Artist list and Song list - Available teams were pre-registered in the Team list Team(s) cannot be registered or deleted manual. Return to the Top page SiriusXM Operation City select for Traffic & Weather Jump You can select a city for which traffic information or weather forecast is to be received with the Content alerts function. T_ Touch [4] and (>-] of [Traffic Weather Jump City Select] to select a city.

SiriusXM Operation | L neStart”" E Reset T Touch [ON] or [OFF] of [Tune Start] in T Touch [Reset] of [SiriusXM Reset] for 2 the SiriusXM SETUP screen. seconds in the SiriusXM SETUP screen. Turns the Tune start on or off. All SiriusXM setting returns to default. Default is"ON".

Return to the Top page Bluetooth Control I Bluetooth Control Using the Bluetooth function, various functions can be used listening to the audio file, making/receiving a call. About the cell-phone and Bluetooth audio player This unit conforms to the following Bluetooth specifications: Version Bluetooth Ver. 3.0+EDR Certified Profile Cell-phone: FP (V1.6) (Hands Free Profile) SPP (Serial Port Profile) SDP (Service Discovery Profile) PBAP (Phonebook Access Profile) GAP (Generic Access Profile) Audio player: A2DP (Advanced Audio Distribution Profile) AVRCP (V1) (Audio/Video Remote Control Profile) Sound codec SBC, AAC, MP3, aptX (DNX891HD, DNX77108T only) NOTE + Forthe cel-phones verified for compatibility, access the following URL: http://www.kenwood.com/cs/ce/bt!. + The units supporting the Bluetooth function have been certified for conformity with the Bluetooth Standard following the procedure prescribed by Bluetooth SIG However, it may be impossible for such units to communicate with your cellphane depending on its type.

Registering And Connecting Bluetooth Unit Itis necessary to register the Bluetooth audio player or cell-phone to this unit before using the Bluetooth function. You can register up to 5 Bluetooth units. T Touch [Menu] on any screen. 2 Touch [SETUP]. SETUP Menu screen appears. 3 Touch [Bluetooth]. Bluetooth SETUP screen appears. See the following section for each setting. + Registering the Bluetooth Unit (P.83) + Connecting the Bluetooth unit (P.53)

E Registering the Bluetooth Unit T Touch [Search]. Searched Device List screen appears. NOTE + You cannot register the Bluetooth unit when you are using the following sources: iPod, Bluetooth Audio, APPS, Heart, Pandora If you want to register the Bluetooth unit while Using one ofthe above mentioned sources, send connection request from the Bluetooth unit and register it + A new device cannot be registered if there are registered Bluetooth units. Delete unnecessary registration. See Connecting the Bluetooth unit (P.83). + The Searched Device List screen cannot be y en the receiving source is Pandora, iHeartRadio, or Bluetooth Audio: : This unit is compatible with the Apple Easy Pairing function, When an iPod touch or iPhone is connected to this unit, an authentication dialog appears. Performing operation for authentication on this unit or iOS smartphone registers t smartphone as a Bluetooth device 2 Select the Bluetooth unit to register from the list. 8 Searched Device List GWnits 0 PIN Code Set NOTE + Ifthe unit cannot be searched in step 1, you can search the unit again by touching [Search] in above screen + A Bluetooth device cannot be searched while the source is Pandora, iHeartRadio, or Bluetooth audio. + Touch [Cancel] to cancel searching for the Bluetooth unit 3 Enter PIN code form the cell-phone. Profile select screen appears. Return to the Top page Bluetooth Control E Connecting the Bluetooth unit T Touch the device name you want to connect. Profile select screen appears. NOTE + Ifthe icon islighted, it means that the unit will use that device. TEL (HFP) Means that the device is a cell-phone: Audio (A2DP) Means that the device is an audio player or cellphone with audio player. NOTE + fa device has been paired, the Bluetooth unit cannot be connected from the paired device. - Touching [Remove] of [Device Remove Confirm] removes registration information. After you touch key, a confirmation message app the message and complet rs. Follow the operation.

Return to the Top page Bluetooth Control Playing Bluetooth Audio Device E Bluetooth basic operation Simple Control screen List Control screen 1 Information display Displays the name of the track information. the information is not available, device name is displayed 2 Multi function key Touch to switch the multi function menu. 3 Multi function menu The functions of each key are as follows + [éd] [pp]: Searches the previous/next content. * - De]: Plays* + [BJ AUDIOZ: Touch to display the Audio Control screen. See Registering the Bluetooth Unit {P.83). + LBNSETUP]: Touch to display the SETUP Menu screen. See Setting Up (P.92). + LB EXT SW] Control the external device power supply. (DNX891HD, DNX7710BT only) For details, see External Device Control (P.104) Touch to mute the rear speaker. + LREAI 4 Control switching area Touch to switch between the Simple Control and List Control screen 5 File information Displays the information of the current file.

• These items appear only when the audio player which supports AVRCP profile is connected. NOTE + Ifthe operation keys do not appear, operate from the player + Depending on your cell-phone or audio player audio may be heard and controlled but text information may not appear. + Ifthe volume is too low, raise it on your cell-phone or audio player.

Using Hands-Free U You can use telephone function by connecting the Bluetooth telephone to this unit. T Press the <TEL> button. [DNX8 /DNX7 Hands Free screen appears. NOTE + When registration of your cell-phone is completed, the phone baok of the cell-phone is automatically downloaded to this unit. + Up to 600 phone numbers can be registered for each registered cell-phone. + Up to 30 digits can be registered for each phone number along with up ta 127 characters representing a name. (127 is the number of alphabetical characters. Fewer characters can be input depending on the type of characters) + Depending on the type of your cell-phone, the following restrictions are placed, - The phonebook data cannot be downloaded normal. + Characters in the phonebook are garbled. - To cancel downloading the phonebook data, operate the cell-phone: Return to the Top page Bluetooth Control ing method. See the following table for each method. Call by entering a phone number YTouch [4] )Enter a phone number with number keys. @touch (ff: Call using call records GD'Touch (Fe (EE or (EE )Select the phone number from the list. @touch (ff: Call using the phonebook Touch (FA) )Select the name from the list.**2 )Select the number from the list. Drouch [ff Call using the preset number DTouch [Preset #] to start calling the corresponding phone number. @Touch (M) Continued

Return to the Top page Bluetooth Control *1 You can sort the list to begin with touched E Receiving a call character. T1 Touch [1 to answer a phone call or LR] to reject an incoming call.

hone Nurnb + Characters with no corresponding name will not appear. + During search, a non-accent character such as “u”is searched for instead of an NOTE accent character such as “ü". + While monitoring the camera views, this screen #2 You can set the list to arrange in the order does not appear even fa call comes in. To display of last name or first name. For details, see hs screen, press the <TEL> button ar return the Hands-Free Setup (P.90) shift knob of car to the driver position. NOTE + you edited the phonebook in your cell-phone, touch"Download”on top of the phanebook list in this unit to download it from your cell-phone. The phonebook in this unit will be updated with the latest downloaded data Mhile your car is moving, some functions are disabled for safety reasons. The keys associated with the disabled functions become ineffective iftouched + The status icons such as battery and antenna displayed may differ from those displayed on the cell phone : Setting the cell-phone in the private mode can disable the hands-free function

Operations during a call Adjust the receiver volume [DNX8 /DNX7 Press the <w> or <A> button [DNX6/DNXS Turn the volume knob. Outputthe dial tone Touch [DTMF] to display the tone input screen. You can send tones by touching desired keys on the screen. Switching the speaking voice output Touching | ED / € ED: <:ch time switches the speaking voice output between cel-phone and speaker. Call:waiting When you receive a call while talking on another call you can answer the newly received call by touching [f]. The current call is on hold Each time you touch [PB], the caller will change When you touch [ES], the current call will end and switch to the call in hold Return to the Top page Bluetooth Control E Phone number preset You can register frequently used phone numbers to this unit. 1 Enter the number you want to register in Hands Free screen. 2 Touch [Preset 1], [Preset 2], or [Preset 3] for 2 seconds in the Hands Free screen.

Return to the Top page Bluetooth Control Bhoice Recognition You can access the voice recognition function ofthe cell-phone connected to this ui You can search the cell-phone phonebook by voice. (The functionality depends on the cell-phone.) T Press the <TEL> button for 1second. [DNX8 //DNX7 Press for 1 second Smartphone Link You can receive Garmin's traffic information and weather forecast by connecting your Android smartphone in which the Smartphone Link application is installed to this unit. T Press the <NAV> button. TEL Press for 1 second H—| NAV MAP Voice Recognition screen appears. 2 Start speaking. NOTE + You can use voice recognition function by touching [M] on the Hands Free screen. Navigation screen appears. Touch [Apps] on the Main Menu screen and then an icon of your desired content For details, see Navigation system manual. NOTE + Install the latest version ofthe Smartphone Link application on your Android. Search for"Smartphone Linkin the Google play to find and install the most current version. + For how to register the Bluetooth device (Android), see Registering the Bluetooth Unit (P.83).

Return to the Top page Bluetooth Control Hands-Free Setup 5 Set each item as follows. Hands Free SETUP You can perform various setup about handsfree function. T Touch [Menu] on any screen. 2 Touch [SETUP]. SETUP Menu screen appears.

Touch [Bluetooth]. Bluetooth SETUP screen appears. Bluetooth HF/Audio Æ Touch [TEL SET-UP] in the Bluetooth Select the speakers to output the sound from SET-UP screen. cell-phone (such as phone call voice and ringing tone) and Bluetooth audio player. Front Only: Outputs from the front speakers. All (Default): Outputs from all speakers À] civetooth SETUP Auto Response* Sets an automatic response time to pick-up an incoming call OFF (Default): Automatic response is not available. 0-99 Set calling ring time (second) Hands-free SETUP screen appears. Auto Pairing When set to "ON" the Apple Auto Pairing function is turned on to automatically register the iPod touch or iPhone connected to this unit ON (Default): Uses Apple Auto Pairing function. OFF: Not uses Apple Auto Pairing function: Phone Information Use Sets whether to use phonebook, outgoing, incoming and missed call list ON (Default): Yes. OFF: No.

Sort Order Sets how to arrange the cel-phone phonebook First: Arranges in the order of first name. Last (Default): Arranges in the order of last name Echo Cancel Level Adjusts the level of echo cancellation: Default is"0° Microphone Level Adjusts the sensitivity ofthe telephone microphone. Default is"15 Noise Reduction Level Reduces the noises generated by surrounding environment without changing the microphone volume. Use this setting when the voice of caller is not clear. Default is*-10 [Restore] Resets the settings to the default settings. Either the time interval for automatic answer set on this unit or the time interval set on the cell-phone, whichever is shorter takes effect. Return to the Top page Bluetooth Control

Return to the Top page Setting Up I Setting Up Monitor Screen Setup You can adjust image quality in iPod video, picture file, menu screen, etc. 1 Touch the lower left area of any screen for at least 1 second. Screen Control screen appears. 2 Adjust each item as follows. iPod/ AV-IN/ Camera DVD/ USB

Bright /Tint* / Color* / Contrast / Black / Sharpness* Adjusts each item. Dimmer Select dimmer mode. ON: The display and buttons dim. OFF: The display and buttons do not dim. SYNC (Default): Turns the dimmer function on or off when the vehicle light control switch is turned on or off. NAV-SYNC: Turns the dimmer function on or off according to the Navigation Day/Night display setting Mode* (except USB) Select screen mode. Full Full picture mode Just: Justify picture mode Zoom: Zoom picture mode Normal: Normal picture mode

• Playback screen only NOTE + Adjusting items are different depending on the current source. + You can perform this function only when you have applied the parking brake. - The image quality can be set for each source.

Return to the Top page Setting Up View Camera Control System Setup [DNX8/DNX7 You can set up display when a CMOS-3xx NOTE Series view camera is used, : Each operation in this section can be started from the multi function menu T Press the <AUD> button for 1second. T Touch [Menu] on any screen. TOP Menu screen appears. 2 Touch [SETUP]. 3 Touch [System]. Camera view screen appears. 2 Adjust each item as follows.

System Menu screen appears. See the following section for each setting. + Set up the user interface (P.94) + Adjust touch panel (2.95) + Set up security (P.96)

1 Guideline + Set up external switch (DNX891HD, Touching each time turns on or off the DNX7710BT only) (P.96) guideline display alterately. + Set up memory (2.97) 2 Switching the View Camera Touching each time changes between the front view camera and rear view camera. 3 Angle ouching each time changes camera angles in the following order: Super wide view/ Wide view/ Overhead view/ Wide view + Top view/ Corner view NOTE - The video camera controls described above may not be operable depending the connected cameras.

• TAUD Key Longer than 1 Second] must be set to "CAM See User interface (P.94)

Return to the Top page Setting Up E User interface You can setup user interface parameters. T Touch [User Interface] in the User Interface screen appears. 2 Set each item as follows. Beep Turns the key touch tone on or off. Default is"ON" Language Select the language used for the control screen and setting items. See Language setup (P.95). Text Scroll Allows scrolling of text display on the source control screen. Select from ‘Auto"/"Once"/'OFF" Auto (Default): Scrolls the text automatically. Once: Allows you to scroll the text only once automatically when updated OFF: Does not scroll the text automatically. Drawer Close Sets whether to close the common menu (P.16) automatically Default is‘Auto

AUD Key Longer than 1 Second FREE} [DNx72 You can set the operation performed when the AUDIO key is pressed for 1 second. Select from VOFF'/'CAM VOFF: Turn the display off. CAM (Default): Switches to the front or rear view camera video display.* TEL Key Longer than 1 Second FRET [DNXS You can set the operation performed when the TEL key is pressed for 1 second. Select from “Voice/"VOFF"/"R-CAM' Voice (Default): Displays the Voice Recognition screen. (P.88). VOFF: Turn the display off. R-CAM: Switches to the rear view camera video display. Animation Sets whether to display animation. Default is"ON' Secondary Sets whether to display the navigation information in the audio screen or vice versa Default is"ON" *When you set [Front Camera] to OFF, the display will change to the rear view camera and when you set it to “CMOS-3xx”/“Other”, the display will change to the front view camera. See Camera Setup (P.102)

Language setup T Touch [SET] of [Language] in the User Interface screen. Language Setting screen appears 2 Set each item as follows. Select Mode Selects the mode to select a language. Easy (Default): Selects a language easily Advanced: Allows you to select languages for respective items* Language Select Selects a language.

• if you select [Advanced] for Select Mode, the following screen appears. American English (on) Navigation Language Select American English (on) guage Sel American English (en) GUI Language Select Selects the display language used for the control screen and 50 forth Navigation Language Select Selects the language used for navigation Text Language Select Selects the language used for tag text (song information) 3 Touch [Enter]. NOTE + To cancel the language setup, touch [Cancel Return to the Top page Setting Up ru panel adjustment À Touch [Touch] in the System Menu screen. Touch Panel Adjustment screen appears 2 Follow the instruction on the screen and touch the center of each [E}]. NOTE - To cancel the touch panel adjustment, touch Cancel]. + To reset to the initial status, touch [Reset]

Return to the Top page Setting Up E Security setup A red indicator will blink on the unit afterthe ACC is set to OFF, warning potential thieves. If turned to “ON (default), the security indicator on the front panel flashes when the vehicle ignition is off. À Touch [Security] in the System Menu screen. Security screen appears. 2 Touch [ON] or [OFF] of [Si]. EXT SW setup (DNX891HD, DNX7710BT) Set up the external switch power mode. T Touch [EXT SW] in the System Menu screen. EXT SW screen appears. 2 Set each item as follows. SW Name Sets the name of the external device. Output Pattern Sets the power signal output mode among “Pulse”/"Level" Default is "Pulse You can set to turn output on/off each time the button on the EXT SW screen is touched See External Device Control (P.104) Pulse Set Sets the pulse signal output time. Outputs 500ms when“1"is set. increases by 200ms with each step. Up to 100 steps can be set NOTE : You can enter characters only after you have applied the parking brake - “Pulse” Generates a single power signal pulse.

Return to the Top page Setting Up setup memory 3 Followthe instruction on the screen. SETUP Memory Audio Control, AV-IN SETUP, Camera, and Audio SETUP settings can be memorized. The memorized settings can be recalled at any time. For example, even when the settings are cleared due to replacement of the battery, the settings can be restored. À Touch [SETUP Memory] in the System Menu screen. SETUP Memory screen appears. 2 Followthe instruction on the screen. Recall mory Recalls the memorized settings Memory Los Memories the current settings the AudiÉ Bu Clear Clears the currently memorized settings Cancel Quits memorization/recalling of settings. [Lock]/[Unlock]* Locks or unlocks the AV-IN SETUP and Audio SETUP settings. Yes Memorizes or recalls the settings.

Cancels the function or memorization The SETUP Menu screen appears again “When [Lock] is selected, you cannot change the AV-IN SETUP, and Audio SETUP settings. Also, the locked key mark is displayed under each setting icon in the setup menu.

Return to the Top page Setting Up Display Setup Touch [Menu] on any screen. 2 Touch [SETUP]. SETUP Menu screen appears.

Display Menu screen appears. See the following section for each setting. + Control monitor angle FREE CREER (P.98) + Adjust panel color (P.99) + Changing background image (P.100)

E Monitor angle control [DNX8 DNX7 You can adjust the position of the monitor. T Touch [Angle] in the Display Menu screen. Angle setup screen appears. 2 Select a below number that represents your desired angle setting.

off Position Default is "0". NOTE + You can store the current monitor angle as the angle during power off Touch [Memory] when the desired angle is selected

E Panel color coordinate You can set the screen and button illumination color. The selectable items differ depending on the unit. T Touch [Color] in the Display Menu screen. Color screen appears. 2 Touch [SET] of [Panel Color Coordinate]. Panel Color Coordinate screen appears. NOTE + You can touch [SET] or [Initialize] when Panel Color Scan is set to off. + Touch [Initialize] to defauit settings. et the settings ta the 3 Touch the desired color. [panel Color RGB Coorc Menu Return to the Top page Setting Up Registering original color You can register your original color. T Touch [Adjust] in the Panel Color Coordinate screen. Panel Color RGB Coordinate screen appears. 2 Use [4] and [>] to adjust each color value. Menu 3 Touch the desired preset key for 2 seconds. Panel color scan You can set the panel color to continuously scan through the color spectrum. T Touch [ON] of [Panel Color Scan] in the Color screen. Panel Color Scan is set to on.

Return to the Top page Setting Up E Changing background image You can load an image from the connected USB device and set it for the background image. Before operating this procedure, it is necessary to connect the device which has the image to load. À Touch [Background] in the Display Menu screen. Background screen appears. 2 Touch [STANDBY]. 3 Touch [Memory] of [User Background]. User Background File Select screen appears. 4 Select the image to load. 5 Touch [Enter]. UserBackp FloiVamo 25900060000000006 The selected image is loaded and the

display returns to the Background screen. NOTE + Touching [FA rotat + Touching [EMI rot s counter clockwise. s clockwise. 6 Touch [Change] of [Background Change] in the Background screen. 7 Select an image for background and touch [Enter]. NOTE - See Playable Media and Files (P.126) for readable image speciications. + Touching [Delete] in the Background screen deletes the background image. After you touch IDeletel, a confirmation message appears. Follow the message and complete the operation

Navigation Setup You can set navigation parameters. T Touch [Menu] on any screen. 2 Touch [SETUP]. SETUP Menu screen appears. 3 Touch [Navigation]. Navigation SETUP screen appears. 4 Set each item as follows. NAV Interrupt Speaker Selects speakers used for voice guidance of the navigation system. Front L: Uses the front left side speaker for voice guidance. Front R: Uses the front right side speaker for voice guidance Front Al (Default): Uses both front speakers for voice guidance. NAV Voice Volume Adjusts the volume for voice guidance ofthe navigation system. Default is “20 NAV Mute Mutes the volume of rear speakers during voice guidance of the navigation system: Default is*ON" Return to the Top page Setting Up

Return to the Top page Setting Up Camera Setup R-CAM Settings"? PLTE} PRES Adjusts the CMOS-300 series with ID 1 set. You can set camera parameters. For details, see the instruction manual of your T Touch [Menu] on any screen. mere Front Camera*' CLÉ) CIE#> 2 Touch [SETUP]. Selects the type of front camera to use. SETUP Menu screen appears. CMOS-3xx When the CMOS-300 series with ID 3 Touch [Camera]. 2 setis connected Other: When the other camera is connected OFF (Default): When the front camera is not used. F-CAM Settings" ETS EEE Adjusts the CMOS-300 series with ID 2 set. For details, see the instruction manual of your camera “1 These settings become settable only when the parking brake is on. *2 This setting becomes settable only when 4 Set each item as follows. the parking brake is on and the CMOS-300 series is selected. *3 This setting becomes settable only when the parking brake is on and Front Camera” is set to CMOS-300 series. Camera SETUP screen appears. Rear Camera*' LEE) CEE Selects the type of rear camera to use. CMOS-3xx When the CMOS-300 series with ID 1 set is connected Other (Default): When the other camera is connected. R-CAM Interruption Sets a method for switching the display. Setting values are ON and OFF. ON: Switches to the rear view camera video display when shifting to revers. OFF (Default): Does not switches to the rear view camera video display when shifting to revers.

Software Information Check the software version of this unit. T Touch [Menu] on any screen. 2 Touch [SETUP]. SETUP Menu screen appears. 3 Touch [Software]. Software Information screen appears. 4 Confirm the software version. Touch [Update] as necessary. + For how to update the software, see the relevant update procedure manual which comes with the software. Return to the Top page Setting Up AV Input Setup You can set AV input parameters. T Touch [Menu] on any screen. 2 Touch [SETUP]. SETUP Menu screen appears. 3 Touch [Source]. Æ Touch [AV-IN SETUP] in the list. AV-IN SETUP screen appears. 5 Set each item as follows. AV-IN1 Name/AV-IN2 Name Sets a name to be displayed when you select à system that is connected via the AV INPUT port. Default is" VIDEO"

Return to the Top page Setting Up AV Output Interface Setup You can select an AV source to be output at the AV OUTPUT port. Default is“VIDEO1" T Touch [Menu] on any screen. 2 Touch [SETUP]. SETUP Menu screen appears.

Touch [AV-OUT]. AV-OUT Interface screen appears. Æ Touch [<] or [>] to set [AV-OUT] to VIDEO, DISC, iPod, USB, or OFF. NOTE + Only when iPod is connected to this unit with KCA:iP202,"USB" can be selected as AV output source. For the connection setting, refer to iPod/ iPhone connection setup (P.54)

External Device Control (DNX891HD, DNX7710BT only) Control the external device power supply. T Touch [EXT SW] in the Source Control screen. EXT SW Control screen appears. NOTE + IIEXT SW] is not displayed, touch [| 2 Touch the desired switch key. You can turn on or offthe external device power supply. NOTE : You must connect a commercially available relay unit in order to use this function. Connect the extemal device to be controlled to that relay unit : See EXT SW setup (P.96) for information on setting the power on or off specification.

Return to the Top page Setting Up

Return to the Top page Controlling Audio I Controlling Audio NOTE : Each operation in this section can be started from e multi fun n menu You can adjust the various settings such as audio balance or subwoofer level. T Touch [Menu] on any screen. 2 Touch [Audio]. Audio screen appears. See the following section for each setting. + Setting audio (P.106) + Controlling audio (P.1 10) + Controlling equalizer (P.110) + Performing zone control (P.112) + Set sound effect (P.113) + Set listening position (P.115)

Setting Audi T Touch [Audio SETUPI]. Audio SETUP See the following section for each setting. + Set up speakers (P.107) + Set up your car type (P.108) + Select DSP (P.109)

E Speaker setup You can select a speaker type and its size to get the best sound effects. When the speaker type and size are set, the speaker crossover network is set automatically. 1 Touch [Speaker Select] in the Audio SETUP screen. Speaker Select screen appears. 2 Touch the speaker you wish to adjust and set each item as follows. Tweeter (DNX891HD, DNX7710BT, DNX691HD only) You can set the tweeter when you are selecting front speakers. None, Small, Middle, Large X'over Displays the speaker crossover setup screen. You can adjust the crossover setup that was set automatically when you selected the speaker type. r details, see Crossover network setup {P.108) Return to the Top page Controlling Audio 3 Select a speaker size using [<] and [>]. The speaker si ifferent depending on the speaker type and the unit. Front OEM, 3-1/2 inch, 4 inch, 4-3/4 inch, 5 inch, 6-1/2 inch, 6-3/4 inch, 7 inch, 4x6, 5x7, 6x8, 6x9, 7x10 Rear None, OEM, 3-1/2 inch, 4 inch, 4-3/4 inch, 5 inch, 6-1/2 inch, 6-3/4 inch, 7 inch, 4x6, 5x7, 6x8, 6x9, 7x10 Subwoofer None, 6 1/2 inch, 8 inch, 10 inch, 12 inch, 15 inch over NOTE + Select"None”if you have no speakers.

Return to the Top page Controlling Audio Crossover network setup E Car type setup You can set a crossover frequency of speakers. You can setup the car type and speaker network, etc. 1 Touch the speaker to set the crossover in the Speaker Select screen. T Touch [Car Type] in the Audio SETUP 2 screen. Touch [X'over]. Car Type screen appears. X'over screen appears. 3 set each item as follows, 2 Select your car type fromthe list. TW (Tweeter) Gain * (DNX891HD, NOTE DNX7710BT, DNX691HD only) : Ifyour car type is selected, the Delay Time Alignment is set automatically (for timing adjustment of sound output for each channel) to have the highest surround effects. Adjusts the tweeter level. (When front is selected on Speaker Select screen) Gain (DNX891HD, DNX7710BT, DNX691HD only) Adjusts the front speaker, rear speaker, or subwoofer leve Phase*? Sets the phase of subwoofer output. The phase is reversed 180 degrees when set to'Reverse” (When subwoofer is selected on Speaker Select screen) HPF FREQ igh Pass Filter adjustment. (When front or rear speaker is selected on Speaker Select screen) LPF FREQ Low Pass Filter adjustment. (When subwoofer s selected on Speaker Select screen) Slope** Sets a crossover slope.

• Only when ‘Tweeter” is set to Small’ “Middle’ “Large” in <Speaker Setup>. *? Only when ‘Subwoofer’ is set to a mode other than “None” in <Speaker Setup>. # Only when“LPF FREQ"/“HPF FREQ"is set to a mode other than “Through” in <Xover>.

Speaker location setup 1 inthe Car Type screen, touch [Location]. Speaker Location screen appears. 2 Select the speaker locations using [>]. Front Speaker Select the location from“Door‘/"On Dash'/ “Under Dash' Rear Speaker Select the location from“Door'/"Rear Deck’ “nd Row”/"3rd Row” (Minivan, Minivan (Long)) Return to the Top page Controlling Audio E DSP select You can select whether using DSP (Digital Signal Processor) System. À Touch [Bypass] or [Through] of [DSP Select] in the Audio SETUP screen. Audio SETUP Bypass There is no effect by DSP. Through There is an effect by DSP NOTE + When the mode is set to [Bypass], DSP System cannot be adjusted.

Return to the Top page Controlling Audio Controlling General Audio Equalizer Control 1 Touch [Audio Control]. You can adjust equalizer by selecting the optimized setting for each category. 1 Touch [Equalizer]. Equalizer screen appears. Fader #/Balance # Adjust the volume balance around the touched area [4] and 1e] adjust the right and left volume balance. [A] and [y] adjust the front and rear volume balance. Volume Offset* Finely adjust the volume ofthe current source to minimize the difference in volume between different sources. Subwoofer Level Adjusts the subwoofer volume. This setting is not available when subwoofer is set to“ None" See Speaker setup (P.107). Bass Boost Sets the amount of bass boost among*OFF"/ “Levell"/"Level2"/"Level3"

• if you have increased the volume first, then reduced the volume using the “Volume Offset’ the sound generated if you suddenly switch to another source may be extremely loud.

M Orcration Controlling EQ curves T Select EQ curve from [Natural], [Rock], [Pops], [Easy], [Top40], [Jazz], [Powerful], iPod], and [User]. Eauatzer NOTE + HiPodi] is available only during iPod source. Controlling equalizer manually This setting cannot be performed when you select liPod] in the Equalizer screen. T Touch [EQ] in the Equalizer screen. 2 Touch the screen and setthe Graphic Equalizer as desired.

DNX891HD, DNX7710BT, DNX691HD

Return to the Top page Controlling Audio Gain level (light green boxed area) Adjust the gain level by touching the each frequency bar. Touching [4 Be]. [A] and [y] can also adjust the level, Use [4] and be] to select à frequency, and [A] and [v1 to set the level EQINIT Returns to the previous level which the gain level is adjusted. Flat Tone curve becomes flat. Bass EXT (Bass Extend Settings) When turned on, the frequency lower than 625 Hzis set to the same gain level as 62.5 Hz. Loudness Sets the amounts of boost of low and high tones. DNX891HD, DNX7710BT, DNX691HD: “OFF "Low" "High"

SW Level Adjusts the subwoofer volume. This setting is not available when subwoofer is set to "None" See Speaker setup (P.107).

Return to the Top page Controlling Audio Zone Control You can select different sources for both front and rear positions in the vehicle. T Touch [Zone Control]. Zone Control screen appears. 2 Touch [Dual Zone]. D>] (Front Source, Rear Source) Select the audio source for each [w1, [A] (Rear VOL.) Adjusts the rear channel volume Single Zone] Touch to turn off the dual zone function:

NOTE : When the rear speaker sound is switched,the audio source that is output at the AV OUTPUT terminal is also switched to the same source. Inen the dual zone function is set to on, the following functions are not available + Output from the subwoofer + Subwoofer Level/ Bass Boost (P.110) + Equalizer Control/ Space Enhancer (DNXB91HD, DNX77108T, DNX691HD}/ Listening Position (P.110, 113, 115) - DSP Bypass Contral/ Speaker Setup/ Car Type Setup (P.109, 107, 108) + Different sources from iPod/Phone [apps) cannot be set as front source and rear source separately. Only one source (app) can be set as front and rear sources.

You can set sound effects. T Touch [Sound Effect]. See the following section for each setting. + Set space enhancer (DNX891HD, DNX7710BT, DNX691HD) (P.113) + Set drive equalizer (P.114) + Set up elevation (DNX891HD, DNX7710BT, DNX691HD) (P.114) + Set up realizer or supreme (DNX891HD, DNX7710BT, DNX691HD) (P.115) Return to the Top page Controlling Audio Space Enhancer (DNX891HD, DNX7710BT, DNX691HD) 1 Touch [Space Enhancer] in the Sound Effect screen. Space Enhancer screen appears. 2 Touch [Small], [Large], or [OFF]. Each setting value indicates the soundscape level. NOTE + This setting is not available during HD Radio tuner source.

Return to the Top page Controlling Audio E Drive Equalizer setting The sound quality is automatically adjusted. T Touch [ON] or [OFF] of [Drive Equalizer+]. DNX891HD, DNX7710BT, DNX691HD: The sound quality is automatically optimized to meet the current car speed by GPS. DNX771HD EE: The sound quality is automatically optimized to meet the current volume level.

Elevation (DNX891HD, DNX7710BT, DNX691HD) You can raise the sound position heard from the speakers virtually. T_ Touch [Elevation] in the Sound Effect screen. Elevation screen appears. 2 Select Elevation level from [High], [Low], and [OFF].

Realizer and Supreme (DNX891HD, DNX7710BT, DNX691HD) You can restore the sound lost due to audio compression to a realistic sound. T Touch the screen in the Sound Effect screen. Realizer Realizer is sound enhancement and boosting ow frequencies (bass boost) Select the level from*OFF"/*Levell"/"Level2"/ “LeveB Supreme Turns ON/OFF the Supreme function. Technology to extrapolate and supplement with proprietary algorithm, the high-frequency range that is cut off when encoding This function works on DVD MEDIA, USB and Pod sources. Return to the Top page Controlling Audio You can adjust the sound effects according to your listening position. T Touch [Position]. Position screen appears. 2 Select listening position from [Front R] {Right front), [Front L] (Left front), {Front All] (All front), and [AII] using [-«] and >].

Return to the Top page Controlling Audio E Position DTA control NOTE + Make fine adjustment ofthe delay time ofthe speaker output specified here to have a more Tin Position screen, touch [Adjust]. suitable environment for your vehicle. + fyou specify the distance from the center of the currently set listening position to every speaker, the delay time will be automatically computed and set D Determine the center of the currently set listening position as the reference point. You can fine-adjust your listening position. 2 Select the speaker you wish to adjust by touching speaker icon. Measure the distances from the reference point to the speakers. Caleulate the differences between the distance ofthe furthest speaker and other speakers. Input the differences calculated in individual speakers. p ®for © Adjust gain for individual speakers. À sound image will be shifted to the speaker with 3 Set DTA as follows. increased gain. Example: When [Front AI] is selected istening position the De] Adjust the settings of the DTA position: S Gain Touch to adjust the gain of each speaker.

Return to the Top page Controlling Audio

Return to the Top page Remote control I Remote control This unit can be operated using the remote control. For DNX891HD, DNX7710BT, DNX691HD, and DNX5710BT, the remote control is supplied with the unit. For DNX771HD, DNX571HD and DNX571EX the remote control is the optional accessory (KCA- RCDV331). ACAUTION + Put the remote control in a place where it will not move di dangerous while driving. ing braking or other operations. À uation could result, ifthe remote control falls down and gets wedged under the pedals + Do not leave the battery near fire or under direct sunlight. À fire, explosion or excessive heat generation may result. + Do not recharge, short, break up or heat the battery or place it in an open fire. Such actions may cause the battery to leak fluid. spilled fluid comes in contact with your eyes or on clothing, immediately rinse with water and consult a physi + Place the battery out of reach of children. In the unlikely event that a child swallows the battery, immediately consult a physician. Battery Installation Ifthe remote control operates only over shorter distances or does not operate at all, it that the batteries are depleted. In such instances, replace the both batteries with new ones. possible T_ insert two “AAA"/"R03”-size batt theillustration inside the case. ies with the & and © poles ned properly, following

Return to the Top page Remote control Functions of the Remote control Buttons E Switching the operation mode The functions operated from the remote control differ depending on the position of the mode switch. AUD mode Switch to this mode when controlling à selected source or tuner source, etc DVD mode Switch to this mode when playing a disc media including DVD, VCD, and CD. NAV mode Switch to this mode when controlling navigation function. E Direct search mode Using the remote control, you can jump directly to the desired file, track chapter, etc. with entering the number corresponding to the content. NOTE : This operation cannot be performed for USB device and iPod T Press the <#BS> button several times until the desired content appears. The available contents are different depending on the source. DvD Title number/Chapter number/Play time/Item number* + You may not be able to use this function with some dises or scenes. VCD 1.X and 2.X (PBC OFF) Track number VCD 2.X (PBC ON) Scene number/number Music CD Track number/Play time Audio files Folder number/File number Radio Frequency value HD Radio tuner Frequency value/Channel number SiriusXM Channel number 2 Enter the number ofthe content you want to play using the numeric keypad. 3 For DVD or VCD, press the <ENTER> button. For music CD or audio files, press the <POSITION> button. For radio, press the <-4> or <> button. The content you entered is played.

Return to the Top page Remote control le Rue 1 [SRC _ Switches to the source to be played In hands-free mode, hangs up the phone 2 [NA _ Switches between the navigation and the source screens. 3 [MENU [Dvo Stops playing and memorizes the last point where the disc stopped. The last point is deleted by pressing twice NAV Displays Main menu 4 |OUT,IN NAV Zooms in or out the navigation map. 5 [POSITION | AUD, DVD Pauses the track or flle, and resumes playing by pressing twice. During radio, HD Radio, and SiriusXM source in AUD mode, switches the seek mode. NAV Displays the current position 6 |Cursor Key | DVD Moves the cursor in the DVD menu. NAV Moves the cursor or scrolls the map. 7 |ENTER AUD, DVD Performs the selected function. NAV Registers the selected position. - Performs the selected function. 8 [ROUIEM [AUD Screen mode changes each time you press this key during video playback. DVD Returns to the DVD top menu. NAV Displays Route Option menu.

Return to the Top page Remote control Key Location of A Name | the mode switch CON o [voice [AUD Switches navigation display on/off. DVD Displays the DVD menu Turns the playback control on or off while playing VCD. NAV Speaks the voice guidance. 10 [VIEW AUD, DVD Switches the AV source to be output. NAV Switches between 2D and 3D map displays. 11]MAPDIR | AUD, DVD EEE EE Switches the display angle each time it is pressed NAV Switches between the heading up navigation and north up navigation map displays. 12|4/v AUD, DVD Selects the folder to be played During radio, HD Radio, and SiriusXM source in AUD mode, switches the bands to be received. EPS AUD, DVD Selects the track or file to be played During radio, HD Radio, and SIRIUS/XM source in AUD mode, switches to broadcast stations received by the unit. 14 [Numeric | AUD Specifies the number to search in direct search. Keypad For details on the direct search mode, see Direct search mode {P.119). DVD + Press [1] [2] to fast forward/backward. Switches the fast forward/ backward speed each time you press this key. + Press [4] [5] to slow forward/backward. Switches the slow playback speed each time you press this key* “DVD only 15 + DVD Clears the number. 16 [#85 AUD, DVD Switches to the direct search mode. For details on the direct search mode, see Direct search mode {P.119). 17 [AUDIO DVD Switches the voice language each time you press this key. 18 |CANCEL [DVD Displays previous screen NAV Cancels the operations. 19 [SUBTNILE [DVD Switches the subtile language 20 € = When a call comes in, answers the call 21/ANGLE [DVD Switches the picture angle each time you press this key. 22 |Volav = Adjusts the volume. 23/200M [DD Switches the zoom ratio (2, 3, 4, Off) each time you press this key. 24]2ZONE [AUDDVD Switches the Dual Zone function on and of. 25 [RVOLNV = Adjusts volume at rear when the Dual Zone function is on 26 [AIT = Lowers the volume by pressing the key once. Restores the previous volume by pressing the key twice.

Return to the Top page Troubleshooting I Troubleshooting Problems and Solutions If any trouble occurs, first check the following table for possible problems. + Some functions of this unit may be bled by some settings made on this unit. + What might seem to be a malfunction in your unit may just be the result of slight misoperation or miswiring. BAbout settings Problem Reason Solution + Cannot set up the subwoofer | Subwoofer is not set |Set the subwoofer to on. + Cannot set up subwoofer phase. | to on See Speaker setup (P.107) : No output from the subwoofer. |The dual zone function | Set the dual zone function to off. : Cannot set up the low pass filter. | is enabled See Zone Control (P.112) : Cannot set up the high pass filter. + Cannot select the output The dual zone function | Set the dual zone function to on destination ofthe subsource in | is disabled See Zone Control (P.112). the dual zone. + Cannot adjust the volume of the rear speakers. + Cannot set up the equalizer. | The dualzone function | Set the dual zone function to off. + Cannot set upthe crossover |is enabled See Zone Control (P.112) network “DSP Select'is set to Set"DSP Select"to'Through' *Bypass” See DSP select (P.109). E About audio operations Problem Reason Solution Radio reception is poor. The car antenna is not _ | Pull out the antenna all the way. extended! The antenna control |Connectthe wire correctiy. wire is not connected. |See Connection‘ in the Quick Start Guide. Cannot play audio files stored in [CD Read”is setto"2: |Set"CD Read'to‘1" a disc See Disc setup (P.30) Cannot select a folder. The random play Turn offthe random function function is enabled, Cannot perform repeat play ThePBCFunctionis | Turn offthe PBC function. during VCD playback enabled The specified disc does not play, [The discis quite dirty. |Cleanthe disc. but another one plays instead See Precautions on handling discs (P. The discisseverey |Tryanother disc instead scratched

Problem The sound skips when an audio fil is being played Reason The disc is scratched or dirty. Return to the Top page Troubleshooting Solution Clean the disc. See Precautions on handling discs (P. The recording condition is bad Record the file again or use another disc. Botrer Problem The Touch Sensor Tone doesn't sound. Reason used. The preout jack is being Solution The Touch Sensor Tone cannot be output from the preout jack. Error Messages When you fail to operate the unit correctly, the cause of the failure appears as the message on the screen. Error Message Cause Solution Protect Protective circuit has been activated | Wire or insulate the speaker cord as because a speaker cord has shorted | appropriate and then push the <Reset> or it has come in contact with the | button (P.125). car chassis. Hot Error When the internal temperature of | Use the unit again after reducing the this unit rises to 60°C or more, the protection circuit is activated and you may not be able to operate the unit. temperature of the unit. Mecha Error The disc players malfunctioning, Eject the disc and try inserting it again. Contact the Kenwood dealer ifthis indicator continues blinking or the disc cannot be ejected, Disc Error An unplayable disc is inserted Change the disc. See Playable Media and Files (P.126). Read Error The disc is quite dirty. Clean the disc. See Precautions on handling discs (P.4), Disc is upside down. Load the disc with the labeled side up. Region Code | The disc youwantedtoplayhasa | See Region Codes in the World (P.132) or Error region code that cannot be played | try another disc. with this unit. Parental Level Error The disc you wanted to play has à higher level than the parental level you set. Setthe parental level See Parental level (P.30). Error07-67 |Theunitisnotoperating correctly | Push the units Reset button. IFthe'Error due to some reason or other. 07-67" message does not disappear, see your nearest Kenwood dealer. No Device The USB device is selected as a Change the source to any source other than {USB device, | source although no USB device is | USB/iPod. Connect a USB device, and change Bluetooth connected the source to USB again. audio player)

Return to the Top page Solution Change the source to any source other than iPod/Bluetooth, Connect an iPod/Bluetooth audio player, and change the source to iPod/ Bluetooth again See Playable Media and Files (P.126) and try another USB device. Troubleshooting Error Message Cause Disconnected | The iPod/Bluetooth audio player (iPod) is selected as a source although no iPod/Bluetooth audio player is connected. No Media file The connected USB device contains no playable audio file. Media was played that doesn't have data recorded that the unit can play. USB Device The connected USB device is rated Error! à current capacity higher than the allowable limit. Check the USB device. Some trouble may have occurred to the connected USB device. Change the source to any source other than USB, Remove the USB device. Authorization Error Connection to the iPod has failed. + Remove the iPod and then reconnect it. + The unit does not support the iPod. See Connectable iPod/iPhone (P.128). Update your | The Pod software is an older The unit may not support the connected Pod iPod version which the unit can not model support. Confirm that the software for the iPod is the latest version. See Connectable iPod/iPhone (P.128). Navigation The communication error has Turn on power again after warming your car Error. Please turn on power again later. occurred due to severely cold temperature. interior. Check Application The Aha application Is stopped Start the Aha application ofthe your device Please update The Aha application is an older Confirm that the Aha application is the latest your Aha version which the unit can not version. application support. E iusXM Check Tuner A SiriusXM tuner is not connected Check that the connected SiriusXM Connect to this unit. Vehicle Tuner is connected. Subscription Updated - Press The SiriusXM subscription has been renewed Pressing the Control knob will clear the error message. Return To Continue Channel Not |The currently selected channel is = Available unavailable ch The currently selected channelis = Unsubscribe | not subscribed to. Check Antenna No antenna is connected to the SiriusXM tuner. Check that an antenna is connected to the SiriusXM tuner. No Signal No SiriusXM radio signal is received

Return to the Top page froubleshooting Resetting the Unit Ifthe unit or the connected unit fails to operate properly, reset the un 1 Press the <Reset> button. The unit returns to factory settings. [DNX8 ADNX7 NOTE + Disconnect the USB device before pressing the <Reset> button. Pressing the <Reset> button with the USB device connected can damage the data stored in the USB device. For how to disconnect the USB device, see How to Play Media (P.13), + When the unit is turned on after resetting, the Initial SETUP screen appears. See Initial setup (P.11)

Return to the Top page Appendix I Appendix Playable Media and Files You can play various kinds of media and files on this unit. E List of playable discs Disctypes Standard Support Remark DVD DVD Video o DVD Audio x DVD-VR x DVD-R*! o + MP3/WMA/AAC/MPEGT/MPEG2/DivX® playback + Muli-border/Multisession playback (Playback depends on authoring conditions) DVD-RW DVD+R DVD+RW DVD-R DL (Dual layen DVD+R DL (Double layer) DVD-RAM cD Music CD* CD-ROM CDR CD-RW DTS-CD Video CD (VCD) Super video CD Photo CD CD-EXTRA HDCD CCD Others |Dualdisc Super audio CD Only video format CD-TEXT + MP3/WMA/AAC/MPEGT/MPEG2 playback + Multisession is supported - Packet write is not supported. Only music CD session can be played, bix|x|o|r|x|x|o|x|o[ololo|x|o[olo[olo Only CD layer can be played FT incompatible with 8 cm (3 inch) discs. #2 Function of DNX891HD, DNX7710BT, DNX5710BT O:Playback is possible. A:Playback is partly possible. X: Playback is impossible. NOTE When buying DRM enabled contents, check the Registration Code in the DivX(R) VOD (P.57).E with the displayed code is played and protected against copying, the code changes ch time a file - DivX can be played only from à DVD disc media

Use of DualDisc When playing a"DualDisc”on this unit the surface of the disc that is not played may be scratched while the disc is inserted or ejected. Since the music CD surface does not conform to the CD standard, playback may be impossible. {A'DualDisc'is a disc with one surface containing DVD standard signals and the other surface containing music CD signals) MAbout disc format ‘The disc format should be the one of the following. + ISO 9660 Level 1/2 + Joliet + Romeo + Long file name BAbout files The following audio, video, and picture files are supported. BaAudio files + AAC-LC (ma) + MP3 (mp3) = WMA Cum) + Linear PCM (WAVE) (wav) Mass-storage-class USB device only + FLAC (flac) Mass-storage-class USB device only NOTE + music of normal CD and other playback systems are recorded in the same disc, only the playback system recorded at the first setout is played + WMA and AAC of which is covered with DRM cannot be played + Although the audio files are complied with the standards listed above, the play may be impossible depending on the types or conditions of media or device. + An online manual about audio files is put on the site, www.kenwood.com/cs/ce/audiofile/. On this onfine manual, detailed information and notes which are not written in this manual are provided. Make sure ta read through the online manual as well Return to the Top page Appendix Video files + MPEG (mpg,.mpeg,.miv*) “Mass-storage-class USB device only + MPEG2 (mpg, mpeg, m2v*) “Mass-storage-class USB device only + DivX (divx, div, avi) Function of DNX891HD, DNX77108T, DNXS7108T DVD only + H264/MPEG-4 AVC (mp4, mar) Mass-storage-class USB device only + WMV 9 (wmv, m2ts) Mass-storage-class USB device only Picture files Only picture files in USB device can be displayed Fils stored in disc media is not supported. + JPEG (jpg, jpeg) + PNG (png) + BMP (bmp) NOTE + BMP and PNG can be set only as wallpaper. MPlaying order of files In the example of folder/file tree shown below, the files are played in the order from @ to @. Root ([t]) C1 :Foider Lo) À ‘Audiofile

Return to the Top page Appendix Bi Connectable i od/iPhone The following models can be connected to this unit. Made for : iPhone 5 + iPhone 45 + iPhone 4 + iPhone 3GS : iPhone 3G + iPhone + iPod touch (Sth generation) + iPod touch (Ath generation) + iPod touch (3rd generation) + iPod touch (2nd generation) + iPod touch (1st generation) + iPod classic + iPod with video + iPod nano (th generation) + iPod nano (th generation) + iPod nano (Sth generation) + iPod nano (Ath generation) + iPod nano (3rd generation) NOTE + Forthe details ofthe necessary cable and adapter to connect with iPad/iPhone, refer to Music/ Video/Picture Basic Operation (P.32) + Forthe conformity information on iPod/iPhone software, access www.kenwood.com/cs/ce/ipod/.

• By connecting your iPod/iPhone to this unit with an optional accessory iPod connection cable KCA-iP202 or KCA-iP102, you can supply power to your iPod/iPhone as well as charge it while playing music. However, the power of this unit must be on. + fyou start playback after connecting the iPod, the music that has been played by the iPod is played first. In this case, "Reading'is displayed without displaying a folder name, etc. Changing the browse item will display a correct title, etc. + When the iPod is connected to this unit, “KENWOOD'"or"/"is displayed on the iPod to indicate that you cannot operate the iPod

E Usable USB device You can use a mass-storage-class USB device on this unit. The word”USB device” appearing in this manual indicates a flash memory device and digital audio players can be recognized as mass-storage. MAbout file system The file system should be the one of the following, + FATIS + FAT32 NOTE + When the USB device is connected ta this unit, it can be charged through the USB cable. + Install the USB device in the place where it will not affect safe driving, + You cannot connect a USB device via a USB hub and Multi Card Reader. - Take backups ofthe audio files used with this unit. The filles can be erased depending on the operating conditions ofthe USB device. We shall have no compensation for any damage arising from any erased data. + No USB device comes with this unit. You need to purchase a commercially available USB device. + When connecting the USB device, usage ofthe CA-UTEX (option) is recommended. (However, maximum supply current of CA-UTEX is S00mA)) Normal playback is not guaranteed when a cable other than the USB compatible cable is used.

Return to the Top page Appendix

Return to the Top page Appendix Status Bar Indicator Items Shown below is a list of indicators displayed on the status bar in the screen. Current status of this unit is displayed on the bar. KENWOOD Status bar M General EE _ The chapter repeat function is on. T-REP The attenuator is active. | DUAL The title repeat function is on The dual zone function is on. TEL ævco ndicates the connection state of the Bluetooth hands-free unit. RERPNENRS + White: Connected Identifies the left audio output of channel 1 + Orange: Not connected or 2. MUTE 1chLR/2chLR The mute function is active. kientes he monaural audio output of EBENSES cNRR/ZchER The loudness control function is on. cARRI2C = Identifies the right audio output of channel 1 or 2. mOVD/CD 1chST/2chST Identifies the stereo audio output of channel FO-REP 1 or2. Folder repeat function is on LL IN Identifies the left audio output. A disc is inserted. LR + White: À Disc is inside the unit. Identifies the monaural audio output. + Orange: Error at the disc player VIDEO FR — “ Identifies the right audio output. dentifies the video file. STEREO MUSIC x : Identifies the stereo audio output. dentifies the music file. Ta RDM The PEC functi The random function is on. NS DncHon 5 on REP fies r Vi The repeat function is on Identifies the Super Video CD.

The VCD version is 1. The VCD version is 2. The repeat function is on. EUSB The folder repeat function is on. Identifies the video file. Identifies the music file. Identifis the picture file. The random function is on. The repeat function is on. The play list mode is selected now. BiPod

Identifies the music file. Identifies the video file. The random function is on. The album random function is on. The repeat function is on. ÆTuner Seek mode is set to AUTO1. Seek mode is set to AUTO2. Seek mode is set to MANUAL. A stereo broadcast is being received. Return to the To, Appendix

Indicates the reception state of traffic information. - White: TP is being received. + Orange: TP is not being received. MHD Radio reception Seek mode is set to AUTO1. Seek mode is set to AUTO2. Seek mode is set to MANUAL HD Radio station is being received. A multicast digital broadcast is being received. An analog broadcast is being received. A digital broadcast is being received. A stereo broadcast is being received. Seek mode is set to SEEK1. Seek mode is set to SEEK2.

Return to the Top page Appendix Region Codes in the World The DVD players are given a region code according to the country or area it is marketed, as shown in the following map. DVD disc marks Indicates a region number. The dises with this mark can be played with any DVD player. O)} Indicates the number of audio languages recorded. Up to 8 languages can be recorded in à movie. You can select à favorite language Indicates the number of subtitled languages recorded. Up to 32 languages can be recorded Ia DVD disc has scenes shot from multiple angles, you can select a favorite angle: Indicates the type of screen for the image. The left mark indicates that a wide image picture (169) is displayed on a standard TV set screen (4:3) with a black band at both the top and bottom of the screen (letter box)

M Operation regulatory marks With this DVD, some functions of this unit such as the play function may be restricted depending on the location where the DVD is playing. n this case, the following marks will appear on the screen. For more information, refer to the disc manual Prohibition Mark M Discs with limited period of use Da not leave discs with a limited period of use in this. unit. you load an already expired disc, you may not be able to remove it from this unit.

Return to the Top page Appendix Æ Monitor section Picture Size

DNX891HD, DNX77108T, DNX771HD

695 inches (diagonal) wide 1566 mm (W) x 81.6 mm (H) 6:3/16x 3-3/16 inch DNX691HD, DNXS71HD, DNXS71EX, DNXS710BT

6.1 inches (diagonal) wide

1362 mm (WW) x 72.0 mm (H) 5-6/6x2-13/16 inch Display System Transparent TN LCD panel Drive System TFT active matrix system Number of Pixels 1,152,000 (800H x 480V x RGB) Effective Pixels

USB 20 Full/High Speed DNX771HD, DNX691HD, DNXS71HD, DNXS71EX, DNXS7108T USB 20 High Speed File System FAT 16/32 Maximum Power Supply Current

Output Power +4dBm (MAX), OdBm (AVE), Power Class2 Maximum Communication range Line of sight approx. 10m (328 ft) Audio Codec SBC/ AAC/ MP3/ aptX (DNX891HD, DNX77108T ont)

Profile + HFP (VI.6) (Hands Free Profile) : SPP (Serial Port Profile) + SDP (Service Discovery Profile) + A2DP (Advanced Audio Distribution Profile) + AVRCP (VI 4) (Audio/ideo Remote Control Profile) + PBAP (Phonebook Access Profile) + GAP (Generic Access Profile) + Multi Profile support BHDMI/ MHL section HDMI HDMI Type-A MHL Supported Version MHL2 MHL Maximum Power Supply Current DC 5 V7: 900 mA DSP section Graphics equalizer

DNX891HD, DNX77108T, DNX691HD

Band: 13 Band Frequency (BANDI — 13) 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 63k/ 10k/ 16kHz DNX771HD, DNXS71HD, DNXS71EX, DNXS710BT Band: 7 Band Frequency (BANDI — 7) 625/ 160/ 400/ 1k/ 25k/ 63k/ 16kHz Gain 9/-8/-7/-6/-5/-4/-3/-2/-V0N//3/4/S/6/7/8/9 dB 2Way X'Over

DNX891HD, DNX77108T, DNX691HD

DNX77108T, DNXS710BT

DNX891HD, DNX77108T, DNX691HD

5 v/10k0 DNX771HD, DNXS71HD, DNKS71EX, DNXS710BT 2v/10k0 Preout Impedance

DNX891HD, DNX77108T, DNX691HD

<800 DNX771HD, DNXS71HD, DNKS71EX, DNXS710BT <6000 Speaker Impedance 4-80 External SW (DNX891HD, DNX7710BT) Maximum Power Supply Current 500 mA

Æ Navigation section Receiver High-sensitivity GPS receiver Reception Frequency 1575.42 MHz (C/A code) Acquisition Times Cold : 26 seconds (typ) (Al! satellites at -130 dBm Without aiding) Update Rate 1/second, continuous Accuracy Position: <2.5 meters, CEP at -130 dBm Velocity: 0.1 meter/sec Position Method GPs Antenna External GPS antenna BGeneral Operating Voltage 144V (105 -16V allowable) Maximum Current Consumption 10A Installation Dimensions (W x H x D)

DNX891HD, DNX77108T, DNX771HD

1817x1122x 163.0 mm 7-2/6x4-6/6%6-7/16inch DNX691HD, DNXS71HD, DNXS71EX, DNXS710BT 1817 x 1122x 160.3 mm 72/6x4-6/16%6-5/16inch Operational Temperature Range 10°C - +60 °C Weight

DNX891HD, DNX77108T, DNX771HD

25 kg (54lbs) DNX691HD, DNXS71HD, DNXS71EX, DNXS710BT 20 kg (44lbs) NOTE + Although the effective pixels for the liquid crystal panel is given as 99.99% or more, 0.01% of pixels may not light or may light incorrect. [Specifications subject to change without notice.

About this Un Copyrights - The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners. - The*AAC' logo is a trademark of Dolby Laboratories. - ‘Made for iPod" and'Made for iPhone’ mean that an electronic accessory has been designed to connect specificall to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation ofthis device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or Pad may affect wireless performance. + iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc, registered in the US. and other countries.

• Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. Al rights reserved. + HD Radio Technology manufactured under license from iBiquity Digital Corporation. US. and Foreign Patents, HD Radio" and the HD, HD Radio, and'Arc” logos are proprietary trademarks of Biquity Digital Corp. . BV à vademark of DVD Format/Logo Licensing Corporation registered in the US, Japan and other countries. : This item incorporates copy protection technology thatis protected by US. patents and other intellectual property rights of Ravi Corporation. Reverse engineering and disassembly are prohibited. + Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. + Android is a trademark of Google Inc. - BlackBerry”, RIM, Research In Motion? and related trademarks, names and logos are the property of Research In Motion Limited and are registered and/or used in the US. and countries around the world. Used under license from Research In Motion Limited! + Adobe, Acrobat and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. + QR Code is registered trademarks of DENSO WAVE INCORPORATED in JAPAN and other countries. + The aptX® software is copyright CSR plc or its group companies. AÏ rights reserved. The aptX° mark and the aptX logo are trade marks of CSR ple or one of its group companies and may be registered in one or Return to the Top page Appendix more jurisdictions. + ABOUT DIVX VIDEO: DivX is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visi divx. com for mare information and software tools to convert your files into DivX videos. + ABOUT DIVX VIDEO-ON-DEMAND:This DivX Certified” device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies, To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to voddivkcom for more information on how to complete your registration. + DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registed trademarks of HDMI Licensing LLC in the United States and other countries. + MHL and the MHL logo are a trademark or registered trademark of MHL, LLC. - Incorporates MHL 2 + THIS PRODUCT IS LICENSED UNDERTHE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL USE OF A CONSUMER OR OTHER USES IN WHICH IT DOES NOT

INCLUDING THAT RELATING TO PROMOTIONAL,

Return to the Top page Appendix HbFLAC Copyright (C) 2000,2001,2002,2003,2004,2005,2006 20 07,2008,2009 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. - Neither the name of the Xiphorg Foundation northe names ofits contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT

HOLDERS AND ONTRIBUTORS ‘AS 1° AND ANY

EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR À PARTICULAR

PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT

+ About Pandora®: Requirements for listening to the Pandora? are as follows: iPhone or iPod touch + Use an Apple iPhone or iPod touch running under i0S3 or later. + Search for"Pandora”in the Apple App Store to find! and install the most current version of the Pandara® application on your device Android” - Visitthe Google play and search for Pandora to install BlackBerry® + Visit www.pandora com from the but in browser to download the Pandora application. + Bluetooth must be built in and the following profiles must be supported. - SPP (Serial Port Profile) - A2DP (Advanced Audio Distribution Profile) NOTE + Inthe application on your device, log in and create an account with Pandora + ((fyou are not already a registered user an account can also be created at www.pandora. com) + Internet connection by LTE, 3G, EDGE, or WiFi. : Pandora” is only available in the United States, Australia, and New Zealand. + Because Pandora® is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or all ofthe services may become unavailable. + Some functions of Pandora? cannot be operated from this unit - For issues using the application, please contact Pandora® at pandora-support@pandora com.

Return to the Top page Appendix + About ieartRadio®: Requirements for using iHeartAuto" are as follows: iPhone or iPod touch + Use an Apple iPhone or iPod touch running 055 or later. + Search for"iHeartAuto”in the Apple App Store ta find and install the most current version ofthe iHeartAuto" application on your device. Android” + Use an Android device with firmurare 2.2 or later. : Search for"iHeartAuto on Google play to find and install the most current version of the iHeartAuto" application on your device Note - iHeartRadio® is available only in the United States and US Territories - Forthe best application experience, a 3G/4G or Wi-Fi connection is recommended. + Because iHeartAuto"is a third-party service, the specifications are subject to change without prior notice. Accordingly, compatibility may be impaired or some or al ofthe services may become unavailable. + Some functions of iHeartRadio® cannot be operated from this unit + you experience issues while using the application, please contact iHeartRadio® Customer Care at http//helpiheartradio.com, : iHeartRadio® and iHeartAuto" are trademarks owned by Clear Channel Broadcasting, Inc. All uses are authorized under license.

Return to the Top page Appendix DNX891HD/ DNX771HD/ DNX691HD/ DNXS71HD/ DNXS71EX: MFCC WARNING This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 ofthe FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment may cause harmful interference to radio communications, ifit is not installed and used in accordance with the instructions. However there is no guarantee that interference will not occur in a particular installation. this equipment does cause harmful interference to radio or television reception, which can be determined by tuming the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: + Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver. + Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. + Consul the dealer or an experienced radio/TV technician for help. ACAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. In compliance with Federal Regulations, following are reproductions of labels on, or inside the product relating to laser product safety. JVC KENWOOD Corporation 2967-3, ISHIKAWA-MACHI,

HACHIOJI-SHI, TOKYO, JAPAN

THIS PRODUCT COMPLIES WITH DHHS

RULES 21 CFR SUBCHAPTER J IN EFFECT AT DATE OF MANUFACTURE. Location: Top plate

DNX891HD/ DNX771HD/ DNX691HD/ DNXS71HD/ DNXS71EX: IC (Industry Canada) Notice This device complies with Industry Canada licence: exempt RSS standard(s). Operation is subject to the following two conditions: {This device may not cause interference, and O2) this device must accept any interference, including interference that may cause undesired operation of the device. The term"IC:" before the certification’ registration number only signifies that the Industry Canada technical specification were met ACAUTION This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OETÉS and RSS-102 ofthe IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from persons body excluding extremities: hands, wrists, feet and ankles) Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e..rp) is not more than that necessary for successful communication. DNX891HD/ DNX771HD/ DNX691HD/ DNX571HD/ DNXS71EX: + Contains Transmitter Module
