ZHM2559BS - Hand blender Zelmer - Free user manual and instructions

Product Type	Hand mixer with bowl stand
Brand	Zelmer
Model	ZHM2559BS
Power Supply	220-240 V ~ 50/60 Hz
Rated Power	250 W
Number of Speeds	5 variable speeds + Turbo function
Accessories Included	Stainless steel beaters, dough hooks, scraper, 2L plastic bowl, mixer holder stand
Bowl Capacity	2 L
Dough Hook Capacity	Up to 1 kg flour + 720 g water
Maximum Operating Time (Turbo/High Speed)	1 minute (to avoid overheating)
Material	Plastic body, stainless steel beaters/dough hooks
Weight	Approx. 2 kg
Dimensions (L x W x H)	30 x 20 x 25 cm
Cord Length	Approx. 1.5 m
Safety Features	Overheat protection, automatic shut-off, ejection button for accessories
Cleaning	Wipe mixer unit with damp cloth; beaters, dough hooks, bowl, and scraper dishwasher safe
Warranty	2 years
Spare Parts Availability	Beaters, dough hooks, bowl, scraper available from Zelmer service
Reparability	Repairs by authorized service only
Compliance	CE, WEEE (2012/19/EU)

Frequently Asked Questions - ZHM2559BS Zelmer

How do I attach the beaters or dough hooks?

Insert the beaters or dough hooks into the correct outlets on the mixer unit until they click into place. Ensure the gear on the dough hooks aligns properly (see Fig. 2 in manual).

How do I connect the mixer unit to the stand?

Place the front of the mixer unit onto the mixer holder and press downwards until it locks. Check that it is securely attached before use.

What are the speed settings and when should I use them?

The mixer has 5 speeds. Speed 1 is for light mixing, speeds 2-4 for medium tasks, and speed 5 for whipping. The Turbo button provides maximum speed instantly.

Can I use the mixer without the stand (manually)?

Yes, you can use the mixer unit alone by inserting beaters or dough hooks directly. Avoid splashing by placing them in the batter before starting.

How long can I use the turbo function?

Do not use the turbo function (or speed 5) for more than 1 minute continuously to prevent motor overheating.

How do I clean the mixer?

Unplug and wipe the mixer unit with a damp cloth. Wash beaters, dough hooks, bowl, and scraper with mild detergent and water, or in the dishwasher.

What should I do if the mixer stops working?

Check if the speed switch is at '0' and the plug is connected. If it overheated, let it cool for 15 minutes. For other issues, contact an authorized service center.

Can I knead heavy dough with this mixer?

Yes, using the dough hooks. The maximum capacity is 1 kg flour with 720 g water, and recommended kneading time is 10 minutes.

Is the mixer safe for children?

No, this appliance should not be used by children. Keep it and the cord out of reach of children. Only use under supervision if person has reduced capabilities.

Where can I get spare parts or service?

Visit www.zelmer.com for after-sales information or contact the store where you purchased the product. Warranty covers 2 years.

USER MANUAL ZHM2559BS Zelmer

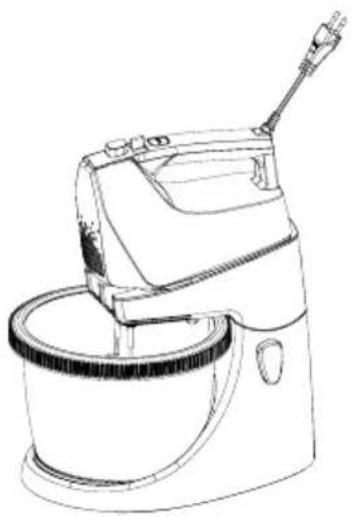

Black and white photo of a Zeimer mixing bowl with a hand mixer, no visible text or symbols on the device itself.

EN USER MANUAL Hand mixer with bowl

Line drawing of a manual pump device with two spring-loaded sensors (no text or symbols)

FIG. 1

Line drawing of a mechanical device with a hook and lever (no text or symbols)

FIG. 2

Line drawing of a kitchen appliance with a handle and side panel, showing motion lines (no text or symbols)

FIG. 3

Line drawing of a hand mixer with a bucket and handle (no text or symbols)

FIG. 4

Line drawing of a manual pump device with two spring scales (no text or symbols)

FIG. 5

Line drawing of a mechanical device with a hook and lever (no text or symbols)

FIG. 6

OSTRZEŻENIE

PRZED UŻYCIEM PRODUKTU NALEŻY UWAŻNIE PRZECZYTAĆ INSTRUKCJĘ UŻYTKOWANIA. PRZECHOWUJ JĄ W BEZPIECZNYM MIEJSCU DO WYKORZYSTANIA W PRZYSZŁOŚCI

OPIS

WE WOULD LIKE TO THANK YOU FOR CHOOSING ZELMER. WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE

DESCRIPTION

1. Ejection button
2. 5-Speed switch
3. Turbo button
4. Mixer unit
5. Dough hooks
6. Beaters
7. Mixer release button
8. Mixer holder
9. Mixer holder adjuster
10. Mixer stand
11. Bowl
12. Scraper

SAFETY INSTRUCTIONS

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Respect the operating times of the accessories indicated in their specific sections of the manual. Proceed according to maintenance and cleaning section of this manual for cleaning.

Warning: potential injury from misuse!

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

Appliances can be used by persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

This appliance is intended for use at a maximum altitude of 2000m above sea level.

IMPORTANT WARNINGS

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances. Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to the supply mains with the hands and / or feet wet. Do not pull on the connection cord in order to unplug it or use it as a handle

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

B&B TRENDS, S.L. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

HOW TO USE

Insert beaters or dough hooks

Insert beaters or dough hooks into the correct outlets and ensure the beaters or dough hooks securely lock in right position (Fig.1 & Fig.2).

Attention: please carefully check Fig.2 and find the dough hooks /beaters with gear must be lock in their right position.

Connecting to mixer holder

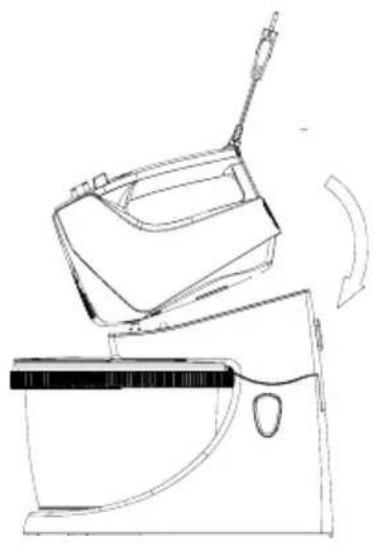

Place the front of mixer unit onto mixer holder and then press the mixer unit downwards to lock it onto the mixer holder (Fig.3)

Check the mixer unit or mixer holder is securely locked in position.

Put some food (such as flours, eggs etc.) the plastic bowl and then you can insert bowl cover into the mixer holder (shown as Fig4).

Turn the 5-speed switch to position "0" then you can connect plug to power supply to use the mixer with bowl.

You can use scraper to stir mixture food to make it more symmetrical while the mixer is working, or if you find some food is twinning on the top of the dough hooks/beaters during working, you can use scraper to peel off the food. Care must be taken while you use the scraper.

Caution: Care must be taken while you assembling the appliance, and don't connect plug to power supply and the switch must be turned to position "0".

Operation

Connecting power cord to power outlet and start operating the appliance.

For better mixing result, first put liquid Ingredients into the bowl and then add the dry ingredients accordingly.

After use/ Insert or take out the bowl

After use, firstly you can take out the bowl cover.

Press the mixer release button and then take out the mixer unit, with dough hooks/beaters from the mixer holder.

Press the mixer holder adjuster and lift up the mixer holder backwards and then take out the bowl. Similarly you can take out the bowl from the mixer stand by pressing the mixer holder adjuster.

HOW TO ASSEMBLE THE MIXER UNIT MANUALLY

Insert beaters or dough hooks into the correct outlets and ensure the beaters or Dough hooks securely lock and in their position then you can use the mixer unit manually.

Attention: please check Fig.6 and find the dough hooks with gear (indicated in red circle) must be lock in their right position.

To avoid splashing, place the beaters or dough hooks inside the batter before operating the appliance.

You can use scraper to stir mixture food to make it mix thoroughly while the mixer is working, or if you find some food is twinning on the top of the dough hooks/beaters during working, you can use scraper to peel the food off. Care must be taken while you use the scraper.

Mixer speed control

Variable 5-speed& turbo button (Refer to parts identification 2 or 3)

Low speed –level (1) selection

Suitable for beginning and ending in mixing process, beating and mixing light or fluid batters, for shipping egg white or flour mixes.

Medium speed -level (2, 3,4) selection

For consistent mixing process

High speed level (5) selection

For whipping cake mixes, sauces and etc. Also for kneading consistent mixing process

Turbo function

The speed is same as high speed level (5), the appliance can directly reach to the fastest speed if you press the Turbo button while the appliance is working under the other speed. It comes back to the original speed automatically if we release the speed selector.

position 0

Switch off the mixer

AUTION

Care must be taken while you assembling the appliance, and don't connect the plug to power supply and the switch must be turned to position "0".

For turbo function and high speed (speed 5), it is recommended not to use more than 1 minute to avoid motor overheating.

CLEANING AND MAINTENANCE

Before cleaning the appliance, adjust the speed switch to position"0", Unplug the cord from the power supply outlet.

Remove the bowl from the appliance and ensure not contain remain in the bowl.

Press “Ejection Button” (Refer to PARTS IDENTIFICATION 1) to release the beaters or dough hooks from the mixer

Wash beaters, dough hooks, with a soft sponge and some mild detergent. Rinse with water and wipe clean with a cloth.

Do no submerge the mixer unit into water or any type of liquids to avoid electric shock and cause damage to the appliance to remove difficult stains, clean the area surface with a damp cloth.

PREPARATION GUIDELINE CHART

Dough hooks	Capacity Duration
Yeast dough	1000g of flour and 720g of water		10 minutes

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

We hope that you will be satisfied with this product.

VIELEN DANK, DASS SIE SICH FÜR ZELMER ENTSCHIEDEN HABEN. WIR HOFFEN DAS PRODUKT FUNKTIONIERT ZU IHRER VOLLSTEN ZUFRIEDENHEIT

WARNHINWEIS

ELIMINAREA PRODUSULUI

B&B TRENDS, S.L. guarantees compliance of this product for the use for which it is intended for a period of two years. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B&B TRENDS, S.L. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, S.L. authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, S.L., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty.

This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Polish territory, please submit your query to the point of sale where you purchased the item or check for further aftersales information at www.zelmer.com
