USER MANUAL HI 750-T 1 Cocraft

TWIN HAMMER MECHANISM

MUTTERDRAGARE

MUTTERTREKKER

MUTTERINVÄÄNNIN

DREHSCHLAGSCHRAUBER

Important!

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Cocraft electric shaver with black body and metallic handle, no visible text or symbols on the device itself.

Art.no Model

40-8665

PAT-106

Ver. 20170612

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions concerning technical problems please contact our Customer Services.

Safety

Warning: Read the entire instruction manual before using the product and keep it for future reference. Make sure that you have read and understood the instruction manual before using the tool. Failure to follow the safety instructions could lead to serious personal injuries.

Warning: Do not exceed the recommended working pressure, 6.3 bar (90 psi). Too high a pressure can cause the impact wrench to explode which may result in serious or fatal personal injuries.

a) Disconnect the impact wrench from the air hose before changing sockets/tools, before servicing it, and as soon as you have finished using it.
b) Always wear safety glasses and ear defenders when the impact wrench is in use.
c) Do not wear loose-fitting clothing or jewellery. Keep hair, clothes and loose-fitting gloves away from moving parts. Loose-fitting clothes, jewellery or long hair could become caught in moving parts and result in serious injury.
d) Do not pull the trigger whilst the air hose is being connected.
e) Only use tools and accessories designed for use with pneumatic/air powered tools. WARNING: Only use impact sockets which are designed for use with impact wrenches. Normal sockets designed for use with hand tools, worn sockets or damaged sockets should never be used with an impact wrench.
f) Do not pull the trigger before the socket has securely mated with the nut or bolt. The socket must grip the head of the bolt or nut securely.
g) Before using the tool, make sure that all connections are tight and that the air hose is not damaged in any way.
h) WARNING: Always disconnect the air hose from the impact wrench before attaching the socket/accessory and before carrying out any maintenance.
i) Neither this tool nor its accessories must be modified in any way.

Workplace hazards

a) Keep your work area clean and well-illuminated.
b) The most common causes of serious or fatal injury in the workplace are related to slipping, tripping or falling. Watch out for hanging cables or hoses and slippery floors.
c) Keep a firm footing and good balance at all times.
d) Repetitive work movements, uncomfortable work postures and vibrating tools can be harmful to hands and arms.
e) Exposure to high noise levels can cause permanent hearing loss. Always use ear protection.
f) Avoid inhaling dust particles or contaminants which might be harmful to your health.
g) Keep pets and bystanders out of the work area when the tool is being used.
h) This tool is not designed for use in explosive atmospheres and is not insulated for contact with electric power sources.

Personal safety precautions

a) Pay attention to what you are doing and use common sense when using pneumatic tools. Never use any hand tool, pneumatic or power tool if you are tired or under the influence of drugs, alcohol or medication. One moment of inattention while using a power tool may result in serious injury.
b) Wear protective clothing. Always wear safety glasses. Using protective clothing such as dust masks, non-slip safety shoes, helmets and ear defenders when needed decreases the risk of injury.
c) Avoid accidental starts. Never hold your finger on the trigger when connecting the air hose or changing a socket.
d) Do not overreach. Make sure you stand steady and well balanced at all times. This will allow you to have more control in unexpected situations.
e) Wear suitable clothing. Do not wear loose-fitting clothing or jewellery. Keep hair, clothes and gloves away from moving parts. Loose-fitting clothes, jewellery or long hair could potentially become caught in any moving parts.
f) Dust extraction or collection equipment should be used whenever the work environment contains large amounts of dust.
g) Hold the product by its insulated gripping surfaces whenever using the tool where it could come in contact with hidden live wiring. Contact with live wires will make the metal parts of the tool live and could shock the user.
h) Avoid direct contact with accessories during use.

Projectile hazards

a) Parts of the workpiece, accessories or even the socket can fly off at high speed.
b) Always wear impact-rated safety eyewear when using the impact wrench. Select suitable safety eyewear that provides adequate protection for the task you are performing.
c) Ensure that the workpiece is securely fastened or clamped.

Entanglement hazards

a) Loose-fitting clothing, jewellery, necklaces or hair which becomes entangled with the tool could result in strangulation, constriction or crushing.
b) Gloves can become entangled in the rotating drive, resulting in severed or broken fingers.
c) Rubber-coated or steel-reinforced gloves can easily become caught in rotating sockets or extension bars.
d) Do not wear loose-fitting gloves or gloves with cut or frayed fingers.
e) Never hold onto the drive anvil, socket or extension bar.
f) Keep hands away from rotating drive anvils.

Connection to the air supply system

a) This tool must only be connected to a clean, filtered and dry air supply which provides an air pressure at the tool of 6.3 bar (90 psi). Warning: Too high a pressure will reduce the lifespan of the tool and could cause serious personal injuries.
b) Connect the tool to the air supply using a hose designed for high pressure air.
c) Fit a quick-connect coupling in the air hose and a regular inlet nipple onto the impact wrench. Do not attach a quick-connect coupling to the impact wrench itself, as this would retain pressure in the tool even when the air hose has been disconnected.
d) In order for the tool to work at its full capacity, the air compressor must provide the tool with at least the tool's rated air consumption.
e) Only use air hoses of the recommended dimension and length. Do not connect the tool to the air compressor without incorporating an easy to reach and operate air cut-off valve.
f) Make sure that any water which has condensed in the tank of the air compressor or the air hoses is emptied out regularly to prevent water being delivered into the tool. Water in the system could freeze in the hose or cause the tool to rust.

Explanation of symbols

Read the instruction manual before operating the tool.

Always wear ear protection.

Always wear eye protection.

Description

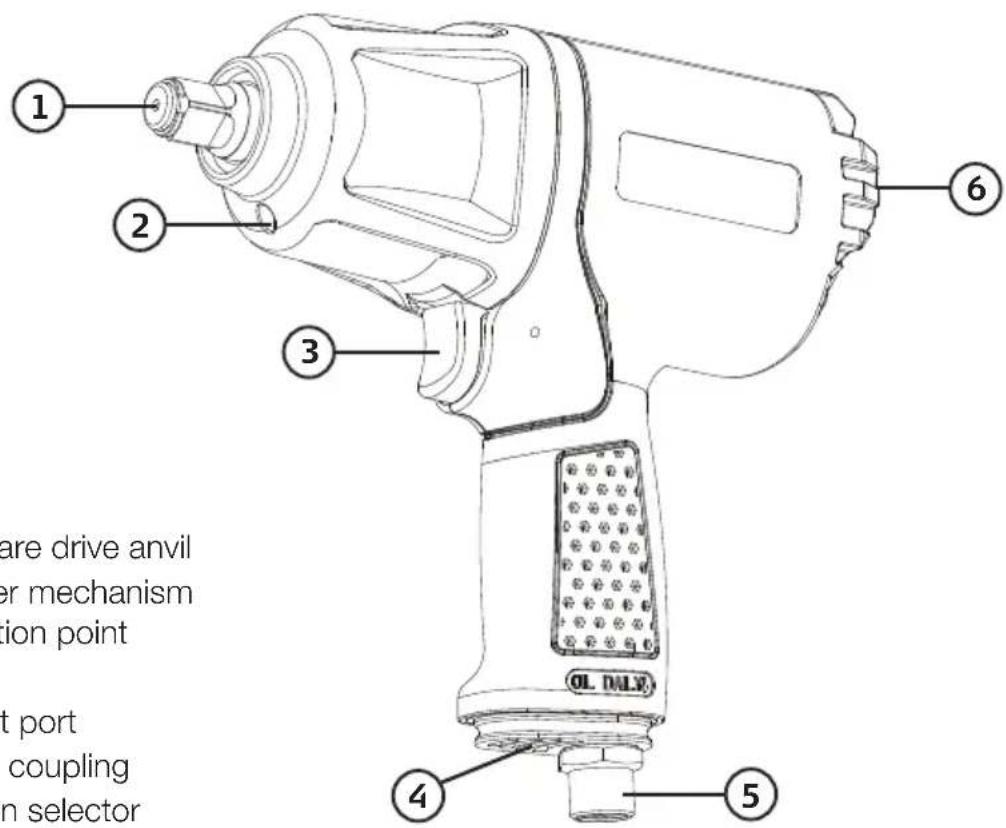

1. 12 " square drive anvil

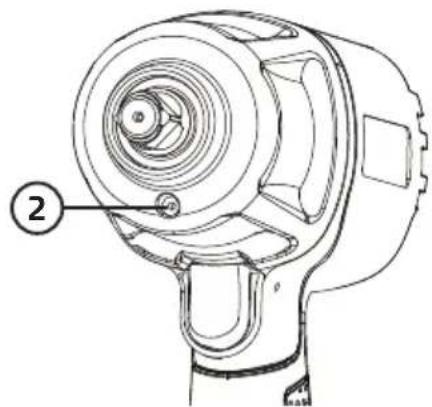

2. Hammer mechanism lubrication point
3. Trigger
4. Exhaust port
5. Air inlet coupling
6. Function selector

Lubrication

The air supply to the tool can be lubricated by connecting a mist-oiler into the air line or by applying a few drops of oil to the tool's air inlet nipple before connecting the air hose. The tool needs to be lubricated at different intervals depending on how often it is used.

Lubrication of the air motor

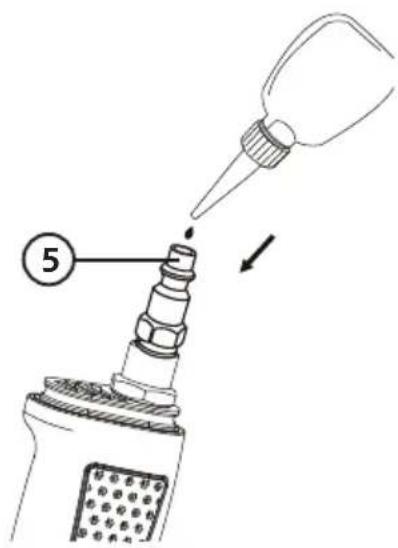

The impact wrench's air motor should be lubricated before initial use and before each subsequent use thereafter. Use an easy-flowing, resin-free and acid-free oil with a viscosity grade of max 22, such as sewing machine oil or oil designed for air tools and machines.

Disconnect the impact wrench form the air hose, hold the impact wrench upside down and drip 2–3 drops of oil into the air inlet (5). Do not apply too much oil; any excess oil will be sprayed out of the exhaust port. You should therefore hold a rag over the exhaust port and make sure that no people or sensitive objects are close by.

Lubrication of the hammer mechanism

The hammer mechanism is lubricated with grease before it leaves the factory and does not need to be additionally lubricated if the impact wrench is only used occasionally such as for spring and summer tyre changes. If the impact wrench is used daily, the hammer mechanism should be lubricated 2–3 times per month or whenever it is required.

Disconnect the impact wrench from the air hose. Remove the screw (2) using a 2.5 mm hex key and drip 2–3 drops of engine oil into the hole. Take care not to lose the O-ring located under the head of the screw. Screw the screw back in taking care not to overtighten and damage the O-ring.

Operating instructions

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a handheld electric drill bit with a perforated head and threaded shaft (no text or symbols)

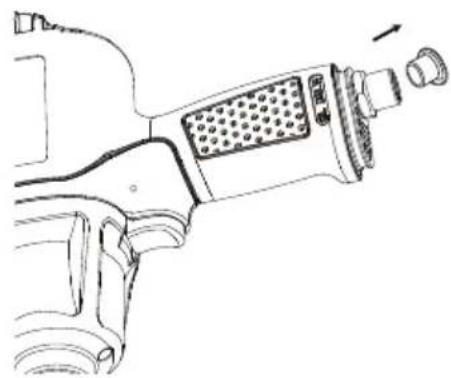

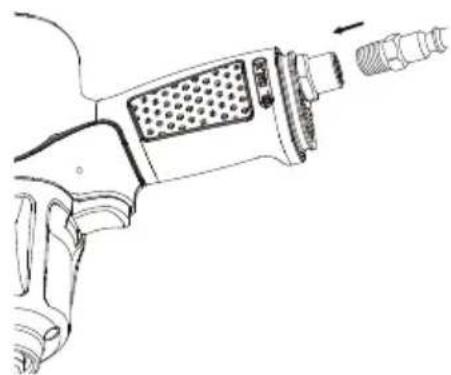

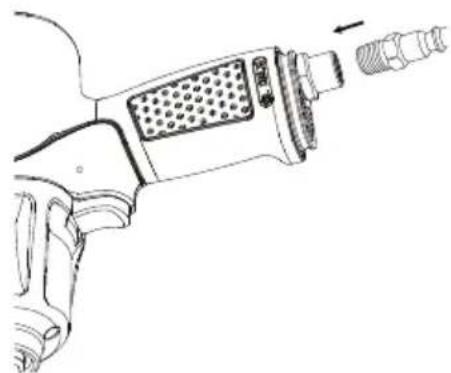

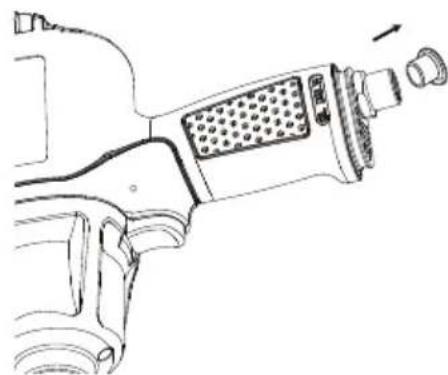

1. Remove the protective plug from the air inlet (5). Screw the air inlet nipple into the air inlet (5). Use some form of thread sealant to ensure that the seal is airtight.

Line drawing of a handheld electric drill with a button and handle (no text or symbols)

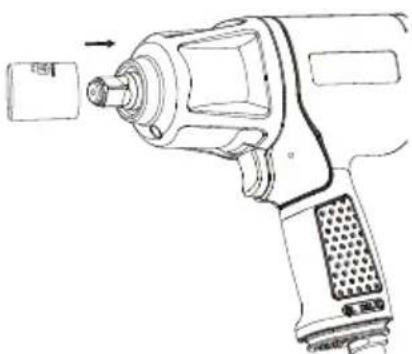

1. Fit a socket onto the anvil (1). Use only undamaged impact sockets.

Line drawing of a handheld electric drill bit with internal components and a directional arrow (no text or symbols)

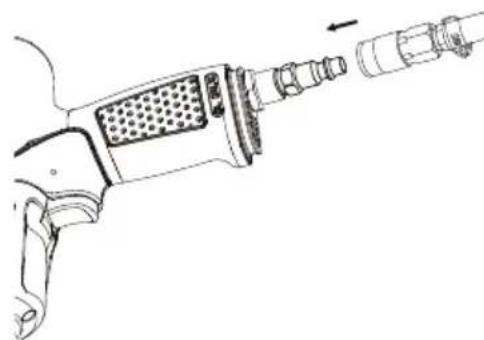

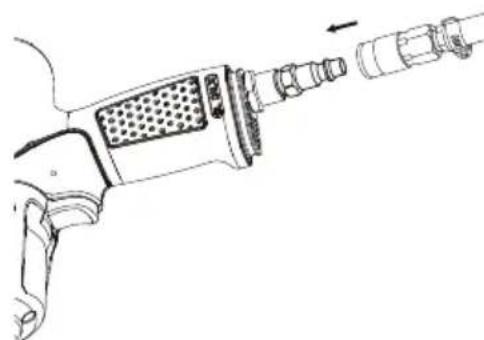

1. Connect the quick-connect coupling of the air hose to the air inlet nipple on the impact wrench.

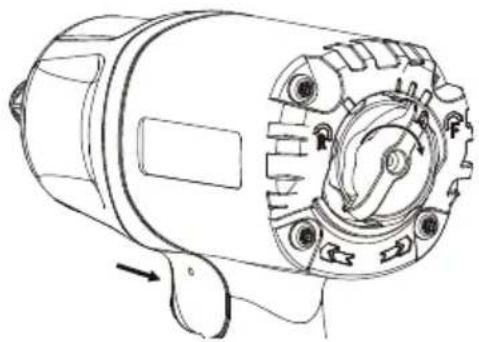

2. Select the direction of rotation and the impact force using the function selector (6):

Technical line drawing of a mechanical device with gears and housing (no text or symbols)

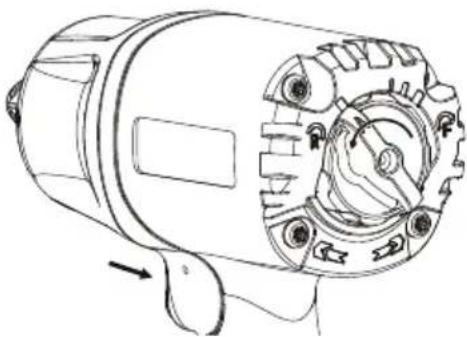

Clockwise rotation

Turn the function selector clockwise to tighten nuts/bolts (forward). There are 3 forward settings for tightening with different impact forces: low – medium – high. Always begin with the lowest force and then increase if necessary.

Technical line drawing of an electric motor with gear and mounting components (no text or symbols)

Anticlockwise rotation

Turn the function selector anticlockwise to untighten nuts/bolts (reverse). There is only one reverse setting – full impact force.

1. When starting the impact wrench hold it in both hands (if possible) and pull the trigger.

Troubleshooting

The impact wrench fails to deliver full power or does not rotate at all.	The tool is unlubricated. Lubricate the tool with appropriate oil, refer to the Lubrication section.
	Low air pressure. Adjust the pressure regulator on the compressor to 90 psi/6.3 bar.
	The function selector is in the wrong position. Check and adjust.
	The pressure keeps falling. Air hose is too long or has too small a bore causing pressure drop. Check and replace it with a shorter hose or one with a larger bore.
	Worn/broken rotor blades in air motor. Replace.
	Water or spray blows out of the exhaust. Empty any condensation from the tank and hose.
	If the impact wrench has been left unused for a long time the rotor blades in the air motor might have stuck. Lubricate the tool with appropriate oil, refer to the Lubrication section. Then run the tool on High impact force for about 30 seconds. Refer to Operating instructions. If this doesn't help, repeat the procedure.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Specifications

Anvil 12 " square drive

Air consumption 185 l/min

No-load speed 7500 rpm

Max impact force 750 Nm

Air inlet coupling 14 " NPT

Recommended hose bore diameter 38 "

Max working pressure 6.3 bar (90 psi)

Weight 2.5 kg

Sound pressure (LpA) 95 dB(A) K: 3 dB(A)

Sound power level (LwA) 106 dB(A) K: 3 dB(A)

Vibration level a_h 3.12 m/s ^2 K: 1.5 m/s ^2

Mutterdragare 12 "
