Product type	Cordless drill/driver
Brand	Cocraft
Model	HDE 12-LI
Battery voltage	12 V Li-ion (nominal 10.8 V)
Battery capacity	1.5 Ah
Charging time	Approx. 35 minutes
Variable speed (no load)	0–330 / 0–1200 rpm (two gears)
Max torque	24 Nm
Torque settings	15+1 (including drill mode)
Chuck type	Keyless, 10 mm capacity
Drilling capacity in wood	20 mm
Drilling capacity in steel	10 mm
Weight (including battery)	1.2 kg
Battery weight	0.3 kg
Charger weight	0.5 kg
Sound pressure level (LpA)	75 dB(A) (uncertainty 3 dB)
Sound power level (LwA)	86 dB(A) (uncertainty 3 dB)
Vibration (drilling into steel)	2.24 m/s² (K=1.5 m/s²)
Vibration (screw driving)	1.185 m/s² (K=1.5 m/s²)
Features	Variable speed trigger, forward/reverse/lock switch, belt clip, LED light, battery charge indicator, overload protection, overheating protection, low-voltage protection
Safety equipment required	Safety glasses, ear defenders, face mask
Indoor use only	Yes
Charger input	230 V, 50 Hz

Frequently Asked Questions - HDE 12-LI Cocraft

How do I charge the battery for the first time?

Remove the battery from the drill, insert it into the charger, and plug the charger into a wall socket. The green indicator will flash during charging and stay steady when fully charged. Charging takes approximately 35 minutes. The battery should be fully charged before initial use.

What do the LEDs on the battery charge status indicator mean?

Three LEDs indicate full charge (100%). When one LED goes out (90%) and then another (25%), only one LED remains. If no LEDs shine, the battery is completely discharged and needs charging.

How do I change between forward and reverse?

Use the forward/reverse selector (9) located above the power trigger. The selector also has a middle lock position to prevent accidental start.

What torque setting should I use for driving screws?

Start at the lowest setting and increase until the screw is driven without stripping. The torque selector (7) offers 15+1 positions (including drill mode). Lower settings for small screws in soft materials, higher for large screws in hard materials.

How do I change the gear?

Only change gears when the drill is off and completely stopped. Slide the gear selector (8) to low speed (0–330 rpm) for high torque or high speed (0–1200 rpm) for low torque.

Why does my drill stop suddenly during use?

This could be due to a discharged battery, overload protection tripping, or overheating protection. For short overloads, release the trigger and wait a few seconds. For prolonged overloads, let the tool cool down. If the battery is low, recharge it.

How do I clean and maintain the drill?

Keep the motor ventilation openings free of dust. Clean the product with a lightly moistened cloth and mild cleaning agents. Do not use solvents. For long-term storage (months), fully charge the battery first.

Can I use any charger with this drill?

No, only use the charger supplied with the drill. Using a different charger may cause a risk of fire or damage.

What safety precautions should I take when drilling?

Always wear safety glasses, ear defenders, and a face mask. Hold the tool by insulated gripping surfaces if cutting may contact hidden wiring. Use a clamp or vice to hold the workpiece.

How do I dispose of the battery and drill?

Do not dispose of with household waste. Take the product to a local collection facility or contact the place of purchase for environmentally safe recycling.

USER MANUAL HDE 12-LI Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Original instructions

Bruksanvisning i original

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

General Power Tool Safety Warnings - Personal Safety

Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to a power source and/or battery pack, or when picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, seek medical help. Liquid ejected from the battery may cause irritation or burns.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Impact Drill Safety Warnings

a) Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
b) Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
c) Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring.
Cutting accessories contacting "live" wires may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Safety Warnings for battery packs

a) Do not dismantle, open or shred cells or battery pack.
b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When the battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

c) Do not expose the battery pack to heat or fire. Avoid storage in direct sunlight.

d) Do not subject the battery pack to mechanical shock.

e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.

f) Seek medical advice immediately if a cell or battery pack has been swallowed.

g) Keep the battery pack clean and dry.

h) Wipe the battery pack terminals with a clean dry cloth if they become dirty.

i) The battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.

j) Do not maintain the battery pack on charge when not in use.

k) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.

I) The battery pack gives its best performance when it is operated at normal room temperature (20 °C ± 5 °C).

m) When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.

n) Recharge only with the specified charger. Do not use any charger other than that specifically provided for use with the equipment.

A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

o) Do not use any battery pack which is not designed for use with the equipment.

p) Keep battery pack out of the reach of children.

q) Retain the original product literature for future reference.

r) Remove the battery from the equipment when not in use.

s) Dispose of properly.

General safety instructions for batteries and chargers

• Never attempt to dismantle a battery.
• Never store a battery in direct sunlight or at temperatures above 40 °C.
• Only charge the battery when the ambient temperature is between +5 °C and 40 °C.
• Never expose the battery or charger to water.

Vibration

• The measurement of the vibration emission level declared in this instruction manual has been carried out in accordance with a standardised test method described in EN 60745 and can be used for comparing one power tool with another.
• The measurement method may also be used for a preliminary assessment of vibration exposure.
• The declared vibration emission level applies when the power tool is used in accordance with this instruction manual. If however, the power tool is used for other purposes and with other accessories or has not been properly maintained, the vibration emission level could increase significantly over the total working period.
• For an exact assessment of the vibration exposure, the times when the tool is switched off or running idle should also be taken into account. This significantly reduces the vibration exposure over the total working period. Decide upon safety measures to protect the operator from the effects of vibration during all types of use.

Product safety symbols

Read the entire instruction manual.

Always use safety glasses, ear defenders and a face mask.

For indoor use only.

max 50 °C

Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

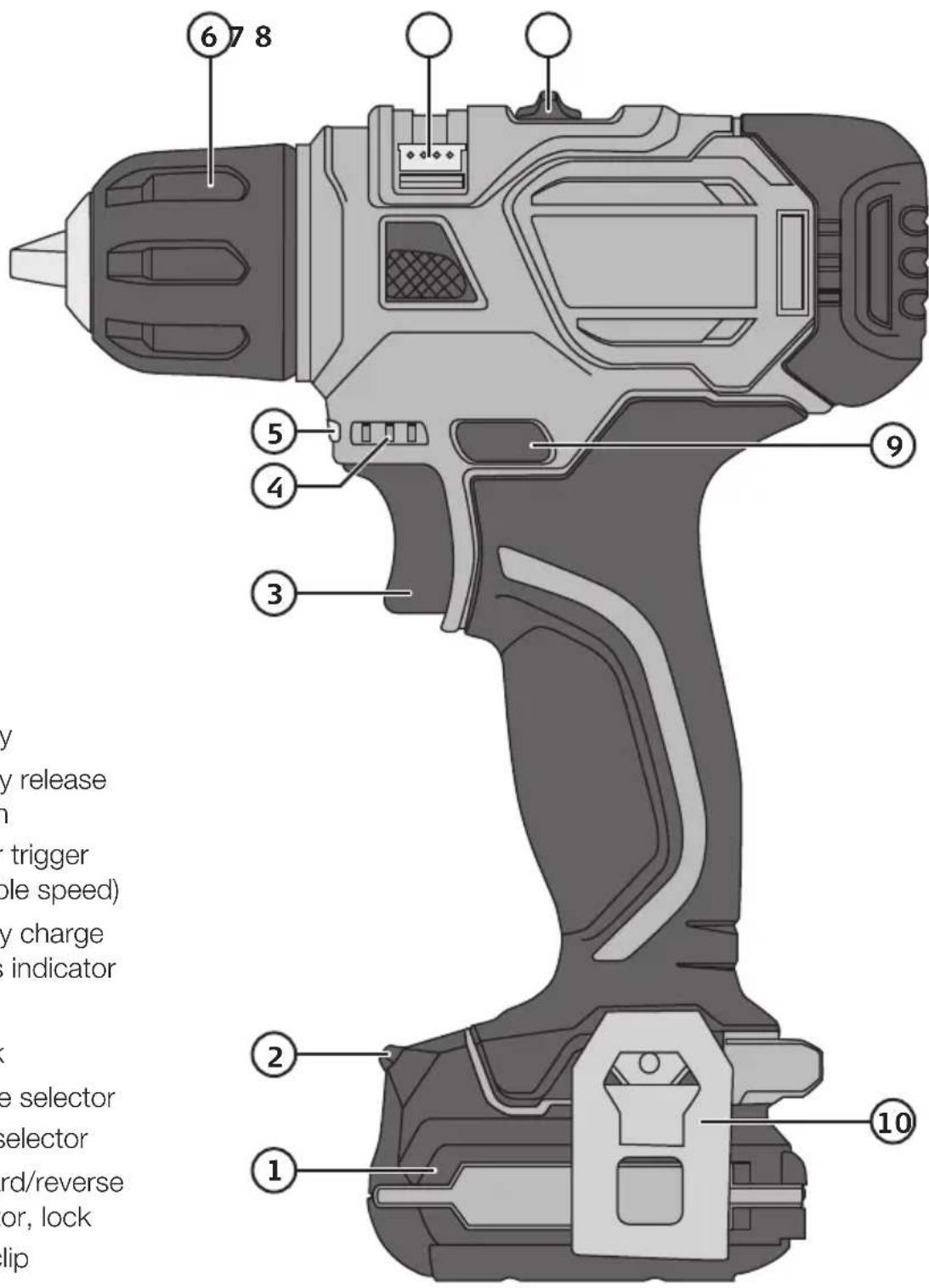

Product description

1. Battery
2. Battery release button
3. Power trigger (variable speed)
4. Battery charge status indicator
5. Light
6. Chuck
7. Torque selector
8. Gear selector
9. Forward/reverse selector, lock
10. Belt clip

Forward/reverse selector, lock and power switch

• The direction of rotation (forward or reverse) can be chosen using the selector (9). The selector also has a middle setting which locks the power trigger. If the selector is set to this middle position, the drill will not start. The drill/driver is started and stopped by squeezing and releasing the power trigger (3).
• The drill/driver is equipped with a variable speed control, which makes it extremely practical for driving screws. The more the power trigger is squeezed, the higher the speed the chuck rotates.

Battery charge status indicator

• The battery charge status indicator (4) has three LEDs to show how much charge there is left in the battery.
• At full, 100 % charge, all three LEDs shine. At 90 % charge, one LED goes out and two LEDs shine. At 25 % charge, another LED goes out and only one LED shines.
• If none of the LEDs shines, the battery is completely discharged and needs charging.

Torque selection

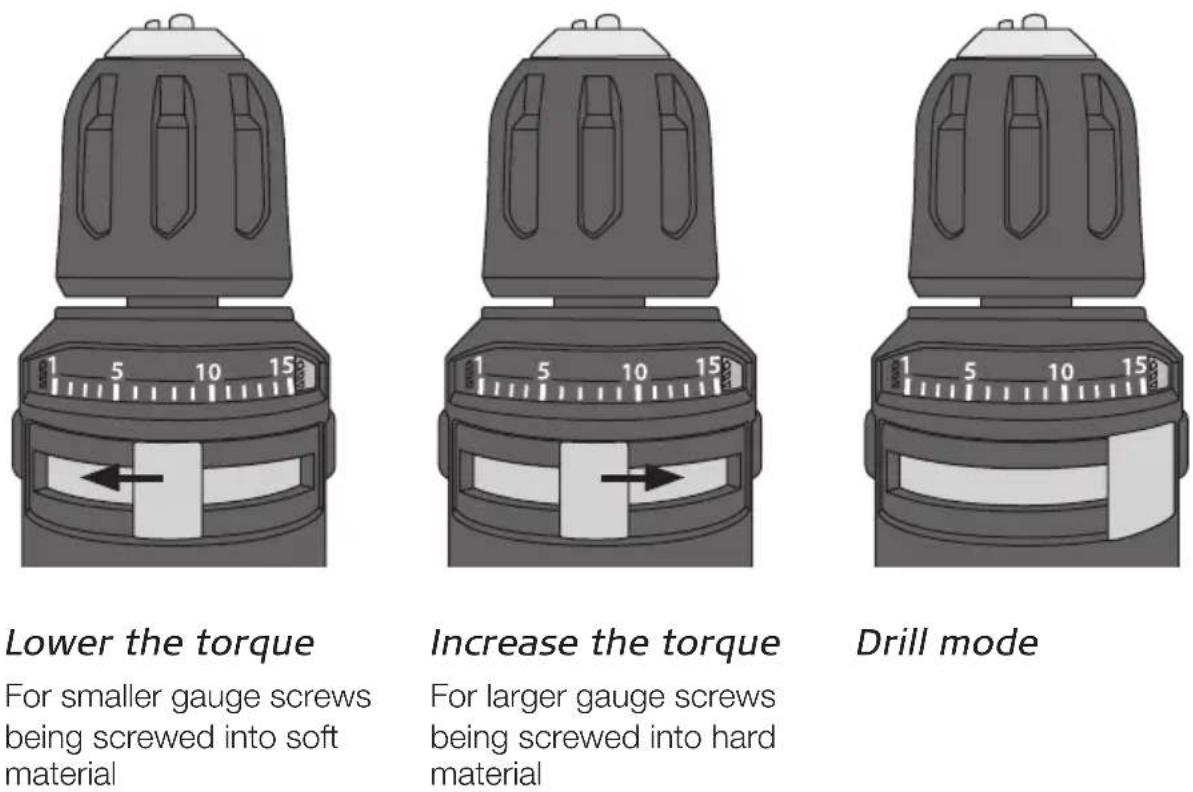

The drill/driver has a sliding torque selector (7) for setting a suitable torque for driving screws into different materials. The selector can also set the drill/driver to drill mode. The correct torque setting will disengage the drive at the preset torque to prevent screws from being over-tightened or driven in too far. The setting should be based on the type and size of screw and the material being screwed into. Always start at the lowest setting and increase in increments to find the correct setting.

For smaller gauge screws being screwed into soft material

For larger gauge screws being screwed into hard material

Gear selector

Note: Only change the gear when the drill/driver is switched off and has come to a complete stop.

Low speed/high torque

For large diameter drill bits drilling into hard material

High speed/low torque

For small diameter drill bits drilling into soft material

Charging

Note: Only use the supplied charger. The battery needs to be charged fully before initial use.

Mechanical component diagram showing a lever mechanism with directional arrows (no text or symbols)

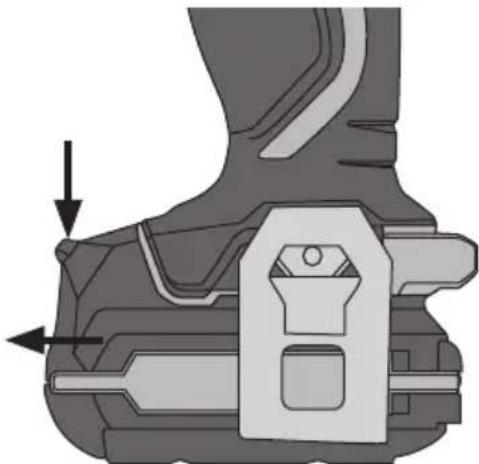

1. Remove the battery from the drill/ driver by pressing the battery release button (2) and sliding the battery out.

Illustration of a mechanical device with a lid and base component, showing internal structure (no text or symbols)

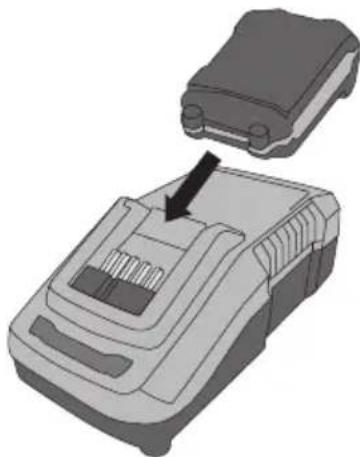

1. Insert the battery into the charger. Note: If the battery feels hot after heavy use, allow it to cool properly before charging it.

2. Connect the charger to a wall socket. The green charging indicator will flash during charging and will shine steadily when the battery is fully charged.

3. The charging time is approximately 35 min.

4. The battery may become hot whilst it is being charged. This is completely normal.

5. The battery and charger function best at normal room temperature. Do not charge the battery in direct sunlight or in temperatures below 5 °C. The temperature range for charging is 5–40 °C.

6. When the battery becomes discharged, the electronics of the battery will turn the drill off automatically.

7. For long-term storage (months) the battery should first be fully charged.

Overload protection and other safety features

The drill/driver and its battery have a number of safety features that prevent damage to the machine and battery during use.

• During short high-load situations the overload protection may turn off the drill/driver and battery. This protection resets automatically. Release the trigger, wait a few seconds, ensure that there is no-load and restart the drill. The drill/driver should now function normally again.
• During high-load situations for an extended period of time the overheating protection will turn off the drill/driver and battery. Self-resetting once the drill/driver returns to normal operating temperature. Let the machine cool properly before trying to restart it. Adverse temperatures can occur in direct sunlight and should therefore be avoided.
• The battery has low-voltage protection which comes into effect when the battery becomes discharged. The low-voltage protection turns off the machine automatically and the battery should then be recharged.

Changing drill and screwdriver bits

The drill/driver has a keyless chuck which enables drill or screwdriver bits to be changed with one hand. Twist the chuck to the left to tighten, to the right to untighten.

Make sure that the bit sits centred and secured in the chuck.

Drilling tips and advice

• When drilling into slippery materials, like tiles, you should place a strong piece of tape on the area in which you wish to drill to prevent the bit from wandering.
• When drilling into metal you should first use a centre punch to make a small indentation at the spot where you wish to drill. This indentation will help hold the bit in place and prevents it from wandering when you drill.
• When drilling into metal you should also use cutting oil to assist in drilling and to preserve the machine and drill bit.
  • Always use a clamp or vice to hold the workpiece.
• When drilling into walls, make sure not to damage water pipes, electricity cables or gas pipes.

Care and maintenance

• Always keep the motor ventilation openings free from dust and debris.
- Clean the product using a lightly moistened cloth. Only use mild cleaning agents, never solvents or corrosive chemicals.
- For long-term storage (months) the battery should first be fully charged.

Troubleshooting guide

The drill/driver doesn’t start.	The forward/reverse selector is in the middle setting.Check that the battery is properly attached to the drill/driver.The battery is discharged. Recharge the battery.Fault with the battery or motor. Contact our customer services.
The drill/ driver shuts off unexpectedly.	The battery is discharged and needs charging.The overload protection has tripped.In the case of short-term overloading: Let the drill/driver rest for a few seconds before operating it again.In the case of prolonged overloading: Let the drill/driver cool before operating it again.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner.

When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Specifications

Drill/driver

Variable speed 0–330/0–1200 rpm

Chuck capacity 10 mm

Torque settings 15+1

Max torque 24 Nm

Drilling capacity in wood 20 mm

Drilling capacity in steel 10 mm

Weight 1.2 kg (including battery)

Noise emission data LpA: 75 dB(A) (uncertainty KpA: 3 dB)

LwA: 86 dB(A) (uncertainty KwA: 3 dB)

Ear protection must be worn when the sound

level exceeds: 80 dB(A)

Vibration value a

h, D 2.240 m/s ^2 , K: 1.5 m/s ^2 drilling into steel a_h,ID 1.185 m/s ^2 , K: 1.5 m/s ^2 screw driving

without hammer function

Battery

Type 12 V Li-ion, 1.5 Ah*

Weight 0.3 kg

Charger

Rated voltage 230 V, 50 Hz

Charging time 35 min

Weight 0.5 kg

* Voltage measured without workload. Initial battery voltage reaches maximum of 12 V. Nominal voltage is 10.8 V.

Skruvdragare 12 V

Mechanical component diagram showing a clamping mechanism with directional arrows (no text or symbols)

3D illustration of a battery pack with an open lid and arrow indicating the component (no text or symbols)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Specifikationer

Skruvdragare

Steglös hastighet 0–330/0–1200 v/min

Chuck Nyckellös 10 mm

Mechanical component diagram showing a clamping mechanism with directional arrows (no text or symbols)

Illustration of a battery pack with an open lid and internal circuit board (no text or symbols)

1. Plasser batteriet i laderen. Obs! Hvis batteriet er varmt, f.eks. etter hard belastning, må det avkjøles før ladingen starter.

2. Støpselet kobles til et strømuttak. Den grønne indikatorlampen blinker ved lading og lyser kontinuerlig når batteriet er fulladet.

3. Ladetiden er ca. 35 minutter.

4. Batteriet kan bli varmt ved lading. Dette er helt normalt.

5. Både lader og batteri fungerer best ved normal romtemperatur. Lad ikke i direkte sollys eller ved lave temperaturer. Omgivelsestemperatur ved lading bør ligge på mellom 5 og 40 °C.

6. Når batteriet er utladet vil maskinen stoppe umiddelbart.

7. Ved lengre oppbevaring (flere måneder) skal batteriet være ladet.

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Spesifikasjoner

Drill

h, D 2,240 m/s², K: 1,5 m/s² (boring i metall)

Mechanical component diagram showing a clamping mechanism with directional arrows (no text or symbols)

Diagram of a battery pack with an open lid and arrow indicating the component (no text or symbols present)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Tekniset tiedot

Ruuvinväännin

Mechanical component diagram showing a piston and lever mechanism (no text or symbols)

Illustration of a medical device with a black arrow pointing to a component (no text or symbols visible)

Symbol of a trash bin crossed with no visible text or labels

Technische Daten

Akkuschrauber

Declaration of Conformity

Declares that this product complies with the requirements of the following directives and standards

Manager Technique & Quality

Insjön, Sweden, 2017-01-30

CLAS OHLSON AB, SE-793 85 INSJÖN, SWEDEN

Sverige

Postal 10 - 13 Market Place

Kingston Upon Thames

Surrey

KT1 1JZ

Deutschland

Kundenservice Hotline: [phone]

E-Mail: [e-mail]

Homepage

www.clasohlson.de
