Product Type	Steam Cleaner
Brand	Fakir
Model	Pocket Clean
Color	White
Power Consumption	950 - 1100 W
Voltage	220 - 240 V ~ 50/60 Hz
Protection Class	Class I
Water Tank Capacity	250 ml
Steam Pressure	3 bar
Heating Time	Approx. 3 minutes
Usage Life	10 years
Safety Features	Safety valve, Child safety lock
Accessories Included	Puller, Upholstery nozzle, Cotton cover, Extension hose, Measuring cup, Funnel, Angle nozzle, Extension nozzle, Round brush
Application Areas	Windows, mirrors, tiles, upholstery, fabrics, grouting
Maintenance	Descaling with vinegar/water mixture; machine-washable cotton cover
Power Cord	Not specified

Frequently Asked Questions - Pocket Clean FAKIR

How do I fill the water tank?

Unplug the appliance. Slowly open the safety valve, wait for hissing to stop. Use the measuring cup and funnel to pour water through the water inlet. Do not exceed 250 ml. Close the valve securely.

How does the child safety lock work?

To activate, push the child safety lock fully to the locked symbol. The steam trigger cannot be pressed. To deactivate, push it to the unlocked symbol.

What accessories come with the steam cleaner?

The package includes: Puller for windows, Upholstery nozzle, Cotton cover, Extension hose, Angle nozzle, Extension nozzle, Round brush, Measuring cup, and Funnel.

Can I use tap water?

Yes, but if your tap water is hard, mix with distilled water (1:1). For very hard water, use only distilled water. Never add any other liquids.

How do I descale the steam cleaner?

Mix 1/3 vinegar and 2/3 water in the tank. Boil 2-3 times, then rinse with clean water. For stubborn limescale, fill with 2:1 water/vinegar mixture, let sit 24 hours, then drain and rinse.

Why is the steam output low or absent?

Possible causes: empty water tank (refill), not preheated (wait 3 minutes), power issue (check plug and fuse), or need for descaling. Refer to troubleshooting in the manual.

Can I use the steam cleaner on wooden floors?

It is not recommended on uninsulated wooden floors as steam may damage the finish. Test on an inconspicuous area first or consult floor manufacturer.

How do I clean the cotton cover?

The cotton cover is machine-washable in hot water. Do not bleach, line dry, do not iron or dry clean.

What does the clicking sound mean during use?

A clicking/bubbling/rattling sound is normal due to the water shut-off valve and steam generation. It is not a malfunction.

Is the appliance safe for children?

The appliance has a child safety lock. However, children aged 8+ may use it under supervision. Children 3-8 can only switch on/off under supervision. Always keep away from children under 3 and store safely.

USER MANUAL Pocket Clean FAKIR

White Fakir Pocket Clean washing machine with black handle and control buttons (no visible text or symbols on device body)

POCKET CLEAN

DE Dampfreiniger

EN Steam Cleaner

On the Operating Instructions....24

Meanings of the Symbols 24

Liability 24

CE Conformity Declaration....24

Intended Use 25

Unauthorized Use....25

Safety is Important 27

Safety Warnings 27

Unpacking....30

First Use 30

Parts Description....31

Technical Information....32

Accessories and Areas of Application....32

Descaling....37

Accessories 38

Troubleshooting 39

Recycling 40

Dispatch....40

EN

Dear Customer,

We hope you'll enjoy your product and we thank you for choosing Fakir Hausgeräte, who has its signature on innovative technologies.

We hope you to get the best out of Fakir POCKET CLEAN Steam Cleaner, produced with high quality and technology. Therefore, before using the product, we kindly ask you to read this User Guide carefully and keep it for future reference.

On the Operating Instructions

These operating instructions are intended to enable the safe and proper handling and operation of the appliance. Read these operating instructions carefully before using the appliance for your safety and others'.

Meanings of the Symbols

In this manual, you will see the symbols below.

WARNING!

This sign identifies hazards that could result in injury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTE!

Emphasizes tips and other useful information in the operating manual.

Liability

In case of any damage that may occur as a result of use not in compliance with the instructions in this manual and the appliance is used in a place outside of its own area of use, and is repaired elsewhere other than the authorized services of Fakir, Fakir Elektrikli Ev Aletleri Dış Tic. A.Ş. does not assume any responsibility.

CE Conformity Declaration

This appliance fully complies with the 2014/30/EU Electromagnetic Compatibility and 2014/35/EU Voltage Directives. The appliance bears the CE mark on the rating plate.

Fakir Elektrikli Ev Aletleri Dış Tic. A.Ş. reserves the right to change the design and equipment.

Intended Use

Product model is designed for household use. It is not suitable for business or industrial use. In case of any failure arising from otherwise use, our authorized services will provide out of warranty service.

Unauthorized Use

In cases of unauthorized use specified below, the appliance may be damaged or cause injuries;

• This device is not suitable for people who are not mentally stable or who do not have enough information to use such devices. Please do not let these people use the appliance.
• This electric appliance is not a toy. So please never let children play with the appliance and be more careful when there are children.
• Keep small items of packaging and plastic bags away from children. Otherwise they may harm themselves by swallowing them, especially packaging bags may cause danger of suffocation.

WARNING!

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children should not play with this appliance
• Cleaning and maintenance shall not be carried out by children without supervision.
• Keep the packing materials away from the children. Choking risk!
• Children younger than 3 years shall be kept away from the appliance if they are not supervised constantly.
• This appliance may be used by persons (including children) with limited physical, sensory or mental capabilities, or with limited experience and/or knowledge, only under the supervision of a person responsible for their safety, or in accordance with the instructions of that person.
• Children shall be supervised to ensure that they do not play with the appliance.
• This appliance shall not be used for play.
• Children older than 3 years and younger than 8 years may switch the appliance on and off only if they are under supervision or are informed of the safe use of the appliance and if they understand the hazards that may be caused by the appliance. In this respect, it is a prerequisite for the appliance to be in normal usage position or that it is installed properly.
• Children older than 3 years and younger than 8 years shall not plug the appliance to the electrical outlet, adjust the appliance, and do not perform any cleaning or maintenance operations.
• The appliance shall not be used without supervision.

Safety is Important

• Read these operating instructions carefully before using the appliance for your safety and others'. Keep this manual in a safe place for future use.
• When using an electrical device, the following precautions should always be taken. In order to prevent fire, electric shock and personal injuries;
• Before using the appliance, make sure your mains voltage is compatible with the appliance voltage.
• This device is not a toy. So please never let your children play with the appliance and be more careful when there are children.
• Before the first use, check the appliance for damages and malfunctions. If there is any malfunction or damage to the equipment, do not use the appliance and get in contact with Fakir Authorized Service.

Safety Warnings

When utilizing an electrical appliance, the precautions below shall always be taken in order to prevent fire, shock or personal injuries;

- This appliance must be grounded. This appliance is intended to be operated by a mains supply of 220-240V\~50/60Hz. Check if the voltage specified on the product matches with the voltage of your mains supply.

- Before using the appliance, make sure your mains voltage is compatible with the appliance voltage.

- The appliance is not a toy. Do not let your children play with the appliance and be more careful when there are children.

- Before first use, check the appliance for damages and defects. If there is any malfunction or damage to the equipment, do not use the appliance and get in contact with Fakir Authorized Service.

- This appliance shall only be used within its own utilization field as specified in the user's manual.

- Use the appliance always on a dry, non-slip and flat surface.

- Do not submerse the appliance in water. When such a condition

EN

occurs inadvertently, your appliance shall be inspected by the authorized Fakir Service.

• In an event where the appliance or the cord is damaged, do not use the appliance and contact an authorized Fakir service.
  • Always unplug the appliance, from the power outlet before cleaning it.
• Do not pull from the cord, use the plug to unplug the appliance.

- The children are not aware of the threats posed by the electrical appliance. Do not ever let children to play with electrical appliances.

- Do not try tor remove an object of the appliance or try to place a metal object in the appliance.

- In order to prevent any damage that may occur on the appliance cable, do not use the appliances on places with sharp corners.

- Do not ever use your appliances outside. Do not expose the appliance to moisture or rain and do not operate with wet hands. This product is intended for household use only.

- Do not direct steam on people, animals, power outlets or equipment with electrical components.

- Your appliance will get hot when used, therefore only touch the handle. Do not touch hot surface.

- Please read the cleaning instructions.

- Fill the water up to the Max. level of your appliance. If you overfill, there is a danger that the water may overflow.

- The appliance shall be unplugged when it is not used or while it is being cleaned. You shall wait until it is cooled down to perform cleaning.

- Never operate your appliance when its lid is open.

- Never put any liquid other than water into your appliance.

- Repair works shall only be undertaken by Fakir authorized service. Repairs that have not been performed properly or carried out by unauthorized personnel may pose harm to the user. In this case, Fakir Elektrikli Ev Aletleri ve Dış Ticaret A.Ş. will absolutely accept no responsibility.

- Do not use the steam cleaner if it has been dropped, damaged, left

outdoors, or immersed into water.

• Unplug the appliance when you do not use it or while cleaning it.
• Keep the steam cleaner away from water; do not let it get wet. If the appliance is wet, do not plug it in the outlet or operate the appliance.
• Do not touch the steam cleaner when your hands are wet.
• Do not pull and drag from the cord; do not use the cord as a handle; do not close a door over the cord; do not pull the cord around sharp edges or corners, or expose the cord to heated surfaces.
• Do not leave the appliance unattended during operation.
• Do not punch a hole or a tear on the section where the on/off button is.
• Descale your appliance regularly.
• Do not use the appliance in confined spaces where oil-based paint, thinner, some anti-moth agents, vapour from flammable dusts or other explosive or toxic vapours are present.
• Do not use on leather, polished furnitures or floors, synthetic fabrics, velvet or other delicate materials sensitive to steam.
• Never put descalers, flavoured or alcohol-based products on the steam cleaner as this may damage the appliance. To maintain the performance of the appliance and to allow the mixture to get out of the appliance in the form of steam, clean the appliance regularly with a mixture of 50% of natural white vinegar and 50% of water.
• Using pure or demineralized water shall maximize the performance of your steam cleaner.
• Do not use steam for heating the room.
• Using on polished or unpolished floors may remove the gloss of floors. Do not use it on uninsulated wooden floors. Try it on an inconspicuous area or refer to the floor manufacturer's maintenance instructions.
• Droplets may remain in the water tank as a result of the quality test performed in the production phase.
• A clicking sound shall be heard from the water shut-off valve if you shake this product. This is normal and it is not a malfunction.

KEEP THIS USER MANUAL FOR FUTURE REFERENCE.

ATTENTION!

Please read the safety rules and operation instructions written in the user manual. Keep this user manual for future use.

Unpacking

Before first use, unpack the appliance end its accessories, check for damages and defects. If there is any malfunction or damage to the equipment, do not use the appliance and get in contact with Fakir Authorized Service.

- Repair works shall only be undertaken by Fakir authorized service. Repairs that are inadequate or carried out by unauthorized personnel may pose harm to the user.

-Do not punch a hole or a tear on the section where the on/off button is.

First Use

Before using your steam cleaner:

Remove all packagings and place individual components on the ground. After unpacking, check the steam cleaner for visible damage,

such as:

• Damages to the main body and apparatus
• Damage to the plug or cable.

If you observe any damage, do not use the steam cleaner and call the authorized service.

WARNING!

Never use a defective appliance.

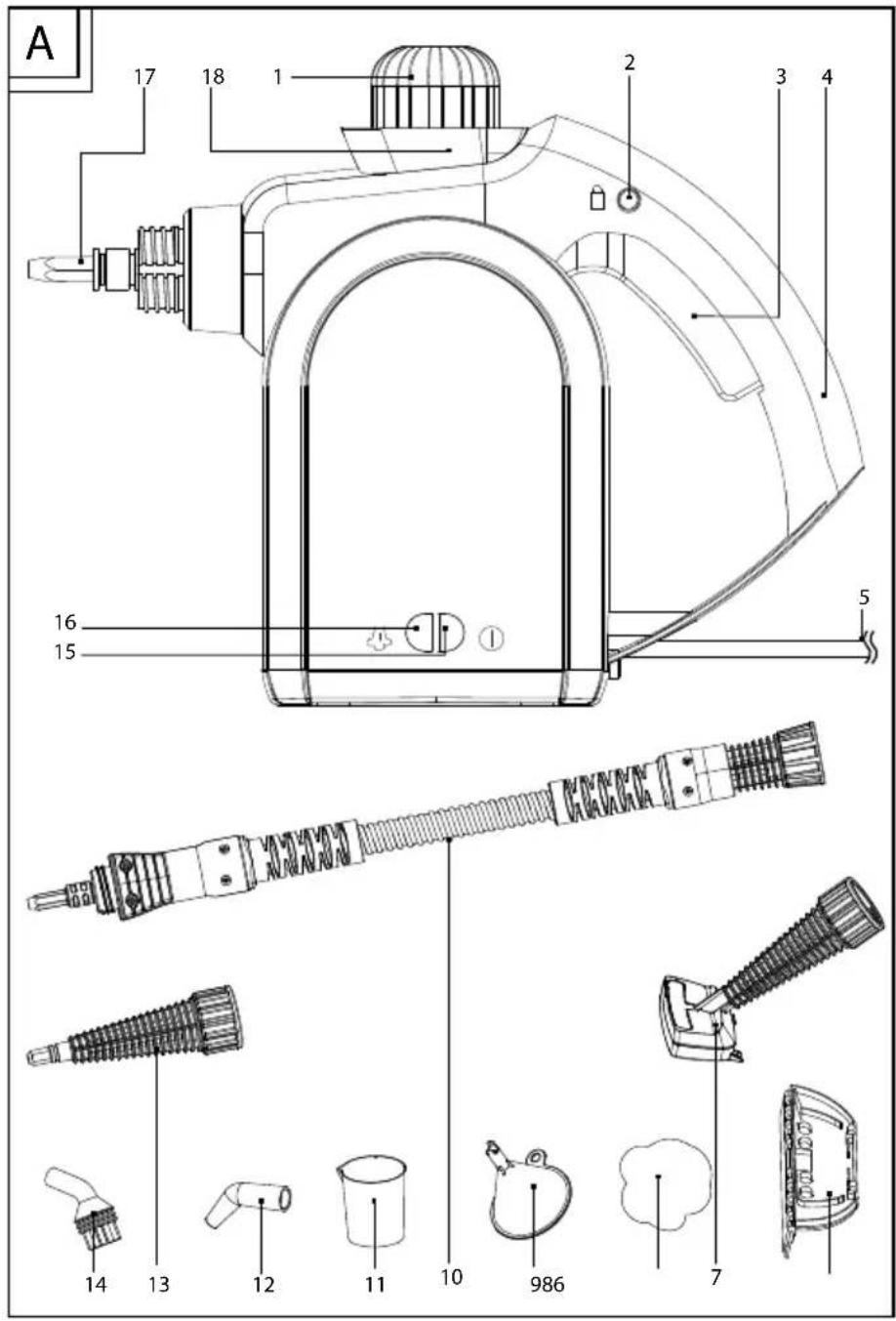

Parts Description

1 Safety valve
2 Child safety lock
3 Steam trigger
4 Handle
5 Power cord with power plug
6 Puller
7 Upholstery nozzle
8 Cotton cover
9 Funnel

10 Extension hose
11 Measuring cup
12 Angle nozzle
13 Extension nozzle
14 Round brush
15 Power indicator (red)
16 Steam indicator (green)
17 Steam outlet
18 Water inlet and water tank

Technical Information

Power consumption : 950-1100 W

Water tank capacity : 250 ML

Protection Class : I

Usage Life : 10 years

Steam Pressure : 3 Bar

Accessories and Areas of Application

Accessory Function

Accessory Function
Puller (6)	For cleaning windows, mirrors, and other smooth surfaces. Move the puller from top to bottom
Upholstery nozzle (7)	To disperse the flow of steam over a wider area for more gentle cleaning
Cotton cover (8)	Designed to absorb excess moisture. The cotton cover also helps to prevent water spotting. This allows effective steaming of fabrics and upholstery.
Extension hose (10)	Useful for hard-to-reach spaces. For precision cleaning of items with hard-to-reach spaces (faucets, sinks, etc.) . Extension nozzle
Angle nozzle(12) Useful for hard-to-reach spaces
Extension nozzle(13) Useful for hard-to-reach spaces
Round Brush(14)	For scrubbing especially tough stains. Ideal for use on ceramic tile, grouting, and other similar surfaces.

NOTE!

Make sure that the appliance is unplugged and cooled down before installing/removing any part of the appliance.

ASSEMBLY

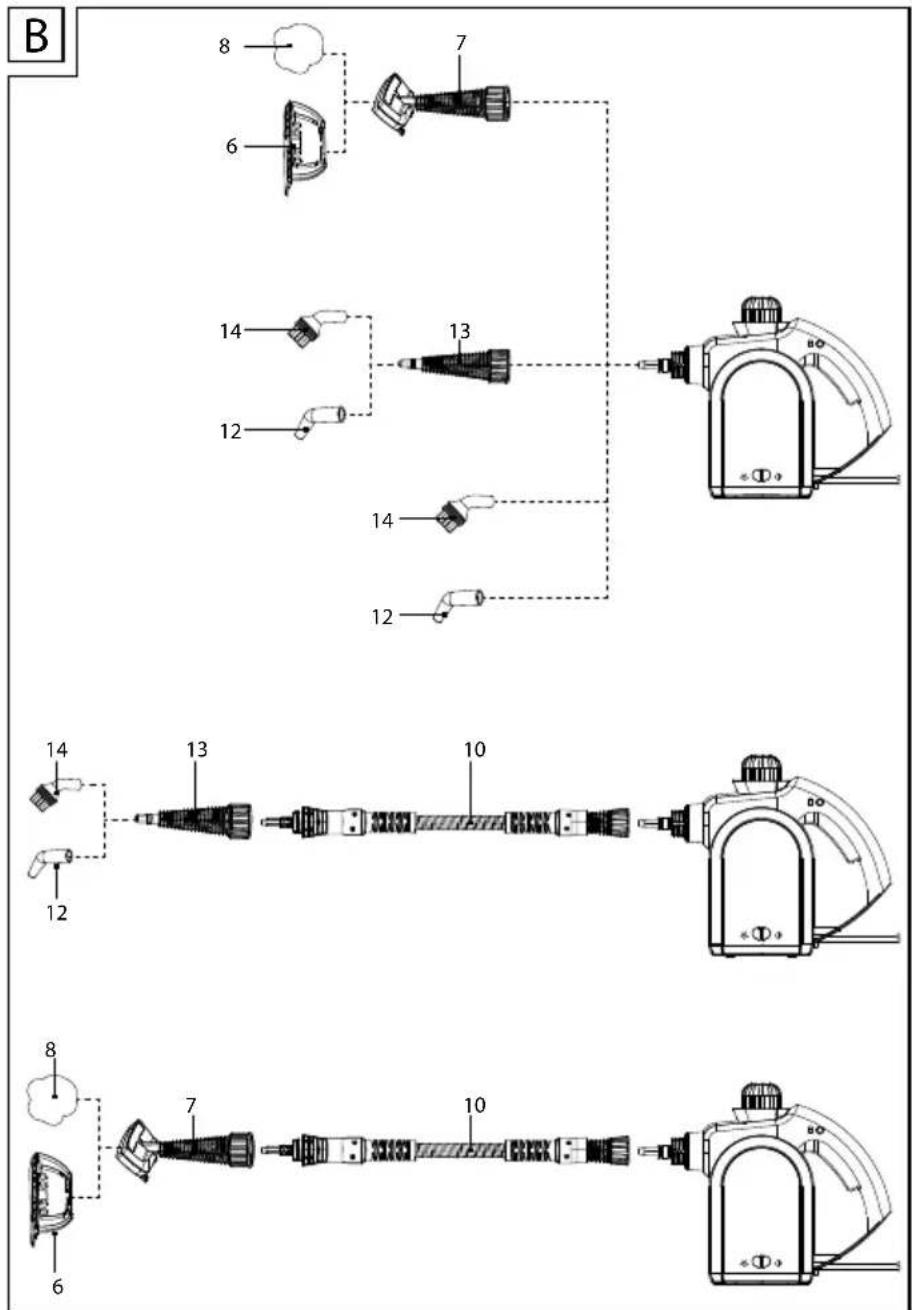

FIG. B ASSEMBLY

Accessory Assembly
Puller (6)	Fit the hooks (at the back of the puller 6 ) into the slots of the upholstery nozzle (7).Press the puller (6 ) against the upholstery nozzle (7) until locked.

EN

Cotton cover nozzle (8)	Fix to the upholstery(7)
Upholstery nozzle (7)	Attach the intake to the steam outlet (17) of the product/extension hose (10).Screw in a clockwise direction until tight.
Extension hose (10)
Extension nozzle (13)
Angle nozzle (12)Round Brush (14)	Attach the intake to the steam outlet (17) of the product, extension hose (10) or extension nozzle(13)

- Dismounting all accessories in reverse order

NOTE!

Dismounting the puller (6): Unlock the clips first

OPERATION

1) Filling the Water tank

WARNING!

Risk of electric shock! Before filling the water tank (18) Disconnect the power plug(5)from the power socket.

ATTENTION!

Fill the water tank (18) with tap water or distilled water without any additives. If your tap water is hard: Use distilled water. If your tap water is moderately hard: Mix distilled water and tap water (ratio of 1:1).

NOTE!

• As long as there are steam and pressure in the water tank (18) you cannot open the safe valve (1). To open the water tank:
  -Release steam or
  -wait until the product has cooled down
• Do not exceed the water tank's (18) maximum water capacity of 250 ml
• Slowly open the safety valve (1). Before fully opening, wait a few seconds until the steam stops hissing.
• Use the measuring cup(11) and the funnel (9) to fill the water tank (18) through the water inlet
• Close the safety valve(1).

2) Turning Off /On

• Connect the power plug (5) to a suitable power socket.
• The power indicator (15) lights up The products starts to produce steam immediately.
• The product is ready to use when the steam indicator (16) lights up.
• Turning off the product: Disconnect the product from the power socket.

NOTE!

• The product takes around 3 minutes to preheat.
• The product has to be unplugged after use,
-before cleaning, and
-before maintenance

3) CHILD SAFETY LOCK

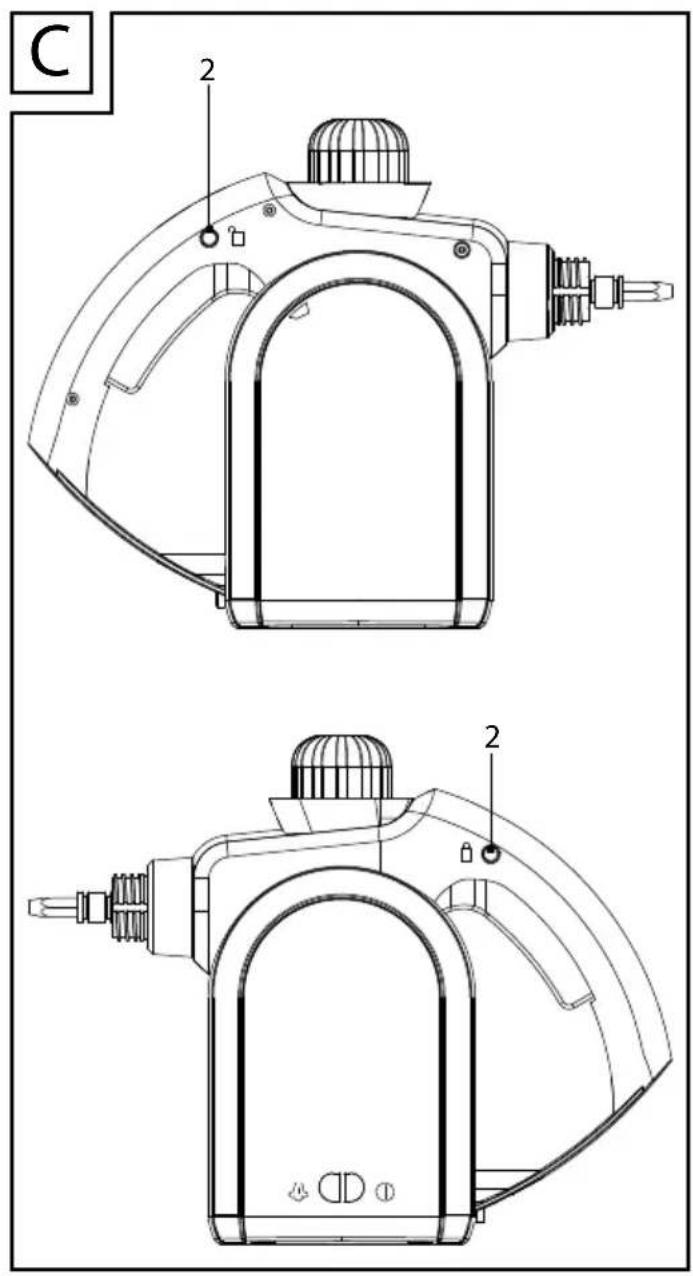

FIG (C)

-This product is equipped with a child safety lock (2)

Child safety lock

Activate	Fully push in the symbol of the child safety lock (2).The steam trigger (3) can now no longer be pressed down.
Deactivate(position: )	Fully push in the symbol of the child safety lock (2).The steam trigger (3) can now be used again.

4) STEAMING

-The product has to be maintained in an upright position
*while being used,
*under pressure or
*filled with water.

• Hold the product by its handle (4)
• Controlling the steam output: Gradually press the steam trigger (3)
• Stop steaming when the steam indicator (16) goes off. Wait until the steam indicator (16) lights up again. You may now resume working.
• If there is no steam output – although the steam indicator (16) is on: Disconnect the power plug(5) from the power socket. Refill the water tank (18)

CLEANING AND CARE

Descaling

If the appliance turns off automatically before reaching the boiling point, it is a sign that it should be descaled.

Descaling cleaning agents must be used in accordance with the instructions in the user manual.

Add 1/3 vinegar and 2/3 water mixture into the appliance. Pour after boiling 2 or 3 times.

If there is any possibility that the descale cleaning agent in the water will bubble, fill the appliance with water less than the MAX. water level.

After performing the descaling process, boil the appliance 1-2 times with clean water and rinse. Then drain away the boiling water.

- Cleaning the Main Unit

WARNING!

Risk of Electrik Shock : Before cleaning and maintenance: Disconnect the power plug (5) from the power socket.

WARNING!

Do not immerse the product's electrical components in water or other liquids. Never hold the product under running water.

EN

• Wipe down the product with a slightly damp cloth.
• Do not let any water or other liquids enter the product interior.
  -Do not use any abrasive, aggressive cleaners or hard brushes to clean the product.
• After cleaning: Let all parts dry completely.

Cleaning the accessories

• Clean the accessories in warm, soapy water
  -After cleaning: Let all accessories dry completely.

Cleaning the cotton cover (8)

*The cotton cover can be machine-washed with hot water;
*Do not bleach;
*Line dry;
*Do not iron;
*Do not dry clean.

-REMOVING LIMESCALE

If the steam power reduces drastically, it may be necessary to remove the limescale from the water tank (18)/accessories:

Cleaning Water Tank (18)

* Disconnect the power plug (5) from the power socket.
* Fill the water tank (18) with a mixture of tap water and vinegar (ratio of 2:1).
* Wait 24 hours.
* Drain the mixture into a sink
* Rinse the water tank with fresh water.

Accessories

*Disconnect the power plug (5) from the power socket.
*Fill the water tank (18) with a mixture of tap water and vinegar (ratio of 2:1).
* Install the accessory you wish to remove the limescale from
* Secure the position of the product to ensure that the steam is aimed away from the surrounding objects and surfaces.
*Turn on the product. Operate the product until all the mixture is used up.

SAFETY NOTICE!

Be careful to avoid contact with water during the descaling process, as this may cause injury or damage.

NOTE!

Before you call Customer Service, check whether you can correct the problem/ fault yourself.

For this purpose, please see the "TROUBLESHOOTING" section. If you can not resolve the problem/error, please call Customer Service. Before calling please make ready the model name and product serial number. You can find this information on the TYPE LABEL of your product. Help Line: ([phone]

Troubleshooting

Your appliance is processed via Quality Control against any malfunction.

Fault Possible Cause Solution
The amount of steam discharged is reduced/no steam is discharged	1. The water reservoir may not be full.	1. Make sure the water reservoir is filled. Refer to the relevant page of the user manual provided.
	2. The appliance may not be plugged in properly/the fuse may be blown.	2. Verify that the appliance is plugged into an approved electrical outlet and that the fuse is working properly. Be sure to wait at least 3 minutes for the water to warm up.
	3. The power switch is not brought to “on”.	3. Make sure that the power switch is brought to “ON”.
Indicator light is not on.	1. The appliance may not be plugged in properly/the fuse may be blown.	1. Verify that the appliance is securely plugged into an approved electrical outlet and that the fuse is working properly. Make sure that the power switch is brought to “ON”.
A foul smell comes out of the appliance	1. First operation of the appliance.	1. Resume operation if you are operating the appliance for the first time. Smell may be caused by the first operation of new parts.
	2. This is not the first operation of the appliance.	2. If the problem persists, stop using the appliance and call Customer Services using the information provided on the last page.1. This sound is normal as per the structure and operating function of the product.
A “clicking/bubbling/ rattling” sound comes from the steam cleaner while being used.
Parts are broken/need to be replaced	1. Some accessories, water measuring container or the handle are broken or missing.	1. Call customer services or visit the website provided at the bottom of the last page.
	2. Parts other the ones that are specified above are broken.	2. Stop using the appliance and call customer services using the information provided on the bottom of the last page.
I lost the user manual supplied.	1. The user manual has been lost or put in a wrong place.	1. It is important that a copy of the operating manual is available. Call customer services using the information provided on the last page.

Recycling

If your device comes to an end of its lifetime, cut the power cord to make sure it cannot be used.

According to the applicable laws in your country, leave the appliance to the waste bins identified specially for such devices.

Electrical waste must not be disposed of together with household waste.

Dispose the device to the waste baskets designated for electrical waste.

The packaging of the appliance consists of recycling-capable materials. Throw out them in suitable recycling bins.

The appliance complies with WEEE Regulation.

Dispatch

Carry the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

Ambalajdan Çıkarma 48

İlk Kullanım 48

Simple line drawing of an open box with an upward arrow indicating motion (no text or symbols)
