Product Type	Portable Steam Cleaner
Brand	Fakir
Model	Portable Steam Pocket
Power (Watts)	1550 W
Voltage	220-240 V ~ 50 Hz
Water Tank Capacity	450 ml
Heat-up Time	Approx. 30 seconds
Steam Trigger	Press and hold to activate pump
Direct Spray Nozzle	Yes, for targeted steam
Extension Hose	Included, with twist-lock connection
Cleaning Tools Included	Wedge tool, Cylinder tool, Detail handle with scrubbing brush and squeegee, Garment steamer diffuser with bonnet and brush
Microfiber Pockets	All-purpose wedge (2), all-purpose cylinder (2), steam duster cylinder, scrubbing wedge
Water Type	Distilled water recommended; tap water only if soft
Safety Features	IPX4, auto-off when trigger released, cool-down before storage
Surface Suitability	Hard surfaces that withstand high heat (sealed wood, ceramic, glass, etc.)
Lifetime	10 years
Dimensions (approx.)	Not specified; compact hand-held design
Weight (approx.)	Not specified; lightweight
Warranty	Void if non-recommended substances used

Frequently Asked Questions - Portable Steam Pocket FAKIR

How do I fill the water tank?

Unplug the device, turn the cap counter-clockwise and use the provided filling flask to fill with water. Do not overfill. Replace the cap by turning clockwise. Only use water; add no chemicals.

Why is there no steam coming out?

Check that the unit is plugged in and the blue LED is on. Ensure there is enough water in the tank. If the nozzle is clogged, clean it with the nozzle cleaner or a paper clip.

Can I use tap water?

Yes, but if you have hard tap water, we recommend distilled water to reduce mineral build-up. Distilled water extends the life of the cleaner.

What surfaces should I avoid using the steam cleaner on?

Avoid unsealed wood, unglazed ceramic, painted surfaces, waxed or varnished surfaces, leather, delicate fabrics, and any surface that may be damaged by heat and moisture.

How do I attach the hose and cleaning tools?

Align the arrows on the hose connector with the unlock symbol on the bottle, press in and turn clockwise to lock. For cleaning tools, insert the hose stem into the tool handle, press in and turn clockwise to secure.

The cleaning pockets are leaving streaks. What should I do?

Ensure the microfiber pocket is clean and not worn. Use a different side or replace with a new pocket. Avoid focusing steam in one spot too long.

Can I use the steam cleaner on glass or mirrors?

Yes, use the shower door squeegee attachment or a cleaning pocket. For streak-free results, start at the top and glide downward.

How do I clean the steam bottle?

Periodically rinse the tank: fill with water, secure the cap, shake vigorously 10-15 times, then empty. Clean nozzles with the provided cleaner or a paper clip if output decreases.

Is the steam safe for fabrics?

Use the garment steamer attachment on fabrics. Always test color fastness on an inconspicuous area first. The bonnet helps provide dry steam to prevent condensation.

How should I store the steam cleaner?

Allow the appliance to cool completely, empty the water tank, remove cleaning pockets, and store in a cool, dry place. Wrap the cord loosely around the unit.

USER MANUAL Portable Steam Pocket FAKIR

Portable STEAM Pocket

Pixelated illustration of a hand holding a large object, rendered in purple tones (no text or symbols)

Kullanma klavuzu

Instruction manuel

Line drawing of two different household appliances, one with a bulb and handle, the other with a spool and handle (no text or symbols)

KURULUM

Line drawing of a hairdryer with a brush applying material to a cylindrical object (no text or symbols)

KENAR KÖŞE TEMİZLİK BAŞLIĞI

Illustration of four different types of folded or folded paper sheets labeled m, n, o, p, and q (no text or symbols on the sheets themselves)

KURULUM VE KULLANIM

Simple line drawing of a hand holding a pen, pointing at a circular frame (no text or symbols)

Illustration of two different household appliances with no visible text or symbols

DİREKT BUHAR KULLANIMI

Line drawing of a hairdryer with a brush applying material to a cylindrical object (no text or symbols)

Line drawing of a mechanical device with a handle and internal components, shown with an inset magnified view (no text or symbols)

KENAR KÖŞE BAŞLIĞI

Line drawings showing two different methods of a fuel nozzle or valve assembly (no text or symbols present)

DİKKAT:

Temizlik tavsiyesi:

Line drawing showing two hands connecting cables to a laptop (no text or symbols present)

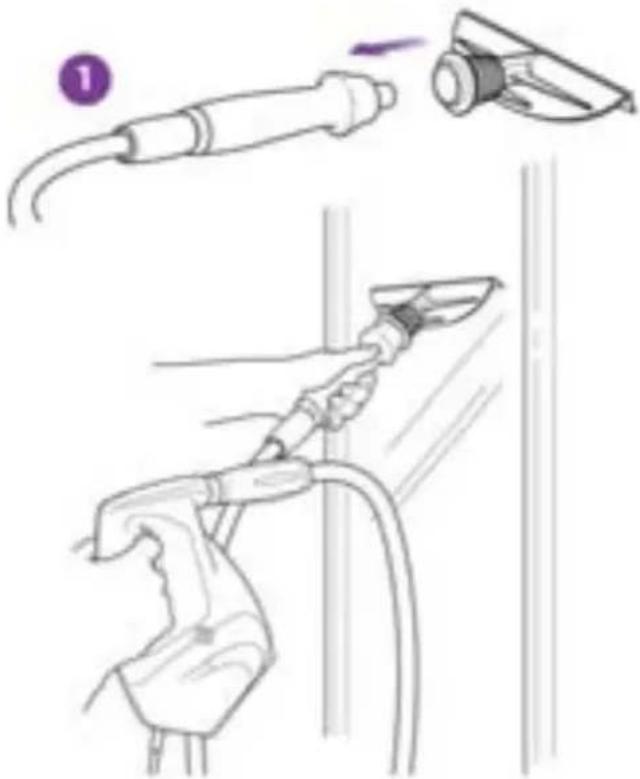

CAM TEMİZLEME BAŞLIĞI

Diagram of a medical or laboratory device with a connector and a numbered marker (1), no text or symbols present.

Line drawing of a hand holding a cylindrical tool with a threaded end, against a plain background (no text or symbols)

NOT:

Line drawing of a hairdryer tool and a cleaning brush (no text or symbols)

ÖNEMLİ:

Simple line drawing of a stylized human head with a purple flower on top (no text or symbols)

DiKKAT:

Simple line drawing of a cylindrical tool with a handle and shaft (no text or symbols)

! UYARI:

Illustration of a hand holding a pen with a purple arrow pointing to it, no text or symbols present

DİKKAT:

Hand holding a pen next to a wall-mounted device, with a purple arrow pointing to it (no text or symbols)

MUHAFAZA

Illustration of two hands performing a medical procedure with a pen and needle inserted (no text or symbols)

Woman in kitchen preparing food, holding a plate and using a tool (no visible text or symbols)

Woman cleaning a kitchen sink with a water dispenser on the wall (no visible text or symbols)

Woman cleaning a kitchen surface with a tool (no visible text or symbols)

Close-up of a hand holding a tool over a surface, no visible text or symbols

Person cleaning a dark tray with a cloth, no visible text or symbols

Black-and-white photo of a kitchen counter with tools and a person in the background (no visible text or symbols)

Close-up of a hand using a tool to clean or install a gas stove burner (no visible text or symbols)

Person using a handheld device in a kitchen or appliance room (no visible text or symbols)

Black-and-white photo of a woman holding a cleaning bag, standing beside a chair (no visible text or symbols)

IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS

For Household Use Only

WHEN USING YOUR FAKIR PORTABLE STEAM POCKET, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

READ ALL INSTRUCTIONS BEFORE USING YOUR PORTABLE STEAM POCKET.

DANGER OF SCALDING

Please use caution when using the steam bottle directly or with the hose and tool attachments and cleaning pockets. The steam emitted is very hot.

Do not attempt to use with a damaged or faulty plug.

WARNING: Your portable steam cleaner is designed to clean hard surfaces that will withstand high heat. Do not use on unsealed wood or unglazed ceramic surfaces. On surfaces that have been treated with wax the sheen may be removed by the heat and steam action. It is always recommended to test an isolated area of the surface to be cleaned before proceeding. We also recommend that you check the use and care instructions for the surface that you are cleaning.

IMPORTANT:

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

1. USE THE SYSTEM ONLY FOR ITS INTENDED USE AS DESCRIBED IN THIS MANUAL.
2. ONLY USE WATER. To extend the life of your portable Steam Pocket, we recommend using distilled water. If you live in an area with hard tap water, we recommend using distilled water.
3. DO NOT add cleaning solutions, scented perfumes, oils, or any other chemicals to the water used in this appliance as this may damage the unit or make it unsafe for use. Use of any substances other than manufacturer's recommended accessories will automatically void your warranty.
4. DO NOT use outdoors.
5. DO NOT leave the appliance unattended when plugged in.
6. Always unplug the power cord from the electrical outlet when not in use, when filling the water tank and before servicing.
7. DO NOT allow to be used by children. Close attention is necessary when used by or near children, pets or plants.
8. DO NOT put any objects into openings or operate with any opening blocked
9. DO NOT use on leather, wax polished furniture or floors, painted surfaces, synthetic fabrics, velvet, or other delicate, steam sensitive materials.
10. Carefully remove the steam cleaning pocket immediately after you have unplugged and allowed the portable steam pocket to cool.
11. Always unplug and allow the portable Steam Pocket to cool before removing cleaning fabric or changing cleaning tools and hose.

12. NEVER store the appliance with a damp/wet cleaning pocket attached. If left in a single spot for a period of time with a damp/wet pocket attached, the moisture may cause surface damage.

13. When cleaning the portable Steam Pocket, unplug the power cord and clean with a dry or damp cloth. Do not pour water or use alcohol, benzene or paint thinner on the unit.

14. NEVER use the cleaning pocket wedge or cylinder tools without the cleaning pocket fabric attached.
15. To protect against a risk of fire, electric shock, or injury:

a. To avoid circuit overload, DO NOT operate another appliance on the same socket (circuit) as the portable Steam Pocket cleaning system.
b. DO NOT immerse any part of the system in water or other liquids.
c. DO NOT pull power cord to disconnect from outlet; instead, grasp plug and pull to disconnect.
d. DO NOT use extension cords or outlets with inadequate current carrying capacity.
e. DO NOT operate the system with a damaged cord or plug, or if the appliance or any other part of the system has been dropped or damaged.
f. DO NOT disassemble or attempt to repair the Steam Bottle. Incorrect reassembly or repair can cause a risk of electrical shock or injury to persons when the Steam Bottle is used.

g. DO NOT handle plug or portable steam pocket with wet hands or operate without shoes.
h. DO NOT pull or carry by power cord, power cord as a handle, close a door on the power cord, or pull the power cord around sharp corners or edges.

i. DO NOT allow power cord to touch hot surfaces.
j. ALWAYS disconnect system from electrical outlet when filling with water or emptying and when not in use.
k. NEVER attempt to fill this unit under a water faucet. Always use the filling flask that is provided.
I. NEVER turn the appliance over or on its side when in use.
m. NEVER aim or direct steam towards people, animals, or plants. The steam is very hot and can cause burns. Burns can occur from touching hot metal parts, hot water, steam or steam pockets.
n. DO NOT operate the steam cleaner while under the influence of drugs, alcohol or medications.
o. DO NOT operate in the presence of explosive and/or flammable fumes.
p. Store your appliance indoors in a cool, dry area.
q. Keep your work area well lit.
r. Let the system cool completely before putting away. Wrap cord loosely around system when storing, using the cord clip to secure.
s. Keep out of the reach of children.

Quick Start

Your portable Steam Pocket is designed to clean surfaces that will withstand high heat and moisture. Do not use on unsealed wood surfaces (especially wooden antique furniture), unglazed ceramic tile, painted surfaces or surfaces that have been treated with wax, oils, varnishes, or shellac. The sheen may be removed by the heat, steam, and friction of the cleaning tools. Lacquer and polyurethane coatings provide a hard durable protective finish that withstands moisture but it is always recommended to test an isolated area of the surface to be cleaned before proceeding. We

also recommend you check the use and care instructions from the surface manufacturer. When cleaning finished wood surfaces, use broad, continuous cleaning strokes. To prevent surface damage, avoid focusing steam or alowing the cleaning tools to sit in one spot for any amount of time.

When assembling your portable Steam Pocket, there may be a little water in the water tank.

This is because we test all our portable Steam Pocket cleaning systems 100% before you buy them, so you get a quality Fakir® steam product.

Illustration of two different types of household appliances, one with a brush and the other with a handle (no text or symbols)

ASSEMBLY

1. Safely remove contents of the portable Steam Pocket cleaning system and lay them out on a flat surface to see that you have all the components to complete the assembly.(Refer to page 3.)

FILL

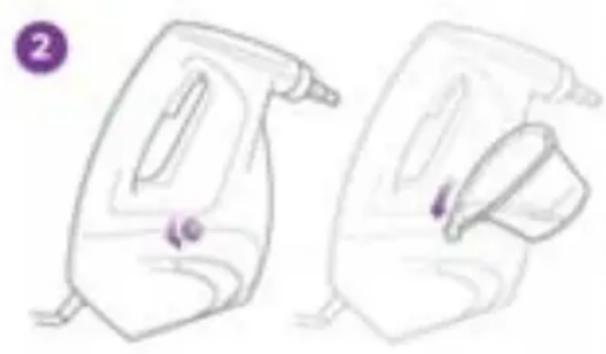

1. Turn the water tank cap counter-clockwise and remove to fill, using the filling flask provided. Be careful not to overfill. Replace the cap by turning clockwise. The water tank does not have to be completely full for the steam bottle to generate steam. Steam will stop when the water tank is empty. You can refill at any time.

DIRECT SPRAY STEAM BOTTLE USE

1. Attach the steam bottle nozzle. Aligning the arrow located on the steam bottle nozzle with the un-lock symbol located on the nozzle connector. Press in and turn clockwise to secure into place. The arrow on the nozzle will align with the lock symbol.

Line drawing of a hairdryer with a magnifying glass, showing a step to add a purple arrow (no text or symbols)

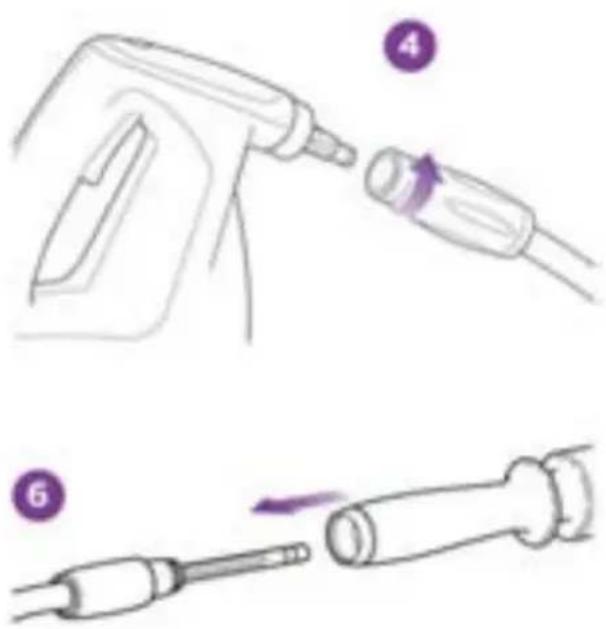

HOSE & CLEANING TOOL ATTACHMENT USE

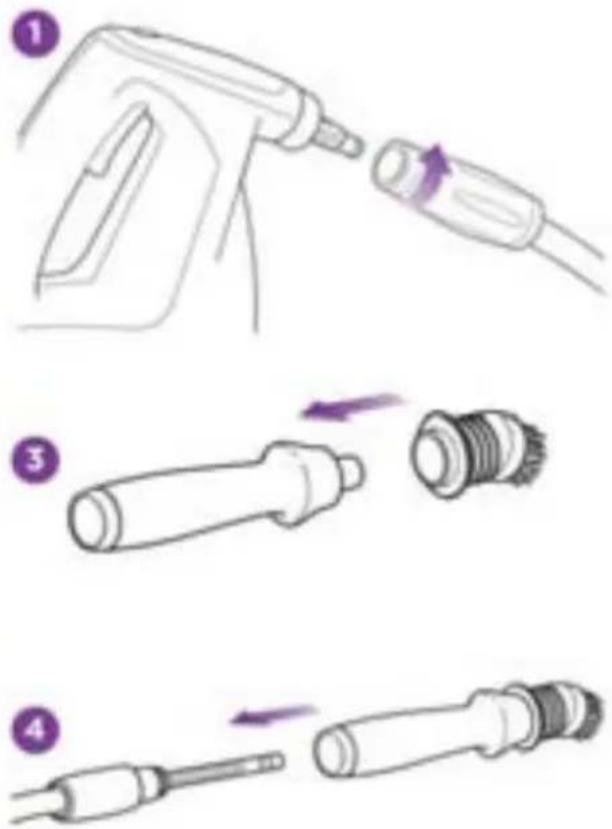

1. Attach the hose connector. Aligning the arrow located on the hose connector with the un-lock symbol located on the nozzle connector. Press in and turn clockwise to secure into place. The arrow on the hose connector will align with the lock symbol.
2. Select the desired cleaning tool for use. Follow the cleaning tool sub assembly Instructions for the selected tool.
3. Attach the cleaning tool by inserting the hose stem into the handle of the cleaning tool. Press in and turn clockwise at the same time to secure and press in and turn counter clockwise to release. Check for proper connection by turning the handle counter-clockwise a few turns. The handle should remain connected.

(Note for reference: This connection method is the same design used with most over the counter prescription bottles).

The design of this connection is to prevent the hose from twisting and kinking during use.

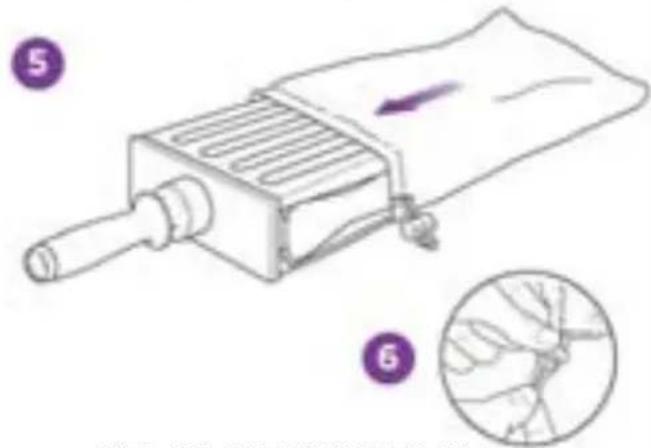

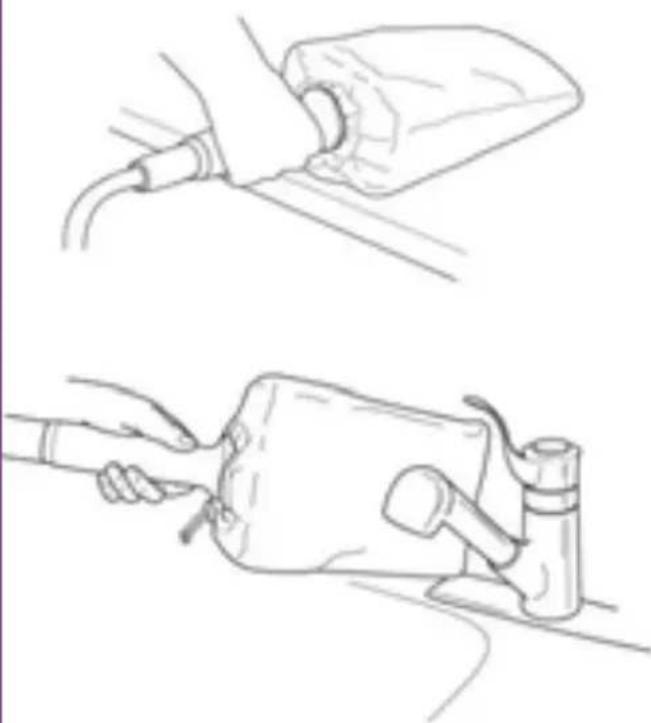

WEDGE CLEANING TOOL ASSEMBLY

1. Slide the wedge shaped cleaning pocket over the wedge cleaning tool frame until it is completely on.

2. Close the cinch by pulling on the elastic band and sliding the locking bean to tighten.

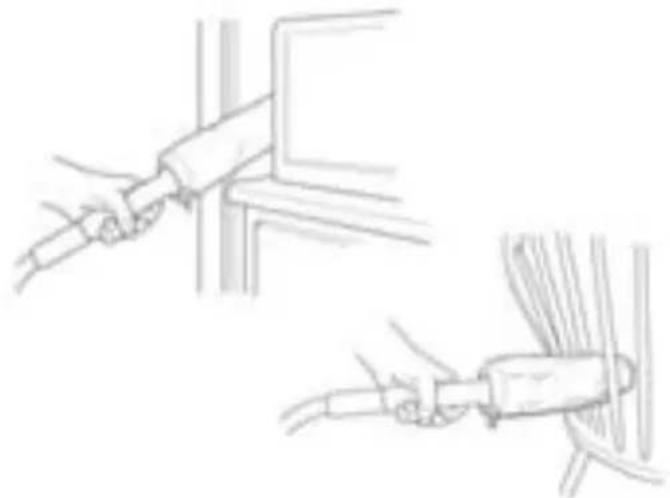

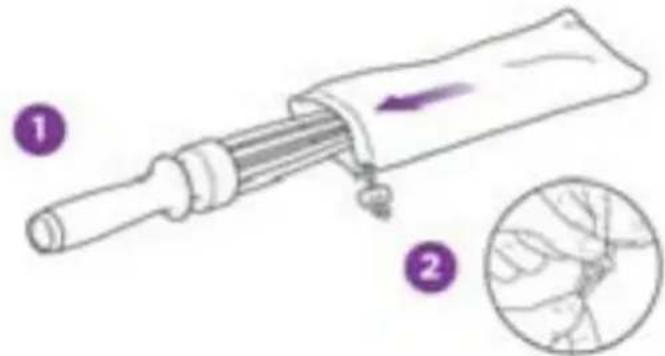

CYLINDER CLEANING TOOL ASSEMBLY

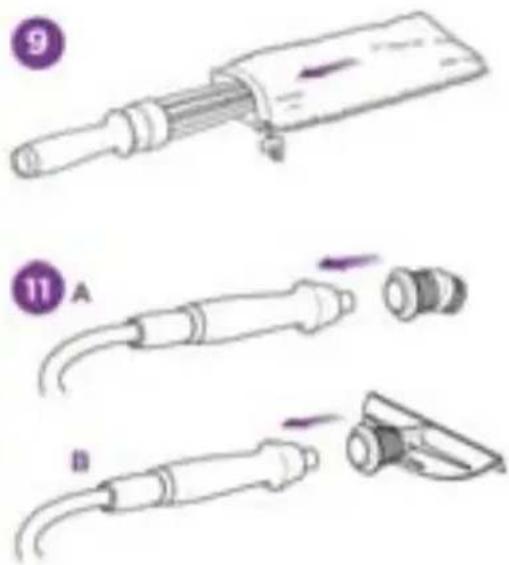

1. Squeeze "chopsticks" together and slide the cylinder shaped cleaning pocket over the cylinder cleaning tool frame until it is completely on.

2. Close the cinch by pulling on the elastic band and sliding the locking bean to tighten.

DETAIL CLEANING TOOL ASSEMBLY

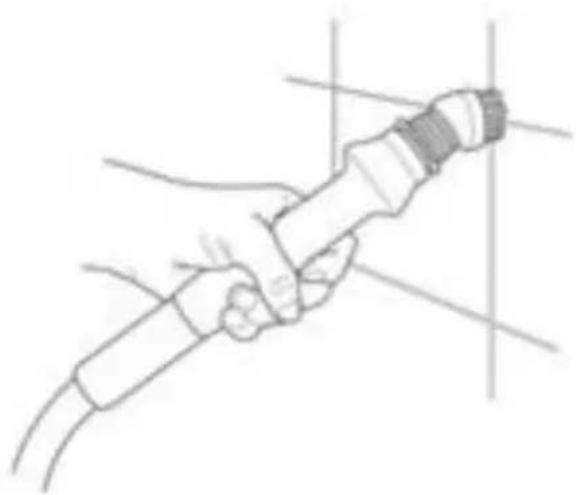

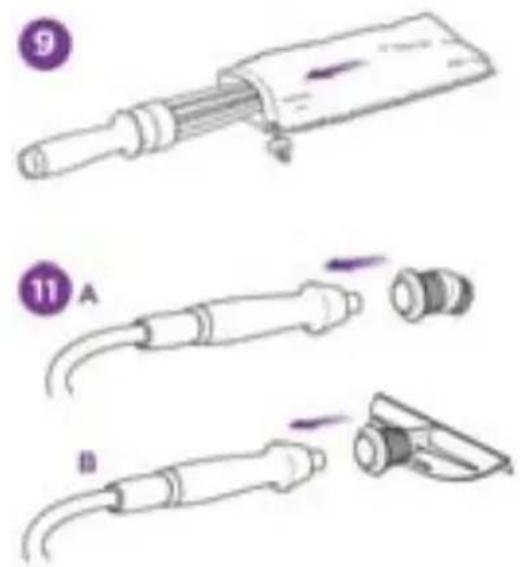

11a. Press fit the scrubbing detail brush onto the detail cleaning tool handle.
BPress fit the shower door squeegee onto
11b. the detail cleaning tool handle

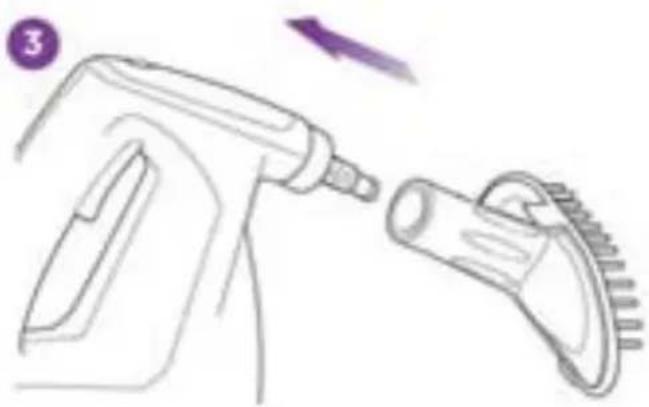

GARMENT STEAMER ASSEMBLY

1. Press fit the garment steamer onto the bottle nozzle.
2. Stretch the garment steamer bonnet over the garment steamer diffuser. Attach the garment brush onto the garment steamer diffuser by aligning the bottom of the diffuser with the back of the garment brush attachment. Gently push the top of the garment brush up into place until the attachment snaps into place.

This applause complies with the WEEE-Directive 2002/96/EC on the disposal of electrical and electronic equipment (WEEE).

This appliance complies with the European directives for electromagnetic compatibility (EMC) 2004/108/EC and its revisions, as well as Low Voltage Directive (LVD) 2006/95/EC and its revisions.

TECHNICAL SPECIFICATIONS

Voltage: 220-240V., 50Hz.

Power: 1550 Watts

Water Capacity: 450 ml

Life time: 10 years

Not to be disposed of with other nonpartially mates.

IPX4

Thank you for purchasing the Shark® Portable Steam Pocket® Cleaning System.

GETTING STARTED 20 USING YOUR PORTABLE STEAM POCKET 22 CARE OF YOUR PORTABLE STEAM POCKET 27 SUGGESTED USES 28 TROUBLESHOOTING GUIDE 30

Getting Started

Your portable Steam Pocket® is designed to clean surfaces that will withstand high heat and moisture. Do not use on unsealed wood surfaces (especially wooden antique furniture), unglazed ceramic tile, painted surfaces or surfaces that have been treated with wax, oils, varnishes, or shellac. The sheen may be removed by the heat, steam, and friction of the cleaning tools. Lacquer and polyurethane coatings provide a hard durable protective finish that withstands moisture but it is always recommended to test an isolated area of the surface to be cleaned before proceeding.

We also recommend you check the use and care instructions from the surface manufacturer.

When cleaning finished wood surfaces, use broad, continuous cleaning strokes. To prevent surface damage, avoid focusing steam or alowing the cleaning tools to sit in one spot for any amount of time.

When assembling your portable Steam Pocket®, there may be a little water in the water tank. This is because we test all our portable Steam Pocket® cleaning systems 100% before you buy them, so you get a quality Fakir® steam product.

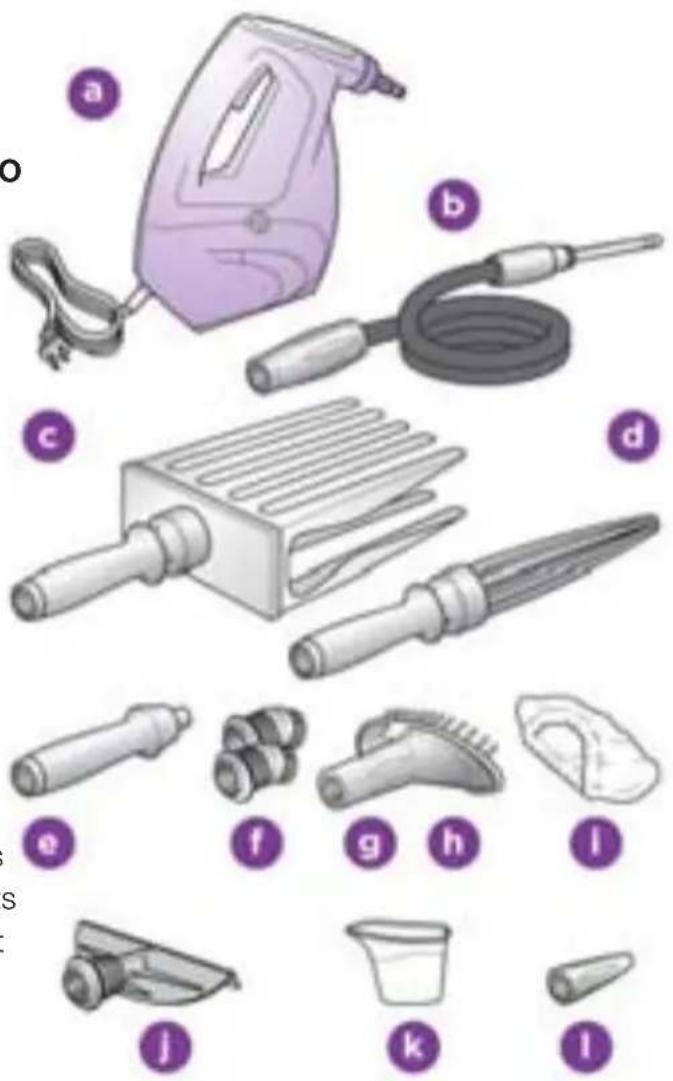

FIRST THINGS FIRST, YOU NEED TO KNOW WHAT'S IN THE BOX YOU JUST OPENED:

a. Steam Bottle
b. Extension Hose
c. Wedge Cleaning Tool
d. Cylinder Cleaning Tool
e. Detail Cleaning Handle
f. 2 Detail Brush Accessories
g. Garment Steamer Diffuser
h. Garment Brush Attachment
i. Garment Steamer Bonnet
j. Shower Door Squeegee Attachment
k. Filling Flask
I. Direct Steam Nozzle

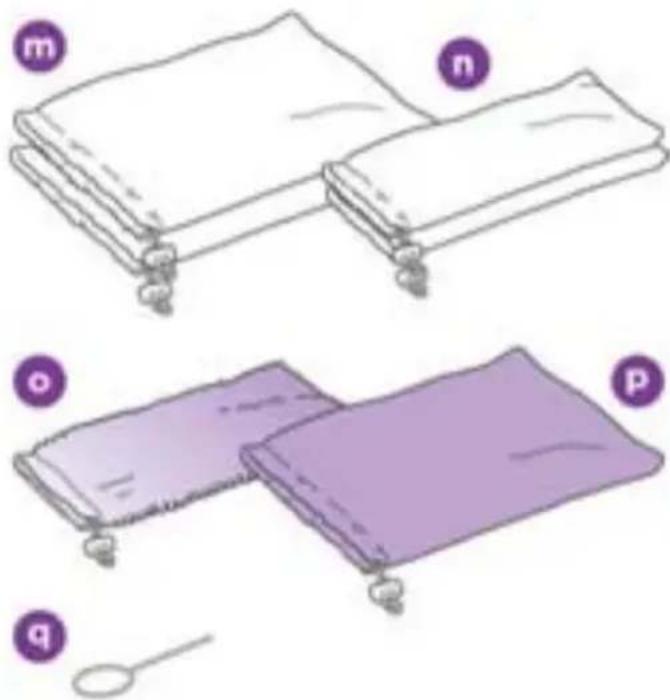

m. 2 All-Purpose Wedge Cleaning Pockets
n. 2 All-Purpose Cylinder Cleaning Pockets
o. Steam Duster Cylinder Cleaning Pocket
p. Scrubbing Wedge Pocket
q. Nozzle Cleaner

Illustration of four different fabric or paper roll designs labeled m, n, o, p, q (no text or symbols on the designs themselves)

ASSEMBLY & USE INSTRUCTIONS

1. Safely remove contents of the portable Steam Pocket® cleaning system and lay them out on a flat surface to see that you have all the components to complete the assembly.

2. READ ALL INSTRUCTIONS BEFORE USING YOUR PORTABLE STEAM POCKET®.

IMPORTANT: Always make sure the steam bottle is UNPLUGGED from the electrical outlet when not in use. Never fill the water reservoir when the unit is plugged in.

Hand holding a pen inserted into a wall socket, enclosed in a circle (no text or symbols)

1. Only use water. To extend the life of your portable Steam Pocket®, we recommend using distilled water. If you live in an area with hard tap water, we recommend using distilled water.

2. Do not add cleaning solutions, scented perfumes, oils, or any other chemicals to the water used in this appliance as this may damage the unit or make it unsafe for use. Use of any substances other than manufacturer's recommended accessories will automatically void your warranty.

FILLING AND REFILLING THE WATER TANK

1. Never fill the steam bottle while plugged into an electrical outlet.
2. Disconnect the power cord before filling the water tank.

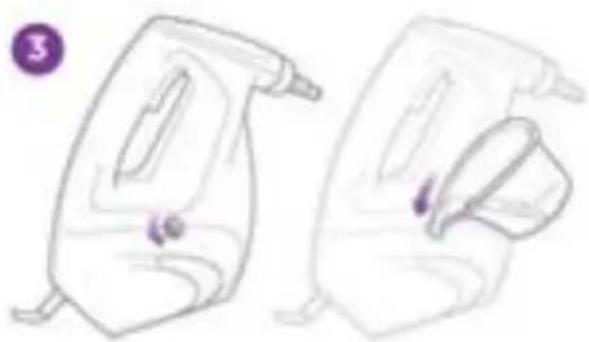

3. Turn the water tank cap counter clockwise and remove to fill, using the filling flask provided. Be careful not to overfill. Replace the cap by turning clockwise.

Line drawing of two different household washing machines, one with a bulb and the other with a handle (no text or symbols)

DIRECT SPRAY STEAM BOTTLE USE

Cleaning Tip: Direct steam spray for cleaning hard to reach nooks & crannies and stubborn sticky messes where focused steam power may be needed. Direct steam spray can loosen and dislodge compact dirt often found in corners and tight places where traditional methods and cleaning tools tend to push dirt into, making it difficult to reach and clean. Spray direct steam and wipe clean with a cleaning cloth.

CAUTION: Direct steam spray temperature is extremely hot closest to the nozzle and can damage surfaces if held directly focusing in one spot too long. Be sure to constantly move and adjust the steam spray to avoid causing damage.

Line drawing of a hairdryer with a pen and tip, showing a purple arrow indicating motion (no text or symbols)

1. Attach the Steam Bottle Nozzle. Aligning the arrow located on the Steam Bottle Nozzle with the Un-Lock symbol located on the Nozzle Connector. Press in and turn clockwise to secure into place. The arrow on the nozzle will align with the Lock symbol.

2. To remove the Steam Bottle Nozzle, turn counter-clockwise to unlock and remove.

HOSE & CLEANING TOOL ATTACHMENT USE

1. Attach the hose connector. Aligning the arrow located on the hose connector with the un-lock symbol located on the nozzle connector. Press in and turn clockwise to secure into place. The arrow on the hose connector will align with the lock symbol.

2. To remove the hose, press in and turn the hose connector counter-clockwise to unlock and remove.

3. Select the desired cleaning tool for use. Follow the cleaning tool sub assembly instructions for the selected tool.

4. Attach the cleaning tool by inserting the hose stem into the handle of the cleaning tool. Press in and turn clockwise at the same time to secure and press in and turn counter clockwise to release. Check for proper connection by turning the handle counter-clockwise a few turns. The handle should remain connected. (Note for reference: This connection method is the same design used with most over the counter prescription bottles). The design of this connection is to prevent the hose from twisting and kinking during use.

WEDGE CLEANING TOOL ASSEMBLY

1. Slide the wedge shaped cleaning pocket over the wedge cleaning tool frame until it is completely on.
2. Secure the cleaning pocket onto the frame. Close the cinch by pulling on the elastic band and sliding the locking bean to tighten.

Cleaning Tip: The wedge cleaning pocket was designed for cleaning a variety of surfaces and is exceptional on those that are large and flat, both horizontal and vertical. Broad cleaning sides and super absorbent microfibre fabrics loosen, lift, and lock in dirt and grime while sanitizing at the same time.

Cleaning Tip: The wedge tip and squared edges reach into tight areas often missed or difficult to reach with traditional cleaning methods. The Wedge sides concave to wrap around sink and faucet fixtures, door knobs, and other small curved surfaces leaving them clean all around. Multiple sides provide more surface cleaning area and allow one to clean with one side and finish with the other for a "NOW YOU KNOW THAT'S CLEAN" performance. Surface examples for use are countertops, tabletops, cabinets, walls, floor spot cleaning, bathroom fixtures and more.

Line drawings showing two different methods of a fuel pump, one being filled with a container and the other using a tool (no text or symbols present)

CAUTION: It is recommended that you allow the cleaning pockets to cool off before removing them from the wedge or cylinder tools to avoid possible scalding injury.

CYLINDER CLEANING TOOL ASSEMBLY

1. Squeeze "chopsticks" together and slide the cylinder shaped cleaning pocket over the cylinder cleaning tool frame until it is completely on.

2. Secure the cleaning pocket onto the frame. Close the cinch by pulling on the elastic band and sliding the locking bean to tighten.

Cleaning Tip: The thin cylinder shape provides controlled cleaning and reaches into narrow areas, around curved and contoured surfaces for steam dusting and fine cleaning activities. Specialized dusting cleaning pockets provide gentle cleaning of surfaces, objects, and furniture while reaching into crevices and corners. It is a great cleaning tool for in and around window sills, door jams and frames, exhaust and intake vents, banisters, railings, spindles, furniture, seating, patio furniture, and more.

Two hand-drawn diagrams showing cable installation or connection, with no visible text or symbols.

Cleaning Tip: The shower door squeegee provides a streak free clean. Start at the top and gently glide downward, wiping excess moisture and dirt away.

1. Press fit the shower door squeegee attachment onto the detail cleaning handle.

Illustration of a hand using a power tool to clean or spray the pipe (no text or symbols present)

CAUTION: Always avoid any sudden changes in temperature to prevent breakage or cracks.

DETAIL SCRUBBING BRUSH ATTACHMENT

1. Press fit the detail scrubbing brush onto the detail cleaning handle.

Illustration of a medical or laboratory device with a curved tube and a separate screw-like component, labeled with number 1 (no text or symbols on the device itself)

Cleaning Tip: The scrubbing brush attachment is great for hard to reach areas and for breaking up heavily soiled and dried on messes. Allow plenty of time for steam heat and moisture to penetrate the surface as it dislodges the mess for wiping. It can be especially useful in the bathroom and shower area loosening scum build-up on tile and grout. Select either of the cleaning pocket tools to clean, sanitize, and wipe up excess moisture and residue.

NOTE: The detail scrubbing brush is most effective when applying light pressure. Let the super heated steam and the bristle tips do the work for you. The sides of the bristles are not effective for scrubbing. If you apply too much force, you will bend and deform the bristles.

Line drawing of a hand holding a tool with a threaded end, no text or symbols present

GARMENT STEAMER ATTACHMENT

CAUTION: Always determine color fastness of any fabric, especially with reds or blues. Taking a clean, moist, warm towel and gently rubbing a small area on the fabric that is out of sight and out of the way as possible. If color bleeds onto the towel, you may need to have the piece professionally cleaned.

1. Press fit the garment steamer onto the bottle nozzle

2. For garment steaming, stretch the garment steamer bonnet over the garment steamer diffuser

3. For garment brush, attach directly onto the garment steamer diffuser by aligning the bottom of the diffuser with the back of the garment brush attachment. Gently push the top of the garment brush up into place over the bonnet until the attachment snaps into place.

Note: It is recommended that the bonnet be used at all times to assure a dry steam and prevent condensation.

Line drawing of a hairdryer tool and a brush tip (no text or symbols)

IMPORTANT: Once plugged in, the Blue LED will illuminate, and your portable Steam Pocket® cleaning system will be ready to use within 30 seconds.

WARNING: Your portable Steam Pocket® is designed to clean surfaces that will withstand high heat and moisture. Do not use on unsealed wood surfaces (especially wooden antique furniture), unglazed ceramic tile, or surfaces that have been treated with wax, oils, varnishes, or shellac. The sheen may be removed by the heat, steam, and friction of the cleaning tools. Lacquer and polyurethane coatings provide a hard durable protective finish that withstands moisture but it is always recommended to test an isolated area of the surface to be cleaned before proceeding. We also recommend you check the use and care instructions from the surface manufacturer.

NOTE: Make sure surfaces are free of crumbs and debris before using the portable steam pocket. Large objects may not be picked up by the Steam Pocket® and will only be pushed around.

GENERATING STEAM

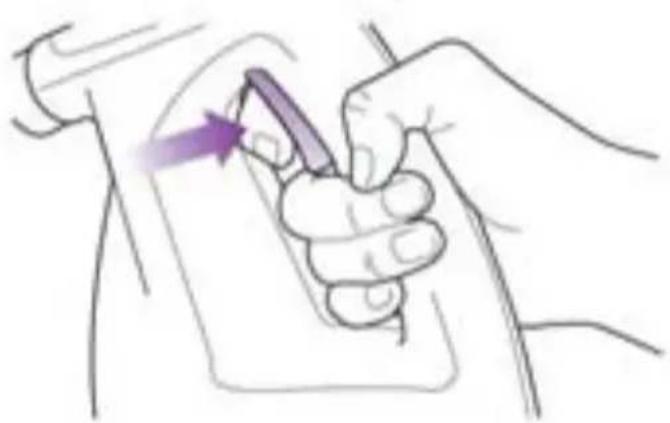

1. Plug the unit in and wait about 30 to 45 seconds then press and hold the steam trigger to activate the pump. You will immediately hear steam generating and begin to see visible results either from the nozzle or the attached cleaning tool. It is recommended that you wait at least 30 seconds before pulling the trigger as this will minimize water spitting.

2. Once you release the steam trigger, the pump will stop delivering water to the boiler and the steam will reduce to a stop when the boiler becomes empty.

3. For wedge and cylinder cleaning pockets, allow the bottle to generate enough steam to activate the cleaning fabric. Once you see visible steam emitting through the fabric, your cleaning pocket is ready to use. Some messes, particularly those that are sticky may require more moisture, so allow more steam to generate and exhaust from the cleaning pocket before cleaning.

Simple line drawing of a stylized creature or object with a purple flower-like shape on top (no text or symbols)

CAUTION: Steam is hot and can cause burns, so please use with caution.

Simple line drawing of a cylindrical object with a handle, resembling a stylus or connector (no text or symbols)

WARNING: The hose stem becomes very hot during operation and can cause burns. Do not operate the portable Steam Pocket® without the proper cleaning tools attached securely as instructed.

Illustration of a hand holding a pen with a purple arrow pointing to it, no text or symbols present

Hand holding a pen near a wall-mounted device, with a purple arrow indicating direction (no text or symbols)

Caution: This appliance must be unplugged from electrical outlet and allowed to cool down before storage or cleaning.

STORAGE

1. Let the appliance cool down before cleaning or storing
2. Empty the water tank after each use
3. Store in a cool dry location

CLEANING THE STEAM BOTTLE

1. A periodic rinse of your steam cleaner will help free it from normal water deposits. This is recommended every 10-15 fillings to free up any scale deposit. Fill the reservoir with water and secure the cap. Shake vigorously for approximately 10-15 times and remove the cap to empty the reservoir.

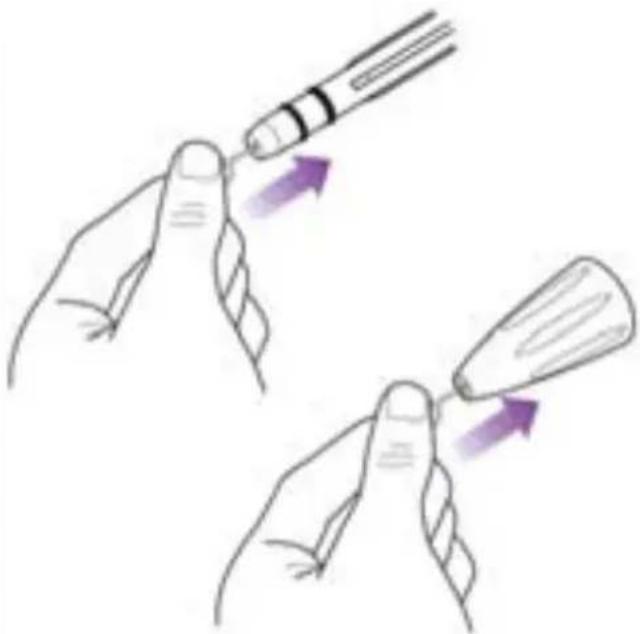

CLEANING THE NOZZLES

1. Your portable Steam Pocket® should not normally require cleaning, however, should you notice a decrease in the steam output, it may be necessary to remove mineral deposits built up around the nozzles.
2. Unplug the cleaner from the electrical outlet Use the provided nozzle cleaner or a small
3. diameter stiff metal wire, such as a straightened metal paperclip, and carefully insert the end of the wire into the nozzle orifice. See illustrations below.

Move the wire back and forth several times

1. to remove any deposits.

Plug in the appliance to the power outlet

1. and test to note steam output.

Illustration of two hands performing a medical procedure with a pen and needle inserted (no text or symbols)

Cleaning tip: To prevent clogging, it is recommended that you periodically clean the Direct Steam Nozzle and the extension hose stem with the cleaning tool provided or a paper clip.

DISPATCH

Carry the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

Using Your Portable Steam Pocket® - cont'd

KITCHEN CLEANING

Clean and sanitize daily messes in your sinks, microwaves, refrigerators, stove tops, food prep areas like countertops and cutting boards, and trash cans.

BATHROOM CLEANING

Your portable Steam Pocket® can reduce common household bacteria and odors from all corners and areas of your bathroom, from toilets, sinks, tubs, showers, and floors. Wiping grime out of those impossible to reach spots without harsh chemicals or perfumy residue. Clean all surfaces including glass, mirrors and ceramic tiles.

PROBLEM	POSSIBLE REASONS	SOLUTIONS
There is no steam	The Steam Bottle is not plugged in.There is not enough water in the unit.	Verify that the Blue light is on and the product is plugged in correctly into a working outlet.Fill the steam bottle tank.
There is not enough steam	Mineral build-up may be clogging the nozzle.Water level may be low.	Using the nozzle cleaner, carefully clean the nozzle to remove debris.Fill the steam bottle tank.
The cleaning pockets are streaking or leaving dirt behind	The microfibre fabrics may be dirty and need to be replaced or washed.The microfibre fabric may be worn.	Use the other sides, if clean.Replace with a clean cleaning pocket.Replace as needed.
The cleaning tool handles keep falling off the hose	The connection may not be secure.	Check the connection, making sure you are pressing in and turning at the same time.

Notes
