Type of product	Steam vacuum cleaner
Brand	Fakir
Model	Magic Steam Vac Basic
Width	520 mm
Length	360 mm
Height	340 mm
Weight	10.5 kg (without accessories)
Rated voltage	220-240 V
Rated frequency	50-60 Hz
Boiler power	1100 W
Motor power	1050 W
Maximum power	2150 W
Max. steam pressure	4 bar
Max. steam output	90 g/min
Boiler capacity	1.1 L
Dirt collection tank capacity	1.2 L + 1.8 L
Protection class	IPx4
Protective class	I
Functions	Steam cleaning, vacuuming (dry and wet), steam + suction combined, ironing (with accessory)
Filtration system	EcoActive Water Filter + washable HEPA filter
Safety features	Patented safety cap prevents opening under pressure; automatic float stops suction when water level is high; overheat protection
Maintenance	Empty and clean dirt container after each use; rinse water filter; clean HEPA filter every 4 months or when needed; descale boiler with KALSTOP in hard water areas

Frequently Asked Questions - Magic Steam Vac Basic FAKIR

How do I fill the water reservoir?

Unscrew the patented safety cap (7) and fill the boiler with up to 1.1 L of tap water using the filler funnel (U). Do not use distilled or scented water. Ensure the cap is screwed on tightly.

What should I do if steam stops coming out?

Check the out of water indicator light. If it is on, the boiler is empty. Turn off the boiler, unplug the appliance, wait for it to cool, then refill the boiler.

Can I use the appliance on carpets?

Yes, use the universal brush with the fitted carpet insert (E4). For steam cleaning, test on a hidden area first. Avoid steam on delicate fabrics like Dralon, velvet, or leather.

How do I clean the HEPA filter?

Remove the dirt container, lift the HEPA filter release lever, take out the filter, rinse it under cold running water, shake gently, and let it dry naturally for 24 hours before reassembling. Do not use detergents or brushes.

What does the 'out of water' indicator light mean?

It means the boiler is empty or nearly empty. Turn off the boiler switch, unplug the appliance, let it cool, then refill the boiler.

How do I use the iron accessory?

Connect the iron to the monobloc plug, turn the dial to maximum temperature (cotton/linen), wait for the iron light to go out, then press the steam request button. For dry ironing, do not use steam.

Why has the suction stopped suddenly?

The safety float has activated because the dirt container is too full. Switch off the appliance, empty the container, restore the water level, and restart.

Can I vacuum up liquids?

Yes, the appliance can suck up liquids. Use the liquid suction inserts (E3) for the universal brush. Ensure the dirt container is not overfilled to avoid damaging the filter.

How do I descale the boiler?

In hard water areas, use FAKIR's KALSTOP decalcifier. Follow the product instructions. Regular rinsing with tap water every 3-4 uses also helps prevent limescale buildup.

What should I do if the steam hose is damaged?

A damaged steam hose can cause scalds. Immediately replace it with a hose recommended by the manufacturer. Do not use the appliance until it is replaced.

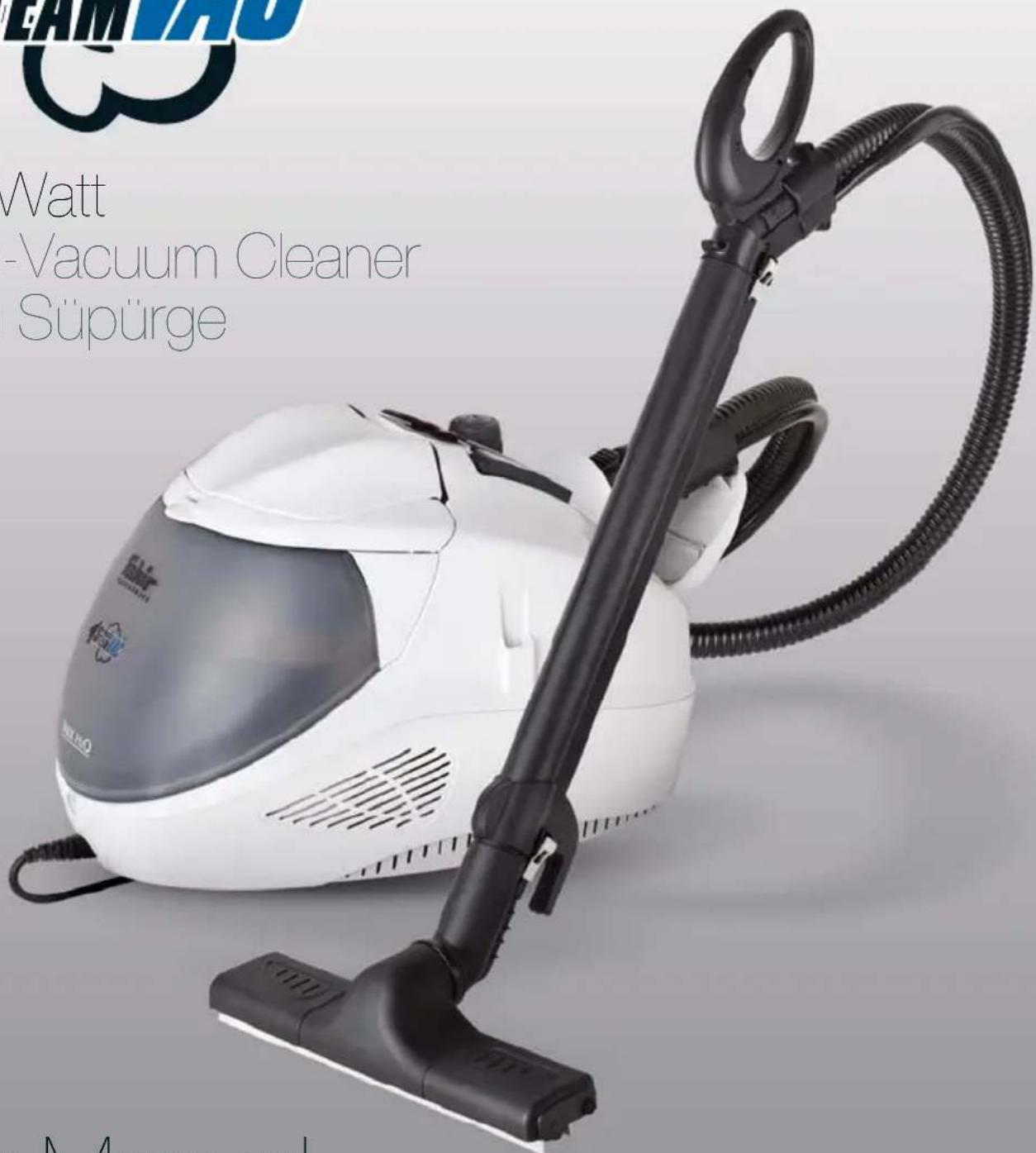

USER MANUAL Magic Steam Vac Basic FAKIR

2150 Watt

Steam-Vacuum Cleaner

Buharlı Süpürge

User Manual

Kullanım Kılavuzu

Close-up of a gray knob with black circular arrows indicating rotation (no text or symbols)

Close-up of a hand pressing down on a white plastic container with an upward arrow indicating motion (no text or symbols)

Close-up of a hand holding a small object on a mechanical component, labeled 'Fig. 3' with an arrow indicating direction (no text or symbols on the object itself)

3D rendered mechanical component with directional arrow indicating upward motion (no text or symbols)

Close-up of a robotic arm gripping a mechanical component, no visible text or symbols

Top-down view of a smooth, dome-shaped object with a glossy surface, possibly a dessert or food item (no text or symbols visible)

Close-up of a toilet sink with coiled tubing and a small inset showing the interior (no text or symbols visible)

Close-up of a mechanical component with a black arrow indicating upward motion (no text or symbols)

Hand pressing a button on a mechanical device (no text or symbols visible)

3D rendered mechanical component labeled Fig. 11a, showing a cylindrical assembly with a flanged top and shaft (no text or symbols on the object itself)

Medical imaging scan showing a cross-sectional view of a shoulder joint with a circled area of interest (no text or symbols present)

Hand holding a device with directional arrows indicating motion (no text or symbols)

Close-up of hands holding a black object with arrows indicating movement, labeled 'Fig. 13' (no text or symbols on the object itself)

Close-up of a mechanical component with an arrow indicating direction, labeled 'Fig. 14' (no readable text or symbols)

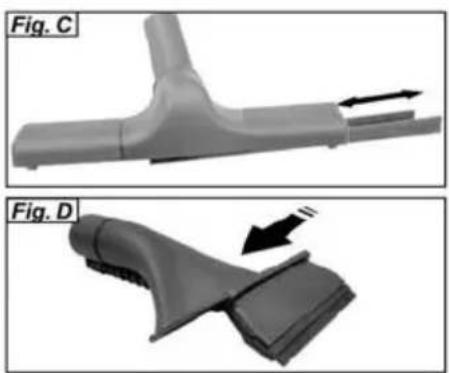

Two 3D mechanical component diagrams labeled Fig. C and Fig. D, showing internal flow or movement with arrows indicating direction (no text or symbols beyond labels)

Dear Customer,

Please read and comply with these instructions prior to the initial operation

of your appliance. Retain these operating instructions for future reference or for subsequent possessors.

Proper Use

This appliance is designed for domestic use only. The machine is designed for generating steam and vacuum cleaning liquids and solid substances according to the description in this Operating Instructions Manual.

The manufacturer is not responsible for any damages that may occur on account of improper use or wrong operations.

Contents

Description of the Appliance 01

Safety instructions 04

Preparing the Appliance 05

Operation 06

How to Use the Accessories 08

Maintenance and Care 09

Troubleshooting 10

Specifications 10

Description of the Appliance

1) Suction switch

2) Boiler switch

3) "Out of water" indicator light

4) Pressure indicator light

5) Suction regulator

6) Carrying handle

7) Safety cap

8) Steam control knob

9) Hose connection flap

10) Hose connection

23) "EcoActive Filter" water filter assembly

24) "EcoActive Filter" water filter assembly cover

25) Shaped filtering sponge

26) Filter body with microhole net

27) Elbow tube

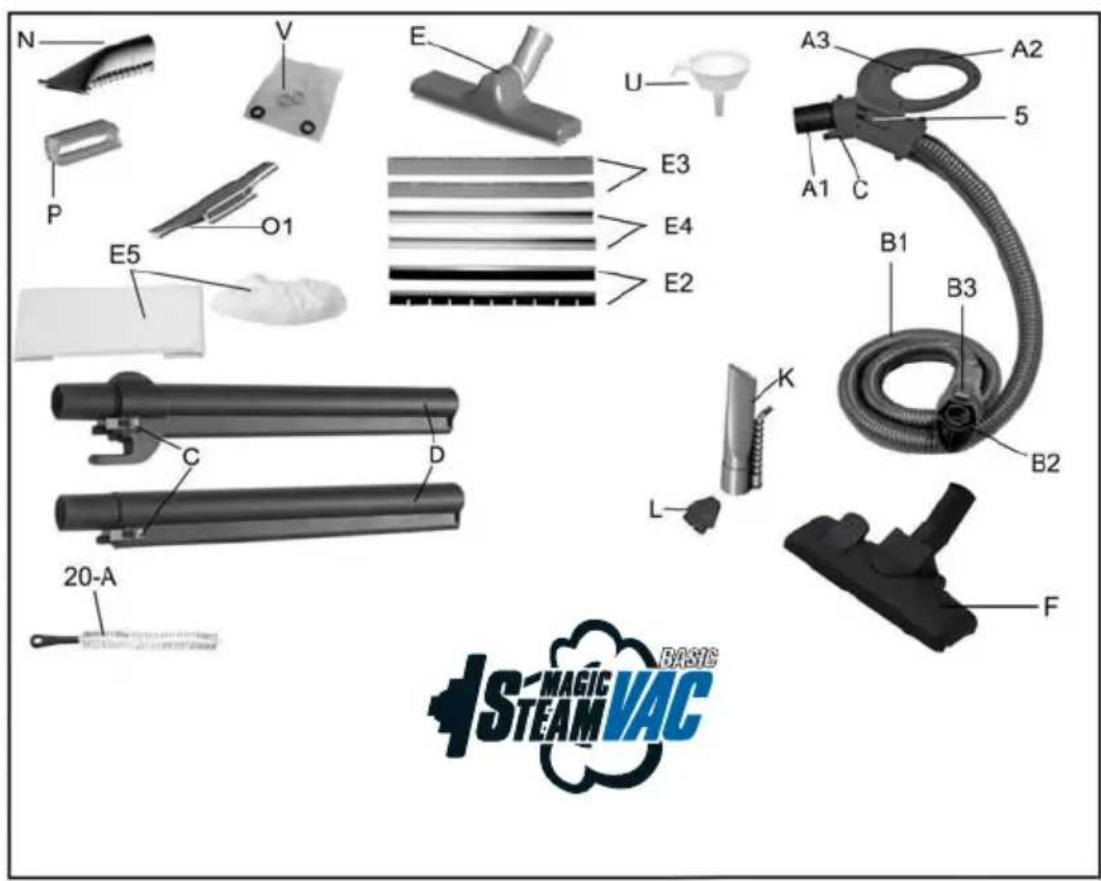

Accessories

A 1) Fitting for accessories connection
2) Handle
3) Steam button
B 1) Steam+suction hose
2) Monobloc plug
3) Locking button of the monobloc plug

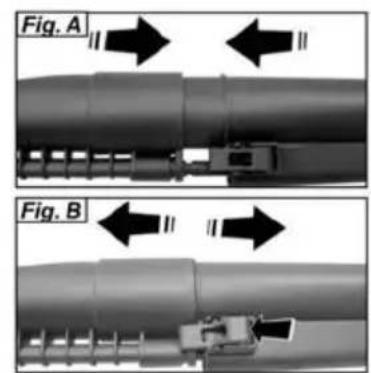

C Accessories locking button

D Steam + suction extension tubes

E 1)Universal brush

2) Bristle inserts

3) Liquid suction inserts

4) Insert for fitted carpet

5) Cotton cloths

F Floor nozzle

K Steam-suction accessory

L Small coloured steam-suction brushes

N Small steam-suction upholstery nozzle

O 1) Squeegee attachment for small steam -suction upholstery nozzle (200 mm)

P Bristle attachment for small steamsuction upholstery nozzle

U Filler funnel

V Spare gaskets

20 A) Dirt container cleaning brush

Close-up of two white objects with black bands, one on a wooden surface and the other lying down (no text or symbols visible)

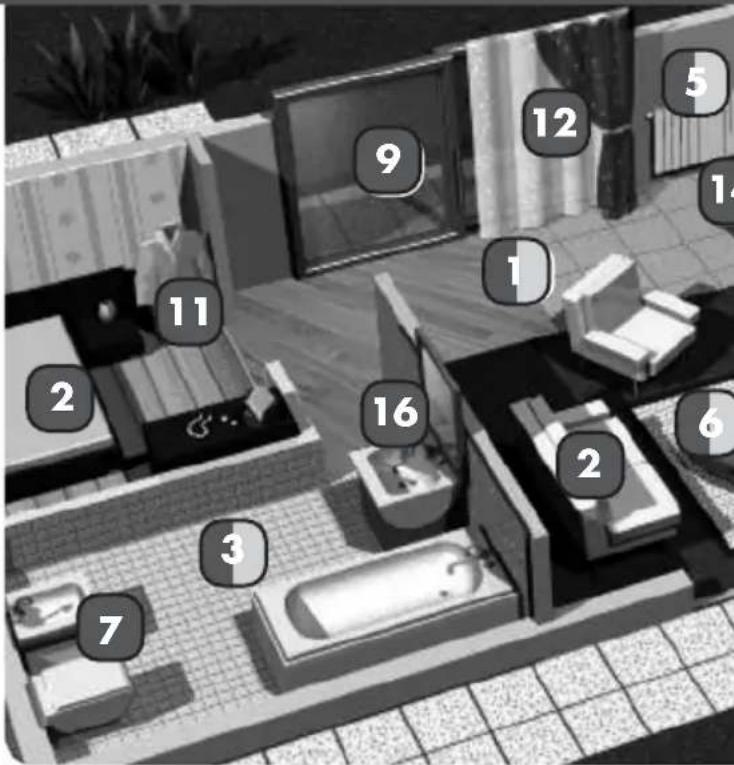

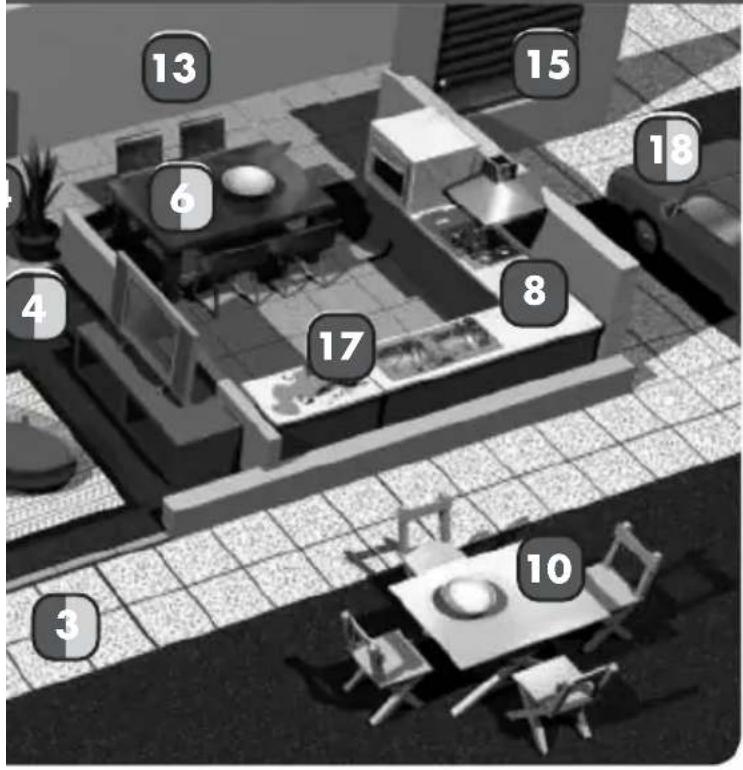

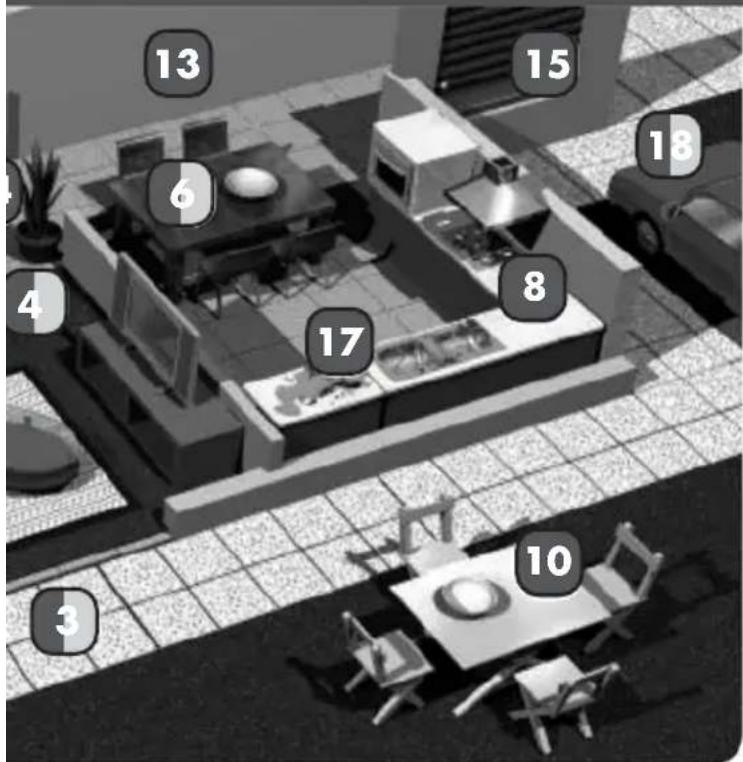

Cleaning terra cotta and parquet floors

Close-up of a hand pressing down on a car's side panel, no visible text or symbols

Cleaning furniture

Black and white photo of a person falling off a surface, possibly in a gym or prison setting (no visible text or symbols)

Cleaning sofas and mattresses

Close-up of an insect with wings and legs, no visible text or symbols

Clening bathroom

Close-up of a knife on a tiled surface, no visible text or symbols

Cleaning floors and tiles

Close-up of a car engine bay with visible engine components and dashboard (no text or symbols)

Cleaning the kitchen

Black-and-white icon showing a stylized pen and abstract geometric shapes, no readable text or symbols.

Cleaning carpets and moquette

Black and white photo of a person inside a vehicle, no visible text or symbols

Cleaning glass and mirrors

Black-and-white photo of kitchen appliances on a tiled floor, no visible text or symbols

Cleaning chrome fixtures and taps

= Steam cleaning

Black-and-white photo of a person reading a book, no visible text or symbols

Ironing

Close-up of a textured, abstract object with no visible text or symbols

Cleaning plants

Black and white image of a rocket launch with visible exhaust plume (no text or symbols)

Purlflying the air

Illustration of a rolled-up door or shelf with a circular badge showing the number 15 (no text or symbols on the image itself)

Cleaning roller shutters

Suction =

Interior view of a car showing a hand holding a white object, with a numbered badge indicating '18' (no text or symbols on the object itself)

Cleaning the car

Close-up of a dark, elongated object with a small protrusion, possibly part of a device or tool (no visible text or symbols)

Vacuuming wooden floors

Black-and-white icon of a library with bookshelves and a bookmark, no text or symbols present

Dusting furniture

Close-up of a metallic object with a handle, possibly a tool or component, in a dark liquid (no visible text or symbols)

Vacuuming floors

Close-up of a black tool interacting with a surface, no visible text or symbols

Suction of solids and liquids

Black and white photo of a handheld device with a button labeled '4' (no visible text or symbols on the device itself)

Vacuuming carpets and wall-to-wall carpeting

Fakir Magic Steam Basic is the only appliance you can use for all these functions for cleaning, vacuuming and sanitising your home.

Safety instructions

Apart from the notes contained herein the general safety provisions and rules for the prevention of accidents of the legislator must be observed.

Any use of the machine in contravention with the following instructions will lead to warranty claims being rendered void.

Electrical connection

• Only connect the appliance to properly earthed sockets.
• The voltage indicated on the type plate must correspond to the voltage of the socket.
• In wet rooms, e.g. bathrooms, connect the appliance to sockets with a series connected RCD adapter. If you are not sure, please contact an electrician.
• Never touch the mains plug and the socket with wet hands.
• Only use a splashproof extension cable with a minimum section of 3x1 mm2.
• Never use a damaged power cord or extension cable! If the power cord is damaged it must be replaced with a special power cord available from the manufacturer or his customer service.
• Make sure that the power cord or extension cables are not damaged by running over, pinching, dragging or similar. Protect the power cord from heat, oil, and sharp edges.
• If couplings of the power cord or extension cable are replace the splash protection and the mechanical tightness must be ensured.
• Please switch off the machine first using the main switch before disconnecting the machine from the mains.
• To separate the machine from the mains, pull the plug and not the power cord.

Application

• The operator must use the appliance properly. He must consider the local conditions and must pay attention to third parties, in particular children, when working with the appliance.
• Check the faultless condition of the appliance and the accessories before using it. Otherwise, the appliance must not be used. Please check in particular the power cord, the steam boiler seal, and the steam hose.

• The steam hose must not be damaged (risk of scalds). A damaged steam hose must be replaced immediately. You may only use a steam hose that is recommended by the manufacturer.

• Never operate the machine bare-foot.

• Do not touch the machine with wet hands or feet when the mains plug is inserted in the socket.
• Never use the machine in direct vicinity of bath-tubs, showers and containers filled with water.
• Never dip the machine, the cable or the plugs in water or other liquids.
• It is not allowed to use the appliance in hazardous locations. If the appliance is used in hazardous areas the corresponding safety provisions must be observed.
• Do not use the machine in the presence of toxic substances.
• Do not place the machine on heat-sensitive surfaces.
• Do not place the machine in the vicinity of switch-on stoves, electrical ovens or other sources of heat.
• Protect the appliance against external weather, humidity and heat sources.
• Protect the unit from rain. Do not store outside.
• The appliance must not be operated by children, young persons or persons who have not been instructed accordingly.
• Press the switches lightly and avoid using sharp objects such as pins, pens/pencils and similar objects.
  • The appliance must provide of a stable ground.
• If the machine falls down, first get it checked by an authorised FAKIR Service agent because there can be internal damages that hamper the safety of the product.
• Never wind the main cable around the machine, definitely not till the machine is still hot.
• Do not use the machine to vacuum clean acids or other solutions as they can damage the machine. Also do not suck in explosive powders or liquids as this can lead to explosion when these substances come in contact with the internal parts of the machine.
• Do not suck in toxic substances.
• Do not suck in burning or glowing objects such as cigarette buds, ash or other burning or glowing materials.
• Do not use the machine to vacuum clean plaster of Paris, cement, etc. that can harden on coming into contact with water and can thus hamper the functioning of the machine.
  • Always switch off the machine and remove the plug while filling the machine with water.
  • Always place the machine in a horizontal position during operation.
• Do not direct the steam jet on household appliances that contain electrical parts.
• Never touch the steam jet from a short distance with your hands and never direct the steam jet to persons or animals (risk of scalds).
• Never use the appliance to clean objects containing hazardous substances (e.g. asbestos).

- Never fill solvents, solvent-containing liquids or undiluted acids (e.g. detergents, benzene, paint thinner, and acetone)

into the water reservoir or the water filter container as these substances affect the materials used on the appliance.

- Ensure that the machine has cooled down completely before stowing it away or cleaning it.

- The appliance, if left mattended must be unplugged from the electric socket.

⚠ Maintenance

• Turn off the appliance and remove the mains plug prior to any care and maintenance works.
• To avoid risks, all repairs and replacement of spare parts in the machine may only be carried out by the authorised FAKIR service personnel.
  • Always use original spare parts and accessories permitted by the manufacturer so that the safety of the machine remains intact.
• In hard water areas, we recommend the use of KALSTOP, a special natural base decalcifier which inhibits and breaks downlimescale.

⚠ Storage

• Caution: Never operate or store the appliance in a vertical position!
• Protect the unit from rain. Do not store outside and when the machine is still hot.

Symbols on the machine

Steam

CAUTION - Danger of scalding

Unpacking the appliance

When you unpack the system, check that everything is complete (see page 3). If there are any missing parts or you detect any transport damage when unpacking, please inform your dealer immediately.

Environmental protection

The packaging material can be recycled. Please do not place the packaging into the ordinary refuse for disposal, but arrange for the proper recycling.

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose of your old appliances using appropriate collection systems.

Warranty

The terms of the guarantee applicable in each country have been published by our respective national distributors. We will repair possible faults on your unit free of charge within the warranty period, insofar as the faults are caused by material defects or defective workmanship. Guarantee claims should be addressed to your dealer or the nearest FAKIR customer service centre, and supported by documentary evidence of purchase.

Preparing the appliance

Filling the water reservoir

Unscrew the patented safety cap (7) (Fig.1) and fill the boiler with not more than 1.1 litres of water, using the filler funnel (U). Make sure that the water does not overflow, and that space is left in the boiler for the steam to form.

Normal tapwater can be used. Water by its nature contains magnesium, mineral salts and other deposits which in hard water areas can cause limescale build up in the boiler. It is essential to swill it out with tapwater every 3 or 4 uses.

Note: Never use distilled and scented water.

Filling the water filter container

Make sure the rubber gasket is present inside the safety cap, then screw on the safety cap (7) to hand tight. Make sure the patented safety cap is fully and correctly screwed on, otherwise you may experience steam escaping around the cap.

• Lift the dirt container handle (22) unhooking it from its position (Fig. 2) and remove the container (20) (Fig. 3).
• Turn the container handle (22) as shown in figure 4, so as to remove the "Eco Active-Filter" water filter assembly (23).
• Fill the dirt container (20) with about 1,2 litres of tap water until the MAX level indicator (21) is reached, as in fig. 5.
• Put the filter assembly (23) back into place in the dirt container (20) returning it to its initial position.
• Replace the dirt container into position.
• Support the handle (22) until it hooks into its place on the dirt container (20).

WARNING: Do NOT under any circumstances put or leave the filler bottle in the water filling aperture of the appliance when the appliance is connected to the mains electricity supply. Danger of burns!

Note: The functioning of the vacuum cleaner is based on the whirling of the suction air in the water filter. In the

process, sucked-in materials and deposits of cleaning agents from floors get collected in the water bath. This can sometimes lead to the formation of foam. It is necessary to add the foam stop liquid to the water filter bath to avoid this situation. The foam stop liquid is environment friendly and fully bio-degradable. Slight foam formation is normal and does not hamper the functioning of the machine.

Operation

Open the hose connection flap (9); fit the monobloc plug (B2) by pushing it, without pressing the button, until you hear the click of the locking mechanism, then make sure it is well locked (fig.6).

- To disconnect the monobloc plug (B2) from the appliance, push the button (B3) and pull the monobloc so as to separate it from the appliance (fig.6a).

- Now connect the appliance to the mains.

Suction only mode

- Press suction switch (1). The appliance will begin to suck.

• To stop suction, simply press suction switch again (1)

- Using the suction regulator (5) it is possible to change the suction power according to the type of cleaning required, or to stop suction immediately in case of accidental suction (e.g. curtains). It is advisable to work with the suction regulator open on curtains, carpets, and sofas, etc. Move the suction regulator forward until the hole on the handle is visible. To return to maximum power, move the suction regulator backward, gradually covering the hole.

Steam only mode

• Press the boiler switch (2) which will light up.
• Wait for the pressure indicator light (4) goes out. When it does, Magic Steam Vac Basic is ready to generate steam.
• You may now deliver steam by pressing the steam button (A3) on the handle.
• If you decide not to use the steam any longer, you may switch off the boiler by pressing the boiler switch (2).

Steam + Suction mode

You can use the steam and suction modes together by activating both as described above.

Lack of water in the boiler

Lack of water in the boiler will be shown by the indicator light (3). In order to continue working, proceed as described in the section.

Patented safety cap ented safety cap

This appliance is equipped with a patented safety cap, which prevents opening of the boiler as long as there is any pressure remaining inside. This is an important and indispensable safety device and it is necessary to follow certain procedures when re-filling the tank. When you have used up all the water in the tank, precedent as follows:

• Switch off the machine at the boiler switch (2).
• Disconnect the power supply cable (13) from the mains.
• Unscrew the safety cap (7) anti-clockwise.
• Wait for a good few minutes to allow the boiler to cool down.
• When the boiler is cool, proceed to carefully refill it as described in the paragraph headed PREPARATION FOR USE.

WARNING: When REfilling the boiler always pour gradually into it only very small quantities at first of HOT, not cold water, so as to avoid spitting. KEEP FACE AND EXPOSED SKIN WELL AWAY FROM THE APERTURE.

Regulation of the steam flow

You can optimise the steam flow by means of the control knob (8) (Fig. 7).

To obtain a higher flow rate turn the knob in a clockwise direction. When the knob is turned in an anti-clockwise direction, the flow rate decreases.

High flow rate of steam: to remove caked dirt, stains, grease and to sanitise;

Normal flow rate of steam: for wall-to-wall and loose carpeting, windows, floors; Low flow rate of steam: for spraying plants, cleaning delicate fabrics, wallpaper.

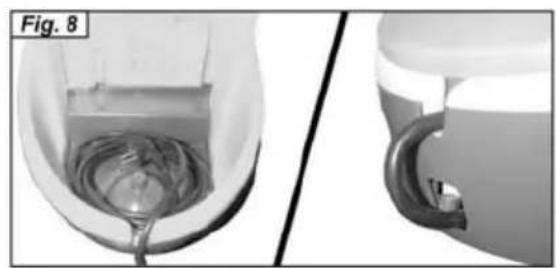

Supply cable storage

Before putting away Magic Steam Vac Basic, store the supply cable (13) in its compartment (15) proceeding as follows:

• Take out the dirt container (20) as indicated in the paragraph "preparation for use".
• Manually wind the cable evenly and put it in the storage (15), making it go through the power supply cable channel (14) (Fig.8).
• Put the dirt container (20) back in its place making sure it is correctly positioned.

Use of the accessories holder

The accessories holder (16) allows you to fix the tube with the brush mounted on it on the body of the appliance. To attach the hose to the appliance, slide the hook on the hose into the accessories holder slot on the appliance (Fig. 9).

Connection of accessories

All Magic Steam Vac Basic accessory tools can be connected to the handle (A2) or to the extension tubes (D).

To connect accessories for suction and steaming (D-E-K-N) proceed as follows:

• Connect the handle or the extension tube to the required accessory until the connector button (C) is hooked (Fig. A)
• To disconnect the accessory, just keep the connector button pressed (C) and separate the two parts (Fig. B)

WARNING: in this situation, it is important not to press the steam button (A3), to avoid steam coming out accidentally.

Suction of solids and liquids

This appliance can be used to suck up dust or liquids equally easily.

However, if the water in the filter is very dirty it should be replaced proceeding as described in the section "Emptying and cleaning the dirt container".

When the dirt sucked in reaches the maximum permitted level in the Dirt container (20), suction is stopped automatically by the safety float provided for this purpose (you will notice that the engine speed has increased).

ATTENTION: Switch off the appliance, and only switch on again after restoring the water level in the container as described in the "emptying and cleaning the dirt container" paragraph.

IMMEDIATE RESTART WITHOUT RESTORING THE WATER LEVEL CAN DAMAGE THE AIR OUTLET FILTER.

EMPTYING AND CLEANING THE WATER CONTAINER

Switch off the appliance at the main switch (1) and disconnect the supply cable from the mains.

Lift the dirt container (20) out of its compartment by the container handle (22) (Fig.3). Turn the handle and take out the "EcoActive-Filter" water filter assembly (23), as in picture 4. Empty the container tilting it towards the small groove (Fig. 10).

Pull the elbow tube (27) away from the net filter housing (26) until it is removed (Fig. 11a).

Take all the components apart and rinse themin running water. If the filter sponge has any tears, replace it.

A cleaning brush (20-A) is supplied for easy cleaning of the dirt container (20); use it also to clean the appliance's hose connections and the inside of tools.

NOTE: Do not use the brush for cleaning the outside of the appliance. If you wish to continue working, top up the level

of the water. Put the "EcoActiveFilter" water filter assembly (23) back into the dirt container (20).

ATTENTION: Make the arrow on the elbow tube (27) coincide with the mark on the net filter housing (26)

(Fig.11b). Put the dirt container (20) back in its place as described in the "preparation for use" paragraph.

NOTE: Make sure you empty the dirt container (20) before putting your Magic Steam Vac Basic away. One of the great advantages of this appliance is precisely the fact that it is possible to put it away clean.

How to clean the bucket

Suction up about one and a half litres of clean water, turning on the suction for a few seconds.

The whirlpool created inside the bucket will rinse the walls and dislodge any dirt. Clean water cleans the inside of the tubes as it passes through them. Now empty the bucket again and put your appliance away.

TIP FOR USING THE ACCESSORIES DO NOT USE STEAM FUNCTION ON DRAYLON, VELVET, LEATHER OR OTHER SENSITIVE SURFACES.

If in doubt about the effect of steam on other surfaces, always proceed only after carrying out a test on a hidden part or a sample. Allow the area treated with steam to dry and then check whether any changes in colour or deformations have occurred before proceeding further, ensuring exactly the same steam power and distance as in the test.

When cleaning wooden surfaces (furniture, doors, etc.) and brick floors always proceed with caution since excessive use of steam could damage the wax, the polish or the colour of the surface to be cleaned. It is therefore advisable to apply the steam to these surfaces only for short periods at a time or to clean them with a cloth that has been treated with steam. On particularly delicate surfaces (e.g. synthetic materials, enamelled surfaces, etc.) we strongly recommend using the steam at its lowest output power.

When cleaning glazed surfaces, if the weather is particularly cold pre-heat the glass working at distance of about 50 cm away from the surface. To take care of your plants, we recommend spraying them from a distance of at least 50 cm.

Universal brush (E)

It is advisable to use this brush to clean large surfaces, tiled or marble covered floors, parquet, carpets etc., using the following inserts supplied with it.

• Bristle inserts (E2), for use when vacuuming only.
• Liquid suction inserts (E3), to pick up liquids; recommended for smooth surfaces.
• Fitted carpet inserts (E4), suitable for fitted and loose carpets.
  The universal brush can be connected directly to the handle, or to the hose by means of the extension tubes (D).

Assembling inserts:

To change the inserts, slide out the insert from its position on the brush and slid in the replacement (Fig.C). When assembling the inserts for suctioning up liquids (E3), take care to ensure that their SMOOTH side faces inward.

Steam-suction accessory (K)

Use this accessory to clean areas that are difficult to reach with other accessories. This accessory may be used for:

• treating stains on carpeting or loose carpets, before going over them with the brush;
• cleaning stainless steel, windows, mirrors, layered coating and paintwork;
• cleaning corners such as stairs, windows frames, door jambs, aluminium sections;
  • cleaning the bases of taps;
• cleaning blinds, radiators, the interiors of cars;
• atomising house plants from a distance.

This accessory can also be fitted directly onto the handle (A2) or it can be connected to the hose by means of the extension tubes (D). It is possible to combine this accessory with the small coloured brushes (L)

Small steam-suction upholstery nozzle (N)

We suggest to use this accessory on large windows, large mirrors and smooth surfaces, or to clean upholstery surfaces such as sofas, mattresses, etc., using the following attachments supplied with it:

• 200 mm squeegee attachment (O1) for large windows and surfaces;
• bristle attachment (P) is recommended for carpeting, stairs, car interiors, and upholstered surfaces (AFTER TESTING FIRST ON A HIDDEN PART, WAITING AND SEEING HOW IT REACTS TO STEAM TREATMENT).

It is also useful for removing animal hair from the same surfaces; a sponge cover (E5) may also be attached to the nozzle. Fit the attachments and slide them onto the nozzle as shown in fig.D. To correctly use the steam-suction squeegee proceed as follows:

• apply steam uniformly to the surface to be cleaned to dissolve the soiling.
• Press the rubber squeegee against the surface to be cleaned, moving it vertically from top to bottom with the suction function switched on.

Warning: in particularly cold weather, pre-heat windows by applying steam from a distance of about 50 cm from the surface to be cleaned.

\*Using the iron, optional

1) Temperature regulation control
2) "Iron heating" indicator light
3) Steam request button
4) Continuous steam jet button

Magic Steam Vac Basic can be quickly transformed into a highly effective ironing system to make ironing quick and easy. Simply connect the product to the iron accessory

• Connect the iron to the monobloc plug (B2) proceeding as shown in the "Operation" paragraph.
• For STEAM ironing, turn the dial (1) and set the iron temperature to its maximum travel on the "COTTON-LINEN" steam position. YOU MUST SET AT ITS MAXIMUM POSITION, DO NOT SET AGAINST THE PICTURE OF THE IRON ON THE DIAL (1).

Most types of fabric, other than delicates can be STEAM ironed at this temperature, Fabric indications on dial are for DRY ironing, NOT steam ironing.

• Wait for a few minutes until the "Iron heating" indicator light (2) goes out, to show that the soleplate of the iron has reached the required temperature.
• Press the steam request button (3) to enable the steam to come out. The steam flow will stop when the button is released. After each filling, when you first start to use the iron, a few drops of water mixed with the steam may be emitted (due to imperfect heat stabilisation). It is therefore advisable to direct the first jet of steam onto a rag.

- To obtain a continuous jet of steam move the sliding button (4). The steam will continue to come out even when the steam request button (3) is released. To stop the flow of steam push the sliding button backwards (4).

Dry Ironing

- If you need to DRY iron (ONLY) (NOT steamironing), press the boiler switch (2) and adjust the temperature of the iron by turning dial to the temperature required for the fabric (as shown on the dial).

ATTENTION: When dry ironing, be careful not to press the steam request button, as hot water could come out of the iron onto your garment and board.

Important note

• Do not leave the iron unattended whilst connected to the mains.
• Iron only on heat resistant surfaces and on surfaces that allow the steam to escape e.g. mesh ironing boards.
• In case of accidental fall of the appliance it is necessary to have it checked by an authorized fakir service center as the internal safety features may have been affected.

ATTENTION: If you iron sitting down, do not place your legs under the ironing board, the steam can cause burns.

General maintenance

Before carrying out any type of maintenance make sure that the power cable has been disconnected from the mains.

After using the brushes it is advisable to allow the bristles to cool in their natural position so as to avoid them getting deformed in any way.

Check the conditions of the gaskets located inside the monobloc plug (B2) periodically. If necessary, replace

them with the appropriate spares. Also carry out the same check on the gaskets for connecting the extension tubes (D) and the handle (A2). To clean the outside of the appliance, just use a damp cloth. Do not use solvents or detergents as these might damage the plastic surface. To clean the "ECOACTIVE-FILTER" holder and clean or change the sponge filter, follow the instructions in the paragraph headed "EMPTYING AND CLEANING THE dirt container".

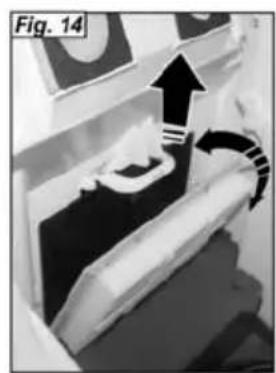

Washable hepa filter

WARNING: Magic Steam Vac Basic is equipped with a washable filter. To clean the filter, proceed as follows:

• Unfasten the handle (22) of the dirt container and remove the container (20) as described in the paragraph headed "PREPARATION FOR USE".
• Lift the Hepa filter release lever (18) and remove the filter from its recess (Fig. 14).
• Rinse the filter in cold running water. Shake it gently after washing to eliminate any residual dirt and excess water.

NOTE: Let the filter dry naturally, far away from light and heat sources. You should wait 24 hours before reassembling the filter in the appliance.

- Replace the filter if it is torn.

- The filter should be cleaned every 4 months for average-frequency of use.

- To position the Hepa filter correctly (17) make sure that it fits properly into its recess (19) and then that the release lever closes over it holding it in place (18) (Fig.14).

WARNING:

• Do not clean the filter with the brush, as this could damage it, decreasing its filtering capacity.
• Do not use detergents, do not scrape filter, and do not attempt to wash it in a dishwasher.

Troubleshooting

Often, failures have simple causes and you can do the troubleshooting yourself using the following overview. If you are in doubt or if the failure is not listed here please contact the FAKIR customer service.

Specifications

Power connection

Voltage 220 - 240 V

Frequency 50 \~ 60 Hz

Life time 10 years

Protection Class IPx4

Protective Class I

Performance data

Boiler power 1100 W

Motor power 1050 W

Maximum power 2150 W

Max. steam pressure 4 bar

Max. steam output 90 g/min

Filling data

Boiler Capacity 1,1 L

Dirt collection tank capacity 1,2 L + 1,8 L

Dimensions

Width	520	mm
Length	360	mm
Height	340	mm
Weight 10.5 kgs(without accessories)

Dispatch

Send the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

TROUBLE	CAUSE SOLUTION
The suction fan does not start	No power supply	Check the cable, plug and socket
The suction power drops	The upholstery nozzle, the hose or the stiff suction tube are cloggedThe hepa filter is exhausted	Clean the filter and remove any obstruction from the tubes and accessories.Follow the instructions in the “GENERAL MAINTENANCE”
The appliance has stopped vacuuming	The float device has interrupted suction	Switch the appliance off, make sure that water level in the tank is correct and switch the appliance back on.
Water output is manitored where liquids sucking up	Water filter storage re clogged	Clean “EcoActive Filter system

Sayın müşterimiz,

Close-up of two white cable clips with a numbered label '1' in the top-left corner (no text or symbols on the clips themselves)

Close-up of a hand pressing down on a surface, no visible text or symbols

Mobilya temizliği

Black and white photo of a person running on a snowy surface, no visible text or symbols

Close-up of an insect on a branch, no visible text or symbols

Banyo temizliği

Close-up of a dark, angled object on a tiled surface, enclosed in a rounded square frame (no text or symbols visible)

Close-up of a car engine bay with visible engine blades and dashboard (no text or symbols)

Mutfak temizliği

Black-and-white illustration of a stylized rocket launch with visible exhaust plumes (no text or symbols)

Close-up of a person's hands using a tool on a vehicle (no visible text or symbols)

Close-up of kitchen utensils and a kitchen sink (no visible text or symbols)

Demirbaş temizliği

=Buharlı Temizleme

Black-and-white photo of a person reading a book, no visible text or symbols

Ütüleme

Close-up of a person's face with abstract hair-like patterns, no visible text or symbols

Bitki temizliği

Black and white image of a rocket launch with visible exhaust trail (no text or symbols)

Hava temizleme

Illustration of a wooden shutter roller with a label showing '15' (no other text or symbols)

Stor temzliği

Süpürme =

Close-up of a dark, textured object with a small circular icon labeled '1' in the top-left corner (no readable text or symbols on the object itself)

Black-and-white photo of a bookshelf with visible shelves and a bookmark (no text or symbols)

Mobilya tozu alma

Close-up of a mechanical component with a circular badge showing the number 17 (no text or symbols on the component itself)

Zemin süpürme

Illustration of a hand gripping a large object over water, with no visible text or symbols.

Su vakumlama

Interior view of a car showing a seatbelt and hand, with no visible text or symbols

Araba temizliği

Close-up of a black mechanical component with a label '4' in the top-left corner (no other text or symbols visible)

Perde temizleme

2150 Watt

Steam-Vacuum Cleaner Buharlı Süpürge

White and gray vacuum cleaner with black handle, displayed against plain background (no text or symbols on device)
