HC 1400 - Saw Cocraft - Free user manual and instructions

Product type	Circular saw
Model	HC 1400 (PSC185G)
Voltage	220–240 V AC, 50 Hz
Power input	1400 W
No-load speed	5800 rpm
Max cutting depth at 90°	65 mm
Max cutting depth at 45°	45 mm
Blade size	185 mm diameter, 20 mm bore, 1.6 mm kerf
Weight	4 kg
Sound pressure level (Lpa)	89.9 dB(A)
Sound power level (Lwa)	100.9 dB(A)
Vibration (rear handle)	1.62 m/s²
Vibration (front handle)	3.32 m/s²
Dust extraction port	Yes, with adapter for vacuum cleaner
Bevel adjustment	0–45°
Depth adjustment	Tool-free lever
Parallel guide	Yes, adjustable
Safety features	Trigger lock, lower blade guard, spindle lock
Power cord	Replaceable by qualified person
Warranty	Refer to manufacturer

Frequently Asked Questions - HC 1400 Cocraft

How do I change the saw blade?

First, unplug the saw. Press the spindle lock (19) to prevent rotation. Use the Allen key (20) to turn the socket head bolt (11) anticlockwise and remove the outer flange washer (10). Rotate the retractable blade guard (8) clockwise and hold it, then remove the blade. Place the new blade with the arrow pointing in the same direction as the arrow on the guard. Replace the outer flange washer and bolt, tighten while holding spindle lock.

How do I adjust the cutting depth?

Undo the depth adjustment locking lever (18). Set the base plate (9) to the desired depth using the scale. Tighten the lever securely. Always ensure the blade extends no more than one tooth below the workpiece.

How do I set the bevel angle?

Loosen the bevel adjustment locking knob (4). Tilt the base plate to the desired angle (0–45°) using the scale. Tighten the knob. Check the angle with a protractor if needed.

What safety precautions should I take?

Always read the manual. Wear safety glasses, ear defenders, and a dust mask. Keep hands away from the blade. Use both hands on the handles. Never reach under the workpiece. Ensure the guard operates correctly. Disconnect power before adjustments.

How do I connect a vacuum cleaner for dust extraction?

Hold the dust extraction adapter against the fixed blade guard, align the holes, and fasten with the two screws provided. Connect a suitable vacuum cleaner to the adapter. Clean the adapter regularly for best performance.

Why does the saw not start?

Check that the mains lead is undamaged and securely plugged into a wall socket. Verify the socket has power. If the saw still does not start, contact customer service.

What should I do if the saw runs slowly?

Avoid applying excessive force; let the saw work at its own pace. If the blade is worn, replace it. Ensure the blade is correctly fitted and not binding.

How do I reduce vibration?

Check that the blade is in good condition and correctly fitted. Ensure the workpiece is properly supported. Use both hands and maintain a firm grip. If vibration persists, inspect for damaged parts.

How can I make straight cuts?

Use the parallel guide (5) for ripping. Adjust it by loosening the locking knob (6), setting the width, and tightening. Alternatively, mark a cutting line and follow it using the sight (7) on the front edge of the base plate.

How do I dispose of the saw responsibly?

Do not dispose of it with household waste. Take it to a local recycling facility or contact the place of purchase. The crossed-out wheelie bin symbol indicates separate collection for electrical equipment.

USER MANUAL HC 1400 Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Cocraft power saw with blue handle and silver blade, no visible text or symbols on the device itself.

Art.no Model

18-3633

PSC185G

41-1475

PSC185G

Ver. 20171215

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before use and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

General Power Tool Safety Warnings

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Repairs and service should only be performed by qualified persons, and only with original spare parts. This guarantees the safety of the electrical hand tool.

Safety Instructions Specific to Circular Saws

Cutting procedures

a) DANGER: Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade.
b) Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece.
c) Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.
d) Never hold the piece to be cut in your hands or across your leg. Secure the workpiece to a stable platform. It is important to support the work properly to minimize body exposure, blade binding, or loss of control.
e) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will also make exposed metal parts of the power tool "live" and could give the operator an electric shock.
f) When ripping, always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding.
g) Always use blades with the correct size and shape of arbor holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
h) Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation.

Further safety instructions for all circular saws

Kickback causes and related warnings

• Kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator.
• When the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator.
• If the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator.

Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

a) Maintain a firm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken.
b) When the blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding.
c) When restarting a saw in the workpiece, centre the saw blade in the kerf and check that the saw teeth are not in contact with the material. If the saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted.
d) Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel.
e) Do not use blunt or damaged blades. Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback.
f) Blade depth and bevel adjusting locking levers must be tight and secure before making a cut. If blade adjustment shifts while cutting, it may cause binding and kickback.
g) Use extra caution when making plunge cuts into walls or other blind areas. The protruding blade may cut objects that can cause kickback.

Lower guard function

a) Check the lower guard for proper closing before each use. Do not operate the saw if the lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position. If the saw is accidentally dropped, the lower guard may be bent. Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut.
b) Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. The lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.
c) The lower guard may be retracted manually only for special cuts such as "plunge cuts" and "compound cuts". Raise the lower guard with the retracting handle and as soon as the blade enters the material, the lower guard must be released. For all other sawing, the lower guard should operate automatically.
d) Always check that the lower guard covers the blade before placing saw down on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released.

Guard function

a) Check the guard for proper closing before each use. Do not operate the saw if the guard does not move freely and close instantly. Never clamp or tie the guard so that the blade is exposed. If the saw is accidentally dropped, the guard may be bent. Check to make sure that the guard moves freely and does not touch the blade or any other part, at all angles and depths of cut.
b) Check the operation and condition of the guard return spring. If the guard and the spring are not operating properly, they must be serviced before use. The guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.
c) Ensure that the base plate of the saw does not shift while performing plunge or bevel cuts. Blade shifting sideways will cause binding and likely kick back.
d) Always check that the guard covers the blade before placing the saw down on the bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after the switch is released.

Vibration

• The measurement of the vibration emission level declared in this instruction manual has been carried out in accordance with a standardised test method described in EN 60745 and can be used for comparing one power tool with another.
• The measurement method may also be used for a preliminary assessment of vibration exposure.
• The declared vibration emission level applies when the power tool is used in accordance with this instruction manual. If however, the power tool is used for other purposes and with other accessories or has not been properly maintained, the vibration emission level could increase significantly over the total working period.
• For an exact assessment of the vibration exposure, the times when the tool is switched off or running idle should also be taken into account. This significantly reduces the vibration exposure over the total working period. Decide upon safety measures to protect the operator from the effects of vibration during all types of use.

Product safety symbols

Read the entire instruction manual.

Always use safety glasses, ear defenders and a face mask.

Care and maintenance

• Check the supply cord regularly. Never use the product if it or the plug appears damaged.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Always unplug the saw before making any adjustments or repairs.
• Clean the product using a lightly moistened cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
• Keep the motor ventilation openings free from contaminants.
• If the circular saw is not to be used for an extended period, it should be unplugged and stored in a dry and dust-free location out of reach of children.

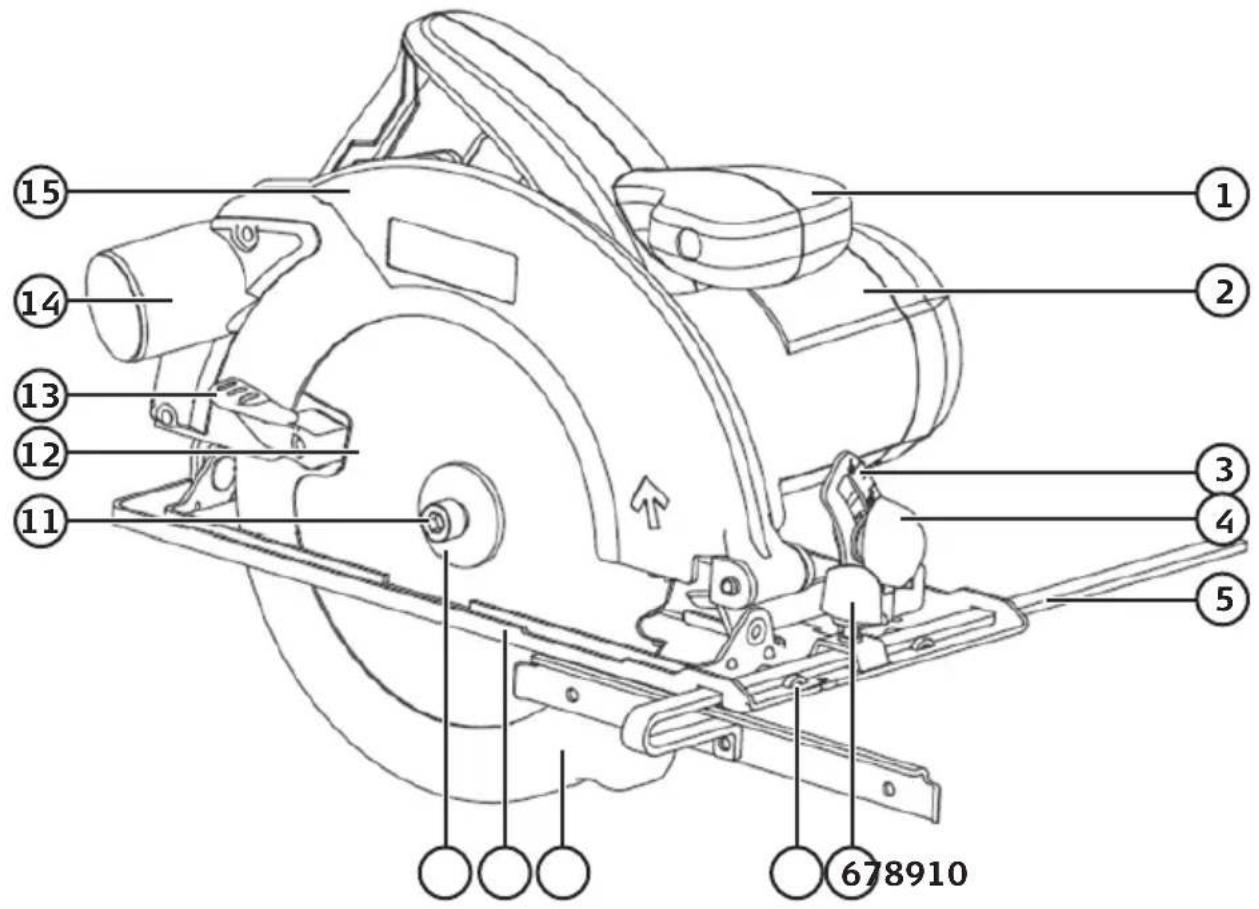

Product description

1. Front handle
2. Motor housing
3. Base plate angle scale
4. Bevel adjustment locking knob
5. Parallel guide
6. Parallel guide locking knob
7. Cutting line sight
8. Retractable lower blade guard
9. Base plate
10. Outer flange washer
11. Socket head blade bolt
12. Saw blade
13. Lower blade guard retracting lever
14. Dust extractor port
15. Fixed blade guard

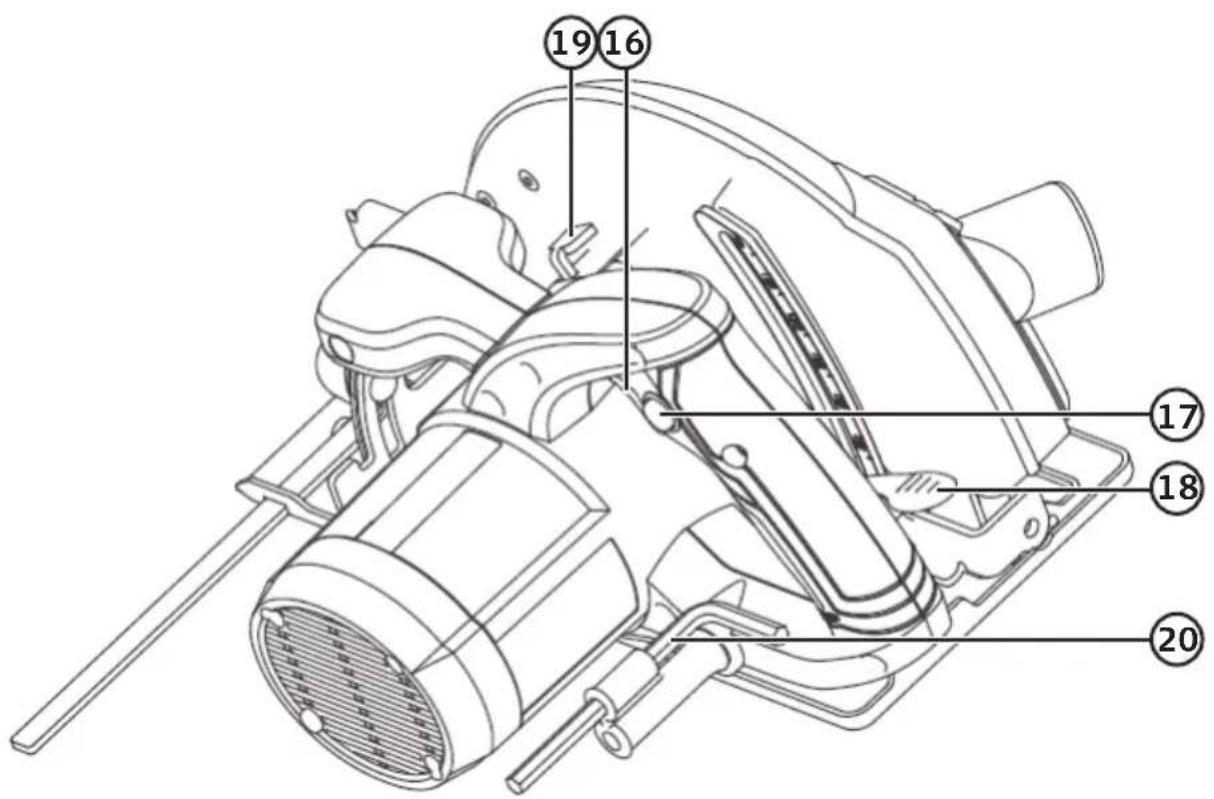

1. Power trigger
2. Trigger lock button
3. Depth adjustment locking lever
4. Spindle lock
5. Allen key

Fitting and replacing the blade

⚠ Warning

The blade is very sharp. Always wear safety gloves when handling the blade.

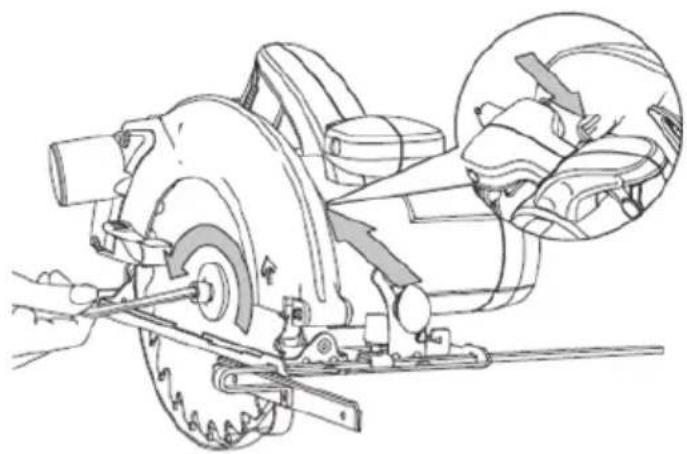

1. Hold in the spindle lock (19) to prevent the blade (12) from rotating.

2. Turn the socket head bolt (11) anti-clockwise using the Allen key (20) and remove the outer flange washer (10).

Technical line drawing of a mechanical assembly with a gear and base mount (no text or symbols)

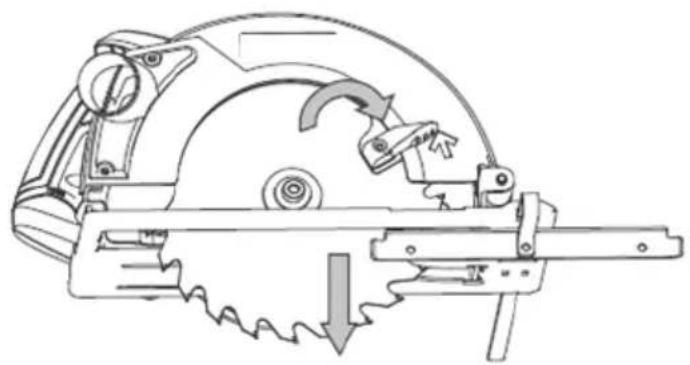

1. Rotate the retracting blade guard (8) clockwise and hold it in place.

2. Remove the blade.

Technical line drawing of a mechanical cutting tool with gear and blade assembly (no text or symbols)

1. Place a new blade onto the inner flange (a).

△ Important: Ensure that the direction of rotation arrow on the blade points in the same direction as the arrow on the fixed blade guard.

1. Place the outer flange washer in the centre of the blade.

2. Hold in the spindle lock and screw the socket head bolt back on using the Allen key.

Pure electrical circuit lines without any symbols

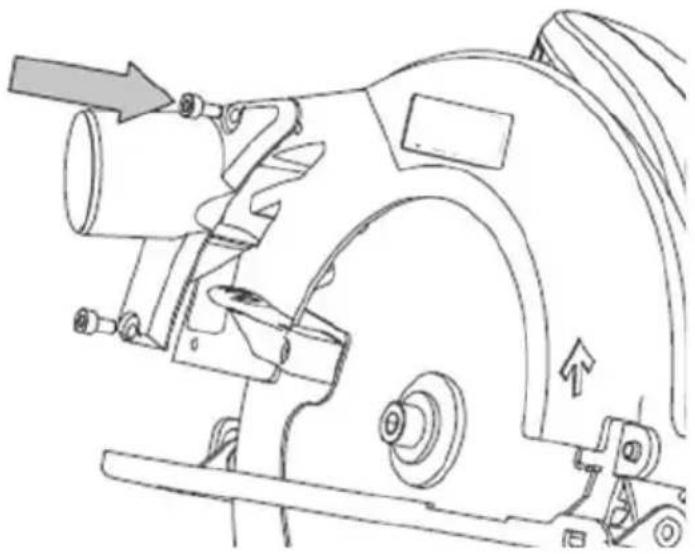

Attaching the vacuum cleaner adapter

1. Hold the dust extraction vacuum cleaner adapter against the fixed blade guard.

2. Line the two holes in the adapter up with the threaded holes in the blade guard.

3. Fasten the adapter to the blade guard using the 2 screws.

4. Connect a suitable vacuum cleaner to the adapter.

Technical line drawing of a mechanical device with no visible text or symbols

△ Important: Clean the vacuum cleaner adapter regularly to ensure optimum dust extraction.

Settings

⚠ Warning

Always unplug the saw before making any adjustments or servicing it.

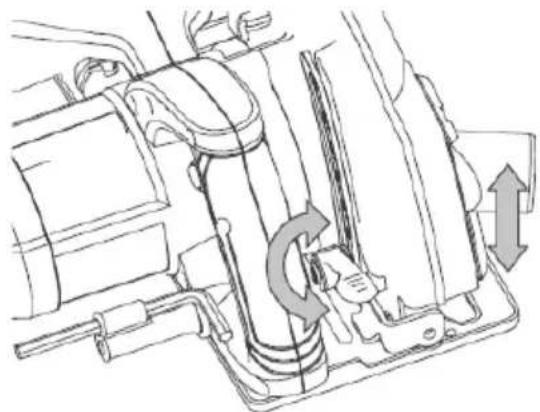

Setting the cutting depth

1. Undo the locking lever (18).
2. Set the base plate (9) to the desired cutting depth using the scale as a guide.
3. Tighten the locking lever.

Technical diagram of a mechanical assembly with directional arrows indicating motion or force (no text or symbols present)

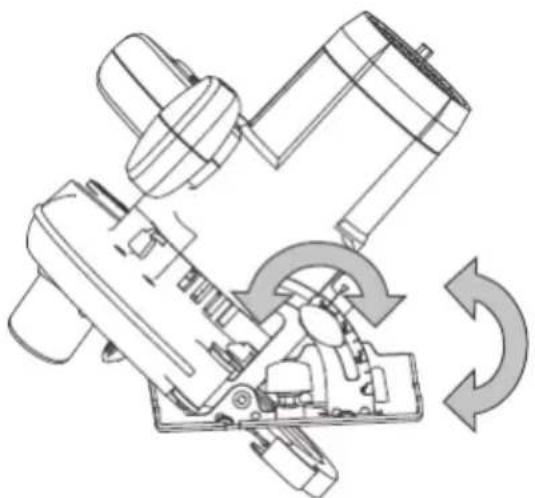

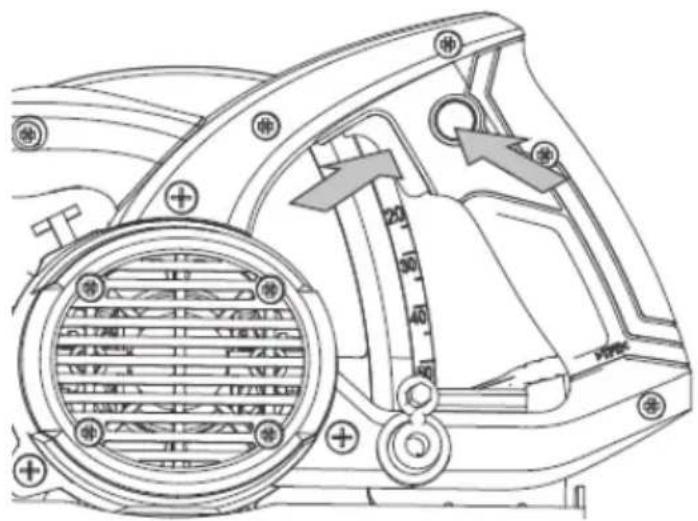

Setting the base plate bevel angle (tilt)

1. Undo the locking knob (4).
2. Set the desired angle (0–45°) using the scale.
3. Tighten the locking knob.
4. Check the angle and adjust if necessary.

Mechanical assembly diagram showing internal components and a circular motion arrow (no text or symbols)

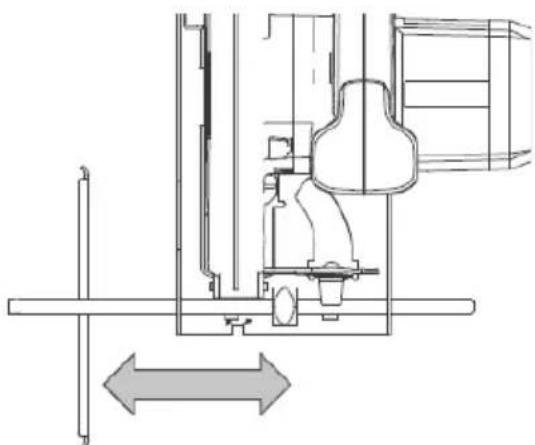

Adjusting the parallel guide

1. Undo the locking knob (6).
2. Set the desired width.
3. Tighten the locking knob.
4. Measure the distance between the parallel guide and the saw blade to check the setting.

Technical line drawing of a mechanical assembly with no visible text or symbols

Instructions for use

Switching the circular saw on/off

1. Plug the mains lead into a wall socket.

2. Hold the rear handle of the saw in your right hand and the front handle in your left hand.

3. Press in the trigger lock button (17) with your right thumb.

4. Squeeze the trigger (16) with your right forefinger.

5. Release the power trigger to switch the saw off.

⚠ Warning: The blade will continue to rotate for a few seconds after the saw has been switched off. Wait until the blade has come to a complete stop before putting the saw down.

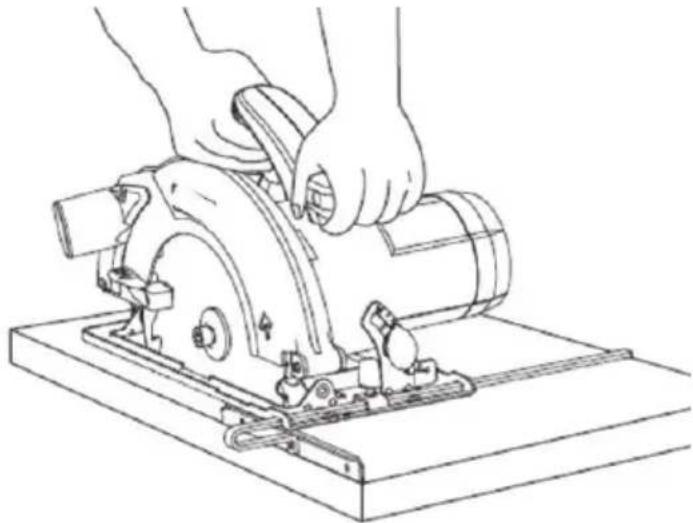

Sawing

△ Important: Always hold the saw firmly with both hands on the handles when sawing.

1. Set the saw up for sawing as directed in the Settings section.

① Note: Always make a trial cut on a spare piece of wood to check the depth, angle and width of the cut before beginning to saw the actual workpiece.

1. Use the parallel guide to help you saw in a straight line.

2. Alternatively, draw a sawing line on the workpiece and follow the sawing line using the sight (7) on the front edge of the base plate.

Line drawing of a hand operating a large industrial machine on a workbench (no text or symbols)

Troubleshooting guide

The saw does not start. •	Make sure that the mains lead is undamaged and securely plugged into a wall socket.• Check that there is power in the wall socket.
The saw runs slowly. • Re	member not to use too much force on the blade when cutting. Let it work at its own pace.• Is the blade worn? Replace if necessary.
Heavy vibrations. • Check	that the blade is in good condition and is correctly fitted.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling the product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Specifications

Voltage 220–240 V AC, 50 Hz

Power 1400 W

No-load speed 5800 rpm

Max cutting depth at 90° 65 mm

Max cutting depth at 45^ 45 mm

Saw blade 185 × 20 × 1.6 mm

Lpa (sound pressure) 89.9 dB(A), Kpa = 3 dB(A)

Lwa (sound power) 100.9 dB(A), Kwa = 3 dB(A)

Vibration value Rear handle a

Front handle a

$$ _ {\mathrm{h}, \mathrm{W}} = 1. 6 2 \mathrm{m} / \mathrm{s} ^ {2}, K = 1. 5 \mathrm{m} / \mathrm{s} ^ {2} $$

$$ \mathrm{h.W} = 3. 3 2 \mathrm{m} / \mathrm{s} ^ {2}, \mathrm{K} = 1. 5 \mathrm{m} / \mathrm{s} ^ {2} $$

Weight 4 kg

$$ 0. 0 0 \text { in the } \left[ \begin{array}{c c} 1 & 0 \ 0 & 0 \end{array} \right] \text { in the } \left[ \begin{array}{c c} 1 & 0 \ 0 & 0 \end{array} \right] \text { in the } \left[ \begin{array}{c c} 1 & 0 \ 0 & 0 \end{array} \right] \text { in the } \left[ \begin{array}{c c} 0 & 0 \ 0 & 0 \end{array} \right] \text { in the } \left[ \begin{array}{c c} 1 & 0 \ 0 & 0 \end{array} \right] \text { in the } \left[ \begin{array}{c c} 1 & 0 \ 0 & 0 \end{array} \right] \text { and } \left[ \begin{array}{c c} 1 & 0 \ 0 & 0 \end{array} \right] \text { in the } \left[ \begin{array}{c c} 1 & 0 \ 0 & 0 \end{array} \right] \text { in the } \left[ \begin{array}{c c} 1 & 0 \ 0 \ 0 & 0 \end{array} \right] \text { in the } \left[ \begin{array}{c c} 1 & 0 \ 0 & 0 \end{array} \right] \text { in the } \left[ \begin{array}{c c} 1 & 0 \ 0 & 0 \end{array} \right] \text { in. } $$

Cirkelsåg HC 1400

Art.nr 18-3633 Modell PSC185G

41-1475 PSC185G

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical cutting tool with gear and blade assembly (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical assembly with directional arrows indicating motion or flow (no text or symbols present)

Mechanical assembly diagram showing a motor and gear mechanism with rotational arrows (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Användning

Sågning

Line drawing of a hand operating a cutting tool on a workbench (no text or symbols)

Felsökningsschema

Symbol of a trash bin crossed with no visible text or labels

Specifikationer

Spänning 220–240 V AC, 50 Hz

Effekt 1400 W

Max varvtal obelastad 5800 v/min

1. Fremre håndtak
2. Motordeksel
3. Skala for innstilling av vinkel
4. Låseskrue for vinkelinnstilling
5. Parallellanslag
6. Låseskrue for parallellanslag
7. Sikte for snittlinje
8. Bevegelig sagbladbeskyttelse/deksel
9. Bunnplate
10. Ytre flensskive
11. Inseksskrue for sagbladet
12. Sagblad
13. Manøvreringsspak for bevegelig sagbladbeskyttelse
14. Uttak for støvsuger
15. Fast klingebeskyttelse/deksel

Technical line drawing of a mechanical assembly with a gear and base mount (no text or symbols)

Technical line drawing of a mechanical cutting tool with gear and blade assembly (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical assembly with directional arrows indicating movement or force (no text or symbols present)

Mechanical assembly diagram showing internal components and motion arrows (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Bruk

Saging

Line drawing of a hand operating a cutting machine on a workbench (no text or symbols)

Feilsøking

Symbol of a trash bin crossed with no visible text or labels

Spesifikasjoner

Spenning 220–240 V AC, 50 Hz

Effekt 1400 W

Maks turtall 5800 o/min (ubelastet)

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical cutting tool with gear and blade assembly (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical assembly with directional arrows indicating motion or force (no text or symbols present)

Mechanical assembly diagram showing internal components and a circular motion indicator (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Käyttö

Sahaaminen

Line drawing of a hand operating a manual cutting machine on a workbench (no text or symbols)

Vianhakutaulukko

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no text or symbols present)

Tekniset tiedot

Jännite 220–240 V AC, 50 Hz

Teho 1400 W

Technical line drawing of a mechanical assembly with gear and mounting bracket (no text or symbols)

Technical line drawing of a mechanical cutting tool with gear and blade assembly (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical assembly with directional arrows indicating motion or force (no text or symbols present)

Mechanical assembly diagram showing internal components and motion arrows (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Bedienung

Sägen

Line drawing of a hand operating a cutting tool on a workbench (no text or symbols)

Pflege und Wartung

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Technische Daten

Spannung 220–240 V AC, 50 Hz

Declaration of Conformity

Declares that this product complies with the requirements of the following directives and standards

Cocraft 41-1475/18-3633

PSC185G

Machinery Directive 2006/42/EC

EN 62841-1:2015

EN 62841-2-5:2014

EMC Directive 2014/30/EU

EN: 61000-3-2: 2014

EN: 61000-3-3: 2013

EN: 55014-1: 2006

+A1:2009+A2:2011

EN: 55014-2: 2015

Henrik Alfredsson

Technical Manager

Insjön, Sweden, 2017-12-15

CLAS OHLSON AB, SE-793 85 INSJÖN, SWEDEN

Sverige

Postal 10 - 13 Market Place

Kingston Upon Thames

Surrey

KT1 1JZ

Deutschland

Kundenservice Hotline: [phone]

E-Mail: [e-mail]

Homepage

www.clasohlson.de
