| Product Type | Oscillating Multi-Tool |
| Model | LXC MT18 |
| Brand | Cocraft |
| Voltage | 18 V DC |
| No-Load Speed | 5,000 – 16,000 rpm |
| Oscillation Angle | 2.8° |
| Weight (without battery) | 0.9 kg |
| Noise Level (LpA) | 75.1 dB(A), K=3 dB(A) |
| Noise Level (LwA) | 86.1 dB(A), K=3 dB(A) |
| Vibration Level (ah) | 5.793 m/s², K=1.5 m/s² |
| Battery System | Cocraft LXC (Lithium Xross Connect) 18V series |
| Battery & Charger | Sold separately |
| Accessory Mount Compatibility | Cocraft and Bosch Starlock (not Starlock PLUS or MAX) |
| Included Accessories | Scraper blade, bi-metallic plunge cutter blade, sanding plate with sanding sheet |
| LED Work Light | Yes |
| Speed Settings | Variable via speed selector |
| Safety Features | Overload protection, overheating protection, deep discharge undervoltage protection |
| Cleaning | Use a soft brush or cloth; never use water, solvents, or corrosive chemicals |
| Storage | Dry location, out of reach of children |
Frequently Asked Questions - LXC MT18 Cocraft
User questions about LXC MT18 Cocraft
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Uncategorized in PDF format for free! Find your manual LXC MT18 - Cocraft and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LXC MT18 by Cocraft.
USER MANUAL LXC MT18 Cocraft
Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.
Viktig information:
41-1376
DSB009-180
Ver. 20190624
Original instructions
Bruksanvisning i original
Originalbruksanvisning
Postal 10 - 13 Market Place
Kingston upon Thames
Surrey
KT1 1JZ
DEUTSCHLAND
Kundeservice Hotline: 040 2999 78111
E-Mail: kundenservice@clasohlson.de
Please read the entire instruction manual before use and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).
Safety
General Power Tool Safety Warnings - Personal Safety
Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) Battery tool use and care
a) Make sure that the power switch is set to OFF before the battery is inserted. Attaching a battery to a power tool when the power switch set to ON increases the risk of an accident occurring.
b) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
c) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
d) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
e) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Specific safety warnings for multi-tools
- This power tool is intended for sawing, sanding, polishing and cutting. Read all safety warnings, instructions, illustrations, and specifications provided with this tool. Neglecting to follow all of the instructions listed below can result in electric shock, fire and/or serious injury.
- Do not use accessories which are not intended to be used with this tool and which are not recommended by the manufacturer. Even if the accessory can be attached to your power tool, there is no guarantee that it can be used safely.
- Wear personal protective equipment. Depending on how you use the machine; use a visor/face protection or safety glasses. If necessary use a mask, ear protection, gloves, and apron/work clothing to protect you from small shards of metal or splinters from the work object. The eye protection you use must be able to protect against flying debris produced in different working positions. The breathing protection should be able to filter any particles produced by the work. Prolonged exposure to high levels of noise can result in hearing damage.
- Keep children at a safe distance from the work area. Everyone who visits the place of work must wear personal protective equipment. Debris from the workpiece or from a damaged accessory can fly off and injure people outside of the immediate work area.
-
Clean the motor ventilation slits regularly. The motor's fan pulls in dust, which gets inside the outer casing and a build up of this collected metal dust can lead to electrical dangers.
-
Do not use the power tool near flammable material. Sparks can easily ignite flammable material.
- Do not use accessories, which require liquid coolants. The use of water or other liquid coolants can result in electric shock or electrocution.
Specific safety instructions for sanding
- Extra caution should be taken when sanding lead paint, wood, metal or other materials which produce toxic dust. Make sure any bystanders in the work area are well protected.
- Remember that dust caused by sanding can be very flammable when mixed with air.
Safety instructions specific for cutting
- Hold power tool by its insulated gripping surfaces when performing an operation in where the cutting accessory may contact hidden wiring or its own cord could cut through hidden cables or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.
• Always wear a dust mask.
Product safety symbols

Read the entire instruction manual.

Always use ear protection.
Always use safety glasses.
Always use respiratory protection.

max 50 °C

Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.
Product description

- Accessory mount with lock nut
- LED work light
- Catch for accessory mount
- [I/0] Switch, on/off
- Ventilation opening
- Speed selector
- Ventilation opening
- Battery connection
- Bi-metallic plunge cutter blade

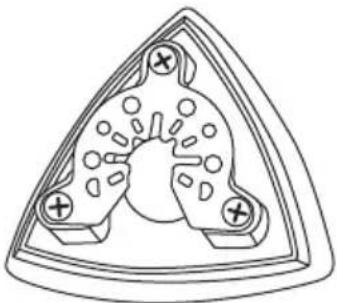

- Sanding plate with included sanding sheet
Included accessories
Scraper blade
Used for the removal of paint, glue, etc.
Perfect for sanding those hard-to-reach places, such as corners. Changing the grade of sandpaper used allows you to sand wood, stone, paint and so forth.
Ideal for deep incisions in wood, e.g. cutting holes for fitting air vents. Can also be used for sawing in confined spaces. This saw blade can even saw through nails.
Extra accessories
The Cocraft range includes several other accessories compatible with this multi-tool, amongst others:
• Metal cutting blade
- Saw blades and sanding pads for cement, wall tiles and plastic.
• Various sandpaper types.
Attaching accessories

Warning. Always remove the battery from the multi-tool before replacing accessories or performing any adjustment, service or maintenance.
The multi-tool's accessory mount (1) is adapted for accessories from Cocraft or Bosch Starlock (not Starlock PLUS or Starlock MAX)

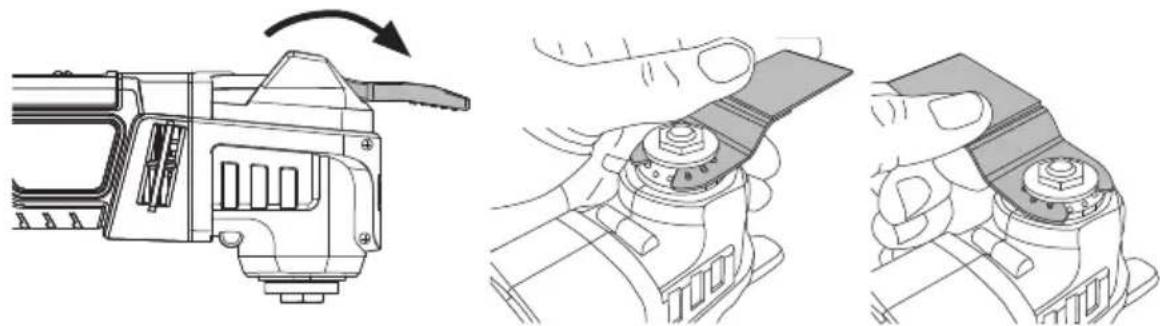

Accessories from Cocraft


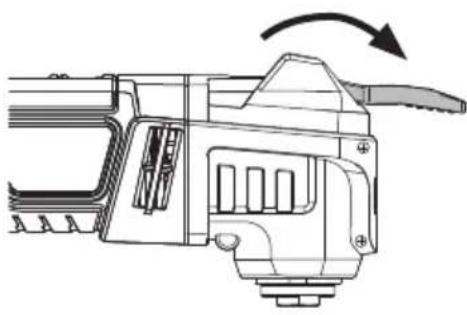

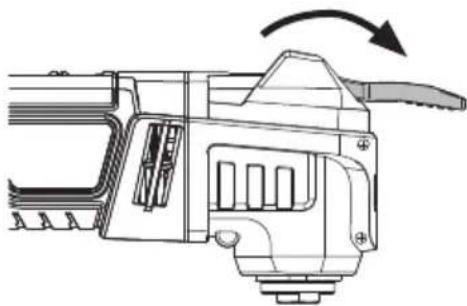

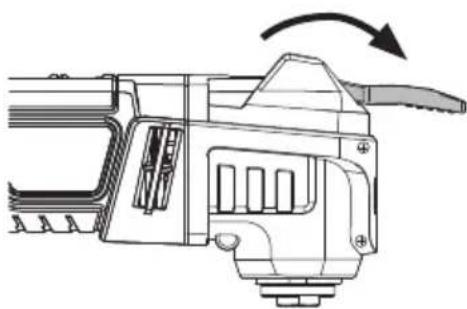

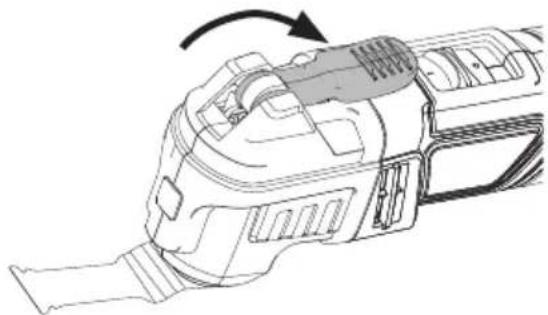

Fold out the catch for the accessory mount (3) fully, slide in the accessory (9, 10 and 11) and position it at the desired angle so that the pins on the mount are aligned with the holes in the accessory.
-
Close the catch fully.

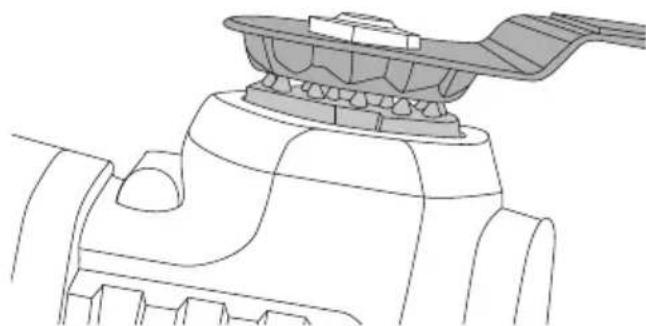

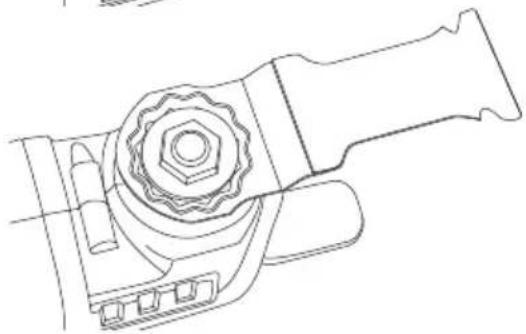

Accessories from Bosch Starlock
-

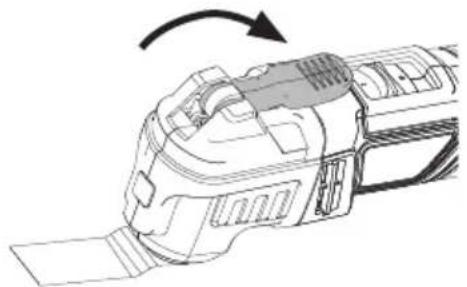

Fold out the catch fully.
-

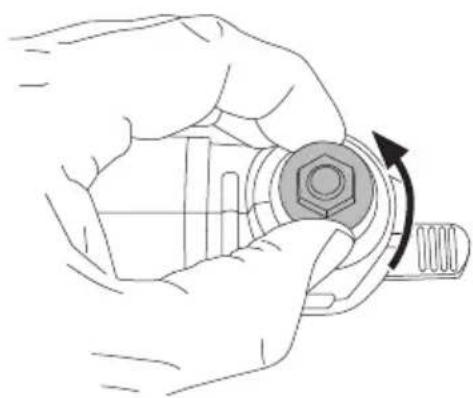

Unscrew the lock nut (1).
-

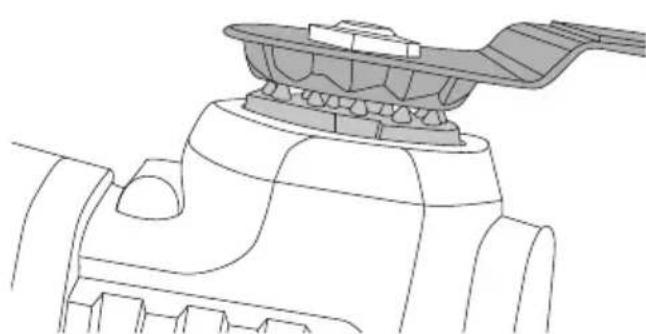

Place the accessory on the mount.
The Starlock accessory will sit loosely on the mount, as the centre hole is slightly too small for the mount.

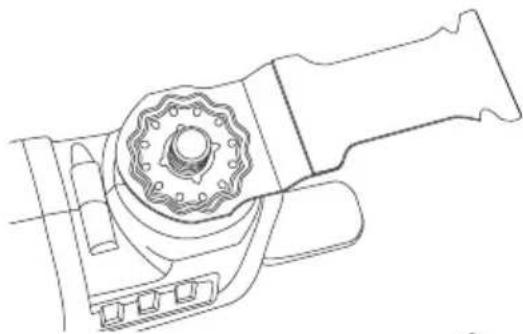

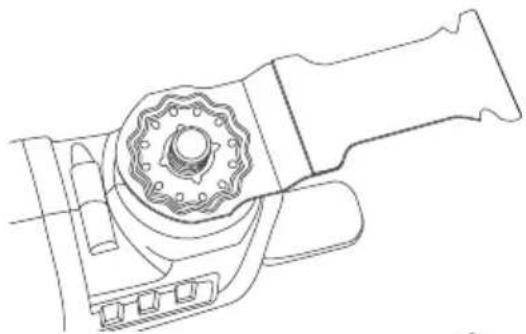

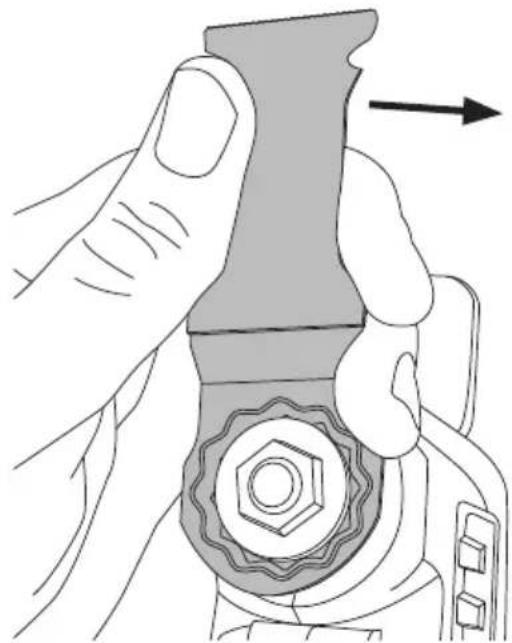

- Align the small holes in the accessory with the pins on the mount and screw the lock nut back on. Tighten by hand (tools are not required).
On/off

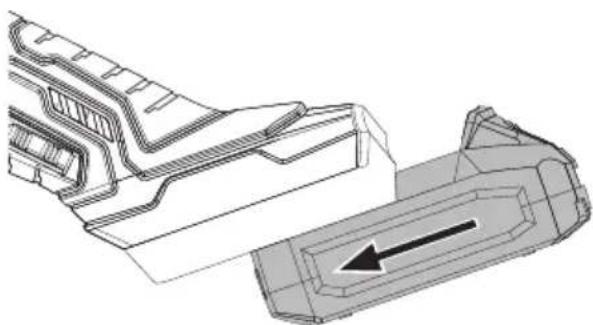

- Slide the battery into the battery connection (8) making sure that it clicks securely into place.
- Turn on/off using the power switch (4).
- Set the speed using the selector (6).
The choice of speed depends on the type of work being carried out and the type of material being worked on. Experiment until you find the best speed setting.
Caution should be observed when using the saw blades. Check the working area so that you are prepared for any nails, screws or anything else which could cause you to lose control over the multi-tool. If you are cutting wall tiles, bear in mind that the saw blade will be subjected to hard wear during prolonged use.
Sanding
- The sanding sheets are attached with hook and loop fasteners. Remove the old sanding sheet, brush off the hook and loop fabric on the accessory if necessary and then attach a new sanding sheet.
- Always use undamaged sandpaper and change it often. This will not only give you better results but also prolong the life of your multi-tool.
- Do not use excessive force when sanding, rather apply a constant, light pressure. Applying too much pressure will not speed up the sanding process; it will merely wear out the sandpaper and the multi-tool more quickly.
- When sanding wood, do not use sanding sheets that have previously been used for metal.
Overload protection and other safety features
The multi-tool/battery has a number of safety features that prevent damage during use.
- During short, high-load situations, the overload protection may switch the multi-tool/battery off. This protection resets automatically. Set the switch in position "0" and wait a few seconds, ensure that the multi-tool is not under load and then restart it. The appliance should now function normally again.
- In the event of high load for extended periods, the overheating protection may switch the multi-tool/battery off. This feature is self-resetting, but the multi-tool cannot be restarted until the temperature has returned to a safe level. Set the switch to position “0” and allow the multi-tool to cool before resuming work. Do not expose the multi-tool to direct sunlight for prolonged periods. Doing so could cause the overheating protection to trigger.
- The battery has a deep discharge undervoltage protection, which operates when the battery becomes discharged. The deep discharge protection turns the multi-tool off automatically. The battery then needs to be recharged.
Care, maintenance and storage
△ Always remove the battery from the multi-tool before performing any adjustment, service or maintenance.
- Clean the exterior of the multi-tool with a soft brush or cloth. Never use water, solvents or corrosive chemicals for cleaning.
- Regularly remove all dirt, especially from around the motor ventilation slits (5 and 7).
- Store the multi-tool in a dry location out of the reach of children if it is not going to be used for a long time.
Troubleshooting guide
| The multi-tool will not start. | Discharged or incorrectly inserted battery Charge the battery and ensure that it is properly fitted in the multi-tool. |
| The multi-tool is sluggish and/or cuts out. | Blunt or damaged accessory. Check the accessories and replace if necessary.Too much force applied. Decrease the applied force.The battery might be overheated.Read the Overload protection and other safety features section. |
| Poor battery operating time. | The battery is not fully charged. A few charging cycles where the battery is charged 100% might be needed before it reaches full capacity.The battery needs replacing. |
| The battery does not charge. | The battery is not correctly inserted into the charger.The battery or charger contacts are dirty.Disconnect the charger from the power supply and clean the contacts.The mains lead is not securely plugged into the wall socket.Check that the wall socket is energised.The charger or mains lead is damaged.The battery needs replacing. |
Responsible disposal
This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling the product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.
No-load speed 5,000–16,000 rpm
Oscillation angle 2.8°
Voltage 18 V
Noise emission LpA = 75.1 dB(A), K = 3 dB(A)
LwA = 86.1 dB(A), K = 3 dB(A)
Always wear ear protectors/defenders at noise levels exceeding 80 dB(A)
Vibration a _h=5.793 m/s^2, K=1.5 m/s^2
Weight 0.9 kg (without batteries)
(Battery and charger sold separately)
Vibration
- The measurement of the vibration emission level (triaxial vector sum) and the noise level values declared in this instruction manual have been carried out in accordance with a standardised test method described in EN 60745 and can be used for comparing one power tool with another.
- The measurement method may also be used for a preliminary assessment of vibration exposure.
- The declared vibration emission level applies when the power tool is used in accordance with this instruction manual. If however, the power tool is used for other purposes and with other accessories or has not been properly maintained, the vibration emission level could increase significantly over the total working period.
- For an exact assessment of the vibration exposure, the times when the tool is switched off or running idle should also be taken into account. This significantly reduces the vibration exposure over the total working period. Decide upon safety measures to protect the operator from the effects of vibration during all types of use.
Multiverktyg
Technical line drawing of a mechanical device with an arrow indicating rotation (no text or symbols present)
Illustration of a hand holding a mechanical component with a bolt and nut, showing a directional arrow (no text or symbols)Användning
På/av
Varvtal 5000–16000 v/min
Rörelse 2,8°
Spänning 18 V
Ljud LpA= 75,1 dB(A), K = 3 dB(A)
LwA = 86,1 dB(A), K = 3 dB(A)
Pure technical diagram of a triangular component with internal holes and mounting holes (no text or symbols)Slipesåle
Technical line drawing of a mechanical device with an arrow indicating rotation (no text or symbols present)
Illustration of a hand holding a mechanical component with a bolt and nut, showing a directional arrow (no text or symbols)Bruk
På/Av
Turtall 5000–16 000 o/min.
Bevegelse 2,8°
Spenning 18 V
Lyd LpA = 75,1 dB(A), K = 3 dB(A)
LwA = 86,1 dB(A), K = 3 dB(A)
Diagram of a triangular mechanical component with internal holes and mounting holes (no text or symbols)Hiontapohja
Line drawing of a mechanical device with an arrow indicating rotation or assembly (no text or symbols present)
Technical line drawing of a mechanical device with a curved arrow indicating rotation (no text or symbols)i Tietoa
Illustration of a hand holding a mechanical component with a bolt and nut, showing a directional arrow (no text or symbols)Käyttö
Technical line drawing of a mechanical device with an arrow indicating rotation (no text or symbols present)
Technical line drawing of a mechanical device with a curved arrow indicating rotation (no text or symbols)i Hinweis
Illustration of a hand holding a mechanical component with a bolt and nut, showing a directional arrow (no text or symbols)Bedienung Ein/Aus
Declaration of Conformity
Declares that this product complies with the requirements of the following directives and standards
Product Compliance Manager
Insjön, Sweden, 2019-06-24
CLAS OHLSON AB, SE-793 85 INSJÖN, SWEDEN
LXC
LITHIUM XROSS CONNECT
