Type	Garden Shredder
Model	HS2800N
Brand	Cocraft
Rated Voltage	230–240 V AC, 50 Hz
Power Consumption	2800 W (P40)
Collection Box Capacity	60 L
Max Branch Diameter	45 mm
Weight	22 kg
Wheel Diameter	200 mm
Sound Pressure Level (LpA)	74.9 dB(A), K=3 dB(A)
Measured Sound Power Level (LwA)	85.9 dB(A), K=3.28 dB(A)
Guaranteed Sound Power Level (LwA)	88 dB(A)
Motor Overload Protection	Automatic shut-off with reset button
No-Volt Release Switch	Yes, prevents auto-restart after power cut
RCD Requirement	30 mA residual current device
Blade Rotation Direction	Reversible for clearing jams
Pressure Plate Adjustment	Yes, via screw (0–0.5 mm gap)
Safety Features	Safety switch on collection box, blade cover, overload protection
Required Protective Gear	Ear protection, eye protection, gloves, sturdy footwear
Materials Suitable for Shredding	Biodegradable garden waste: twigs, branches, hedge trimmings
Materials NOT Suitable	Soil-covered roots, stones, metal, glass, fabric, paper, plastic, kitchen waste
Assembly Required	Yes: attach wheels, mount shredder unit, install collection box
Maintenance	Clean ventilation slots, wipe with damp cloth, store dry

Frequently Asked Questions - HS2800N Cocraft

What type of material can I shred with the Cocraft HS2800N?

The shredder is designed for biodegradable garden waste such as twigs, branches from bushes, hedges, and small trees. Do not shred soil-covered roots, stones, metal, glass, fabric, paper, plastic, or kitchen waste.

How do I start the shredder?

First, ensure the collection box is locked in place and the safety switch is up. Connect to a 230 V, 50 Hz outlet with a 30 mA RCD. Set the rotation direction selector to ↓ (clockwise), then press the On switch [I].

What should I do if the blade gets jammed?

Switch off the shredder and wait for the blade to stop. Set the rotation direction selector to ↑ (reverse), then press and hold the spring-loaded On switch to reverse the blade. For stubborn blockages, unplug the unit, remove the blade cover, and clear debris manually.

How do I adjust the pressure plate?

With the shredder running (clockwise), slowly turn the pressure plate adjustment screw clockwise until you hear a scraping sound and see aluminum shavings. This sets the gap to 0 mm for optimal shredding.

What safety precautions should I take?

Always wear ear protection, eye protection, gloves, and sturdy footwear. Keep hands and feet away from the hopper and discharge opening. Never use in rain or on wet surfaces. Ensure the product is on a level surface and all covers are secure.

The shredder won't start – what could be wrong?

Check that the collection box safety switch is fully up, the extension cable is intact and connected, the wall socket is live, and the overload protection has not tripped. If tripped, wait 1-2 minutes and press the reset button.

How do I maintain the shredder?

Always unplug before cleaning. Wipe the exterior with a damp cloth using mild detergent. Keep ventilation slots free of debris. Never use a pressure washer or hose. Store in a dry, dust-free area out of children's reach.

Can I use an extension cord?

Yes, but it must be suitable for outdoor use (minimum H07RN-F), with a conductor cross-section of 1.5 mm² for lengths up to 25 m and 2.5 mm² for longer lengths. Always uncoil the entire cable and inspect for damage.

How do I dispose of the shredder at the end of its life?

Do not dispose with household waste. Take it to a local recycling facility or contact the place of purchase for environmentally sound disposal, in accordance with EU directives.

What is the maximum branch diameter the HS2800N can handle?

The shredder can process branches up to 45 mm in diameter. Do not overload the machine – feed material consistently and avoid forcing large branches.

USER MANUAL HS2800N Cocraft

Read the entire instruction manual carefully and make sure that you fully understand it before you use the equipment. Keep the manual for future reference.

Viktig information:

Blue and black electric shaver device with wheels, displayed against a dark background (no text or symbols visible)

Art.no Model

41-2506

HS2800N

Ver. 20221107

Original instructions

Bruksanvisning i original

Originalbruksanvisning

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

Safety symbols on the product

Warning!

Read the instruction manual.

Wear ear protection.

Wear eye protection.

Wear protective gloves.

Do not use the product in the rain or in bad weather.

Warning: Switch off, unplug and let the product cool down before carrying out any maintenance or cleaning. Likewise if the extension cable has been damaged in any way.

Warning: Rotating blade. Keep hands and feet away from the mouth of the hopper and output opening. The blade will continue to rotate for a short while after the machine has been turned off.

Warning: There is a risk of debris being ejected from the machine during use. Keep your body away from the mouth of the hopper and output opening. Make sure that bystanders and pets are kept out of the work area.

Warning: Electric shock hazard.

Always unplug the shredder before working on it.

Guaranteed sound power level.

Always wait until all the moving parts of the product have come to a complete stop before touching them.

Never stand on a step, ladder or platform while using the product.

General safety instructions

• This product must not be used by anyone (including children) suffering from physical or mental impairment. This product should not be used by anyone that has not read the instruction manual unless they have been instructed in its use by someone who will take responsibility for their safety.
• Never let children play with the product.
• Cleaning and user maintenance must not be carried out by children.
• Never allow children or other persons who have not read and understood this instruction manual and who are unfamiliar with the shredder to use the product. Refer to local bylaws and regulations regarding the minimum age for using the shredder.

Before use

• Never use the product with other persons or animals in the work area.
  • Always wear safety glasses and ear defenders when using the product.
• Appropriate protective clothing such as sturdy footwear, long trousers and gloves should be worn while operating the product. Do not wear loose-fitting clothing or clothes with dangling cords or belts. Do not use the product while barefoot or wearing sandals.
• Only use the product in the open (that is, away from walls and other structures). Make sure that the product is placed on a firm, level surface. The product must only be used in the upright position.
• Never use the product on a paved or gravel surface. The surface may become damaged by material ejected from the product.
• Check that all the nuts, bolts and other fastenings are tight. Covers must be fastened properly and in good working order. Replace any damaged or illegible stickers before commencing work.
• Always inspect the connection and extension cable for signs of damage or ageing before use. If the cable is damaged, it must be disconnected immediately from the mains. DO NOT TOUCH THE CABLE OR CONNECTION UNTIL THE CABLE HAS BEEN ISOLATED FROM THE MAINS. Never use the product if the mains cable is damaged or worn.
• Only use replacement parts and accessories that are approved by the manufacturer or retailer.
• Never leave the product unattended while it is switched on and store it in a dry place out of children's reach.
• The product should only be connected to a 230 V, 50 Hz mains outlet protected by a 30 mA residual current device (RCD).

While working

• Make sure that the hopper is empty before switching the product on.
• Keep your head, hair and other body parts away from the mouth of the hopper.
• Do not touch any moving parts of the product until it has been disconnected from the power supply and the moving parts have come to a complete standstill.
• Avoid any abnormal posture when using the product. Stand on the same level as the feet/wheels of the shredder.
• When feeding material into the shredder, be careful not to introduce pieces of metal, stones, bottles, cans or other foreign objects.
• Never operate the product if any of its safety devices is missing or damaged or without the collection box. Never operate the product with a damaged or worn extension cable.

• Ensure that the product is switched off before attaching or removing the collection box.

• Do not use the product in the rain or in bad weather.

• Do not use the product when you are tired, distracted, or under the influence of alcohol, medicine or other drugs. Always take a break when you need one.
  • Always switch the product off and disconnect it from the mains supply:

• when it is not in use.

• when it is being moved or left unattended.
• before removing material that is jamming the blade.
• when you are inspecting or cleaning it.
• when carrying out maintenance or replacing accessories.
• before it is lifted or moved.

- Do not allow shredded material to accumulate near the ejection port. This might otherwise hinder proper ejection and force the material back into the hopper.

- Never move or transport the product when it is switched on.

- Keep hands and other body parts away from the mouth of the hopper, the ejection port and any moving parts.

- In the event of blockages in the hopper mouth or ejection port, switch the machine off and disconnect it from the power supply before clearing the blockage. Ensure that the blade and motor are free of debris to protect the motor when the machine is switched back on. Remember that the blade starts rotating as soon as the product is switched on.

- Immediately switch off the power and wait until the machine has completely stopped, if the cutting mechanism hits a foreign object, or if the machine starts to make unusual noises or vibrate. Disconnect the machine from the mains and take the following steps before restarting and operating the machine:

• check for damage.
• replace or repair damaged parts.
• tighten any loose parts.

Caution:

The following instructions state how damage to the product and possible injury could be avoided:

• Clean the ventilation slits regularly and follow the care and maintenance instructions.
• Do not overload the machine – work only within the cutting capacity limits. Do not use the product for heavy work or for purposes for which it has not been designed.
• Only switch the shredder off once the hopper is completely empty, otherwise the shredder may clog up and not be able to start.

- Never try to repair the product unless you are qualified to do so. All service of the product other than that mentioned in this instruction manual should be carried out by qualified personnel and only using original spare parts.

Electrical safety

Warning: The following instructions state how to avoid accidents and injuries due to electric shock:

• Damaged cables, connectors and plugs or extension leads not corresponding to specifications, must not be used. Unplug the product immediately if the mains cable or plug has been damaged. Under no circumstances must the damaged cable or plug be touched until the product has been disconnected from the power supply.
• If the internal power cable or power socket of the product has been damaged, it must only be replaced by the manufacturer, authorised service facility or qualified tradesman. This is to prevent the risk of electric shock or fire.
• Never use the product if the on/off switch is in any way damaged or malfunctioning. Repairs must only be performed by the manufacturer, an authorised repair agent or qualified electrician.
• Any extension cables used must be suitable for outdoor use and have a rating of at least H07RN-F and a minimum conductor cross-sectional area of 1.5 mm ^2 (e.g. a 3G 1.5 mm ^2 cable).
• If the extension lead has too small a conductor cross sectional area the machine's performance will be reduced considerably. For leads under 25 m in length a minimum conductor cross-sectional area of 1.5 mm ^2 is required, for cables over 25 m in length the cross-sectional area must be at least 2.5 mm ^2 (i.e. 3G 2.5 mm ^2 ). Always uncoil the entire extension cable and inspect it for damage before use.
• Never unplug the extension cable from the wall socket or connector on the product by pulling the cable, always grip and pull the plug itself.
• Keep the cable away from heat, oil, sharp edges and moving parts.

Product description

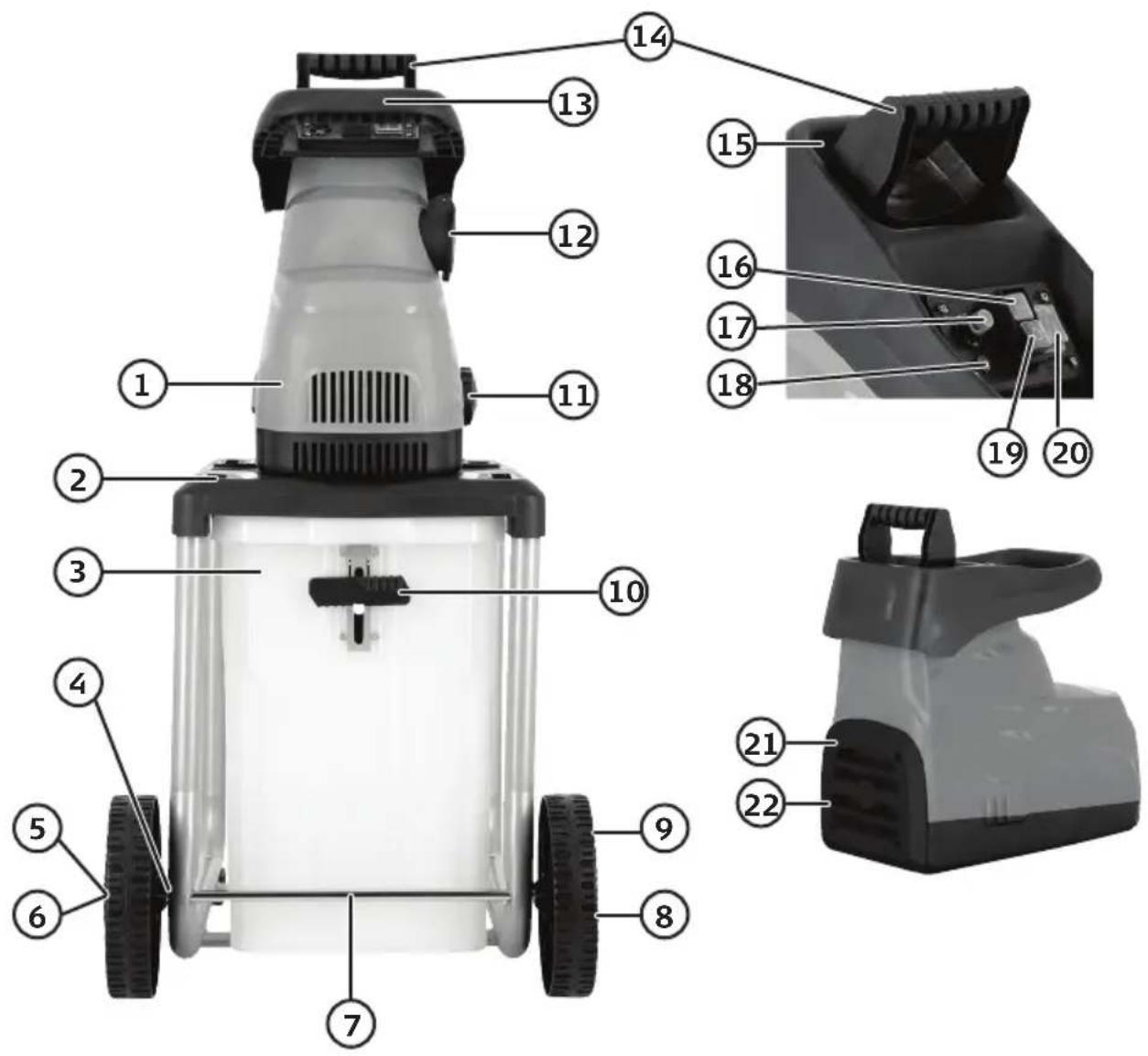

1. Shredder unit
2. Chassis
3. Collection box
4. Washer (inside, not visible in picture)
5. Washer (outside, not visible in picture)
6. Split pin (not visible in picture)
7. Axle
8. Wheel hub cap
9. Wheel
10. Collection box release catch/safety switch
11. Pressure plate adjustment screw

12. Connection for extension cable

13. Handle

14. Material feed pusher
15. Hopper
16. On switch
17. Overload protection reset button
18. Power on indicator: illuminates when the product is connected to the mains supply and the collection box release catch/safety switch is locked.
19. Off switch
20. Rotation direction selector
21. Blade cover screw
22. Blade cover

Assembly

1. Insert the axle (7) into the chassis and fit the inside washers (4).

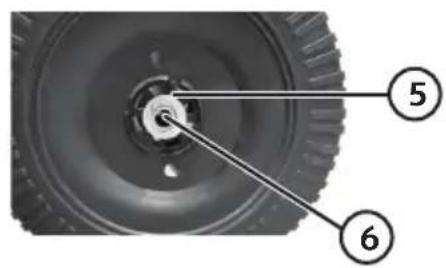

2. Fit the wheels onto the axle and fit the outside washers (5). Secure the wheels using the split pins (6).

3. Click the hub caps (8) onto the wheels.

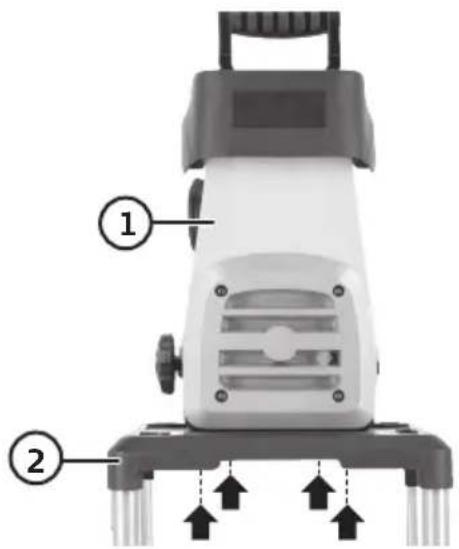

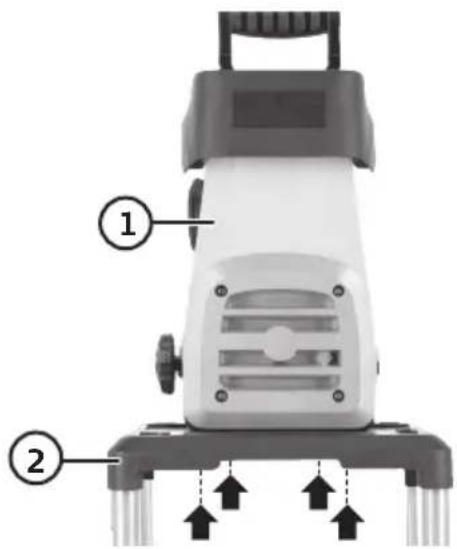

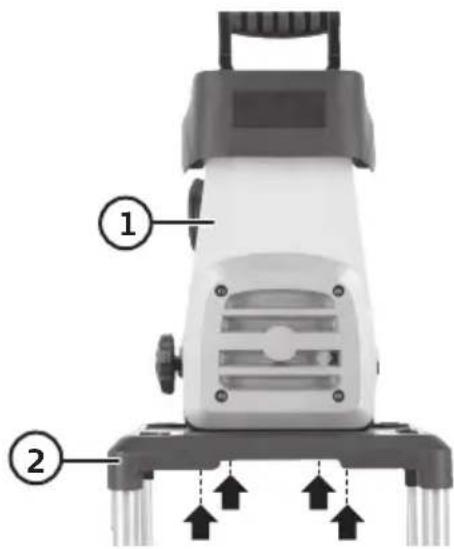

4. Mount the shredder unit (1) onto the chassis (2) using the 4 included screws.

5. The release catch/safety switch (10) must be unlocked (down) in order for the collection box to be slid into or out of the chassis.

3D model of a mechanical frame with numbered annotations (7 and 4), no readable text or symbols beyond labels

Two views of a cleaning or dust removal machine, one showing a downward arrow and the other showing a right-hand panel with an arrow (no text or symbols visible)

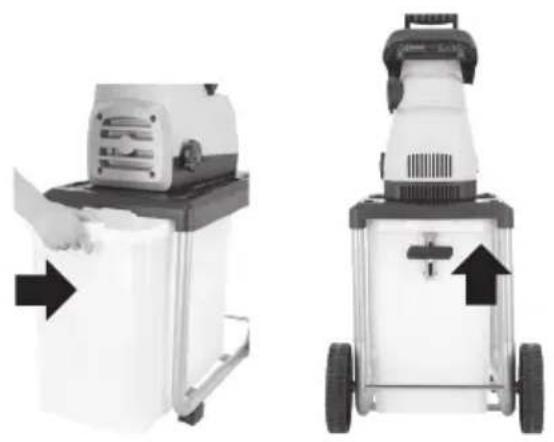

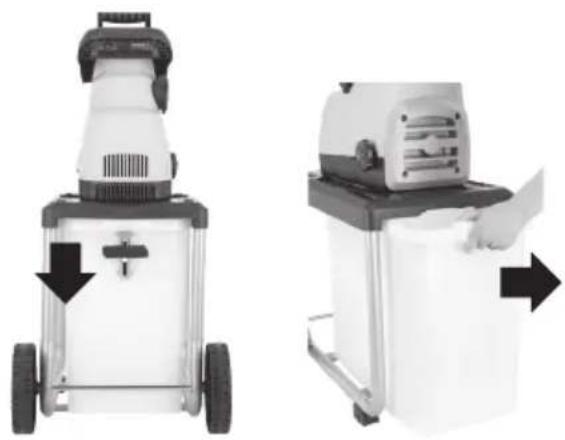

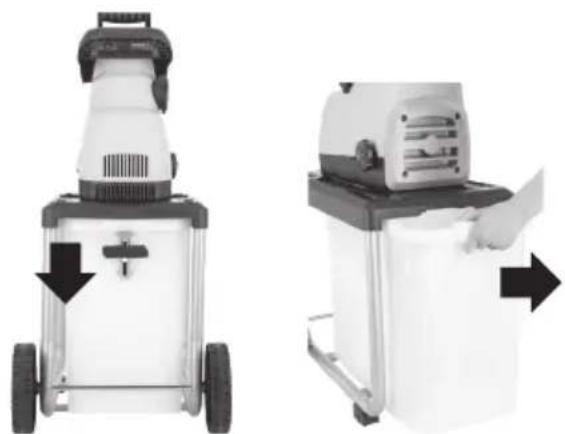

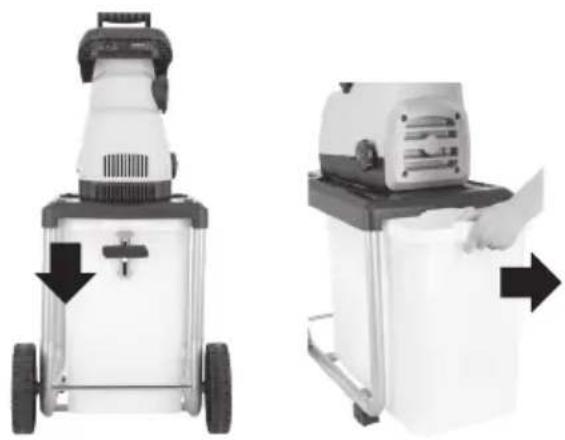

1. Push the collection box into the chassis (it can only be pushed in from one end) and slide up the release catch/safety switch to lock the box in place and enable the machine to be switched on.

Two industrial machines side by side, one with a paper feeding into a container and the other with a brush (no visible text or symbols)

Instructions for use

The garden shredder is only designed for shredding biodegradable garden waste such as twigs and branches from bushes, hedges and small trees. It must not be used for processing earth-covered roots, stones, metal, glass, fabric, paper or plastic. Neither should the shredder be used for material that does not have a firm consistency, e.g. kitchen waste.

Switching on/off

1. Connect the shredder to a 230 V, 50 Hz mains outlet protected by a 30 mA residual current device (RCD).
2. Check that the hopper (15) is empty.
3. Press the rotation direction selector (20) down to enable the blade to rotate clockwise. Then press [1] (16) to switch the shredder on.
4. Press [o] to switch the shredder off.

Reversing the blade to clear jams

The rotation direction selector switch must only be used when the shredder is switched off and the blade drum has stopped rotating.

Switch the shredder off, wait until the blade drum has stopped rotating and set the selector to ↑. Press and hold down [I] to start the shredder, [I] the switch is spring-loaded and needs to be held down in reverse mode. The blade drum will rotate in reverse for as long as the switch is held down. This will enable any material which has fastened in the hopper to be freed and pulled out.

In case of stubborn blockages

Material that doesn't free when the blade is reversed might need to be cleared from inside the cutter housing.

Proceed as follows:

1. ⚠️ Switch the shredder off and unplug it from the mains supply.
2. Remove the four socket head screws (21) that hold the blade housing cover (22), using the included hex key.

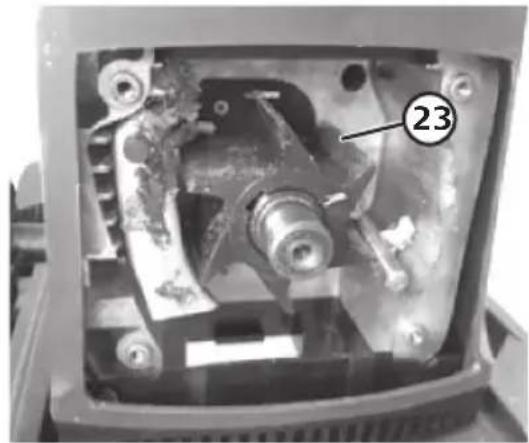

3. Remove the cover and clear away any debris from around the blade (23) so that it can rotate freely.
4. Refit the blade cover and screw it securely into place.

Interior view of a vintage computer case showing internal mechanical components (no visible text or symbols)

Note: The shredder is fitted with a no-volt release switch which prevents the machine from automatically starting again after a power cut.

Overload safety cut-out

1. If the shredder is overloaded, e.g. the blade drum is jammed, the motor will automatically stop after a few seconds.

The overload cut-out protection switch automatically cuts off the power supply to the motor. Wait for 1–2 minutes to give the motor time to cool before pressing the reset button (17).

1. Then press [I] to start the shredder again.

Adjusting the pressure plate

The cutting mechanism consists of a rotating blade drum and a pressure plate which the blade on the drum strikes against. For optimum shredding, the gap between the blade and the pressure plate should be 0–0.5 mm. The gap is pre-set by the manufacturer and should not need to be adjusted before the shredder is used for the first time. After some use, the pressure plate may need to be adjusted in order for the shredder to work effectively. This is done as follows:

1. Set the rotation direction selector (20) to ↓ for normal use. Start the shredder. Turn the adjustment screw (11) slowly and carefully (half a turn moves the pressure plate about 0.5 mm) clockwise until a scraping sound is heard and small aluminium shavings fall out of the ejection port.

2. The gap between the blade and the pressure plate is now 0 mm and is set for optimum shredding.

General advice

• Make sure that you have read and understood the entire instruction manual before using the product.
• Wear ear and eye protection, safety gloves and sturdy work clothing.
• Wearing a helmet with a visor is recommended.
• Caution: If long branches are fed into the machine there is a risk that they will whip and thrash around – keep a safe distance.
• Feed the material to be shredded into the right-hand side of the hopper mouth.
• Do not overload the shredder or clog the hopper by feeding in too much material at once.
• To avoid the unit clogging up, mix freshly cut branches or leafy material with drier materials such as twigs.
• Kitchen waste and soft materials must not be fed into the shredder.
• Let branches with lots of twigs and leaves feed all the way into the hopper before attempting to feed in any more material.
• Make sure to empty the collection box before it becomes full to prevent the material in the box from hindering new material from passing through.
• Keep the motor housing ventilation slots free from debris.

Care and maintenance

• Disconnect the shredder from the mains before carrying out any servicing or cleaning operations.
• Clean the exterior of the shredder using a moist cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.
• Never wash the shredder using a pressure washer or hosepipe. Under no circumstances must water get into the machine.
• Disconnect the shredder from the mains and store it in a dry and dust-free area and out of the reach of children whenever it is not to be used for an extended period.

Responsible disposal

This symbol indicates that the product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Troubleshooting guide

The shredder doesn't start.	Is the extension cable intact and securely connected to both the wall socket and the shredder?Is the wall socket energised? Check the RCD.Has the motor overload cut-out tripped? (refer to theMotor overload cut-outsection for instructions about resetting it).Check that the collection box release catch/safety switch is all the way up.
The material in the hopper is not feeding down.	Check that the blade drum is rotating in the right direction (refer to theReversing the blade to clear jams section).The collection box might be full – empty it if necessary.
The shredded material comes out in chains.	Adjust the pressure plate (refer to theAdjusting the pressure plate section).

Specifications

Rated voltage 230–240 V AC, 50 Hz

Wattage 2800 W (P40*)

Collection box capacity 60 L

Max branch diameter 45 mm

Sound pressure level (LpA) 74.9 dB (A), K=3 dB (A)

Measured sound power level (LwA) 85.9 dB (A), K=3.28 dB (A)

Guaranteed sound power level (LwA) 88 dB(A)

Wheel diameter 200 mm

Weight 22 kg

The sound levels have been determined in accordance with noise measuring process EN 13683:2009-09, appendix F.

* The P40 mode of operation requires the shredder to be used in a cycle of 20 s operation and 30 s idling.

Kompostkvarn

Art.nr 41-2506 Modell HS2800N

Mechanical structure diagram with numbered annotations (7 and 4) pointing to components, no readable text or symbols beyond labels.

Two industrial machines side by side: a manual presser and a paper holder, both with arrows indicating motion (no text or symbols visible)

Two views of a cleaning or dust removal machine: one with a hand holding paper, the other with an arrow indicating motion (no text or symbols visible)

Användning

Interior view of an electronic device showing internal components and a numbered annotation (23), no readable text or symbols present.

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no text or symbols present)

Felsökningsschema

Mechanical structure diagram with numbered annotations (7 and 4) pointing to components, no readable text or symbols beyond labels.

Two industrial machines with arrows indicating motion, one showing a left-side shift and the other showing a right-side shift (no text or symbols visible)

Two views of a cleaning or dust removal machine: one with a paper feeding into a container, the other with a mounted device and arrow indicating motion (no text or symbols visible)

Bruk

Interior view of an electronic device showing internal components and a numbered label (23), no readable text or symbols present.

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)

Feilsøkingsskjema

Mechanical structure diagram with numbered annotations (7 and 4) pointing to components, no readable text or symbols beyond labels.

Two industrial machines side by side, one with a downward arrow indicating rotation or change, the other with an arrow pointing to a paper sheet (no text or symbols visible)

Two views of a cleaning machine: one with a paper feeding into a box, the other with a mounted tool and arrow indicating motion (no text or symbols visible)

Käyttö

Interior view of a mechanical device showing internal components and a numbered label (23), no readable text or symbols present.

Symbol of a trash bin crossed with no visible text or labels

Vianhakutaulukko

EC Declaration of Conformity

This declaration of conformity is issued under the sole responsibility of the manufacturer.

EU-försäkran om överensstämmelse utfärdas på tillverkarenseget ansvar. / Egenerkläringen er utstedt under produsentens eget ansvar. / Tämä vaatimustenmukaisuusvakuutus on annettu valmistajan yksinomaisella vastuulla

Manufacturer and person authorised to compile technical file: Clas Ohlson AB, SE-793 85 Insjön, Sweden

Name	Garden Shredder
Type/Model	SDEG06-2800
Clas Ohlson Article Number	41-2506

The product satisfies the provision for CE-marking according to the following directive(s) / regulation(s) including amendments / Produkten uppfyller kraven för CE-märkning enligt följande direktiv / förordningar inklusive ändringar/ Produktet tilfredsstiller bestemmelsen om CE-merking i henhold til fölgende direktiv (er) / forskrifter, inkludert endringer / Tuote täyttää seuraavien direktiivien / asetusten mukaiset CE-merkintää koskevat vaatimukset, mukaan lukien muutokset;

Machinery Directive 2006/42/EC
EMC Directive 2014/30/EU

References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared. Hänvisning till de harmoniserade standarder som använts eller hänvisningar till de specifikationer som försäkran om överensstämmelse deklareras: / Referere til harmoniserte standarder som brukes, eller henvisninger til spesifikasjonene der samsvarserklæring er erklärt: / Viittaus yhdenmukaistettuihin standardeihin tai viittaus eritelmiin, jossa vaatimustenmukaisuusvakuutus on julistettu; Machinery: EN 60335-1: 2012/A2: 2019, EN 50434: 2014, AfPS GS 2019:01 PAK

EMC: EN 55014-1: 2017/A11: 2020, EN 55014-2: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-11: 2000

Signed for and on behalf of;

Product Compliance & Sustainability Manager

Clas Ohlson AB, SE-793 85 Insjön, Sweden

Place and date: 2022-06-25

Sverige
