| Product Type | Electric water heater (storage) |
| Model | GBK150ORLN (GBK150 E5) |
| Volume | 141.5 L |
| Rated Pressure | 0.6 / 0.9 / 1.0 MPa (6 / 9 / 10 bar) |
| Power | 2000 W |
| Heating Elements | 2 x 1000 W |
| Voltage | 230 V~ |
| Protection Class | I |
| Degree of Protection | IP24 |
| Heating Time (10°C to 65°C) | 4 h 54 min |
| Energy Efficiency Class | C (EcoBase regulation) |
| Water Heating Energy Efficiency | 38.1% |
| Annual Electricity Consumption | 4395 kWh |
| Daily Electricity Consumption | 20.295 kWh |
| Weight (empty/filled) | 72 kg / 222 kg |
| Packaging Dimensions (WxDxH) | 600 x 600 x 1420 mm |
| Anti-corrosion Protection | Enamelled tank with magnesium anode |
| Overheating Protection | Yes (additional thermal cut-off) |
| Dry Start Protection | Yes |
| Anti-legionella Function | Yes (heats to 70°C for 120 minutes if water <65°C for 14 days) |
| Control Type | Electronic EcoBase (manual temperature setting) |
| Temperature Settings | ~10°C (freeze protection), 35°C, 57°C (ECO), 75°C |
| Maintenance | Regular inspections of magnesium anode and limescale removal required |
Frequently Asked Questions - GBK150ORLN GORENJE
User questions about GBK150ORLN GORENJE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Air-conditioner in PDF format for free! Find your manual GBK150ORLN - GORENJE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GBK150ORLN by GORENJE.
USER MANUAL GBK150ORLN GORENJE
GEBRAUCHSANWEISUNG
INSTRUCTIONS FOR USE
UPUTE ZA UPORABU
Children should not play with the appliance.
Children should not clean or perform maintenance on the appliance without supervision.
Installation should be carried out in accordance with the valid regulations and according to the instructions of the manufacturer and by qualified staff.
In a closed, pressurised system of installation, it is obligatory to install a safety valve on the inlet pipe with a rated pressure of 0.6 MPa (6 bar), 0.9 MPa (9 bar) or 1.0 MPa (10 bar) (see the label), which prevents the elevation of pressure in the boiler by more than 0.1 MPa (1 bar) above the rated pressure.
Water may drip from the outlet opening of the safety valve, so the outlet opening should be set to atmospheric pressure.
The outlet of the safety valve should be installed facing downwards and in a non-freezing area.
To ensure proper functioning of the safety valve, the user should perform regular controls to remove limescale and make sure the safety valve is not blocked.
Do not install a stop valve between the water heater and the safety valve, because it will impair the pressure protection of the heater!
Before connecting it to the power supply, the water heater must be filled with water!
The heater is equipped with an additional thermal cut-off for protection in case of failure of the operating thermostat. In this case, however, the temperature of the water in the heater can reach up to 130 °C according to the safety standards. During the water supply installation, the possibility of temperature overloads should be taken into account.
If the heater is to be disconnected from the power supply, please drain any water from the heater to prevent freezing.
Water can be drained from the heater through the boiler inlet pipe. For this purpose it is advisable to install a T-element with an outlet valve between the inlet pipe and safety valve.
Please do not try to fix any defects of the water heater on your own. Call the nearest authorised service provider.
Our products incorporate components that are both environmentally safe and harmless to health, so they can be disassembled as easily as possible and recycled once they reach their final life stage.
Recycling of materials reduces the quantity of waste and the need for production of raw materials (e.g. metals) which requires a substantial amount of energy and causes release of harmful substances. Recycling procedures reduce the consumption of natural resources, as the waste parts made of plastic and metal can be returned to various production processes.
For more information on waste disposal, please visit your waste collection centre or the store where the product was purchased
Dear buyer, thank you for purchasing our product. PRIOR TO THE INSTALLATION AND FIRST USE OF THE ELECTRIC WATER HEATER, PLEASE READ THESE INSTRUCTIONS CAREFULLY.
This water heater has been manufactured in compliance with the relevant standards and tested by the relevant authorities as indicated by the Safety Certificate and the Electromagnetic Compatibility Certificate. Its technical characteristics are indicated on the label on the bottom of the heater next to the pipes. The installation must be carried out by qualified staff. All repairs and maintenance work within the water heater, e.g. lime removal or inspection/replacement of the protective anticorrosion anode, must be carried out by an authorised maintenance service provider.
INSTALLATION
The water heater shall be installed as close as possible to the outlets. When installing the water heater in a room with a bathtub or shower, take into account the requirements defined in IEC Standard 60364-7-701 (VDE 0100, Part 701). It has to be fitted to the wall using appropriate wall screws with a minimum diameter of 8 mm. A wall with a poor load-bearing capacity must be properly reinforced where the heater will be installed. The water heater may only be fixed upon the wall vertically. To facilitate future service interventions, you are advised to install the heater in accordance with the installation measurements (see Fig. 1).
(RN)* Right connection
(LN)* Left connection
① ② ∅9 mm pipe for external sensor

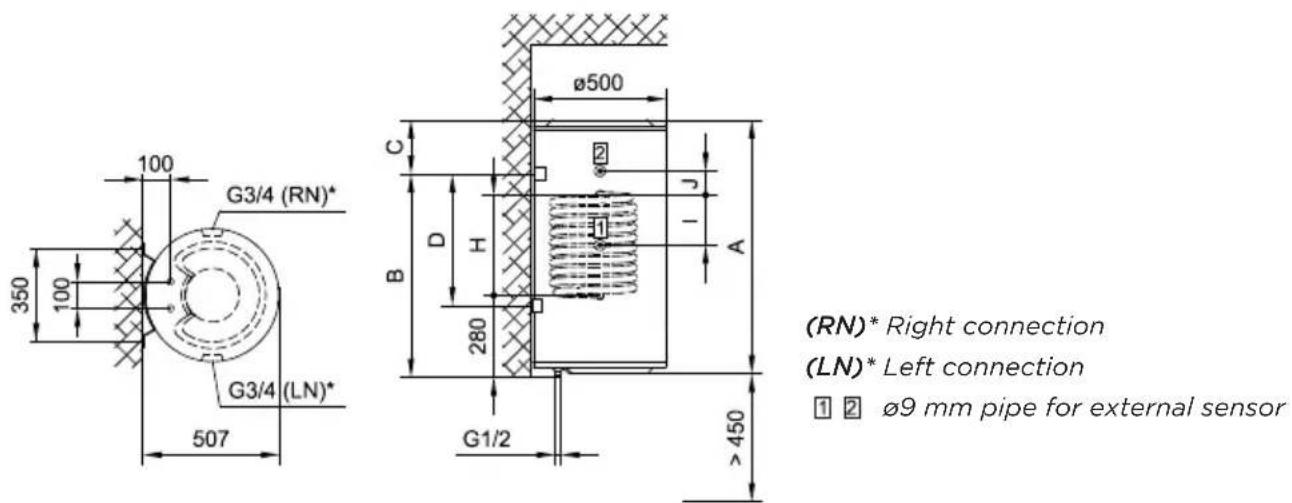

Fig. 1: Vertical installation on a wall
| A B C D H I J | |||||||
| GBK 80 E5 810615210-340170- | |||||||
| GBK 100 E5 955765205-416-80 | |||||||
| GBK 120 E5 1110915210-416-100 | |||||||
| GBK 150 E5 13251115225-416-100 | |||||||
| GBK 200 E5 | 1450 | 1100 | 362 | 800 | 416 | - | 100 |
Connection and installation dimensions of the water heater [mm]
CONNECTION TO THE WATER SUPPLY
The water heater connections for the inlet and outlet of water are colour-coded. The inlet of cold water is marked with blue colour, while the hot water outlet is marked with red colour.
The water heater can be connected to the water supply in two ways. The closed-circuit pressure system enables several points of use, while the open-circuit gravity system enables a single point of use only. The mixer taps must also be installed in accordance with the selected installation mode.
In a closed, pressurized system (Fig. 2) pressurised mix taps should be used at the outlet points. To ensure safe operation of the heater a safety valve should be installed on the inlet pipe to prevent elevation of pressure for more than 0.1 MPa (1 bar) above the nominal pressure. The outlet opening on the safety valve must be equipped with an outlet for atmospheric pressure. The heating of water in the heater causes the pressure in the tank to increase to the level set by the safety valve. As the water cannot return to the water supply system, this can result in dripping from the outlet of the safety valve. The drip can be piped to the drain by installing a catching unit just below the safety valve. The drain installed below the safety valve outlet must be piped down vertically and placed in an environment that is free from the onset of freezing conditions.
To avoid water dripping from the safety valve, an expansion tank should be installed on the inlet pipe of the heater with the capacity of at least 5 % of the heater volume.
To ensure proper operation of the safety valve, periodical inspections must be carried out to remove limescale and make sure the safety valve is not blocked. To check the valve, open the outlet of the safety valve by turning the handle or unscrewing the nut of the valve (depending on the type of the valve). The valve is operating properly if the water comes out of the nozzle when the outlet is open.
An open-circuit, non-pressurised system (Fig. 3) requires the installation of a non-return valve at the water inlet to prevent water draining out from the tank in the event of the water supply running dry. This installation mode requires the use of an instantaneous mixing tap. As the heating of water expands its volume, this causes the tap to drip. The dripping cannot be stopped by tightening it further; on the contrary, the tightening can only damage the tap.
No closing valve may be built-in between the water heater and return safety valve, because with it the pressure protection would be impeded!
The heater can be connected to the domestic water supply network without a pressure-reducing valve if the pressure in the network is lower than the nominal pressure. If the pressure in the network exceeds the nominal pressure, a pressure-reducing valve must be installed.


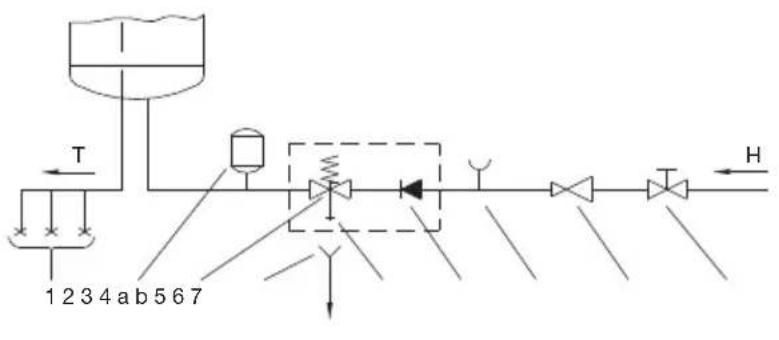

Fig. 2: Closed (pressure) system Fig. 3: Open (non-pressure) system


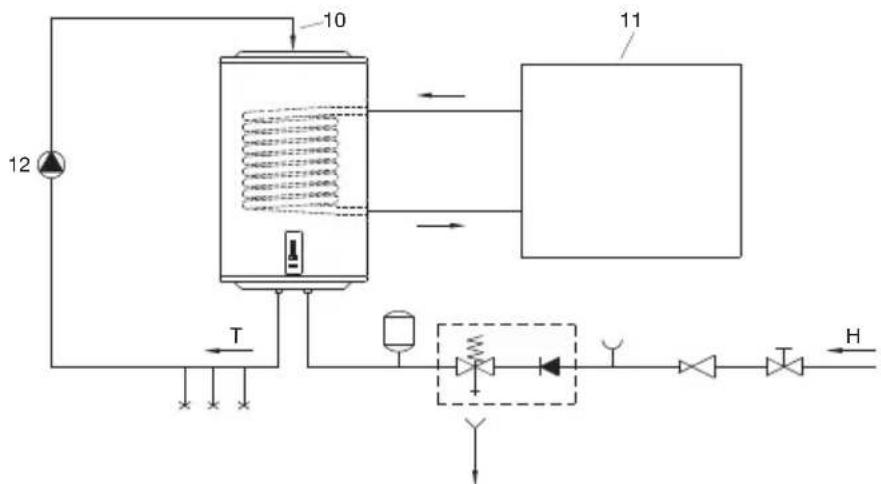

Fig. 4: Connection to alternative sources of heating
LEGEND
1 Pressure mixer taps
2 Expansion tank
3 Safety valve
a - Test valve
b - Non-return valve
4 Funnel with outlet connection
5 Checking fitting
6 Pressure reduction valve
7 Closing valve
8 Non-return valve
9 Low pressure mixer tap
10 - Hot water circulation line
11 - Energy source
12 - Circulator pump
H Cold water
T Hot water
Before connecting it to the power supply, the water heater must be filled with water.
When filling the heater for the first time, the tap for the hot water on the mixing tap must be opened. When the heater is filled with water, the water starts to run through the outlet pipe of the mixing tap.
The GBK combined water heater has an additional tubular heat exchanger for heating domestic water using other energy sources (e.g. central heating, solar collector, heat pump). The heating system using an electric heater and the system using the heat exchanger can work simultaneously or individually. The combined water heater is connected to the water pipeline and to an additional energy source. The inlet of the heating medium into the heat exchanger is labelled with red paint while the outlet is labelled with blue paint.
WARNING: When the temperature of the additional heat source drops and circulation of water through the exchanger is enabled, uncontrolled reduction of heat can occur in the water heater. When connecting the appliance to other heat sources, the temperature regulation of the additional source must be carried out properly.
The GBK heater can also be connected to the hot water circulation line. The hot water circulation line allows warm water to always be available everywhere at once. Connect the return line of hot water to the connection on top of the heater. Before connecting, please remove the plastic cap and unscrew the sealing plug on top of the heater.
WARNING: The hot water return line must be installed before filling the heater with water. The use of circulation line results in additional heat losses in the water heater.
CONNECTING THE WATER HEATER TO THE POWER SUPPLY NETWORK
In the electrical installation, please install a disconnect switch to separate all poles from the power supply network in accordance with the national regulations.

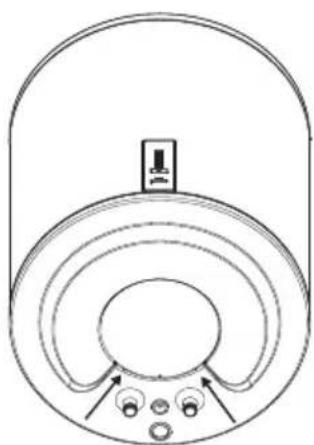

Fig. 5: Removing the protective cover

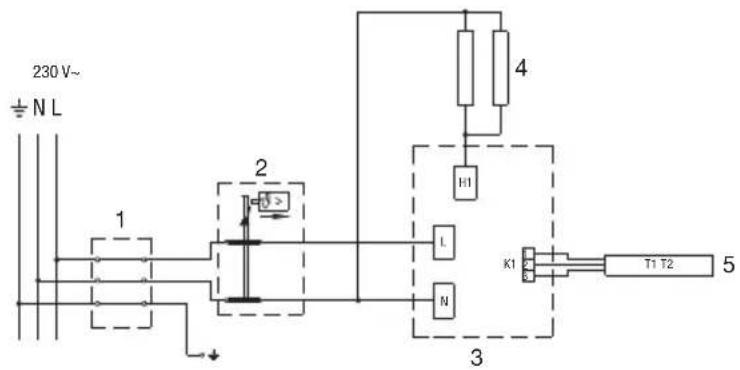

Fig. 6: Electric installation
LEGEND
1 Connection terminal
2 Thermal cut-out
3 Electronic regulator
4 Electric heating element (2 x 1000 W)
5 Temperature sensor
L Live conductor
N Neutral conductor
± Earthing conductor
CAUTION: Before any intervention into the interior of the water heater, disconnect it from the power supply network! This intervention may only be performed by a trained professional!
After it has been connected to the water and power supply grid, the heater is ready to be used. When connected to the power supply, the heater runs in standby mode. In the standby mode, the heater maintains the water temperature of 10 °C .
The figure below shows one of the models of the electronic regulator. As the heaters may come with various types of equipment, this manual may describe functions and equipment that are not part of your heater.
LEGEND
1 - display of the set/actual temperature of water in the heater, signalisation of errors
2 - On/Off button, temperature setting
3 - indication of the functioning of the heating element (only the "EcoBase" models);
- indication of the "SMART" function (only the "EcoSmart" models);
4 - switch for the "SMART" function (only the "EcoSmart" models)
5 - model "EcoBase" or "EcoSmart"

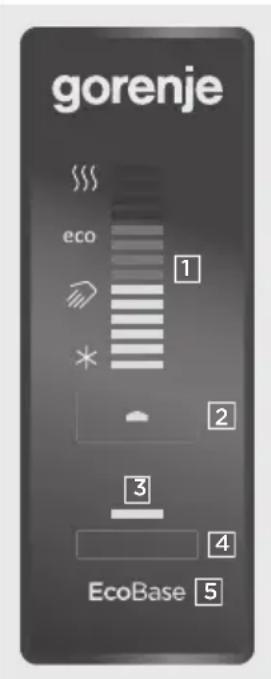

Fig. 7: Control panel
