Product Type	LED Floor Lamp
Model Numbers	IAN 103124 (1321-012L / 1322-022L)
Brand	Livarno Lux
Power Supply	230-240V ~ 50Hz
Power Consumption	6 W (1321-012L) or 2 x 5 W (1322-022L)
Light Source	LED module (non-replaceable)
Protection Class	II /
Dimensions (approx.)	Height: 1500 mm, Base diameter: 250 mm
Weight (approx.)	3 kg
Intended Use	Indoor, dry enclosed spaces, household only
Functions	ON/OFF switch, adjustable arm and reflector
Dimmer Compatibility	Not suitable for dimmer or electronic switches
Maintenance	Unplug, allow to cool, clean with dry lint-free cloth
Safety	Do not cover, avoid water, check for damage before use
Spare Parts	LED not replaceable; contact service for defects
Warranty	36 months from purchase date
Included Accessories	Base, chrome plating, tool, instructions

Frequently Asked Questions - IAN 103124 Livarno Lux

What is the power consumption of the Livarno Lux floor lamp?

The power consumption depends on the model: 1321-012L uses 6 W (single LED module) and 1322-022L uses 2 x 5 W (dual LED modules). Both operate at 230-240V ~ 50Hz.

Can the LED module be replaced?

No, the LED module is non-replaceable. If the light fails, contact the service center for assistance.

Is this lamp suitable for use with a dimmer?

No, this lamp is not suitable for dimmer or electronic switches. Use only with a standard ON/OFF switch.

How do I clean the lamp?

First, unplug the lamp and allow it to cool completely. Clean only with a dry, lint-free cloth. Never use water, solvents, or benzene.

What should I do if the lamp stops working?

Check the mains connection and ensure the switch is on. If still not working, contact the service center with the model number (1321-012L or 1322-022L) and your proof of purchase.

Can I use this lamp outdoors?

No, this lamp is designed only for indoor use in dry, enclosed spaces. Do not expose to moisture or outdoor conditions.

How do I adjust the lamp arm and reflector?

Switch off and let the lamp cool. Loosen the fixing lever or locating screws, adjust to desired position, then re-tighten to secure. Use a suitable screwdriver if needed.

What is the warranty period?

The lamp comes with a 36-month warranty from the date of purchase, covering material and manufacturing defects. Wear parts (e.g., bulbs) are excluded.

Is the lamp safe to leave unattended?

No, never leave the lamp unattended while in use. Also, do not cover the lamp or mains plug to prevent fire hazards.

What should I do if the mains cable is damaged?

A damaged flexible outer lead must be replaced by the manufacturer, its service representative, or a qualified professional to avoid electric shock.

USER MANUAL IAN 103124 Livarno Lux

www.lidl-service.com

LED-STEHLEUCHTE

DE AT CH

LED-STEHLEUCHTE

Operation and Safety Notes

IAN103124

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

1 2 3 4 7 1 2 3 4 55 66 1321-012L 1322-022L

A 4a 4b 6 8 9 10 11

B 1321-012L 322-022L ON/OFFON/OFF 12 12 C 3a 3

C 3a 3

LED-Stehleuchte

●Einleitung

Congratulations on your new product.

You have selected a high quality product.

Please be sure to carefully read the com-

plete operating instructions. Fold out the page with the illustrations. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on third parties as applicable.

Intendeduse

This light is only suitable for indoor use in dry and enclosed spaces. This product is intended for private household use only.

- Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 Floor lamp, model 1321-012L or 1322-022L

1 Base

1 Chrome plating

1 Tool

1 Instructions for use

Partsdescription

1 Reflector
2 Lamp arm
3 Fixing lever
3a Locating screw
4 Standtube
4a Upper support tube

LIVARNO LUX

4b Lower support tube

5 Mains cable

6 Base

7 Adjustment lever (model 1322-022L)

8 Chrome plating

9 Plain washer

10 Nut

11 Tool

12 ON/OFF switch

●TechnicalData

Model no.: 1321-012L or 1322-022L

Operating voltage: 230-240V\~50Hz

Lamp: 1 LED module about 6 W

(1321-012L) (LED not

replaceable)

2 LED module, each about

5 W (1322-022L) (LED not

replaceable)

Protection class: II /

- Safety

Safetyinformation

Damage due to failure to comply with these operating instructions will invalidate the guarantee! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!

Avoid the risk of fatal injury from electric shock

- Check the light for damage every time before you use it. Never use the light if it shows any signs of damage.

CAUTION! A damaged light means danger of death from electric shock. In the event of damage, repairs or other problems with the light please contact the service centre or a qualified electrician.

To prevent hazards, a damaged flexible outer lead on this lamp must be replaced by the manufacturer, its service representative or an equally qualified professional!
Before use, verify the available mains voltage corresponds with the operating voltage of the lamp (230-240V\~).
■ Ensure that the light does not come into contact with water or other liquids under any circumstances.
Always unplug from the mains before assembling, disassembling, cleaning, or if the lamp will not be used for extended periods.
Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
The illuminant is not replaceable.
This light is not suitable for dimmer or electronic switches.

Prevent fire and injury hazards

RISK OF INJURY! Check every illuminant for damage immediately upon unpacking. Do not install the light if the illuminants are defective. In this case contact the service centre for a replacement.

Do not look directly into the light source (light bulb, LED etc.).
Do not leave the light or packaging material lying unattended. Plastic film or bags, plastic parts etc. can turn into dangerous toys for children.
Do not cover the lamp or the mains plug with objects. Excessive heat can result in a fire.
■ Never leave the lamp unattended whilst in use.

Safe working

Mount the light so that it is protected from moisture and dirt.
Carefully prepare for assembly and allow yourself adequate time. Organise all parts and any necessary additional tools or materials before starting so they are easy to reach.

- Always be attentive! Always pay attention to what you are doing and use common sense. - Never assemble the lamp if you are unfocused or feel unwell.

- Start-up

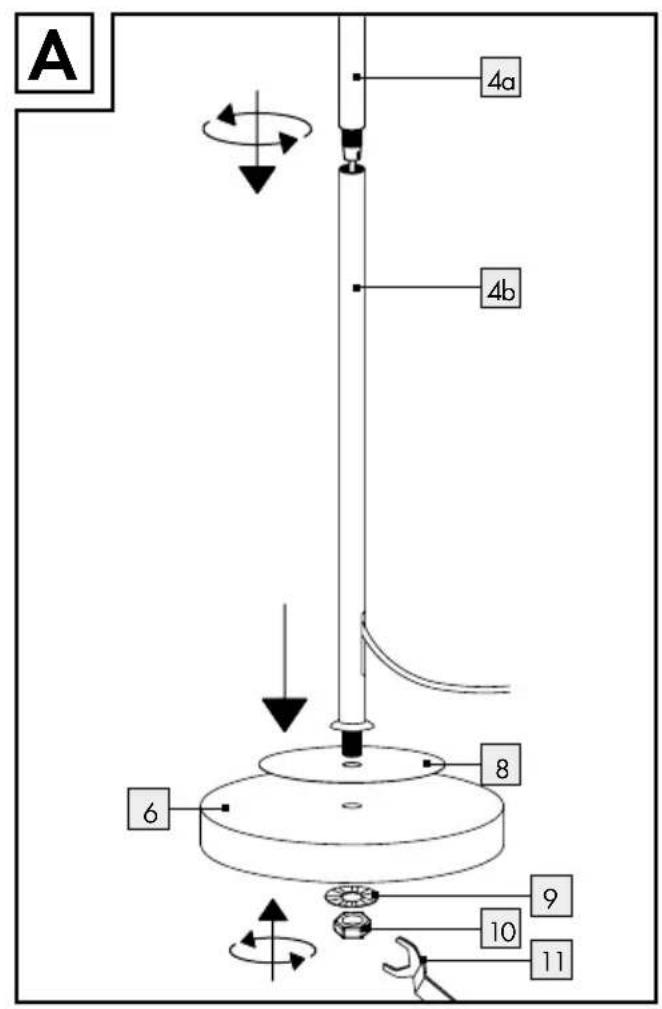

- Mounting the light

Note: When assembling the stand tube 4 be sure not to damage the mains lead 5 inside the lamp.

Unfold the floor lamp.
☐ Insert the upper stand tube section 4a into the lower stand tube section 4b.
Carefully pull the mains cable out of the stand tube 4.
Place the chrome plating on the base 6. Put the stand tube 4 through the chrome plating 8 into the base 6 and fasten the stand tube 4 by turning clockwise.
Place the plain washer and the nut 10 on the thread and use the tool 11 to screw it tight.
☐ Model 1322-022L: Screw the adjustment lever 7 onto the reflector 1. You will need a small screwdriver to do this.
☐ Plug the mains plug into a socket that has been professionally installed.

Your light is now ready to use.

- Switching the lamp on / off

☐ Switch the lamp on or off using the ON/OFF switch 12.

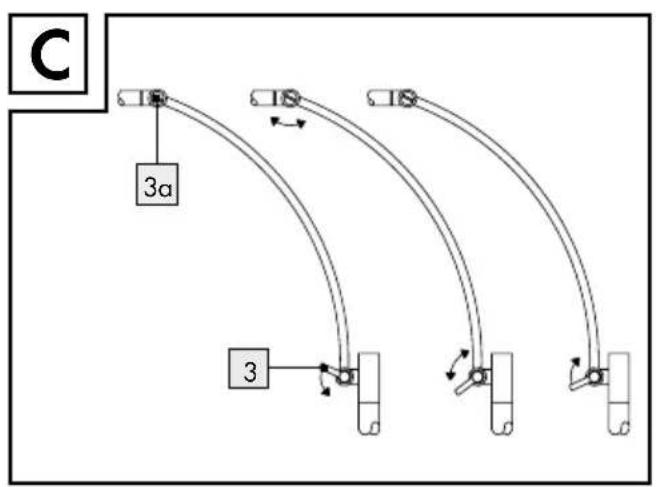

- Adjusting the reflector

Note: Only adjust the reflector 1 with the light switched off.

Allow the lamp to cool off completely.
Turn the lamp ar to the desired position.
Note: Re-tighten the locking lever 3 if the lamp arm 2 changes in position.

Turn the reflector to the desired angle.
Note: Re-tighten the locating screws 3a if the lamp reflector 1 changes in position. You will need a fitting screwdriver to do this.

● Maintenance and Cleaning

WARNING! DANGER OF ELECTRIC

SHOCK! First unplug the mains plug from the socket.

CAUTION! DANGER OF BURN INJURIES!

Allow the lamp to cool down completely.

WARNING! DANGER OF ELECTRIC

SHOCK! For electrical safety, never clean the light with water or other liquids, or immerse it in water.

Do not use solvents, benzene or similar substances. They could damage the light.
☐ Only use a dry, lint-free cloth for cleaning.

- Disposal

The package and packaging materials consist entirely of environmentally friendly materials. They can be disposed of at your local recycling facility.

The symbol of the wheelie bin with the line through it means that, in the European Union, the product has to be disposed

of in a separate refuse collection. This applies to the product and to all components bearing this symbol. Do not dispose of products bearing this symbol in your normal household waste, but instead they must be taken for recycling to a collection site for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and protects the environment.

Information

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has

LIVARNO LUX

been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect arising during the warranty period, please send the appliance to the listed Service Centre address, making reference to the following article number: 1321-012L/1322-022L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

Manufacturer / Service

Please have your receipt and the article number (e.g. IAN 12345) ready as your proof of purchase when enquiring about your product.

- Declaration of conformity CE

This product fulfils the requirements of the applicable European and national directives (Electromagnetic Compatibility 2004/108/EC, Low Voltage Directive 2006/95/EC, Ecodesign Directive 2009/125/EC, RoHS Directive 2011/65/EU). Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

BRILONER LEUCHTEN GMBH

Im Kissen 2

59929 Brilon (Germany)
