Product type	Solar LED outdoor light
Brand	Melinera
Model	IAN 291041
Power supply	1 rechargeable Ni-MH AAA 1.2 V, 300 mAh battery
Light source	10 micro LEDs (non-replaceable)
Rated power per LED	Approx. 0.06 W
Operating voltage	1.2 V (DC)
Protection rating	IP44 (protected against water splashes)
Solar cell	Diameter approx. 58 mm (models HG03597A/B) or 40 x 40 mm (HG03597C)
Lighting duration (battery fully charged)	Approx. 6 hours
Battery life	Recommended replacement every 12 months
Main functions	Automatic on at dusk, off at dawn, ON/OFF switch
Package contents	1 solar LED light with battery, 1 user manual
Assembly	Simple screwing or snapping the solar housing onto the glass container
Care and cleaning	Clean with a dry, lint-free cloth; do not use abrasive cleaners
Safety	Non-replaceable LEDs, do not connect to 230 V, keep out of reach of children, do not use as container
Warranty	3 years from date of purchase, covers material and manufacturing defects, excluding normal wear and glass
Recycling	Product and packaging are recyclable, used batteries must be disposed of in designated containers

Frequently Asked Questions - IAN 291041 MELINERA

How to install the Melinera IAN 291041 solar light?

For installation, remove the protective film from the solar cell. For models HG03597A/B, turn the solar cell housing counterclockwise to remove it from the glass container, set the switch to ON, then screw it back on. For HG03597C, remove the housing, set the switch to ON, then put it back in place. Place the lamp in a sunny location, away from artificial light sources.

Why is my solar light not turning on?

First check that the switch is in the ON position. Make sure the solar cell is not obstructed by dirt, snow, or ice. Move the lamp away from artificial light sources such as streetlights. If the problem persists, the battery may be discharged or defective. Recharge it by exposing the lamp to sunlight for 2 to 4 days or replace the battery.

How to replace the battery in the solar light?

Turn off the lamp with the switch. For HG03597A/B, unscrew the solar housing from the glass, then open the battery compartment by unscrewing the screws. Replace the used battery with a new Ni-MH AAA 1.2 V battery, observing polarity. Close the compartment and screw everything back together. For HG03597C, remove the housing, turn the battery compartment clockwise to open it, replace the battery, then close it.

What battery should I use to replace the lamp's battery?

Use a rechargeable Ni-MH AAA battery with a voltage of 1.2 V and a capacity of at least 300 mAh. Do not mix used and new batteries. Observe the polarity indicated in the compartment.

How long does it take to fully charge the battery?

In full sunlight, a fully discharged battery takes about 2 to 4 days to fully charge. The duration depends on solar intensity, angle of incidence, and temperature. For optimal charging, position the solar cell perpendicular to the sun's rays.

Can the solar light stay outside in winter?

Yes, the lamp is designed for outdoor use with an IP44 rating. However, in winter, make sure the solar cell is not covered with snow or ice, as this reduces its performance. If you store the lamp in a dark place, turn it off to avoid draining the battery.

What to do if the lamp only lights briefly at night?

This usually indicates that the battery is not sufficiently charged. Replace the battery if it is old (more than one year) or install the lamp in a sunnier location during the day. Make sure the solar cell is clean and not shaded.

Can I replace the LED lights in the lamp?

No, the LEDs are not replaceable. If an LED is defective or at the end of its life, the entire product must be replaced. The LEDs are designed to last a long time and are very energy-efficient.

How to clean the solar light?

Clean the product regularly with a dry, lint-free cloth. For stubborn dirt, use a slightly damp cloth. Do not use abrasive cleaners or solvents. Also clean the solar cell to maintain good performance.

What to do in case of malfunction due to electrostatic discharge?

If the lamp operates abnormally after an electrostatic discharge, briefly remove the battery and then reinsert it. This resets the electronics. Also keep the lamp away from sources of radio interference.

USER MANUAL IAN 291041 MELINERA

For Online www.lidl-service.com

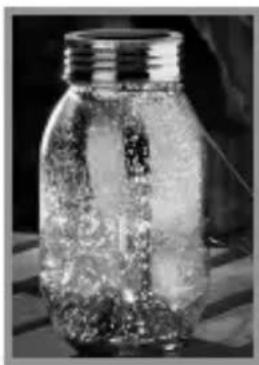

Black-and-white photo of a glass jar with bubbles and a lid, no visible text or symbols

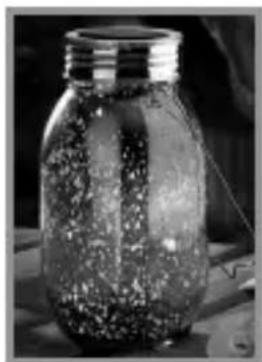

Black-and-white photo of a glass jar filled with small white specks, no visible text or symbols

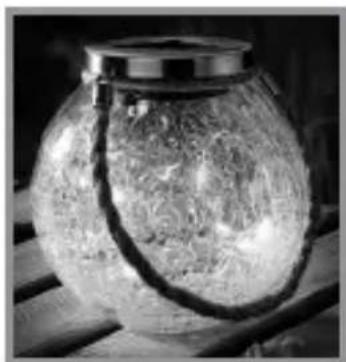

Black-and-white photo of a glass jar with a coiled cord, no visible text or symbols

LED-SOLARLEUCHTE/LED SOLAR LIGHT/LAMPE SOLAIRE À LED

DE AT CH

LED-SOLARLEUCHTE

Assembly, operating and safety instructions

NL BE

LED-SOLARLAMP

Line drawing of a glass jar with a lid and handle (no text or symbols)

HG03597A/
HG03597B

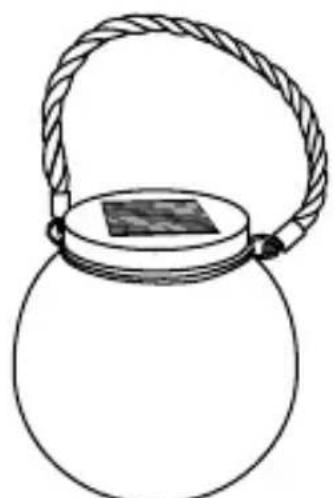

Simple line drawing of a spherical object with a loop handle and a small circular base (no text or symbols)

HG03597C

A 6 1 5 NO ≠O 4 2 3

6 1 3 4 2 5 7

A HG03597A/ HG03597B HG03597C

B

OFF ON 9 8 10 7

HG03597A/
HG03597B

HI-491 AAA 2800V/AN 1.2V 7105 6

7105 NO NO 5 8 9 9

HG03597C

Description of parts and features ...... Page 25

Scope of delivery......Page 26

Technical data Page 26

Safety instructions......Page 27

Product-specific safety instructions......Page 28

Safety instructions for batteries/rechargeable batteries...... Page 29

Functioning......Page 31

Preparing for use......Page 32

Assembling of the product....Page 32

Setting up the product....Page 33

Replacing the rechargeable battery...... Page 33

Charging the rechargeable battery...... Page 36

Maintenance and care......Page 36

Troubleshooting......Page 37

Disposal Page 38

Warranty Page 40

LED Solar Light

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Proper use

The product is intended for outdoor use. The product is suitable for use in private household and is not intended for commercial use or for use in other applications.

Description of parts and features

1 Solar cell housing

2 Glass jar

3 LED light chain
4 Handle
5 ON/OFF switch
6 Solar cell

7 Battery compartment
8 Battery compartment cover
9 Screws
10 Rechargeable battery

Scope of delivery

1 LED solar light and rechargeable battery
1 Assembly, operating and safety instructions

Technical data

Operating voltage: 1.2 V (direct current)

Rechargeable battery: 1 x Ni-MH rechargeable battery / AAA / 1.2 V——(direct current) / 300 mAh

LED: 10 x Micro LED

Rated power LED: approx. 0.06 W per LED

Protection type: IP44 (splash proof)

Solar cell: approx. ∅ 58 mm (HG03597A /

HG03597B)

approx. 40 x 40 mm (HG03597C)

Lighting time

(with full charge): approx. 6 hours

Safety instructions

PLEASE READ THE INSTRUCTIONS FOR USE PRIOR TO USE! PLEASE KEEP THE INSTRUCTIONS IN A SAFE PLACE! IF PASSING THIS PRODUCT ON TO A THIRD PARTY ALSO INCLUDE ALL DOCUMENTS.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.

Do not use the product if you detect any kind of damage.

■ Always switch off the product, when storing it in dark environment, in order not to discharge the rechargeable battery.
The LEDs are not replaceable.
■IftheLEDs fail at the end of their lives, the entire product must be replaced.
The product does not contain any parts that can be serviced by the user.
■ Never plug in the LED light chain 3 directly into a 230 V\~ (alternating current) directly.
The product is not a toy and should not be player by children. Children are not able to understand the danges that can occur when handling the product.
The product can never be used as a container.
Product-specific safety instructions
■ Make sure that the solar cell is free of dirt and free of snow and ice in winter. Otherwise the performance of the solar cell will diminish.

Safety instructions for batteries / rechargeable batteries

■ DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLOSION! Never recharge

non-rechargeable batteries. Do not short-circuit batteries/rechargeable batteries and/or open them.

Overheating, fire or bursting can be the result.

■ Never throw batteries/rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries/rechargeable batteries.

Risk of battery leakage

Avoid extreme environmental conditions and temperatures, which could affect batteries/rechargeable batteries, e.g. radiators/direct sunlight.
If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the

chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

WEAR PROTECTIVE GLOVES! Leaked or dam-

aged batteries/rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

In the event of a battery leak, immediately remove it from the product to prevent damage.
Only use the same type of batteries/rechargeable batteries. Do not mix used and new batteries/rechargeable batteries.
■ Remove the batteries/rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

■ Only use the specified type of battery/rechargeable battery!
When inserting ensure the correct polarity! This is shown inside the battery compartment!
Clean the contacts on the battery and in the battery compartment before inserting!

■ Remove exhausted batteries/rechargeable batteries from the product immediately.

Functioning

The solar cell installed in the product converts sunlight into electrical energy and stores it in 1 Ni-MH rechargeable battery. Switch on the product with the ON / OFF switch 5. The product will automatically light on as it begins to get dark. The LEDs are a very long-life and energy-saving light source. The light duration depends on the amount of sunlight, the angle of light on the solar cell and the temperature (the battery capacity is temperature-dependent). A vertical angle of light at temperatures above the freezing point is ideal. The rechargeable battery does not achieve maximum capacity until after several charge and discharge cycles. In summer a completely drained rechargeable battery takes about 2 to 4 days to fully recharge in constant sunlight

● Preparing for use

Note: Remove the protective film from the solar cell before use.

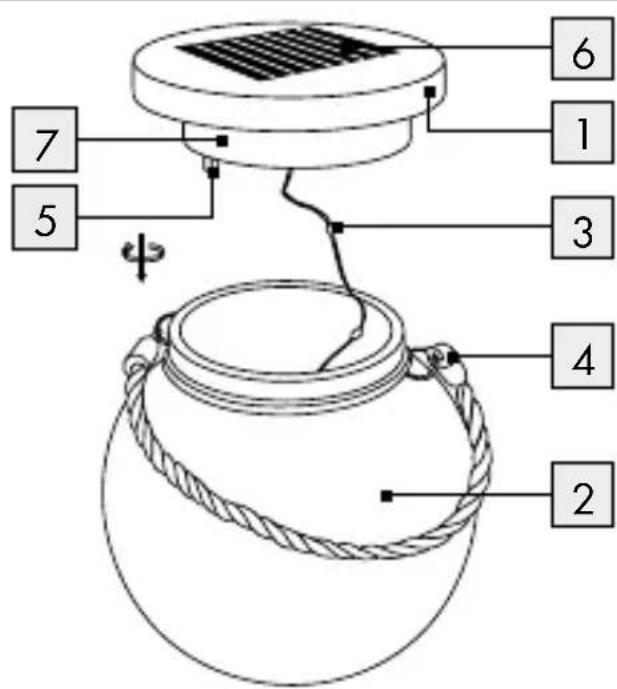

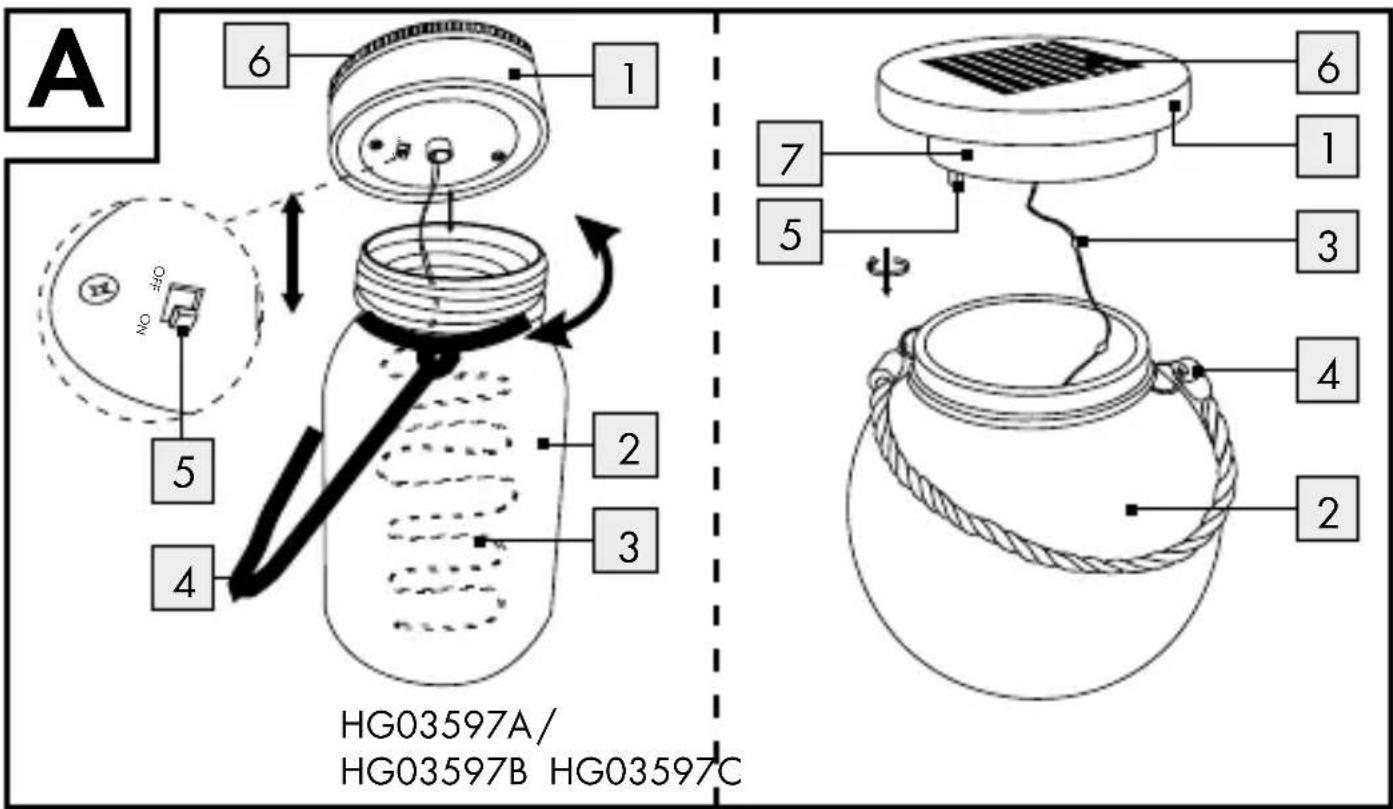

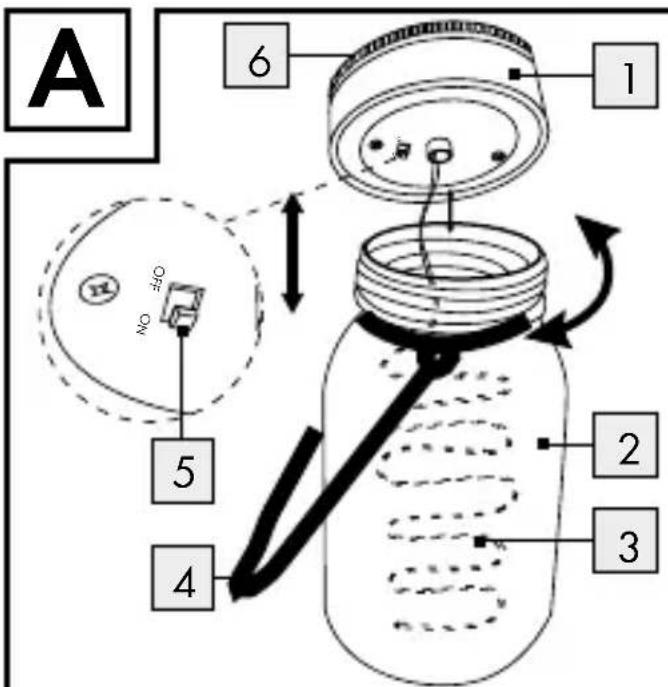

Assembling of the product (see Fig. A) HG03597A / HG03597B:

1. Rotate the solar cell housing 1 anti-clockwise out of the glass jar 2.
   Note: Take care not to damage the LED light chain 3.
2. Move the ON / OFF switch 5 to the ON position to enable the product switching on during darkness.
3. Insert the solar cell housing 1 into the glass jar 2 and tighten it by turning it clockwise.
4. Your product is ready for use.

HG03597C:

1. Take out the solar cell housing 1 from the glass jar 2. Note: Take care not to damage the LED light chain 3.

2. Move the ON / OFF switch 5 to the ON position to enable the product switching on during darkness.

32 GB/IE

1. Put back the solar cell housing 1 to the glass jar 2.
2. Your product is ready for use.

Setting up the product

☐ In order to achieve the best result, set the product up in a place where the solar cell will get direct sunlight for as long as possible.

Make sure that the solar cell is not influenced by any other source of light such as yard or street lighting as otherwise the product will not come on in twilight.

☐ The product automatically switches on in twilight conditions and off again when normal outdoor lighting conditions return.

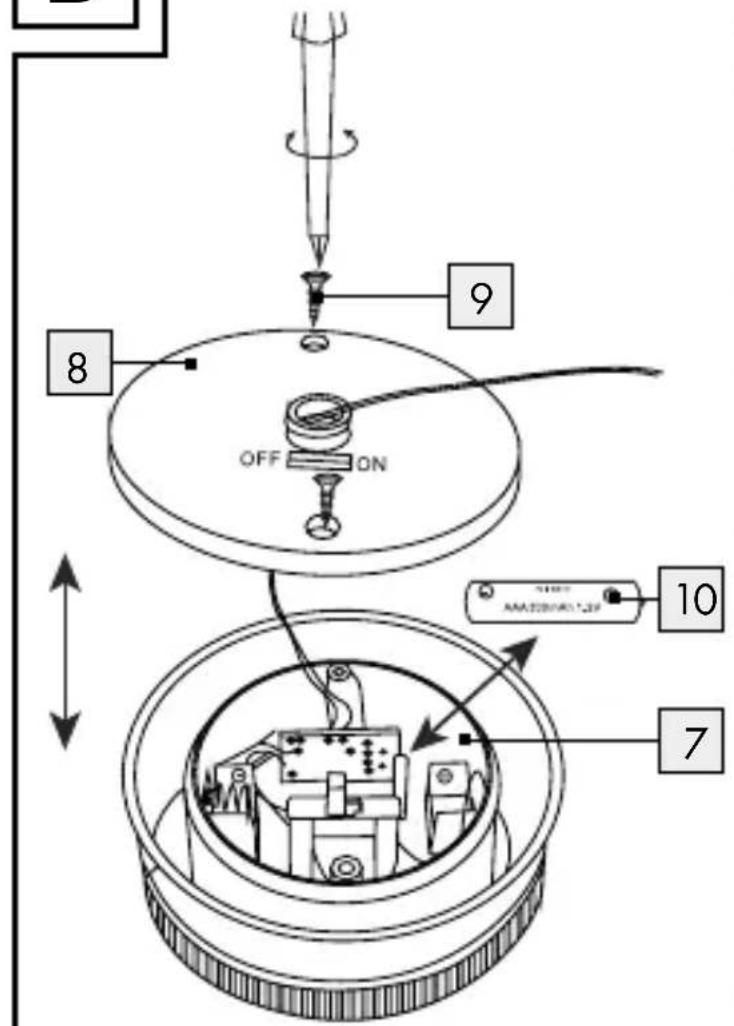

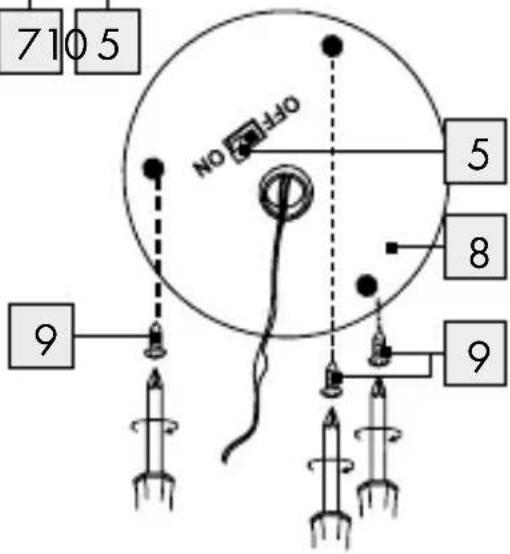

• Replacing the rechargeable battery (see Fig. B)

The battery should be replaced every 12 months to ensure optimum performance.

HG03597A / HG03597B:

1. Rotate the solar cell housing 1 anti-clockwise out of the glass jar 2. Move the ON / OFF switch 5 to the OFF position to switch off the product.
2. Screw out the screws 9 from the battery compartment 7. Separate the battery compartment cover 8 from the battery compartment 7. Take care not to damage the cables, cable connections and the LED light chain 3.
3. Exchange the old rechargeable battery 10 to a new one, ensure that you do not damage the wiring. Take care of the correct polarity, when inserting the new rechargeable battery. The polarity is indicated in the battery compartment 7. The new rechargeable battery has to have the same technical data like the old one.
4. Now attach the battery compartment cover 8 to the battery compartment 7 by screwing up the screws 9. Move the ON/OFF switch 5 to ON position to enable the product switching on during darkness.
5. Insert the solar cell housing 1 into the glass jar 2 and tighten it by turning it clockwise.

HG03597C:

1. Separate the solar cell housing 1 from the glass jar 2.
   Move the ON / OFF switch 5 to the OFF position to switch off the product.
2. Rotate the battery compartment 7 by moving it clockwise and then lever out the battery compartment 7. Take care not to damage the cables, cable connections and the LED light chain 3.
3. Exchange the old rechargeable battery 10 to a new one, ensure that you do not damage the wiring. Take care of the correct polarity, when inserting the new rechargeable battery 10. The polarity is indicated in the battery compartment 7. The new rechargeable battery 10 has to have the same technical data like the old one.
4. Now insert the battery compartment 7 into the solar cell housing 1 by moving it anti-clockwise. Move the ON / OFF switch 5 to ON position to enable the product switching on during darkness.
5. Put back the solar cell housing 1 to the glass jar 2.

Charging the rechargeable battery

Note that the product must be switched on when the battery is charging.

The charging time of the battery when the solar cell is used depends on the intensity of the sunlight and the angle of incidence of the light on the solar cell 6. Place the solar cell as perpendicular as possible to the angle of incidence of the light. In this way you will receive the highest light levels.

Maintenance and care

The light-emitting diodes cannot be replaced.

The product is maintenance-free, except for any necessary change of battery.

☐ Clean the product regularly with a dry, lint-free cloth. Use a slightly dampened cloth to remove more stubborn dirt.

Troubleshooting

Note: This product has delicate electronic components. This means that if it is placed near an object that transmits radio signals, it could cause interference. If you notice that the product is malfunctioning, remove any sources of interference from the area of the product.

Note: Electrostatic discharges may cause product to malfunction. In the event of such malfunctions, remove the rechargeable battery briefly and reinsert it.

Error Cause Solution
The light will not switch on even though the sun shone on the product all day.	Artificial sources of light, e.g. street lighting, are interfering with the product.	Mount the product in a place where it cannot be disturbed by other sources of light.
The light does not come on or comes on only briefly.	The rechargeable battery is broken or there was not enough daylight.	Replace the rechargeable battery or mount the product in a place where it can receive more sunlight.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE IP 44
