DSP4086 - Receiver JBL - Free user manual and instructions

Product type	8-channel DSP audio amplifier/processor
Number of channels	6 inputs, 8 outputs
RMS power (4 ohms)	40 W x 8 channels
RMS power (2 ohms)	60 W x 8 channels
Frequency response	10 Hz – 22 kHz at -3 dB
Signal-to-noise ratio	90 dB
Distortion (THD+N)	< 1% at 4 ohms
Supply voltage range	8 V – 16 V
Fuse	40 A (fuse holder included)
Dimensions (L x W x H)	237.5 x 144 x 49.5 mm
Weight	Approximately 1 kg
Crossover filters	High-pass, low-pass, band-pass, slope 0 – 48 dB/octave
Equalizer	Parametric or graphic 31-band per channel
Presets	10 storable locations
Turn-on modes	12 V, audio detection, DC offset, 12 V remote output
PC connectivity	USB (cable included) for tuning software
Bass remote	Included, adjustment -30 dB to +6 dB
Audio inputs	Low level (RCA) or high level (adapter supplied)
Protections	DC, overvoltage, undervoltage, short circuit, overheating
LED indicators	Green (power), red (protection)
Recommended wire gauge	8 AWG (8.37 mm²) for power/ground

Frequently Asked Questions - DSP4086 JBL

What cables are needed to connect the DSP4086 to the car stereo?

Use RCA cables for low-level inputs, or the supplied high-level adapters if your car stereo does not have preamp outputs. The speaker output harness is included.

How to turn on the amplifier without a remote wire?

You can use the DC offset mode (turn-on via DC voltage) or the AUDIO mode (signal detection) by setting the TURN-ON MODE switch. No REM wire is needed in these modes.

Can I connect high-level speakers directly?

Yes, use the supplied RCA adapters. Connect the car stereo's speaker wires to the adapters, then connect them to the DSP4086's RCA inputs. Set the Input Level switch to HI or HI2 depending on the level.

How to install the JBL tuning software?

Download the software from JBL.com. First run the USB driver (CH341SER), then setup.exe. Follow the wizard. Connect the amplifier to the PC via USB after installation.

What to do if the software shows 'No communication port available'?

Close the software, unplug the USB cable, then plug it back in. Reopen the software. Make sure the amplifier is powered on. If the problem persists, check the USB drivers.

How to adjust the gain to avoid distortion?

In the software, monitor the clipping indicator on each channel. If the light turns on (distortion >10%), lower the volume of the affected channel or the master volume. Use a sine wave at 100 Hz / 1 kHz at 0 dB for precise adjustment.

What does the red protection light mean?

The red light indicates protection mode. Possible causes: over/undervoltage, short circuit, overheating, or internal fault. Check the power supply (8-16 V), speaker connections, and ventilation.

Can I bridge two output channels for more power?

No, output channels cannot be bridged. For more power, use multiple channels to drive an external amplifier via the high-level inputs.

How to use the bass remote?

Plug the remote into the REMOTE input on the panel. It adjusts the subwoofer level on channels 7 or 8 from -30 dB to +6 dB. This is not a frequency control.

How to save and recall presets?

In the software, click Write then a preset number (1-10) to save. To recall, click the number in the interface. Use Delete to erase a preset.

USER MANUAL DSP4086 JBL

Technical line drawing of a JBL device casing with ventilation grilles and mounting feet (no text or symbols)

Owner's Manual	EN
Manual de propietario	ES
Mode d'emploi	FR
Руководство пользователя	RU
用户手册	ZH-CH
Panduan Pengguna	ID
取扱説明書	JP
사용자 설명서	KO

THANK YOU FOR YOUR PURCHASE ...

Your product has been designed to provide you the performance and ease of operation you expect from JBL. Take time to read this manual before operating or installing your amplifier. This manual describes general installation guidelines and operation instructions. Please note that proper installation of mobile audio components requires qualified experience with mechanical and electrical procedures. If you do not have the knowledge and tools to perform this installation, we strongly recommend consulting an authorized JBL dealer about your installation options.

EN

TABLE OF CONTENTS

PRODUCT DESCRIPTION 2

WHAT'S IN THE BOX 2

INSTALLATION AND WIRING....2

SETTING THE SOUND 4

SPECIFICATIONS....6

TROUBLESHOOTING 6

PRODUCT DESCRIPTION

The JBL DSP Amplifier is an audio processor for fine-tuning of aftermarket audio systems. It is a self-contained audio system with 6-channel audio inputs, 8-channel powered audio outputs, an easy-to-use tuning interface a novice can understand, and detailed tuning capabilities to satisfy even experienced installers.

With a USB connection to access the tuning interface using a Windows PC, you can control fully variable crossovers, selectable 0-to-48 dB slopes, time delay, 31-band parametric or graphic EQ adjustment, assignable input-to-output mixer with input channel summing, channel gain, master volume control, clipping indicator to ensure the audio output is not distorted, and ability to save up to 10 presets.

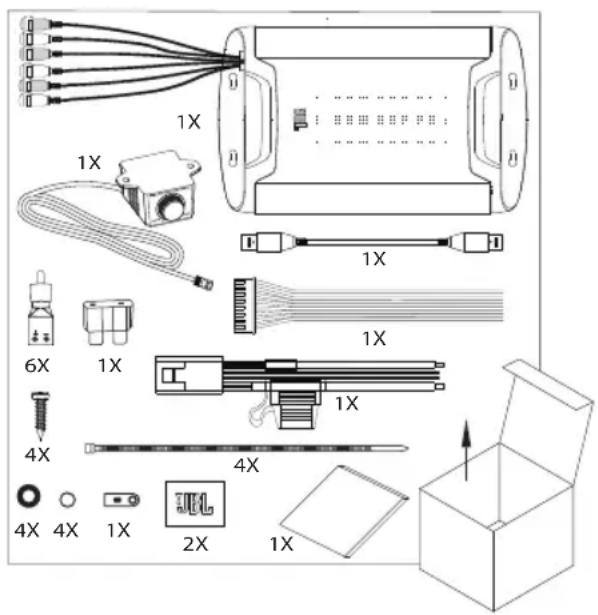

WHAT'S IN THE BOX

INSTALLATION AND WIRING

IMPORTANT: Disconnect the vehicle's negative (−) battery terminal before beginning the installation.

• Wear protective eyewear when using tools.
• Choose a safe mounting location. Check clearances on both sides of the location. Be sure that screws will not puncture brake or fuel lines or wiring harnesses, and that wire routing will not interfere with vehicle operation. Use caution when drilling or cutting.
• When making electrical connections, make sure they are secure and properly insulated.
• Do not mount the amplifier with the heat sink facing downward, as this interferes with cooling.
• Using the amplifier as a template, mark the locations of the holes on the mounting surface.
• Drill pilot holes in the mounting surface.
• Attach the amplifier to the mounting surface with the included sheet metal screws and washers.

Technical line drawing of a cylindrical mechanical component with mounting holes and bolted joints (no text or symbols)

EN

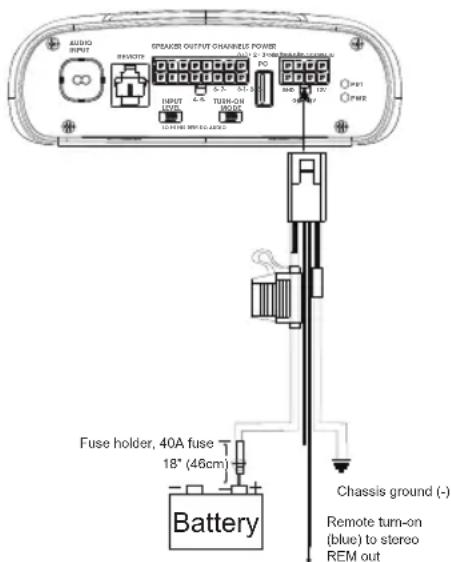

Power and Ground Connections

• Power: Connect the +12V power wire to the positive terminal of the vehicle's battery. Make sure the fuse and fuse holder are within 18" (457mm) of the battery.
• Ground: Connect the GND wire to the negative terminal of the vehicle's battery, or to the vehicle's chassis near the battery with a screw. NOTE: If possible, remove any paint from the chassis for best contact. It is recommended to use a star washer below the ring connector for a secure connection.
• Remote-In: Connect the remote turn-on wire to the "Remote Out" lead of the source unit, if using low-level signal inputs with an aftermarket stereo. NOTE: If you are using high-level signal inputs (your vehicle's speaker wires), you can choose to have the 12-volt DC offset feature turn the amplifier on when you turn on the vehicle power, or the audio-sensing feature turn on the amplifier when it detects audio signal. In either case, you will not have to connect the remote turn-on wire and can tape or cap it off to prevent the introduction of noise.
• Remote-Out: Connect the remote-out wire to external devices that require 12V turn-on after the JBL DSP Amplifier. This connection will allow turn-on of 12V devices after the amplifier wakes from turn-on by 12V remote-in, DC offset or audio signal sensing input.

Power/Protect indicators

The power light will illuminate in green when the amplifier is getting power and playing. The light will illuminate in red if the amp enters protect mode in the event of conditions such as over/under voltage, short circuit, amplifier output circuit failure, or excessive heat.

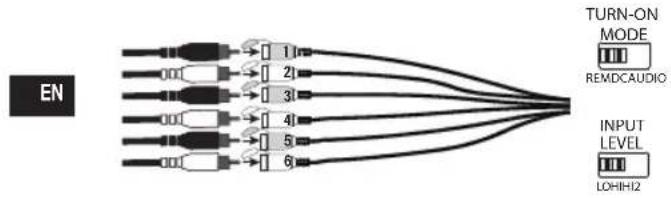

Signal input

- Line-level inputs: If your source unit offers preamp outputs, connect the front outputs to inputs 1 and 2 on the amplifier, the rear outputs to inputs 3 and 4, and the subwoofer outputs to inputs 5 and 6 using RCA patch cables.

Note: when using low-level signals and remote turn-on lead, set the "Turn-on Mode" switch to "REM" and the "Input Level" switch to "LO".


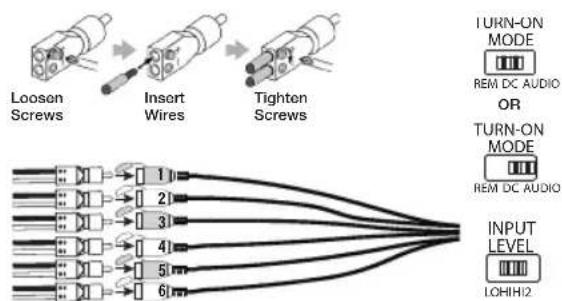

- High-level inputs: If your audio system's source unit does not have line-level outputs, use the supplied high-level input adapters to connect to the speaker output wires of your source unit to the RCA inputs of the amplifier. The 12-volt DC offset feature will turn the amplifier on when it senses signal.

NOTE: You can connect the wires from as many as six of your vehicle's speakers to the amplifier. For example, these can include front left and right tweeters to inputs 1 and 2, front left and right woofers to inputs 3 and 4, and rear left and right full-range speakers to inputs 5 and 6. The signals from each of these speakers can be summed to create a full-range output, if necessary, and assigned to any of the amplifier output wires. See "Setting the Sound" for more details.

NOTE: When using high-level signals, set the "Turn-on Mode" switch to "DC" (to turn on when it receives battery power) or "AUDIO" (to turn on when it senses signal from your source unit), and the "Input Level" switch to "HI". If no sound plays, change the "Input Level" switch to "HI2".


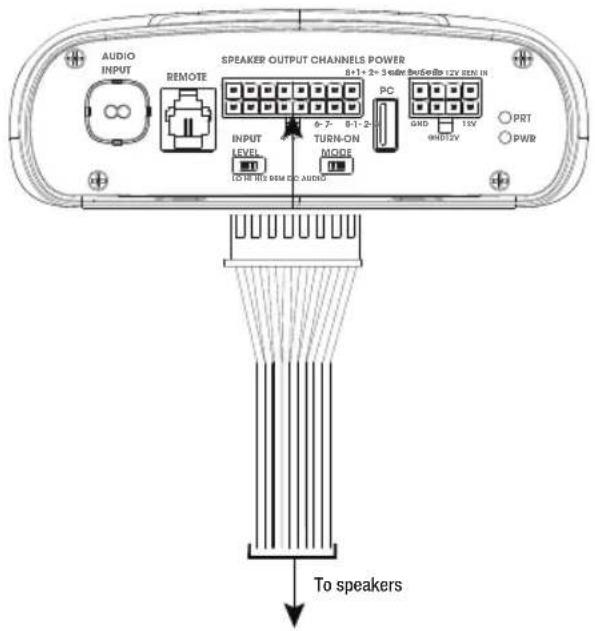

Speaker Output Connections

Connect your speakers to the wires of the speaker output wiring harness, observing proper polarity: connect each positive (+) lead to the appropriate positive (+) speaker terminal, and negative (-) lead to the appropriate negative (-) speaker terminal. Then plug the speaker output wiring harness into the DSP Amplifier.

NOTE: You can connect up to 8 speakers to the JBL DSP Amplifier, then specify the frequencies the amplifiers sends to each one with the JBL tuning software. See "Setting the Sound" for details.

NOTE: If you decide you need more power in your system, you can use two or more of the speaker output wires to connect one or more additional amplifiers. Connect the desired number of speaker output wires to the high-level inputs of the new amplifier(s). IMPORTANT: make sure to adjust the output levels of the channels you are connecting to the extra amplifier(s) to ensure that you do not overdrive the external amplifier(s) and reduce noise, if present.

IMPORTANT: None of the speaker output channels can be bridged.

Wire color Channel designation
White Channel 1 +
White/Black	Channel 1 -
Gray	Channel 2 +
Gray/Black	Channel 2 -
Green	Channel 3 +
Green/Black	Channel 3 -
Purple	Channel 4 +
Purple/Black	Channel 4 -
Orange	Channel 5 +
Orange/Black	Channel 5 -
Blue	Channel 6 +
Blue/Black Channel 6 -
Red	Channel 7 +
Red/Black	Channel 7 -
Yellow	Channel 8 +
Yellow/Black	Channel 8 -

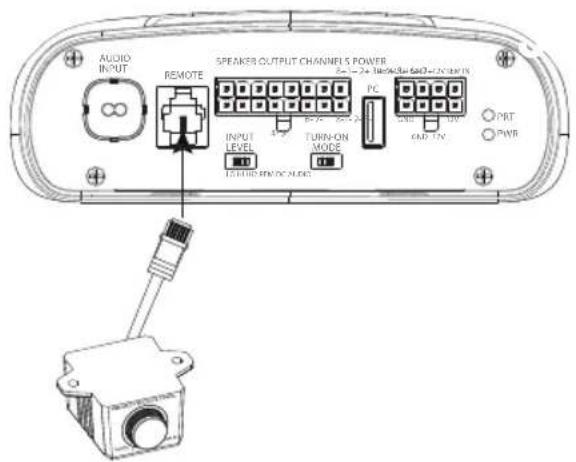

Connecting the remote bass control

Plug the remote bass controller into the appropriate input on the control panel of the DSP Amplifier. Mount the remote in a convenient location, such as under the dash, using sheet metal screws.

NOTE: The remote bass control is capable of controlling the subwoofer output level from channel 7 or 8 when assigned as a "sub" channel. This will allow adjustment of subwoofer level from -30dB to +6db in the tuning software. It is not a bass boost control. We expect that you will use the remote bass control from an external subwoofer amplifier should you want to control bass boost.

SETTING THE SOUND

Download the tuning software from JBL.com

1. Connect to internet with your Windows PC or laptop and go to JBL.com and download the Graphic User Interface for the DSP4086 Amplifier.
2. Complete the software installation setup wizard before you connect your computer to your JBL DSP Amplifier.

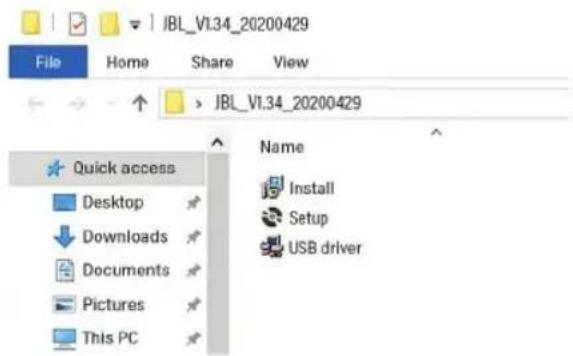

3. Double-click "JBL DSP software" from its saved location.

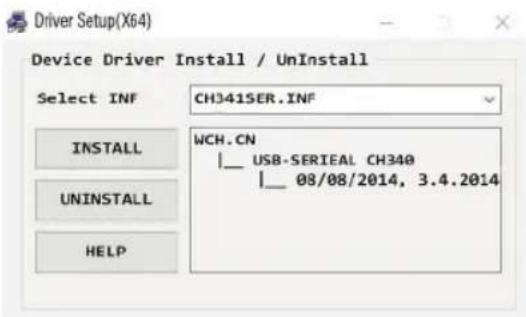

4. Double-click "USB driver" and click install

NOTE: Make sure to allow it to make changes to your computer if your anti-virus software requests it.

5. Double-click "setup.exe".

NOTE: Make sure to allow it to make changes to your computer if your anti-virus software requests it.

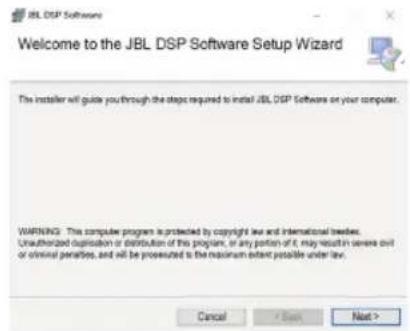

1. Click "Next" in the JBL DSP Software Setup Wizard.

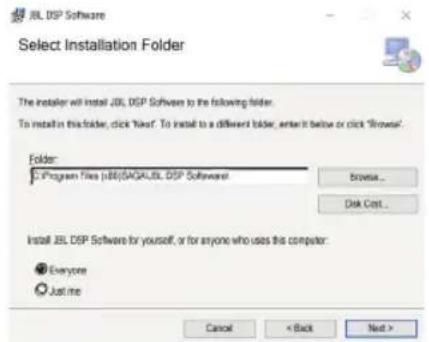

1. Select preferred installation folder, or click "next" to choose the default location.

1. Click "Next" to confirm installation. Again, make sure that your anti-virus protection allows installation to be completed.
2. Sit back and wait while software installation completes...

1. Installation Complete! Close setup wizard and continue to next section. You should see this icon on your computer screen (please note to icon is JBL orange).

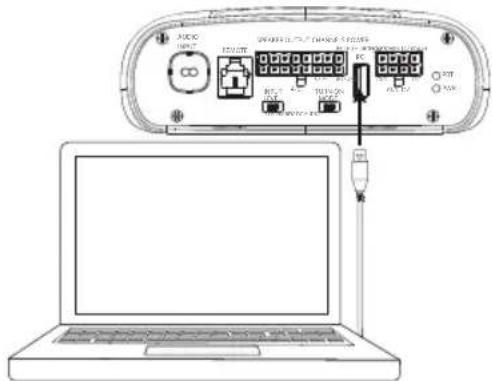

Connecting JBL DSP Amplifier to your Windows PC

1. Connect your Windows PC to the DSP Amplifier with the included USB cable.

1. Make sure to turn your audio source down to a low volume level before powering your JBL DSP Amplifier.
2. Activate/power your audio system and make sure all parts are operating.

NOTE: The DSP Amplifier will come with pre-flashed EQ profile that will act as "EQ Off" or preset 1.

1. With your PC connected to the JBL DSP Amplifier, double-click JBL software icon on your PC and open DSP tuning software.

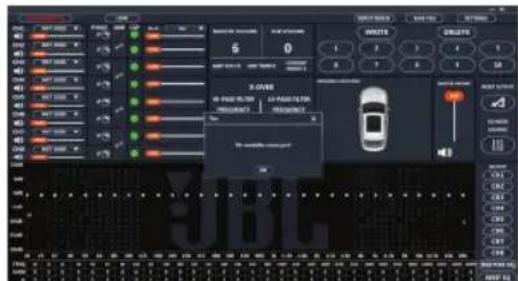

NOTE: If the software appears with a window showing "No Comm Port Available", close the software, disconnect the USB cable from your computer, and return to step 4. Otherwise, proceed to step 5. The DSP software will function when not connected to the amplifier if you would like to familiarize yourself with the software and create a pre-configured audio system setup.

1. Connection complete! Continue on to Tuning Procedure...

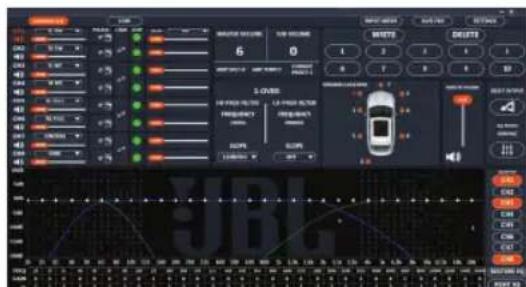

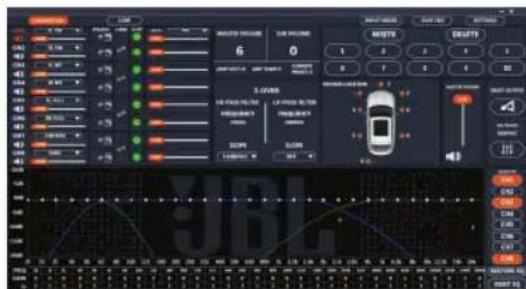

User Interface Functions

The JBL tuning software features the following controls:

1. Assign speaker locations to channels. With this feature, you can designate the type of speaker and location in the car each output channel of the DSP is connected to.

2. Individual channel volume control and muting. You can raise and lower the relative volume level of each channel individually to ensure perfect level-matching and output.

3. 0°/180° phase adjustment. You can set the phase of each channel individually for balanced, dynamic performance.

4. Linking of paired channels. You can link paired channels to apply volume and tone controls evenly.
5. Clipping indicator. Each channel features a clipping indicator to let you know if 10% or greater distortion is present. If it is, lower the volume level of the clipping channel until the indicator turns off. For best results, measure with a 100Hz and 1kHz @ 0dB sine wave.
6. Time delay. With time delay, you can adjust the focal point of the sound field to your desired location in the car. The closer a speaker is to your desired focal-point location, the longer its delay should be. To adjust, drag the slider to the right to increase the delay, and to the left to decrease it.
7. Information display. This display shows you the following statistics:

a. The master volume value
b. The current subwoofer volume level for channel 7 or 8, and adjustable from -30dB to +6dB when using the remote bass control.
c. The voltage the amplifier is reading at the power input
d. The amplifier's current operating temperature
e. Your current system configuration.

1. X-OVER. You can adjust the crossover points of the high-pass and low-pass crossovers for each channel to maximize the performance efficiency of each speaker connected to the DSP Amplifier. The selectable crossover slope for each channel can be set to 0/6/12/18/24/30/36/42/48dB.

2. Speaker location view. This shows which amplifier channels are in use, and the locations of the corresponding speakers in the vehicle.

3. Master Volume. You can raise or lower the volume of the entire system, or mute the entire system. Drag the slider up to raise the volume, and down to lower it. Click the speaker icon to mute the audio system.
4. Write/Delete. "Write" lets you save up to 10 preferred audio settings as presets, which you can apply to the amplifier. Click "write", then click a preset number to save a preset. Click "delete", then click a preset number to delete a preset.
5. Input Mixer. The Input Mixer feature lets you assign the audio signal from an input channel to a specific output channel. You can also sum the signals of multiple input channels and apply the resulting signal to a specific output channel, usually to allow a speaker to play the widest range of frequencies possible when using speaker-level input signals.
   EXAMPLE: If you have connected a tweeter (high-frequency response only) to input channel 1 and a midrange speaker (midrange-frequency response only) to channel 2, you can sum the signals of each of these inputs, and assign the new, full-range signal to a full-range speaker you have connected to output channel 1.
6. Save File. This allows you to save saving a preferred audio system configuration to a folder on your computer for use later. It also allows you to retrieve a previous configuration from your computer and apply it to your connected amplifier.
7. Settings. You can control the following options in the "Settings" menu:

a. Language selection for the software: choose from English, Spanish, French, Chinese, and Japanese
b. Power settings for delaying the amplifier turn-on/off should your vehicle require either option
c. Firmware upgrades and resetting the software to original factory settings
15. Reset EQ. This button lets you reset the type of speaker, and location in the vehicle, of each output channel.
16. EQ Mode. This lets you choose either a 31 band parametric or graphic EQ to adjust for each channel.

1. Parametric or graphic EQ. You can apply custom EQ curves to each channel you have connected. To increase the level of a given frequency, drag the slider up. To lower it, drag the slider down.

2. EQ Setup. This EQ setup feature lets you click to select the channels to which you want to apply EQ curves.

NOTE: The FREQ, GAIN, and Q fields shows the values of the changes made by moving the EQ sliders. Only Gain is adjustable when in Graphic EQ Mode. Frequency, Gain, and Q are all adjustable in Parametric EQ Mode. These adjustments can be made using the sliders or entering specific values in the F, G, and Q fields.

1. Bypass EQ and Restore EQ. "Bypass EQ" allow you to return your EQ settings to flat so you can hear the differences made during your tuning. "Restore EQ" returns all EQ adjustments to the previous settings.

SPECIFICATIONS

• RMS Power Output (Watts x Channel) @ 2-ohm: 60W x 8
• RMS Power Output (Watts x Channel) @ 4-ohm: 40W x 8
- Amplifier Class: Class D
• Battery Voltage Range (Volts): 8V to 16V
- Selectable Turn-on Modes: 12V, Audio Signal Sense, DC Offset, 12V remote output
• LED Indicator: red/green
• Frequency Response: 10Hz to 22kHz @ -3dB
• Signal-to-Noise Ratio: 90dB
• Signal-to-Noise Ratio (CEA-2006): 75dB
• THD+N @ 4-ohm: <1%
- Input Sensitivity, selectable: High-level or low-level
- Input Sensitivity - Low Level: 680mV to 6V
- Input Sensitivity - High Level: 1.6V to 15V
- Variable Crossovers: All Channels: HPF, LPF, Band-pass w/ selectable 0 to 48dB slope
• Gain, variable: All Channels with PC
- Subwoofer level, variable : Channels 7 & 8 in PC software or using accessory remote control from -30dB to +6dB
- Fuse Rating: 40A
• Minimum Recommended Power/Ground Wire Gauge: 8awg
- Speaker Level Inputs: Yes (RCA adapter)
- Remote Bass Control: Included
• Length : 9-3/8" (237.5mm)
• Width: 5-11/16" (144mm)
• Height: 1-15/16" (49.5mm)
• Weight: Approx. 1000g
• Protection: DC, OVP, UVP, OCP, OTP

TROUBLESHOOTING

No audio and POWER INDICATOR is off.

- No voltage at BATT+ and/or REM terminals, or bad or no ground connection. Check voltages at amplifier terminals with VOM.

No audio and PROTECT INDICATOR flashes.

- DC voltage on amplifier output. Amplifier may need service; see enclosed warranty card for service information.

No audio and PROTECT and POWER INDICATORS flash.

- Voltage less than 9V on BATT+ connection. Check vehicle charging system.

No audio and PROTECT INDICATOR is on.

- Amplifier is overheated. Make sure amplifier cooling is not blocked at mounting location. Verify that speaker-system impedance is within specified limits. Or, there may be voltage greater than 16V (or less than 8V) on BATT+ connection. Check vehicle charging system.

Amplifier fuse keeps blowing.

- The wiring is connected incorrectly or there is a short circuit. Review installation precautions and procedures. Check wiring connections.

Distorted audio.

- Gain is not set properly. Check Individual Channel Volume and/or Mater Volume settings. Check speaker wires for shorts or grounds. Amplifier or source unit may be defective.

Distorted audio and PROTECT INDICATOR flashes.

- Short circuit in speaker or wire. Remove speaker leads one at a time to locate shorted speaker or wire, and repair.

Music lacks dynamics or "punch."

- Speakers are not connected properly. Use 0°/180° phase adjustment, and check speaker connections at amplifier and speaker.

Pure technical diagram of a mechanical component with mounting holes and internal features (no text or symbols)

Pure technical diagram of a mechanical component with mounting holes and internal features (no text or symbols)

FR

Pure technical diagram of a symmetrical mechanical or architectural component with mounting holes and no text or symbols

Wireless sensor connection diagram showing connections from Oscalbte VINTS to Vstavbte провoda and 3atynite VINTS, with turn-on modes and input level indicators.

Pure technical diagram of a cylindrical component with mounting flanges and bolt holes, no text or symbols present

电源和接地连接

信号输入

1. 连接完成！继续执行调谐程序……

用户界面功能

JBL 调谐软件具有以下控件：

1. Connected and disconnected.

Pure technical diagram of a mechanical component with mounting holes and internal features (no text or symbols)

1. Klik dua kali "USB driver" lalu klik instal

Pure technical line drawing of a cylindrical component with mounting holes and internal features (no text or symbols)

電力接続とアース接続

Technical line drawing of a mechanical component with mounting holes and a central dotted-line feature (no text or symbols)

전원 및 접지 연결
