H2O - Binoculars BUSHNELL - Free user manual and instructions

Product Type	Binoculars
Brand	Bushnell
Model	H2O (158042R)
Magnification	8x
Objective Diameter	42 mm
Prism System	Roof
Field of View	360 ft @ 1000 yds / 110 m @ 1000 m
Exit Pupil	5.0 mm
Eye Relief	17 mm
Close Focus	15 ft / 4.5 m
Length	6 in / 152 mm
Weight	22.7 oz / 643 g
Waterproof Rating	IPX7 (submersible up to 1 m for 30 min)
Lens Coatings	Fully multi-coated anti-reflective
Focus System	Center focus knob
Diopter Adjustment	Right eyepiece diopter ring
Tripod Mountable	Yes (via 1/4-20 UNC socket, adapter required)
Neckstrap Included	Yes
Warranty	Bushnell Ironclad Lifetime Warranty
Parts Included	Binocular, neckstrap, lens cloth/storage bag, caps (if applicable)
Cleaning Instructions	Blow off debris, use microfiber cloth, avoid household cleaners
Safety Warning	Never look directly at the sun

Frequently Asked Questions - H2O BUSHNELL

How do I adjust the diopter on my Bushnell H2O binoculars?

Cover the right objective lens, focus with center knob using left eye. Then cover left objective lens and rotate the diopter adjustment ring (below right eyecup) until sharp. Avoid forcing.

How should I clean the lenses?

First blow away dust with canned air or soft brush. Use the included microfiber cloth in circular motions. For stubborn dirt, use photographic lens tissue with a drop of isopropyl alcohol (apply to cloth, not lens). Never use window cleaners.

Can I use these binoculars with glasses?

Yes. Turn the eyecups down (twist down) for use with glasses. This provides proper eye relief (17 mm for 8x42 model). For without glasses, twist eyecups up.

What does IPX7 waterproof mean?

The binoculars can be submerged in water up to 1 meter depth for up to 30 minutes. Avoid longer or deeper immersion.

How do I attach the neckstrap?

Thread the strap ends through the strap lugs on each side, then back through the plastic buckle. Adjust length equally on both sides. Use a plastic zip tie if using metal O-rings to avoid scratching.

Can I mount these binoculars on a tripod?

Yes, unscrew the cap on the center hinge to expose a 1/4-20 UNC socket. Use a compatible binocular tripod adapter (e.g., Bushnell #161002CM). Not available on FRP models.

What is the difference between Porro, Roof, and Folding Roof prism designs?

Porro prisms have an offset barrel shape offering wider field of view; Roof prisms are straight and compact; Folding Roof (FRP) are ultra-compact. H2O includes all three types across various SKUs.

How do I adjust interpupillary distance (IPD)?

Hold the binoculars and move the two barrels closer or farther apart until you see a single circular image with no dark shadows. This matches your eye spacing.

What warranty covers these binoculars?

Bushnell Ironclad Lifetime Warranty covers defects in materials and workmanship for the product's lifetime (up to 30 years depending on model). Transferable, no receipt needed. Excludes electronics, batteries, cosmetic damage, misuse.

What are the different SKUs available for H2O?

Common SKUs include 157050R (7x50 Porro), 158042R (8x42 Roof), 138005R (8x25 FRP), 134218R (18x42 Porro), 150142R (10x42 Roof), and others. Refer to the manual for full list.

USER MANUAL H2O BUSHNELL

Blue binoculars with black focal points, no visible text or symbols on the can be

H20 ^TM

WATERPROOF BINOCULAR

USER MANUAL

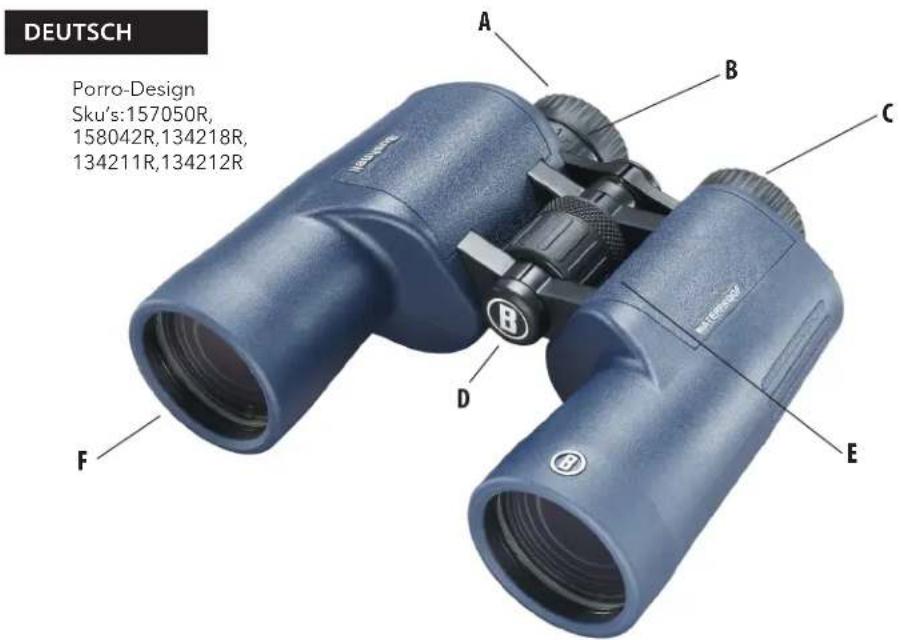

PARTS GUIDE

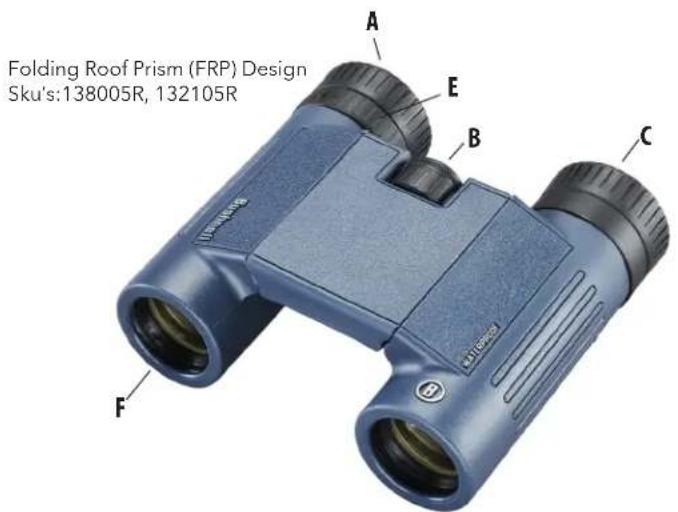

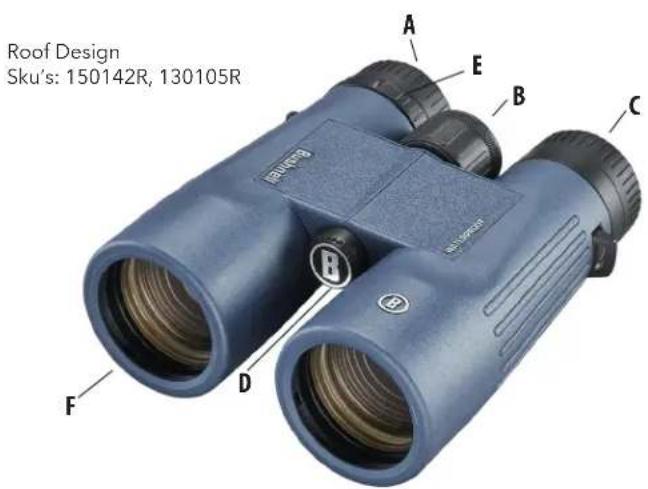

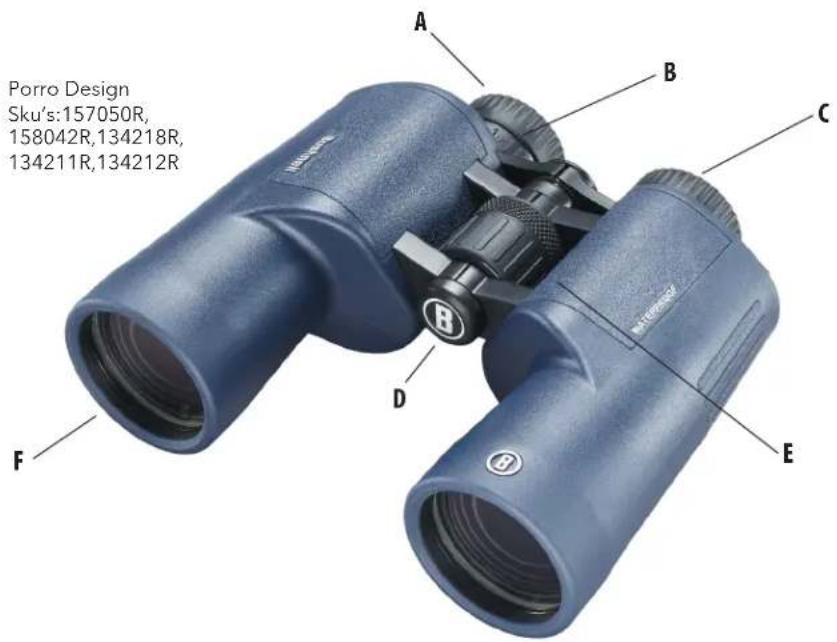

Ocular Lens A

Diopter Adjustment Ring B

Eyecups C

Tripod Adapter Socket* D

Center Focus Knob E

Objective Lens F

* under cap (not available on FRP models)

Thank you for purchasing your new Bushnell® H2O™ binoculars.

This manual will help you optimize your viewing experience by explaining how you can adjust the binocular to your eyes, and how to care for this instrument. Read the instructions carefully before using your binocular.

NEVER LOOK DIRECTLY AT THE SUN WITH YOUR BINOCULAR, AS IT MAY CAUSE SERIOUS DAMAGE TO YOUR EYES

EYECUP ADJUSTMENT

Your Bushnell H2O binocular is fitted with eyecups that provide a comfortable view of the full image and help to exclude extraneous light. If you need to wear glasses when using binoculars, leave the eyecup in the "down" position (Fig. 1, next page). For use without eyeglasses or sunglasses, twist up the eyecups (Fig. 2). This will place your eyes farther from the binocular's ocular lenses, at the correct eye relief distance, allowing you to see the full field of view.

IPD (INTERPUPILLARY DISTANCE) ADJUSTMENT

The spacing between the pupils of your eyes, called "interpupillary distance," varies from person to person. To match your binoculars to your IPD or "eye to eye" width:

1. Point them at a white wall or blank area of the sky. Hold the binoculars and view through them as you normally would. Don't worry about focus yet.

2. Grasp each side of the binocular firmly. Move the left and right sides closer together or farther apart (Fig. 3, next page) until you see a single image with no shaded areas.

Fig. 1 Eyecup in "Down" Position (for use with glasses)

Close-up of a mechanical component with a black gear-like top and blue base (no visible text or symbols)

Fig. 2 Eyecup in "Up" Position (for use without glasses)

Close-up of a black mechanical gear component with grooves and flanges (no visible text or symbols)

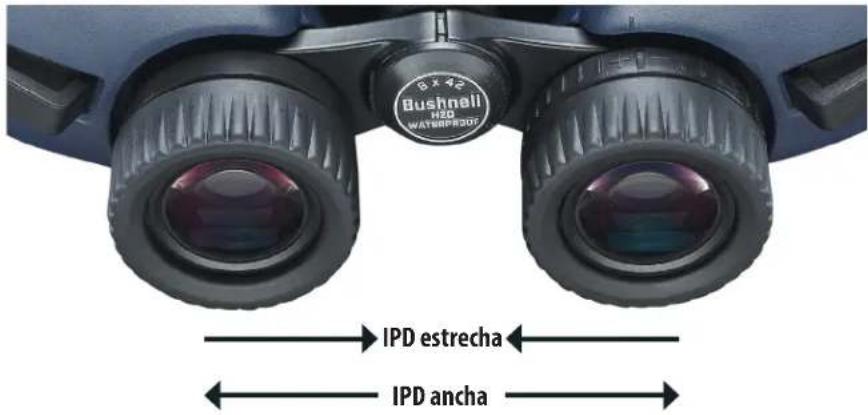

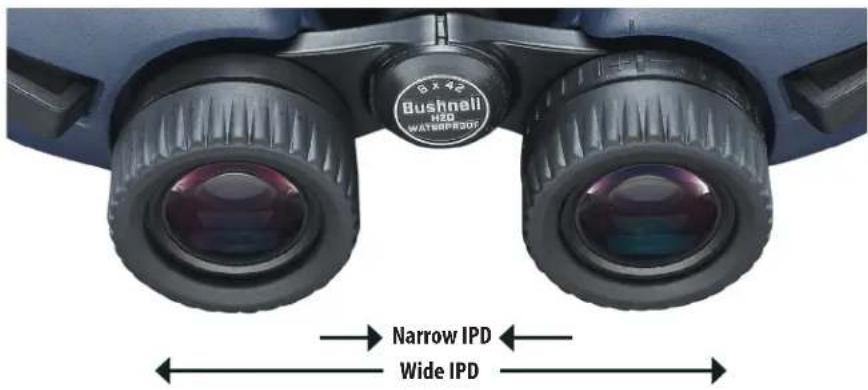

Fig. 3 Interpupillary Distance (IPD) Adjustment

FOCUS AND DIOPTER ADJUSTMENT

1. Adjust the eyecups and IPD as described in the previous sections.
2. Using a lens cap or your hand, cover the objective lens on the right side of the binocular.

3. Using the center focus knob, focus on a distant object with fine detail (e.g., brick wall, tree branches, etc) until it appears as sharp as possible when viewed through the left side of the binocular.

4. Uncover the objective lens on the right side, and cover the left objective lens while continuing to view the same object.

5. Rotate the diopter adjustment ring (NOT the center focus knob) located directly below the right eyecup (Fig. 4) to bring the object into focus in the right side of the binocular. Avoid over-turning or forcing the diopter mechanism. If you are unable to bring the object into focus for your right eye by adjusting the diopter ring/eyecup, make sure the left side is still in focus (repeat steps #2-4 if necessary). The diopter adjustment essentially provides "fine focus" on one side of the binocular (right only) to allow for slight differences in the vision of your left and right eyes.

6. Your binocular should now be adjusted for your eyes. Focusing for any distance can now be done simply by turning the center focus knob. Make a note of your diopter setting (position of plus and minus marks on diopter ring relative to index mark on binocular near the ring) for future reference in case the ring is moved accidentally or by another person using your binocular.

Close-up of a black mechanical tire mounted on a blue surface (no visible text or symbols)

Fig. 4 Diopter Adjustment Ring

NECKSTRAP ATTACHMENT

To attach the neckstrap, thread the ends of the neckstrap through the strap lug (Fig. 5) on each side of the binocular, then back through the plastic buckle on the strap (Fig. 6). Adjust the position of the binoculars on your chest as they hang around your neck to your preference, by changing the length of the strap section which passes through the strap channel and buckle by an equal amount on each side. If you prefer to use an aftermarket strap that has metal O-rings, attach them to a plastic zip tie placed on the strap lugs rather than installing them directly on the lug, to avoid damaging the finish on the binocular via contact with the rings.

Close-up of a blue mechanical component with ribbed texture and black handle (no visible text or symbols)

Fig. 5 Strap Lug

Abstract black ink brushstroke on white background, no text or symbols present

Fig. 6 Strap & Buckle

TRIPOD MOUNTING

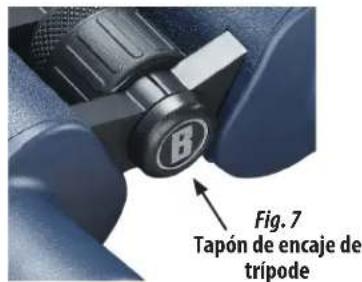

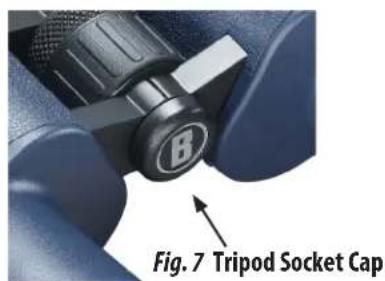

To attach the binocular to a tripod or monopod, unscrew the cap which covers the threaded (1/4-20UNC) socket at the far end of the center hinge (Fig. 7), and set it aside in a safe place. Use a compatible binocular tripod adapter accessory (90° angle bracket), such as the Bushnell #161002CM, to attach your binocular on any standard tripod in a horizontal position, to provide a stable image during prolonged viewing, especially with high power optics. Tripod mounting not available on FRP models.

FULLY MULTI-COATED OPTICS

H2O binoculars have lenses with multiple microthin layers of anti-reflective (AR) coating on every air-to-glass surface. This provides increased light transmission for a brighter, clearer image. It's important to take proper care of your binocular to avoid damage to these lens coatings that could be caused by improper cleaning methods.

CLEANING

1. First, blow or brush away any dust or debris on the lens (using "canned air" or a soft lens brush).
2. To remove dirt or finger prints, clean with the supplied soft storage bag (made of washable micro-fiber cloth), rubbing in a circular motion. Use of a coarse cloth (including paper towels) or unnecessary rubbing may scratch the lens surface and eventually cause permanent damage. The included storage bag/micro-fiber cloth is ideal for the routine cleaning of your optics. Simply breathe lightly on the lens to provide a slight amount of moisture, then gently rub the lens with the micro-fiber cloth.
3. For a more thorough cleaning, photographic lens tissue and photographic lens cleaning fluid or isopropyl alcohol may be used. Always apply the fluid to the cleaning cloth - never directly on the lens.
4. To prevent potential damage to the optical coatings on the binocular's lens surfaces, never use household window cleaning liquids. Avoid using facial tissue or clothing that may have fibers which can be abrasive and hold oils or dirt.

CARE OF THE OPTICS

1. Your Bushnell binocular will provide years of trouble-free service if it receives the normal care you would give any fine optical instrument.
2. Avoid sharp impacts. Set the binocular down gently on hard surfaces.
3. Tug on the strap after attaching, making sure it is securely fastened to the binocular before placing it around your neck.
4. Store your binocular in a cool, dry place whenever possible.
5. All H2O binoculars are tested for water resistance to IPX7 standards. Avoid immersion in water to depths over 1 meter (3 ft 3 in) and/or for periods of time longer than 30 minutes.

Technical Specifications

SKU	Chassis Size	Magnification	Objective Diameter	Prism System	Field of view ft@1000yds/m@1000m	Exit Pupil (mm)	Eye Relief (mm)	Close Focus (ft/m)	Length (in/mm)	Weight (oz/g)
157050R	Full	7x	50 MM	Porro	340 / 104	7.0	27	24 / 7.3	6.6/168	37.5 / 1063
138005R	Compact	8x	25 MM	Folding Roof (FRP)	361 / 110	3.0	11	19 /5.8	4/101	10.3/ 292
158042R	Full	8x	42 MM	Roof	360 /110	5.0	17	15 /4.5	6/152	22.7 / 643
134218R Full	18x 42 MM Porro	390 / 119	5.0 18 18 / 5.4	5.5/216 30.7 / 870
134211R	Full	12x	25 MM	Folding Roof (FRP)	262 /80	1.9	8	19 / 5.8	4/101	10.6 / 300
150142R	Full	10x	42 MM	Roof	305 / 93	4.0	15.6	12 / 3.6	6/150	22.2 / 629
130105R	Compact	10x	25 MM	Roof	320 / 97.5	2.5	10	17 / 5	4/104	10.7 / 303
134212R	Full	12x	42 MM	Porro	267 / 81.3	3.5	14	18 / 5.4	5.5/216	31 / 881
132105R	Compact	12x	25 MM	Folding Roof (FRP)	262 / 78	1.9	8	19 / 5.8	4/101	10.6 / 300

Products manufactured on or after April 2017 are covered by the Bushnell Ironclad Warranty. The Ironclad Warranty is a full lifetime warranty that covers the lifetime of this Product. Each Product has a defined lifetime; lifetimes can range from 1 to 30 years. This Product's lifetime can be found at the website listed below and/or on the Bushnell webpage specific to this Product.

We warrant that this Product is free from defects in materials and workmanship and will meet all represented performance standards for the lifetime of this Product. If this Product isn't working properly due to a covered defect, we will, at our option, either repair or replace it and ship it back to you at no charge. This warranty is fully transferable and does not require a receipt, warranty card, or product registration. This warranty does not cover the following: electronic components; batteries; cosmetic damage; damage caused by failing to properly maintain the product; loss; theft; damage as a result of unauthorized repair, modification, or disassembly; intentional damage, misuse, or abuse; and ordinary wear and tear. This Warranty will be void if the date stamp or other serialization codes have been removed from the Product.

To view the full warranty and find details on how to request service under the warranty, go to our website at www.bushnell.com/warranty. Alternatively, you can request a copy of the warranty by calling us at 1-800-423-3537 or writing to us at one of the following addresses:

IN U.S.A. Send To: IN CANADA Send To:

Bushnell Holdings, Inc. Bushnell Holdings, Inc.

Attn.: Repairs

9200 Cody 140 Great Gulf Drive, Unit B

Overland Park, Kansas 66214 Vaughan, Ontario L4K 5W1

For products purchased outside the United States or Canada please contact your local dealer for applicable warranty information.

This warranty gives you specific legal rights. You may have other rights which vary from country to country.

©2022 Bushnell Outdoor Products

FRANÇAIS

Conception de Porro

Sku's:157050R,
158042R,134218R,
134211R,134212R

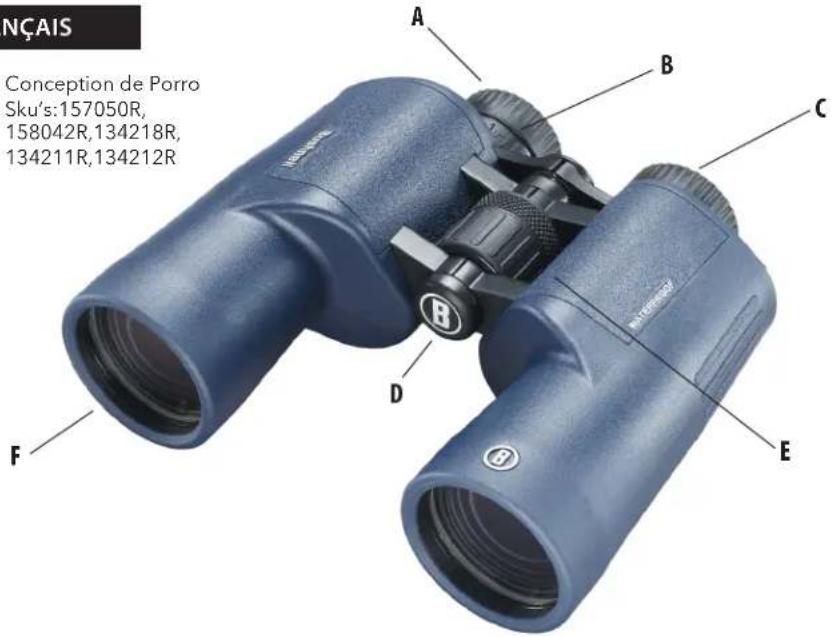

GUIDE DES PIÈCES

Lentille oculaire A

Close-up of a black mechanical component with grooves and a blue base (no visible text or symbols)

Close-up of a black mechanical gear component with threaded shaft (no visible text or symbols)

Close-up of a black tire mounted on a blue surface, no visible text or symbols

Close-up of a blue mechanical component with ribbed texture and a black clip (no visible text or symbols)

Close-up of a black rope tied with a string, no visible text or symbols

Bushnell Holdings, Inc. Bushnell Holdings, Inc.

Attn.: Repairs Attn.: Repairs

9200 Cody 140 Great Gulf Drive, Unit B

Overland Park, Kansas 66214 Vaughan, Ontario L4K 5W1

©2022 Bushnell Outdoor Products

ESPAÑOL

Diseño de Porro Sku's:157050R, 158042R,134218R, 134211R,134212R

GUÍA DE PIEZAS

Lentes oculares A

Close-up of a mechanical gear component with mesh texture and blue base (no visible text or symbols)

Close-up of a black mechanical gear component with grooves and teeth (no visible text or symbols)

Figura 3 Ajuste de la distancia interpupilar (IPD)

AJUSTE DE FOCO Y DIOPTRÍA

Close-up of a black tire mounted on a blue surface, no visible text or symbols

Close-up of a blue electric shaver and black cable strap (no text or symbols visible)

Fig. 5 Lengüeta de correa Fig. 6 Correa y Hebilla

Bushnell Holdings, Inc. Bushnell Holdings, Inc.

Attn.: Repairs Attn.: Repairs

9200 Cody 140 Great Gulf Drive, Unit B

Overland Park, Kansas 66214 Vaughan, Ontario L4K 5W1

©2022 Bushnell Outdoor Products

TEILEÜBERSICHT

Okularlinse A

Close-up of a mechanical gear component with mesh texture and blue base (no visible text or symbols)

Close-up of a black mechanical gear component with threaded teeth and flanges (no visible text or symbols)

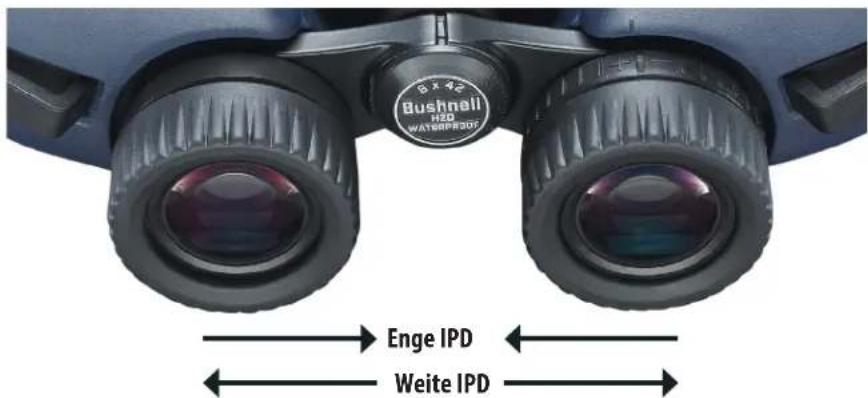

Abb. 3 Anpassung Pupillendistanz (IPD, Interpupillary Distance)

Close-up of a black tire mounted on a blue surface, no visible text or symbols

Close-up of a blue electric shaver and black cable harness (no text or symbols visible)

Bushnell Holdings, Inc. Bushnell Holdings, Inc.

Attn.: Repairs Attn.: Repairs

9200 Cody 140 Great Gulf Drive, Unit B

Overland Park, Kansas 66214 Vaughan, Ontario L4K 5W1

©2022 Bushnell Outdoor Products

ITALIANO

Modello a Porro Sku's:157050R, 158042R,134218R, 134211R,134212R

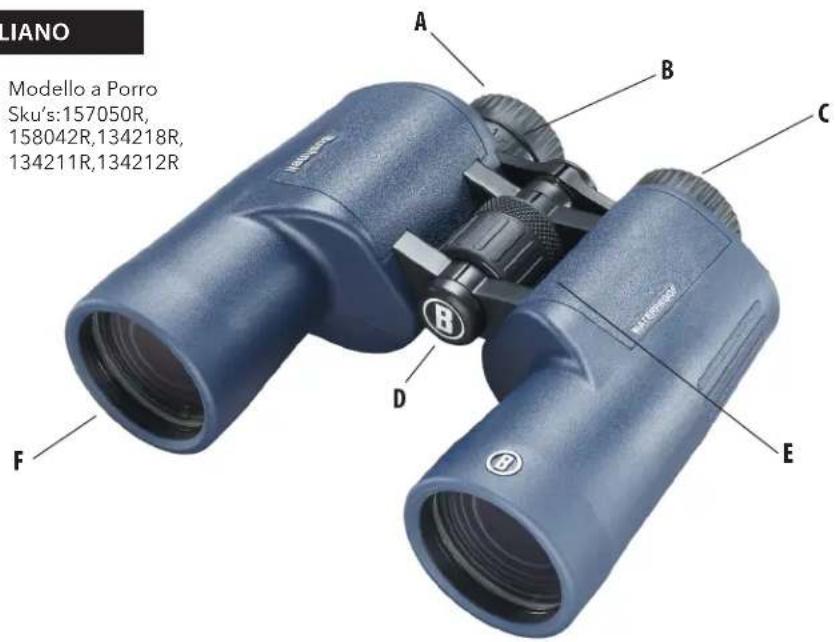

GUIDA ALLE PARTI
