Brand	Marantz
Model	PMD-750
Product type	Wireless microphone kit (transmitter + receiver)
Power supply	2 AA batteries (not included) or micro-USB port (adapter sold separately)
Main functions	Automatic/manual pairing, mono/stereo output, RF level adjustment (from -1 to 20 dBm), mute function, LED indicators
Box contents	PMD-750 transmitter, PMD-750 receiver, condenser lavalier microphone, foam windscreen, synthetic fur windscreen, shoe adapter, mini-XLR cable, user guide
Display screen	Yes, displays channel, pairing status, battery level
Connectivity	Mini-XLR microphone input, mini-XLR audio output, micro-USB port
LED indicators	Pair LED (red in mute/pairing, solid blue when paired)
Care and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Avoid prolonged exposure to high sound levels (≥85 dB) to prevent hearing loss.
General information	Designed for use with digital single-lens reflex (DSLR) cameras. Support at marantzpro.com/support.

Frequently Asked Questions - PMD-750 MARANTZ

How to pair the transmitter and receiver?

Turn on the receiver: it automatically enters pairing mode. Turn on the transmitter: it automatically pairs with the receiver. The Pair LED becomes solid blue when pairing is successful.

How to switch from mono to stereo output?

Make sure two transmitters are paired. Press the Enter button on the receiver to toggle between Mono and Stereo modes. Confirm with the Enter button.

How to adjust the RF level of the transmitter?

In the transmitter menu, use the navigation keys to highlight the RF meter. Adjust the level with the navigation keys. Available values range from -1 to 20 dBm, default is 10 dBm.

What does the flashing red Pair LED on the transmitter mean?

The flashing red LED indicates the transmitter is in mute mode. To disable mute, briefly press the power button on the transmitter.

Can I use rechargeable batteries?

Yes, you can use rechargeable AA batteries. Make sure to replace both batteries at the same time and do not mix different battery types.

How to power the device without batteries?

You can plug a USB power adapter (sold separately) into the micro-USB port of the transmitter or receiver to power the device without using AA batteries.

How to clean the lavalier microphone?

Use a soft, dry cloth. For windscreens, remove them and wash with warm soapy water, then dry completely before reattaching.

What to do if the sound is distorted?

Check the levels: in your camera settings, set audio mode to Manual and adjust the input level so the loudest sound does not exceed -12 dB. Avoid clipping by not exceeding 0 dB.

How to change output from mono to stereo with only one transmitter?

With a single transmitter, the output is automatically set to Mono. To use stereo output, you must pair a second transmitter.

Where can I find additional support?

Visit marantzpro.com/support for help, updates, and warranty information.

USER MANUAL PMD-750 MARANTZ

Wireless Camera Mount System

User Guide

English (3-11)

Guía del usuario

Español (12-20)

Guide d'utilisation

Français (21-29)

Guida per l'uso

Italiano (30-38)

Benutzerhandbuch

Deutsch (39-47)

Appendix

English (48-50)

User Guide (English)

Introduction

Box Contents

PMD-750 Transmitter

PMD-750 Receiver

Lavalier Condenser Mic

Foam Windscreen

Synthetic Fur Windscreen

Hot Shoe Adapter

Mini-XLR Audio Output Cable

User Guide

Safety & Warranty Manual

Support

For the latest information about this product (documentation, technical specifications, system requirements, compatibility information, etc.) and product registration, visit marantzpro.com.

For additional product support, visit marantzpro.com/support.

Important Safety Precautions

Please note: Marantz Professional and inMusic are not responsible for the use of its products or the misuse of this information for any purpose. Marantz and inMusic are not responsible for the misuse of its products caused by avoiding compliance with inspection and maintenance procedures. Please also refer to the included safety and warranty manual for more information.

Sound Level

Permanent hearing loss may be caused by exposure to extremely high noise levels. The U.S. Occupational Safety and Health Administration (OSHA) has specified permissible exposures to certain noise levels. According to OSHA, exposure to high sound pressure levels (SPL) in excess of these limits may result in hearing loss. When using equipment capable of generating high SPL, use hearing protection while such equipment is under operation.

Hours per day	SPL (dB) Example
8	90	Small gig
6	92	Train train
4	95	Subway level
3	97	High level
2 100 Classical music concert
1.5	102	Riveting machine factory
1	105	Machine
0.50	110	Airport
0.25 or less 115 Rock concert

Features

Transmitter

Bottom Panel

1. Battery Compartment: Insert (2) AA batteries here (not included). Alkaline batteries are recommended; always replace both batteries. Do not mix battery types.

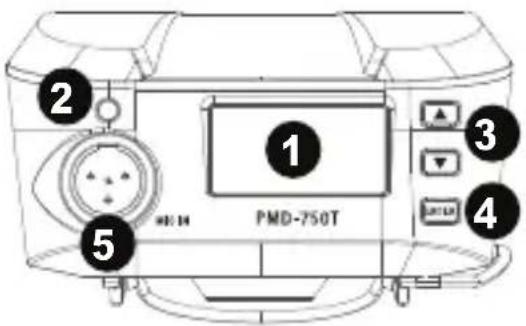

Front Panel

1. Display: The display will show the channel that the unit is communicating on, pairing status, and battery level meter.

2. Pair LED: The LED will blink red when the transmitter is muted. The LED will blink blue when it is searching to pair to the receiver. The LED will be lit solid blue when it is paired to the receiver.

3. Navigation Buttons: Press these buttons to change which sections of the display are highlighted.

4. Enter Button: Press this button to navigate to a menu/submenu selection or confirm a specific function.

5. Mic Input: Connect the included mini-XLR lavalier condenser microphone here.

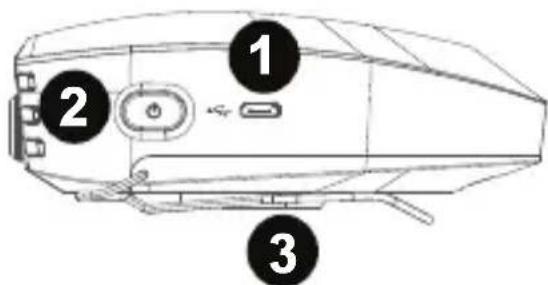

Side Panel

1. Micro USB Port: Connect a USB power adapter (sold separately) here to power the unit if not using 2 AA batteries.

2. Power On/Off: Press and hold this button to power the unit on/off.

3. Belt Clip: Attach this clip to secure to a belt loop or pocket.

Receiver

Bottom Panel

1. Battery Compartment: Insert (2) AA batteries here (not included), and make sure the positive (+) and negative (−) poles are facing the proper directions. Alkaline batteries are recommended. Always replace both batteries, and do not mix battery types.

Diagram of a device with a circular button and a labeled component (no text or symbols)

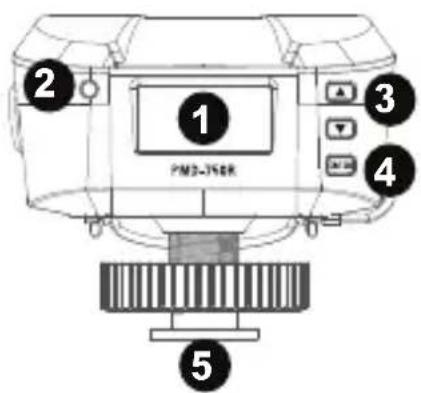

Front Panel

1. Display: The display will show the channel that the unit is communicating on, pairing status, and battery level meter.

2. Pair LED: The LED will be lit solid red when unpaired from the transmitter. The LED will be lit solid blue when it is paired to the transmitter.

3. Navigation Buttons: Press these buttons to change which sections of the display are highlighted.

4. Enter Button: Press this button to navigate to a menu/submenu selection or confirm a specific function. Quickly press and release this button to change TX1 and TX2 pages on the main menu.

5. Hot Shoe Adapter Mount: Attach this to the hot shoe mount of a DSLR camera.

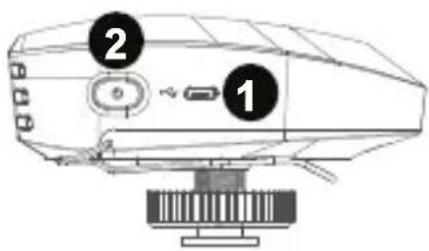

Right Side Panel

1. Micro USB Port: Connect a USB power adapter (sold separately) here to power the unit if not using 2 AA batteries.

2. Power On Button: Press and hold this button to power the unit on/off.

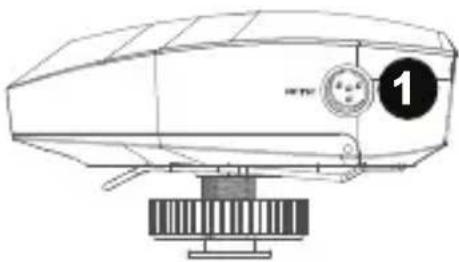

Left Side Panel

1. Audio Output: Using the included mini-XLR cable, connect this audio output to the microphone input of a DSLR camera.

Technical line drawing of a mechanical device with no visible text or symbols

Setup

Items not listed under Introduction > Box Contents are sold separately.

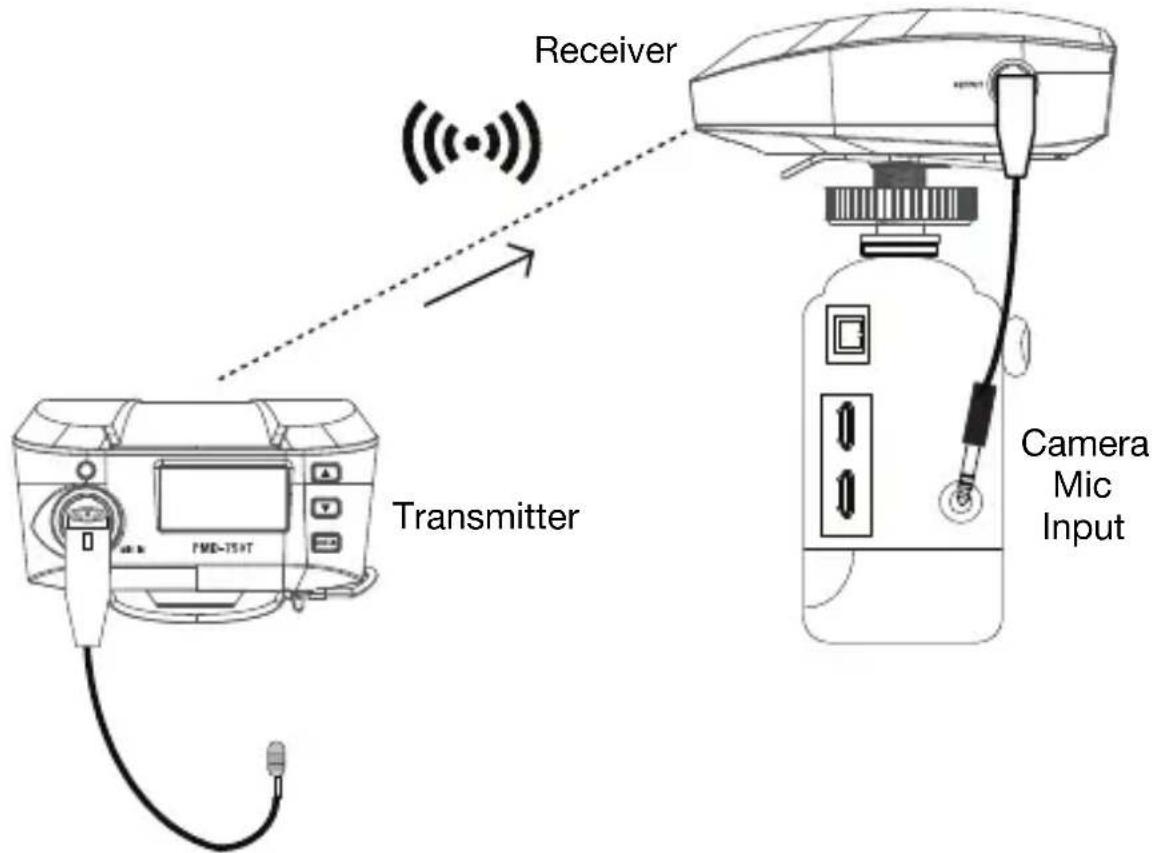

Example 1 - Mono Operation

To send a mono signal from a single transmitter to the receiver:

1. Connect your microphone to the mic input on the transmitter, and connect the receiver's audio output to your camera's external mic input. Keep the volume controls on the camera at its minimum settings.
2. If necessary, adjust the RF dB level on the transmitter to get a strong signal for better operating range and noise resistance.
3. Turn on your camera, adjust the RX output level on the receiver and the input level of the camera's external mic input to hear the audio signal (or view the level on the input level of the camera).
4. In the audio recording settings on your camera, make sure it is set to Manual rather than Auto. Check the input level meter, and adjust the level so that the loudest sounds peak around -12 dB. Make sure the sound does not exceed 0 dB, which will cause the signal to distort.

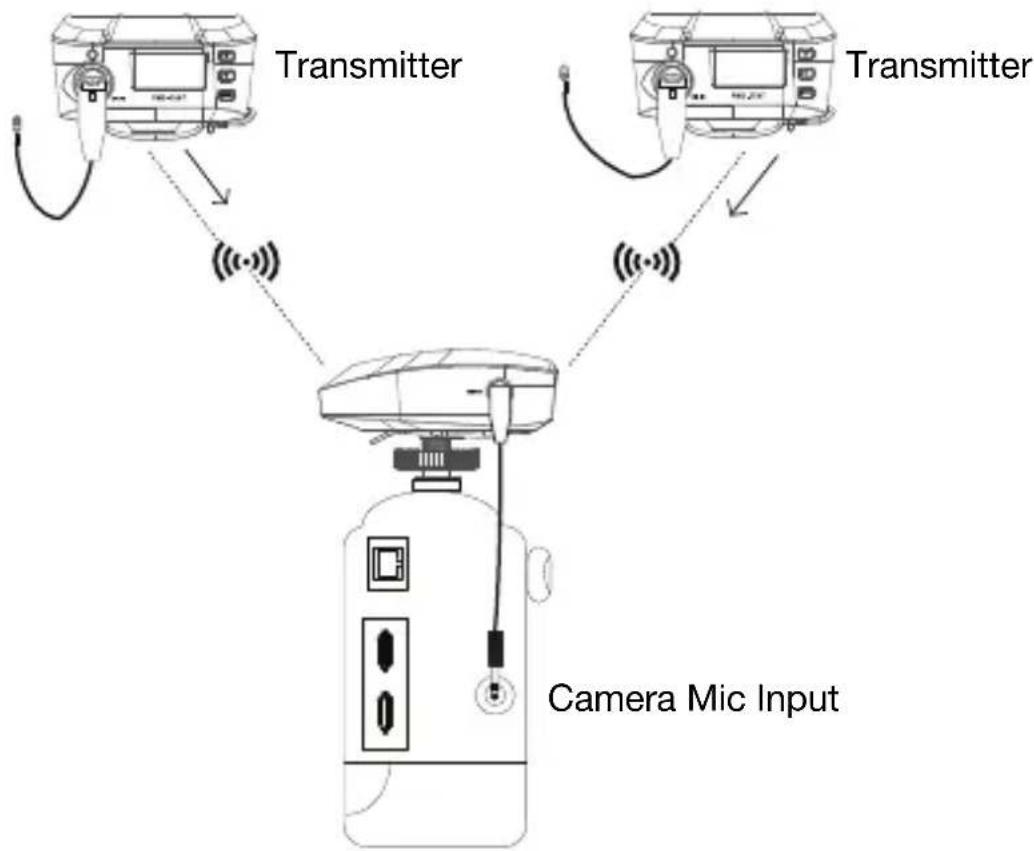

Example 2 - Stereo Operation

To send a stereo signal from 2 transmitters to the receiver:

1. Connect your microphones to the mic inputs on the transmitters, and connect the receiver's audio output to your camera's external mic input. Keep the volume controls on the camera at its minimum settings.
2. If necessary, adjust the RF dB level on the transmitter to get a strong signal for better operating range and noise resistance.
3. Turn on your camera, adjust the RX output level on the receiver, and the input level of the camera's external mic input to hear the audio signal (or view the level on the input level of the camera).
4. In the audio recording settings on your camera, make sure it is set to Manual rather than Auto. Check the input level meter, and adjust the level so that the loudest sounds peak around -12 dB. Make sure the sound does not exceed 0 dB, which will cause the signal to distort.
5. Set the receiver's Output menu to Stereo and adjust the output level to get a strong signal without clipping.

Operation

To set up and use your PMD-750, follow the steps in the Pairing the Transmitter and Receiver chapter in order. If you are setting up a system using two transmitters, set up each transmitter one at a time, and keep each transmitter powered on as you set up the additional unit.

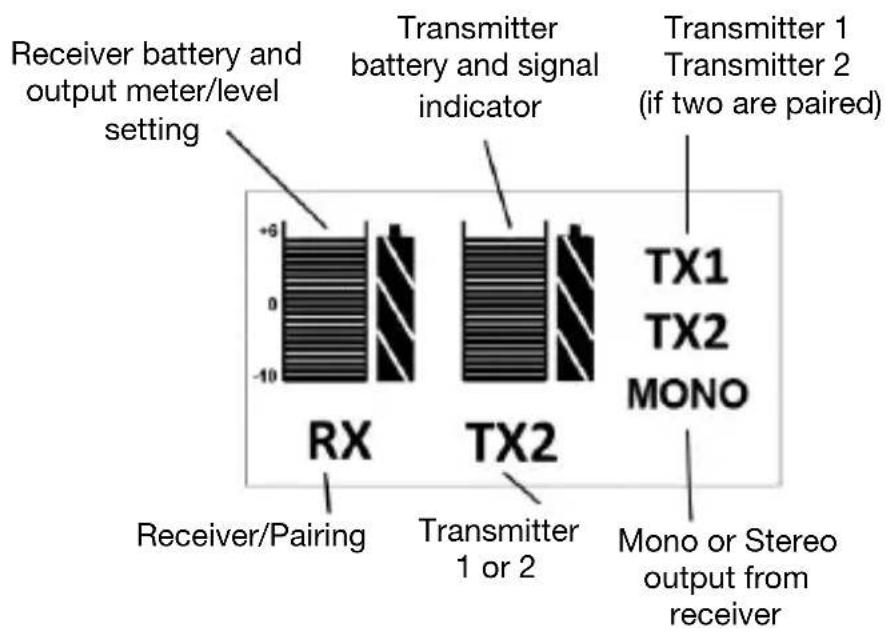

Receiver Menu

Pairing Mode:

- Press the navigation buttons to move the cursor to the RX icon. Once RX is highlighted, the icon will display PAIR. Press Enter to go into pairing mode and the icon will flash to wait for TX1 or TX2 pairing. Once paired, the icon will be lit solid.

Output Level:

- Press and release the Enter button on the receiver to highlight the meter and use the navigation buttons to adjust the receiver output level.

Output (this function is only available when 2 transmitters are paired):

- Press and release the Enter button on the receiver to toggle between mono and stereo modes. The receiver will output in mono if only one transmitter is paired.

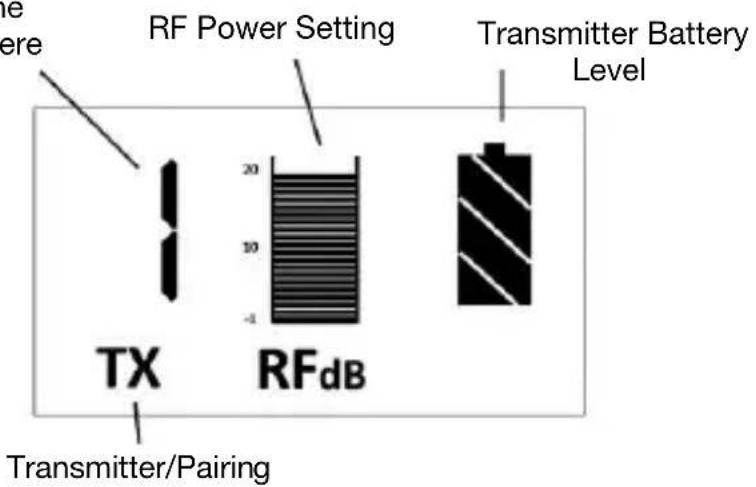

Transmitter Menu

The number of paired transmitters (in the order that they were paired)

Main Menu:

- Mute/unmute the transmitter by quickly pressing and releasing the Power button.

Pairing Mode:

- Press the navigation buttons to move the cursor to the TX icon. Once TX is highlighted, the icon will display PAIR. Press Enter to go into pairing mode and the icon will flash to wait for the receiver to pair. Once paired, the icon will be lit solid.

RF Level:

- Press and release the Enter button on the receiver to highlight the meter and use the navigation buttons to adjust the RF power. The default setting is 10 dBm. You can set this to: -1, 3, 5, 8, 10, 12, 14, 16, 20 dBm.

Pairing the Transmitter and Receiver

Pairing 1 transmitter with the receiver (automatic):

1. Turn on the receiver and it will enter pairing mode.
2. Turn on the transmitter and it will automatically pair with the receiver.

Pairing 2 transmitters with the receiver (automatic):

1. Turn on the receiver and it will enter pairing mode.
2. Turn on the transmitters and they will enter pairing mode. The first transmitter will automatically pair with the receiver.
3. Once Transmitter 1 is paired, Transmitter 2 will pair to the receiver. When Transmitter 2 is paired to the receiver, the transmitter display will show "2 TX".
4. The receiver display will show "Mono" or "Stereo". Press Enter to select it and use the navigation buttons to switch between "Mono" and "Stereo". Press Enter to confirm the choice.

Pairing 1 or 2 transmitters to the receiver (manual)

1. Turn on the receiver and transmitter(s).
2. Press the navigation buttons to move the cursor to the TX icon. Once TX is highlighted, the icon will display PAIR. On the transmitter(s), press Enter to go into pairing mode and the icon will flash to wait for the receiver to pair. Once paired, the icon will be lit solid.
3. The receiver display will show "Mono" or "Stereo". Press Enter to select it and use the navigation buttons to switch between "Mono" and "Stereo". Press Enter to confirm the choice.
   Note: The Output mode is automatically set to "Mono" when only one transmitter is paired.

Panel frontal

Receptor

Panel trasero

Simple line drawing of a device with a circular button and two arrows pointing to it, labeled '1' at the bottom (no text or symbols on the device itself)

Panel frontal

Technical line drawing of a mechanical component with a circular component labeled '1' and a base structure (no text or symbols beyond the label)

Instalación

Assistance technique

Panneau avant

Récepteur

Panneau derrière

Diagram of a device with a circular button and a labeled arrow pointing to it, no text or symbols present.

Panneau avant

Panneau gauche

Technical line drawing of a mechanical component with no visible text or symbols

Installation

Pannello anteriore

Ricevitore

Pannello inferiore

Line drawing of a handheld device with circular button and labeled point 1 (no text or symbols beyond basic design)

Pannello anteriore

Technical line drawing of a mechanical device with a circular component labeled '1' and a bar base (no readable text or symbols)

Configurazione

Vorderseite

Empfänger

Unterseite

Diagram of a device with a circular button and labeled component '1' (no text or symbols beyond the number)

Vorderseite

Technical line drawing of a mechanical device with a circular badge labeled '1' and a textured base (no readable text or symbols)

Setup

Technical Specifications

Audio Performance	Frequency Spectrum: 2.400 – 2.4835 GHzDynamic Range: >100 dBTHD: 0.2%, typicalLatency: 4.5 msOperating Range: Up to 100 ft. / 30.5 m
Battery Life*	Receiver: up to 7 hours (1CH), up to 6 hours (1CH+2CH)Transmitter: up to 10 hours
Receiver	Frequency Response: 50 Hz – 18 kHzPairing Bands: 16 channelsAudio Quality: Uncompressed 96 kHz, 24 bitMaximum Output Level: -12 dBOutput Impedance: 300 ΩOperating Temperature: 14° – 131° F / -10° – 55° CPower: 2 AA alkaline batteriesDimensions (width x depth x height):2.6" x 4.0" x 2.2" / 66 mm x 102 mm x 55 mmWeight: 90g
Transmitter	Frequency Response: 50 Hz – 18 kHzMaximum Input Level: -20 dBBias Voltage: 3 VInput Impedance: >10 MΩRadio-frequency Power: 9.77 dBmPower: 2 AA alkaline batteriesDimensions (width x depth x height):2.6" x 4.0" x 1.6" / 65 mm x 102 mm x 40 mmWeight: 82g
Lavalier Microphone	Frequency Response: 20 Hz – 20 kHzOutput Impedance: 1.5 KΩPolar Pattern: OmnidirectionalType: Electret CondenserSensitivity: -38 dB, ± 3 dBEquivalent Noise Level: 25 dBAMaximum SPL: 130 dBDimensions (Length): 41.3"; 1050 mmWeight: 16g

*Use high-quality alkaline batteries. Non-alkaline or rechargeable batteries will give dramatically different results.
Specifications are subject to change without notice.

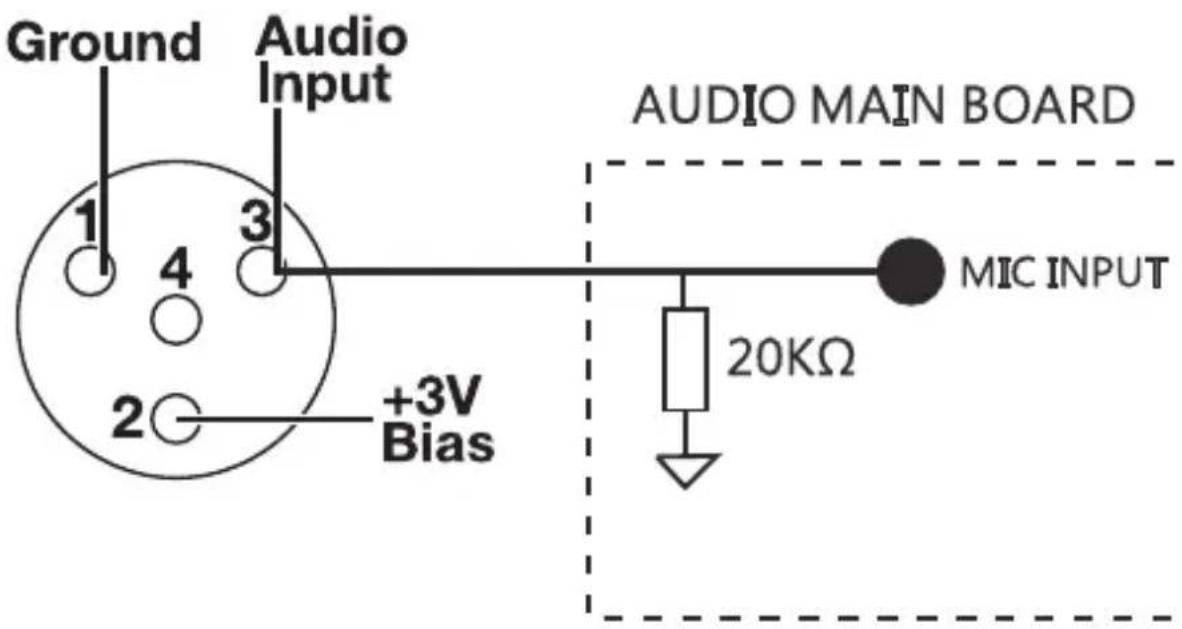

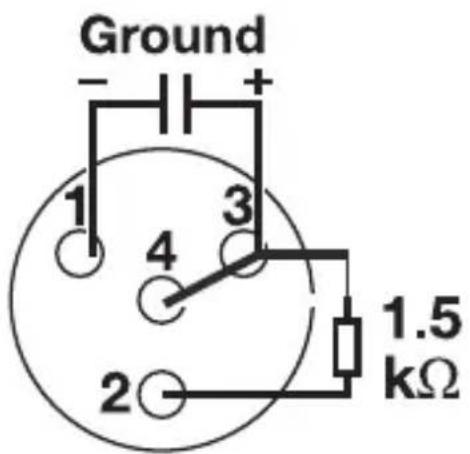

Mini-XLR Pinout

Male:

Female:

Trademarks & Licenses

Marantz is a trademark of D&M Holdings Inc., registered in the U.S. and other countries. Marantz Professional products are produced by inMusic Brands, Inc., Cumberland, RI 02864, USA. All other product names, company names, trademarks, or trade names are those of their respective owners.
