IAN 114089 - Lighting Livarno Lux - Free user manual and instructions

Product type	LED desk lamp
Brand	Livarno Lux
Model	IAN 114089
Operating voltage	230-240 V~, 50 Hz
Rated power	approx. 3 W
Bulb type	LED (non-replaceable)
Cable length	approx. 1.6 m
Material	Plastic
Base dimensions	approx. 10.5 x 10.5 cm
Adjustable height	approx. 22–34 cm
Usage	Indoor, dry enclosed rooms
Protection	Protection class II (double insulation)
Switch	On/Off switch on cable
Height adjustment	Telescopic arm
Dimmer compatibility	Not compatible
Cleaning	Dry lint-free cloth
Warranty	3 years
Package contents	Lamp, power cable, instruction manual
Repairability	Bulb not replaceable, cable replaceable only by a professional

Frequently Asked Questions - IAN 114089 Livarno Lux

Can I replace the LED bulb?

No, the LED bulb is not replaceable. In case of failure, please contact customer service.

Can I use this lamp with a dimmer?

No, the lamp is not compatible with dimmers or electronic switches. Use it only on a standard power outlet.

How to clean the lamp?

Always unplug the lamp before cleaning. Use a dry, lint-free cloth. Never use solvents, benzene, or water.

What is the maximum height of the lamp?

The height is adjustable from approx. 22 to 34 cm via the telescopic arm.

Can the lamp be used as a nightlight?

No, this lamp should not be used as a nightlight. Never leave it operating unattended.

What to do if the power cable is damaged?

The cable replacement must be carried out exclusively by the manufacturer, its after-sales service, or a qualified electrician to avoid any risk of electric shock.

What is the required supply voltage?

The lamp operates at 230-240 V~, 50 Hz. Check that your outlet matches before plugging in.

How to dispose of the lamp at the end of its life?

Do not dispose of the lamp with household waste. Take it to a collection point for electrical and electronic equipment (crossed-out wheeled bin symbol).

What to do if the lamp does not turn on?

Check that the plug is properly inserted and the switch is in the on position. If the problem persists, contact customer service.

How to contact customer service?

You can reach customer service by phone at +49 (0) 29 61 / 97 12-800, by fax at +49 (0) 29 61 / 97 12-199, or by email at [e-mail]. Have the receipt and the reference number IAN 114089 handy.

USER MANUAL IAN 114089 Livarno Lux

Operation and Safety Notes

IAN1 14089

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GB Operation and Safety Notes Page 35

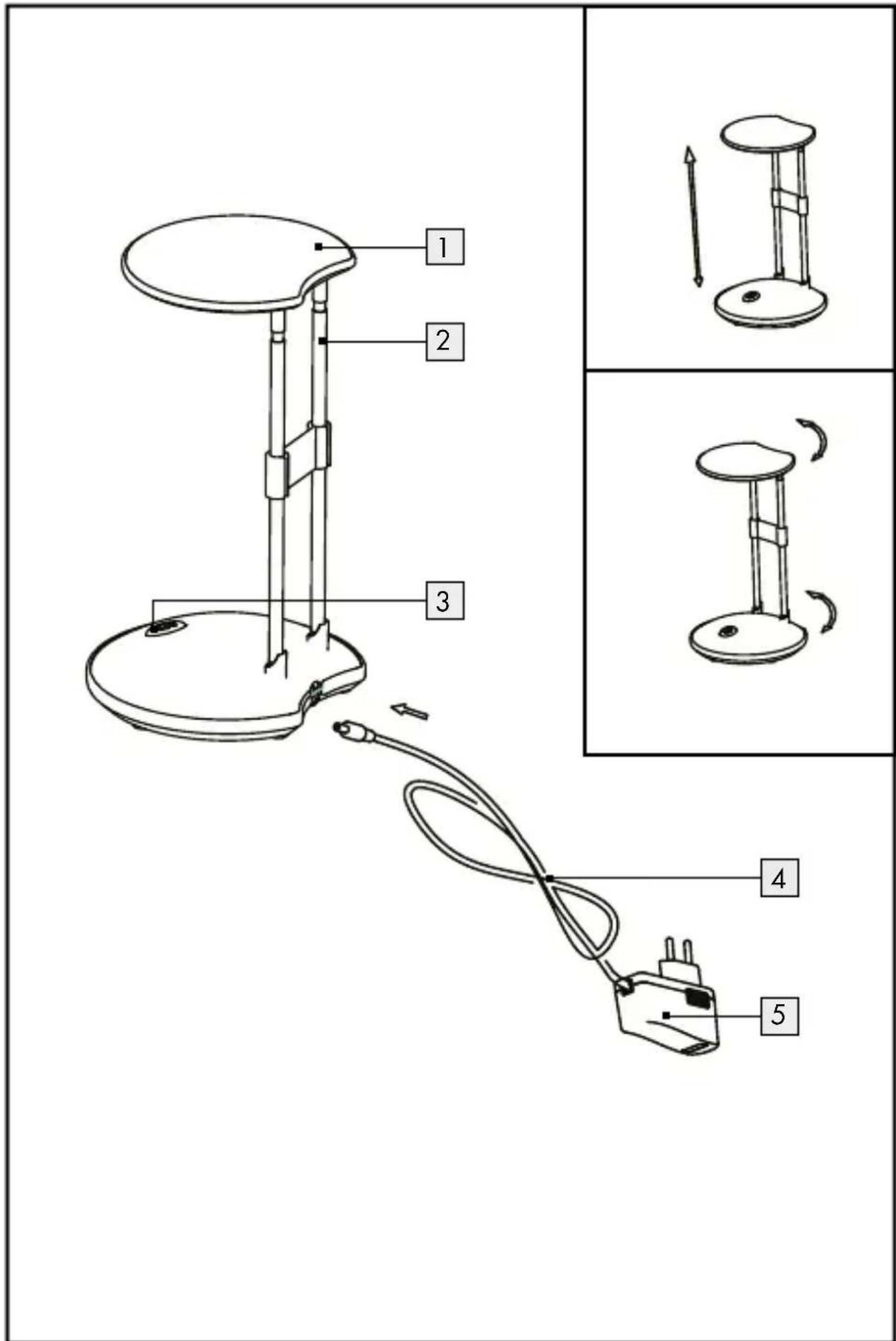

Technical diagram of a desk lamp with labeled components and motion arrows for assembly or installation.

Einleitung

Included items ...... Page 36

Description of parts and features...... Page 37

Technical data......Page 37

Safety advice......Page 38

Operation

Using the lamp ...... Page 39

Cleaning and maintenance ...... Page 40

Disposal Page 40

Warranty and Service

Warranty Declaration......Page 41

Service address......Page 41

Declaration of conformity....Page 42

Manufacturer...... Page 42

LED Desk Lamp

- Introduction

We congratulate you on the purchase of your new device.

You have chosen a high quality product. These operating instructions form a part of this product. They contain important

information on safety, use and disposal. Make yourself familiar with all the operating instructions and safety advice for the product before use. Use the product only as described and for the indicated purpose. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it. Check that the correct mains voltage is available and that all the parts have been properly assembled before bringing into use.

Properuse

This lamp is designed for use indoors only, in dry and enclosed rooms. This product is intended for use in a private, domestic environment only. Other uses or modification of the product shall be considered as improper use and could lead to injury or damage. Only use the included spare parts, using other parts will void the warranty. The manufacturer accepts no liability for loss or damage arising from improper use.

Includeditems

Check that all the items and accessories are present and that the lamp is in perfect condition immediately after unpacking.

1 LED Desk Lamp
1 Mains lead with mains plug
1 Operating instructions

• Description of parts and features

1 Lamp head
2 Telescopic arm
3 ON/OFF switch
4 Mains lead
5 Mains plug

- Technicaldata

Operating voltage: 230-240V\~, 50Hz

Protection category: ☐

Illuminant:LED(non-replaceable)

Rated power: approx. 3 W

Cable length: approx. 1.6 m

Material: plastic

Dimensions: base: approx. 10.5 x 10.5 cm

Height (adjustable): approx. 22–34 cm

Model:

14106100L (blue)
14106104L (silver)
14106105L (black)
14106109L (green)

Safety advice

The right to claim under the guarantee shall be rendered invalid in respect of damage caused by the non-observance of these operating instructions! No liability is accepted for consequent damage! No liability is accepted for damage to property or persons caused by improper handling or non-observance of the safety advice!

RISK A D W O S S I O E I F E AND

ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging materials. Packaging materials present a suffocation hazard.

Children often underestimate danger. Always keep the product out of reach of children.

To avoid danger to life from electric shock

Before connecting the lamp to the mains, always check it and the mains lead 4 with plug 5 for any damage. Never use your lamp if you discover that it is damaged in any way.

If the external flexible lead of this lamp becomes damaged, avoid danger and have it replaced by the manufacturer, his servicing agent or an equivalent electrical appliance repair specialist.

CAUTION! A damaged mains lead presents a serious danger to life from electric shock. In the event of damage, repairs or other problems with the lamp, please contact

the Service Centre or an electrician.

■ Never let the lamp come into contact with water or other liquids.

■ Never open any electrical devices such as switches, fittings etc. or allow any object to be inserted into them. This sort of interference can lead to a serious danger to life from electric shock.
■ Only touch the insulated part of the plug when connecting to or disconnecting from power!
This light is not suitable for dimmer or electronic switches.
The illuminant is not replaceable.
Before installation ensure that the available mains voltage agrees with the operating voltage required for the lamp (230–240 V \~).

To avoid danger of fire and injury

DANGER OF INJURY! Do not look directly into the light source (light bulb, LED etc.).
⚠️ DANGER OF BURNS! Ensure the lamp has been switched off and allowed to cool before you touch it. In this way you will avoid the danger of burns. Light bulbs develop a great deal of heat.
- Do not allow any objects to cover the lamp. Fire can result from the development of too much heat.
■ Position the lamp so that it is protected from moisture and dirt.
■ Never leave the lamp operating unattended.
This lamp is not suitable as a night light.

Operation

Using the lamp

□ Completely unwrap the power cord 4.
☐ Connect the power cord 4 to the light.

Operation / Cleaning and maintenance / Disposal

☐ Insert the mains plug 5 into the mains socket.
□ Adjust the desired height of the lamp head 1 with the telescopic arm 2.
□ Adjust the desired position of the lamp head 1.
☐ Press the ON/OFF switch 3 to switch the light on.
☐ Press the ON/OFF switch 3 to switch the light off.

- Cleaning and maintenance

CAUTION! DANGER TO LIFE FROM ELECTRIC SHOCK!

Before cleaning, always pull out the mains plug 5 out of the socket.

Do not use solvents such as petrol and the like as they could damage the lamp.
☐ For electrical safety reasons, never clean the lamp with water or other fluids or immerse it in water. Use a dry, fluff-free cloth for cleaning.
☐ The lamp is maintenance-free.

- Disposal

The packaging consists entirely of environmentally friendly materials. They can be disposed of at your local recycling facility.

The symbol of the wheelie bin with a cross through It means that, in the European Union, the product has to be disposed of in a separate refuse collection. This applies to the product

and to all components bearing this symbol. Products marked in this

Disposal / Warranty and Service

way may not be disposed of with normal domestic waste but have to be handed in at a recycling collection point for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and to ease the burden on the environment.

● Warranty and Service

WarrantyDeclaration

This product has a 3-year warranty from the date of purchase; the warranty is only valid for the original purchaser and is not transferable. Please keep your receipt as proof of purchase. The warranty applies to material or manufacturing defects only. It does not cover wear parts or damage caused by improper use. The guarantee lapses in cases of unauthorized tampering. Your statutory rights are not restricted in any way by this warranty. Please contact the service centre by telephone. In the event of any claims under the warranty. This is the only way to ensure that your instrument can be returned free of charge.

Serviceaddress

Warranty and Service

Please have your receipt and the product number (e.g. IAN 12345) available for all queries as proof of purchase.

- Declaration of conformity CE

This product fulfils the requirements of the applicable European and national directives (Electromagnetic Compatibility 2004 / 108 / EC, Low Voltage Directive 2006/95/EC, Ecodesign Directive 2009/125/EC, RoHS Directive 2011/65/EU). Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer

59929 Brilon (Germany)
