LED Pendant lamp

Introduction

Congratulations on the purchase of your new device. You have selected a high quality product. Please be sure to care-

fully read the complete instructions for use. Fold out the page with the illustrations. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. If you have any questions or you are unsure about operating the product, please contact the distributor or service centre. Please keep these instructions in a safe place and pass them on to third parties if necessary.

Intendeduse

This light is only suitable for indoor use in dry and enclosed spaces. The light can be fastened to any normally inflam-

mable surface. This product is only intended for private household use, not for commercial purposes.

- Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 LED Pendant lamp

1 Lamp shade

2 Wall plugs

2 Screws

2 Protective tubes

1 LED light bulb

1 Set of assembly instructions and instructions for use

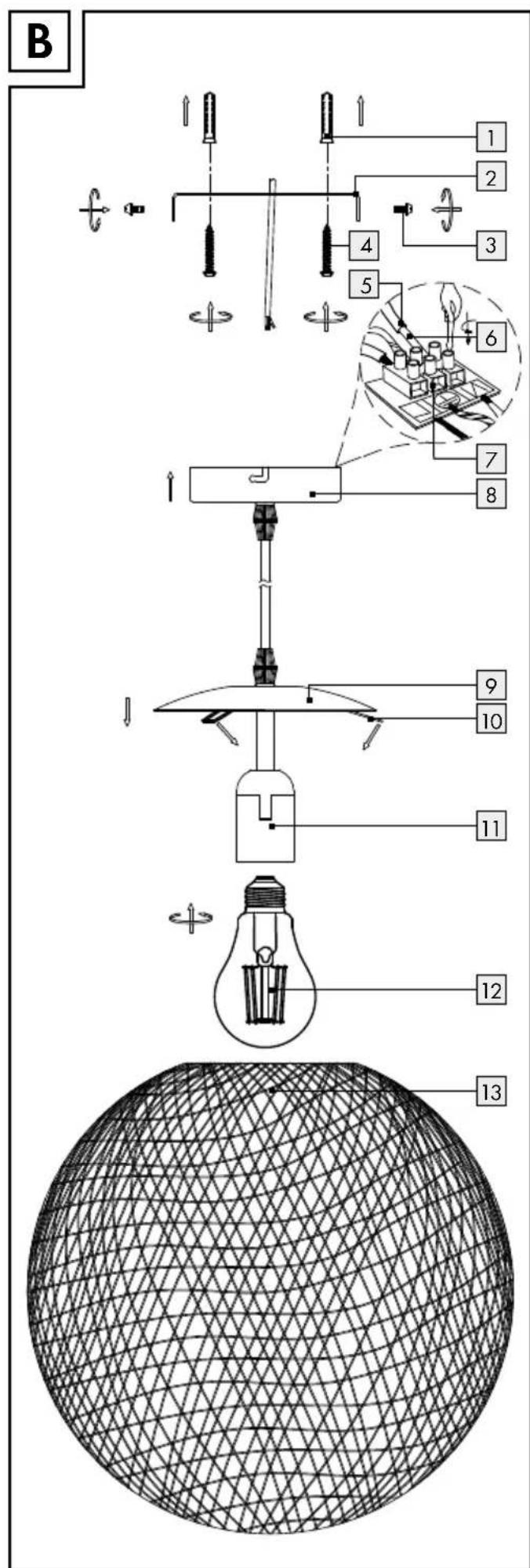

Partsdescription

1 Wall plug

2 Mounting bracket

3 Locating screw

4 Screw

5 Protective tube

6 Mains connection cord (external)

7 Terminal block

8 Terminal housing

9 Lamp disk

10 Spring clip

11 Socket

12 Light bulb
13 Lamp shade

●Technicaldata

Item no.: 14123805L/14123806L

Socket: 1 x E27

Operating voltage: 230-240V\~50Hz

Rated power: 1 x max. 4 W

Light bulb: 1 x LED-light bulb, E27

Protection class: I

Degree of protection: IP20

- Safety

Safetyinstructions

Damage due to failure to comply with these instructions for use will void the warranty! We assume no liability for consequential damages! We assume no liability for property damage or personal injury due to improper handling or failure to comply with the safety instructions! Only use the included parts, using other parts will void the warranty.

his device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the appliance. Cleaning and user maintenance should not be performed by children without supervision.

Avoid the risk of fatal injury from electric shock

■ Ensure that a qualified electrician, or a person trained to carry out electrical installations, performs the electrical installation.
We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices!

■ Never use the light if any defects have been identified.
Prior to installation, remove the fuse or switch off the circuit breaker 0 setting in the fuse box.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
■ Ensure that the light does not come into contact with water or other liquids under any circumstances.
Prior to installation verify the mains voltage on site corresponds with the operating voltage required for the light (see "Technical data").
- Be sure not to damage any wires during installation.
The length of the pendant light is not adjustable.

Prevent fire and injury hazards

To prevent burns, be sure the light is switched off and cooled down before touching it.
Do not mount the light to a damp or conductive surface.
Do not leave the light or packaging material lying about unattended. Plastic film or bags, plastic parts, etc. are dangerous for children to play with.

The LED light is not dimmable.

Do not look directly into the illuminant (lamp, LED, etc.). Do not look into the illuminant (lamp, LED, etc.) with an optical instrument (e.g. magnifier).

This light is only suitable for indoor use in dry and enclosed spaces.

Safe working

• Install the light so it is protected from moisture, dirt and extreme heating.
  Always be attentive! Always pay attention to what you are doing and use common sense.

Safety/Preparation/Mounting the light/Initial use/Changing the bulb

Never use the light if you are having difficulty concentrating or do not feel well.

Familiarise yourself with all instructions and diagrams in this manual as well as with the light itself before use.

● Preparation

- Required tools and material

The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions.

• Pencil / marking tool
• Voltage tester
• Screwdriver
• Electric drill
• Drill (approx. ∅ 6 mm)
• Side cutting pliers
• Ladder

- Mounting the light

WARNING! RISK OF ELECTRIC SHOCK!

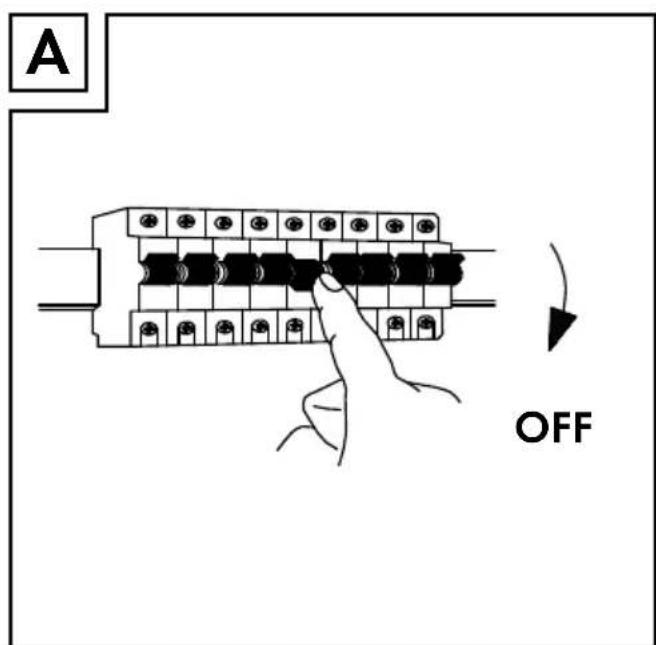

Prior to installation, remove the fuse or switch off the circuit breaker in the fuse box (Position 0).

☐ Remove the locating screws 3 visible at the side of the terminal housing 8 and remove the mounting bracket 2 at the back.
☐ Use the slotted holes for the screws 4 on the mounting bracket 2 to mark the bores. Now drill the mounting holes (approx. 6 mm, depth approx. 30 mm). Be sure not to damage the supply line.
☐ Insert the wall plugs ☐ into the drilled holes.
☐ Fasten the mounting bracket 2 with the provided screws 4.
Pull the protective tubes over cables L and N of the mains connection cord (external) 6.

Note: Be sure to correctly connect the individual leads on the mains connection cord (external) 6: live wire, black or brown = symbol L, neutral

wire, blue = symbol N, earth wire, green-yellow = symbol ⊥.

☐ Now use the locating screws 3 to connect the light to the mounting bracket 2.
Use a clean, lint-free cloth to insert the light bulb 12.
Screw the light bulb clockwise into the socket 11.

Verify it is seated correctly.

Press two of the spring clips into the opening of the lamp shade 13.
☐ Slide the lamp disk somewhat in the direction of the already inserted spring clips 10.
Now press the third spring clip far enough downwards for you to press it into the opening of the lamp shade 13 with little difficulty.
Bring the lamp disk into a central position over the opening of the lamp shade 13.

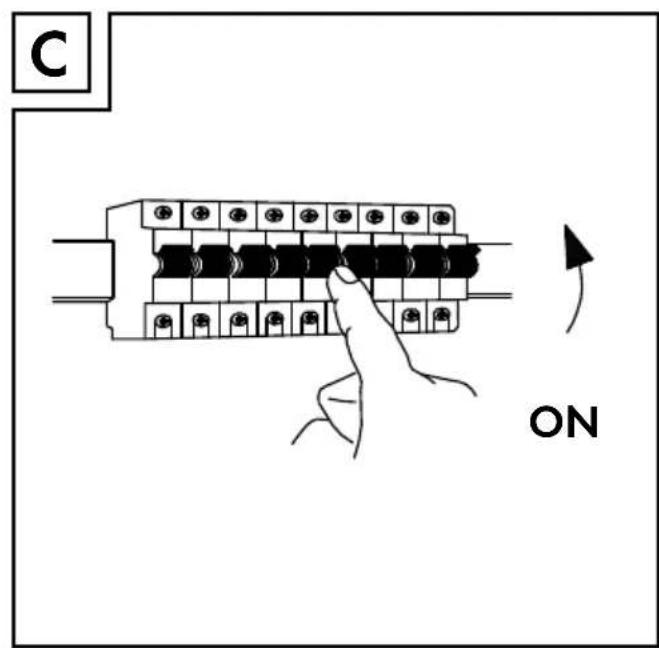

☐ Reinsert the fuse or switch the circuit breaker back on.

Your light is now ready to use.

- Initial use

☐ Use the wall switch to switch the light on or off.

● Changing the bulb

WARNING! RISK OF ELECTRIC SHOCK!

When replacing the illuminant, first connect the light from the mains. To do so, remove the fuse or switch off the circuit breaker in the fuse box 0 position.

⚠️ CAUTION! RISK OF BURNS DUE TO HOT SURFACES!

Allow the light to cool completely.

Only replace the illuminating after it has fully cooled.
☐ Use a clean, lint-free cloth when replacing the illuminant 12.
Note: Hold the lamp is tightly while you are removing the lamp shade 13.
☐ Push the lamp disk somewhat aside.
☐ Pull the lamp shades downwards from the spring clips 10.

Turn the defective light button carefully anticlockwise out of the socket 11.
☐ Only use the light bulbs specified in chapter "Technical Data".
Carefully screw the new light button clockwise into the socket 11. Ensure that it is positioned correctly.
Press two of the spring clips into the opening of the lamp shade 13.
☐ Slide the lamp disk somewhat in the direction of the already inserted spring clips 10.
Now press the third spring cl ^10 far enough downwards for you to press it into the opening of the lamp shade 13 with little difficulty.
Bring the lamp disk into a central position over the opening of the lamp shade 13.
☐ Reinsert the fuse or switch the circuit breaker back on.

● Maintenance and cleaning

WARNING! RISK OF ELECTRIC SHOCK!

Disconnect the light from the mains circuit before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box 0 position.

• Allow the light to cool off completely.
  ■ Only clean using a dry, lint-free cloth a brush or a clean brush.
  Do not use solvents, spirit or similar substances. They could damage the light.
  Replace the fuse or switch on the circuit breaker (Position I) inside the fuse box.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibre-board / 80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

- Information

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect during the warranty period, please send the product to the service address listed, indicating the following item number: 14123805L/14123806L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.

Declaration of conformity CE

This product meets the requirements of applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer / Service

Please have your receipt and the item number

(e.g. IAN 12345) ready as your proof of purchase

when enquiring about your product.

BRILONER LEUCHTEN GMBH

Im Kissen 2

DE-59929 Brilon

GERMANY
