Beef Baron - Grill Klarstein - Free user manual and instructions

Brand	Klarstein
Model	Beef Baron
Product Type	Charcoal barbecue with fan and thermostat
Article Number	10034735
Power Supply	4 x 1.5 V AA batteries (not included)
Adjustable Temperature	150-300 °C (tolerance +/- 50 °C)
Usage	Outdoor only
Main Functions	Grilling, slow cooking, smoking, searing
Ventilation System	Automatic with temperature sensor
Charcoal Capacity	Approx. 1.5 kg
Fuel Type	Charcoal and solid fire starters
Maintenance and Cleaning	Clean with mild detergent, oil metal surfaces, use a wire brush for the grid
Safety	Do not use indoors, keep away from children, do not move while hot, wear gloves
Spare Parts	Screws M5, M6, M6x12, M6x16, M6x35, washers, nuts, oil collector, probe, etc.
Repairability	Parts available via the manufacturer
Recycling	Do not dispose of with household waste, take to a collection point

Frequently Asked Questions - Beef Baron Klarstein

Can the Klarstein Beef Baron be used indoors?

No, this barbecue is designed for outdoor use only. Using it in an enclosed space can lead to a buildup of toxic fumes and a risk of suffocation.

How do I set the desired temperature?

Turn the thermostat to the desired temperature between 150 and 300 °C. The sensor measures the temperature and the fan automatically turns on or off to maintain the set point.

Does the barbecue work with gas or charcoal?

It works with charcoal and can be used as a classic charcoal barbecue or with the automatic ventilation system.

How do I change the fan batteries?

Let the barbecue cool down completely. Turn off the fan, turn the lock under the thermostat counterclockwise, remove the cover, replace the batteries (4x AA, not included), then replace the cover and lock.

Can I use liquid fire starters or gasoline?

No, only use solid fire starters. Never use gasoline, alcohol, or liquid barbecue lighter, as this poses a fire hazard.

How do I clean the barbecue after use?

Make sure the barbecue is cold. Remove the ashes, clean with mild detergent and a sponge, rinse with water, dry with a cloth. Oil the metal surfaces to prevent rust. Clean the grid with a wire brush.

What is the recommended safety distance?

Place the barbecue at least 2 meters away from any flammable objects such as walls, garden furniture, dry grass, or branches.

Can the barbecue be used as an oven?

No, it should not be used as an oven. It is designed for grilling and slow cooking outdoors.

How much charcoal can the barbecue hold?

The charcoal bowl can hold approximately 1.5 kg of charcoal.

What to do if the paint is chipped or scratched?

Immediately cover the damaged areas with suitable paint or rust inhibitor to prevent corrosion.

USER MANUAL Beef Baron Klarstein

INHALTSVERZEICHNIS

VORSICHT!

VERWENDEN SIE KEIN ALKOHOL ODER BENZIN ZUM ENTZÜNDEN ODER WIEDERENTZÜNDEN!

GERÄTEÜBERSICHT

Simple line drawing of a mechanical lever or bracket (no text or symbols)

1X

Simple line drawing of a film reel with four oval frames and a central dot (no text or symbols)

1X

Simple line drawing of a rectangular structure with internal curved lines and a label '3' (no text or symbols on the diagram itself)

1X

Simple line drawing of a film reel with a clip, no text or symbols present

1X

Simple line drawing of a circular mechanical component with a central shaft (no text or symbols)

1X

Simple line drawing of a fish-like shape with no text or symbols

1X

Simple line drawing of a dome-shaped object with a circular hole, labeled with the number 7 (no text or symbols on the object itself)

1X

Simple black oval shape on white background with number 8 in top-left corner (no text or symbols within the shape)

1X

Simple black ring-shaped object with a small loop, labeled '9' in the top-left corner (no other text or symbols)

1X

Simple line drawing of a circular object with radial lines, labeled '10' in top-left corner (no other text or symbols)

1X

Simple line drawing of a circular object with internal patterns, labeled '11' in the top-left corner (no text or symbols on the object itself)

1X

Simple line drawing of a bowl with a flared rim and circular base (no text or symbols)

1X

Line drawing of a bowl-shaped object with a handle and side slots, labeled with number 13 (no text or symbols on the object itself)

1X

Simple line drawing of a circular object with two small protrusions, labeled '14' in the top-left corner (no other text or symbols)

1X

Simple line drawing of a circular ring component with no text or symbols

1X

Line drawings of two identical portable kettler machines with wheels and a mounted sensor, shown from different angles (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 28

Product Overview 30

Assembly 33

Operation 46

Cleaning and Care 48

Cooking Temperatures and Cooking Times 49

Hints on Disposal 50

Producer 50

TECHNICAL DATA

Item number 10034735
Power supply 4 x 1.5 V AA batteries (not included)

SAFETY INSTRUCTIONS

WARNING

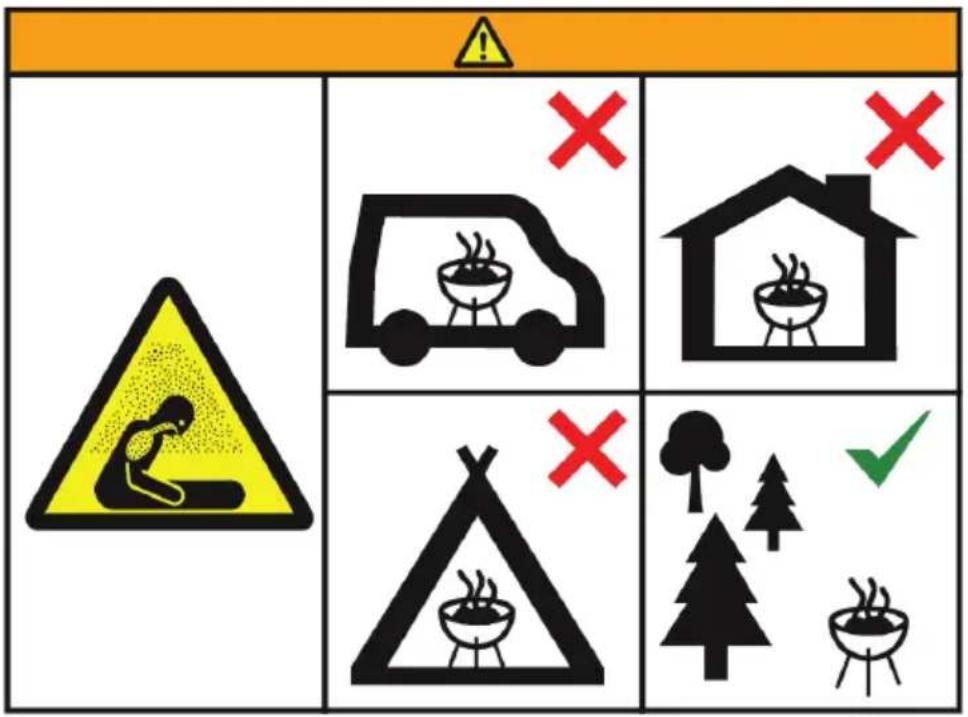

Danger of suffocation! The fireplace is only intended for use in the Free determined. It must not be used in buildings, garages or other enclosed areas. Toxic fumes may form, causing suffocation.

• Always keep children and pets at a safe distance from the grill.
• Never leave a burning fire unattended.
- Do not use this appliance in a tent, caravan, car, cellar, loft or boat, under awnings, parasols or pavilions.
- FIRE DANGER - Hot embers may escape during use.
- Do not use petrol, spirit, lighter fuel, alcohol or other similar chemicals to ignite or reignite the grill.
- Do not use coal in this appliance.
- When opening the lid at high temperatures, it is important to lift the lid only slightly, slowly and safely to allow air to enter, preventing retraction or flare-ups that may cause injury.
- Observe the specified grilling times and temperatures.
- Do not use the grill on wooden terraces or other flammable surfaces such as dry grass, wood shavings, leaves or ornamental bark.
- Make sure that the grill is at least 3 metres away from flammable objects.
- Do not use the grill as an oven.
- Check the appliance for damage before use. Do not use it if any parts are damaged.

CAUTION

Risk of injury! The grill gets very hot, do not move it during operation. Always use heat-resistant gloves when handling hot ceramics or cooking surfaces. Allow the appliance to cool completely before moving or storing it.

CAUTION!

DO NOT USE SPIRIT OR PETROL FOR LIGHTING OR RE-LIGHTING!

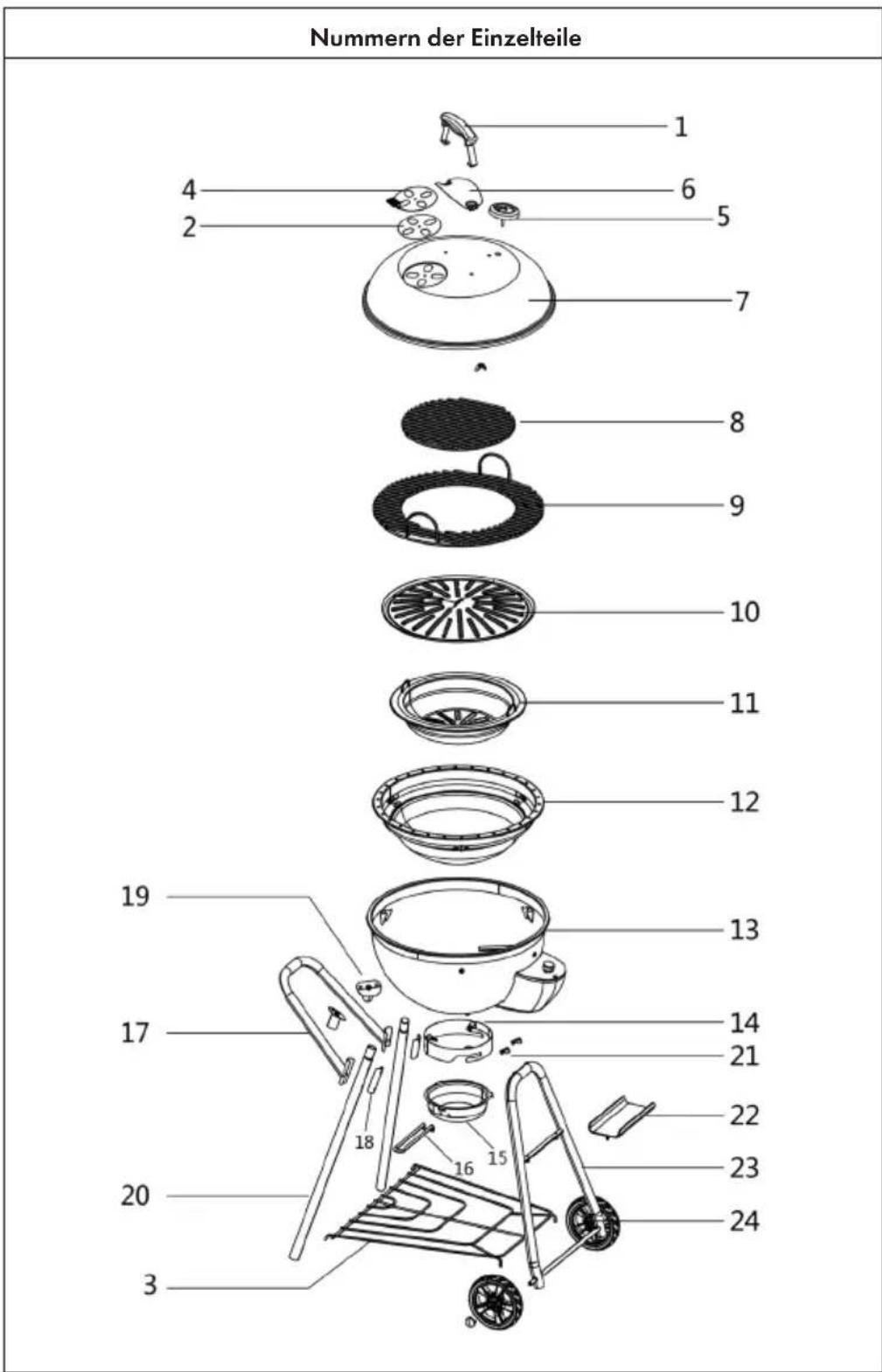

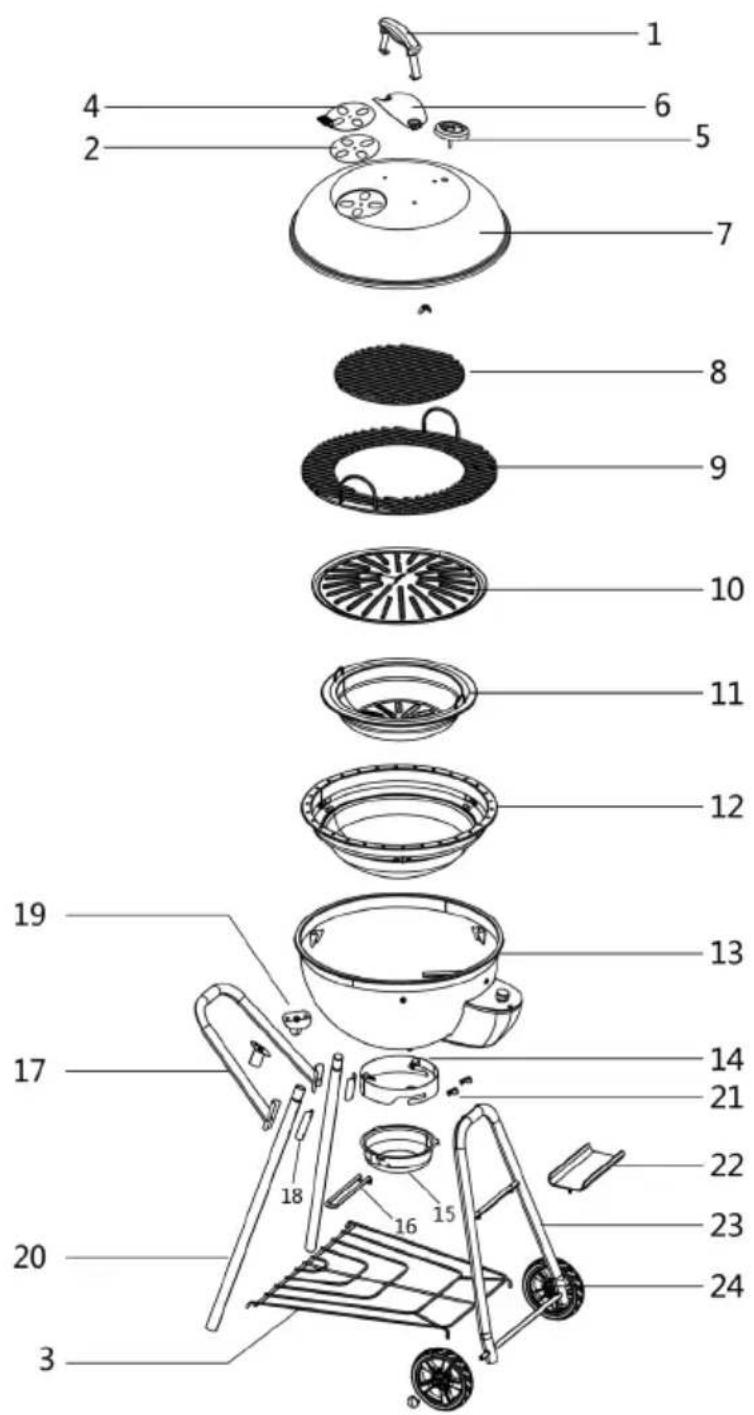

PRODUCT OVERVIEW

Numbers of the individual parts

Number and quantity of individual parts

Simple line drawing of a mechanical lever or bracket (no text or symbols)

1X

Simple line drawing of a film reel with four oval cutouts and a center dot (no text or symbols)

1X

Simple line drawing of a rectangular structure with internal lines and a label '3' (no text or symbols on the diagram itself)

1X

Simple line drawing of a film reel with a clip, no text or symbols present

1X

Simple line drawing of a circular mechanical component with a central shaft (no text or symbols)

1X

Simple line drawing of a fish-like shape with no text or symbols

1X

Simple line drawing of a dome-shaped object with a circular hole, labeled with the number 7 (no text or symbols on the object itself)

1X

Simple black oval shape on white background with number 8 in top-left corner (no text or symbols within the shape)

1X

Simple black ring-shaped object with a small loop, labeled '9' in the top-left corner (no other text or symbols)

1X

Simple line drawing of a circular object with radial lines, labeled '10' in top-left corner (no other text or symbols)

1X

Simple line drawing of a circular bowl or basin with no text or symbols

1X

Simple line drawing of a bowl with a flared rim and circular base (no text or symbols)

1X

Line drawing of a bowl-shaped object with a handle and side slots, labeled with number 13 (no text or symbols on the object itself)

1X

Simple line drawing of a circular object with internal features, labeled with number 14 (no text or symbols on the object itself)

1X

Simple line drawing of a circular ring component with no text or symbols

1X

Number and quantity of individual parts
1X	2X	2X
2X	2X	1X
1X	2X	1X
1X

Number and quantity of small parts
M5 (4X)	M6 (18X)	M6X12(14X)	Φ18XΦ6(1X)
Φ13XΦ6(10X)	M6X16(1X)	M6X35(7X)	Φ6(1X)

ASSEMBLY

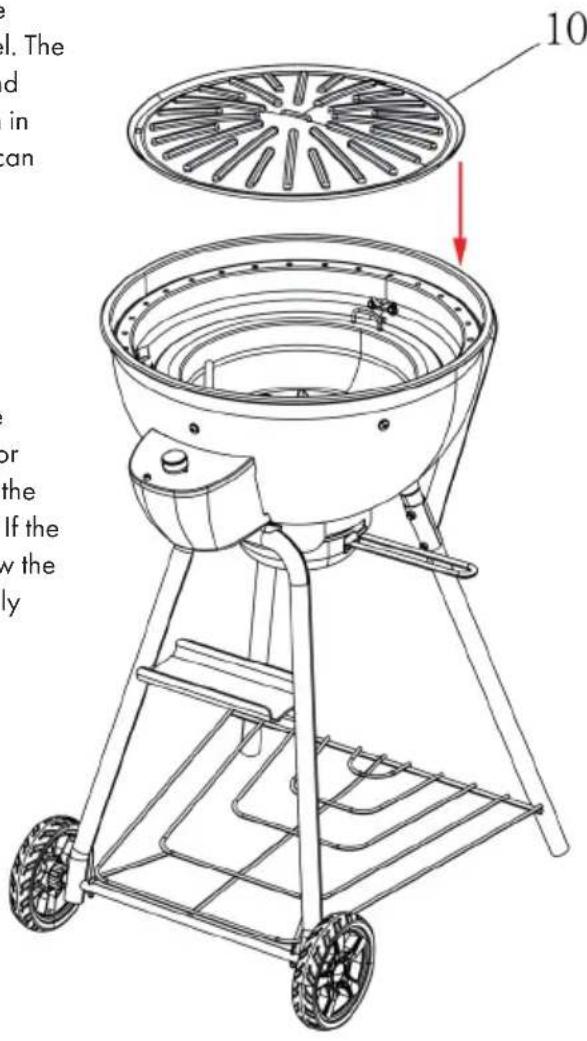

Step 12
Use as charcoal grill:	10	1x
Remove the oil trap plate and turn the sensor to the side. Now you can use the Kamado Grill like a normal charcoal grill. Set the temperature to the highest leve fan accelerates combustion an the charcoal will glow through a short time. The temperature c reach up to 400°C.
Use as Kamado grill:Turn the sensor to 45° and Replace the oil trap plate. Set the desired temperature on the regulator. As soon as the sensc measures the set temperature, fan switches off automatically. measured temperature is belo setpoint, the fan is automatical restarted.

OPERATION

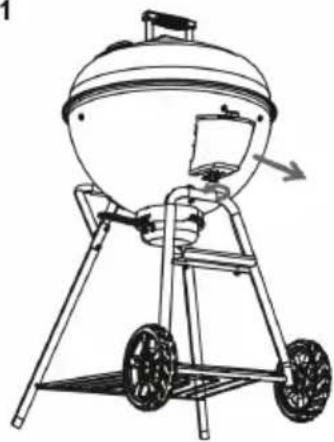

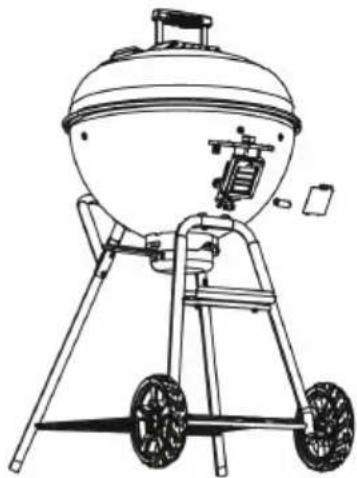

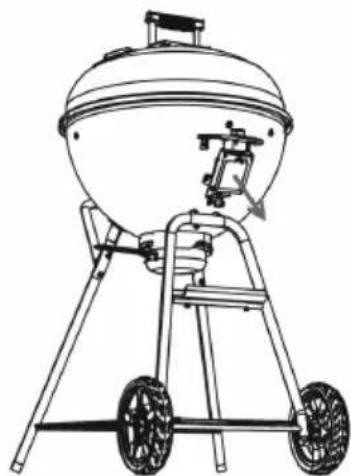

Inserting the batteries into the fan.

CAUTION

Risk of burns! If the batteries have to be replaced during operation, allow the grill to cool down completely before replacing the batteries.

1

Line drawing of a portable grill with wheels and a handle, no text or symbols present

Line drawing of a mechanical component or device with no visible text or symbols

Mechanical assembly diagram showing internal components and a directional arrow (no text or labels)

Illustration of a hand pouring liquid from a container into a container (no text or symbols visible)

2

Line drawing of a portable grill with wheels and a dome-shaped top (no text or symbols)

Line drawing of a portable grill with wheels and a dome-shaped top (no text or symbols)

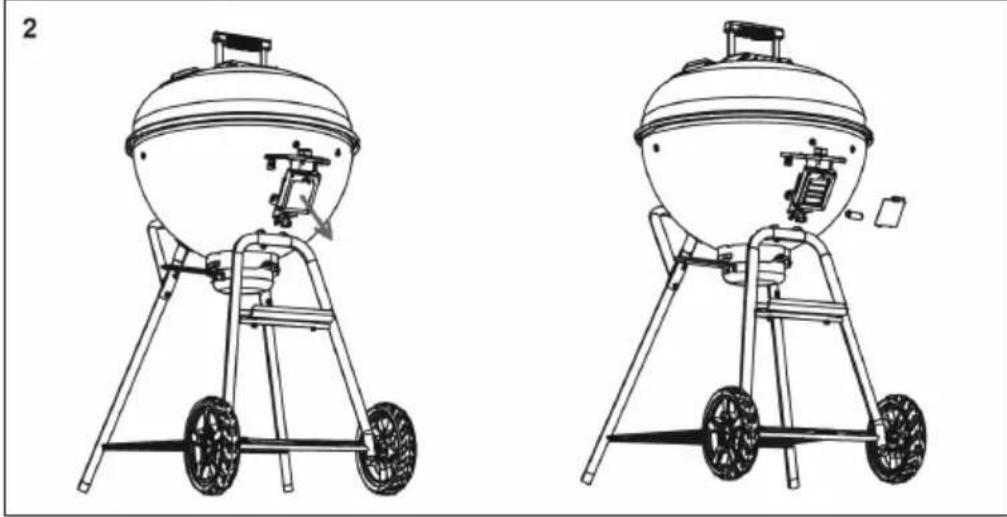

1. Switch off the fan.
2. Turn the lock under the thermostat counterclockwise with your left hand. Carefully remove the housing with your right hand.
3. After removing the housing, you have access to the batteries. Replace the old batteries with new ones. Do not use rechargeable batteries to avoid explosion.
4. Replace the case and close the latch.

CAUTION

Risk of burns! The thermostat and all surrounding elements and surfaces become very hot during operation. Wear protective gloves so that you do not burn yourself.

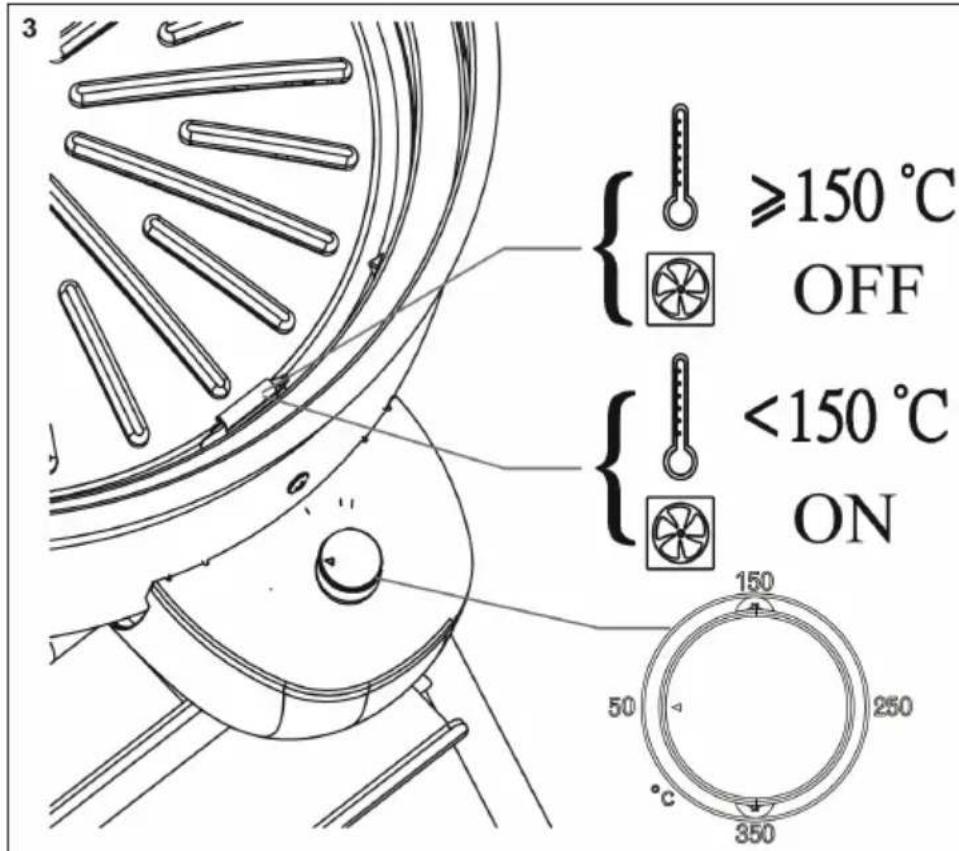

Operating the thermostat

CAUTION

Risk of burns! The thermostat and all surrounding elements and surfaces become very hot during operation. Wear protective gloves so that you do not burn yourself.

The device is equipped with a sensor and an automatic fan system. When you set a specific temperature on the thermostat, the sensor is activated and automatically controls the temperature.

For example, if you have set a temperature of 150^ C, the fan will turn on and bring fresh air into the combustion chamber to increase combustion and reach the target temperature.

As soon as the sensor measures the set temperature, the fan switches off automatically. If the measured temperature is below the set point, the fan will automatically restart.

Adjustable temperature: 150-300 °C (temperature tolerance: +/- 50 °C)

Grilling with charcoal

1. First remove the oil trap plate and turn the sensor to the side (see: Assembling - Step 12).
2. Stack the pyramid-shaped charcoal in the charcoal bowl. The charcoal bowl holds about 1.5 kg of charcoal.
3. Distribute fixed grill lighters evenly around the pyramid.
4. Light the grill lighter with a match or safety lighter.
5. Grease the grill rack with some cooking oil before grilling.
6. Do not start grilling until the surface of the charcoal is covered with a light layer of ash.

CAUTION

Risk of burns! The thermostat and all surrounding elements and surfaces become very hot during operation. Wear protective gloves so that you do not burn yourself.

After grilling

• Make sure that the coals are completely burnt and the grill is cool.
- Remove the ashes.
- Clean the grill with a mild detergent and rinse with water.
- Wipe the grill dry with a paper towel after cleaning.
- Clean the grill with a wire brush.
• Store the grill in a dry place.

CAUTION

Risk of burns! The thermostat and all surrounding elements and surfaces become very hot during operation. Wear protective gloves so that you do not burn yourself.

CLEANING AND CARE

Note: Allow the grill to cool completely before disassembling and cleaning.

• Remove excess fat with a grease remover, warm water with a soft wiper (not metal).
• Clean the grill housing with hot soapy water and a sponge.
• After cleaning, lightly oil the metal surfaces with cooking oil to prevent rust formation.
• Spray screws and fasteners regularly with a suitable lubricant or anticorrosive.
• If exterior paint is scratched or flaked, cover it immediately with paint or rust inhibitor.
• Keep the grill closed when not in use.

COOKING TEMPERATURES AND COOKING TIMES

Slow Cook / Smoke (125-150 °C)

Beef, lamb or pork 1 hour/kg
Chicken wings 15 minutes/kg
Ribs 30 minutes/kg
Roast 30 minutes/kg

Roast / Bake / Grill (160-250 °C)

Chicken (pieces) 30-45 minutes
Chicken (whole) 60-80 minutes
Pork meat (fillet) 20-30 minutes
Seafood 5-10 minutes
Turkey 2-4 hour

Sear (250-350 °C)

Hamburger (medium) 8-10 minutes
Chops (medium) 6-8 minutes
Steak (medium) 6-8 minutes

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Estimado cliente:

ÍNDICE DE CONTENIDOS

ATENCIÓN!

iNO UTILICE ALCOHOL O GASOLINA PARA ENCEDER LA CHIMENEA!

Simple line drawing of a mechanical lever or bracket (no text or symbols)

1X

Simple line drawing of a film reel with four oval cutouts and a center dot (no text or symbols)

1X

Simple line drawing of a rectangular structure with internal curved lines and a label '3' (no text or symbols on the diagram itself)

1X

Simple line drawing of a film reel with a clip, no text or symbols present

1X

Simple line drawing of a circular mechanical component with a central shaft (no text or symbols)

1X

Simple line drawing of a fish-like shape with no text or symbols

1X

Simple line drawing of a dome-shaped object with a circular hole, labeled with the number 7 (no text or symbols on the object itself)

1X

Simple black oval shape on white background with number 8 in top-left corner (no text or symbols within the shape)

1X

Simple black ring-shaped object with a small loop, labeled '9' in the top-left corner (no other text or symbols)

1X

Simple line drawing of a circular object with radial lines, labeled '10' in top-left corner (no other text or symbols)

1X

Simple line drawing of a circular bowl or basin with no text or symbols

1X

Simple line drawing of a bowl with a flared rim and circular base (no text or symbols)

1X

Line drawing of a bowl-shaped object with a handle and side slots, labeled with number 13 (no text or symbols on the object itself)

1X

Simple line drawing of a circular object with internal features, labeled with number 14 (no text or symbols on the object itself)

1X

Simple line drawing of a circular ring component with no text or symbols

1X

Line drawings of two identical portable kettler machines with wheels and a mounted device, shown from different angles (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Chère cliente, cher client,

SOMMAIRE

ATTENTION!

NE PAS UTILISER D'ALCOOL OU D'ESSENCE POUR ALLUMER OU RALLUMER !

APERÇU DE L'APPAREIL

Simple line drawing of a mechanical lever or bracket (no text or symbols)

1X

Simple line drawing of a film reel with four oval cutouts and a center dot (no text or symbols)

1X

Simple line drawing of a rectangular structure with internal lines and a label '3' (no text or symbols on the diagram itself)

1X

Simple line drawing of a film reel with a clip, no text or symbols present

1X

Simple line drawing of a circular mechanical component with a central shaft (no text or symbols)

1X

Simple line drawing of a fish-like shape with no text or symbols

1X

Simple line drawing of a dome-shaped object with a circular hole, labeled with the number 7 (no text or symbols on the object itself)

1X

Simple black oval shape on white background with number 8 in top-left corner (no text or symbols within the shape)

1X

Simple black ring-shaped object with a small loop, labeled '9' in the top-left corner (no other text or symbols)

1X

Simple line drawing of a circular object with radial lines, labeled '10' in top-left corner (no other text or symbols)

1X

Simple line drawing of a circular object with internal patterns, labeled '11' in the top-left corner (no text or symbols on the object itself)

1X

Simple line drawing of a bowl with a flared rim and circular base (no text or symbols)

1X

Line drawing of a bowl-shaped object with a handle and side slots, labeled with number 13 (no text or symbols on the object itself)

1X

Simple line drawing of a circular object with two small protrusions, labeled '14' in the top-left corner (no other text or symbols)

1X

Simple line drawing of a circular ring component with no text or symbols

1X

Line drawings of two identical portable kettler machines with wheels and a mounted sensor, shown from different angles (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Gentile cliente,

INDICE

ATTENZIONE!

NON UTILIZZARE ALCOOL O BENZINA PER ACCENDERE O RIACCENDERE IL BRACIERE!

DESCRIZIONE DEL DISPOSITIVO

Simple line drawing of a mechanical lever or bracket (no text or symbols)

1X

Simple line drawing of a circular object with four oval cutouts and a central dot, labeled with number 2 (no text or symbols on the object itself)

1X

Simple line drawing of a rectangular structure with internal lines and a label '3' (no text or symbols on the diagram itself)

1X

Simple line drawing of a film reel with a clip, no text or symbols present

1X

Simple line drawing of a circular mechanical component with a central shaft (no text or symbols)

1X

Simple line drawing of a fish-like shape with no text or symbols

1X

Simple line drawing of a dome-shaped object with a circular hole, labeled with the number 7 (no text or symbols on the object itself)

1X

Simple black oval shape on white background with number 8 in top-left corner (no text or symbols within the shape)

1X

Simple black ring-shaped object with a small loop, labeled '9' in the top-left corner (no other text or symbols)

1X

Simple line drawing of a circular object with radial lines, labeled '10' in top-left corner (no other text or symbols)

1X

Simple line drawing of a circular object with internal patterns, labeled '11' in the top-left corner (no text or symbols on the object itself)

1X

Simple line drawing of a bowl with a flared rim and circular base (no text or symbols)

1X

Line drawing of a bowl-shaped object with a handle and side slots, labeled with number 13 (no text or symbols on the object itself)

1X

Simple line drawing of a circular object with two small protrusions, labeled '14' in the top-left corner (no other text or symbols)

1X

Simple line drawing of a circular ring component with no text or symbols

1X

Line drawings of two identical portable kettler machines with wheels and a mounted sensor, shown from different angles (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

KLARSTEIN
