USER MANUAL Tomahawk 3.OT Klarstein

INHALT

Technische Daten 4

Technical line drawing of a mechanical device with wheels and components (no text or symbols)

10

E. ×1

11

12

INBETRIEBNAHME

Vorbereitung

Technical diagram of a mechanical assembly with labeled components A and B, showing no readable text or symbols.

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENTS

Technical Data 22

Safety Instructions 23

Overview 25

Installation 27

Getting Started 32

Operation 33

Cleaning and Care 35

Troubleshooting 36

TECHNICAL DATA

Item number	10033567
Description	Outdoor gas grill
Total heat input	13.5 kW (982 g/h)
Burnersheat input
Gas category	I3 + (28-30/37) □ I3B/P (30) □ I3B/P (50) ☑
Types of gas	Butane (G30) Propane (G31) Butane, propane or their mixtures
Gas pressure	28-30 mbar 37 mbar 28-30 mbar 50 mbar
Injector size
Grill burner (3x) 0.91 mm 0.91 mm 0.91 mm 0.80 mm
Side burner (1x) 0.76 mm 0.76 mm 0.76 mm 0.66 mm
I3 + (28-30/37)	BE, FR, IT, LU, IE, GB, GR, PT, ES, CY, CZ, LT, SK, CH, SI, LV
I3B/P (30)	LU, NL, DK, FI, SE, CY, CZ, LT, MT, SK, SI, BG, IS, NO, TR, HR, RO, IT, HU, LV
I3B/P(37)	PL
I3B/P (50)	AT, DE, CH, LU, SK
PIN	CE2531CS-0069
Important Notes	WARNING: accessible parts may be very hot. Keep young children away.Read the instructions before using the appliance.Use the appliance in well-ventilated areas.Any modifications of the appliance may be dangerous.Turn off the gas supply at the gas cylinder after use.

Chal-Tec GmbH

Wallstraße 16

10179 Berlin

Germany

2531CS-0069

SAFETY INSTRUCTIONS

Before lighting this gas grill please read the lighting instructions in this manual.

• Use outdoors only.
• Read the instructions before using the appliance.
• WARNING: Accessible parts may be very hot. Keep young children away. Use protective gloves when handling particularly hot components.

- This appliance must be kept away from flammable materials during use.

- Do not move the appliance during use.

- Turn off the gas supply at the gas cylinder after use.

- Do not modify the appliance.

- Do not place the gas cylinder under or near the appliance.

- The gas cylinder must be stored in accordance with the regulations in force.

- Only use propane and butane gas specified in the instruction manual.

- Do not use flammable liquids to light or relight your barbecue.

- Please follow the assembly instructions in this manual. Do not modify the assembly, or change any component parts. Failure to comply with these instructions may cause risk during use.

- In the event of a gas leak, immediately shut off the gas supply at the cylinder, extinguish any open flame and open the lid. Check the hoses for damage and / or poor connection. If the leak continues, immediately contract as approved gas dealer. Do not use a naked flame to check for gas leaks.

- Do not attempt to disconnect any gas fittings or connectors when the appliance is being used.

- Never leave you BBQ unattended when in use. Always cook with great care.

- This appliance should be cleaned on a regular basis. During cleaning, take care not to damage any component parts, such as the burner or valves.

- Check the flexible hoses at least once per month, and each time you change the gas cylinder. If you find signs of cracking or deterioration, replace with a new hose of similar length and quality.

- We recommend that this appliance is serviced by an approved technician at least once per year. Do not attempt to service this appliance yourself.

- During the operation, the appliance shall be placed in a ventilation area.

- Flexible tube shall be changed every 2 years. It is necessary to change the flexible tube when the national conditions require it.

- The user shall not manipulate any parts that are sealed by manufacturer or his agent.

- Always test gas line for leaks at connector with soapy water after making connections.

- The top lid must always be open when lighting the burner.

- Use oven gloves and sturdy long handled gas grill tools when cooking on the grill.

- Be prepared if an accident or fire should occur. Know where the first aid kit and fire extinguishers are and know how to use them.

- Keep any electrical supply cord and the fuel supply hose away from any heated surfaces.

• Always cook with great care.

• Do not heat any unopened glass or metal container of food on the grill. Pressure may build up and cause the container to burst, possibly resulting in serious personal injury or damage to the grill.
• It is recommended to use protective gloves when operating the appliance, especially handling particularly hot components.

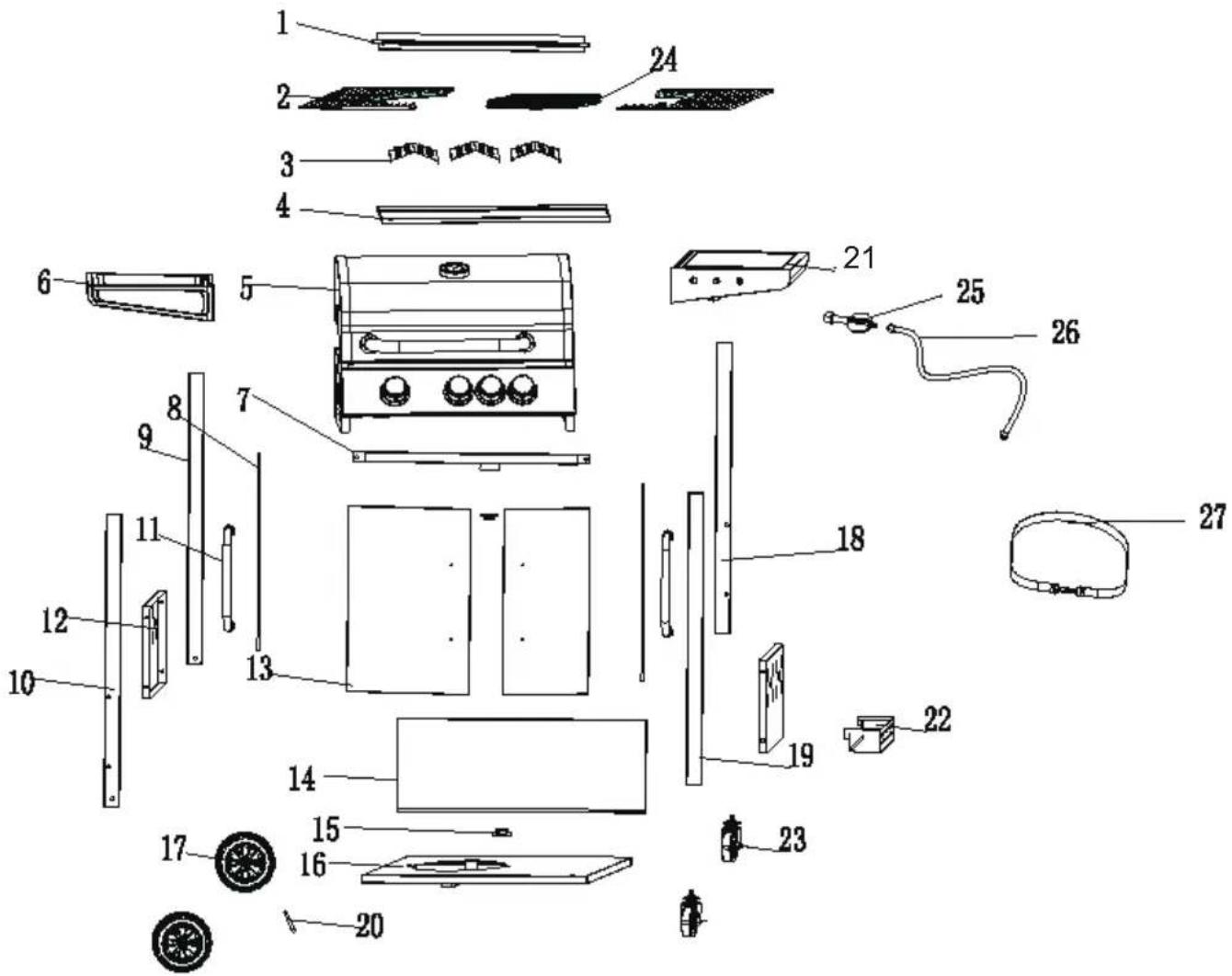

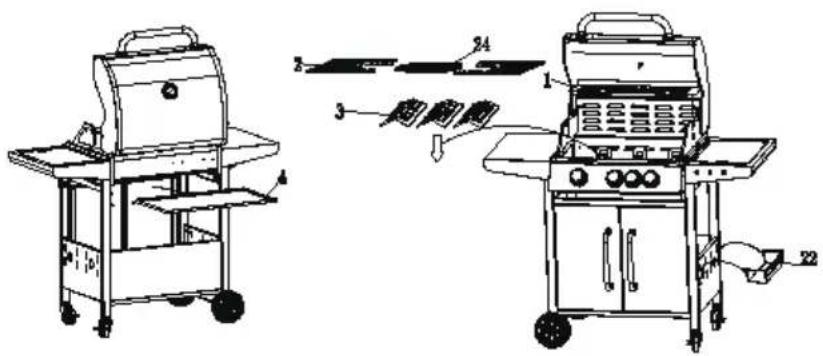

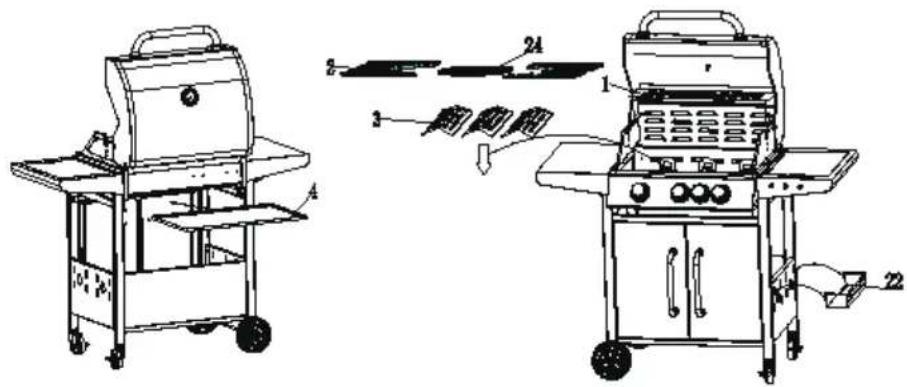

OVERVIEW

WARNING: Whilst every effort has made in manufacture of your barbecue to remove any sharp edges, you should handle all components with care in order to avoid accidental injury.

Tools required: Either a Phillips screwdriver or flat-bladed screwdriver and either a spanner (we have supplied a multifunction spanner) or a pair of pliers.

Assembly

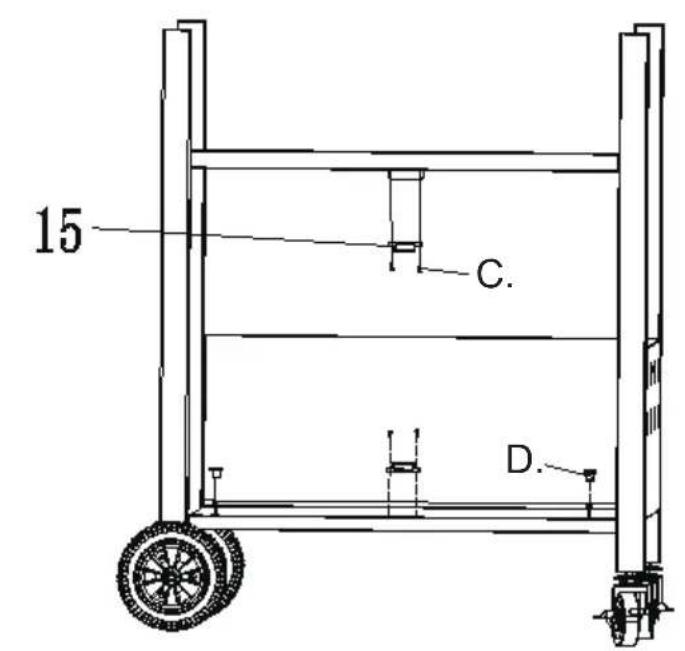

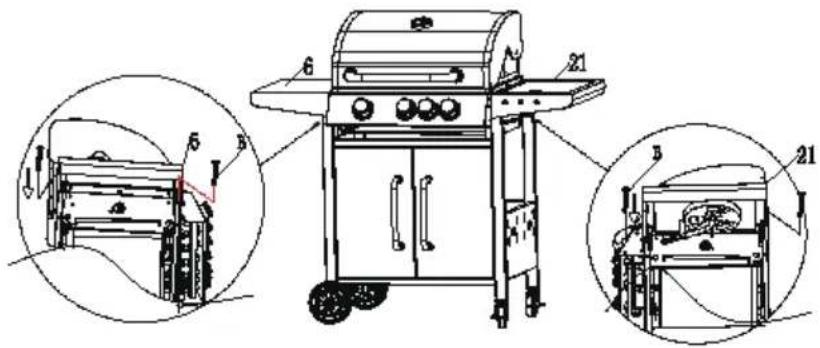

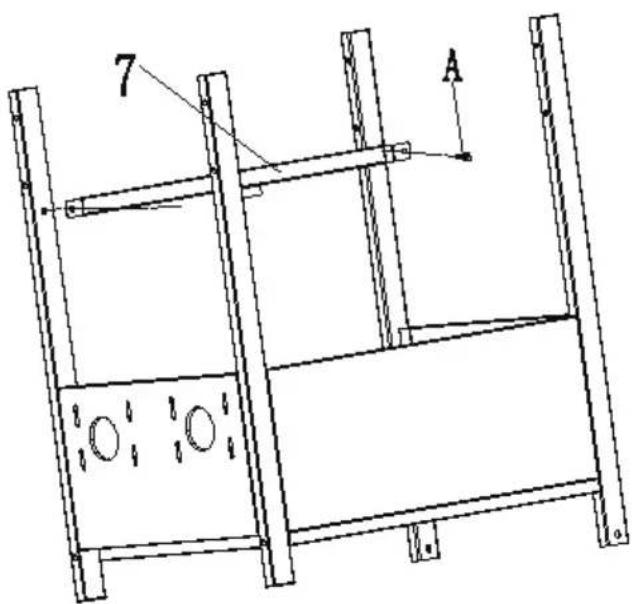

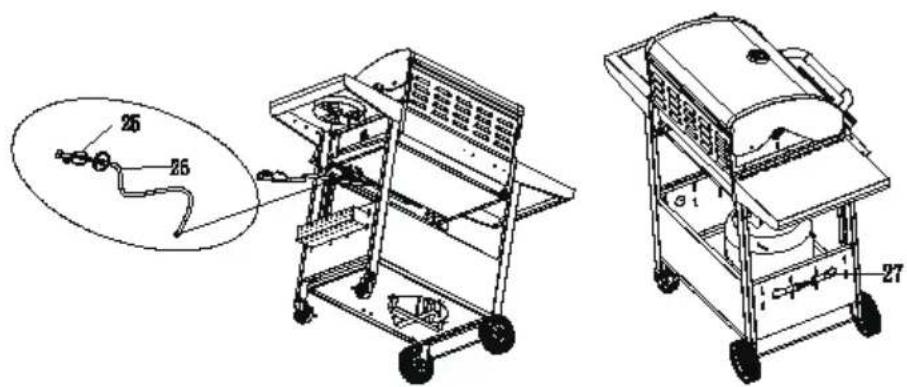

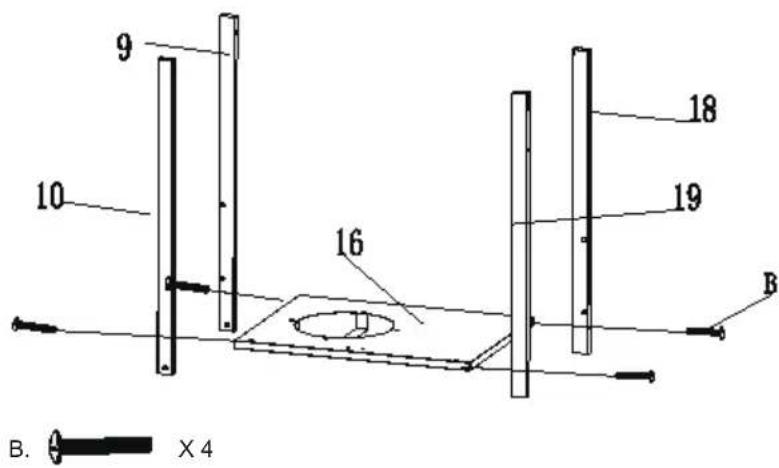

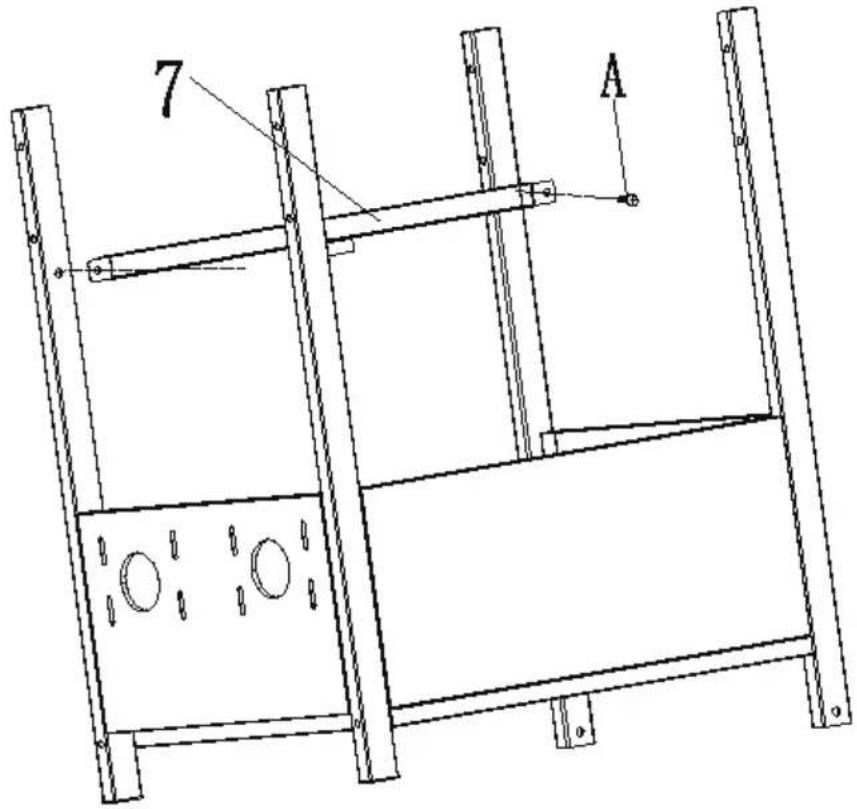

Please read all instructions thoroughly before proceeding. Find a large, clean area in which to assemble your trolley barbecue. Please refer to the parts list and assembly diagram as necessary. Assembly of the barbecue involves many large components, it is advisable to have two people assemble the unit.

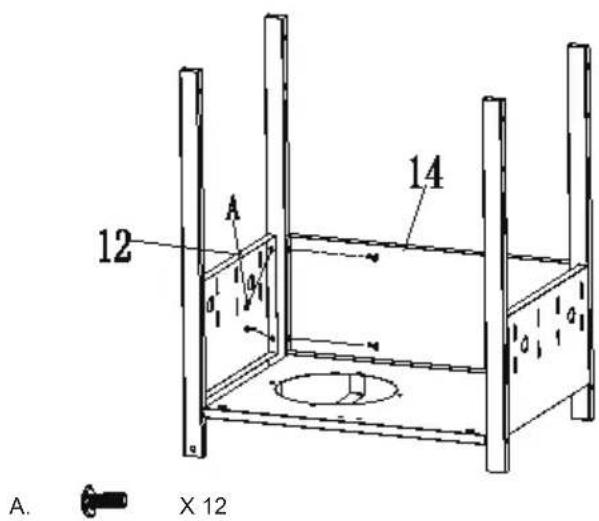

1

2

3

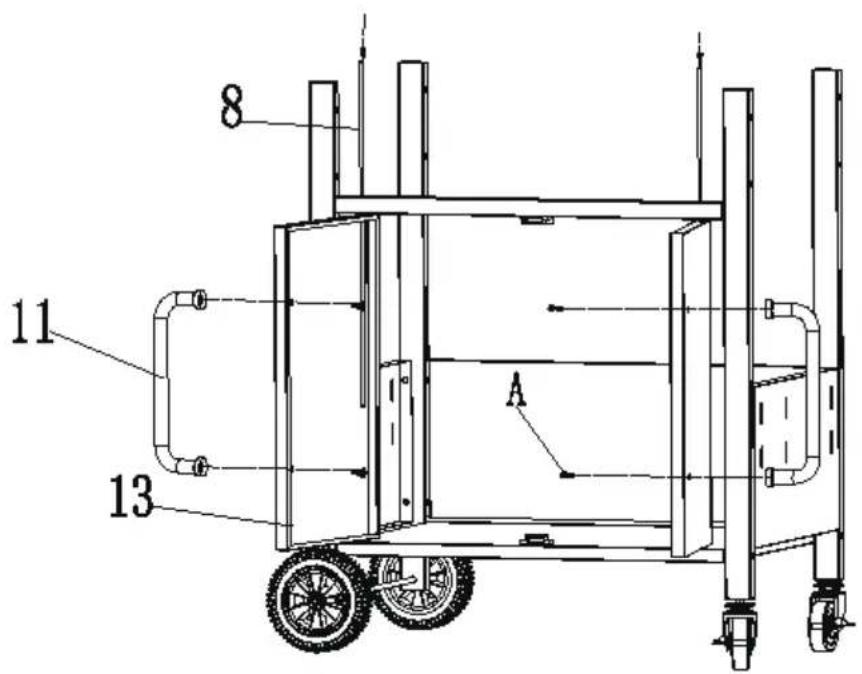

4

A.

X 2

5

C.

X4

D.

X2

6

A.

X4

7

B. x4

8

B. x4

9

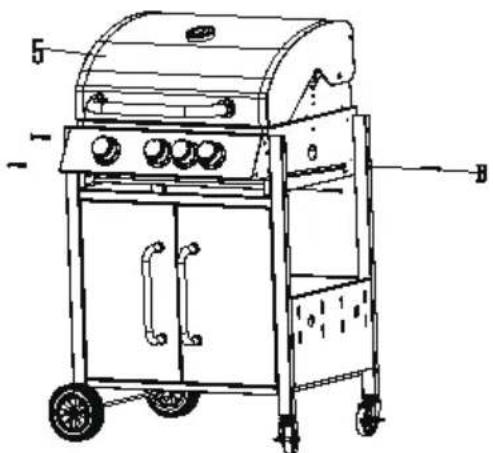

Technical line drawing of a mechanical device with wheels and a handle (no text or symbols)

A. x6

10

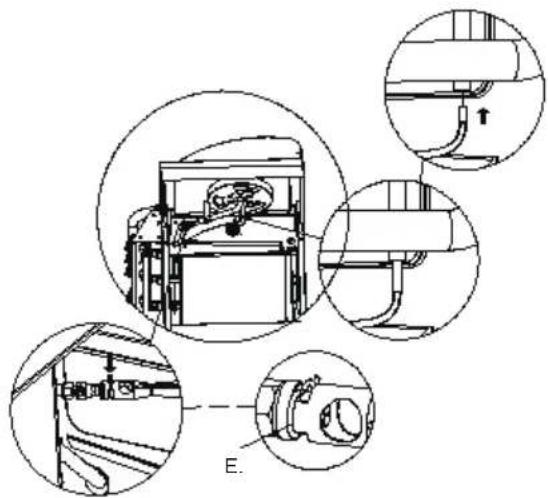

Technical line drawing of a mechanical assembly with circular annotations highlighting components (no text or symbols present)

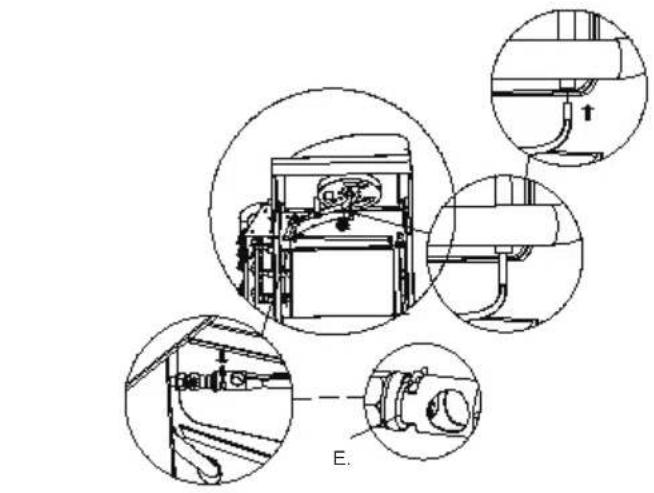

E. X1

11

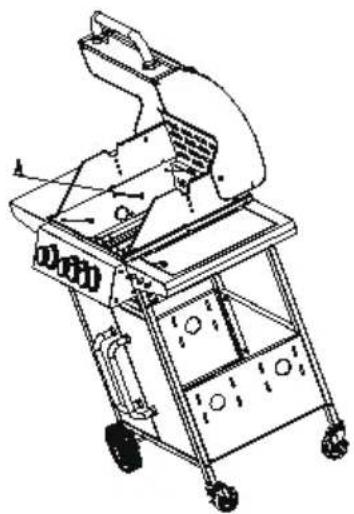

12

GETTING STARTED

Preparation

- You will need a gas cylinder and proper regulators under the gas pressure to operate this gas grill. The regulators should be comply with EN16129 with current version and national regulation.

Installation

• After purchasing your gas cylinder you will then be ready to set it up with your gas grill.
• Check all the parts, and make sure no part is missing. If there are any parts missing, please contact customer service.
• For assembly you will need a suitable screwdriver and spanner.
• Only use tools that are intact and suitable for the job at hand.
• Select a suitable place to set up the appliance. The appliance is positioned firmly on a flat, sufficiently large surface area. Make sure the inlet and the outlet regulator are correct and suitable for the cylinder valve and appliance.
• If the regulator is used outdoors, make sure that it is protected from atmospheric agents.
• For connecting the gas cylinder, you will need a suitable spanner.
• When connecting the flexible tube, make sure it is not twisted.

How to conenct a gas cylinder

• When changing the gas cylinder which shall be carried out away from any source of ignition. Position the gas cylinder at left side of your gas grill, should not be placed inside BBQ, keeping in mind that the gas cylinder must be kept away from heat and in a safe position.
• When ready to use your gas grill insert the regulator into the gas cylinder valve and tighten firmly.

OPERATION

Energy saving tips

• Reduce the opening time of the lid.
• Turn the grill off as soon as cooking is completed.
• Preheat the gas grill for 10 to 15 minutes only. (Except for the first use)
• Do not preheat longer then recommended.
• Do not use a higher setting than required.
• Connect the hose and regulator to the gas cylinder at the left side of the gas grill keeping in mind that the gas cylinder must be kept away from heat and in a safe position. The hose dimension is 8-10 mm diameter. The length of hose recommended which shall not exceed 1.5 m.

CAUTION: The lid must be open when lighting the burner! Do not stand with your face directly over the gas grill when lighting it.

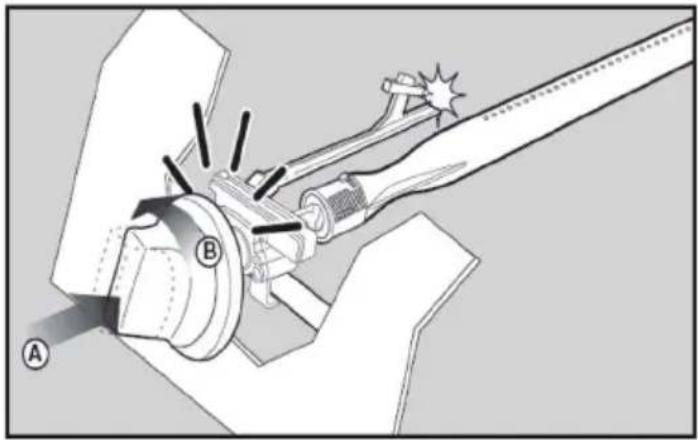

Lighting instructions

Pilot Gas Control Ignition (Main burner and side burner):

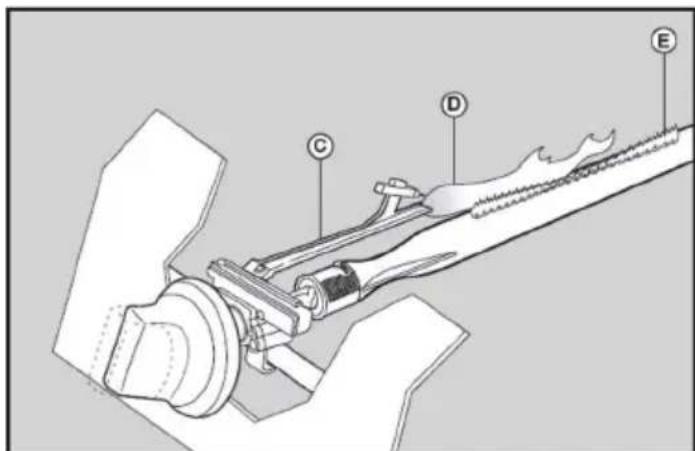

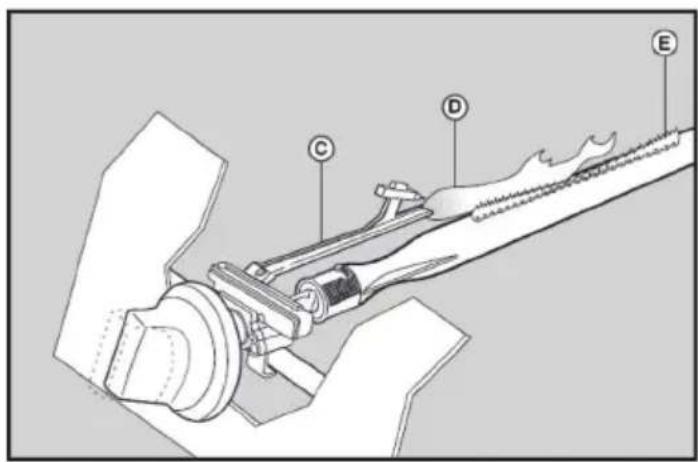

With all gas controls on the gas grill in the "OFF" position, turn on the gas cylinder valve. To create a spark you must press the control knob A and hold inrthjs position for 3-5 seconds to allow gas flow and then turn anticlockwise to "HIGH" B. It can spark to the burner lighting tube C. You will hear a snap from the igniter and you will also see an orange flame coming from the burner lighting tube at the left side offhe burner D. Continue to hold the burner control knob in for two seconds after the snap, this will allow gas to flow completely down the burne'riube E and insure ignition.

When the burner is alight, adjacent burers will cross light when their controls are turned to "HIGH".

At "HIGH" setting the burner flame should be approximately 12-20 mm long with a minimum of orange flame. Turn the gas control fully anticlockwise for minimum setting.

Should you have any difficulty lighting your gas grill following the above steps, contact your dealer for advice.

If the automatic ignition can't be used, please remove the cooking grill and heat diffuser hotplate), and turn the valve anticlockwise to 90°, to light with BBQ lighter in the distance of 5mm to the burner fire hole. Replace the cooking grill and heat diffuser (hotplate), please wear the fireproof and heat resisting gloves.

WARNING: If the burner still does not light, turn the burner control knob to "OFF" and wait 5 minutes to let the gas clear before lighting again.

Mechanical assembly diagram showing a tool interacting with a shaft and housing (no text or symbols)

WARNING: Danger of burns

All cleaning and maintenance should be carried out when the barbecue is cool and with the fuel supply turned OFF at the gas cylinder.

If the automatic ignition can not be used, please remove the cooking grill and heat diffuser (hotplate), and turn the valve anticlockwise to 90°, to light with BBQ lighter in the distance of 5mm to the burner fire hole. Replace the cooking grill and heat diffuser (hotplate), please wear the fireproof and heat resisting gloves.

Cleaning

Your gas grill is easy to clean with minimum effort, just follow these helpful hints for cleaning convenience.

Storage

• Your gas cylinder must be stored outdoors in a well ventilated area and must be disconnected from your gas grill when not in use. Ensure that you are outdoors and way from any sources of ignition before attempting to disconnect your gas cylinder from your gas grill.
• When you are using your gas grill after a period of storage, please ensure to check for gas leaks and check for any obstructions in the burner etc. before using. Always follow the cleaning instructions to ensure gas grill is safe.
• If gas grill is stored outdoors ensure to check that all areas under the front panel are free from any obstructions (dirt, insects etc.) as this may affect the flow of gas.
• Store your barbecue in a cool dry place. It may be necessary to dry the barbecue and the inside of the cover if used.
• Chrome plated warming racks etc. should be coated with cooking oil. Wrap the urners in aluminum foil to help prevent insects or other debris from obstructing the burners.

TROUBLESHOOTING

Problem Possible Cause Solution
Burners will not light using the ignition system.	LP gas cylinder is empty Replace with full cylinder
	Faulty regulator	Have regulator checked or replace.
	Obstructions in burner Clean burner.
	Obstructions in gas jets or gas hose	Clean jets and gas hose.
	Electrode wire loose or disconnected on electrode or ignition unit	Reconnect wire.
	Electrode or wire is damaged.Faulty push button igniter	Change electrode and wire change igniter.
Burner will not light with a match.	LP gas cylinder is empty. Replace with full cylinder.
	Faulty regulator.	Have regulator checked or replace .
	Obstructions in burner. Clean burner.
	Obstructions in gas jets or gas hose	Clean jets and gas hose.
Low flame or flashback (fire in burner tube - a hissing or roaring noise may be heard)	LP gas cylinder too small	Use larger cylinder.
	Obstructions in burner Clean burner.
	Obstructions in gas jets or gas hose .	Clean jets and gas hose.
	Windy conditions.	Use grill in a more sheltered position.

Manufacturer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin. Germany

This product conforms to the following European Directives and Regulations:

2009/142/EC (appliances burning gaseous fuels)

KLARSTEIN NIEIJSRAK TEIN NIEIJSRAK KLAR KLARSTEIN NIEIJSRAK TEIN NIEIJSRAK KLAR KLARSTEIN NIEIJSRAK TEIN NIEIJSRAK KLAR KLARSTEIN NIEIJSRAK
