Elektrogrill 10034706 - Grill Klarstein - Free user manual and instructions

Product type	Electric grill
Brand	Klarstein
Model	Elektrogrill 10034706
Dimensions (L x W x H)	Approx. 50 x 30 x 15 cm
Weight	Approx. 5 kg
Power supply	220-240 V, 50/60 Hz
Power	2000 W
Cooking surface	Non-stick coating
Temperature control	Adjustable thermostat
Operation indicator light	Yes, indicator light
Juice collection tray	Removable and washable
Cool-touch handle	Yes, for safe handling
Non-slip feet	Yes
Additional features	Smokeless grill, ideal for indoor use
Care and cleaning	Removable cooking plate, dishwasher safe
Safety	Automatic shut-off in case of overheating
Spare parts and repairability	Parts available through Klarstein after-sales service
Package contents	Electric grill, drip tray, user manual
Warranty	2 years

Frequently Asked Questions - Elektrogrill 10034706 Klarstein

How to clean the Klarstein electric grill?

Unplug the appliance and let it cool down. Remove the removable cooking plate and wash it with warm soapy water or in the dishwasher. Wipe the housing with a damp cloth. Never immerse the appliance in water.

Can the grill be used outdoors?

This grill is designed for indoor use only. It is not waterproof and must not be exposed to rain or moisture.

How to adjust the temperature?

Turn the thermostat knob to the desired level. The indicator light turns on during heating and turns off when the temperature is reached.

Does the grill produce smoke?

Thanks to its design, this grill produces very little smoke and is suitable for apartment use. However, a little smoke may be released when cooking fatty meats.

How long does it take to preheat the grill?

Allow approximately 5 to 10 minutes to reach the optimal cooking temperature. The indicator light turns off when the grill is ready.

What types of food can be cooked?

You can cook meat, fish, vegetables and even cheeses. The non-stick surface prevents food from sticking.

What to do if the grill does not heat up?

Check that the appliance is plugged in and that the thermostat is set to a temperature. If the problem persists, contact Klarstein after-sales service.

Can I use metal utensils?

It is recommended to use wooden or silicone utensils to avoid scratching the non-stick coating.

Does the grill have automatic shut-off?

Yes, the appliance is equipped with overheating protection that turns it off automatically in case of excessive temperature.

Where to find spare parts?

Spare parts (cooking plate, drip tray) are available from Klarstein customer service or on their website.

USER MANUAL Elektrogrill 10034706 Klarstein

INHALTSVERZEICHNIS

Line drawing of a portable grill with labeled parts (no text or symbols present)

Technical line drawing of a vehicle chassis frame with mesh and seat components (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 18

Product Overview 19

Assembly 20

Important Instructions for Use 27

Commissioning and Operation 28

Cleaning and Care 29

Hints on Disposal 30

Producer 30

TECHNICAL DATA

Item number 10034706, 10034707
Power supply	220-240 V ~ 50/60 Hz
Power	1680-2000 W

SAFETY INSTRUCTIONS

- Connect the device so that the mains plug is easily accessible at all times.

- Inspect the power cord regularly for damage. If the power cord is damaged, it must be replaced by the manufacturer or an authorized service center or a similarly qualified person.

- Repairs may only be carried out by qualified personnel, do not attempt to repair the device yourself.

- Do not connect the unit to a timer or a remote control power outlet.

- Never immerse the appliance, power cord or plug in water or other liquids.

- Do not handle the plug with wet hands.

- Do not pull the plug out of the socket by the cable, but hold it firmly by hand when pulling it off.

- Do not use the cable as a handle.

- Lay the cable in such a way that no one will trip over it.

- Do not let the cable run over sharp edges.

- Do not use the unit in wet rooms or in the rain.

- Place the appliance in such a way that it cannot fall into water. If it does fall into water, immediately unplug the appliance from the wall outlet and only then touch the appliance.

- Unplug the appliance from the wall outlet when it is no longer in use.

- Keep the appliance away from open fire and heat sources.

- This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

- Keep children away from the grill and do not leave the appliance unattended during operation.

- Place the appliance on a stable, level surface.

- Make sure that there are no easily inflammable objects or materials around the grill.

- Keep at least 30 cm away from walls.

- Do not touch the grill grate or other hot surfaces during operation.

- Do not move the appliance until it has cooled down completely. Only touch the appliance by the handles provided for this purpose.

- Only place the appliance on surfaces that are insensitive to heat. Position the appliance so that it is not too close to the edge.

- To avoid heat build-up, do not place the appliance directly under kitchen cabinets or shelves.

- Do not place the appliance on or near a stove.

- Do not expose the appliance to excessive temperatures and weather variations.

• Never fill the grill with liquids.

• If parts are damaged, do not continue to use the grill.

PRODUCT OVERVIEW

1	Lid handle	11	Support tube A
2	Grill lid	12	Food tray holder
3	Removable temperature controller with mains cable	13	Food tray
4	Temperature indicator light	14	Support leg
5	Mains input socket	15	Support tube I
6	Grill plate	16	Support tube J
7	Oil drip pan	17	Wheel axle
8	Grill holder	18	Wheel
9	Storage table	19	Wheel cover
10	Grill tray

ASSEMBLY

Small items

(Note: PCS = Quantity)

AST4×12 8PCS	BPin 2PCS	CM6×70 4PCS	D 20* 5.2 2PCS
EST4×14 2PCS

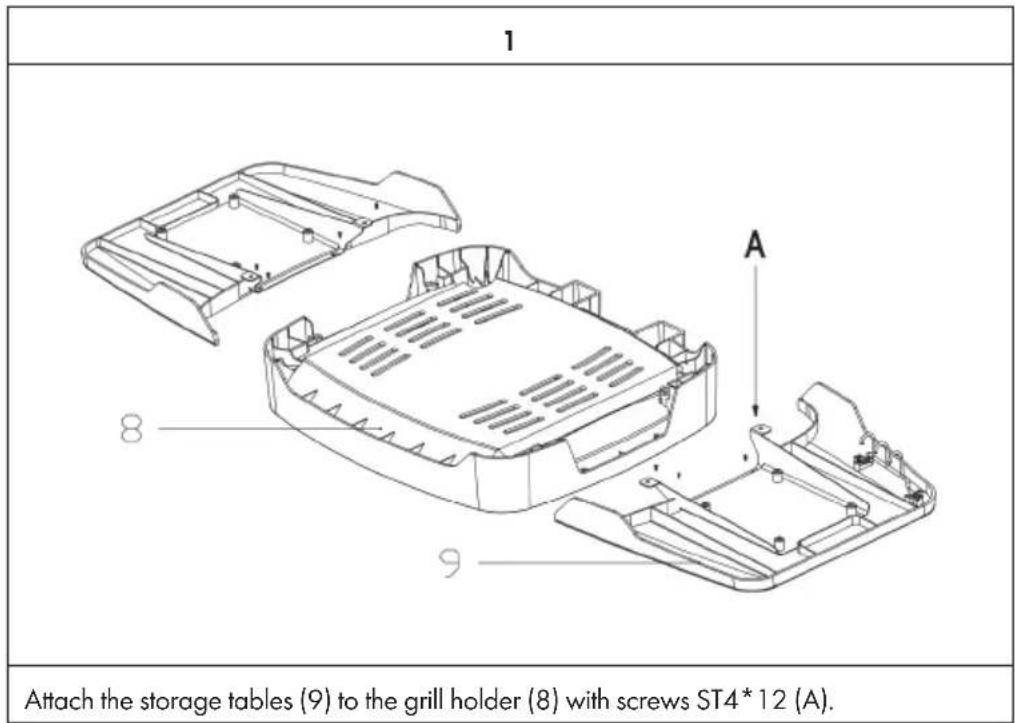

Assembly

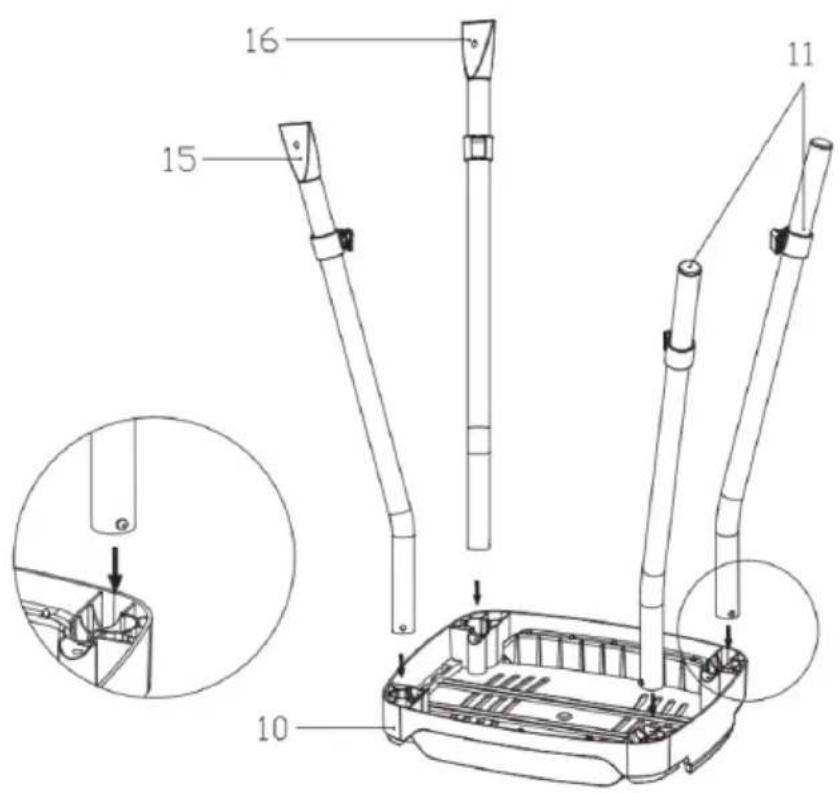

2

Attach the support tubes (11/15/16) to the grill tray (10). Press the feet into the recesses on the tray until they click into place.

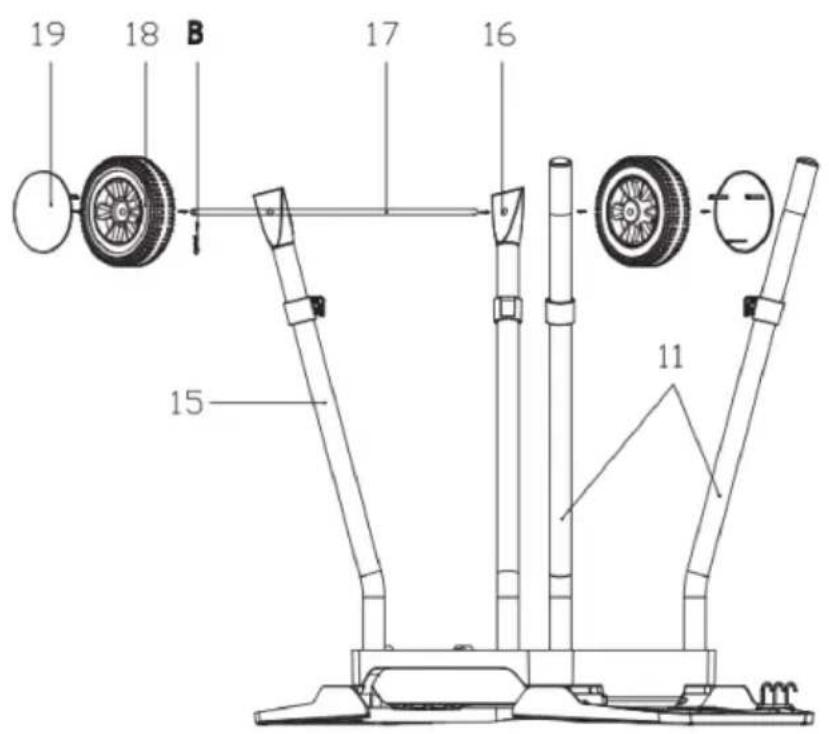

3

Push the axle (17) through the support tubes (15/16). Then attach a wheel (18) to each side. Fix the wheels by inserting the pins (B) through the holes at the axle ends. Finally, fit the wheel covers (19).

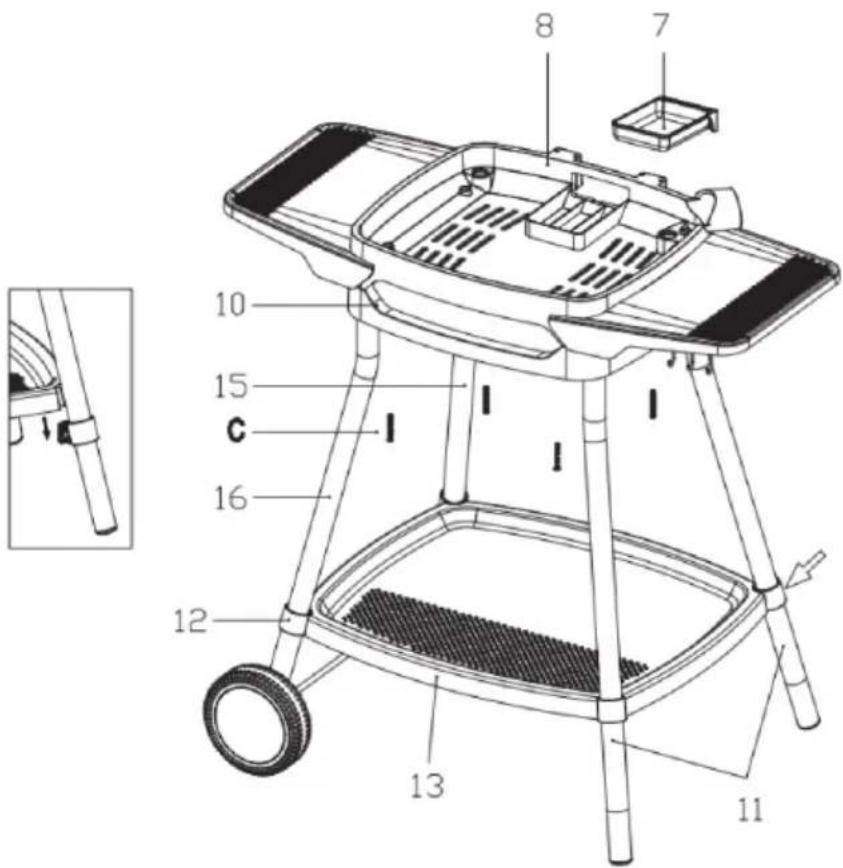

4

Then place the food tray (13) on the holders (12) on the support tubes. Then place the grill holder (8) on the grill tray (10). Insert the oil collecting tray (7) into the grill holder. Attach the grill holder (8) to the grill tray with 4 screws M6*70 (C).

5

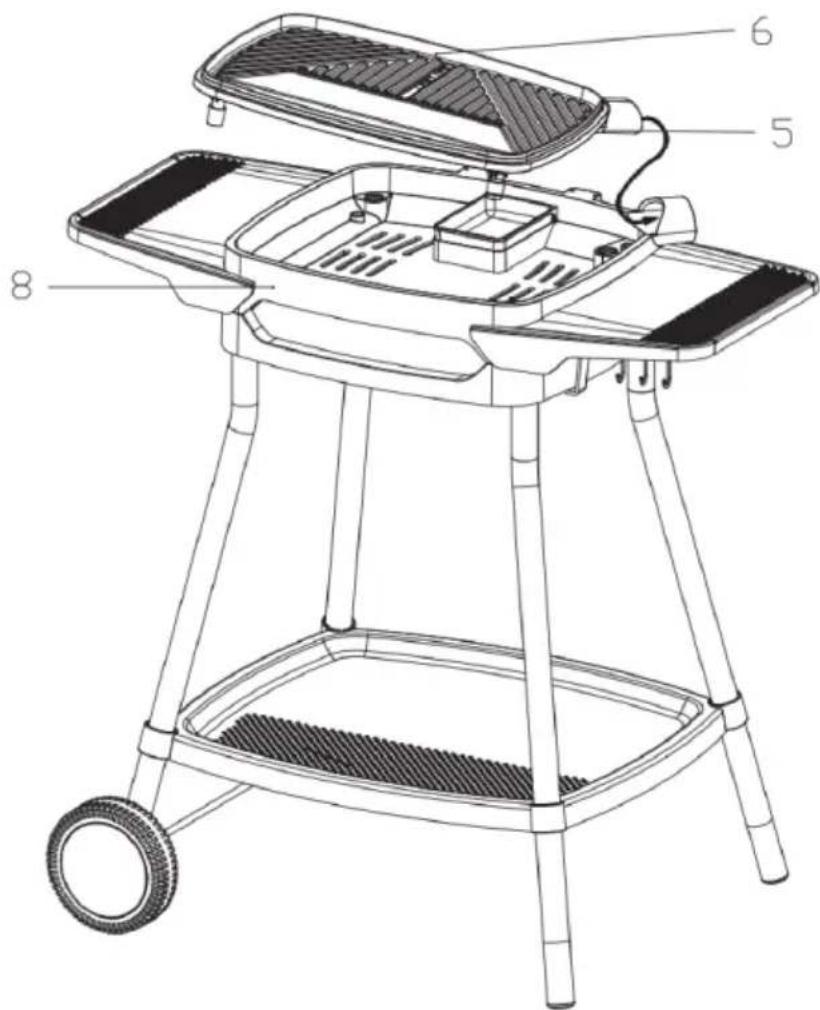

Place the grill plate (6) on the grill holder (8). Fasten the mains input socket (5) and lay the cable through the hole in the grill holder.

Note: Never use the grill plate separately, only together with the grill holder!

7

Line drawing of a portable grill with labeled parts (no text or symbols present)

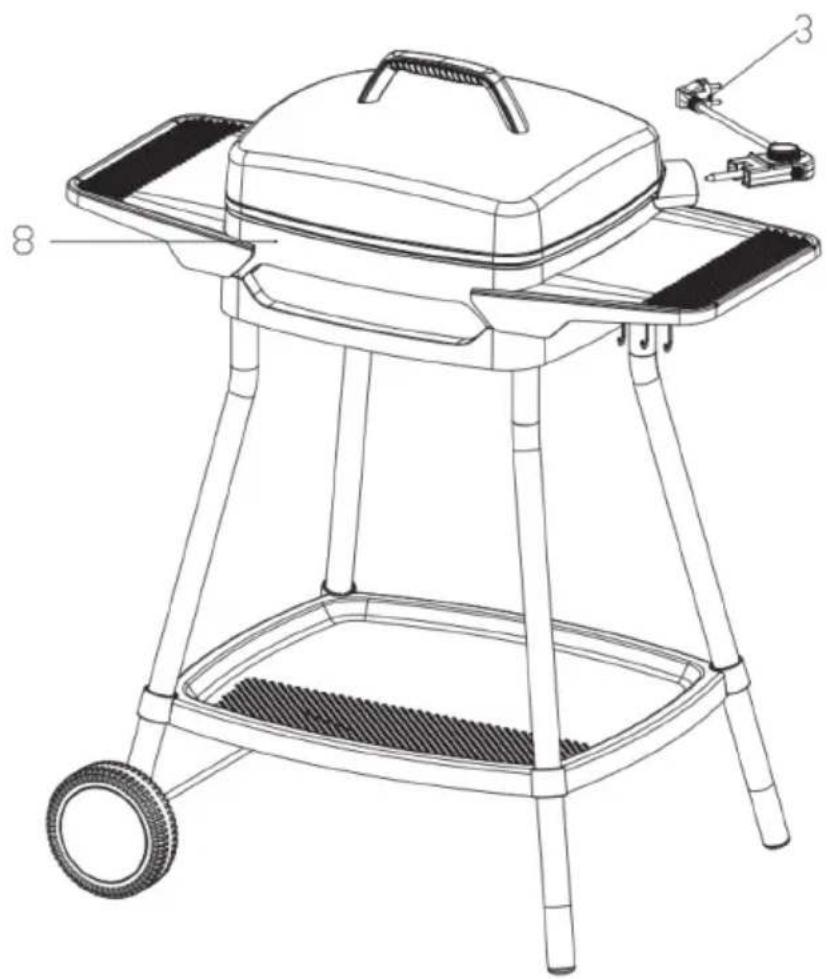

Finally, attach the removable temperature controller to the mains input socket using the mains cable (3).

Use as table grill

If you want to use the grill as a table grill indoors, you can also use the grill plate (6) and the grill holder (8) without the frame. However, never use the grill plate separately, but only together with the grill holder!

Technical line drawing of a car interior frame with grating and vent slots (no text or symbols)

IMPORTANT INSTRUCTIONS FOR USE

• If you want to use the grill as a table grill indoors, you can also use the grill plate and grill holder without the frame. However, never use the grill plate separately but only together with the grill holder!
• Keep the appliance at least 30 cm away from all walls during operation.
• Avoid tripping hazards caused by the mains cable when operating the appliance. Connect the power cord so that it is out of the way.
• Unplug the power cord from the wall outlet after use.

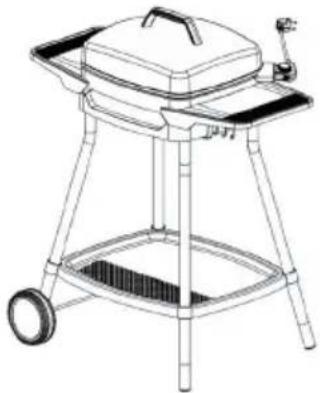

CAUTION

Risk of injury! Do not screw the plastic feet directly under the grill plate. This would reduce the safety distance between the grill plate and the grill holder, resulting in the plastic parts melting. This can lead to serious injuries and damage to the appliance.

Indoor use Outdoor use

COMMISSIONING AND OPERATION

Commissioning

1 Insert the plug into the socket.
2 Turn the temperature control knob (3) to the desired temperature. The appliance takes about 3 minutes to heat up. If you put on the lid, the grill plate heats up faster.
3 As soon as the set temperature is reached, the temperature indicator light goes out.
4 You can now place the food on the plate.

Cooking times

The table shows the recommended cooking times. However, the actual cooking time varies depending on the size and weight of the food and also depends on whether you are grilling with or without a lid.

Food Temperature level Cooking time
Steak/Cattle HI 10-15 minutes
Lamb HI 8-13 minutes
Chicken leg HI 15-20 minutes
Chop HI 20-25 minutes
Chicken wings HI 9-15 minutes
Pork fillet MED - HI 7-8 minutes
Whole fish	HI	8-11 minutes
Kebab	MED - HI	7-9 minutes
Sausages	MED - HI	8-10 minutes
Green pepper	MED - HI	5-10 minutes
Onions	MED - HI	10-15 minutes
Mushrooms	MED - HI	5-10 minutes
Potato chips	MED - HI	10-15 minutes

Tips for grilling

• Your meat will be tendered if you marinade it overnight before cooking (the marinade is always made of oil (to and moistness), vinegar (to tenderize) and a mixture of seasonings).
• Always use tongs or some form of scoop to turn the grilled food (using a fork to turn the food will dry it out and damage the non-stick coating).
• Only turn meat and fish once during grilling. You do not need to turn it more than once and too much turning dries food out.
• Never cook meat for too long. Even pork is better if it is served when it is still somewhat pink and juicy.
• If cooked food sticks to the grill plate, rub the plate with a piece of kitchen paper soaked in oil from time to time.

CLEANING AND CARE

• Disconnect the appliance from the mains electricity supply.
• Allow the grill to cool completely.
  • Take the detachable temperature regulator out of the appliance socket.
• Clean the grill plate and grease collecting bowl with warm washing-up water and damp cloth. Do not use steel wool pads, brush or abrasives to avoid any damages to the coating of grill.
• Wipe the base of the appliance with a damp cloth. Fat splashes can be removed with a mild cleaning agent.

Note: The grill plate has a non-stick coating. Do not scratch this coating during either the grilling or the cleaning stages.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

PRODUCER

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.
