Product type	Electric grill
Brand	Klarstein
Model	Elektrogrill 10033448
Article number	10033448
Power supply	220-240 V ~ 50/60 Hz
Cooking plate	Non-stick coating
Grease tray capacity	0.3 liters
Thermometer	Yes, built-in
Lid	Removable, with handle
Handles	Yes, on the housing and lid
Wheels	Yes, for cart
Folding cart	Yes, with safety lock
Adjustable thermostat	Yes, with levels 1 to 5
Temperature indicator	Yes, turns off at desired temperature
Heating time	About 3 minutes
Cleaning	Plate and tray: warm water and damp cloth; avoid steel wool
Safety distance	30 cm minimum from walls
Compliance	EU Directives 2014/30, 2014/35, 2011/65
Recycling	Directive 2012/19/EU (WEEE)

Frequently Asked Questions - Elektrogrill 10033448 Klarstein

How to assemble the cart?

Follow steps 1 to 9 of the manual: attach the supports, mount the wheels, unfold the cart by lifting the table and pulling the tube, lock the safety (spring and hook). Mount the housing on the holding tube and insert the cooking plate.

How to set the temperature?

Use the removable thermostat: plug it into the connector, then set the desired temperature level (1 to 5). The indicator light turns off when the temperature is reached. Caution: do not pull on the cable to remove it.

How to clean the cooking plate?

Unplug the appliance and let it cool completely. Remove the thermostat. Clean the plate and grease tray with warm water and a damp cloth. Do not use steel wool sponges, brushes, or scouring pads to preserve the non-stick coating.

Should the grease tray be emptied often?

Yes, its capacity is 0.3 liters. Remove the grease as soon as it is full. The surface becomes very hot: use heat-resistant gloves. You can pour a little water into it to facilitate cleaning before emptying.

How to remove the lid?

Open the lid at a 45° angle, then remove the hinges from the base holes. To reattach, push the hinges into the holes. Always hold the lid only by the handle.

Can I use the grill indoors?

Yes, but follow safety instructions: install on a stable and heat-resistant surface, away from flammable objects, at least 30 cm from walls. Do not place under a cabinet. Avoid damp rooms.

How to store the grill?

Let it cool completely. Remove the table (R) by pressing the pins. Fold the cart (reverse step 5). Lock the lid with the loop (W) on the chassis. Make sure the lock (V) is closed.

What are the recommended cooking times?

For guidance: steak/beef level 5: 15-20 min, chicken thighs: 25-30 min, sausages level 3-4: 12-15 min. Times vary depending on size and whether you use the lid. Consult the full table in the manual.

Why does meat stick to the plate?

The plate has a non-stick coating. If this happens, rub it with a cloth soaked in oil. Avoid using metal utensils (fork) to turn food; use tongs or a spatula instead.

What to do in case of breakdown or damaged part?

Immediately stop using the appliance. Do not repair it yourself. Contact a qualified professional or the manufacturer. The damaged power cord must be replaced by the manufacturer or a specialist.

USER MANUAL Elektrogrill 10033448 Klarstein

INHALTSVERZEICHNIS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENT

Safety Instructions 16

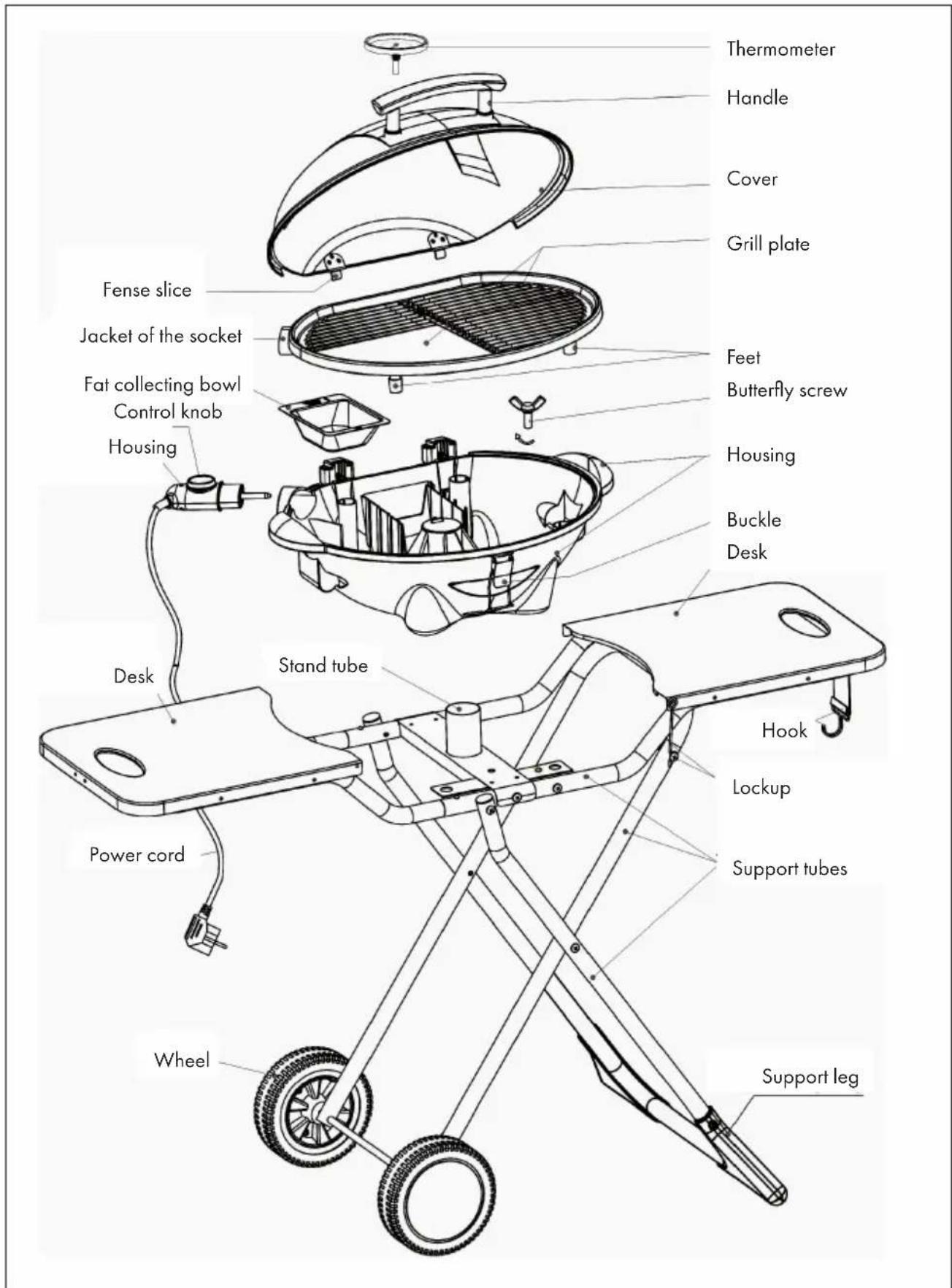

Product Overview 17

Assembly 18

Start-up and Operation 25

Cleaning and Care 26

Hints on Disposal 26

TECHNICAL DATA

Item number 10033448
Power supply	220-240 V ~ 50/60 Hz

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETY INSTRUCTIONS

- Connect the device so that the mains plug is easily accessible at all times.

- Inspect the power cord regularly for damage. If the power cord is damaged, it must be replaced by the manufacturer or an authorized service center or a similarly qualified person.

- Repairs may only be carried out by qualified personnel, do not attempt to repair the device yourself.

- Do not connect the unit to a timer or a remote control power outlet.

- Never immerse the appliance, power cord or plug in water or other liquids.

- Do not handle the plug with wet hands.

- Do not pull the plug out of the socket by the cable, but hold it firmly by hand when pulling it off.

- Do not use the cable as a handle.

- Lay the cable in such a way that no one will trip over it.

- Do not let the cable run over sharp edges.

- Do not use the unit in wet rooms or in the rain.

- Place the appliance in such a way that it cannot fall into water. If it does fall into water, immediately unplug the appliance from the wall outlet and only then touch the appliance.

- Unplug the appliance from the wall outlet when it is no longer in use.

- Keep the appliance away from open fire and heat sources.

- Children, physically and mentally handicapped persons should only use the appliance if they have been thoroughly familiarized with its functions and safety precautions by a supervisor.

- Keep children away from the grill and do not leave the appliance unattended during operation.

- Place the appliance on a stable, level surface.

• Make sure that there are no easily inflammable objects or materials around the grill.

- Keep at least 30 cm away from walls.

- Do not touch the grill grate or other hot surfaces during operation.

- Do not move the appliance until it has cooled down completely. Only touch the appliance by the handles provided for this purpose.

- Only place the appliance on surfaces that are insensitive to heat. Position the appliance so that it is not too close to the edge.

- To avoid heat build-up, do not place the appliance directly under kitchen cabinets or shelves.

- Do not place the appliance on or near a stove.

- Do not expose the appliance to excessive temperatures and weather variations.

• Never fill the grill with liquids.

• If parts are damaged, do not continue to use the grill.

ASSEMBLY

Hardware

(N1) Screw (x4) (N3)	Screw (x3) (N3) Washer and Nut (x3)
(N2) Washer, Nut and Screw (2 sets)	(C) R Pin (x2) (S1) Butterfly Screw (x1)

1		2

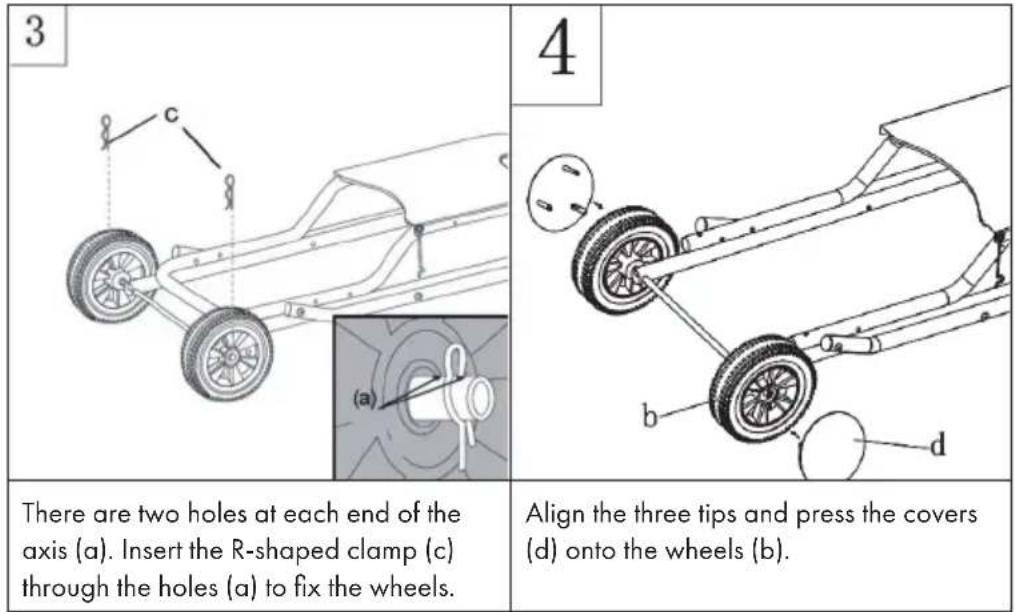

Remove the frame and accessories from their packaging. Place the frame holders (Z1) on the curved tube and fasten them to the tube with two screws (N1). Slide the wheel axle (a) through the two holes located at the ends of the tubes.		Attach the wheels (b) to both sides of the axle (a).

Open the trolley:Place the right foot on the middle of the support tube (I). Raise the table (II) with your right hand and pull the tube (III) upwards with your left hand. Slide the tube (III) under the table.Close trolley:Place the right foot on the middle of the support tube (I). Hold the table (II) with your right hand and slowly lower the tube (III) downwards. Be careful not to pinch your fingers!

Immediately adjust the safety lock (f) after opening the wagon. The car is equipped with an automatic lock. Press the spring (e) and hook the bent hook (f) into the extension of the spring (e). Release the spring again. It extends and locks the safety lock.Note: Make sure that the safety lock is always closed when grilling or moving. Do not attempt to turn or pull the hook while using the appliance.

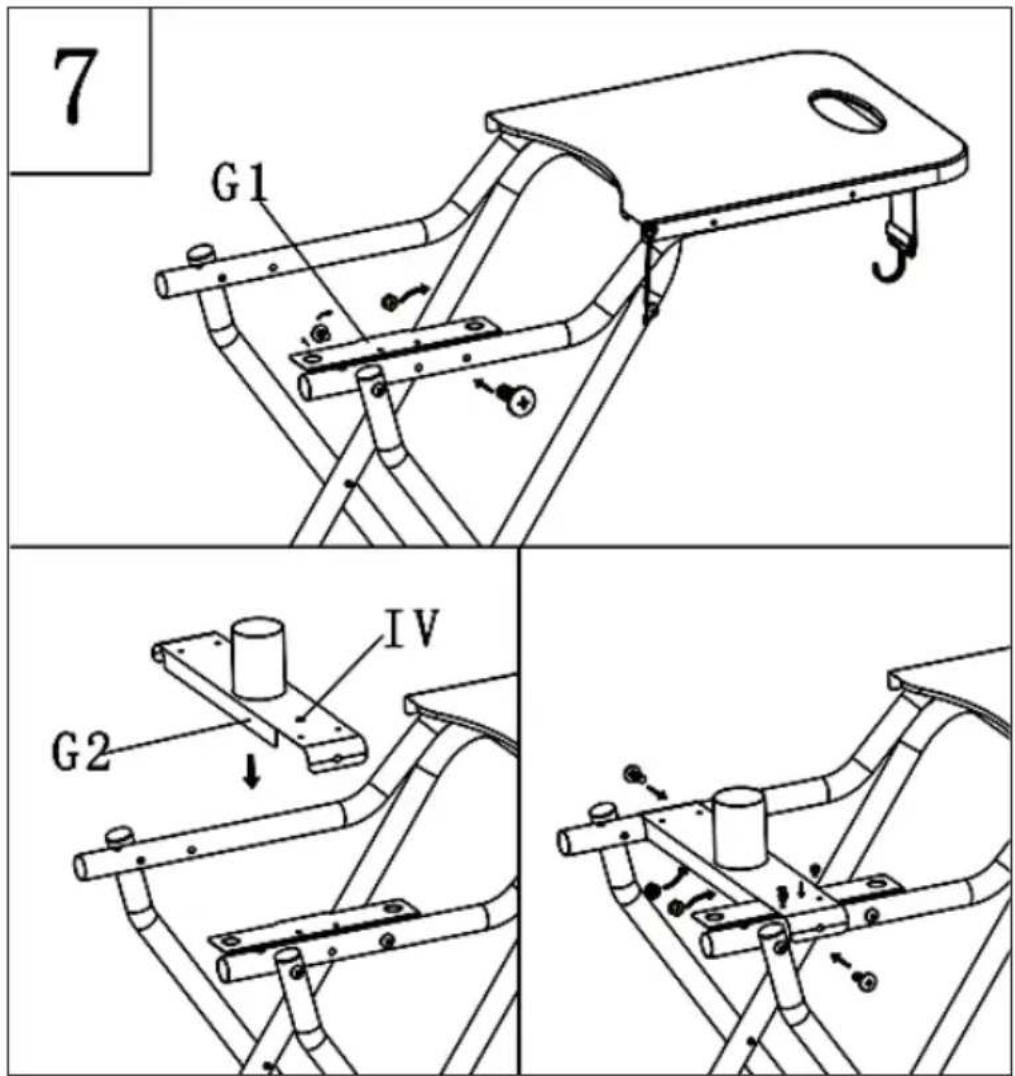

First remove the screw from the pipe. Mount the bracket (G1) on the pipe. Then mount the support tube (G2) on the tube. There is a positioning hole (IV) on the support tube (G2) where the housing is later fixed. Tighten the bracket (G1) and the support tube (G2) with screws and nuts.

8

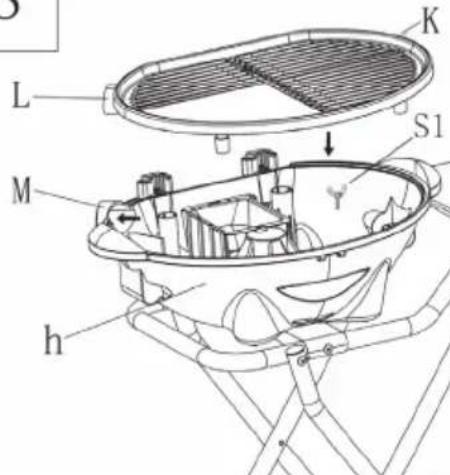

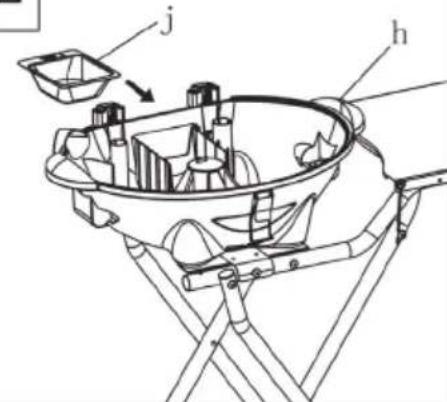

Slide the housing (h) down onto the support tube (G2). Align the positioning protrusion on the housing with the positioning hole (IV). Fix the housing to the carriage with the thumbscrew (S1). Align the grill plate holder (L) with the recess (M) on the housing and then insert the grill plate (K) into the housing. If you want to remove the grill plate later, lift it slightly to the right and pull the holder (L) diagonally out of the recess (M). When you later remove the housing from the support tube (g), lightly step on the support tube (l), hold the handles of the housing and remove it.		Mount the cover. Hold the cover by the handle (p) and slide the hinges (O) into the holes (Q) of the base. When you later remove the cover, open the cover at a 45° angle and release the hinges (O) from the holes (Q). The cover must be open at a 45° angle for it to be removed.

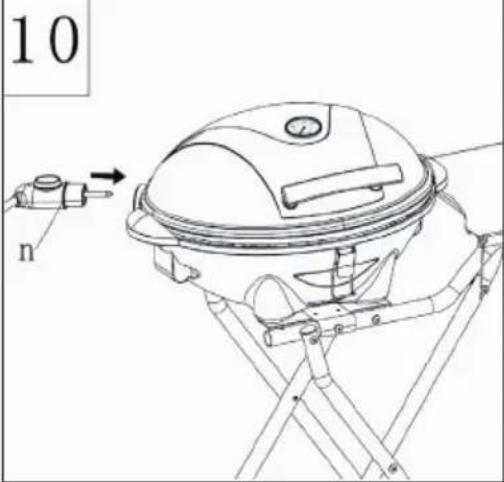

		Insert the pin (n) of the removable temperature controller into the socket. You can now plug the plug into the socket. If you remove the removable temperature controller later, hold it by the base, do not pull on the cable.Note: Lay the power cord so that no one will trip over it and remember to remove the plug after use.

11		12

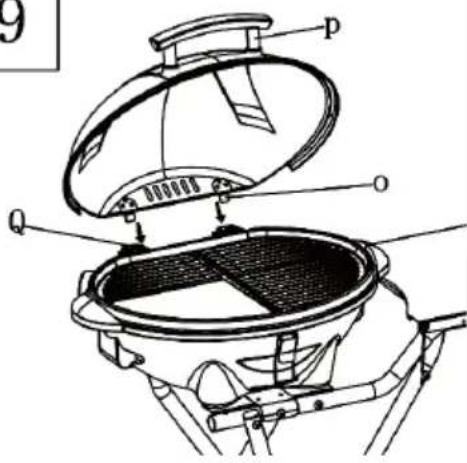

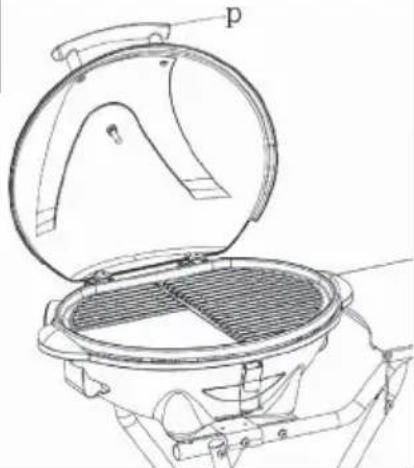

The removable lid makes the grill easier to use and clean.Note: If you want to close or open the cover, hold the lid ONLY by the handle. Be careful not to burn yourself, as the lid gets hot when grilling!		Insert the grease pan (j) into the supplied holder on the back of the housing (h).To securely secure the grease pan, align the hole in the grease pan with the positioning protrusion located in the center of the housing. To facilitate cleaning, the grease pan can be filled with a little water. When you remove the grease pan, remove the pan from the positioning protrusion and remove it.Note: The capacity of the grease pan is 0.3 litres. Pour out the fat as soon as the tub is full. The surface of the fat pan becomes very hot. Use heat-resistant gloves if you have to remove them!
13		Mount the table (R). Hold the table (R) firmly and press down the two pins (S) with your thumbs. Then insert into the tube (T). Later, remove the table (R) before folding the trolley. Press down the pins (S) and carefully pull out the tube (T).

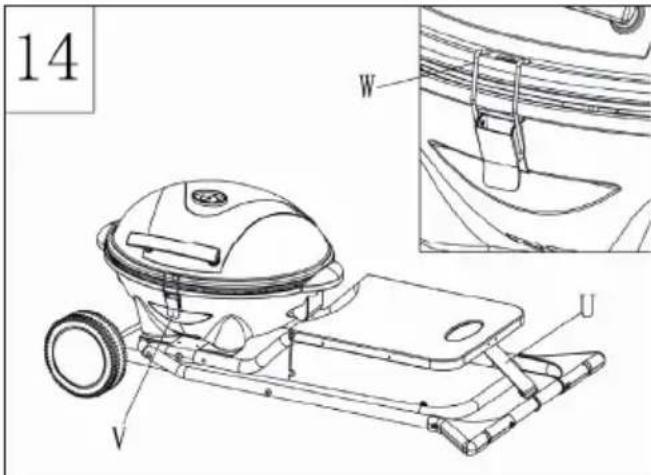

If you move the collapsed trolley or if the unit is not in use, lock the cover with the buckle (W) located on the housing. Make sure that the latch (V) is tight.

START-UP AND OPERATION

Before the first operation

Remove the packaging and clean the grill plate, the fat pan and the lid completely.

Operation

1 Connect the device to the power supply.
2 Set the temperature controller to the desired temperature. (The unit usually takes 3 minutes to heat up.)
3 The temperature indicator lamp will turn off when the desired temperature is reached.
4 Place the food on the grill plate.

Cooking times

The table shows the recommended cooking times. However, the actual cooking time varies depending on the size and weight of the food and also depends on whether you are grilling with or without a lid.

Food to be grilled Temperature setting Cooking time
Steak/beef 5 15-20 mins
Lamb 5 12-18 mins
Chicken drumsticks 5 25-30 mins
Chops 5 20-25 mins
Chicken wings 5 15-20 mins
Fillet of pork 4-5 9-10 mins
Whole fish	5 12-15 mins
Kebabs	3-4	10-12 mins
Various sausages	3-4	12-15 mins

Tips for grilling

• Your meat will be tendered if you marinade it overnight before cooking (the marinade is always made of oil (to and moistness), vinegar (to tenderize) and a mixture of seasonings).
• Always use tongs or some form of scoop to turn the grilled food (using a fork to turn the food will dry it out and damage the non-stick coating).
• Only turn meat and fish once during grilling. You do not need to turn it more than once and too much turning dries food out.
• Never cook meat for too long. Even pork is better if it is served when it is still somewhat pink and juicy.
• If cooked food sticks to the grill plate, rub the plate with a piece of kitchen paper soaked in oil from time to time.

CLEANING AND CARE

• Disconnect the appliance from the mains electricity supply.
• Allow the grill to cool completely.
  • Take the detachable temperature regulator out of the appliance socket.
• Clean the grill plate and grease collecting bowl with warm washing-up water and damp cloth. Do not use steel wool pads, brush or abrasives to avoid any damages to the coating of grill.
• Wipe the base of the appliance with a damp cloth. Fat splashes can be removed with a mild cleaning agent.

Note: The grill plate has a non-stick coating. Do not scratch this coating during either the grilling or the cleaning stages.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
