USER MANUAL 10030743 Klarstein

KLARSTEIN NIEIJSRATK TEIN NIEIJSRATK KLAR KLARSTEIN NIEIJSRATK TEIN NIEIJSRATK KLAR KLARSTEIN NIEIJSRATK TEIN NIEIJSRATK KLAR KLARSTEIN NIEIJSRATK

KLARSTEIN

Basel

Elektrischer Kamin

Fireplace Heater

Chimenea eléctrica

Cheminée électrique

Camino elettrico

Note: The device is not suitable for use as a primary heat source.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Product Data Sheet 18

Safety Instructions 19

Before First Use 20

Mounting 21

General Use 23

Display and Indicators 24

Operation and Settings 25

Timer Settings 26

Care and Cleaning 29

Hints on Disposal 29

TECHNICAL DATA

Item number 10030743, 10032536
Power supply 220-240 V ~ 50 Hz
Power consumption 2000 W

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European

Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

2009/125/EC (ErP)

PRODUCT DATA SHEET

Model identifier(s): 10030743, 10032536
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space					heaters only
Nominal heat output P	nom	2.0	kW manual	heat charge control, with integrated thermostat		N/A
Minimum heat output P	min	1.0	kW manual	heat charge control with room and/or outdoor temperature feedback		N/A
Maximum continuous heat output	P_max,c	2.0	kW electronic	heat charge control with room and/or outdoor temperature feedback		N/A
Auxiliary electricity consumption					fan assisted heat output N/A
At nominal heat output el	max	2.0	kW		Type of heat output/room temperature control
At minimum heat output el	min	1.0	kW single	stage heat output and no room temperature control		no
In standby mode el	s8	0.48	W Two or more	more manual stages, no room temperature control		no
					with mechanic thermostat room temperature control	no
					with electronic room temperature control	no
					electronic room temperature control plus day timer	no
					electronic room temperature control plus week timer	yes
					Other control options (multiple selections possible)
					room temperature control, with presence detection	no
					room temperature control, with open window detection	no
					with distance control option	no
					with adaptive start control yes
					with working time limitation	no
					with black bulb sensor	no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

SAFETY INSTRUCTIONS

• Do not use the appliance until it is securely fixed as described in this manual.
• Check that the voltage indicates on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• If the supply cord is damaged, it must be replaced by a qualified engineer in order to avoid a hazard.
• The fireplace heater must not be positioned directly under the power socket.
• Keep furniture, curtains and other flammable material at least 1 meter away from the appliance.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains supply.
• Keep out of reach of children and do not allow them to operate this appliance.
• This appliance is intended for household use only and should not be used for industrial purposes.
• Do not operate this appliance after a malfunction or after being dropped or damaged in any way.
• Repairs to electrical appliances should only be performed by a qualified electrician.
• Improper repairs may place user at serious risk.
• Do not run the mains cable under carpets, rugs, etc.
• Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.
  • In order to avoid overheating, do not cover the heater.
• Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• Never immerse the product in water or any other liquid for any reasons.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not use the appliance outdoors.
• Do not use if you have wet hands.
• Never use the appliance on or near hot surfaces.
• Do not operate with a damaged cord.
• Before cleaning the appliance, make sure it is unplugged from the power and that it is completely cooled.
• Do not clean the appliance with abrasive chemicals.
• Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the appliance.

• This appliance is not intended for use by persons (including children) with reduced Physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.

• Do not lift the appliance by the front panel.

• Keep top of heater at least 1000mm away from ceiling or other objects for optimum heat ventilation.
• This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
  • Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

BEFORE FIRST USE

Please retain all packaging until you have checked and counted all the parts and the contents of the fi xing pack against the parts list. The fi xing pack contains small items, which should be kept away from young children. We suggest that you open the fi xing pack and place all the contents into a container, therefore reducing the risk of losing any small pieces.

MOUNTING

Wall mounting

• Do not connect the appliance to the mains until properly fixed to the wall and the instructions are read fully.
• The minimum distances must be observed in the diagrams on the right.
• For installation of the appliance, care must be taken not to damage concealed cables.
• Please be careful whilst drilling holes.
• This appliance is designed to be permanently fixed to a wall at a minimum height of 300 mm. The wall bracket must be fitted horizontally and the cable routed to the bottom right of the heater.

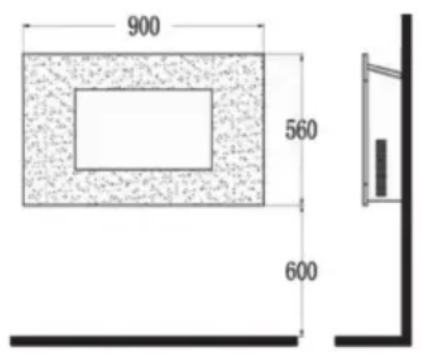

Figure 1: A distance of 600mm from bottom of heater to floor is recommended for optimum viewing of fuel bed; see Fig.1 for recommend fixing dimensions.

Figure 2: For optimum viewing, mark the top five screws fixing positions on wall in accordance with the recommend fixing dimensions

Ensure that the bracket is level by using a Spirit level whilst marking out the hole positions. Drill holes with a No. six drill bit. Fix the wall bracket using that the plug and screws provided. Attach the lower fixing bracket the base of the fire using the two small black screws supplied; ensure the bracket is fitted so that it is level with the back. Carefully lift the heater up ensuring that the top rear ledge of heater engages with the wall bracket (see Fig.2 in circle) and is sitting centrally. This process should be carried out by two people to avoid injury or damage to property or the appliance. Gently bring the heater down against the wall.

Figure 3: Mark the lower fixing bracket two fixing hole positions on the wall-see Fig.3, remove the heater. Drill the wall and insert the wall plugs. Refit the heater to the wall and fasten the bottom fixing bracket to the wall using the screws provided to permanently fix the heater in place.	Figure 4: Place the front surround over the front of the fire aligning the slots in the brackets at each side of the front panel with the lugs on the sides of the fire-see Fig.4. Again two people will be required for this operation.

Mounting the Fireplace Stand

It is possible to install the electric fireplace on a surface, instead mounting it on the wall.

• Remove the tempered glass from the metal body.
• Place the metal body horizontally on a table.
• In the lower part of the body there are some holes; align them to the holes on the fireplace stand.
• Use the supplied screws to secure the base to the lower side of the main body.
• Place the unit on a flat and stable surface.
• With some help, install the tempered glass.
• Align the lateral hooks of the glass with the notches on the sides of the metal body.

GENERAL USE

Note: The appliance can be operated either by the switches located on the top right hand side of the fire or by the supplied remote control.

Manual Operation

• This is done by operating the switches located at the top right hand side of the fire. The standby rocker switch must first be switched on, the fire will beep to indicate that it is powered up.
• Press the O/I button once to turn on the appliance and fire effect. A red indicator light will show to indicate that the fire is ON. Press the O/I button for 3 seconds this will operate the dimmer mode, hold the button down until the desired brightness is obtained.
• Press the POWER button once for the low heat setting 1000W; press twice for the high heat setting 2000W; press three to switch off the heat setting.
• Press the BACK LIGHT button to adjust the colors of LED decoration, 7 colors available.

Remote Operation

The standby rocker switch located at the top right hand side of the fire must first be switched on; the fire will beep to indicate that it is powered up.

It takes a little time for the receiver to respond to the transmitter. Do not press the buttons more than once within two seconds for the fire to operate normally.

DISPLAY AND INDICATORS

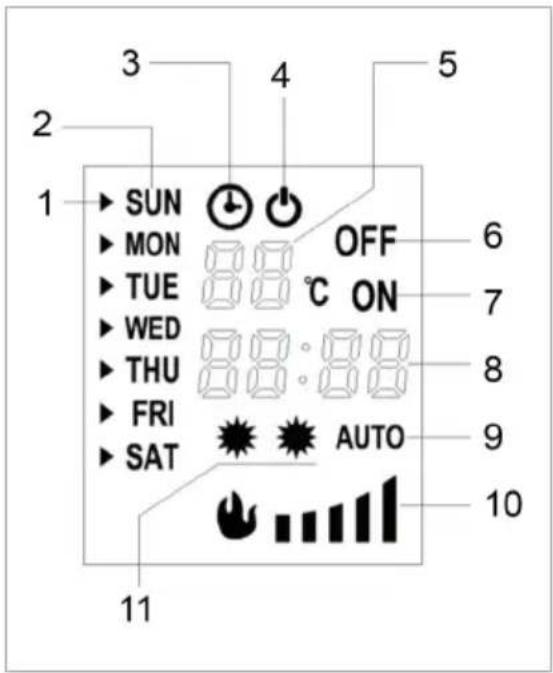

1 Cursor
2 Date
3 Timer
4 Standby
5 Temperature display/serial number display
6 Timer off
7 Timer on
8 Time display
9 Automatic control of heating
10 Flame brightness
11 Heat position

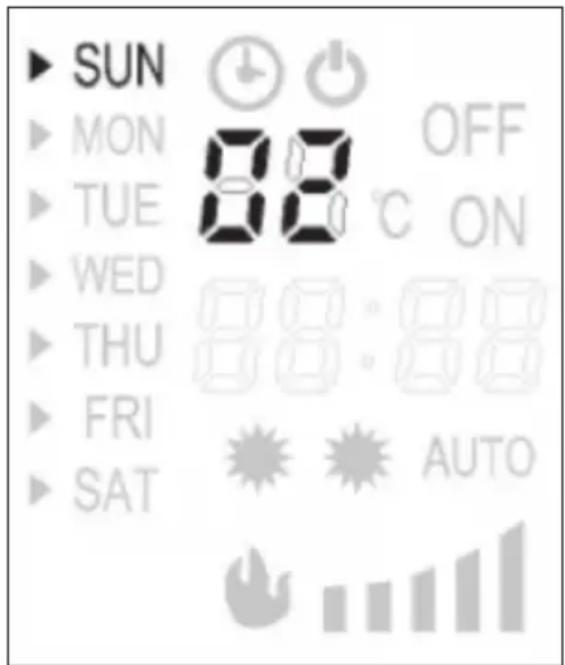

Temperature and serial number display (5)

Normally it displays the room temperature; while setting the temperature, the setting temperature is displayed; When setting the timer, the serial number of the setting is displayed.

Time display (8)

Normally it is display the current time; while setting the timer, the setting time is displayed.

Timer starting and timer shutdown

While setting the timer, the setting time is displayed, and the timer is used in combination with serial number setting.

05 ON23:4005 OFF06:10	E.g. Means the starting time of setting 5 is 23:40.
	E.g. means the shutdown time of setting 5 is 6:10.

Flame brightness

It displays the current brightness of the flame, which ranges from one to five positions.

OPERATION AND SETTINGS

Boot steps

1 Connect the power.
2 Turn on the power switch.

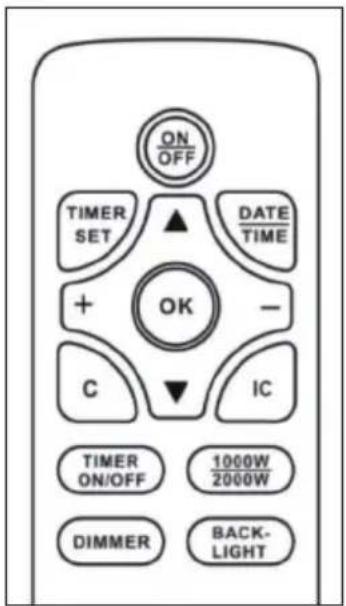

3 Press the control switch or "ON/OFF" key of the remote controller to start up
4 Press the 1000W/2000W button once for the low heat setting 1000W; press twice for the high heat setting 2000W; press three to switch off the heat setting.
5 Press the DIMMER button to operate the dimmer mode, repeat pressing will raise and lower the brightness.
6 Press the BACK LIGHT button to adjust the colors of LED decoration, 7 colors available.

Adaptive start control function

Press "IC" button on the remote controller to start or close the adaptive start control function. When turned on this function, the fireplace can automatically change the heating mode, and this is depend on the setting temperature and the room temperature. When the timer is on, it is possible to start the heating ahead of the schedule.

Note: Adaptive start control function is only working when the week timer system is power on.

The date and time setting

1 Press „DATE TIME“ button, then press the „▲“ or „▼“ key to select the day.

2 Press „DATE TIME“ button again, then press the „+“ or „-“ to set the hour

3 Press „DATE TIME“ button again, then press the „+“ or „-“ to set the minute

4 Press „OK“ button to finish the setting.

Temperature setting

The default temperature setting is 22^ , press „+“ or „-“ on the remote controller to set the temperature, which ranges is from 15^ to 30^ .

TIMER SETTINGS

• There are up to 10 kinds of timer setting.
• Each setting has its date, power-on time, shutdown time and temperature setting
• The max. time of each setting is 23 hours 50 minutes
- The setting date for each timer can be any day or more days of a week
- The setting date is the date of power-on time. If the shutdown time is on the second day, it is unnecessary to set the date, you just set the shutdown time.

View the timer setting

1 Press the „TIMER SET“ button
2 Press the „+“ or „-“ to check the power-on time by one by one.
3 For checking the shutdown time, press the "▲button
4 Press the „+“ or „-“ to continue viewing
5 For deleting the current item of setting, press „C“ to delete this setting.

Timer setting

(1) Select the settings

Press the „TIMER SET“ button, and the serial number of setting starts blinking. Press the „+“ or „-“ to change the serial number of the setting. E.g., it is showing the setting of No.2.

(2) Select date

Press „TIMER SET“ button once again, and the cursor on the left side of date starts blinking. Press the „▲or “ ” keys to move the cursor to the corresponding date, press the „+“ to add the corresponding date, or press „-“ to delete the date until you have completed the selection of all dates

(3) Set the start time

1 Continue to press the „TIMER SET“ button, the hour starts blinking
2 Press the „+“ or „-“ to adjust the hour
3 Continue to press the „TIMER SET“ button, the minute starts blinking
4 Press the „+“ or „-“ to adjust minute

(4) Set the shutdown time

1 Press the „TIMER SET“ button, the display is off, and the hour starts blinking.
2 Press the „+“ or „-“ to adjust the hour.
3 Continue to press the „TIMER SET“ button, the minute starts blinking.
4 Press the „+“ or „-“ to adjust minute.
(5) Set temperature

Then press the „TIMER SET“ button, and the temperature setting starts blinking. Then you can adjust the temperature by pressing „+“ or „-“. and “+” button will raise the temperature, and the “-” will lower the temperature.

Press „TIMER SET“ button to continue setting, and press „OK“ complete the setting.

Important Notes on Timer

• TIMER ON/OFF is to control the timer opening and closing
- Note 1: Restart the machine after the power is cut off, the original setting is kept, but the date and time must be reset.
- Note 2: When the week timer is power on, you should turn on the heating function, or else when the machine is working again as the timer, there will be only the flame effect working.

Safety Cut-Off

This appliance is fitted with a safety cut-off which will operate if the fire overheats (e.g. due to blocked air vents). For safety reasons, the fire will NOT automatically reset. To reset the appliance, disconnect the appliance from the mains supply for at least 15 minutes. Reconnect to the mains supply and switch on the appliance.

Troubleshooting

Symptom Solution
No operation/no fan. Check fuse by replacement.
No fire effect light. Check the bulb by a qualified electrician.

CARE AND CLEANING

Always disconnect from the mains supply before cleaning heater. For general cleaning use a soft clean duster - never use harsh abrasive or cleaners.

Note: The glass viewing screen should be cleaned carefully with a soft cloth. DO NOT use proprietary glass cleaners.

This product does not use a standard bulb for its flame effect. The appliance uses an electronically controlled LED system to create the effect, therefore no parts need to be replaced. There are no user-serviceable parts on this appliance. Under no circumstances should the appliance be serviced by anyone other than a qualified electrician.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

Estimado cliente:

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

DÉCLARATION DE CONFORMITÉ

Fabricant : Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Allemagne.

FICHE DE DONNÉES PRODUIT

ÉCRAN ET INDICATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed with a diagonal line, no text or numbers present
