| Product Type | Fridge-freezer combination |
| Brand | Hoover |
| Model | HN5D 72 B |
| Energy efficiency class | A++ |
| Annual energy consumption | 316 kWh/year (estimate for similar model) |
| Refrigerator volume | 293 L (estimate) |
| Freezer volume | 136 L (estimate) |
| Defrost system | Automatic (No Frost) |
| Climate class | SN-N-ST-T (10 °C to 43 °C) |
| Freezing capacity | 12 kg/24h |
| Temperature rise time | 12 h |
| Noise level | 39 dB(A) |
| Refrigerant | R600a (isobutane), flammable |

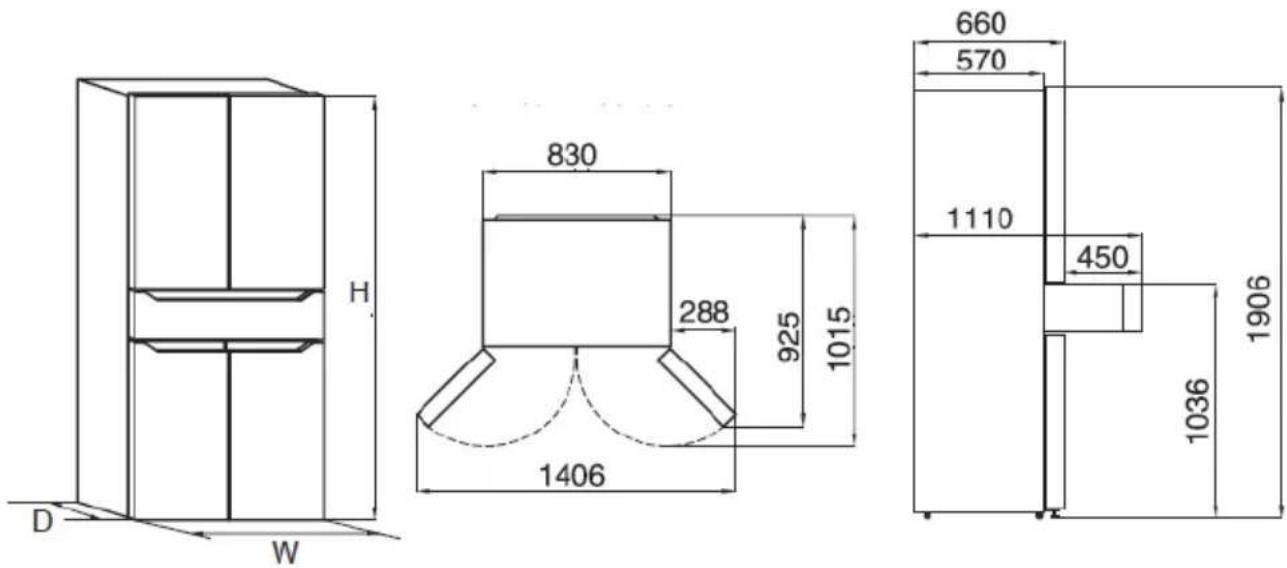

| Approximate dimensions (H × W × D) | 1906 × 660 × 830 mm |
| Main functions | Smart mode, holiday mode, quick freeze, Always Flexible Drawer compartment (-20 to 5 °C), Green Space (controlled humidity), 360 FRESH |
| Safety | Panel lock, open door alarm, flammable gas |
| Maintenance | Clean with soft cloth and mild detergent; automatic defrost |
| Interior lighting | LED 12 V DC, 2 W |
| Repairability | Only by authorized professional |
| Warranty | Manufacturer's warranty according to terms |
Frequently Asked Questions - HN5D 72 B HOOVER
User questions about HN5D 72 B HOOVER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual HN5D 72 B - HOOVER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HN5D 72 B by HOOVER.
USER MANUAL HN5D 72 B HOOVER
IT ATTENZIONE: Rischio di incendio / materiale infiammabile. Il simbolo indica che esiste il rischio di incendio dal momento che materiali infiammabili utilizzati. Fare attenzione a non provocare un incendio accensione di materiale infiammabile. EN WARNING: Risk of fire/flammable material. The symbol indicates there is a risk of fire since flammable materials used. Taking care to avoid causing a fire by igniting flammable material. FR AVERTISSEMENT: Risque d'incendie/matériau inflammable. Ce symbole indique qu'il existe un risque d'incendie en raison de l'utilisation de matériaux inflammables. Attention à ne pas provoquer d'incendie en enflammant des matériaux inflammables. ES ADVERTENCIA: Riesgo de incendio/material inflamable. El símbolo indica que hay riesgo de incendio debido al uso de materiales inflamables. Proceder con cuidado para evitar encender el material inflamable y provocar un incendio. DE WARNUNG: Brandgefahr / brennbare Stoffe. Das Symbol weist darauf hin, dass aufgrund der Verwendung von brennbaren Materialien eine Brandgefahr besteht. Achten Sie darauf, dass Sie kein Feuer verursachen, indem Sie brennbare Materialien entzünden. PT AVISO: Risco de incêndio/material inflamável. O símbolo indica que existe um risco de incêndio porque são usados materiais inflamáveis. Cuidado para evitar provocar um incêndio pela ignição de material inflamável. NL WAARSCHUWING: Brandgevaar/ontvlambaar materiaal. Het symbool geeft aan dat er brandgevaar bestaat omdat er ontvlambare materialen zijn gebruikt. Wees voorzichtig om brand door ontsteking van ontvlambaar materiaal te voorkomen. CZ VAROVÁNÍ: Nebezpečí požáru / hořlavý material. Symbol označuje nebezpečí požáru vzhledem k tomu, že jsou použity hořlavé materiály. Dbejte opatrnosti, aby zapálením hořlavého materiálu nedošlo k požáru. SK VAROVANIE: Riziko požiaru/horľavý material. Symbol znamená, že existuje riziko požiaru z dôvodu použitých horľavých materiálov. Dbajte na to, aby ste zabránili spôsobeniu požiaru vznietením horľavého materiálu. BG ПРЕДУПРЕЖДЕНИЕ: Опасност от пожар/запалим материал. Символът показва, че съществува опасност от пожар, тъй като се използват запалими материали. Трябва да се внимава и да се избегне причиняването на пожар поради наличието на запалими материали.
LANGUAGES
Italiano 3
English 24
French 44
Spanish 65
German 85
Portuguese-105
Dutch 1:25
Czech 145
Slova 1-62
Bulgarian 180
-ad es. Bed and Breakfast (B&B),
"Always flexible drawer"

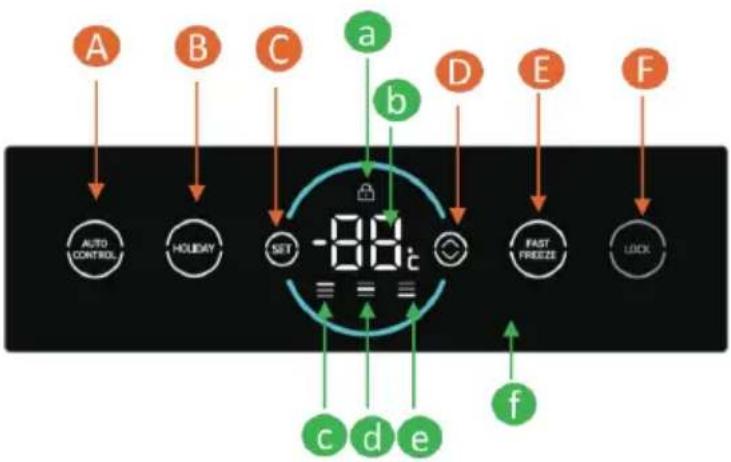

Thank you for purchasing this product.
Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:
- the kitchen area for personnel in shops, offices and other working environments
- on farms, by clientele of hotels, motels and other environments of a residential type
- at bed and breakfasts (B & B)
- for catering services and similar applications not for retail sale.
This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions. Please, to obtain the best possible performance and trouble free operation from your appliance it is very important to carefully read these instructions. Failure to observe these instructions may invalidate your right to free service during the guarantee period.
SAFETY INFORMATION
This guide contains many important safety information. Please, we suggest you keep these instructions in a safe place for easy reference and a good experience with the appliance.
The refrigerator contains a refrigerant gas (R600a: isobutane) and insulating gas (cyclopentane), with high compatibility with the environment, that are, however, inflammable.
If the refrigerant circuit should be damaged:
- Avoid opening flames and sources of ignition.
Thoroughly ventilate the room in which the appliance is situated.
WARNING!
- Care must be taken while cleaning/carrying the appliance to avoid touching the condenser metal wires at the back of the appliance, as you might injure your fingers and hands or damage your product.
- This appliance is not designed for stacking with any other appliance. Do not attempt to sit or stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the appliance.
- Make sure that mains cable is not caught under the appliance during and after carrying/moving the appliance, to avoid the mains cable becoming cut or damaged.
- When positioning your appliance take care not to damage your flooring, pipes, wall coverings etc. Do not move the appliance by pulling by the lid or handle. Do not allow children to play with the appliance or tamper with the controls. Our company declines to accept any liability should the instructions not be followed.
- Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.
- Do not install the appliance near heaters or inflammable materials.
- Check the condition of the food if a warming in the freezer has taken place.
- If there is a power failure do not open the lid. Frozen food should not be affected if the failure lasts for less than 20 hours. If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.
- If you find that the lid of the chest freezer is difficult to open just after you have closed it, don’t worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes.
- Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed.
- Leave to stand for at least 4 hours before switching on to allow compressor oil to settle if transported horizontally.
- This freezer must only be used for its intended purpose (i.e. storing and freezing of edible foodstuff).
- If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the refrigerator.
- Keep away children under 3 years of age from the appliance unless they are constantly supervised
- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug a plug in the power cable of the refrigerator or any other appliance.
- Notice that the appliance is set for operation at a specific ambient range between 10 and 43^ C. The appliance may not work properly if it
is left for a long period at a temper ature above or below the indicated range.
- Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to avoid personal injury caused by falling or electric shock caused by contact with water.
- Do not pull on the door shelves. The door may be pulled slant, the bottle rack, may be pulled away, or the appliance may topple.
- Open and close the doors only with the handles. The gap between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the refrigerator doors only when there are no children standing within the range of door movement.
- Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
- Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
- Do not store medicine or research materials in the refrigerator. When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled reaction may occur that can cause risks.
- Before performing any operation, unplug the power cord from the power socket.
- On delivery, check to make sure that the product is not damaged and that all the parts and accessories are in perfect condition.
- If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames. Open the window and let air into the room. Then call a service center to ask for repair.
- Do not use extension cords or adapters.
- Do not excessively pull or fold the power cord or touch the plug with wet hands.
- Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
- Do not place or store inflammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.
- Do not use or store inflammable sprays, such as spray paint, near the refrigerator. It could cause an explosion or fire.
- Do not place objects and/or containers filled with water on the top of the appliance.
- We do not recommend the use of extension leads and multi -way adapters.
- Do not dispose of the appliance on a fire. Take care not to damage, the cooling circuit/pipes of the appliance in transportation and in use. In case of damage do not expose the appliance to fire, potential ignition source and immediately ventilate the room where the appliance is situated.
- The refrigeration system positioned behind and inside the refrigerator contains refrigerant. Therefore, avoid damaging the tubes.
- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- WARNING: Do not damage the refrigerant circuit.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the man ufacturer.
- Never store liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing.
- Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst.
- Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away!
- Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface.
- Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
- WARNING: Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Do not touch internal cooling elements of the freezer storage compartment when in operation, especially with wet hands, to avoid cracks or injuries as your hands may freeze onto the surface.
- Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.
- Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.
- Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.
- Do not scrape with a knife or sharp object to remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes.
- Do not use mechanical devices or other equipment to hasten the defrosting process.
- Absolutely avoid the use of open flame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase.
- Never use water wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust.
- It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.
· The product is designed and built for domestic hou sehold use only.
- The guarantee will be void if the product is installed or used in commercial or non-residential domestic household premises.
- The product must be correctly installed, located and operated in accordance with the instructions contained in the User Instructions Booklet provided.
- The guarantee is applicable only to new products and is not transferable if the product is resold.
- Our company disclaims any liability for incidental or consequential damages.
- The guarantee does not in any way dimi nish your statutory or legal rights.
- Do not perform repairs on this Refrigerator. All interventions must be performed solely by qualified personnel.
- The details on the most appropriate part in the compartment of the appliance where specific types of food shall be stored, considering the distribution of temperature that can be present in the different compartments of the appliance are in the below part.
- To ensure the safe preservation of foodstuffs, please comply with this instruction to use.
- Since the flammable refrigerants are used, please installed, handle, and service the appliance strictly according to the instruction and contact the professional agent or our after -sale service to dispose of the appliance.
- Since the flammable insulation blowing gases are used, please contact the professional agent or our after -sale service to dispose of the appliance.
- WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
- WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
Maintenance / cleaning
- Make sure children are supervised if they carry out cleaning and maintenance.
- Disconnect the appliance from the electrical supply in the event of a power interruption or before undertaking any routine maintenance. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
- Hold the plug, not the cable, when unplugging the appliance.
- Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amylacetate, acetone and similar organic solutions, acid or
alkaline solutions. Please clean with special refrigerator detergent to avoid damage. - Do not scrape off frost and ice with sharp objects. Do not use sprays, electric
heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts. - WARNING: Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
- WARNING: Keep ventilation openings, in the appliance enclosure or in the
built-in structure, clear of obstruction.
- If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
- Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
- Eliminate the dust on the back of the unit at least once in the year to avoid
hazard by fire, as well as increased energy consumption.
- Do not spray or flush the appliance during cleaning.
- Do not use water spray or steam to clean the appliance.
- Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the
manufacturer.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- The appliance should be cleaned according to the instruction for good maintenance and to avoid contamination of food. For positions, such as seams, slots, holes, and so on, the simple tools may be used to clean, such as
soft brushes. If needed, detachable shelves, trays, drawers and similar accessories can be cleaned through removed from the appliance and washed in the basin.
- For hygiene requirement, contaminants such as the food/juice/fruit residues, especially trapped in small crevices must be clean up.
- This appliance is intended to be used in household and similar applications
such as:
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
· The Refrigerating Chamber is mainly used for storing foods (vegetables, fruits and snacks) which are to be preserved for a short time or to be eaten
from time to time.
- To avoid contamination of food, please respect the following instructions:
- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
- Clean regularly surfaces that can come in contact with food and accessible drainage systems.
- Clean water tanks if they have not been used for 48h; flush the water system connected to a water
- Supply if water has not been drawn for 5 days.
- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
- Two-star frozen-food compartments are suitable for storing pre -frozen food, storing or making ice cream and making ice cubes.
- One-, two- and three-star compartments are not suitable for the freezing of fresh food.
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
SAFETY CHILDREN!
- If you are discarding an old product with a lock or latch fitted to the door, ensure that it is left in a safe condition to prevent the entrapment of children.
- This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental cap abilities or with a lack of experience and knowledge; provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved.
Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.

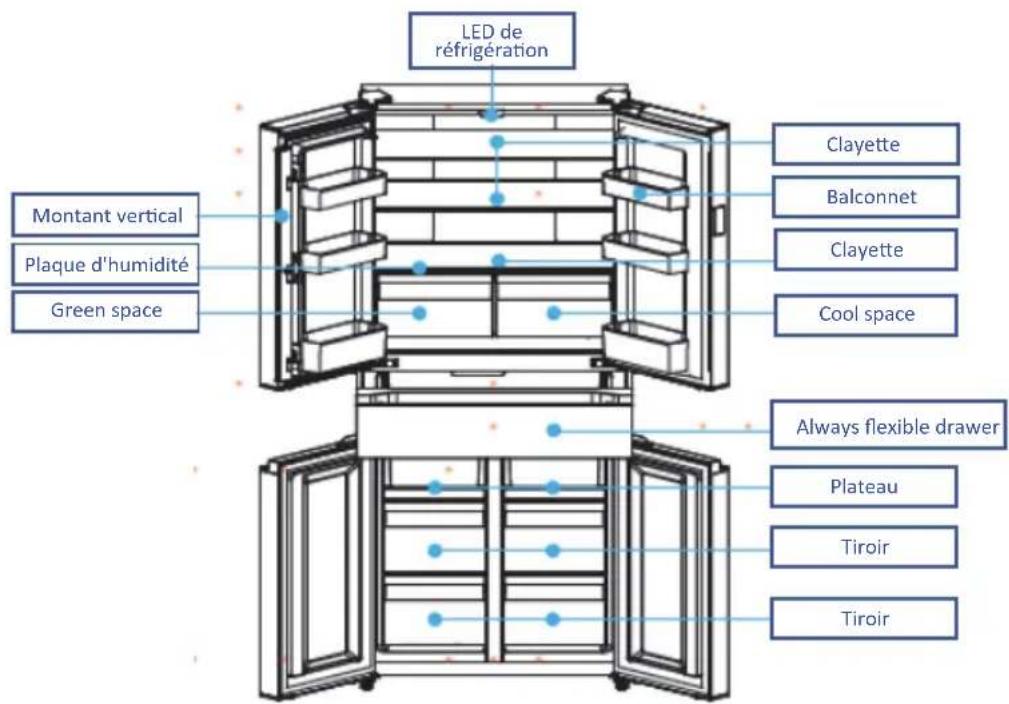

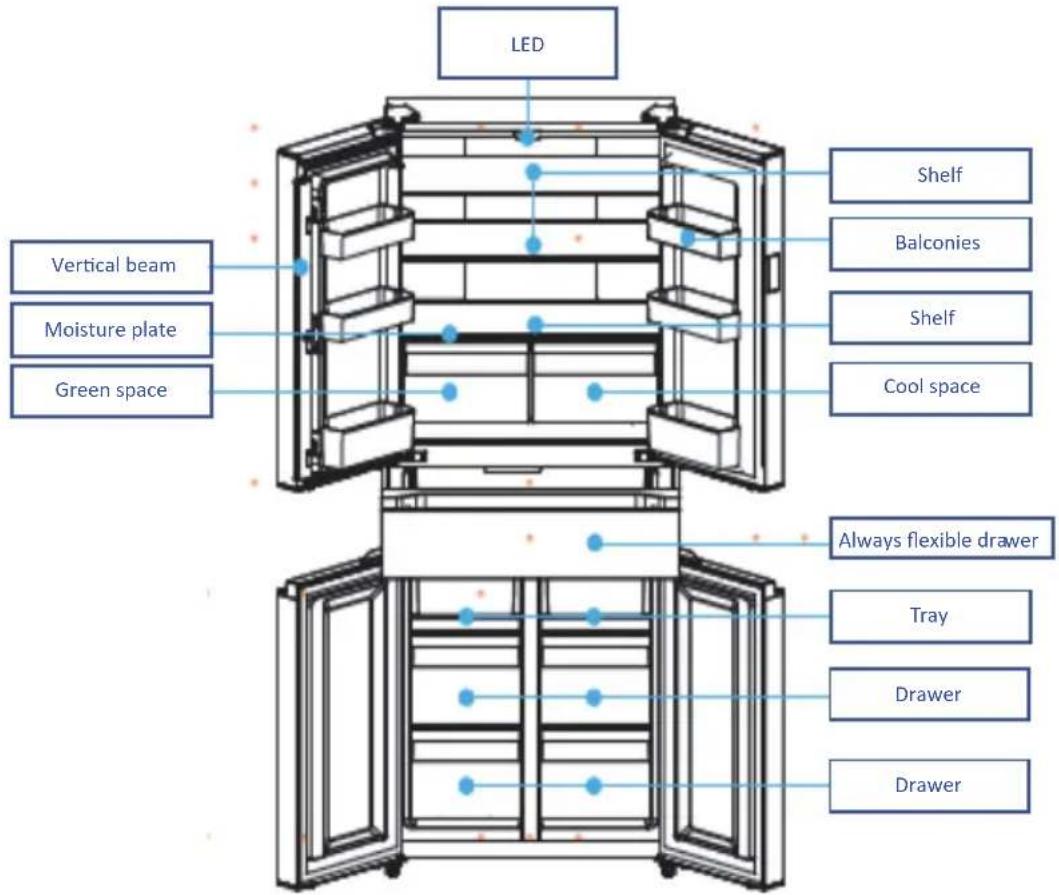

PRODUCT OVERVIEW
360 FRESH deodorization module
360 FRESH deodorization module can get the fridge part deodorize. This function can be accelerated when fan module works.
"Always flexible drawer"
This drawer is uniquely designed with a wide temperature range from -20 to 5. It can be fridge, 0 degree (default setup), -2 degree, -7 degree soft frozen mode (foods are still cuttable under this temperature), -18 degree and etc.
Green space
The green space can keep high humidity which provides a ideal preservation environment specially for vegetables and fruits.
Smart function
Refrigerator can realize the optimal cooling effect under this mode without manual adjustments.
This appliance can be used at home or for other similar applications, such as:
— Shop, office or the kitchen of other working area;
— Farm, hotel, motel and customer in an environment of living;
—— Guesthouse environment
—Catering industry and similar applications of non-retail industry
PREPARATION BEFORE USE
Installation
- Remove all packages
Remove all packing materials, including the foamed plastic seats and adhesive tapes for securing accessories
- Refrigerator cleaning
Clean the refrigerator before use
- Standing still
Following the leveling and cleaning, let the Refrigerator stand still for at least 2 hours before energized in order to insure it can operate normally.
- Remove film
If there covers film on the surface of the refrigerator, please completely remove it or the normal heat radiation effect of the refrigerator will be influenced, which results in the increasing of power consumption.
- Energize
When the refrigerator is firstly energized, it will automatically ly get into smart function, with the Smart icon lit.
Notice: Please take off the protector on the pins of the plug. It takes 2 -3 hours before the refrigerator can be normally used. Don't put foods into the refrigerator right after the refrigerator is energized.
Carriage
- Unplug the refrigerator.
- Take all food in it out, clean the interior and open the door to dry it.
- Use tapes to fix all moving parts (shelves, boxes and drawers) in the fridge and freezer
- Close doors of the refrigerator and use tape to get them fixed, to avoid the opening when moved.
- When you are moving it to a new home, the refrigerator shall not be laid down or tilted for over 45^ during transport. Otherwise, it may cause malfunctions.
- To avoid the scrape of your floor, please cover the bottom part of the refrigerator. Please do not make horizontal movements forcibly.
- Please do not hold doors, the top lid, and other tubes of the refrigerator during the transportation.
Under no circumstances shall the refrigerator be laid down!
Placement
The refrigerator should be placed on solid ground. When a greater height is required, steady, hard and incombustible cushion block should be selected. If there is a slight sway, the
adjustable black foot in the front of the refrigerator could be adjusted. Turn clockwise to raise up the Refrigerator.
Keep it away from heat source and sunlight to avoid malfunctions of the refrigerator.
There should be on obstacle in the vicinity of the refrigerator or inside the free built -in space. To keep the refrigerator ventilated, there should be at least 10 cm against the wall for each side.
Never place the Refrigerator in a damp place or with water splashes. Any water drops or other contaminations shall be wiped out by a soft cloth to prevent rusting or any impairment to the electrical insulation.
Do not use it under 5 degrees, do not use it outside or in the rain.
To avoid leaning forward, please turn the Adjustable Foot and make sure it contacts the surface completely. Never use the foamed plastic as a spacer or pad to lift up the Refrigerator.
The Refrigerating Chamber is mainly used for storing foods (vegetables, fruits and snacks) which are to be preserved for a short time or to be eaten from time to time.
Temperature-variable Chamber
The temperature in this space is adjustable from -20 to 5. It can be 5 degree (fridge), 0 degree (default setup), -2 degree, -7 degree soft frozen mode (foods are still cuttable under this temperature), -18 degree and -20. 0 degree environment can extent the preservation time of fresh foods. It is used to store food to eat in few time such as meat, fish and cheese (also sliced), eventually also fruit and vegetables which need very low temperatures.
Freezing Chamber
Freezing Chamber can reach very low temperature, which can preserve foods for a long period. Thus, it is highly recommended to put foods that need to be stored for a long time, but please refer to the preservation instruction on the package of the foods.
Power-freeze function
When putting a large volume of foods into freezer, please use this function (please refer to relevant contents). If it is less than 1KG or it has been frozen, then it is not necessary.
Instructions and precautions of frozen foods
Hot foods shall be cooled to ambient temperature before loaded.
Use packages or bags with dry surfaces to avoid being frozen together. Use odorless, nontoxic, airtight, waterproof and non-polluting package or bags, to avoid taint of odor or deterioration
Indicate the names, load dates and expiration dates of food on the packages or bags according to the manufacturer's suggestions to avoid any expiration.
To achieve easy, deep freezing and remain good quality, the food shall be divided into small and proper portions according to the required quantity for coo king, and each portion shall not exceed 2.5 kg.
In principle, the required quantity of food is to be taken out and unfrozen, and no unfrozen food shall be frozen again, or otherwise the quality of such food will be decreased, unless some food materials are cooked and frozen again as dishes
The fresh food loaded shall be in proper quantity within the Capacity of Refrigerator (refer to "Technical Data").
Please switch on power-freeze function 24 hours before freezing when you need to store large quantities of foods.
To earn a larger storage space, you can remove the drawers in the freezer
LED lamp and its replacement
LED lamp: 12V DC 2W
The lamp adopts LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service to replace it
Use of variable temperature function
5: It can be used as refrigeration compartment between 0°C and 5°C
0° C: ideal temperature to store meat, fish and cheese (also sliced) and eventually sushi/sashimi always within the expiring date indicated in the meat/fish/sushi/sashimi box.
-7°C: soft freezing. This is the intermediate temperature to freeze softly some specific food to prepare to defrosting and cooking.
You can get inside the drawer in Soft freezing function all frozen food you need to defrost for few time and prepare them to cooking. In this way, the cooking of these food will be quicker and thermal shock will be reduced. So, food will be healthier with nutritional values best maintained.
-18: It can be used as freezing compartment
When it is settled at -7, the compartment becomes soft-freezing, which has benefits listed below:
Unfrozen time: Foods in this environment do not need to be unfrozen manually or by microwave oven, which lower energy consumption and bring you an easier life.
Preserve nutrition and freshness
Easy to slice: Foods are easier to be sliced, with a fixed shape before and after the cutting.
You can better cut the frozen bread, but also meat and fish to marinate and prepare them for a carpaccio.
Energy saving tips
- The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
- Let hot foods cool to room temperature before placing in the appliance. Overloading the spoil.
- Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance. Appliance storage bin should not be ined with aluminium foil, wax paper or paper toweling.
- Liners interfere with cold air circulation, making the appliance less efficient.
- Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.
DISPLAY
Introduction of Keys
A. Smart function button: press this button to activate or deactivate Smart function
B. Holiday function button: press this button to activate or deactivate Holiday function
C. Compartment selection button: choose refrigerator, "Always flexible drawer" and freezer compartment
D. Temperature adjustment button: adjust the temperature of the chosen compartment
E. Fast-freeze (super freezing) function button: press this button to activate or de activate super freezing function
F. Panel lock button: Press the button for 3 seconds to lock or unlock the panel Instructions of indicators:
a. panel-lock indicator icon: The panel is locked when the icon is lit
b. temperature indicator icon: The icon indicates the temperature of a chosen part
c. refrigerator compartment icon: temperature indicator icon indicates the temperature of the refrigerator compartment when the icon is lit.
d. "Always flexible drawer" icon: temperature indicator icon indicates the temperature of the "Always flexible drawer" when the icon is lit.
e. freezer compartment icon: temperature indicator icon indicates the temperature of the freezer compartment when the icon is lit.
f. temperature icon: The icon indicates whether the setup t temperature has already been reached.
Function Instructions:
Lock/unlock panel
Automatic lock
This panel can be automatically locked if there is no button operated for 30 seconds.
Manual lock/unlock
When the panel is unlocked, press "Panel lock button" for 3 seconds, the panel-lock indicator
icon turns on with a beep sound from the buzzer, and the panel is locked.
When the panel is locked, press “Panel lock button” for 3 seconds, the panellock indicator icon turns off with a beep sound from the buzzer, and the panel is unlocked.
Notice: When the panel is locked, smart function, holiday function, power -freeze function, compartment selection, temperature adjustment and etc. cannot be operated, please unlock the panel to operate.
Smart function
When the panel is unlocked, press “Smart function button”, the smart function indicator icon turns on, and the refrigerator is in smart mode.
When the panel is in smart mode, press “Smart function button”, smart function indicator icon turns off, and the smart mode is deactivated.
Notice: When the refrigerator is in smart mode, you cannot adjust the temperature of the refrigerator and the freezer, or the smart function indicator icon will blink for 3 times with warning tones, reminding you that the refrigerator is in smart mode. When the refrigerator is in smart mode, setting holiday function or power-freeze function will automatically deactivate smart mode and switch the refrigerator to holiday or super-freeze mode.
Holiday Function
When the panel is unlocked, press “Holiday function button”, the Holiday function indicator icon turns on, and the refrigerator is in holiday mode.
When the panel is in holiday mode, press “Holiday function button”, holiday function indicator icon turns off, and the smart mode is deactivated.
In holiday mode, the setup of “Always flexible drawer and freezer compartments will not be changed, but the refrigerator will be automatically set at 17 degrees, which will prevent the compartment from generating peculiar odor and save energy.
When holiday mode is deactivated, the temperature of refrigerator compartment returns back to the last setup before getting in holiday mode. If the last setup of the refrigerator is OF mode, then the default temperature of the refrigerator compartment will be 5 degree after the deactivation of holiday mode.
Notice: When the refrigerator is in holiday mode, you cannot adjust the temperature of the refrigerator, or the holiday function indicator icon will blink for 3 times with warning tones, reminding you that the refrigerator is in holiday mode. When the refrigerator is in holiday mode, setting smart function will automatically deactivate holiday mode and switch the refrigerator to smart mode.
The setup of super freezing function
With the panel unlocked, press the ‘powefreeze’ bottom, the ‘powefreeze’ indicator icon turns on and the refrigerator is in ‘powerfreeze’ mode. When the panel is in ‘powefreeze’ mode, press ‘powefreeze’ bottom, the ‘powefreeze’ indicated icon turns off and the ‘powefreeze’ mode is deactivated. When ‘powefreeze’ mode is not deactivated by user, in the ‘powefreeze’ mode, the refrigerator will follow up the setup. The function will be
deactivated automatically if it has been in the mode for 50 hours.
The ‘powefreeze’ mode is designed to keep the nutrition of food. It could completely freeze the food in a shortest time. If you need to store a large amount of foods, it is recommended to set ‘powefreeze’ mode 24 hours earlier to make the temperature lower and thenput the foods in. The cooling speed of the freezer is increased. It can freeze the food faster and keep the nutrition better.
Attention: The temperature of freezer cannot be changed in ‘power-freeze’ mode, or the power-freeze function indicator icon will blink for 3 times with warning tones, reminding you that the refrigerator is in power-freeze mode. When the refrigerator is in power-freeze mode, setting smart function will automatically deactivate power-freeze mode and switch the refrigerator to smart mode.
The setup and adjustment of temperature
When the display panel lights up, one of the three parts of the compartment indicator icon blinks with the rest two parts lighting. The blinking part indicates the chosen compartment (The top part represents the refrigerator, the middle part represents the “Always flexible drawer, the bottom part represents the freezer). The blinking part will automatically switch to the next one, with the temperature indicator icon showing the real temperature of the corresponding compartment.
The adjustment of refrigerator temperature
When the panel is unlocked, tap compartment selection button to make the refrigerator part blink, then press temperature adjustment button. The temperature indicator icon starts to blink with a beep sound, and we are ready to set up. For each tap of the temperature adjustment button, you will hear a beep sound and the temperature of the refrigerator goes down by 1 degree. The change of temperature level follows up the sequence which is “05; 04; 03; 02; 01; OF; 09; 08; 07; 06; 05”. The temperature will be settled with the stop of blinking if there is no button operation for 5 seconds. When the refrigerator is on OF level, refrigerator is turned off. When you change the temperature to other level, refrigerator turns on and starts refrigeration.
Notice: When the refrigerator compartment is turned off, its refrigeration will stop. Please take everything out from it. When the refrigerator compartment is turned off, starting smart function or holiday function will automatically turn on the refrigerator compartment.
The adjustment of the temperature of "Always flexible drawer"
When the panel is unlocked, tap compartment selection button to make the “Always flexible drawer” blink, then press temperature adjustment button. The temperature indicator icon starts to blink with a beep sound, and we are ready to set up. For each tap of the temperature adjustment button, you will hear a beep sound and the temperature of the “Always flexible drawer” goes down by 1 degree. The change of temperature level follows up the sequence which is:
20.OF,05,04,03,02,01,00". The temperature will be settled with the stop of blinking if there is no
button operation for 5 seconds. When the “Always flexible drawer” is on OF level, it is turned off. When you change the temperature to other level, “Always flexible drawer” turns on and starts refrigeration.
Notice: When the “Always flexible drawer” is turned off, its refrigeration will stop. Please take everything out from it.
The adjustment of freezer temperature
When the panel is unlocked, tap compartment selection button to make the freezer part blink, then press temperature adjustment button. The temperature indicator icon starts to blink with a beep sound, and we are ready to set up. For each tap of the temperature adjustment button, you will hear a beep sound and the temperature of the freezer compartment goes down by 1 degree. The change of temperature level follows up the sequence which is “18,-19,-20,-21,-22,-23,-24,-15,-16,-17,-18”. The temperature will be settled with the stop of blinking if there is no button operation for 5 seconds.
Display panel control function
When doors are closed, the display screen will turn off in 30 seconds if there is no button operation. It will light it up when pressing any button or opening the door.
Opening-door alarm
When the refrigerator detects that the door has been opened for more than 1 minute, it will beep 3 times with a 0.5-second gap. If it is still open, the same alarm will go off every 30 seconds until the door is closed or the door has been opened for more than 7 minutes, with the LED will switched off.
Power-off memory function
This refrigerator is equipped with Power-off memory function. The status at the moment of power-off will be recorded. The refrigerator will still follow up the setup and the status it recorded before the power-off once it is energized again. The panel lock function will not be recorded. The panel will be unlocked when it is energized again.
Q&A
No refrigeration
Make sure the refrigerator is connected properly (plug, socket, fuse) Whether the power supply voltage is too low
The appliance makes sounds.
The liquid refrigerant flows or the evaporator produces boiling sound due to evaporation of refrigerant
The refrigerator is not stable at first use, it's normal to make a hum noise
The evaporator and refrigerant pipelines insides produce creaking sound due to expansion or shrinkage
When the refrigerator starts and stops working, the elements may cause clatter sound.
Poor refrigeration effects
Whether the temperature is set excessively high
Door is frequently opened or door is opened for a long time or door isn't closed tightly.
Whether it is exposed to direct sunlight or close to stove or gas cooker.
Poor ventilation, leave enough space to allow for proper ventilation.
Excessively loud noise
Whether the floor is soft or flexible and whether the refrigerator is laid balanced.
The appliance touches some object around it.
The refrigerator button cannot be operated
Please check if the refrigerator is powered off.
Please check if there is wrong operation, follow the “function Introduction” button.
The cabinet of the refrigerator produce heat
The front and side faces of the refrigerator dissipate heat.
Such places may become especially hot in summer or when it was initially started.
The compressor runs frequently or runs for a too long period of time
At first use, it's normal to run for a long time.
Too much food has been stored at one time to refrigerate.
The door has been opened too frequently under hot weather.
A door of the appliance is not tightly closed.
The temperature setting for the freezer compartment is too low, refer to “function Introduction”.
The interior lighting does not work.
Whether mains plug is not connected in the mains socket.
Whether the LED-lamp is out of order.
No refrigeration of fridge and "Always flexible drawer"
The fridge and “Always flexible drawer” can be powered off separately, please confirm whether it is in the OFF gear.
Care and Cleaning
During defrosting
Defrosting
Warning! This is an air-cooled and frost-free refrigerator with automatic defrost and water produced by defrost is stored in evaporating pan and eventually evaporates, so there is no need for manual defrost.
Warning! Except for means recommended by the manufacturer, no mechanical equipment or
other means shall be adopted to accelerate the defrost process.
Cleaning
Food left in the refrigerator can produce bad odors, so the refrigerator must be cleaned regularly:
For safety, please unplug the power cord before cleaning.
Use a soft towel or a sponge dampened in warm water (can be added with a neutral detergent) to clean the refrigerator.
Warning! Do not use stiff brush, steel brush, abrasives (e.g.: toothpaste, cleanser, etc.), organic solvent (e.g.: gasoline, banana oil, acetone, ethanol, etc.), hot water, acid or alkaline to clean your refrigerator.
Wipe the surface of the refrigerator with a dry towel.
Warning! Do not directly sprinkle water onto the refrigerator, since it will easily cause rust, electric leakage and faults.
When the inner is stained with cooking oil or seasoning, please wipe it off in time.
Always keep clear of the dust on the back and left and right sides of the refrigerator to improve heat dissipation.
Door seal strips are easily soiled, please be careful to keep them clean.
Warning! It is not allowed to damage the refrigeration tubes during maintenance and cleaning.
Non-use for a longer period
After a power outage, even in the summer, within a few hours, you can save food without any problems.
After the power outage, do not put new food, try not to open the refrigerator door.
If you know the power will outage, you should make more ice cubes, and use a container that does not leak water and place it in the upper part of the interior.
Warning! Due to power outrage or other failures, the temperature in the freezer will rise, which will shorten the shelf life of the food and damage the taste of the food.
If the refrigerator needs to be out of service for a long time, unplug the power cord, turn off the power, and clean the refrigerator as described above. When the refrigerator is not used, the door should be opened to prevent the bad food odors in the refrigerator.
Warning! Under normal circumstances, do not disable the refrigerator, so as not to affect the life of the refrigerator. After disconnecting the power supply, keep at least 7 minutes apart before plugging in again.
SCRAPPING OLD APPLIANCES
This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic
components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.
Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:
WEEE should not be treated as household waste.
WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.
In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.
Conformity
By placing the mark CE on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.
Technical data
Product fiche according to regulation EU No. 1060/2010
| Trade mark | Hoover |
| Modelidentifier | HN5D 84 W |
| Category of the model | Refrigerator-freezer |
| Energy efficiency class | A++ |
| Annual energy consumption (kWh/year)1) | 316 |
| Storage volume cooling (L)3) | 293 |
| Storage volume freezing (L)****2) | 136 |
| Star rating | |
| Temperature of other compartments >14°C | Not applicable |
| Frostfree system | Yes |
| Temperature rise time(h) | 12 |
| Freezing capacity(kg/24h) | 12 |
| Climate classThis appliance is intended to be used at an ambient temperature between 10°C to 43°C. | SN-N-ST-T |
| Airborne acoustical noise emissions(dB(A)re 1pW)Construction type | 39Freestanding |
*=Colour code
1) Based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
2) Take out the tray on top of the freezer to get more storage space.
3) "Remark: the chiller compartment on rating label means always flexible drawer, the nominal temperature (for the EEI) is 0 °C"
VUE D'ENSEMBLE DU PRODUIT
"Always flexible drawer"
"Always flexible drawer"
"Always flexible drawer"
"Always flexible drawer"
- Remover todas as embalagens
Lâmpada LED: 12V CC 2W
- in bed and breakfasts (B & B)
"Always flexible drawer"
De ledlamp is defect.
- farmy, v hotely, motely a jiné typy residencí
- noclehárny (B & B)
"Always flexible drawer"
Uzamknout/odemknout panel
"Always flexible drawer"
"Always flexible drawer"je jedinečne navrhnutý so širokým rozsahom teplôt od -20 do 5. Môže to byť chladnička, 0 stupňov (predvolení nastavenie), -2 stupne, -7 stupňov v režime mierneho mrazenia (potraviny je pri tejto teplote stále možné rezať), -18 stupňov a podobne.
"Green space"
"Always flexible drawer"
- LANGUAGES
- SAFETY INFORMATION
- WARNING!
- Maintenance / cleaning
- SAFETY CHILDREN!
- PRODUCT OVERVIEW
- PREPARATION BEFORE USE
- Installation
- Carriage
- Placement
- Temperature-variable Chamber
- Freezing Chamber
- Power-freeze function
- Energy saving tips
- DISPLAY
- Smart function
- Holiday Function
- The setup of super freezing function
- Q&A
- Care and Cleaning
- Defrosting
- Cleaning
- Non-use for a longer period
- SCRAPPING OLD APPLIANCES
- Conformity
- Technical data
- VUE D'ENSEMBLE DU PRODUIT
- "Always flexible drawer"
Brand : HOOVER
Model : HN5D 72 B
Category : Fridge
