Product Type	Animal Shapes Waffle Maker
Model Number	IAN 275169
Brand	SilverCrest
Power Supply	220-240 V ~ 50 Hz
Power Consumption	800-1000 W
Protection Class	I (earthed plug)
Baking Mould	Animal shapes (non-stick coating)
Indicator Lights	Red (power on), Green (ready to bake)
Housing Material	Plastic with cool-touch handles
Cable Storage	Cable reel with clip on base
Dimensions (approx.)	25 x 20 x 10 cm (W x D x H)
Weight (approx.)	1.2 kg
Cable Length (approx.)	1.0 m
Capacity per Batch	1-2 tablespoons of batter per waffle
Baking Time	Approx. 3.5 minutes per waffle (adjustable)
Safety Features	Cool-touch handles, auto shut-off? (not specified), caution label
Cleaning	Wipe with soft damp cloth; do not immerse in water
Warranty	3 years from date of purchase
Scope of Delivery	1 waffle maker, 1 instruction manual
Intended Use	Indoor domestic use only
Additional Features	Non-stick coating, cool-touch handles, cable storage

Frequently Asked Questions - IAN 275169 SILVERCREST

How do I use the waffle maker for the first time?

Before first use, remove all packaging and clean the baking surfaces with a damp cloth. Then heat the empty appliance for about 15 minutes with the lid closed to evaporate any manufacturing residues. Let it cool, clean again, and discard the first batch of waffles.

How do I clean the waffle maker?

Always unplug the appliance and let it cool completely. Wipe the inside and outside with a soft, damp cloth. Use a mild detergent if necessary, but rinse with clean water to avoid aftertaste. Never immerse in water or use abrasive cleaners.

What should I do if the control lights do not work?

Ensure the appliance is properly plugged into a working earthed socket. If the red light does not illuminate, check the power cord for damage. If the green light never turns on, the heating element may be faulty. Contact a qualified electrician or the manufacturer.

Can I use metal utensils with this waffle maker?

No, only use utensils made of wood or heat-resistant plastic. Metal utensils can damage the non-stick coating.

What types of waffle recipes can I use?

The manual includes recipes for Belgian waffles, chocolate waffles, and whole grain waffles. You can also use any standard waffle batter. The animal shapes require about 1-2 tablespoons of batter per waffle.

How do I store the waffle maker?

After cleaning and cooling, wind the power cord around the cable reel on the base and secure the plug in the cable clip. Store in a dry, clean place away from heat sources.

Is the waffle maker safe for birds?

The non-stick coating may release fumes harmful to birds. Keep birds out of the room when using this appliance.

What is the warranty period?

The waffle maker comes with a 3-year warranty from the date of purchase covering material and manufacturing faults. Keep the original receipt as proof of purchase.

Can I use an extension cord?

Extension cords should be avoided. If necessary, use a cord suitable for the appliance's power rating, do not lay it as a trip hazard, and do not connect other appliances to the same socket.

How do I know when the waffle is ready?

The green control light turns off and on during baking to regulate temperature. After about 3.5 minutes, open the lid carefully (hot steam!) and check if the waffle is golden brown. Adjust time to preference.

USER MANUAL IAN 275169 SILVERCREST

Black and white photo of a circular object with engraved text, possibly a decorative item or artifact (no readable text or symbols)

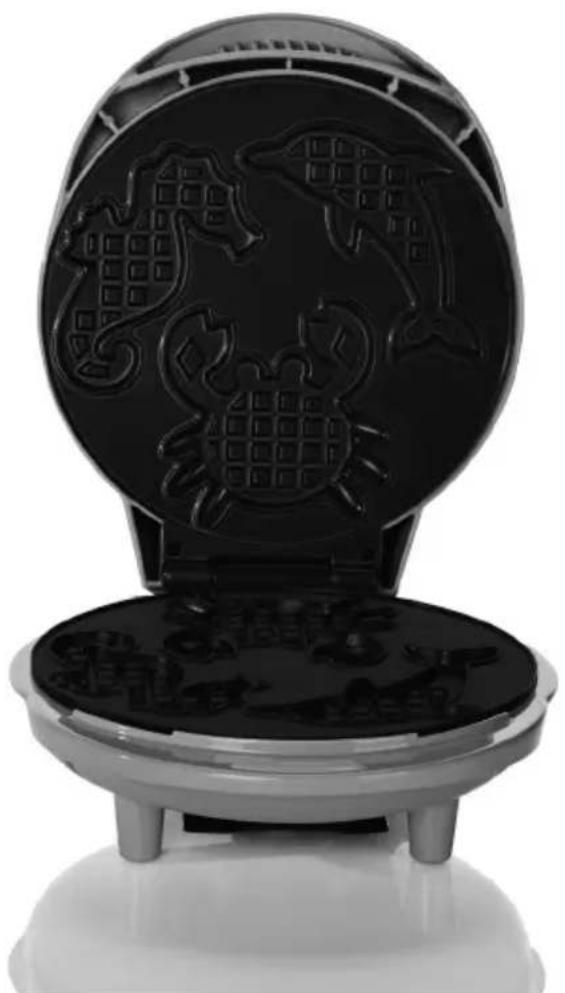

Black and white photo of a decorative waffle with fish and grid patterns, placed on a stand (no text or symbols visible)

ANIMAL SHAPES WAFFLE MAKER

GB IE

ANIMAL SHAPES WAFFLE MAKER

Operation and Safety Notes

SE

VÄFFELJÄRN MED MOTIV

GOFROWNICA Z MOTYWEM

GB / IE Operation and Safety Notes Page 5

Intended use....Page 6

Parts Description......Page 6

Technical Data Page 6

Scope of delivery....Page 6

Warning symbols used....Page 6

Labelling on the appliance....Page 6

Safety Page 7

Before first use

Baking waffles....Page 12

Cleaning and storage Page 13

Recipe suggestions......Page 14

Disposal Page 14

Warranty Page 15

Animal Shapes Waffle Maker

- Introduction

Congratulations on the purchase of your new device. You have selected a high quality product. The instructions for use are a part of this product. They contain important information about safety, using the product and disposal. Before using the product, please familiarise yourself with all the operating and safety instructions. Only use the product as described and for its indicated purpose. When passing this product on to others, please be sure to include all its documentation.

Intendeduse

This waffle iron is intended solely for use indoors, in dry and enclosed rooms. The product is not intended for commercial use.

PartsDescription

1 Red control light (lights up as soon as the appliance has been supplied with electricity)
2 Green control light (lights up as soon as the operating temperature has been reached)
3 Lid
4 Warning symbol "Caution, hot surface"
5 Handles
6 Baking mould (this is where the waffle batter is poured into)
7 Base
8 Cable clip
9 Cable reel (on the base)

●TechnicalData

Rated voltage: 220-240V\~50Hz

Rated output: 800-1000W

Protection class: I

- Scope of delivery

1 Animal Shapes Waffle Maker

1 Set of instructions for use

- Warning symbols used

The instructions use the following warning symbols:

DANGER

A warning of this danger level indicates a life-threatening situation.

■ Failure to avoid the dangerous situation may result in death or serious injuries.

■ Follow the instructions with this warning to avoid the risk of death or serious personal injury.

CAUTION

A warning of this danger level indicates potential property damage.

- Failure to avoid the situation may result in property damage.

■ Follow the instructions with this warning to prevent property damage.

NOTE

☐ A note provides additional information on how to use the device better.

- Labelling on the appliance

Labelling 4	Location Meaning
	Lid 3	Caution, hot surface

● Safety

READ THESE INSTRUCTIONS BEFORE USING THE PRODUCT! PLEASE KEEP ALL SAFETY INSTRUCTIONS AND INSTRUCTIONS FOR USE FOR FUTURE REFERENCE!

Please observe the following instructions to avoid injuries.

DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN! Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers.

This product is not a toy. Keep away from children. Children are not able to understand the dangers that can arise when handling this product.

This device may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities or lacking experience and / or knowledge, as long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the appliance. Cleaning and user maintenance should not be performed by children without supervision. Children younger than 8 years must be kept away from the appliance and from the mains cable.

⚠️ DANGER TO BIRDS! Birds breathe faster, distribute air differently in their bodies, and are visibly smaller than humans. Therefore, it can be very dangerous for birds to inhale even the smallest amounts of smoke which may arise from the operation of this product, which has a non-stick

coating. When you use this product, birds must be brought into another room.

The surfaces of this appliance may be hot when it is in operation. Therefore, you should only catch hold of the appliance during operation using the handles 5.
■ Always remove the mains plug from the socket before dismantling or cleaning the product.
■ Never immerse the appliance in water and protect it from spray and dripping water.
- Allow the appliance to cool down before cleaning to prevent any danger of burns.
FOOD SAFE! This product has no adverse effect on taste or smell.

CAUTION!

To avoid damage to property, please observe the following provisions:
■ Never use abrasive, corrosive or

harsh cleaning agents. The appliance, as well as its non-stick coating, could become damaged in this way.
■ The appliance should not be operated with an external timer or a separate supervisory control system such as a remote-controlled socket.

Avoid the danger of death from electric shock!

• Verify the existing mains voltage corresponds to the required voltage of the device (220–240 V\~) before using it.
  ■ Always check the appliance and the mains supply for damage before connecting it to the mains. A damaged device represents the danger of death from electric shock.
• Do not use the device if you detect any damage.
  ■ Please note that the guarantee

does not cover damage caused by incorrect handling, non-compliance with the operating instructions or interference with the device by unauthorised individuals.

■ Never disassemble the device. Improper repairs may result in considerable danger to the user. Always have repairs performed by a professional.
In the event of damage, repairs or other problems with the device, please consult an electrician.
■ Never leave the appliance unsupervised during operation so that you may intervene in a timely manner if malfunctions occur.
■ Please ensure that the socket is easy to access as the appliance does not have an on / off switch.
If the mains cable of this appliance is damaged, it must be replaced by the manufacturer or a similarly qualified person to avoid hazards.

■ Water and other liquids must never be allowed to leak into the appliance.

Therefore:

• never use it outdoors;
• never immerse it in liquids;
• never place it on objects filled with liquid, i. e. pots;
• never use it in very damp environments.

If even a little liquid gets into the appliance, immediately pull the plug and allow the appliance to be repaired by an electrician.

■ Only connect the appliance mains to a socket with earthed contacts.
■ The use of extension cables should be avoided. It is only permitted in very specific conditions:

- the extension cable must be suitable for the current strength of the appliance;

- the extension cable should not be laid, randomly': it should not be a tripping hazard or be within the reach of children;

• the extension cable should not be damaged;
• no other appliances other than this appliance should be connected to the mains socket, as otherwise the electricity grid could become overloaded (use of multiple sockets is prohibited).

■ Never touch the mains plug with damp or wet hands.
■ Always remove the mains cable from the mains plug. Never pull on the mains cable itself.

⚠️CAUTION! Never hang the device up by the mains cable!

■ Protect the mains cable from sharp edges, mechanical strain and hot surfaces.
■ Fully unwind the mains cable during operation to prevent the cable from overheating or melting.
- Keep the mains cable away from hot surfaces (i. e. stove tops).
■ Disconnect from the mains when the appliance will not be used

for an extended period of time (e.g. holidays).

Preventing injuries

Please observe the following instructions to avoid injuries.

■ Please be aware that while the waffles are cooking, hot steam may escape from the sides of the appliance.
■ Please be aware when removing the cooked waffles that they may be very hot.
- Do not reposition the appliance while it is in use. It will be hot while it is in use. This is how you avoid burning yourself.
■ Always allow the appliance to cool down before transporting or cleaning it.
■ Please ensure that the mains cable is never a tripping hazard, or that someone will become entangled in it or step on it and

injure themselves doing so.

Preventing fire hazards

As the appliance functions using high temperatures, please observe the following safety instructions so that no fire may arise.

■ The appliance must only be positioned on stable, even, dry and inflammable surfaces to prevent it from toppling over, shifting, or the base catching fire and the appliance being damaged as a result.
■ While positioning the appliance, ensure that there is a space of at least 50 cm between it and other objects so that it cannot catch fire.

Preventing damage to property

CAUTION! To avoid damage to property, please

observe the following provisions:

■ The appliance must not be placed on hot stove tops, pushed into a hot oven or positioned near gas and flow heaters, as this could lead to it being damaged.
■ Only use utensils made from wood or heat-resistant plastic. Utensils made from metal could damage the coated surfaces.
It cannot be ruled out that care products for storage shelves (furniture) may contain elements which corrode and soften the rubber feet. Therefore, place the appliance on a surface which is non-flammable.
- Do not place any objects on the appliance.
■ During thunderstorms, the appliance, which is connected to the power supply, may be damaged by lightning.

- Before first use

During production, many parts are covered with a thin oil film for their protection. Operate the appliance before first use without any batter so that any potential residues may be evaporated.

Note: The first few times the appliance is heated up, a faint odour may be present. Ensure sufficient ventilation in the area in this case.

Remove the appliance from its packaging.
☐ Ensure that the appliance is not damaged.
☐ Clean the appliance before first use. In doing so, observe the instructions in the section "Cleaning and Storage".
☐ Choose a place that is stable, even and inflammable. While doing so, ensure that there is a space of at least 50 cm between the appliance and other objects.
□ Fully unwind the mains cable.
☐ Insert the mains plug into a suitable mains socket.

• The red control light 1 will light up and the appliance will heat up.
• As soon as the operating temperature is reached, the green control light 2 will light up.

Leave the appliance switched on for approx. 15 minutes.
Lift the lid. Catch hold of the appliance using the handles 5 when doing so.
☐ Remove the mains plug and allow the appliance to cool down.
Clean the appliance again. In doing so, observe the instructions in the section "Cleaning and Storage".

Note: For reasons relating to the taste, you should not consume the first waffles you bake, but throw them away instead.

●Bakingwaffles

☐ Choose a place that is stable, even and inflammable. While doing so, ensure that there is a space of at least 50 cm between the appliance and other objects.
□ Fully unwind the mains cable.

☐ Lift the id and catch hold of the appliance using the handles 5 while doing so.
☐ Remove any dust present on the appliance with a dry towel if this is required.
□ Close the lid.
☐ Insert the mains plug into a suitable mains socket.

• The red control light 1 will light up and the appliance will heat up.
• As soon as the operating temperature is reached, the green control light 2 will light up.

- The appliance is now ready to use.

☐ Lift the lid and catch hold of the appliance using the handles while doing so.
Fill the baking mould with 1-2 tablespoons of waffle batter and distribute it evenly.

Note: Remove some of the batter with a wooden spatula if necessary and spread it evenly.

□ Close the lid.

Notes:

• The baking process takes approx. 3.5 minutes. Depending on how brown you want your waffles to be, the baking time chosen may be somewhat shorter or longer.
• While the waffles are baking, the green control light will turn off and on again. This is to regulate the required operating temperature.

When opening the lid, hot steam may come towards you. You should protect your hands using a tea towel or oven mitts.

As soon as the waffles are ready according to your preference, remove them from the appliance.
☐ Lift the lid. Catch hold of the appliance using the handles while doing so.

⚠️CAUTION! Only use utensils made from wood or heat-resistant plastic. Utensils made from metal could damage the coated surfaces.

☐ If you like, you can break off the excess pieces at the edges so that the waffles look better.
☐ Decorate the waffles however you want, i. e. with chocolate sauce, cream, vanilla ice-cream, strawberries, raspberries, cherries, icing sugar.
☐ Remove the mains plug from the mains power socket after use. This is the only way of ensuring that the appliance is completely disconnected from the power source.

- Cleaning and storage

To avoid the danger of electric shock or burns:

■ Remove the mains plug from the mains power socket before clean-

ing each time.

■ Never immerse the appliance in water and protect it from spray and dripping water.
- Allow the appliance to cool down before cleaning to prevent any danger of burns.

⚠️ CAUTION! Never use abrasive, corrosive or harsh cleaning agents. The appliance, as well as its non-stick coating, could become damaged in this way.

Note: Do not wait too long before cleaning the appliance so that the bits of batter do not dry onto it and therefore become difficult to remove.

☐ Remove crumbs and bits of batter.
☐ Wipe the inside and the outside of the appliance with a soft, damp cloth. You can use a relatively mild detergent, however it must then be wiped again with clean water so that the waffles do not have a strange aftertaste.

□ Wipe with a dry cloth.

☐ To stow away the appliance, wind up the mains cable on the cable reel 9 (on the underside):

• wind the mains cable around the cable reel;
• secure the end of the mains cable by pushing it into the cable clip 8.

- Recipe suggestions

Belgian Waffles

Ingredients

5 eggs

250 g butter

200 g sugar

400 ml milk

500 g flour

2 packets of vanilla sugar

5 g baking powder

Preparation:

• Separate the eggs.
• Beat the egg whites until they are stiff and store them in a cool place.
• Beat the butter and sugar together until they are creamy.
• Add the egg yolks and milk a little at a time.
• Mix the flour and baking powder and add the mixture little by little.
• Stir in the vanilla sugar.
• Fold in the stiff egg whites and mix the batter for about 30 minutes.
• Cook the waffles (see the section "Baking waffles") (this can be replaced by a waffle mix).

Chocolate waffles

Ingredients

4 eggs

200 g soft butter

200 g sugar

80 g melted chocolate

200 g flour

150g cream

Preparation:

• Separate the eggs.
• Beat the egg whites until they are stiff and store them in a cool place.
• Beat the butter and sugar together until they are creamy.
• Add the egg yolks and the cream a little bit at a time.

• Mix the flour and the melted chocolate and add the mixture little by little.

• Fold in the stiff egg whites and mix the batter for about 30 minutes.

• Cook the waffles (see the section "Baking waffles") (this can be replaced by a waffle mix).

Whole Grain Waffles

Ingredients

4 eggs

150 g soft butter

200 g sugar

200 g spelt whole grain flour

200 g flour

500 ml mineral water

Preparation:

• Separate the eggs.
• Beat the egg whites until they are stiff and store them in a cool place.
• Beat the butter and sugar together until they are creamy.
• Add the egg yolks.
• Mix the flour, spelt whole grain flour and mineral water and add the mixture little by little.
• Fold in the stiff egg whites and mix the batter for about 30 minutes.
• Cook the waffles (see the section "Baking waffles") (this can be replaced by a waffle mix).

- Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Contact your municipality for information on how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly, not without household waste, when it has reached the end of its useful life. Please contact your local authority for information on collection points and their opening hours.

- Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE

Johdanto

⚠️ VAARALLINENLINNUILLE!
