Brand	Husqvarna
Model	LC53 E
Product type	Gas lawn mower with electric start
Cutting width	53 cm
Cutting height	25-70 mm (5 positions)
Engine	Briggs & Stratton, 161 cm³, 2.7 kW
Rotation speed	2900 rpm
Fuel tank capacity	1.6 L
Engine oil capacity	0.6 L (SAE 30 oil)
Weight (empty)	46 kg
Cutting system	3 in 1 (bagging, side discharge, mulching)
Drive	Rear-wheel drive, speed 5.4 km/h
Starting	Electric (battery) and recoil starter
Blade brake	Yes (blade stops in less than 3 seconds)
Sound level (LWA)	98 dB(A)
Vibration level (handle)	7.2 m/s²
Grass catcher	Included
Mulching function	Yes (mulching plug included)
Side discharge	No (model LC53E)
Cleaning connection	Yes, for cleaning the deck
Warranty	Consult the manual

Frequently Asked Questions - LC53 E HUSQVARNA

How to start the LC53 E lawn mower?

Make sure the spark plug wire is connected to the plug. Fold the engine brake bail against the handle, insert the ignition key, then press the electric start button. In an emergency, you can use the manual starter by pulling slowly and then sharply on the handle.

What engine oil to use?

Use a high-quality four-stroke oil, preferably Husqvarna or SAE 30 oil. Never use two-stroke engine oil. The oil capacity is 0.6 liter.

How to adjust the cutting height?

Stop the engine before changing the height. Use the cutting height adjustment lever located on the deck. Five positions are available, from 25 to 70 mm. Adjust according to the grass length.

How to clean the cutting deck?

Connect a garden hose to the fitting on the deck. Start the engine, let the blade spin for a while: the water cleans the inside of the deck. Then stop the engine and disconnect the spark plug wire.

How often to change the oil?

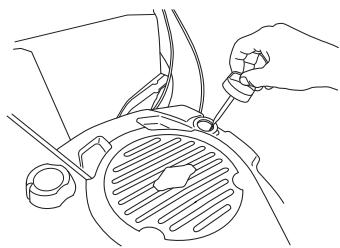

Change the engine oil every year or every 25 hours of operation. To drain, empty the fuel tank, disconnect the spark plug, unscrew the cap and use an oil pump. Fill with new SAE 30 oil.

What to do if the blade is dull?

Never use a dull, cracked or damaged blade. Have the blade sharpened or replaced by an authorized service workshop. Wear protective gloves when handling.

How to use the mulching mode?

Remove the grass catcher and insert the mulching plug into the catcher channel. Close the rear flap. The grass will be finely chopped and deposited on the lawn.

What safety precautions to take with fuel?

Never refuel while the engine is running. Use unleaded gasoline (minimum 77 octane). Open the fuel cap slowly to release pressure. Move the machine at least 3 meters away before starting. Store fuel in approved containers.

How to charge the starting battery?

Remove the grass catcher, open the locking device and remove the battery cover. Loosen the connections, connect the charger and let it charge for a maximum of 24 hours. Then reconnect the battery.

What to do in case of excessive vibrations?

Immediately stop the machine and disconnect the spark plug wire. Check that the blade is not damaged or unbalanced, that the engine shaft is not bent and that all bolts are tight. If the problem persists, consult an authorized workshop.

USER MANUAL LC53 E HUSQVARNA

Simple line icon of a forklift inside a circle (no text or symbols)

Warning symbol and icon set showing warning triangle, open book, and person with vehicle symbol

Warning symbols including a falling object, a car, and a circular arrow with 'C' and 'G' indicating safety or hazard.

Two safety warning symbols: a triangular warning triangle with a person inside and a house with a crossed-out 'X' sign.

Four black-and-white warning symbols: triangular warning triangle, crossed tool, hand holding flame, and speaker with 'LwA' and 'dB' labels.

Line drawing of two hands holding a medical instrument (no text or symbols)

Line drawing of a door with hand, circular object, and mechanical components (no text or symbols)

Mechanical component diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols)

Illustration of a lawn mower with three men standing and crossed out by a crossed-out black X (no text or symbols)

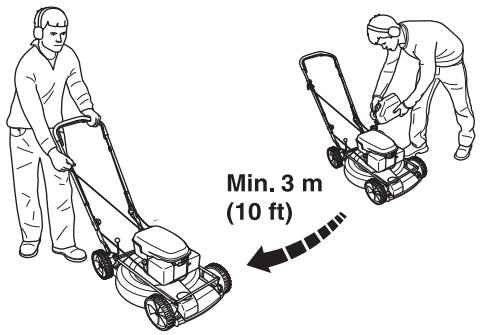

Min. 3 m (10 ft)

- Starta aldrig maskinen:

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Mechanical assembly diagram showing a motor or gear mechanism with arrows indicating motion direction (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Illustration of a hand gripping a mechanical component with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a hand operating a lever (no text or symbols present)

Technical line drawings of a mechanical device showing exploded and assembled views (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a vehicle showing front and side views (no text or symbols)

Line drawing of two different lawn lawn mowerers, one with hand and arrow indicating tool, the other with handle and seat (no text or symbols)

Sidutkast

Diagram of a car's engine compartment showing piston, crankshaft, and wheel (no text or labels)

Technical line drawings of two car wheel assembly components, showing front and side views (no text or symbols)

Line drawing of a car's seat and dashboard with a black arrow indicating the seatbelt (no text or symbols present)

Drivmedel

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols present)

Min. 3 m (10 ft)

Start och stopp

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a person using a manual sweep tool to lift a surface (no text or symbols)

Line drawing of a mechanical clamp or bracket assembly with a downward arrow indicating force or direction (no text or symbols)

LC48B e och LC53B e

Technical line drawing of a mechanical device with no visible text or symbols

Drivning

Line drawing of a hand gripping a metal bracket (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Stopp

LB48 e, LC48 e, LC53 e, LC53E e

Line drawing of two hands holding a curved object, no text or symbols present

Line drawing of hands using pliers to adjust or install a mechanical component (no text or symbols)

LC48B e och LC53B e

Line drawing of two hands holding a medical instrument (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

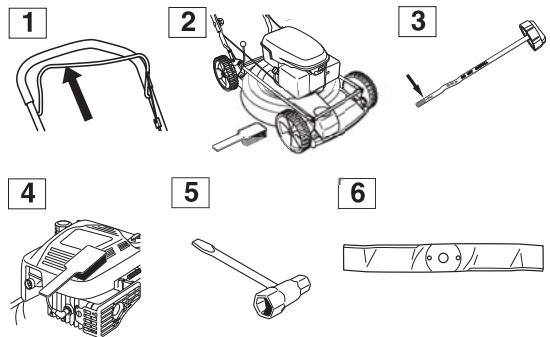

Underhåll

Line drawing of a mechanical component with hands and a black arrow indicating a detail (no text or symbols)

Technical line drawing of a mechanical component with a downward arrow indicating a feature (no text or symbols present)

Hand holding a smartphone with a tool, showing the screen and buttons (no text or symbols visible)

Prohibition sign with a crossed-out cigarette and explosion symbol, indicating no smoking or anti-smoking.

Kniv

Line drawing of a hand using a tool to adjust or install a vehicle engine component (no text or symbols present)

Line drawing of a car engine with a syringe and a hand holding the valve, no text or symbols present

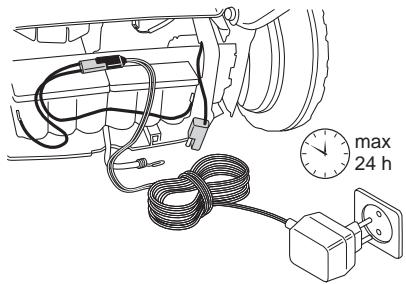

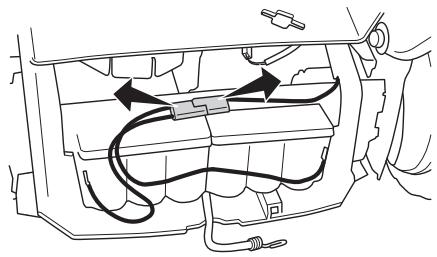

Ladda batteri LC 53 Ee

Line drawing of a mechanical component with a directional arrow indicating movement (no text or symbols)

- Lossa batterikabelanslutningarna.

Diagram of a car engine compartment showing airflow paths and component placement (no text or labels)

Technical line drawing of a mechanical component with a directional arrow indicating movement (no text or symbols)

Line drawing of a mechanical assembly with hands operating a tool (no text or symbols)

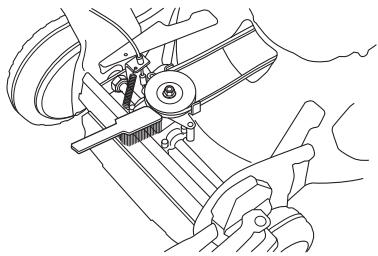

Rengöring klippkåpa

Technical line drawing showing two mechanical assembly steps: one with a tool inserted into a component, the other with a coiled tube and valve (no text or symbols present)

Line drawing of a car's wheel handle and valve mechanism (no text or symbols)

Mechanical assembly diagram showing a wheel, suspension rod, and frame (no text or symbols)

3

Two safety warning symbols: a triangular warning triangle with a falling figure and a house with a crossed-out 'X' sign.

Line drawing of two hands holding a medical instrument (no text or symbols)

Diagram of a hand holding a circular object with a handle, next to a mechanical component (no text or symbols)

Mechanical component diagram showing a rotating shaft and housing with a black arrow indicating direction (no text or symbols)

Illustration of a person using a lawn mower with three others standing, crossed by a 'X' symbol (no text or labels present)

Min. 3 m (10 ft)

- Start aldrig maskinen:

Line drawing of a car interior showing a valve inserted into a door (no text or symbols)

Technical line drawing of a vehicle suspension system with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Illustration of a hand gripping a mechanical component with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a hand operating a lever (no text or symbols present)

Montering af opsamler (ikke LB48e)

Technical line drawings of a mechanical device showing exploded and assembled views (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a vehicle showing front and side views (no text or symbols)

Line drawing of two different lawn lawn mowerers, one with hand and arrow indicating tool, the other with handle and seat (no text or symbols)

Sideudkast

Line drawing of a car's front wheel assembly with an arrow indicating the component (no text or symbols present)

Technical line drawings of two car wheel assembly components, showing front and side views (no text or symbols)

- Luk skjoldet og sørg for, at det låses fast med spredningsproppen.

Line drawing of a car's seat and dashboard with a black arrow indicating the seatbelt (no text or symbols present)

BRÆNDSTOFHÅNDTERING

Drivmiddel

Line drawing of a hand using a tool to adjust or install a car engine component (no text or symbols present)

Min. 3 m (10 ft)

Start og stop

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a person using a manual cart to lift a person's arm (no text or symbols)

Line drawing of a mechanical clamp or bracket assembly with a downward arrow indicating force or direction (no text or symbols)

LC48B e og LC53B e

Technical line drawing of a mechanical device with no visible text or symbols

Drev

Line drawing of a mechanical clamp or bracket with no text or symbols

Drevet reguleres trinløst.

Technical line drawing of a mechanical assembly with no visible text or symbols

Stop

LB48 e, LC48 e, LC53 e, LC53E e

- Motoren standses ved at slippe motorbremsebøjlen.

Line drawing of two hands holding a medical instrument (no text or symbols)

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols present)

LC48B e og LC53B e

Line drawing of two hands holding a wrist, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Vedligeholdelse

Line drawing of a car engine component with hands and a black arrow indicating a specific part (no text or symbols present)

Technical line drawing of a mechanical component with a black arrow indicating a feature (no text or symbols present)

Rengør filtret ved at slå det imod et plant underlag. Brug aldrig opløsningsmidler med petroleum eller trykluft til at rense filtret.

Illustration of a hand holding a smartphone with a tool, showing the screen and buttons (no text or symbols)

Prohibition sign with a crossed-out phone icon and warning symbol

Kniv

Line drawing of a hand using a tool to adjust or install a component on a vehicle (no text or symbols present)

Line drawing of a car engine with a syringe and a hand holding the valve, no text or symbols present

Line drawing of a mechanical component with a directional arrow indicating movement (no text or symbols)

- Løsn batterikablerne.

Diagram of a car engine compartment with internal components and airflow arrows (no text or labels)

Technical line drawing of a mechanical component with a black arrow indicating a specific feature (no text or symbols present)

Line drawing of a hand operating a mechanical device with a tool (no text or symbols)

Technical line drawing showing two mechanical assembly steps with no visible text or symbols

Line drawing of a car hood with a valve and valve assembly (no text or symbols)

Mechanical assembly diagram showing a tire and car frame with a directional arrow (no text or symbols)

Mechanical assembly diagram showing a wheel, suspension rod, and frame (no text or symbols)

3

Two safety warning symbols: a triangular warning triangle with a person inside and a house with a crossed-out sign.

Line drawing of two hands holding a medical instrument (no text or symbols)

Diagram of a hand holding a circular object with a handle, next to a mechanical component (no text or symbols)

Mechanical component diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols)

Min. 3 m (10 ft)

• Start aldri maskinen:

1 Hvis du har sølt brennstoff eller motorolje på maskinen. Tørk opp alt søl og la bensinrestene fordampe.
2 Hvis du har sølt brennstoff eller motorolje på deg selv eller klærne dine. Skift klær.
3 Hvis maskijen lekker brennstoff. Kontroller regelmessig med tanke på lekkasje fra tanklokk og brennstoffledninger.

Line drawing of a car interior showing a valve inserted into a door (no text or symbols)

Mechanical assembly diagram showing a motor or gear mechanism with arrows indicating motion direction (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Illustration of a hand gripping a mechanical component with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with a hand operating a lever (no text or symbols present)

Technical line drawings of a mechanical device showing exploded and assembled views (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a vehicle showing front and side views (no text or symbols)

Line drawing of two different lawn mower stumps, showing hand positioning and side view (no text or symbols)

Sideutkast

Line drawing of a car's front wheel assembly with an arrow indicating the component (no text or symbols present)

Line drawing of a car interior showing hand positioning and seatbelt mechanism (no text or symbols)

Line drawing of a car's front wheel assembly with hand operating controls (no text or symbols)

Line drawing of a car's seat and dashboard with a black arrow indicating the seatbelt (no text or symbols present)

BRENNSTOFFHÅNDTERING

Brennstoff

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols present)

Min. 3 m (10 ft)

Start og stopp

Still stoppbryteren i startstilling.

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a person using a manual sweep tool to lift a surface (no text or symbols)

Line drawing of a mechanical clamp or bracket with a downward arrow indicating force or direction (no text or symbols)

LC48B e og LC53B e

Technical line drawing of a mechanical device with no visible text or symbols

Drift

Line drawing of a hand gripping a metal bracket (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with a curved handle and lever (no text or symbols)

Stopp

LB48 e, LC48 e, LC53 e, LC53E e

Line drawing of two hands holding a curved object, no text or symbols present

- Fjern nøkkelen på maskiner med elektrisk start.

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols present)

LC48B e og LC53B e

Line drawing of two hands holding a medical instrument (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Vedlikehold

Line drawing of a mechanical component with a hand adjusting parts, no text or symbols present

Technical line drawing of a mechanical component with a downward arrow indicating a feature (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Hand holding a handheld device with a tool, showing a circular dial and arrow indicating rotation (no text or symbols)

Bruk aldri en maskin som har defekt lyddemper.

Prohibition sign with a smartphone icon and warning symbol, commonly used to indicate no usage or prohibition.

Kniv

Line drawing of a hand using a tool to adjust or install a component on a vehicle (no text or symbols present)

Line drawing of a car engine with a syringe and a hand holding a tool, no text or symbols present

Lade batteri LC 53 Ee

Batteriet kan lades på følgende måte:

Line drawing of a mechanical component with a directional arrow indicating movement (no text or symbols)

• Løsne batterikablene.

Diagram of a car engine compartment with hoses and wiring, no text or symbols present

- Koble til batteriladeren og la batteriet lades i maks. 24 timer.

max 24 h

Technical line drawing of a mechanical component with a black arrow indicating a specific part (no text or symbols present)

Line drawing of a mechanical assembly with hands and gears (no text or symbols)

Technical line drawing showing two mechanical assembly steps: one with a tool inserted into a component, the other with a valve and tubing (no text or symbols present)

Line drawing of a car's wheel handle and valve mechanism (no text or symbols)

Mechanical assembly diagram showing a tire and car frame with a directional arrow (no text or symbols)

Mechanical assembly diagram showing a wheel and suspension components (no text or labels)

Two safety warning symbols: a triangular warning triangle with a person inside and a house with a crossed-out sign.

Line drawing of two hands holding a medical instrument (no text or symbols)

Diagram of a device with hand, sensor, and directional arrow (no text or symbols)

Mechanical component diagram showing a rotating shaft and housing with an arrow indicating direction (no text or symbols)

Illustration of a person using a lawn mower with three others standing, crossed by a 'X' symbol (no text or labels present)

Min. 3 m (10 ft)

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Illustration of a hand gripping a tool with a curved arrow indicating rotation (no text or symbols)

Pure mechanical diagram showing a lever mechanism without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with exploded and assembled views (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a vehicle showing front and side views (no text or symbols)

Line drawing of two different lawn lawn mowerers with hands adjusting the blade (no text or symbols present)

Sivuviskuri

Diagram of a car engine compartment with an upward arrow indicating motion (no text or symbols present)

Technical line drawing showing two views of a vehicle's front and side assembly (no text or symbols)

Line drawing of a car's seat and dashboard with a black arrow indicating the seatbelt (no text or symbols present)

POLTTOAINEEN KÄSITTELY

Polttoaine

Line drawing of a hand using a tool to adjust or install a car engine component (no text or symbols present)

Min. 3 m (10 ft)

KÄYNNISTYS JA PYSÄYTYS

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a person using a manual pushaxe to lift a bucket (no text or symbols)

Line drawing of a mechanical clamp or bracket with a downward arrow indicating force or movement (no text or symbols)

LC48B e ja LC53B e

Technical line drawing of a mechanical device with no visible text or symbols

Veto

Line drawing of a mechanical clamp or bracket with no text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Pysäytys

LB48 e, LC48 e, LC53 e, LC53E e

Line drawing of two hands holding a medical instrument (no text or symbols)

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols present)

LC48B e ja LC53B e

Line drawing of two hands holding a medical or anatomical device (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Kunnossapito

Line drawing of a mechanical component with a hand adjusting parts, no text or symbols present

Technical line drawing of a mechanical component with a downward arrow indicating a feature (no text or symbols present)

Hand holding a smartphone with a tool, showing a circular device and a scroll (no text or symbols visible)

Prohibition sign with crossed-out cigarette pack and smoke, symbolizing no smoking or anti-smoking

Terä

Line drawing of a hand using a tool to adjust or install a component on a vehicle (no text or symbols present)

Line drawing of a car engine with a hand holding a syringe connected to a checkmark (no text or symbols present)

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Diagram of a vehicle engine compartment with hoses and wiring (no text or labels)

Technical line drawing of a mechanical component with a directional arrow (no text or symbols)

Line drawing of a mechanical assembly with hands operating a tool (no text or symbols present)

Technical line drawing showing two mechanical assembly steps: one with a tool inserted into a component, the other with a valve and tubing (no text or symbols present)

Line drawing of a car hood with valve and hose assembly (no text or symbols)

WARNING! The machine can be a dangerous tool if used incorrectly or carelessly, which can cause serious or fatal injury to the operator or others.

Please read the operator's manual carefully and make sure you understand the instructions before using the machine.

Never use the machine if persons, especially children or pets, are in the immediate vicinity.

Watch out for thrown objects and ricochets.

Warning: rotating cutter. Keep hands and feet clear.

This product is in accordance with applicable EC directives.

Warning: rotating parts. Keep hands and feet clear.

Never use the machine indoors or in spaces lacking proper ventilation. Exhaust fumes contain carbon monoxide, an odourless, poisonous and highly dangerous gas.

Risk of explosion

Always shut off the engine before refuelling.

Hot surface

Noise emission to the environment according to the European Community's Directive. The machine's emission is specified in chapter Technical data and on label.

Warning symbol and icon set showing warning triangle, open book, and person with bidirectional arrow

Warning symbols including a falling object, a car, and a circular arrow with 'C' and 'G' indicating safety or hazard.

Two safety warning symbols: a triangular warning triangle with a person inside and a house with a crossed-out 'X' sign.

Three black-and-white warning symbols: triangular warning triangle, crossed-out electrical plug, and hand with flame.

Other symbols/decals on the machine refer to special certification requirements for certain markets.

Always wear protective gloves.

Regular cleaning is required.

Visual check.

The ignition lead should always be removed from the spark plug before repair, cleaning or maintenance work.

Switch off the engine by releasing the engine brake handle before carrying out any checks or maintenance.

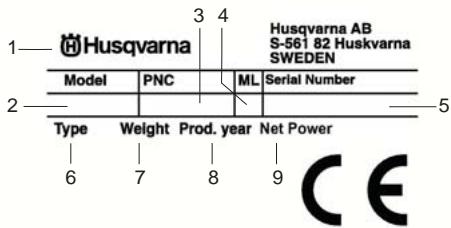

Rating plate

1—Husqvarna 2—Model PNC ML Serial Number 3 4 Husqvarna AB S-561 82 Huskvarna SWEDEN Type Weight Prod. year Net Power 6 7 8 9 CE

1 Manufacturer
2 Model
3 Product number
4 Maintenance lever
5 Serial number
6 Type
7 Weight
8 Production year
9 Power

Steps before using a new lawn mower

• Please read the operator's manual carefully.
• Check that the cutting equipment is correctly fitted and adjusted. See instructions under the heading Assembly.
• Fill with fuel and oil in the engine. See the instructions under the heading fuel handling.

WARNING! Under no circumstances may the design of the machine be modified without the permission of the manufacturer. Always use genuine accessories. Non-authorized modifications and/or accessories can result in serious personal injury or the death of the operator or others.

WARNING! A lawn mower is a dangerous tool if used carelessly or incorrectly and can cause serious, even fatal injuries. It is extremely important that you read and understand the contents of this operator's manual.

WARNING! Long-term inhalation of the engine's exhaust fumes can represent a health hazard.

Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice.

CONTENTS

Contents

KEY TO SYMBOLS

Key to symbols 72

Steps before using a new lawn mower 73

CONTENTS

Contents 74

WHAT IS WHAT?

What is what on the lawn mower? 75

SAFETY INSTRUCTIONS

Personal protection 76

Machine's safety equipment 76

General safety precautions 77

General working instructions 78

ASSEMBLY

Fitting the handlebar 79

FUEL HANDLING

Fuel 80

STARTING AND STOPPING

Starting and stopping 81

MAINTENANCE

Maintenance 83

TECHNICAL DATA

Technical data 86

EC-declaration of conformity 88

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 Husqvarna

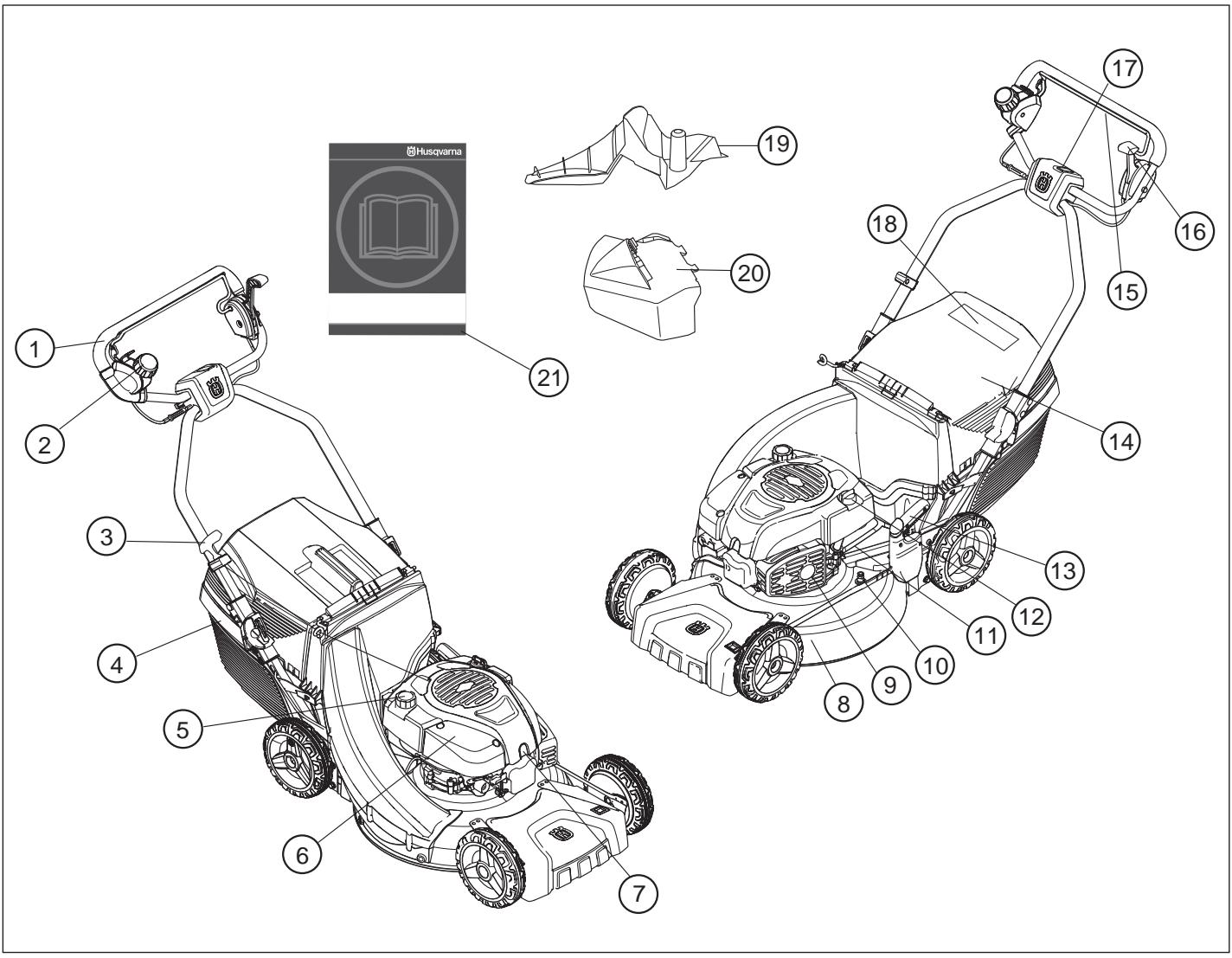

What is what on the lawn mower?

1 Handle / handlebar
2 Drive
3 Starter handle
4 Grass catcher (not LB48e)
5 Fuel tank
6 Air filter
7 Spark plug
8 Cutting cover
9 Muffler
10 Water connector
11 Protective cover

12 Oil tank
13 Cutting height control
14 Rear deflector (not LB48e)
15 Engine brake handle
16 Blade brake LC48B e and LC53B e
17 Electric starter LC 53 Ee
18 Symbols
19 Mulching plug (not LB48e)
20 Side ejection LB 48 e
21 Operator's manual

Personal protection

WARNING! You must use personal protection whenever you use the machine.

• Gloves must be worn when required, for example when fitting, inspecting or cleaning cutting attachments.
• Always wear heavy, long pants. Do not wear shorts, sandals or go barefoot.
• Wear sturdy, non-slip boots or shoes.

Generally clothes should be close-fitting without restricting your freedom of movement.

Machine's safety equipment

This section describes the machine's safety equipment, its purpose, and how checks and maintenance should be carried out to ensure that it operates correctly. See the "What is what?" section to locate where this equipment is positioned on your machine.

WARNING! Never use a machine that has faulty safety equipment! Carry out the inspection, maintenance and service routines listed in this section.

Cutting cover and protective cover

The protective cover is designed to reduce the risk of crush injuries and to catch a broken drive belt. Check that the protective cover is undamaged and that it is properly secured.

The cutting cover is designed to reduce vibration and to reduce the risk of cuts. Make sure the cutting cover is not damaged and that there are no visible defects such as cracks.

Engine brake handle

The engine brake is designed to stop the engine. When the grip on the engine brake handle is released the engine should stop.

Line drawing of two hands holding a medical instrument (no text or symbols)

- Check that the engine brake works correctly and is undamaged.

Place the lawn mower on firm, flat surface and start it. Make sure that the cutter cannot come into contact with the ground or other objects.

Apply full throttle and then release the brake handle. The engine brake should always be adjusted so that the engine stops within 3 seconds. If this does not happen, the machine should be handed in to an authorized servicing dealer for adjustment.

Muffler

The muffler is designed to keep noise levels to a minimum and to direct exhaust fumes away from the user.

Line drawing of a door with hand gesture and circular component (no text or symbols)

WARNING! The exhaust fumes from the engine are hot and may contain sparks which can start a fire. Never start the machine indoors or near combustible material!

In areas with a hot, dry climate there is a high risk of fires. These areas are sometimes controlled by legislation and requirements that among other things the muffler must be equipped with an approved type of spark arrestor mesh.

For mufflers it is very important that you follow the instructions on checking, maintaining and servicing your machine.

WARNING! The muffler gets very hot in use and remains so for a short time afterwards. Do not touch the muffler if it is hot!

• Never use a machine that has a faulty muffler.
• Check that the muffler is securely attached and not damaged.

Cutting equipment

Make sure the cutter does not hit foreign objects such as stones, roots or the like. This can make the cutter dull and bend the engine shaft. Always ensure the cutter is well ground and balanced correctly. See also instructions under the heading Maintenance.

Check the cutting attachment. Never use blunt, cracked or damaged equipment. Damage blades and worn bolts are major hazards.

Also check that the cutter bolt is undamaged and that the engine shaft is not bent.

Mechanical component diagram showing a rotating shaft and housing with a black arrow indicating direction (no text or symbols)

WARNING! Never use a machine with faulty safety equipment. The machine's safety equipment must be checked and maintained as described in this section. If your machine fails any of these checks contact your service agent to get it repaired.

General safety precautions

• A lawn mower is only designed to mow lawns. The only accessories you can use with this engine unit are the cutters we recommend in the Technical data chapter.
• Never use the machine if you are tired, if you have drunk alcohol, or if you are taking medication that could affect your vision, your judgement or your co-ordination.
• Keep in mind that the operator is responsible for accidents or hazards occurring to other people or their property.

WARNING! Running an engine in a confined or badly ventilated area can result in death due to asphyxiation or carbon monoxide poisoning.

• You must use personal protection whenever you use the machine. See the instructions under the heading Personal protection.
• Never use a machine that has been modified in any way from its original specification.
• Never use any accessories other than those recommended in this manual. See instructions under the headings Cutting equipment and Technical data.

WARNING! A faulty cutting attachment may increase the risk of accidents.

- Never use a machine that is faulty. Carry out the checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists. See instructions under the heading Maintenance.

- Before use:

1 Check that the engine brake works correctly and is undamaged. See the instructions under the heading Checking the braking effect.
2 Check that all handles and controls are undamaged and free of oil.
3 Check that the muffler is securely attached and not damaged.
4 Check that all parts of the lawn mower are tightened correctly and that they are not damaged or missing.
5 Check that the cutter is undamaged and not cracked. Replace the cutter if necessary.

Starting

WARNING! Long-term inhalation of the engine's exhaust fumes can represent a health hazard.

• Never start a lawn mower unless the cutters and all covers are fitted correctly.
• Never start the machine indoors. Exhaust fumes can be dangerous if inhaled.

• Ensure that the working area is sufficiently illuminated to create a safe working environment.

• Observe your surroundings and make sure that there is no risk of people or animals coming into contact with the cutting equipment. The operator is responsible for any unsafe situations or risks that people and property are exposed to.

• Place the lawn mower on firm, flat surface and start it. Make sure that the cutter cannot come into contact with the ground or other objects.
• Never twist the starter cord around your hand.

See the instructions under the heading Start and stop.

Fuel safety

WARNING! Fuel and fuel vapour are highly inflammable. Take care when handling fuel and engine oil. Bear in mind the risk of fire, explosion and inhaling fumes.

• Never refuel the machine while the engine is running.
• Always ensure there is adequate ventilation when refuelling and filling oil.
• Move the machine at least 3 m from the refuelling point before starting it.

Min. 3 m (10 ft)

• Never start the machine:

1 If you have spilt fuel or engine oil on the machine. Wipe off the spill and allow the remaining fuel to evaporate.
2 If you spill fuel or engine oil on yourself or your clothes. Change your clothes.
3 If the machine is leaking fuel. Check regularly for leaks from the fuel cap and fuel lines.

Transport and storage

• The fuel and engine oil tanks should be emptied before longer periods of storage or when transporting the lawn mower. Ask where you can dispose of surplus fuel and engine oil at your local petrol station.
• Always store the lawn mower and fuel so that any leakage or vapours do not risk coming into contact with sparks or naked flames. For example, electrical machines, electric motors, relays/switches, boilers, or the like.
• Always store fuel in an approved container designed for that purpose.

SAFETY INSTRUCTIONS

General working instructions

WARNING! This section describes basic safety precautions for working with the lawn mower. This information is never a substitute for professional skills and experience. If you get into a situation where you feel unsure about how to progress, stop and seek expert advice. Contact your dealer, service agent or an experienced lawn mower user. Avoid all usage which you consider to be beyond your capability

Basic safety rules

• Look around you:
• To ensure that people, animals or other things cannot affect your control of the machine.
• To make sure that none of the above might come into contact with the cutting equipment.
• Branches, twigs, stones, etc. should be removed from the lawn before you start to mow. Make sure the cutter does not hit foreign objects such as stones, roots or the like. This can make the cutter dull and bend the engine shaft.
• Never lift up the lawn mower or carry it around when the engine is running. If you must lift the lawn mower, first switch off the engine and disconnect the ignition lead from the spark plug.

Line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

• Do not use the machine in bad weather, such as dense fog, heavy rain, strong wind, intense cold, etc. Working in bad weather is tiring and often brings added risks, such as icy ground.
• Make sure you can move and stand safely. Check the area around you for possible obstacles (roots, rocks, branches, ditches, etc.) in case you have to move suddenly. Take great care when working on sloping ground.
• The engine should be switched off when moving over ground that is not to be mowed. For example, gravel paths, stone, shingle, asphalt, etc.

The brake handle must never be permanently anchored in handle when the machine is running.

Follow the instructions above, but do not use a lawn mower in a situation where you cannot call for help in case of an accident.

Basic mowing technique

WARNING! Make sure that your hands and feet do not come near the cutting attachment when the engine is running.

General

• Mowing slopes can be dangerous. Do not use the lawn mower on very steep slopes.
• The lawn mower should not be used on inclines greater than 30 degrees.
• On sloping ground you should work along the slope. It is much easier to work along a slope than it is to work up and down it.
• Branches, twigs, stones, etc. should be removed from the lawn before you start to mow.
• Never lift up the lawn mower or carry it around when the engine is running. If you must lift the lawn mower, first switch off the engine and disconnect the ignition lead from the spark plug.
• Make sure the cutter does not hit foreign objects such as stones, roots or the like. This can make the cutter dull and bend the engine shaft. A bent axle gives imbalance and heavy vibration, which results in a great risk of the cutter becoming loose.
• If any foreign object is hit or if vibrations occur stop the machine immediately. Disconnect the HT lead from the spark plug. Check that the machine is not damaged. Repair any damage.
• Never mow more than 1/3 of the length of the grass. This especially applies during dry periods. Mow first with the cutting height set high. Then check the result and lower to an appropriate height. If the grass is really long, drive slowly and mow twice if necessary.

- Never run with the machine when it is running. You should always walk with the lawn mower.

Pay particular attention when pulling the machine towards you during work.

Cutting height

Shut down the engine before changing the cutting height.

The cutting height can be adjusted in five different steps, mm.

Mechanical assembly diagram showing a wheel, brake caliper, and suspension components (no text or labels)

Do not set the cutting height too low as there is a risk that the cutters might hit ground with unevenness.

Fitting the handlebar

Take care not to damage the cables and wires when you fold up the handlebar.

- Hold the lock button on the locking device in and fold up the handle.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

- Adjust the height of the top part of the handlebar.

Illustration of a hand gripping a mechanical component with a curved arrow indicating rotation (no text or symbols)

- Screw on the handle with the knob.

Technical line drawing of a mechanical assembly with no visible text or symbols

- To collapse the handle, hold the lock button in and fold down the handle.

Technical line drawing of a mechanical assembly with a black arrow indicating direction (no text or symbols present)

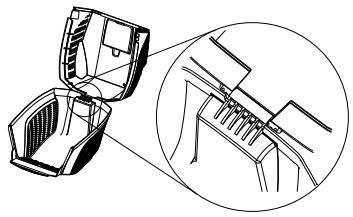

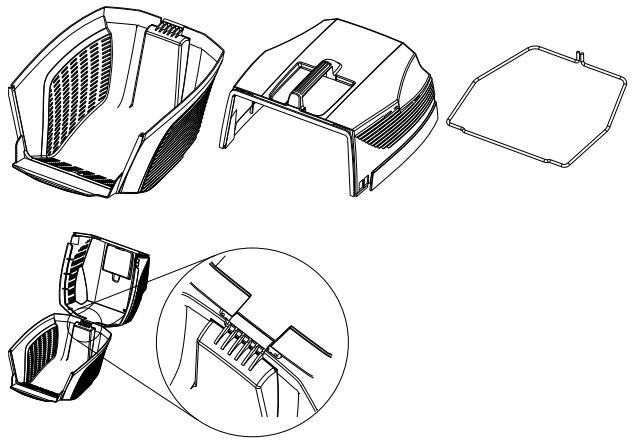

Assembly of the catcher (not LB48e)

Technical line drawings of a mechanical device showing exploded and assembled views (no text or symbols)

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a vehicle showing front and side views (no text or symbols)

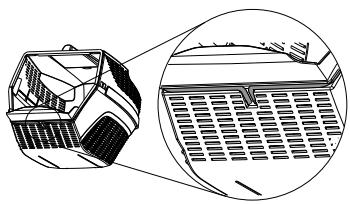

- Lift the hind shield and suspend the grass container.

Line drawing of two different lawn lawn mowerers with hands operating the blade (no text or symbols)

Side ejection

• LB48e can be used with side ejection by fitting the side ejector on the cutting cover.
• Lift up the side cover and place the side ejector on the shaft.

Mulching function

LB48e is a lawn mower with mulching function.

Machines equipped with a catcher can be used with mulching function in the following way.

- Lift up the back shield and remove the container.

Diagram of a car's engine compartment showing intake, exhaust, and wheel (no text or labels)

- Insert the mulching plug into the collector channel.

Technical line drawing showing two views of a vehicle chassis with hands operating the seat (no text or symbols present)

- Close the shield and ensure that it is locked with the mulching plug.

Line drawing of a car's seatbelt mechanism with a black arrow indicating the down-left corner (no text or symbols present)

Fuel

WARNING! Always ensure there is adequate ventilation when handling fuel.

Petrol

• Use good quality unleaded petrol. Leaded petrol can be used if unleaded petrol is not available.
  • Fuel should be at least 77 octane.
• If the machine is not used for some time the fuel tank should be emptied and cleaned.

Engine oil

Check the oil level before starting the lawn mower. A too low oil level can cause serious damage to the engine.

• For the best result and function use HUSQVARNA four-stroke oil.
• If HUSQVARNA four-stroke oil is not available, you may use another four-stroke oil of good quality. Contact your dealer when selecting oil. In general SAE 30 is recommended.
• Never use oil intended for two-stroke engines.

Check the oil level before starting the lawn mower. A too low oil level can cause serious damage to the engine.

Oil level

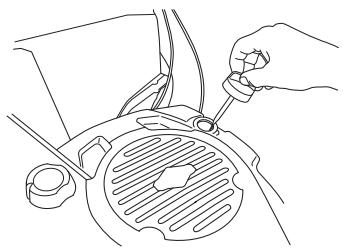

Unscrew the oil filler cap and check the oil level on the dipstick fitted to the cover.

Line drawing of a hand using a tool to adjust or install a vehicle engine component (no text or symbols present)

The oil filler cap must be completely screwed down to give a correct picture of the oil level.

If the oil level is low, fill using engine oil up to the upper level on the dipstick.

DINUM TO NOT CORNAL

Only use recommended engine oil. See the Technical data section.

Fuelling

WARNING! Taking the following precautions, will lessen the risk of fire:

Do not smoke or place hot objects near fuel.

Always shut off the engine before refuelling.

When refuelling, open the fuel cap slowly so that any excess pressure is released gently.

Tighten the fuel cap carefully after refuelling.

Always move the machine away from the refuelling area before starting.

Do not fill too much petrol. Leave about 35 mm under the filler cap so that the fuel can expand.

Clean around the fuel cap. Clean the fuel and oil tank regularly. The fuel filter should be changed at least once a year. Contamination in the tanks causes malfunction.

Always move the machine about 3 metres from the refuelling position before starting.

Min. 3 m (10 ft)

STARTING AND STOPPING

Starting and stopping

WARNING! Note the following before starting:

Do not start a lawn mower unless the cutter and all covers are fitted correctly. Otherwise the cutter could come loose and cause personal injuries.

Always move the machine away from the refuelling area before starting.

Place the machine on a flat surface. Ensure the cutting attachment cannot come into contact with any object.

Keep people and animals well away from the working area.

Starting

Ensure the ignition lead sits correctly on the spark plug.

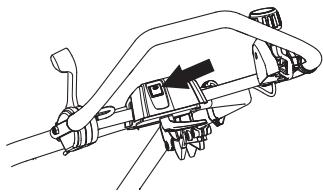

- Pull the engine brake handle against the upper handlebar with your left hand.

LC48B e and LC53B e

Set the stop switch to the start position.

Technical line drawing of a mechanical assembly with no visible text or symbols

- Grip the starter handle, slowly pull out the cord with your right hand until you feel some resistance (the starter pawls grip), now quickly and powerfully pull the cord. Never twist the starter cord around your hand.

Line drawing of a person using a manual cart to lift a person's arm (no text or symbols)

CAUTION! Do not pull the starter cord all the way out and do not let go of the starter handle when the cord is fully extended. This can damage the machine.

LC 53 Ee

LC53Ee are equipped with electronic start which is used in the following way.

• Before using the electronic start for the first time you need to charge the battery. See instructions under the heading Maintenance.
• Fold in the engine brake handle towards the handlebar.
• Insert the ignition key and push the key.

Line drawing of a mechanical clamp or bracket assembly with a downward arrow indicating force or direction (no text or symbols)

LC48B e and LC53B e

LC48Be and LC53Be are equipped with a blade brake.

To make the cutters rotate, do the following:

- Fold down the brake handle towards the handlebar.

- Move the blade knob to its end position.

Technical line drawing of a mechanical device with no visible text or symbols

Drive

The machines are self-propelling with backwheel drive.

To use the drive on the wheel pull the clutch lever towards you.

Line drawing of a mechanical clamp or bracket with no text or symbols

The drive can be gradually controlled.

Line drawing of a mechanical device with no visible text or symbols

STARTING AND STOPPING

The drive can be disconnected by pushing the button on the drive control.

Technical line drawing of a mechanical device with lever and adjustment knob (no text or symbols)

Stopping

LB48 e, LC48 e, LC53 e, LC53E e

- Stop the engine by releasing the engine brake handle.

Line drawing of two hands holding a tool, no text or symbols present

• Machines with electric start remove the key.

Line drawing of hands using pliers to adjust a mechanical component (no text or symbols)

LC48B e and LC53B e

- The cutter stops rotating when you release the brake handle.

Line drawing of two hands holding a curved object, possibly a medical or anatomical device (no text or symbols present)

- The engine is switched off by moving the stop switch to the stop position.

Technical line drawing of a mechanical assembly with no visible text or symbols

Maintenance

WARNING! Make sure the cutting attachment has stopped before cleaning, carrying out repairs or an inspection. Disconnect the HT lead from the spark plug.

The ignition lead should always be removed from the spark plug before repair, cleaning or maintenance work.

Air filter

The air filter must be regularly cleaned to remove dust and dirt in order to avoid:

• Carburettor malfunctions
- Starting problems
- Loss of engine power
• Unnecessary wear to engine parts.
• Excessive fuel consumption.

An air filter that has been in use for a long time cannot be cleaned completely. The filter must therefore be replaced with a new one at regular intervals. A damaged air filter must always be replaced.

Cleaning the air filter

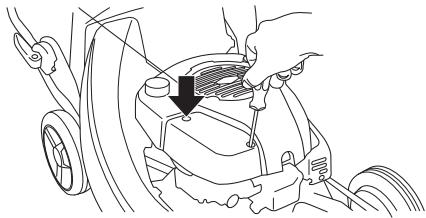

Remove the air filter cover.

Line drawing of a car engine component with a hand adjusting parts (no text or symbols)

Remove the air filter and check that it is undamaged. Replace with a new air filter if you believe it to be defective.

Technical line drawing of a mechanical component with a downward arrow indicating a feature (no text or symbols present)

Clean the filter by knocking the filter against a flat surface. Never use solvent with petroleum, for example, kerosene, or compressed air to clean the filter.

When reassembling, make sure that the filter completely seals against the filter holder.

Spark plug

WARNING! The muffler gets very hot in use and remains so for a short time afterwards. Do not touch the muffler if it is hot!

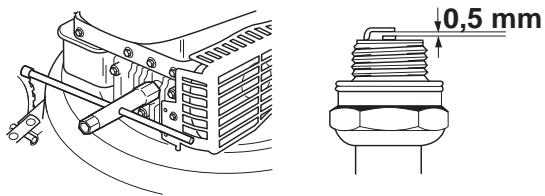

If the machine is low on power, difficult to start or runs poorly at idle speed: always check the spark plug first before taking any further action. If the spark plug is dirty, clean it and check that the electrode gap is 0.5 mm. The spark plug should be replaced after about a month in operation or earlier if necessary.

0,5 mm

CAUTION! Always use the recommended spark plug type! Use of the wrong spark plug can damage the piston/cylinder.

Muffler

The muffler is designed to reduce the noise level and to direct the exhaust gases away from the operator. The exhaust gases are hot and can contain sparks, which may cause fire if directed against dry and combustible material.

Regularly check that the muffler is securely attached to the machine.

Hand holding a smartphone with a tool, showing the screen and buttons (no text or symbols visible)

Never use a machine that has a faulty muffler.

Prohibition sign with a crossed-out phone icon and cartoon animals, commonly used for anti-smoking or food safety.

Cutter

WARNING! Always wear heavy-duty gloves when repairing the cutting attachment. The blades are very sharp and can easily cause cuts.

Damaged blades should be replaced when hitting obstacles that result in a breakdown.

Replacing or sharpening the blades should be conducted by an authorised service workshop.

Changing the oil

The engine oil should be changed each year and every 25 working hours.

When changing the oil proceed as follows::

• Empty the fuel tank by running the machine until the tank is empty.
• Disconnect the HT lead from the spark plug.
• Unscrew the oil filler cap.

Line drawing of a hand using a tool to adjust or install a car engine component (no text or symbols present)

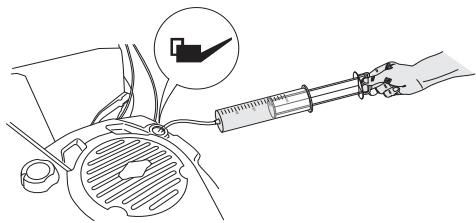

- Use the oil pump (accessory) to empty the oil tank.

Line drawing of a car engine with a syringe and a hand holding the valve, no text or symbols present

Ask where you can dispose of surplus engine oil at your local petrol station.

• Fill with new engine oil of a good quality. See the Technical data section.
• Check the oil level with the dipstick on the oil filler cap.
• The oil filler cap must be completely screwed down to give a correct picture of the oil level. If the oil level is low, fill using engine oil up to the upper level on the dipstick.

DUTR 10.32 GB/MPA

- Screw on the oil filler cap.

Charge the battery LC 53 Ee

The battery can be charged as follows:

• Remove the collector
• Push the locking open and remove the battery cover.

Technical line drawing of a mechanical component with an arrow indicating a specific feature (no text or symbols present)

- Loosen the battery cable connections.

Diagram of a vehicle engine compartment with hoses and wiring (no text or labels)

- Connect the battery charger and charge the battery for max. 24 hours.

max 24 h

Drive and gearbox

• Ensure the wheels and wheel axles are clean and free from leaves, grass, etc. It is also important to keep clean around the drive gearbox.
• On machines equipped with a catcher, the catching system needs to be removed first.
  Lift up the back shield and remove the container.

Remove the cover.

Technical line drawing of a mechanical component with a directional arrow (no text or symbols)

- Clean the gearbox with a brush. Also check that the drive belt and belt pulley are undamaged, for example, no cracks.

Line drawing of a mechanical assembly with hands operating a tool (no text or symbols)

Cleaning cutting cover

- Connect a water hose to the cutting cover connection.

Technical line drawing showing two mechanical assembly steps: one with a valve and cable, the other with tubing and a valve (no text or symbols present)

- Start the engine and let the blade rotate for a while. The water is thrown out and cleaning the cutting cover.

Adjusting the clutch wire

The clutch wire is adjusted by turning the adjustment screw.

Line drawing of a hand holding a car hood with arrows indicating motion or force (no text or symbols)

Below you will find some general maintenance instructions.

Daily maintenance

1 Check that the engine brake handle works safely.
2 Brush leaves, grass and the like off of the lawn mower.
3 Check the oil level.
4 Clean the air intake on the starter. Check the starter and starter cord.
5 Check that nuts and screws are tight.
6 Check the cutting attachment. Never use blades that are dull, cracked or damaged.

Weekly maintenance

1

2

3

1 Clean the air filter. Replace if necessary.
2 Clean the spark plug. Check that the electrode gap is 0.51 mm.
3 Clean the cooling fins on the cylinder.

Monthly maintenance

1

2

3

1 Check that drive belt is not damaged and is not visibly defective.
2 Clean the gearbox.
3 Check the fuel filter and the fuel hose. Replace if necessary.

Technical data

	LC 48 e	LC 48 Be	LB 48 e
Engine
Engine manufacturer	Briggs & Stratton	Briggs & Stratton	Briggs & Stratton
Cylinder displacement, cm^3	161	161	161
Speed, rpm	2900	2900	2900
Nominal engine output, kW (see note 1)	2,7	2,7	2,7
Ignition system
Spark plug	Champion QC12YC	Champion QC12YC	Champion QC12YC
Electrode gap, mm	0,5	0,5	0,5
Fuel and lubrication system
Fuel tank capacity, litre	1,6	1,6	1,6
Oil tank capacity, litre	0,6	0,6	0,6
Engine oil	SAE 30	SAE 30	SAE 30
Weight
Lawn mower with empty tanks, kg	42	44	38
Noise emissions(see note 2)
Sound power level, measured dB(A)	95	93	90
Sound power level, guaranteed L_WA dB(A)	96	95	92
Sound power level(see note 3)
Sound pressure level at the operators ear, dB(A)	82	80	76
Vibration levels(see note 4)
Handle	5,5	5,5	5,5
Cutting
Cutting system	3 in 1	3 in 1	2 in 1
Cutting height, mm	25-70	25-70	25-70
Cutting width, cm	48	48	48
Cutter	Fixed	Fixed	Fixed
Drive
Speed, km/h	5,4	5,4	5,4
Starting
Electric starter	-	-	-

Note 1: The power rating of the engine indicated is the average net output (at specified rpm) of a typical production engine for the engine model measured to SAE standard J1349/ISO1585. Mass production engines may differ from this value. Actual power output for the engine installed on the final machine will depend on the operating speed, environmental conditions and other values.
Note 2: Noise emissions in the environment measured as sound power ( L_WA ) in conformity with EC directive 2000/14/EC.
Note 3: Reported data for noise pressure level has a typical statistical dispersion (standard deviation) of 1.2 dB(A).
Note 4: Reported data for vibration level has a typical statistical dispersion (standard deviation) of 0,2 m/s^2 .

TECHNICAL DATA

	LC 53 e	LC 53 Be	LC 53 Ee
Engine
Engine manufacturer	Briggs & Stratton	Briggs & Stratton	Briggs & Stratton
Cylinder displacement, cm^3	161	161	161
Speed, rpm	2900	2900	2900
Nominal engine output, kW (see note 1)	2,7	2,7	2,7
Ignition system
Spark plug	Champion QC12YC	Champion QC12YC	Champion QC12YC
Electrode gap, mm	0,5	0,5	0,5
Fuel and lubrication system
Fuel tank capacity, litre	1,6	1,6	1,6
Oil tank capacity, litre	0,6	0,6	0,6
Engine oil	SAE 30	SAE 30	SAE 30
Weight
Lawn mower with empty tanks, kg	40	45	46
Noise emissions(see note 2)
Sound power level, measured dB(A)	98	97	98
Sound power level, guaranteed L_WA dB(A)	98	98	98
Sound power level(see note 3)
Sound pressure level at the operators ear, dB(A)	83	82	83
Vibration levels(see note 4)
Handle, m/s^2	7,2	4,9	7,2
Cutting
Cutting system	3 in 1	3 in 1	3 in 1
Cutting height, mm	25-70	25-70	25-70
Cutting width, cm	53	53	53
Cutter	Fixed	Fixed	Fixed
Drive
Speed, km/h	5,4	5,4	5,4
Starting
Electric starter	-	-	Yes

Note 1: The power rating of the engine indicated is the average net output (at specified rpm) of a typical production engine for the engine model measured to SAE standard J1349/ISO1585. Mass production engines may differ from this value. Actual power output for the engine installed on the final machine will depend on the operating speed, environmental conditions and other values.
Note 2: Noise emissions in the environment measured as sound power ( L_WA ) in conformity with EC directive 2000/14/EC.
Note 3: Reported data for noise pressure level has a typical statistical dispersion (standard deviation) of 1.2 dB(A).
Note 4: Reported data for vibration level has a typical statistical dispersion (standard deviation) of 0,2 m/s^2 .

EC-declaration of conformity

(Applies to Europe only)

Husqvarna AB, SE-561 82 Huskvarna, Sverige, tel: [phone], declares under sole responsibility that the lawn mowers Husqvarna LB 48 e, LC 48 e, LC 48 Be, LC 53 e, LC 53 Be and LC 53 Ee from the serial numbers 10xxxxxxx and onwards comply with the requirements of the COUNCIL'S DIRECTIVE:

• of May 17, 2006 "relating to machinery" 2006/42/EC
• of December 15, 2004 "relating to electromagnetic compatibility" 2004/108/EC.
• of May 8, 2000 "relating to the noise emissions in the environment" 2000/14/EC.

For information relating to noise emissions, see the chapter Technical data.

0404, SMP Svensk Maskinprovning AB, Fyrisborgsgatan 3, SE-754 50 Uppsala, has issued reports regarding the assessment of conformity according to annex VI of the COUNCIL'S DIRECTIVE of May 8, 2000 "relating to the noise emissions in the environment" 2000/14/EC.

The certificates have the numbers:

01/901/083 - Husqvarna LC 53 e, LC 53 Ee

01/901/085 - Husqvarna LC53B e

01/901/087 - Husqvarna LB48 e

01/901/086 - Husqvarna LC48B e

01/901/088 - Husqvarna LC48 e

Huskvarna December 29, 2009

Bengt Ahlund, Development manager (Authorized representative for Husqvarna AB and responsible for technical documentation.)

EXPLICATION DES SYMBOLES

Attention: projections et ricochets.

Two safety warning symbols: a triangular warning triangle with a person inside and a house with a crossed-out 'X' sign.

Line drawing of two hands holding a medical instrument (no text or symbols)

Diagram of a door handle with hand gesture and circular component (no text or symbols)

Mechanical component diagram showing a rotating shaft and housing with a black arrow indicating direction (no text or symbols)

Illustration of a person using a lawn mower with three others standing, crossed by a 'X' symbol (no text or labels present)

Min. 3 m (10 ft)

Line drawing of a car interior showing a valve inserted into a door (no text or symbols)

Mechanical assembly diagram showing a hand operating a car wheel with arrows indicating motion direction (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Illustration of a hand gripping a tool with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a three-part plastic housing assembly (no text or symbols)

Technical line drawing of a mechanical component with an inset close-up view (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting bracket (no text or symbols)

Technical line drawing of a vehicle dashboard and front panel (no text or symbols)

Technical line drawing of a car engine with two views showing engine components and parts (no text or symbols)

Éjection latérale

Diagram of a car engine compartment showing intake manifold and wheel assembly (no text or labels)

Technical line drawing showing two views of a vehicle's seat assembly (no text or symbols)

Line drawing of a car's seatbelt mechanism with a black arrow indicating the down-left direction (no text or symbols present)

Carburant

Line drawing of a hand using a tool to adjust or install a car engine component (no text or symbols present)

D4000 10.00 D4000

Min. 3 m (10 ft)

Démarrage et arrêt

Technical line drawing of a mechanical component with a black arrow indicating direction (no text or symbols)

Line drawing of a person using a manual lawn tool to lift a person's arm (no text or symbols)

Line drawing of a mechanical clamp or bracket with a downward arrow indicating force or movement (no text or symbols)

LC48B e et LC53B e

Technical line drawing of a mechanical device with no visible text or symbols

Entraînement

Line drawing of a person holding a large mechanical component (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

DÉMARRAGE ET ARRÊT

Technical line drawing of a mechanical assembly with no visible text or symbols

Arrêt

LB48 e, LC48 e, LC53 e, LC53E e

Line drawing of two hands holding a medical instrument (no text or symbols)

Line drawing of hands using pliers to adjust a mechanical component (no text or symbols)

LC48B e et LC53B e

Line drawing of two hands holding a tool, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Entretien

Line drawing of a mechanical component with a hand adjusting parts, no text or symbols present

Technical line drawing of a mechanical component with an arrow indicating a specific part (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Hand holding a smartphone with a tool interacting with the screen (no text or symbols visible)

Prohibition sign with a crossed-out device and cartoon animals, indicating no smoking or anti-smoking.

Couteau

Line drawing of a hand using a tool to adjust or install a component on a vehicle (no text or symbols present)

Line drawing of a car engine with a syringe and a hand holding a tool, no text or symbols present

Technical line drawing of a mechanical component with a directional arrow indicating movement (no text or symbols)

Diagram of a car engine compartment showing airflow paths and component placement (no text or labels)

Diagram of a mechanical component with a directional arrow indicating movement or force (no text or symbols present)

Line drawing of a mechanical assembly with hands operating a tool (no text or symbols)

Technical line drawing showing two mechanical assembly steps: one with a tool inserted into a component, the other with a valve and tubing (no text or symbols present)

Diagram of a car handle with a valve and connector, showing motion arrows (no text or symbols)

Diagram showing six labeled parts of a robotic device with numbered annotations and directional arrows indicating movement or assembly.
