Product Type	Contact Grill / Griddle
Brand	VOX
Model	GB1000
Rated Voltage	220-240 V, 50-60 Hz
Rated Power	2000 W
Cooking Plate	Non-stick coated, removable for dishwasher cleaning
Drip Tray	Removable, hand wash only
Temperature Control	Adjustable thermostat, indicator light for preheat
Power Indicator	Red light on when heating, off when temperature reached
Handles	Left and right handles for safe handling
Safety Features	Overheat protection, automatic shut-off (inferred)
Housing Material	Plastic with heat-resistant base
Dimensions	Approximately 40 x 30 x 15 cm (estimated)
Weight	Approximately 2.5 kg (estimated)
Cord Length	Approximately 1 m (estimated)
Dishwasher Safe Parts	Cooking plate only
Non-Stick Coating	Yes, avoid metal utensils
Usage	Indoor household use only
Preheat Time	Approximately 10 minutes
Grill Time	Approximately 20 minutes per batch
Warranty	Standard manufacturer warranty (check local terms)

Frequently Asked Questions - GB1000 VOX

What is the voltage and power of the VOX GB1000 grill?

The VOX GB1000 operates at 220-240 V and 50-60 Hz with a power rating of 2000 W.

How do I clean the cooking plate?

The cooking plate is dishwasher safe. Alternatively, wipe with a soft cloth and warm soapy water. Avoid abrasive cleaners to protect the non-stick coating.

Can I use metal utensils on the grill?

No, metal utensils will damage the non-stick coating. Use heat-resistant wood or plastic utensils only.

How long does it take to preheat?

Preheating takes approximately 10 minutes. The red indicator light turns off when the set temperature is reached.

What should I do if the grill produces odor during first use?

A slight odor is normal during initial use due to manufacturing residues. It will disappear after one or two uses. Ensure good ventilation.

Is the drip tray dishwasher safe?

No, the drip tray is not dishwasher safe. Wash it by hand in warm soapy water to prevent deformation.

Can I use the grill outdoors?

No, the VOX GB1000 is designed for indoor household use only.

What safety features does the grill have?

The grill includes overheat protection and an automatic shut-off feature to prevent accidents. Always unplug when not in use.

How do I store the grill after use?

Unplug and let it cool completely. Clean the cooking plate and drip tray, then store in a clean, dry place.

What should I do if the grill does not heat up?

Check that the power cord is securely plugged in and the socket is switched on. If it still doesn't heat, contact an authorized service center for repair.

USER MANUAL GB1000 VOX

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GB - 1000 IM

OPERATING INSTRUCTIONS GRIDDLE MANUALE DELL'UTENTE PIASTRA GRILL BEDIENUNGSANLEITUNG GRILL ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ ГРИЛЬ UPUTSTVO ZA UPOTREBU ROŠTILJ MANUAL DE USUARIO PLANCHA PLANA ELÉCTRICA MANUAL DO USUÁRIO GRELHADOR DE CHARA ЕГХЕІРІДІО ХРНЗТН НЛЕКТРИКН ЗХАРА NAVODILA ZA UPORABO ELEKTRIČNI ŽAR UPUTE ZA UPORABU GRILL UPUTSTVO ZA UPOTREBU ROŠTILJ УПАТСТВА ЗА УПОТРЕБА СКАРА MANUALI I PERDORUESIT SKARA

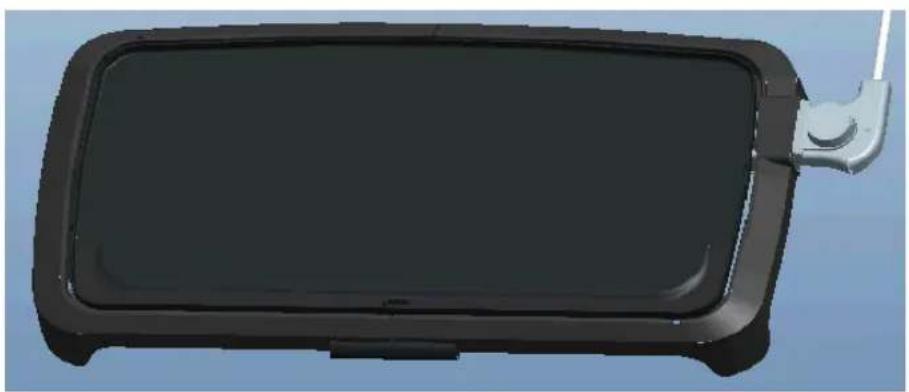

3D model of a black rectangular device with a metallic clip attached, against a light blue background (no text or symbols)

GRIDDLE INSTRUCTION MANUAL GB - 1000 IM

Rated voltage: 220-240V 50Hz-60 Hz

Rated power: 2000W

Please read this instruction manual carefully before use and save it for future reference.

IMPORTANT SAFETY INSTRUCTIONS

Please read and follow the following safety precautions as to prevent fire, electric shock and other injuries:

1. Before use, check if the voltage of your wall outlet corresponds to the rating plate which is on the bottom of the appliance.
2. Do not let children play with the appliance.
3. Do not immerse the appliance, cord or plug into water or other liquids and wet areas.
4. While operating, place the appliance on the heat resistant surface near the mains socket.
5. Do not use the appliance with a damaged cord or plug or after the appliance malfunction or has been damaged in any manner. To check, repair or adjust the appliance, contact the nearest authorized service center.
6. The appliance shall be used only after cooking plates are properly assembled.
7. Do not touch the cooking plates with your hands. Make sure you use gloves or washcloth since the cooking plates are hot during operating.
8. Use of accessories which are not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
9. Power cable needs to be well located to avoid cable hanging or people trumping.
10. Do not let the cord hang over the edge of a table or any hot surface.
11. Do not place the appliance on or near a hot gas or electric burner, or in a heated oven.
12. Extreme caution must be paid when moving an appliance containing hot oil or other hot liquids. Since there can be oil splashing during cooking, the use of oven mitt or pot holder is suggested.
13. Preparing food can cause fire. Do not place the appliance close to curtains or other inflammable material, fire stoves, baking oven or other high-temperature surface.

14. To avoid damage to the appliance or danger of fire make sure you do not use plastic film, polybag or metal foil for removing foods from the cooking plate after operating is finished. Do not let the food cool on the cooking plate; remove prepared food as soon as possible.

15. Unplug the appliance from the outlet when not in use and before cleaning.

16. Never use sharp utensils for removing food from the cooking plate as these can damage the non-stick coating of the cooking surface. Use heat-resistant wood or plastic utensils only.
17. Special attention must be paid while being near the appliance during heating food, water or any other liquid.
18. Do not use the appliance for other than its intended use.
19. The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understood the hazards involved. Children must not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
20. Keep the appliance and its cord out of reach of children younger than 8 years.
21. Do not move the appliance during operation as to avoid scalding.
22. This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- hotels, motels and other residential type environments;

- bed and breakfast type environments.

1. Do not use outdoors.
2. Save these instructions.

BEFORE FIRST USE

PLASTICIZER WARNING

The surface of the appliance can become very hot during operation, which is likely to cause blemishes, discolor or stains on the tabletop. It is recommended to place non-plastic pads between the appliance and the table top.

1. Unpack the appliance and place it in a flat horizontal countertop and wipe the outer surface and non-stick plate with a wet soft cloth. Plug the appliance into the mains supply and preheat. It is recommended to coat a layer of vegetable oil before preheating. This helps to protect the non-stick surface. Some odor may be felt during initial preheating; this is normal and it will disappear after one or two uses.
2. Before use check if the cooking plate is clean and free from dust and food particles. Wipe with a damp cloth if necessary.

HOW TO USE YOUR GRIDDLE

1. Connect the appliance with rated voltage and adjust the temperature according to your requirement, the power indicator turns on in red and the appliance starts to preheat. When reach the preset temperature, the red indicator turns off.
2. Usually it takes approximately 10 minutes to reach the preset temperature. Now you can put the food onto the cooking plate.
3. Make sure the drip tray is assembled in the proper position and then put the prepared food on the cooking plate. It is recommended to use oven mitts and pot holder to reduce the risk of being hurt by touching the hot surface.
4. The grilling time should be approximately 20 minutes. Exact grill time vary according to your personnel taste and the fillings.
5. Once the cooking process has finished, remove the grilled food with a plastic or wooden spatula. Never use metal utensils as this will damage the non-stick coating.
6. Unplug the power cable after the food is prepared (note: if the socket is switch type, turn it off) Note: The cooking plate shall be cooled for some time as it may be very hot.
7. Remove the drip tray for cleaning after it is cooled completely. It is not recommended to reuse

the oil inside drip tray.

CLEANING AND MAINTENANCE

1. Unplug the appliance from the power supply and wait until it is completely cooled before cleaning or storage.
2. Clean the cooking plate and drip tray. The cooking plate can be washed in the dishwasher, but it is not recommended to place the removable drip tray in a dishwasher as the plastic material is likely to deform and deteriorate through prolonged use of dishwasher cleaning. Immerse the drip tray into warm soapy water to clean, then rinse and dry.
3. Wipe the lid of the cooking plate with absorbent paper, towel or soft cloth. Never use abrasive cleaner to wipe non-stick cooking plate.

WARNING: Never immerse the appliance into water for cleaning as electric shock may occur.

1. Store the appliance in a safe and clean place.

ENVIRONMENT FRIENDLY DISPOSAL

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment to an appropriate waste disposal centre.

VOX ELECTRONICS

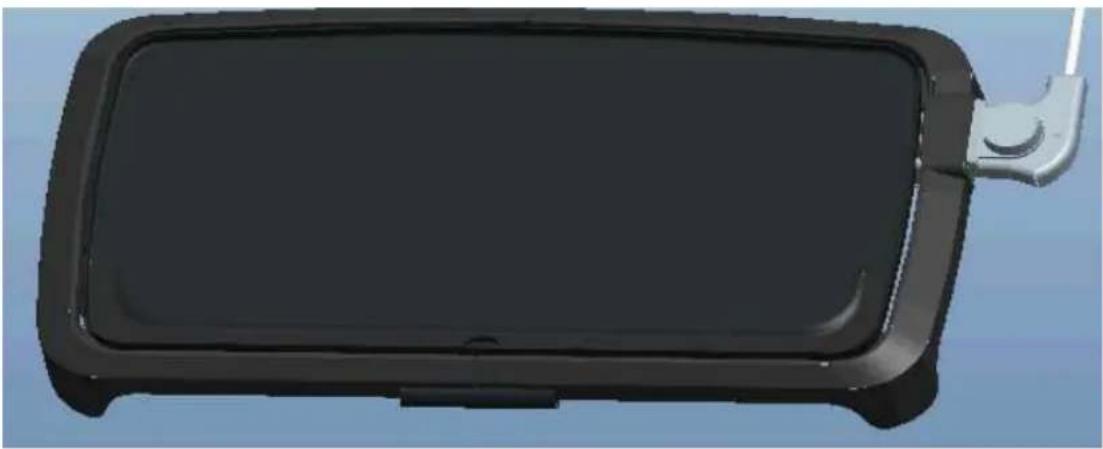

3D model of a black rectangular device with a handle and top bracket, shown against a plain blue background (no text or symbols)

PIASTRA GRILL

MANUALE DELL'UTENTE GB - 1000 IM

Pure electrical circuit lines without any symbols

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

DEU

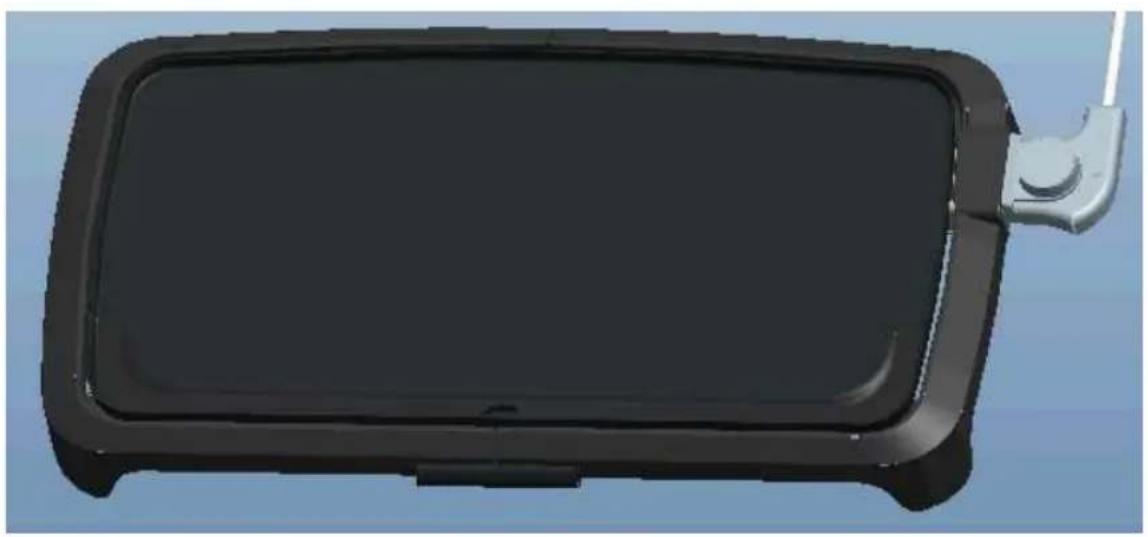

3D model of a black rectangular electronic device with a metallic clip attached (no text or symbols visible)

GRILL

BEDIENUNGSANLEITUNG

GB - 1000 IM

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

RUS

3D rendering of a black rectangular electronic device with a metallic handle and a small white clip attached (no text or symbols visible)

ТРИАЬ

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SRB

3D model of a black rectangular device with a metallic clip attached, against a plain blue background (no text or symbols)

ROŠTILIJ

KORISNIČKO UPUTSTVO

GB - 1000 IM

Napon: 220-240V 50Hz-60 Hz

Snaga: 2000W

VAŽNA BEZBEDNOSNA UPUTSTVA

Symbol of a trash bin crossed with no visible text or labels

3D model of a black rectangular device with a metallic clip attached, against a light blue background (no text or symbols)

PLANCHA PLANA ELÉCTRICA

Pure electrical circuit lines without any symbols

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

PRT

3D model of a black rectangular device with a metallic clip attached, against a plain blue background (no text or symbols)

GRELHADOR DE CHARA

MANUAL DE INSTRUÇÕES

GB - 1000 IM

Simple line drawing of a trash bin with no text or symbols

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GRC

3D model of a black rectangular device with a metallic clip attached, against a plain blue background (no text or symbols)

ΗΛΕΚΤΡΙΚΗ ΣΧΑΡΑ

ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ

GB - 1000 IM

Táση: 220-240V 50Hz-60 Hz

Ισχύς: 2000W

Pure electrical circuit lines without any symbols

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SVN

3D model of a black rectangular device with a white handle, shown against a plain blue background (no text or symbols)

ELEKTRIČNI ŽAR

NAVODILA ZA UPORABO

GB - 1000 IM

Nazivna napetost: 220-240 V 50 Hz-60 Hz

Nazivna moč: 2000 W

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

HRV

3D model of a black rectangular electronic device with a metallic clip attached (no text or symbols visible)

ROŠTILIJ

KORISNIČKE UPUTE

GB - 1000 IM

Napon: 220-240V 50Hz-60 Hz

Snaga: 2000W

Symbol of a trash bin crossed with a diagonal line and a blue square, above a black rectangular block (no text or labels)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

BIH

MNE

3D model of a black rectangular device with a metallic clip attached, against a plain blue background (no text or symbols)

ROŠTILIJ

KORISNIČKO UPUTSTVO

GB - 1000 IM

Napon: 220-240V 50Hz-60 Hz

Snaga: 2000W

Symbol of a trash bin crossed with a diagonal line and a blue square, above a black rectangular block (no text or labels)

3D model of a rectangular device with a handle and top bracket, shown against a plain blue background (no text or symbols)

СКАРА

КОРИСНИЧКО УПАТСТВО

GB - 1000 IM

Symbol of a trash bin with no text or labels, crossed by diagonal lines and a blue square (no readable text or symbols)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ALB

3D rendering of a black rectangular electronic device with a metallic clip attached (no text or symbols visible)

SKARA

UDHËZIM PËR PËRDORIM

GB - 1000 IM

Tensioni: 220-240V 50Hz-60 Hz

Fuqia: 2000W

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)
