USER MANUAL HVA TE TC SMR 510 2010 HUSQVARNA

To the best knowledge of HUSQVARNA MOTORCYCLES S.R.L. the material contained herein is accurate as of the date this publication was approved for printing. HUSQVARNA MOTORCYCLES S.R.L. reserves the right to change specifications, equipment, or designs at any time without notice and without incurring obligation. Illustrations in this manual are merely for demonstration purposes and could not exactly match the detail described. No part of this manual can be reproduced without permission in writing of the copyright holder.

1 ^st Edition (04-09)

Line drawing of a four-wheeled off-road vehicle with visible tracks and wheels (no text or symbols)

Line drawing of a four-wheeled off-road vehicle with visible tracks and wheels (no text or symbols)

Line drawing of a semi-truck motorcycle with visible dynamics and suspension components (no text or symbols)

Unless specified, data and prescription are referred to all t he models.

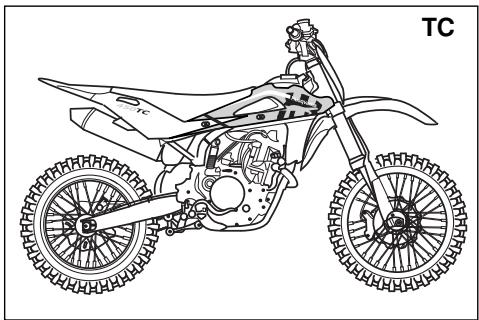

Line drawing of a multi-rotor off-road vehicle with visible tracks and wheels (no text or symbols)

MOTOCROSS

Black-and-white photo of a person riding a bicycle with motion blur (no text or symbols visible)

Line drawing of a multi-rotor off-road vehicle with visible suspension tires and mechanical components (no text or symbols)

ENDURO

Black-and-white photo of a dirter mid-jump on a motorcycle in a mountainous outdoor setting (no visible text or symbols)

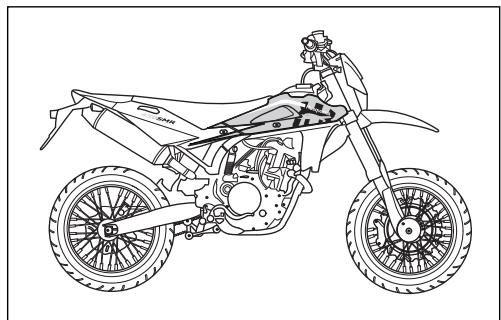

Technical line drawing of a four-wheeled motorcycle showing internal components and suspension (no text or labels)

SUPERMOTARD

Black-and-white photo of a motorcyclist in motion on a paved track (no visible text or symbols)

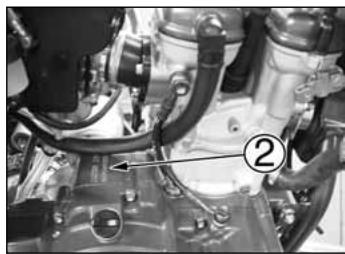

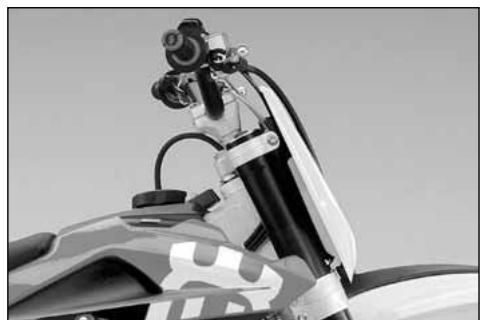

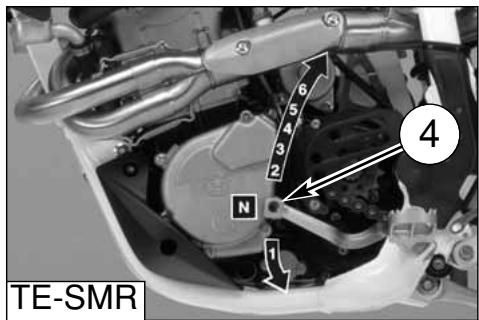

IMPORTANTE

Close-up of a mechanical component with a numbered label (1) pointing to a feature, no readable text or symbols present.

Close-up of an engine component with hoses and a numbered annotation (②), no readable text or symbols present.

Close-up mechanical component with numbered annotation (1) and arrow, no readable text or symbols beyond the number

Close-up of an automotive engine bay with visible hoses and components (no text or symbols)

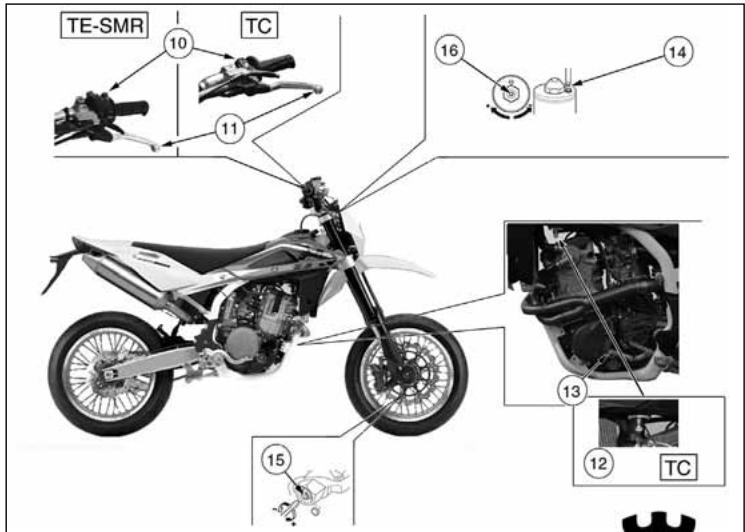

Labeled diagram of a motor with numbered parts and mechanical components, including TC and TE-SMR labels

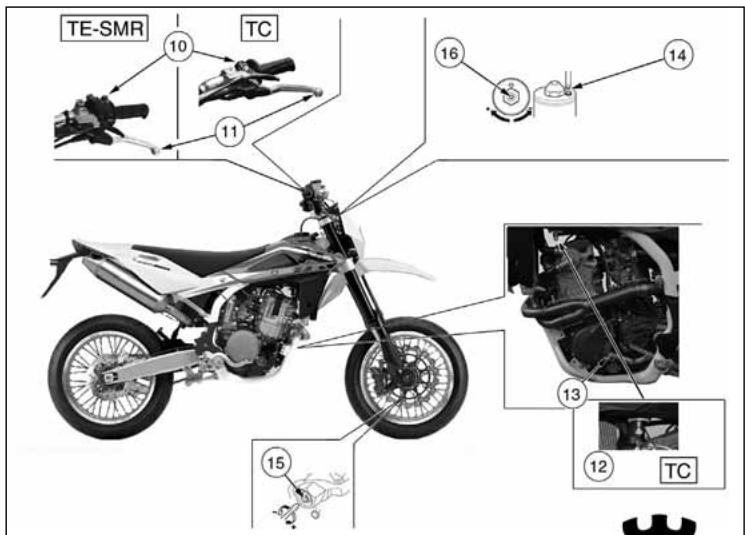

TE-SMR 10 TC 11 16 14 13 12 TC 15

DATI TECNICI

MOTORE

Tipo.....monocilindrico a 4 tempi

Anteriore (SMR)......SANREMO in lega leggera: 3,50x17"

Close-up mechanical component with numbered annotation indicating part 1

A 2 3

Mechanical assembly diagram showing a spring-loaded component with labeled section A (no text or symbols beyond label)

Close-up of a mechanical component with labeled parts (no readable text or symbols)

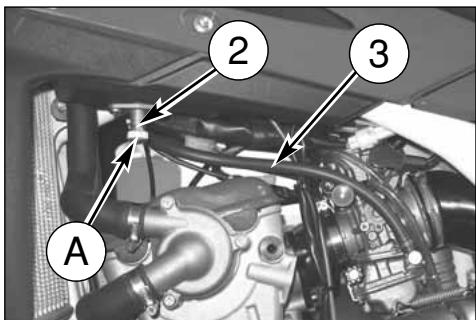

STARTER CARBURATORE (TC)

Close-up mechanical assembly diagram with numbered components labeled 1 and 2

Close-up of mechanical components with visible wiring and a numbered annotation (3), no readable text or symbols present.

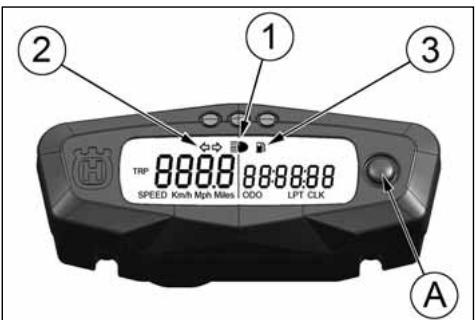

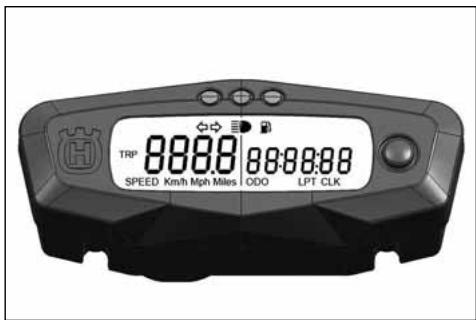

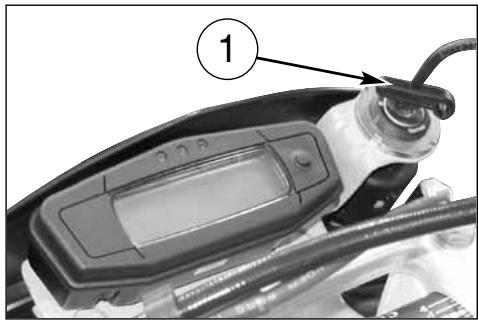

STRUMENTO DIGITALE, SPIE (TE-SMR)

1 2 3 TRP 8880 RPM 8880 RPM SPEED Kshh Mph Miles / CDOO LPT CLK A

TRP 888.8 88:88:88 SPEED Km/h Mph Miles I ODO LPT CLK

A 130 34508 SPEED Km/h ODO

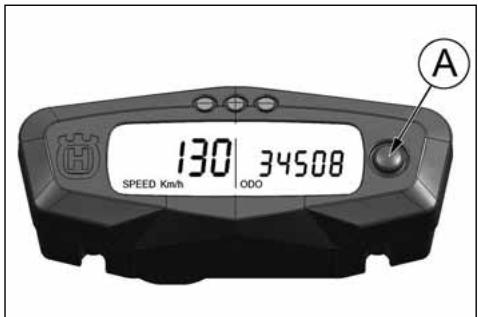

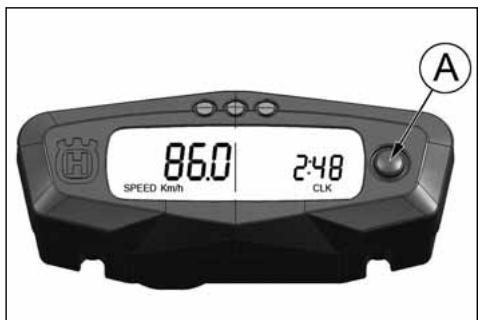

2- SPEED / CLOCK (figura 2)

86.0 SPEED Kinsh 2:48 CLK A

TRP SPEED Kinsh 99.14500.18 A

A SPEED Km/h 46.0 00:20.98 LPT

5- SPEED / RPM NUMERICO (figura 5)

Close-up of a car engine component with a labeled sensor or connector (no readable text or symbols)

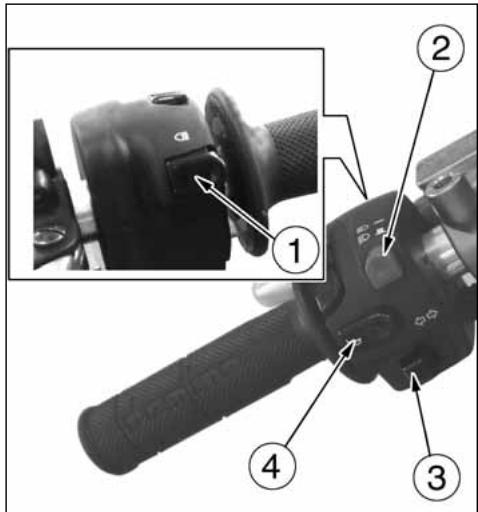

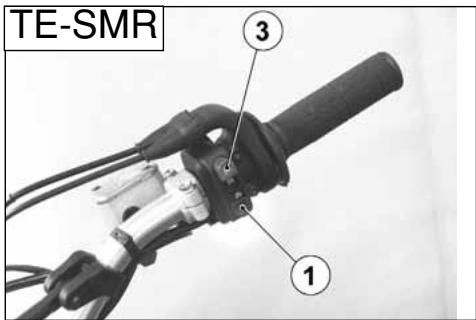

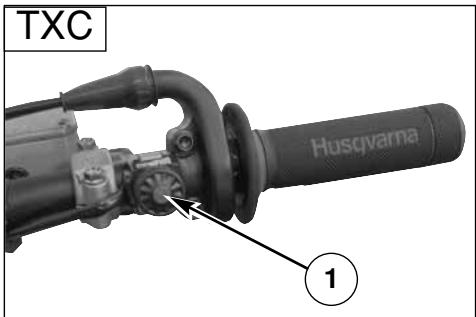

COMMUTATORE DESTRO SUL MANUBRIO (TE-SMR)

TE-SMR ③ ①

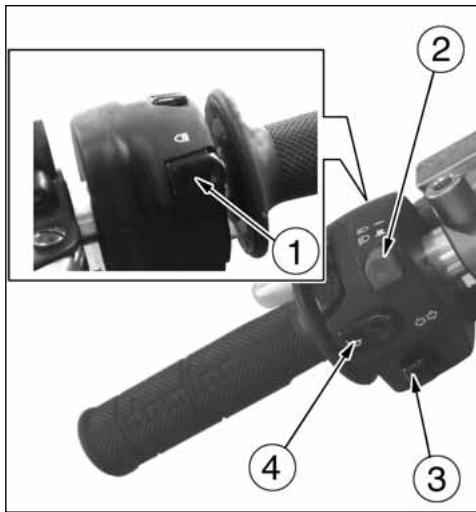

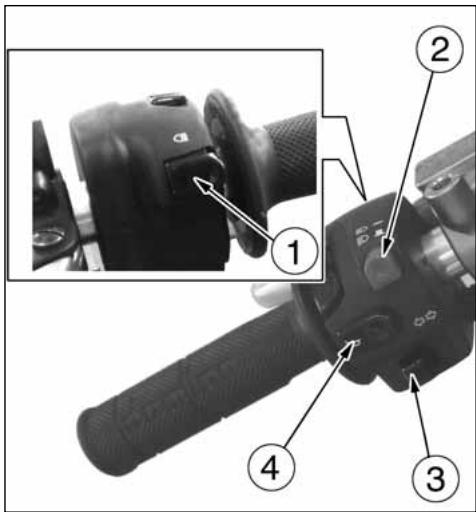

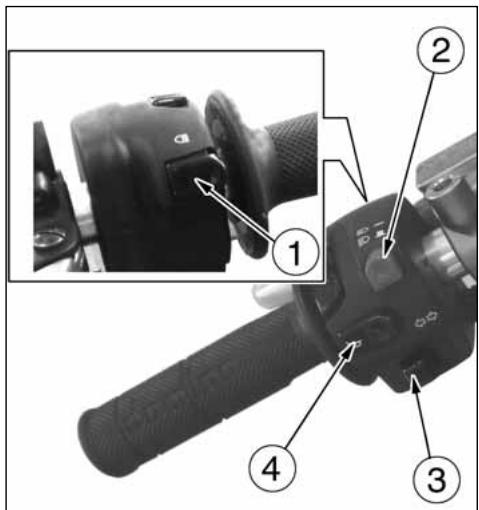

COMMUTATORE SINISTRO SUL MANUBRIO (TE-SMR)

Diagram of a camera grip with numbered parts, showing adjustment mechanism and component detail

PULSANTE ARRESTO MOTORE (TC)

Close-up of a camera mode dial with control buttons and a labeled component (no readable text or symbols beyond labels)

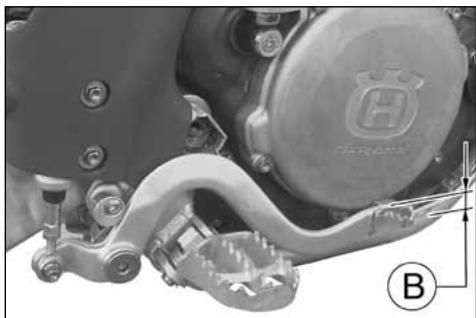

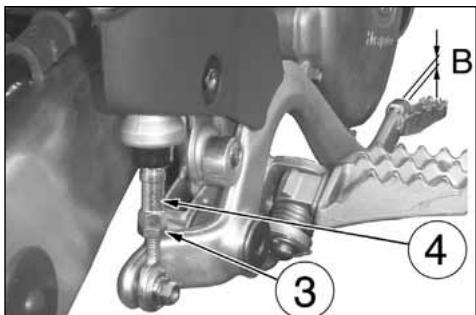

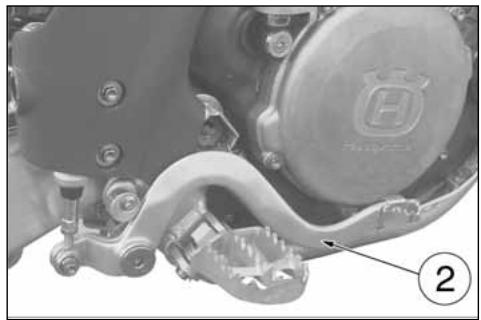

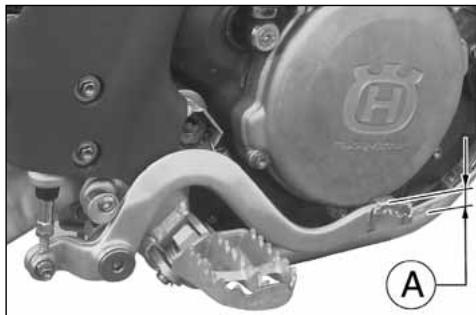

COMANDO FRENO POSTERIORE

Close-up of a mechanical assembly with no visible text or symbols

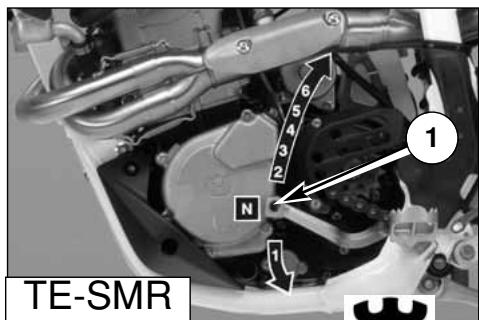

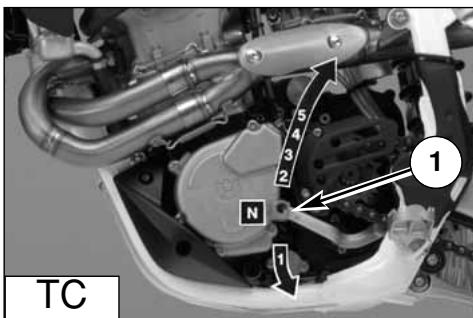

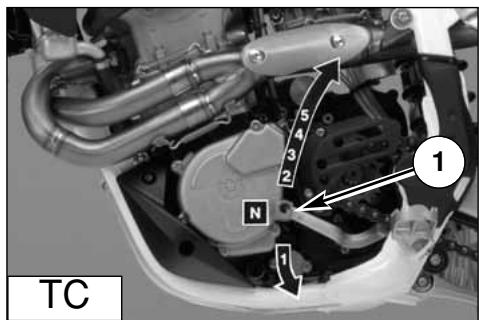

TC N 1 2 3 4 5

TE-SMR

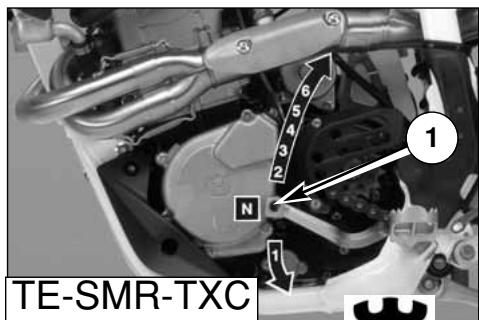

ISTRUZIONI PER L'USO DEL MOTOCICLO

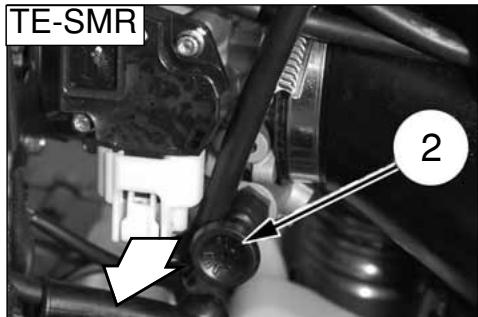

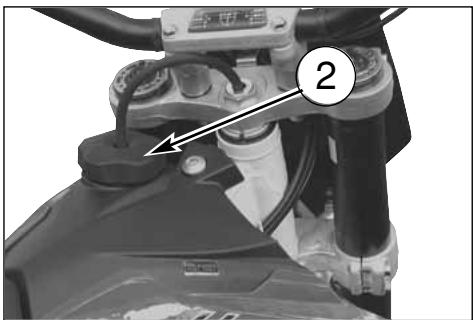

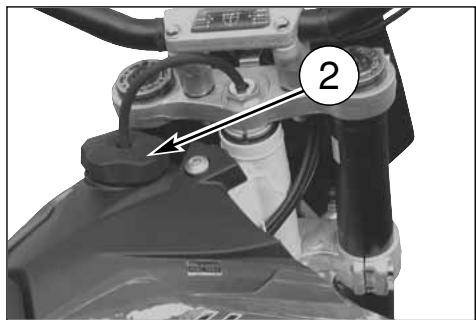

CONTROLLI PRELIMINARI

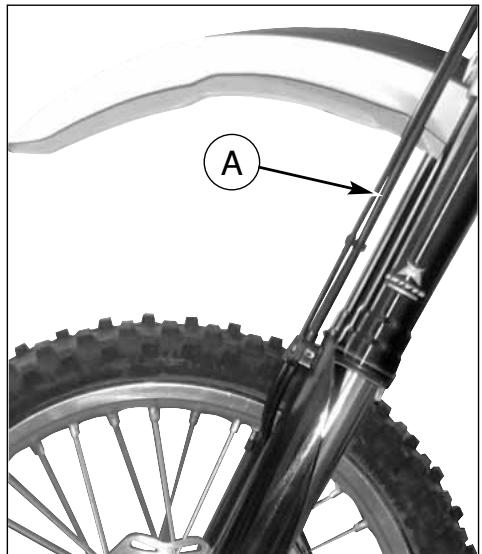

ATTENZIONE!

Close-up of a motorcycle's front-mounted steering wheel and dashboard (no visible text or symbols)

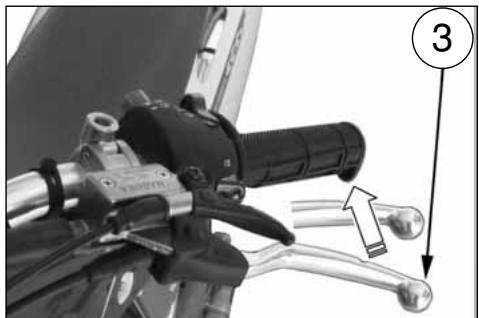

Close-up of a bicycle brake lever with a handle and lever mechanism, no visible text or symbols

TE-SMR 2

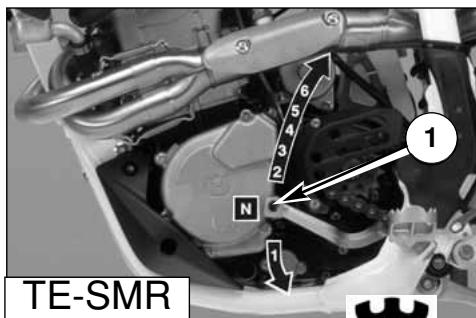

TE-SMR N 1 2 3 4 5 6

TE-SMR 5 6

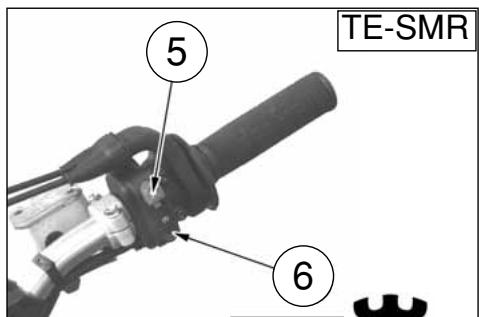

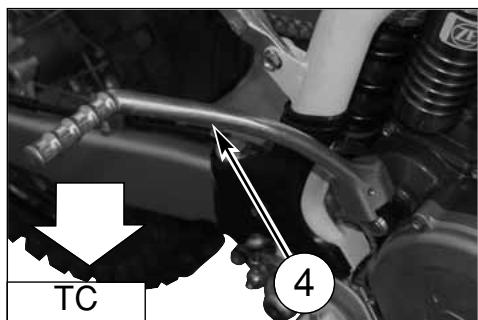

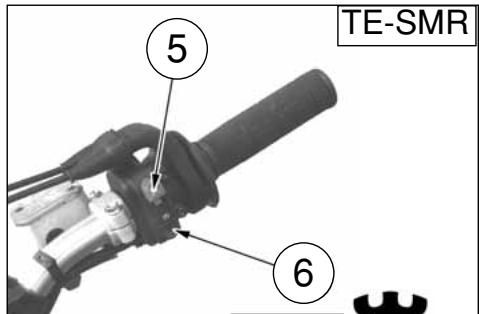

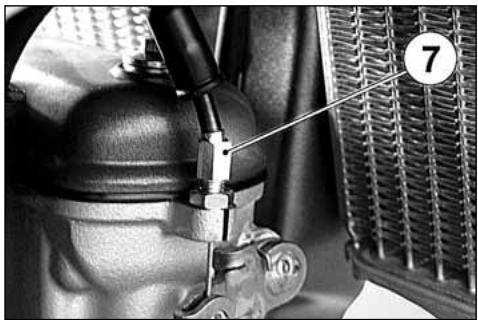

DECOMPRESSORE MANUALE

Close-up of mechanical components including hoses and a radiator, with no visible text or symbols

Diagram of a motor hand gripping a lever with labeled parts 5 and 6

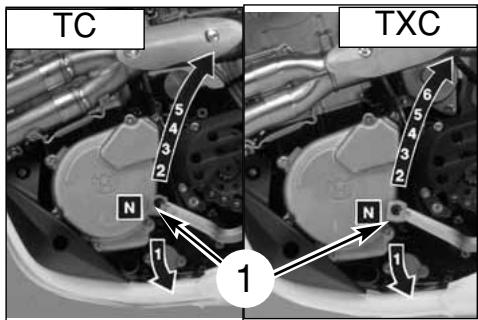

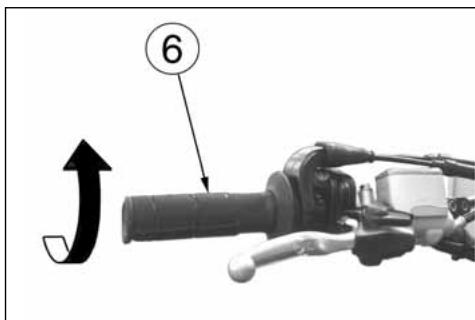

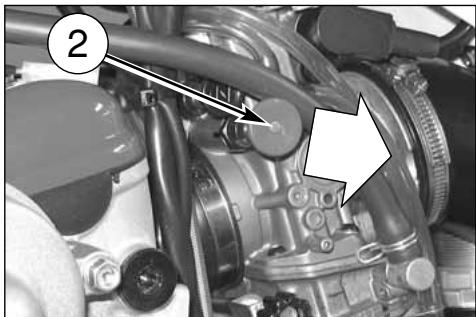

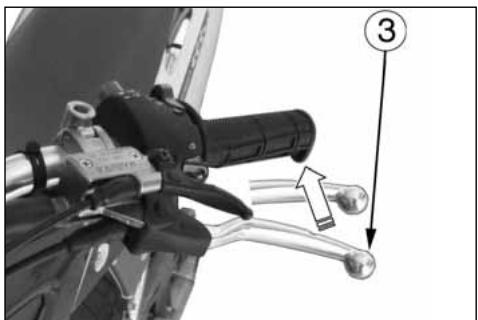

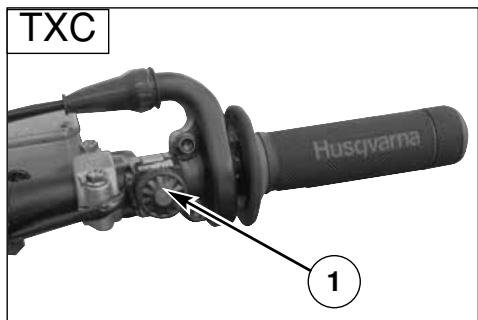

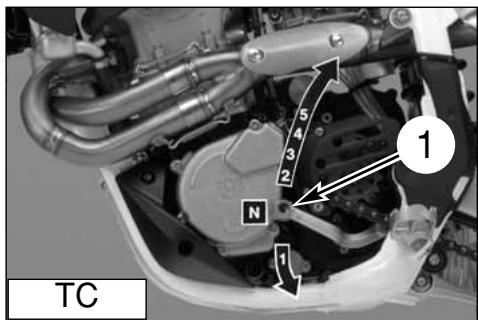

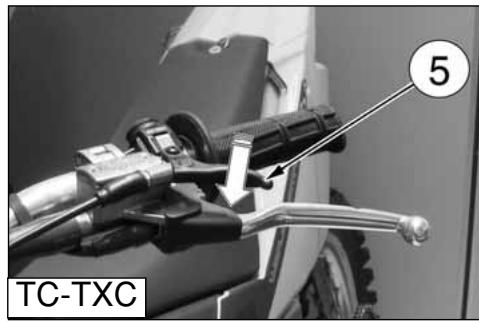

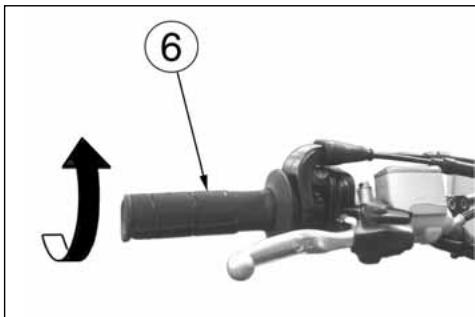

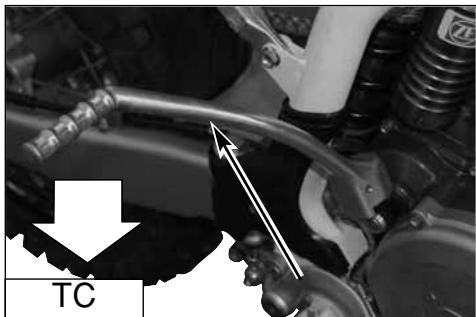

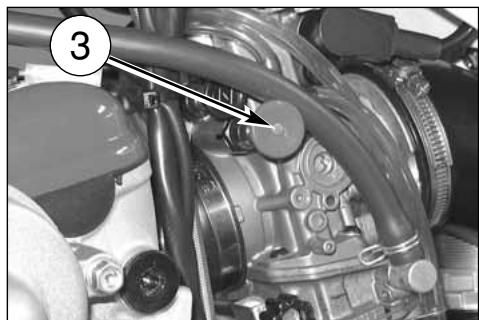

AVVIAMENTO DEL MOTORE (TC)

Close-up of a mechanical assembly with labeled component A (no readable text or symbols beyond label)

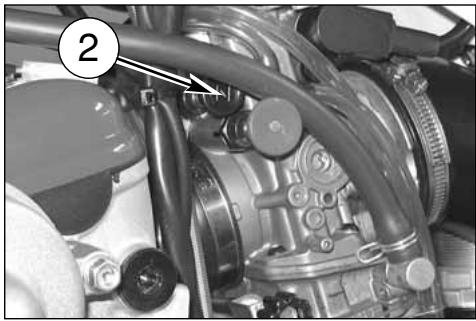

Close-up of a mechanical assembly with numbered component (2) and directional arrow, no readable text or symbols present.

TC N 1 2 3 4 5

Close-up of a mechanical assembly with visible gears and components, no text or symbols present

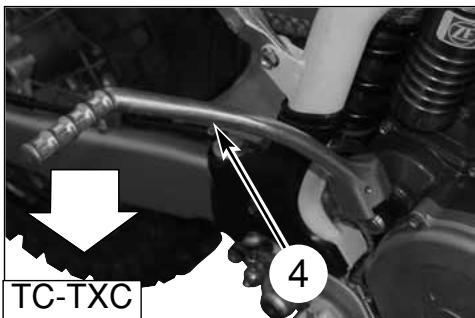

TC 4

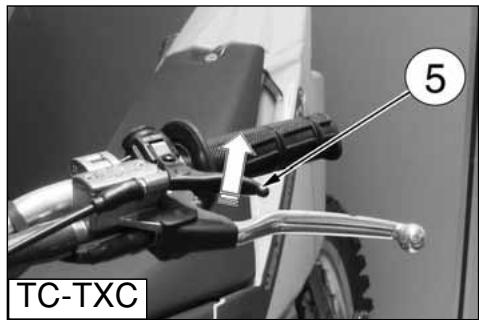

Close-up of a motorcycle handle with labeled parts (TC and number 5), no readable text or symbols beyond labels

TC 4

6

Close-up of a mechanical assembly with numbered components (3 and an arrow pointing to a component), no readable text or symbols present.

Close-up of a mechanical assembly with visible springs, gears, and a central shaft (no text or symbols)

Close-up of a motorcycle brake lever mechanism with no visible text or symbols

Close-up of a mechanical assembly with labeled component (2), no visible text or symbols beyond numbered annotation

TC

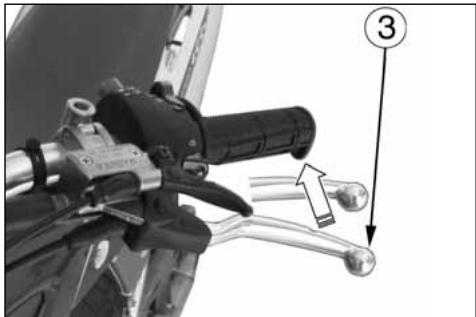

Mechanical component with lever and handle, labeled with number 3 (no text or symbols on the device itself)

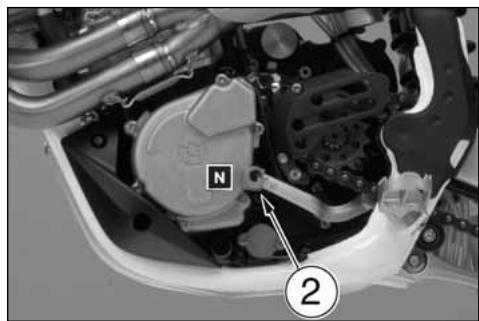

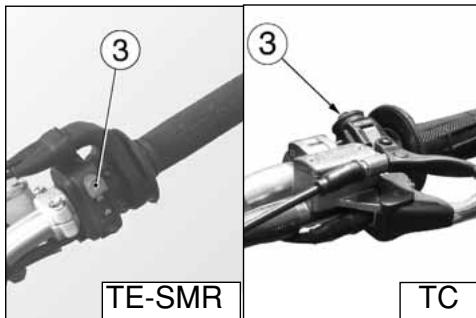

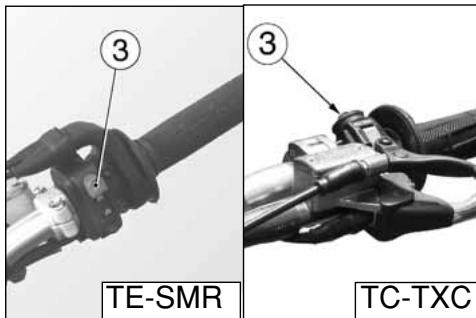

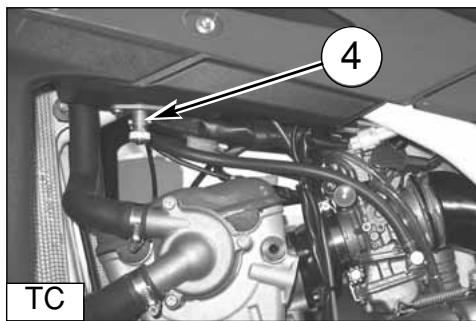

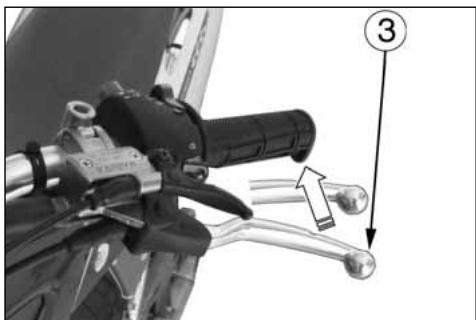

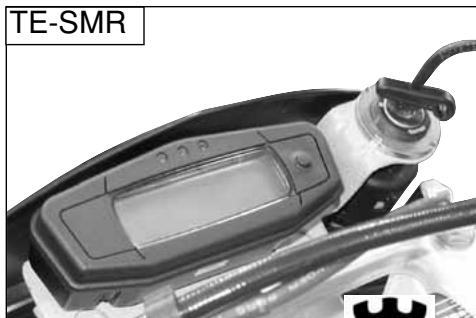

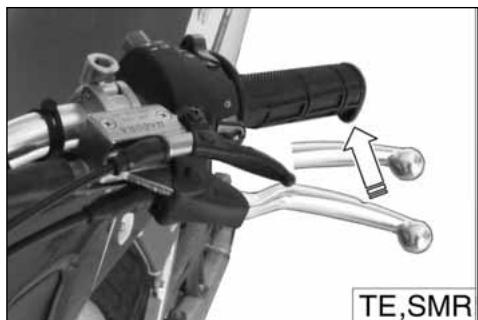

ARRESTO DEL MOTOCICLO E DEL MOTORE

Close-up of a motorcycle handle and lever mechanism with a white arrow pointing to a specific component (no text or symbols on the diagram itself)

Close-up of a mechanical assembly with labeled parts (N and 2), no readable text or symbols beyond labels

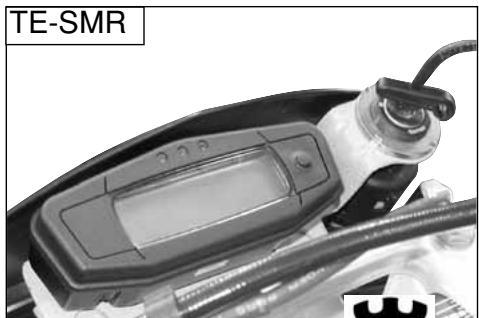

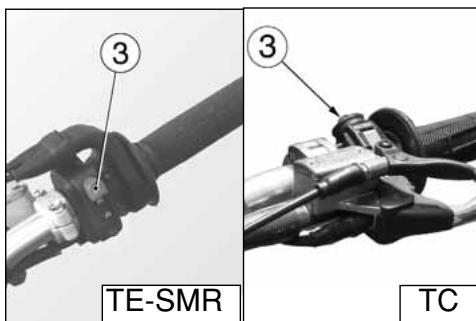

③ TE-SMR ③ TC

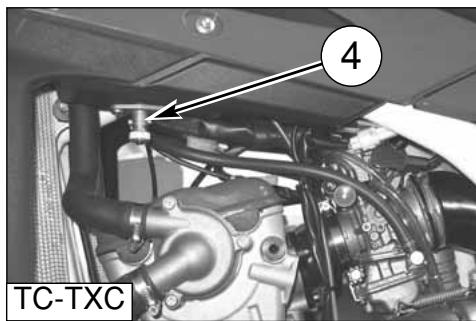

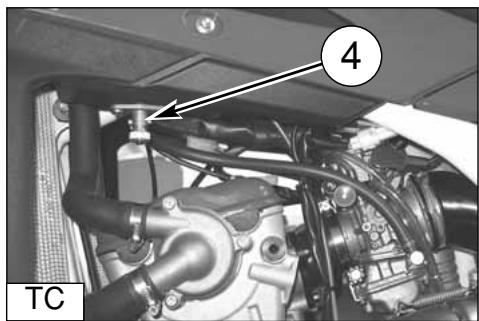

4 TC

Close-up of a NE-SMR motorcycle body panel with visible wiring and sensor (no text or symbols on the device itself)

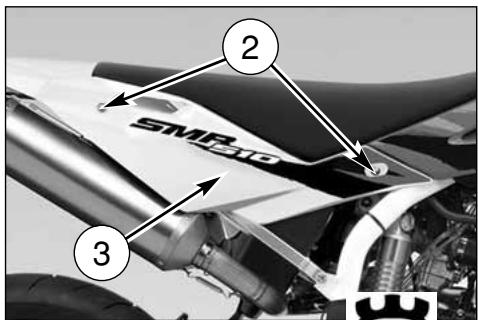

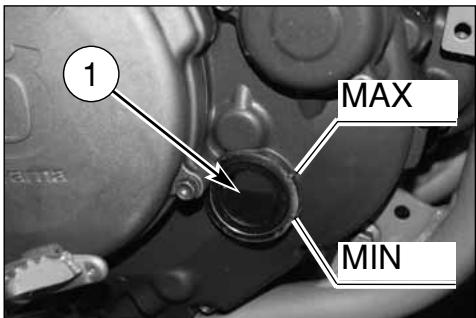

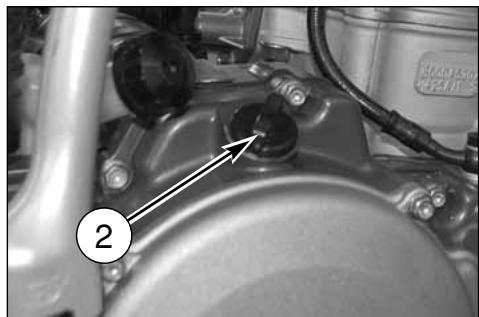

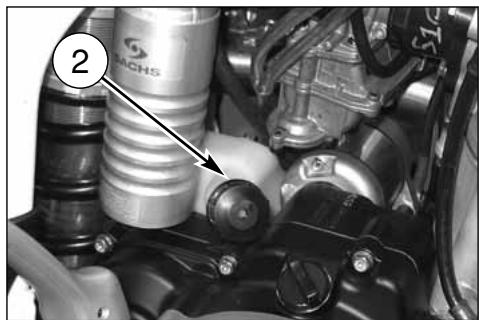

CONTROLLO LIVELLO OLIO

1 MAX MIN

Close-up of a mechanical component with labeled parts (no readable text or symbols)

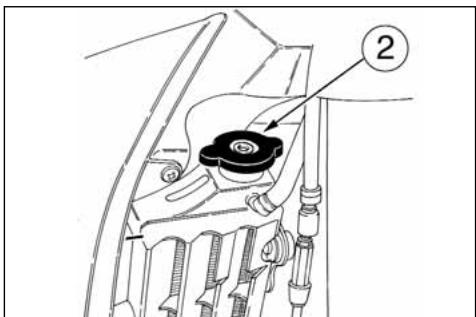

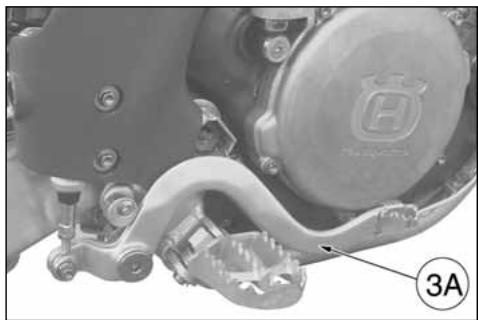

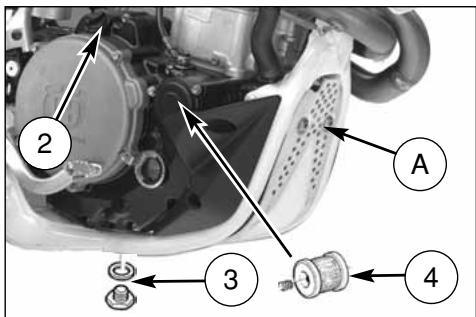

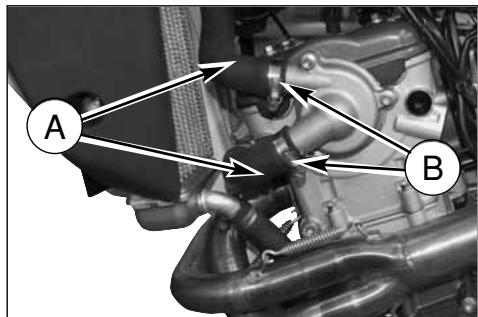

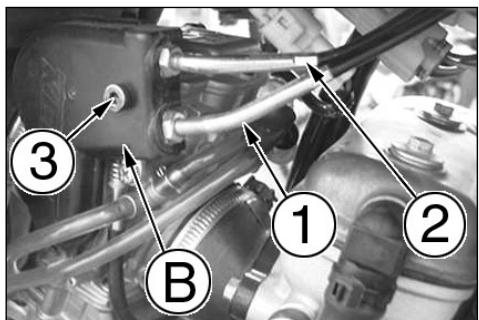

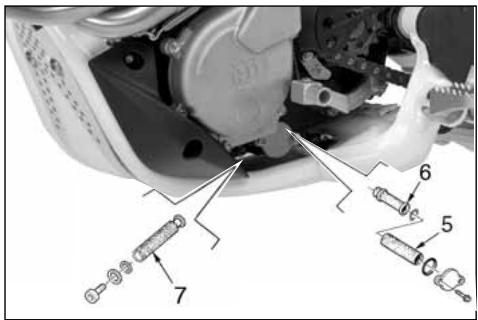

SOSTITUZIONE OLIO MOTORE E PULIZIA- SO- STITUZIONE FILTRI METALLICI ED A CARTUCCIA

Technical diagram of a mechanical assembly with numbered components and labeled parts A, 2, 3, and 4

Technical diagram of a mechanical assembly with numbered components and labeled parts

Close-up of a car engine bay with visible springs and components (no text or symbols)

Close-up of an engine component with visible fan and valve assembly (no text or symbols)

Close-up of a mechanical engine component with labeled parts (no readable text or symbols)

Technical diagram of a mechanical component with numbered annotation pointing to a specific part.

A B

B A

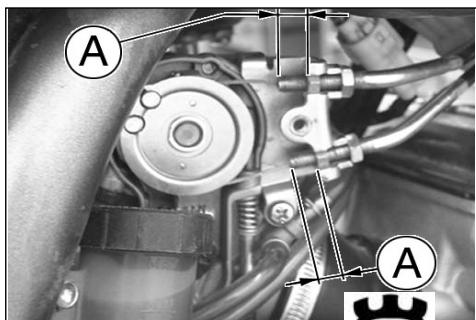

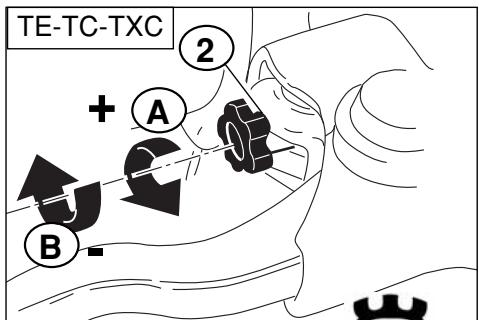

REGOLAZIONE CAVO COMANDO GAS

Diagram of a mechanical device with numbered parts labeled 1 to 4, showing cable connection and assembly.

Labeled mechanical diagram showing engine components with numbered annotations (1, 2, 3) pointing to specific parts.

A A

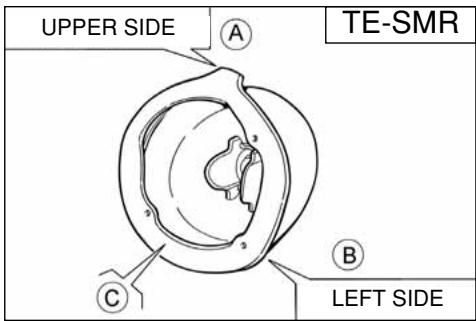

REGISTRAZIONE CARBURATORE (TC)

Technical diagram of an engine component with numbered parts labeled 1 and 2

Close-up of a mechanical assembly with numbered component (3) and arrow indicator, no readable text or symbols beyond the number.

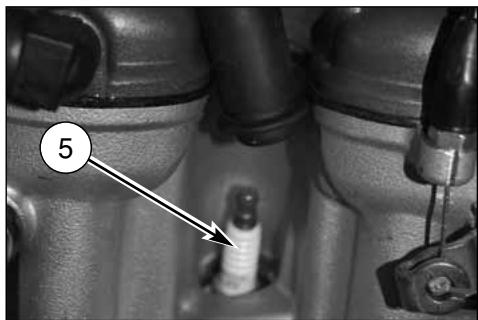

CONTROLLO CANDELA

Technical line drawing of a spark plug with threaded end and shaft (no text or symbols)

Close-up mechanical component showing hoses and wiring (no visible text or symbols)

Close-up of a mechanical component with a labeled arrow pointing to a small cylindrical feature (no text or symbols visible)

Close-up of a mechanical component with labeled parts (3 and an arrow), no readable text or symbols beyond annotations

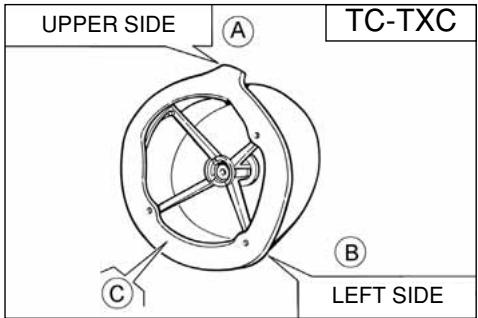

CONTROLLO FILTRO ARIA (TC-TXC)

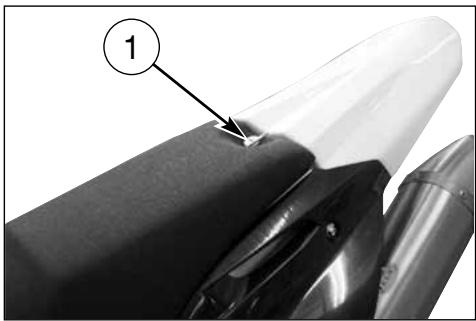

Close-up of a black plastic tool tip with a labeled component (1) and a circular arrow pointing to the tip area.

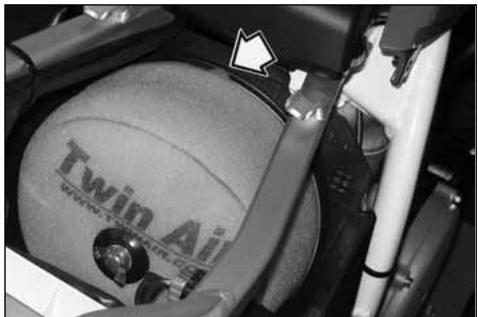

A 4 3 Twin Air

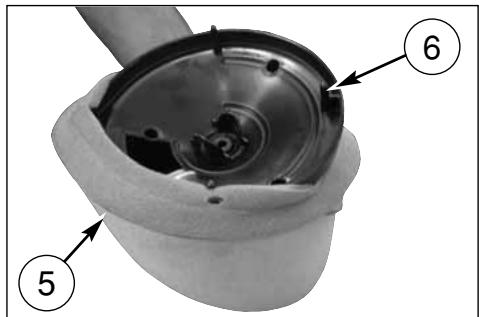

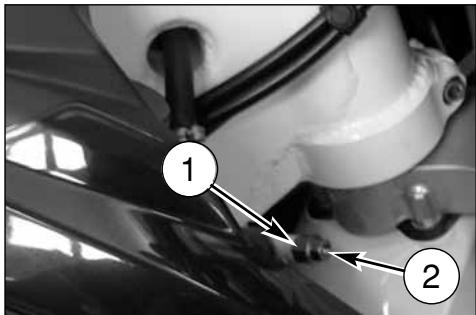

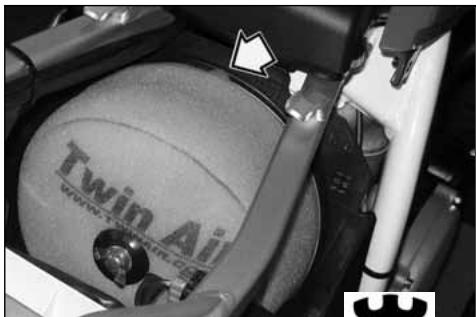

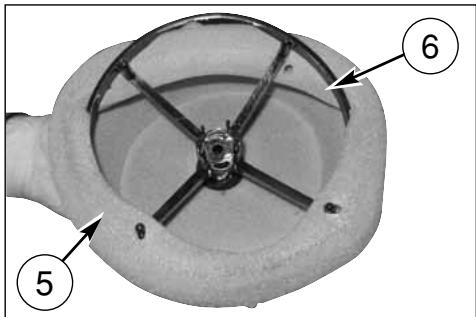

PULIZIA FILTRO ARIA

Close-up of a car's twin-air engine component with no visible text or symbols

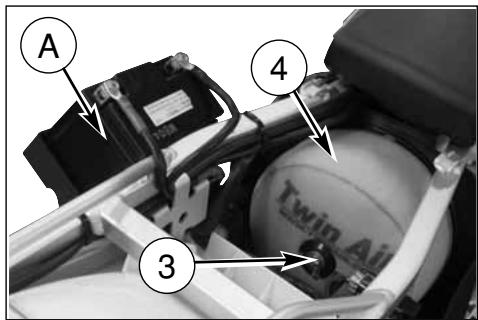

CONTROLLO FILTRO ARIA (TE-SMR)

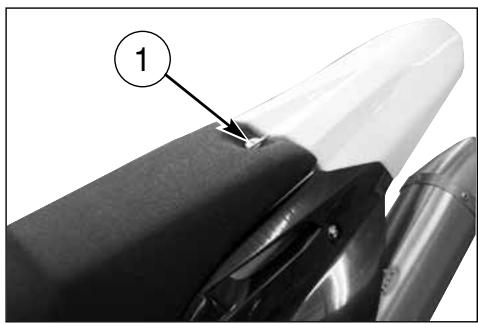

Close-up of a black plastic tool tip with a numbered label pointing to a specific area (no text or symbols on the tool itself)

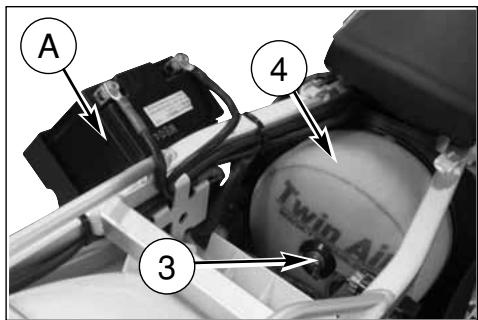

A 4 3 Twin Air

PULIZIA FILTRO ARIA

Close-up of a car's twin-air engine component with no visible text or symbols

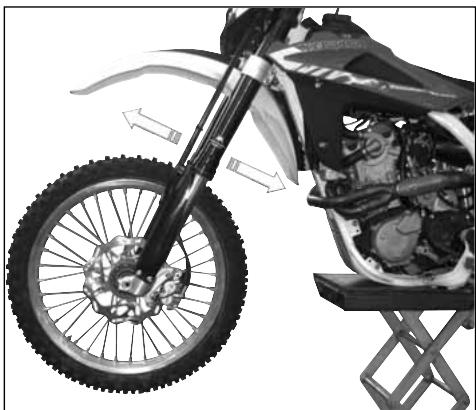

Close-up of a motorcyclist's wheel and suspension system, showing tire alignment and mechanical components (no text or symbols visible)

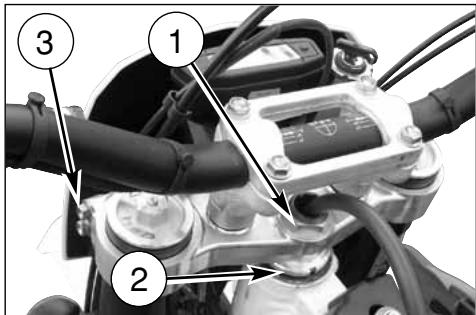

Labeled mechanical device diagram showing components 1, 2, and 3 with visible wiring and control elements

Close-up mechanical diagram showing two labeled components (1 and 2) with arrows pointing to a component on a surface.

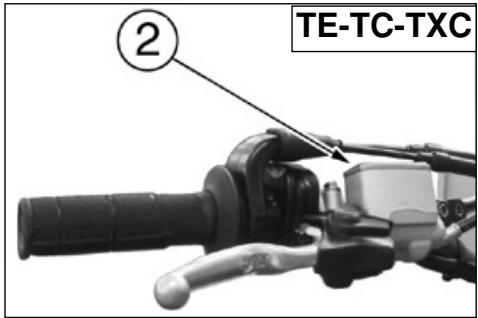

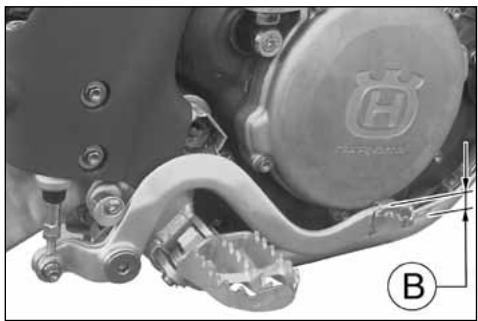

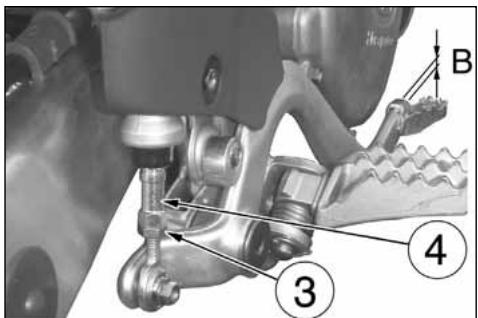

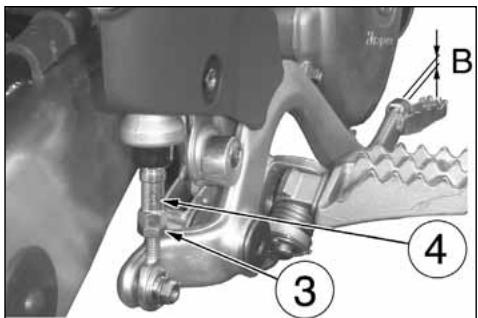

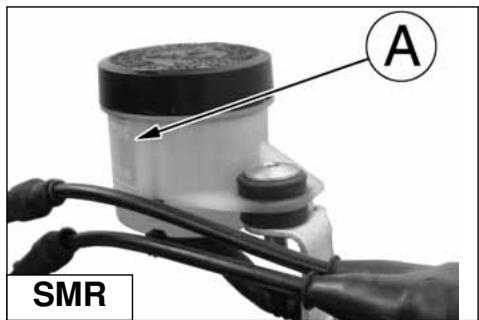

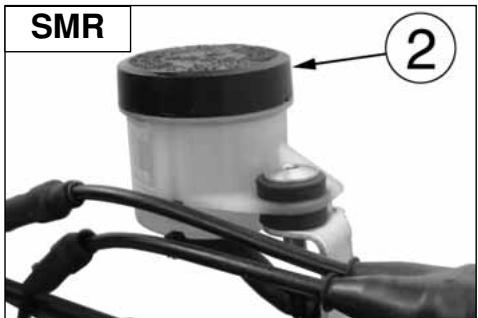

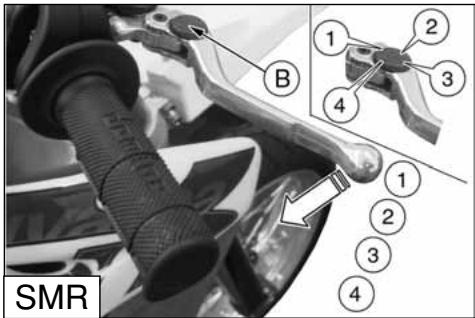

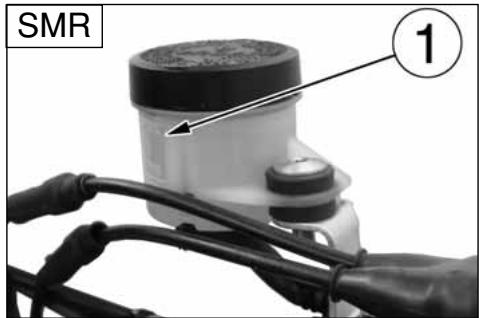

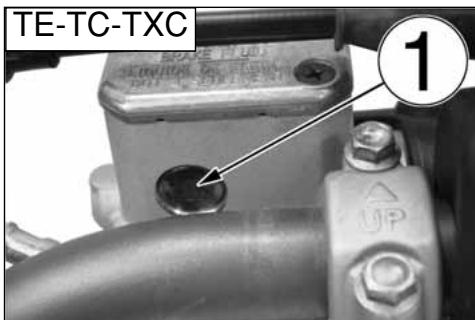

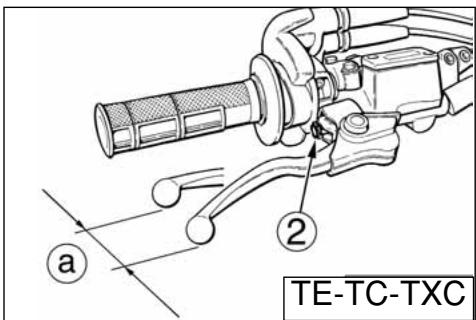

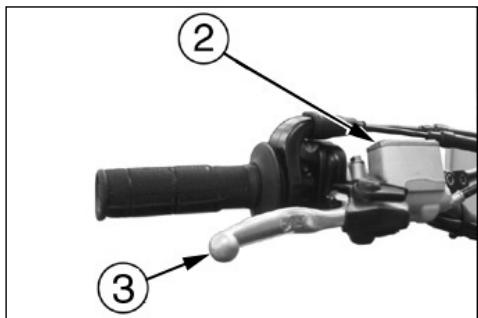

REGOLAZIONE LEVA COMANDO E CONTROLLO LIVELLO FLUIDO FRENO ANTERIORE

Close-up of a mechanical assembly with no visible text or symbols

Close-up of a mechanical assembly with no visible text or symbols

Technical diagram of a vehicle suspension system with labeled components and directional arrows

Mechanical assembly diagram showing a valve and gear mechanism (no text or symbols)

TC 1 2 B A 3 C D 4 mm (0.16 in.)

Close-up of a mechanical assembly with labeled component (3), no readable text or symbols present.

1 2 B A 4 mm (0.16 in.)

Black-and-white action photo of a dirter mid-jump on a dirt track, wearing helmet and racing gear (no visible text or symbols)

Black-and-white photo of a dirter in action on a dirt track, kicking up the tire with visible tracks and dust (no text or symbols)

Black-and-white action photo of a dirter mid-jump, wearing number 10 and 'Boschus' gear, kicking up dust (no visible text or symbols)

Black-and-white photo of a motorcyclist in action on a track, wearing racing gear and number 100 (no visible text or symbols)

Diagram illustrating a chemical process with labeled components and directional arrows, showing liquid being poured into a container.

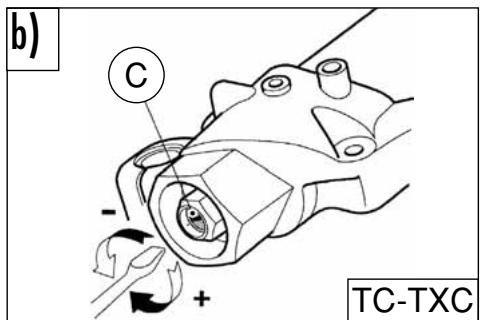

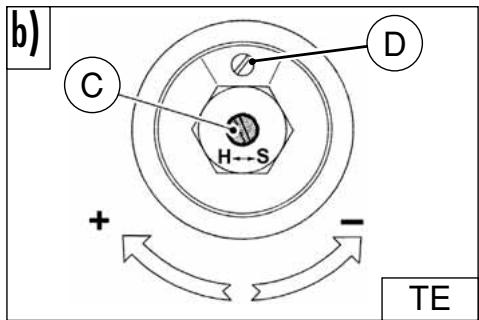

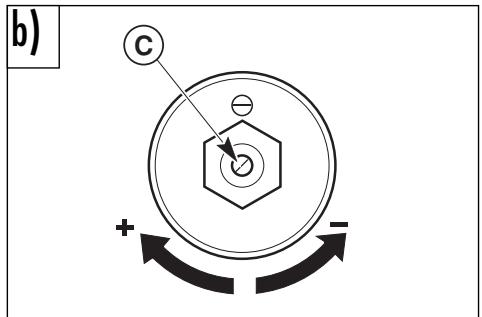

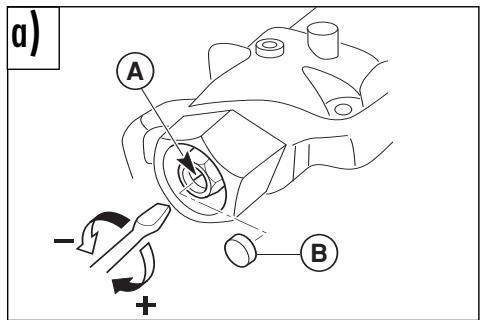

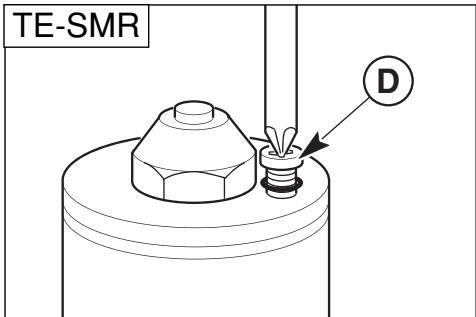

REGOLAZIONE FORCELLA (TC 450-TE 450, 510)

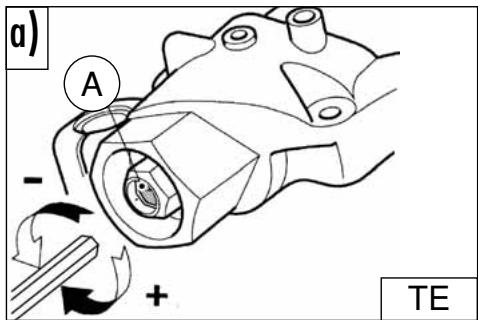

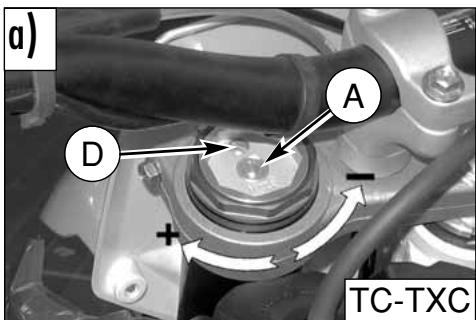

a) COMPRESSIONE (TC: REGISTRO SUPERIORE; TE: REGISTRO INFERIORE)

Taratura standard: -7 scatti (TC);

Taratura standard: -10 scatti (TE)

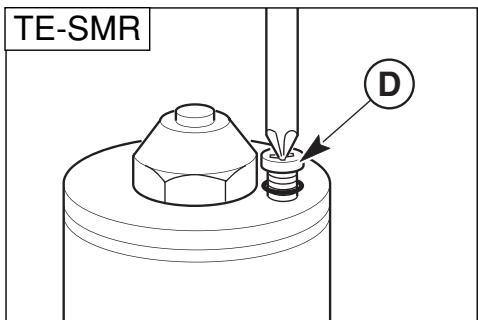

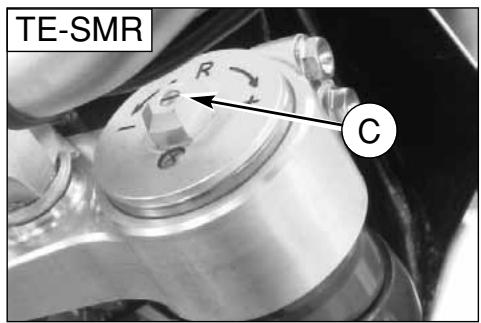

b) C D H→S + - TE

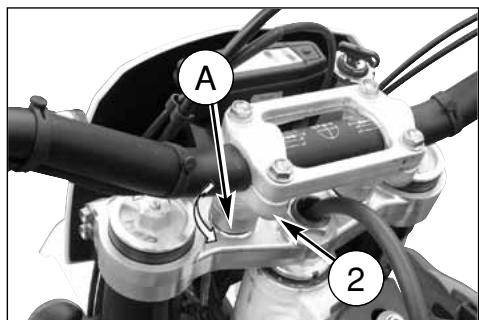

MODIFICA POSIZIONE ED ALTEZZA MANU-BRIO

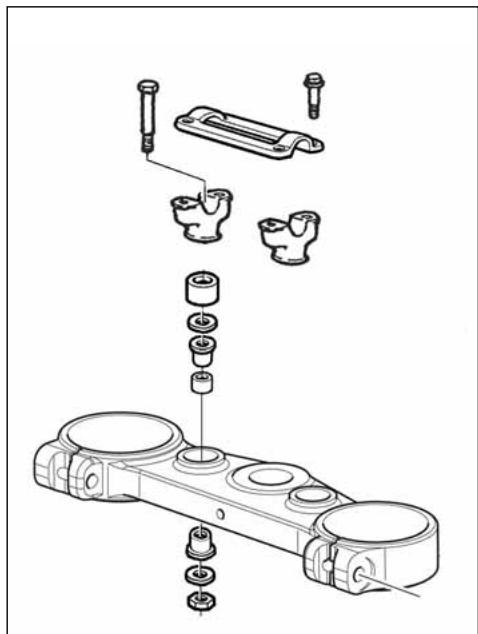

Technical diagram showing assembly steps of a mechanical component with numbered parts and labeled section A

4 "L"

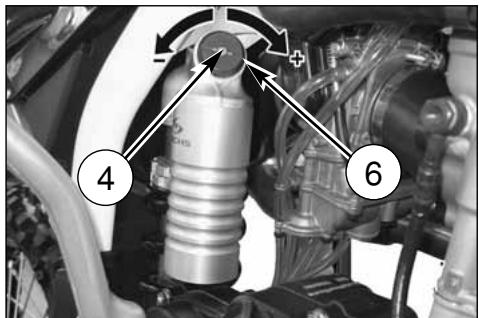

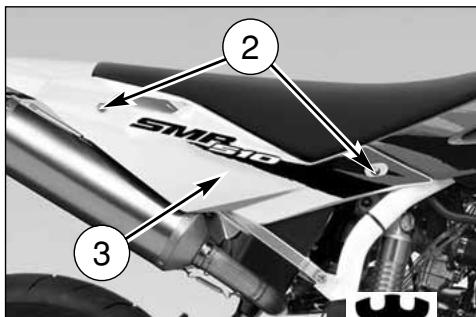

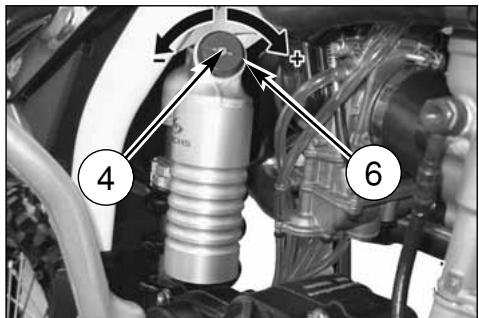

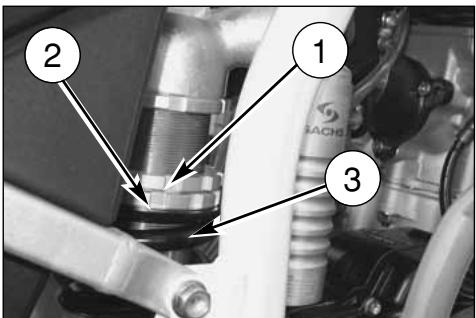

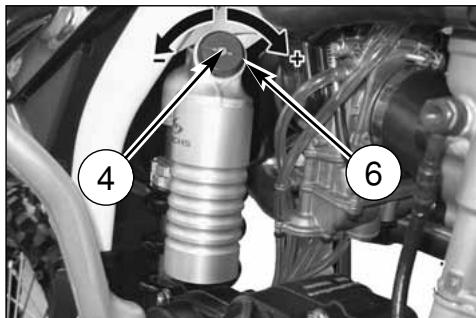

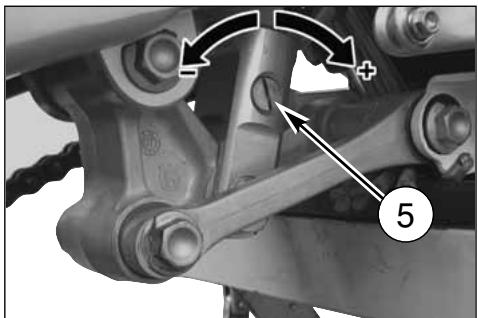

REGISTRAZIONE AMMORTIZZATORE

Illustration of a mechanical component with a circular part labeled '1' and curved lines indicating motion (no text or symbols present)

Labeled mechanical component diagram showing parts numbered 1, 2, and 3 with annotations

Technical diagram of a vehicle suspension system with labeled components and directional arrows indicating motion or flow.

Mechanical assembly diagram showing linkage components with arrows and a numbered label (5), no readable text or symbols present.

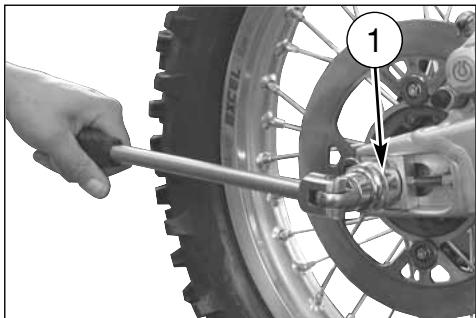

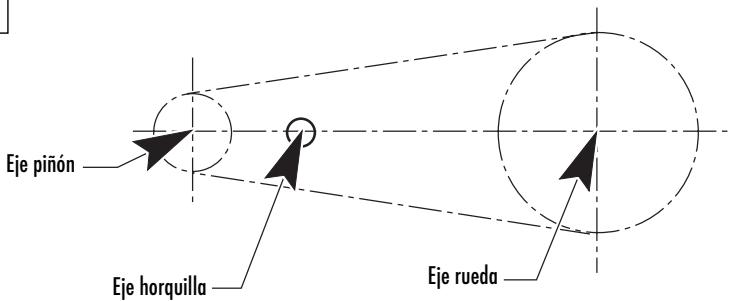

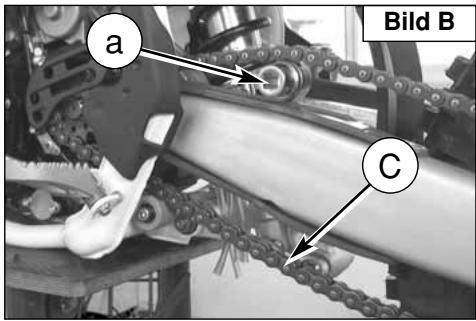

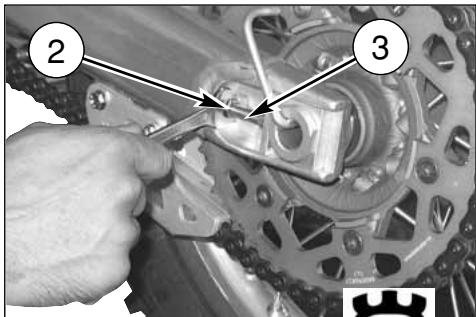

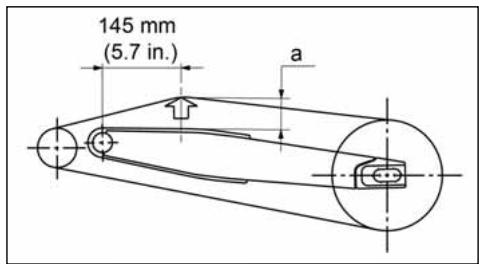

REGISTRAZIONE CATENA (Fig. A)

145 mm (5.7 in.) a

Fig. B a C

Close-up of a hand using a wrench to adjust the wheel rim and brake system (no text or symbols visible)

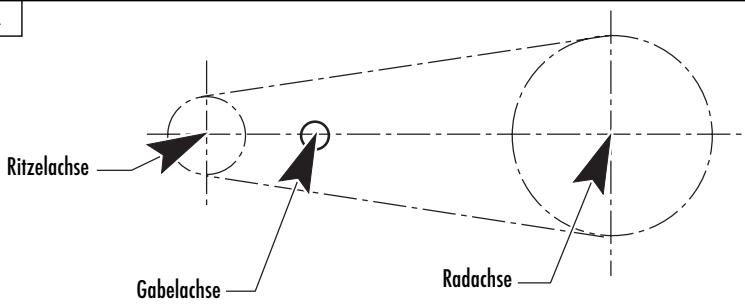

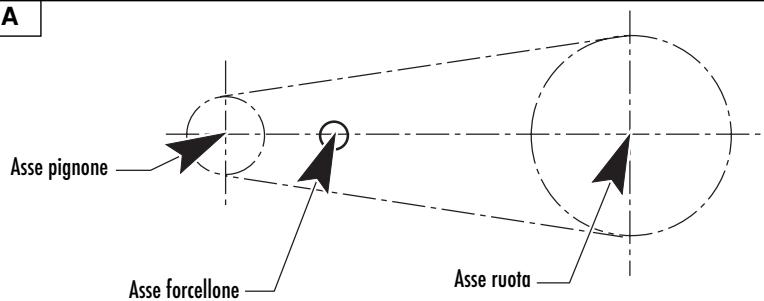

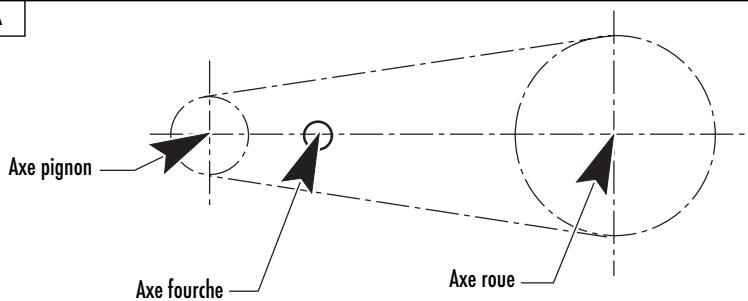

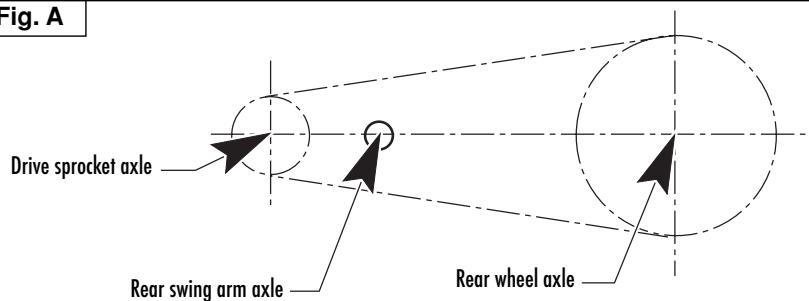

Fig. A

Asse pignone Asse forcellone Asse ruota

Mechanical assembly diagram showing a hand using a tool to adjust components labeled 2 and 3 on a gear-like component.

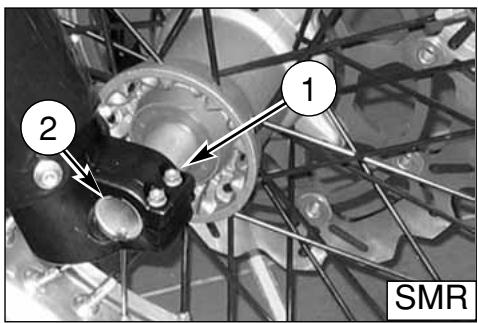

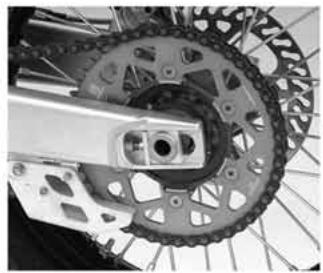

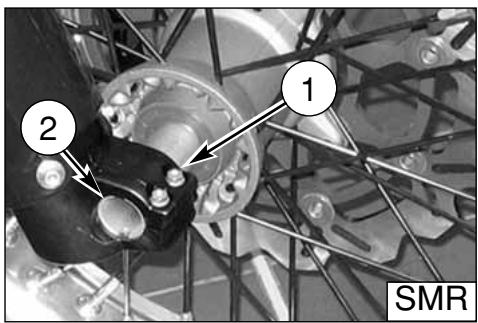

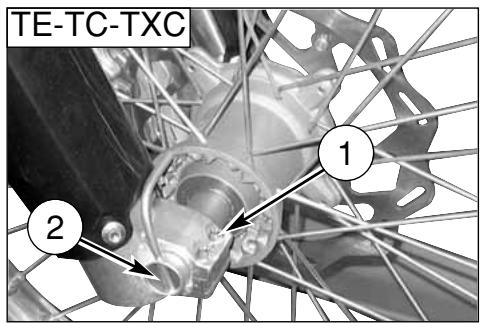

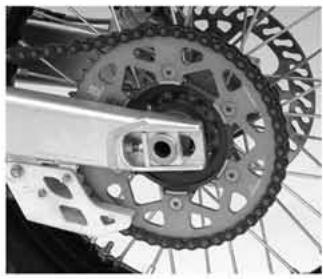

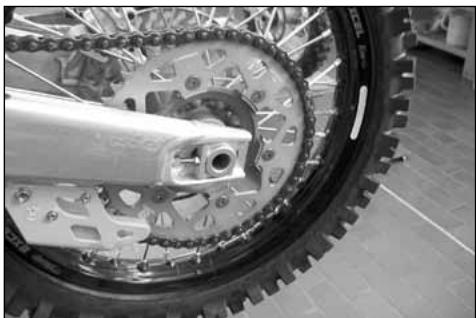

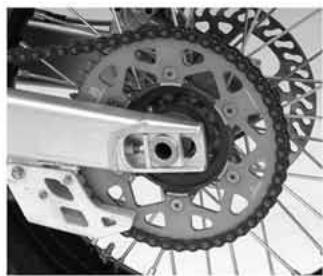

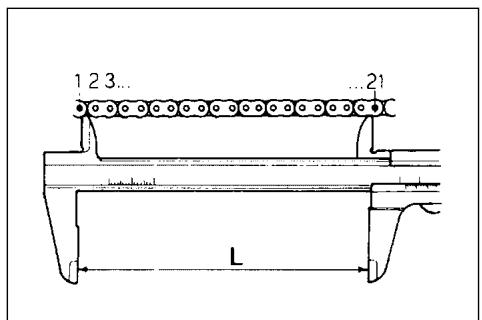

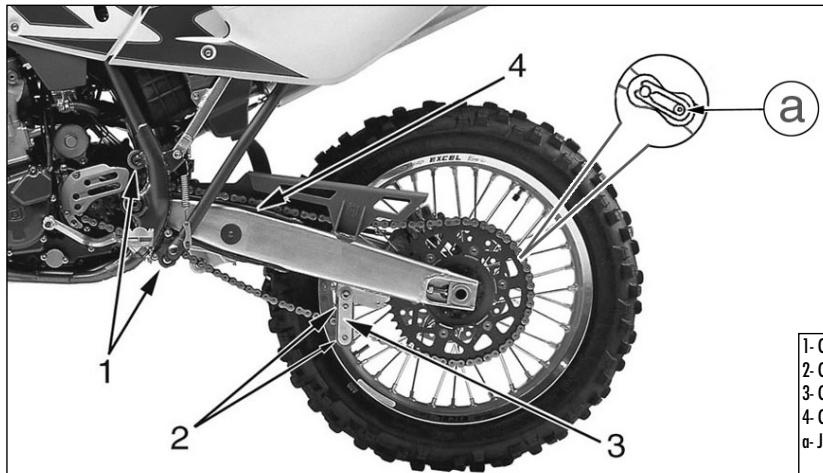

CONTROLLO USURA CATENA, PIGNONE, CORONA

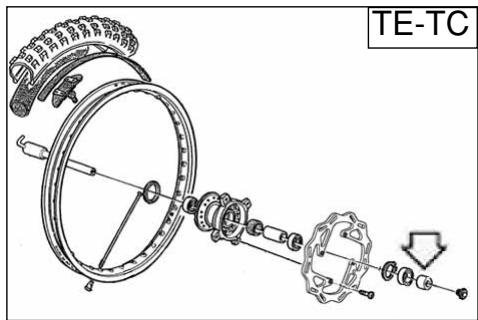

Labeled diagram of a motorcycle wheel assembly with numbered parts for identification

Close-up of a motor with visible wheel and suspension components (no text or symbols)

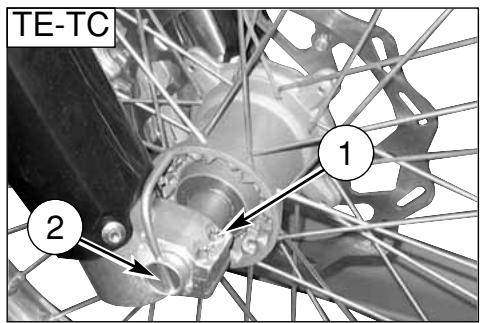

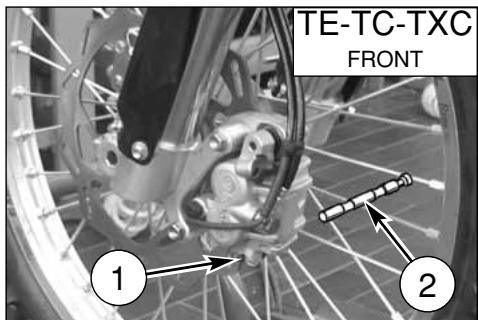

TE-TC 1 2

1 2 SMR

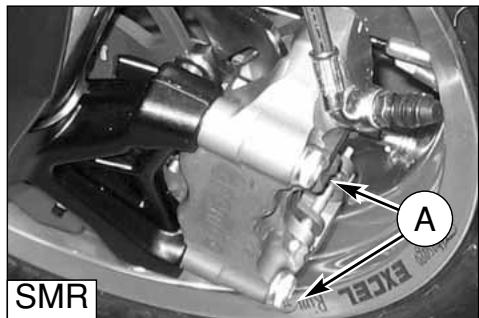

SMR A EXCEL

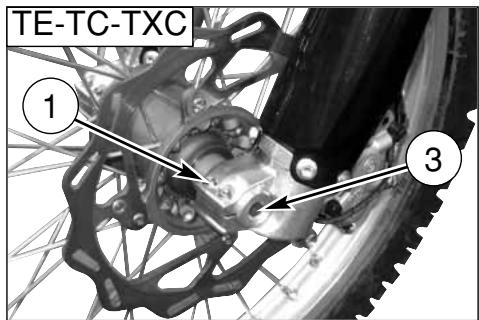

TE-TC ① ③

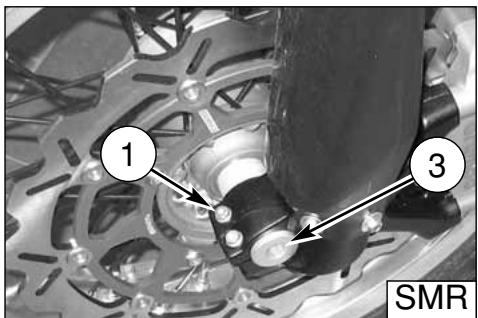

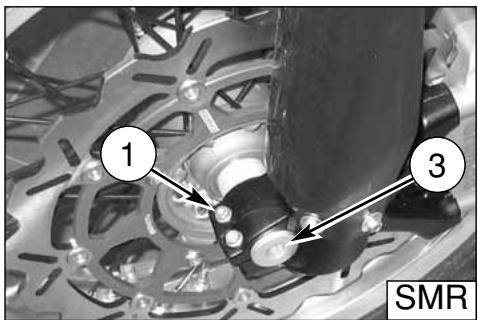

1 3 SMR

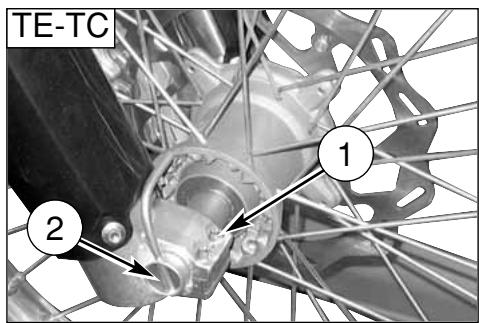

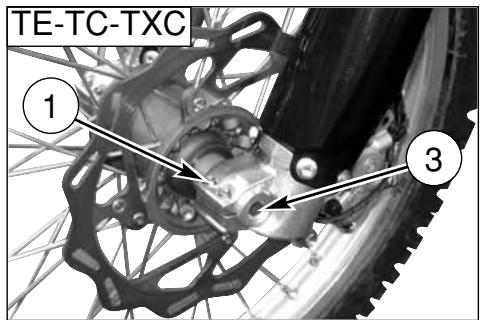

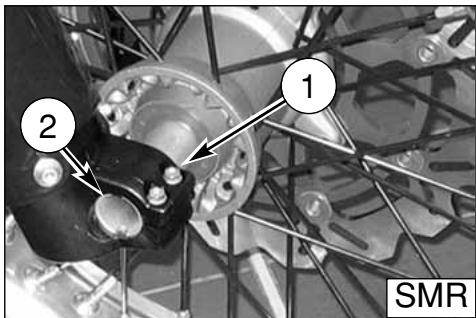

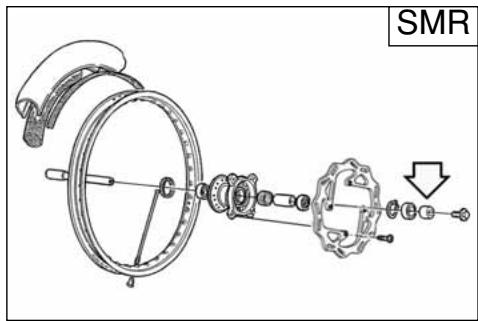

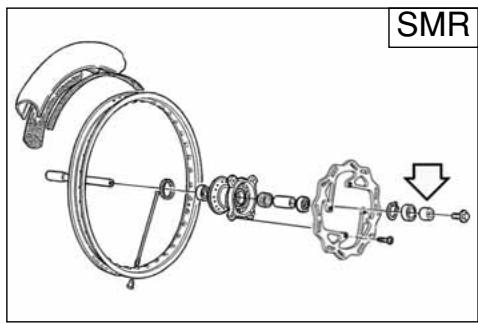

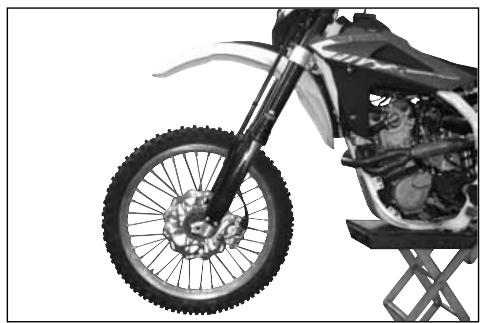

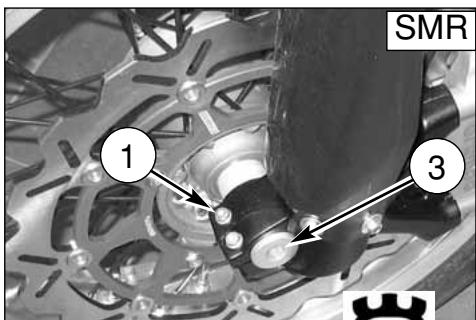

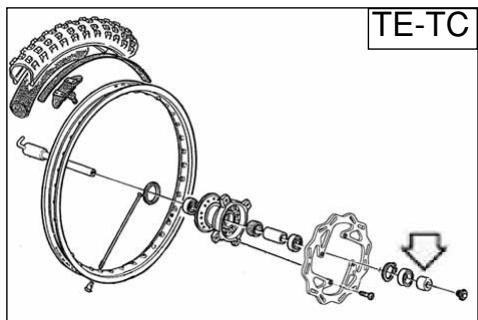

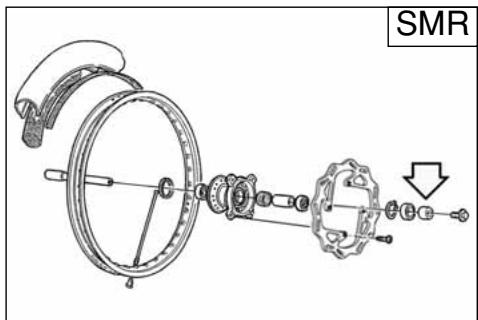

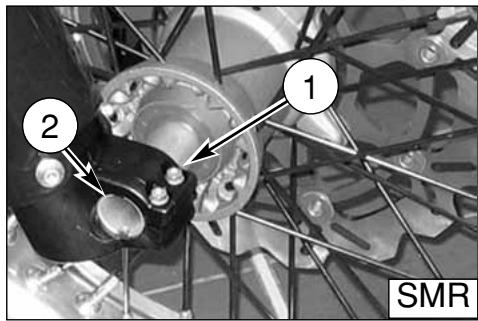

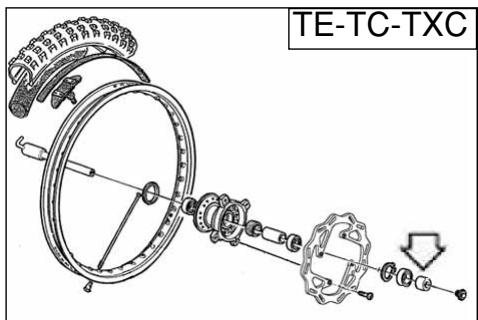

RIMONTAGGIO RUOTA ANTERIORE

Close-up of a motorcycle's front wheel and suspension system (no visible text or symbols)

1 2 SMR

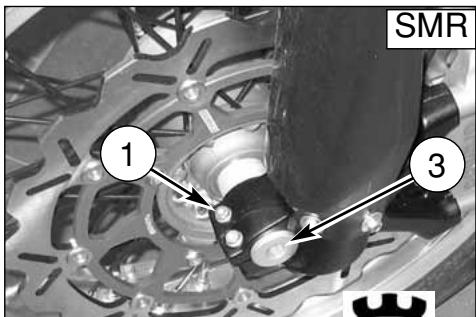

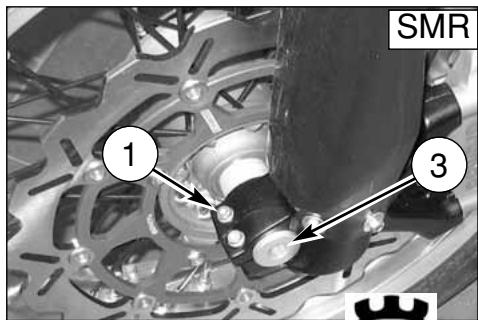

SMR 1 3

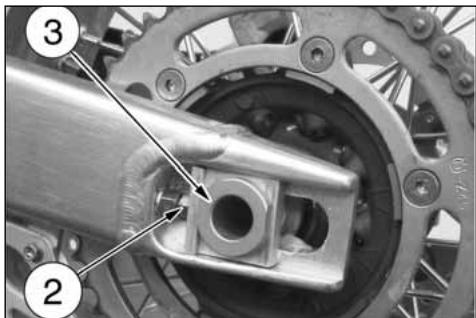

SMONTAGGIO RUOTA POSTERIORE

Close-up mechanical diagram of a bicycle wheel with labeled components 1 and 2

Mechanical assembly diagram showing a gear and shaft components (no text or symbols visible)

PNEUMATICI

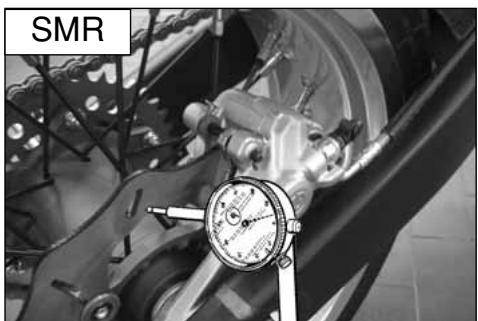

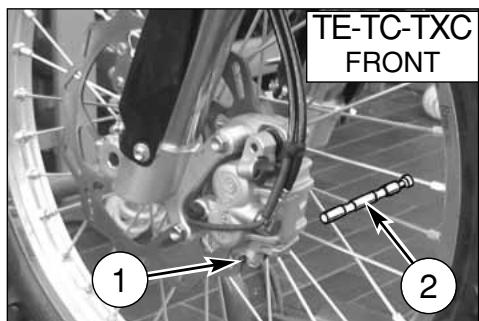

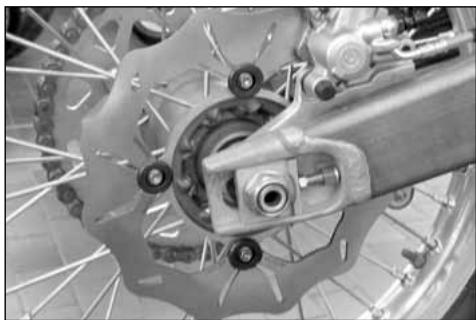

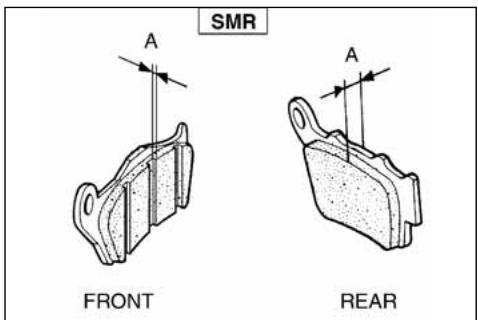

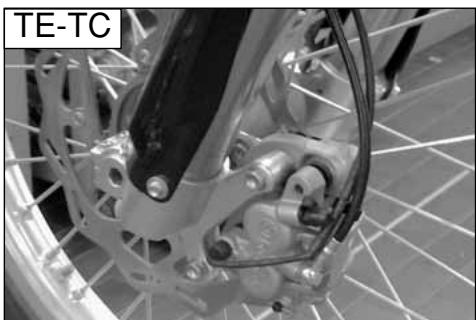

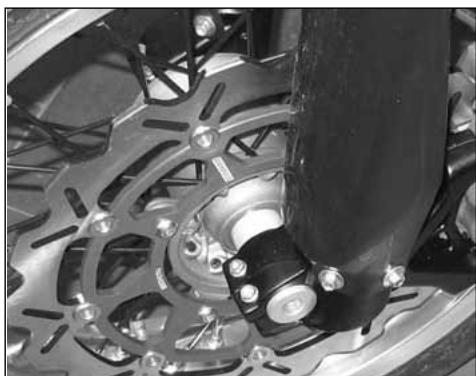

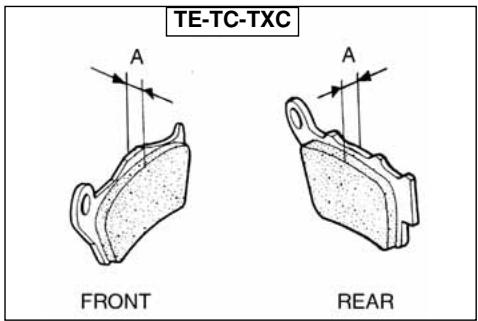

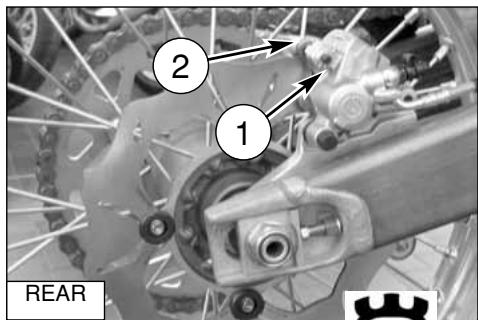

USURA PASTIGLIE (TE-TC)

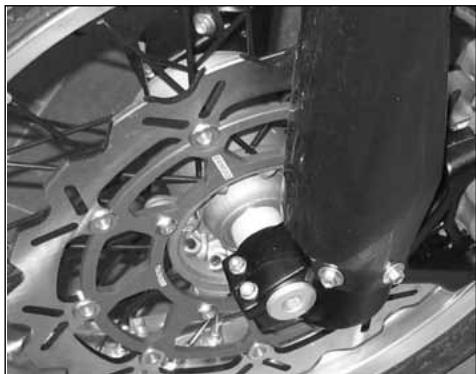

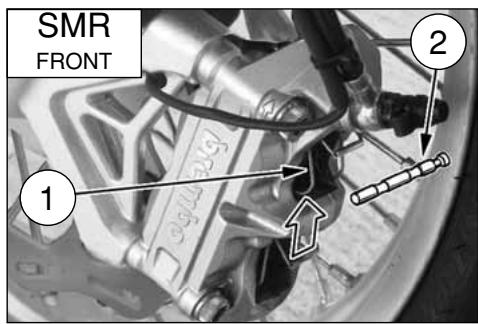

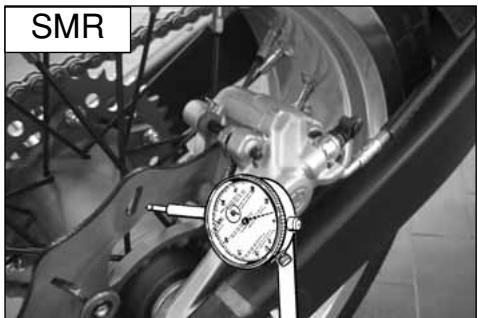

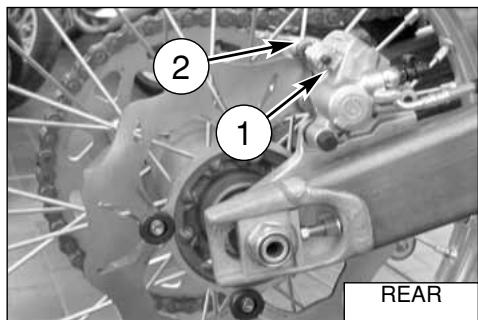

USURA PASTIGLIE (SMR)

Close-up of a bicycle's front wheel assembly with visible mechanical components (no text or symbols)

Close-up of a bicycle wheel assembly with visible brake calipers and suspension components (no text or symbols)

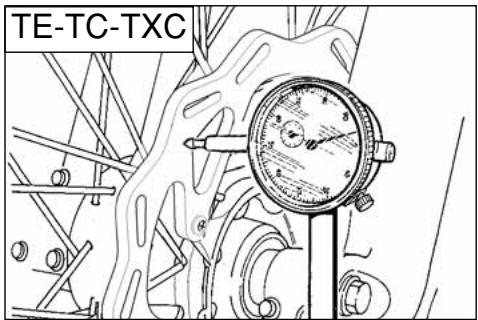

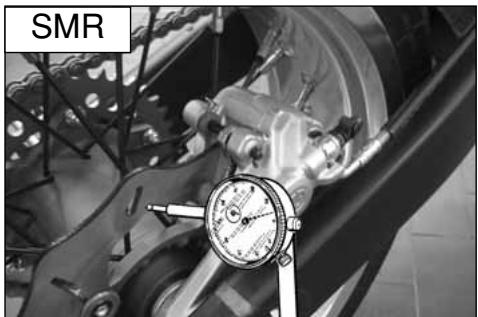

Close-up of a mechanical assembly with a dial indicator and brake caliper (no visible text or symbols)

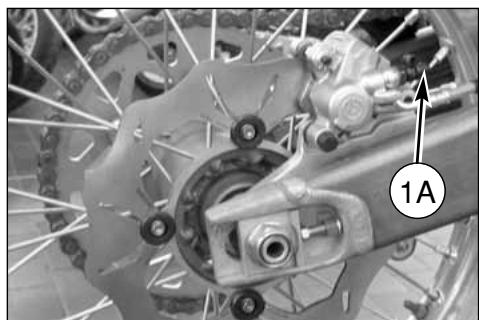

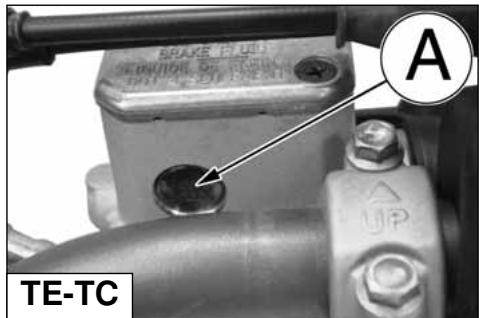

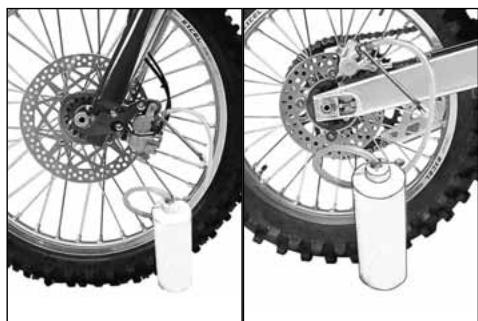

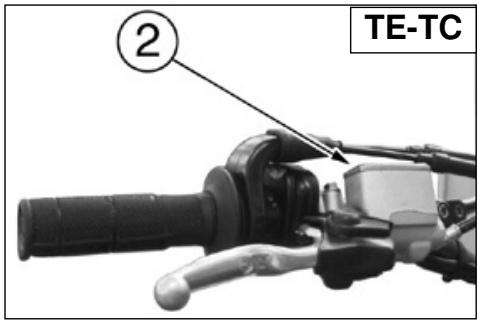

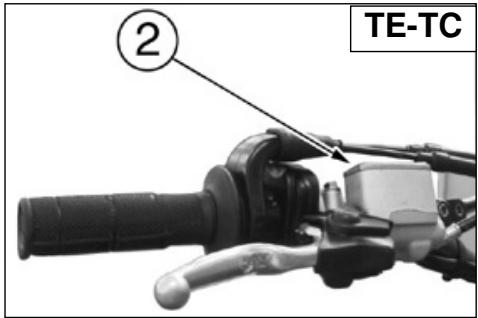

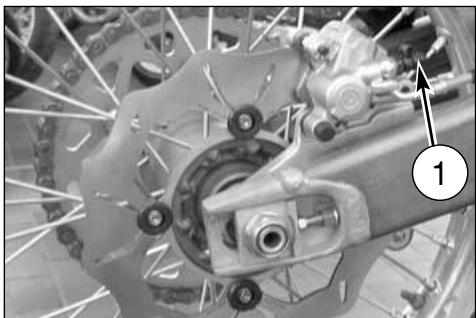

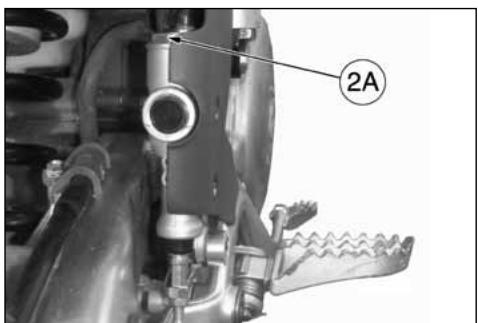

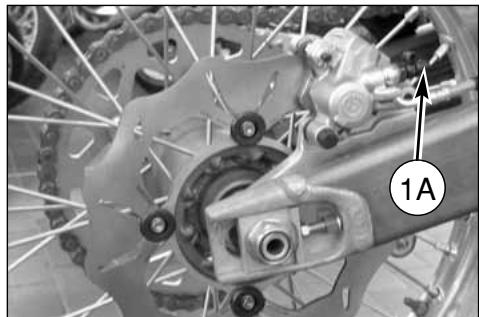

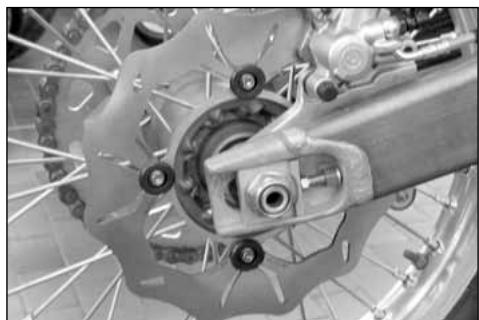

PULIZIA DISCO

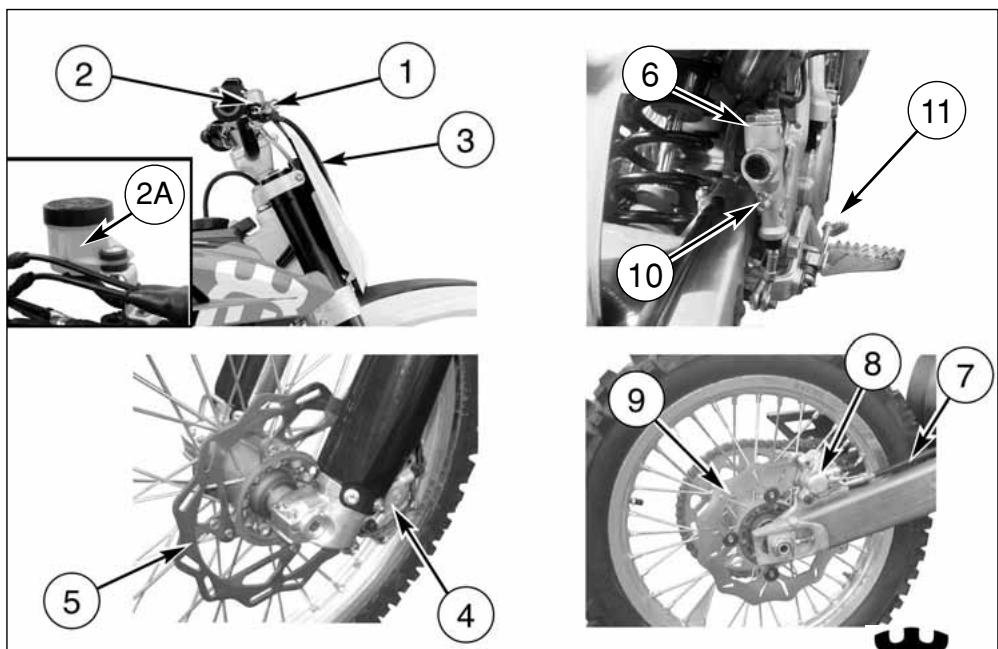

Close-up of a bicycle wheel assembly with visible mechanical components and mounting brackets (no text or symbols)

Close-up of a bicycle brake system with visible components and mounting brackets (no text or symbols)

Close-up of a bicycle brake system with labeled component (1), no visible text or symbols beyond the label.

Close-up of a bicycle brake system with labeled component (1A), no visible text or symbols beyond label

Two-panel image showing bicycle wheel assembly and mechanical components (no text or symbols visible)

② TE-TC

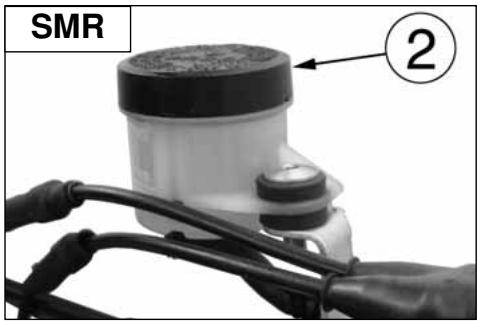

SMR ②

2A

Close-up of a mechanical lever handle and grip assembly (no visible text or symbols)

Close-up of a mechanical assembly with no visible text or symbols

BRATE FL SEMBOL 500000000000000000000000000000000000000000000000000000000000000000 A TE-TC

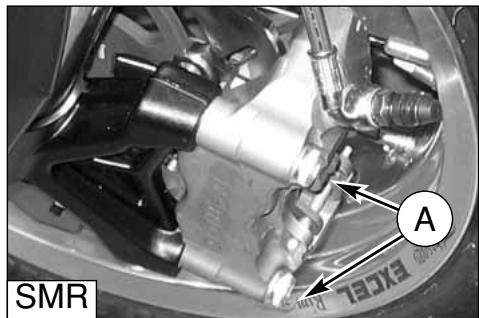

A SMR

Mechanical assembly diagram showing a valve and gear mechanism (no text or symbols)

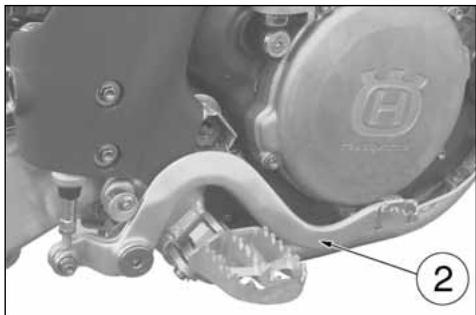

ATTENZIONE!

Close-up of a bicycle wheel with visible tire, disc, and gear assembly (no text or symbols)

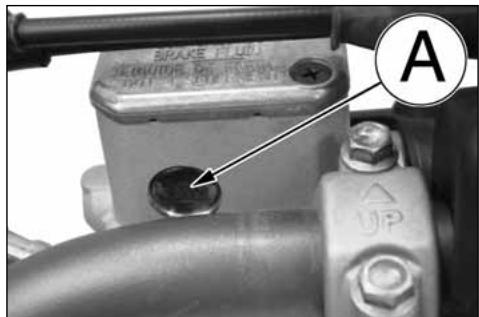

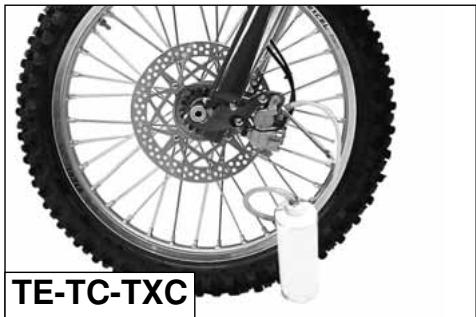

SPURGO IMPIANTO FRENANTE ANTERIORE (TE, TC)

Close-up of a bicycle wheel assembly with visible mechanical components and a numbered annotation (1) pointing to a specific part.

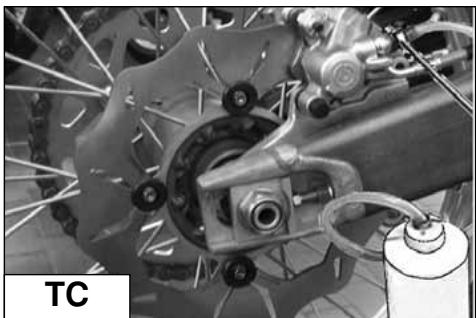

Close-up of a bicycle wheel with a tire and bucket, no visible text or symbols on the main subject

Labeled diagram of a mechanical device showing three numbered components: grip, lever, and handle.

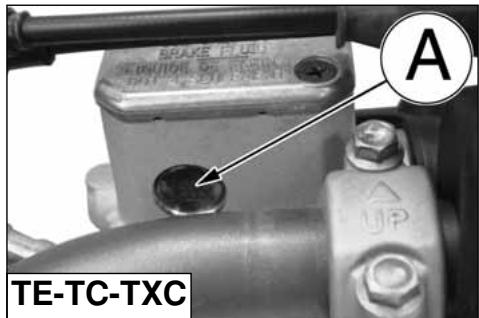

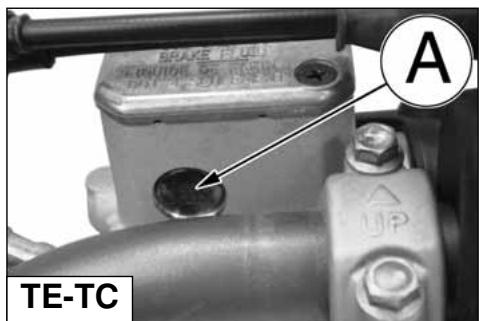

BRAKE 肉 LMD A UP

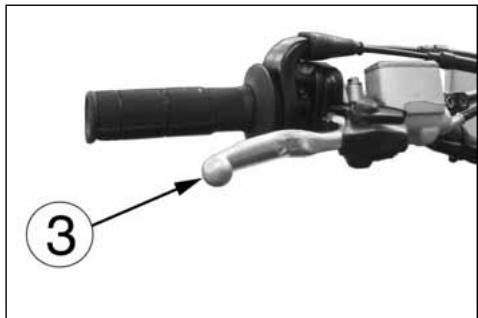

Close-up of a mechanical lever handle and grip assembly (no visible text or symbols)

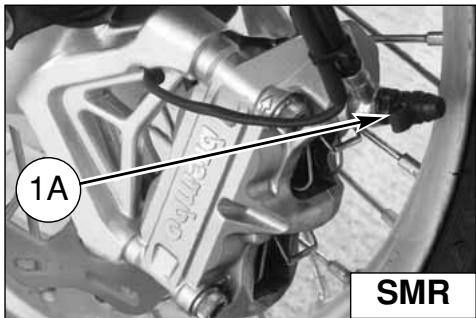

SPURGO IMPIANTO FRENANTE ANTERIORE (SMR)

Close-up of automotive electrical plug connectors (no visible text or symbols)

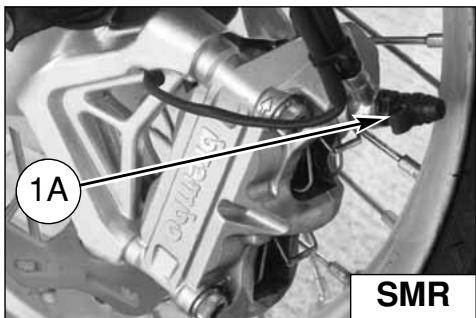

1A SMR

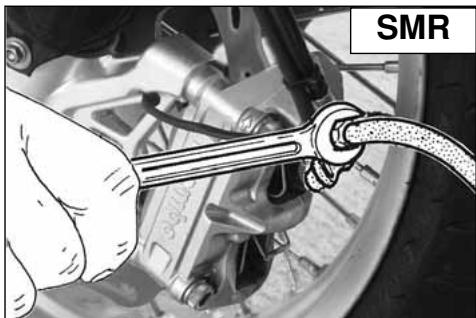

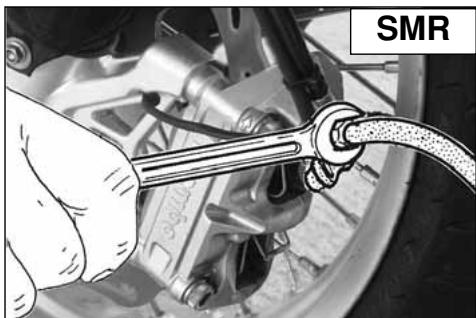

Close-up of a hand using a wrench to connect a motor tire with a cable labeled 'SMR' (no other text or symbols visible)

Close-up of a bicycle brake system with visible components and no text or symbols

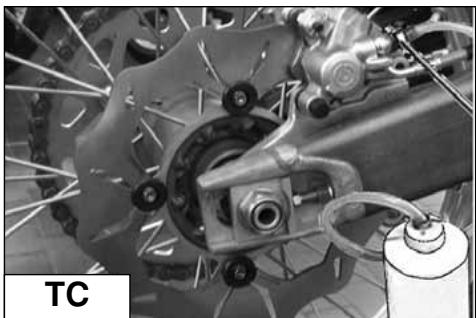

ATTENZIONE!

Close-up of a bicycle brake system with visible components and a labeled 'TC' (no text or symbols on the diagram itself)

Close-up of a mechanical assembly with no visible text or symbols

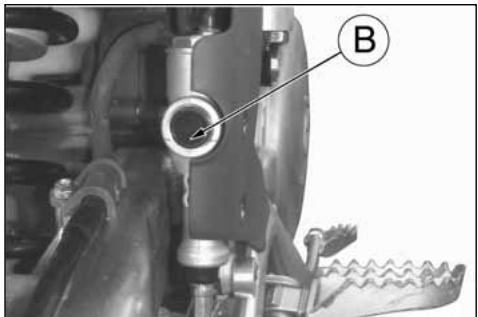

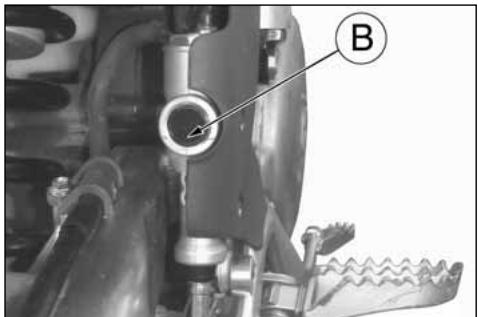

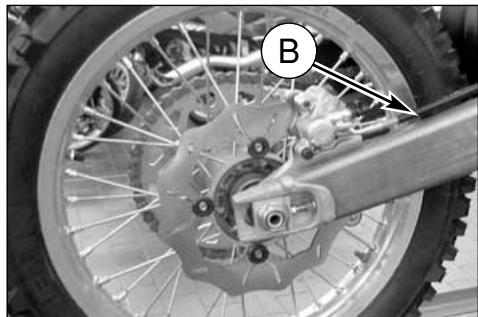

Mechanical component with labeled parts (B), no visible text or symbols beyond label

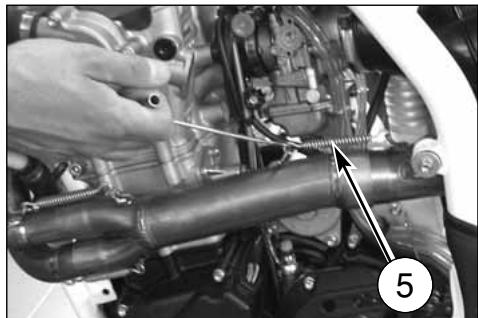

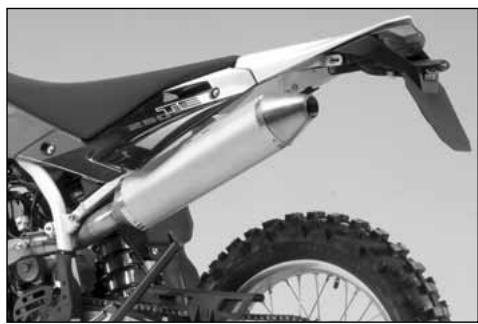

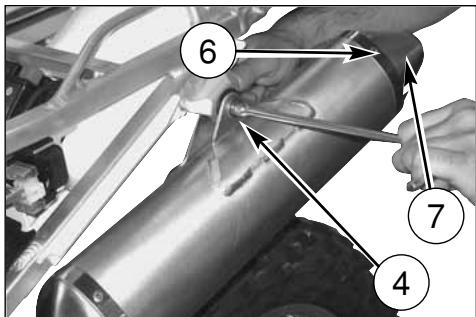

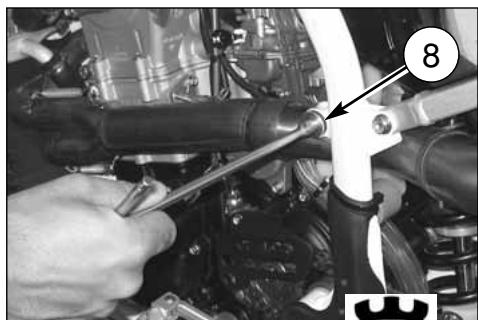

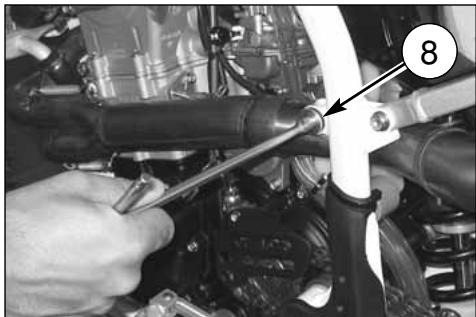

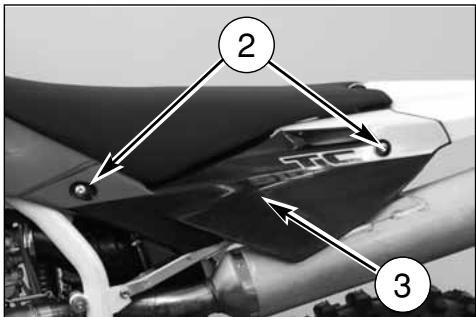

SILENZIATORE DI SCARICO (TC-TE-TXC)

Illustration of a mechanical component with motion lines and a numbered label (1), no readable text or symbols present.

2 3

Technical diagram showing numbered components of a mechanical assembly with arrows indicating parts of each step

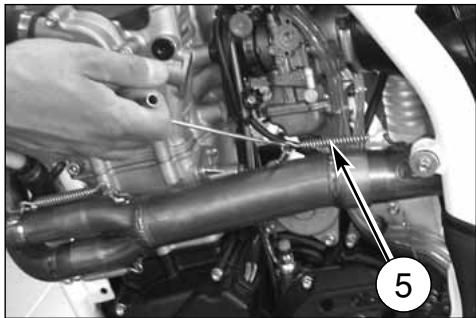

Close-up of a hand adjusting a mechanical engine component with a numbered arrow pointing to a section (no visible text or symbols)

Close-up of a mechanical assembly with a wrench tool inserted, showing components like gears and a numbered callout (no readable text or symbols)

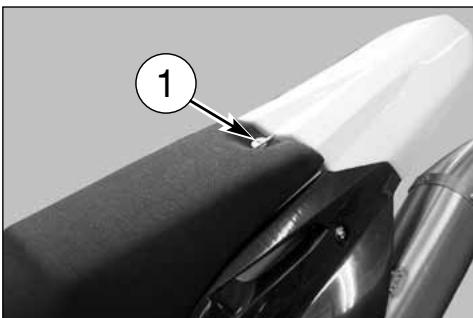

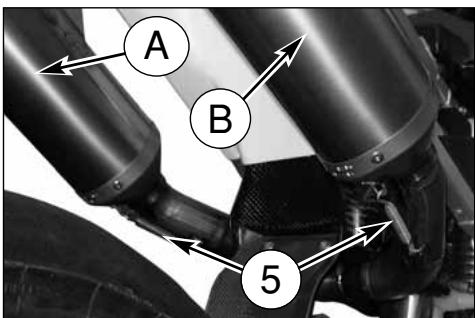

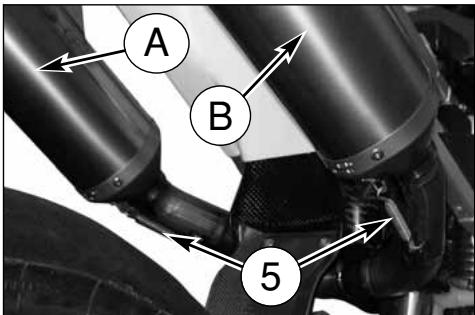

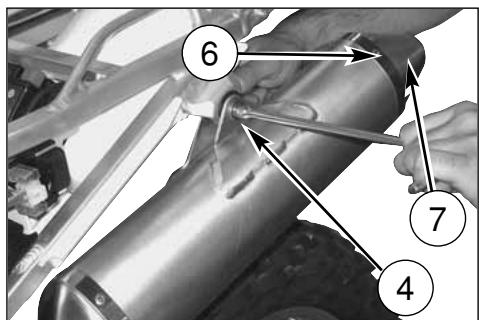

SILENZIATORE DI SCARICO (SMR)

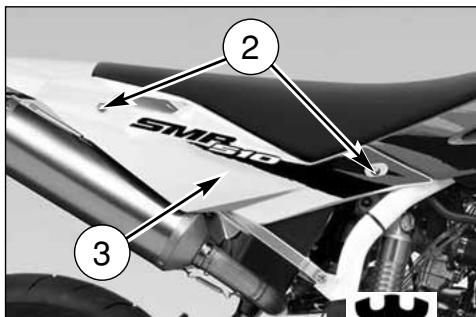

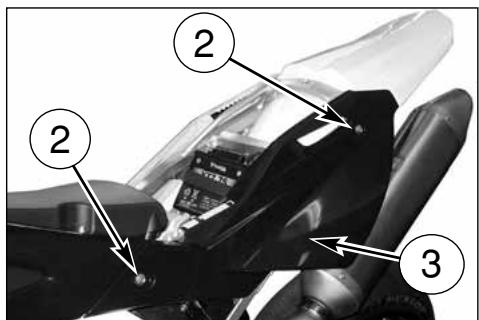

Labeled diagram of a motorcycle interior showing parts numbered 2 and 3 with arrows pointing to specific components.

6 7 4 B

Close-up of a car tire tread with a white plastic wrap, labeled with number 1 (no text or symbols on the object itself)

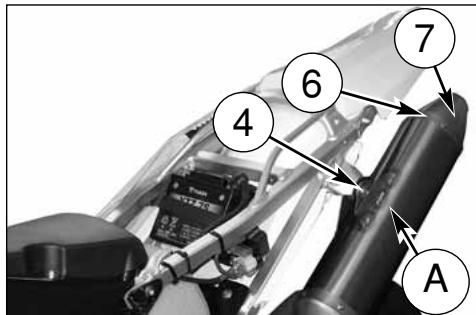

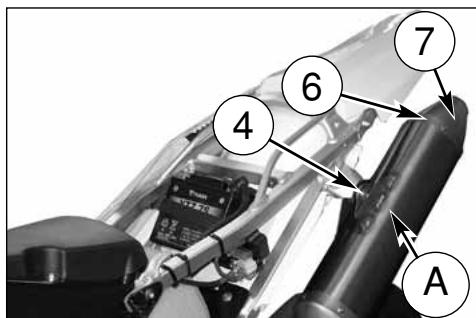

4 6 7 A

A B 5

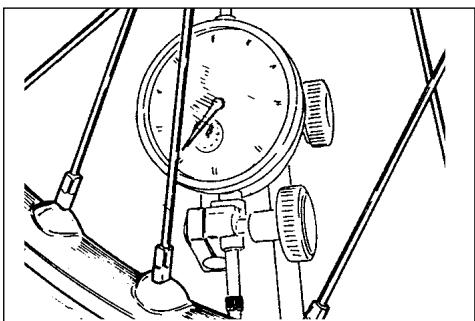

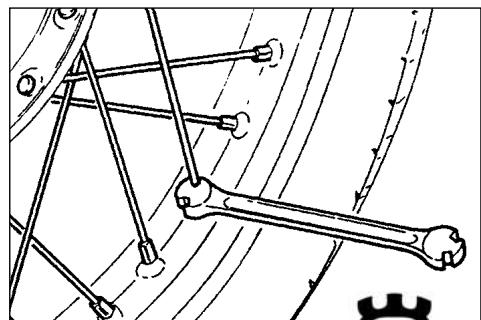

REVISIONE RUOTE

Technical line drawing of a mechanical gauge or dial assembly with no visible text or symbols

Technical line drawing of a pressure gauge mounted on a pipe fitting (no text or symbols)

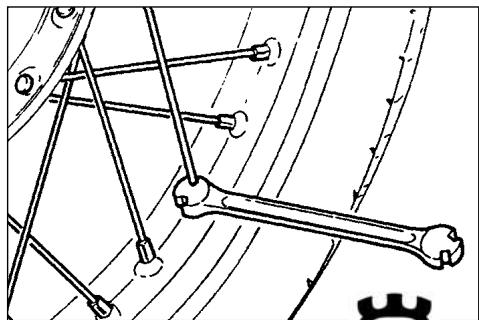

PIEGATURA PERNO RUOTA

Illustration of a hand using a dial indicator to measure a mechanical setup (no text or symbols present)

Mechanical linkage diagram showing a bone and connecting rods (no text or labels)

Mechanical assembly diagram showing components labeled 1 and 6, with no readable text or symbols beyond labels

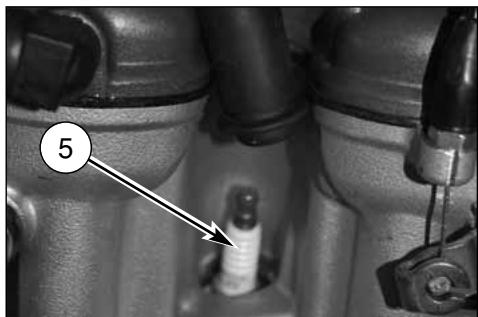

Close-up of a mechanical component with a numbered annotation (5) pointing to a small cylindrical feature, no readable text or symbols present.

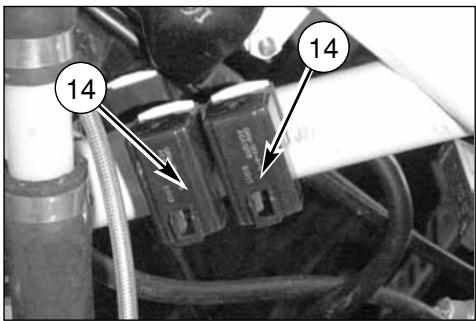

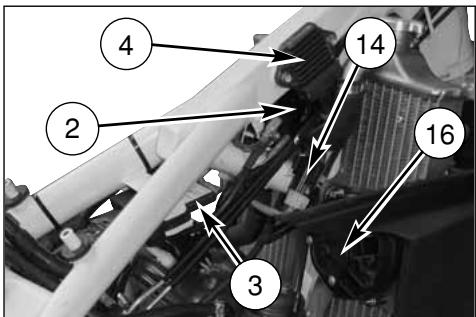

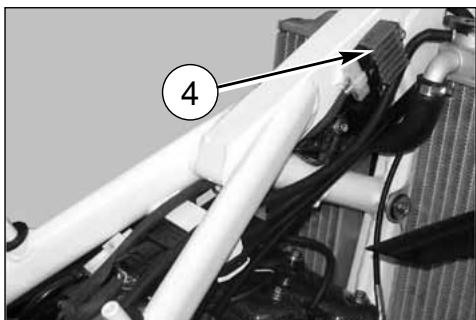

2 4 14 16 3

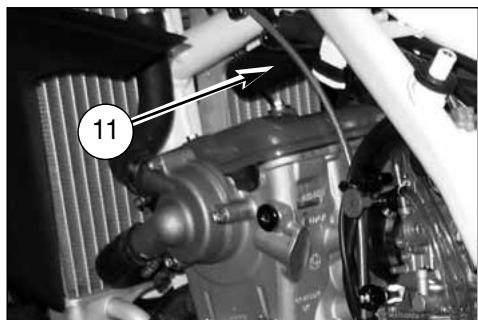

Close-up of a mechanical component with a numbered annotation (11) pointing to a specific part, no readable text or symbols present.

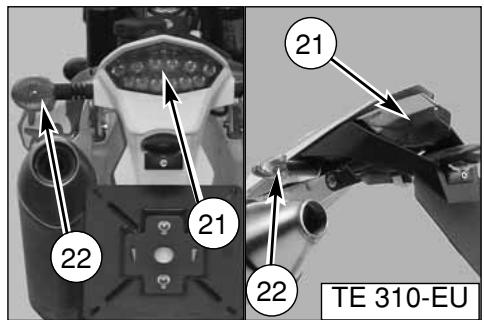

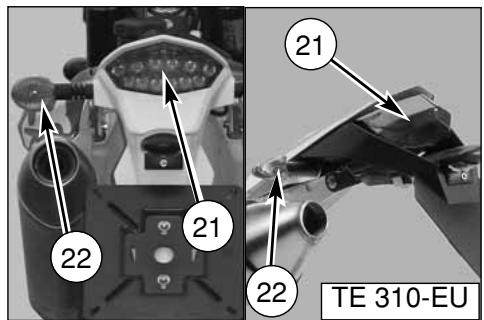

21 21 22 22 TE 310-EU

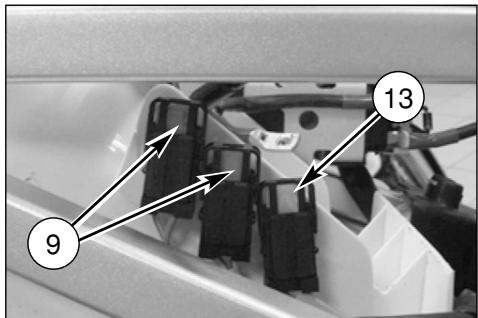

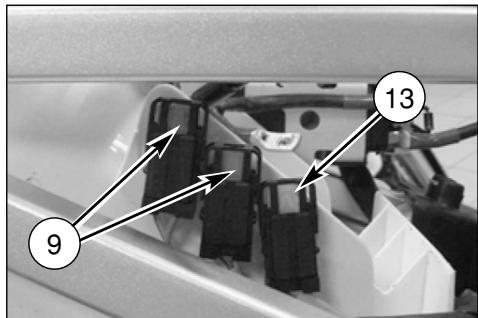

9 13

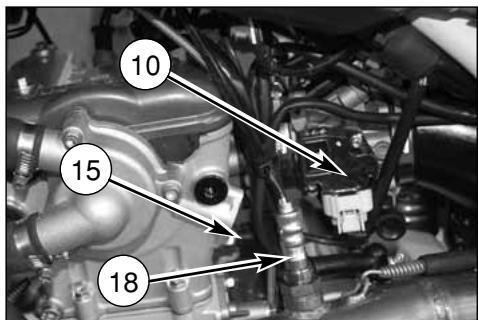

10 15 18

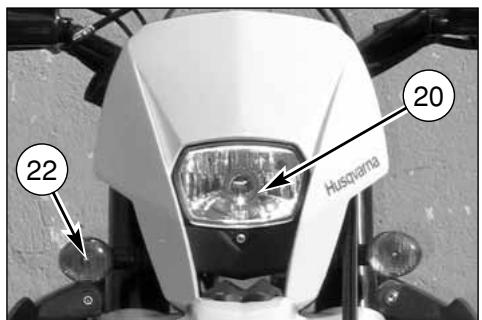

20 22 Husgrama

Close-up of a hand adjusting automotive engine components with a numbered annotation (19) and gear icon, no readable text or symbols beyond the number.

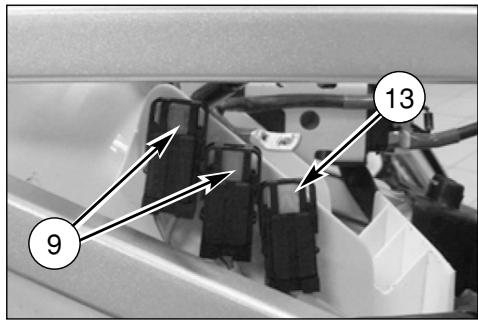

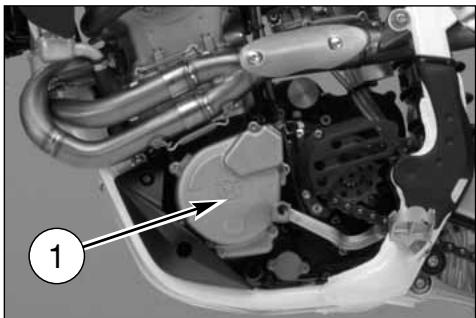

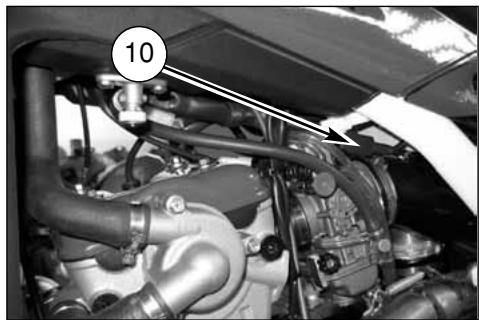

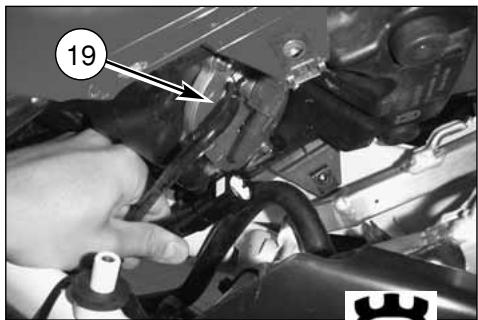

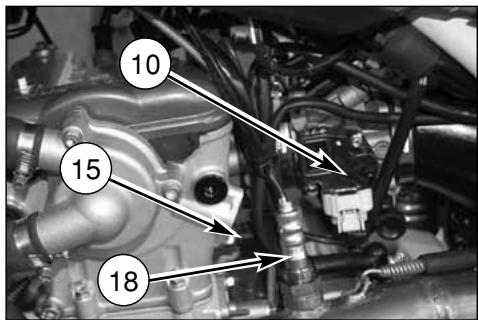

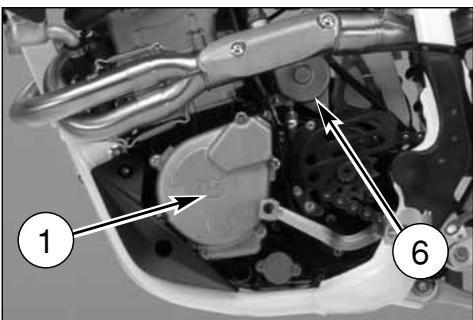

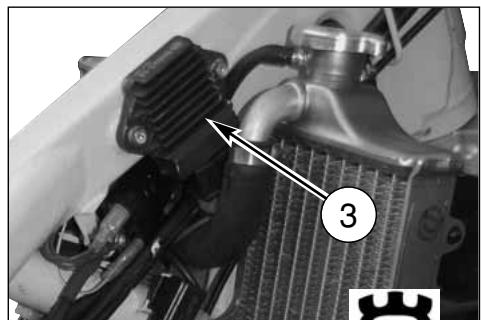

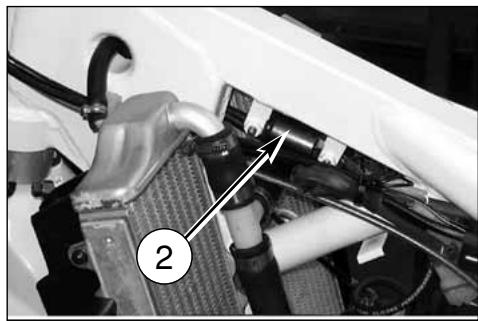

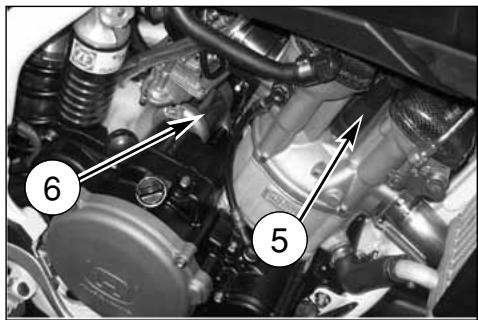

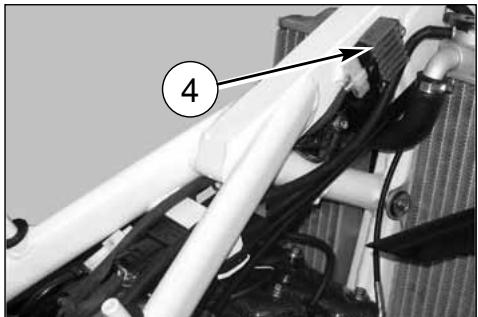

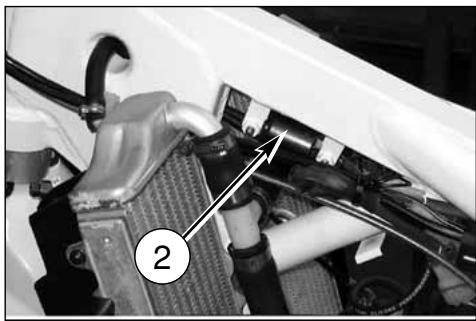

UBICAZIONE COMPONENTI ELETTRICI (TC-TXC)

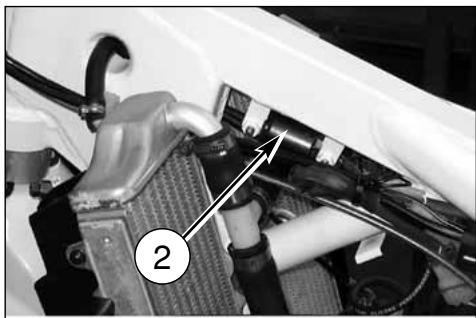

Close-up of a mechanical assembly with pipes and housing (no visible text or symbols)

Close-up of a car engine bay with visible hoses and components, no text or symbols present

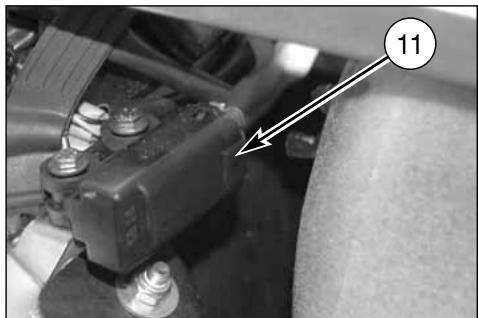

Close-up of a mechanical assembly with labeled component 11 (no readable text or symbols beyond label)

Close-up of a mechanical assembly with pipes and components, no visible text or symbols

Close-up of a mechanical assembly with pipes and valves, no visible text or symbols

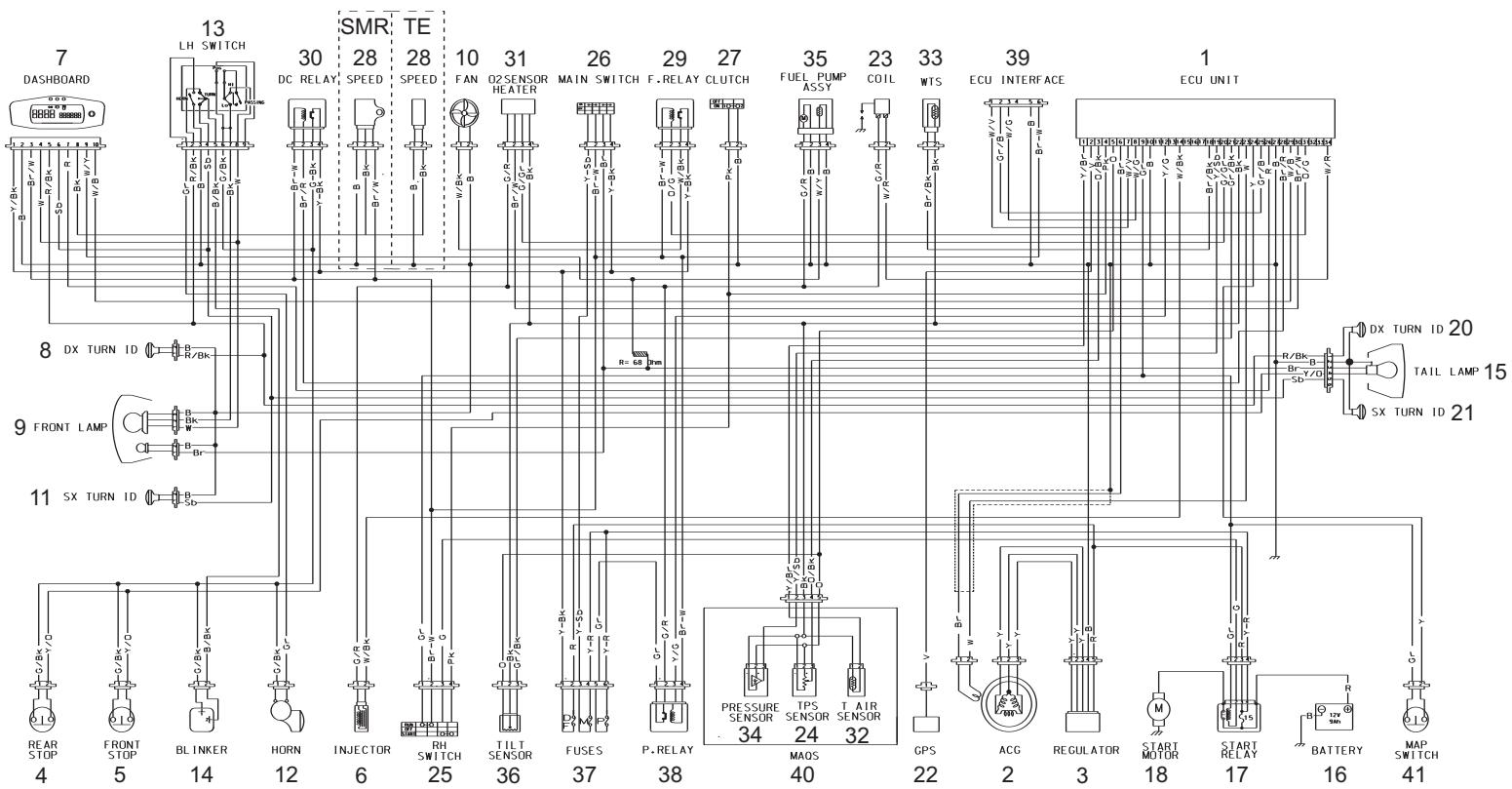

Technical diagram of an automotive engine showing labeled components with numbered annotations

Close-up of an internal combustion engine bay with visible hoses and components (no text or symbols)

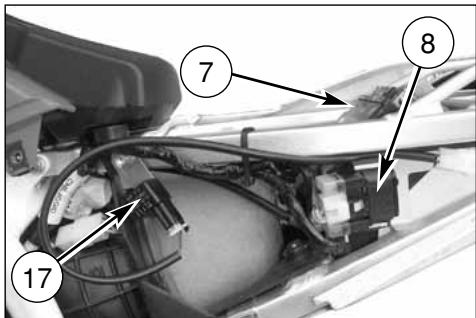

8 7 9

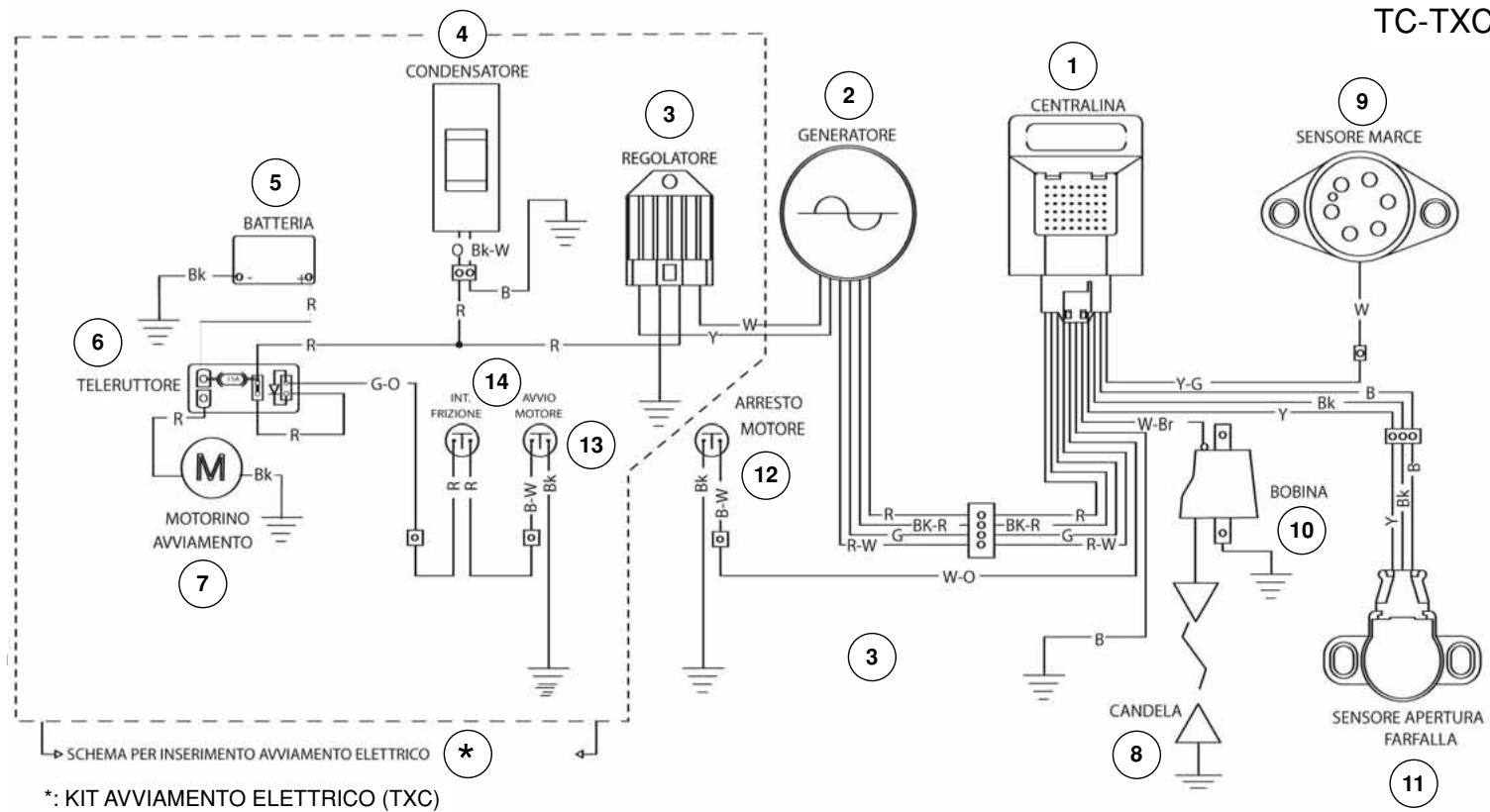

Legenda colore cavi

B	Blu
B/Bk	Blu/Nero
Bk	Nero
Br	Marrone
Br/Bk	Marrone/Nero
Br/R	Marrone/Rosso
Br/W	Marrone/Bianco
G	Verde
G/Bk	Verde/Nero
G/Gr	Verde/Grigio
G/R	Verde/Rosso
Gr	Grigio
Gr/B	Grigio/Blu
Gr/Bk	Grigio/Nero
O	Arancio
O/Bk	Arancio/Nero
O/G	Arancio/Verde
Pk	Rosa

Labeled mechanical assembly diagram showing components 2, 3, 4, and 5 with magnified views

Front view of a motorcycle's front wheel and side-mounted sensors (no visible text or symbols)

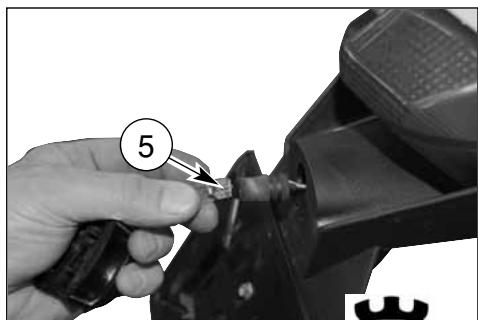

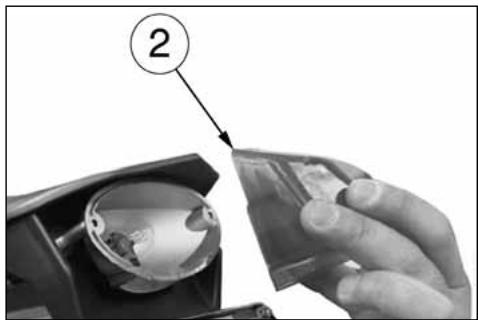

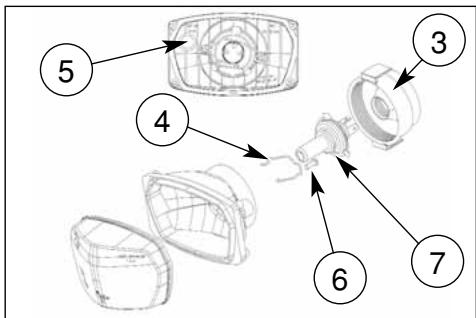

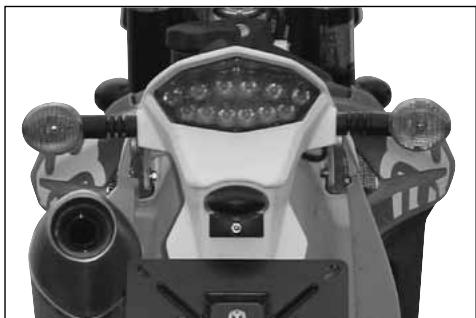

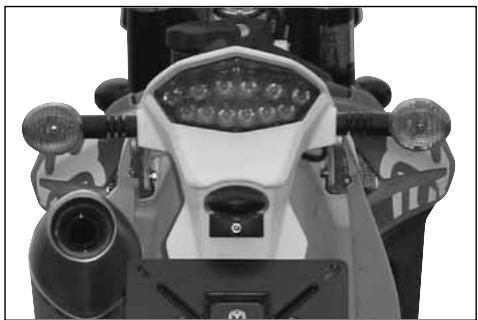

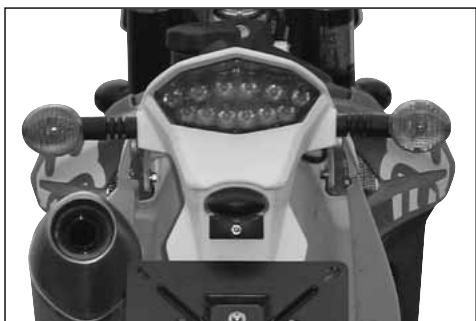

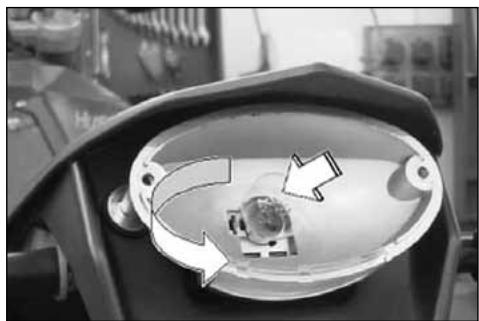

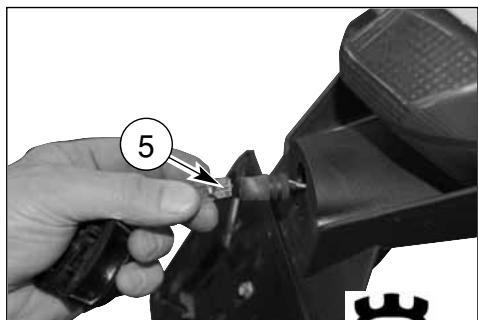

SOSTITUZIONE LAMPADA FANALE POSTERIORE (TE 310 Europa)

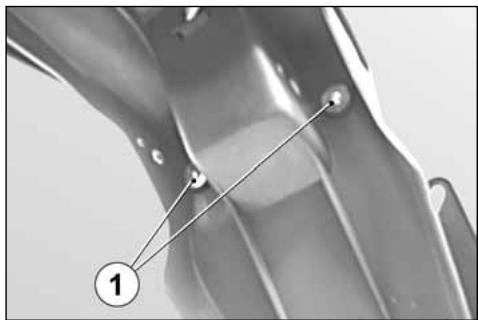

Close-up of a metal bracket with two marked points and connecting lines, no visible text or symbols

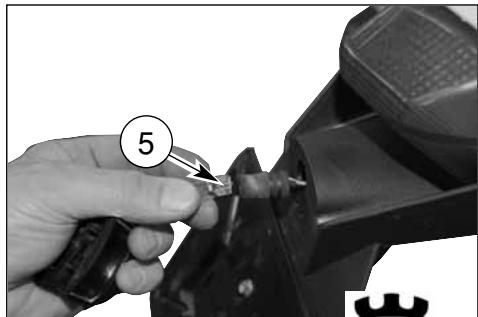

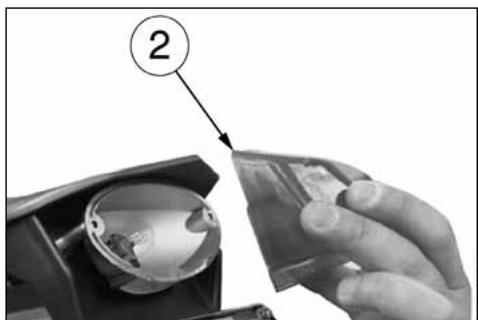

Close-up of a hand holding a small object with a numbered label (2) pointing to a transparent container (no text or symbols on the object itself)

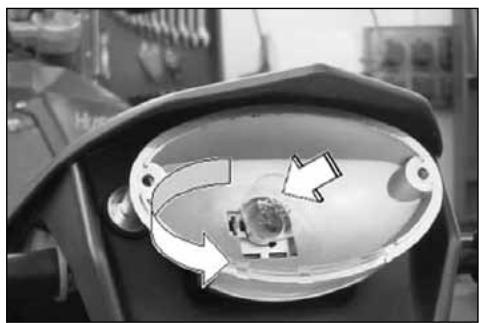

Close-up of a mechanical component with internal components and directional arrows (no visible text or symbols)

3

Close-up of a mechanical component with a numbered label (4) pointing to a small feature, no readable text or symbols present.

Close-up of a hand using a tool to cut a mechanical component, labeled with number 5 (no text or symbols on the object itself)

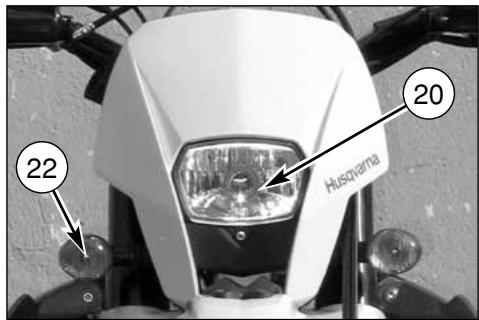

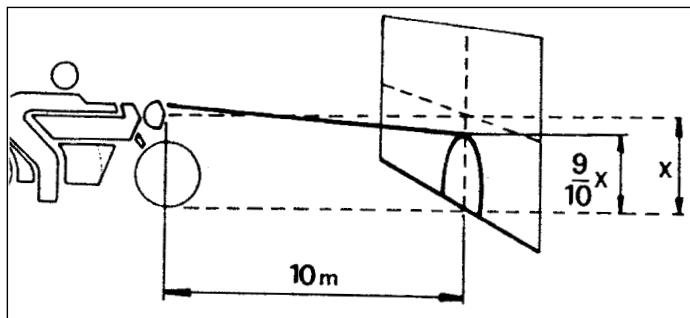

REGISTRAZIONE FANALE ANTERIORE (TE- SMR)

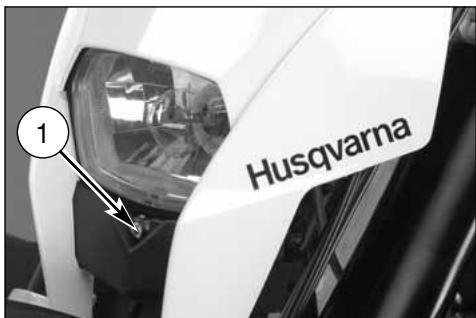

Technical diagram of automotive component assembly with numbered parts and exploded views

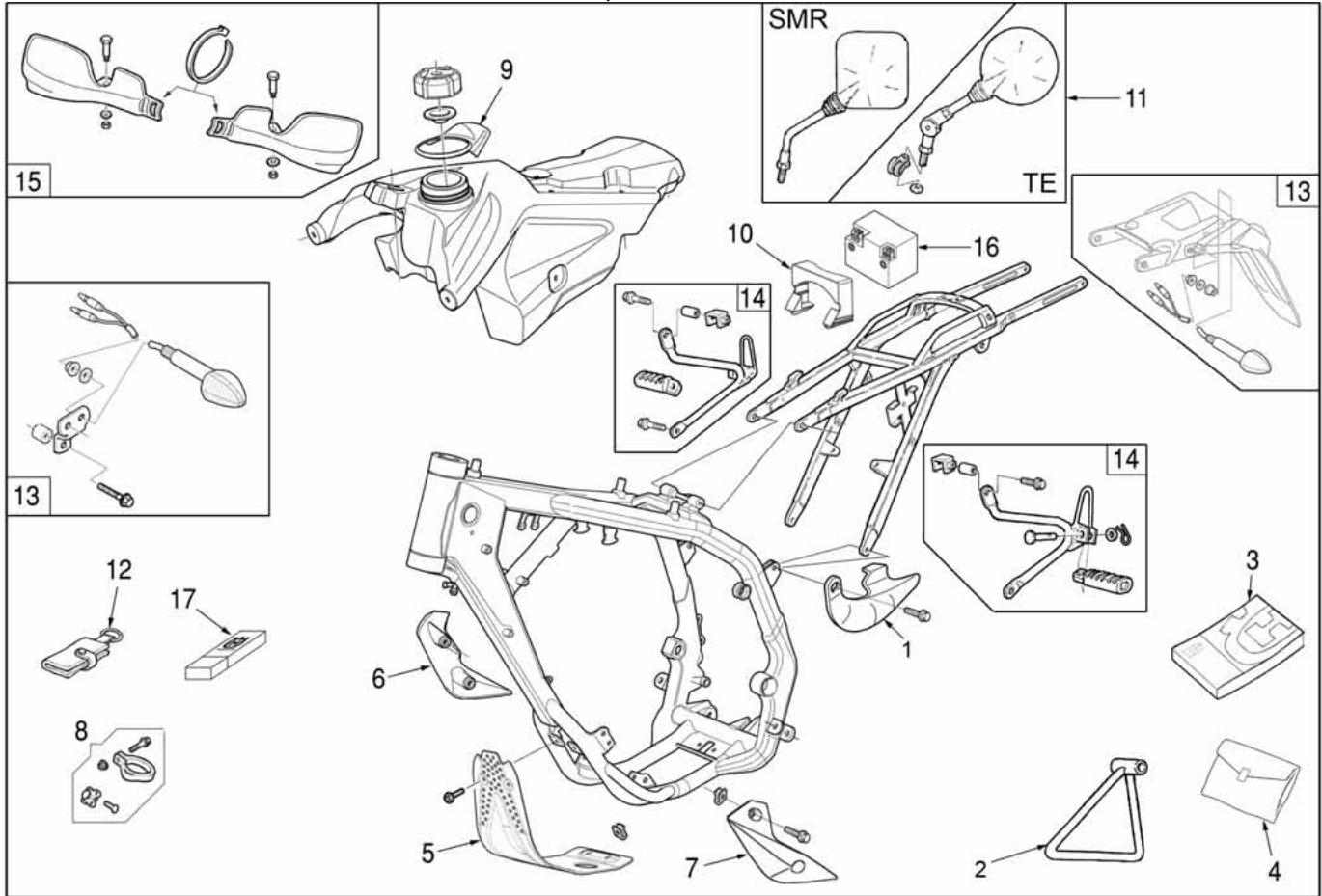

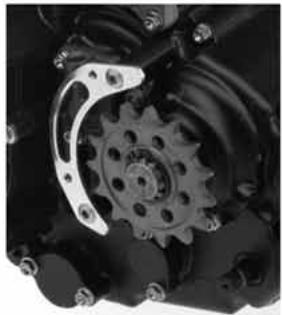

PARTI OPTIONAL (TE)

Pos.	N. Codice	DENOMINAZIONE	MODELLI
1*	8A0096837	CORONA DENTATA Z=47 (1)	310
	8B0096837	CORONA DENTATA Z=48 (1)	310-450-510
	8C0096837	CORONA DENTATA Z=49 (1)	310-450-510
	8D0096837	CORONA DENTATA Z=50 (1)	450-510
2*	800063829	PIGNONE USCITA CAMBIO Z=14 (1)	310-450-510
	800063827	PIGNONE USCITA CAMBIO Z=12 (1)	310-450-510
	800063830	PIGNONE USCITA CAMBIO Z=15 (1)	310-450-510
3*	8000H0772	ASS.PORTATARGA RACING (1)	310-450-510
4	8000H0503	KIT GUARNIZIONI MOTORE (1)	310
	8000H0942	KIT GUARNIZIONI MOTORE (1)	450-510
5	8000B0373	KIT ANELLI TENUTA MOTORE (1)	310
	8000B0364	KIT ANELLI TENUTA MOTORE (1)	450-510
6	800098504	MOLLA AMMORTIZZATORE (K=5,4 Kg/mm) (1)	450-510
	8000H0076	MOLLA AMMORTIZZATORE (K=5,6 Kg/mm) (1)	310
7*	8000H0590	PULSANTE DOPPIA MODALITÀ (1)	310-450-510

PARTI OPTIONAL (TC)

Pos.	N. Codice	DENOMINAZIONE	MODELLI
1	8A0096837	CORONA DENTATA Z=47 (1)	450
	8B0096837	CORONA DENTATA Z=48 (1)	450
	8C0096837	CORONA DENTATA Z=49 (1)	450
2	800063827	PIGNONE USCITA CAMBIO Z=12 (1)	450
	800063828	PIGNONE USCITA CAMBIO Z=13 (1)	450
	800063830	PIGNONE USCITA CAMBIO Z=15 (1)	450
4	8000H0943	KIT GUARNIZIONI MOTORE (1)	450
5	8000A5736	KIT ANELLI TENUTA MOTORE (1)	450
6	800098504	MOLLA AMMORTIZZATORE (K=5,4 Kg/mm) (1)	450

PARTI OPTIONAL (SMR)

Pos.	N. Codice	DENOMINAZIONE	MODELLI
1*	8A00A4859	CORONA DENTATA Z=43	450-510
	8B00A4859	CORONA DENTATA Z=44	450-510
	8G00A4859	CORONA DENTATA Z=45	450-510
2*	800063829	PIGNONE USCITA CAMBIO Z=14	450-510
3*	8000H0772	ASS.PORTATARGA RACING (1)	450-510
4	8000A5982	KIT GUARNIZIONI MOTORE	450-510
5	8000B0364	KIT ANELLI TENUTA MOTORE	450-510
8	8000B0591	KIT AVVIAMENTO A PEDALE	450-510

PARTI OPTIONAL

Close-up of a bicycle's wheel and gear assembly (no visible text or symbols)

1

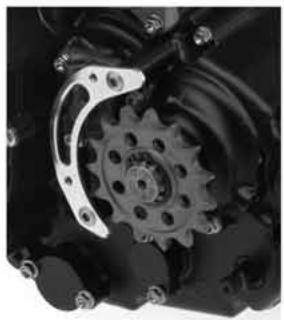

Close-up of a mechanical gear assembly with no visible text or symbols

2

Black plastic mug with attached straps and a handle, accompanied by four small metallic clips (no text or symbols visible)

3

Two hand-drawn rectangular objects with numbers 4 and 5, no text or symbols present

Close-up of a mechanical spring and cylindrical component (no visible text or symbols)

6

Coiled black electrical connector with terminal block (no text or symbols visible)

7

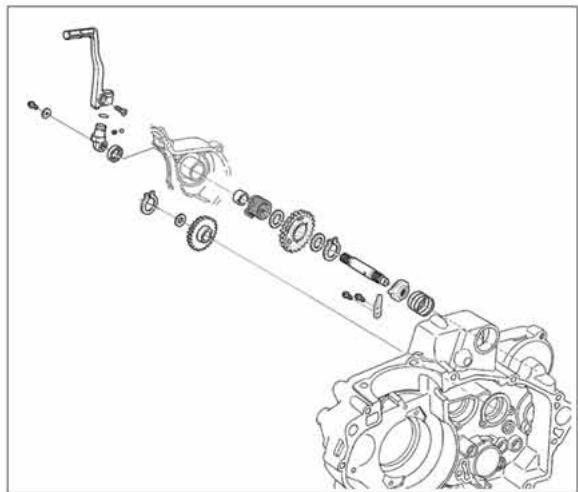

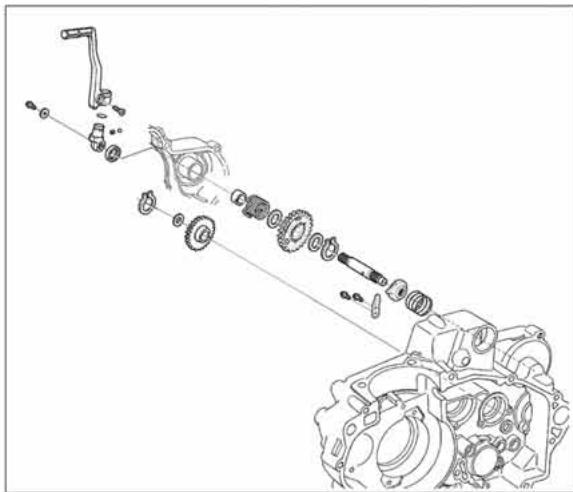

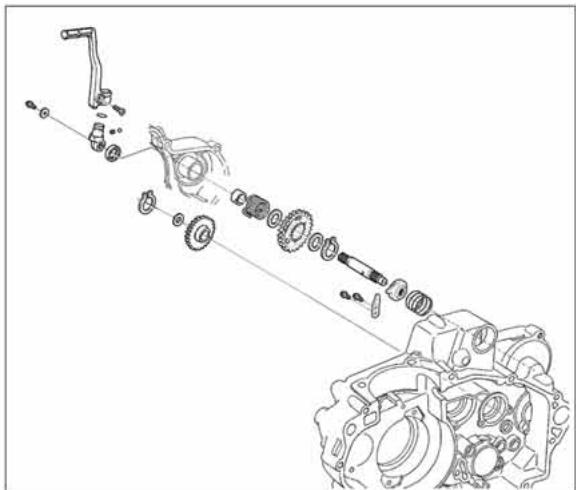

Exploded view diagram of a mechanical assembly showing internal components and parts (no text or labels)

8

APPENDICE

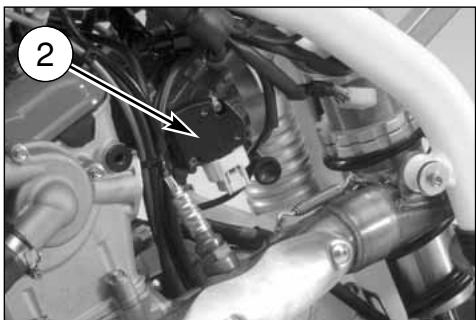

VERIFICHE DOPO LA GARA

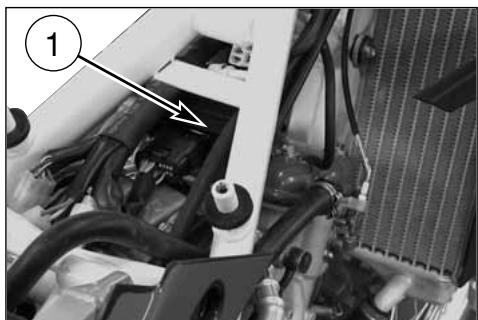

Mechanical assembly diagram showing a cam mechanism with numbered parts (1 and 2), no readable text or symbols present.

Close-up of a car engine bay with visible hoses and components, no text or symbols present

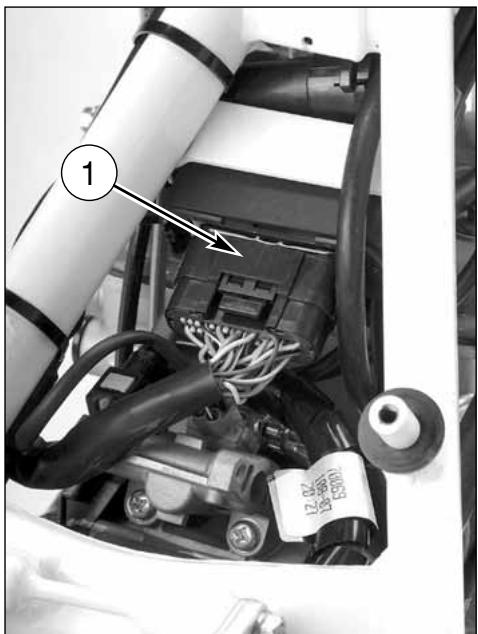

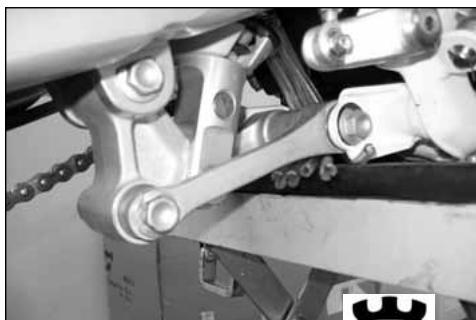

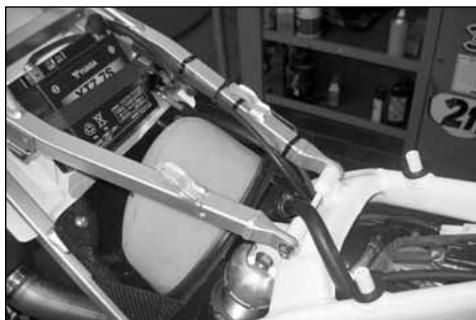

RACCOMANDAZIONE IMPORTANTE

Side profile of a semi-truck with visible tire, suspension, and mechanical components (no text or symbols)

Close-up of a mechanical lever with 'Husqvarna' branding, no visible text or symbols on the device itself.

Close-up of a motorcycle's engine compartment with visible hoses and components (no text or symbols)

Close-up of a Husqvarna electric shaver tool on a workbench (no visible text or symbols beyond brand name)

Close-up of a motorcycle's front wheel and suspension system (no visible text or symbols)

Close-up of mechanical components including chains and gears (no visible text or symbols)

Close-up of a bicycle's wheel and track gear assembly (no visible text or symbols)

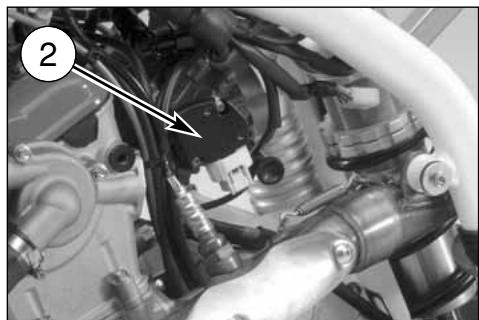

Close-up of a mechanical engine component with hoses and a numbered annotation (2), no readable text or symbols present.

Close-up of a car's brake system showing wheel, gear, and suspension components (no text or symbols visible)

Close-up of an automotive electrical connector with visible wiring and components (no text or symbols)

Welcome to the Husqvarna motorcycling Family!

Your new Husqvarna motorcycle is designed and manufactured to be the finest in its field.

The instructions in this book have been prepared to provide a simple and understandable guide for your motorcycle's operation and care.

Follow the instructions carefully to obtain maximum performance and your personal motorcycling pleasure. Your owner's manual contains instructions for owner care and maintenance.

The main work of repair or maintenance requires the attention of a skilled mechanic and the use of special tools and equipment.

Your Husqvarna dealer has the facilities, experience and original parts necessary to properly render this valuable service.

This "Owner's Manual" is part and parcel of the motorcycle, hence, this had to remain with the motorcycle even when sold to another user.

This motorcycle uses components designed thanks to systems and state of the art technologies which are thereafter tested in competition.

In competition motorcycles, every detail is verified after each race in order to always guarantee better performance. For correct functioning of the vehicle, it is necessary to follow the maintenance and control table found on Appendix A.

IMPORTANT NOTICES

1) The TC and TXC models are guaranteed COMPETITION motorcycles exempt from functional defects, the suggested maintenance table for competition use is shown on Appendix A.

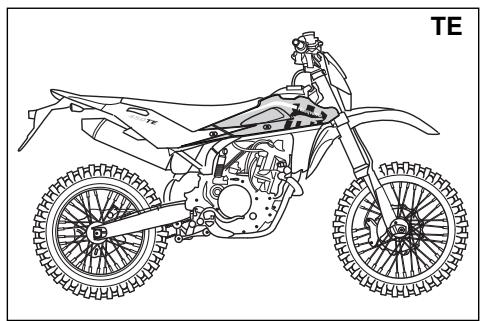

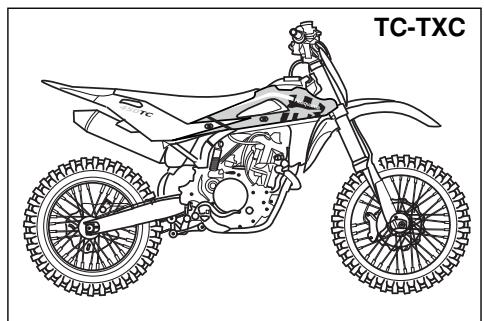

Line drawing of a four-wheeled dirt bike with visible tracks, wheels, and engine components (no text or symbols)

MOTOCROSS

Black-and-white photo of a person riding a bicycle with motion blur (no text or symbols visible)

2) TE and SMR are STREET LEGAL motorcycles (with LIMITED POWER ENGINE); they are guaranteed exempt from functional defects and covered with legal guarantee, if the STANDARD CONFIGURATION is maintained and the suggested maintenance table, shown on Appendix A (page A8) is observed.

If TE and SMR are transformed in COMPETITION MOTORCYCLES (with FULL POWER ENGINE), the suggested maintenance table for competition use is shown on Appendix A.

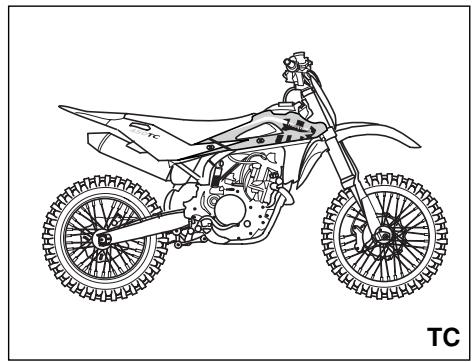

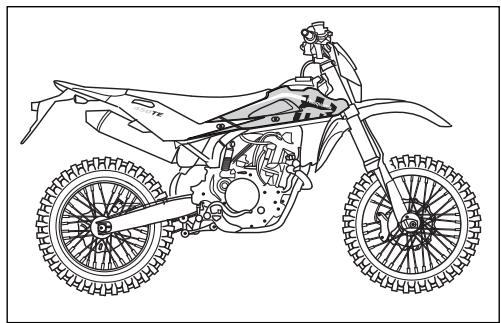

Line drawing of a D40 motorcycle with visible suspension rings and wheels (no text or symbols)

ENDURO

Black-and-white photo of a dirter mid-jump on a motorcycle in a mountainous outdoor setting (no visible text or symbols)

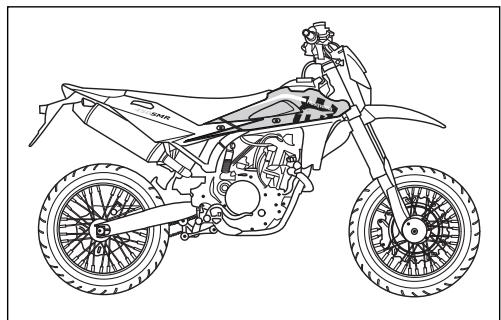

Line drawing of a four-wheeled motorcycle with visible engine, wheels, and suspension components (no text or labels)

SUPERMOTARD

Black-and-white photo of a motorcyclist in motion on a paved track (no visible text or symbols)

IMPORTANT

The reference for recognition of the guarantee will be the MOTORCYCLE CONFIGURATION, as shown below:

A) STANDARD MOTORCYCLE, STREET LEGAL: with LIMITED POWER ENGINE
B) COMPETITION MOTORCYCLE, RACING USE: with FULL POWER ENGINE

This motorcycles was not designed for long trips with the engine always at maximum rpm as can occur whilst travelling on roads or highways. Long trips at full throttle can cause severe damage to the engine. This motorcycles is setup for competition use and therefore guarantees maximum performance with the rider alone. It is thereby not recommended to use the vehicle on circuits or off-road with a passenger.

ALWAYS keep in mind that these motorcycles have been designed strictly for competition use, that is, for conditions of usage very different from those presented on the road.

ALWAYS keep in mind that these motorcycles have been designed strictly for competition use, that is, for conditions of usage very different from those presented on the road.

In order to maintain the vehicle's "Guarantee of Functionality", the client must follow the maintenance program indicated in the user's manual by carrying out maintenance checks at authorized HUSQVARNA dealers. The cost for substituting parts and for the labour necessary in order to respect the maintenance plan, is charged to the client.

NOTE: the guarantee is EXTINGUISHED in the case where the motorcycle is rented.

Important Notice

Read this manual carefully and pay special attention to statements preceded by the following words:

Warning*: Indicates a possibility of severe personal injury or loss of life if instructions are not followed.

Caution*: Indicates a possibility of personal injury or equipment damage if instructions are not followed.

Note*: Gives helpful information.

Parts Replacement

When parts replacement is required, use only Husqvarna ORIGINAL parts.

Warning*: After an upset, inspect the motorcycle carefully. Make sure that the throttle, brake, clutch and all other systems are undamaged. Riding with a damaged motorcycle can lead to a serious crash.

Warning*: Never attempt to start or operate your motorcycle unless you are wearing appropriate protective clothing. Always wear a motorcycle helmet, motorcycle boots, gloves, goggles and other appropriate protective clothing.

Warning*: This motorcycle is a state of the art competition bike. Do not attempt to start or ride this motorcycle until you have received expert instruction and are in excellent physical condition.

PRECAUTIONS FOR CHILDREN WARNING

● Park the vehicle where it is unlikely to be bumped into or damaged. Even slight or involuntary bumps can cause the vehicle to topple over, with subsequent risk of serious harm to people or children.
● To prevent the vehicle from tipping over, never park it on soft or uneven ground, nor on asphalt strongly heated by the sun.
● Engine and exhaust pipes become very hot during riding. Always park your motorcycle where people or children can not easily reach these parts, in order to avoid serious burns.

TABLE OF CONTENTS Page

PRESENTATION 2

IMPORTANT NOTICES 2

IDENTIFICATION DATA....5

TECHNICAL DATA 8

LUBRICATION TABLE, SUPPLIES....10

CONTROLS....11

RIDING....20

IGNITION SYSTEM/ELETTRICAL SYSTEM....70-77

EQUIPMENT 84-85

OPTIONAL PARTS LIST 86-87

APPENDIX 88

PRE-DELIVERY INSPECTION....91

NOTE FOR USA/CDN- AUS MODELS....92-95

ALPHABETICAL INDEX......96

PERIODIC MAINTENANCE -ADJUSTMENT ......Appendix A

Note

● References to the "left" or "right" of the motorcycle are in the sense of a person facing forwards.

● Z: number of teeth

A: Austria

AUS: Australia

B: Belgium

BR: Brazil

CDN: Canada

CH: Switzerland

D: Germany

E: Spain

F: France

FIN: Finland

GB: Great Britain

I: Italy

J: Japan

USA: United States of America

● Where not specified, all the data and the instructions are referred to any and all Countries.

VEHICLE IDENTIFICATION NUMBER (V.I.N.)

The full 17 digit serial, or Vehicle Identification Number, is stamped on the steering head tube (R.H. side).

TE 510 ZKHA2 03AA Model designation Sequential number (+) A V 000001 T Model year (2010)(●)

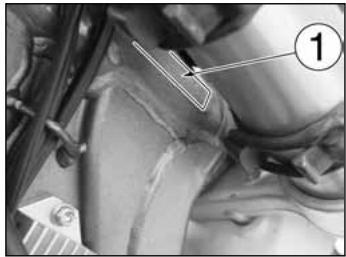

Close-up of a mechanical component with a numbered label (1) pointing to a feature, no readable text or symbols present.

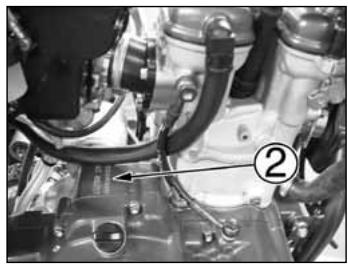

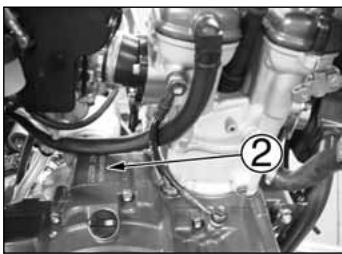

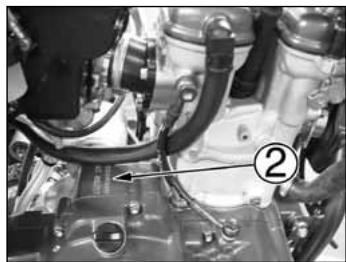

Close-up of an engine component with visible hoses and a numbered annotation (②), no readable text or symbols present.

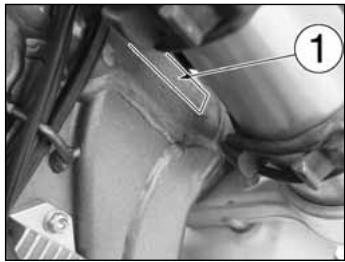

1. Frame serial number

2. Engine serial number

5

(*): Progressiv nr.

(●): Year of the model

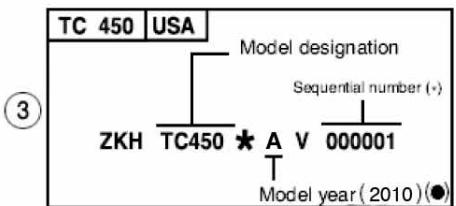

VEHICLE IDENTIFICATION NUMBER (V.I.N.)

The full 17 digit serial, or Vehicle Identification Number, is stamped on the steering head tube (R.H. side).


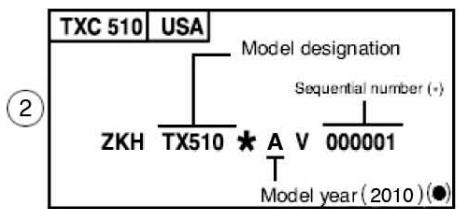

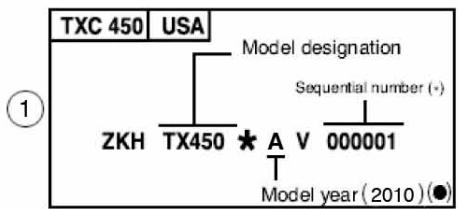

    A["TXC 450"] --> B["USA"]
    B --> C["Model designation"]
    C --> D["Sequential number (+)"]
    D --> E["ZKH TX450"]
    E --> F["A V 000001"]
    F --> G["Model year (2010) (●)"]

Close-up mechanical component with labeled part (1), no visible text or symbols

Close-up of a mechanical assembly with hoses and components, no visible text or symbols

1. Frame serial number

2. Engine serial number

(*): Progressiv nr.

(●): Year of the model

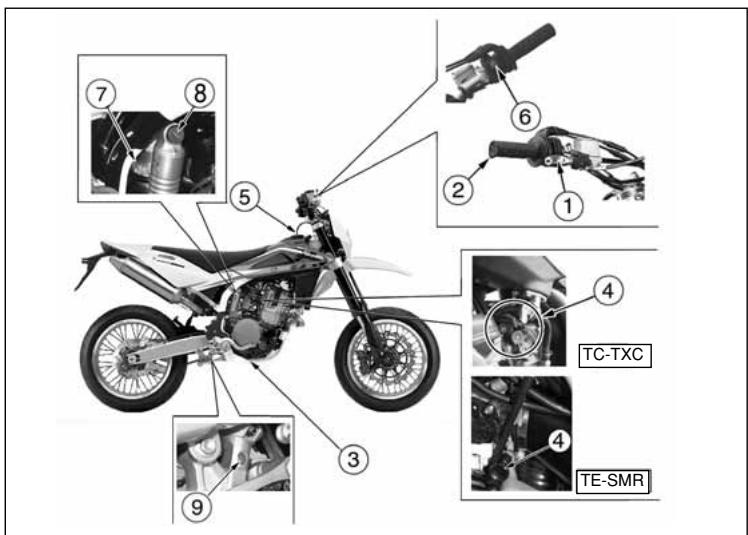

Control location

1. Front brake lever
2. Throttle grip
3. Rear brake control pedal
4. Choke (L.H. side)
5. Fuel tank filler cap
6. R.H. commutator (engine electric start)
   7.Rear shock absorber spring preload adjustment
7. Rear shock absorber compression damper adjustment (low and high damping speeds)

8. Rear shock absorber extension damper adjustment

9. L.H. commutator (TE, SMR)

10. Engine stop button (TC-TXC)
11. Clutch control lever
12. Fuel cock (TC-TXC)
13. Gearbox control pedal
14. Air bleeding screw on front fork leg
15. Compression damper adjustment (front fork leg bottom side)
16. Extension damper adjustment (front fork leg top side)

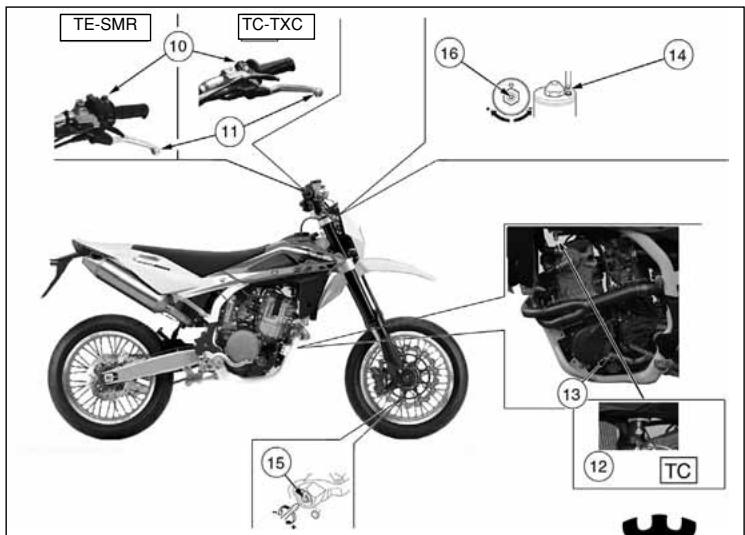

Labeled diagram of a motorcycle showing numbered parts with annotations for engine, brake, and engine assembly.

TE-SMR 10 TC-TXC 11 16 14 13 12 TC 15

TECHNICAL DATA

ENGINE

Type ....single cylinder, 4 stroke

Cooling.....liquid with electric fan on TE-SMR models Bore (310)....3,27 in.

Bore (450-510)....3.81 in.

Stroke (310) 2.17 in.

Stroke (450) 2.39 in.

Stroke (510)....2.67 in.

Displacement (310) 18,16 cu. in.

Displacement (450)....27.39 cu. in.

Displacement (510)....30.56 cu. in

Compression ratio....12,9:1

Starting (TC)...... kick start (with automatic decompressor)

Starting (SMR).....electric (with automatic decompressor)

Starting (TE-TXC) ......electric and kick start (with automatic decompressor)

TIMING SYSTEM

Type.....double overhead camshaft; 4 valve

Valve clearance (with engine cold)

Intake 0.004 ÷ 0,006 in.

Exhaust....0.006 ÷ 0,008 in.

LUBRICATION

Type ......Dry sump with two oil pump rotor and cartridge filter

IGNITION

Type ......Electronic, inductive (TE-SMR) or capacitive (TC-TXC)

discharge, with adjustable advance (digital control)

Spark plug type ....NGK CR8EB

Spark plug gap....0.027 in.

FUEL SYSTEM

Type (TE-SMR) ......Electronic injection feed

Type (TC 450, TXC 450-510). Keihin" FCR-MX 41 with acceleration pump and throttle position sensor

Venturi diameter 1.61 in.

High speed jet 180

Low speed jet 45

Starting jet 85

Starting air jet. 0.16 in.

Main air jet 200

Low air jet 100

Floater ......g 11.2

Throttle piston....15 M

Metering pin OBDVR

Metering pin slot 5th

Idle mixture adjusting screw ...... rounds 2

PRIMARY DRIVE

Drive pinion gear- Clutch ring gear (TE 310)....Z 24-Z 88

Drive pinion gear- Clutch ring gear (450-510)....Z 23-Z 63

Transmission ratio (310)....3,666

Transmission ratio (450-510)....2,739

CLUTCH

Type....oil bath multiple disc clutch, hydraulic control

TRANSMISSION

Type ....constant mesh gear type

Transmission ratio (TE-SMR-TXC)

1st gear....2,000 (z 28/14)

Transmission ratio (TC)

1st gear....1,866 (z 28/15)

Transmission ratio (TE 310)....3,846

Transmission ratio (TE-TXC 450-510)....3,615

Transmission ratio (TC 450)....3,571

Transmission ratio (SMR 450-510)....2,800

FINAL RATIOS

1st gear (TE 310)	28,205
1st gear (TE-TXC 450-510)	19,806
1st gear (TC 450)	18,261
1st gear (SMR 450-510)	15,339
2nd gear (TE 310)	22,721
2nd gear (TE-TXC 450-510)	15,955
2nd gear (TC 450)	14,130
2nd gear (SMR 450-510)	12,356
3rd gear (TE 310)	18,803
3rd gear (TE-TXC 450-510)	13,204
3rd gear (TC 450)	12,357
3rd gear (SMR 450-510)	10,226
4th gear (TE 310)	15,329
4th gear (TE-TXC 450-510)	10,764
4th gear (TC 450)	10,633
4th gear (SMR 450-510)	8,336
5th gear (TE 310)	12,974
5th gear (TE-TXC 450-510)	9,111
5th gear (TC 450)	9,338
5th gear (SMR 450-510)	7,056
6th gear (TE 310)	11,491
6th gear (TE-TXC 450-510)	8,069
6th gear (SMR 450-510)	6,249

FRAME

Type......Steel single tube cradle (roud, rectangular, ellipsoidal tubes); light alloy rear frame

FRONT SUSPENSION

Type. "Upside-down" telescopic hydraulic front fork with advanced axle (adjustable in compression and rebound stroke);

a) USA-AUS model excluded: stanchions tubes ∅ 1.89 in. (TE 450-510, TC 450) or ∅ 1.97 in. (TE 310, SMR 450-510);

b) USA-AUS model: stanchions tubes ∅ 1.89 in. (TE 310-450-510, TC 450) or ∅ 1.97 in. (SMR 450-510);

Legs axis stroke......(TE, TC, TXC) 11.8 in.; (SMR) 9.84 in.

REAR SUSPENSION

Type......progressive with hydraulic single shock absorber
Wheel stroke (TC-TXC-TE)......	11.6 in.
Wheel stroke (SMR)......	11.4 in.

FRONT BRAKE

Typefixed disc ∅ 10.23 mm "Wave" type with hydraulic control and floating caliper (TE, TC); floating disc ∅ 12.59 mm "Wave" type with hydraulic control and fixed radial caliper (SMR)

REAR BRAKE

Type.... floating disc, ø 9.45 in. "Wave type with hydraulic control and floating caliper

RIMS

Front (TE, TC, TXC)......TAKASAGO "Excel" in light alloy: 1,6x21"

Front (SMR)......SANREMO in light alloy: 3,50x17"

Rear (TE, TXC)......TAKASAGO "Excel" in light alloy: 2,15x18"

Rear (TC)......TAKASAGO "Excel" in light alloy: 1,85x19"(250); 2,15x19"(450-510)

Rear (SMR)......SANREMO in light alloy 4,25x17"

TIRES

Front(TE, USA model excluded -TXC) . . . . Michelin ENDURO COMP. 3 or Pirelli MT 83 Scorpion; 90/90x21"(TE, USA model) . . . . . . Metzeler MCE Karoo; 90/90x21"(TC) . . . Pirelli 51R-MT 32A or Dunlop D756; 80/100 x 21"(SMR) . . . . . . . Pirelli MTR 21 DRAGON-EVO; 120/70-17"

Rear

(TE, USA model excluded -TXC) ... Michelin ENDURO COMP. 3 or Pirelli MT 83 Scorpion; 120/90x18" (310); 140/80x18" (450-510);

(TE USA model) . Metzeler MCE Karoo; 120/90x18" (310); 140/80x18" (450-510)

(TC)....Pirelli NHS (57) MT 32 or Dunlop D756; 110/90x19" (450)

(SMR)....Pirelli MTR 22 DRAGON-EVO; 150/60x17"

Cold tire pressure

(front TC)	0,9÷1,0 Kg/cm2
(front TE) (*) (TXC)	0,9÷1,0 Kg/cm2
(front TE) (%)	1,1 Kg/cm2
(front SMR) (*)	1,4 kg/cm2
(front SMR) (%) rider only	1,8 kg/cm2
(front SMR) (%)	2,0 kg/cm2
rider and passenger
(rear TC)	0,8÷0,9 Kg/cm2
(rear TE) (*) (TXC)	0,8÷0,9 Kg/cm2
(rear TE) (%)	1,0 Kg/cm2
(rear SMR) (*)	1,6 kg/cm2
(rear SMR) (%)	2,0 kg/cm2 rider only
(rear SMR) (%)	2,2 kg/cm2 rider and passenger

(*) In case of racing use - (%) Road use

DIMENSION, WEIGHT, CAPACITY

Wheelbase

(TC-TE-TXC) 58.38 in.

(SMR)....56.89 in.

Overall length

(TC) 86.42 in.

(TE) 89.25 in.

(SMR) 85.16 in.

(TXC) 85.94 in.

Overall width.... 32.30 in.

Overall height

(TC-TE-TXC) 50.59 in.

(SMR)....49.21 in.

Saddle height

(TC)....38.11 in.

(TE-TXC)....37.91 in.

(SMR) 36.22 in.

Minimum ground clearance

(TC-TE-TXC)....11.81 in.

(SMR)....9.64 in.

Dry weight

(TC 450) lb. 228.2

(TE 310)....lb. 235.9

(TE 450-510) lb. 244.7

(SMR 450-510).... lb. 265.7

(TXC 450-510)....lb 238,1

Fuel tank capacity (TE-SMR, 1.58 Imp. Qt./ 1.9 U.S. Qt. reserve included) 1.58 Imp. Gall./ 1.9 U.S. Gall

Coolant capacity .... 2.0÷2.4 Imp. Pints; .... 2.3÷2.7 U.S. Pints

Transmission oil

Oil and oil filter replacement......Imp. Quarts 1.5, U.S. Quarts 1.8

Oil replacement ....Imp. Quarts 1.3, U.S. Quarts 1.6

TABLE FOR LUBRICATION, SUPPLIES

Engine, gearbox and primary drive lubricating oil CASTROL POWER 1 RACING 10W-50

Engine coolant

ASTROL MOTORCYCLE COOLANT

Brake system fluid

CASTROL RESPONSE SUPER DOT 4

Clutch fluid

CASTROL FORK OIL 10W

Grease lubrication

CASTROL LM GREASE 2

Final drive chain lubrication

CASTROL CHAIN LUBE RACING

Front fork oil

Marzocchi: CASTROL SYNTHETIC FORK OIL 5W - Kayaba: KHL15-11

Oil for rear shock absorber

CASTROL SYNTHETIC FORK OIL 5W

Electric contact protection

CASTROL METAL PARTS CLEANER

Fillers for radiator

AREXONS TURAFALLE LIQUIDO

CONTROLS

FUEL COCK (TC-TXC)

The left-side tap (2) is a screw tap: screw the ring nut (A) to close the tap, loosen the ring nut to open the tap.

WARNING\*: Be careful not to touch the hot engine while operating the fuel valve.

A fuel filter is incorporated in the fuel valves. Accumulation of dirt in the filter will restrict the flow of the fuel to the carburetor. Therefore, the fuel filter should be serviced periodically.

1 Loosen the input plug (1) on the fuel tank and close the tap;
2 Remove the fuel hose (3) from the carburetor and insert the hose in a vessel;
3 Open the tap and drain the fuel out of the tank;
4 Remove the fuel valve by removing the screws. Wash the fuel screen filter in cleaning solvent;
5 Reassemble the fuel valve in the reverse order of removal. Open the tap and check for leaks.

FUEL INJECTION ENGINE (TE-SMR)

On vehicles which are fitted with a fuel injection engine, the fuel pump is built into the fuel tank and there is no tap mounted on the fuel supply system. The quantity of remaining fuel is indicated on the digital dash-board by the special warning light (see on page 14).

Close-up of a car engine component with labeled parts, showing a valve assembly and part number 1

A 2 3

1. Fuel tank cap
2. Fuel cock
3. Fuel hose
   A. Tap ring nut

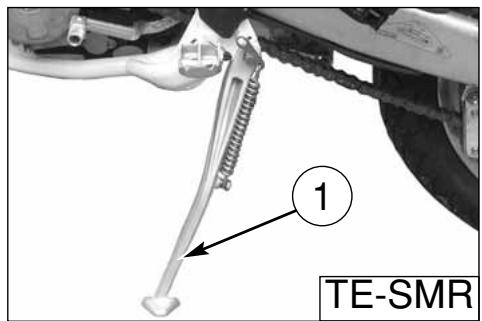

SIDESTAND

A sidestand (1) is supplied with every motorcycle.

WARNING*: The stand is designed to support the weight of the MOTORCYCLE ONLY. Do not sit on the motorcycle using the stand for support as this could cause structural failure to the stand and could cause serious bodily injury.

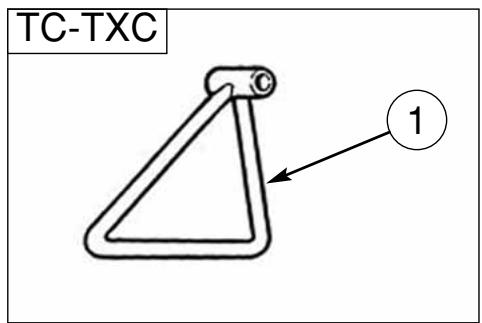

TC-TXC ①

Periodically check the side stand (see "Periodical maintenance card"); check that the springs are not damaged and that the side stand freely moves. If the side stand is noisy, lubricate the fastening pivot (A).

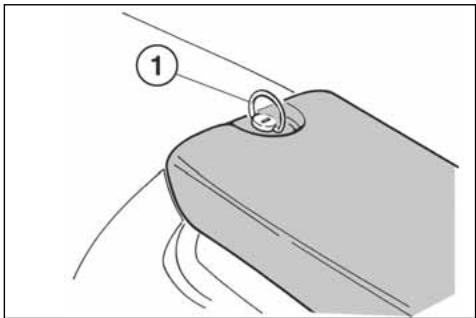

FUEL

Recommended fuel: premium grade unleaded fuel. (R.O.N. 98).

Note*: Do not continue operation if the engine pings or knocks. The engine will be damaged and could seize.

WARNING*: If "knocking" or "pinging" occurs, try a different brand of gasoline or higher octane grade.

WARNING*: Gasoline is extremely flammable and can be explosive under certain conditions. Always stop the engine and do not smoke or allow flames or sparks in the area where the motorcycle is refueled or gasoline is stored.

WARNING*: Do not overfill the tank. After refueling, make sure the tank cap (2) is closed securely.

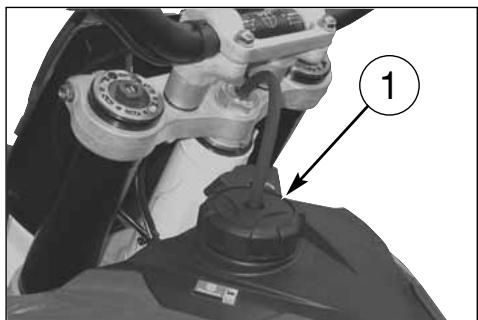

1 TE-SMR

Mechanical assembly diagram showing a spring-loaded component with labeled section A (no text or symbols beyond label)

Close-up of a mechanical component with labeled parts (no readable text or symbols)

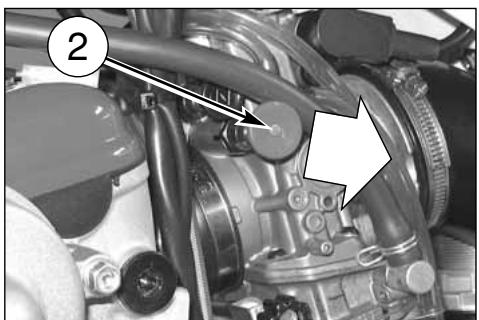

CARBURETOR CHOKE (TC-TXC)

The starter knob, located on the left side of the carburetor, is used to enrich the mixture during the engine start.

Pull out the knob to open the starter, and pull the lever upwards to close it.

The carburetor is equipped with two knobs:

1) BLACK KNOB: COLD start (°)
2) RED KNOB: WARM start (°)

(°) See page 23

COLD START (TE-SMR)

For a cold start, the models with a fuel injection engine are fitted with a black knob (3) located on the left of the throttle body.

Pull the knob outwards to open the starter and push inwards to close.

Close-up mechanical assembly photo with numbered components labeled 1 and 2

Close-up of mechanical components with hoses and a numbered label (3), no readable text or symbols present.

DIGITAL INSTRUMENT, WARNING LIGHTS (TE-SMR)

The motorcycle is equipped with a digital instrument; on the instrument are located 3 warning lights too: high beam, blinkers and fuel reserve.

1- BLUE warning light "HIGH BEAM"
2- GREEN warning light "BLINKERS"
3- ORANGE warning light "Fuel reserve" (1,8 l - 1.58 Imp. qt - 1.9 U.S. qt)

Turning the ignition key to the position "IGNITION" the instrument display illuminates (amber colour).

NOTES

• When linked to the battery, for the first 2 seconds, the instrument shows the version of the checking SW; after the check, the instrument shows the last planned function.
• When the motorcycle engine is OFF, the instrument doesn't also show its functions.
• To select the instrument functions and to set to zero the functions, use the SCROLL knob (A).

- The instrument functions are the following, as shown below.

1- SPEED / ODO (figure 1, page 14)
2- SPEED / CLOCK (figure 2, page 15)
3- SPEED / TRIP (figure 3, page 15)
4- SPEED / CHRONO (figure 4, page 15)
5- SPEED / RPM (engine r.p.m. numerical value) (figure 5, page 16)
1- SPEED / ODO (figure 1, page 14)

IMPORTANT: in case of FUEL INJECTION SYSTEM malfunction on the right side of the instrument display will be displayed the warning message "FAIL": (see page 16): in this case contact your local HUSQVARNA Dealer.

1- SPEED (Km/h or mph) / ODO (figure 1)

• SPEED: motorcycle speed- maximum value: 299 Km/h or 299 mph;
• ODO: odometer- maximum value: 99999 km;

To replace kilometers with miles or miles with kilometers proceed as follows:

1) set to figure 1, stop the engine and push the knob SCROLL (A);
2) turn the ignition key to the IGNITION position, holding pushed the button SCROLL (A) until the symbol "Km/h" will be displayed;
3) then the symbols "Km/h" and "Mph Miles" will be displayed alternatively. Push again the SCROLL (A) button when the unit you wish to use is displayed.

1 2 3 TRP 8888 888888 SPEED Kshh Mph Miles / CDOO LPT CLK A

TRP 8888 88:88:88 SPEED Km/h Mph Miles I ODO LPT CLK

A 130 34508 SPEED Km/h ODO

2- SPEED / CLOCK (figure 2)

• SPEED: motorcycle speedmaximum value: 299 Km/h o 299 mph;
• CLOCK: clock- Reading from 0:00 to 23:59:59;

To reset the clock, push the knob SCROLL (A) for more than 3 seconds in order to increase the hours; release the knob and then, after 3 seconds, it is possible to increase the minutes;

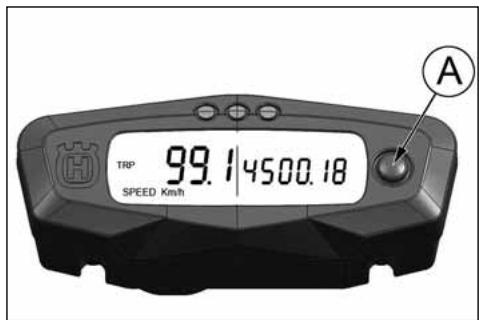

3- SPEED / TRIP 1 (figure 3)

• SPEED: motorcycle speedmaximum value: 299 Km/h o 299 mph
• TRIP 1: distance- maximum value: 999.9 km (the data will be lost after battery detachment).
  To setup the TRIP, push the SCROLL (A) button holding down more than 3 seconds

4- SPEED / CHRONO (STP) (figure 4)

• SPEED: motorcycle speedmaximum value: 299 Km/h o 299 mph;
• STP 1: miles/kilometers covered time;
• Reading from 0:00 to 99:59:59 (the data will be lost after battery detachment).

To activate the function STP 1, push the knob SCROLL (A) for more than 3 seconds.

• 1st step: function ON;
• 2nd step: stop to the counters;
• 3rd step: STP 1 zero-setting; TRIP 1 and AVS 1 data zero-setting;
• 4th step: function ON;
• 5th step: stop to the counters;

and so following

86.0 SPEED Kinh 2:48 CLK A

TRP SPEED Kinsh 99.14500.18 A

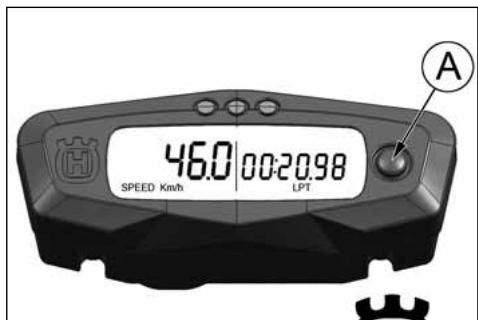

A SPEED Km/h 46.0 00:20.98 LPT

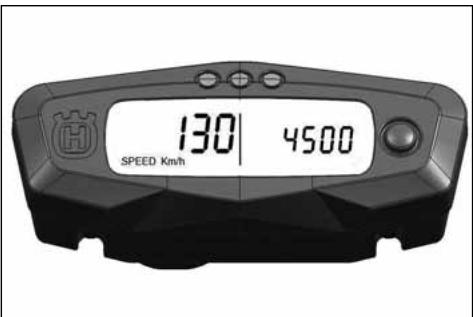

5- SPEED / DIGITAL RPM (figure 5)

The instrument display shows even then informations of the "Neutral" condition and of any possible "Malfunction" of the FUEL INJECTION SYSTEM; this last condition is showed with absolute priority with respect to any other information.

NEUTRAL: if the speed is under 20 Km/h (12,5 mph), the "Neutral" condition the instrument displays the N character before the value of the speed.

MALFUNCTION: in case of FUEL INJECTION SYSTEM malfunction on the right side of the instrument display will be displayed the warning message "FAIL".

130 | 4500 SPEED Km/h

110.3 SPEED Km/h ODO FAIL L LPT CLK

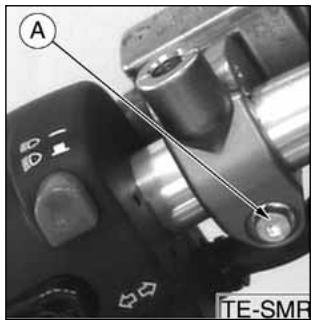

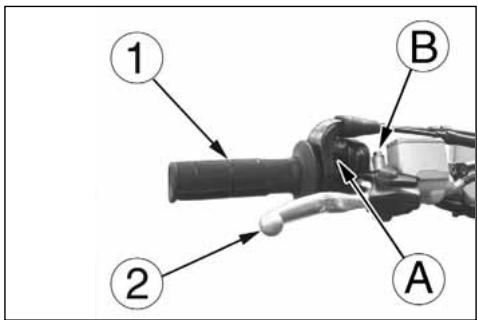

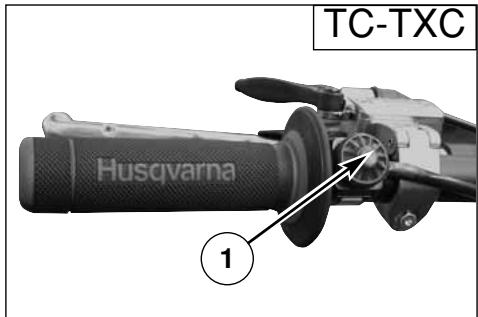

THROTTLE CONTROL

The throttle knob (1), is located on the right hand side of the handlebar. The position of the throttle control can be adjusted by loosening the two fastenig screws.

CAUTION

Do not forget to tighten the screws (A) after the adjustment.

FRONT BRAKE CONTROL

The brake control lever (2) is located on the right hand side of the handlebar. The position of the throttle control can be adjusted by loosening the two fastenig screws.

CAUTION

Do not forget to tighten the screws (B) after the adjustment.

STEERING LOCK (TE-SMR)

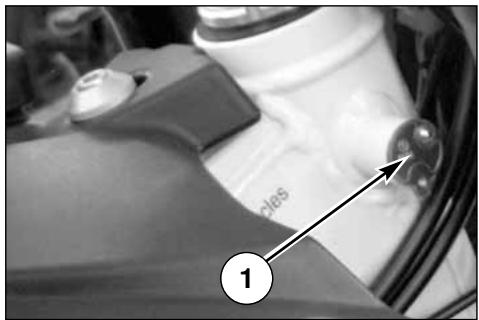

The motorcycle is equipped with a steering lock (1) on the R.H. side of the steering head tube.

To lock it, procede as follows:

turn the handlebar leftwards, place the key in lock and turn counterclockwise. Push the key inwards (if necessary, turn to and from). Turn the key clockwise and remove it from the lock. To unlock the steering lock, reverse the above procedure.

1 B 2 A

1

R.H. HANDLEBAR COMMUTATOR (TE-TXC-SMR)

The right commutator has the following controls:

1) Engine start button
3) Engine start - stop switch (TE-SMR)

TE-SMR ③ ①

TXC Husqvarna 1

L.H. HANDLEBAR COMMUTATOR (TE-SMR)

CONTROLS:

1) D High beam flash (self cancelling)

2) Selection control High beam

Selection control Low beam

3) Left turn signals (automatic return) → Right turn signals (automatic return)

To deactivate the turn signals, press the control lever after its returning to center.

4) Warning horn

Diagram of a camera grip with numbered parts and an inset close-up showing the grip mechanism.

ENGINE STOP BUTTON (TC-TXC)

On the left side of the handlebar, near the clutch control, is located the engine stop button.

CLUTCH CONTROL

The hydraulic clutch control lever is located on the left-hand side of the handlebar and is protected against dirt with a rubber guard.

The clutch control position on the handlebar can be adjusted by loosening the lower fastening screw (A).

CAUTION

Do not forget to tighten the screw after the adjustment.

TC-TXC Husqvarna ①

A TE-SMR

REAR BRAKE CONTROL

The rear brake control (1) is placed on the right-hand side of the motorcycle. On models TE and SMR as stop switch, during the braking action, causes the rear light to come on.

GEAR SHIFT CONTROL

The lever (1) is placed on the left-hand side of the engine. The operator must release the lever after each gear change to allow it to return to its central position before another gear change can be made.

Neutral position (N) is between first (low) and second gears. First gear is engaged by pushing the lever downwards; all the other gears are engaged, by pushing the lever upwards.

The position of the gear shift lever on the shaft can be varied by:

• loosening screw;
• pulling lever out;
• placing lever in new position on the shaft when the operation is over tighten the screw and then tightening the screw.

CAUTION*: Do not shift gears without disengaging the clutch and closing the throttle. The engine could be damaged by overspeed and shock.

WARNING*: Do not downshift when traveling at a speed that would force the engine to overrev in the next lower gear, or cause the rear wheel to lose traction.

N: Neutral

N: Neutral

Close-up of a mechanical assembly with no visible text or symbols

TC N 1 2 3 4 5

TE-SMR-TXC

RIDING

Before each ride, to prevent accidents or failures during ride, make sure to go through following list.

1. Check all fluids

A. Engine-transmission oil level

B. fuel level

C. coolant level

Make sure all caps are properly adjusted.

WARNING\*: Don't remove radiator cap when hot!

2. Check all controls

A. Throttle handgrip

B. Clutch lever

Make sure cables are not damaged and turn smoothly.

3. Check brakes

Look for brake fluid leaks and worn hoses. Check for proper functioning.

4. Check suspensions

Compress fork and rear suspensions. Look for oil leaks and ensure proper functioning.

5. Check wheels

Check spokes and look for worn bearings.

Check rims and tyres.

Check tyre pressure.

6. Check chain rollers and sprockets

Check wear on chain rollers and sprockets Ensure chain is correctly adjusted and lubricated.

7. Check air filter and intake system

Check that air filter is clean

Check all rubber connections and clamps.

8. Check exhaust system

Check hook up, look for cracks Check muffler.

9. Check torque

A. Spark plug (see page 34).

B. General check of torque

10. Check steering action

Check bearing play.

11. Check the electric system (TE-SMR).

Start the engine and check that the front and rear lamps, the stop light, the turn signals the cluster warning lights and the horn are working correctly.

WARNING\*: Failure to perform these checks every day before you ride may result in serous damage or a severe accident.

RUNNING IN

Before using the motorcycle for sporting activities run in the engine for two hours at least to increase the life and the performance of the engine.

During the first half-hour of driving we advise keeping a low speed and avoiding sudden accelerations. Never open the throttle fully.

Change the oil and carry out all the necessary maintenance operations. After the first half-hour of driving, lightly increase the rev number, but never run the engine at full throttle. Never keep low speeds when the high gears are inserted.

Slowly drive the motorcycle for two hours before using it for sporting activities.

CHECKS WHILE RUNNING IN

• SPOKE TENSION OF WHEELS (see page 69);
• TIGHTENING OF WHEELS;
• FORK PIN TIGHTENING;
• CHAIN ADJUSTMENT (see page 49);
• STEERING BEARING PLAY (see page 36);
• HANDLEBAR TIGHTENING;
• ENGINE GRIP TO FRAME;
• SUCTION FITTING GRIP;
• HEAD AND CYLINDER NUTS GRIP;

OFTEN CHECK THE BATTERY CHARGE CONDITION (see page 78)

ENGINE START (TE-SMR)

With cold engine, as after a prolonged inactivity of the motorcycle or in presence of a low external temperature, proceed as follows:

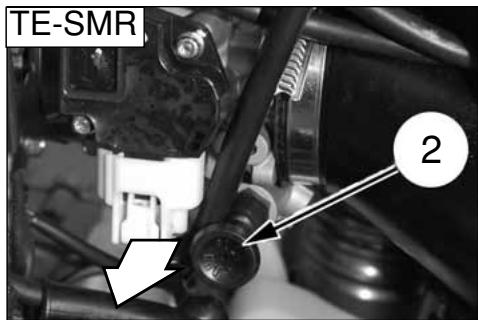

1) set ignition key (1) in IGNITION position (the buzz that you hear when you turn the key to IGNITION is caused by the fuel pump which puts the feeding system under pressure);
2) pull the starter knob (2);

3) pull the clutch lever (3);
4) shift gear pedal (4) in neutral position then release the clutch control lever;
5) press the engine start-stop switch (5) then the start button (6). Put the starter knob (2) in its initial position as soon as the engine is idling. When starting with an already warmed up engine DO NOT USE the starter. When a cold engine has just been started, do not increase revs, to ensure an adequate oil warm-up and circulation.

NOTE

A safety switch is set on the clutch lever support. This switch allows you ONLY to start the engine with idle gearbox, or with the gear engaged and the clutch lever pulled.

IMPORTANT

NEVER START WITH DISCONNECTED BATTERY.

①

Mechanical component with lever and wrench, no visible text or symbols

TE-SMR 2

TE-SMR N 1 2 3 4 5 6

TE-SMR 5 6

ENGINE START (TXC)

Make sure the fuel tap is in the OPEN position, then shift gear pedal in neutral position.

Pull the starter knob (BLACK knob (2) for cold starting*, RED knob (3) for warm starting), pull the clutch control lever, then press the engine start button (1).

Release the clutch control lever.

*: after a prolonged inactivity of the motorcycle or in presence of a low external temperature.

Close-up of a mechanical assembly with hoses and components, no visible text or symbols

Close-up of a mechanical assembly with hoses and components, no visible text or symbols

TXC Husqvarna 1

STARTING DECOMPRESSOR

Though the engine is provided with an automatic decompressor, can be necessary, in some cases (carburetor flooding or starting difficulties due to a battery inadequate charge), to use the manual starting decompressor on the L.H. side of the handlebar. In these cases, pull the lever (5) whilst simultaneously pressing the starter button, release the lever (5) keeping the button pressed and afterwards release the latter as well.

In order to adjust the lever decompressor free play (approximately 3 mm-0.12 in.), the lever holder is provided with the adjuster (6); the adjustment can be also effected with the tightener (7) on the R.H. side of the engine (use this tightener if it is not possible to obtain the correct free play with the adjuster on the handlebar).

Close-up of a car engine component with attached calipers and fan (no visible text or symbols)

Labeled diagram of a bicycle brake lever with numbered parts 5 and 6

ENGINE START (TC-TXC)

Proceed as follows:

1) make sure the fuel tap (A) is in the Open position;
2) shift gear pedal (1) in neutral position.

3) pull the starter knob (BLACK knob 2 for cold starting ^* , RED knob 3 for warm starting)

4) lower the starter pedal (4) until a certain resistance is noticed (piston at T.D.C.);

*: after a prolonged inactivity of the motorcycle or in presence of a low external temperature.

Close-up of a mechanical assembly with labeled component A (no readable text or symbols beyond label)

TC TXC 5 4 3 2 N 6 5 4 3 2 1 N 1

Close-up of a mechanical assembly with numbered component (2) and directional arrow, no readable text or symbols present.

Close-up of a mechanical assembly with labeled component (3), no visible text or symbols beyond the number and arrow indicator

TC-TXC 4

5) pull the lever (5) and lower further, by a limited stroke, the pedal until the abovementioned resistance is overcome (surpassing of T.D.C.);

6) at this point, release the lever (5) and the pedal (4);

7) in the case of COLD STARTING, completely rotate the throttle (6) twice (in the case of warm starting DO NOT carry out this operation);

TC-TXC 5

Close-up of a motorcycle handle and lever with a numbered label (5) pointing to the handle, no readable text or symbols beyond the label.

TC-TXC 4

⑥

8) COMPLETELY lower the pedal (4) until the engine starts.

WARM STARTING: BEFORE MOTORCYCLE STARTING, PRESS RED CHOKE KNOB (3) ON CARBURETOR TOWARD THE INSIDE IN ORDER TO DEACTIVATE THE STARTING DEVICE.

In case the engine does not start, repeat this procedure.

IMPORTANT NOTE IN CASE OF COLD STARTS AT LOW TEMPERATURES

It is recommended to briefly warm-up the engine at idle until, after having disengaged the starter, there is a normal response from the engine when opening the throttle.

In this way the oil can reach all the surfaces needing lubrication and the coolant will reach the necessary temperature for correct engine function.

Avoid overheating the engine.

IMPORTANT

Never accelerate the engine after a cold start.

WARNING*: Exhaust contains poisonous carbon monoxide gas. Never run the engine in a closed garage or in a confined area.

In the case of using a kick-starter, follow carefully the instructions on the page 23 keep in mind the undermentioned note.

Kick start pedal

WARNING*: This high performance motorcycle can some times «kick back» strongly when you are starting it.

Do not attempt to start this motorcycle unless you are wearing high top heavy sided riding boots. You could seriously hurt you leg if the kickstarter kicked back and your foot slipped.

TC-TXC 4

Close-up of a mechanical assembly with numbered components (3 and an arrow), no visible text or symbols.

Close-up of a mechanical assembly with springs, gears, and a central shaft (no visible text or symbols)

HOT START (TC-TXC)

If it is a problem to start the engine when hot, or following a fall, proceed as follows:

1) the transmission (1) should be placed in neutral;
2) pull the RED knob of the starter (2);

3) pull the clutch lever (3);
4) push the kick-starter pedal (4) to start the vehicle.

5) Then release the clutch lever (3).

BEFORE MOVING OFF, DEACTIVATE THE RED KNOB (2) OF THE STARTER ON THE CARBURET-TOR.

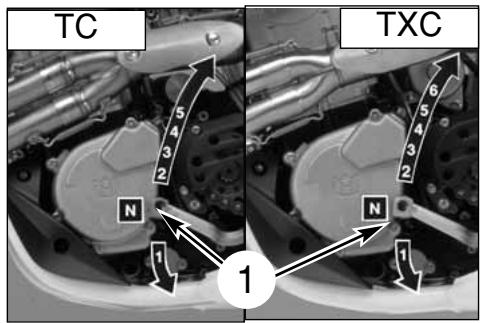

TC TXC N 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60

Close-up of a bicycle brake lever handle and lever with a numbered callout (3), no visible text or symbols on the device itself.

Close-up of a mechanical assembly with labeled component (2), no visible text or symbols beyond annotations

TC 4

Mechanical component with lever and handle, labeled with number 3 (no text or symbols on the device itself)

STOPPING THE MOTORCYCLE AND THE ENGINE

• Close the throttle (1) completely so that the engine will help slow down the motorcycle.
• For normal braking, gradually apply both front and rear brakes while down shifting (for maximum deceleration, apply the front and rear brakes firmly).

• When stopped, pull the clutch lever and shift gear lever (2) in neutral position.

• Press the engine stop RED button (3).

• TC-TXC: close the fuel cock (4).
• TE-SMR: turn towards left the ignition key.

WARNING*: Independent use of the front or rear brake may be advantageous under certain conditions. Use caution when using the front brake, especially on slippery surfaces. Improper use of the brakes can lead to a serious crash.

WARNING*: In the event of stuck throttle or other malfunction which causes the engine to run uncontrollably, immediately depress the engine stop button and hold it down. Control the motorcycle by normal use of the brakes and steering while holding the engine stop button down.

1

Close-up of a motorcycle handle and lever mechanism with a white arrow pointing to a specific component (no text or symbols on the diagram itself)

Close-up of a mechanical assembly with labeled parts (N and 2), no readable text or symbols beyond labels

③ TE-SMR ③ TC-TXC

TC-TXC

Close-up of a NE-SMR motorcycle body panel with visible wiring and sensor (no text or symbols on the device itself)

CHECKING THE OIL LEVEL

Keeping the motorbike level and in a vertical position, check the oil level through the inspection (1) window on the right crankcase. Make sure the level is in between the MIN and MAX notches.

Note*: Have this operation made with warmed-up engine.

WARNING*: Be careful not to touch hot engine oil.

1 MAX MIN

Close-up of a mechanical component with labeled parts (no readable text or symbols)

ENGINE OIL REPLACEMENT AND BAG FILTERS-FILTER CARTRIDGE CLEANING OR REPLACEMENT

WARNING*: Be careful not to touch hot engine oil.

Drain the oil with WARM ENGINE; proceed as follows:

• remove oil filler cap (2);
• remove the engine guard (A)
• place an oil drain pan under the engine block
• remove the oil drain cap (3)
• drain the used oil completely then clean the magneto on the cap;

Technical diagram of a mechanical assembly with numbered components and labeled parts A, 2, 3, and 4

• remove the three filters (5), (6) and (7) on the L.H. side of the engine, check O-Rings for wear then clean filters with fuel; reassemble using the reverse procedure;
• in order to replace the filter cartridge (4), unscrew the three fastening screws then the filter cartridge cover;
• after filters replacement, reassemble the drain cap (3), the engine guard (A) then pour the recommended oil quantity.

Technical diagram of a mechanical assembly with numbered components and labeled parts

COOLANT LEVEL CHECK

Check level (1) in right-hand radiator when engine is cold (place the motorcycle so that it is perpendicular to the ground). The coolant should be approximately 10 mm above cells and besides, on TE-TXC and SMR models, it doesn't exceed the middle of the expansion tank (2) located in front of the rear shock absorber.

The radiator cap is provided of two unlocking positions, the first being for the previous pressure discharge in the cooling system.

WARNING

Avoid removing radiator cap when engine is hot, as coolant may spout out and cause scalding.

WARNING

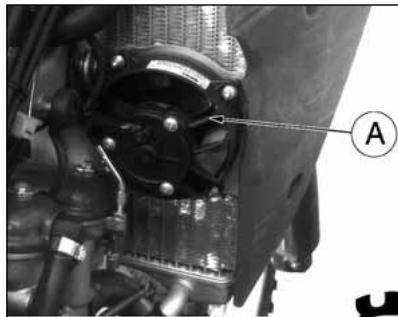

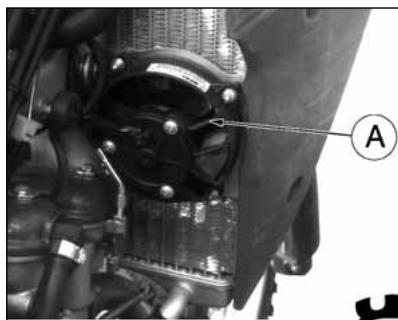

TE-SMR: Because the cooling fan (A) can be activated even when the start switch is in OFF position, always keep at a safe distance from the fan vanes.

NOTE

Difficulties may arise in eliminating coolant from varnished surfaces. If this occurs, wash off with water.

①

Close-up of a car engine bay with visible springs and components (no text or symbols)

Close-up of an engine component with a labeled section A, showing internal parts and no readable text or symbols.

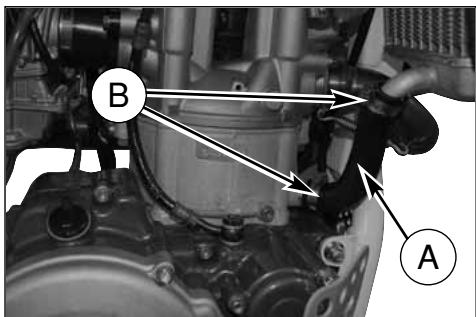

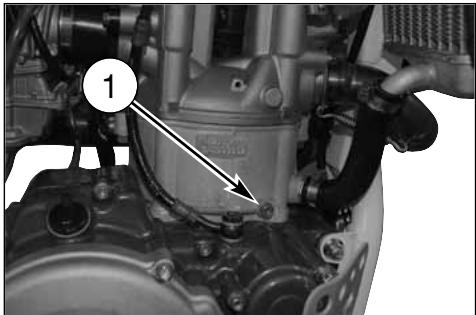

REPLACEMENT OF COOLING FLUID

Place a vessel on the R.H. side of the cylinder, under the coolant drain screw (1).

FIRST remove the screw (1) then SLOWLY open the R.H. radiator cap; slope the motorcycle on the right side to drain the coolant easily in the vessel. Reassemble the screw (1).

Pour the necessary quantity of coolant in the radiator then warm up the engine in order to eliminate any possible air bubble.

Periodically check the connecting hoses (see "Periodical maintenance card"): this will avoid coolant leakages and consequent engine seizure: If hoses (A) show cracks, swelling or hardenings due to sheats desiccation, their replacement shall be advisable.

Check the correct tightening of the clamps (B).

Close-up of a mechanical engine component with labeled parts (no readable text or symbols)

Technical diagram of a mechanical component with numbered annotation pointing to a specific part.

A B

B A

THROTTLE CABLE ADJUSTMENT

To check the correct adjustment of the throttle operate as follows:

• remove the upper rubber cap (1);
• by moving cable (2) back and forth check for 2 mm. clearance;
• should the clearance be incorrect, unblock the counter ring-nut (3) and turn the adjusting screw (4) (by unscrewing it, the clearance is reduced, while by screwing screw (4) it is increased);
• tighten the counter ring-nut again (3).

WARNING*: Operation with damaged throttle cable could result in an unsafe riding condition.

WARNING*: Exhaust gas contains poisonous carbon monoxide gas. Never run the engine in a closed area or in a confined area.

NOTE

In case of throttle control cables (1) and (2) replacement it is necessary to respect, during reassembly, the measure A (10mm/0.4 in.), as shown in the picture. Then reassemble guard cover (B) using screw (3) and adjust throttle control cables on handlebar as described at side.

To replace throttle control cables, first remove tha fuel tank.

Labeled diagram of a mechanical or electrical component with numbered parts 1, 2, 3, and 4 pointing to a cable or connector.

Technical diagram of automotive engine components with numbered labels pointing to specific parts

A A

ADJUSTING THE CARBURETTOR (TC-TXC)

Adjust the carburettor with warm engine and with the throttle in closed position.

Work as follows:

• Turn slow running adjusting screw (1) on the left side of the bike, , until the engine is turning over at fairly high rpm (turn the screw clockwise to increase the rpm, and anticlockwise to decrease the rpm).
• Turn adjusting screw (2) clockwise until the fully closed position is reached then turn back 1,5 turns (TXC 250) 2,0 turns (450-510)
• progressively loosen adjusting screw (1) to obtain the slow running required.

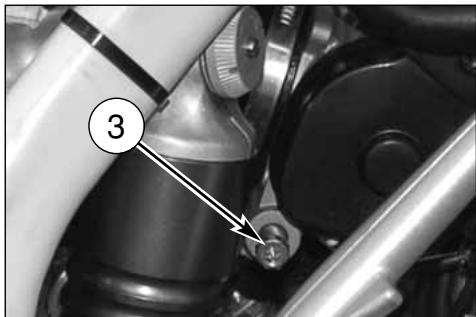

ADJUSTING THE IDLE (TE-SMR)

Adjust the carburetor with warm engine and with the throttle control in closed position. Proceed as follows:

- turn the idle speed adjustment screw (3) on the throttle body, located on the right side of the vehicle, until the idle speed of 1600 RPM is reached (turn clockwise to increase the speed and anti-clockwise to reduce the speed).

ADJUSTING THE IDLE (TC-TXC)

Adjust the carburetor with warm engine and with the throttle control in closed position. Proceed as follows:
- Turn slow running adjusting screw (1) on the left side of the bike, near the fuel cock (turn the screw clockwise to increase the rpm, and anticlockwise to decrease the rpm).

Technical diagram of an engine component with numbered parts labeled 1 and 2

Close-up of a mechanical assembly with numbered annotation (3) pointing to a component, no readable text or symbols present.

SPARK PLUG CHECK

Use NGK CR8EB spark plug (2); the gap is 0.027 in.

A wider gap may cause difficulties in starting engine and in overloading coil.

A gap that is too narrow may cause difficulties when accelerating, when idling the engine or when performing at low speeds.

Clean the dirt away from the base of the spark plug before removing it from the cylinder after removing the cap (1).

It is very useful to examine the state of the spark plug just after it has been removed from the engine since the deposits on the plug and the colour of the insulator provide useful indications.

Technical line drawing of a spark plug with threaded end and shaft (no text or symbols)

Correct heat rating:

The tip of the insulator should be dry and the colour should be light brown or grey.

High heat rating:

In this case, the insulator tip is dry and covered with dark deposits. Low heat rating:

In this case, the spark plug is overheated and insulator tip is vitreous, white or grey in colour.

CAUTION*: Select a spark plug with a colder or hotter heat range carefully and cautiously. A spark plug with too hot a heat range may lead to preignition and possible engine damage. A spark plug with too cold a heat range may foul as the result of too much carbon buildup.

Before refitting the plug, thoroughly clean the electrodes and the insulator using a brass-metal brush.

Apply a little graphite grease to the spark plug thread; fit and screw the spark plug by hand then tighten to the torque of 10÷12 Nm-7.4÷8.9 ft/lb. Loosen the spark plug then tighten it again to the torque of 10÷12 Nm-7.4÷8.9 ft/lb.

Spark plugs which have cracked insulators or corroded electrodes should be replaced.

VOLTAGE REGULATOR (TXC-TE-SMR)

The voltage regulator (3) is fitted to the right side of the chassis, on the front.

Close-up of an automotive engine component with visible hoses and wiring (no text or symbols)

Close-up of a mechanical component with a labeled arrow pointing to a bolt (no text or symbols present)

Close-up of a car engine component with numbered annotation (3) pointing to a mechanical assembly (no readable text or symbols)

AIR FILTER CHECK (TC-TXC)

Turn rear pin (1) counterclockwise, remove the saddle from the front afstening screw.

TXC: Take out the battery (A) and place it sideways on the vehicle.

Remove screw (3) and the filter (4). Separate filter (5) from frame (6).

Close-up of a black plastic tool tip with a labeled component (1) pointing to a surface feature, no text or symbols visible.

A 4 3 Twin Air

AIR FILTER AND CLEANING

Wash the filter with a specific detergent (AGIP" Filter clean foam air detergent fluid" or similar) then dry it fully (wash filter with gasoline only in case of necessity).

Plunge the filter in special oil for filters (AGIP "Foam air filter protection oil" or similar), then wring it to drain superfluous oil.

CAUTION*: Do not use gasoline or a low flash-point solvent to clean the element. A fire or explosion could result.

CAUTION*: Clean the element in a well ventilated area, and do not allow sparks or flames anywhere near the working area.

6 5

ASSEMBLY

To ensure tight fit, slightly (C) grease filter edge on side facing filter housing.

While re-inserting the filter into its housing, make surs that piece (A) is turned upwards and edge (B) is on the left lower side of the filter case. Reassemble the parts previously removed (battery: connect the positive cable first).

CAUTION*: If the element assembly is not installed correctly, dirt and dust may enter and the engine resulting in rapid wear of the piston rings and cylinder.

UPPER SIDE A TC-TXC B LEFT SIDE C

Close-up of a car's twin-air engine component with no visible text or symbols

AIR FILTER CHECK (TE-SMR)

Turn rear pin (1) counterclockwise, remove the saddle from the front afstening screw.

Take out the battery (A) and place it sideways on the vehicle. Remove screw (3) and the filter (4). Separate filter (5) from frame (6).

Close-up of a black plastic tool tip with a numbered label pointing to a specific area (no text or symbols on the tool itself)

A 4 3 Twin-Air

AIR FILTER AND CLEANING

Wash the filter with a specific detergent (CASTROL FOAM AIR FILTER CLEANER or similar) then dry it fully (wash filter with gasoline only in case of necessity).

Plunge the filter in special oil for filters (CASTROL FOAM AIR FILTER OIL or similar) then wring it to drain superfluous oil.

CAUTION*: Do not use gasoline or a low flash-point solvent to clean the element. A fire or explosion could result.

CAUTION*: Clean the element in a well ventilated area, and do not allow sparks or flames anywhere near the working area.

5 6

ASSEMBLY

To ensure tight fit, slightly (C) grease filter edge on side facing filter housing.

While re-inserting the filter into its housing, make surs that piece (A) is turned upwards and edge (B) is on the left lower side of the filter case. Reassemble the parts previously removed (battery: connect the positive cable first).

CAUTION*: If the element assembly is not installed correctly, dirt and dust may enter and the engine resulting in rapid wear of the piston rings and cylinder.

UPPER SIDE A TE-SMR B LEFT SIDE C

Close-up of a car's twin-air fuel pump component with no visible text or symbols

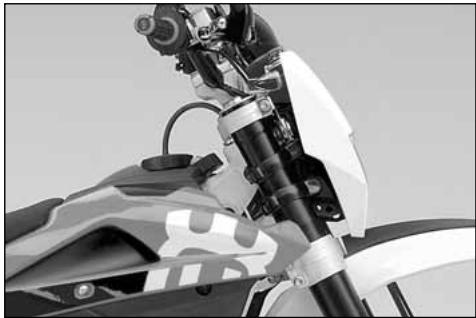

STEERING WHEEL BALL PLAY ADJUSTMENT

To ensure maximum safety, the steering wheel should always be regulated so that the handlebars steering the motorcycle rotate freely without play. To check steering wheel adjustment, place kick stand or other support under the engine so that the front wheel is raised from ground.

Place slight pressure on the tips of the handlebars to rotate steering wheel; the handlebars should also rotate without effort.

• loosen steering sleeve nut (1).
• Loosen four screws that fix steering head to fork rods (3). Turn the steering ring nut (2) clockwise of the steering sleeve proper tool, to adjust play properly.
• Tighten steering sleeve nut (1) to a torque setting of 57,9÷65,1 Lb/ft; (78,4÷88,3 Nm).
• Tighten four screws on the steering head (3) to a torque of 22,5 ÷ 26,5 Nm ( 16.6 ÷ 19.5 Lb/ft).

LOCK ADJUSTMENT

The lock can be changed, using the adjusting units on the sides of the steering tube, as follows: loosen the ring nut (1) and turn the adjusting screw (2) until you have the desired angle, then tighten the ring nut again (1). Change by the same amount on both sides.

CAUTION*: Do not ride a motorcycle with damaged steering stem bearings. An unsafe handling condition can result.

Close-up of a motorcyclist's wheel and suspension system, showing tire alignment and mechanical components (no text or symbols visible)

Labeled mechanical assembly diagram showing components numbered 1, 2, and 3 with visible wiring and components

Close-up mechanical diagram showing two labeled components (1 and 2) with arrows pointing to a component on a surface.

On the SMR model the lever position can be adjusted (4 adjustments) for any driver hand size. To decrease the lever distance from the handle grip, turn the adjuster (B) CLOCKWISE. To increase the lever distance from the handle grip, turn the adjuster (B) COUNTERCLOCKWISE. On the TE, TXC and TC models the adjuster (2), located on the control lever, allows adjusting of the free play (a). Free play (a) must be at least 3 mm (0.1 in.). The level of the fluid in pump reservoir must never be below the minimum value (1), which can be checked from the window

on the rear side of the pump body (TE, TC). For SMR model, check the level on the fluid reservoir.

A decrease of the fuel level will let air into the system, hence an extension of the level stroke.

WARNING*: If the brake lever feels mushy when it is applied, there may be air in the brake lines or the brake may be defective. Since it is dangerous to operate the motorcycle under such conditions, have the brake checked immediately by an authorized HUSQVARNA dealer.

CAUTION*: Do not spill brake fluid on to any painted surface or lenses.

CAUTION*: Do not mix two brands of fluid. Change the brake fluid in the brake line if you wish to switch to another fluid brand. CAUTION*: Brake fluid may cause irritation. Avoid contact with skin or eyes. In case of contact, flush thoroughly with water and call a doctor if your eyes were exposed.

SMR B 1 2 3 4 1 2 3 4

SMR ①

TE-TC-TXC ①

TE-TC-TXC a 2

A: to encrease clearance
B: to decrease clearance

TE-TC-TXC + A 2 B

REAR BRAKE PEDAL POSITION ADJUSTMENT

The position of the rear foot brake pedal as to the footrest may be adjusted according to the individual needs. For the adjusting proceed as follows:

• loosen the screw (1);
• turn the cam (2) in order to adjust the brake pedal idle stroke (A);
• the operation done, tighten the screw (1).

The adjusting operation carried out, adjust the idle stroke of the pedal as follows.

REAR BRAKE IDLE STROKE ADJUSTMENT

The rear brake foot pedal should have a (B) 5 mm (0.2 in.) idle stroke before starting the true braking action.

Should this not happen, operate as follows:

• loosen nut (3);
• operate the pump rod (4) to increase or decrease the idle stroke;
• tighten nut (3) at the end of the operation.

WARNING

When the idle stroke figures are not met, the brake pads will be subjected to a fast wear that may bring to the TOTAL BRAKE IN-EFFECTIVENESS.

A ① ②

Close-up of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a motor and gear mechanism (no text or symbols visible)

Technical diagram of a mechanical assembly with numbered components labeled 3, 4, and B

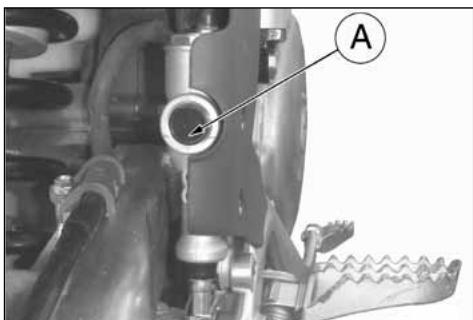

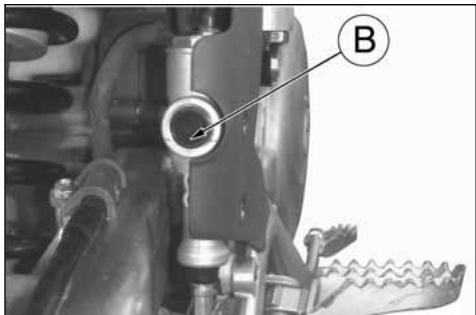

CHECKING THE FLUID LEVEL

The level (A) must be set between the pump tank notches.

ADJUSTMENT OF THE CONTROL LEVER AND CHECK OF THE HYDRAULIC CLUTCH FLUID LEVEL

Free play (A) must be at least 3 mm (0.1 in.).

The lever position can be adjusted for any driver hand size.

To decrease the lever distance from the handle grip, rotate the adjuster (B) CLOCKWISE.

To increase the lever distance from the handle grip, rotate the adjuster (B) COUNTERCLOCKWISE.

To check the fluid level, proceed as follows:

- remove screws (1), cover (2) and rubber pump diaphragm on the handlebar clutch control;

Mechanical assembly diagram showing a valve and gear mechanism (no text or symbols visible)

• by keeping the master cylinder (3) in horizontal position, check the fluid level is NOT BELOW 4 mm (0.16 in.) from the upper surface (D) of the pump body;
• if necessary, add fluid until the correct level is reached see TABLE FOR LUBRICATION-SUPPLIES for the fluid type page 10.

CAUTION\*: NEVER use brake fluid.

Reassembly the removed parts using the reverse procedure.

Periodically check the connecting hose (see "Periodical maintenance card"): if the hose (C) show is bent or cracked, its replacement is advised.

TC-TXC 1 2 3 C D 4 mm (0.16 in.) A B

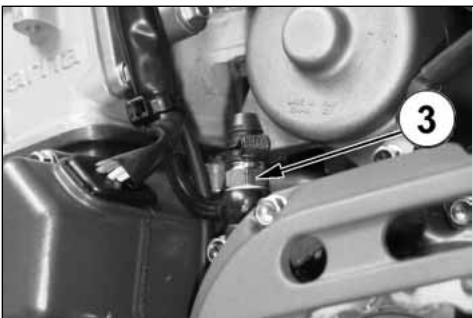

HYDRAULIC CLUTCH BLEEDING

Proceed as follows:

• remove screws (1), cap (2) and rubber pump diaphragm;
• remove the bleeding nipple (3);
• mount a syringe in the bleeding nipple hole, then refill with fresh fluid see LUBRICATION TABLE on page 12.

CAUTION *: NEVER use brake fluid.

- refill until fluid is discharged from the lower hole (B) on the pump body WITHOUT BUBBLES.

The fluid level MUST NEVER BE below 4 mm from the top (A) of the clutch pump body (see picture). Reassemble the removed parts.

Close-up of a mechanical assembly with labeled component (3), no visible text or symbols beyond the number and label.

① ② B A 4 mm (0.16 in.)

ADJUSTING THE SUSPENSIONS ACCORDING TO PARTICULAR TRACK CONDITIONS

The following information is a useful guide for setting up the suspensions according to the road conditions.

Always start from the standard calibration before making any change on the suspensions. Afterwards, increase or decrease the adjusting clicks one at a time.

HARD GROUND

Fork: softer compression adjustment.

Shock absorber: softer compression adjustment.

The softer adjustment for the two suspensions is also used both in compression and in extension when driving at top speed, in order to have better grip of the tires.

SANDY GROUND

Fork: have a harder compression adjustment, or replace the standard spring with a harder one, and make a softer compression adjustment and a harder extension adjustment at the same time.

Shock absorber: have a harder compression, and especially a harder extension adjustment. Work on the spring preload to lower the motorcycle rear side.

MUDDY GROUND

Fork: have a harder compression adjustment, or replace the standard spring with a harder one.

Shock absorber: have a harder compression and extension adjustments, or replace the standard spring with a harder one. Work on the spring preload to lift the motorcycle rear side.

We advise replacing the springs of both suspensions to compensate the weight increase due to the piling of the mud.

NOTE:

When the fork results as either too soft or too hard for any adjustment conditions, check the oil level inside the forkrod.

The level can either be too low or too high. Remember that too

much oil inside the fork will involve a more frequent air drainage. When the suspensions do not react to the changes of calibration, check that the adjusting units are not blocked.

Black-and-white action photo of a dirter mid-jump on a dirt track, wearing helmet and racing gear (no visible text or symbols)

Black-and-white photo of a dirter in action on a dirt track, kicking up the tire with visible tracks and dust (no text or symbols)

Black-and-white action photo of a dirter mid-jump on a wet track, kicking up dust (no visible text or symbols)

Black-and-white photo of a motorcyclist in action on a track, wearing racing gear and number 100 (no visible text or symbols)

The standard calibrations and the adjustment procedures are shown below.

ADJUSTING THE COMPRESSION FORK (TE 310/EU - SMR 450, 510)

a) Compression (Lower register)

Standard calibration: -12 clicks.

Remove plug (B) and turn register (A) clockwise until the position of fully closed is reached then, turn back by the mentioned clicks. To obtain a smoother braking action, turn the register anticlockwise. Reverse the operation in order to obtain a harder action.

b) EXTENSION (upper register)

Standard calibration: - 12 clicks.

To reset standard calibration turn register (C) clockwise to reach the position of fully closed; then, turn back by the mentioned clicks. To obtain a smoother braking action, turn the register anticlockwise. Reverse the operation in order to obtain a harder action.

c) AIR VENT (to carry out after each competition, or monthly). Set the motorcycle on a central stand and release the fork fully and loosen the air vent valve (D). Once this operation is over, tighten the valve.

WARNING: Never force the adjusting screws beyond the maximum opening and closure positions.

a) A - + B

b) C + -

TE-SMR C

TE-SMR D

OIL FORK LEVEL

For the regular fork operation, both legs must be provided with the necessary oil quantity. Remove the forkrods form the fork to check the oil level inside the forkrods. Work as follows:

• remove the power rod caps;
• remove springs from the stems letting the oil drop into the latter;
• bring forks to stroke end;
• check that the level is at distance "A" below the upper limit of rods.

OIL QUANTITY IN EACH FORK LEG

• TE: 725 cm ^3 (44.2 cu. in.)
• SMR: 740 cm ^3 (45.1 cu. in.)

A=100mm (3.94 in.) - SMR

A=120mm (4.72 in.) - TE

NOTE

Flexibility index for the serial springs:

K=4,8 N/mm (TE)

K=5 N/mm (SMR)

NOTE

Always replace both the spring and the spacers to keep the preload value unchanged.

A

ADJUSTING THE COMPRESSION FORK (TC 450; TXC 450-510; TE 310-450-510)

a) Compression (TC,TXC: upper register; TE: Lower register)

Standard calibration: -7 clicks (TC-TXC);

Standard calibration: -10 clicks (TE);

Remove plug (B) and turn register (A) clockwise until the position of fully closed is reached then, turn back by the mentioned clicks. To obtain a smoother braking action, turn the register anticlockwise. Reverse the operation in order to obtain a harder action.

b) EXTENSION (TC-TXC: lower register; TE: upper register)

Standard calibration: - 10 clicks (TE).

Standard calibration: - 13 clicks (TC-TXC).

To reset standard calibration turn register (C) clockwise to reach the position of fully closed; then, turn back by the mentioned clicks. To obtain a smoother braking action, turn the register anticlockwise. Reverse the operation in order to obtain a harder action.

c) AIR VENT (to carry out after each competition, or monthly). Set the motorcycle on a central stand and release the fork fully and loosen the air vent valve (D). Once this operation is over, tighten the valve.

WARNING: Never force the adjusting screws beyond the maximum opening and closure positions.

a) D A + TC-TXC

b) C - + TC-TXC

OIL FORK LEVEL

For the regular fork operation, both legs must be provided with the necessary oil quantity. TE: remove the forkrods form the fork to check the oil level inside the forkrods. Work as follows:

• remove the power rod caps;
• remove springs from the stems letting the oil drop into the latter;
• bring forks to stroke end;
• check that the level is at distance of 5.51in below the upper limit of rods.

OIL QUANTITY IN EACH FORK LEG

• TC-TXC: 352 cm ^3 (21.5 cu. in.)
• TE: 643 cm ^3 (39.2 cu. in.)

NOTE

Flexibility index for the serial springs:

K=8.8 N/mm (TE)

K=9.6 N/mm (TC-TXC)

NOTE

Always replace both the spring and the spacers to keep the preload value unchanged.

a) A - + TE

b) C D H→S + - TE

HANDLEBAR POSITION AND HEIGHT CHANGE

The handlebar position (a) and height (b) can be changed for better suiting Your driving requirements. To effect these operations, remove the upper clamp (1) and the lower one (2), after removing the fixing screws (3) and (4).

a) Handlebar position change

Turn the lower clamp (2) 180° to move forward or backward (10mm-0.04in.) the handlebar position with respect to the original setup.

b) Handlebar height change

Remove the lower spacer (A) then replace the screw (4) with a new one of L=65 mm (2.56 in.) height.

Once these operations are completed, tighten the screws (3) to 2,75-3,05 kgm (27-30 Nm; 19.9-22 Lb/fts) and the screws (4) to 2,0-2,2 kgm (19,6-21,6 Nm; 14.5-15.9 Lb/fts).

A 2

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

4 "L"

The rear shock absorber must be adjusted according to the rider weight and track conditions.

Proceed as follows:

1. With motorcycle on the stand, measure distance (A).
2. Take the normal riding position on the motorcycle with all your riding apparel.
3. With somebody's help, take the new distance (A).

B: axis of the panel screw C: axis of rear wheel pin

SMR10 A B C

1. The difference between these two measurements constitutes the "SAG" of the motorcycle's rear end.
   Suggested SAG: 4 in. with cold shock absorber. 3.7 in. with warmed up shock absorber.
2. To get the right SAG according to your weight, adjust the shock absorber spring preload as described at side.

WARNING*: Never disassemble shock absorber, which contains highly compressed nitrogen. Contact your Dealer for such major service. Do not incinerate.

ADJUSTING THE SHOCK ABSORBER SPRING PRELOAD

Proceed as follows:

1. First turn counterclockwise fastening rear pin (1) then remove saddle, screws (2) and R.H. side panel (3).

Diagram of a mechanical component with a circular ring and numbered label (1), no readable text or symbols present.

1. Clean ringnut (1) and adjusting nut (2) of the spring (3).
2. Either with a hook wrench or an aluminium punch, loosen the ringnut.
3. Turn the adjusting nut as required.
4. When the adjusting operation is over (according to your weight and riding style), tighten the ringnut. (Torque for both ringnuts: 5 Kgm; 49 Nm; 36.2 ft/lb).
5. Reassemble R.H. side panel and saddle.

WARNING*:Be careful not to touch hot exhaust pipe while adjusting the shock absorber.

SHOCK ABSORBER DAMPING ADJUSTMENT

Adjustment of the compression stroke is independent from the rebound stroke.

A) COMPRESSION - Standard calibration:
1) Low damping speed:
- 15 clicks (± 2 clicks)
(register 4)

2) High damping speed:
- 15 clicks (± 2 clicks)
(register 6)
To reset the standard calibration, turn upper registers (4) and (6) clockwise until reaching fully closed position.
Return then back for the mentioned clicks. In order to obtain a smooth braking action, turn the registers anticlockwise.
Reverse the operation in order to obtain a harder braking action.

B) EXTENSION - Standard calibration:

- 18 clicks (± 2 clicks)

To reset the standard calibration, turn lower register (5) clockwise until reaching fully closed position. Return then back for the mentioned clicks. In order to obtain a smooth braking action, turn the register anticlockwise. Reverse the operation in order to obtain a harder braking action.

Labeled mechanical component diagram showing parts numbered 1, 2, and 3 with annotations

4 6

Mechanical assembly diagram showing linkage components with arrows and a numbered label (5), no readable text or symbols present.

CHAIN ADJUSTMENT (Fig. A)

Chain should be checked, adjusted and lubricated as per the Maintenance Chart to ensure security and prevent excessive wear. If the chains becomes badly worn or is poorly adjusted (i.e., if it is too loose or too taught), it could escape from sprocket or break.

To adjust the rear chain it is necessary to lower the rear part of motorcycle so to line up the drive sprocket axle, the rear swing arm axle and the rear wheel axle as shown on drawing. Than let turn three times the rear wheel. Now the chain should not be tight.

Fast adjustment (Fig. B).

In the point shown in the figure, fit a bush (a), 35 mm diameter (or alternatively a shim in the same size) and make sure the lower branch (C) of the chain is slightly taut.

If it is not, proceed as follows:

• on the right side, with a 27 mm Allen screwdriver, loosen the locking nut (1) of the wheel pin;
• with a 12 mm screwdriver, loosen the check nuts (2) on both chain stretchers and work on the screws (3) to achieve the right tension;
• when the adjustment is over, tighten the check nuts (2) and the wheel pin nut (1).

When the adjustment is over check the wheel for alignment.

145 mm (5.7 in.) a

Fig. B a C

Close-up of a hand using a wrench to adjust the wheel rim and brake system (no text or symbols visible)

Fig. A

Fig. A Drive sprocket axle Rear swing arm axle Rear wheel axle

Mechanical assembly diagram showing a hand using a tool to adjust components labeled 2 and 3 on a gear-like component.

CHECKING THE WEAR OF CHAIN, PINION AND SPROCKET

Proceed as follows:

• fully stretch the chain with the adjusting screws.
• mark 20 chain links.
• measure the distance "A" between 1st pin center and 21 st pin center.

STANDARD	WEAR LIMIT
317,5 mm12,5 in	323 mm12,72 in

Check the pinion damages or wear and replace it should the wear degree be as the one shown in figure.

Remove the wheel and check the wear of the rear sproket teeth. The below figure shows the outline of teeth in normal and excessive wear. Should the sprocket be badly worn out, replace it by loosening the six fastening screws to the hub.

WARNING*: Misalignment of the wheel will result in abnormal wear and may result in an unsafe riding condition.

Note*: In muddy and wet conditions, mud sticks to the chain and sprockets resulting in an overtight chain. The pinion, the chain, and the rear sprocket wheel wear increases when running on muddy ground.

LUBRICATING THE CHAIN

Lubricate the chain following these instructions.

WARNING * : Never use grease to lubricate the chain. Grease helps to accumulate dust and mud, which act as abrasive and hepl to rapidly wear out the chain, the sprocket, and the crown.

Disassembling and cleaning

When particularly dirty, remove and clean the chain before lubrication.

Work as follows:

1 - Set a stand or a block under the engine and see that the rear wheel is lifted from the ground.

Remove: screws (1), transmission sprocket guard (2), clip (3), master link (4) and transmission chain (5);

To reassemble, reverse the above procedure.

1 2 3... ... 21 L

Black and white geometric shape resembling a stylized gear or sprocket (no text or symbols)

Normal consumption Excessive consumption

Labeled diagram of a motorcycle wheel assembly with numbered parts for identification

2 - Check that the chain is neither worn out nor damaged. If the rollers or the links are damaged, replace the chain by following the instructions given in the Periodical Maintenance Table.
3 - Check that neither the sprocket nor the crown are damaged.
4 - Wash and clean the chain as described hereunder.

Washing the chain without OR (\*)

Wash using either oil or diesel oil. When using gasoline or tricloroetilene, clean and lubricate the chain to prevent oxidation.

Washing the chain with OR ( · )

Wash using oil, diesel oil, or paraffin oil. Never use gasoline, tricloroetilene, or solvents, as the OR may suffer damages. Use instead special sprays for chains with OR.

Lubricating the chain without OR (\*)

First dry, then plunge the chain in a bisulphide molybdenum lubricant, or in high viscosity engine oil. Warm up the oil before use.

(*): TC (•): TE-TXC-SMR

Lubricating the chain with OR ( · )

Lubricate all metallic and rubber (OR) elements using a brush, and use engine oil with SAE 80-90 viscosity for the internal and external parts.

5 - If the chain has been cut, reassemble using a joint.
6 - Assemble the joint spring (a) by turning the closed side to the chain direction of rotation as shown in figure below.

NOTE*: Even if all the joints are reusable when in good conditions, for safety purposes we advise using new joints when reassembling the chain.

7 - Accurately adjust the chain as described on page 47.

WARNING: The chain oil has NEVER to get in contact with the tires or the rear brake disk.

Chain tension rollers, chain driving roller, chain guide, chain runner

Check the wear of the above mentioned elements and replace them when necessary.

WARNING*: Check the chain guide alignment, and remember that a bent element can cause a rapid wear of the chain. In this case, a chain fleeting from the sprocket may ensue.

1 2 3 4 a 1- C 2- C 3- C 4- C a- J

1- Chain tension roller
2- Chain driving roller
3- Chain guide
4- Chain slider
a- Joint spring

REMOVING THE FRONT WHEEL

Set a stand or a block under the engine and see that the front wheel is lifted from the ground. Loosen the bolts (1) holding the wheel axle (2) to the front fork stanchions.

SMR: remove the two screws (A) and the brake caliper. Hold the head of the wheel axle (2) in place, unscrew the bolt (3) on the opposite side; draw the wheel axle out.

NOTES

Do not operate the front brake lever when the wheel has been removed; this causes the caliper piston to move outwards. After removal, lay down the wheel with brake disc on top.

Close-up of a motor with visible wheel and gear assembly (no text or symbols)

TE-TC-TXC 1 2

1 2 SMR

SMR A EXCEL

TE-TC-TXC ① ③

1 3 SMR

REASSEMBLING THE FRONT WHEEL

Fit the L.H. spacer on the wheel hub.

TE-TC-TXC: Fit the wheel between the front fork legs so that the brake disc is fitted into the caliper.

SMR: Fit the wheel between the front fork legs.

Fit the wheel axle (2) from the R.H. side, after greasing it and push it to the stop on the L.H. leg; during this operation, the wheel should be turned. Tighten the screw (3) on the fork L.H. side but DO NOT lock it. Now, pump for a while, pushing the handlebar downwards until you are sure that the fork legs are perfectly aligned.

SMR

TE-TC-TXC

Lock: the screws (1) on the R.H. leg (10,4 Nm/ 1,05 Kgm/ 7.7 ft-lb), the screw (3) on the L.H. side (51,45 Nm/ 5,25 Kgm/ 38 ft-lb), the screws (1) on the L.H. leg (10,4 Nm/ 1,05 Kgm/ 7.7 ft-lb).

SMR: fit the brake caliper on the disc; assemble the caliper on its holding plate and tighten the screws (A) at 25,5 Nm/ 2,6 Kgm/ 18.8 ft-lb.

Check that the brake disc slides between the caliper pads without any friction.

NOTE

After reassembly, pump the brake control lever until the pads are against the brake disc.

TE-TC-TXC 1 2

TE-TC-TXC ① ③

Close-up of a motorcycle's front wheel and suspension system (no visible text or symbols)

1 2 SMR

SMR 1 3

REMOVING THE REAR WHEEL

Unscrew the nut (1) of the wheel pin (3) and extract it. It is not necessary to unloose the chain adjusters (2); in this way, the chain tension will remain unchanged after the reassembly. Extract the complete rear wheel, by taking care of the spacers located at the hub sides.

To reassemble, reverse the above procedure remembering to insert the disc into the caliper.

NOTES

Do not operate the rear brake pedal when the wheel has been removed; this causes the caliper piston to move outwards. After removal, lay down the wheel with brake disc on top. After reassembly, pump the brake control pedal until the pads are against the brake disc.

Close-up mechanical diagram of a bicycle wheel with labeled components 1 and 2

Mechanical assembly diagram showing a gear and shaft components (no text or symbols visible)

TIRES

Care should be taken to keep the tires properly inflated. See tire data for correct tire inflation pressure (page 11). Replace the tire if its wear exceeds what is shown on the table below.

MINIMUM HEIGHT OF THE TREAD

FRONT	3 mm (TC,TE,TXC); 2 mm (SMR)
REAR	3 mm (TC,TE,TXC); 2 mm (SMR)

BRAKES

The mayor components are brake master cylinder with its lever (front) or pedal (rear), brakeline, caliper assembly and disc.

LEGEND

1. Front brake control lever
2. Front brake pump with oil reservoir (TE, TC,TXC)
3. Front brake pump (SMR)
   2A. Oil reservoir (SMR)

4. Front brake hose

5. Front brake caliper

6. Front brake disc
7. Rear brake oil tank
8. Rear brake hose
9. Rear brake caliper
10. Rear brake disc
11. Rear brake pump
12. Rear brake control pedal

BRAKE PADS REMOVAL

• Remove springs (1).
• Remove pins (2).
• Remove pads.

CAUTION!

Don't operate the brake lever or pedal while removing the pads.

PADS WEAR (TE-TC-TXC)

Inspect pads for wear. Service limit "A" is: 3,8 mm (0.15 in.). If service limit is exceeded, always replace the pads in pairs.

PADS WEAR (SMR)

a) In front: thickness "A" must never be lower than the one pointed out by the wear control notches.
b) At the back: thickness "A" must never be lower than 3,8 mm.

If service limit is exceeded, always replace the pads in pairs.

SMR FRONT 1 2

TE-TC-TXC FRONT REAR

TE-TC-TXC FRONT ① ②

2 1 REAR

SMR FRONT REAR

PADS CLEANING

Be careful that no disc brake fluid or any oil gets on brake pads or discs. Clean off any fluid or oil that inadvertently gets on the pads or disc with alcohol.

Replace the pads with new ones if they cannot be cleaned satisfactorily.

PADS INSTALLATION

• Install new brake pads.
• Reassemble the two pins (2) and the springs (1).

WARNING!

Do not attempt to ride the motorcycle until the brake lever or pedal are

fully effective. Pump the brake lever or pedal until the pads are against the discs.

The brake will not function on the first application of the lever or pedal.

TE-TC-TXC FRONT 1 2

SMR FRONT 1 2

2 1 REAR

BRAKE DISC WEAR

Measure the thickness of each disc at the point where it has worn the most. Replace the disc if it has worn past the service limit.

Disc Thickness

DISC	STANDARD	SERVICE LIMIT
Front (TE-TC-TXC)	3 mm0.118 in	2,5 mm0.098 in
Front (SMR)	5 mm0.197 in	4,5 mm0.177 in
Rear	4 mm0.157 in	3,5 mm0.138 in

DISC WARPAGE

Measure disc warpage. Service limit for both discs is 0,15 mm (0.006 in.)

Replace the disc if warpage is more than service limit.

TE-TC-TXC

Close-up of a bicycle's front wheel assembly with visible mechanical components (no text or symbols)

Close-up of a bicycle brake system with visible components and wheel rim (no text or symbols)

Close-up of a mechanical assembly with a dial indicator and brake caliper (no visible text or symbols)

DISC CLEANING

Poor braking can also be caused by oil on the disc. Oil or grease on the disc must be cleaned off with a high flash-point oil free solvent, such as acetone or lacquer thinner.

FLUID CHANGE

The brake fluid should be checked and changed in accordance with the Periodic Maintenance Chart or whenever it is contaminated with dirt or water. Don't change the fluid in the rain or when a strong wind is blowing.

CAUTION!

* Use only brake fluid from a sealed container (DOT 4). Never use old brake fluid.
* Never allow contaminants (dirt, water, etc.) to enter the brake fluid reservoir.
* Don't leave the reservoir cap off any length of time to avoid moisture contamination of the fluid.
* Handle brake fluid with care because it can damage paint.
* Don't mix two types of fluid for use in the brake. This lowers the brake fluid boiling point and could cause the brake to be ineffective. It may also cause the rubber brake part to deteriorate.

Close-up of a bicycle wheel assembly with visible mechanical components and mounting brackets (no text or symbols)

Close-up of a bicycle brake system with visible components and suspension rings (no text or symbols)

To replace the fluid, proceed as follows:

• Remove the rubber cap on the bleeding valve (1) or (1A).
• Attach a clear plastic hose to the bleeding valve on the brake caliper and turn the other end of the hose into a container.
• Remove fluid reservoir cap (2) or (2A: 21 mm wrench) and the rubber.
• Loosen bleeding valve on the brake caliper.

② TE-TC-TXC

Close-up of a bicycle wheel assembly with visible mechanical components and a numbered annotation (1) pointing to a specific part.

Close-up of a bicycle brake system with labeled component (1A), no visible text or symbols beyond label

Two-panel image showing bicycle wheel components: front view and side view, no text or symbols visible.

SMR ②

2A

• Pump with brake lever (3) or brake pedal (3A) in order to push brake fluid out of line.
• Close the bleeding valve and fill the reservoir with fresh brake fluid.
• Open the bleeding valve, apply the brake using the brake lever or pedal, close the bleeding valve with the brake lever or pedal applied and then quickly release the lever or pedal.
• Repeat this operation until the brake line is filled and clear fluid starts coming out of the plastic hose: now close the bleeding valve.

- Restore the brake fluid level (A) or (B) then reassemble the rubber and the fluid reservoir cap (page 58).

After the brake fluid replacement, it is necessary to operate the braking system bleeding (see pages 60 and 63).

Close-up of a mechanical lever handle and grip with a numbered annotation (3) pointing to the lever (no text or symbols on the object itself)

Close-up of a mechanical assembly with no visible text or symbols

TE-TC-TXC A

A SMR

Mechanical assembly diagram showing a valve and gear mechanism (no text or symbols)

WARNING!

Brake fluid quickly ruins painted surfaces; any spilled fluid should be completely wiped up immediately.

* Brake fluid may cause irritation. Avoid contact with skin or eyes. In case of contact, flush thoroughly and call a doctor if your eyes were exposed.

Periodically check the connecting hoses (see "Periodical maintenance card"): if the hoses (A) and (B) are worried or cracked, their replacement is advised.

A

Close-up of a bicycle wheel with visible tire, disc, and gear assembly (no text or symbols)

FRONT BRAKING SYSTEM BLEEDING (TE, TC, TXC)

The braking system must be bled after the fluid replacement or when, due to air in the circuit, the lever stroke is long and spongy.

Proceed as follows:

• Remove the rubber cap on the bleeding valve (1).
• Attach a clear plastic hose to the bleeding valve on the brake caliper and turn the other end of the hose into a container (make sure that the end of the hose is submerged in brake fluid during the entire bleeding operation).

Close-up of a bicycle wheel assembly with visible mechanical components and a numbered annotation (1) pointing to a specific part.

Close-up of a bicycle wheel with a tire and bucket, next to a white bottle labeled 'TE-TC-TXC' (no other text or symbols visible)

• Remove fluid reservoir cap (2), the rubber and fill the reservoir with fresh brake fluid.
• Open the bleeding valve and pump with brake lever (3) several times until the fluid, clear and without bubbles, comes out of the hose: now close the bleeding valve.-
• Restore the brake fluid level (A) then reassemble the rubber and the fluid reservoir cap (2).

WARNING!

During the bleed operation the fluid level inside the reservoir must never be lower than the minimum level.

Tightening torque for bleed valve is 1,2 ÷ 1,6 kgm (12 ÷ 16 Nm; 8.8 ÷ 11.8 ft-lb).

As the braking fluid is a very corrosive substance, in the case it comes in contact with your eyes wash them abundantly with water.

During the bleeding of the braking circuit keep the handlebar turned leftwards. This is the way to lift the pump tank and to make easier the bleeding of the braking system.

If the lever stroke gets stretchy and the braking action results as poor in the case of falls during competitions, or after repair work in shops, repeat the bleeding operation described above.

As the bleeding operation does not fully eliminate the air inside the circuit, the small quantity of air remaining inside will be eliminated after a short time of use of the brake. In this case however, the action of the lever will be harder and the stroke shorter.

Diagram of a motorcycle brake lever with labeled parts ② and ③

BRAKE 肉 LMD A UP

②

FRONT BRAKING SYSTEM BLEEDING (SMR)

The braking system must be bled after the fluid replacement or when, due to air in the circuit, the lever stroke is long and spongy.

Regarding the front braking system, first proceed to bleed the upper braking system control (bleeding valve 1), then the brake caliper (bleeding valve 1A).

In both cases, proceed as follows:

- Remove the rubber cap on the bleeding valve (1) or (1A).

- Attach a clear plastic hose to the bleeding valve on the brake caliper and turn the other end of the hose into a container (make sure that the end of the hose is submerged in brake fluid during the entire bleeding operation).

- Remove fluid reservoir cap (2), the rubber and fill the reservoir with fresh brake fluid.

- Open the bleeding valve and pump with brake lever several times until the fluid, clear and without bubbles, comes out of the hose: now close the bleeding valve.

SMR A 2 1

Close-up of automotive electrical plug connectors (no visible text or symbols)

1A SMR

Close-up of a hand using a wrench to connect a motor tire with a cable labeled 'SMR' (no other text or symbols visible)

- Restore the brake fluid level (A) then reassemble the rubber and the fluid reservoir cap.

WARNING!

During the bleed operation the fluid level inside the reservoir must never be lower than the minimum level.

Tightening torque for bleed valve is 1,2 ÷ 1,6 kgm (12 ÷ 16 Nm; 8.8 ÷ 11.8 ft-lb).

As the braking fluid is a very corrosive substance, in the case it comes in contact with your eyes wash them abundantly with water.

During the bleeding of the braking circuit keep the handlebar turned leftwards. This is the way to lift the pump tank and to make easier the bleeding of the braking system.

If the lever stroke gets stretchy and the braking action results as poor in the case of falls during competitions, or after repair work in shops, repeat the bleeding operation described above.

As the bleeding operation does not fully eliminate the air inside the circuit, the small quantity of air remaining inside will be eliminated after a short time of use of the brake. In this case however, the action of the lever will be harder and the stroke shorter.

REAR BRAKING SYSTEM BLEEDING

The braking system must be bled after the fluid replacement or when, due to air in the circuit, the pedal stroke is long and spongy.

To bleed the system:

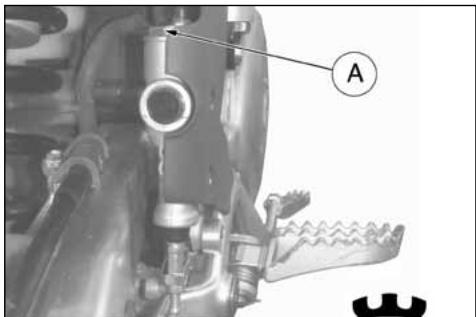

- Remove the reservoir cover (A) (21 mm wrench) rubber boot and top up with (DOT 4) brake fluid.

2 A

A

- Attach a clear plastic hose to the bleed valve (1) on the caliper and turn the other end of the hose into a container.

• Depress the pedal (2) and keep it full down.
• Loosen the bleed union letting out fluid (at first, only air will come out), then, closing the union slightly.
• Release the pedal and wait for a few seconds before repeating the operation until only fluid come out of the tube.

- Close the bleed union to the prescribed torque and check the fluid level (B) inside the reservoir before reassemble the cap (1). If the bleeding operation has been done correctly, the pedal will have no mushy feel. If not, repeat the operation.

NOTE

Should the motorcycle, due to a fall during a competition or shop repairs, show some elasticity of the brake lever stroke, with a subsequent braking efficiency decrease, you'll to repeat the circuit bleeding as above described.

Close-up of a bicycle brake system with visible components and a numbered label (1), no readable text or symbols present.

Close-up of a bicycle brake system with visible components and a labeled 'TC' (no text or symbols on the diagram itself)

WARNING!

During the bleed operation the fluid level inside the reservoir must never be lower than the minimum level.

Tightening torque for bleed valve is 1,2 ÷ 1,6 kgm (12 ÷ 16 Nm; 8.8 ÷ 11.8 ft-lb).

Close-up of a mechanical assembly with a gear and housing (no visible text or symbols)

Mechanical assembly diagram showing a valve and gear assembly (no text or symbols visible)

EXHAUST MUFFLER (TC-TE-TXC)

The muffler reduces the noise of the exhaust gases, but it is an integral part of the exhaust as well. As such, its conditions affect the motorcycle performance.

When the noise on the exhaust is too high, it means that the deadening material set on the holed tube inside the muffler is deteriorated.

WARNING: Check the deadening material after every competition and replace it if necessary.

REPLACING THE MUFFLER DEADENING MATERIAL

First turn counterclockwise fastening rear pin (1) then remove saddle, screws (2) and L.H. side panel (3). Using an 8 mm T-shaped spanner on the outside and a 10 mm T-shaped spanner on the inside, remove the locking screw (4) of the muffler. Remove the spring (5) and with an 8 mm T-shaped spanner remove the screw (8); then pull out the muffler.

Remove the six rear rivets (6), clamp and the exhaust terminal (7).

Remove inner pipe and replace the deadening material. Reassemble L.H. side panel and saddle.

NOTE: When difficulties are found in removing the muffler, lightly beat with a rubber or plastic hammer.

Illustration of a mechanical component with motion lines and a numbered label (1), no readable text or symbols present.

2 3

Technical diagram showing mechanical assembly steps with numbered annotations (4, 6, 7)

Close-up of a hand adjusting a mechanical engine component with a numbered arrow pointing to a section (no visible text or symbols)

Close-up of a mechanical assembly with a wrench tool inserted, showing components like gears and a numbered callout (no readable text or symbols)

EXHAUST MUFFLER (SMR)

The muffler reduces the noise of the exhaust gases, but it is an integral part of the exhaust as well. As such, its conditions affect the motorcycle performance.

When the noise on the exhaust is too high, it means that the deadening material set on the holed tube inside the muffler is deteriorated.

WARNING*: Check the deadening material after every competition and replace it if necessary.

REPLACING THE MUFFLER DEADENING MATERIAL

Remove the saddle after turning the locking back pin (1) anticlockwise, loosen the screws (2) with an 8-mm T-shaped spanner and remove the side panel (3) (do the same on the right side). Using an 8 mm T-shaped spanner on the outside and a 10 mm T-shaped spanner on the inside, remove the locking screw (4) of the muffler. Remove the spring (5) and pull out the muffler (A) o (B). Remove the four rear rivets (6), clamp and the exhaust terminal (7).

Remove inner pipe and replace the deadening material. Reassemble L.H. side panel and saddle.

NOTE*: When difficulties are found in removing the muffler, lightly beat with a rubber or plastic hammer.

Labeled diagram of a motorcycle interior showing parts numbered 2 and 3 with arrows pointing to specific components.

6 7 4 B

Close-up of a car tire tread with a white plastic wrap, showing a numbered point (1) and no visible text or symbols.

4 6 7 A

A B 5

OVERHAULING THE WHEELS

The tables hereunder show the type of control the rim and wheel axle are to be submitted to.

Note*: if the rim is badly, it should be replaced.

DEFORMATION RIM

	STANDARD	MAX.LIMIT
Side skid	less than 0,5 mm (0.02 in)	2 mm (0,078 in)
Eccentricity	less than 0,8 mm (0.03 in)

WHEEL SPOKES

Check to make sure that all the nipples are tight; tighten them if necessary.

Remember that an insufficient stretch jeopardizes the motorcycle stability.

For an instant check, use a metal point (for instance, a screw-driver) to beat the spokes with. A live sound accounts for an accurate tightening, while a dull sound means that a new tightening is necessary.

Technical line drawing of a mechanical gauge or dial assembly with no visible text or symbols

Technical line drawing of a pressure gauge mounted on a pipe (no text or symbols)

WHEEL RIM AXLE BENDING

If the bending figure is over the allowable max. limit, straighten or replace the axle.

If the wheel axle cannot be straightened within the max. limits (0,2 mm - 0,008 in.) stated, replace it.

Illustration of a hand using a dial indicator to measure a mechanical setup (no text or symbols present)

Mechanical linkage diagram showing a bone and connecting rods (no text or labels)

ELECTRICAL COMPONENTS LOCATION (TE-SMR)

The ignition system includes the following elements:

• Generator (1), in oil bath, on the inner side of L.H. crankcase cover;
• Electronic ignition coil (2) under the fuel tank;
• Electronic power unit C.D.I. (3) under the fuel tank;
• Voltage regulator (4) under the fuel tank;
• Spark plug (5) on the R.H. side of cylinder head;
• Starting motor 12V-450W (6) behind the cylinder;
• Electric start remote control switch (8) on the left side of the rear frame.
• M.A.Q.S. sensor (pressure, throttle control position, air temperature) (10) on the throttle body.

The electric system includes the following elements:

• Battery 12V-6Ah (7) under the saddle;

• Flashing indicator device (17) on the left side of the rear frame;

• Relay (14) for light and injection system, on the L.H. side of the frame;

• Relay (14) for the electric fan, on the R.H. side of the frame;
• Electric fan (16);

7 8 17

14 14

Mechanical assembly diagram showing components labeled 1 and 6, with no readable text or symbols beyond labels

Close-up of a mechanical component with a numbered annotation (5) pointing to a small cylindrical feature, no readable text or symbols present.

2 4 14 16 3

• Two fuses (9) 15A and one (13) 20A, on the right side of the rear mudguard;
• Fall sensor (11) on the right side of the rear frame;
• Coolant temperature sensor (15);

• Lambda probe (18);

• Headlamp (20) with two filaments bulb of 12V-35/35W and parking light bulb of 12V-5W;

• LED back light (21) (except TE 310/Europe);
• Back light (21) with 12V-21W stop light, 12V-5W parking light (TE 310/Europe);
• Turn signals bulb (22) of 12V-10W;

- Fuel pump (19) inside the fuel tank.

Close-up of a mechanical component with numbered annotation (11) and arrow pointing to a bolted part (no readable text or symbols)

10 15 18

21 21 22 22 TE 310-EU

20 Husprama 22

9 13

Close-up of a hand adjusting the engine compartment with a numbered label (19) and mechanical components visible (no readable text or symbols)

ELECTRICAL COMPONENTS LOCATION (TC-TXC)

The ignition system includes the following elements:

- Generator (1) on the inner side of L.H. crankcase cover;

- Electronic coil (2) and condenser (11; TXC) under the fuel tank;

- Electronic power unit C.D.I. (3) under the fuel tank;

- Voltage regulator (4) under the fuel tank;

Close-up of a car's engine compartment showing internal components and wiring (no text or symbols visible)

Close-up of a mechanical assembly with pipes and gears, no visible text or symbols

Close-up of a mechanical assembly with pipes and components, no visible text or symbols

Close-up of a mechanical assembly with numbered component (11) and directional arrows, no readable text or symbols beyond annotations

Close-up of a mechanical assembly with pipes and valves, no visible text or symbols

• Spark plug (5) on the R.H. side of cylinder head;

• Starting motor 12V-450W (6) behind the cylinder (TXC);

• Electric start remote control switch (7) on the left side of the rear frame (TXC);

• Potentiometer (10) on the carburettor.

The electric system includes the following elements (TXC):
- Battery 12V-6Ah (8) under the saddle;
- Two fuses (9) 20A, on the electric starter contactor (7).

Technical diagram of an automotive engine showing labeled components with numbered annotations

Close-up of an internal combustion engine bay with visible hoses and components (no text or symbols)

8 7 9

Cable colour coding

B	Blue
B/Bk	Blue/Black
Bk	Black
Br	Brown
Br/Bk	Brown/Black
Br/R	Brown/Red
Br/W	Brown/White
G	Green
G/Bk	Green/Black
G/Gr	Green/Grey
G/R	Green/Red
Gr	Grey
Gr/B	Grey/Blue
Gr/Bk	Grey/Black
O	Orange
O/Bk	Orange/Black
O/G	Orange/Green
Pk	Pink

R	Red
R/Bk	Red/Black
Sb	Sky blue
V	Violet
W	White
W/B	White/Blue
W/Bk	White/Black
W/G	White/Green
W/R	White/Red
W/V	White/Violet
W/Y	White/Yellow
Y	Yellow
Y/Bk	Yellow/Black
Y/Br	Yellow/Brown
Y/G	Yellow/Green
Y/O	Yellow/Orange
Y/Sb	Yellow/Sky blue
Y/R	Yellow/Red

KEY TO ELECTRIC DIAGRAM (TE -SMR)

1.Electronic power unit	36. Fall sensor
2. Alternator	37. Fuses
3. Voltage regulator	38. Power relay
4. Rear stop switch	39. Power unit interface
5. Front stop switch	40. M.A.Q.S. (34+24+32)
6. Injector
7. Instrument
8. R.H. front turn indicator
9. Front headlamp
10. Cooling fan
11. L.H. front turn indicator
12. Horn
13. L.H. commutator
14. Turn indicators flasher
15. Tail light
16. Battery
17. Electric start remote control switch
18. Starting motor
19. Spark plug
20. R.H. rear turn indicator
21. L.H. rear turn indicator
22. Gear shift position sensor
23. H.T. coil
24. Sensor position throttle control (40)
25. R.H. switch
26. Ignition switch
27. Clutch microswitch
28. Speed sensor
29. Relay for electric fan
30. Direct current relay
31. LAMBDA probe
32. Air temperature sensor (40)
33. Coolant temperature sensor
34. Pressure sensor (40)	(*): it stops the
35. Fuel pump	gine in case of a

    subgraph Power Source
        M["REAR STOP 4"] --> N["FRONT STOP 5"] --> O["BLINKER 14"] --> P["HORN 12"] --> Q["INJECTOR 6"] --> R["RH SWITCH 25"] --> S["TILT SENSOR 36"] --> T["FUSES 37"] --> U["P.RELAY 38"]
    end

    subgraph Control Inputs
        V["PRESSURE SENSOR 34"] --> W["TPS SENSOR 24"] --> X["T AIR SENSOR 32"] --> Y["MAOS 40"] --> Z["GPS 22"] --> AA["ACG 2"] --> AB["REGULATOR 3"] --> AC["START MOTOR 18"] --> AD["START RELAY 17"] --> AE["BATTERY 16"] --> AF["MAP SWITCH 41"]
    end

    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333
    style E fill:#cff,stroke:#333
    style F fill:#ffc,stroke:#333
    style G fill:#cfc,stroke:#333
    style H fill:#cfc,stroke:#333
    style I fill:#fcc,stroke:#333
    style J fill:#fcc,stroke:#333
    style K fill:#fcc,stroke:#333
    style L fill:#fcc,stroke:#333
    style M fill:#fff,stroke:#333
    style N fill:#fff,stroke:#333
    style O fill:#fff,stroke:#333
    style P fill:#fff,stroke:#333
    style Q fill:#fff,stroke:#333
    style R fill:#fff,stroke:#333
    style S fill:#fff,stroke:#333
    style T fill:#fff,stroke:#333
    style U fill:#fff,stroke:#333
    style V fill:#fff,stroke:#333
    style W fill:#fff,stroke:#333
    style X fill:#fff,stroke:#333
    style Y fill:#fff,stroke:#333
    style Z fill:#fff,stroke:#333
    style AA fill:#fff,stroke:#333
    style AB fill:#fff,stroke:#333
    style AC fill:#fff,stroke:#333
    style AD fill:#fff,stroke:#333
    style AE fill:#fff,stroke:#333
    style AF fill:#fff,stroke:#333

Cable colour coding

B	Blue
Br	Brown
Bk	Black
G	Green
Gr	Grey
Gr/R	Grey/Red
O	Orange
P	Pink
R	Red
Sb	Sky blue
V	Violet
W	White
Y	Yellow

KEY TO ELECTRIC DIAGRAM (TC-TXC)

1. Electronic power unit
2. Alternator
3. Voltage regulator
4. Condenser
5. Battery
6. Electric start remote control switch
7. Starting motor
8. Spark plug
9. Gear shift position sensor
10. Electronic coil
11. Carburetor throttle position sensor
12. Engine stop
13. Engine start
14. Clutch microswitch

TC-TXC 4 CONDENSATORE 3 REGOLATORE 2 GENERATORE 1 CENTRALINA 9 SENSORE MARCE 5 BATTERIA Bk-W R O R W Y-G Bk W-Br R-W G-BK-R R-W W-O B BOBINA 10 CANDELA 8 SENSORE APERTURA FARFALLA 11 6 TELERUTTORE M Bk- G-O INT. FRIZIONE AVVIO MOTORE MOTORINO AVVIAMENTO 7 12 ARRESTO MOTORE 3 SCHEMA PER INSERIMENTO AVVIAMENTO ELETTRICO * : KIT AVVIAMENTO ELETTRICO (TXC)

BATTERY

The sealed battery does not require any maintenance work. When electrolyte leaks, or other failures to the electrical system are detected, apply to the HUSQVARNA Dealer.

If the vehicle remains unused for long periods, it is recommended to remove battery from electrical system and store it in a dry place.

• After an intensive use of the battery, it's advisable a standard low charge (12V-6Ah battery: 0.6A for 8 hours).
• Rapid recharging is advised only in situations of extreme necessity since the life of lead elements is drastically reduced (6A for 0.5 hours with 12V-6Ah batteries).

BATTERY CHARGER

To gain access to the battery (2):

- first turn counterclockwise fastening rear pin (1) then remove the saddle;

• first remove the BLACK or BLUE negative cable, then the RED positive cable (when reassembling, first connect the RED positive cable, then the BLACK or BLUE negative cable);
• remove the battery (3) from its housing.

Check, using a voltmeter, that battery voltage is not less than 12.5 V.

If not, the battery needs to be charged.

Using a battery charter with a constant voltage, first connect the RED positive cable to the battery's positive terminal then the BLACK or BLUE negative cable to the battery's negative terminal.

Apply to the constant voltage of 14,4 V a current of "x" Ampere as results in the below diagram (depending on the amount of charging required).

The voltage reaches a constant value only after a few hours, therefore it is suggested NOT to measure it immediately after having charged or discharged the battery.

Always check the charge level before reinstalling it on the vehicle.

The battery should be kept clean and the terminals coated with grease.

WARNING*: The battery contains sulfuric acid. Avoid contact with skin, eyes or clothing. Antidote: EXTERNAL - Flush with water. INTERNAL - Drink large quantities of water or milk. After milk take magnesia, beaten eggs or vegetable oil. Call physician immediately. Eyes: Flush with water for no less than 15 minutes and get prompt medical attention.

①

YUASA YTZ 7S M/F 2 BASE (PP) PP( 200000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

WARNING*: In case on unused of the battery it has to be, in any case, re-charged with slow cycle (0,6A for 8 hours for batteries 12V-6Ah) at least every 3 weeks.

WARNING*: Batteries produce explosive gas, ventilate when charging or using in enclosed space. When using a battery charger before turning on the charger. This procedure prevents sparks at the battery terminals which could ignite any battery gases.

INDICATIVE VALUES RELATIVE TO THE CHARGING TIME DEPENDING ON BATTERY STATUS
VOLTAGE * (V)	% CHARGE	CHARGE TIME (THE “AMPERE” RATED CURRENT TO APPLY IS: 0,1x BATTERY RATED CAPACITY)
>12,7~12,5~12,2~12,0~11,8	1007550250	4h 7h11h14h

HEADLAMP BULBS REPLACEMENT (TE-SMR)

To gain access to the healamp bulbs, proceed as follows:

• remove the upper fastening screw of the the headlamp carrier to the instrument panuel support (A);
• push forward the headlamp carrier (B) and pull it towards the high (C) in order to uncouple from the two lower supports.

• remove the headlamp carrier;

• remove the two filaments bulb (7) connector (2) and the boot (3);

• remove the screw (6);
• release the bulb holding spring (4) and then the bulb itself.

To replace the parking light bulb (5) extract it from the inside cover.

After replacement, reverse operations for reassembly.

TAIL LIGHT (excluded TE 310/Europe)

The back light is a LED light.

C A B Husqvarna

5 4 3 6 7

Labeled mechanical assembly diagram showing components numbered 2 to 5 with annotations and a magnified inset detail

Front view of a motorcycle's front wheel and side-mounted sensors (no visible text or symbols)

REAR TAIL LIGHT BULB REPLACEMENT (TE-SMR)

Remove the two fastening screws (1) in the inner side of the rear fender and the lens (2).

Pull the lamp (3) inside, turn it counterclockwise then remove it from the lamp holder.

After replacement, reverse operations for reassembly.

NOTES: make sure not to tighten the screws excessively.

REPLACING THE NUMBER PLATE LAMP (TE- SMR)

Pull out the number plate lampholder (4) from the back of the vehicle. Pull out the lampholder and the bulb. Rotate the bulb (5) to remove from the lampholder.

Once the bulb has been replaced, reverse the above procedure.

Close-up of a metal bracket with two marked points and connecting lines, no visible text or symbols

Close-up of a hand holding a small object with a numbered label (2) pointing to a transparent container (no text or symbols on the object itself)

Close-up of a mechanical component with internal components and directional arrows (no visible text or symbols)

3

Close-up of a mechanical component with a numbered label (4) pointing to a small feature, no readable text or symbols present.

Close-up of a hand using a tool to cut a piece of metal, no visible text or symbols

ADJUSTMENT OF HEADLIGHT (TE- SMR)

When checking the proper orienting of headlight, inflate tires at right pressure, sat a person on the saddle and place the motorcycle perpendicular with its longitudinal axis 10 meter (33 ft) from a wall or screen. Then trace an horizontal line equal to the height of headlight center and a vertical one in line with its longitudinal axis.

If possible, execute this operation in a shadowy place. When the low beam is on, the upper boundary limit between dark and lit zone should be 9/10 th of headlight center from groud.

Adjust the preadlamp aiming by turning screw (1) to lower or lift the high beam.

9/10x x 10m

1 Husqvarna

EQUIPMENT

Pos.	Code Nr.	NAME	MODELS
1	8000B1747	HEAT GUARD (1)	(TE-SMR-TC-TXC)
2	800074016	SIDE STAND (1)	(TC-TXC)
3	8000H1343	MULTILANGUAGE QUICK MANUAL (1)	(TE-SMR-TC-TXC)
4	8000A4296	CARBURETOR KIT KEIHIN 41 (1)	(TC-TXC 450/510)
5	8000B0157	ENGINE GUARD (1)	(TE-SMR-TC-TXC)
6	8000H0188	R.H. ENGINE PROTECTION (1)	(TE-TC-TXC)
7	8000H0187	L.H. ENGINE PROTECTION (1)	(TE-TC-TXC)
8	8000B1530	HOOK KIT FOR RACE STARTING (1)	(TC-TXC)
9	8000B1390	PLUG PROTECTION (1)	(TE-SMR-TC-TXC)
10	8000H0159	BATTERY HOLDER (1)	(TE-SMR-TXC)
11	8A0065437	R.H. REARVIEW MIRROR (1)	(TE)
	8B0065437	L.H. REARVIEW MIRROR (1)	(TE)
	8A00H1673	R.H. REARVIEW MIRROR (1)	(SMR)
	8000H1673	L.H. REARVIEW MIRROR (1)	(SMR)
12	800097615	HUSQVARNA KEY HOLDER (1)	(TE-SMR)
13	8000H1393	BLINKERS KIT (1)	(TE)
	8000H1701	BLINKERS KIT (1)	(SMR)
14	8000H1702	PASSENGER FOOTREST KIT (1)	(SMR)
15	8000H1394	HAND GUARDS KIT	(TE)
16	8000A1891	BATTERY 6AH	(TE-SMR-TXC)*
	8000H0864	BATTERY 7AH	(TE-SMR)*
17	8000H1700	“USB” MEMORY	(TE-SMR-TXC)

*: In alternative

EQUIPMENT

Technical diagram of automotive component assembly with numbered parts and exploded views

OPTIONAL PARTS LIST (TE)

Pos.	Code Nr.	NAME	MODELS
1*	8A0096837	REAR SPROCKET Z=47 (1)	310
	8B0096837	REAR SPROCKET Z=48 (1)	310-450-510
	8C0096837	REAR SPROCKET Z=49 (1)	310-450-510
	8D0096837	REAR SPROCKET Z=50 (1)	450-510
2*	800063829	DRIVE SPROCKET Z=14 (1)	310-450-510
	800063827	DRIVE SPROCKET Z=12 (1)	310-450-510
	800063830	DRIVE SPROCKET Z=15 (1)	310-450-510
3*	8000H0772	LICENCE PLATE HOLDER KIT RACING (1)	310-450-510
4	8000H0503	ENGINE GASKET KIT (1)	310
	8000H0942	ENGINE GASKET KIT (1)	450-510
5	8000B0373	ENGINE SEALS KIT (1)	310
	8000B0364	ENGINE SEALS KIT (1)	450-510
6	800098504	REAR SHOCK ABS. SPRING (K=5,4 Kg/mm) (1)	450-510
	8000H0076	REAR SHOCK ABS. SPRING (K=5,6 Kg/mm) (1)	310
7	8000H0590	DOUBLE MODE BUTTON (1)	310-450-510

OPTIONAL PARTS LIST (SMR)

Pos.	Code Nr.	NAME	MODELS
1*	8A00A4859	REAR SPROCKET Z=43	450-510
	8B00A4859	REAR SPROCKETZ=44	450-510
	8G00A4859	REAR SPROCKET Z=45	450-510
2*	800063829	DRIVE SPROCKET Z=14	450-510
3*	8000H0772	LICENCE PLATE HOLDER KIT RACING (1)	450-510
4	8000A5982	ENGINE GASKET KIT	450-510
5	8000B0364	ENGINE SEALS KIT	450-510
8*	8000B0591	KICKSTARTER KIT	450-510

OPTIONAL PARTS LIST (TC)

Pos.	Code Nr.	NAME	MODELS
1	8A0096837	REAR SPROCKET Z=47 (1)	450
	8B0096837	REAR SPROCKET Z=48 (1)	450
	8C0096837	REAR SPROCKET Z=49 (1)	450
2	800063827	DRIVE SPROCKET Z=12 (1)	450
	800063828	DRIVE SPROCKET Z=13 (1)	450
	800063830	DRIVE SPROCKET Z=15 (1)	450
4	8000H0943	ENGINE GASKET KIT (1)	450
5	8000A5736	ENGINE SEALS KIT (1)	450
6	800098504	REAR SHOCK ABS. SPRING (K=5,4 Kg/mm) (1)	450

OPTIONAL PARTS LIST (TXC)

Pos.	Code Nr.	NAME	MODELS
1	8B0096837	REAR SPROCKET Z=48 (1)	450-510
	8C0096837	REAR SPROCKET Z=49 (1)	450-510
	8D0096837	REAR SPROCKET Z=50 (1)	450-510
2	800063827	DRIVE SPROCKET Z=12 (1)	450-510
	800063829	DRIVE SPROCKET Z=14 (1)	450-510
	800063830	DRIVE SPROCKET Z=15 (1)	450-510
3	8000H0219	LICENCE PLATE HOLDER KIT RACING (1)	450-510
4	8000H0942	ENGINE GASKET KIT (1)	450-510
5	8000B0364	ENGINE SEALS KIT (1)	450-510
6	800098504	REAR SHOCK ABS. SPRING (K=5,4 Kg/mm) (1)	450-510
7	8000B1546	NOISE REDUCTION DEVICE (1)	450-510
11	8000B0452	SILENCER (TITANIUM) (1)	450-510

*: For racing only

OPTIONAL PARTS

Close-up of a bicycle's wheel and gear assembly (no visible text or symbols)

Close-up of a mechanical gear assembly with no visible text or symbols

2

Black plastic object with attached wires and small inset icons (no text or symbols visible)

3

Close-up of a metallic mechanical component with coiled spring and cylindrical shaft (no visible text or symbols)

6

Coiled black electrical connector with terminal connectors (no text or symbols visible)

7

Close-up of a metallic missile or projectile component with visible exhaust cone and tail (no text or symbols)

11

Exploded view diagram of a mechanical assembly showing internal components and parts (no text or labels)

8

APPENDIX

AFTER-RACE CHECK POINTS

After racing, first clean the motorcycle and then inspect the entire motorcycle, with special attention to the items listed in «MAINTENANCE» table (Appendix A), such as the air cleaner, carburetor, brakes, etc.

Carry out general lubrication, and make adjustment as necessary.

STORAGE (TC-TCXC)

When the motorcycle is to be stored for any length of time, is should be prepared for storage as follows:

- Clean the entire motorcycle thoroughly. - first carry out the operation mentioned hereunder, then fill the tank with fuel mixed with a stabilizer:

place the hose (1) in a basin, loosen the drain screw (2) set on the lower side of the basin, then drain the fuel and tighten the screw again.

WARNING

Never litter the environment with fuel, and let the engine running in open air, never in closed rooms.

• Lubricate the drive chain and all the cables.
• Spray oil on all unpainted metal surfaces to prevent rusting. Avoid getting oil on rubber parts or in the brakes.
• Set the motorcycle on a box or stand so that both wheels are raised off the ground. (If this cannot be done, put boards under the front and rear wheels to keep dampness away from the tire rubber).
• Tie a plastic bag over the exhaust pipe to prevent moisture from entering.
• Put a cover over the motorcycle to keep dust and dirt from collecting on it.

To put the motorcycle back into the use after storage.

• Make sure the spark plug is tight.
• Fill the fuel tank.
• Run the engine to warm the oil then drain the oil.
• Put in fresh transmission oil (page 28).
• Check all the points listed under the inspection and Adjustment Section (Appendix A).
• Lubricate the points (listed in the Lubrication Section (Appendix A).

CLEANING

IMPORTANT RECOMMENDATION

Premised that, before the motorcycle washing, it is necessary to protect opportunely from the water the following parts:

a) Rear opening of the muffler;
b) Clutch and brake levers, hand grips, handlebar commutators;
c) Air cleaner intake;
d) Fork head, wheel bearings;
e) Rear suspension links,

it is necessary ABSOLUTELY TO AVOID THAT HIGH PRESSURE JETS OF WATER OR AIR come to contact with THE ELECTRICAL PARTS AND FUEL INJECTION PARTS, especially the electronic control unit (1) and the sensors group M.A.Q.S. (2) (page 87).

Mechanical assembly diagram showing a cam mechanism with numbered parts (1 and 2), no readable text or symbols present.

Close-up of a car engine bay with visible hoses and components, no text or symbols present

IMPORTANT RECOMMENDATION

Premised that, before the motorcycle washing, it is necessary to protect opportunely from the water the following parts:

a) Rear opening of the muffler;
b) Clutch and brake levers, hand grips, handlebar commutators;
c) Air cleaner intake;
d) Fork head, wheel bearings;
e) Rear suspension links,

Close-up of a motorcyclist's front wheel and suspension system (no visible text or symbols)

Close-up of a mechanical lever with 'Husqvarna' branding, no visible text or symbols on the device itself.

Close-up of a motorcycle's front wheel assembly with visible wiring and components (no text or symbols)

Close-up of a Husqvarna electric shaver on a workbench (no visible text or symbols on the device itself)

Close-up of a motorcycle's front wheel and suspension system (no visible text or symbols)

Close-up of mechanical components including chains and gears, no visible text or symbols

it is necessary ABSOLUTELY TO AVOID THAT HIGH PRESSURE JETS OF WATER OR AIR come to contact with THE ELECTRICAL PARTS and any parts of the INJECTION SYSTEM, especially the electronic central unit (1) and the M.A.Q.S. unit (2).

After washing

• Remove the plastic bags, and clean the air cleaner intake.
• Lubricate the points listed in the Maintenance Table (Appendix A).
• Briefly warm-up the engine
• Test the brakes before riding the motorcycle.

WARNING*: Never wax or lubricate the brake disc. Loss of braking and an accident could result. Clean the disc with an oilless solvent such as acetone. Observe the solvent warnings.

Close-up of a bicycle's wheel and track gear assembly (no visible text or symbols)

Close-up of a mechanical engine component with hoses and a numbered annotation (no readable text or symbols)

Close-up of a car wheel assembly with visible mechanical components and mounting holes (no text or symbols)

Close-up of an automotive electrical connector with visible wiring and components (no text or symbols)

PRE -DELIVERY INSPECTION

Description	Operation	Pre-delivery	Description	Operation	Pre-delivery
Engine oil	Check level	□	Tyres	Check pressure	□
Two-stroke mix oil level	Check level	□ *	Side stand	Check operation	□
Coolant	Check / Restore level	□	Side stand switch	Check operation	□
Cooling system	Check for leakage	□	Electrical equipment	Check operation	□
Electric fans	Check operation	□ * *	Instrument panel	Check operation	□
Spark plugs	Check / Replace	□	Lights / Visual signals	Check operation	□
Throttle body / Carburettor	Check and adjust	□	Horn	Check operation	□
Brakes / Clutch fluid	Check level	□	Headlight	Check operation	□
Brakes / Clutch	Check operation	□	Ignition switch	Check operation	□
Brakes / Clutch	Check lines for leakage	□	Locks	Check operation	□
Throttle control	Check operation	□	Screws and nuts	Check / Tighten	□
Throttle control	Check / Adjust play	□	Hose clamps	Check / Tighten	□
Choke control	Check operation	□	General lubrication		□
Flexible controls and transm.	Check / Adjust	□	General test		□

※ : only for motorcycles with 2 stroke engine
※※ : only for some models

NOTES FOR USA/CDN MODEL

DISCLAIMER OF WARRANTY

IN ACCEPTING DELIVERY OF THIS MOTORCYCLE THE BUYER OR TRANSFEREE ACKNOWLEDGES THAT HE HAS THOROUGHLY INSPECTED THE MOTORCYCLE, AND FURTHER AGREES TO ACCEPT THE MOTORCYCLE AS IS WITH ALL DEFECTS OR FAULTS, CONCEALED OR OBVIOUS. HE FURTHER AGREES THAT NO WARRANTIES ATTACH, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE. THE BUYER OR TRANSFEREE INDEMNIFIES AND HOLDS HARMLESS HUSQVARNA MOTORCYCLES S.R.L., ITS AGENTS AND EMPLOYEES. FOR ANY FAILURE OF PERFORMANCE, COST OF SERVICE, OR REPAIR. TC-TXC: THE BUYER FURTHER ACKNOWLEDGES THAT THIS MOTORCYCLE IS NOT INTENDED FOR USE ON PUBLIC STREETS, ROADS, HIGHWAYS, OR TRAILS UNDER PUBLIC JURISDICTION AND THAT USE ON SUCH MAY VIOLATE STATE AND FEDERAL LAW.

Noise emission warranty

HUSQVARNA MOTORCYCLES S.R.L.. warrants that this exhaust system, at the time of sale, meets all applicable U.S. EPA Federal noise standards. This warranty extends to the first person who buys this exhaust system for purposes other than resale, and to all subsequent buyers.

Line drawing of a DTR motorcycle with visible wheels and suspension components (no text or symbols)

TC-TXC

Line drawing of a four-wheeled motorcycle with visible engine and wheel components (no text or symbols)

Tampering warning

Tampering with Noise Control System Prohibited.

Federal law prohibits the following acts or causing thereof:

(1) The removal or rendering inoperative by any person other than for purposes of maintenance, repair, or replacement, of any device or element of design incorporated into any new vehicle for the purpose of noise control prior to its sale or delivery to the ultimate purchaser or while it is in use, and
(2) the use of the vehicle after such device or element of design has been removed or rendered inoperative by any person.

Among those acts presumed to constitute tampering are the acts listed below.

1) Removal of, or puncturing the muffler, baffles, header pipes or any other component which conducts exhaust gases.
2) Removal or puncturing of any part of the intake system.
3) Lack of proper maintenance.
4) Replacing any moving part of the vehicle, or parts of the exhaust or intake system, with parts other than those specified by the manufacturer.

Warning statement

This product should be checked for repair or replacement if the motorcycle noise has increased significantly through use.

Otherwise, the owner may become subject to penalties under state and local ordinances.

SPARK ARRESTER

The TE (USA), TXC TC models are equipped with a U.S. Forest Service approved spark arrester for maximum efficiency and performance.

"SPARK ARRESTER" MAINTENANCE AND CLEANOUT INSTRUCTIONS

Proceed as follows:

A: First turn counterclockwise fastening rear pin (1) then remove saddle, screws (2) and L.H. side panel (3). Using an 8 mm T-shaped spanner on the outside and a 10 mm T-shaped spanner on the inside, remove the locking screw (4) of the muffler.

Diagram of a mechanical component with a circular feature and labeled point 1, showing motion lines (no text or symbols beyond the label)

2 3

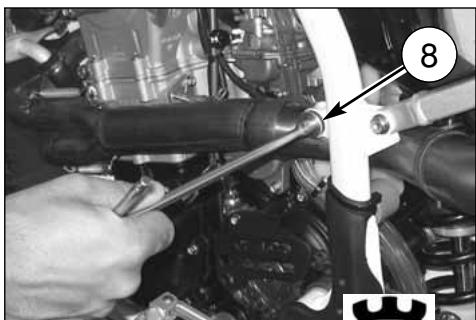

B: Remove the spring (5) and with an 8 mm T-shaped spanner remove the screw (8); then pull out the muffler.

Note\*: If silencer or exhaust are difficult to remove, help to slide them apart by tapping gently with a rubber or plastic hammer.

C: remove the six rivets (6) and the endcap (7) from silencer's body;
D: examine SPARK ARRESTER conditions and remove, if necessary, carbon particles from the SPARK ARRESTER screen;
E: if necessary, inflate air on the SPARK ARRESTER screen, in the opposite direction in respect of the exhausted gas flow;

Close-up of a car engine bay with a hand adjusting components (no visible text or symbols)

Technical diagram showing numbered components of a mechanical assembly with arrows indicating direction or flow

F: assemble the front endcap on the silencer's body, mounting the screws in the correct position, providing a tight connection between endcap and silencer's body, using, if necessary, a silicone paste;
G: re-assemble the silencer on motorbike, then L. H. side panel and saddle.

Due to the SPARK ARRESTER position on the silencer, if you need only to check the SPARK ARRESTER conditions you can:

A: disassemble the silencer from motorbike;
B: check SPARK ARRESTER conditions simply looking into the silencer from front endcap opening;
C: if the check is positive, you can proceed in re-assembling the silencer on the motorbike;
D: if the check is negative, proceed with the maintenance and cleanout procedure.

Close-up of a hand using a wrench to adjust mechanical components, no visible text or symbols

NOTES FOR "AUS" MODEL

Tampering Warning:

Tampering with Noise Control System Prohibited. Federal law prohibits the following acts or causing therefor:

1) The removal or rendering inoperative by any person other than for purposes of maintenance, repair, or replacement, of any device or element of design incorporated into any new vehicle for the purpose of noise control prior to its sale or delivery to the ultimate purchaser or while it is in use, and
2) The use of the vehicle after such device or element of design has been removed or rendered inoperative by any person.

Among those acts presumed to constitute tampering are the acts listed below.

1) Removal of, or puncturing the muffler, baffles, header pipes or any other component which conducts exhaust gases.
2) Removal or puncturing of any part of the intake system.
3) Lack of proper maintenance.
4) Replacing any moving part of the vehicle, or parts of the exhaust or intake system, with parts other than those specified by the manufacturer.

This product should be checked for repair or replacement if the motorcycle noise has increased significantly through use. Otherwise, the owner may become subject to penalties under state and local ordinances.

Line drawing of a four-wheeled dirt bike with visible wheels and suspension components (no text or symbols)

Line drawing of a two-wheeled dirt bike with visible tracks and wheels (no text or symbols)

Line drawing of a semi-truck motorcycle with visible dynamics and suspension components (no text or symbols)

ALPHABETIC INDEX

Page

A

Adjusting the carburetor 32

Adjusting the clutch 39

Adjusting the driven transmission 49

Adjusting the fork 42, 44

Adjusting the front brake control lever 37

Adjusting the headlamp....82

Adjusting the idle 32

Adjusting the rear brake idle stroke 38

Adjusting shock absorber hydraulic

brake 48

Adjusting shock absorber preload spring....47

Adjusting the rear brake pedal position 38

Adjusting the steering bearing play 34

Adjusting the suspensions according

to the track special conditions 41

Adjusting the throttle cable 31

B

Battery 78

Brakes....55

Brake disc cleaning 59

Brake disc warpage 58

Brake disc wear....58

Brake pad assembly 57

Brake pad wear 56

Brake pad disassembly 56

C

Carburettor 8

Carburettor starter....13

Chain lubrication 50

Checks after every competition 88

Checks during running in....20

Check of air filter 34

Check of chain, pinion, crown wear 50

Check of clutch fluid level 39

Check of cooling fluid 29

Check of front brake fluid level 37

Check of engine oil 28

Check of rear brake fluid level 39

Cleaning the air filter 34

Clutch 8

Clutch control 18

Coolant replacement 30

Cooling fluid 10

Control position....7

D

Digital instrument 14

Driven transmission chain 8

E

Engine assembling fits....72

Electric diagram 75, 77

Electric elements 70

Engine lubrication 10

Engine oil replacement 28

Engine start (TC) 23

Engine start (TE-SMR) 21

Engine stop 27

F

Filling the braking system 60

Fluid change 59

Fork oil level 43, 45

Fuel....14

Fuel cock....11

Front brake control 19

Front braking system bleeding 62-64

Front fork 9

G

Gearbox control....19

Gearbox outlet pinion 8

General cleaning 88

H

Handlebar commutators 18

Handlebar position change 46

Headlamp bulbs replacement 80

Hydraulic clutch bleeding 40

|

Ignition 11

Important notice ....3

Injection 11

L

Lamp light plate replacement 81

Long inactivity 88

M

Motorcycle stop 27

Muffler on the exhaust 67

0

Oil filters replacement 28

Overhauling the wheels....69

P

Pad cleaning 57

Parts replacement 3

Pilot lights....14

Preliminary checks 20

R

Rear brake control....19

Rear braking system bleeding 65

Rear pinion 8

Rear damper 9

Rear taillight bulb replacement 80

Removing the front wheel 52

Removing the rear wheel 54

Running in 21

S

Steering lock 17

Side stand 12

Spark arrester 94

Spark plug 8

Spark plug check....33

Starting decompressor....22

T

Throttle control 17

Tires 9,55

V

Vehicle identification number 5

Voltage regulator....33

W

Wheel pin bending 69

Wheel spokes 69

Wheels 9,52

FRANÇAIS

H

Husqvarna

PRESENTATION

Line drawing of a multi-rotor off-road vehicle with visible tracks, wheels, and engine components (no text or symbols)

MOTOCROSS

Black-and-white photo of a person riding a bicycle with motion blur (no text or symbols visible)

Line drawing of a multi-rotor off-road vehicle with visible suspension tires and mechanical components (no text or symbols)

ENDURO

Black-and-white photo of a dirter mid-jump on a motorcycle in a mountainous outdoor setting (no visible text or symbols)

Technical line drawing of a four-wheeled motorcycle showing internal components and suspension (no text or labels)

SUPERMOTARD

Black-and-white photo of a motorcyclist in motion on a paved track (no visible text or symbols)

IMPORTANT

Close-up of a mechanical component with a numbered label (1) pointing to a feature, no readable text or symbols present.

Close-up of an engine component with hoses and a numbered annotation (②), no readable text or symbols present.

Close-up of mechanical components with a numbered annotation (1) pointing to a detail, no readable text or symbols present.

Close-up of an automotive engine component with visible hoses and a numbered annotation (2), no readable text or symbols present.

Labeled diagram of a motor with numbered parts and technical annotations including TC and TE-SMR.

TE-SMR 10 TC 11 16 14 13 12 TC 15

DONNEES TECHNIQUES

MOTEUR

DIMENSIONS, POIDS, CAPACITE

Empattement (TC-TE)......mm 1483

Empattement (SMR)......mm 1445

ROBINETS CARBURANT (TC)

Close-up of a car engine component with labeled parts, showing a valve assembly and part number 1

A 2 3

1. Bouchon reservoir carburant
2. Robinet carburant
3. Tuyanterie carburant
   A. Bague robinet

BEQUILLE LATERALE

Mechanical assembly diagram showing a spring-loaded component with labeled section A (no text or symbols beyond label)

Close-up of a mechanical component with labeled parts (no readable text or symbols)

STARTER CARBURATEUR (TC)

Close-up mechanical assembly photo with numbered components labeled 1 and 2

Close-up of mechanical components with hoses and a numbered annotation (3), no readable text or symbols present.

INSTRUMENT DIGITAL, VOYANTS (TE-SMR)

1 2 3 TRP 8880 RPM 8880 RPM SPEED Kshh Mph Miles / CDOO LPT CLK A

TRP 8888 88:88:88 SPEED Km/h Mph Miles I ODO LPT CLK

A SPEED Km/h 34508 ODO

2- SPEED / CLOCK (figure 2)

TRP SPEED Kinsh 99.14500.18 A

A SPEED Km/h 46.0 00:20.98 LPT

5- SPEED / RPM NUMERIQUE (figure 5)

• SPEED: vitesse du véhicule - Indication max: 299 Km/h o 299 mph
• RPM NUMERIQUE: MIN. 500, MAX 14250.

TE-SMR ③ ①

Diagram of a camera grip with numbered parts, showing adjustment mechanism and component detail

BOUTON D'ARRET MOTEUR (TC)

Close-up of a camera mode dial with labeled adjustment knob (no readable text or symbols beyond labels)

COMMANDE FREIN ARRIERE

Close-up of a mechanical assembly with visible components and a numbered label (1) pointing to a specific part.

TC N 1 2 3 4 5

TE-SMR

MODE D'EMPLOI DE LA MOTO

CONTROLES PRELIMINAIRES ATTENTION!

Close-up of a motorcycle's front-mounted steering wheel and dashboard (no visible text or symbols)

TE-SMR 2

Close-up of a bicycle brake lever with attached wrench and lever handle (no text or symbols visible)

TE-SMR N 1 2 3 4 5 6

TE-SMR 5 6

DECOMPRESSEUR DE DÉMARRAGE

Close-up of mechanical components with no visible text or symbols

Labeled diagram of a mechanical device with numbered parts 5 and 6 pointing to different components.

DÉMARRAGE DU MOTEUR (TC)

Close-up of a mechanical assembly with labeled component A, showing pipes and tubing (no readable text or symbols beyond label)

TC N 1 2 3 4 5

Close-up of a mechanical assembly with numbered component (2) and directional arrow, no readable text or symbols present.

Close-up mechanical assembly showing hoses and components with no visible text or symbols

TC 4

Close-up of a motorcycle handle and lever mechanism with labeled component (TC), no readable text or symbols beyond labels

TC 4

6

Close-up of a mechanical assembly with numbered components (3 and an arrow), no visible text or symbols.

Close-up of a vehicle's internal components including suspension, brake, and suspension system (no visible text or symbols)

DEMARRAGE A CHAUD (TC)

Close-up of a motorcycle brake lever mechanism with no visible text or symbols

Close-up of a mechanical assembly with labeled component (2), no visible text or symbols beyond numbered annotation

TC

Mechanical component with lever and handle, showing motion direction (no text or symbols)

ARRET DU MOTOCYCLE ET DU MOTEUR

Close-up of a motorcycle handle and lever mechanism with a white arrow pointing to a tool (no text or symbols on the diagram itself)

Close-up of a mechanical assembly with labeled parts (N and 2), no readable text or symbols beyond labels

③ TE-SMR ③ TC

4 TC

Close-up of a motorcyclist's electronic device with visible control panel and cable (no text or symbols)

CONTROLE DU NIVEAU DE L'HUILE

1 MAX MIN

VIDANGE D'HUILE MOTEUR ET NETTOYAGE-REEMPLACEMENT DES FILTRES A TAMIS ET DE LA CARTOUCHE FILTRANTE

Close-up of a mechanical component with labeled parts (no readable text or symbols)

Technical diagram of a mechanical assembly with numbered components and labeled parts A, 2, 3, and 4

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

CONTROLE DU NIVEAU REFRIGERANT

Close-up of a mechanical assembly with labeled component (2), no visible text or symbols beyond the number and label.

Close-up of an engine component with a labeled section A (no visible text or symbols)

SUBSTITUTION DU LIQUIDE DE REFROIDISSEMENT

Close-up of a mechanical engine component with labeled parts (no readable text or symbols)

Technical diagram of a mechanical component with numbered annotation pointing to a specific part.

A B

B A

REGLAGE DU CABLE DE COMMANDE DES GAZ

Labeled diagram of a mechanical or electrical component with numbered parts 1, 2, 3, and 4 pointing to a cable or connector.

Technical diagram of automotive engine components with numbered labels pointing to specific parts

A A

REGLAGE DU CARBURATEUR (TC)

Technical diagram of a mechanical assembly with numbered components, likely for maintenance or repair instructions.

Close-up of a mechanical assembly with numbered component (3) and no visible text or symbols

CONTROLE DE LA BOUGIE D'ALLUMAGE

Technical line drawing of a spark plug with threaded shaft and threaded end (no text or symbols)

Close-up mechanical component showing hoses and wiring (no visible text or symbols)

Close-up of a mechanical component with a labeled arrow pointing to a small cylindrical feature (no text or symbols visible)

Close-up of a mechanical component with labeled parts (3), no readable text or symbols present.

CONTROLE FILTRE A AIR (TC-TXC)

Close-up of a black plastic tool tip with a numbered label pointing to a specific area (no text or symbols on the tool itself)

A 4 3 Twin Air

NETTOYAGE FILTRE A AIR

Close-up of a car's twin-air engine component with no visible text or symbols

CONTROLE FILTRE A AIR (TE-SMR)

Close-up of a black plastic tool tip with a numbered label pointing to a specific area (no text or symbols on the tool itself)

A 4 3 Twin Air

NETTOYAGE FILTRE A AIR

Close-up of a car's twin-air engine component with no visible text or symbols

REGLAGE DU JEU DES PALIERS DU GUIDON

Close-up of a motorcyclist's wheel and suspension system, showing tire alignment and mechanical components (no text or symbols visible)

Labeled mechanical assembly diagram showing components numbered 1, 2, and 3 with visible wiring and components

Close-up mechanical diagram showing two labeled components (1 and 2) with arrows pointing to a component on a surface.

REGLAGE DU LEVIER DU FREIN AVANT ET CONTRÔLE DU NIVEAU FLUIDE FREIN AVANT

Close-up of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a motor and gear mechanism (no text or symbols visible)

Technical diagram of a mechanical assembly with numbered components and labeled parts A, B, and 3.

CONTROLE DU NIVEAU FLUIDE

Mechanical assembly diagram showing a valve and gear mechanism (no text or symbols visible)

TC 1 2 B A 3 C D 4 mm (0.16 in.)

PURGE DE L'EMBRAYAGE HYDRAULIQUE

Agir comme suit:

Close-up of a mechanical assembly with labeled component (3), no visible text or symbols beyond the number and arrow indicator.

1 2 B A 4 mm (0.16 in.)

REGLAGE DES SUSPENSION PAR RAPPORT AUX CONDITIONS DE LA PISTE

Black-and-white action photo of a dirter mid-jump on a dirt track, wearing helmet and racing gear (no visible text or symbols)

Black-and-white photo of a dirter in action on a dirt track, kicking up the tire with visible tracks and dust (no text or symbols)

Black-and-white action photo of a dirter mid-jump on a wet track, kicking up dust (no visible text or symbols)

Black-and-white photo of a motorcyclist in action on a track, wearing racing gear and number 100 (no visible text or symbols)

Tarage standard: -12 clicks.

Tarage standard: -12 clicks.

Tarage standard: -7 clicks (TC);

Tarage standard: -10 clicks (TE).

b) C D H→S + - TE

MODIFICATION DE LA POSITION ET DE L'HAUTEUR DU GUIDON

Technical diagram showing assembly steps of a mechanical component with numbered parts and labeled section A

4 "L"

Diagram of a mechanical component with a circular ring and numbered label (1), showing motion lines without any text or symbols.

Labeled mechanical component diagram showing parts numbered 1, 2, and 3 with annotations

Technical diagram of a vehicle suspension system with labeled components and directional arrows indicating motion or flow.

Mechanical assembly diagram showing linkage components with arrows indicating motion direction (no text or symbols)

145 mm (5.7 in.) a

Fig. B a C

Close-up of a hand using a wrench to adjust the wheel rim and brake system (no text or symbols visible)

Fig. A

Axe pignon Axe fourche Axe roue

Mechanical assembly diagram showing a hand using a tool to adjust components labeled 2 and 3 on a gear-like component.

CONTROLE USURE CHAINE, PIGNON ET COURONNE

Agir comme suit:

Consommation normale Consommation excessive

Labeled diagram of a motorcycle wheel assembly with numbered parts for identification

Close-up of a motor with visible wheel and gear assembly (no text or symbols)

TE-TC 1 2

1 2 SMR

SMR AXCEL R-MR A

TE-TC ① ③

1 3 SMR

RÉMONTAGE DE LA ROUE AVANT

Close-up of a motorcycle's front suspension system, showing mechanical components and no visible text or symbols

SMR

TE-TC 1 2

1 2 SMR

TE-TC

TE-TC 1 3

SMR 1 3

DÉMONTAGE DE LA ROUE ARRIÈRE

Close-up mechanical diagram of a bicycle wheel with labeled components 1 and 2

Mechanical assembly diagram showing a gear and shaft components (no text or symbols visible)

PNEUS

AVANT	3 mm (TC,TE); 2 mm (SMR)
ARRIÈRE	3 mm (TC,TE); 2 mm (SMR)

FREIN

Close-up of a bicycle's front wheel assembly with visible mechanical components (no text or symbols)

Close-up of a bicycle wheel assembly with brake calipers and suspension components (no visible text or symbols)

Close-up of a car dashboard with a dial indicator and brake caliper (no visible text or symbols)

NETTOYAGE DU DISQUE

Close-up of a bicycle wheel assembly with visible mechanical components and mounting brackets (no text or symbols)

Close-up of a bicycle brake system with visible components and suspension rings (no text or symbols)

Close-up of a bicycle wheel assembly with visible mechanical components and a numbered annotation (1) pointing to a specific part.

Close-up of a bicycle brake system with labeled component (1A), no visible text or symbols beyond label

Two-panel image showing bicycle wheel components: front view and side view, no text or symbols visible.

② TE-TC

SMR ②

2A

Close-up of a mechanical lever handle and grip assembly (no visible text or symbols)

Close-up of a mechanical assembly with no visible text or symbols

BRATE FLU SEBUNDLE 50 PSP 120000000 A TE-TC

A SMR

Mechanical assembly diagram showing a valve and gear mechanism (no text or symbols)

ATTENTION!

Close-up of a bicycle wheel with visible tire, disc brake, and mechanical components (no text or symbols)

CURAGE INSTALLATION DE FREINAGE AVANT (TE, TC)

Close-up of a bicycle wheel assembly with visible mechanical components and a numbered annotation (1) pointing to a specific part.

Close-up of a bicycle wheel with a tire and bucket, no visible text or symbols on the main subject

Labeled diagram of a mechanical device showing three numbered components: grip, lever, and handle.

BRAKE 肉 LMD A UP

Close-up of a mechanical lever handle and grip assembly (no visible text or symbols)

CURAGE INSTALLATION DE FREINAGE AVANT (SMR)

Close-up of automotive electrical plug connectors (no visible text or symbols)

1A SMR

Close-up of a hand using a wrench to connect components on a car tire, with no visible text or symbols.

Close-up of a bicycle brake system with visible components and no text or symbols

NOTE

Close-up of a bicycle brake system with visible components and wiring (no text or symbols)

Close-up of a mechanical assembly with no visible text or symbols

Mechanical component with labeled parts (B), showing internal components and a spring-like extension (no readable text or symbols)

SILENCIEUX D'ECHAPPEMENT (TC-TE-TXC)

Illustration of a mechanical component with motion lines and a numbered label (1), no readable text or symbols present.

2 3

Technical diagram showing mechanical assembly steps with numbered annotations (4, 6, 7)

Close-up of a hand adjusting a mechanical engine component with a numbered arrow pointing to a section (no visible text or symbols)

Close-up of a mechanical assembly with a wrench tool inserted, showing components like gears and a numbered callout (no readable text or symbols)

SILENCIEUX D'ECHAPPEMENT (SMR)

Labeled diagram of a motorcycle interior showing parts numbered 2 and 3 with arrows pointing to specific components.

6 7 4 B

Close-up of a car tire tread with a white plastic wrap, showing a numbered point (1) and no visible text or symbols.

4 6 7 A

A B 5

REVISION DES ROUES

Technical line drawing of a mechanical device with dual gauges and adjustment knobs (no text or symbols)

Technical line drawing of a pressure gauge mounted on a pipe (no text or symbols)

COURBURE PIVOT ROUE

Illustration of a hand using a dial indicator to measure a mechanical setup (no text or symbols present)

Mechanical linkage diagram showing a bone and connecting rods (no text or labels)

POSITION COMPOSANTS ÉLECTRIQUES (TE-SMR)

Mechanical assembly diagram showing a motor and gear components with numbered annotations (1 and 6), no readable text or symbols.

Close-up of a mechanical component with a numbered annotation (5) pointing to a small cylindrical feature, no readable text or symbols present.

2 4 14 16 3

Close-up of a mechanical component with a numbered annotation (11) pointing to a specific part, no readable text or symbols present.

21 21 22 22 TE 310-EU

9 13

10 15 18

20 22 Husgrama

Close-up of a hand adjusting automotive engine components with a numbered annotation (19) and gear icon, no readable text or symbols beyond the number.

POSITION DISPOSITIFS ELECTRIQUES (TC-TXC)

Close-up of a car engine bay with visible hoses and components, no text or symbols present

Close-up of a mechanical assembly with pipes and components, no visible text or symbols

Close-up of a mechanical assembly with pipes and components, no visible text or symbols

Close-up of a mechanical assembly with numbered component (11) and directional arrows, no readable text or symbols beyond annotations

Close-up of a mechanical assembly with pipes and valves, no visible text or symbols

Technical diagram of an automotive engine showing labeled components with numbered annotations

Close-up of an internal combustion engine bay with visible hoses and components (no text or symbols)

8 7 9

Labeled mechanical assembly diagram showing components numbered 2 to 5 with annotations and a magnified inset detail

Front view of a motorcycle's head and front wheel assembly (no visible text or symbols)

REMPLACEMENT DES AMPOULES DU PHARE ARRIÈRE (TE- SMR)

Close-up of a metallic mechanical component with numbered annotation (1) and connecting lines, no readable text or symbols beyond the number.

Close-up of a hand holding a small transparent object with a circular label pointing to it, showing internal components (no text or symbols visible)

Close-up of a mechanical component with internal components and directional arrows, no visible text or symbols

Close-up of a hand holding a transparent plastic component with a numbered label (3) pointing to it, no visible text or symbols on the object itself.

Close-up of a mechanical component with a numbered annotation (4) pointing to a small feature, no readable text or symbols present.

Close-up of a hand using a tool to cut a mechanical component, labeled with number 5 (no text or symbols on the object itself)

REGLAGE DU PHARE AVANT (TE- SMR)

Technical diagram of automotive component assembly with numbered parts and exploded views

ELEMENTS EN OPTION (TE)

Pos.	Nr. Code	DESIGNATION	MODELES1
1*	8A0096837	COURONNE DENTEE Z=47 (1)	310
	8B0096837	COURONNE DENTEE Z=48 (1)	310-450-510
	8C0096837	COURONNE DENTEE Z=49 (1)	310-450-510
	8D0096837	COURONNE DENTEE Z=50 (1)	450-510
2*	800063829	PIGNONE SORTIE CHANGEMENT Z=14 (1)	310-450-510
	800063827	PIGNONE SORTIE CHANGEMENT Z=12 (1)	310-450-510
	800063830	PIGNONE SORTIE CHANGEMENT Z=15 (1)	310-450-510
3*	8000H0772	KIT PORTEBALAI RACING (1)	310-450-510
4	8000H0503	GROUPE JOINTS MOTEUR (1)	310
	8000H0942	GROUPE JOINTS MOTEUR (1)	450-510
5	8000B0373	GROUPE BAGUES MOTEUR (1)	310
	8000B0364	GROUPE BAGUES MOTEUR (1)	450-510
6	800098504	RESSORT AMORTISSEUR (K=5,4 Kg/mm) (1)	450-510
	8000H0076	RESSORT AMORTISSEUR (K=5,6 Kg/mm) (1)	310
7*	8000H0590	BOUTON DOUBLE MODALITÉ (1)	310-450-510

ELEMENTS EN OPTION (TC)

Pos.	Nr. Code	DESIGNATION	MODELES
1	8A0096837	COURONNE DENTEE Z=47 (1)	450
	8B0096837	COURONNE DENTEE Z=48 (1)	450
	8C0096837	COURONNE DENTEE Z=49 (1)	450
2	800063827	PIGNONE SORTIE CHANGEMENT Z=12 (1)	450
	800063828	PIGNONE SORTIE CHANGEMENT Z=13 (1)	450
	800063830	PIGNONE SORTIE CHANGEMENT Z=15 (1)	450
4	8000H0943	GROUPE JOINTS MOTEUR (1)	450
5	8000A5736	GROUPE BAGUES MOTEUR (1)	450
6	800098504	RESSORT AMORTISSEUR (K=5,4 Kg/mm) (1)	450

ELEMENTS EN OPTION (SMR)

Pos.	Nr. Code	DESIGNATION	MODELES
1*	8A00A4859	COURONNE DENTEE Z=43	450-510
	8B00A4859	COURONNE DENTEE Z=44	450-510
	8G00A4859	COURONNE DENTEE Z=45	450-510
2*	800063829	PIGNONE SORTIE CHANGEMENT Z=14	450-510
3*	8000H0772	KIT PORTEBALAI RACING (1)	450-510
4	8000A5982	GROUPE JOINTS MOTEUR	450-510
5	8000B0364	GROUPE BAGUES MOTEUR	450-510
8	8000B0591	KIT DEMARRAGE A PEDALE	450-510

ELEMENTS EN OPTION

Close-up of a bicycle gear mechanism with chain and wheel components (no visible text or symbols)

1

Close-up of a mechanical gear assembly with visible teeth and mounting holes (no text or symbols)

2

Black plastic object with attached wires and a small inset image showing four small icons (no text or symbols visible)

3

4

5

Close-up of a mechanical spring and cylindrical component (no visible text or symbols)

6

Coiled black electrical connector with terminal connectors (no text or symbols visible)

7

Exploded view diagram of a mechanical assembly showing gears and shafts (no text or labels)

8

APPENDICE

CONTROLES APRES CHAQUE COMPETITION

Mechanical assembly diagram showing a cam mechanism with numbered parts (1 and 2), no readable text or symbols present.

Close-up of a car engine bay with visible hoses and components, no text or symbols present

RACCOMANDATION IMPORTANTE

Close-up of a motorcyclist's front wheel and suspension system (no visible text or symbols)

Close-up of a mechanical lever with 'Husqvarna' branding, set in a workshop setting (no readable text beyond brand name)

Close-up of a motorcycle's front wheel assembly with visible hoses and components (no text or symbols)

Close-up of a Husqvarna electric shaver on a workbench (no visible text or symbols on the device itself)

Close-up of a motorcycle's front wheel and suspension system (no visible text or symbols)

Close-up of mechanical components including chains and gears, no visible text or symbols

Close-up of a bicycle's wheel and track gear assembly (no visible text or symbols)

Close-up of a mechanical engine component with hoses and a numbered annotation (2), no readable text or symbols present.

Close-up of a mechanical brake system with visible components and mounting holes (no text or symbols)

Close-up of an automotive electrical connector with visible wiring and components (no text or symbols)

Robinet carburant ....11

Rodage 20

Roues 9,52

S

Line drawing of a four-wheeled motorcycle with visible tracks, wheels, and engine components (no text or symbols)

Line drawing of a four-wheeled off-road vehicle with visible tracks and wheels (no text or symbols)

Line drawing of a four-wheeled motorcycle showing front wheel, rear wheel, and engine components (no text or symbols)

MOTOCROSS

Black-and-white photo of a person riding a bicycle with motion blur (no text or symbols visible)

ENDURO

Black-and-white photo of a dirter mid-jump on a motorcycle in a mountainous outdoor setting (no visible text or symbols)

SUPERMOTARD

Black-and-white photo of a motorcyclist in motion on a paved track (no visible text or symbols)

WICHTIG

Close-up of a mechanical component with a numbered label (1) pointing to a feature, no readable text or symbols present.

Close-up of an engine component with hoses and a numbered annotation (②), no readable text or symbols present.

Close-up mechanical component with numbered annotation (1) and arrow, no readable text or symbols beyond the label

Close-up of an automotive engine component with hoses and a numbered annotation (2), no readable text or symbols present.

Labeled diagram of a motor with numbered parts and technical annotations including TC and TE-SMR.

TE-SMR 10 TC 11 16 14 13 12 TC 15

TECHNISCHE DATEN

MOTOR

Mechanical assembly diagram showing a component with labeled parts and an arrow pointing to a specific part marked '1'

A 2 3

Mechanical assembly diagram showing a spring-loaded component with labeled section A (no text or symbols beyond label)

Close-up of a mechanical component with labeled parts (no readable text or symbols)

STARTER VERGASER (TC)

Close-up mechanical assembly diagram with numbered components labeled 1 and 2

Close-up of mechanical components with visible wiring and a numbered label (3), no readable text or symbols present.

DIGITALINSTRUMENT, KONTROLLLAMPEN (TE-SMR)

1 2 3 TRP 8880 RPM 8880 RPM SPEED Kshh Mph Miles / CDOO LPT CLK A

TRP 8888 88:88:88 SPEED Km/h Mph Miles I ODO LPT CLK

A 130 34508 SPEED Km/h ODO

2- SPEED / CLOCK (bild 2)

86.0 SPEED Kinsh 2:48 CLK A

TRP SPEED Kinsh 99.14500.18 A

A SPEED Km/h 46.0 00:20.98 LPT

TE-SMR ③ ①

Diagram of a camera grip with numbered parts, showing adjustment of the grip and key adjustment of the lever.

DRUCKKNOPF MOTORAN-HALTEN (TC)

Close-up of a camera mode dial with control buttons and a labeled component (no readable text or symbols beyond labels)

Close-up of a mechanical assembly with no visible text or symbols

TC N 1 2 3 4 5

N: Leerlauf

TE-SMR

DASS MOTORRAD

VORKONTROLLEN

ACHTUNG!

Close-up of a motorcycle's front-mounted device with a labeled component (1), no visible text or symbols on the device itself.

Mechanical component with lever and wrench, no visible text or symbols

TE-SMR 2

TE-SMR N 1 2 3 4 5 6

TE-SMR 5 6

INGANGSETZUNGSDEKOMPRESSOR

Close-up of mechanical components with no visible text or symbols

Labeled diagram of a mechanical device with numbered parts 5 and 6 pointing to different components.

MOTORANLASSEN (TC)

Wie folgt vorgehen:

Close-up of a mechanical assembly with labeled component A, showing pipes and tubing (no readable text or symbols beyond label)

Close-up of a mechanical assembly with numbered component (2) and directional arrow, no readable text or symbols present.

TC N 1 2 3 4 5

Close-up of a mechanical assembly with labeled component (3), no visible text or symbols beyond the number and arrow indicator

TC 4

Close-up of a motorcycle handle and lever mechanism with labeled component (5), no readable text or symbols beyond labels

TC 4

⑥

Close-up of a mechanical assembly with numbered components (3 and an arrow pointing to a component), no readable text or symbols present.

Close-up of a vehicle's internal components including suspension, brake, and suspension system (no visible text or symbols)

STARTEN MIT WARMEM MOTOR (TC)

Close-up of a motorcycle brake lever mechanism with no visible text or symbols

Close-up of a mechanical assembly with labeled component (2), no visible text or symbols

TC

Mechanical component with lever and handle, showing motion direction (no text or symbols)

MOTORANHALT UND MOTORSTILLSTAND

Close-up of a motorcycle handle and lever mechanism with a white arrow pointing to a tool (no text or symbols on the diagram itself)

Close-up of a mechanical assembly with labeled parts (N and 2), no readable text or symbols beyond labels

③ TE-SMR ③ TC

4 TC

Close-up of a motorcyclist's electronic device with visible lens and cable (no text or symbols)

ÖLSTAND ÜBERPRÜFUNG

1 MAX MIN

MOTORÖLWECHSEL UND NETZFILTER-FILTER-EINSATZE REINIGUNG UND WECHSEL

Close-up of a mechanical component with labeled parts (no readable text or symbols)

Technical diagram of a mechanical assembly with numbered components and labeled parts A, 2, 3, and 4

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance instructions.

Close-up of a mechanical assembly with labeled component (2), no visible text or symbols beyond the number and label.

Close-up of an engine component with visible fan and valve assembly (no text or symbols)

Close-up of a mechanical engine component with labeled parts (no readable text or symbols)

Technical diagram of a mechanical component with numbered annotation pointing to a specific part.

A B

B A

Labeled diagram of a mechanical or electrical component with numbered parts 1, 2, 3, and 4 pointing to a cable or connector.

③ B ① ②

A A

Technical diagram of a mechanical assembly with numbered components, likely for assembly or maintenance reference.

Close-up of a mechanical assembly with numbered component (3) and no visible text or symbols

ZÜNDKERZENKONTROLLE

Technical line drawing of a spark plug with threaded shaft and threaded end (no text or symbols)

Close-up mechanical component showing internal parts and wiring (no visible text or symbols)

Close-up of a mechanical component with a labeled arrow pointing to a small cylindrical feature (no text or symbols visible)

Close-up of a mechanical component with labeled parts (3), no readable text or symbols present.

KONTROLLE LUFTFILTER (TC-TXC)

Close-up of a black plastic tool tip with a numbered label pointing to a specific area (no text or symbols on the tool itself)

A 4 3 Twin Air

Close-up of a car's twin-air engine component with no visible text or symbols

KONTROLLE LUFTFILTER (TE-SMR)

Close-up of a black plastic tool tip with a numbered label pointing to a specific area (no text or symbols on the tool itself)

A 4 3 Twin-Air

Close-up of a car's twin-air fuel pump component with no visible text or symbols

Close-up of a motorcyclist's wheel and suspension system, showing tire alignment and mechanical components (no text or symbols visible)

Labeled mechanical assembly diagram showing components numbered 1, 2, and 3 with visible wiring and components

Close-up mechanical diagram showing two labeled components (1 and 2) with arrows pointing to a component on a surface.

Close-up of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a motor and gear mechanism (no text or symbols visible)

Technical diagram of a mechanical assembly with numbered components and labeled parts A, B, and 3.

KONTROLLE FLÜSSIGKEITSSTAND

Mechanical assembly diagram showing a valve and gear mechanism (no text or symbols visible)

TC 1 2 B A 3 C D 4 mm (0.16 in.)

Close-up of a mechanical assembly with labeled component (3), no visible text or symbols beyond the number and label.

① ② B A 4 mm (0.16 in.)

Black-and-white action photo of a dirter mid-jump on a dirt track, wearing helmet and racing gear (no visible text or symbols)

Black-and-white photo of a motorcyclist in action on a dirt track, kicking up dust (no visible text or symbols)

Black-and-white action photo of a dirter mid-jump, wearing number 10 and 'Boschus' gear, kicking up dust (no visible text or symbols)

Black-and-white photo of a motorcyclist in action on a track, wearing racing gear and number 100 (no visible text or symbols)

Diagram illustrating a chemical process with labeled components and directional arrows, showing liquid being poured into a container.

INSTELLUNG GABEL (TC 450-TE 450, 510)

b) C D H→S + - TE

Technical diagram showing assembly steps of a mechanical component with numbered parts and labeled section A

4 "L"

Diagram of a mechanical component with a circular ring and labeled part 1 (no text or symbols beyond label)

SMR310 2 3

Labeled mechanical component diagram showing parts numbered 1, 2, and 3 with annotations

Technical diagram of a vehicle suspension system with labeled components and directional arrows indicating motion or flow.

Mechanical assembly diagram showing linkage components with arrows and a numbered label (5), no readable text or symbols present.

145 mm (5.7 in.) a

Close-up of a hand using a wrench to adjust the wheel rim and brake caliper (no text or symbols visible)

Bild A

Ritzelachse Gabelachse Radachse

Mechanical assembly diagram showing a hand using a tool to adjust components labeled 2 and 3 on a gear-like component.

KONTROLLE VERSCHLEISS KETTE, RITZEL, KRANZ

Labeled diagram of a motorcycle wheel assembly with numbered parts for identification

Close-up of a motor with visible wheel and suspension components (no text or symbols)

TE-TC 1 2

1 2 SMR

SMR A EXCEL

TE-TC ① ③

1 3 SMR

ZUSAMMENBAU DES VORDERRADS

Close-up of a motorcycle's front suspension system, showing mechanical components and no visible text or symbols

SMR

TE-TC 1 2

1 2 SMR

TE-TC

TE-TC 1 3

SMR 1 3

ABNEHMEN DES HINTERRADS

Mechanical assembly diagram showing two labeled components (1 and 2) of a bicycle wheel assembly with mechanical parts and mounting holes.

Mechanical assembly diagram showing a gear and shaft components with numbered annotations (2 and 3), no readable text or symbols.

REIFEN

Technical diagram showing bicycle wheel assembly with numbered components and close-ups of mechanical parts

Close-up of a bicycle's front wheel assembly with visible mechanical components (no text or symbols)

Close-up of a bicycle brake system with visible components and wheel rim (no text or symbols)

Close-up of a mechanical assembly with a dial indicator and brake caliper (no visible text or symbols)

SCHEIBENREINIGUNG

Close-up of a bicycle wheel assembly with visible mechanical components and mounting brackets (no text or symbols)

Close-up of a bicycle brake system with visible components and suspension rings (no text or symbols)

Close-up of a bicycle wheel assembly with visible mechanical components and a numbered annotation (1) pointing to a specific part.

Close-up of a bicycle brake system with labeled component (1A), no visible text or symbols beyond label

Two-panel image showing bicycle wheel assembly and mechanical components (no text or symbols visible)

② TE-TC

SMR ②

2A

Close-up of a mechanical lever handle and grip with a numbered annotation (3) pointing to the lever (no text or symbols on the object itself)

Close-up of a mechanical assembly with no visible text or symbols

BRATE FL US SEMBOL 50000000000000000000000000000000000000000000000000000000000000000 A TE-TC

A SMR

Mechanical assembly diagram showing a valve and gear mechanism (no text or symbols)

ACHTUNG!

Close-up of a bicycle wheel with visible tire, disc, and gear assembly (no text or symbols)

Close-up of a bicycle wheel assembly with visible mechanical components and a numbered annotation (1) pointing to a specific part.

Close-up of a bicycle wheel with a tire and bucket, no visible text or symbols on the wheel itself

Labeled diagram of a mechanical device showing three numbered components: grip, lever, and handle.

BRAKE 肉 LMD A UP

Close-up of a mechanical lever handle and grip assembly (no visible text or symbols)

Close-up of automotive electrical plug connectors (no visible text or symbols)

1A SMR

Close-up of a hand using a wrench to connect a cable to a motor (no visible text or symbols)

Close-up of a bicycle brake system with visible components and no text or symbols

Close-up of a bicycle brake system with visible components and a labeled TC component (no text or symbols on the diagram itself)

ACHTUNG!

Close-up of a mechanical assembly with no visible text or symbols

Mechanical component with labeled parts (B), no visible text or symbols beyond label

AUSPUFFDÄMPFER (TC-TE-TXC)

Illustration of a mechanical component with motion lines and a numbered label (1), no readable text or symbols present.

2 3

Technical diagram showing numbered components of a mechanical assembly with arrows indicating parts of each step

Close-up of a hand adjusting a mechanical engine component with a numbered arrow pointing to the shaft (no visible text or symbols)

Close-up of a mechanical assembly with a wrench tool inserted, showing components like gears and a numbered callout (no readable text or symbols)

AUSPUFFDÄMPFER (SMR)

Labeled diagram of a motorcycle interior showing parts numbered 2 and 3 with arrows indicating features.

6 7 4 B

Close-up of a car tire tread with a white plastic wrap, showing a numbered point (1) and no visible text or symbols.

4 6 7 A

A B 5

REVISION DES RADS

Technical line drawing of a mechanical device with dual gauges and adjustment knobs (no text or symbols)

Technical line drawing of a pressure gauge mounted on a pipe (no text or symbols)

BIEGEN DER RADACHSE

Illustration of a hand using a dial indicator to measure a mechanical setup (no text or symbols present)

Mechanical linkage diagram showing a bone and connecting rods (no text or labels)

LAGE DER ELEKTRISCHE KOMPONENTEN (TE-SMR)

Mechanical assembly diagram showing components labeled 1 and 6, with no readable text or symbols beyond labels

Close-up of a mechanical component with a numbered annotation (5) pointing to a small cylindrical feature, no readable text or symbols present.

2 4 14 16 3

Close-up of a mechanical component with a numbered annotation (11) pointing to a specific part, no readable text or symbols present.

10 15 18

21 22 21 22 TE 310-EU

20 22 Husprama

9 13

Close-up of a hand adjusting automotive engine components with a numbered annotation (19) and gear mechanism visible (no readable text or symbols)

LAGE DER ELEKTRISCHE KOMPONENTEN (TC-TXC)

Close-up of a car engine compartment showing hoses and wiring (no visible text or symbols)

Close-up of a mechanical assembly with pipes and gears, no visible text or symbols

Close-up of a mechanical assembly with pipes and components, no visible text or symbols

Close-up of a mechanical assembly with numbered component (11) and directional arrows, no readable text or symbols beyond annotations

Close-up of a mechanical assembly with pipes and valves, no visible text or symbols

Technical diagram of an automotive engine showing labeled components with numbered annotations

Close-up of an internal combustion engine bay with visible hoses and components (no text or symbols)

8 7 9

Kabelfarben

B	Blau
B/Bk	Blau/Schwarz
Bk	Schwarz
Br	Braun
Br/Bk	Braun/Schwarz
Br/R	Braun/Rot
Br/W	Braun/Weiss
G	Grün
G/Bk	Grün/Schwarz
G/Gr	Grün/Grau
G/R	Grün/Rot
Gr	Grau
Gr/B	Grau/Blau
Gr/Bk	Grau/Schwarz
O	Orange
O/Bk	Orange/Schwarz
O/G	Orange/Grün
Pk	Rosa

Labeled mechanical or automotive component diagram with numbered parts and magnified detail view

Front view of a motorcycle's front wheel and side-mounted sensors (no visible text or symbols)

Close-up of a metal bracket with numbered annotation (1) pointing to a specific feature, no readable text or symbols present.

Close-up of hands holding a small object with a circular label pointing to part 2 (no text or symbols on the object itself)

Close-up of a mechanical component with internal components and directional arrows indicating motion (no text or symbols)

3

Close-up of a mechanical component with a numbered annotation (4) pointing to a small feature, no readable text or symbols present.

Close-up of a hand using a pliers to cut a mechanical component, labeled with number 5 (no text or symbols on the object itself)

Technical diagram of automotive component assembly with numbered parts and exploded views

EXTRA TEILE (TE)

Pos.	Code Nr.	BESCHREIBUNG	MODELLEN
1*	8A0096837	HINTERER KRANZ Z=47 (1)	310
	8B0096837	HINTERER KRANZ Z=48 (1)	310-450-510
	8C0096837	HINTERER KRANZ Z=49 (1)	310-450-510
	8D0096837	HINTERER KRANZ Z=50 (1)	450-510
2*	800063829	GETRIEBEZAHNRAD Z=14 (1)	310-450-510
	800063827	GETRIEBEZAHNRAD Z=12 (1)	310-450-510
	800063830	GETRIEBEZAHNRAD Z=15 (1)	310-450-510
3*	8000H0772	BAUSATZ SCHILDTR**AGER RACING (1)	310-450-510
4	8000H0503	BAUSATZ MOTORDICHTUNGEN (1)	310
	8000H0942	BAUSATZ MOTORDICHTUNGEN (1)	450-510
5	8000B0373	BAUSATZ MOTORDICHTRINGEN (1)	310
	8000B0364	BAUSATZ MOTORDICHTRINGEN (1)	450-510
6	800098504	STOßDÄMPFERFEDER (K=5,4 Kg/mm) (1)	450-510
	8000H0076	STOßDÄMPFERFEDER (K=5,6 Kg/mm) (1)	310
7	8000H0590	SCHALTER DOPPELTER BETRIEBSMODUS (1)	310-450-510

EXTRA TEILE (TC)

Pos.	Code Nr.	BESCHREIBUNG	MODELLEN
1	8A0096837	HINTERER KRANZ Z=47 (1)	450
	8B0096837	HINTERER KRANZ Z=48 (1)	450
	8C0096837	HINTERER KRANZ Z=49 (1)	450
2	800063827	GETRIEBEZAHNRAD Z=12 (1)	450
	800063828	GETRIEBEZAHNRAD Z=13 (1)	450
	800063830	GETRIEBEZAHNRAD Z=15 (1)	450
4	8000H0943	BAUSATZ MOTORDICHTUNGEN (1)	450
5	8000A5736	BAUSATZ MOTORDICHTRINGEN (1)	450
6	800098504	STOßDÄMPFERFEDER (K=5,4 Kg/mm) (1)	450

EXTRA TEILE (SMR)

Pos.	Code Nr.	BESCHREIBUNG	MODELLEN
1*	8A00A4859	HINTERER KRANZ Z=43	450-510
	8B00A4859	HINTERER KRANZ Z=44	450-510
	8G00A4859	HINTERER KRANZ Z=45	450-510
2*	800063829	GETRIEBEZAHRAD Z=14	450-510
3*	8000H0772	BAUSATZ SCHILDTR**AGER RACING (1)	450-510
4	8000A5982	BAUSATZ MOTORDICHTUNGEN	450-510
5	8000B0364	BAUSATZ MOTORDICHTRINGEN	450-510
8	8000B0591	KIT KICKSTARTER	450-510

EXTRA TEILE

Close-up of a bicycle gear assembly with chain links and mounting holes (no visible text or symbols)

1

Close-up of a mechanical gear assembly with visible teeth and central hub (no text or symbols)

2

Black plastic mug with curved handle and side trim, placed on a plain surface with two small inset images of small objects (no text or symbols visible)

3

4

5

Close-up of a mechanical spring and cylindrical component (no visible text or symbols)

6

Coiled black electrical connector with terminal connectors (no text or symbols visible)

7

Exploded view diagram of a mechanical assembly showing gears and shafts (no text or labels)

8

ANHANG

Mechanical assembly diagram showing a cam mechanism with numbered parts (1 and 2), no readable text or symbols present.

Close-up of a mechanical assembly with hoses and components, no visible text or symbols

WICHTIGE EMPFEHLUNG

Close-up of a motorcyclist's front wheel and suspension system (no visible text or symbols)

Close-up of a mechanical lever with 'Husqvarna' branding, set in a workshop setting (no readable text beyond brand name)

Close-up of a motorcycle's front wheel assembly with visible wiring and components (no text or symbols)

Close-up of a Husqvarna electric shaver on a workbench (no visible text or symbols on the device itself)

Close-up of a motorcycle's front wheel and suspension system (no visible text or symbols)

Close-up of mechanical components including chains and gears, no visible text or symbols

Close-up of a bicycle's wheel and gear assembly, showing chain tracks and mounting hardware (no text or symbols visible)

Close-up of a mechanical engine component with hoses and valves (no visible text or symbols)

Close-up of a car wheel assembly with visible mechanical components and mounting holes (no text or symbols)

Close-up of an automotive electrical connector with visible wiring and components (no text or symbols)

Line drawing of a multi-rotor off-road vehicle with visible tracks, tires, and mechanical components (no text or symbols)

MOTOCROSS

Black-and-white photo of a person riding a bicycle with motion blur (no text or symbols visible)

ENDURO

Line drawing of a multi-rotor off-road vehicle with visible tracks, wheels, and engine components (no text or symbols)

Black-and-white photo of a dirter mid-jump on a motorcycle in a mountainous outdoor setting (no visible text or symbols)

Line drawing of a four-wheeled motorcycle with visible suspension and wheelbars (no text or symbols)

SUPERMOTARD

Black-and-white photo of a motorcyclist in motion on a paved track (no visible text or symbols)

IMPORTANTE

Close-up of a mechanical component with a numbered label (1) pointing to a feature, no readable text or symbols present.

Close-up of an engine component with hoses and a numbered annotation (②), no readable text or symbols present.

Close-up mechanical component with labeled part (1), no visible text or symbols

Close-up of an automotive engine component with hoses and a numbered annotation (2), no readable text or symbols present.

Labeled diagram of a motor with numbered parts and technical annotations including TC and TE-SMR.

TE-SMR 10 TC 11 16 14 13 12 TC 15

FICHA TECNICA

MOTOR

Mechanical assembly diagram showing a component with labeled parts and an arrow pointing to a specific part marked '1'

A 2 3

Mechanical assembly diagram showing a spring-loaded component with labeled point A (no text or symbols beyond label)

Close-up of a mechanical component with labeled parts (no readable text or symbols)

Close-up mechanical assembly diagram with numbered components labeled 1 and 2

Close-up of mechanical components with visible wiring and a numbered annotation (3), no readable text or symbols present.

INSTRUMENTO DIGITAL, TESTIGOS (TE-SMR)

1 2 3 TRP 8880 RPM 8880 RPM SPEED Kshh Mph Miles / CDOO LPT CLK A

TRP 888.8 88:88:88 SPEED Km/h Mph Miles I ODO LPT CLK

A 130 34508 SPEED Km/h ODO

2- SPEED /CLOCK (figura 2)

86.0 SPEED Kinsh 2:48 CLK A

TRP SPEED Kinsh 99.14500.18 A

A SPEED Km/h 46.0 00:20.98 LPT

5- SPEED / RPM NUMERICO (figura 5)

TE-SMR ③ ①

Diagram of a camera grip with numbered parts and an inset close-up showing the grip mechanism.

PULSADOR PARADA MOTOR (TC)

Close-up of a mechanical assembly with visible components and a numbered label (1), no readable text or symbols present.

TC N 1 2 3 4 5

TE-SMR

INSTRUCCIONES PARA EL USO DE LA MOTOCICLETA

CONTROLES PRELIMINARES

ATENCION!

Close-up of a motorcycle's front-mounted control panel with cable and head connector (no visible text or symbols)

Mechanical component with lever and wrench, no visible text or symbols

TE-SMR 2

TE-SMR N 1 2 3 4 5 6

TE-SMR 5 6

DESCOMPRESOR DE ARRANQUE

Close-up of a mechanical assembly with hoses and components, no visible text or symbols

Labeled diagram of a mechanical device with numbered parts 5 and 6 pointing to different components.

ARRANQUE DEL MOTOR (TC)

Close-up of a mechanical assembly with labeled component A, showing pipes and tubing (no readable text or symbols beyond label)

TC N 1 2 3 4 5

Close-up of a mechanical assembly with numbered component (2) and directional arrow, no readable text or symbols present.

Close-up of a mechanical assembly with labeled component (3), no visible text or symbols beyond the number and arrow indicator

TC 4

Close-up of a motorcycle handle and lever with labeled parts (TC and 5), no readable text or symbols beyond labels

TC 4

⑥

Close-up mechanical assembly showing a motor and gears with no visible text or symbols

Close-up of a mechanical assembly with visible springs, gears, and a central shaft (no text or symbols)

ARRANQUE CON MOTOR CALIENTE (TC)

Close-up of a motorcycle brake lever mechanism with no visible text or symbols

Close-up of a mechanical assembly with labeled component (2), no visible text or symbols

TC

Mechanical component with lever and handle, labeled with number 3 (no text or symbols on the device itself)

PARADA DEL MOTOCICLO Y DEL MOTOR

Close-up of a motorcycle handle and lever mechanism with a wrench, no visible text or symbols

Close-up of a mechanical assembly with labeled parts (N and 2), no readable text or symbols beyond labels

③ TE-SMR ③ TC

4 TC

Close-up of a motorcyclist's electronic device with visible lens and cable (no text or symbols)

CONTROL NIVEL ACEITE

1 MAX MIN

Close-up of a mechanical component with labeled parts (no readable text or symbols)

SUBSTITUCION ACEITE MOTOR Y LIMPIEZA- SUBSTITUCION FILTROS DE RED Y DEL CARTU- CHO FILTRO

Technical diagram of a mechanical assembly with labeled parts A, 2, 3, and 4

Technical diagram of a mechanical assembly with numbered components and labeled parts

CONTROL NIVEL LIQUIDO DE ENFRIAMIENTO

Close-up of a car engine bay with visible springs and components (no text or symbols)

Close-up of an engine component with a labeled section A (no visible text or symbols)

SUBSTITUCION LIQUIDO DE ENFRIAMIENTO

Close-up of a mechanical engine component with labeled parts (no readable text or symbols)

Technical diagram of a mechanical component with numbered annotation pointing to a specific part.

A B

B A

Technical diagram of automotive engine components with numbered labels pointing to specific parts

A A

Technical diagram of engine components with numbered annotations indicating parts of the engine and their assembly.

Close-up of a mechanical component with numbered annotation (3) and arrow pointing to a bolted joint (no readable text or symbols)

CONTROL BUJA DE ENCENDIDO

Technical line drawing of a spark plug with threaded shaft and threaded end (no text or symbols)

Close-up mechanical assembly showing engine components and wiring (no visible text or symbols)

Grado termico exacto:

Close-up of a mechanical component with a labeled arrow pointing to a bolt (no text or symbols visible)

Close-up of a mechanical component with labeled parts (3), no readable text or symbols present.

CONTROL FILTRO AIRE (TC-TXC)

Close-up of a black plastic tool tip with a labeled component (1) pointing to a surface feature, no text or symbols visible.

A 4 3 Twin Air

LIMPIEZA FILTRO AIRE

Close-up of a car's twin-air engine component with no visible text or symbols

CONTROL FILTRO AIRE (TE-SMR)

Close-up of a black plastic tool with a labeled component (1) and a transparent cap, no visible text or symbols beyond the label.

A 4 3 Twin Air

LIMPIEZA FILTRO AIRE

Close-up of a car's twin-air engine component with no visible text or symbols

Close-up of a motorcyclist's wheel and suspension system, showing tire alignment and mechanical components (no text or symbols visible)

Labeled mechanical component diagram showing parts numbered 1, 2, and 3 with visible wiring and components

Close-up mechanical diagram showing two labeled components (1 and 2) with arrows pointing to a component on a surface.

AJUSTE PALANCA DE MANDO FRENO DELANTE- RO Y CONTROL NIVEL FLUIDO

Close-up of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a motor and gear mechanism (no text or symbols visible)

Technical diagram of a mechanical assembly with numbered components and labeled parts A, B, and 3.

CONTROL NIVEL DEL FLUIDO

Mechanical assembly diagram showing a valve and gear mechanism (no text or symbols visible)

TC 1 2 B A 3 C D 4 mm (0.16 in.)

SANGRAR EL EMBRAGUE HIDRÁULICO

Close-up of a mechanical assembly with numbered annotation (3) and no visible text or symbols

1 2 B A 4 mm (0.16 in.)

REGULACION DE LAS SUSPENSIONES SOBRE LA BASE DE PARTICULARES CONDICIONES DE LA PISTA

Black-and-white action photo of a dirter mid-jump on a dirt track, wearing helmet and racing gear (no visible text or symbols)

Black-and-white photo of a dirter in action on a dirt track, kicking up the tire with visible tracks and dust (no text or symbols)

Black-and-white action photo of a dirter mid-jump on a wet track, kicking up dust (no visible text or symbols)

Black-and-white photo of a motorcyclist in action on a track, wearing racing gear and number 100 (no visible text or symbols)

TE-SMR R C

TE-SMR D

NIVEL DEL ACEITE DE LA HORQUILLA

Diagram illustrating a mechanical or fluidic process with labeled component 'A' and directional arrows indicating flow or movement.

b) C D H→S + - TE

Technical diagram showing assembly steps of a mechanical component with numbered parts and labeled section A

4 "L"

Diagram of a mechanical component with a circular ring and labeled part 1 (no text or symbols beyond label)

SMR310 2 3

Labeled mechanical component diagram showing parts numbered 1, 2, and 3 with annotations

Technical diagram of a vehicle suspension system with labeled components and directional arrows indicating motion or flow.

Mechanical assembly diagram showing linkage components with arrows indicating motion direction (no text or symbols)

REGULACION CADENA (Fig. A)

145 mm (5.7 in.) a

Fig. B a C

Close-up of a hand using a wrench to adjust the wheel rim and brake system (no text or symbols visible)

Fig. A

Mechanical assembly diagram showing a hand using a tool to adjust components labeled 2 and 3 on a gear-like component.

CONTROL DESGASTE CADENA, PIÑON Y CORONA

Labeled diagram of a motorcycle wheel assembly with numbered parts for identification

Close-up of a motor with visible wheel and suspension components (no text or symbols)

TE-TC 1 2

1 2 SMR

SMR A EXCEL

TE-TC ① ③

1 3 SMR

REENSAMBLAJE RUEDA DELANTERA

Close-up of a motorcycle's front suspension system, showing mechanical components and no visible text or symbols

1 2 SMR

SMR 1 3

Close-up mechanical diagram of a bicycle wheel with labeled components 1 and 2

Mechanical assembly diagram showing a cam mechanism with labeled parts (2 and 3), no readable text or symbols beyond labels

NEUMÁTICOS

Close-up of a bicycle's front wheel assembly with visible mechanical components (no text or symbols)

Close-up of a bicycle brake system with visible components and wheel rim (no text or symbols)

Close-up of a mechanical assembly with a dial indicator and brake caliper (no visible text or symbols)

LIMPIEZA DEL DISCO

Close-up of a bicycle wheel assembly with visible mechanical components and mounting brackets (no text or symbols)

Close-up of a bicycle brake system with visible components and suspension rings (no text or symbols)

Close-up of a bicycle wheel assembly with visible mechanical components and a numbered annotation (1) pointing to a specific part.

Close-up of a bicycle brake system with labeled component (1A), no visible text or symbols beyond label

Two-panel image showing bicycle wheel components: front view and side view, no text or symbols visible.

② TE-TC

SMR ②

2A

Close-up of a mechanical lever handle and grip assembly (no visible text or symbols)

Close-up of a mechanical assembly with no visible text or symbols

BRASSE PLUG A TE-TC

A SMR

Mechanical assembly diagram showing a valve and gear mechanism (no text or symbols)

ATENCION!

Close-up of a bicycle wheel with visible tire, disc brake, and mechanical components (no text or symbols)

Close-up of a bicycle wheel assembly with visible brake calipers and mounting brackets (no text or symbols)

Close-up of a bicycle wheel with a tire and bucket, no visible text or symbols on the wheel itself

Labeled diagram of a mechanical device showing three numbered components: grip, lever, and handle.

BRAKE 肉 LMD A UP

②

Close-up of automotive electrical plug connectors (no visible text or symbols)

1A SMR

Close-up of a hand using a wrench to connect a cable to a motor (no visible text or symbols)

(12÷16 Nm; 8.8÷11.8 ft-lb).

Close-up of a bicycle brake system with visible components and no text or symbols

ATENCION!

Close-up of a bicycle brake system with visible components and wiring (no text or symbols)

Close-up of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a valve or connector with labeled component B (no text or symbols beyond label)

Illustration of a mechanical component with motion lines and a numbered label (1), no readable text or symbols present.

2 3

Technical diagram showing mechanical assembly steps with numbered annotations (4, 6, 7)

Close-up of a hand adjusting a mechanical engine component with hoses and pipes (no visible text or symbols)

Close-up of a mechanical assembly with a wrench and numbered component (no visible text or symbols)

Labeled diagram of a motorcycle interior showing parts numbered 2 and 3 with arrows indicating features.

6 7 4 B

Close-up of a car tire tread with a white plastic wrap, labeled with number 1 (no text or symbols on the object itself)

4 6 7 A

A B 5

REVISIÓN RUEDAS

Technical line drawing of a mechanical gauge or dial assembly with no visible text or symbols

Technical line drawing of a pressure gauge mounted on a pipe fitting (no text or symbols)

FLEXIÓN PERNO RUEDA

Illustration of a hand operating a mechanical testing setup with a dial and clamped components (no text or symbols)

Mechanical linkage diagram showing intersecting rods and a bone (no text or labels)

Mechanical assembly diagram showing a motor and gear components with numbered annotations (1 and 6), no readable text or symbols.

Close-up of a mechanical component with a numbered annotation (5) pointing to a small cylindrical feature, no readable text or symbols present.

2 4 14 16 3

Close-up of a mechanical component with a numbered annotation (11) pointing to a specific part, no readable text or symbols present.

21 21 22 22 TE 310-EU

9 13

10 15 18

20 Husriama 22

Close-up of a hand adjusting automotive engine components with a numbered label (19) pointing to a component, no readable text or symbols beyond the number.

Close-up of a mechanical assembly with pipes and components, no visible text or symbols

Close-up of a car engine compartment showing hoses and wiring (no visible text or symbols)

Close-up of a mechanical assembly with labeled component 11 (no readable text or symbols beyond label)

Close-up of a mechanical assembly with pipes and components, no visible text or symbols

Close-up of a mechanical assembly with pipes and valves, no visible text or symbols

Technical diagram of an automotive engine showing labeled components with numbered annotations

Close-up of an internal combustion engine bay with visible hoses and components (no text or symbols)

8 7 9

Labeled mechanical or automotive component diagram with numbered parts and a magnified inset showing internal structure

Front view of a motorcycle's front wheel and side-mounted sensors (no visible text or symbols)

Close-up of a metal bracket with numbered annotation (1) pointing to a specific feature, no readable text or symbols present.

Close-up of a hand holding a small transparent object with a circular label pointing to it, showing internal components (no text or symbols visible)

Close-up of a mechanical component with arrows indicating motion or flow, no visible text or symbols

3

Close-up of a mechanical component with a numbered label (4) pointing to a small feature, no readable text or symbols present.

Close-up of a hand using a tool to cut a mechanical component, labeled with number 5 (no text or symbols on the object itself)

Technical diagram of automotive component assembly with numbered parts and labeled parts such as SMR, TE, and parts 1–17.

PARTES OPCIONALES (TE)

Pos.	N. Código	DENOMINACION	MODELOS
1*	8A0096837	CORONA TRASERA Z=47 (1)	310
	8B0096837	CORONA TRASERA Z=48 (1)	310-450-510
	8C0096837	CORONA TRASERA Z=49 (1)	310-450-510
	8D0096837	CORONA TRASERA Z=50 (1)	450-510
2*	800063829	PIÑÓN SALIDA CAMBIO Z=14 (1)	310-450-510
	800063827	PIÑÓN SALIDA CAMBIO Z=12 (1)	310-450-510
	800063830	PIÑÓN SALIDA CAMBIO Z=15 (1)	310-450-510
3*	8000H0772	CONJUNTO PORTAMATRICULA RACING (1)	310-450-510
4	8000H0503	KIT GUARNICIONES MOTOR (1)	310
	8000H0942	KIT GUARNICIONES MOTOR (1)	450-510
5	8000B0373	KIT ANILLOS MOTOR (1)	310
	8000B0364	KIT ANILLOS MOTOR (1)	450-510
6	800098504	MUELLE AMORTIGUADOR (K=5,4 Kg/mm) (1)	450-510
	8000H0076	MUELLE AMORTIGUADOR (K=5,6 Kg/mm) (1)	310
7*	8000H0590	PULSADOR DE DOBLE MODALIDAD (1)	310-450-510

PARTES OPCIONALES (TC)

Pos.	N. Código	DENOMINACION	MODELOS
1	8A0096837	CORONA TRASERA Z=47 (1)	450
	8B0096837	CORONA TRASERA Z=48 (1)	450
	8C0096837	CORONA TRASERA Z=49 (1)	450
2	800063827	PIÑÓN SALIDA CAMBIO Z=12 (1)	450
	800063828	PIÑÓN SALIDA CAMBIO Z=13 (1)	450
	800063830	PIÑÓN SALIDA CAMBIO Z=15 (1)	450
4	8000H0943	KIT GUARNICIONES MOTOR (1)	450
5	8000A5736	KIT ANILLOS MOTOR (1)	450
6	800098504	MUELLE AMORTIGUADOR (K=5,4 Kg/mm) (1)	450

PARTES OPCIONALES (SMR)

Pos.	N. Código	DENOMINACION	MODELOS
1*	8A00A4859	CORONA TRASERA Z=43	450-510
	8B00A4859	CORONA TRASERA Z=44	450-510
	8G00A4859	CORONA TRASERA Z=45	450-510
2*	800063829	PIÑÓN SALIDA CAMBIO Z=14	450-510
3*	8000H0772	ASS.PORTATARGA RACING (1)	450-510
4	8000A5982	KIT GUARNICIONES MOTOR	450-510
5	8000B0364	KIT ANILLOS MOTOR	450-510
8	8000B0591	KIT ARRANQUE A PEDAL	450-510

PARTES OPCIONALES

Close-up of a bicycle gear mechanism with chain and wheel components (no visible text or symbols)

1

Close-up of a mechanical gear assembly with no visible text or symbols

2

Black plastic object with curved sides and a handle, accompanied by small metallic connectors (no text or symbols visible)

3

4

Close-up of mechanical components including a coiled spring and cylindrical housing (no text or symbols visible)

6

Coiled black electrical connector with terminal connectors (no text or symbols visible)

7

Exploded view diagram of a mechanical assembly showing gears, shafts, and housing (no text or labels)

8

APÉNDICE

CONTROLES DESPUÉS DE LA CARRERA

Mechanical assembly diagram with numbered annotations pointing to components

Close-up of a mechanical assembly with hoses and components, no visible text or symbols

Side profile of a semi-truck with visible tire, suspension, and mechanical components (no text or symbols)

Close-up of a mechanical lever with 'Husqvarna' branding, set in a workshop setting (no readable text beyond brand name)

Close-up of a motorcycle's front wheel assembly with visible wiring and components (no text or symbols)

Close-up of a Husqvarna electric shaver tool on a workbench (no visible text or symbols on the device itself)

Close-up of a motorcycle's front wheel and suspension system (no visible text or symbols)

Close-up of mechanical components including chains and gears, no visible text or symbols

Close-up of a bicycle's wheel and track gear assembly (no visible text or symbols)

Close-up of a mechanical engine component with hoses and a numbered annotation (2), no readable text or symbols present.

Close-up of a mechanical assembly with visible gears and mounting brackets (no text or symbols)

Close-up of an automotive electrical connector with visible wiring and components (no text or symbols)

SOSTITUIRE LA VITERIA IN CASO DI DETERIORAMENTO- REPLACE SCREWS AND NUTS IF WORN- AU CAS DE DÉTÉRIORATION, REMPLACER LES BOULONS

DOPO PERCORRENZE SU FANGO O SABBIA EFFETTUARE UNA VERIFICA GENERALE- GENERAL CHECK AFTER RACING USE ON MUDDY OR SANDY GROUNDS-

APRÈS USAGE SUR DES TERREINS BOUEUX OU SABLEUX, EFFECTUER UN CONTRÔLE GENERAL

SMR 450, 510- 2010 - TE 250, 310, 450, 510 - 2010	WARTUNGSTABELLE (FÜR DIESE KONTROLLEN WENDEN SIE SICH AN IHREN VERTRAGSHÄNDLER HUSQVARNA) ESQUEMA DE MANTENIMIENTO PERIODICO(PARA EFECTUAR ESTAS OPERACIONES DIRÍJASE A SU CONCESIONARIO HUSQVARNA)
TEILE- PARTICULAR	COUPON- CUPÓN	COUPON- CUPÓN	COUPON- CUPÓN
SMR 450, 510- 2010 - TE 310, 450, 510 - 2010- ÜBLICHES MOTORRAD, STRAße GESETZLICH (mit beschränktem Macht-MOTOR): SMR 450, 510- 2010; TE 310, 450, 510 - 2010- MOTOCICLO DE SERIE, PARA USO VIAL (A POTENCIA LIMITADA): SMR 450, 510- 2010; TE 310, 450, 510 - 2010	NACH DEN ERSTEN 1000Km- DESPUES LOS PRIMEROS 1000Km	ALLE 5000 KM CADA 5000 KM	ALLE 10000Km CADA 10000Km	WECHSELN WENN NÖTIG- SUBSTITUÍR SI NECESARIO	SIEHE SEITE VER PAGINA
SMR 450, 510- 2010-MOTOCICLO DA COMPETIZIONE, PER USO AGONISTICO (A PIENA POTENZA)- COMPETITION MOTORCYCLE, RACING USE (with FULL POWER ENGINE)- MOTOCYCLE DE COMPÉTITION, POUR USAGE SPORTIF (AVEC LA PLEINE PUISSANCE)	NACH DEN ERSTEN 3 STUNDEN- DESPUES LAS PRIMERAS 3 HORAS	ALLE 5 STUNDEN CADA 5 HORAS	ALLE 15 STUNDEN CADA 15 HORAS
TREIBSTOFFROHR- TUBERÍAS CARBURANTE			C	X	#
GERÄUSCHDÄMPFENDES MATERIAL FÜR AUSPUFF- MATERIAL FONOABSORBENTE SILENCIADOR				X	67
AUSPUFFROHR UND SCHALLDÄMPFER- TUBO DE ESCAPE Y SILENCIADOR		C		X	#
RADSPÉICHENSSPANNUNG- TENSION RADIOS RUEDAS	C		C		69
RADNABENLAGER- COJÍNETES CUBOS RUEDAS			C	X	#
KRANZ- CORONA TRASERA			S		#
SCHRAUBENANZIEHUNG FÜR HINTERKRANZ- TORSION TORNILLOS CORONA TRASERA	C	C	C		50
SEKUNDÅRE ÜBERTRAGUNGSKETTE- CADENA TRANSMISIÓN SECUNDARIA	CL	CL	S		50
KONTROLLE VERSCHRAUBUNG KALTGESENKBOLZEN- CONTROL GENERAL AJUSTE TUERCAS	C	C			#

LEGENDE- LEYENDA
S: WECHSELN- SUBSTITUCIÓN
C: KONTROLLIEREN- CONTROL
P: REINIGEN- LIMPIEZA
R: REVISION- REVISION
L: SCHMIERUNG-BESCHMEIREN- ENGRESAJE-LUBRICACIÓN

: SIEHE WERKSTATTHANDBUCH- VER MANUAL DE OFICINA

ANMERKUNG- NOTAS
DICHTUNGWECHSE: BEI JEDEM DEMONTAGE- SUBSTITUIR LAS EMPACURAS EN EL CASO DE DESMONTAJE
SCHRAUBEN VERSCHLEISS: WECHSELN- SUBSTITUIR TORNILLOS Y TUERCAS EN EL CASO DE DESGASTE
SCHLAMMIGES UND SANDIGES GELÄNDEN: EIN ALLGEMEINE KONTROLLE DURCHFÜHREN- DESPUÉS DE LA CARRERA SOBRE UN TERRENO FANGOSO O ARENOSO, EFECTUAR UN CONTROL GENERAL

MEMORANDUM

MEMORANDUM

A

MEMORANDUM

MEMORANDUM

A

MEMORANDUM
