HEDGE TRIMMER - Gardening tool HUSQVARNA - Free user manual and instructions

Brand	Husqvarna
Model	HEDGE TRIMMER
Product type	Hedge trimmer attachment for brushcutter/trimmer
Main use	Cutting hedges and bushes in parks and large estates
Blade gap	23 mm
Number of adjustment screws	4
Blade clearance (max)	0.10 mm
Clearance adjustment frequency	Every 20 hours of service
Lubrication of blade bars	Each use with motor oil
Lubrication of gear	Every 20 hours, 4-5 strokes of high-pressure grease gun
Lubrication of drive shaft	Every 30 hours with grease
Required safety equipment	Boots, sturdy clothing, hearing and eye protection, protective gloves
Safety distance	15 m from people
Blade guard	To be installed when the machine is not in use
Spare parts	Use only genuine Husqvarna parts
Compatibility	Approved Husqvarna brushcutters/trimmers (see machine manual)
Included manual	User manual for hedge trimmer attachment

Frequently Asked Questions - HEDGE TRIMMER HUSQVARNA

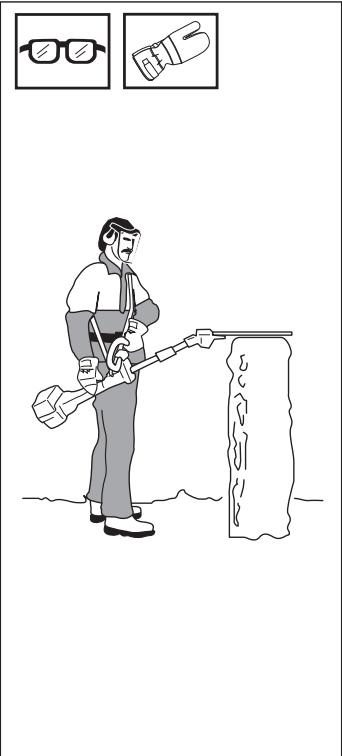

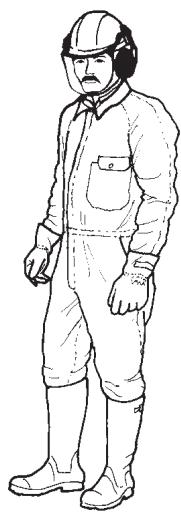

What safety equipment should I wear when using the Husqvarna hedge trimmer?

It is mandatory to wear boots, sturdy clothing (long pants), hearing and eye protection, and protective gloves. People with long hair should tie it back. Avoid loose clothing and jewelry.

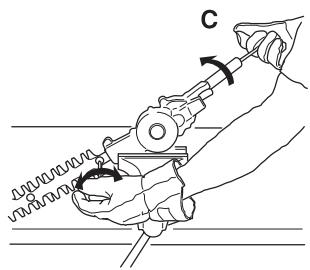

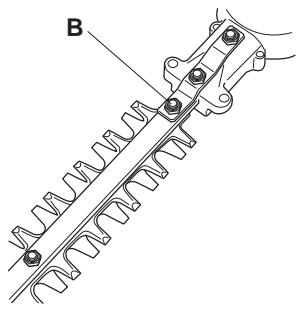

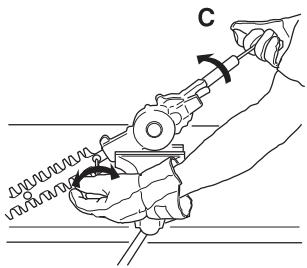

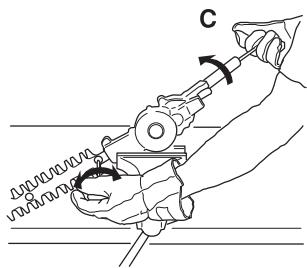

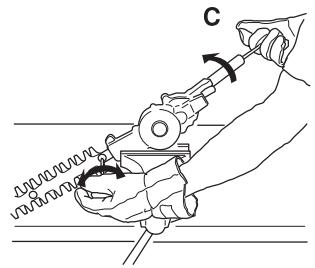

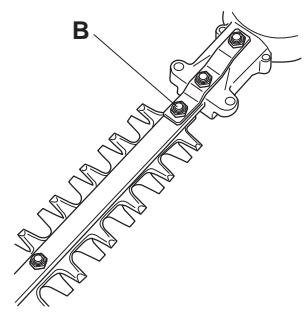

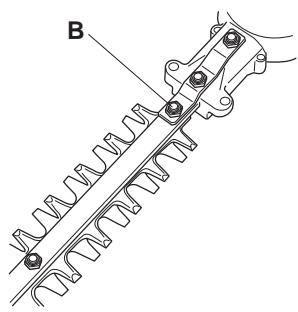

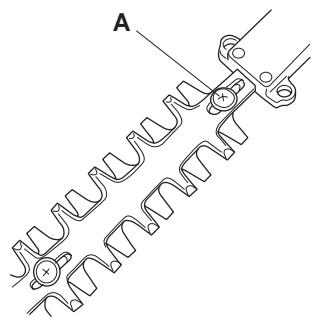

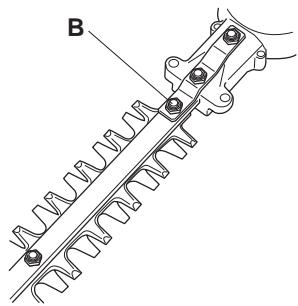

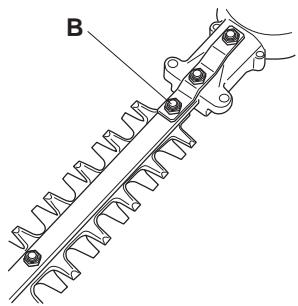

How to adjust the blade clearance on the hedge trimmer?

Loosen the 4 lock nuts (B) and the 4 adjustment screws (A). Clamp the hedge trimmer in a vise. Insert a star screwdriver into the drive shaft and turn. Tighten the screw closest to the housing until rotation becomes difficult, then loosen by a quarter turn. Tighten the lock nut. Repeat for the other screws. The clearance must be less than 0.10 mm.

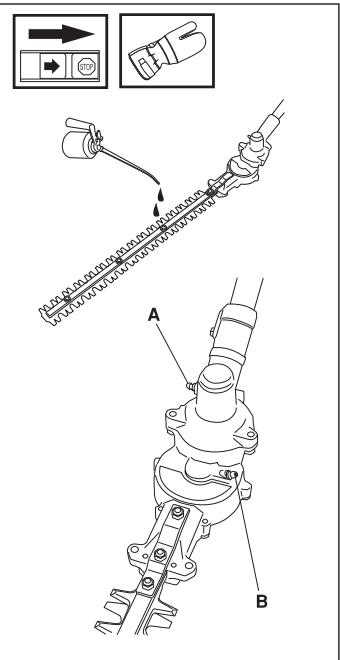

How often should the blade bars be lubricated?

The blade bars must be lubricated before each use with ordinary motor oil. Additionally, every 20 hours of service, apply 4 to 5 strokes of high-pressure grease gun to the housing grease fittings.

What is the safety distance to maintain around the machine during operation?

Do not allow anyone within 15 meters while working. Never allow children to use the machine.

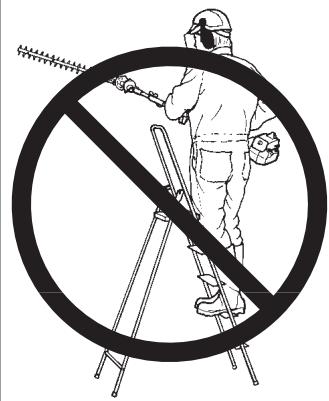

Can I use the hedge trimmer on a ladder or at height?

No, it is strictly forbidden to work from a ladder or any other elevated position. Always use the machine from the ground with a stable stance.

What to do if the hedge trimmer hits an object or vibrates abnormally?

Stop the machine immediately, disconnect the spark plug wire, and check for damage. Repair any failure before using the equipment again.

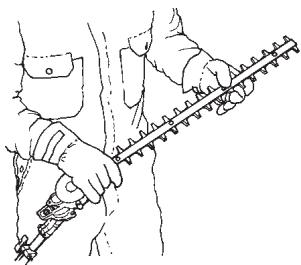

What precautions should be taken before starting the hedge trimmer?

Inspect the work area and remove any objects that could be thrown. Check the attachment mounting, blade condition (no cracks or dullness), screw tightness, gear lubrication, and idle operation. Ensure the handle and safety system work correctly.

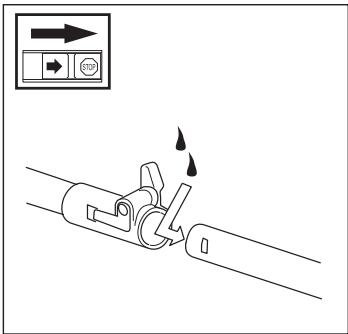

How to maintain the detachable transmission tube?

The end of the drive shaft inside the lower tube should be internally lubricated with grease every 30 hours of use. Regular lubrication prevents the splined ends from seizing.

What type of branches can I cut with this hedge trimmer?

The blade gap is 23 mm. The maximum branch thickness depends on hardness. Always start cutting with the engine at least at half throttle to avoid blade jamming.

Where to find spare parts for the Husqvarna hedge trimmer?

Use only genuine Husqvarna parts for repairs. Consult the user manual or an authorized dealer for part numbers.

USER MANUAL HEDGE TRIMMER HUSQVARNA

Technical line drawing of a mechanical tool with a long straight edge and mounted shaft (no text or symbols)

Line drawing of a person in protective gear and helmet, with no visible text or symbols

Illustration of a worker climbing a ladder with a diagonal line, crossed out by a circle (no text or symbols)

Technical diagram showing a hand holding a tool with directional arrows and control buttons, likely illustrating a mechanical or safety procedure.

Illustration showing three different methods of cleaning a tool: a person in protective gear, a worker using a long-handled tool, and a worker with a prohibition symbol.

Diagram showing a hand holding a zigzag tool with directional control buttons and an icon of a pen-like object.

Technical line drawing of a mechanical component with spring-like grooves and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with spring and mounting holes (no text or symbols)

Illustration of a hand holding a mechanical device with a spring, labeled 'C' (no text or symbols on the device itself)

Technical diagram showing mechanical assembly with labeled parts A and B, including a tool and control panel interface.

Illustration of a person cleaning a wall with a tool, accompanied by two inset images showing glasses and a magnifying glass (no text or symbols)

Delbart riggrör

Diagram showing a mechanical clamp or lever mechanism with directional arrows and control buttons, including a text box labeled 'Control' in the top-left corner.

ADVARSEL!

Line drawing of a person wearing a hard hat and safety gear (no text or symbols)

Illustration of a worker on a ladder holding a tool, crossed out by a circle with no text or symbols

Line drawing of a person using a tool to cut a saw (no text or symbols present)

Line drawing of a person in full protective gear using a long-handled tool (no text or symbols)

Line drawing of a worker in protective gear using a manual tool (no text or symbols)

Illustration showing a person wearing protective gear with a prohibition symbol crossed out, indicating no protection or anti-protection.

Line drawing of a hand holding a saw blade, no text or symbols present

Technical line drawing of a mechanical component with spring-like grooves and mounting bracket (no text or symbols)

Technical line drawing of a mechanical clamp or spring assembly with labeled component B (no text or symbols beyond label)

Illustration of a hand holding a mechanical device with a spring, labeled 'C' (no text or symbols on the device itself)

Technical diagram showing mechanical assembly steps with labeled components A and B, including a control panel and directional indicators.

Bruk av hekksaks

Illustration of a person cleaning a wall with a tool, accompanied by two inset images showing glasses and a magnifying glass (no text or symbols)

Delbart riggrør

Diagram showing a hand holding a tool with liquid droplets, accompanied by an instructional icon with arrows and control buttons.

ADVARSEL!

Line drawing of a person wearing a helmet and safety suit (no text or symbols)

Illustration of a person in protective gear using a diagonal tool to cut a circle, with no text or symbols present.

Line drawing of a person using a tool to cut a saw (no text or symbols present)

Line drawing of a person in protective gear using a long-handled tool (no text or symbols)

Line drawing of a worker in uniform and hard hat using a tool on a machine (no text or symbols)

Illustration of a person in protective gear holding a tool, with a no-smoking symbol overlaid (no text or symbols present)

Line drawing of a hand holding a zigzag tool (no text or symbols)

Technical line drawing of a mechanical component with spring-like grooves and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with threaded spring and mounting holes (no text or symbols)

Illustration of a hand holding a mechanical device with a spring, labeled 'C' (no text or symbols on the device itself)

Technical diagram showing mechanical assembly steps with labeled parts A and B, including directional control buttons and a tool interacting with a spring.

Brug af hækkesaks

Illustration of a person cleaning a stone wall with a tool, accompanied by two inset images showing glasses and a magnifying glass (no text or symbols)

Delt styrestang

Diagram showing a mechanical clamp or lever mechanism with directional arrows and control buttons, likely illustrating a manual press or adjustment process.

VAROITUS!

Line drawing of a person wearing a hard hat and safety gear (no text or symbols)

Illustration of a worker using a power tool to cut a large circle labeled 'No Construction' (no text or symbols on the diagram itself)

Diagram illustrating a hand using a tool to measure a mechanical part, with instructional icons and directional arrows.

Line drawing of a person in protective gear using a long-handled tool (no text or symbols)

Line drawing of a worker in protective gear using a tool (no text or symbols)

Illustration of a person holding a tool with a diagonal line and a circle, no text or symbols present

Diagram illustrating a hand using a tool to adjust a mechanical component, with an icon showing a pen and directional arrow.

Technical line drawing of a mechanical component with spring-like grooves and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with threaded spring and mounting holes (no text or symbols)

Illustration of a hand holding a mechanical device with a spring-like component, no text or symbols present

Technical diagram showing mechanical assembly with labeled parts A and B, including a valve and tool interface.

Illustration of a person cleaning a wall with a tool, accompanied by two inset images showing glasses and a magnifying glass (no text or symbols)

Jaettava runkoputki

Diagram showing a mechanical clamp or lever mechanism with directional arrows and control buttons, likely illustrating a valve or lever system.

WARNUNG!

Line drawing of a person wearing a helmet and full-body suit (no text or symbols)

Illustration of a worker using a power tool to cut a large circle, no text or symbols present

Line drawing of a person using a tool to cut a saw (no text or symbols present)

Illustration showing three different types of hazardous materials: a person using a long-handled tool, a worker in protective gear using a tool, and a worker with a prohibition symbol.

Line drawing of a hand holding a zigzag tool or screwdriver (no text or symbols)

Technical line drawing of a mechanical component with spring-like grooves and mounting bracket (no text or symbols)

Technical line drawing of a mechanical clamp or spring mechanism with no visible text or symbols

Illustration of a hand holding a mechanical device with a spring, labeled 'C' (no text or symbols on the device itself)

Technical diagram showing mechanical assembly with labeled parts A and B, including a tool and control panel interface.

Illustration of a person cleaning a wall with a tool, accompanied by two inset images showing glasses and a magnifying glass (no text or symbols)

Diagram showing a mechanical clamp or connector being inserted into a pipe, with directional control buttons and liquid droplets indicating flow.

ATENÇÃO

Line drawing of a person in protective gear with a helmet and visor icon above (no text or symbols)

Illustration of a worker using a tool to stop a rope, enclosed in a circle with no text or symbols

Line drawing of a person using a tool to measure a mechanical part (no text or symbols present)

Line drawing of a person in full protective gear using a long-handled hedges (no text or symbols)

Line drawing of a worker in protective gear using a tool (no text or symbols)

Illustration of a person holding a tool with a diagonal line inside a circle (no text or symbols)

Line drawing of a hand holding a coiled spring or sawtooth tool (no text or symbols)

Technical line drawing of a mechanical component with spring-like grooves and mounting bracket (no text or symbols)

Technical line drawing of a mechanical component with threaded spring and mounting holes (no text or symbols)

Illustration of a hand holding a mechanical device with a spring, labeled 'C' (no text or symbols on the device itself)

Technical diagram showing mechanical assembly with labeled parts A and B, including directional control buttons and a tool interacting with a spring.

Illustration of a person cleaning a wall with glasses and a magnifying glass (no text or symbols)

Tubo divisível

Diagram showing a mechanical joint or connector being adjusted, with directional arrows and control buttons visible.

ATENCIÓN

Line drawing of a person wearing a helmet and safety suit (no text or symbols)

Illustration of a worker on a ladder with a diagonal line and a circular prohibition symbol (no text or labels)

Line drawing of a person using a tool to measure a mechanical part (no text or symbols)

Line drawing of a person in protective gear using a long-handled tool (no text or symbols)

Line drawing of a worker using a manual power shaver (no text or symbols)

Illustration of a person wearing protective gear holding a tool, with a large no-smoking symbol (no text or labels)

Line drawing of a hand holding a zigzag tool (no text or symbols)

Technical line drawing of a mechanical component with spring-like grooves and mounting bracket (no text or symbols)

Technical line drawing of a mechanical clamp or spring assembly (no text or symbols)

Illustration of a hand holding a mechanical device with a spring, labeled 'C' (no text or symbols on the device itself)

Technical diagram showing mechanical assembly steps with labeled components A and B, including a tool and directional control panel.

Illustration of a person using a tool to clean or store items, with two inset photos showing glasses and a magnifying glass (no text or symbols)

Tubo divisible

Diagram showing a mechanical clamp or lever mechanism with directional arrows and control buttons, indicating movement or force.

WAARSCHUWING!

Line drawing of a person wearing a hard hat and safety suit (no text or symbols)

Illustration of a worker in protective gear using a diagonal tool to cut a circular symbol (no text or symbols present)

Technical diagram showing a person using a hatched tool with directional control buttons and a hand gesture.

Line drawing of a hand holding a zigzag tool or screwdriver (no text or symbols)

Technical line drawing of a mechanical clamp or spring mechanism (no text or symbols)

Technical line drawing of a mechanical clamp or spring assembly (no text or symbols)

Illustration of a hand holding a mechanical device with a spring, labeled 'C' (no text or symbols on the device itself)

Smeren (heggeschaaraccessoire)

Technical diagram showing mechanical assembly with labeled parts A and B, including directional control buttons and a tool interacting with a spring.

Illustration of a person cleaning a wall with a tool, accompanied by two inset images showing glasses and a magnifying glass (no text or symbols)

Deelbare steel

Diagram showing a mechanical joint or connector with directional arrows and control buttons, likely illustrating a process or assembly.

AVERTISSEMENT!

Line drawing of a person wearing a hard hat and safety gear (no text or symbols)

Illustration of a worker on a ladder holding a diagonal tool, enclosed in a circle with no text or symbols

Line drawing of a person using a tool to measure a mechanical part (no text or symbols)

Line drawing of a person in full protective gear using a long-handled tool (no text or symbols)

Line drawing of a worker in protective gear using a tool (no text or symbols)

Illustration of a person wearing protective gear holding a tool, with a large no-smoking symbol overlaid (no text or symbols present)

Line drawing of a hand holding a zigzag tool (no text or symbols)

Technical line drawing of a mechanical component with spring-like grooves and mounting bracket (no text or symbols)

Technical line drawing of a mechanical clamp or spring assembly (no text or symbols)

Illustration of a hand holding a mechanical device with a spring, labeled 'C' (no text or symbols on the device itself)

Technical diagram showing mechanical assembly with labeled parts A and B, including a tool and control panel interface.

Illustration of a person cleaning a stone wall with tools (no text or symbols)

Line drawing of a mechanical clamp or bracket with liquid droplets (no text or symbols)

ATTENZIONE!

Line drawing of a person in protective gear with a helmet and safety emblem (no text or symbols)

Illustration of a worker in protective gear using a diagonal tool to cut through a circle (no text or symbols)

Diagram illustrating a tool path with directional arrows and control buttons, showing hand positioning and movement.

Line drawing of a person in full protective gear using a long-handled hedges (no text or symbols)

Line drawing of a worker in protective gear using a tool (no text or symbols)

Illustration showing a person in protective gear holding a tool, with a prohibition symbol overlaid.

Line drawing of a hand holding a zigzag tool (no text or symbols)

Technical line drawing of a mechanical clamp or spring assembly (no text or symbols)

Technical line drawing of a mechanical clamp or spring assembly (no text or symbols)

Illustration of a hand holding a mechanical device with a spring, labeled 'C' (no text or symbols on the device itself)

Technical diagram showing mechanical assembly with labeled parts A and B, including a tool and control panel inset.

Uso del tosasiepi

Illustration of a person cleaning a wall with a tool, accompanied by two inset images showing glasses and a magnifying glass (no text or symbols)

Diagram showing a mechanical clamp or lever mechanism with directional arrows and control buttons, likely illustrating a manual or mechanical operation.

WARNING!

This accessory may only be used together with the intended clearing saw/trimmer, see under heading “Approved accessories” in chapter “technical data” in the machine’s Operator’s Manual.

Safety instructions for the hedge trimmer attachment

WARNING!

This accessory can cause serious personal injury. Read the safety instructions carefully. Learn how the machine should be used.

WARNING!

Cutting tool. Do not touch the tool without first switching off the engine.

NOTE! Read the Operator's Manual before using the machine.

Personal protection

• Always wear boots, and the other safety equipment described in the section "Personal protective equipment".
  • Always wear working clothes and heavy-duty, long trousers.
• Never wear loose fitting clothes or jewellery.
• Persons with long hair should, for personal safety, put their hair up.

Line drawing of a person wearing a full-body gear and helmet (no text or symbols)

Safety instructions regarding the surroundings

• Never allow children to use the machine.
• Ensure no one comes closer than 15 metres when working.
• Never allow anyone else to use the machine without first ensuring that they have understood the contents of the Operator's Manual.
• Never work on a ladder or any other elevated position.

Illustration of a worker on a ladder holding a diagonal tool, enclosed in a circle with no text or symbols

Safety instructions before starting work

• Inspect the working area. Remove loose objects that can be thrown.

• Check that the hedge trimmer attachment is correctly fitted.

• Check the blades. Never use blunt, cracked or damaged blades.

• Check that the hedge trimmer is in full working order. Check all nuts and bolts.

Line drawing of a person using a tool to cut a saw (no text or symbols present)

• Check that gears have sufficient lubrication. See the section "Lubrication (hedge trimmer attachment)".
• Make sure the blades do not rotate when idling.
• Only use the machine for the purpose it was intended for.
• Make sure the handle and safety features are in order. Never use a machine that has parts missing or has been changed in relation to the specification.

Safety instruction while working

• Always make sure you have a safe and firm foothold.
• Always hold the machine with both hands. Hold the machine to the right of the body.
- Make sure hands and feet do not come into contact with the blade when the engine is running.
- When the engine is switched off keep hands and feet well away from the blades until they have stopped.

• Do not cut too close to the ground. Stones and other loose objects can be thrown.
• If any object is hit or heavy vibrations occur, stop the engine. Remove the spark plug cable from the spark plug. Check that the machine is not damaged. Repair any damage.

Line drawing of a person in protective gear using a long-handled tool (no text or symbols)

Line drawing of a worker in protective gear using a tool (no text or symbols)

Illustration of a person wearing protective gear holding a tool, with a large circle containing a diagonal line (no text or symbols)

Safety instructions after completing work

• The blade guard should always be placed over the blade bar when the machine is not in use.

• Ensure the blades have stopped before cleaning, carrying out repairs or an inspection. Remove the spark plug cable from the spark plug.

• Always wear heavy-duty gloves when carrying out repairs on the hedge trimmer attachment. The blades are extremely sharp and can easily cause cuts.

• Store the machine out of reach of children.
• Only use original spare parts with repair.

Line drawing of a hand holding a zigzag tool (no text or symbols)

Adjusting the hedge trimmer

There are 4 adjuster screws (A) with locking nuts (B) on the blade bar. These control both of the blades in relation to each other and keep the blades together. The play between the blades should be as little as possible to obtain maximum output from the hedge trimmer at the same time as maintaining sharpness. The play should always be under 0.10 mm. This should be carried out after every 20 hours of operation.

Proceed as follows:

1. Loosen all 4 locking nuts (B).

2. Loosen all 4 adjuster screws (A)

3. Place the hedge trimmer attachment in a vice.

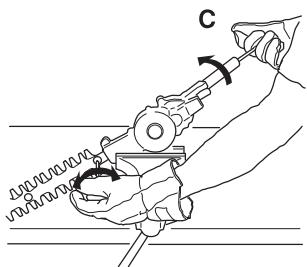

4. Insert a Philips-head screwdriver in the drive axle and rotate the drive axle using the screwdriver. Ensure the blade bar is lubricated.

5. Tighten screw (A) closest to the gear housing at the same time as the axle (C) is rotated. When the rotation of the axle feels stiff loosen the screw (A) a little. Only so much that the drive axle rotates easily.

6. Now loosen screw (A) 1/4 turn.

7. Tighten the locking nut (B). The play between the blades should now be correct. Check once again that the drive axle moves easily.

8. Repeat the adjustment for each of the other 3 adjuster screws and locking nuts.

Technical line drawing of a mechanical component with spring-like grooves and mounting bracket (no text or symbols)

Technical line drawing of a mechanical clamp or spring assembly (no text or symbols)

Illustration of a hand holding a mechanical device with a spring, labeled 'C' (no text or symbols on the device itself)

Lubrication (hedge trimmer attachment)

Lubricate the blade bar using normal engine oil before use. There are two grease nipples on the gear housing. Lubricate with 4-5 strokes using a high pressure grease gun after every 20 hours of operation.

Technical diagram showing mechanical assembly with labeled parts A and B, including a tool and control panel interface.

Using the hedge trimmer

The hedge trimmer is ideal for cutting hedges and bushes in parks and large green areas. As the machine is carried close to the body the strain on the back is less than when using traditional hedge trimmers. The thickness of branches that can be cut depends on the hardness of the plant. The opening between the blades is 23 mm. Always make sure that you have at least half throttle before applying the hedge trimmer on material to be cut. Otherwise there is a risk of jamming and stoppages. See also section “Safety instructions for the hedge trimmer attachment”.

Illustration of a person cleaning a wall with a tool, accompanied by two small inset images showing glasses and a magnifying glass (no text or symbols)

Two-part shaft

The end of the drive axle in the lower shaft should be lubricated with grease every 30 hours. There is a risk that the drive axle ends (splined coupling) on two-part shafts jam if they are not lubricated regularly.

Diagram showing a mechanical clamp or lever mechanism with directional control buttons and motion indicators

ΠΡΟΣΟΧΗ!

Line drawing of a person wearing a hard hat and safety gear (no text or symbols)

Illustration of a worker in protective gear using a diagonal tool to cut through a circle (no text or symbols)

Line drawing of a person using a tool to cut a saw (no text or symbols present)

Line drawing of a person in protective gear using a long-handled hedges (no text or symbols)

Line drawing of a worker in uniform and hard hat using a tool (no text or symbols)

Illustration of a person wearing protective gear holding a tool, with a large circle containing a diagonal line (no text or symbols)

Line drawing of a hand holding a zigzag tool (no text or symbols)

Technical line drawing of a mechanical component with spring-like grooves and mounting bracket (no text or symbols)

Technical line drawing of a mechanical clamp or spring assembly (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Technical diagram showing mechanical assembly with labeled parts A and B, including a tool and control panel inset.

Illustration of a person cleaning a wall with a tool, accompanied by two inset images showing glasses and a magnifying glass (no text or symbols)

Διμερής άξονας

Diagram showing a mechanical clamp or connector with directional arrows and control buttons, likely illustrating a process or assembly.
