USER MANUAL FS 309 HUSQVARNA

Icon of an open book inside a circle (no text or symbols)

FR Manuel d'utilisation - Lire attentivement et bien assimiler le manuel d'utilisation avant d'utiliser la machine.
Operator's manual - Please read the operator's manual carefully and make sure you understand the instructions before using the machine.
DE Bedienungsanweisung - Lesen Sie die Bedienungsanweisung sorgfältig durch und machen Sie sich mit dem Inhalt vertraut, bevor Sie das Gerät benutzen.
IT Istruzioni per l'uso - Prima di usare la macchina, leggere per intero le istruzioni per l'uso e accertarsi di averne compreso il contenuto.
ES Manual de instrucciones - Lea detenidamente el manual de instrucciones y asegúrese de entender su contenido antes de utilizar la máquina.
NL Gebruiksaanwijzing - Neem de gebruiksaanwijzing grondig door en gebruik de machine niet voor u alles duidelijk heeft begrepen.
SE Bruksanvisning - Läs igenom bruksanvisningen noggrant och förstå innehållet innan du använder maskinen.
Instruções para o uso - Leia as instruções para o uso com toda a atenção e compreenda o seu conteúdo antes de fazer uso da máquina.

FS 305

FS 309

FR - ASSURANCE DE CONFORMITÉ UE

GB - EC DECLARATION OF CONFORMITY

Husqvarna AB, SE-433 81 Göteborg, Sweden, tel: [phone], declares under sole responsibility that the Husqvarna FS 305, FS 309 dating from 2010 serial numbers and onwards (the year is clearly stated on the rating plate, followed by the serial number), complies with the requirements of the COUNCILÍS DIRECTIVE:

• of May 17, 2006 "relating to machinery" 2006/42/EC
- of December 15, 2004 "relating to electromagnetic compatibility" 2004/108/EC.
- of May 8, 2000 "relating to the noise emissions in the environment" 2000/14/EC.

The following standards have been applied: EN ISO 12100:2003, EN 55014-1:2006, EN 55014-2/A1:2001, EN 61000-3-2:2006, EN 61000-3-3/A1/A2:2005, EN 13862/A1:2009.

Huskvarna December 29, 2009

Henric Andersson

Vice President, Head of Power Cutters and Construction Equipment (Authorized representative for Husqvarna AB and responsible for technical documentation.)

Note 1: Noise emissions in the environment measured as sound power ( L_WA ) in conformity with EC directive 2000/14/EC.
Note 2: Noise pressure level according to EN 13862. Reported data for noise pressure level has a typical statistical dispersion (standard deviation) of 1.0 dB(A).
Note 3: Vibration level according to EN 13862. Reported data for vibration level has a typical statistical dispersion (standard deviation) of 1 m/s^2 .

GB - Environmental Information

The symbol 📁 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council office, your household waste disposal service or the shop where you purchased the product.

Technical diagram of a mechanical power tool with numbered parts for identification

Technical diagram of a mechanical device with labeled parts M and M, showing assembly or assembly details.

FIG. 2 ABB. 2

A E B C D FIG. 3

FIG. 3 ABB. 3

Technical diagram of a lawn mower with labeled parts including lawn, blade, and tool

FIG. 4 ABB. 4

Technical diagram of a mechanical assembly with labeled parts S and N, likely illustrating engine or motor components.

FIG. 5 ABB. 5

Manutention - Transport

This symbol indicates that the machine is in conformance with the applicable European directive.

MANDATORY

INDICATION INFORMATION INSTRUCTION

WARNING

PROHIBITION

These signs give advice concerning your safety

Instruction plate

MANUFACTURER TYPE TYPE N° SERIE SERIAL WEIGHT MASSE UTILE Kg ANNEE DE FABRICATION PUISSANCE kW POWER MAXI TOOL Ø MAXI OUTIL mm PLAGE DE TENSION V BORE Ø ALESAGE mm FREQUENCY Hz SPEED T/MN - RPM INT. UTIL. A INTENSITY

SPECIAL INSTRUCTIONS

The disc cutter is designed to provide safe and reliable service in operating conditions corresponding with the instructions, but it can present dangers for the user and risks of damage, consequently regular on site inspection is necessary to ensure :

• Perfect technical condition (use for the purpose for which it is intended and taking into account any risks, and correction of any malfunction detrimental to safety).
• Use a diamond disk for cutting with water (sawing new or old concrete, tarmac or asphalt). No other type of disk is allowed (abrasive, saw, etc...).
• Competent staff (qualifications, age, training) who have read and understood the manual in detail before starting work: any electrical, mechanical or other problem should be investigated by a qualified maintenance engineer (electrician, maintenance manager, approved dealer, etc...).
• That the warnings and instructions marked on the machine are followed (adequate personal protection, correct use, general safety instructions, etc).
• That no modification, transformation or addition is detrimental to safety and that it is carried out without prior authorization from the manufacturer.
• Respect of the maintenance intervals and periodical checks recommended.
• That only genuine spare parts are used for repairs.

FAILURE TO COMPLY WITH THESE WARNINGS COULD RESULT IN DEATH OR SERIOUS BODILY INJURY.

DO

DO carefully read and understand all the instructions before operating the saw.
DO always keep all guards in place.
DO aways wear safety approved hearing, eye, head and respiratory protection.
DO keep all parts of your body away from the blade and all other moving parts.
DO know how to stop the saw quickly in case of an emergency.
DO shut off the engine and allow it to cool before refueling.
DO inspect the blade, flanges and shafts for damage before installing the blade.
DO use only blades marked with a maximum operating speed greater than the blade shaft speed.
DO use caution and follow the instructions when loading and unloading the saw.

DO NOT

DO NOT allow other persons to be near the saw when starting, refueling or when cutting.
DO NOT operate gasoline engines in an enclosed area unless it is properly vented.
DO NOT use damaged equipment or blades.
DO NOT operate the saw in areas of combustible material. Sparks from the saw could cause a fire or an explosion.
DO NOT allow blade exposure from the guard to be over 180 degrees.
DO NOT leave the saw unattended with the motor running.
DO NOT operate the saw while under the influence of drugs or alcohol.

Use

• Utilisation : sawing with sprinkling of fresh, old or coated (asphalt) concrete.
• Tools : Water-cooled diamond-impregnated discs - ∅ 350 mm - bore 25.4 mm.

(Details from your usual supplier).

Description of the machine [FIG. 1]

1. Handle
2. Motor stop
3. Lowering handwheel
4. Graduated scale
5. Engine
6. Engine oil drain
7. Front guide
8. Belt cover
9. Disk casing
10. Service spanner
11. Water intake tap
12. Tank (17 litres)

Handling - Transport

Switch off the disk prior to moving the machine on jobsite.

Remove the disk prior to hoisting, loading, unloading and transporting the machine on jobsite.

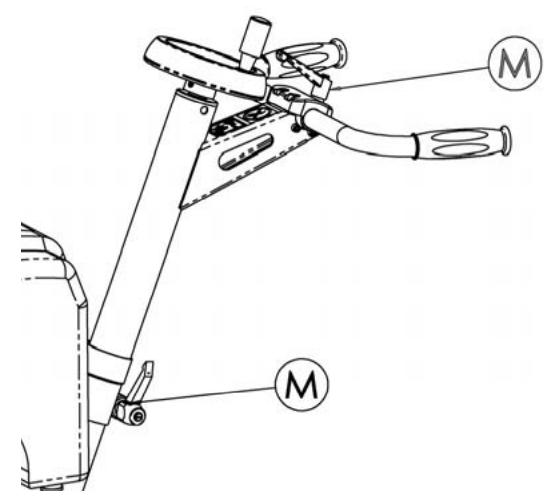

Height of adjustable handlebars (unscrew the lever (M)) [SEE FIG. 2].

• The ground-saw only needs pushing to move it into position on the site. It is easy to move on its four wheels, without starting the motor.
• The handwheel (K) locks the machine itself in the high position.
• Light weight, compact, transportable in a vehicle by one person.

Check before starting

Please read the instructions for use prior to operating the machine for the first time.

Motor off.

The working area must be completely cleared, well lit and all safety hazards removed (no water or dangerous objects in the vicinity)

The operator must wear protective clothing appropriate to the work he is doing. We recommend that this includes both eye and ear protection

The use of ear protection is mandatory.

Any persons not involved in the work should leave the working area

Use only blades marked with a maximum operating speed greater than blade shaft speed

Take into account the working conditions from health and safety point of view.

• Model with petrol motor (refer to the motor maintenance manual).
  ■ Make sure the fuel is topped up.
  ■ Check the oil level; as the motor often works at an angle, check it frequently in the horizontal position that the oil level is never below the second line on the gauge.
  ■ To start up, refer to the motor instructions.

Fitting the blade

Motor off

• Place the machine in an high position.

• Make sure the engine is switched off.

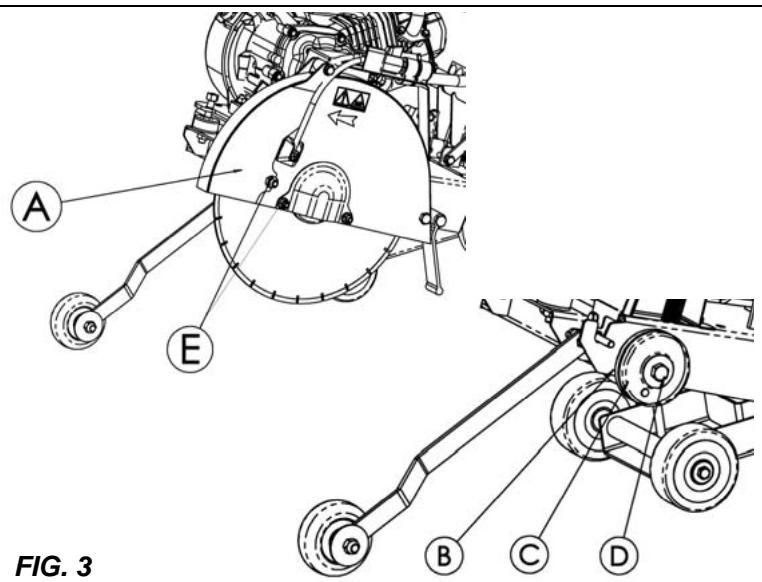

• Unscrew the nuts (E) from the guard housing [SEE FIG. 3].

• Remove the guard housing (A).
• Fit the diamond impregnated disc.

Note the direction of rotation indicated by an arrow on one side of the disc (direction of rotation shown on the outside of the guard housing).

Check the state of cleanliness of the disc support faces of the adaptor plates (B and C) and of the spindle.

• Firmly tighten the screw (D) with the spanner provided with the machine, holding the disc steady by hand.
• Replace the protective guard (if this is not replaced the casing safety switch will prevent the saw being started).
• Reconnect the water hose (mains with valve or tank).
• Tighten the nut (E).

The holding screw (D) of the disc has a right-hand thread.

Starting up

Always pay extreme care and attention to the preparation of the machine before starting up

Remove all adjustment tools and wrenches from floor and machine

Always keep blade guard in place

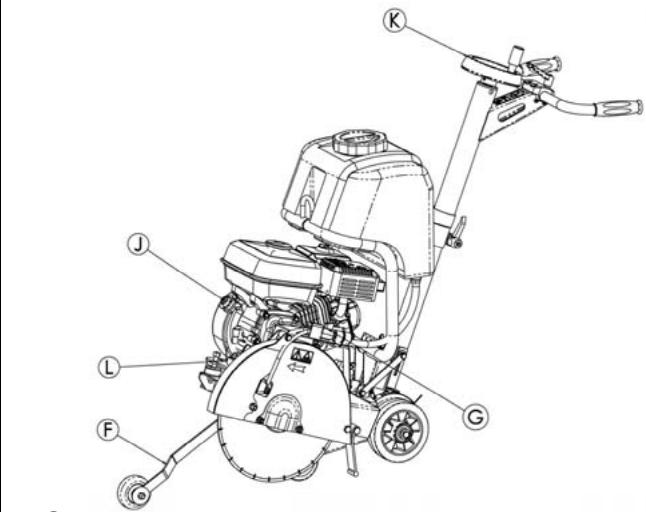

• Turn off the water tap (G) (from the mains or from the tank in order to fill it) [SEE FIG. 4].
• Mark out a line on the ground where a cut has to be made.
• Position the machine so that the lowered front guide (F) and the disc are aligned with the line marked out (disc visible on the belt side of the housing).
• Start up the motor : refer to the motor manufacturer's instructions in the service manual.
• Allow the motor to warm up.
• Turn on the water supply tap (G) (from the mains or the water tank).
• Increase the motor speed to full.
• Hold the saw, turn the handwheel (K) and position the disk in contact with the floor.
• Lower to the depth of cut required, and bearing in mind that each graduation of the scale corresponds to a depth of 1cm. Lower slowly to prevent the engine stalling.
• Gently move the machine forward ensuring that the front guide and the disc are always aligned with the line marked out.

Ensure that the water supply is abundant, when cutting wet.

Stopping the machine

Motor off

• Turn the handwheel (K) to free the disk from the groove [SEE FIG. 4]
• No need to lock the saw up by releasing the handwheel (K).
• Turn off the water supply (G).
• Allow the motor to run idle.
• Switch off the motor (refere to the motor maintenance manual).

Emergency stop

Operate the switch (J) in front of the engine.

Incidents during sawing

- There may be several causes responsible for arresting the disc in the sawing groove or stopping the machine:

■ Belt tension.
■ Lack of fuel.
■ Advance or lowering too fast, etc.

- In all case, disengage the disc from the groove and give the machine a complete check-over.

Entrust repairs to authorised dealer only

Maintenance (with the engine stopped)

"Engine Maintenance": refer to the engine maintenance booklet.

• After use, clean the machine.
- Lubrication : apply a moderate amount of bearing lubricant to the nipples in the depth adjustment chassis (depending on the frequency of use).

OIL

- Check the engine oil everyday. Refer to the engine manual for oil change schedule. Use :

■ SAE 10W30 motor oil with API class MS, SD, SE or better for PETROL engines.
■ API class CD or CE for Hatz diesel.

Dispose of the old oil as laid down by the regulations in force.

- To change the oil, remove the disk, lower the saw to the lowest position and then place the tray by the drain outlet (L) [SEE FIG. 4].

Store in a safe place, out of reach of children

Maintain tools carefully

AIR FILTER

• Read engine owners manual for maintenance intervals. For extremely dusty conditions you may have to clean the air filter element 2 to 3 times a day.
• Replace any damaged filters or gaskets.

Store in a safe place out of reach of children.

Remove all adjustment tools and wrenches

Store diamond tool in a safe place so it cannot be bent or damaged.

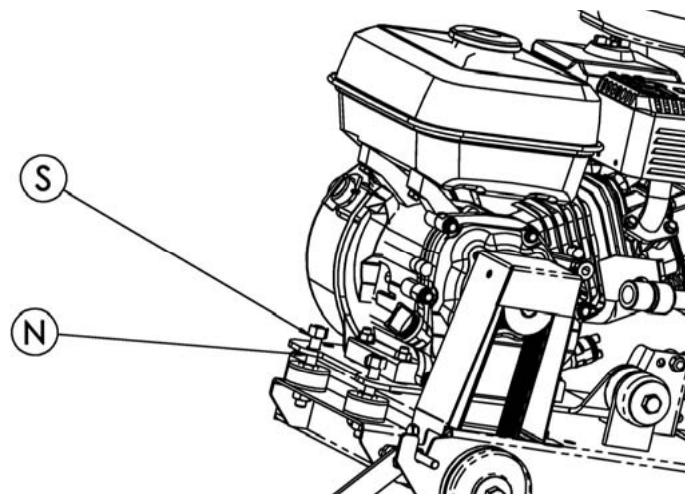

11 Engine belt tension

It may be necessary after using a few times to retention the belts, without over-tightening them. To do this :

• loosen the 2 nuts (S) fixing the motor to the chassis, without removing them [SEE FIG. 5];
• tighten the tensioning nuts (N), these screws pull the motor up.
• at normal tension, tighten the motor fixing nuts (S).

12 Important advice

• Periodically, tighten the nuts and bolts and particularly after the first few hours of use.
• Check belt tensions, tighten them without overdoing it.
• When garaged, it is recommended the disc be removed and suitably stored.
• Make sure the disc is correctly tightened.
• Make sure the disc supports surfaces, the adaptor plates and the spindle are kept clean.

The manufacturer declines all responsibility for loss or damage resulting from misuse or any modification, alteration or powering that does not conform to the manufacturer's original specifications.

At the work station, the sound pressure level may exceed 85 db (A)

In this case individual protection measures must be taken.

When working in a limited or closed area, make sure that the ventilation is adequate. The exhaust gases contain carbon monoxide (exposure to this toxic gas can cause loss of consciousness and can be fatal).

13 Repairs

We carry out all repairs in the shortest possible time and at the most economical prices (see overleaf for our address).

14 Spare parts

For quick supply of spare parts and to avoid any lost time it is essential to quote the data on the manufacturer's plate fixed to the machine and the part number of the part to be replaced with every order.

See exploded view

15 Scrapping

In the event of deterioration and scrapping of the machine, the following items must be disposed of in accordance with the requirements of the legislation in force.

- Main materials :

• Motor : Aluminium (AL), Steel (AC), Copper (CU), Polyamide (PA)
  • Machine : Steel sheet (AC), Cast iron (FT) Aluminium (AL)

The instructions for use and spare parts found in this document are for information only and are not binding.

As part of our product quality improvement policy, we reserve the right to make any and all technical modifications without prior notice.

Handhabung - Transport

Hantering – transport

WARRANTY CONDITIONS

1. PERIODThe warranty is acknowledged as of the date of purchase (date of the invoice of the distributor) and is valid for a period of 12 months.

2. WARRANTYThe warranty is limited to the free of charge replacement of parts recognised as defective by Husqvarna (excluding wear components and consumables) providing the repair is made within after-sales service of Husqvarna or a recognised Husqvarna repair centre.

The manufacturer is not responsible for any direct or indirect, material or immaterial, damages caused to persons or things by failure of the machine or the non operation of the machine.

3. WARRANTY CONDITIONSTo benefit the warranty, it is necessary to return the joined warranty certificate, duly completed, to Husqvarna within eight days of the purchase.In case of failure of the machine during the warranty period, our after-sales services will inform you of the appropriate and most effective method of dealing with your claim and advise you if necessary of your nearest approved service centre.As an alternative, you may return, at your cost, the machine together with a written description of the problem and damages with a copy of the invoice directly to our after sales department where upon a full investigation will be instigated without delay.

4, EXCLUSIONSWarranty will not be applied for damages or failures caused by:- incorrect use, error in transportation, handling or maintenance,- use of incorrect fuel or lubricants not advised by Husqvarna,- use of non-genuine parts or accessories,- repairs made by non approved service centres,- use of incorrect specifications of cutting tools. (We suggest the use of Husqvarna tools).

The goods are returned at the sole responsibility of the Buyer who must appeal against the transporter in the usual manner without delay.

Español

Theorem 1.2. (A) Let f be a finite field and let g be the set of all elements of f . Then

Chardith, and the Morlhan, are a good choice of the

Warranty certificate

- Certificat de garantie

• Garantie-Zertifikat

Place here CE sticker with serial N°

To benefit from the warranty, it is mandatory to return, within eight days after the purchase, the attached warranty certificate.

Warranty certificate

Certificat de garantie • Garantie-Zertitikat • Certificato di garanzia • Garantie bewijs • Certificado de garantia • Certificado de garantia • Garanticertifikat

Company :

Société • Gesellschaft • Societa • Maatchappij • Sociedade • sociedad • Företag

Address :

Adresse • Adresse • indirizzo • Adres • Endereco • Direccion • Adress

Date of Acquisition :

Date d'achat • Datum des Kaufs • Data di acquisto • Datum van aankoop • Data de compra • Fecha de comprar • Inköpsdatum

Machine Type :

Type de la machine • Maschinen Type • Tipo della macchina • Machine Type • Tipo de maquina • Tipo de maquina • Maskintyp

Machine Serial Nr :
